# Time-Domain Studies of General Dispersive Anisotropic Media by the Complex-Conjugate Pole–Residue Pairs Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Formulation

- Update ${H}_{x}$, ${H}_{y}$ and ${H}_{z}$;
- Store the current values of ${E}_{x}$, ${E}_{y}$ and ${E}_{z}$;
- Update ${E}_{x}$, ${E}_{y}$ and ${E}_{z}$;
- Update ${Q}_{pxx}$, ${Q}_{pxy}$ and ${Q}_{pxz}$;
- Update ${Q}_{pyx}$, ${Q}_{pyy}$ and ${Q}_{pyz}$;
- Update ${Q}_{pzx}$, ${Q}_{pzy}$ and ${Q}_{pzz}$.

## 3. Applications and Numerical Results

#### 3.1. Propagation in Magnetized Plasma

#### 3.2. Terahertz Wave Propagation through a Nematic Liquid Crystal Cell

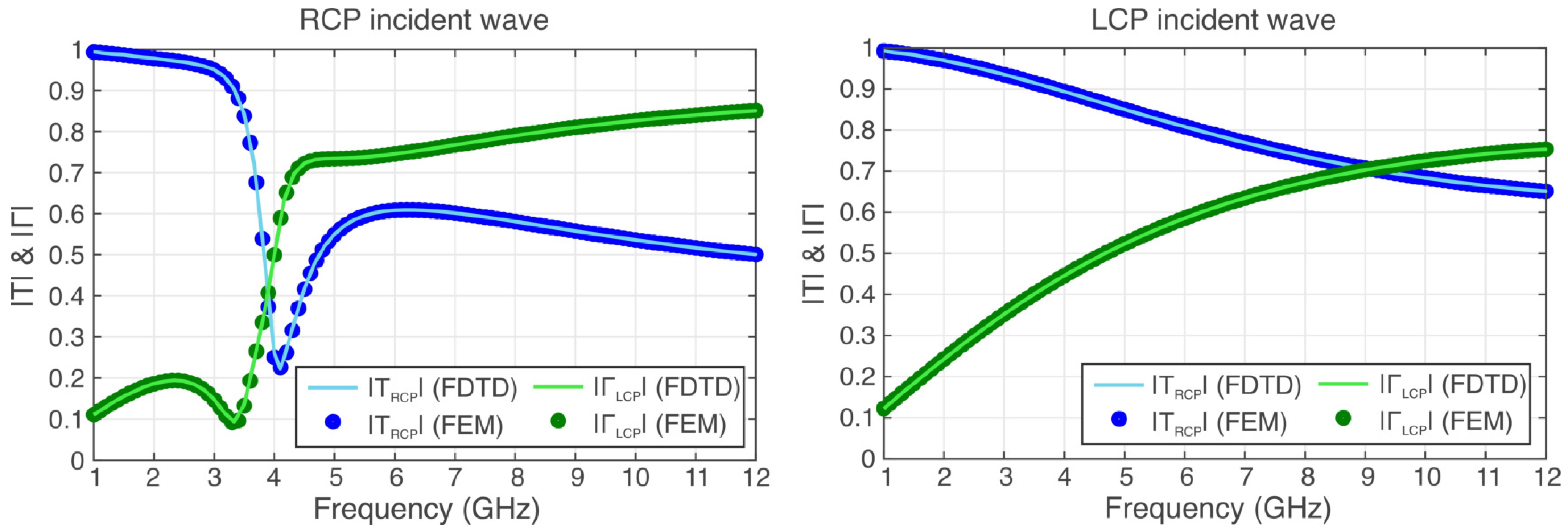

#### 3.3. Propagation in Ferrites

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Inan, U.; Marshall, R. Numerical Electromagnetics: The FDTD Method; Cambridge University Press: Cambridge, UK, 2011. [Google Scholar]
- Young, J.L.; Nelson, R.O. A summary and systematic analysis of FDTD algorithms for linearly dispersive media. IEEE Antennas Propag. Mag.
**2001**, 43, 61–126. [Google Scholar] [CrossRef] - Hunsberger, F.; Luebbers, R.; Kunz, K. Finite-difference time-domain analysis of gyrotropic media. I. Magnetized plasma. IEEE Trans. Antennas Propag.
**1992**, 40, 1489–1495. [Google Scholar] [CrossRef] - Huang, S.J.; Li, F. FDTD Simulation of Electromagnetic Propagation in Magnetized Plasma Using Z Transforms. Int. J. Infrared Millim. Waves
**2004**, 25, 815–825. [Google Scholar] [CrossRef] - Mosallaei, H. FDTD-PLRC technique for modeling of anisotropic-dispersive media and metamaterial devices. IEEE Trans. Electromagn. Compat.
**2007**, 49, 649–660. [Google Scholar] [CrossRef] - Nayyeri, V.; Soleimani, M.; Rashed Mohassel, J.; Dehmollaian, M. FDTD Modeling of Dispersive Bianisotropic Media Using Z-Transform Method. IEEE Trans. Antennas Propag.
**2011**, 59, 2268–2279. [Google Scholar] [CrossRef] - Al-Jabr, A.A.; Alsunaidi, M.A.; Khee, T.; Ooi, B.S. A Simple FDTD Algorithm for Simulating EM-Wave Propagation in General Dispersive Anisotropic Material. IEEE Trans. Antennas Propag.
**2013**, 61, 1321–1326. [Google Scholar] [CrossRef] [Green Version] - Zografopoulos, D.C.; Prokopidis, K.P.; Dąbrowski, R.; Beccherelli, R. Time-domain modeling of dispersive and lossy liquid-crystals for terahertz applications. Opt. Mater. Express
**2014**, 4, 449. [Google Scholar] [CrossRef] - Xi, X.; Li, Z.; Liu, J.; Zhang, J. FDTD Simulation for Wave Propagation in Anisotropic Dispersive Material Based on Bilinear Transform. IEEE Trans. Antennas Propag.
**2015**, 63, 5134–5138. [Google Scholar] [CrossRef] - Han, M.; Dutton, R.; Fan, S. Model dispersive media in finite-difference time-domain method with complex-conjugate pole-residue pairs. IEEE Microw. Wirel. Compon. Lett.
**2006**, 16, 119–121. [Google Scholar] - Michalski, K. On the Low-Order Partial-Fraction Fitting of Dielectric Functions at Optical Wavelengths. IEEE Trans. Antennas Propag.
**2013**, 61, 6128–6135. [Google Scholar] [CrossRef] - Choi, H.; Baek, J.-W.; Jung, K.-Y. Numerical Stability and Accuracy of CCPR-FDTD for Dispersive Media. IEEE Trans. Antennas Propag.
**2020**, 68, 7717–7720. [Google Scholar] [CrossRef] - Prokopidis, K.P.; Zografopoulos, D.C. Time-domain numerical scheme based on low-order partial-fraction models for the broadband study of frequency-dispersive liquid crystals. J. Opt. Soc. Am. B
**2016**, 33, 622–629. [Google Scholar] [CrossRef] - Prokopidis, K.P.; Zografopoulos, D.C. One-Step Leapfrog ADI-FDTD Method Using the Complex-Conjugate Pole-Residue Pairs Dispersion Model. IEEE Microw. Wirel. Compon. Lett.
**2018**, 28, 1068–1070. [Google Scholar] [CrossRef] - Prokopidis, K.P.; Zografopoulos, D.C. A Unified FDTD/PML Scheme Based on Critical Points for Accurate Studies of Plasmonic Structures. J. Light. Technol.
**2013**, 31, 2467–2476. [Google Scholar] [CrossRef] - Prokopidis, K.P.; Zografopoulos, D.C. Investigation of the Stability of ADE-FDTD Methods for Modified Lorentz Media. IEEE Microw. Wirel. Compon. Lett.
**2014**, 24, 659–661. [Google Scholar] [CrossRef] - Rekanos, I.T.; Papadopoulos, T.G. FDTD Modeling of Wave Propagation in Cole–Cole Media With Multiple Relaxation Times. IEEE Antennas Wirel. Propag. Lett.
**2010**, 9, 67–69. [Google Scholar] [CrossRef] - Rekanos, I.T. FDTD Modeling of Havriliak-Negami Media. IEEE Microw. Wireless Compon. Lett.
**2012**, 92, 49–51. [Google Scholar] [CrossRef] - Gustavsen, B.; Semlyen, A. Rational approximation of frequency domain responses by vector fitting. IEEE Trans. Power Deliv.
**1999**, 14, 1052–1061. [Google Scholar] [CrossRef] [Green Version] - Liu, D.; Michalski, K.A. Comparative study of bio-inspired optimization algorithms and their application to dielectric function fitting. J. Electromagn. Waves Appl.
**2012**, 30, 1885–1894. [Google Scholar] [CrossRef] - Garcia-Vergara, M.; Demésy, G.; Zolla, F. Extracting an accurate model for permittivity from experimental data: Hunting complex poles from the real line. Opt. Lett.
**2017**, 42, 1145–1148. [Google Scholar] [CrossRef] [Green Version] - Ishimaru, A. Electromagnetic Wave Propagation, Radiation, and Scattering: From Fundamentals to Applications; IEEE Press Series on Electromagnetic Wave Theory; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2017. [Google Scholar]
- Roden, J.A.; Gedney, S.D. Convolution PML (CPML): An efficient FDTD implementation of the CFS-PML for arbitrary media. Microw. Opt. Technol. Lett.
**2000**, 27, 334–339. [Google Scholar] [CrossRef] - Stallinga, S. Berreman 4 × 4 matrix method for reflective liquid crystal displays. J. Appl. Phys.
**1999**, 85, 3023–3031. [Google Scholar] [CrossRef] - Zografopoulos, D.C.; Prokopidis, K.P.; Tofani, S.; Chojnowska, O.; Dąbrowski, R.; Kriezis, E.E.; Beccherelli, R. An ADE-FDTD Formulation for the Study of Liquid-Crystal Components in the Terahertz Spectrum. Mol. Cryst. Liq. Cryst.
**2015**, 619, 49–60. [Google Scholar] [CrossRef] - Prosvirnin, S.L.; Dmitriev, V.A. Electromagnetic wave diffraction by array of complex-shaped metal elements placed on ferromagnetic substrate. Eur. Phys. J. Appl. Phys.
**2010**, 49, 33005. [Google Scholar] [CrossRef]

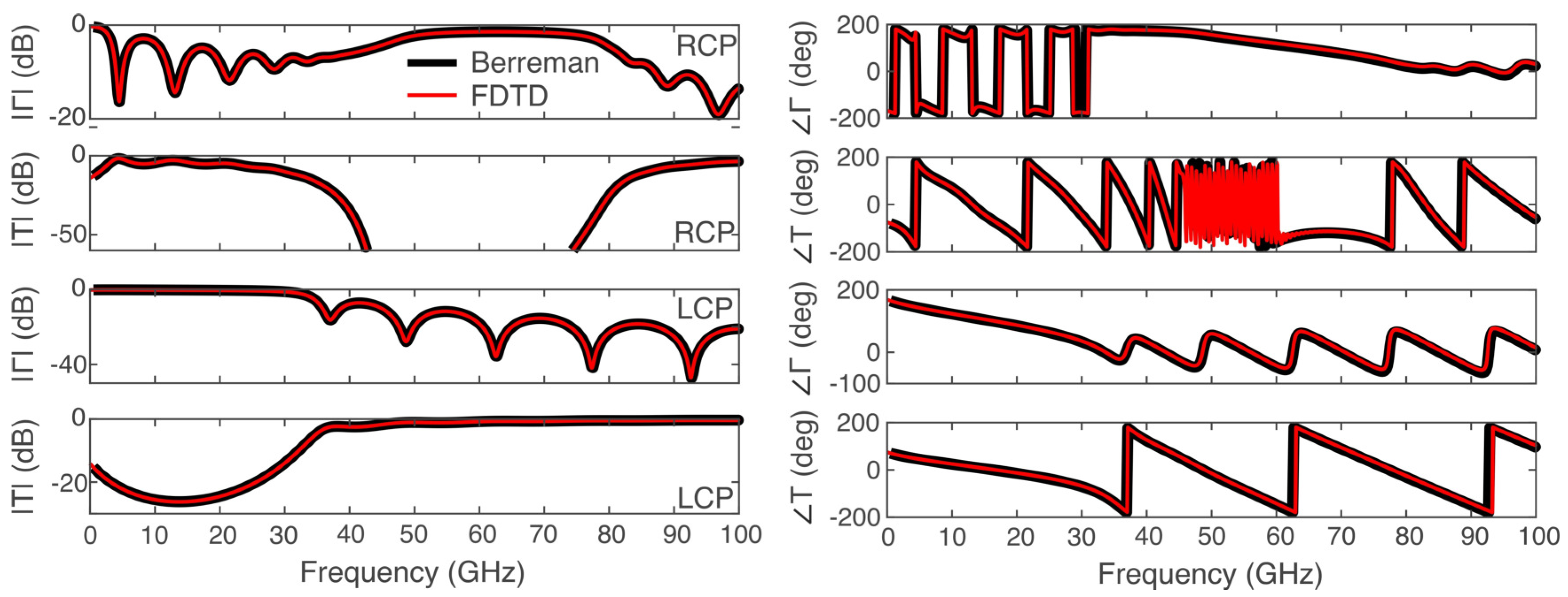

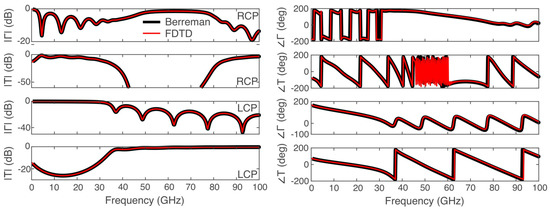

**Figure 1.**The magnitude and phase of the transmission/reflection coefficients for RCP/LCP waves propagating through magnetized plasma calculated by the proposed FDTD method and the Berreman $4\times 4$ matrix method.

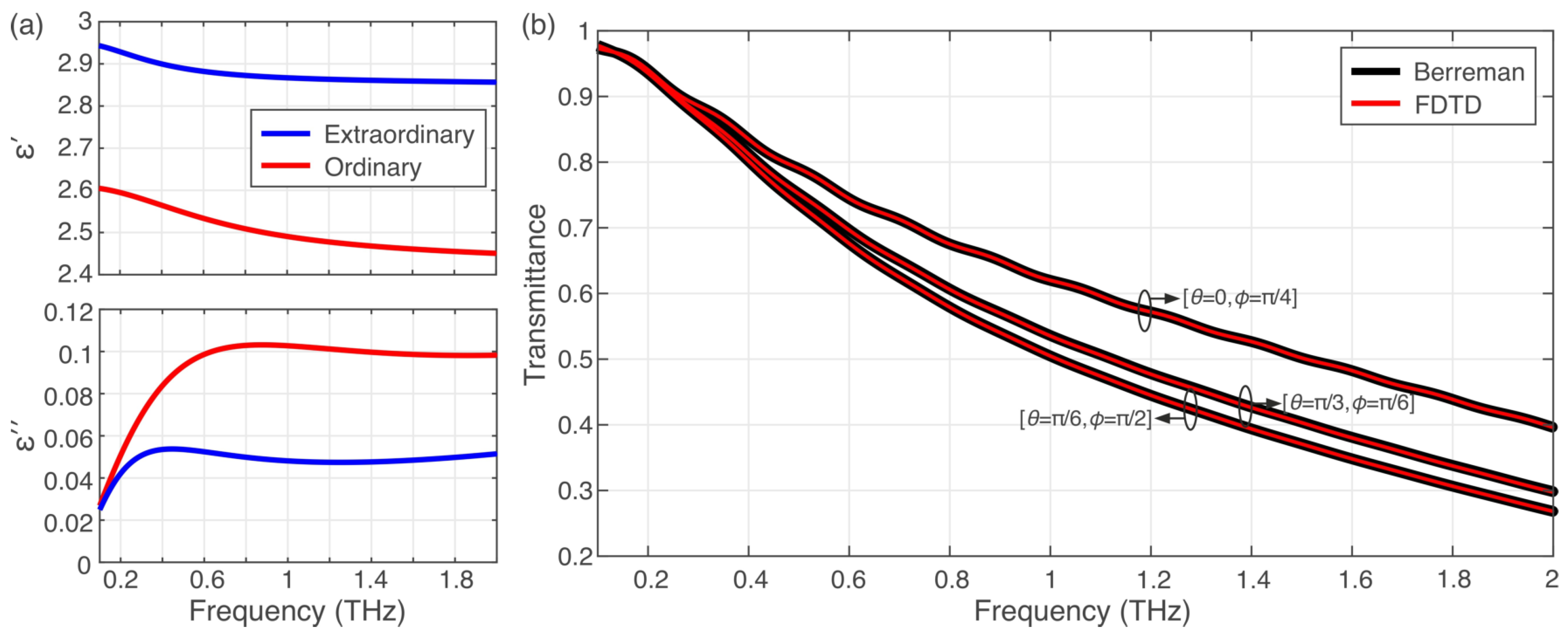

**Figure 2.**(

**a**) The ordinary and extraordinary relative permittivities of 5CB in the low THz spectrum. (

**b**) Transmittance calculated by the proposed FDTD method and the Berreman method.

Model | Expression | Parameters of the CCPR Model: $\mathit{\sigma}$, (${\mathit{c}}_{\mathit{p}},{\mathit{a}}_{\mathit{p}}$) |
---|---|---|

Drude | $\frac{{\omega}_{p}^{2}}{j\omega (j\omega +\nu )}$ | ${\epsilon}_{0}{\omega}_{p}^{2}/\nu $, ($-0.5{\omega}_{p}^{2}/\nu ,-\nu $) |

Debye | $\frac{\Delta \epsilon}{1+j\omega \tau}$ | 0, $(0.5\Delta \epsilon /\tau ,-1/\tau $) |

Lorentz | $\frac{\Delta \epsilon {\omega}_{p}^{2}}{{\omega}_{p}^{2}+j\omega \delta +{\left(j\omega \right)}^{2}}$ | 0, $\left(\right)$ |

Critical Points | ${A}_{p}{\Omega}_{p}\left({\displaystyle \frac{{e}^{j{\varphi}_{p}}}{{\Omega}_{p}+\omega -j{\Gamma}_{p}}}\right)$ $\left(\right)$ | 0, $\left(\right)$ |

Sellmeier | $\frac{B{\lambda}^{2}}{{\lambda}^{2}-C}},\lambda ={\displaystyle \frac{\omega}{2\pi c}$ | 0, $\left(\right)$ |

Modified Lorentz | $\frac{{a}_{0}+j{a}_{1}\omega}{{b}_{0}+j\omega {b}_{1}+{\left(j\omega \right)}^{2}}$ | 0, $({c}_{p}={\displaystyle \frac{{a}_{0}+{a}_{p}\phantom{\rule{0.166667em}{0ex}}{a}_{1}}{{a}_{p}-{a}_{p}^{*}}}$, ${a}_{p}={\displaystyle \frac{1}{2}}\left(\right)open="("\; close=")">-{b}_{1}+j\sqrt{4{b}_{0}-{b}_{1}^{2}}$ or 0, $({c}_{p1}={\displaystyle \frac{{a}_{0}+{a}_{p1}\phantom{\rule{0.166667em}{0ex}}{a}_{1}}{{a}_{p1}-{a}_{p2}}},{a}_{p1}=0.5\left(\right)open="("\; close=")">-{b}_{1}+\sqrt{{b}_{1}^{2}-4{b}_{0}}$, ${c}_{p2}={a}_{1}-{c}_{p1}$, ${a}_{p2}=0.5\left(\right)open="("\; close=")">-{b}_{1}+\sqrt{{b}_{1}^{2}-4{b}_{0}}$ |

Tensor Element | Parameters: $\mathit{\sigma}$, (${\mathit{c}}_{\mathit{p}},{\mathit{a}}_{\mathit{p}}$) |
---|---|

${\epsilon}_{xx}$ | ${\epsilon}_{0}{\displaystyle \frac{{\omega}_{p}^{2}v}{{v}^{2}+{\omega}_{b}^{2}}}$, $\left(\right)$ |

${\epsilon}_{xy}$ | $-{\epsilon}_{0}{\displaystyle \frac{{\omega}_{p}^{2}{\omega}_{b}}{{v}^{2}+{\omega}_{b}^{2}}}$, $\left(\right)$ |

${\epsilon}_{zz}$ | ${\epsilon}_{0}{\omega}_{p}^{2}/v$, ($-0.5{\omega}_{p}^{2}/{v}^{2},-v$) |

Tensor’s Element | Parameters: $\mathit{\sigma}$, (${\mathit{c}}_{\mathit{p}},{\mathit{a}}_{\mathit{p}}$) |
---|---|

${\mu}_{xx},{\mu}_{yy}$ | $0,(-0.5j{\omega}_{M},j{\omega}_{0})$ |

${\mu}_{xy}$ | $0,(0.5{\omega}_{M},j{\omega}_{0})$ |

${\mu}_{yx}$ | $0,(-0.5{\omega}_{M},j{\omega}_{0})$ |
