Toxic Effects of Heavy Metals and Organic Polycyclic Aromatic Hydrocarbons in Sediment Porewater on the Amphipod Hyalella azteca and Zebrafish Brachydanio rerio Embryos from Different Rivers in Taiwan

Abstract

The amphipod (Hyalella azteca) and zebrafish (Brachydanio rerio) embryos were used for toxicological sediment porewater testing. Porewaters from 35 sampling stations of eight streams in southern Taiwan were screened for toxic effects and their relationship with 6 metal and 16 polycyclic aromatic hydrocarbons (PAHs). Concentration analysis results showed that the following PAHs, naphththalene, benzo(b)fluoranthene, dibenz(a,h)anthracene, acenaphthalene, and the heavy metal cadmium were not detected in 35 sampling stations. The highest detection rate of 94.1% was caused by the PAHs fluoranthene and pyrene. The highest detection rate of the metal zinc was 88.6% of 35 analyzed samples. The majority of samples (88%) were classified as level tier 1 according to USEPA national sediment inventory. This indicates the probability of adverse effects on aquatic life or human health. The results of a zebrafish embryo test showed that heart rate and survival were significantly reduced with all porewater samples. Therefore, fish exposed to contaminated river conditions may be affected in their cardiovascular functions. Looking at correlations between toxic effects of metals and PAHs, we found that phenanthrene, anthracene, pyrene, benzo(a)anthracene, chrysene, benzo(b)fluoranthene, and benzo(a)pyrene were low, while fluorene was highly correlated with toxic effects of metals.

1. Introduction

Sediments are deposits on the bottom of a water body and are naturally composed of sand, clay, soil, organic matter, and other minerals [1,2]. Sediments are also a sink, reservoir, and source of pollutants that harm natural water bodies and aquatic organisms [3,4,5]. Various chemical substances accumulate in sediments, which proves toxic effects on aquatic habitats and ecosystems [6]. Sediment porewater is defined as the water occupying the space between sediment particles which constantly remains in contact with sediments. Therefore, pollutants may be exchanged between sediment and porewater through dynamic equilibrium distribution [7]. Sediment particles are also where the benthic burrowing organisms depend on their livelihoods, so porewater is considered as an important toxic exposure pathway for benthic organisms [8], but chemical data can also directly provide relevant information for the interpretation of sediment toxicity data [6]. In recent years, porewater has become a valuable tool for evaluating the mobility, bioavailability, and toxicity of various pollutants [8,9,10,11].

Generally, indications provided from chemical analysis and biological exposure are used to evaluate whether—pollutants cause toxicity to organisms. Benthic communities are frequently used as indicators for watershed biomonitoring [12,13]. More recently, scientists studied the distribution and toxic effects of heavy metals and PAHs [14,15,16,17,18,19,20]. Micropollutants such as metals and organics can affect benthic communities by altering their physiology as well as their structure [20,21]. Polycyclic aromatic hydrocarbons (PAHs) are a class of the most important organic compounds containing stable aromatic rings as their molecular skeleton. They are lipophilic, carcinogenic, and have a tendency to adsorb to sediment particles [22,23,24]. They are not easy to degrade in the environment [23,25]. The main sources of PAH contamination are oil spills and hospital and municipal discharge. PAHs also accumulate in the organs of fish or other aquatic organisms, possibly with different affinities to different organs and tissues (e.g., the concentration of PAHs in gill may be greater than in muscle) [26,27]. This way, they are seriously endangering environmental integrity and human health. Approximately 130 PAHs have been identified [28]. The US EPA has classified 16 of the PAHs as priority-pollutants based on toxicity, their potential for human exposure, frequency of occurrence at hazardous waste sites, and the extent of information availability. These include: naphthalene, acenaphthylene, acenaphthene, fluorene, phenanthrene, anthracene, fluoranthene, pyrene, benzo[a]anthracene, chrysene, benzo[b]fluoranthene, benzo[k]fluoranthene, benzo[a]pyrene, benzo[g,h,i] perylene, indeno [1,2,3-c,d]pyrene, and dibenz[a,h]anthracene [29]. Among them, benzo(a)pyrene is currently regarded as most toxic according to the toxic equivalent quantity (TEQ) due to its highest potency in terms of carcinogenicity [30].

Metals and metalloids are collectively referred to as heavy metals [31]. Some heavy metals, also called trace metals (e.g., Mn, Fe, Co, Ni), are essential to organisms, while other heavy metals (e.g., Cd, Pb, and Hg) are nonessential and usually toxic even in trace amounts [32]. These nonessential metals can be transferred to higher trophic levels through the food chain, and then they also provide potential risks to aquatic life and human health [33,34,35]. They are deposited and released into the receiving waters and become bioavailable through aquatic food chains and are possibly hazardous to fishes and other aquatic populations [36,37]. Often pollutant storage reservoirs may cause toxic effects on benthic aquatic organisms, because their growth, reproduction, feeding, and other behaviors are taking place in the sediment [5]. Therefore, benthic organisms are often used as bioindicators to reflect the overall effects caused by a mixture of pollutants [30]. In this study, the amphipod Hyalella azteca and zebrafish embryos were used as biological test species to screen the sediments of eight streams in the south of Taiwan by conducting a 48 h porewater acute toxicity test. At the same time, the concentrations of metals and PAHs were measured in order to understand the relationship between toxicological response and chemical analysis in an attempt to explore the level of sediment pollution.

2. Materials and Methods

2.1. Sample Collection

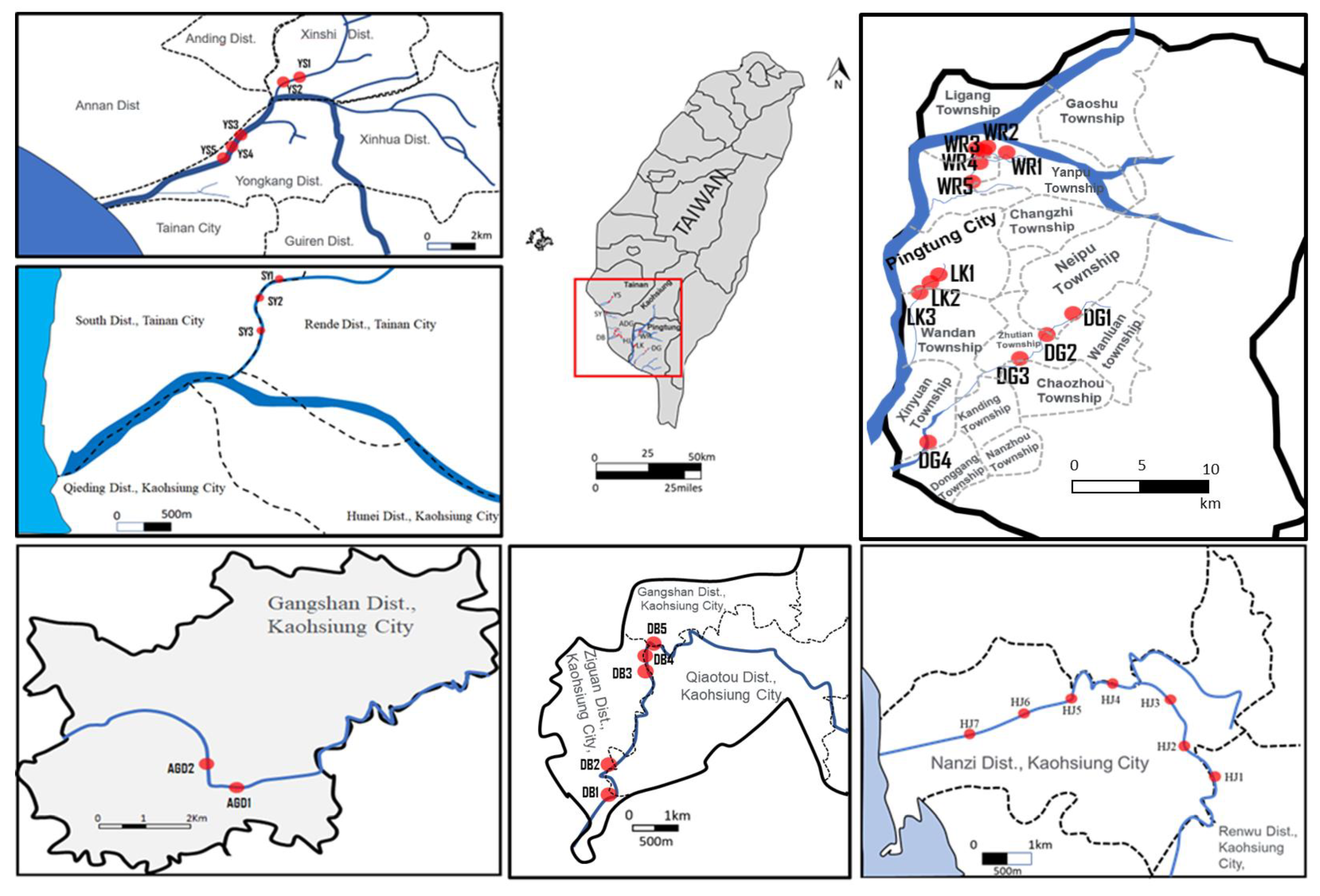

In this study, thirty-five sediment samples were collected from eight rivers located in southern Taiwan (Houjin river—HJ, Donggang river—DG, Yanyan river—YS, Sanye river—SY, Dianbao river—DB, Agongdian river—AGD, Wuluo river—WR, and Niuchou river—LK) (as shown in Figure 1). Approximately 10 kg of sediment was collected from each sampling site, centrifuged after collection to obtain porewater, and stored in a refrigerator at 4 °C for subsequent biological and chemical experiments.

2.2. Sediment Porewater Toxicity Testing with the Amphipod Hyalella azteca

Hyalella azteca is an epibenthic and phytal amphipod which plays a vital role in ecosystem resilience due to its detritus-feeding and potential high abundance in nature. It is widely distributed in the freshwaters of North America, South America, and the Caribbean. Algae, epiphytes, and sediment particles are the main food sources of this amphipod. It is about 3–8 mm long (males are larger than females) and considered to be sensitive to aquatic pollutants [38]. It is known to tolerate slight salinity changes, but not to survive pH conditions of less than 6.0.

Centrifuged porewater (50 mL) was obtained and kept at 4 °C until analysis. Water parameters such as pH, conductivity, temperature, and dissolved oxygen were measured before and after this process at room temperature. Specimens of H. azteca, aged between 7 and 10 days, were selected to ensure that the test organisms were similar. H. azteca in reconstituted water (96 mg/L NaHCO₃, 30 mg/L MgSO₄, 4 mg/L KCl, 50 mg/L CaSO₄, and 50 mg/L CaCl₂ were dissolved in deionized water and aerated vigorously for at least 24 h) was used as controls. Operating conditions included a photoperiod of 16 L:8 D, temperature 23 ± 1 °C, and 20 mL reconstituted water/sample volume. Samples were tested in duplicates of 10 test organisms per beaker and the controls were reconstituted waters following a standard method. Ten individuals were placed in a beaker for 48 h exposure, and their survival rates were compared. Differential survival with samples was then compared to the control (80%) to estimate the level of toxicological risk.

In this study, after adjusting the results to the control group, samples with a relative survival rate of <75% were defined as being toxic to organisms following US EPA suggestions [39,40]. The relative survival rate was obtained from the ratio of the observed survival rate of the sample organisms compared to the expected survival rate of the control group (Equation (1)).

$$\mathrm{Relative} \mathrm{survival} \mathrm{rate}=\frac{\mathrm{Observed} \mathrm{survival} \mathrm{rate}}{\mathrm{Expected} \mathrm{survival} \mathrm{rate}} \times 100$$

(1)

It was suggested that if the adjusted survival rate of organisms was less than 75%, this would cause adverse effects on aquatic organisms and human health. If the survival rate was between 75% and 90% for aquatic organisms, human health could be harmed, and if aquatic organisms showed a survival rate >90%, human health was certainly affected [40].

2.3. Sediment Porewater Toxicity Testing with Zebrafish Embryos

Mature wild zebrafish (AB strain wild type) were obtained from the Taiwan Zebrafish Core Facility at Academia Sinica (TZCAS). The experimental protocol was approved (approval no. NPUST-102-041) by the Institutional Animal Care and Use Committee (IACUC) of NPUST. Briefly, the zebrafish were raised at 28 °C in a circulating water tank. The photoperiod was set at 14/10 h light/dark cycle and mature wild zebrafish were fed with commercial ornamental fish food twice a day. The fertilized eggs obtained from the free spawning zebrafish were used for the assessment of developmental toxicity of the 35 porewater samples.

The one-cell stage of zebrafish fertilized eggs was evaluated for the toxicity of porewater and the experiment was carried out in 12-well plates. Thirty fertilized eggs of zebrafish were placed in each well containing 2 mL of aerated porewater samples. The porewater was refilled daily to record the survival rate, hatching rate, and deformity rate of zebrafish and the deformity pattern was observed using a dissecting microscope (Leica Z16-APO, Leica Microsystems Inc., Wetzlar, Germany). Fertilized eggs in aerated water (5.03 mM NaCl, 0.33 mM MgSO₄·7H₂O, 0.17 mM KCl, and 0.33 mM CaCl₂·2H₂O) were dissolved in deionized water, aerated vigorously for at least 8 h, and used as controls. Controls and all treatment groups were made in triplicate. The heartbeat rate of 6 hatched zebrafish per replicated treatment was evaluated on the third day as recorded by microscopic observation every minute. The experimental results were analyzed statistically by t-test and p < 0.05 was regarded as significantly different.

2.4. Analysis of Polycyclic Aromatic Hydrocarbons (PAHs)

The porewater samples were filtered through a 0.22 μm filter membrane (syringe filter, diameter 13 mm, PVDF) which was followed by solid phase extraction (LiChrolut RP18^® 500 mg, 6 mL Merck, Darmstadt, Germany). Related to the concentration of the solvent, the PAHs concentration was measured by Ultra performance liquid chromatography (UPLC) (Waters, Milford, MA, USA) coupled with a photodiode array detector (PDA) and a fluorescence detector for analysis and quantification. The separation was carried out on a UPLC^® BEH Shield RP18 (2.1 × 150 mm, 1.7 μm) column, with ultra-pure water and acetonitrile as the mobile phase for gradient elution. For acenaphthylene, the UV detector wavelength was set at 228 nm. The elution conditions to separate the target compounds by fluorescence detection, and method detection limits (MDL) are shown as supplementary material (Tables S1–S3). The linear correlation coefficient (R) for all compounds was >0.995.

2.5. Analysis of Trace Metals

Sample pretreatment and analysis were followed by NIEA standard method (NIEA M353.01C). Porewater samples were filtered through cellulose acetate filters (pore diameter, 0.45 µm). The filtrate was acidified with 1% trace-metal grade nitric acid as a pre-treatment. The extracted portion was detected using an inductively coupled plasma optical emission spectrometer (ICP-OES, Optima 2100 Perkin-Elmer, Waltham, WA, USA) for Cr, Ni, Cu, Zn, Pb, and Cd analysis.

2.6. Calculations of Porewater Toxicity by Interstitial Water Benchmark Units (IWBUs)/Interstitial Water Toxic Units (IWTU)

The pollutant distribution between the sediment and the porewater is expected to cause different toxic effects. It is not proper to restrict toxicity evaluation to either result. Therefore, interstitial water benchmark units (IWBUs) can be used to predict the toxic effects of various metals on aquatic organisms. These IWBU values are calculated based on the porewater concentration and the final chronic value (FCV) as proposed by Di Toro et al. in 2005 (Equation (2),

Table 1. Derived final chronic values from dissolved water concentrations.

Metal	Freshwater FCV
Cu	0.960[e(0.8545[ln(hardness)]−1.465)]
Pb	0.791[e(1.273[ln(hardness)]−4.705)]
Ni	0.997[e(0.8460[ln(hardness)]+1.1645)]
Zn	0.986[e(0.8473[ln(hardness)]+0.7614)]
Cd	CF [e(0.7852[ln(hardness)]−3.490]

CF = 1.101672—[(ln hardness)(0.041838)] (revised from Di Toro et al., 2005).

).

$${\displaystyle {\sum }_i\frac{M_i}{FC{V}_i}}=\frac{M_{Cu}}{FC{V}_{Cu}}+\frac{M_{Pb}}{FC{V}_{Pb}}+\frac{M_{Ni}}{FC{V}_{Ni}}+\frac{M_{Zn}}{FC{V}_{Zn}}+\frac{M_{Cd}}{FC{V}_{Cd}}$$

(2)

For PAHs, the dissolved phase concentrations (C_d) of each nonionic organic contaminant are divided by its corresponding FCV to derive interstitial water toxic units (IWTUs) (Equation (3)).

Table 2. The final chronic values for the 16 PAHs.

Compound	FCV (µg/L)	Compound	FCV (µg/L)
Acenaphthene	55.85	Chrysene	2.042
Acenaphthylene	306.9	Dibenz[a,h]anthracene	0.2825
Anthracene	20.73	Fluorene	39.3
Benzo[a]anthracene	2.227	Fluoranthen	7.109
Benzo[a]pyrene	0.9573	Indeno[1,2,3-c,d]pyrene	0.275
Benzo[b]fluoranthene	0.6774	Phenanthrene	19.13
Benzo[k]fluoranthene	0.6415	Pyrene	10.11
Benzo[g,h,i]perylene	0.4391	Naphthalene	193.55

Source: U.S. EPA (2003) [41].

shows C_{d, PAHi, FCVi} values for the 16 compounds.

$${\displaystyle \sum }_{i}IWT{U}_{FCV,16}={{\displaystyle \sum }}_i\frac{C_d}{C_{d, PAHi,FCVi}}$$

(3)

In sediments in which IWBUs or IWTU is >1.0, benthic organisms are not protected and adverse effects may occur. Conversely, if the IWBUs/IWTU is ≤ 1.0, sediment toxicity due to mixing of contaminants is unlikely.

3. Results and Discussion

Four water parameters were routinely monitored during the toxicity testing procedures, including temperature, pH, dissolved oxygen, and conductivity. Since the test was commonly performed under controlled conditions, at constant temperature, water temperature was commonly the least varying factor. The pH, dissolved oxygen, and conductivity are shown in

Table 3. pH, dissolved oxygen, and conductivity in sediment porewaters during toxicity testing.

Site	pH		Dissolved Oxygen (mg/L)		Conductivity (μmho/cm)
	Initial	End	Initial	End	Initial	End
BK	7.78	8.86	5.81	4.93	16	18
YS1	8.15	8.52	4.52	5.39	576	560
YS2	8.22	8.44	4.80	5.86	1090	1100
YS3	8.36	8.72	4.44	5.94	1040	1040
YS4	8.68	8.69	5.52	5.83	178	182
YS5	8.34	8.80	5.43	5.85	184	188
SY1	8.02	8.45	4.73	6.46	1990	1960
SY2	8.07	8.40	3.86	5.47	1670	1730
SY3	8.14	8.56	4.26	6.82	1210	1220
AGD1	8.30	8.61	2.70	6.36	77	73
AGD2	8.43	8.31	4.26	5.55	84	65
DB1	7.97	8.61	3.89	5.80	1560	1610
DB2	8.27	8.61	4.75	5.90	1710	1710
DB3	8.35	8.59	5.44	5.71	877	887
DB4	7.82	8.30	4.64	5.18	788	783
DB5	7.90	8.60	4.86	5.59	890	903
HJ1	7.81	8.41	2.04	5.89	85	92
HJ2	7.76	8.51	2.16	1.62	73	86
HJ3	8.29	8.30	1.73	1.26	78	80
HJ4	8.53	8.81	1.21	1.45	90	76
HJ5	7.89	7.84	2.28	1.29	74	106
HJ6	8.10	8.56	2.89	1.09	123	72
HJ7	8.14	8.80	1.25	1.56	1490	1690
LK1	8.39	8.36	4.42	5.69	83	56
LK2	8.40	8.47	4.40	5.64	67	56
LK3	8.36	8.50	4.46	5.47	92	83
WR1	8.48	8.55	3.47	5.83	133	105
WR2	8.19	7.89	4.22	5.56	48	50
WR3	8.57	8.71	4.28	5.83	79	69
WR4	8.38	8.23	4.30	5.52	65	50
WR5	8.48	8.20	5.25	6.14	116	107
WR6	8.10	8.39	3.87	5.37	102	86
DG1	7.62	8.40	1.04	1.20	680	660
DG2	8.07	8.35	1.21	1.29	21	24
DG3	8.25	8.71	2.19	1.73	54	37
DG4	8.02	8.72	2.33	1.26	20	24

Houjin river—HJ, Donggang river—DG, Yanyan river—YS, Sanye river—SY, Dianbao river—DB, Agongdian river—AGD, Wuluo river—WR, and Niuchou river—LK.

, before and after exposure.

3.1. Water Quality Monitoring of Porewater Samples

The test results showed that the pH values of all porewater samples were between 7.62 and 8.68, which approximated a pH ranging from 6.5 to 8.5. The dissolved oxygen values of 35 sampling sites ranged from 1.04 to 5.44 mg/L. Vaquer-Sunyer and Duarte [42] stated that most crustaceans begin to show elevated mortality when the dissolved oxygen reaches below 2.45 ± 0.14 mg/L, whereas dissolved oxygen levels in the rivers of HJ and DG in this study were both lower than 2.45 mg/L and thus were worthy of further discussion of the physiological effects of dissolved oxygen. Conductivity increased due to an increase in salinity. Sampling sites HJ7 and DG1 were closer to the ocean, and the conductivity was relatively higher here than at the inland sites. In addition, site YS crossed the industrial area, and sites such as DB and SY were adjacent to the factory area. Therefore, discharged sewage led to relatively higher electrical conductivity.

3.2. Survival Rate of Hyalella azteca Exposed to Whole Sediment Porewater Samples

In this study, 88% of the 35 sample stations had adverse effects on aquatic organisms and with this on human health. The survival of the remaining 12% sites was between 75% and 90%, showing that the sediment pollutants of eight streams in the southern region had a great variation. The results of 35 survival rates of porewater exposure are shown in Figure 2, demonstrating different potential ecological risks.

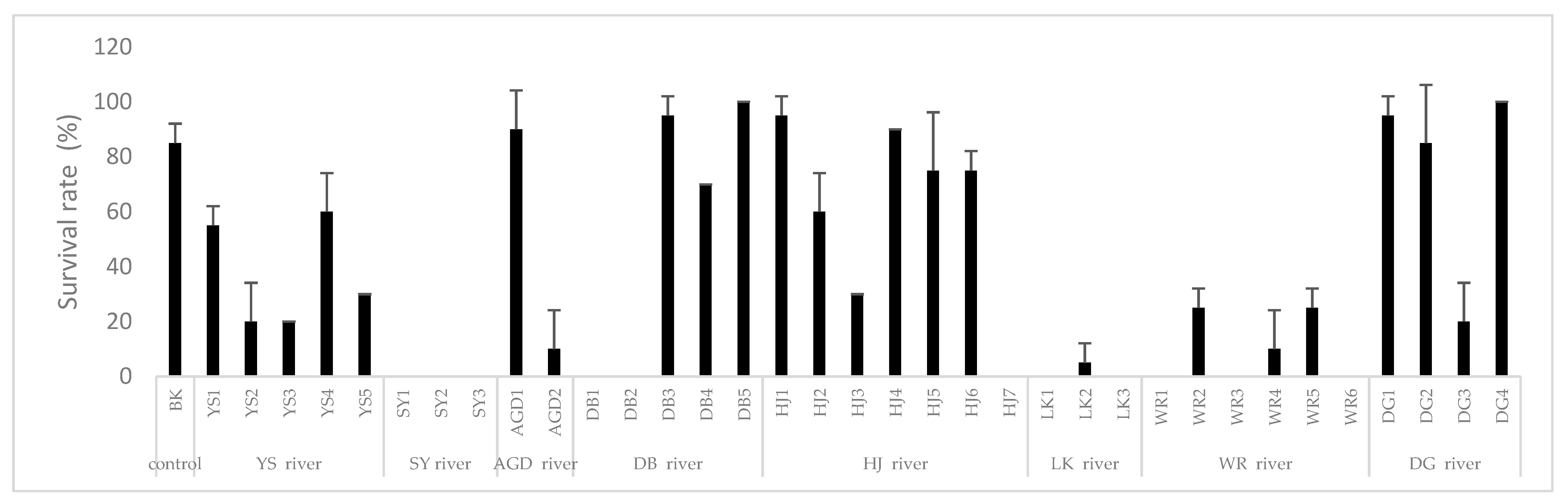

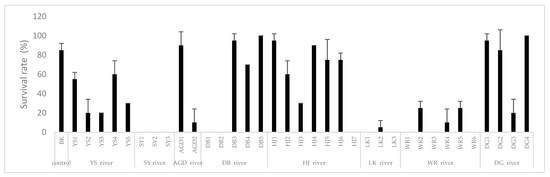

Figure 2 shows the survival rate of H. azteca in sediment porewaters. The mean control survival of H. azteca in the 48 h exposures met test acceptability criteria for survival [39,43]. Higher amphipod survival rates (>80%) were found at the following sites: DB3, DB5, AGD1, HJ1, HJ4, DG1, DG2, and DG4. All amphipods died in porewaters from sites DB1, DB2, SY1, SY2, SY3, HJ7, LK1, LK3, and WR. This indicates that the Sanye River (sites designated as SY) and Niuchou River (designated as LK) showed acute toxic effects on benthic invertebrates.

It was suggested that if the adjusted survival rate of organisms was less than 75% this would cause adverse effects on aquatic organisms and human health. If the survival rate was between 75% and 90% for aquatic organisms, human health could be harmed and if aquatic organisms showed a survival rate > 90%, human health was certainly affected [40].

3.3. Toxic Effects of Sediment Porewater on Zebrafish Embryos

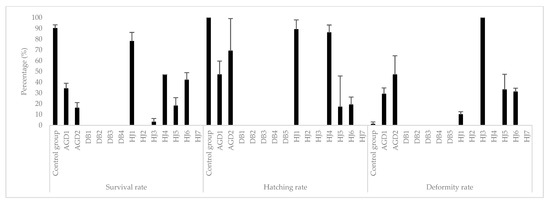

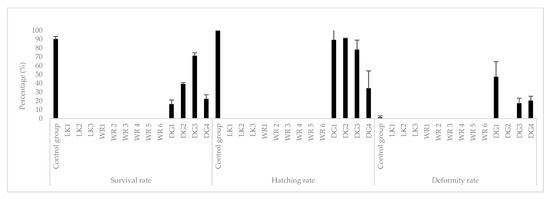

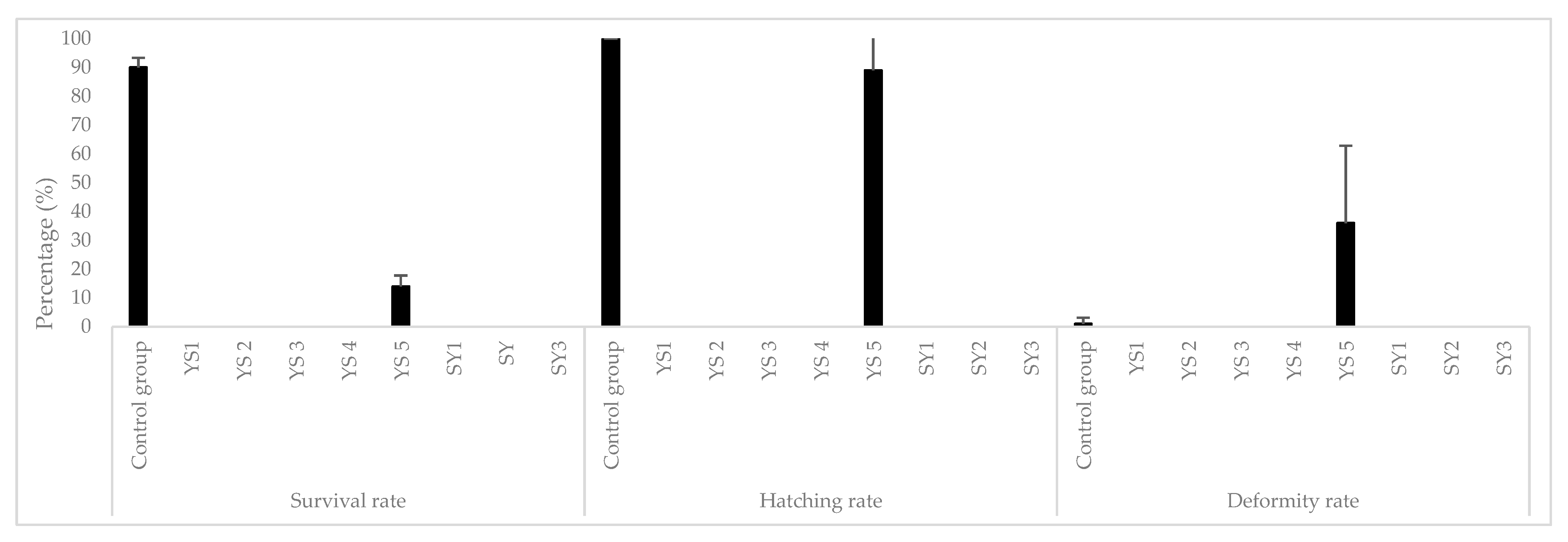

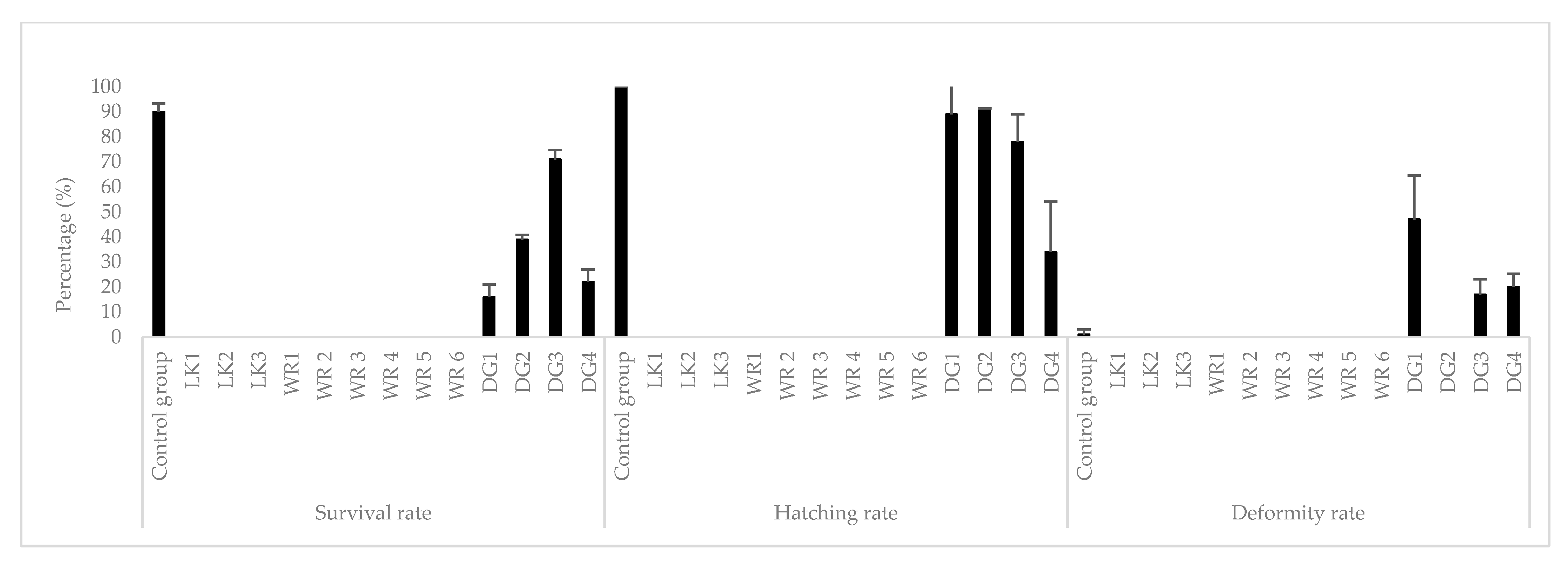

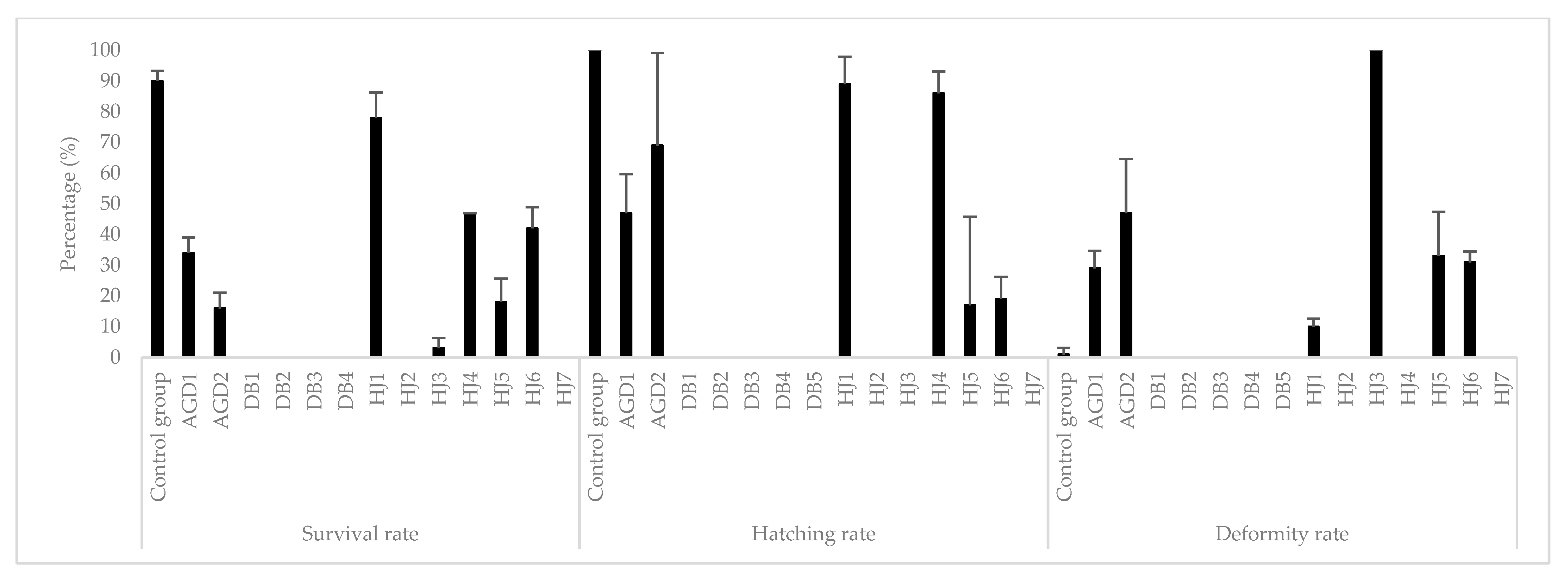

In this research, the effects of 35 sediment porewater samples on the development of zebrafish in different regions of Taiwan were evaluated after four days of exposure. The results of mortality, hatchability, and deformity rate on zebrafish embryos were recorded daily to evaluate the toxic effects of the sediment porewater as shown in Figure 3, Figure 4 and Figure 5. Embryos of nearly all fertilized eggs hatched on the third day of the general culture and the hatchability reached more than 98% in cases. In some instances, the control group could also show abnormal development due to physical differences between the organisms. However, the deformity ratio of the control group was low at about 1%. The samples tested were based on the results of mortality and nine sediment porewater samples, HJ7, DB 1~5, and SY 1~3 were classified as being acutely toxic where all zebrafish embryos died after one day of immersion. The toxicity of four samples from YS4, WR1, WR 3, and WR 6 showed the second highest toxicity, which could also be classified as the highest toxicity due to the fact that all zebrafish embryos were dead after a two-day exposure. When zebrafish embryos were exposed to porewater samples from HJ3, DG1, LK1, LK2, HJ2, LK3, YS1~3, WR2, WR 4, and WR 5, either all of them died or the survival rate was lower than 20% on the third day. We classified such porewater samples as moderately toxic. The other 10 porewater samples (HJ1, DG3, HJ5, DG4, YS5, HJ6, AGD1, AGD2, HJ4, and DG2) were classified as less toxic. The survival rate here was still roughly higher than 15% on the fourth day of exposure. The embryonic development of zebrafish lasted for about 2 days and the main organs of zebrafish were developing thereafter until larval fishes hatched from their eggs. The development of zebrafish was seriously affected by pollutants contained in the porewater samples, causing incomplete development of organs in the fish embryos as shown in Figure 3, Figure 4 and Figure 5. In terms of deformity, a high deformity ratio was discovered in the moderate toxicity samples HJ3 and YS3. At site HJ3, 78% of the samples showed deformation while the survival rate was still below 69% on the second day. Recent research found that there were up to 85% deformities in the surviving individuals of the porewater sample from YS3. The remaining less toxic samples showed that mortality and deformity rates increased at longer treatment periods. Moreover, the hatching rate was low and showed delays until hatching. Although less toxic samples were classified with low toxicity, they still showed a significant toxic effect compared to the control group.

3.4. Toxic Effects of Sediment Porewater on Zebrafish Embryos

In general, zebrafish hatch after 2~3 days post-fertilization (2 dpf), when most of the organs are developed. In our study, the morphology of zebrafish was observed on the 2nd and 3rd day of sediment porewater immersion with results shown in Figures S1 and S2. The zebrafish in the control group show normal development on the 2nd day. Their eyes, trunk, and yolk sacs indicate a clear formation of melanin; however, most samples from sediment porewater of different rivers show developmental stagnation (such as sample HJ3-1, HJ3-2, HJ2, HJ3, and HJ5-2) and effects of delay. Deformity of spinal cord and tail curvature could also be observed (sample HJ5-1, DG4-1, DG4-2, YS1-1, WR4-3, and others). The number of melanophores of the control group on the 3rd day increased significantly compared to the 2nd day sample. The samples treated with sediment porewater not only showed developmental stagnation and delays, some embryos also showed tail deformities and necrosis (such as AGD1-1, AGD1-2, AGD1-3, YS2-1, HJ6-3, HJ5-1, HJ5-3, DG4-1, DG4-2, DG4-3, DG3-1, DG3-2, and DG3-3). Pericardial edema was also found in samples DG1-1, DG4-2, HJ-3, DG3-1, and DG3-3.

3.5. Toxic Effects on Embryonic Cardiac Function

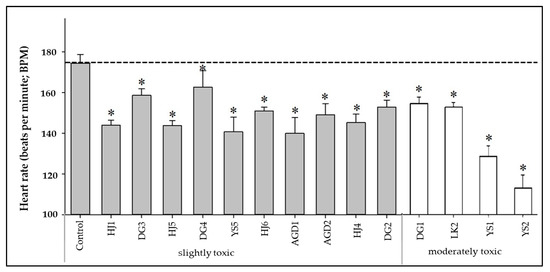

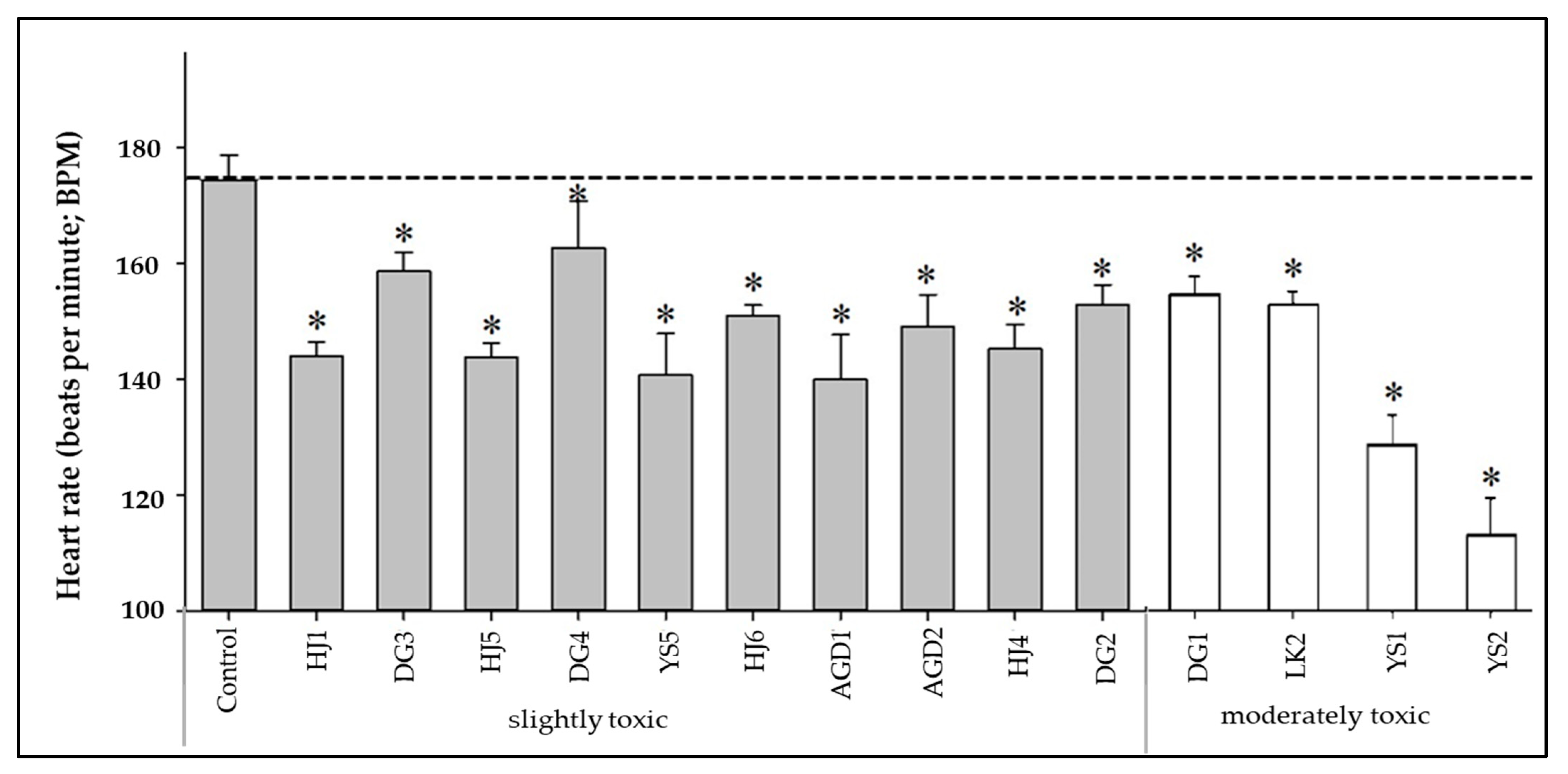

The cardiovascular system is the first organ system to form during embryonic development. The circulatory system is also a key factor for embryonic survival. In acute embryonic toxicity testing, the heart rate of hatching zebra fry was determined after the third day. The variations of embryonic heartbeat of zebrafish are shown in Figure 6. The porewater samples DG1, LK2, YS1, and YS2 caused a significant decrease in heartbeat compared to the control group. The average heartbeat rate of zebrafish in the control group was about 185 times per minute (taken as 100%), while the heartbeat rates were dropping to 133 and 115 per minute in toxic samples from stations YS1 and YS2. There show the most significant effects with heartbeat dropping down to 71% and 62%. The heartbeat rate of moderately toxic samples (HJ3, LK1, HJ2, LK3, YS3, WR2, WR4, and WR5), cannot be measured due to insufficient fish larvae which were dead or deformed on the third day. The effect of low toxicity (survival ratio was still roughly higher than 15% on the fourth day of exposure) samples (HJ1, HJ4, DG2, DG3, DG4, HJ5, HJ6, YS6, AGD1, and AGD2) on heart rate was evaluated and the results are shown in Figure 6. Low toxicity samples also caused a significant decrease in heartbeat rate. Compared to the control group, the degree of decline was between 80% (AGD1) to 93% (DG4). Overall, the decreasing tendency of the heartbeat rate was less in moderately toxic samples YS1 and YS2. The results showed that both medium toxic and low toxic samples can significantly cause a decrease in heartbeat rate, which indicates that the heart beat and circulatory function of fish generally deteriorated when exposed to sediment leachates of the two rivers.

3.6. Comparative Results of PAH Concentrations

For chemical analysis, naphthalene, benzo(b)fluoranthene, dibenz(a,h)anthracene, and acenaphthalene were not detected in any of the porewater samples. Among the detected PAHs, fluoranthene was the most abundant quantified PAH in the porewater at all stations, followed by pyrene. High concentrations of the B[a]A, CHRY, and FLTH at site HJ were probably due to the five major industrial pollution sources (refineries, export processing zones, two industrial zones, and plastic manufacturing) found nearby, which bear a large amount of industrial wastewater and household sewage. Site DG1 was surrounded by livestock industries in the region which caused livestock wastewater pollution. The pollution sources in River YS could be related to domestic wastewater and additional wastewater discharge from the Linhai Industrial Zone and surrounding steel plant. Moreover, the mainstream of SY is crossing through two major industrial areas, coupled with discharged wastewater from the livestock industry. Pollution at river DB is due to the metal industry along the river, causing serious metallic and domestic wastewater pollution. These are caused by the major metal surface treatment industry and animal husbandry in the AGD upstream. The main pollution source impact of livestock wastewater on the WR and LK may be related to high concentrations of PAHs. The results of chemical analysis are shown in

Table 4. Concentrations of 16 PAHs in sediment porewaters.

Sites	ACE	ACY	ANTH	B[a]A	B[a]P	B[b]F	B[k]F	B[ghi]P	CHRY	D[ah]A	FLU	FLTH	IND	PHEN	PYR	NAP
YS1	ND	ND	ND	6.686	ND	ND	ND	ND	0.988	ND	ND	0.178	ND	ND	0.084	ND
YS2	ND	ND	0.808	6.901	ND	ND	ND	ND	ND	ND	ND	0.174	ND	ND	0.088	ND
YS3	ND	ND	0.422	6.964	ND	ND	ND	ND	ND	ND	ND	0.193	ND	ND	0.096	ND
YS4	ND	ND	0.384	6.691	ND	ND	ND	ND	2.289	ND	ND	0.18	ND	ND	0.086	ND
YS5	ND	ND	0.93	6.687	ND	ND	0.007	ND	1.378	ND	ND	0.179	ND	ND	0.084	ND
SY1	ND	ND	0.671	6.691	ND	ND	ND	ND	1.238	ND	ND	0.261	ND	ND	0.086	ND
SY2	ND	ND	0.647	ND	ND	ND	0.001	ND	ND	ND	ND	ND	ND	ND	0.084	ND
SY3	ND	ND	ND	6.699	ND	ND	ND	ND	1.898	ND	ND	0.223	ND	2.764	0.096	ND
AGD1	ND	ND	0.794	7.329	ND	ND	ND	ND	ND	ND	ND	0.284	ND	0.282	0.088	ND
AGD2	0.139	ND	0.312	ND	ND	ND	0.001	ND	ND	ND	0.113	0.185	ND	ND	0.087	ND
DB1	ND	ND	0.364	6.882	0.168	ND	ND	ND	9.056	ND	ND	0.239	ND	ND	ND	ND
DB2	ND	ND	0.271	6.712	ND	ND	ND	ND	2.707	ND	ND	0.188	ND	ND	0.085	ND
DB3	ND	ND	ND	6.696	ND	ND	0.006	ND	0.682	ND	ND	0.179	0.87	5.717	0.084	ND
DB4	ND	ND	ND	ND	ND	ND	ND	ND	ND	ND	0.113	0.189	0.238	0.237	0.095	ND
DB5	ND	ND	ND	6.773	ND	ND	0.031	ND	4.026	ND	ND	0.215	ND	ND	0.106	ND
HJ1	0.155	ND	1.122	8.604	ND	ND	0.89	ND	90.095	ND	0.11	0.364	ND	0.575	0.09	ND
HJ2	ND	ND	0.997	7.189	ND	ND	0.059	0.08	1.935	ND	ND	0.179	ND	ND	ND	ND
HJ3	0.148	ND	ND	6.814	ND	ND	0.057	ND	7.37	ND	0.11	0.19	ND	ND	0.087	ND
HJ4	ND	ND	0.771	ND	ND	ND	0.001	ND	ND	ND	0.113	0.178	ND	0.243	0.093	ND
HJ5	ND	ND	0.32	6.925	ND	ND	0.144	ND	18.027	ND	0.117	0.226	0.242	0.274	0.085	ND
HJ6	ND	ND	0.534	6.707	ND	ND	0.015	ND	2.408	ND	ND	0.184	ND	0.234	0.086	ND
HJ7	ND	ND	0.232	7.71	ND	ND	0.382	ND	48.618	ND	ND	0.277	ND	0.351	0.089	ND
LK1	ND	ND	1.098	6.857	ND	ND	0.037	ND	5.022	ND	ND	0.185	0.238	ND	0.084	ND
LK2	ND	ND	ND	ND	ND	ND	0.001	ND	ND	ND	ND	ND	ND	ND	0.084	ND
LK3	ND	ND	0.201	44.305	ND	ND	0.165	ND	0.247	ND	ND	0.25	ND	0.312	0.089	ND
WR1	ND	ND	0.214	14.678	0.015	ND	3.782	ND	356.24	ND	ND	1.182	ND	2.531	0.115	ND
WR2	ND	ND	0.335	ND	ND	ND	0.224	0.455	ND	ND	ND	0.184	ND	ND	ND	ND
WR3	ND	ND	0.266	8.748	ND	ND	ND	ND	ND	ND	ND	0.218	0.249	ND	0.099	ND
WR4	ND	ND	0.394	6.901	ND	ND	0.093	ND	11.832	ND	ND	0.228	ND	0.242	0.099	ND
WR5	ND	ND	0.283	6.727	ND	ND	ND	ND	1.114	ND	ND	0.231	ND	ND	0.096	ND
WR6	ND	ND	0.56	ND	ND	ND	ND	ND	0.251	ND	ND	0.187	ND	0.217	0.087	ND
DG1	ND	ND	0.952	ND	ND	ND	ND	ND	0.253	ND	ND	0.22	ND	ND	0.085	ND
DG2	0.148	ND	0.782	ND	ND	ND	0.021	ND	ND	ND	0.11	1.084	ND	ND	0.092	ND
DG3	ND	ND	1.212	ND	ND	ND	0.001	ND	ND	ND	0.116	0.173	ND	ND	0.085	ND
DG4	ND	ND	0.563	36.811	ND	ND	0.154	ND	0.248	ND	ND	0.211	ND	0.289	0.086	ND

Unit: µg/L; ND—not determined; abbreviations were designated as following: naphthalene (NAP), acenaphthylene (ACY), acenaphthene (ACE), fluorene (FLU), phenanthrene (PHEN), anthracene (ANTH), fluoranthene (FLTH), pyrene (PYR), benzo[a]anthracene (B[a]A), chrysene (CHRY), benzo[b]fluoranthene (B[b]F), benzo[k]fluoranthene (B[k]F), benzo[a]pyrene (B[a]P), benzo[g,h,i]perylene (B[ghi]P), indeno[1,2,3-c,d]pyrene (IND), and dibenz[a,h]anthracene (D[ah]A).

.

The ΣPAHs in the porewater of the 35 stations ranged from 0.085 to 378 μg/L, and the average ΣPAHs of the eight streams ranged from 4.807 ± 5.614 (AGD river) to 69.846 ± 151.487 (WR river).The sampling station with the highest ΣPAHs was WR1, followed by HJ1. Studies showed that the concentration of ΣPAHs in the porewater ranged between 48.2 and 205.7 μg/L from the Lanzhou Reach of the Yellow River (China). The concentration of ΣPAHs detected in the porewater of the Mersey Estuary (UK) ranged from 0.095 to 0.742 μg/L [44]. The concentration range within porewater of Xiamen Harbor (China) was <1 to 3548 ng/L [45]. The total PAHs detected in the Jiulong River Estuary and Western Xiamen Sea, China ranged from 158 to 949 μg/L [46]. Compared to other studies, the concentrations of the 16 PAHs in the porewaters of this study are still slightly higher than in other aquatic environments, indicating that the toxicity of the porewater is worthy of a follow-up discussion.

3.7. Comparison of Results from PAH Analysis and Biological Survival Rates

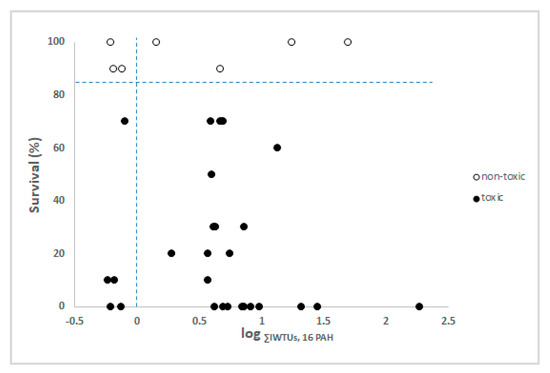

The survival rate of test organisms and the concentration of PAHs were determined, after statistical analysis. The degree of correlation was classified as low when the correlation was ±0.3 (between 0.3 and −0.3) while moderate and high correlations were ±0.3 to 0.6 ±0.6 to 0.9 (between 0.3 and 0.6, −0.3 to −0.6). Since naphthalene, acenaphthene, benzo(b)fluoranthene, dibenz(a,h)anthracene, and acenaphthalene were not detected, the correlation could not be calculated. The biological survival rate showed a low correlation with phenanthrene, anthracene, pyrene, benzo(a) anthracene, chrysene, benzo(b) fluoranthene, and benzo(a) pyrene; medium correlation with fluoranthene and benzo(g,h,i)perylene; and a high correlation with fluorene.

3.8. Discussion of Trace Metal Concentrations of Sediment Porewater and the Survival Rate of Hyalella azteca

Table 5. Concentrations of heavy metals in sediment porewaters.

Sites	Cr	Ni	Cu	Zn	Pb
YS1	0.017	ND	ND	0.02	ND
YS2	0.045	ND	ND	0.164	ND
YS3	0.046	ND	ND	0.153	ND
YS4	0.005	ND	ND	0.102	ND
YS5	0.025	ND	ND	0.171	ND
DB1	0.019	ND	ND	0.249	ND
DB2	ND	ND	ND	0.027	ND
DB3	0.017	ND	0.007	0.431	ND
DB4	0.031	ND	ND	0.313	ND
DB5	0.038	ND	ND	0.939	ND
SY1	0.042	ND	ND	0.223	ND
SY2	0.212	0.029	0.01	0.554	0.005
SY3	0.183	0.022	ND	0.574	ND
AGD1	ND	ND	ND	1.034	ND
AGD2	0.025	ND	ND	0.878	ND
HJ1	0.009	ND	ND	0.065	ND
HJ2	ND	ND	ND	0.191	ND
HJ3	ND	ND	ND	ND	ND
HJ4	ND	ND	0.007	0.018	ND
HJ5	ND	ND	ND	ND	ND
HJ6	ND	ND	ND	0.023	ND
HJ7	ND	ND	ND	ND	ND
LK1	0.014	0.02	0.007	0.167	ND
LK2	0.149	0.185	ND	3.333	ND
LK3	0.029	ND	ND	0.594	ND
WR1	ND	ND	ND	0.159	ND
WR2	ND	ND	ND	0.041	ND
WR3	0.012	ND	ND	1.011	ND
WR4	0.036	0.256	0.126	3.609	0.045
WR5	ND	ND	ND	0.016	ND
WR6	ND	ND	ND	0.034	ND
DG1	0.007	ND	ND	0.123	ND
DG2	0.009	ND	ND	0.406	0.007
DG3	0.007	ND	ND	0.178	ND
DG4	ND	ND	ND	ND	ND

Unit: mg/L. ND < MDL:Cr (0.006 mg/L), Ni (0.014 mg/L), Cu (0.006 mg/L), Zn (0.012 mg/L), Pb (0.004 mg/L).

shows heavy metal concentrations in the porewater of sediments of the 35 sites. Test results showed that the concentrations of the trace metals nickel, copper, and lead were mostly below the detection limits. Chromium and zinc were the two most detected metals in sediment porewater. The highest metal concentration for total chromium was detected at sample site LK2; zinc showed the highest concentration at site WR4.

The concentration of heavy metals measured in the porewater of the HJ3 and HJ7 sediment was low; however, we observed a low survival rate of H. azteca. A possible reason is that the death of H. azteca may be due to other classes of pollutants, or due to high content of TOC combined with free metal ions, which may decrease their bioavailability and, consequently, reduce their toxicity [47,48,49]. The literature mentioned that the concentration of heavy metals in porewater is high, not all of which comes from the isolation of heavy metals in sediments, but may be caused by the release of contaminated groundwater [50]. Studies have also pointed out that the copper concentration in the sediment porewater of lakes is positively correlated with organic matter content, but the mortality of chironomid larvae could not be explained by the copper concentration in the porewater [51]. Therefore, it is impossible to determine the cause of the mortality of H. azteca based on the concentration of trace metals in the porewater alone.

3.9. Interstitial Water Benchmark Units (IWBUs) and Interstitial Water Toxic Units (IWTUs) Used to Determine Toxicity in Sediment Porewater

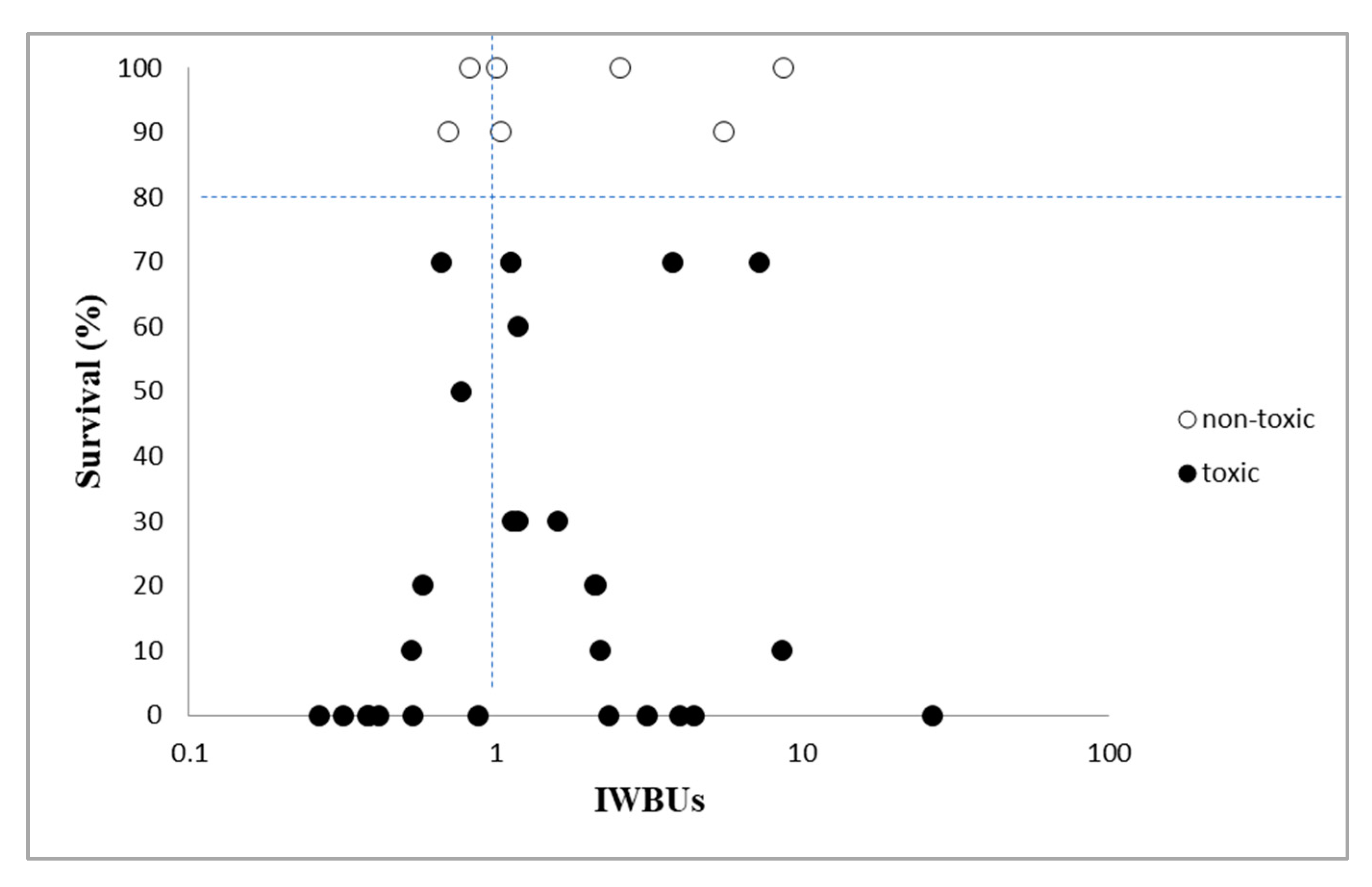

In the present study, the survival rates of H. azteca and IWBUs were calculated as shown in Figure 7. The results of IWBUs (>1 means toxic) showed that 22 sample sites were toxic and 13 sample sites were not. The results of ∑IWTU showed that 77% of the sample sites exceeded 1.0 (Figure 8), benthic organisms were not protected, and adverse effects may occur. According to the survival rate of Hyalella azteca, 28 sample sites were toxic and 7 sample sites were not. In this study, IWBUs and ∑IWTUs were used to predict the biological toxicity of the porewater of the sediment of eight streams in southern Taiwan, with an accuracy of 79% and 85% (number of IWBUs (∑IWTUs)) > 1 site, and corresponding to the percentage of sites with Hyalella azteca survival rate < 80%, showing that both porewater toxicity calculations for metal and organic compounds can be used as a tool for initial toxicity predictions. When the sample station coincided with IWBUs > 1 and IWTUs > 1, H. azteca exposure to the sample also showed toxic effects (survival rate < 80%), showing that the combination of IWBUs and IWTUs indicators can more effectively predict the potential toxicity of porewater.

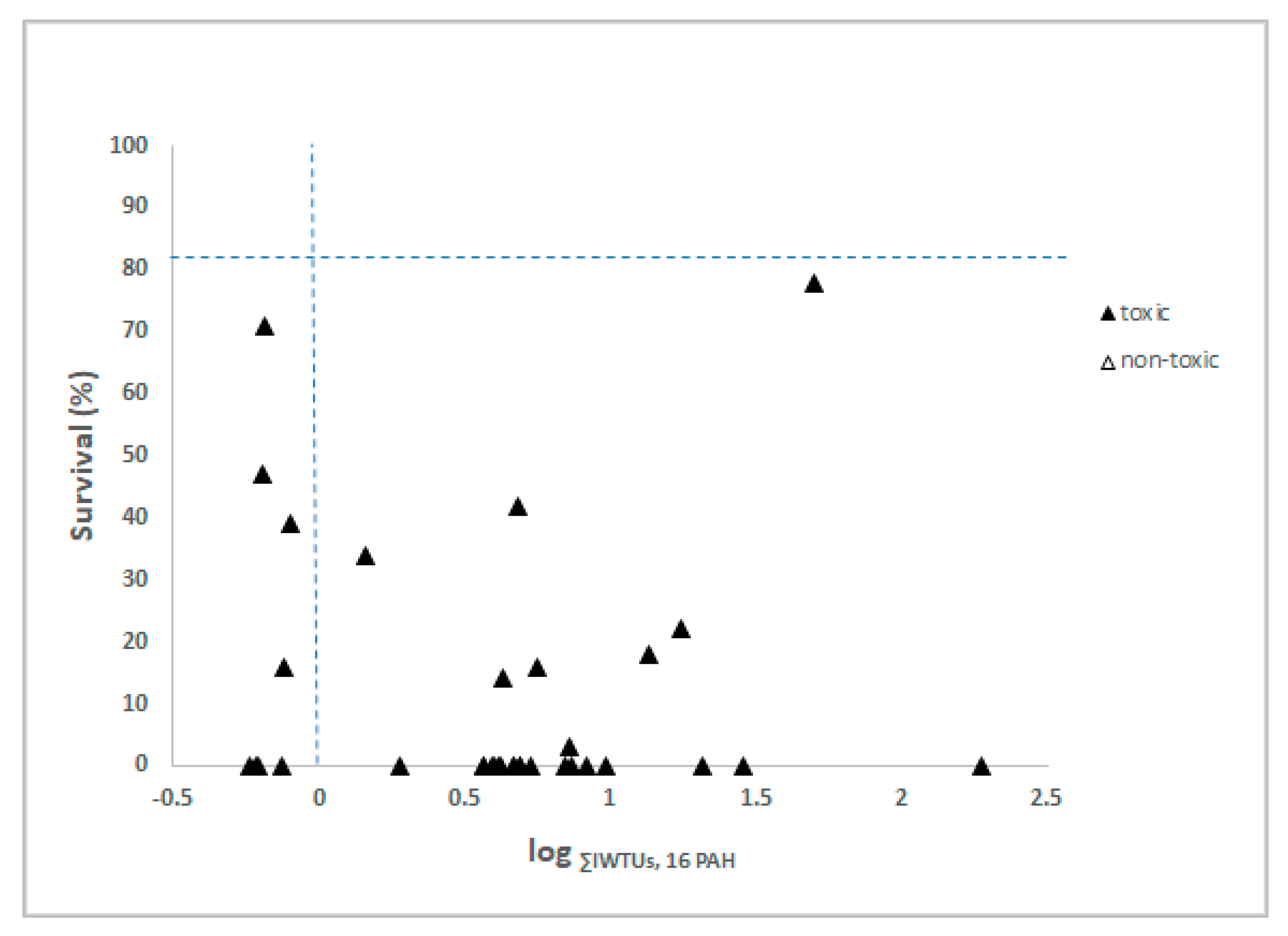

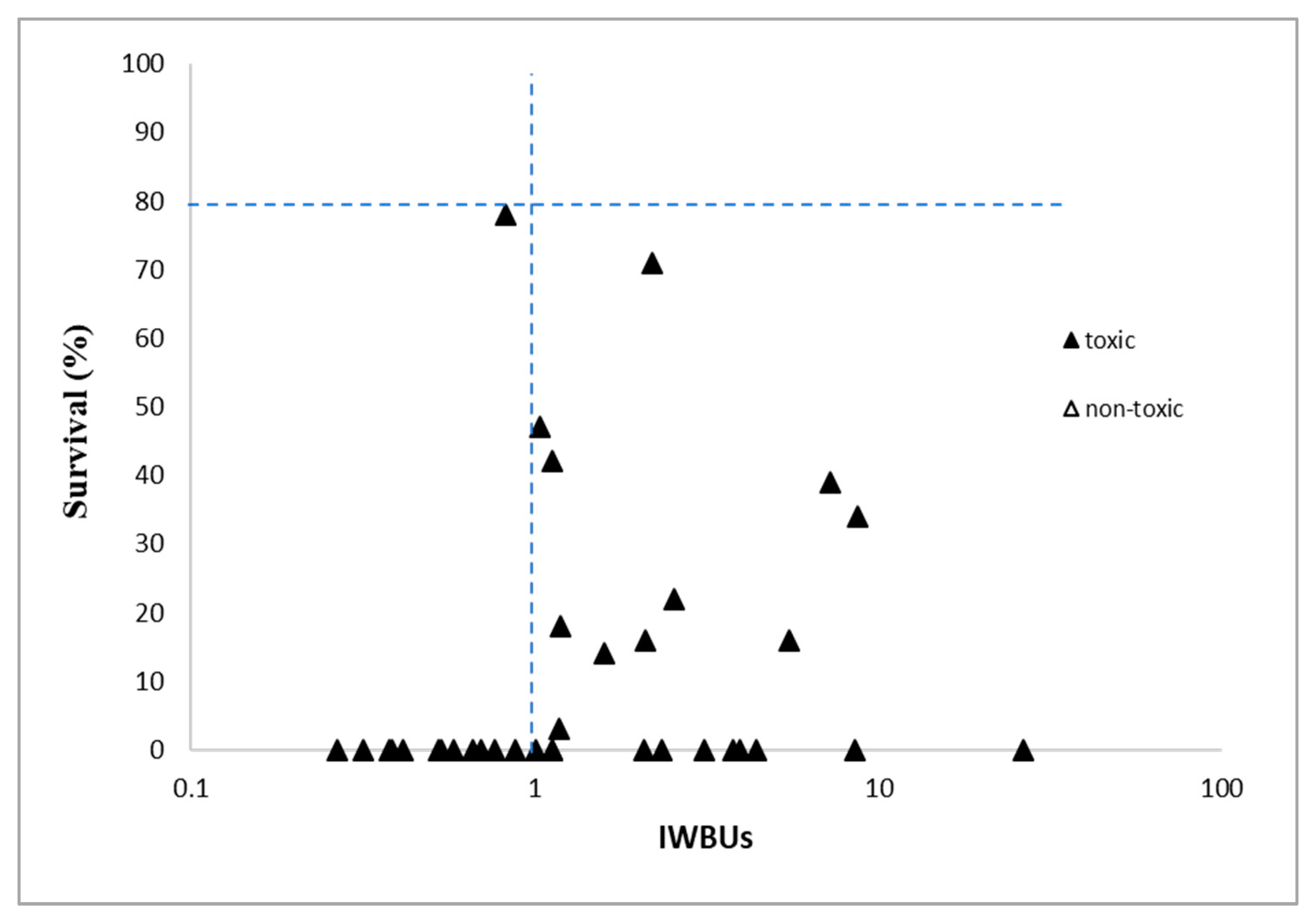

The results of calculating the IWBUs and survival rate of zebrafish embryos in this study showed that when IWBUs > 1 and ∑IWTUs > 1 (indicating toxic action), it can accurately predict the toxic effects on zebrafish embryos (Figure 9 and Figure 10). However, when IWBUs < 1 (indicating non-toxic action), the zebrafish embryos still exhibit toxic effects. This can be explained by the notion that IWBU is mainly for benthic organisms, and embryo exposure belongs to the early life cycle stage of organisms, so the sensitivity is higher than that of later stages [52]. Therefore, the toxicity thresholds for a test with embryos are lower than the set values of the original IWBU.

4. Conclusions

The results of our chemical analysis from 35 porewater samples showed that the PAHs naphththalene, acenaphthalene, benzo(b)fluoranthene, dibenz(a,h)anthracene, and the metal cadmium were not detected at all ampling stations, and the detection frequency of the other 22 compounds, ranging from high to low, was fluoranthene (94.29%), pyrene (91.43%), and zinc (88.57%). The mortality rate of H. azteca exposed to 11 sampling stations (DB1, DB2, SY1, SY2, SY3, HJ7, LK1, LK3, WR1, WR3, and WR6) was 100% at the end of the porewater toxicity test, and the survival rate was not significantly correlated with the 6 trace metals and 16 PAHs. In addition, 100% mortality in the zebrafish embryo toxicity tests was not only observed at the previous 11 sites but also at the other 12 sampling sites (YS1, YS2, YS3, YS4, DB3, DB4, DB5, HJ2, LK2, WR2, WR4, and WR5). This indicates that the porewater of these 11 sites was toxic for both test organisms, and zebrafish embryos were more sensitive than the amphipod H. azteca. Based on the experimental results, the samples show a lack of acute mortality and can also significantly reduce the heartbeat rate of zebrafish embryos. Therefore, it is concluded that the hatching rate of zebrafish embryos provided a more sensitive endpoint than mortality and deformity rate. These results also indicate that the cardiac functioning and circulatory system of fish embryos decreased in a moderate or even low toxic environment. Therefore, it is concluded that the index of heart rate is more sensitive than mortality, and deformity rates of early larvae towards polluted porewater areas of sediments can be affected to some extent. Pearson correlation analysis showed that the concentration of acenaphthene, fluorene, and anthracene had a significant positive correlation with zebrafish embryo survival rate (p < 0.05), the heart rate had a significant positive correlation only with fluorene and anthracene (p < 0.001), and the deformity rate had a significant positive correlation with anthracene (p < 0.05). The chemical analysis and toxicological approach provide a preliminary understanding of the possible risks of dissolved metals and PAHs in sediment porewaters collected from different regions of Taiwan.
