Open AccessArticle

Phylogenetic Heatmaps Highlight Composition Biases in Sequenced Reads

Department of Biology, Center for Computational and Integrative Biology, Rutgers University, Camden, NJ 08102, USA
Author to whom correspondence should be addressed.
Academic Editor: Ludmila Chistoserdova
Microorganisms 2017, 5(1), 4;
Received: 4 October 2016 / Revised: 16 January 2017 / Accepted: 19 January 2017 / Published: 24 January 2017
PDF [1656 KB, uploaded 25 January 2017]


Due to advancements in sequencing technology, sequence data production is no longer a constraint in the field of microbiology and has made it possible to study uncultured microbes or whole environments using metagenomics. However, these new technologies introduce different biases in metagenomic sequencing, affecting the nucleotide distribution of resulting sequence reads. Here, we illustrate such biases using two methods. One is based on phylogenetic heatmaps (PGHMs), a novel approach for compact visualization of sequence composition differences between two groups of sequences containing the same phylogenetic groups. This method is well suited for finding noise and biases when comparing metagenomics samples. We apply PGHMs to detect noise and bias in the data produced with different DNA extraction protocols, different sequencing platforms and different experimental frameworks. In parallel, we use principal component analysis displaying different clustering of sequences from each sample to support our findings and illustrate the utility of PGHMs. We considered contributions of the read length and GC-content variation and observed that in most cases biases were generally due to the GC-content of the reads. View Full-Text
Keywords: nucleotide composition; metagenomics; sequencing bias; computational analysis; genome sequencing nucleotide composition; metagenomics; sequencing bias; computational analysis; genome sequencing

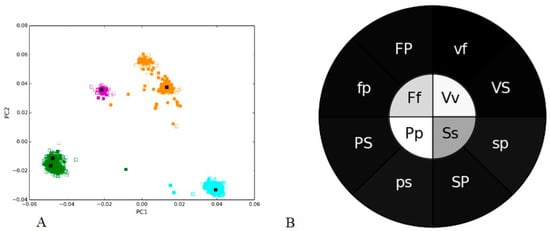

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Choudhari, S.; Grigoriev, A. Phylogenetic Heatmaps Highlight Composition Biases in Sequenced Reads. Microorganisms 2017, 5, 4.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
