Correlation between Microstructures and Tensile Properties in Friction Stir Welding Joint of Zn-Modified 5083 Al Alloy
Abstract
:1. Introduction

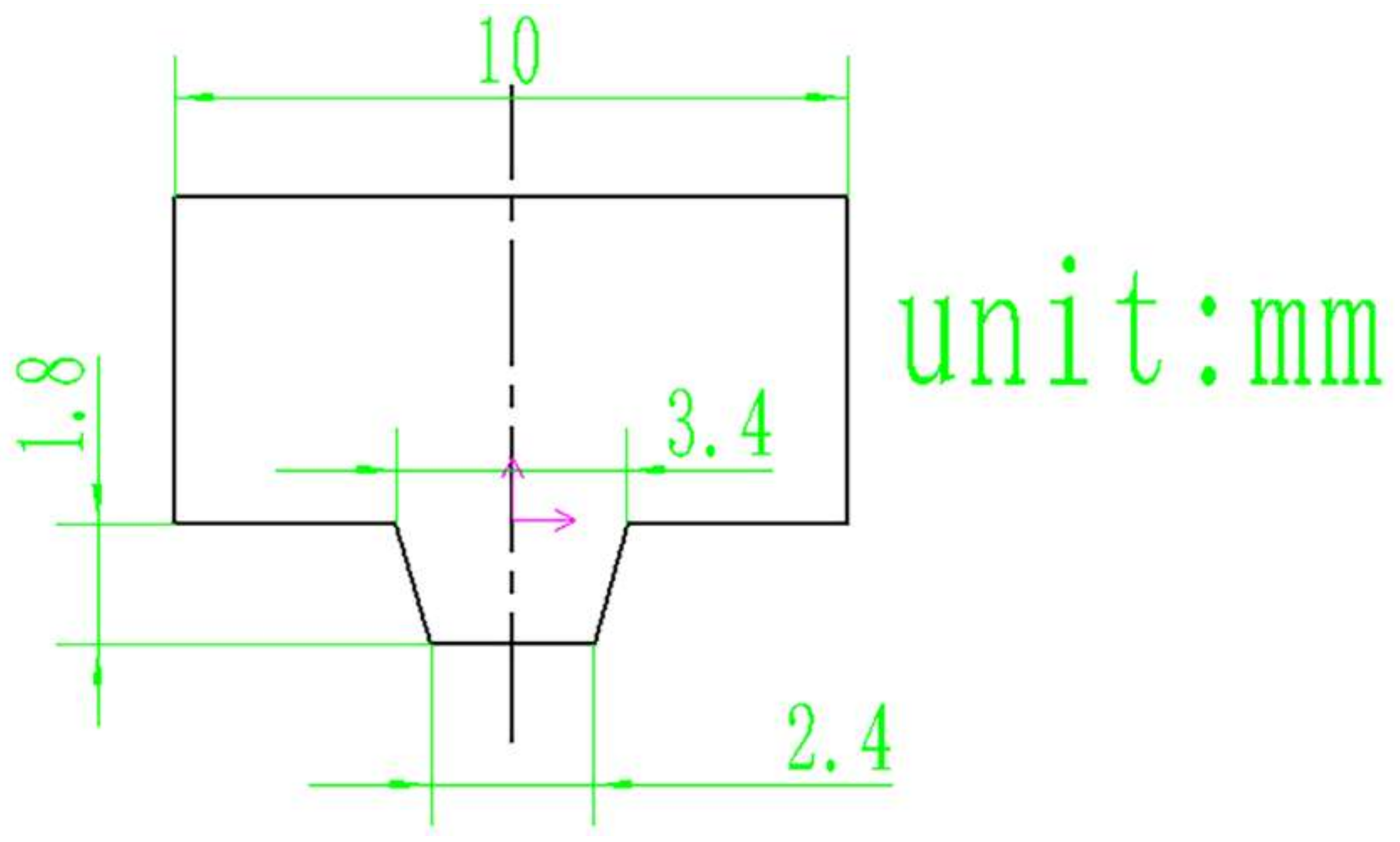

2. Materials and Methods
3. Results
3.1. Welding Appearance

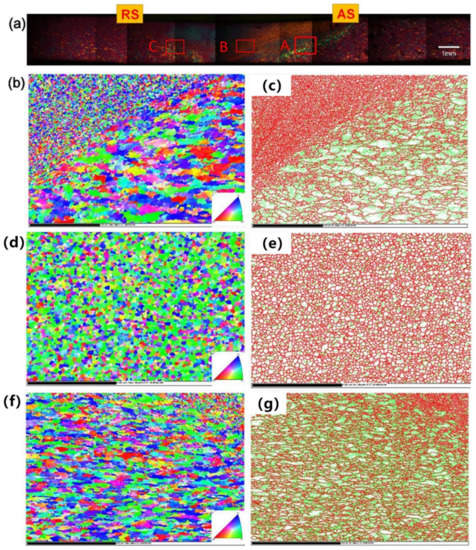

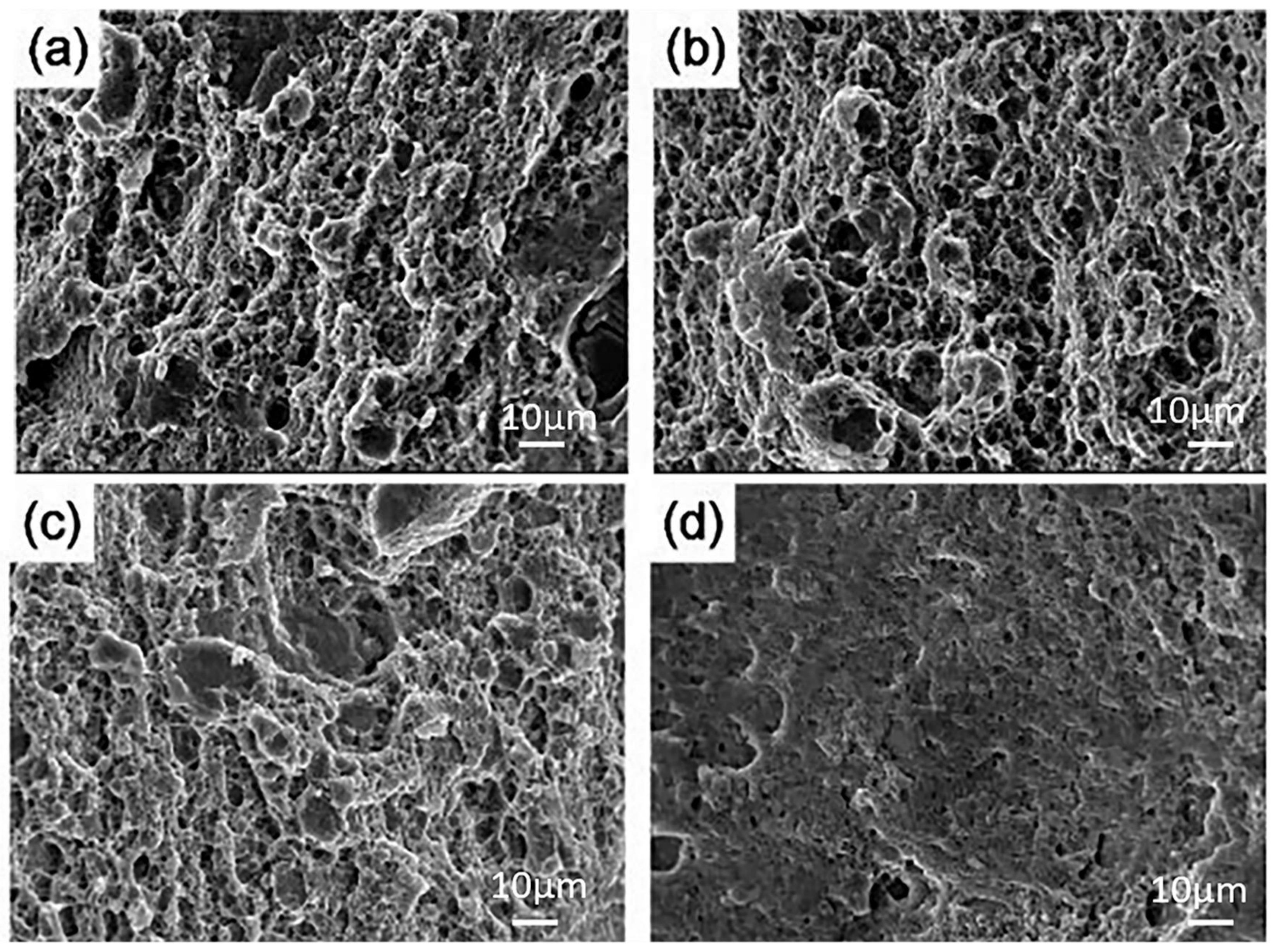

3.2. Mechanical Properties and Microstructure of AA5083 FSW Joint

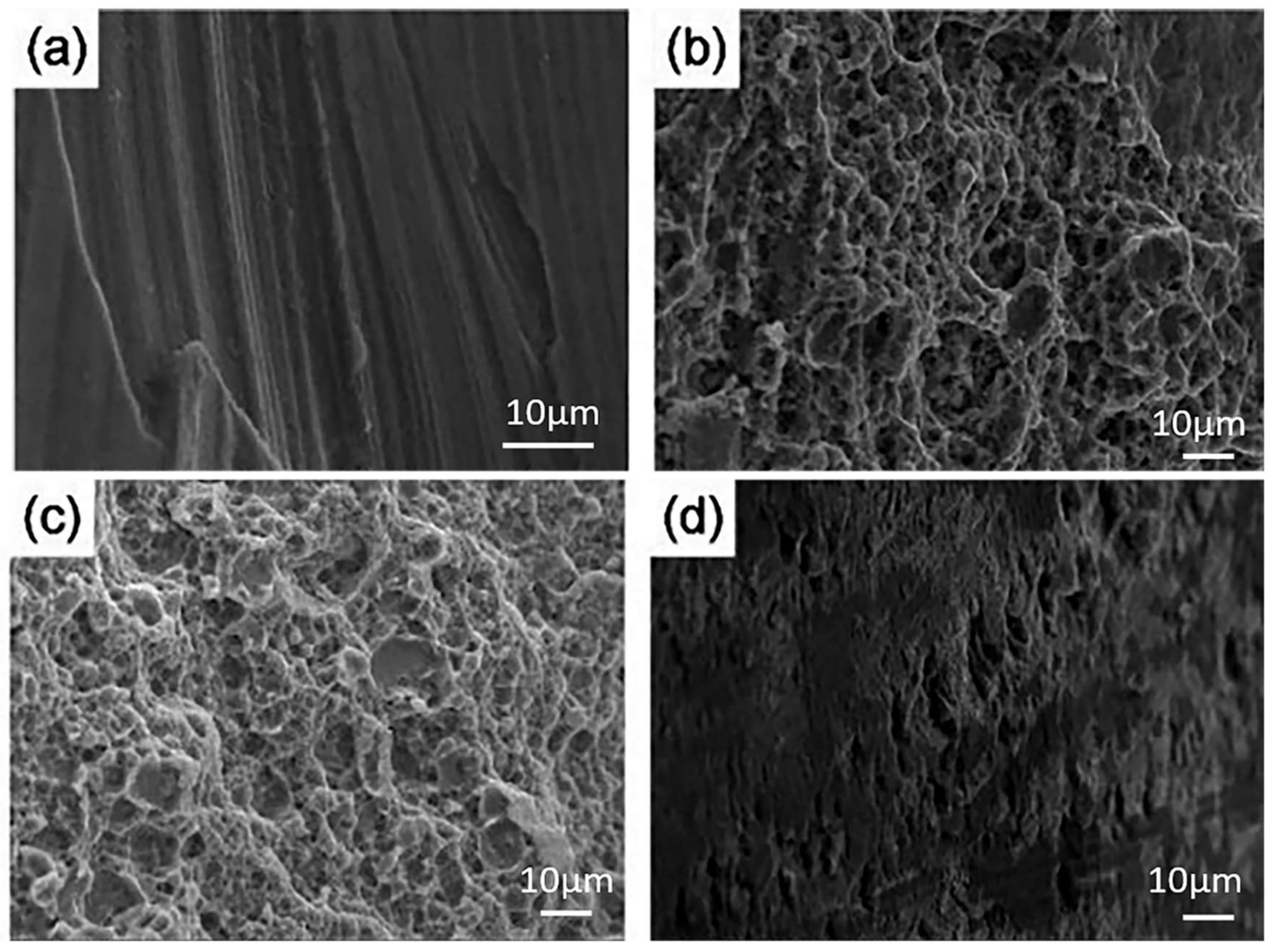

3.3. Stress Corrosion Behavior
4. Discussion
4.1. Correlation between Welding Morphology, Microstructure, Mechanical Properties and Zn Contents
4.2. Relation of Rotation Speed and Mechanical Properties and Microstructure
4.3. SCC Behavior of Zn-Modified AA5083 Alloy
5. Conclusions

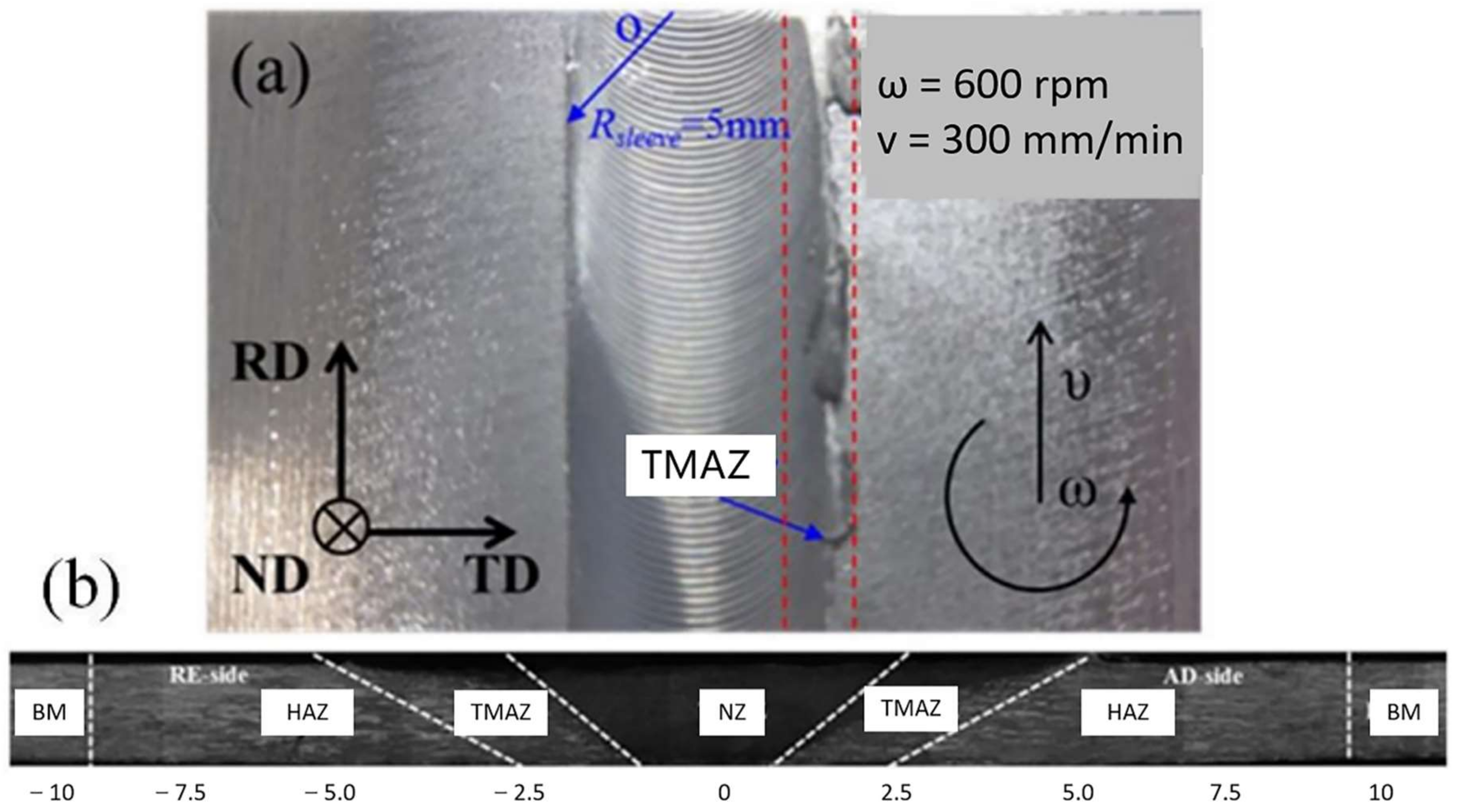

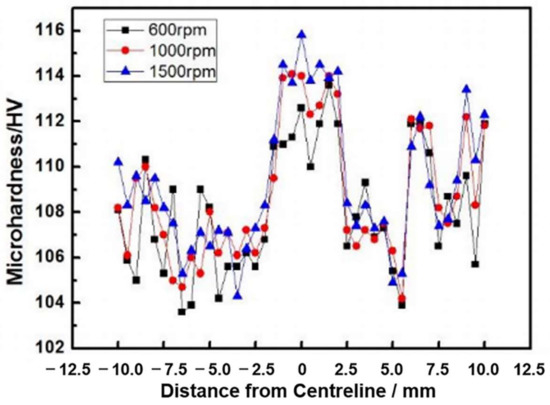

- The welding process parameters: FSW parameters selected in this work were 600 rpm, 300 mm/min, 1000 rpm, 300 mm/min, and 1500 rpm, 300 mm/min. The tensile strength of the three parameters for FSW joints showed little diversity. The tensile strength could reach more than 90% of the base material. The hardness distribution of the FSW joint was ‘W’ shape, the hardness of the welding core area was relatively high, and the hardness of TMAZ was the lowest.

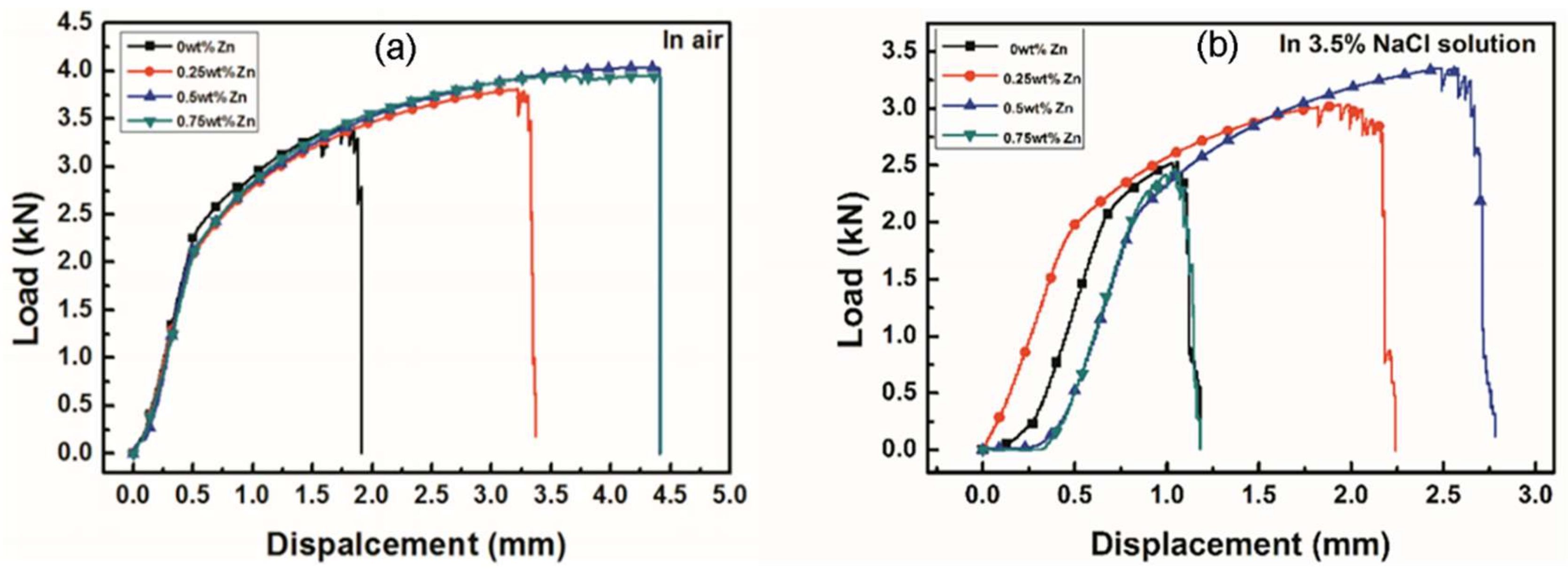

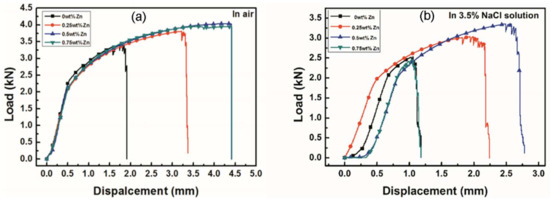

- Through the SSRT test, the FSW processed joints showed higher SCC resistance after adding Zn element. In particular, the AA5083 alloy containing Zn 0.50 wt.% showed the highest SCC resistance.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Wang, Y.; Tong, X.; You, G.; Wu, X.; Cao, L. Research Progress and Prospects of the Microstructures, Properties, and Forming Techniques of Al-Li Alloy. Rare Met. Mater. Eng. 2021, 50, 1069–1083. [Google Scholar]
- Wu, H.; Zheng, Z.; Ren, S.; Li, S.; Wang, H.; Zhao, P. Improved Recrystallization Resistance and Welding Properties of Cold-Rolled Al-Mg Alloy Sheets by Microalloying with Sc and Zr. Mater. Sci. Forum 2021, 1035, 17–24. [Google Scholar] [CrossRef]
- Popović, M.; Romhanji, E. Stress corrosion cracking susceptibility of Al–Mg alloy sheet with high Mg content. J. Mater. Process. Technol. 2002, 125, 275–280. [Google Scholar] [CrossRef]
- Jones, R.; Baer, D.; Danielson, M.; Vetrano, J. Role of Mg in the stress corrosion cracking of an Al-Mg alloy. Metall. Mater. Trans. A 2001, 32, 1699–1711. [Google Scholar] [CrossRef]
- Starke, E.A., Jr.; Staley, J.T. Application of modern aluminum alloys to aircraft. Prog. Aerosp. Sci. 1996, 32, 131–172. [Google Scholar] [CrossRef]
- Yi, G.; Cullen, D.A.; Derrick, A.T.; Zhu, Y.; Free, M.L. Effects of different temper and aging temperature on the precipitation behavior of Al 5xxx alloy. In Light Metals 2015; Springer: Cham, Switzerland, 2015; pp. 361–365. [Google Scholar]
- Zhang, R.; Knight, S.P.; Holtz, R.L.; Goswami, R.; Davies, C.H.J.; Birbilis, N. A Survey of Sensitization in 5xxx Series Aluminum Alloys. Corros. J. Sci. Eng. 2016, 72, 144–159. [Google Scholar] [CrossRef]
- Barkov, R.; Pozdniakov, A.; Tkachuk, E.; Zolotorevskiy, V. Effect of Y on microstructure and mechanical properties of Al-Mg-Mn-Zr-Sc alloy with low Sc content. Mater. Lett. 2018, 217, 135–138. [Google Scholar] [CrossRef]
- Zhenbo, H.; Zhimin, Y.; Sen, L.; Ying, D.; Shang, B.; Xiang, Z. Preparation, microstructure and properties of Al-Zn-Mg-Sc alloy tubes. J. Rare Earths 2010, 28, 641–646. [Google Scholar]
- Song, R.; Dietzel, W.; Zhang, B.; Liu, W.; Tseng, M.; Atrens, A. Stress corrosion cracking and hydrogen embrittlement of an Al–Zn–Mg–Cu alloy. Acta Mater. 2004, 52, 4727–4743. [Google Scholar] [CrossRef]
- Zhang, Y.; Gao, K.; Wen, S.; Huang, H.; Nie, Z.; Zhou, D. The study on the coarsening process and precipitation strengthening of Al3Er precipitate in Al–Er binary alloy. J. Alloys Compd. 2014, 610, 27–34. [Google Scholar] [CrossRef]
- Buranova, Y.; Kulitskiy, V.; Peterlechner, M.; Mogucheva, A.; Kaibyshev, R.; Divinski, S.; Wilde, G. Al3 (Sc, Zr)-based precipitates in Al–Mg alloy: Effect of severe deformation. Acta Mater. 2017, 124, 210–224. [Google Scholar] [CrossRef]
- Ebrahimi, S.S.; Emamy, M.; Pourkia, N.; Lashgari, H. The microstructure, hardness and tensile properties of a new super high strength aluminum alloy with Zr addition. Mater. Des. 2010, 31, 4450–4456. [Google Scholar] [CrossRef]
- Ram, G.J.; Mitra, T.; Shankar, V.; Sundaresan, S. Microstructural refinement through inoculation of type 7020 Al–Zn–Mg alloy welds and its effect on hot cracking and tensile properties. J. Mater. Process. Technol. 2003, 142, 174–181. [Google Scholar]
- Cavanaugh, M.K.; Birbilis, N.; Buchheit, R.G.; Bovard, F. Investigating localized corrosion susceptibility arising from Sc containing intermetallic Al3Sc in high strength Al-alloys. Scr. Mater. 2007, 56, 995–998. [Google Scholar] [CrossRef]
- Fang, H.; Chao, H.; Chen, K. Effect of Zr, Er and Cr additions on microstructures and properties of Al–Zn–Mg–Cu alloys. Mater. Sci. Eng. A 2014, 610, 10–16. [Google Scholar] [CrossRef]
- Lin, S.; Nie, Z.; Huang, H.; Li, B. Annealing behavior of a modified 5083 aluminum alloy. Mater. Des. 2010, 31, 1607–1612. [Google Scholar] [CrossRef]
- Jikal, A.; Majid, F.; Chaffou, H.; Ghorba, M.E. Influence of corrosion on the mechanical behavior of strand of a non-rotating wire rope: Experimental study. Procedia Struct. Integr. 2019, 18, 731–741. [Google Scholar] [CrossRef]
- Singh, V.; Mukhopadhyay, A.; Prasad, K. Influence of small additions of zinc on the nature of the grain boundary precipitates in an AA 8090 alloy. Scr. Mater. 1997, 37, 1519–1523. [Google Scholar] [CrossRef]
- Liang, P.; Du, C.; Li, X.; Chen, X.; Liang, Z. Effect of hydrogen on the stress corrosion cracking behavior of X80 pipeline steel in Ku’erle soil simulated solution. Int. J. Miner. Metall. Mater. 2009, 16, 407–413. [Google Scholar] [CrossRef]
- Meng, C.; Zhang, D.; Zhuang, L.; Zhang, J. Correlations between stress corrosion cracking, grain boundary precipitates and Zn content of Al–Mg–Zn alloys. J. Alloys Compd. 2016, 655, 178–187. [Google Scholar] [CrossRef]
- White, R.B.; Dean, S.W.; Pantoya, M.; Hirschfeld, D.; Gill, W.; Erikson, W. Effect of aluminum on heat flux from a simulated rocket propellant flame. J. Propuls. Power 2007, 23, 1255–1262. [Google Scholar] [CrossRef]
- Maab, R.; Derlet, P. Micro-plasticity and recent insights from intermittent and small-scale plasticity. Acta Mater. 2018, 143, 338–363. [Google Scholar]
- Petch, N. The cleavage strength of polycrystals. J. Iron Steel Inst. 1953, 174, 25–28. [Google Scholar]
- Zhu, Z.; Jiang, X.; Wei, G.; Fang, X.; Zhong, Z.; Song, K.; Han, J.; Jiang, Z. Influence of Zn Content on Microstructures, Mechanical Properties and Stress Corrosion Behavior of AA5083 Aluminum Alloy. Acta Metall. Sin. (Engl. Lett.) 2020, 33, 1369–1378. [Google Scholar] [CrossRef]
- Morisawa, J.; Kodama, M.; Yokota, N.; Nakata, K.; Fukuya, K.; Shima, S.; Asano, K. Hydrogen analysis and slow strain rate test in Ar gas for irradiated austenitic stainless steel. J. Nucl. Mater. 2001, 294, 241–249. [Google Scholar] [CrossRef]
- Carroll, M.; Buchheit, R.; Daehn, G.S.; Mills, M.J. Optimum trace copper levels for SCC resistance in a Zn-modified Al-5083 alloy. In Materials Science Forum; Trans Tech Publications: Zürich, Switzerland, 2002; pp. 1443–1448. [Google Scholar]
- Scamans, G.; Holroyd, N.; Tuck, C. The role of magnesium segregation in the intergranular stress corrosion cracking of aluminium alloys. Corros. Sci. 1987, 27, 329–347. [Google Scholar] [CrossRef]
- Brown, L.; Jones, J.; Locke, J.; Burns, J. Effect of low temperature, low water vapor pressure environments on the fatigue behavior of an Al-Li aerospace alloy. Int. J. Fatigue 2021, 148, 106215. [Google Scholar] [CrossRef]
- Crane, C.B.; Gangloff, R.P. Stress corrosion cracking of Al-Mg alloy 5083 sensitized at low temperature. Corrosion 2016, 72, 221–241. [Google Scholar] [CrossRef]
- Jones, R.H. The influence of hydrogen on the stress-corrosion cracking of low-strength Al-Mg alloys. JoM 2003, 55, 42–46. [Google Scholar] [CrossRef]
Alloy No. | Zn | Mg | Mn | Cr | Si | Fe | Al |
---|---|---|---|---|---|---|---|
1 | 0.00 | 4.47 | 0.70 | 0.152 | <0.002 | <0.02 | Bal. |
2 | 0.25 | 4.50 | 0.70 | 0.152 | <0.002 | <0.02 | Bal. |
3 | 0.50 | 4.48 | 0.71 | 0.146 | <0.002 | <0.02 | Bal. |
4 | 0.75 | 4.49 | 0.68 | 0.151 | <0.002 | <0.02 | Bal. |
0.00 wt.% Zn | 0.25% wt. Zn | 0.50% wt. Zn | 0.75% wt. Zn | |
---|---|---|---|---|
Matrix | 319 ± 8 | 316 ± 10 | 338 ± 11 | 335 ± 15 |
300 mm/min, 1000 rpm | 293 ± 5 | 300 ± 7 | 300 ± 5 | 300 ± 10 |
300 mm/min, 1500 rpm | 299 ± 10 | 280 ± 12 | 295 ± 9 | 302 ± 13 |
300 mm/min, 600 rpm | 295 ± 6 | 296 ± 10 | 300 ± 7 | 306 ± 8 |
Zn, wt.% | Strength, MPa | Elongation, % | Breaking Time, h | |||
---|---|---|---|---|---|---|
In Air | In NaCl | In Air | In NaCl | In Air | In NaCl | |
0 | 310 ± 8 | 301 ± 14 | 35 ± 4 | 15 ± 5 | 147 ± 15 | 81 ± 10 |
0.25 | 307 ± 10 | 298 ± 16 | 49 ± 6 | 19 ± 6 | 161 ± 18 | 96 ± 8 |
0.50 | 330 ± 6 | 323 ± 10 | 44 ± 5 | 34 ± 5 | 156 ± 13 | 130 ± 10 |
0.75 | 328 ± 12 | 297 ± 15 | 47 ± 8 | 18 ± 8 | 172 ± 19 | 88 ± 11 |
