Article

Preparation of Battery-Grade Lithium Carbonate with Lithium-Containing Desorption Solution

1
National Engineering Research Center for Integrated Utilization of Salt Lake Resource, School of Resources and Environmental Engineering, East China University of Science and Technology, Shanghai 200237, China
2
Joint International Laboratory for Potassium and Lithium Strategic Resources, School of Resources and Environmental Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Author to whom correspondence should be addressed.
Metals 2021, 11(9), 1490; https://doi.org/10.3390/met11091490
Submission received: 4 August 2021 / Revised: 15 September 2021 / Accepted: 17 September 2021 / Published: 19 September 2021
(This article belongs to the Special Issue Recent Advances in Leaching and Extractive Metallurgy)

Abstract

:
In this study, a process for preparing battery-grade lithium carbonate with lithium-rich solution obtained from the low lithium leaching solution of fly ash by adsorption method was proposed. A carbonization-decomposition process was carried out to remove impurities such as iron and aluminum. First, primary Li2CO3 was treated by CO2 to get the more soluble bicarbonates. The decomposition of LiHCO3 produced insoluble Li2CO3 at 90 °C And Li2CO3 was smashed by air stream pulverization. The final precipitation yielded a high purity (99.6%) and homogeneous Li2CO3. Some factors affecting production efficiency were investigated. The results showed that a liquid-solid ratio of 25:1, a carbonization temperature of 25 °C, an air velocity of 2 L/min, and a stirring speed of 400 rpm; a decomposition temperature of 90 °C and a stirring speed of 400 rpm, a molar ratio of EDTA to Ca 2:1; an air pressure of 0.3 MPa and hot water washing precipitate (L/S mass ratio 2:1) promoted ions removal.

1. Introduction

Lithium has become one of the most significant resources around the world due to the fast-growing lithium-ion battery demand nowadays. Lithium carbonate is used in many industries as the initial raw material. Especially in the field of new energy, battery-grade lithium carbonate is required, which has higher requirements for the lithium carbonate process.
At present, the preparation of lithium carbonate from salt lake brine is usually by the evaporation-crystallization-precipitation method. Among that the development of carbonate precipitation is relatively mature and is suitable for brines with a low Mg/Li ratio. Various additives (such as sodium bicarbonate and oxalic acid [1,2]), ultrasonic waves [3], and reaction systems [4,5] were studied to discuss the influence on crystal size and morphology. Sun [6] made a systematic study on the crystallization process of lithium carbonate and prepared lithium carbonate products with various purity, granularity, and morphology. Three industrial routes of Li2CO3 recrystallization, LiHCO3 thermal decomposition reaction crystallization, and LiOH + CO2 gas-liquid crystallization were used to prepare high-purity lithium carbonate products with purity higher than 99.9%.
The industrial production of battery-grade lithium carbonate generally does not directly carry out from ore and brine, because these principles contain high impurities thus it is difficult to guaranteed purity [7,8,9,10]. Therefore, industrial-grade lithium carbonate is obtained from different lithium resources through different separation processes and then purified to obtain battery-grade lithium carbonate [11,12,13]. Carbonization is one of the more commonly used methods which mainly reacts lithium carbonate with carbon dioxide and water to generate lithium bicarbonate with greater solubility [14]. Generally, ion-exchanged resin is used to remove calcium and magnesium impurities with the inevitable loss of lithium [15].
In recent years, with the development of high-value added utilization of solid waste, the recovery of lithium, gallium, and other elements in fly ash has been on the agenda. In previous studies, we proposed a method of extracting lithium from fly ash with a lithium content of 0.25 mg/g and obtained a lithium-containing desorption solution [16]. This research was based on the solution to design a battery-grade lithium carbonate process. It was realized that fly-ash was another high-value source for lithium extraction. Compared with traditional technologies, iron, aluminum, and silicon can be removed effectively from lithium carbonate using this method. Meanwhile, the resin adsorption process of impurity ions can be eliminated. The strategy is effective to control product granularity to meet the requirements of battery-grade lithium carbonate. The effects of various factors on the yield and purity of the final lithium carbonate product were investigated, and a set of feasible process schemes were provided.

2. Methods

2.1. Materials and Chemicals

Lithium-containing desorption solution was obtained from the low lithium leaching solution of fly ash by the adsorption method [16] with a concentration shown in Table 1. The main impurity ions in the desorption solution are sodium, iron, aluminum, and silicon. The concentration of lithium is about 13.59 g/L. All chemicals in the study were analytical grade.

2.2. Experimental Equipment and Analytical Instruments

A constant temperature water bath, a DZF-6090 vacuum drying oven, an AR2140 OHAUS precision analytical balance, an S10-3 constant temperature magnetic stirrer, a PHSJ-3F laboratory pH meter, an ARCOS FHS12 inductively coupled plasma emission spectrometer, a MASTERSIZER 2000 laser particle size instrument (Malvern Instruments Ltd, Malvern, UK), and an S-3400N Scanning Electron Microscope (Hitachi Corporation of Japan, Tokyo, Japan) were used in this study.

2.3. Methods

Figure 1 outlined the major steps involved in the production of battery-grade Li2CO3. The lithium-containing desorption solution was concentrated first, and the saturated sodium carbonate solution was added to obtain a primary lithium carbonate product with purity as shown in Table 2. The optimal reaction conditions were reported by recent research [17]: a reaction temperature of 90 °C, the dosage of sodium carbonate was 1.1 times the theoretical reaction dosage, a feed rate of 17 mL/min, and a stirring rate of 200 rpm. Hot water (90 °C) and ethanol were used to remove sodium ions.
Second, at different temperatures (25, 30, 35, 40, 45 °C), the primary lithium carbonate product was soaked in water with a liquid-solid ratio (10, 20, 30, 40, 50), then CO2 (99%) was bubbled into the slurry with different flow rate (1.0, 1.5, 2.0, 2.5, 3.0 L/min). And the Li2CO3 was converted to soluble LiHCO3. The lithium bicarbonate solution was obtained by filtration.
Finally, the lithium bicarbonate solution was added to the reactor and heated at a constant temperature (60, 70, 80, 90 °C) in a water bath. After the reaction, the solids were washed twice with hot water and dried in an oven. Then the air stream pulverization was used to treat the high purity lithium carbonate.

3. Results and Discussion

3.1. Washing Process of Products

Special attention was paid to the effect of the washing process, and the results are shown in Figure 2. The washing process mainly removes sodium from the product. Water has a higher impurity removal efficiency than ethanol, but at the same time, the lithium loss is higher. It can be due to the lithium carbonate is more soluble in water than ethanol. When using water as a detergent, the content of impurities did not change significantly with the increase in washing times. But at the same time, the lithium loss increased continuously. It can be seen that there was a sudden increase in sodium after the fourth washing. It might be due to the impurities that have been removed completely while lithium carbonate was still being lost.

3.2. Conversion of Impurities during Carbonization Process

The concentration of impurities in the solution after carbonization was measured as shown in Figure 3. It can be seen that the concentration of impurities in the solution generally increased first and then decreased with time. The change of calcium ion concentration was particularly obvious, which may be due to calcium carbonate and lithium carbonate have the same properties and react with carbon dioxide. And calcium bicarbonate is easy to decompose at room temperature, resulting in a precipitation reaction. However, Fe2CO3 and Al2CO3 did not react with carbon dioxide at experimental temperatures. The impurities dissolve slightly during the process of slurring. But the precipitation reaction of Fe3+ and Al3+ occurs with the decrease of pH from 12 to 7 during the carbonization process [5].

3.3. Optimization of Carbonization Process

In this study, the liquid-solid ratio (mL/g) refers to the ratio of the volume of deionized water and the mass of solid lithium carbonate. The effects of different liquid-solid ratios on carbonization reaction rates were studied. The conversion rate could be calculated as follows:
φ = C V / 13.88 × 73.89 W × 100 %
where C is the concentration of Li+ in the solution (mg/L), V is the volume of the solution (L), W is the Initial mass of lithium carbonate (mg).
As can be seen from Figure 4, the conversion rate of lithium carbonate increased as the liquid-solid ratio increased. It can be explained that with an increase in the liquid-solid ratio, the bulk concentration of the slurry mixture decreased, which reduces the diffusion resistance in the liquid phase and at the liquid-solid boundary. On the other hand, as the solid concentration decreased, the slurry density and the friction between phases decreased, so that the total interface area of the reaction and the mass transfer rate increased [11]. The more fully lithium carbonate is in contact with carbon dioxide, the faster the reaction rate will be. As can be seen, the conversion rate was only 40% at a liquid-solid ratio of 10 mL/g. It might be that the solubility limit of lithium bicarbonate in an aqueous solution was reached, and the reaction could not proceed anymore.
The conversion rate of lithium carbonate at different temperatures is shown in Figure 5. The carbonization process is controlled by mass transfer and reaction, in which mass transfer is the main control process [18]. The dissolution rates of lithium carbonate and carbon dioxide decreased with the increase in temperature, resulting in the decrease of mass transfer efficiency and the increase in reaction rate. On the other hand, lithium bicarbonate will be decomposed at high temperatures. Thus, as the temperature increased, the concentration of lithium at the reaction endpoint decreased, which means that the conversion rate gradually decreases.
As can be seen from Figure 6, with increasing the flow rate of CO2, the carbonation reaction rate was accelerated. It might be due to the volume mass transfer coefficient increased with the increase in CO2 flow rate. Similarly, these results were consistent with most studies in that using a high flow rate can enhance Li2CO3 dissolution in CO2–water solution [19]. However, it is not difficult to find that, with the increase in CO2 flow rate, the ventilation volume increased significantly within the same period, but the utilization rate of CO2 decreased relative to the volume. Thus, it is not appropriate to use an excessively high flow rate in industrial applications, and a previous study reported that increasing the pressure may improve the effective utilization rate of CO2.
The pH of the reaction system at different time intervals was shown in Figure 7. It was noticed that during the carbonation process the pH of the solution started at about 11.85 and reached about 7.5 in the end, it can be seen that the acidity of the solution increased during carbonation. Finally, all Li2CO3 was converted to soluble LiHCO3. Therefore, the progress of the reaction can be accounted for by the variation of pH.

3.4. The Effect of Decomposition Conditions on Products

As is shown in Figure 8 and Figure 9, when the temperature increased from 60 °C to 90 °C, the reaction rate and conversion rate of LiHCO3 increased significantly [19,20]. The decomposition process of the LiHCO3 solution is an endothermic reaction, so its equilibrium is shifted to the product side with increasing temperatures and promotes the solute diffusion and crystal growth rate. In conclusion, it is beneficial for both the decomposition of LiHCO3 and the crystallization of Li2CO3 to increase the operating temperature.
Agitation speed is also one of the factors that affect thermal decomposition reaction. The particle size distribution of the products under different agitation speeds was investigated as shown in Figure 10. It can be seen that with the increase in agitation speed, the single crystal peak shifts to the left, and the height of the coalescence peak increased. It can be explained that with the increase in agitation speed, both the liquid turbulence intensity and the interface updating speed were increased. It was conducive to the diffusion of lithium carbonate solute and the growth of crystal surface and improving the crystal-crushing effect at the same time.
It is difficult to make the product directly meet the particle size requirement of battery-grade lithium carbonate by stirring and seed addition. In this paper, airstream pulverization was used to treat the product. The pulverizing effect of the jet mill under different air compressor pressures was studied as shown in Figure 11. The average particle size of the product decreased with the increase in air compressor pressure. The jet mill ejects the compressed gas at a high speed through the nozzle. The high-speed airflow brought the material to the crushing chamber where the particles were crushed by collision, friction, and shear. The air compressor pressure affects the air velocity, which affects the impact strength of the particles, and the product with different particle size distribution was obtained.

4. Conclusions

A carbonization-decomposition process was developed to produce battery-grade Li2CO3 from a lithium-containing desorption solution. The best reaction conditions were obtained: a liquid-solid ratio of 25:1, a carbonization temperature of 25 °C, an air velocity of 2 L/min, a carbonization time of 2 h, and a stirring speed of 400 rpm. And the product finally reaches the battery-grade lithium carbonate battery-grade standard by air-jet crushing. The lithium content of the lithium carbonate product obtained through the three-step reaction reaches 99.6%, the content of iron and aluminum in the product is less than 0.001%, contents of other impurities are below the battery-grade lithium carbonate standard, the total yield of the product is about 70%. The particle size of the lithium carbonate product can be controlled by changing the pressure of the jet mill to achieve the battery-grade standard requirement. The entire process has great industrial potential.

Author Contributions

Literature search, figures, study design, data collection, data analysis, and writing—original draft preparation and review, Z.-G.X.; methodology, data analysis, and writing—review and editing, S.-Y.S. All authors read and approved the final manuscript.

Funding

This research was funded by the National Key R&D Program of China (2017YFB0603104), and Sponsored by Shanghai Pujiang Program (2019PJD011).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The research was supported by the National Key R&D Program of China (2017YFB0603104), and Sponsored by the Shanghai Pujiang Program (2019PJD011).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Watamura, H.; Marukawa, H.; Hirasawa, I. Polyelectrolyte effects on the crystallization phenomena of the lithium carbonate. Cryst. Growth 2013, 373, 111–117. [Google Scholar] [CrossRef]
  2. Zhao, C.; Zhang, Y.; Cao, H.; Zheng, X.; Van Gerven, T.; Hu, Y.; Sun, Z. Lithium carbonate recovery from lithium-containing solution by ultrasound assisted precipitation. Ultrason. Sonochem. 2018, 52, 484–492. [Google Scholar] [CrossRef] [PubMed]
  3. Tian, M.; Wang, Z.; Cao, J.; Guo, J.; Gong, X. Insight into Lithium Carbonate Crystallization in the Mild Reaction System LiCl-NH3·H2O-CO2 by Stabilizing the solution with NH3·H2O. Cryst. Growth 2019, 520, 46–55. [Google Scholar] [CrossRef]
  4. Tian, M.; Guo, J.; Wang, Z.; Cao, J.; Gong, X. Synergetic effect of secondary nucleation and growth on the lithium carbonate particle size in the gas–liquid reactive crystallization of LiCl–NH3·H2O–CO2. Particuology 2020, 51, 10–17. [Google Scholar] [CrossRef]
  5. Yi, W.T.; Yan, C.Y.; Ma, P.H.; Wen, X.M. Refining of crude Li2CO3 via slurry phase dissolution using CO2. Sep. Purif. Technol. 2007, 56, 241–248. [Google Scholar] [CrossRef]
  6. Sun, Y.; Song, X.; Jin, W.; Yan, L.; Yu, J. Unseeded Supersolubility of Lithium Carbonate: Experimental Measurement and Simulation with Mathematical Models. Cryst. Growth 2009, 311, 4714–4719. [Google Scholar] [CrossRef]
  7. Pan, X.; Dou, Z.H.; Zhang, T.A.; Meng, D.L.; Han, X.X. Basic study on direct preparation of lithium carbonate powders by membrane electrolysis. Hydrometallurgy 2020, 191, 105193. [Google Scholar] [CrossRef]
  8. Yang, W.; Zhou, L.; Dai, J.; Zhou, L.; Yin, Q. Crystallization of Lithium Carbonate from Aqueous Solution: New Insights into Crystal Agglomeration. Ind. Eng. Chem. Res. 2019, 58, 18448–18455. [Google Scholar] [CrossRef]
  9. Wang, W.; Chen, W.; Liu, H. Hydrometallurgical preparation of lithium carbonate from lithium-rich electrolyte. Hydrometallurgy 2019, 185, 88–92. [Google Scholar] [CrossRef]
  10. Han, B.; Louhi-Kultanen, M. Lithium carbonate precipitation by homogeneous and heterogeneous reactive crystallization. Hydrometall. 2020, 195, 105386. [Google Scholar] [CrossRef]
  11. Linneen, N.; Bhave, R.; Woerner, D. Purification of industrial grade lithium chloride for the recovery of high purity battery grade lithium carbonate. Sep. Purif. Technol. 2019, 214, 168–173. [Google Scholar] [CrossRef]
  12. Zhu, C.; Dong, Y.; Yun, Z.; Hao, Y.; Wang, C.; Dong, N.; Li, W. Study of lithium exploitation from carbonate subtype and sulfate type salt-lakes of Tibet. Hydrometallurgy 2014, 149, 143–147. [Google Scholar] [CrossRef]
  13. Martin, G.; Schneider, A.; Voigt, W.; Bertau, M. Lithium extraction from the mineral zinnwaldite: Part II: Lithium carbonate recovery by direct carbonation of sintered zinnwaldite concentrate. Miner. Eng. 2017, 110, 75–81. [Google Scholar] [CrossRef]
  14. Xu, Z.; Zhang, H.; Wang, R. Systemic and Direct Production of Battery-Grade Lithium Carbonate from a Saline Lake. Ind. Eng. Chem. Res. 2014, 53, 16502–16507. [Google Scholar] [CrossRef]
  15. Yi, W.T.; Yan, C.Y.; Ma, P.H. Removal of calcium and magnesium from Li2HCO3 solutions for preparation of high-purity Li2CO3 by ion-exchange resin. Desalination 2009, 249, 729–735. [Google Scholar] [CrossRef]
  16. Xu, Z.G.; Wang, X.C.; Sun, S.Y. Performance of a Synthetic Resin for Lithium Adsorption in Waste Liquid of Extracting Aluminum from Fly-Ash. Chin. Chem. Eng. 2021. [Google Scholar] [CrossRef]
  17. Shaojun, D.; Yuzhu, S.; Xingfu, S. Study on Preparation of Lithium Carbonate Via Reactive Crystallization from Old Salt Brine. Shandong Chem. Ind. 2018, 47, 5–8. [Google Scholar]
  18. Weijun, L.B. Process analysis and mechanism discussion of enhanced COsequestration by mineral carbonation. Chem. Ind. Eng. Soc. China 2009, 60, 2332–2338. [Google Scholar]
  19. Aghajanian, S.; Koiranen, T. Dynamic modeling and semibatch reactive crystallization of calcium carbonate through CO2 capture in highly alkaline water. CO2 Util. 2020, 38, 366–374. [Google Scholar] [CrossRef]
  20. Yi, W.T.; Yan, C.Y.; Ma, P.H. Crystallization kinetics of Li2CO3 from LiHCO3 solutions. Cryst. Growth 2010, 312, 2345–2350. [Google Scholar] [CrossRef]

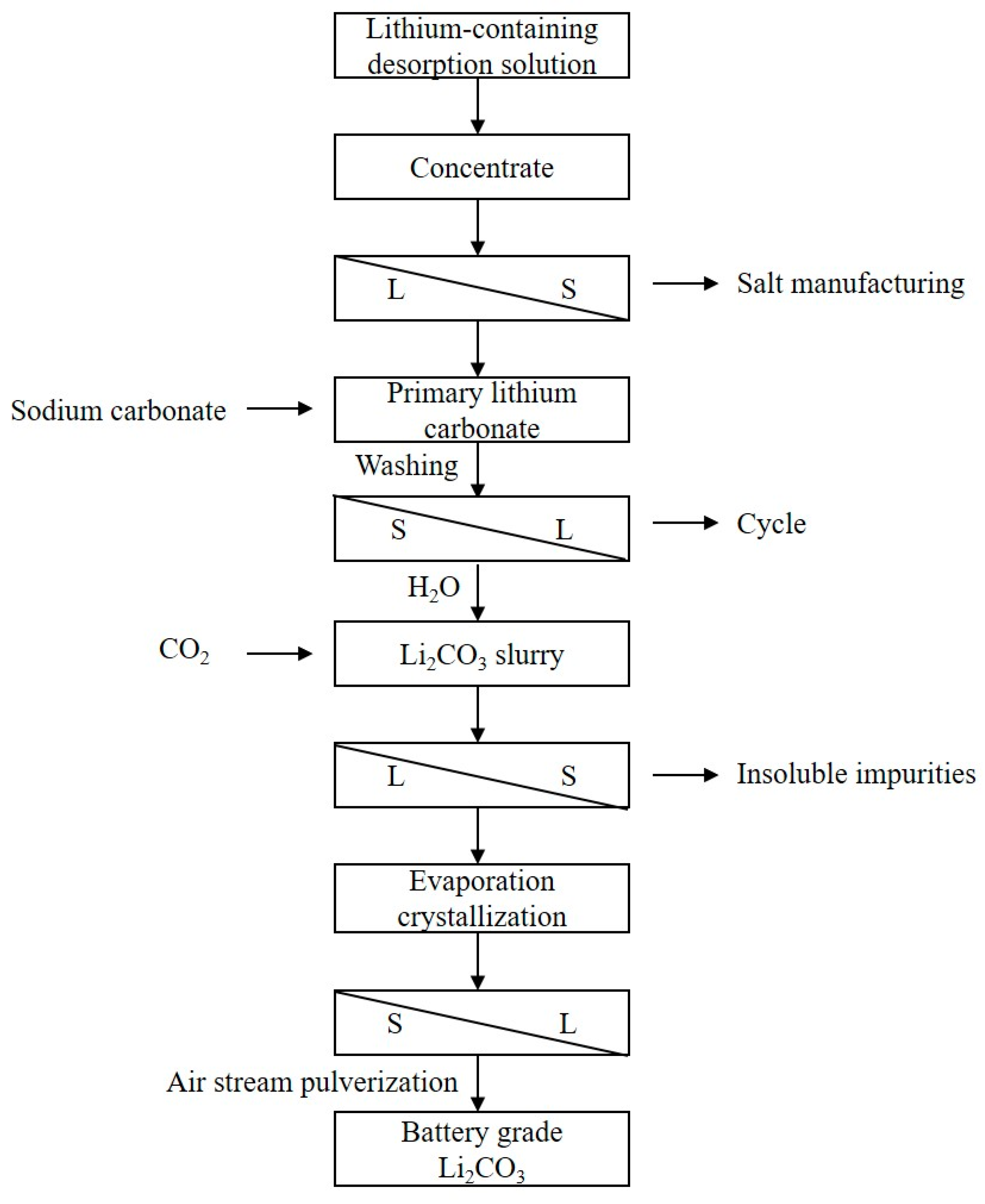

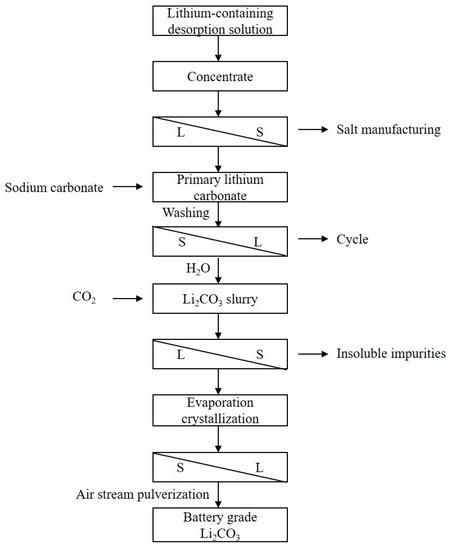

Figure 1. Flowsheet developed for the recovery of battery-grade Li2CO3 from the lithium-containing desorption solution.
Figure 1. Flowsheet developed for the recovery of battery-grade Li2CO3 from the lithium-containing desorption solution.
Metals 11 01490 g001

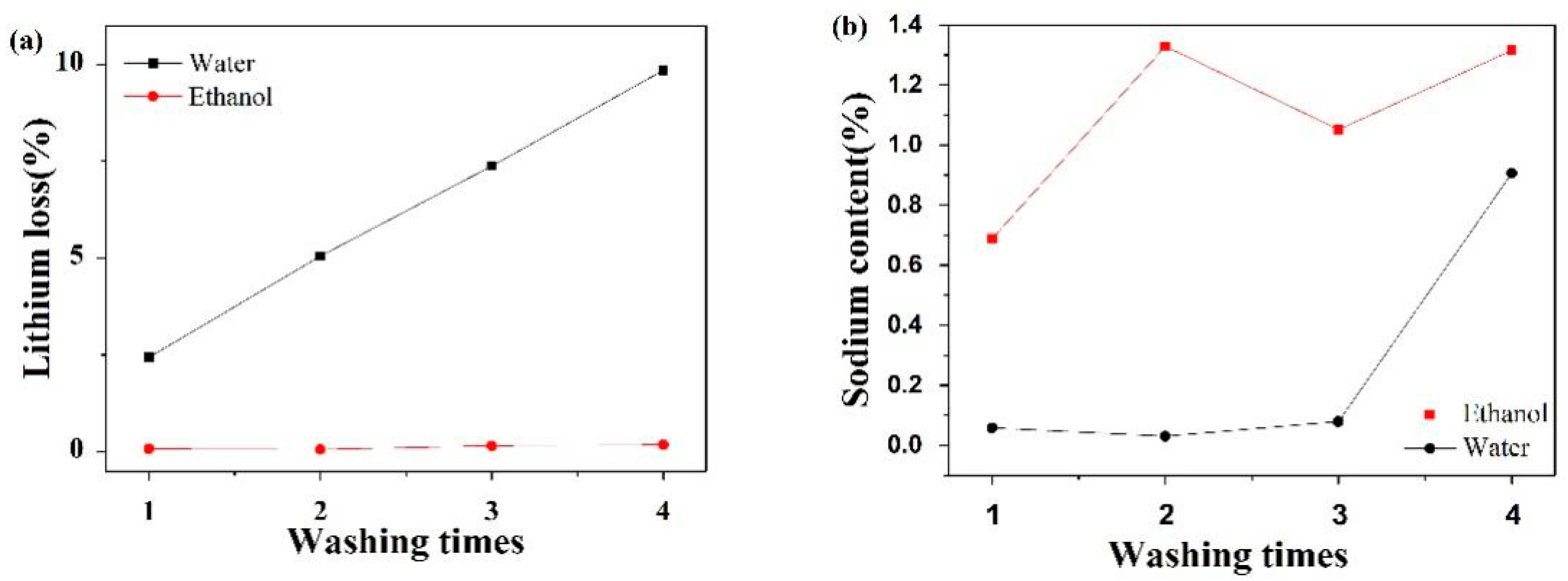

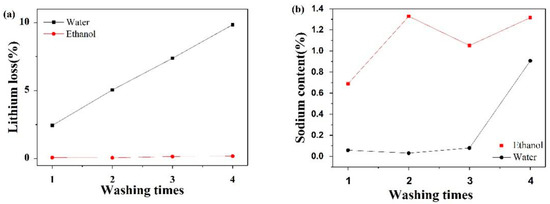

Figure 2. Washing process of water and ethanol: (a) lithium loss; (b) sodium content.
Figure 2. Washing process of water and ethanol: (a) lithium loss; (b) sodium content.
Metals 11 01490 g002

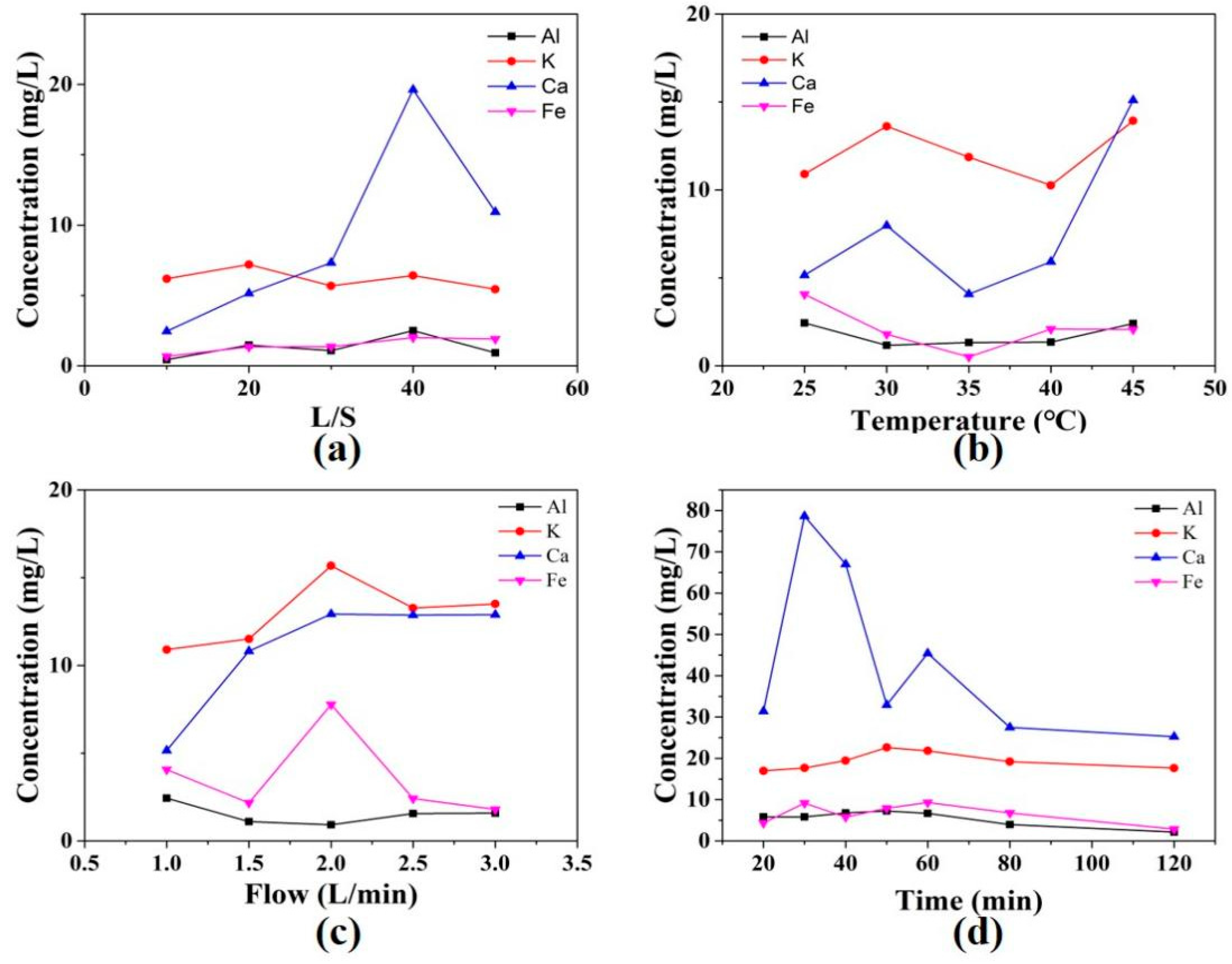

Figure 3. Effect of L/S (a) temperature (b) flow rate (c) time (d) on the concentration of impurities [liquid-solid ratio = 20, temperature = 25 °C, flow rate of CO2 = 3 L/min].
Figure 3. Effect of L/S (a) temperature (b) flow rate (c) time (d) on the concentration of impurities [liquid-solid ratio = 20, temperature = 25 °C, flow rate of CO2 = 3 L/min].
Metals 11 01490 g003

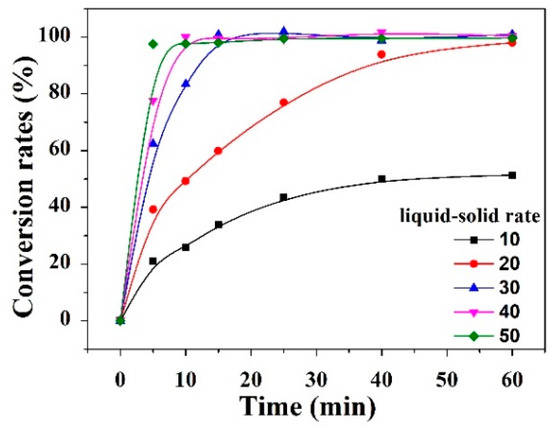

Figure 4. Effect of liquid-solid ratio on carbonization reaction [temperature = 25 °C, flow rate of CO2 = 3 L/min].
Figure 4. Effect of liquid-solid ratio on carbonization reaction [temperature = 25 °C, flow rate of CO2 = 3 L/min].
Metals 11 01490 g004

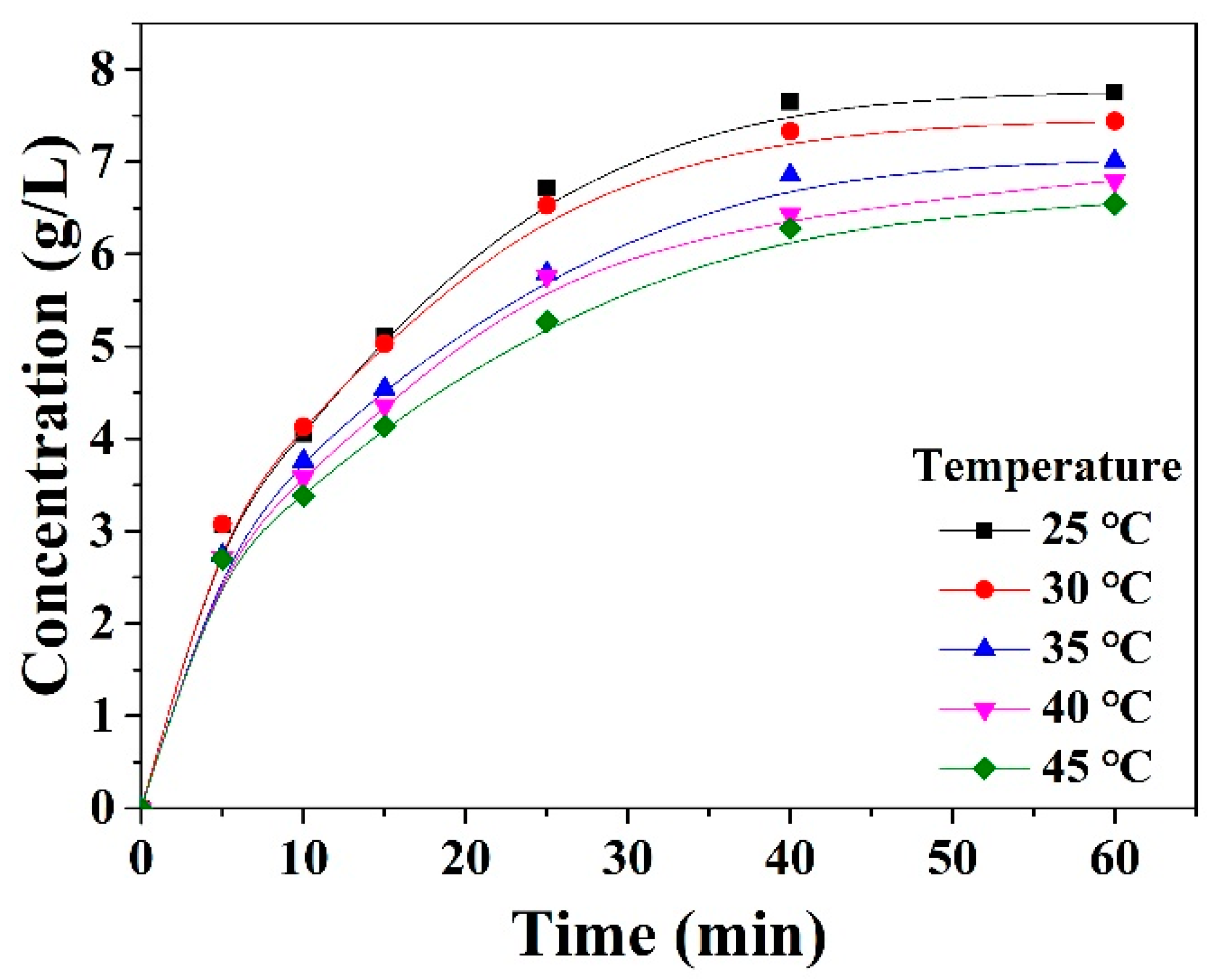

Figure 5. Effect of temperature on carbonization reaction [liquid-solid ratio = 20, flow rate of CO2 = 3 L/min].
Figure 5. Effect of temperature on carbonization reaction [liquid-solid ratio = 20, flow rate of CO2 = 3 L/min].
Metals 11 01490 g005

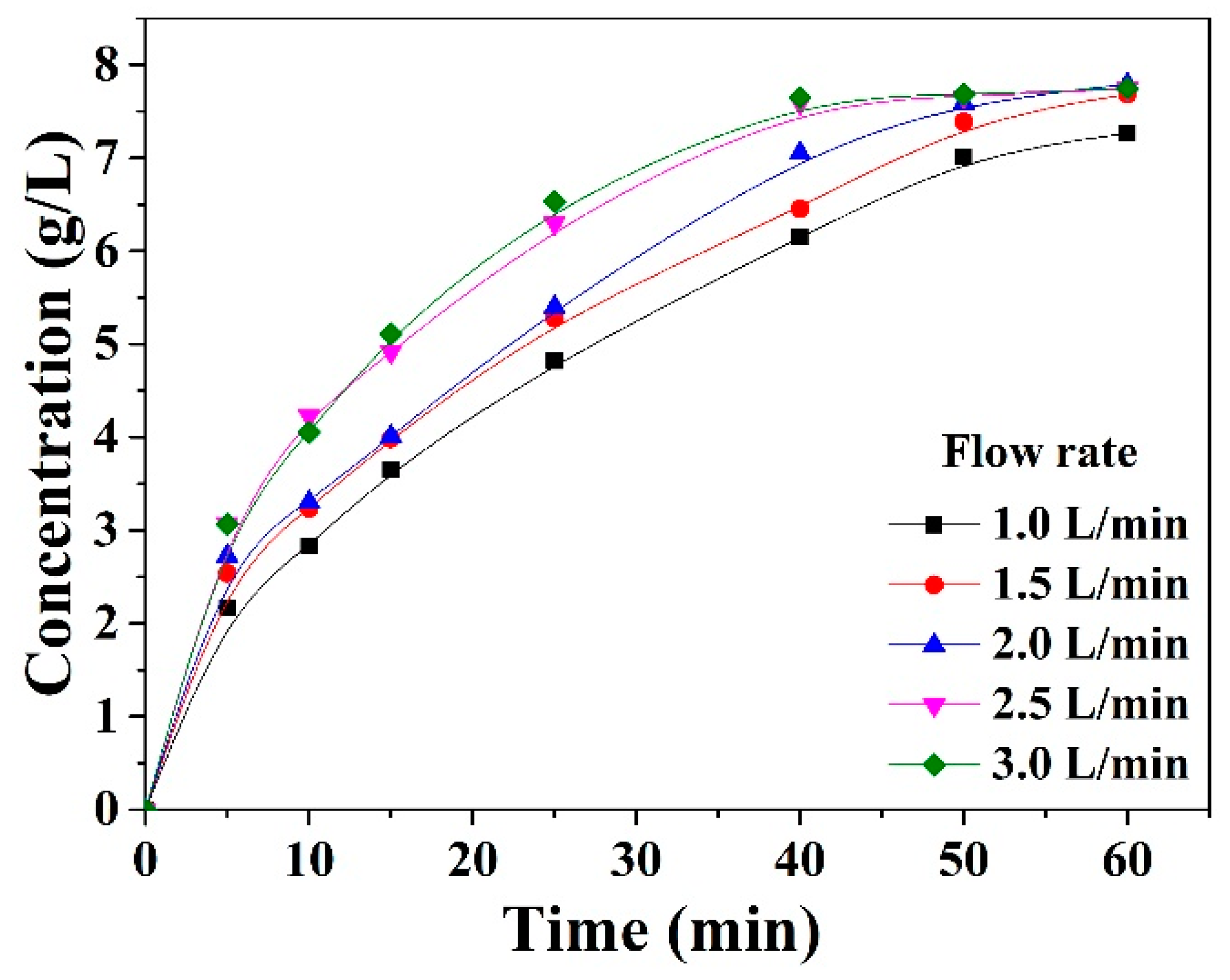

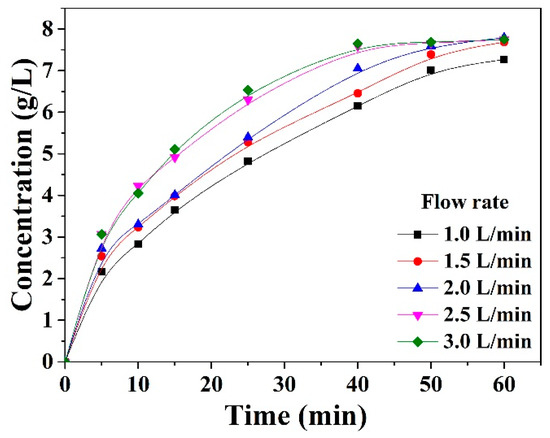

Figure 6. Effect of flow rate on carbonization reaction [liquid-solid ratio = 20, temperature = 25 °C].
Figure 6. Effect of flow rate on carbonization reaction [liquid-solid ratio = 20, temperature = 25 °C].
Metals 11 01490 g006

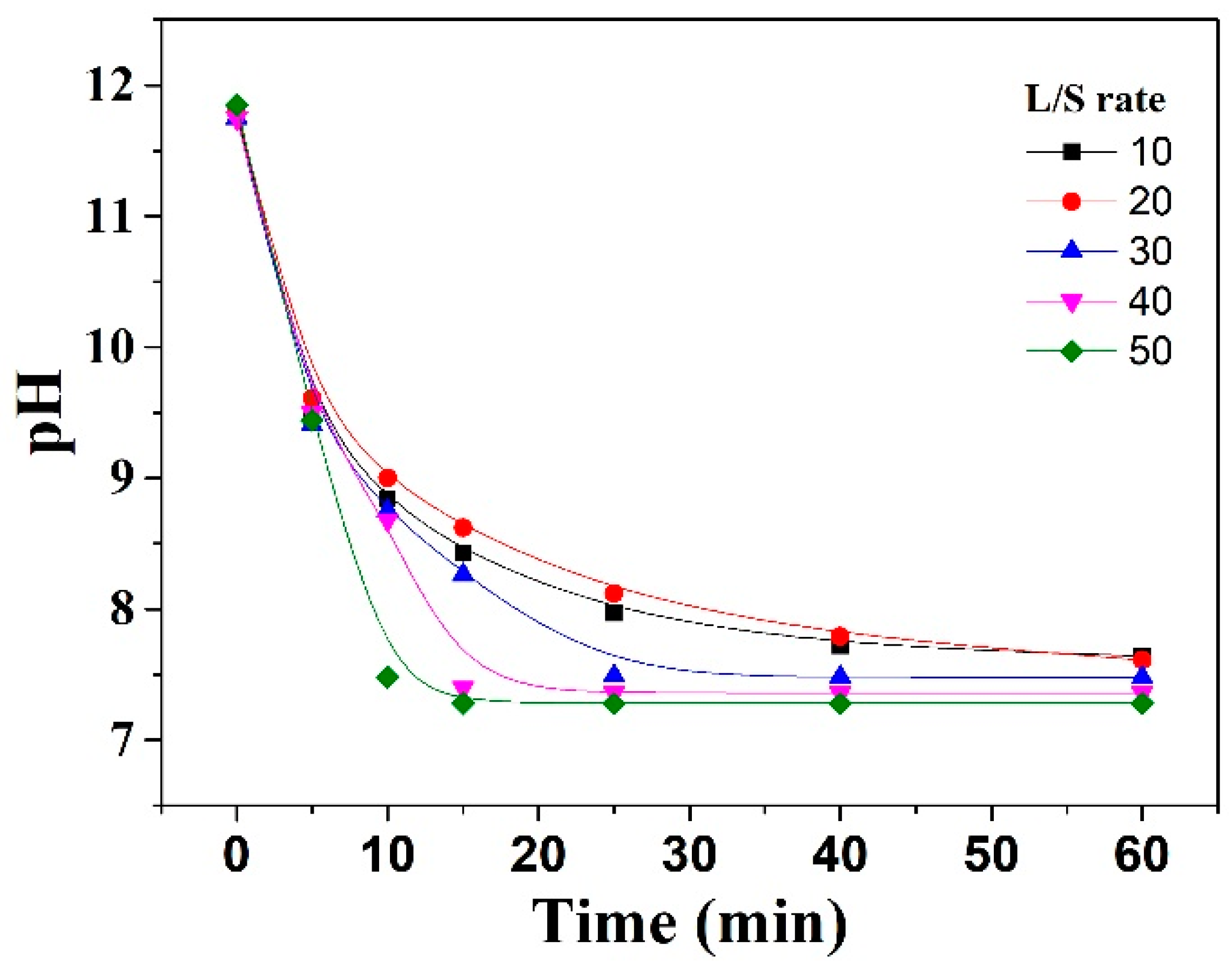

Figure 7. Variation of pH as a function of time.
Figure 7. Variation of pH as a function of time.
Metals 11 01490 g007

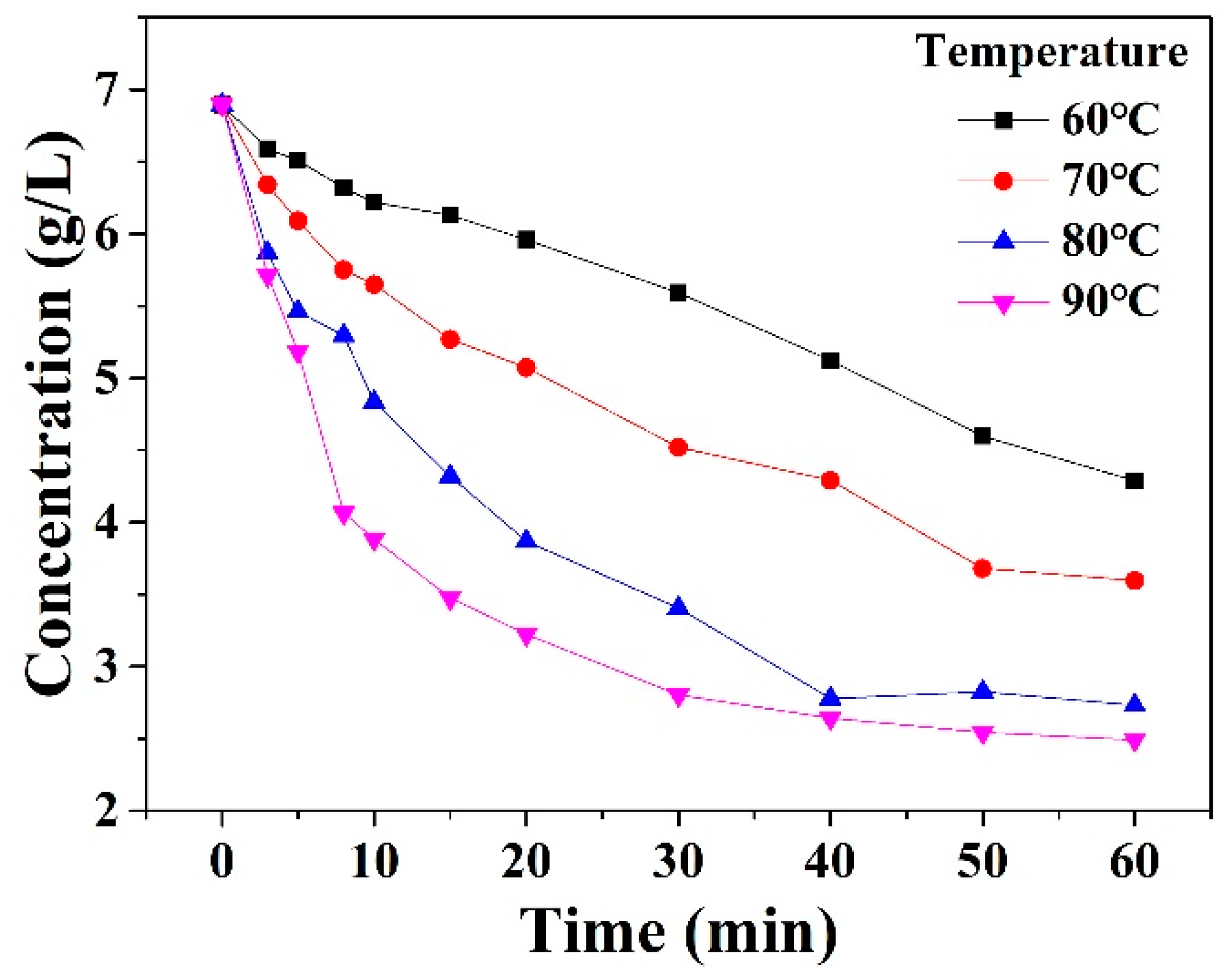

Figure 8. Effect of temperature on thermal decomposition crystallization [agitation speed = 300 rpm].
Figure 8. Effect of temperature on thermal decomposition crystallization [agitation speed = 300 rpm].
Metals 11 01490 g008
Figure 9. Sem-analysis of products under different temperatures.
Figure 9. Sem-analysis of products under different temperatures.
Metals 11 01490 g009

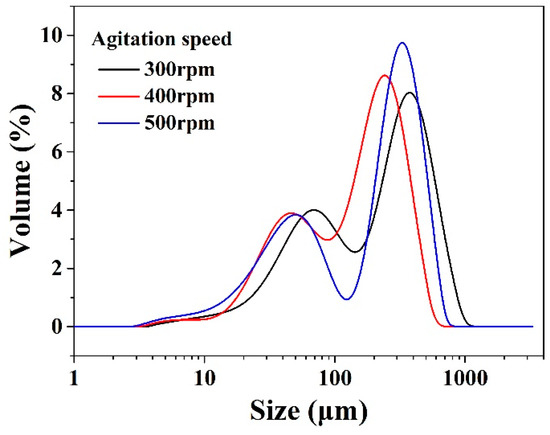

Figure 10. Effect of agitation speed on thermal decomposition crystallization [temperature = 90 °C].
Figure 10. Effect of agitation speed on thermal decomposition crystallization [temperature = 90 °C].
Metals 11 01490 g010

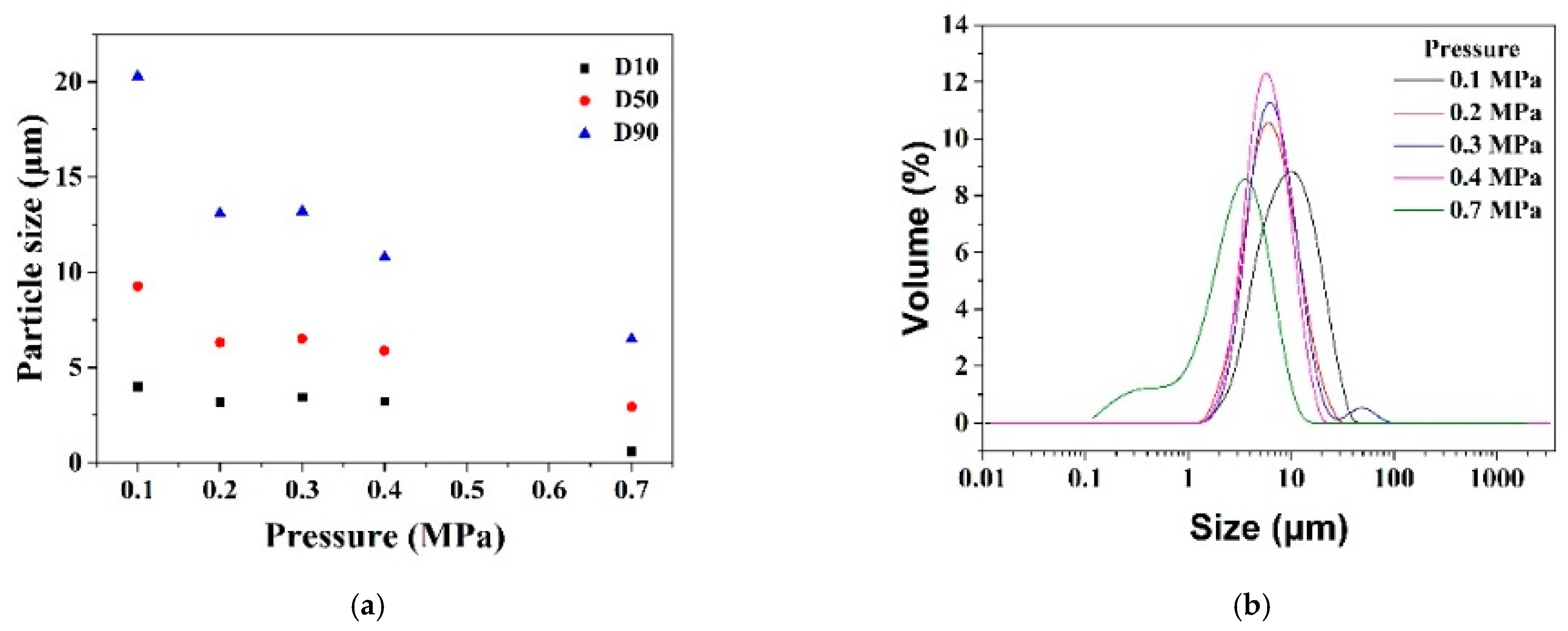

Figure 11. Effect of pressure on particle size. (a) average particle size (b) particle size distribution.
Figure 11. Effect of pressure on particle size. (a) average particle size (b) particle size distribution.
Metals 11 01490 g011
Table 1. Main compositions of the lithium-containing desorption solution.
Table 1. Main compositions of the lithium-containing desorption solution.
LiNaAlKCaFe
g/L13.5970.040.03281.0060.31720.0366
Table 2. Impurity content of primary lithium carbonate products.
Table 2. Impurity content of primary lithium carbonate products.
Li2CO3NaAlKCaFe
92.21%4.213%0.019%0.049%0.411%0.042%
