Production of Surface Layer with Gradient Microstructure and Microhardess on Copper by High Pressure Surface Rolling

1
School of Mechanical Engineering, Wuhan Polytechnic University, Wuhan 430023, China
2
School of Power and Mechanical Engineering, Wuhan University, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 73; https://doi.org/10.3390/met10010073
Submission received: 18 November 2019 / Revised: 26 December 2019 / Accepted: 27 December 2019 / Published: 2 January 2020
(This article belongs to the Special Issue Strengthening Mechanisms in Metallic Materials)

Abstract

:
Pure copper was subjected to high-pressure surface rolling (HPSR) to obtain a surface gradient layer. Effects of HPSR parameters on the surface microstructure and microhardness of Cu were investigated by using optical microscopy, transmission electronic microscopy, X-ray diffraction, and the microhardness test. The HPSR surface layer has a gradient microstructure consisting of increasingly refined grains with decreasing depth from the treated surface (DFS). The thicknesses of the refined surface layer can be up to ~1.8 mm, and the grain size of the topmost surface is down to ~88 nm, depending on the HPSR parameters including pressure, time, and temperature. Microhardness of HPSR samples increases with decreasing DFS, with a maximum of ~2.4 times that of the undeformed matrix. The present results indicated that HPSR could be an effective method for the production of a mm-thick surface layer on Cu with gradient microstructure and property.

1. Introduction

It has been well-known that refining the grains of metals to the submicron or nanoscale can lead to superior properties compared with the coarse-grained counterparts [1,2]. Among the available methods for producing bulk ultrafine or nano-grained metals, severe plastic deformation (SPD) has been widely used [2,3]. By using the SPD-based methods the level of grain refinement is dependent on that of the plastic strain that can be imposed on the metals, which is limited by the deformability of the bulk materials. Alternatively, the production of a surface refined layer was applied to improve the surface properties of metallic materials without changing the characteristics of the matrix [4,5]. Various surface SPD techniques, such as surface mechanical attrition treatment (SMAT) [4,5], surface mechanical grinding treatment (SMGT) [6,7], and high energy shot-peening [8], have been developed to generate a surface gradient layer in metallic materials. The surface gradient layer produced by these methods can be typically characterized by increasingly refined grains (down to the nano or submicron level) with decreasing depth from the surface, leading to significant enhancement in the hardness [4], wear resistance [9], and other surface-related properties [6]. Moreover, it has been found that the gradient nano-micron structure exhibits a better combination of strength and ductility than that of the uniform structure [10]. Also, it has been demonstrated that material parameter such as stacking fault energy has a significant effect on the grain refinement due to the different deformation mechanisms (dislocation slip and deformation twinning) that may occur [11].
Production of the surface refined layer on the copper surface has been obtained using different methods in previous studies [7,11,12]. The microstructure changes of the surface refined layer typically include the thickness of the refined layer, grain size and orientation, grain boundary structure, dislocation density, etc. Usually, the thickness of the gradient surface layer produced on metals is around a few hundred micrometers in most cases [7,11]. Here producing gradient microstructure with thickness in the mm scale is highly desired for further enhancement of surface properties. It can also facilitate the investigation of the microstructure-property relationship of materials with gradient nano-micron structure in the bulk size level. This study aims at the fabrication of a thicker surface layer with gradient microstructure and properties on copper. We demonstrated the ability of high-pressure surface rolling (HPSR) for producing mm-thick surface gradient microstructure on Cu. Th microstructure and hardness of samples processed by different HPSR parameters were comparatively investigated.

2. Materials and Methods

The raw material used in this study is a copper plate (99.97% in mass fraction) with dimensions of Ø50 mm × 10 mm (Chinalco Luoyang Copper Co., Ltd., Luoyang, China). Before processing, the samples were annealed at 600 °C for 2 h in Ar atmosphere, polished on silicon carbide abrasive paper grade 800#, and cleaned with acetone in an ultrasonic oscillator.
A HPSR equipment was used to deform the Cu samples. As shown in Figure 1, HPSR was performed by rotation of six-cylinder rollers (GCr15, Ø8 mm × 10 mm, HV ≈ 710) fixed on a roller head under different loads (F) on the sample surface. The repeated rolling of the rollers on the sample surface generates highly localized and gradient plastic strain in the surface layer. More details of the HPSR can be found in [13]. Samples were treated for the different duration at room temperature (RT) and immersed in liquid nitrogen (LN). During HPSR, no obvious increase in temperature on the sample surface was detected. HPSR only induced small changes in the thickness of the sample due to the localized deformation on the surface. The detailed processing parameters of samples are listed in Table 1.
X-ray diffraction (XRD) measurements were performed with the Cu-Ka radiation in a Bruker D8 Advance X-ray diffractometer (Bruker AXS, Karlsruhe, Germany). A step size of 0.02° and a scanning rate of 1°/min were used in the 2θ range from 40° to 100° in a discontinuous mode. The cross-section microstructure of the treated samples was investigated by optical microscopy (OM, OLYMPUS-GX71, OLYMPUS Co., Tokyo, Japan). Samples for OM observations were prepared by mechanical grinding and polishing and chemical etching in a solution of Cr2O3 (20 g) + HCl (1.7 mL) + Na2S2O3 (2 g) + H2O (100 mL). Transmission electronic microscopy (TEM) observations were performed on a JEM-2010HT microscope (JEOL Ltd., Tokyo, Japan) operated at an accelerating voltage of 200 kV. Cross-section samples for TEM observations were prepared first by electroplating Ni on the treated surface and then processed by mechanically thinning, punching 3 mm disks, and then subjected to the twin-jet method in an electrolyte of H3PO4:C2H6O:H2O = 1:1:2 by volume. Microhardness along with depth from the treated surface was measured by an HXS-1000A (Shangguang Microscope Co., Ltd., Shanghai, China) microhardness tester (load 50 gf, load time 5 s).

3. Results and Discussion

Figure 2 shows the cross-sectional optical microscopy micrographs of HPSR samples. OM provides an observation of the overall microstructure of the deformed layer. As shown in Figure 2, an obvious deformed layer with gradient refined grains can be seen in the HPSR samples. In the region close to the surface, grains are too refined to be distinguished by OM. In the region near the matrix, elongated grains are clearly visible. It has been shown that the microstructure of surface rolled Cu varied from equiaxed refined grains to elongated grains with increasing DFS [14]. While distinct grain structures were formed along with the depth from the surface, there is no sharp boundary between the refined layer and the matrix.
As shown in Figure 2, the refined layer of the present HPSR samples has a thickness between 1094–1760 μm, depending on the HPSR parameters. Compared with those produced by other techniques, such as surface mechanical attrition treatment (SMAT) of ~800 μm [11], and surface mechanical grinding treatment (SMGT) of ~200 μm [7], the refined layer produced by the present HPSR technique is much thicker, which can be attributed to the large pressure applied to the sample during surface rolling.
The thicknesses of the refined layer of the HPSR samples (measured with an average of ten regions in the sample) are shown in Figure 3. Comparing samples A and B with the same pressure and temperature, it is indicated that the increase of HPSR duration can lead to an increase of the thicknesses of the refiner layer. This is because as rolling time increases, the degree of plastic strain imposed on the sample increases, the deeper it can be transferred to the subsurface. Thereby a thicker refined layer was formed. For samples B and C having the same HPSR duration and temperature, the thicknesses of the refiner layer increase with an increase of the HPSR pressure. The reasons are that an increase of the pressure can lead to an increase in the plastic strain on the surface. Obviously, an increase in the HPSR time or the pressure leads to the increase of the amount of deformation and hence the thicknesses of the refiner layer. In comparison with sample B, sample D has a thicker refined layer, indicating the significant effect of HPSR temperature. By HPSR at a lower temperature, dislocation annihilation or dynamic recrystallization can be suppressed; thus, a deeper refined layer can be obtained. It is noted that the error bars in Figure 3 represent the range of the thickness of the refined layer, which is mainly due to the unevenness of the deformed layer as a result of the heterogeneity of the plastic deformation by HPSR from a microstructural point of view. It is also noted that a strict relationship between the thickness of the refined layer and the HPSR parameters is beyond the scope of this study, and the exact value of the mean thickness may depend on the statistical method of the data. In our case, it is clearly showed that the thickness of the refined layer depends on the HPSR parameters. This relation makes it possible to tailor the thickness of the refined layer on a relatively large scale by using HPSR.
X-ray diffraction patterns of the HPSR samples are shown in Figure 4. An obvious broadening of the diffraction peaks is observed, indicating the significant grain refinement and microstrain in the HPSR samples. The grain size of the HPSR sample can be quantitatively estimated by the Scherrer–Wilson equation [15]. The grain sizes at the topmost surface are 185.5 nm, 458.9 nm, 360.2 nm, and 88.0 nm, for samples A, B, C, and D, respectively.
In the present study, we obtained a refined layer with a minimum grain size of ~88.0 nm on copper by HPSR, which is much larger than that produced by SMAT and SMGT [7,11]. It is probably because that deformation twinning plays an important role in plastic deformation in SMAT and SMGT, which facilitates the refinement of grains.
Figure 5 shows the TEM micrographs of HPSR samples. As shown in Figure 5, equiaxed grains of several hundreds of nanometers were formed in the near-surface after HPSR. Meanwhile, a mixture of elongated and equiaxed grains can be observed in the HPSR samples, as shown in Figure 6a, indicating a co-existence of different mechanisms for strain-induced grain refinement, e.g., dynamic recrystallization and formation of geometrically necessary boundaries. As shown in Figure 6b, it is also noted that much smaller grains were observed in some local regions, which can be attributed to the highly localized plastic strain inside the sample subjected to HPSR.
Figure 7 shows the microhardness along with the depth from the surface of the HPSR samples. As seen in Figure 7, the surface hardness was significantly enhanced after HPSR. With decreasing DFS, the microhardness increases up to ~2.4 times that of the matrix for sample D. The enhancement of microhardness of the HPSR samples can be attributed to the grain refinement induced by HPSR, as described by the Hall–Petch relation [16]. Also, an increase of the microstrain (dislocation density) in the HPSR samples can contribute to the strengthening of the surface layer.
The thickness of the hardened layer (the depth from surface at which the microhardness equals that of the matrix) is larger than that of the refined layer as determined by microstructure. This is due to the fact that while dislocation strengthening contributes to the strengthening (hardening) of the sample, dislocations cannot be clearly distinguished by the OM images. A comparison of different methods for surface strengthening by surface refinement is shown in Table 2. It is seen from Table 2 that while remarkable surface strengthening can be achieved through surface grain refinement by using different methods, the present HPSR method provides a way for the formation of a mm-thick layer with gradient-refined grains.

4. Conclusions

To summarize, a gradient-refined surface layer was successfully produced on copper by means of high-pressure surface rolling. The thickness of the refined layer is up to ~1760 μm, with the minimum grain size of about ~88.0 nm on the top surface layer. HPSR parameters were found to have significant influences in the thickness of the refined layer. Increasing HPSR pressure or HPSR duration or decreasing temperature can lead to an increase of the thickness of the refined layer. The microhardness increases with decreasing DFS for HPSR samples, up to ~2.4 times that of the matrix, which is due to the grain size strengthening. The present study provided a technique for generating a mm-thick layer with gradient-refined microstructure and enhanced hardness in metals.

Author Contributions

Conceptualization—J.L. and Q.M.; Analysis—J.L. and Q.M.; Writing—original draft—J.L. and Q.M.; Writing—review & editing—J.L., Q.M., Y.L. and B.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (grant 51371128) and the Research Funds for the Top-Class Universities of Hubei Province (grant 03080107) and the APC was funded by 03080107.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gleiter, H. Nanocrystalline materials. Prog. Mater. Sci. 1989, 33, 223–315. [Google Scholar] [CrossRef] [Green Version]
  2. Valiev, R. Nanostructuring of metals by severe plastic deformation for advanced properties. Nat. Mat. 2004, 3, 511–516. [Google Scholar] [CrossRef] [PubMed]
  3. Valiev, R.Z.; Langdon, T.G. Principles of equal-channel angular pressing as a processing tool for grain refinement. Prog. Mater. Sci. 2006, 51, 881–981. [Google Scholar] [CrossRef]
  4. Lu, K.; Lu, J. Surface nanocrystallization (SNC) of metallic materials-presentation of the concept behind a new approach. Mater. Sci. Technol. 1999, 15, 193–197. [Google Scholar]
  5. Lu, K.; Lu, J. Nanostructured surface layer on metallic materials induced by surface mechanical attrition treatment. Mater. Sci. Eng. 2004, 38, 375–377. [Google Scholar] [CrossRef] [Green Version]
  6. Liu, X.C.; Zhang, H.W.; Lu, K. Strain-Induced Ultrahard and Ultrastable Nanolaminated Structure in Nickel. Science 2013, 342, 337–340. [Google Scholar] [CrossRef] [PubMed]
  7. Li, W.L.; Tao, N.R.; Lu, K. Fabrication of a gradient nano-micro-structured surface layer on bulk copper by means of a surface mechanical grinding treatment. Scripta Mater. 2008, 59, 546–549. [Google Scholar] [CrossRef]
  8. Zhang, X.; Hansen, N.; Gao, Y.; Huang, X. Hall-Petch and dislocation strengthening in graded nanostructured steel. Acta Mater. 2012, 60, 5933–5943. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Z.B.; Tao, N.R.; Li, S.; Wang, W.; Liu, G.; Lu, J.; Lu, K. Effect of surface nanocrystallization on friction and wear properties in low carbon steel. Mater. Sci. Eng. 2003, 352, 144–149. [Google Scholar] [CrossRef]
  10. Fang, T.H.; Li, W.L.; Tao, N.R.; Lu, K. Revealing Extraordinary Intrinsic Tensile Plasticity in Gradient Nano-Grained Copper. Science 2011, 331, 1587–1590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Wang, K.; Tao, N.R.; Liu, G.; Lu, J.; Lu, K. Plastic strain-induced grain refinement at the nanometer scale in copper. Acta Mater. 2006, 54, 5281–5291. [Google Scholar] [CrossRef]
  12. Zhang, Y.S.; Zhang, P.X.; Niu, H.Z.; Chen, C.; Wang, G.; Xiao, D.H.; Chen, X.H.; Yua, Z.T.; Yuan, S.B.; Bai, X.F. Surface nanocrystallization of Cu and Ta by sliding friction. Mater. Sci. Eng. A 2014, 607, 351–355. [Google Scholar] [CrossRef] [Green Version]
  13. Liu, M.; Li, J.Y.; Ma, Y.; Yuan, T.Y.; Mei, Q.S. Surface nanocrystallization and property of Ti6Al4V alloy induced by high pressure surface rolling. Sur. Coat. Tech. 2016, 289, 94–100. [Google Scholar] [CrossRef]
  14. Mei, Q.S.; Tsuchiya, K.; Gao, H. Different stages in the continuous microstructural evolution of copper deformed to ultrahigh plastic strains. Scr. Mater. 2012, 67, 1003–1006. [Google Scholar] [CrossRef]
  15. Klug, H.P.; Alexander, L.E. X-ray Diffraction Procedures for Polycrystalline and Amorphous Materials; Wiley: Hoboken, NJ, USA, 1974. [Google Scholar]
  16. Hansen, N. Hall-Petch relation and boundary strengthening. Scripta Mater. 2014, 51, 801–806. [Google Scholar] [CrossRef]

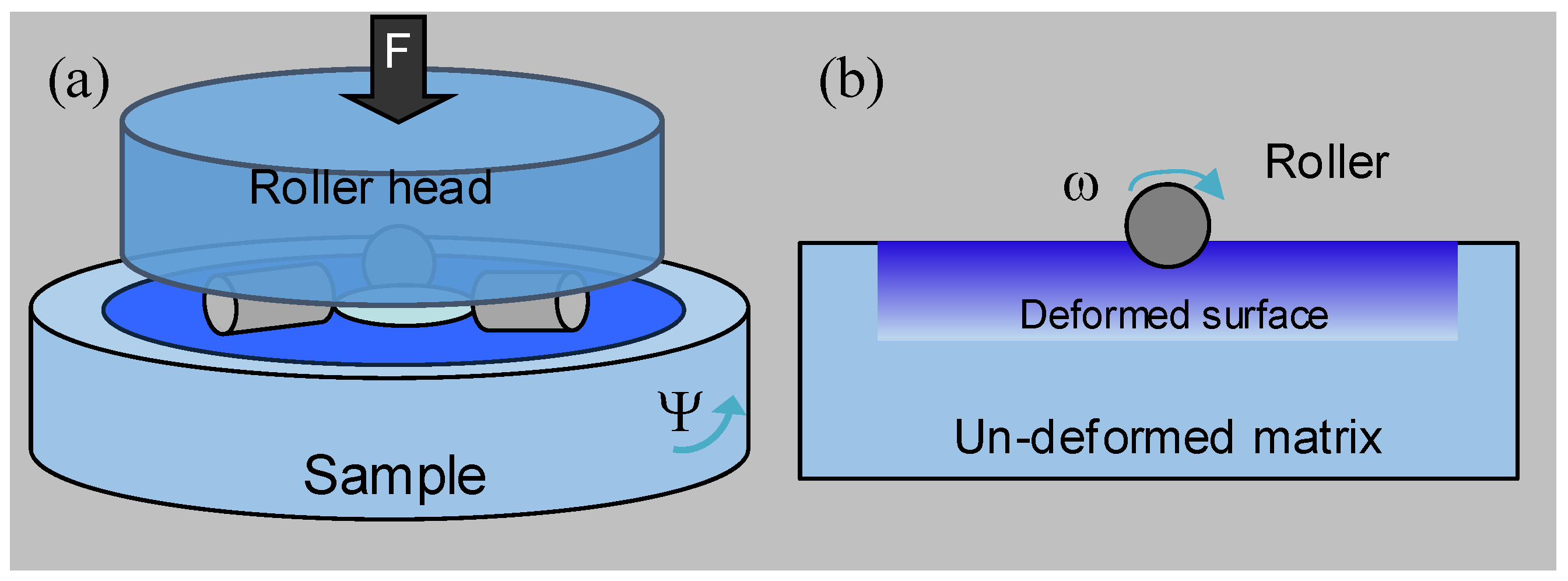

Figure 1. A schematic illustration of the high-pressure surface rolling. (a) is an overall view and (b) is a cross-sectional view.
Figure 1. A schematic illustration of the high-pressure surface rolling. (a) is an overall view and (b) is a cross-sectional view.
Metals 10 00073 g001

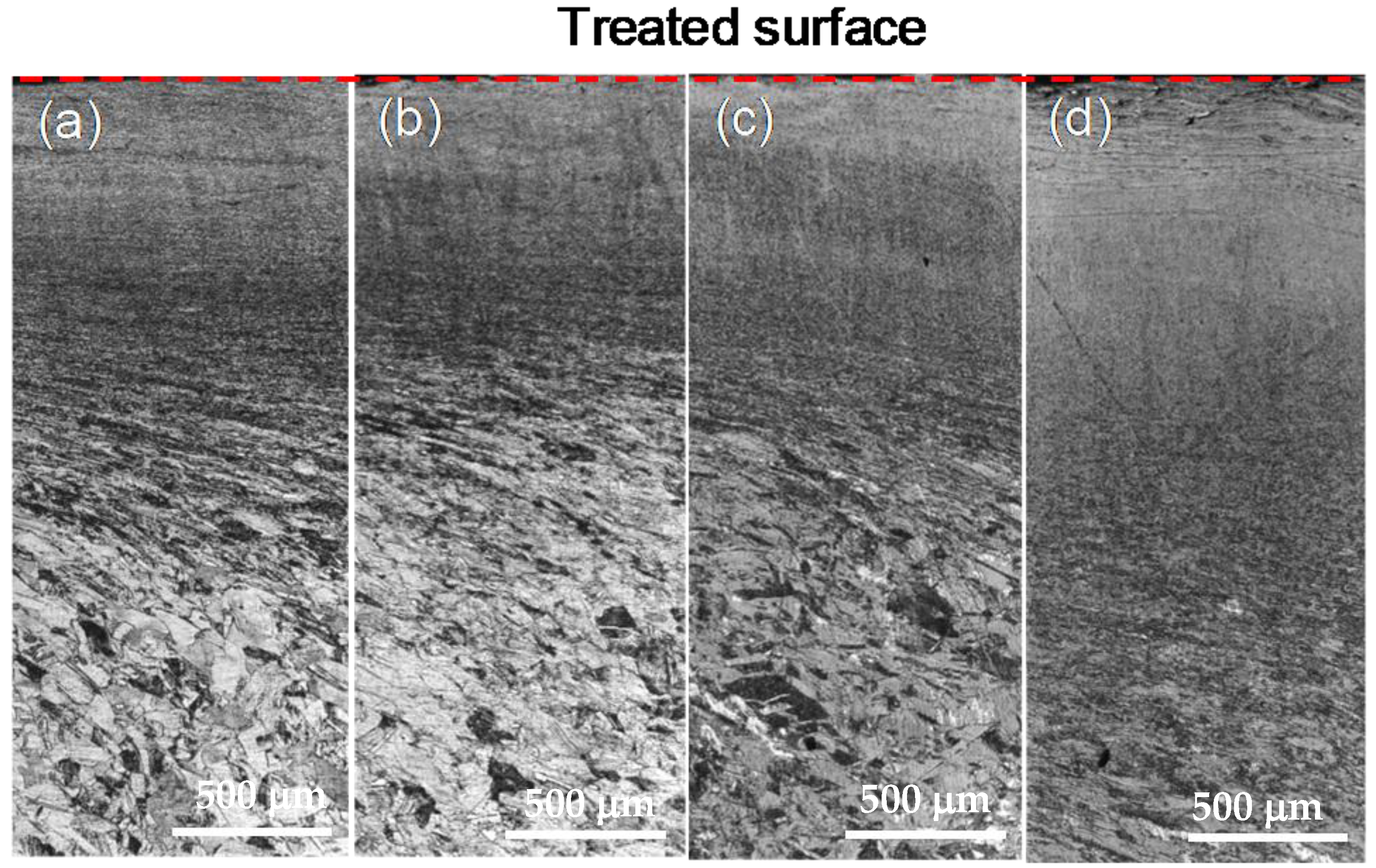

Figure 2. Cross-sectional optical microscopy images of high-pressure surface rolling samples. (a) Sample A, (b) Sample B, (c) Sample C, and (d) Sample D.
Figure 2. Cross-sectional optical microscopy images of high-pressure surface rolling samples. (a) Sample A, (b) Sample B, (c) Sample C, and (d) Sample D.
Metals 10 00073 g002

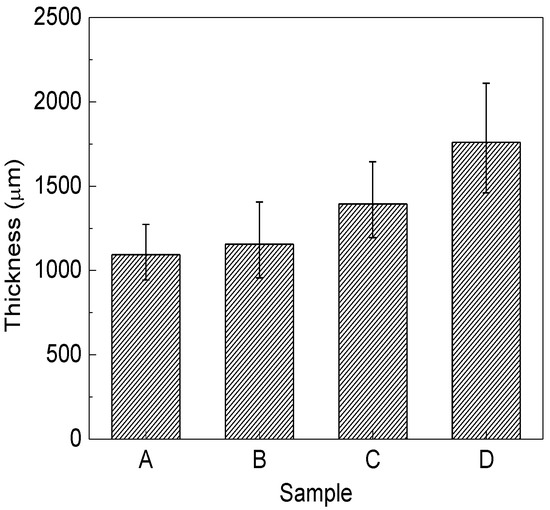

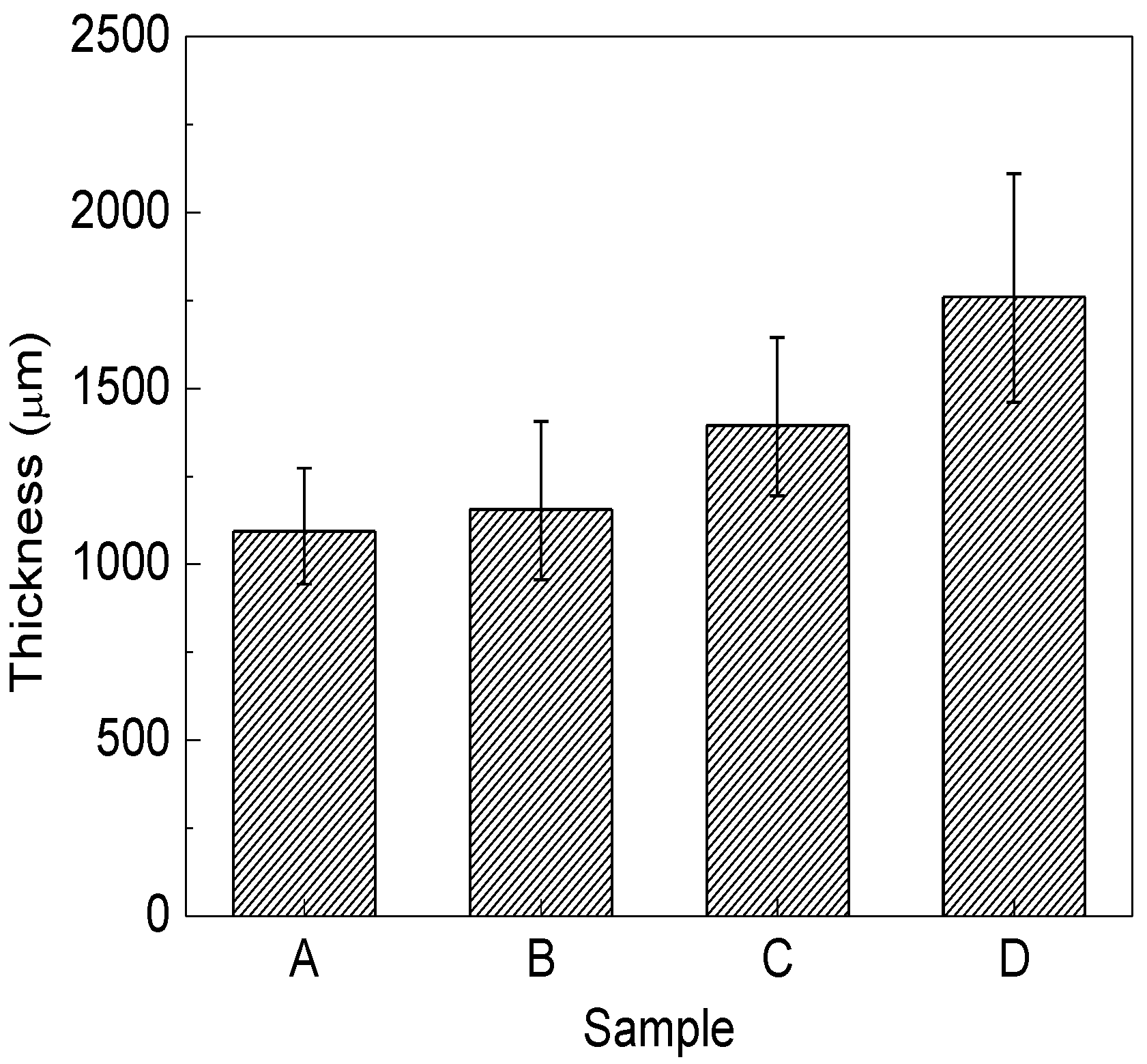

Figure 3. Thickness of the refined layer of the HPSR samples.
Figure 3. Thickness of the refined layer of the HPSR samples.
Metals 10 00073 g003

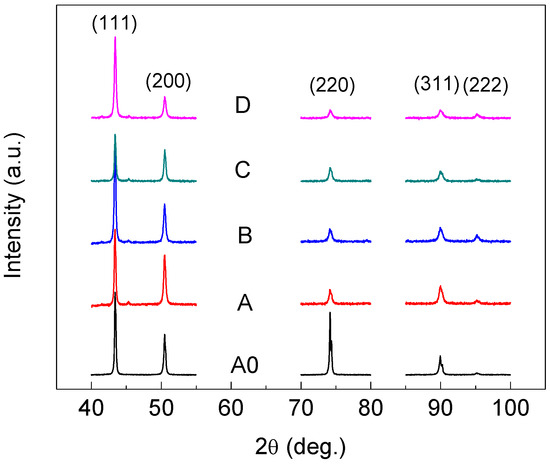

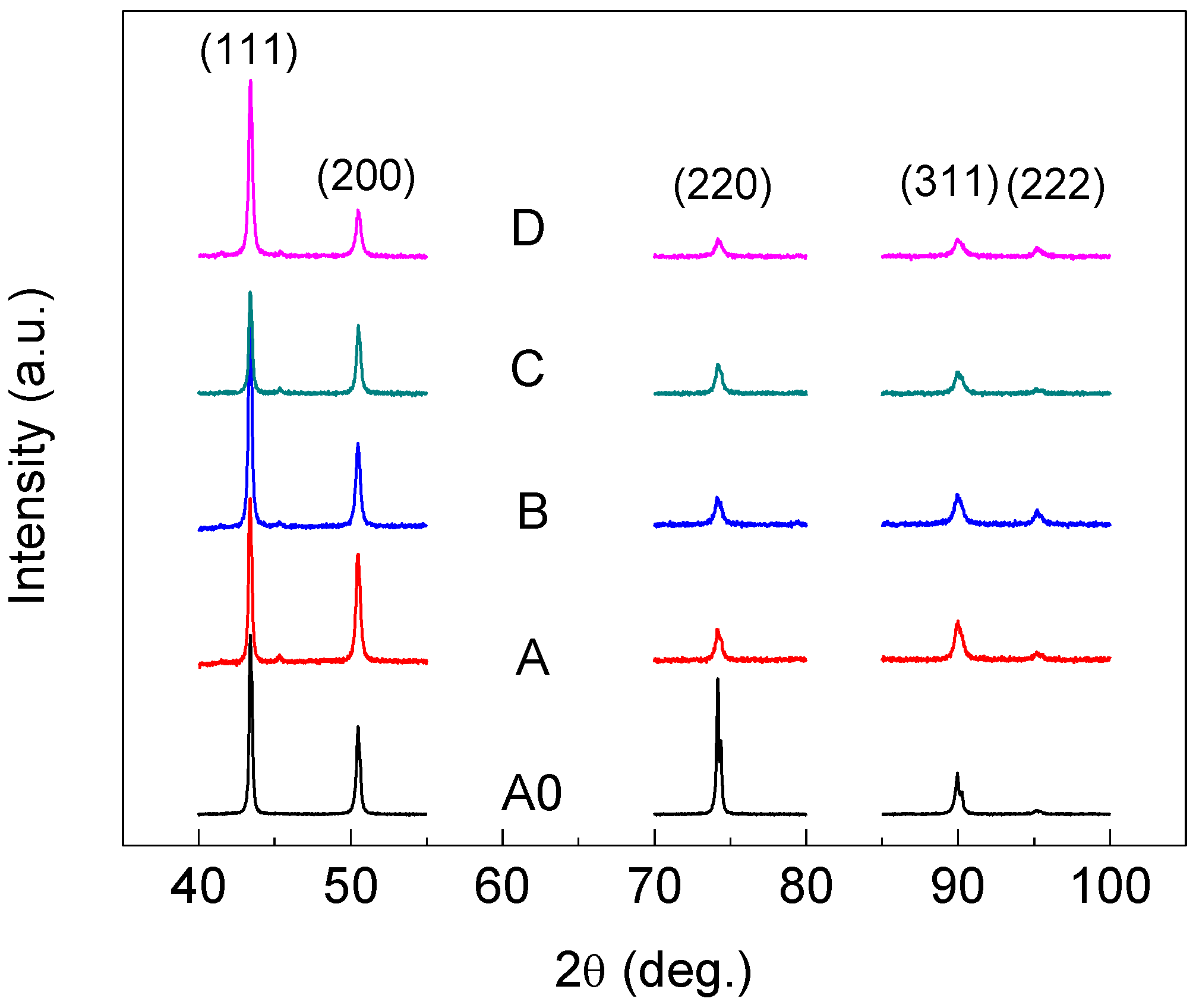

Figure 4. X-ray diffraction patterns of HPSR samples as indicated. Sample A0 represents the annealed Cu.
Figure 4. X-ray diffraction patterns of HPSR samples as indicated. Sample A0 represents the annealed Cu.
Metals 10 00073 g004

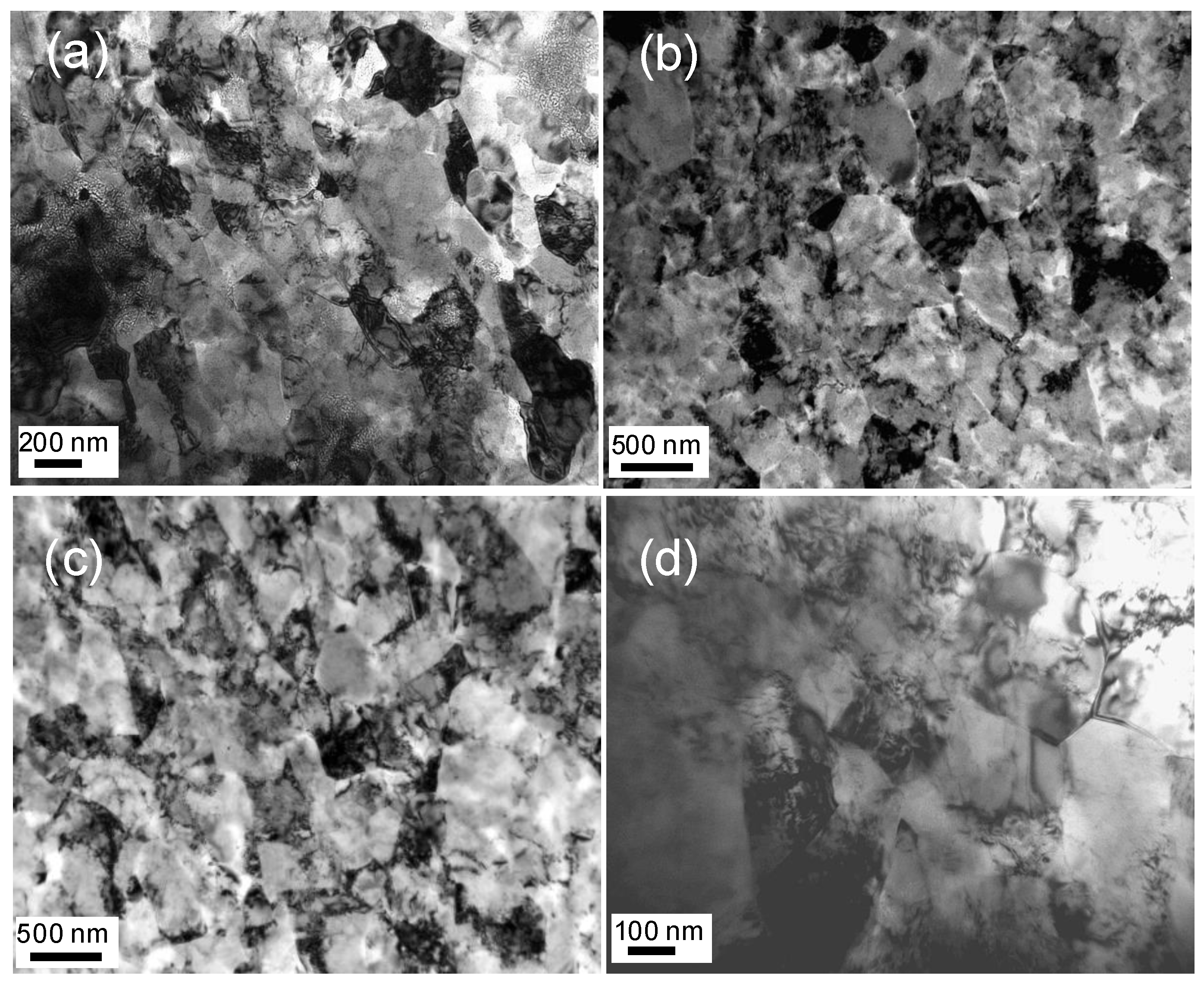

Figure 5. Transmission electronic microscopy images of HPSR samples taken at ~50 μm from the surface. (a) Sample A, (b) Sample B, (c) Sample C, and (d) Sample D.
Figure 5. Transmission electronic microscopy images of HPSR samples taken at ~50 μm from the surface. (a) Sample A, (b) Sample B, (c) Sample C, and (d) Sample D.
Metals 10 00073 g005

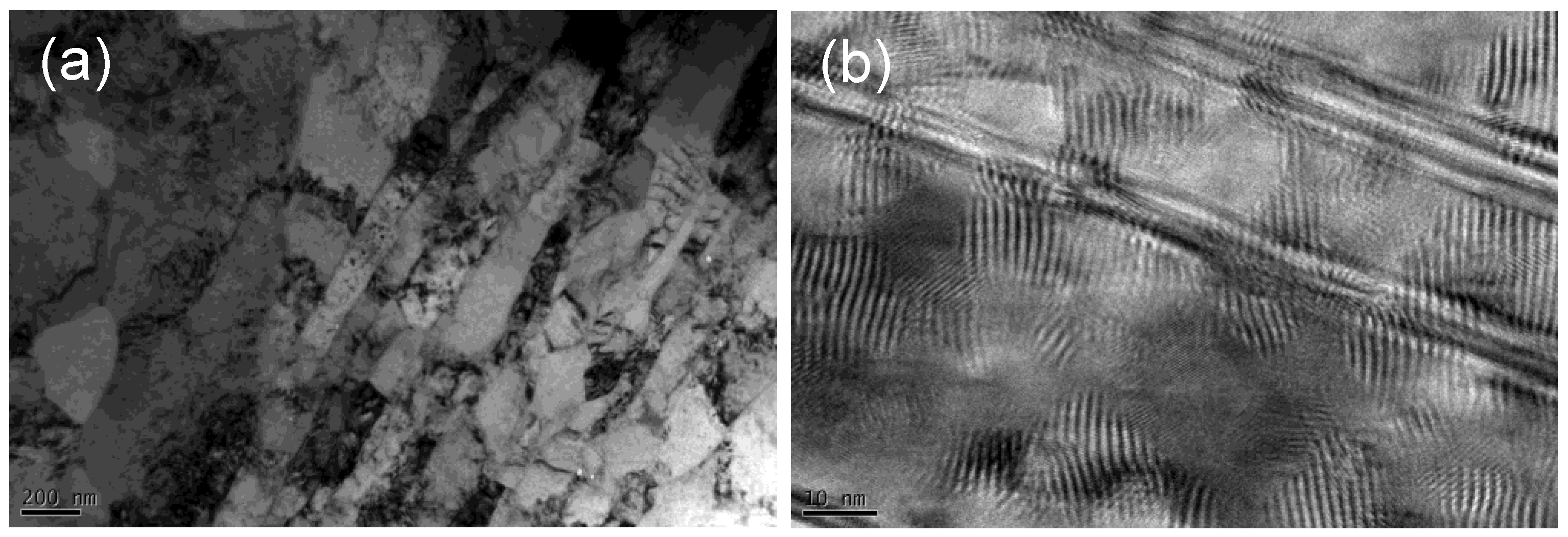

Figure 6. (a) Transmission electronic microscopy image showing the coexistence of elongated and equiaxed grains in the HPSR sample D taken at ~110 μm from the surface. (b) High resolution transmission electronic microscopy image showing the locally formed small grains in the HPSR sample D taken at ~80 μm from the surface.
Figure 6. (a) Transmission electronic microscopy image showing the coexistence of elongated and equiaxed grains in the HPSR sample D taken at ~110 μm from the surface. (b) High resolution transmission electronic microscopy image showing the locally formed small grains in the HPSR sample D taken at ~80 μm from the surface.
Metals 10 00073 g006

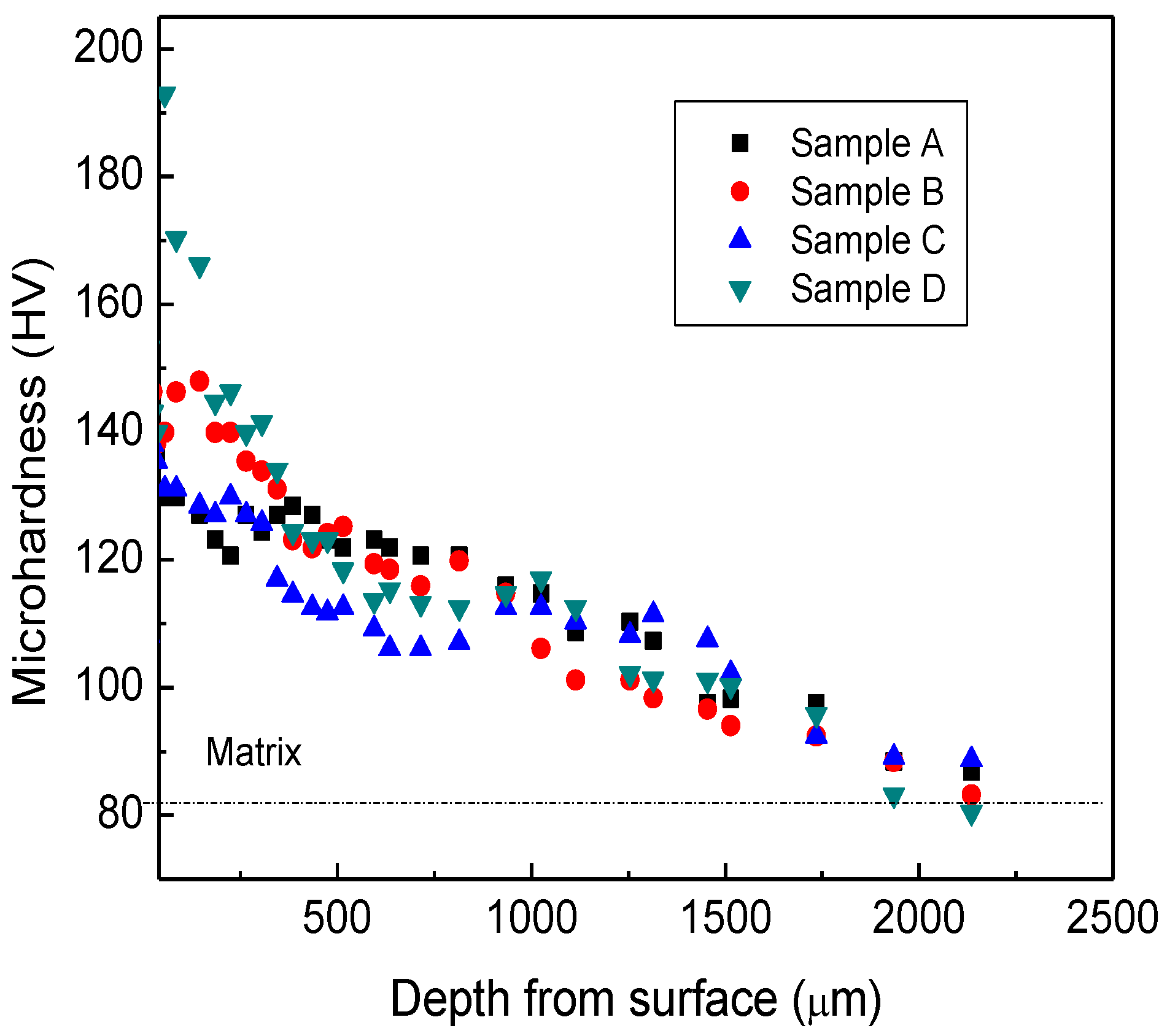

Figure 7. Microhardness as a function of depth from the surface of the HPSR samples.
Figure 7. Microhardness as a function of depth from the surface of the HPSR samples.
Metals 10 00073 g007
Table 1. HPSR parameters for samples. t0 and tf represent the initial and final thicknesses of the samples, respectively.
Table 1. HPSR parameters for samples. t0 and tf represent the initial and final thicknesses of the samples, respectively.
SamplePressureDurationTemperaturet0tf
A20 KN20 minRT10.0 mm9.5 mm
B20 KN35 minRT10.0 mm9.4 mm
C32 KN35 minRT10.0 mm9.1 mm
D20 KN35 minLN10.0 mm8.8 mm
Table 2. Comparison of the surface refined layer on Cu generated by different methods.
Table 2. Comparison of the surface refined layer on Cu generated by different methods.
MethodThickness of Refined Layer (μm)Min. Grain Size (nm)Max. Hardness (GPa)Ref.
HPSR~1760881.9This study
SMAT~800101.3[11]
SMGT~200222.1[7]
