Article

Active Components of 16 Essential Oils and Their Fumigation Effects on Galleria mellonella (Lepidoptera: Pyralidae)

by
Xiao-Ling Su
1,2,
Zhi-Chu Huang
2,
Lin Chen
3,
Dao-Yin Chen
2,
Dong-Xu Zhao
2 and
Zhi-Jiang Zeng
1,4,*
1
Honeybee Research Institute, Jiangxi Agricultural University, Nanchang 330045, China
2
Jinhua Academy of Agricultural Sciences, Jinhua 321017, China
3
Lishui Institute of Agricultural and Forestry Sciences, Lishui 323000, China
4
Jiangxi Province Key Laboratory of Honeybee Biology and Beekeeping, Nanchang 330045, China
*
Author to whom correspondence should be addressed.
Insects 2024, 15(12), 977; https://doi.org/10.3390/insects15120977
Submission received: 28 November 2024 / Revised: 3 December 2024 / Accepted: 6 December 2024 / Published: 9 December 2024
(This article belongs to the Section Insect Pest and Vector Management)
Browse Figures
Versions Notes

Simple Summary

This study aimed to evaluate the active constituents and fumigation effectiveness of 16 distinct plant essential oils (EOs) on greater wax moth (GWM) eggs and fifth instar larvae. The results show that wintergreen, star anise, and clove oils exerted significant insecticidal effects on both GWM eggs and fifth instar larvae. Methyl salicylate and trans-anethole, which constitute 93.26% and 87.75% of wintergreen and star anise oils, respectively, function as the sole active ingredient of their respective oils. Eugenol, which constitutes 77.75% of clove oil, is primarily responsible for its insecticidal activity, although it is not the sole contributor. All these EO components exhibit significant insecticidal properties, with trans-anethole demonstrating the highest level of toxicity. Our research adds valuable insights to the literature by presenting the first investigation into the effectiveness of EOs for fumigating GWM eggs. Moreover, the results highlight the potential use of anise oil as a novel approach for managing GWM, thus offering a more efficient alternative to traditional methods.

Abstract

The greater wax moth (GWM, Galleria mellonella) is a prevalent pest of the honeybee and a significant risk to both honeybee populations and honeycomb storage. Research on the toxicity of essential oils (EOs) to GWM larvae has provided promising results, although their ovicidal effects and active ingredients require further study. Identifying effective plant compounds is essential for developing insecticides for GWM control. This study assessed the fumigation efficacy of 16 EOs on GWM eggs and fifth instar larvae and determined the effectiveness of these EOs and their primary components for fumigating fifth larvae. Wintergreen, star anise, and clove oils demonstrated significant insecticidal effects on GWM eggs and fifth instar larvae, resulting in a mortality rate exceeding 80% within 48 h. Gas chromatography-mass spectrometry analysis identified methyl salicylate (93.26%), trans-anethole (87.75%), and eugenol (77.75%) as the primary compounds in wintergreen, star anise, and clove oils, respectively. Further toxicity testing confirmed that these compounds were responsible for the observed insecticidal properties of the EOs. Notably, trans-anethole exhibited the lowest LC50 value (25.22 μL/L) against the fifth instar larvae of GWM and significant toxicity against GWM eggs and fifth instar larvae, suggesting its potential as a viable option for the future control of GWM populations.

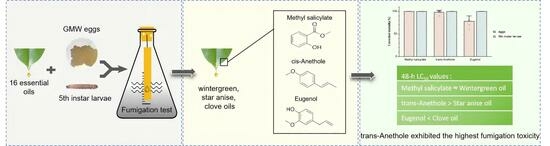

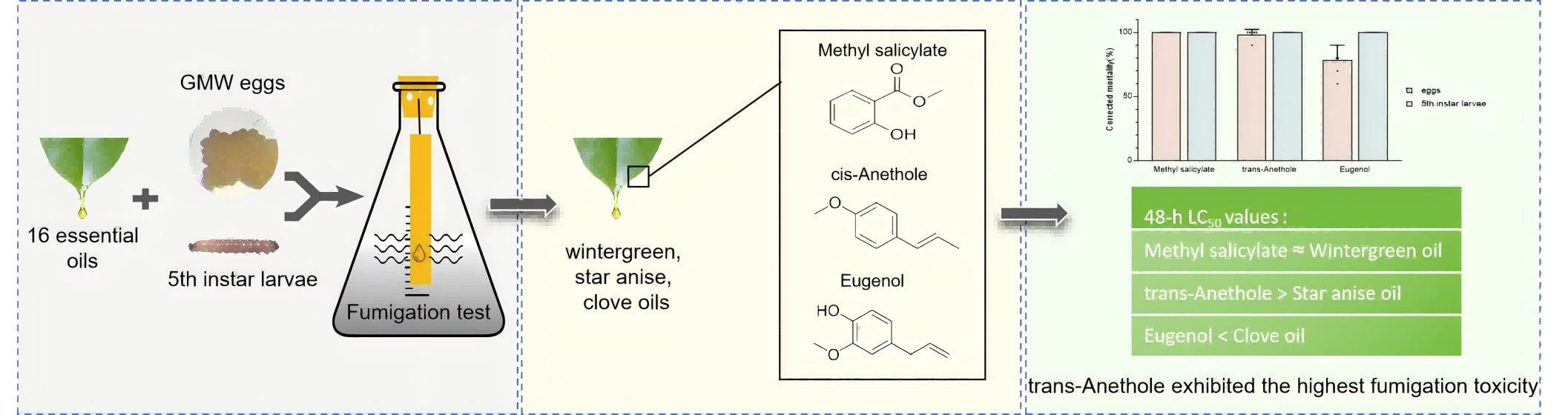

Graphical Abstract

1. Introduction

As important pollinating insects, honeybees play an important role in the biodiversity of ecosystems and sustainable development of agriculture [1,2]. Unfortunately, changes in the environment and land use and decreases in bee health have led to a decline in honeybee populations worldwide [3,4,5]. With the development of apiculture, the pest control of honeybees has become a topic of concern. One significant threat to honeybees is the greater wax moth (GWM, Galleria mellonella), a major pest of honeybees (especially Apis cerana) worldwide [5]. It causes damage to the honeycomb and bee health and often leads to the loss of A. cerana colonies [6,7].
Thus, the damage caused by GWM infestations to honeybee colonies and honeycomb storage must be controlled [8]. However, traditional control measures become ineffective in controlling GWM because of the special foraging behaviour of these insects, which includes invasion and burrowing [9]. More importantly, as GWM is a parasite of honeybee hives, chemical control measures must ensure that the health of the bee is not affected, thus increasing the difficulty of GWM control [10]. Currently, chemical fumigation is the preferred practice for controlling insect pests in stored products [11,12], including honeycomb storage without honeybees. However, traditional and efficient fumigation methods, such as using aluminium phosphide [13] and p-dichlorobenzene [14,15], present numerous challenges, including host toxicity, residue contamination of honeybee products, drug resistance, and environmental harm. The use of insecticides is subject to increasingly stringent regulations, exemplified by the prohibition of p-dichlorobenzene in the European Union, United States, and Canada [6]. Carbon dioxide (CO2) fumigation has been proposed as a non-polluting and feasible method for controlling the greater wax moth [7,16]. However, CO2 fumigation requires specialised gas storage and transportation infrastructure, as well as a well-sealed preservation environment, which may not be cost-effective for small-scale beekeeping operations [17]. Consequently, there is a critical need to develop safe, economical, and efficient alternatives to controlling GWM.
Plant essential oils (EOs) are valuable natural insecticides for pest control [18,19]. Previous studies have demonstrated the efficacy of some EOs as fumigants because of their ability to repel and induce toxicity in GWM larvae under laboratory conditions. These oils have been shown to inhibit larval and pupal development, potentially leading to abnormalities in GWM development post-larval hatching [20,21,22]. EOs can quickly disperse into the surrounding environment via fumigation and penetrate pests owing to their high volatility and lipophilic properties [23]. Absorption of EOs via the body surface or respiratory system of pests primarily induces toxic effects on the nervous and endocrine systems [24]. Egg and pupal stages are typically the most tolerant to fumigants in many species [25]. However, the fumigation toxicity of EOs against GMW eggs is not known. In addition, the effectiveness of EOs depends on their main components and concentrations, which can vary due to factors such as the season, location, harvest time, and extraction method [26]. Therefore, after determining the effects of EOs, the individual ingredients of these oils must be identified and analysed to develop a stable pest control method.
This study aimed to evaluate the fumigation effectiveness of 16 EOs on the eggs and fifth instar larvae of GWM. EOs exhibiting toxicity towards eggs and larvae were identified along with the active constituents of these oils. Subsequent research was conducted to assess the fumigation toxicity of the EOs that showed high efficacy against fifth instar larvae and identify individual components. This study introduced a promising method for the targeted protection of honeycombs against GWM, thereby paving the way for the development of fumigation strategies that utilise plant-derived compounds.

2. Materials and Methods

2.1. Insects

The GWM population used in the experiments was obtained from the laboratory of the Jinhua Academy of Agricultural Sciences. This population underwent over 10 generations of breeding and cultivation and was fed aged bee comb material and bee pollen. The larvae of GWM were reared at 30 °C and 60% relative humidity under constant darkness.

2.2. EOs and Pure Compounds

Based on the literature, EOs that have been reported to possess insecticidal activity were selected. The EOs used in this study are listed in Table 1. Wintergreen, star anise, clove, tea tree, schizonepeta, perilla, cinnamon, citronella, eucalyptus, peppermint, oriental arborvitae, artemisia, pepper, neem, camphor, and oregano oils were supplied by Huashuo Essential Oil Enterprise stores, China, and prepared by the steam distillation method.
Pure compounds of trans-anethole (99%) and eugenol (99%) were purchased from Shanghai McLean Biochemical Technology Co., Ltd. (Shanghai, China), and methyl salicylate (99.9%) was purchased from ANPEL-RTACE Standard Technical Service Co., Ltd. (Shanghai, China).

2.3. Fumigation Toxicity Bioassays of GWM Eggs

The methodology utilised in this study involved EO fumigation assays following the airtight fumigation assay protocol described by Pavela [27] and Jin [28]. Specifically, 50–100 eggs were transferred to a 250 mL Erlenmeyer flask with a rubber plug to ensure a tight seal. Then, a 1 × 5 cm filter paper strip was affixed to the rubber plug using insect needles to ensure that the strip was suspended within the bottle and not in contact with its walls. Subsequently, 40 µL of plant EO (fumigation concentration of approximately 133.33 µL/L) was applied to the filter paper strip. The rubber plug was promptly inserted into the bottle, which was placed in an incubator set at 30 °C, 60% relative humidity, and total darkness for a duration of 48 h. The rubber plug was opened every 24 h to allow for the influx of fresh air. A blank control group was also established. Six replicates were used for each group. Following a 48 h fumigation period, the filter paper strip containing the EO was retrieved. Subsequently, all eggs were allowed to hatch over an 8 d period, after which photographs were captured using a light microscope (K402 McOddy microscope, Motic China Group Co., Ltd., Xiamen, China). The total number of eggs and unhatched eggs (Figure 1) and corrected mortality rates were then determined.

2.4. Fumigation Toxicity Bioassay of 5th Instar Larvae

The test method was the same as above. Approximately 40 µL of EOs, with a fumigation concentration of approximately 133.33 µL/L, was administered for the fumigation treatment. The blank control was untreated. Each replicate consisted of ten insects, with six replicates prepared for each group. Throughout the experiment, larvae were not provided any feed. The mortality and corrected mortality of the larvae were calculated.

2.5. Gas Chromatography–Mass Spectrometry (GC–MS) Analysis of EOs

The percentage composition of EOs with a mortality rate exceeding 80% was determined using gas chromatography–flame ionizing detection (GC–FID), and the compounds were identified by GC–MS. Prior to analysis, the EO sample (10 μL) was dissolved in 1 mL of hexane, filtered with a 0.22 μm organic filter membrane, and introduced into the instrument. The GC analyses were performed using a Shimadzu GC-2014C (Shimadzu Corp., Kyoto, Japan) equipped with an FID and an Rtx®-1 capillary column (25 m × 0.32 mm × 0.5 μm film; Restek, Bellefonte, PA, USA). The oven initial temperature was 35 °C for 3 min, which was increased at a rate of 10 °C/min to 280 °C and then maintained isothermally for 10 min. The temperatures of the injector and detector were 280 °C and 300 °C, respectively. The split ratio was 50:1, with an injection volume of 1 μL. Helium gas was used as the carrier gas at a flow rate of 3 mL/min. Samples were injected in triplicate for quantification.
The chemical characterization of EO compounds was performed using a GC–MS system (7890B-5977B, Agilent Technologies Co., Ltd., Santa Clara, CA, USA) equipped with a HP-5MS chromatographic column (30 m × 250 μm × 0.25 μm). Helium gas was used as the carrier gas at a flow rate of 1 mL/min. The injection volume was 1 μL with a split ratio of 20:1. The injector temperature was set at 280 °C. The temperature program consisted of an initial column temperature of 40 °C for 4 min, which was increased to 280 °C at a rate of 10 °C/min and then maintained for 5 min. The mass spectrometry conditions were as follows: EI mode: ionization energy: 70 eV; ionization source temperature: 230 °C; scan range: 50–550 amu; and scan rate: 200 spectra/s.
The GC–MS data were acquired using MassHunter Workstation Qualitative Analysis Software (Version B.08.00) (Agilent, Santa Clara, CA, USA). The retention indices (RIs) were calculated based on the data of C7–C40 n-alkanes acquired with the same GC–MS method. Identification of the EO components was performed using the NIST17 mass spectral library database by comparing RI values with published data [29,30,31].

2.6. Fumigation Toxicity Bioassays of EO Components

The fumigation effects of EO components on GWM eggs and larvae were tested following the methodology described in Section 2.3 and Section 2.4. Six replicates were prepared for each group.

2.7. Determination of the LC50 for 5th Instar Larvae

The study employed the airtight fumigation assay method outlined above to determine the LC50 values of EOs and predominant compounds that demonstrated significant effects. Fifth instar larvae were exposed to different concentrations of the test substances (0 μL/L, 8.33 μL/L, 16.67 μL/L, 33.33 μL/L, 66.67 μL/L, 133.33 μL/L, and 266.67 μL/L), and their mortality rates were assessed after 24 and 48 h. Six replicates were used for each condition.

2.8. Statistical Analysis

The corrected mortality was calculated as follows: corrected mortality % = (% of mortality in treatment  −  % of mortality in control)/(100  −  % of mortality in control) [32].
Statistical analyses were performed based on one-way analysis of variance in SPSS version 23 (IBM SPSS Statistics 23) (IBM Corp., Armonk, NY, USA). The regression equation for the relationship between virulence and lethal medium concentration (LC50) via fumigation poisoning was determined by converting the corrected death rate to a probability value (y) using the log-probability method and representing the concentration as a base 10 logarithm (x).

3. Results

3.1. Fumigation Activity

The fumigation toxicity of 16 EOs against the GWM eggs and fifth instar larvae is reported in Figure 2. The average egg and larvae mortality rates of the control group were very low (3.58% and 3.33%, respectively), indicating the feasibility of this approach. At a concentration of 133.33 μL/L, star anise oil exhibited the highest efficacy, achieving a corrected mortality rate of 100% for both eggs and fifth instar larvae. This was followed by wintergreen oil and clove oil, which also demonstrated a 100% fumigation mortality rate for eggs and over 80% for fifth instar larvae. In contrast, the insecticidal effects of cinnamon, citronella, artemisia, pepper, and neem oils were less than 40%. Interestingly, most EOs displayed greater toxicity towards eggs; however, camphor and eucalyptus oil showed significant insecticidal activity against fifth instar larvae, with mortality rates of 93.15% and 89.72%, respectively.

3.2. Chemical Composition of EOs

GC–MS analyses were conducted on the three most active oils, and the components with relative peak areas exceeding 0.5% are listed in Table 2. Total ion chromatograms of the three Eos, (A) wintergreen oil, (B) star anise oil, and (C) clove oil, are reported in Figure 3. The findings reveal that terpenoids were the predominant components of the three EOs. Wintergreen oil consisted solely of methyl salicylate (93.26%). The predominant compound in star anise oil was trans-anethole (87.75%), although it also contained α-pinene (1.19%), limonene (1.44%), linalool (1.12%), estragole (1.41%) and cis-anethole (0.66%). Clove oil primarily consisted of eugenol (77.75%) and caryophyllene (8.35%) but also included γ-terpinene (0.51%), terpinen-4-ol (0.63%), methyl salicylate (0.75%), and humulene (2.24%).

3.3. Fumigation Activity of EO Components on Eggs and Larvae

The fumigation efficacy of the primary components methyl salicylate, trans-anethole, and eugenol on GWM eggs and fifth instar larvae was investigated (Figure 4). The three components resulted in 100% mortality rates for GWM eggs. Furthermore, after 48 h of fumigation, the corrected mortality rates for fifth instar larvae were 100%, 100%, and 78.33% for methyl salicylate, trans-anethole, and eugenol, respectively.

3.4. Fumigant Toxicity of EOs and Main Components on Fifth Instar Larvae

Table 3 shows the LC50 and LC90 values of the EOs and their primary monomer constituents studied against GWM fifth instar larvae after 24 h and 48 h of exposure. As observed, a gradual decrease in the LC50 values over time was observed for the three plant EOs. Specifically, at the 24 h time point, the LC50 levels were ranked in the following order from lowest to highest: wintergreen at 51.07 μL/L, star anise at 64.61 μL/L, and clove oil at 91.30 μL/L. Following a 48 h exposure period, clove oil displayed the highest larvicidal activity with an LC50 of 29.24 μL/L and LC90 of 86.25 μL/L.
The 48 h fumigant toxicity exhibited by methyl salicylate and trans-anethole surpassed that of the EOs. In contrast, eugenol displayed lower fumigant toxicity than clove oil. Moreover, trans-anethole, which is the main compound of star anise oil, was efficient against larvae, with a 48 h LC50 of 25.22 μL/L. Additionally, trans-anethole was the compound with the greater slope, indicating that small changes in concentration were required to increase the mortality of GWM.

4. Discussion

This study tested the fumigation efficacy of 16 EOs on GWM eggs and fifth instar larvae based on a biological assay. Wintergreen, star anise, clove, oregano, tea tree, and peppermint oils demonstrated a fumigation mortality rate exceeding 80% on GMW eggs at a concentration of 133.33 μL/L. This is the first report on the fumigation efficacy of EOs on GWM eggs; thus, the findings provide important insights into their fumigation effects. Our study also revealed that the EOs of eucalyptus, anise, camphor, and clove had fumigation mortality rates exceeding 80% for fifth instar larvae of GWM (Figure 2).
Interestingly, most EOs displayed greater toxicity towards eggs; however, camphor and eucalyptus oil showed significant insecticidal activity against fifth instar larvae, with mortality rates of 93.15% and 89.72%, respectively. Studies show that plant extracts and EOs are toxic to insect larvae and eggs [33]. Typically, the dense eggshell of insect eggs poses a challenge for the penetration of insecticides, thereby limiting their toxic effects and rendering the eggs more resistant to insecticides compared to the larval stage [34,35]. The methanol extract of Pisonia alba effectively prevents and controls the larvae, pupae, and eggs of Aedes aegypti and Culex quinquefasciatus mosquitoes, with a higher LC50 for eggs than third instar larvae [36]. Nevertheless, the efficacy of EOs varies with the developmental stage and species of the insect and the botanical source of the oil. Ephestia kuehniella eggs are less tolerant to EOs than their final larvae [37]. Helicoverpa armigera eggs are more susceptible to oregano essential oil than third instar larvae, as indicated by the higher LC50 [38]. In contrast, these eggs are less sensitive to Cheilocostus speciosus EO [39]. In this study, most EOs, except eucalyptus and sassafras, showed stronger fumigation effects on GWM eggs at the same concentrations and exposure times. This may be due to the larger size of the fifth instar larvae used in the study, because older larvae generally require higher concentrations of EOs for effectiveness [40].
Consistent with our results, one study reported the fumigation efficiency of clove oil, eugenol, and methyl salicylate (the primary component of wintergreen oil) on the fifth instar larvae [41]. The potential efficacy of star anise EO has not yet been documented. Nonetheless, previous studies on Ctenocephalides felis [42] and Schistosoma mansoni [43] have reported the insecticidal effects of anise oil. Our findings present a new application of anise oil as a potential method for controlling GWM, thus providing a more effective EO alternative for mitigating GWM damage and establishing a basis for future research and control strategies.
The insecticidal effects of EOs are mainly due to their main compounds [26,44], although minor components may also play a role in their larvicidal activity [45]. In the present study, methyl salicylate, the primary compound identified in wintergreen oil at a concentration exceeding 93% [46], demonstrated a complete insecticidal effect and showed similar efficacy on GWM eggs and larvae, as well as comparable LC50 values. In addition, trans-anethole (87.75%) and eugenol (77.75%) represented the primary constituents of star anise and clove oil, respectively, and their primary constituents were similar to those reported previously [47,48]. The results show that trans-anethole had a lower LC50 than star anise oil, indicating it is the only active ingredient. This could be why a higher dose of star anise oil is required for the same insecticidal effect, potentially due to other compounds masking this distinction. These findings align with previous research by Pavela et al. [49] on Culex quinquefasciatus larvae. Contrary to the above findings, the LC50 value of eugenol was higher than that of clove oil, which was consistent with the trend in the study by Owayss [41]. Other compounds in clove oil, particularly caryophyllene (8.35%), may contribute significantly to its insecticidal effectiveness. Caryophyllene displays various biological activities, such as antibacterial and insecticidal activity [50,51], underscoring the need for additional research to explore its potential insecticidal effects. Nonetheless, the insecticidal efficacy of eugenol remained satisfactory because the 48 h toxicity levels of eugenol surpassed those of star anise and wintergreen oils.
The highest fumigation toxicity towards the fifth instar larva of GWM over 48 h was observed for trans-anethole relative to the other substances evaluated. Consequently, using this particular compound may allow for a reduction in drug dosage without compromising the insecticidal efficacy, thereby potentially mitigating adverse odour profiles and medication costs. Moreover, trans-anethole is a predominant compound in various EOs, such as dill (Foeniculum vulgare Mill.), anise (Pimpinella anisum L.), and star anise (Illicium verum Hook.f.), and it exhibits significant fumigation potential [52,53,54,55]. The effects of these EOs vary depending on the concentration of trans-anethole present, and the utilisation of constituents in their pure form does not exhibit this variability [56]. In addition to the insecticidal properties against pests, trans-anethole has been shown to exhibit broad antifungal activity against the budding yeast Saccharomyces cerevisiae [57], plant pathogenic fungi [58], and Enterococcus faecalis [59]. We speculate that it plays a positive role in the disinfection of honeycombs, although this requires further study.
In terms of safety, methyl salicylate, trans-anethole, and eugenol are safe and non-toxic, making them suitable for application in the food industry as preservatives and additives. However, the use of EOs can alter the flavour profile of honey. EO residues such as thymol present in honey are significantly below the recommended safety threshold and diminish rapidly due to their volatile nature, suggesting that there may be no associated food safety risk for consumers [60]. Additionally, these substances are readily accessible and economically viable.
In the apiary industry, preparations based on EOs have been approved for the control of parasitic bee mites [61]. Natural pesticide products containing eugenol, such as EcoPCOR, have also been commercialised for the control of crawling and flying insects [62]. In practical production, the comb can be preserved when using EOs by placing the combs into multi-layer hives. A specified quantity of EO is applied directly to an appropriate carrier, and then the hive is sealed with plastic film to ensure airtight storage. Nevertheless, this study solely examined EOs and their constituents in a controlled laboratory setting. External factors such as fluctuations in ambient temperature and the integrity of container seals could potentially impact the effectiveness of EOs in practical applications. Future research should explore the impact of EOs on GWM under field conditions and develop formulations with enhanced efficacy, stability, and cost-effectiveness. These studies could provide valuable insights into the application of EOs as novel insecticides/fumigants, thereby contributing to the development of targeted and effective methods for controlling specific pests.

5. Conclusions

This study revealed that wintergreen, star anise, and clove oils exhibited notable fumigation effects on the eggs and fifth instar larvae of GWM through bioassay testing. Moreover, methyl salicylate, trans-anethole, and eugenol were identified as the active fumigant components in these oils. Among them, trans-anethole showed the strongest insecticidal activity against GWM. This suggests that these components could work well as fumigants for bee combs to stop moth infestations, thereby offering a natural management option.

Author Contributions

Conceptualisation, X.-L.S., Z.-C.H. and L.C.; methodology, D.-Y.C.; software, D.-X.Z.; validation, X.-L.S. and Z.-J.Z.; formal analysis, X.-L.S. and Z.-C.H.; investigation, Z.-J.Z.; resources, Z.-J.Z.; data curation, X.-L.S. and Z.-C.H.; writing—original draft preparation, Z.-C.H.; writing—review and editing, X.-L.S., D.-Y.C. and D.-X.Z.; visualisation, X.-L.S.; supervision, Z.-J.Z. and D.-X.Z.; project administration, Z.-J.Z.; funding acquisition, Z.-J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by research projects supported by Modern Agriculture Industry Technology System (CARS-44), the Jinhua City Science and Technology Plan Project (2022-2-020), and the Municipal Academy of Agricultural Sciences Alliance Regional Demonstration Project (2023SJLM25).

Data Availability Statement

The data presented in this study are available in this article.

Acknowledgments

We thank Bin Yuan of Zhejiang University and Qiang Huang of Jiangxi Agricultural University for revising the paper.

Conflicts of Interest

The authors have no conflicts of interests to declare. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Gallai, N.; Salles, J.M.; Settele, J.; Vaissière, B.E. Economic valuation of the vulnerability of world agriculture confronted with pollinator decline. Ecol. Econ. 2009, 68, 810–821. [Google Scholar] [CrossRef]
  2. van der Sluijs, J.P.; Vaage, N.S. Pollinators and global food security: The need for holistic global stewardship. Food Ethics 2016, 1, 75–91. [Google Scholar] [CrossRef]
  3. Potts, S.G.; Biesmeijer, J.C.; Kremen, C.; Neumann, P.; Schweiger, O.; Kunin, W.E. Global pollinator declines: Trends, impacts and drivers. Trends Ecol. Evol. 2010, 25, 345–353. [Google Scholar] [CrossRef]
  4. Kleijn, D.; Kohler, F.; Báldi, A.; Batáry, P.; Concepción, E.D.; Clough, Y.; Díaz, M.; Gabriel, D.; Holzschuh, A.; Knop, E.; et al. On the relationship between farmland biodiversity and land-use intensity in Europe. Proc. R. Soc. B Biol. Sci. 2009, 276, 903–909. [Google Scholar] [CrossRef] [PubMed]
  5. Yordanova, M.; Evison, S.E.F.; Gill, R.J.; Graystock, P. The threat of pesticide and disease co-exposure to managed and wild bee larvae. Int. J. Parasitol. Parasites Wildl. 2022, 17, 319–326. [Google Scholar] [CrossRef] [PubMed]
  6. Kwadha, C.A.; Ong’amo, G.O.; Ndegwa, P.N.; Raina, S.K.; Fombong, A.T. The biology and control of the greater wax moth, Galleria mellonella. Insects 2017, 8, 61. [Google Scholar] [CrossRef] [PubMed]
  7. Gulati, R.; Kaushik, H.D. Enemies of honeybees and their management—A review. Agric. Rev. 2004, 25, 189–200. [Google Scholar]
  8. Ellis, J.D.; Graham, J.R.; Mortensen, A. Standard methods for wax moth research. J. Apicult Res. 2013, 52, 1–17. [Google Scholar] [CrossRef]
  9. Nielsen, R.A.; Brister, C. Greater wax moth: Behavior of larvae. Ann. Entomol. Soc. Am. 1979, 72, 811–815. [Google Scholar] [CrossRef]
  10. Rosenkranz P, Aumeier P, Ziegelmann B, Biology and control of Varroa destructor. J. Invertebr. Pathol. 2010, 103, 96–119. [CrossRef]
  11. Sousa, A.H.; Faroni, L.R.D.; Pimentel, M.A.G.; Guedes, R.N.C. Developmental and population growth rates of phosphine-resistant and susceptible populations of stored-product insect pests. J. Stored Prod. Res. 2009, 45, 241–246. [Google Scholar] [CrossRef]
  12. Feng, S.; Opit, G.; Deng, W.; Stejskal, V.; Li, Z. A chromosome-level genome of the booklouse, Liposcelis brunnea, provides insight into louse evolution and environmental stress adaptation. Gigascience 2022, 11, 62. [Google Scholar] [CrossRef] [PubMed]
  13. Rajendran, S.; Hajira Parveen, K.M. Insect infestation in stored animal products. J. Stored Prod. Res. 2005, 41, 1–30. [Google Scholar] [CrossRef]
  14. Bogdanov, S.; Kilchenmann, V.; Seiler, K.; Pfefferli, H.; Frey, T.; Roux, B.; Wenk, P.; Noser, J. Residues of para-dichlorobenzene in honey and beeswax. J. Apicult Res. 2004, 43, 14–16. [Google Scholar] [CrossRef]
  15. Tananaki, C.; Thrasyvoulou, A.; Karazafiris, E.; Zotou, A. Contamination of honey by chemicals applied to protect honeybee combs from wax moth (Galleria mellonela L.). Food Addit. Contam. 2006, 23, 159–163. [Google Scholar] [CrossRef]
  16. Shimanuki, H.; Knox, D. Bee health and international trade. Rev. Sci. Tech. 1997, 16, 172. [Google Scholar] [CrossRef]
  17. Donahaye, E.J. Current status of non-residual control methods against stored product pests. Crop Prot. 2000, 19, 571–576. [Google Scholar] [CrossRef]
  18. Robu, V.; Covaci, G.; Popescu, I.M. The use of essential oils in organic farming. Res. J. Agric. Sci. 2015, 47, 134. [Google Scholar]
  19. Isman, M.B. Botanical insecticides in the twenty-first century—Fulfilling their promise? Annu. Rev. Entomol. 2020, 65, 233–249. [Google Scholar] [CrossRef]
  20. Zaitoun, S.T. The effect of different Mediterranean plant extracts on the development of the great wax moth Galleria mellonella L. (Lepidoptera: Pyralidae) and their toxicity to worker honeybees Apis mellifera L. (Hymenoptera: Apidae) under laboratory conditions. J. Food Agric. Environ. 2007, 5, 289–294. [Google Scholar]
  21. Elmubarak, S.M.E. The Effect of Water Extract of Neem and Camphor Leaves on the Last Instar of the Greater Wax Moth Galleria mellonella L. (Lepidoptera: Pyralidae). Ph.D. Dissertation, Faculty of Agriculture University of Khartoum, Khartoum North, Sudan, 2007. [Google Scholar]
  22. Elbehery, H.; El-Wahab, T.E.A.; Dimetry, N.Z. Management of the greater wax moth Galleria mellonella with neem Azal-T/S, in the laboratory and under semi-field conditions. J. Apicult Res. 2016, 60, 69–76. [Google Scholar] [CrossRef]
  23. Mossa, A.T.H. Green pesticides: Essential oils as biopesticides in insect-pest management. J. Environ. Sci. Technol. 2016, 9, 354–378. [Google Scholar] [CrossRef]
  24. Rattan, R.S. Mechanism of action of insecticidal secondary metabolites of plant origin. Crop Prot. 2010, 29, 913–920. [Google Scholar] [CrossRef]
  25. Hole, B.D.; Bell, C.H.; Mills, K.A.; Goodship, G. The toxicity of phosphine to all developmental stages of thirteen species of stored product beetles. J. Stored Prod. Res. 1976, 12, 235–244. [Google Scholar] [CrossRef]
  26. Fiocco, D.; Fiorentino, D.; Frabboni, L.; Benvenuti, S.; Orlandini, G.; Pellati, F.; Gallone, A. Lavender and peppermint essential oils as effective mushroom tyrosinase inhibitors: A basic study. Flavour. Fragr. J. 2011, 26, 441–446. [Google Scholar] [CrossRef]
  27. Pavela, R.; Vrchotova, N.; Triska, J. Mosquitocidal activities of thyme oils (Thymus vulgaris L.) against Culex quinquefasciatus (Diptera: Culicidae). Parasitol. Res. 2009, 105, 1365–1370. [Google Scholar] [CrossRef] [PubMed]
  28. Jin, C.; Han, H.; Xie, Y.; Li, B.; Zhang, Z.; Zhang, D. Toxicity, behavioral effects, and chitin structural chemistry of reticulitermes flaviceps exposed to Cymbopogon citratus EO and its major constituent citral. Insects 2022, 13, 812. [Google Scholar] [CrossRef]
  29. Zhang, W.J.; Liu, C.; Yang, R.J.; Zheng, T.T.; Zhao, M.M.; Ma, L.; Yan, L. Comparison of volatile profiles and bioactive components of sun-dried Pu-erh tea leaves from ancient tea plants on Bulang Mountain measured by GC-MS and HPLC. J. Zhejiang Univ. Sci. B 2019, 20, 563–575. [Google Scholar] [CrossRef]
  30. Hlebová, M.; Foltinová, D.; Vešelényiová, D.; Medo, J.; Šramková, Z.; Tančinová, D.; Mrkvová, M.; Hleba, L. The vapor phase of selected essential oils and their antifungal activity in vitro and in situ against Penicillium commune, a common contaminant of cheese. Foods 2022, 11, 3517. [Google Scholar] [CrossRef]
  31. Radušienė, J.; Karpavičienė, B.; Marksa, M.; Ivanauskas, L.; Raudonė, L. Distribution patterns of essential oil terpenes in native and invasive solidago species and their comparative assessment. Plants 2022, 11, 1159. [Google Scholar] [CrossRef]
  32. Abbott, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–267. [Google Scholar] [CrossRef]
  33. Baz, M.M.; Selim, A.M.; Radwan, I.T.; Alkhaibari, A.M.; Gattan, H.S.; Alruhaili, M.H.; Alasmari, S.M.; Gad, M.E. Evaluating larvicidal, ovicidal and growth inhibiting activity of five medicinal plant extracts on Culex pipiens (Diptera: Culicidae), the West Nile virus vector. Sci. Rep. 2024, 14, 19660. [Google Scholar] [CrossRef] [PubMed]
  34. Kuppusamy, C.; Murugan, K. Mosquitocidal effect of Euphorbia heterophylla Linn against the Bancroftian filariasis vector, Culex quinquefasciatus Say (Diptera: Culicidae). Int. J. Integr. Biol. 2008, 4, 34–39. [Google Scholar]
  35. Fikru, S.; Tolossa, K.; Lindemann, P.; Bucar, F.; Asres, K. Larvicidal, ovicidal, and repellent activities of Leucas stachydiformis (Hochst. ex Benth.) Briq essential oil against Anopheles arabiensis. J. Trop. Med. 2024, 2024, 1051086. [Google Scholar] [CrossRef]
  36. Vilvest, J.; Milton, M.C.J.; Yagoo, A. Evaluating the effectiveness of Pisonia alba leaf extracts in managing Aedes aegypti and Culex quinquefasciatus populations via larvicidal, pupicidal and ovicidal actions. Acta Parasitol. 2024, 69, 260–266. [Google Scholar] [CrossRef]
  37. Saraç, A.; Tunç, I. Toxicity of essential oil vapours to stored-product insects. J. Plant Dis. Prot. 1995, 102, 69–74. [Google Scholar]
  38. Gong, X.; Ren, Y. Larvicidal and ovicidal activity of carvacrol, p-cymene, and γ-terpinene from Origanum vulgare essential oil against the cotton bollworm, Helicoverpa armigera (Hübner). Environ. Sci. Pollut. Res. Int. 2020, 27, 18708–18716. [Google Scholar] [CrossRef]
  39. Benelli, G.; Govindarajan, M.; Rajeswary, M.; Vaseeharan, B.; Alyahya, S.A.; Alharbi, N.S.; Kadaikunnan, S.; Khaled, J.M.; Maggi, F. Insecticidal activity of camphene, zerumbone and α-humulene from Cheilocostus speciosus rhizome essential oil against the old-world bollworm, Helicoverpa armigera. Ecotox Environ. Safe 2018, 148, 781–786. [Google Scholar] [CrossRef]
  40. Pushpanathan, T.; Jebanesan, A.; Govindarajan, M. Larvicidal, ovicidal and repellent activities of Cymbopogan citratus Stapf (Graminae) essential oil against the filarial mosquito Culex quinquefasciatus (Say) (Diptera: Culicidae). Trop. Biomed. 2006, 23, 208–212. [Google Scholar]
  41. Owayss, A.A.; Abd-Elgayed, A.A. Potential efficacy of certain plant volatile oils and chemicals against greater wax moth, Galleria mellonella L. (Lepidoptera: Pyralide). Bull. Ent Soc. Egypt. Econ. Ser. 2007, 33, 67–75. [Google Scholar]
  42. Freitas, J.P.; De Jesus, I.L.R.; Chaves, J.K.O.; Gijsen, I.S.; Campos, D.R.; Baptista, D.P.; Ferreira, T.P.; Alves, M.C.C.; Coumendouros, K.; Cid, Y.P.; et al. Efficacy and residual effect of Illicium verum (star anise) and Pelargonium graveolens (rose geranium) essential oil on cat fleas Ctenocephalides felis felis. Rev. Bras. Parasitol. Vet. 2021, 30, e009321. [Google Scholar] [CrossRef]
  43. Wakabayashi, K.A.; De Melo, N.I.; Aguiar, D.P.; de Oliveira, P.F.; Groppo, M.; da Silva Filho, A.A.; Rodrigues, V.; Cunha, W.R.; Tavares, D.C.; Magalhães, L.G.; et al. Anthelmintic effects of the essential oil of fennel (Foeniculum vulgare Mill., Apiaceae) against Schistosoma mansoni. Chem. Biodivers. 2015, 12, 1105–1114. [Google Scholar] [CrossRef] [PubMed]
  44. Lahlou, M. Methods to study the phytochemistry and bioactivity of essential oils. Phytother. Res. 2004, 18, 435–448. [Google Scholar] [CrossRef] [PubMed]
  45. Silva, W.J.; Dória, G.A.; Maia, R.T.; Nunes, R.S.; Carvalho, G.A.; Blank, A.F.; Alves, P.B.; Marçal, R.M.; Cavalcanti, S.C.H. Effects of essential oils on Aedes aegypti larvae: Alternatives to environmentally safe insecticides. Bioresour. Technol. 2008, 99, 3251–3255. [Google Scholar] [CrossRef]
  46. Ojha, P.K.; Poudel, D.K.; Dangol, S.; Rokaya, A.; Timsina, S.; Satyal, P.; Setzer, W.N. Volatile constituent analysis of wintergreen essential oil and comparison with synthetic methyl salicylate for authentication. Plants 2022, 11, 1090. [Google Scholar] [CrossRef] [PubMed]
  47. Khan, B.A.; Ahmad, S.; Khan, M.K.; Hosny, K.M.; Bukhary, D.M.; Iqbal, H.; Murshid, S.S.; Halwani, A.A.; Alissa, M.; Menaa, F. Fabrication and characterizations of pharmaceutical emulgel co-loaded with naproxen-eugenol for improved analgesic and anti-Inflammatory effects. Gels 2022, 8, 608. [Google Scholar] [CrossRef]
  48. Kwiatkowski, P.; Pruss, A.; Masiuk, H.; Mnichowska-Polanowska, M.; Kaczmarek, M.; Giedrys-Kalemba, S.; Sienkiewicz, M. The effect of fennel essential oil and trans-anethole on antibacterial activity of mupirocin against Staphylococcus aureus isolated from asymptomatic carriers. Postep. Dermatol. I Alergol. 2019, 36, 308–314. [Google Scholar] [CrossRef]
  49. Pavela, R. Insecticidal properties of Pimpinella anisum essential oils against the Culex quinquefasciatus and the non-target organism Daphnia magna. J. Asia-Pac. Entomol. 2014, 17, 287–293. [Google Scholar] [CrossRef]
  50. Park, M.H.; Kim, C.J.; Lee, J.Y.; Kim, I.S.; Kin, S. Development and validation of a gas chromatography method for the determination of β-caryophyllene in clove extract and its application. Sci. Rep. 2021, 11, 13853. [Google Scholar] [CrossRef] [PubMed]
  51. Govindarajan, M.; Rajeswary, M.; Hoti, S.L.; Bhattacharyya, A.; Benelli, G. Eugenol, α-pinene and β-caryophyllene from Plectranthus barbatus essential oil as eco-friendly larvicides against malaria, dengue and Japanese encephalitis mosquito vectors. Parasitol. Res. 2016, 115, 807–815. [Google Scholar] [CrossRef]
  52. Yeom, H.J.; Kang, J.S.; Kim, G.H.; Park, I.K. Insecticidal and acetylcholine esterase inhibition activity of Apiaceae plant essential oils and their constituents against adults of German cockroach (Blattella germanica). J. Agric. Food Chem. 2012, 60, 7194–7203. [Google Scholar] [CrossRef] [PubMed]
  53. Li, S.G.; Zhou, B.G.; Li, M.Y.; Liu, S.; Hua, R.M.; Lin, H.F. Chemical composition of Illicium verum fruit extract and its bioactivity against the peach–potato aphid, Myzus persicae (Sulzer). Arthropod-Plant Interact. 2017, 11, 203–212. [Google Scholar] [CrossRef]
  54. Tak, J.H.; Jovel, E.; Isman, M.B. Contact, fumigant, and cytotoxic activities of thyme and lemongrass essential oils against larvae and an ovarian cell line of the cabbage looper, Trichoplusia ni. J. Pest. Sci. 2016, 89, 183–193. [Google Scholar] [CrossRef]
  55. Wang, Z.; Xie, Y.; Sabier, M.; Zhang, T.; Deng, J.; Song, X.; Liao, Z.; Li, Q.; Yang, S.; Cao, Y.; et al. Trans-anethole is a potent toxic fumigant that partially inhibits rusty grain beetle (Cryptolestes ferrugineus) acetylcholinesterase activity. Ind. Crop Prod. 2021, 161, 113207. [Google Scholar] [CrossRef]
  56. Kostić, I.; Lazarević, J.; Šešlija-Jovanović, D.; Kostić, M.; Marković, T.; Milanović, S. Potential of essential oils from anise, dill and fennel seeds for the gypsy moth control. Plants 2008, 10, 2194. [Google Scholar] [CrossRef] [PubMed]
  57. Fujita, K.I.; Kubo, I. Potentiation of fungicidal activities of trans-anethole against Saccharomyces cerevisiae under hypoxic conditions. J. Biosci. Bioeng. 2004, 98, 490–492. [Google Scholar] [CrossRef]
  58. Huang, Y.; Zhao, J.; Zhou, L.; Wang, J.; Gong, Y.; Chen, X.; Guo, Z.; Wang, Q.; Jiang, W. Antifungal activity of the essential oil of Illicium verum fruit and its main component trans-anethole. Molecules 2010, 15, 7558–7569. [Google Scholar] [CrossRef]
  59. Medeiros, M.A.A.; Alves, M.S.; Santos, B.; Silva, E.V.A.; Araújo, F.S.M.; Bezerra, M.M.S.L.; Silva, P.O.A.; Rêgo, V.G.S.; Pessôa, H.L.F.; Oliveira-Filho, A.A. Evaluation of the antibacterial activity of trans-anethole against Enterococcus cloacae and Enterococcus faecalis strains of food origin. Braz. J. Biol. 2023, 83, e269245. [Google Scholar] [CrossRef]
  60. Bonvehí, S.; Coll, F.V.; Martínez, J.A.R. Residues of essential oils in honey after treatments to control Varroa destructor. J. Essent. Oil Res. 2015, 28, 22–28. [Google Scholar] [CrossRef]
  61. Bava, R.; Castagna, F.; Palma, E.; Marrelli, M.; Conforti, F.; Musolino, V.; Carresi, C.; Lupia, C.; Ceniti, C.; Tilocca, B.; et al. Essential oils for a sustainable control of honeybee varroosis. Vet. Sci. 2023, 10, 308. [Google Scholar] [CrossRef]
  62. Dwivedy, A.K.; Kumar, M.; Upadhyay, N.; Prakash, B.; Dubey, N.K. Plant essential oils against food borne fungi and mycotoxins. Curr. Opin. Food Sci. 2016, 11, 16–21. [Google Scholar] [CrossRef]
Insects 15 00977 g001
Figure 1. Morphology of the eggs.
Figure 1. Morphology of the eggs.
Insects 15 00977 g001
Insects 15 00977 g002

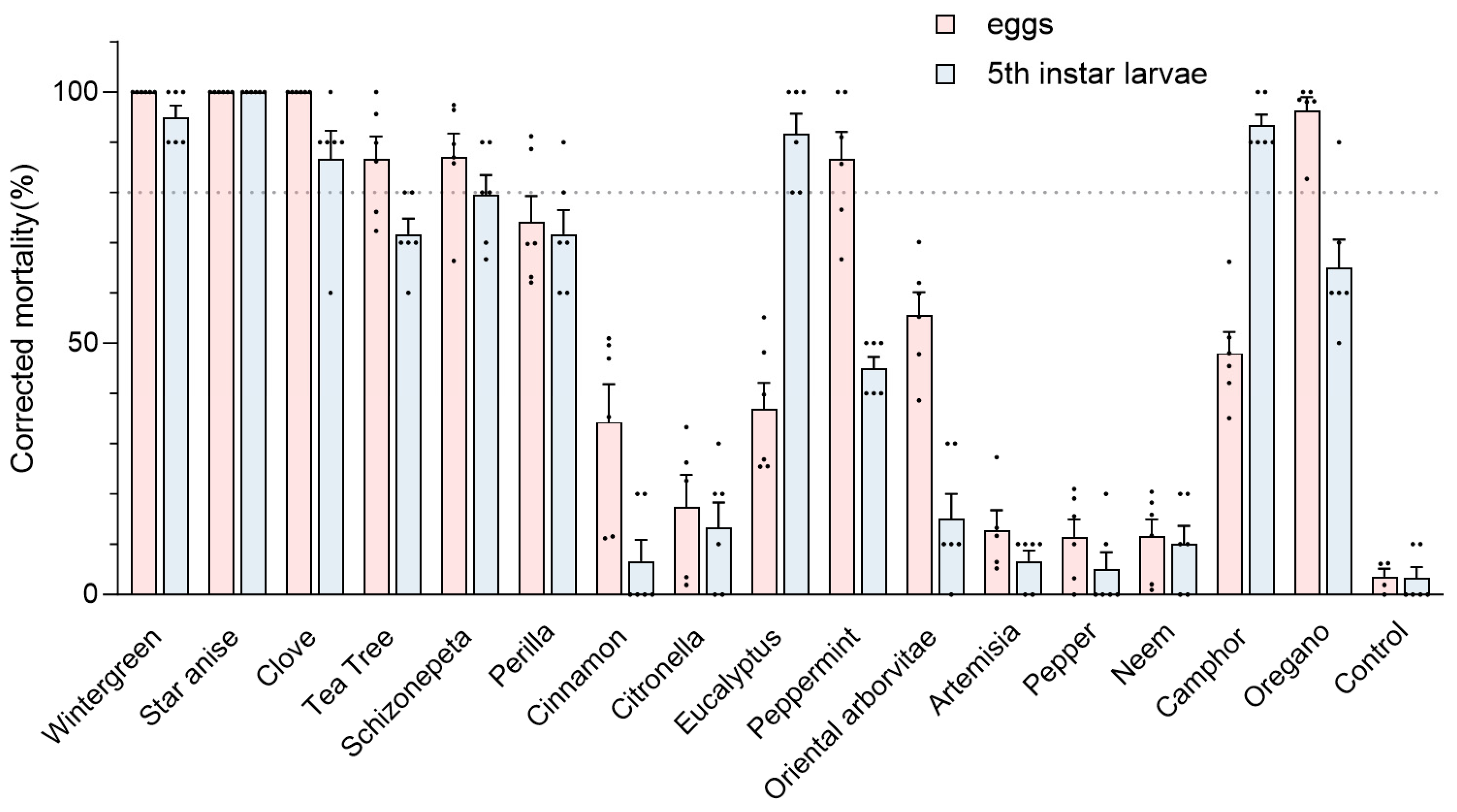

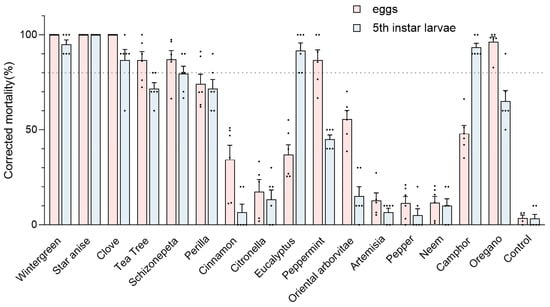

Figure 2. Corrected mortality (%) of greater wax moth (GWM) after essential oil treatment (48 h at 30 °C) based on the fumigation toxicity bioassay. The insects were tested in six replicates (n = 10 larvae and n = 50–100 eggs each) per formulation. Control value represents the mortality rate of the blank control group.
Figure 2. Corrected mortality (%) of greater wax moth (GWM) after essential oil treatment (48 h at 30 °C) based on the fumigation toxicity bioassay. The insects were tested in six replicates (n = 10 larvae and n = 50–100 eggs each) per formulation. Control value represents the mortality rate of the blank control group.
Insects 15 00977 g002
Insects 15 00977 g003

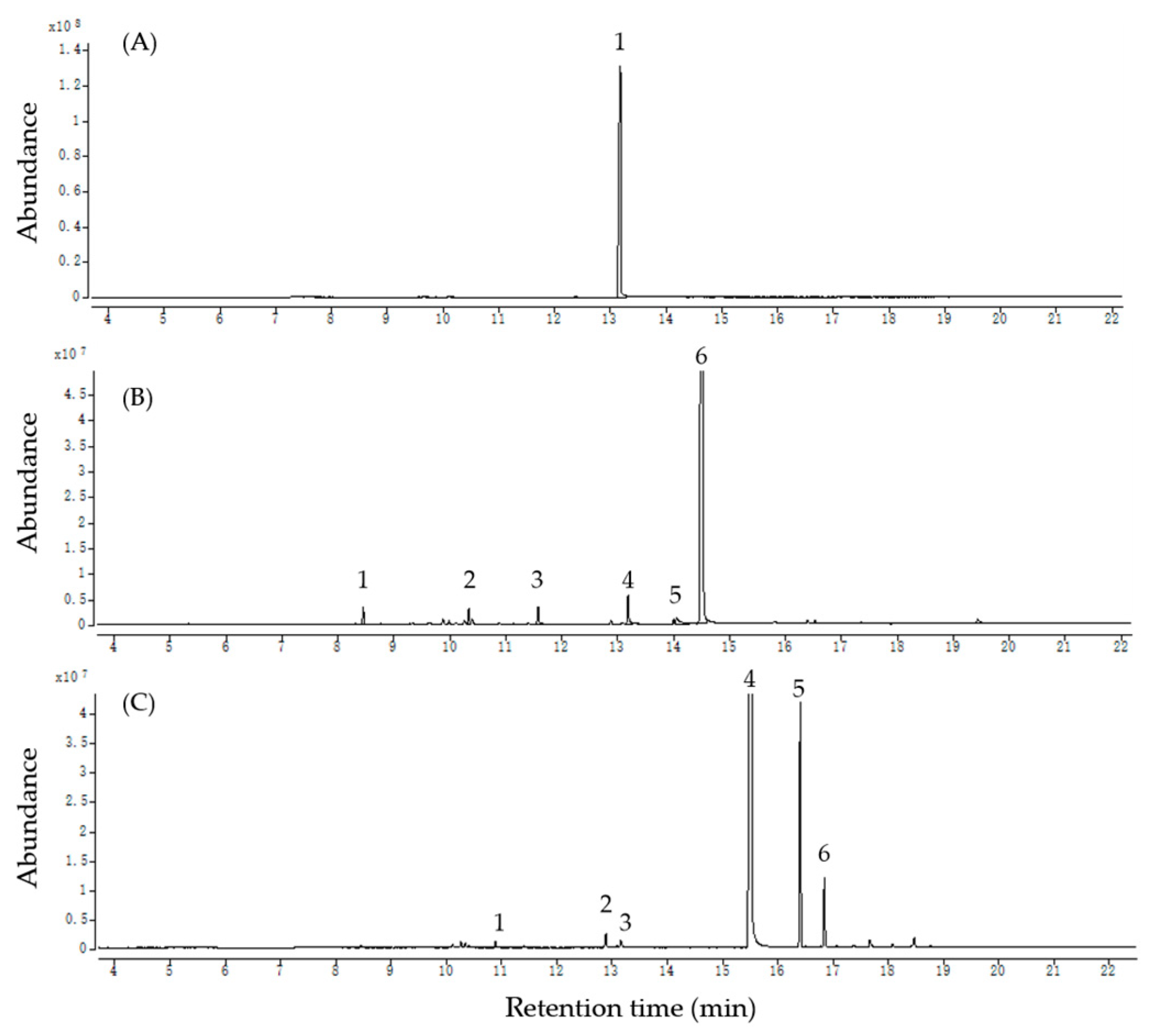

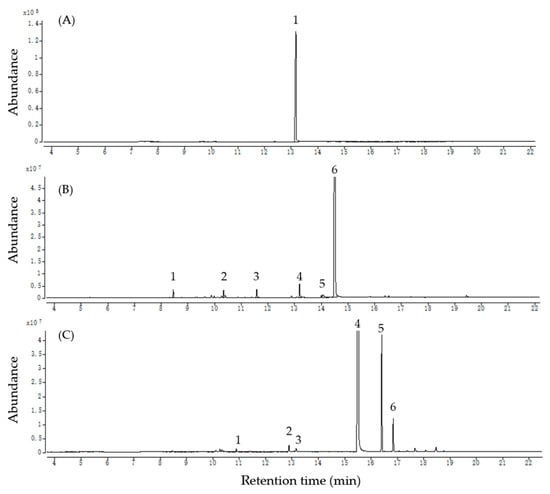

Figure 3. Total ion chromatograms of the three EOs, (A) wintergreen oil, (B) star anise oil, and (C) clove oil.
Figure 3. Total ion chromatograms of the three EOs, (A) wintergreen oil, (B) star anise oil, and (C) clove oil.
Insects 15 00977 g003
Insects 15 00977 g004

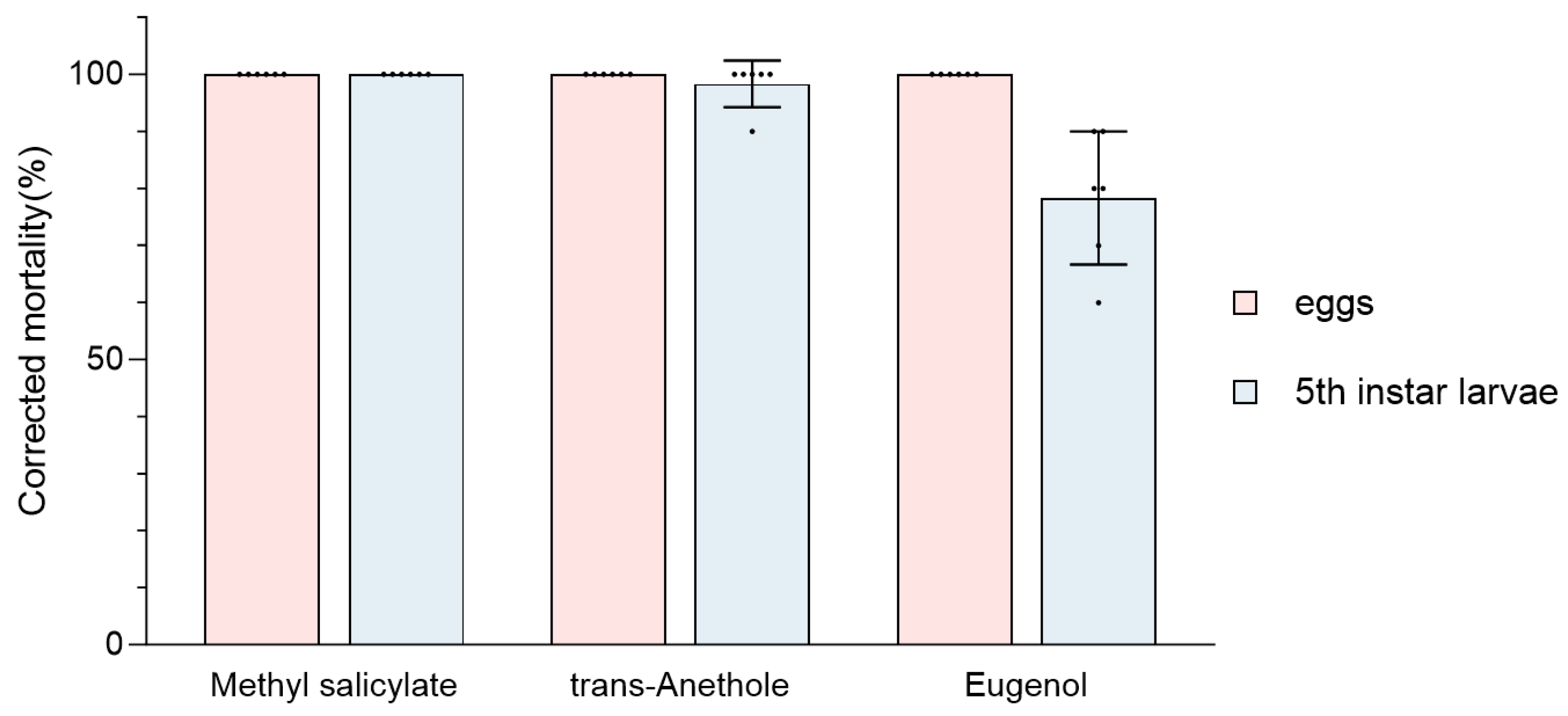

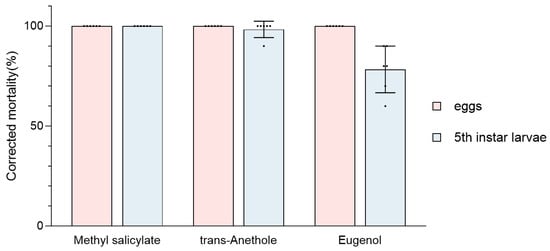

Figure 4. Corrected mortality rate (%) of essential oil components on the eggs and 5th instar larvae of GWM. The insects were tested based on six replicates (n = 10 larvae and n = 50–100 eggs each) per formulation.
Figure 4. Corrected mortality rate (%) of essential oil components on the eggs and 5th instar larvae of GWM. The insects were tested based on six replicates (n = 10 larvae and n = 50–100 eggs each) per formulation.
Insects 15 00977 g004
Table 1. Plant species and essential oils tested in this study.
Table 1. Plant species and essential oils tested in this study.
Essential OilFamilyScientific NameExtracted Plant Part
WintergreenAquifoliaceaeIlex purpurealeaf
Star aniseMagnoliaceaeIllicium verumseed
CloveMyrtaceaeSyzygium aromaticumflower bud
Tea treeMyrtaceaeMelaleuca alternifolialeaf
SchizonepetaLamiaceaeNepeta catarialeaf
PerillaLamiaceaePerilla frutescensleaf
CinnamonLauraceaeCinnamomum cassialeaf, bark
CitronellaPoaceaeCymbopogon citratusleaf
EucalyptusMyrtaceaeEucalyptus globulusleaf
PeppermintLamiaceaeMentha piperitaleaf
ArborvitaeCupressaceaePlatycladus orientalisleaf
ArtemisiaAsteraceaeArtemisia argyistem, leaf
PepperRutaceaeZanthoxylum bungeanumseed
NeemMeliaceaeMelia azedarachseed
CamphorLauraceaeCamphora parthenoxylonwood
OreganoLamiaceaeOriganum vulgareleaf
Table 2. Analysis of the main chemical components of the essential oils (EOs).
Table 2. Analysis of the main chemical components of the essential oils (EOs).
EOsNo.RIexpRIlitChemical CompoundsRelative Content
(%)
Wintergreen 111961195Methyl salicylate93.26 ± 0.38
Star anise1936 938α-Pinene1.19 ± 0.01
21032 1031Limonene1.44 ± 0.02
31102 1101Linalool1.12 ± 0.01
41204 1202Estragole1.41 ± 0.01
51259 1259cis-Anethole0.66 ± 0.02
61295 1289trans-Anethole87.75 ± 0.47
Clove11056 1062γ-Terpinene0.51 ± 0.02
21177 1175Terpinen-4-ol0.63 ± 0.01
31193 1195Methyl salicylate0.75 ± 0.02
41359 1360Eugenol77.75 ± 0.21
51422 1419Caryophyllene8.35 ± 0.1
61457 1452Humulene2.25 ± 0.04
Abbreviations: RIexp: experimental retention index; RIlit: literature data.
Table 3. Fumigation toxicity of essential oil constituents (EOCs) on 5th instar larvae of GWM.
Table 3. Fumigation toxicity of essential oil constituents (EOCs) on 5th instar larvae of GWM.
EOCsTime (h)LC50 (95% CI) a
(μL/L)		LC90 (95% CI) a
(μL/L)		Slope ± SE bχ2 cp-Value
Wintergreen oil2451.07
(41.98–61.40)		139.51
(107.69–210.26)		2.94 ± 0.3043.19<0.001
4839.60
(32.74–46.72)		92.06
(75.29–122.93)		3.50 ± 0.3248.64<0.001
Star anise oil2464.61
(49.46–86.40)		246.85
(157.97–619.46)		2.02 ± 0.2947.08<0.001
4842.18
(33.07–53.78)		107.98
(82–174.60)		3.22 ± 0.3465.49<0.001
Clove oil2491.30
(71.70–128.25)		405.29
(239.78–1182.32)		1.98 ± 0.3030.09<0.001
4829.24
(21.53–36.63)		86.25
(66.53—129.99)		2.73 ± 0.3053.34<0.001
Methyl salicylate2442.68
(35.45–50.79)		125.36
(97.11–185.88)		2.74 ± 0.366.21<0.001
4832.87
(26.56–39.30)		98.11
(76.80–143.44)		2.70 ± 0.374.87<0.001
trans-Anethole2445.29
(29.59–63.66)		702.381
(349.47–2794.64)		1.08 ± 0.1928.84<0.001
4825.22
(19.21–31.07)		64.68
(50.46–96.92)		3.13 ± 0.4133.71<0.001
Eugenol24249.08
(173.59–455.34)		2023.33
(904.44–9394.68)		1.41 ± 0.2316.75<0.001
4836.41
(28.16–45.16)		204.83
(149.01–327.29)		1.71 ± 0.2029.59<0.001
Abbreviations: a: lethal concentration (μL/L) to 50% (LC50) or 90% (LC90) of the exposed population; CI, confidence limit; b: SE, standard error; c: χ2, chi-square.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Su, X.-L.; Huang, Z.-C.; Chen, L.; Chen, D.-Y.; Zhao, D.-X.; Zeng, Z.-J. Active Components of 16 Essential Oils and Their Fumigation Effects on Galleria mellonella (Lepidoptera: Pyralidae). Insects 2024, 15, 977. https://doi.org/10.3390/insects15120977

AMA Style

Su X-L, Huang Z-C, Chen L, Chen D-Y, Zhao D-X, Zeng Z-J. Active Components of 16 Essential Oils and Their Fumigation Effects on Galleria mellonella (Lepidoptera: Pyralidae). Insects. 2024; 15(12):977. https://doi.org/10.3390/insects15120977

Chicago/Turabian Style

Su, Xiao-Ling, Zhi-Chu Huang, Lin Chen, Dao-Yin Chen, Dong-Xu Zhao, and Zhi-Jiang Zeng. 2024. "Active Components of 16 Essential Oils and Their Fumigation Effects on Galleria mellonella (Lepidoptera: Pyralidae)" Insects 15, no. 12: 977. https://doi.org/10.3390/insects15120977

APA Style

Su, X.-L., Huang, Z.-C., Chen, L., Chen, D.-Y., Zhao, D.-X., & Zeng, Z.-J. (2024). Active Components of 16 Essential Oils and Their Fumigation Effects on Galleria mellonella (Lepidoptera: Pyralidae). Insects, 15(12), 977. https://doi.org/10.3390/insects15120977

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
