Sublethal Dose of β-Cypermethrin Impairs the Olfaction of Bactrocera dorsalis by Suppressing the Expression of Chemosensory Genes

by
Shuang-Xiong Wu
1,2,
Yang Chen
1,2,
Quan Lei
1,2,
Yuan-Yuan Peng
1,2 and
Hong-Bo Jiang
1,2,*
1
Key Laboratory of Entomology and Pest Control Engineering, College of Plant Protection, Southwest University, Chongqing 400715, China
2
International Joint Laboratory of China-Belgium on Sustainable Crop Pest Control, Academy of Agricultural Sciences, Southwest University, Chongqing 400715, China
*
Author to whom correspondence should be addressed.
Insects 2022, 13(8), 721; https://doi.org/10.3390/insects13080721
Submission received: 29 June 2022 / Revised: 7 August 2022 / Accepted: 9 August 2022 / Published: 11 August 2022
(This article belongs to the Special Issue Environmentally-Friendly Pest Control Approaches for Invasive Insects)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The oriental fruit fly, Bactrocera dorsalis, is a pest that causes huge economic losses in the fruit and vegetable industry. β-cypermethrin has been widely used in the orchard to control this major pest. According to a previous study, the oriental fruit fly developed significant resistance against β-cypermethrin in fields, which indicated that the oriental fruit fly has been exposed to sublethal concentrations of β-cypermethrin in the field for a long time. However, the sublethal effect and its mechanism are still unclear. In our present study, after treatment with sublethal concentrations of β-cypermethrin, the olfaction was disrupted significantly and the chemosensory genes were suppressed obviously. Our data demonstrated that the sublethal dose of β-cypermethrin impairs the olfaction of the pest insects by suppressing the expression of chemosensory genes, which provided theoretical guidance for the rational use of pesticides in fields.

Abstract

The oriental fruit fly, Bactrocera dorsalis, is one of the most destructive fruit insect pests. β-cypermethrin has been widely used in the orchard to control this major insect. Based on the resistance monitoring in 2011, B. dorsalis developed significant resistance against β-cypermethrin in fields. This indicated that the B. dorsalis has been exposed to sublethal concentrations of β-cypermethrin in the field for a long time. Thus, it is urgent to understand the sublethal effects of β-cypermethrin on this fly to guide the rational use of an insecticide. According to the olfactory preference assays and electroantennogram (EAG) recording, the B. dorsalis after β-cypermethrin exposure (LD30 = 10 ng/fly) severely decreased the ability to perceive the tested odorants. Moreover, we then performed quantitative real-time PCR and found the chemosensory genes including odorant receptor co-receptor (BdorORco) and ionotropic receptor co-receptors (BdorIRcos) were obviously suppressed. Our results demonstrated that the sublethal dose of β-cypermethrin impairs the olfaction of the pest insects by suppressing the expression of chemosensory genes (BdorORco and BdorIRcos), which expanded our knowledge of the sublethal effects of the pesticide on insects.

1. Introduction

The oriental fruit fly, Bactrocera dorsalis (Hendel), attacks more than 600 fruit and vegetable crops [1,2]. It causes great economic losses through oviposition and larval feeding inside of the host plants [1,3]. Due to its rapid population growth, wide distribution and invasiveness, it has become one of the most destructive pests in tropical and subtropical countries [4,5]. Nowadays, chemical control is still the main method to control B. dorsalis and plays a significant role in the management of this fly [6,7,8]. β-cypermethrin, a pyrethroid, represents one of the major insecticides against B. dorsalis [5,7]. It behaves as a fast-acting neurotoxin in insects and it eventually leads to the death of target insects by prolonging the opening time of sodium ion channels [9,10].
In addition to the direct killing effect of insecticides on insects, a sublethal effect also existed in some individuals with different exposure amounts and times. It has been well documented that exposure to sublethal insecticides may cause multiple effects on the behavior, development and reproduction of insects [11,12]. On one hand, sublethal effects have negative effects on insects. For example, researchers found that a sublethal dose of indoxacarb and β-cypermethrin could significantly inhibit the growth and reproduction of Rhopalosiphum padi and Plutella xylostella and their offspring [9,13]. Exposure to a sublethal dose of deltamethrin detrimentally affects the reproduction and wing shape of Chironomus columbiensis [14]. Furthermore, spinosad exposure was found to impair the mobility of Adoxophyes honmai [15]. On the other hand, sublethal effects have “positive” effects on insects. The resurgence led by the hormesis effect of sublethal insecticides on the target insect pests is a great challenge to the rational use of pesticides [16]. For instance, exposure to sublethal concentrations of pesticides was also reported to stimulate the reproduction of several insects such as Myzus persicae, Bemisia tabaci and Frankliniella occidentalis [17,18,19].
Furthermore, an increasing number of studies have shown that sublethal doses of insecticides can severely damage olfaction, resulting in abnormal olfactory behaviors, especially in non-target organisms [20]. Currently, the sublethal effects of insecticides on non-target pests have become an interesting topic in the pesticide environmental toxicology study [20]. In Oncorhynchus mykiss, the sublethal dose of chlorpyrifos impaired olfactory signal transduction resulting in olfaction sensitivity disruption [21]. Moreover, the dose-dependent sublethal concentration of the imidacloprid impaired host finding and sexual communication in Nasonia vitripennis [22]. After exposure to a sublethal dose of imidacloprid, the nervous system in the calyces regions responsible for both olfaction and vision was damaged, causing decreased olfaction learning ability in Apis mellifera [23].
In 2011, the resistance monitoring of B. dorsalis in mainland China showed that 24 out of the 25 field populations developed different resistance against β-cypermethrin ranging from 3.0 folds to 44.0 folds [7]. Due to the rapid development of the resistance, B. dorsalis has probably been exposed to sublethal concentrations of β-cypermethrin in fields since 2011. However, the sublethal effect of β-cypermethrin on B. dorsalis still remains unknown, especially whether there are any significant effects on its olfaction. Therefore, we conducted the olfactory behavior and electroantennogram (EAG) assays to investigate the disruption of the olfaction in B. dorsalis exposed to a sublethal dose of β-cypermethrin. Moreover, to figure out its potential mechanism, we then performed quantitative real-time PCR to determine the expression profiles of chemosensory genes including BdorORco and BdorIRcos. The results not only demonstrated that the sublethal dose of β-cypermethrin impairs the olfaction of B. dorsalis by suppressing the expression of chemosensory genes (BdorORco and BdorIRcos), but also provided insights into the physiological effects of β-cypermethrin on the target insect pest besides its insecticidal effects. Our data will also provide a reference for the scientific use of pesticides in pest management in fields.

2. Materials and Methods

2.1. Insects

The B. dorsalis population used in our experiments was originally collected from Hainan province, China, in 2008. All life stages of the oriental fruit flies were kept in a growth chamber at 27.5 ± 1 °C, 75 ± 5% relative humidity, with a 14 h light:10 h dark photoperiod [24]. Adults were fed an aqueous artificial diet of yeast powder, honey, sugar and vitamin C [25]. Male and female adults were separated within 3 days of the eclosion. All the adults were synchronized under the same conditions before experimentation.

2.2. β-Cypermethrin Bioassay

β-cypermethrin (96% purity) was provided by the Institute for Control of Agrochemicals, Sichuan province, China. The topical application method was used in the bioassay [26]. A serial dilution of β-cypermethrin in acetone (0, 5 ng/fly, 10 ng/fly, 15 ng/fly, 20 ng/fly, 25 ng/fly) was applied to the pronotum of 6-day-old flies, using a PB600-1 repeating dispenser (Hamilton, Reno, NV, USA). Flies applied with acetone served as a control. Mortality was recorded at 24 h after β-cypermethrin treatment. There were three biological replications with 60 flies for each.

2.3. Olfactory Preference Assays

The four choice olfactometer assay was carried out to detect the olfactory preference of treated flies (β-cypermethrin, 10 ng/fly) to 1-octen-3-ol (Sigma-Aldrich, St Louis, MO, USA), methyl eugenol (Acros, Morris Plains, NJ, USA) and ethyl acetate (Sigma, St Louis, MO, USA) followed the published method [27] with slight modification. The apparatus consisted of a central chamber connected to four 50 mL cylindrical glass bottles. Two of the glass bottles at the opposite corner were designated for odor stimuli treatments and the other two for controls. Purified air at a rate of 200 mL/min was drawn towards the center of the olfactometer simultaneously from each arm and removed via the vacuum pump at the rate of 1000 mL/min.
1-octen-3-ol was regarded as a female attractant [28], while methyl eugenol was a male-specific attractant [29]. Meanwhile, ethyl acetate was proved to attract both male and female flies [30]. Therefore, only females were used for the assay of 1-octen-3-ol, while only males were used for the assay of methyl eugenol. Meanwhile, both females and males with a sex ratio of 1:1 were employed in the assay of ethyl acetate. Each glass bottle was filled with a quarter piece of filter paper (Newstart, Hangzhou, China) that was impregnated with 100 μL of diluted odorant in the concentration of 1% (v/v) or control. In detail, the control for 1-octen-3-ol and ethyl acetate is mineral oil (MO, Sigma-Aldrich, St Louis, MO, USA), and the control for methyl eugenol is dimethyl sulfoxide (DMSO, Sigma-Aldrich, St Louis, MO, USA). Twenty 7-day-old flies (after treatment) were placed in the center of the olfactometer and continuously monitored for 10 min. Each group contained 6 replicates. Flies that stayed at the center of the apparatus longer than 10 min were considered “non-responders”. The attraction rate was calculated by dividing the number of flies attracted per treatment by the total number of flies entering the olfactometer. In addition, the B. dorsalis were tested at the same time point to guarantee the consistent rhythm.

2.4. Electroantennogram (EAG)

The EAG responses of the β-cypermethrin treated (LD30 = 10 ng/fly) flies were measured with a standard protocol [31]. Briefly, the whole head of the 7-day-old fly (after treatment) was excised and connected to two glass micropipettes filled with 0.9% NaCl. One glass micropipette was in contact with the distal tip of the antenna as the recording electrode, the other one was inserted into the base of the head, which served as the reference electrode. The response signal was recorded using EAG-2000 software (Syntech, Hilversum, The Netherlands) with an IDAC4 amplifier (Syntech, Hilversum, The Netherlands). A controller generated 100 mL/min of pulse flow to stimulate the fly’s antenna.
Three plant volatiles (1-octen-3-ol, methyl eugenol and ethyl acetate) were selected for EAG experiments [28,29,30]. In detail, only females were used for the assay of 1-octen-3-ol, while only males were used for the assay of methyl eugenol. Meanwhile, both females and males with a sex ratio of 1:1 were employed in the assay of ethyl acetate. As described above, MO or DMSO was used as the solvent and the negative control. Ten microliters of each dilution or control were applied to a paper strip (5 × 1 cm) which served as the stimulus source. Each stimulation lasted 1 s, and stimulus interval was at least 30 s [31]. There were about 10 individuals for the EAG assay of each plant’s volatile.

2.5. Quantitative Real-Time PCR

The flies were treated with acetone or β-cypermethrin (LD30 = 10 ng/fly) at 6 days old. After 24 h, their heads were dissected and immediately frozen in liquid nitrogen. In detail, the samples of males and females were separately dissected and mixed in equal proportions. Total RNA was extracted from the collected samples with TRIzol (Invitrogen, Carlsbad, CA, USA). First-strand cDNA was synthesized using 1µg of total RNA and PrimeScript 1st Strand cDNA Synthesis Kit (Takara, Dalian, China).
A standard protocol [32] was applied in this study, and the amplification efficiencies of primers were validated by generating a standard curve based on a double-fold cDNA dilution series. The 10 μL qPCR system consisted of 5 µL of SYBR Supermix (Novoprotein, Shanghai, China), 10 pM of the specific primers of each gene, 250 ng cDNA and nuclease-free water. The qPCR reaction was conducted on a CFX ConncetTM Real-Time System (Bio-Rad, Jurong, Singapore) with the following program: 2 min at 95 °C for pre-denaturation, followed by 40 cycles of 95 °C for 15 s and 60 °C for 30 s. A melting curve analysis generated from 60 °C to 95 °C was used to verify the specificity and consistency of the products for each primer pair [33]. α-tubulin (GenBank: GU269902) and ribosomal protein S3 (rps 3, GenBank: XM_011212815) were selected as the internal reference genes. All the primers used in this study were designed by Primer Premier 5 (PREMIER Biosoft International, Palo Alto, California, USA) as shown in Table 1. Four biological and two technical replicates were set for each experiment. The relative expression data were analyzed using the 2−ΔΔCt method [34].

2.6. Statistical Analysis

All experiments were performed with at least three biological replications, and all the data were analyzed with SPSS software version 25.0 for Windows (IBM, Chicago, IL, USA). The concentration-mortality data of β-cypermethrin bioassay were analyzed by probit analysis. The results of olfactory preference assays, EAG recording and chemosensory genes relative expression after β-cypermethrin induction were analyzed with Student’s t-test (* p < 0.05; ** p < 0.01; *** p < 0.001).

3. Results

3.1. Bioassay

We applied β-cypermethrin to the pronotum of cold-sedated B. dorsalis in 6-day-olds. The mortality for the tested concentrations was assessed 24 h after the β-cypermethrin application, which ranged from 11.7% to 78.3%. Based on the probit analysis, the dose causing 50% mortality (LD50) within a 24 h observation period was 14.50 ng per fly (Table 2). According to the calculation, the LD30 would be 9.70 ng/fly. Thus, we used this sublethal dose for the subsequent study.

3.2. Olfactory Preference

The alteration in olfactory preference of the 7-day-old flies treated with β-cypermethrin was determined by an olfactory behavior assay using the four-choice olfactometer. Three plant volatiles including 1-octen-3-ol, methyl eugenol and ethyl acetate were used at the concentration of 1% (v/v). As the results indicated, the B. dorsalis exposed to sublethal doses of β-cypermethrin significantly disrupted the discernment of the tested odorant (Figure 1). After β-cypermethrin treatment, the attraction rate of 1-octen-3-ol to the females decreased by 14.3% (from 55.0% to 40.7%), while the attraction rate of methyl eugenol to the males decreased by 18.5% (from 67.4% to 48.9%). Furthermore, the attraction rate of ethyl acetate to both females and males (with a sex ratio of 1:1) decreased by 14.2% (from 46.6% to 32.4%), specifically. Notably, there was no significant difference between the male and female flies in the ethyl acetate attraction assay.

3.3. EAG Analysis

To study the electrophysiological response of B. dorsalis treated with β-cypermethrin, the EAG responses of 7-day-old adult flies to 1% (v/v) concentration of 1-octen-3-ol, methyl eugenol and ethyl acetate were recorded (Figure 2). The EAG signal ranged from −0.6 to −3.5 mV for 1-octen-3-ol, −0.6 to −3.9 mV for methyl eugenol, and −0.3 to −3.3 mV for ethyl acetate. However, the EAG responses of the flies exposed to β-cypermethrin were significantly weaker than the control for all three odorants. After β-cypermethrin treatment, the EAG response of the females to 1-octen-3-ol was reduced by 26.6%, while the EAG response of the males to methyl eugenol was reduced by 66.7%. In addition, the EAG response of both females and males (with a sex ratio of 1:1) to ethyl acetate was reduced by 63.9%. Notably, there was no significant difference between the male and female flies in the EAG assay of ethyl acetate.

3.4. Differential Expression of Olfactory Genes upon β-Cypermethrin Exposure

The relative expressions of chemosensory genes in the 7-day-old adult flies under β-cypermethrin treatment were analyzed by RT-qPCR (Figure 3). The amplification efficiencies of α-tubulin, rps 3, BdorORco, BdorIR8a, BdorIR25a, BdorIR76b and BdorIR93a were 97.5%, 98.3%, 95.3%, 97.7%, 96.5%, 101.5% and 90.7%, respectively (Table 1). As the results indicated, a sublethal dose of β-cypermethrin impaired the expression of chemosensory genes in B. dorsalis. Compared with the control group, the expression of BdorIR8a, BdorIR93a and BdorORco of β-cypermethrin treated flies significantly decreased by 48.2%, 53.3%, and 62.1%, respectively. However, the relative expression of IR25a and IR76b after treatment had no significant differences.

4. Discussion

The oriental fruit fly has probably been exposed to sublethal concentrations of insecticides in fields for a long time, since the resistance monitoring of B. dorsalis in mainland China showed that only 1 of the 25 populations stay sensitive to β-cypermethrin [7]. Therefore, it is necessary to investigate the sublethal effects of β-cypermethrin on this fly. Compared with the susceptible strain described in the previous study, the B. dorsalis strain in our laboratory possessed a medium resistance with a resistance ratio of 11.7 (based on the LD50) to β-cypermethrin [7]. Thus, we exposed the flies to β-cypermethrin with the dose of LD30 (10 ng/fly) in this study.
Sublethal insecticide residues have been shown to cause multiple effects on insects. For example, Bacillus thuringiensis exposure was found to reduce the lifespan and reproductive capacity of Helicoverpa armigera [35]. In Cyrtorhinus lividipennis, researchers found that sublethal concentration of triazophos and deltamethrin disturbed foraging ability, reduced predatory capacity, and decreased pepsin activity [36]. Compared with the susceptible strain, the cyantraniliprole-resistant (19.44 folds) strain of B. dorsalis shows a prolonged larval duration, higher pupa weight, and longer timing of sexual maturation [37]. Interestingly, a very low-dose exposure of chlordimeform induced an increased sensitivity to sex pheromone in Carposia niponensis [38]. Likewise, exposure to a sublethal dose of β-cypermethrin also improved the abilities of motility and respiration in Harmonia axyridis [39]. In the current study, B. dorsalis exposed to a sublethal dose of β-cypermethrin showed an altered olfactory behavior. However, we do not know whether development and reproduction were influenced or not. Moreover, we do not know whether the β-cypermethrin residue resulted in hormesis effects on this fly either. Hence, future studies on its developmental biology and ecological fitness are needed to investigate whether the sublethal effects of β-cypermethrin are contributing to the resurgence of B. dorsalis in a field or not.
The olfactory system of B. dorsalis is essential for finding habitats and mates, foraging, ovipositing, and avoiding predators [40,41,42]. Olfactory reception in B. dorsalis is represented by two main types of molecular receptors, the odorant receptors (ORs) and the ionotropic receptors (IRs) [43]. Recently, studies have shown that sublethal doses of insecticides can seriously damage insect olfaction, resulting in abnormal olfactory behaviors. Our olfactory preference assays and EAG recording indicated that the B. dorsalis after β-cypermethrin exposure (LD30 = 10 ng/fly) severely decreased the ability to perceive the tested odorants. We are aware that we tested the females and males separately either for the behavior or the EAG for 1-octen-3-ol and methyl eugenol, due to the characterizations of the tested odorants. However, we concluded that the impaired olfaction by a sublethal dose of β-cypermethrin is not sex-biased, since there was no significant difference between sexes in the assays for ethyl acetate. Moreover, our results are consistent with several previous studies. In N. vitripennis, sublethal doses of the imidacloprid damaged the olfaction thereby impairing sexual communication and host finding [22]. In Spodoptera littoralis, the sublethal dose of deltamethrin residue reduced the repolarization time to sex pheromone and host–plant odorants and overexpresses some detoxification metabolic enzyme genes [44]. It would be very interesting to further study whether the olfactory alteration contributed to the development of resistance in insects or not.
According to the previous studies, a sublethal dose of chlorpyrifos impaired olfactory signal transduction resulting in olfaction sensitivity disruption in O. mykiss [21]. Besides, in A. mellifera, the olfaction learning ability decreased after exposure to a sublethal dose of imidacloprid because the density of the synaptic units in the region of the calyces that are responsible for olfactory and visual functions decreased [23]. In Agrotis ipsilon, sublethal doses of clothianidin residue decreased behavioral sex pheromone responses by downregulating the sensitivity of antennal lobe output neurons [45]. In the present study, according to the EAG and qPCR data, we found that the impaired olfaction may be due to the significantly reduced expression of chemoreceptor genes closely related to olfaction. This is consistent with the result that a sublethal dose of imidacloprid suppresses the ORco and IR8a-2 in Aphidius gifuensis by analyzing transcriptome [46]. As our qPCR results indicated, the relative expression of ORco, IR8a and IR93a after treatment were significantly lower than control while the relative expression of IR25a and IR76b after treatment had no significant differences. Hence, we speculated that IR8a and IR93a are more closely associated with olfaction rather than IR25a and IR76b which have a more widespread expression (undocumented) [47,48]. However, due to the limitation of technical conditions, we do not know whether insecticide residue impairs the sensilla present in various tissues such as antennae and maxillary palp, olfactory signal transduction system, or the nervous system, which is worthy of further study.
In general, our data suggested that it might be difficult for B. dorsalis to proliferate and invade under sublethal β-cypermethrin stress. However, when non-target insects other than B. dorsalis encounter β-cypermethrin stress in the field, their olfaction is most likely affected. Further study on the ecological and environmental toxicology of sublethal dose of β-cypermethrin on non-target insects will provide answers for the effects on their populations. Therefore, our data not only expanded the knowledge on the sublethal effects of insecticides but also provided theoretical guidance for the rational use of pesticides in fields.

Author Contributions

Conceptualization, S.-X.W. and H.-B.J.; methodology, S.-X.W., Y.C. and Q.L.; software, S.-X.W. and Y.-Y.P.; resources, Y.-Y.P. and H.-B.J.; data curation, S.-X.W. and Y.C.; writing—original draft preparation, S.-X.W. and H.-B.J.; writing—review and editing, H.-B.J.; visualization, S.-X.W. and Q.L.; supervision, H.-B.J.; project administration, S.-X.W. and H.-B.J.; funding acquisition, H.-B.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by funding from the National Natural Science Foundation of China (U21A20222, 32072491), National Key R&D Program of China (2021YFC2600100), Chongqing Natural Science Foundation (cstc2019jcyj-zdxmX0034), 111 Project (B18044) and the China Agriculture Research System of MOF and MARA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are available in this paper.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Liquido, N.J.; Mcquate, G.T.; Suiter, K.A. Compendium of Fruit Fly Host Information (CoFFHI), 3.0 ed; United States Department of Agriculture, Center for Plant Health Science and Technology: Raleigh, NC, USA, 2017. Available online: https://coffhi.cphst.org/ (accessed on 24 October 2017).
  2. Chen, P.H.; Wu, W.J.; Hsu, J.C. Detection of male oriental fruit fly (Diptera: Tephritidae) susceptibility to naled- and fipronil-Intoxicated methyl eugenol. J. Econ. Entomol. 2019, 112, 316–323. [Google Scholar] [CrossRef] [PubMed]
  3. Wei, D.D.; He, W.; Lang, N.; Miao, Z.Q.; Xiao, L.F.; Dou, W.; Wang, J.J. Recent research status of Bactrocera dorsalis: Insights from resistance mechanisms and population structure. Arch. Insect Biochem. 2019, 102, e21601. [Google Scholar] [CrossRef] [PubMed]
  4. Clarke, A.R.; Li, Z.H.; Qin, Y.J.; Zhao, Z.H.; Liu, L.J.; Schutze, M.K. Bactrocera dorsalis (Hendel) (Diptera: Tephritidae) is not invasive through Asia: It’s been there all along. J. Appl. Entomol. 2019, 143, 797–801. [Google Scholar] [CrossRef]
  5. Liu, H.; Zhang, D.J.; Xu, Y.J.; Wang, L.; Cheng, D.F.; Qi, Y.X.; Zeng, L.; Lu, Y.Y. Invasion, expansion, and control of Bactrocera dorsalis (Hendel) in China. J. Integr. Agric. 2019, 18, 771–787. [Google Scholar] [CrossRef]
  6. Lu, X.P.; Xu, L.; Meng, L.W.; Wang, L.L.; Niu, J.Z.; Wang, J.J. Divergent molecular evolution in glutathione S-transferase conferring malathion resistance in the oriental fruit fly, Bactrocera dorsalis (Hendel). Chemosphere 2020, 242, 125203. [Google Scholar] [CrossRef] [PubMed]
  7. Jin, T.; Zeng, L.; Lin, Y.Y.; Lu, Y.Y.; Liang, G.W. Insecticide resistance of the oriental fruit fly, Bactrocera dorsalis (Hendel) (Diptera: Tephritidae), in mainland China. Pest Manag. Sci. 2011, 67, 370–376. [Google Scholar] [CrossRef] [PubMed]
  8. Kuo, T.C.Y.; Hu, C.C.; Chien, T.Y.; Chen, M.J.M.; Feng, H.T.; Chen, L.F.O.; Chen, C.Y.; Hsu, J.C. Discovery of genes related to formothion resistance in oriental fruit fly (Bactrocera dorsalis) by a constrained functional genomics analysis. Insect Mol. Biol. 2015, 24, 338–347. [Google Scholar] [CrossRef] [PubMed]
  9. Song, L.; Zhang, J.M.; Lu, Y.B. Sublethal effects of indoxacarb and beta-cypermethrin on Plutella xylostella (Lepidoptera: Plutellidae). Acta Entomol. Sin. 2013, 56, 521–529. [Google Scholar]
  10. Bloomquist, J.R. Ion channels as targets for insecticides. Annu. Rev. Entomol. 1996, 41, 163–190. [Google Scholar] [CrossRef] [PubMed]
  11. Desneux, N.; Decourtye, A.; Delpuech, J.M. The sublethal effects of pesticides on beneficial arthropods. Annu. Rev. Entomol. 2007, 52, 81–106. [Google Scholar] [CrossRef]
  12. Belzunces, L.P.; Tchamitchian, S.; Brunet, J.-L. Neural effects of insecticides in the honey bee. Apidologie 2012, 43, 348–370. [Google Scholar] [CrossRef]
  13. Zuo, Y.Y.; Wang, K.; Lin, F.F.; Li, Y.T.; Peng, X.; Piñero, J.C.; Chen, M.H. Sublethal effects of indoxacarb and beta-cypermethrin on Rhopalosiphum padi(Hemiptera: Aphididae) under laboratory conditions. Fla. Entomol. 2016, 99, 445–450. [Google Scholar] [CrossRef]
  14. Montano-Campaz, M.L.; Dias, L.G.; Bacca, T.; Toro-Restrepo, B.; Oliveira, E.E. Exposures to deltamethrin on immature Chironomus columbiensis drive sublethal and transgenerational effects on their reproduction and wing morphology. Chemosphere 2022, 296, 134042. [Google Scholar] [CrossRef] [PubMed]
  15. Joncour, B.; Nelson, W.A. Sublethal concentration of insecticide amplifies interference competition in a tortrix moth. Ecotoxicol. Environ. Saf. 2021, 220, 112324. [Google Scholar] [CrossRef] [PubMed]
  16. Guedes, R.N.C.; Cutler, G.C. Insecticide-induced hormesis and arthropod pest management. Pest Manag. Sci. 2014, 70, 690–697. [Google Scholar] [CrossRef] [PubMed]
  17. Cutler, G.C.; Ramanaidu, K.; Astatkie, T.; Isman, M.B. Green peach aphid, Myzus persicae (Hemiptera: Aphididae), reproduction during exposure to sublethal concentrations of imidacloprid and azadirachtin. Pest Manag. Sci. 2009, 65, 205–209. [Google Scholar] [CrossRef] [PubMed]
  18. Rakotondravelo, M.; Smitley, D.; Calabrese, E.; Ladoni, M. Traces of imidacloprid induce hormesis as a stimulatory conditioned response of sweetpotato whitefly (Hemiptera: Aleyrodidae). Environ. Entomol. 2019, 48, 1418–1424. [Google Scholar] [CrossRef] [PubMed]
  19. Cao, Y.; Yang, H.; Li, J.; Wang, C.; Li, C.; Gao, Y.L. Sublethal effects of imidacloprid on the population development of western flower thrips Frankliniella occidentalis (Thysanoptera: Thripidae). Insects 2019, 10, 3. [Google Scholar] [CrossRef]
  20. Tricoire-Leignel, H.; Thany, S.H.; Gadenne, C.; Anton, S. Pest insect olfaction in an insecticide-contaminated environment: Info-disruption or hormesis effect. Front. Physiol. 2012, 3, 58. [Google Scholar] [CrossRef]
  21. Maryoung, L.A.; Blunt, B.; Tierney, K.B.; Schlenk, D. Sublethal toxicity of chlorpyrifos to salmonid olfaction after hypersaline acclimation. Aquat. Toxicol. 2015, 161, 94–101. [Google Scholar] [CrossRef]
  22. Tappert, L.; Pokorny, T.; Hofferberth, J.; Ruther, J. Sublethal doses of imidacloprid disrupt sexual communication and host finding in a parasitoid wasp. Sci. Rep. 2017, 7, 42756. [Google Scholar] [CrossRef] [PubMed]
  23. Peng, Y.C.; Yang, E.C. Sublethal dosage of imidacloprid reduces the microglomerular density of honey bee mushroom bodies. Sci. Rep. 2016, 6, 19298. [Google Scholar] [CrossRef]
  24. Hou, Q.L.; Chen, E.H.; Jiang, H.B.; Wei, D.D.; Gui, S.H.; Wang, J.J.; Smagghe, G. Adipokinetic hormone receptor gene identification and its role in triacylglycerol mobilization and sexual behavior in the oriental fruit fly (Bactrocera dorsalis). Insect Biochem. Mol. Biol. 2017, 90, 1–13. [Google Scholar] [CrossRef] [PubMed]
  25. Shen, G.M.; Dou, W.; Huang, Y.; Jiang, X.Z.; Smagghe, G.; Wang, J.J. In silico cloning and annotation of genes involved in the digestion, detoxification and RNA interference mechanism in the midgut of Bactrocera dorsalis Hendel (Diptera: Tephritidae). Insect Mol. Biol. 2013, 22, 354–365. [Google Scholar] [CrossRef] [PubMed]
  26. Meng, L.W.; Yuan, G.R.; Lu, X.P.; Jing, T.X.; Zheng, L.S.; Yong, H.X.; Wang, J.J. Two delta class glutathione S-transferases involved in the detoxification of malathion in Bactrocera dorsalis (Hendel). Pest Manag. Sci. 2019, 75, 1527–1538. [Google Scholar] [CrossRef] [PubMed]
  27. Xu, L.; Jiang, H.B.; Tang, K.Y.; Yan, Y.; Schetelig, M.F.; Wang, J.J. CRISPR-mediated mutagenesis of the odorant receptor co-receptor (Orco) gene disrupts olfaction-mediated behaviors in Bactrocera dorsalis. Insect Sci. 2021. online ahead of print. [Google Scholar] [CrossRef]
  28. Jayanthi, P.D.K.; Kempraj, V.; Aurade, R.M.; Venkataramanappa, R.K.; Nandagopal, B.; Verghese, A.; Bruce, T.J.A. Specific volatile compounds from mango elicit oviposition in gravid Bactrocera dorsalis females. J. Chem. Ecol. 2014, 40, 259–266. [Google Scholar] [CrossRef]
  29. Manoukis, N.C.; Cha, D.H.; Collignon, R.M.; Shelly, T.E. Terminalia larval host fruit reduces the response of Bactrocera dorsalis (Diptera: Tephritidae) adults to the male lure methyl eugenol. J. Econ. Entomol. 2018, 111, 1644–1649. [Google Scholar] [CrossRef]
  30. Shi, W.; Liu, H.; Ye, H. Behavioral response of Bactrocera dorsalis to five kinds of odor volatile of mango. Chin. Bull. Entomol. 2010, 47, 318–321. [Google Scholar]
  31. Li, H.F.; Huang, X.Y.; Yang, Y.H.; Chen, X.F.; Yang, Y.; Wang, J.J.; Jiang, H.B. The short neuropeptide F receptor regulates olfaction-mediated foraging behavior in the oriental fruit fly Bactrocera dorsalis (Hendel). Insect Biochem. Mol. Biol. 2022, 140, 9. [Google Scholar] [CrossRef]
  32. Gui, S.H.; Jiang, H.B.; Xu, L.; Pei, Y.X.; Liu, X.Q.; Guy, S.G.; Wang, J.J. Role of a tachykinin-related peptide and its receptor in modulating the olfactory sensitivity in the oriental fruit fly, Bactrocera dorsalis (Hendel). Insect Biochem. Mol. Biol. 2017, 80, 71–78. [Google Scholar] [CrossRef]
  33. Yang, Y.; Xiong, Y.; Li, H.F.; Zhao, H.J.; Tang, G.H.; Meng, L.W.; Wang, J.J.; Jiang, H.B. The adipokinetic hormone signaling system regulates the sensitivity of Bactrocera dorsalis to malathion. Pestic. Biochem. Physiol. 2021, 174, 104808. [Google Scholar] [CrossRef] [PubMed]
  34. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  35. Sedaratian, A.; Fathipour, Y.; Talaei-Hassanloui, R.; Jurat-Fuentes, J.L. Fitness costs of sublethal exposure to Bacillus thuringiensis in Helicoverpa armigera: A carryover study on offspring. J. Appl. Entomol. 2013, 137, 540–549. [Google Scholar] [CrossRef]
  36. Zhang, X.; Xu, Q.J.; Lu, W.W.; Liu, F. Sublethal effects of four synthetic insecticides on the generalist predator Cyrtorhinus lividipennis. J. Pest Sci. 2015, 88, 383–392. [Google Scholar] [CrossRef]
  37. Zhang, R.M.; He, S.Y.; Zeng, J.W.; Chen, J.H.; Dong, J.F. Cross-resistance and lack of fitness costs occurred in the cyantraniliprole-resistant oriental fruit fly. Phytoparasitica 2021, 49, 703–712. [Google Scholar] [CrossRef]
  38. Linn, C.E.; Roelofs, W.L. Sublethal effects of neuroactive compounds on pheromone response thresholds in male oriental fruit moths. Arch. Insect Biochem. Physiol. 1984, 1, 331–344. [Google Scholar] [CrossRef]
  39. Xiao, D.; Tan, X.L.; Wang, W.J.; Zhang, F.; Desneux, N.; Wang, S. Modification of flight and locomotion performances, respiratory metabolism and transcriptome expression in the lady beetle Harmonia axyridis through sublethal pesticide exposure. Front. Physiol. 2017, 8, 33. [Google Scholar] [CrossRef]
  40. Leal, W.S. Odorant reception in rnsects: Roles of receptors, binding proteins, and degrading Enzymes. Annu. Rev. Entomol. 2013, 58, 373–391. [Google Scholar] [CrossRef]
  41. Chen, X.F.; Lei, Y.B.; Li, H.F.; Xu, L.; Yang, H.; Wang, J.J.; Jiang, H.B. CRISPR/Cas9 mutagenesis abolishes odorant-binding protein BdorOBP56f-2 and impairs the perception of methyl eugenol in Bactrocera dorsalis (Hendel). Insect Biochem. Mol. Biol. 2021, 139, 7. [Google Scholar] [CrossRef]
  42. Chen, X.F.; Yang, H.; Wu, S.X.; Zhao, W.; Hao, G.F.; Wang, J.J.; Jiang, H.B. BdorOBP69a is involved in the perception of the phenylpropanoid compound methyl eugenol in oriental fruit fly (Bactrocera dorsalis) males. Insect Biochem. Mol. Biol. 2022, 147, 103801. [Google Scholar] [CrossRef]
  43. Wicher, D.; Miazzi, F. Functional properties of insect olfactory receptors: Ionotropic receptors and odorant receptors. Cell Tissue Res. 2021, 383, 7–19. [Google Scholar] [CrossRef] [PubMed]
  44. Lalouette, L.; Pottier, M.-A.; Wycke, M.-A.; Boitard, C.; Bozzolan, F.; Maria, A.; Demondion, E.; Chertemps, T.; Lucas, P.; Renault, D.; et al. Unexpected effects of sublethal doses of insecticide on the peripheral olfactory response and sexual behavior in a pest insect. Environ. Sci. Pollut. Res. 2016, 23, 3073–3085. [Google Scholar] [CrossRef] [PubMed]
  45. Rabhi, K.K.; Deisig, N.; Demondion, E.; Le Corre, J.; Robert, G.; Tricoire-Leignel, H.; Lucas, P.; Gadenne, C.; Anton, S. Low doses of a neonicotinoid insecticide modify pheromone response thresholds of central but not peripheral olfactory neurons in a pest insect. Proc. R. Soc. B-Biol. Sci. 2016, 283, 20152987. [Google Scholar] [CrossRef] [PubMed]
  46. Kang, Z.W.; Liu, F.H.; Pang, R.P.; Tian, H.G.; Liu, T.X. Effect of sublethal doses of imidacloprid on the biological performance of aphid endoparasitoid Aphidius gifuensis (Hymenoptera: Aphidiidae) and Influence on its related gene expression. Front. Physiol. 2018, 9, 1729. [Google Scholar] [CrossRef]
  47. Ni, L. The structure and function of ionotropic receptors in Drosophila. Front. Mol. Neurosci. 2021, 13, 638839. [Google Scholar] [CrossRef]
  48. Ono, H.; Hee, A.K.W.; Jiang, H.B. Recent advancements in studies on chemosensory mechanisms underlying detection of semiochemicals in dacini fruit flies of economic importance (Diptera: Tephritidae). Insects 2021, 12, 106. [Google Scholar] [CrossRef]
Insects 13 00721 g001 550

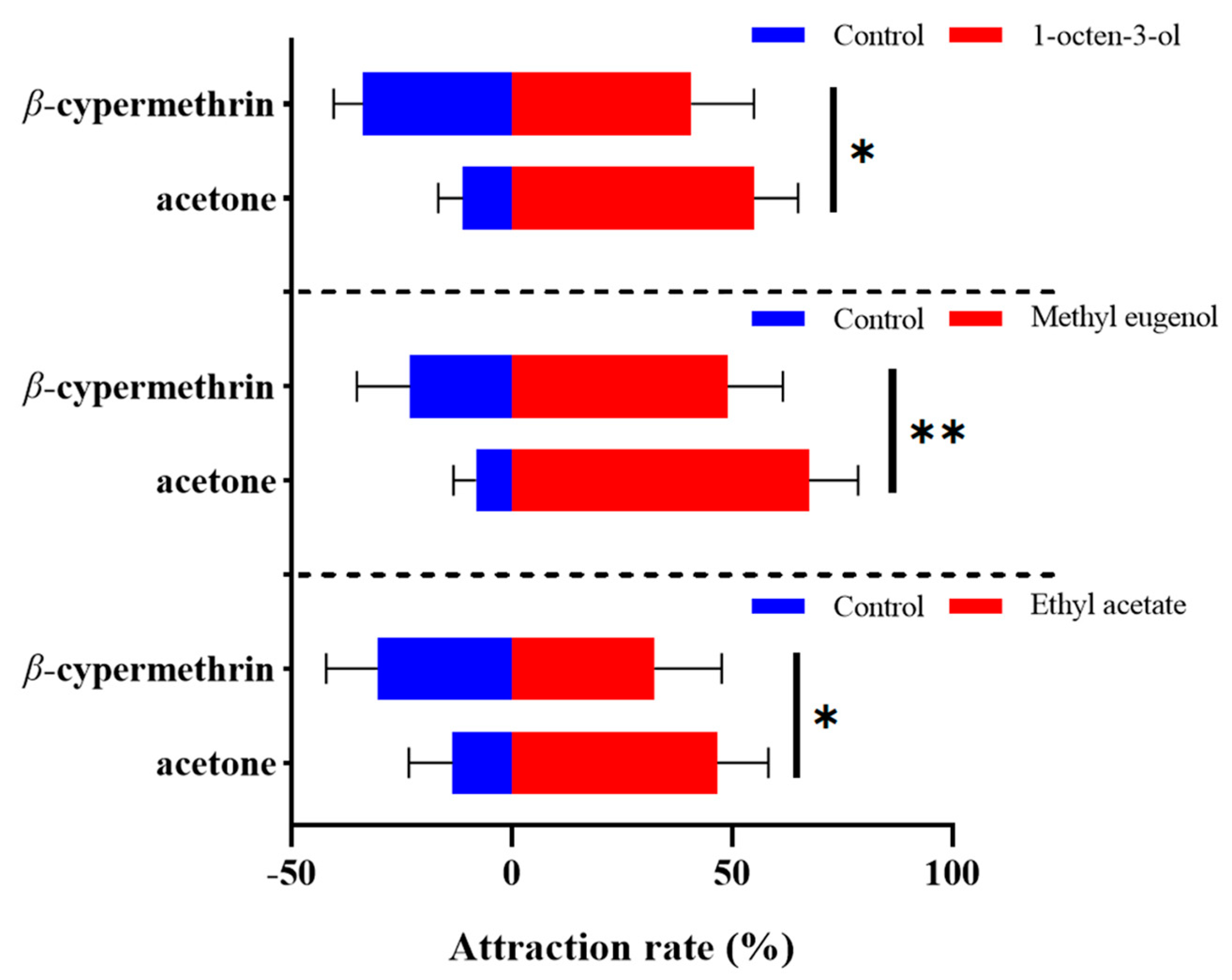

Figure 1. Four-way olfactometer assay of 7-day-old adults treated by β-cypermethrin (LD30 = 10 ng/fly). We used 1-octen-3-ol, methyl eugenol and ethyl acetate at 1% (v/v) concentration as the attractants. Females, males and both sexes were employed in the assays of 1-octen-3-ol, methyl eugenol and ethyl acetate, respectively. Data were presented as mean ± SE (n = 6). Asterisks represent a significant difference determined by Student’s t-test (* p < 0.05; ** p < 0.01).
Figure 1. Four-way olfactometer assay of 7-day-old adults treated by β-cypermethrin (LD30 = 10 ng/fly). We used 1-octen-3-ol, methyl eugenol and ethyl acetate at 1% (v/v) concentration as the attractants. Females, males and both sexes were employed in the assays of 1-octen-3-ol, methyl eugenol and ethyl acetate, respectively. Data were presented as mean ± SE (n = 6). Asterisks represent a significant difference determined by Student’s t-test (* p < 0.05; ** p < 0.01).
Insects 13 00721 g001
Insects 13 00721 g002 550

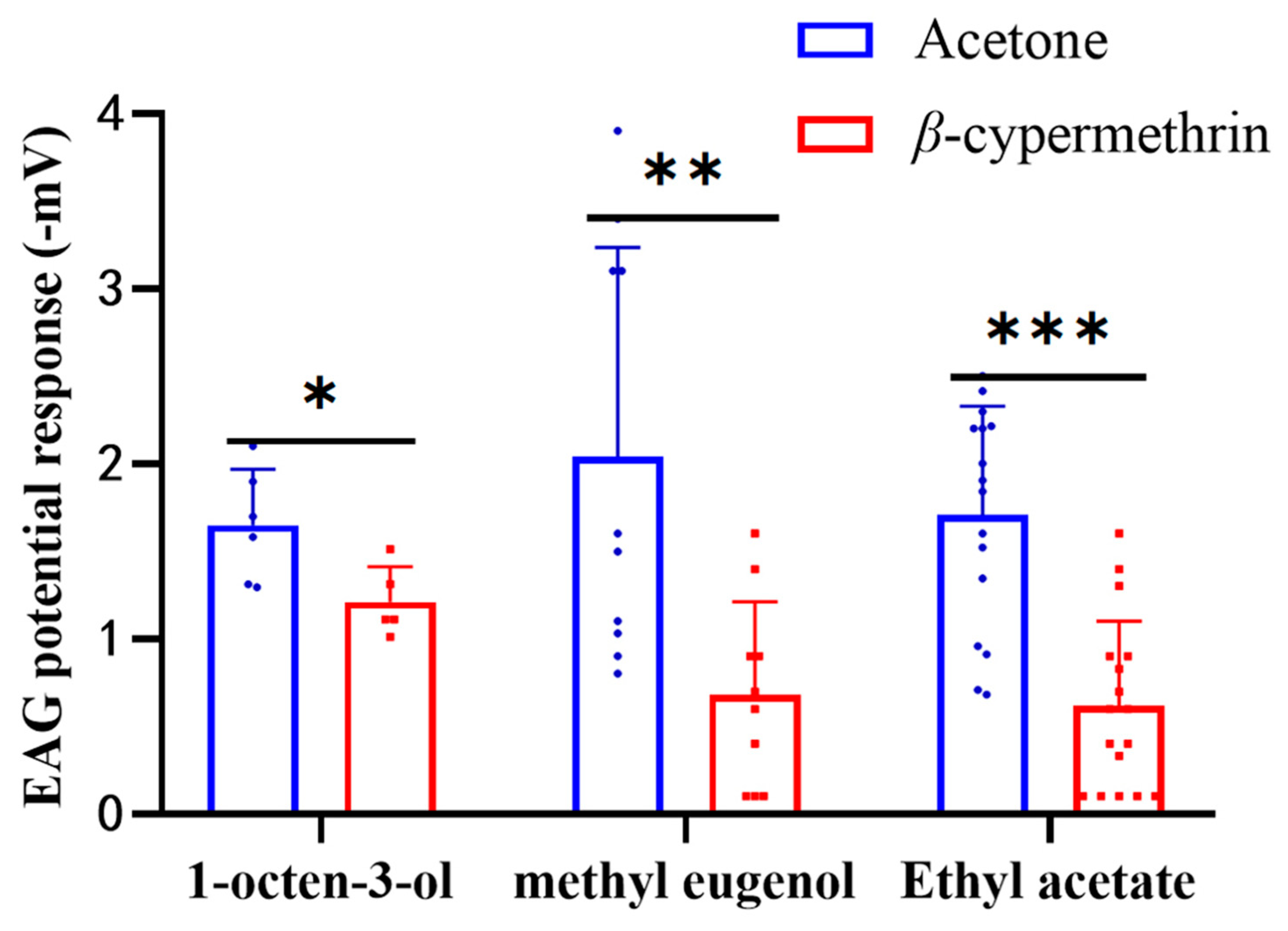

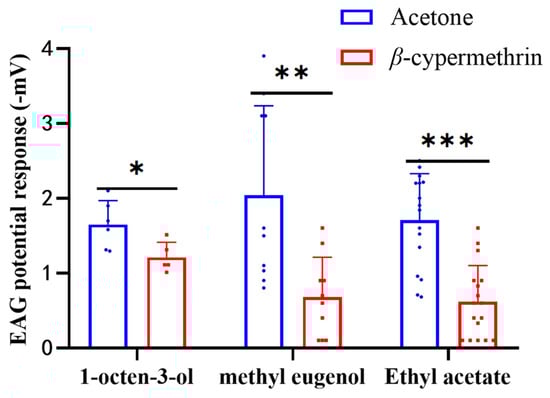

Figure 2. EAG recording of 7-day-old flies treated by β-cypermethrin (LD30 = 10 ng/fly). The EAG data was obtained by stimulating flies with three odorants including 1-octen-3-ol, methyl eugenol and ethyl acetate at 1% (v/v) concentration. Ethyl acetate and 1-octen-3-ol were diluted with MO and methyl eugenol was diluted with DMSO. Females, males and both sexes were employed in the assays of 1-octen-3-ol, methyl eugenol and ethyl acetate, respectively. Data were presented as mean ± SE, and asterisks represent a significant difference with analysis of Student’s t-test (n = 8–12, * p < 0.05; ** p < 0.01; *** p < 0.001).
Figure 2. EAG recording of 7-day-old flies treated by β-cypermethrin (LD30 = 10 ng/fly). The EAG data was obtained by stimulating flies with three odorants including 1-octen-3-ol, methyl eugenol and ethyl acetate at 1% (v/v) concentration. Ethyl acetate and 1-octen-3-ol were diluted with MO and methyl eugenol was diluted with DMSO. Females, males and both sexes were employed in the assays of 1-octen-3-ol, methyl eugenol and ethyl acetate, respectively. Data were presented as mean ± SE, and asterisks represent a significant difference with analysis of Student’s t-test (n = 8–12, * p < 0.05; ** p < 0.01; *** p < 0.001).
Insects 13 00721 g002
Insects 13 00721 g003 550

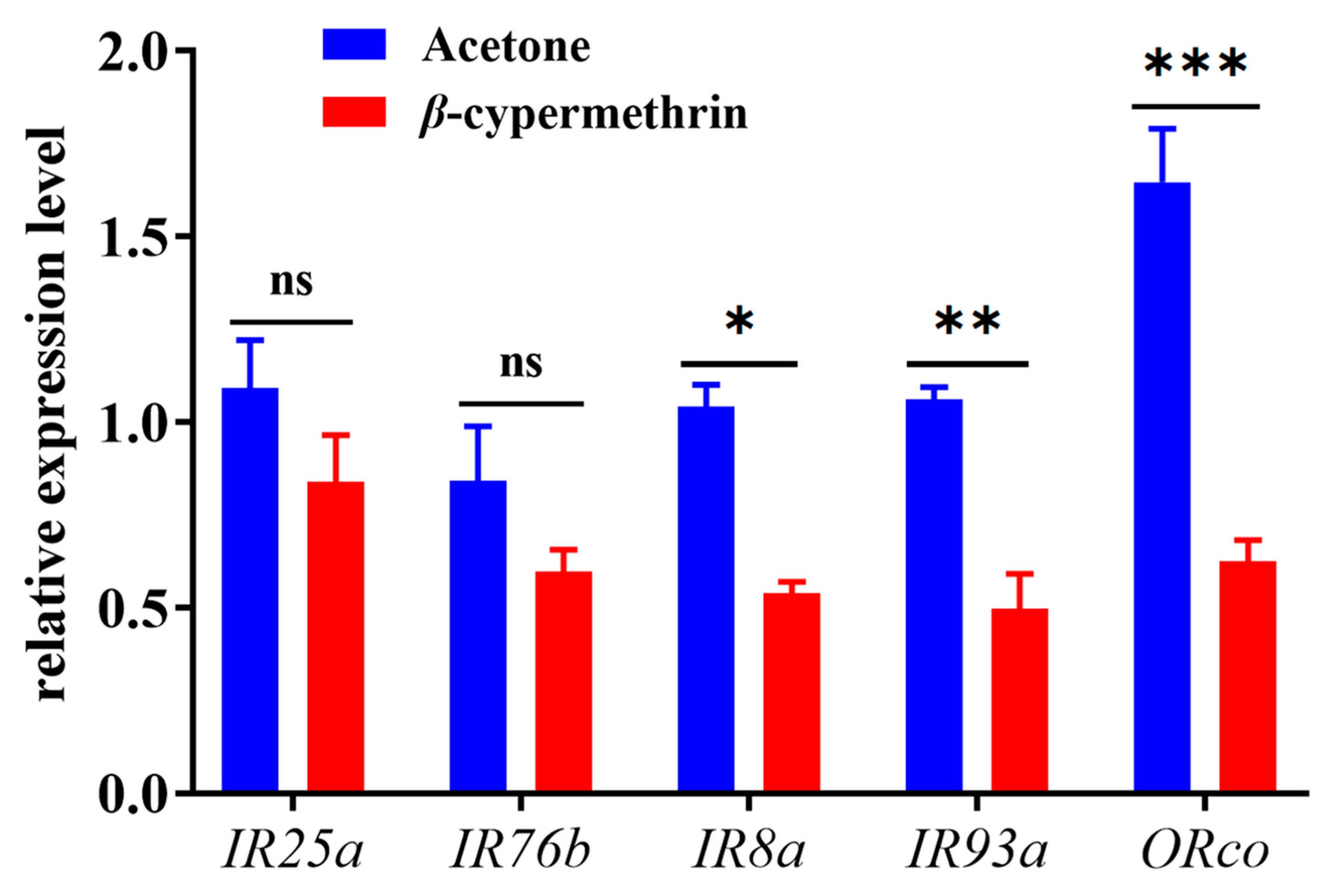

Figure 3. Transcriptional expression profiles of ORco and IRcos after β-cypermethrin induction (LD30 = 10 ng/fly). Data were presented as mean ± SE, and asterisks represent a significant difference with analysis of Student’s t-test (n = 4, *p < 0.05; **p < 0.01; ***p < 0.001). No significant difference was represented by “ns”.
Figure 3. Transcriptional expression profiles of ORco and IRcos after β-cypermethrin induction (LD30 = 10 ng/fly). Data were presented as mean ± SE, and asterisks represent a significant difference with analysis of Student’s t-test (n = 4, *p < 0.05; **p < 0.01; ***p < 0.001). No significant difference was represented by “ns”.
Insects 13 00721 g003
Table
Table 1. Primer sequences of chemosensory genes used for quantitative real-time PCR.
Table 1. Primer sequences of chemosensory genes used for quantitative real-time PCR.
PrimerSequence (5′-3′)Amplification EfficiencyProduct Length (nt)
qPCR-α-tubulin-FCGCATTCATGGTTGATAACG97.5%184
qPCR-α-tubulin-RGGGCACCAAGTTAGTCTGGA
qPCR-rps 3-FTAAGTTGACCGGAGGTTTGG98.3%169
qPCR-rps 3-RTGGATCACCAGAGTGGATCA
qPCR-ORco-FTTGACATCCACCATTATGCTGAC95.3%209
qPCR-ORco-RTCCTCGGAGCCATCATACCA
qPCR-IR8a-FATTGCGGCGTTGGTGGGTA97.7%185
qPCR-IR8a-RGAGACGGCTTTTGGTGCTT
qPCR-IR25a-FTTGCTCCAGGTAATGCCTCC96.5%189
qPCR-IR25a-RTCGTTTTCCCTCCTTCGCAA
qPCR-IR76b-FCCACTTTGGACGAGGGTGAA101.5%194
qPCR-IR76b-RAGGCTTCTGCTCCTTATCGC
qPCR-IR93a-FAAGTGTAGCGGTCATGGTGG90.7%171
qPCR-IR93a-RTGCAAAGACACCTCGCTTCT
Table
Table 2. Toxicity of β-cypermethrin against 6-day-old adults of B.dorsalis.
Table 2. Toxicity of β-cypermethrin against 6-day-old adults of B.dorsalis.
InsecticidenSlope ± SEX2dfConcentration (95% CI) (ng/fly)RR *
β-cypermethrin3602.85 ± 0.471.964LD30 = 9.70 (7.91–11.18)11.7
LD50 = 14.50 (12.76–14.46)
* Resistance ratios: LD50 divided by LD50 of susceptible strain.
