Numerical Simulation of Flow Field Characteristics and Separation Performance Test of Multi-Product Hydrocyclone

College of Mechanical & Electronic Engineering, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Minerals 2019, 9(5), 300; https://doi.org/10.3390/min9050300
Received: 14 April 2019 / Revised: 15 May 2019 / Accepted: 15 May 2019 / Published: 16 May 2019
(This article belongs to the Special Issue Physical Separation and Enrichment)
  |
PDF [3470 KB, uploaded 16 May 2019]
  |

Abstract

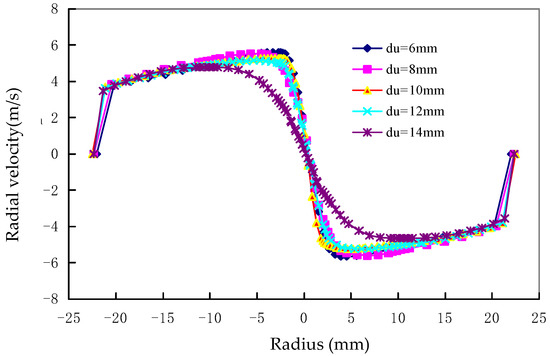

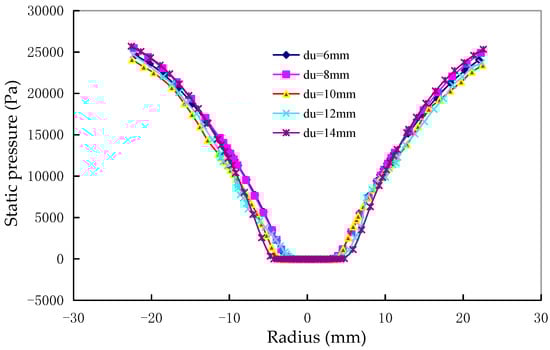

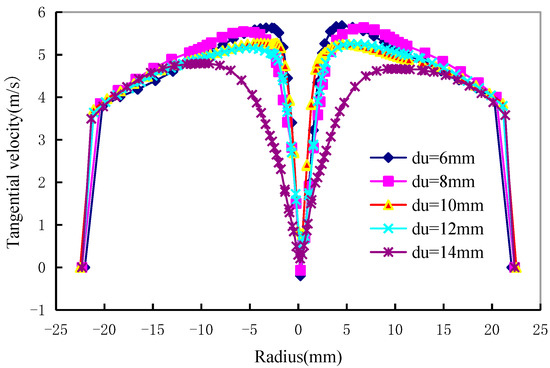

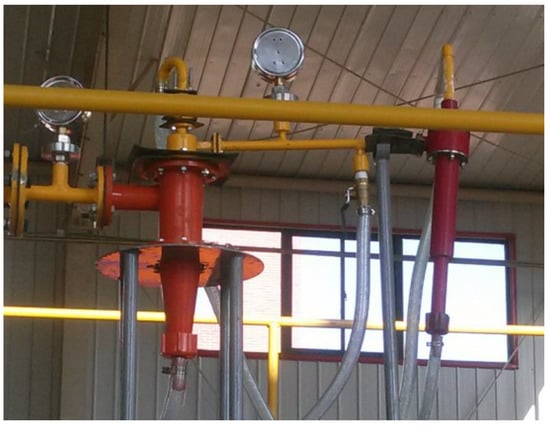

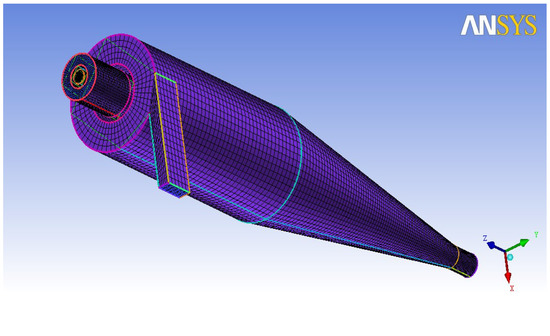

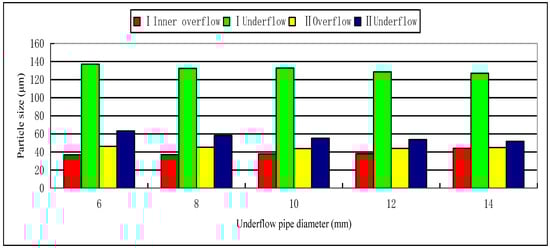

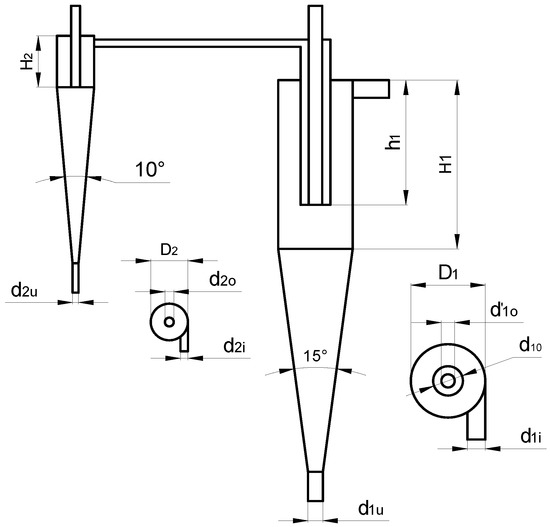

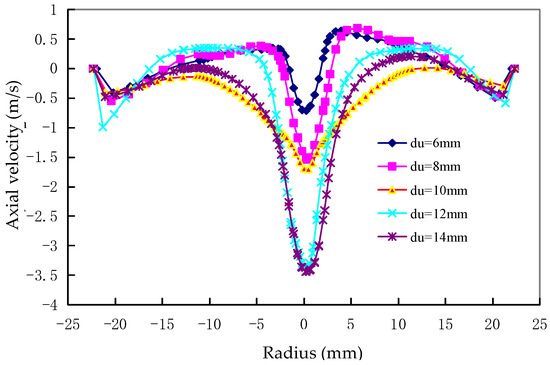

A traditional hydrocyclone can only generate two products with different size fractions after one classification, which does not meet the fine classification requirements for narrow size fractions. In order to achieve the fine classification, a multi-product hydrocyclone with double-overflow-pipe structure was designed in this study. In this work, numerical simulation and experimental test methods were used to study the internal flow field characteristics and distribution characteristics of the product size fraction. The simulation results showed that in contrast with the traditional single overflow pipe, there were two turns in the internal axial velocity direction of the hydrocyclone with the double-overflow-pipe structure. Meanwhile, the influence rule of the diameter of the underflow outlet on the flow field characteristics was obtained through numerical simulation. From the test, five products with different size fractions were obtained after one classification and the influence rule of the diameter of the underflow outlet on the size fraction distribution of multi-products was also obtained. This work provides a feasible research idea for obtaining the fine classification of multiple products. View Full-Text
Keywords: multi-product hydrocyclone; flow field characteristics; numerical simulation; experimental test multi-product hydrocyclone; flow field characteristics; numerical simulation; experimental test
Figures

Figure 1
