Lithium Enrichment by the Carbothermal Reduction of Spodumene Ore and the Preparation of Manganese-Silicon Alloy

Abstract

To increase the low utilization rate of spodumene ore during lithium extraction, spodumene ore was subjected to carbothermic reduction to enrich lithium and prepare a manganese-silicon alloy. The experimental results showed that during thermal reduction, lithium was volatilized and collected in the condensation zone. The Li₂O content in the lithium condensate was 41.72%, which was 10.85 times higher than that of the raw material. The effects of varying reduction temperatures and times on the lithium volatilization rate and direct yield of Mn₅Si₃ alloy were investigated. The best process conditions were 1873 K for 6 h. Under these conditions, the lithium volatilization rate was 97.65%, and the direct yield of Mn₅Si₃ was 86.47%.

1. Introduction

With the rapid development of science and technology, lithium is an important material for nuclear energy, energy storage, aerospace, and other fields [1,2,3,4]. Lithium extraction from spodumene ore is an important process in the production of lithium products [5,6,7]. As an aluminosilicate ore [8,9,10], the theoretical composition of spodumene is 8.03% Li₂O [11,12], 27.4% Al₂O₃, and 64.6% SiO₂ [13]. Lithium extraction from spodumene ore is still mainly performed by the sulfuric acid method [14,15,16,17]. When lithium is extracted by the sulfuric acid method, the spodumene ore is transformed and roasted at 900–1050 °C, and the dense α-spodumene (α-LiAlSi₂O₆) is transformed into loose β-spodumene (β-LiAlSi₂O₆). β-LiAlSi₂O₆ is mixed with excess concentrated sulfuric acid and subjected to secondary calcination at 170–250 °C. The calcined product is concentrated, immersed in water, and filtered to obtain purified Li₂SO₄ concentrate. Then, Na₂CO₃ is added to the concentrate to undergo ion exchange with Li₂SO₄ to obtain insoluble Li₂CO₃ precipitate [18,19,20,21]. The sulfuric acid method only considers the extraction of Li and converts Si₂O and Al₂O₃ in spodumene ore into hazardous waste residues [22,23]. Taking spodumene concentrate with 6% Li₂O content as an example, for every ton of lithium carbonate (Li₂CO₃) that is produced, 8–10 tons of hazardous waste slag and 6–9 tons of high-salt wastewater are produced [24,25,26]. This causes environmental pollution and wastes resources.

Owing to the problems associated with the acid–sulfur method, in this paper, lithium was enriched by adding coke and manganese dioxide (MnO₂) to spodumene by thermal reduction. SiO₂ and Al₂O₃ were recovered in spodumene ore. The reported method represents a new technology for lithium extraction from spodumene for the comprehensive recovery and utilization of its valuable components.

2. Materials and Methods

2.1. Materials

The spodumene ore used in the experiment was obtained from Africa. X-ray diffraction was used to analyze the crystal phases of spodumene; the results are shown in Figure 1. The ore was composed of spodumene (LiAlSi₂O₆) and quartz (SiO₂). Inductively coupled plasma emission spectroscopy (ICP-OES) was used for quantitative element analysis of the ore; the results are shown in Table 1. The coke was produced by Ningxia Huiheng (China), and its composition is shown in Table 2.

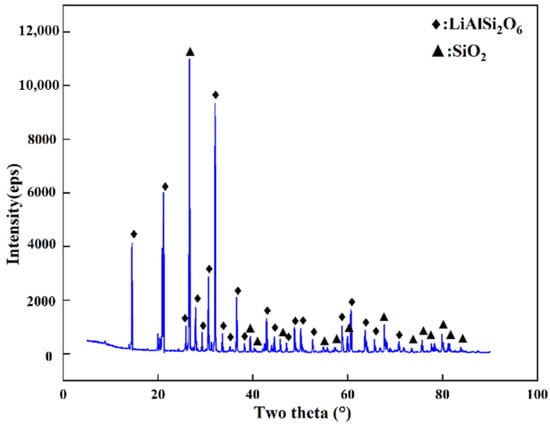

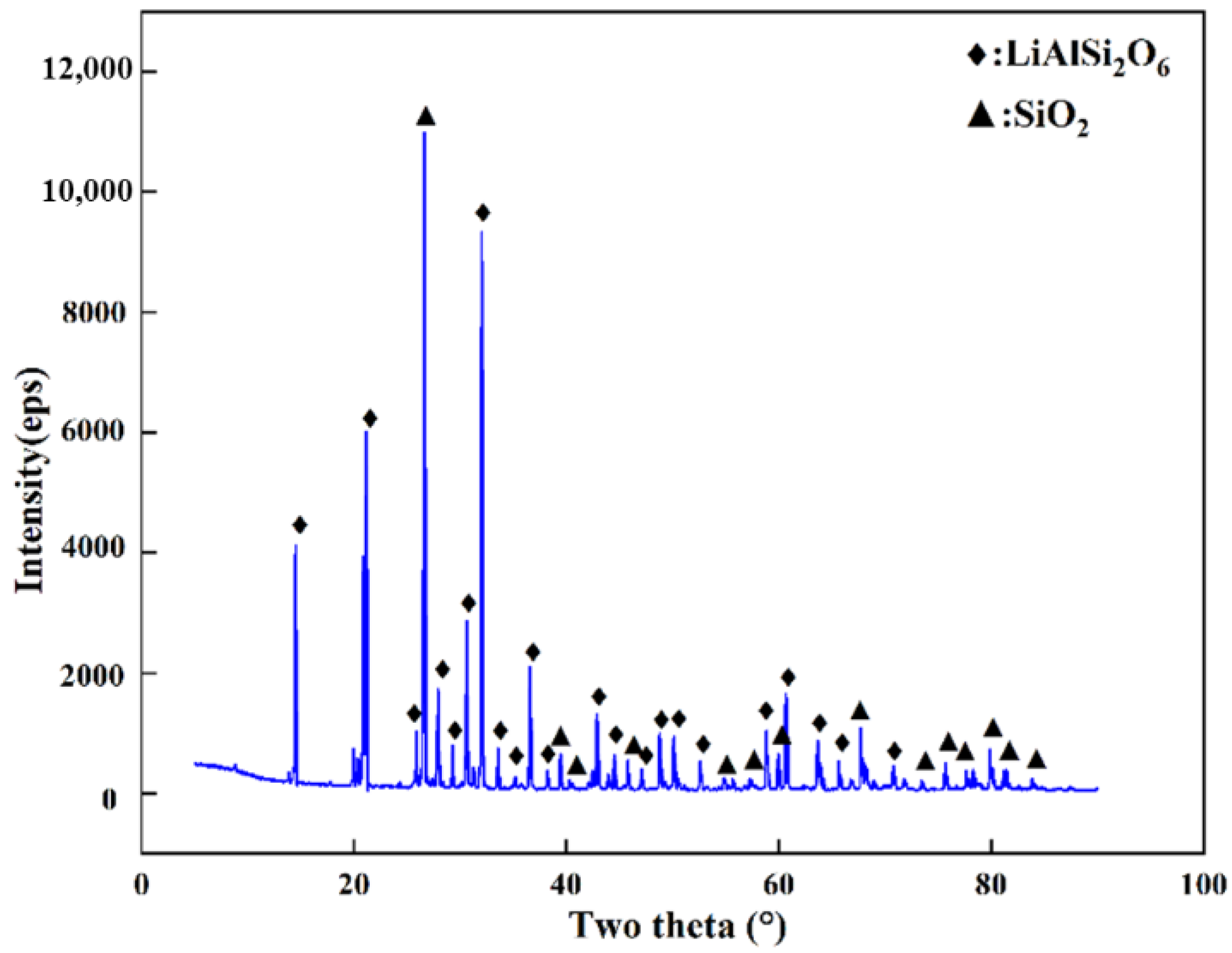

Figure 1. XRD pattern of spodumene ore.

Table 1. Spodumene ore composition.

Component	SiO2	Al2O3	Li2O	Fe2O3	Na2O	K2O	CaO	Other
Content(wt.%)	72.50	18.60	3.84	0.94	0.36	0.62	0.01	3.13

Table 2. Coke composition.

Component	Ash	Volatile	Moisture	Solid Carbon
Content (wt.%)	11.64	1.54	0.5	86.32

2.2. Methods

First, the spodumene ore and coke were crushed and screened through 200 mesh. The spodumene ore, coke, and manganese dioxide were mixed evenly (${\mathrm{w}}_{{\mathrm{LiAlSi}}_2{\mathrm{O}}_6}{:\mathrm{w}}_{{\mathrm{MnO}}_2}{:\mathrm{w}}_{\mathrm{C}}=5:5:4$), pressed into blocks under a pressure of 18 MPa, and placed into the graphite crucible of a vacuum furnace. The vacuum pump was turned on, and after reaching the vacuum state, argon gas was passed until the pressure reached 3 × 10⁴–3.5 × 10⁴ Pa (the atmospheric pressure in the experimental area was about 8 × 10⁴ Pa). Heating was started according to the preset experimental conditions at a rate of approximately 10 K/min. At the end of the reaction (the pressure in the furnace was about 7 × 10⁴–7.5 × 10⁴ Pa), the residue in the graphite crucible and the condensate in the stainless-steel crucible were removed for characterization. The reaction process flow was shown in Figure 2.

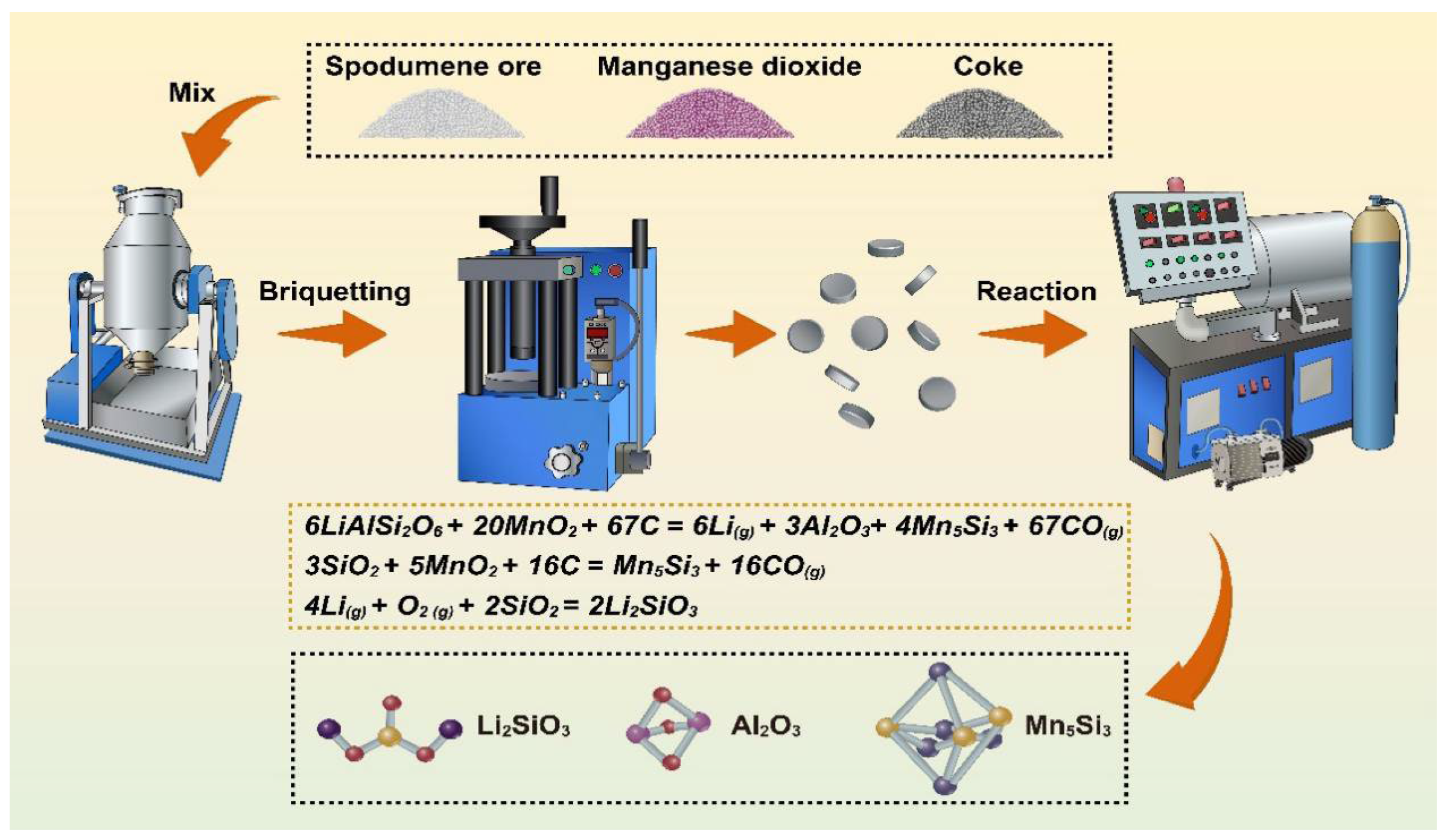

Figure 2. Schematic diagram of the reaction process. The raw materials were first mixed by a blender; then, the mixture was pressed into a round cake shape, entering the vacuum furnace for the preset experimental conditions.

2.3. Characterization Methods

2.3.1. Lithium Volatilization Rate

In the formula, ${\mathsf{\partial }}_{\mathrm{Li}}$ is the volatilization rate of lithium, ${\mathsf{m}}_{\mathrm{Li}}$ is the mass of lithium in the reduced residue, and ${\mathrm{M}}_{\mathrm{Li}}$ is the mass of lithium in the raw material.

$${\mathsf{\partial }}_{\mathrm{Li}}=\left(1-\frac{{\mathrm{m}}_{\mathrm{Li}}}{{\mathrm{M}}_{\mathrm{Li}}} \right)\times 100\%$$

(1)

2.3.2. Lithium Enrichment Rate

In the formula, ${\mathsf{\gamma }}_{\mathrm{Li}}$ is the enrichment ratio of lithium, ${\mathrm{w}}_{\mathrm{Li}}$ is the content of Li in the condensate, and $W_{\mathrm{Li}}$ is the content of Li in the raw material.

$${\mathsf{\gamma }}_{\mathrm{Li}}=\left(1-\frac{{\mathrm{w}}_{\mathrm{Li}}}{W_{\mathrm{Li}}} \right)\times 100\%$$

(2)

2.3.3. Alloy Direct Yield

In the formula, ${\mathsf{\beta }}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}$ is the direct yield of manganese-silicon alloy, ${\mathrm{m}}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}$ is the mass of manganese-silicon alloy in the reduced residue, and ${\mathrm{M}}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}$ is the mass of manganese-silicon alloy in the raw material.

$${\mathsf{\beta }}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}=\frac{{\mathrm{m}}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}}{{\mathrm{M}}_{{\mathrm{Mn}}_5{\mathrm{Si}}_3}}\times 100\%$$

(3)

2.3.4. Testing Equipment

The phases in spodumene, condensate, and reduction products were detected by X-ray diffractometry (XRD, X’Pert Pro MPD, Nalytical, Heracles, Almelo, The Netherlands). Inductively coupled plasma emission spectroscopy (ICP-OES, Optima 8300, PerkinElmer, Waltham, MA, USA) was used to quantitatively analyze the main chemical components in the raw materials. The morphology of the reduced products was observed and characterized by scanning electron microscopy (TM-3030 Plus, Hitachi, Tokyo, Japan) and energy-dispersive spectrometry (INCA, Oxford, UK). The lithium content of the condensate and reduction products was measured by an atomic absorption spectrophotometer (AAS; iCE 3500, Thermo, Waltham, MA, USA).

3. Results and Discussion

3.1. Thermodynamic Calculations

HSC6.0 thermodynamic software was used to calculate the possible reactions; the results are shown in Figure 3. SiO₂ in the ore participated during the reaction and preferentially formed LiAlSi₂O₆, indicating that Mn₅Si₃ was preferentially formed over lithium vapor and alumina (Al₂O₃). When MnO₂ was added to the reaction, the reaction temperature dropped significantly to 651 K and 667 K lower than that of SiO₂ + C and LiAlSi₂O₆ + C, respectively, indicating that adding MnO₂ reduced the reaction temperature and facilitated the reaction. Therefore, this process was thermodynamically feasible.

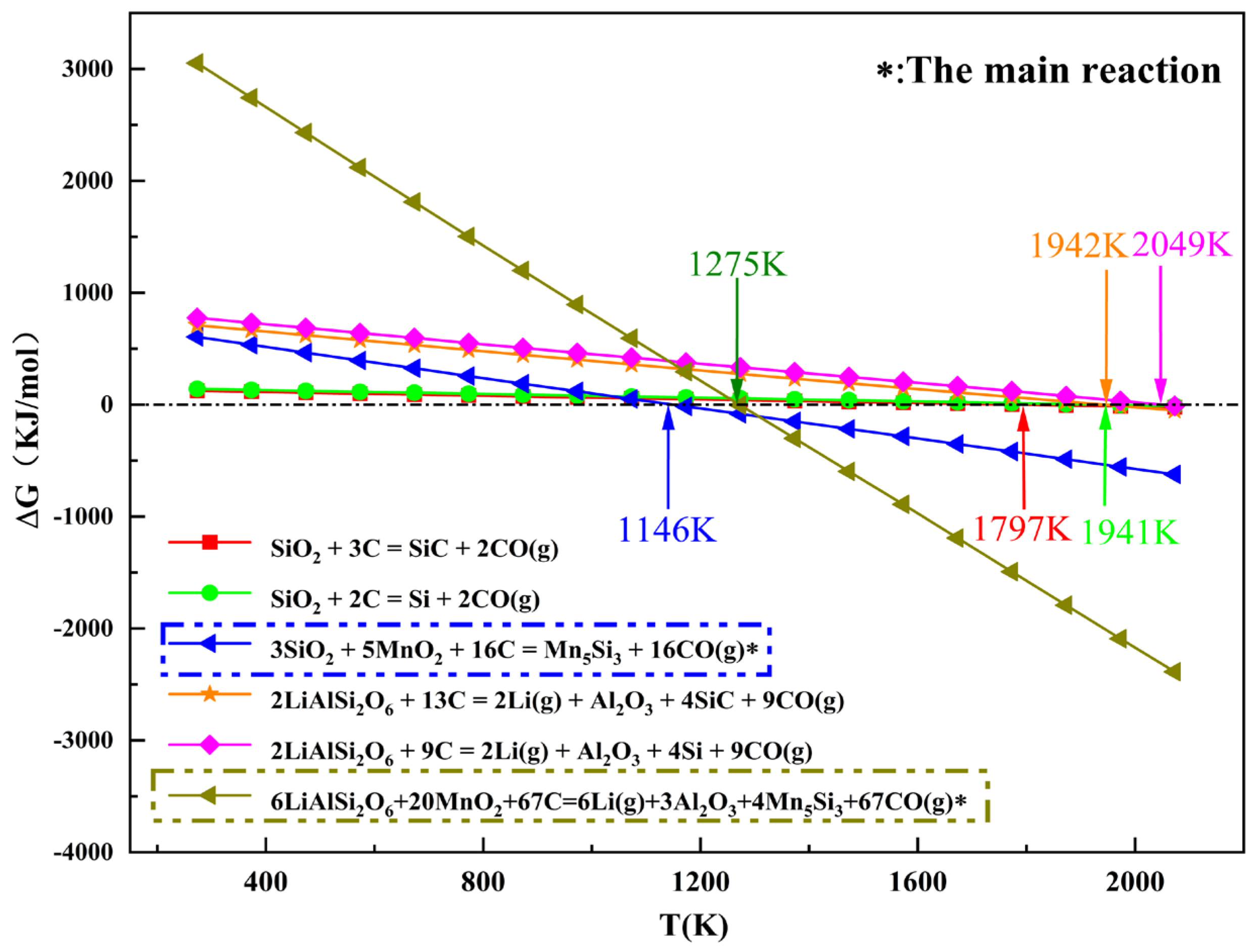

Figure 3. Thermodynamic calculations of possible reactions.

3.2. Condensate Analysis

Due to the limited feed amount and the low lithium content in spodumene ore, it was difficult to collect the lithium condensate in a single step, so the lithium-rich condensate was collected through multiple experiments. The phase analysis of the condensate was carried out by XRD; the results are shown in Figure 4. Li mainly existed in the condensate in the form of Li₂SiO₃. By referring to the literature [27], we found that Li₂O and SiO₂ formed eutectic compounds in the range of 1028–1201 °C. Therefore, it is believed that the Li₂SiO₃ generated in the condensation zone was formed by Li in the condensation zone and O₂ in air to generate Li₂O, which then reacted with SiO₂ to form eutectic compounds. The reaction equation is shown in Reaction 4. The Li content in the condensate was 19.47%, as detected by atomic absorption spectrophotometry, and the Li₂O content was 41.72%, which was 10.85 times more enriched compared with spodumene.

4Li (g) + 2O₂ (g) + SiO₂ = 2Li₂SiO₃,

(4)

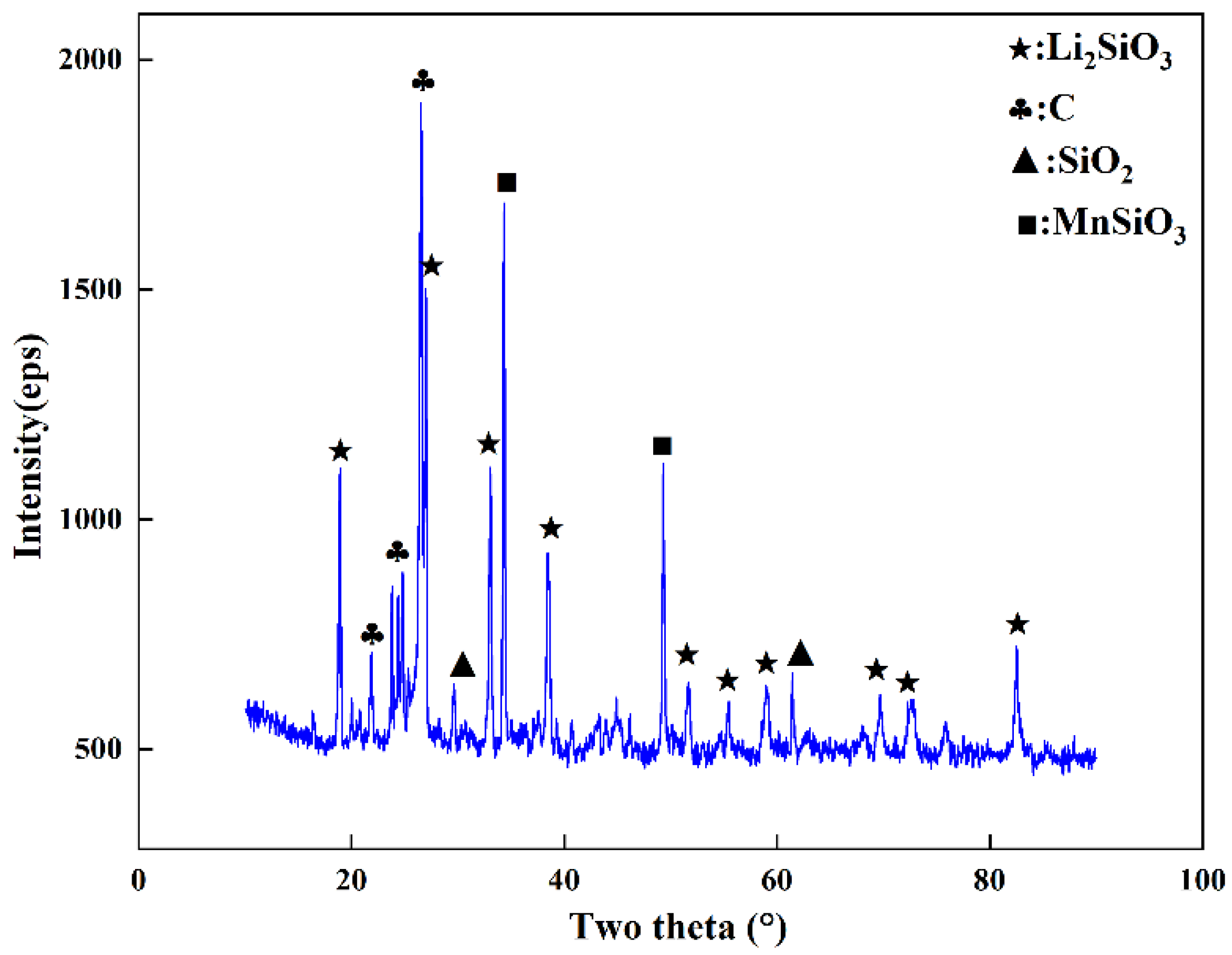

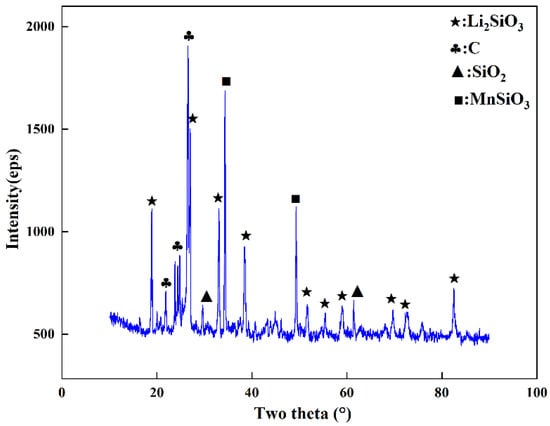

Figure 4. XRD pattern of the condensate.

3.3. The Effect of Temperature

Based on the theoretical calculations and experimental exploration, the reduction time was set to 6 h to ensure the completion of the reaction. After the reaction, due to differences in density, the graphite crucible underwent delamination. Figure 5 and Figure 6 show the XRD patterns of the lower- and upper-layer materials from 1673 K to 1973 K with a holding time of 6 h. Figure 5 shows that LiAlSi₂O₆ did not begin to react at 1673 K or 1723 K, indicating that the reaction temperature was too low. The Mn₅Si₂ diffraction peak appeared because SiO₂ in the ore preferentially reacted with C and MnO₂, which was consistent with the thermodynamic calculations showing that SiO₂ should preferentially produce LiAlSi₂O₆. However, as shown in Figure 6, SiC and Mn₂C₅ were present in the upper-layer material, and SiC and Mn₂C₅ were intermediates during the formation of Mn₅Si₃. This indicates that the reaction between SiO₂ and MnO₂ was incomplete. When the temperature reached 1773 K and 1823 K, the diffraction peaks shown in Figure 6 all changed to those of Mn₅Si₃, indicating that the lower-layer material was composed of alloys at these temperatures. The diffraction peaks of Al₂O₃ and LiAlSi₂O₆ shown in Figure 6 indicate that LiAlSi₂O₆ began to react but did so incompletely. When the temperature was 1873 K, the diffraction peak of LiAlSi₂O₆ shown in Figure 6 disappeared, and the intensity of the diffraction peaks of Al₂O₃ and SiC was enhanced. At this time, LiAlSi₂O₆ completely reacted, but the diffraction peak of Mn₅Si₃ remained, indicating that a small amount of Mn₅Si₃ was mixed into the upper-layer material. As the reaction temperature continued to increase, the Mn₅Si₃ diffraction peak remained. When the temperature was 1923 K, the intensity of the SiC diffraction peak shown in Figure 6 was enhanced, indicating that the SiC content increased. The high content of SiC affected the viscosity of the upper-layer material, which inhibited the upward diffusion of lithium vapor, resulting in a decrease in the volatilization rate of lithium. Therefore, the formation of SiC should be controlled during the reaction.

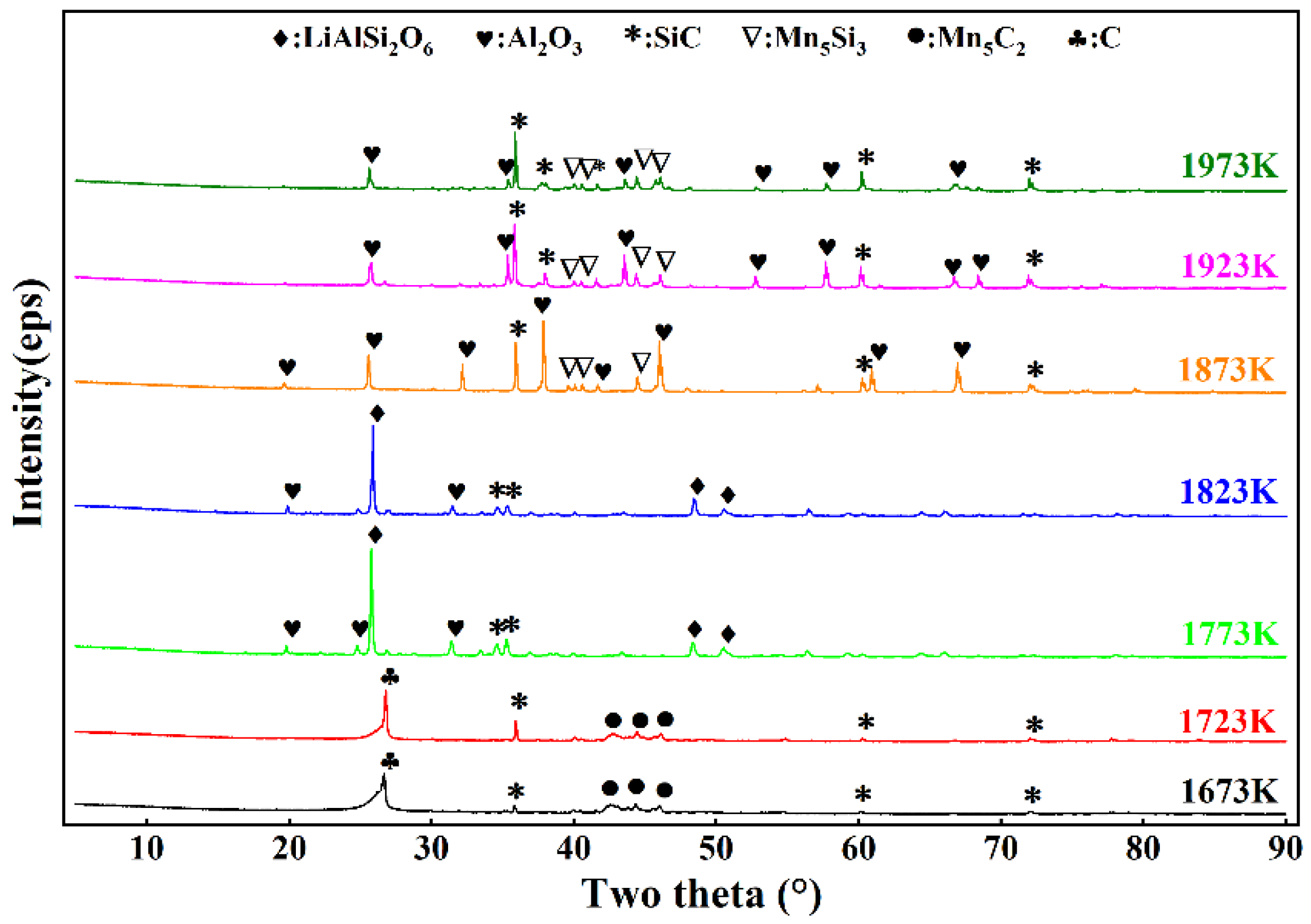

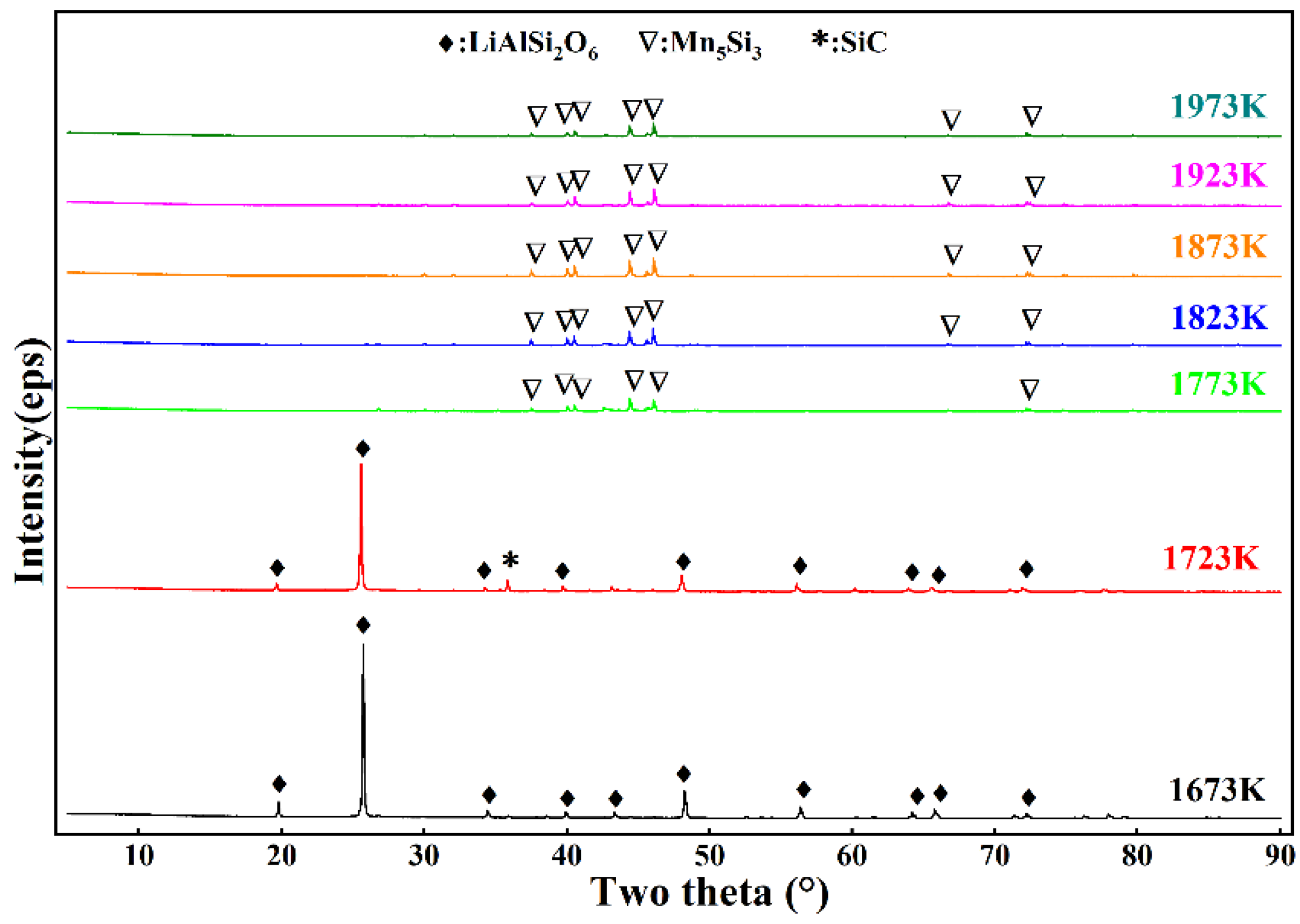

Figure 5. XRD patterns of the underlying material at varying reduction temperatures.

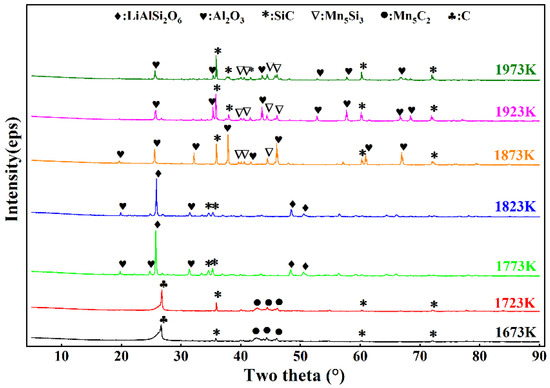

Figure 6. XRD patterns of the upper layer at varying reduction temperatures.

The direct yield of Mn₅Si₃ was obtained by weighing the alloy in the lower-layer material, as shown in Figure 7. The direct yield of Mn₅Si₃ was low at temperatures below 1873 K because the spodumene ore had not completely reacted to form an alloy. When the temperature was 1873 K, the direct yield of Mn₅Si₃ was 86.47%, which was the maximum yield. Continuing to increase the reaction temperature resulted in a slight decrease in the direct yield of Mn₅Si₃. The reason for the low direct yield of Mn₅Si₃ was that the formation of SiC caused the loss of Si, and a small amount of Mn₅Si₃ entered the upper layer. After grinding and mixing the reduced residues in a graphite crucible at varying reduction temperatures, the Li content was detected by atomic absorption spectrophotometry. The influence of varying reduction temperatures on the volatilization rate of Li during the experimental process was investigated; the results are shown in Figure 8. At temperatures below 1723 K, spodumene ore did not participate in the reaction, so the volatilization rate of lithium was 0%. When the reduction temperature was 1773 K, the volatilization rate of Li was 32.75%, indicating that LiAlSi₂O₆ had begun to be reduced at this temperature, although the reduction degree was low. Upon increasing the temperature, the volatilization rate of Li gradually increased. When the temperature was 1873 K, the volatilization rate of Li was 97.65%. Upon continuing to increase the temperature, the Li volatilization rate remained identical to that at 1873 K, indicating that spodumene completely reacted at 1873 K. This was consistent with the analysis of the results presented in Figure 5 and Figure 6.

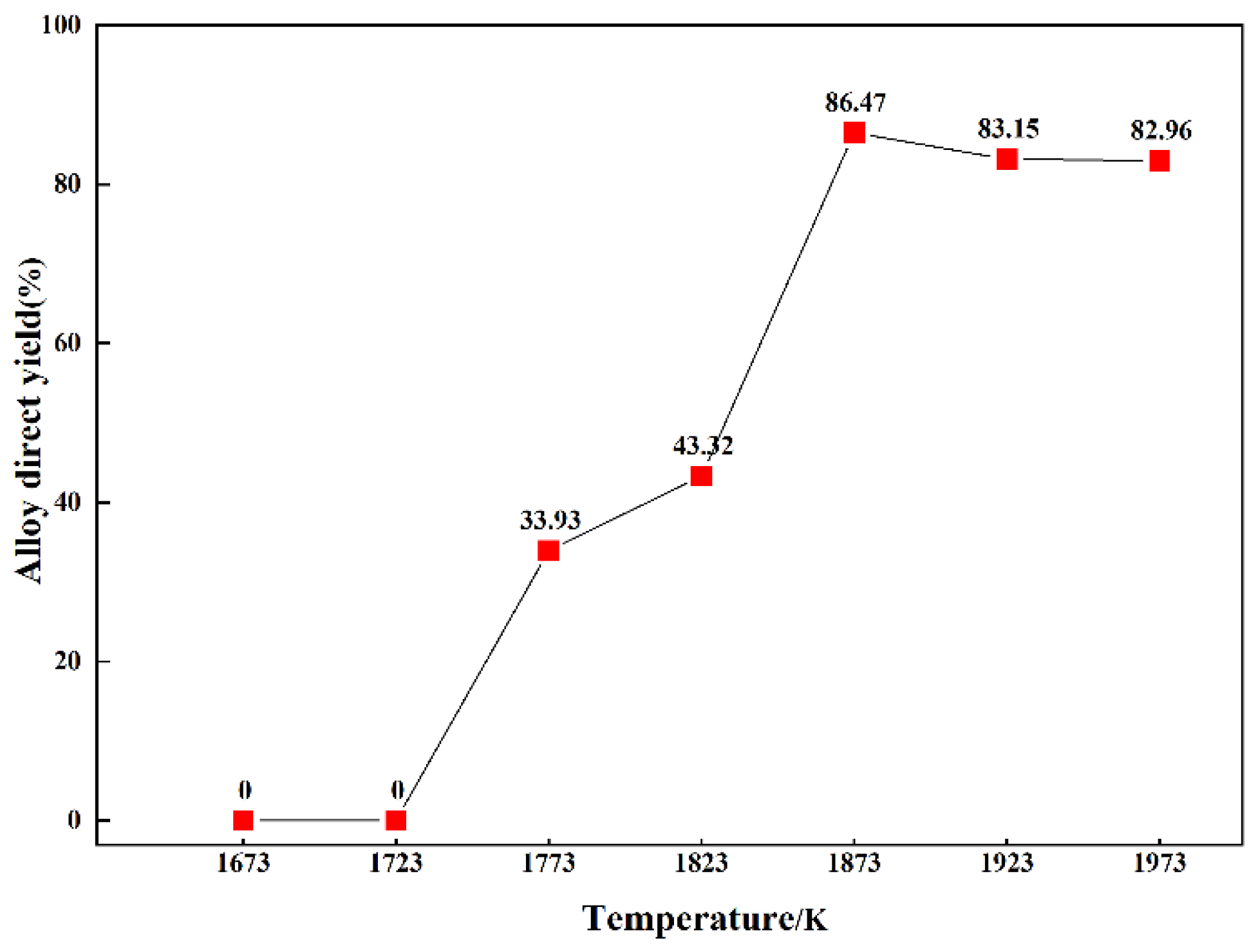

Figure 7. Direct yields of alloys at varying reduction temperatures.

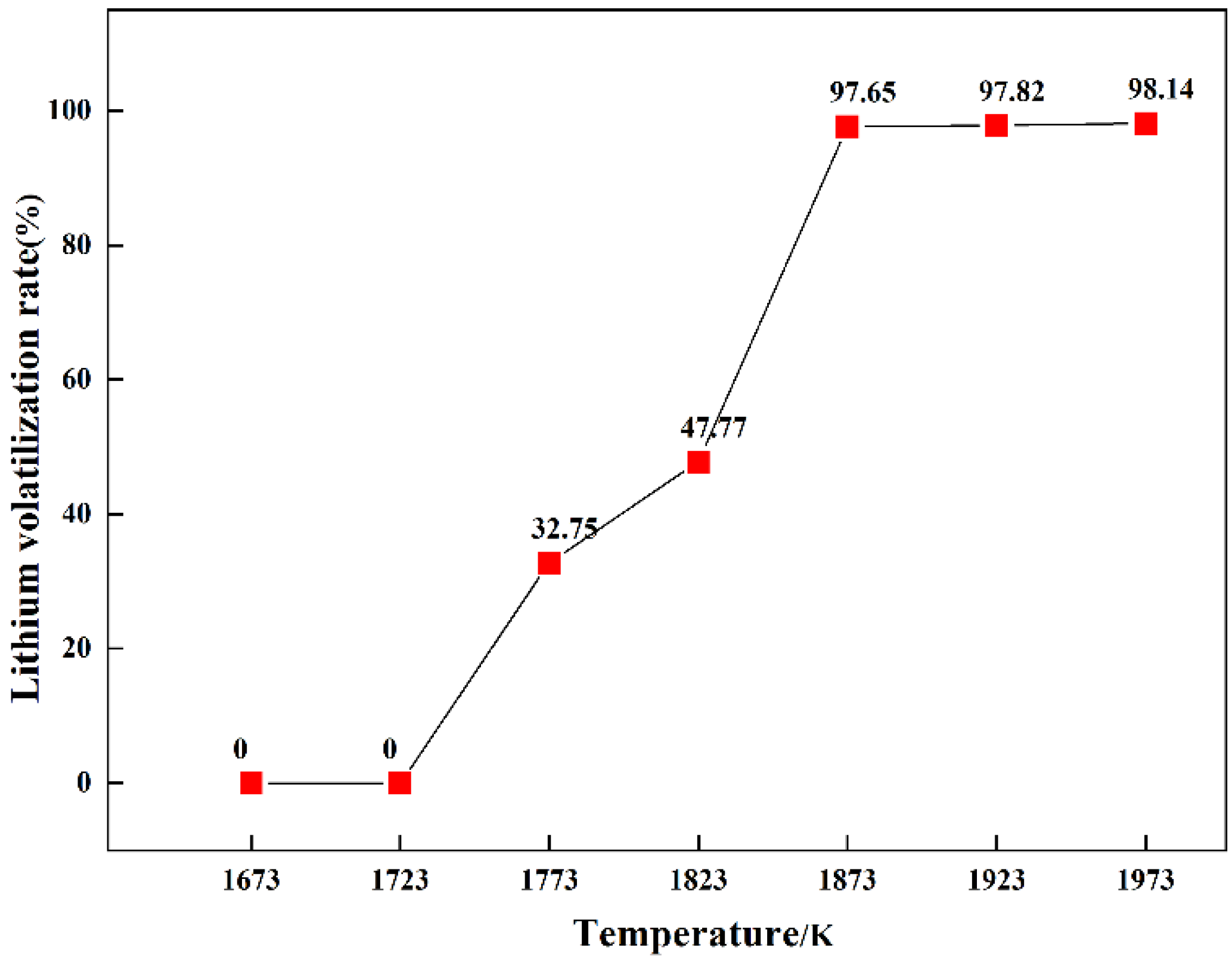

Figure 8. Reduction rates of lithium at varying reaction temperatures.

3.4. The Effect of Time

In the previous section, the optimal reduction temperature was determined to be 1873 K by exploring the influence of temperature. In this section, we designed a gradient pair experiment with a reduction time of 1–10 h at the optimal reduction temperature. The material ratio and detection and treatment method used in the experiment were the same as those described in the previous section. Figure 9 shows that before 4 h, in addition to the Mn₅Si₃ diffraction peaks, there were Mn₅C₂ and SiC diffraction peaks in the lower-layer material. These peaks indicate that the reaction was incomplete. Upon increasing the reduction time to 6 h, the diffraction peaks of the lower-layer material were due to Mn₅Si₃ and Mn₅C₂. The SiC diffraction peaks disappeared, which showed that 6 h was enough to completely separate the upper and lower layers. Figure 10 shows that when the reduction time was 4 h, the diffraction peak of LiAlSi₂O₆ disappeared. Thus, LiAlSi₂O₆ was completely reduced, but MnO₂ was not completely reduced, indicating that MnO₂ required a longer reduction time than LiAlSi₂O₆.

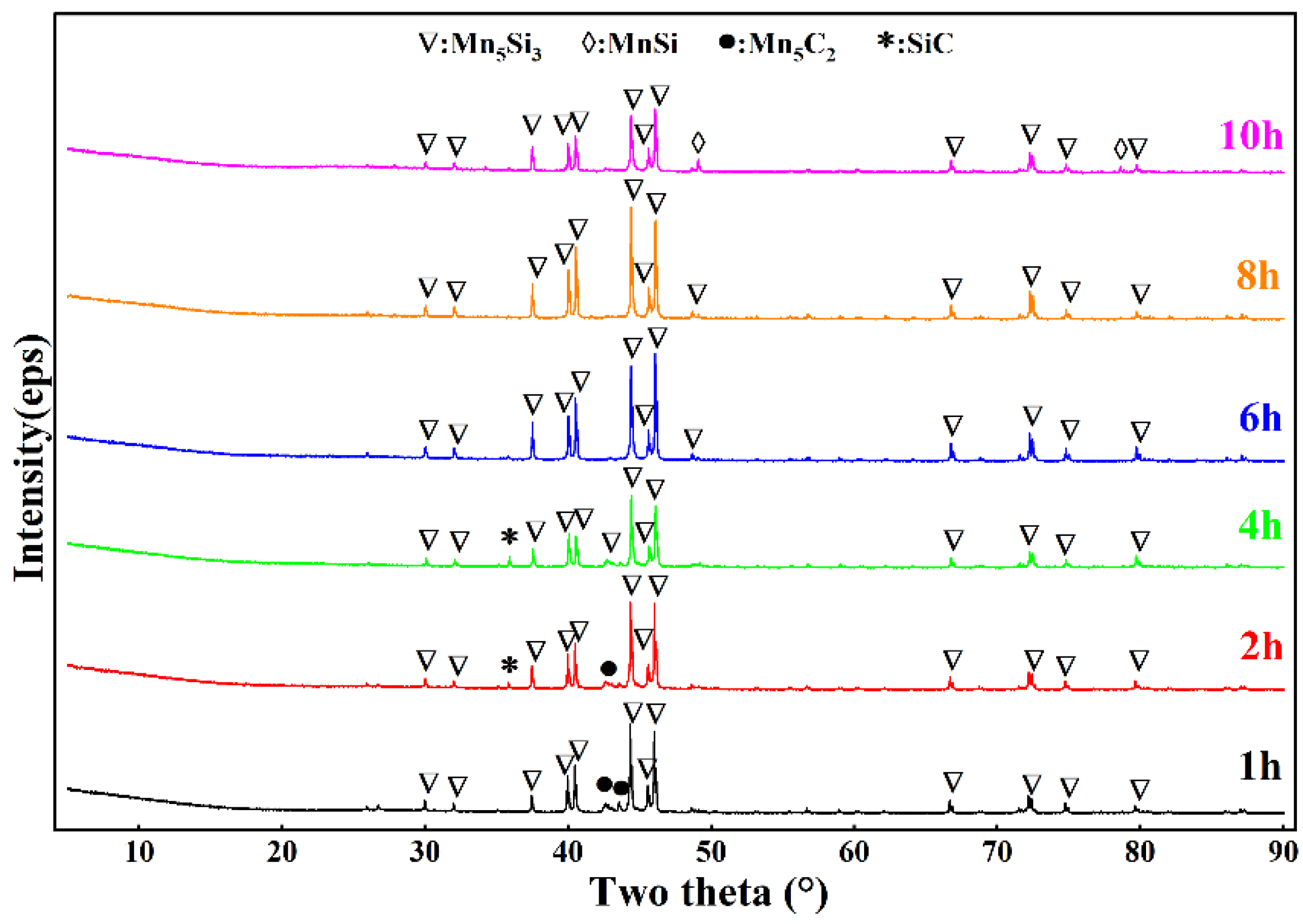

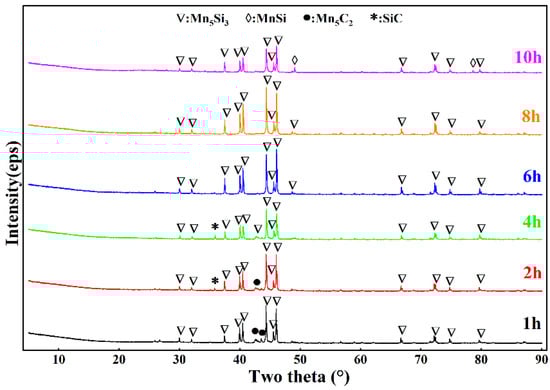

Figure 9. XRD patterns of the middle and lower alloys in the reduction residue with varying holding times.

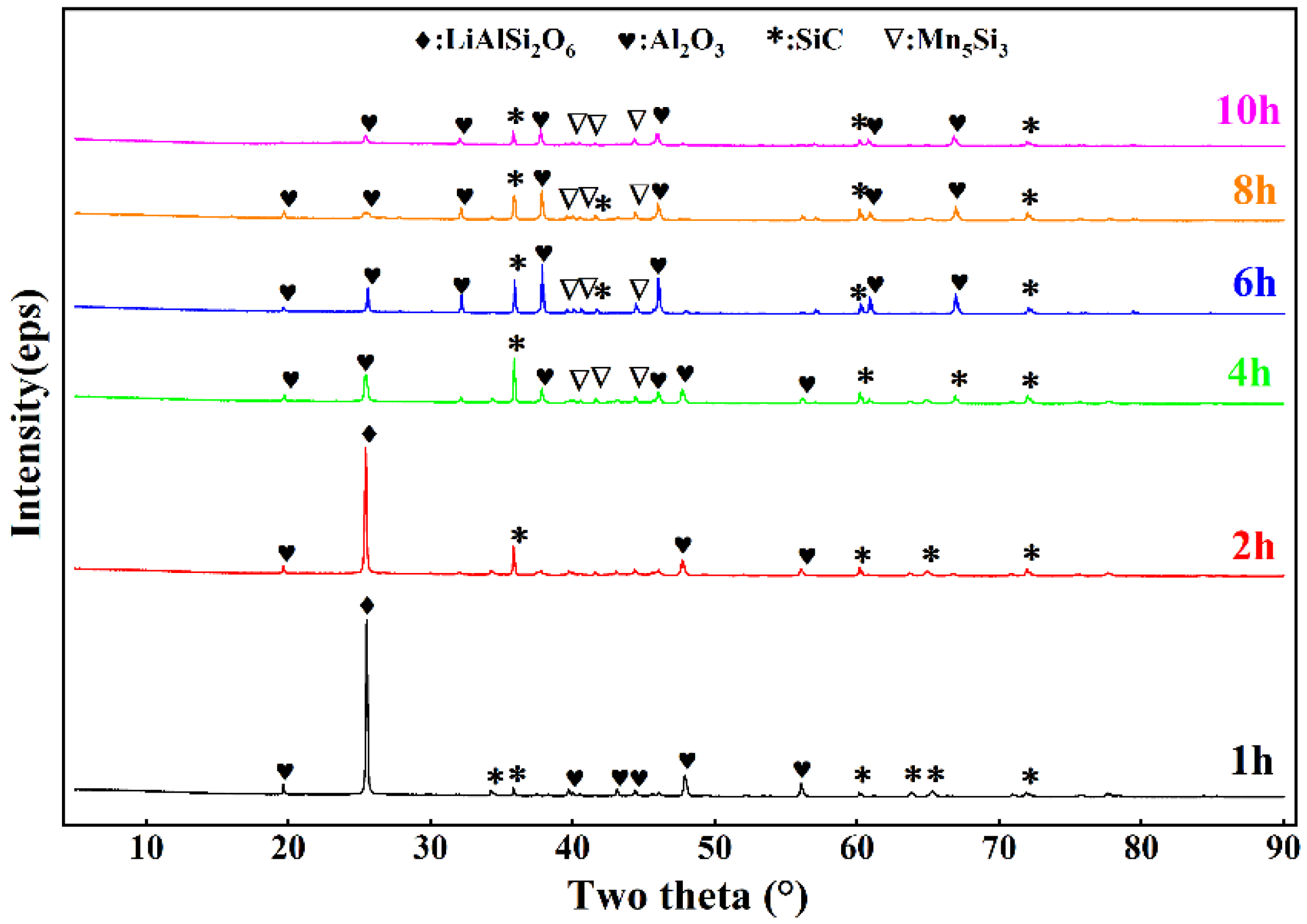

Figure 10. XRD patterns of the upper and middle slag in the reduction residue with varying holding times.

The direct yield of Mn₅Si₃ with varying reduction times is shown in Figure 11. The direct yield of Mn₅Si₃ increased significantly when the reduction time was increased 2 h to 4 h, from 56.33% to 81.55%, indicating that LiAlSi₂O₆ was involved in the reaction from 2 h to 4 h. When the reduction time was 6 h, the direct yield of the alloy was the highest. When the reduction time was increased to 8 h, the direct yield of Mn₅Si₃ decreased slightly, but the change was insignificant.

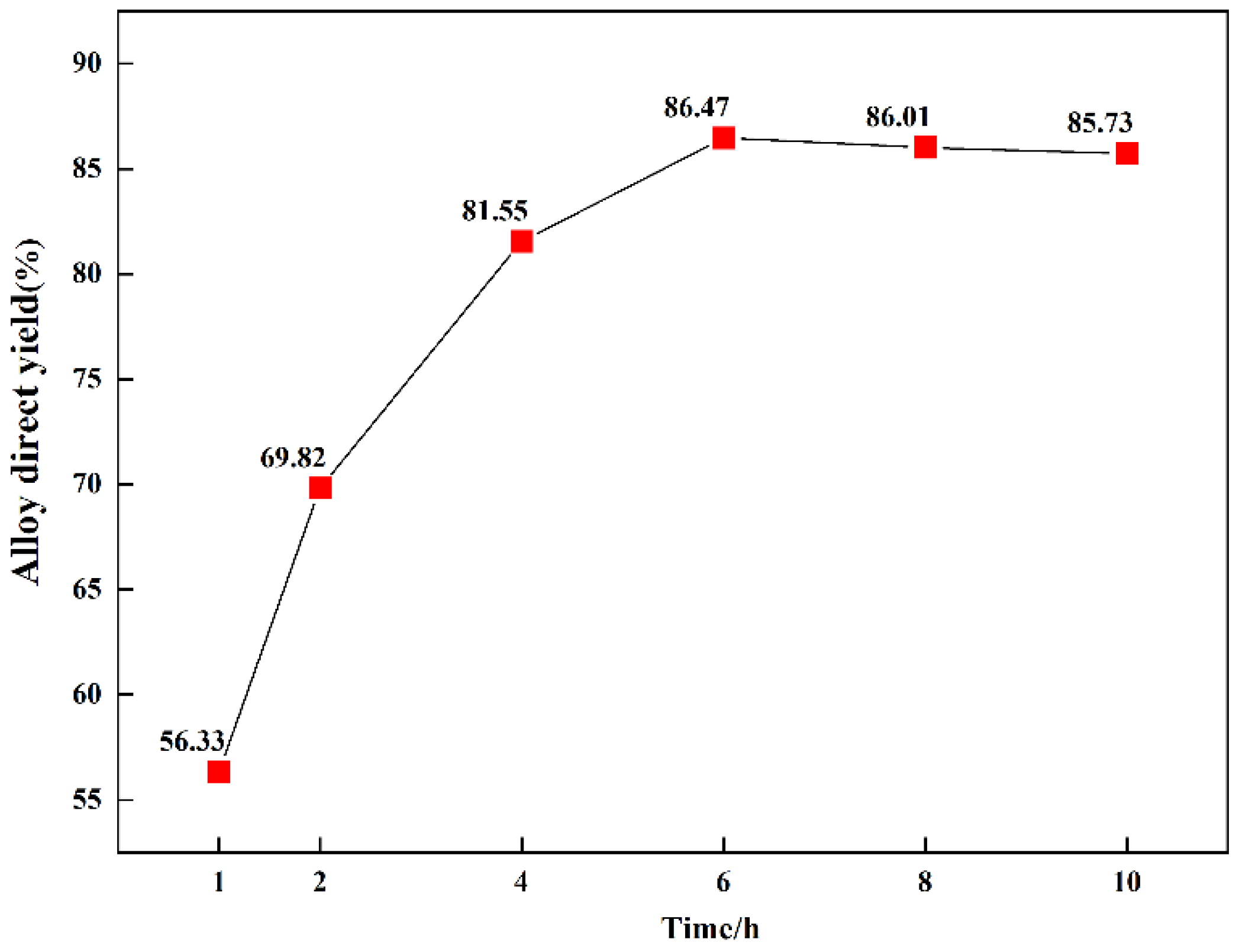

Figure 11. Direct yield of the manganese-silicon alloy with varying holding times.

The volatilization rate of lithium with varying reduction times is shown in Figure 12. There was a large increase in 2–4 h, which further verified the conclusion that LiAlSi₂O₆ was considerably reduced with reaction times of 2–4 h. Upon extending the time, the volatilization rate of lithium increased gradually. When the reduction time was 6 h, the volatilization rate of lithium reached 97.65%, and the reduction of lithium was complete.

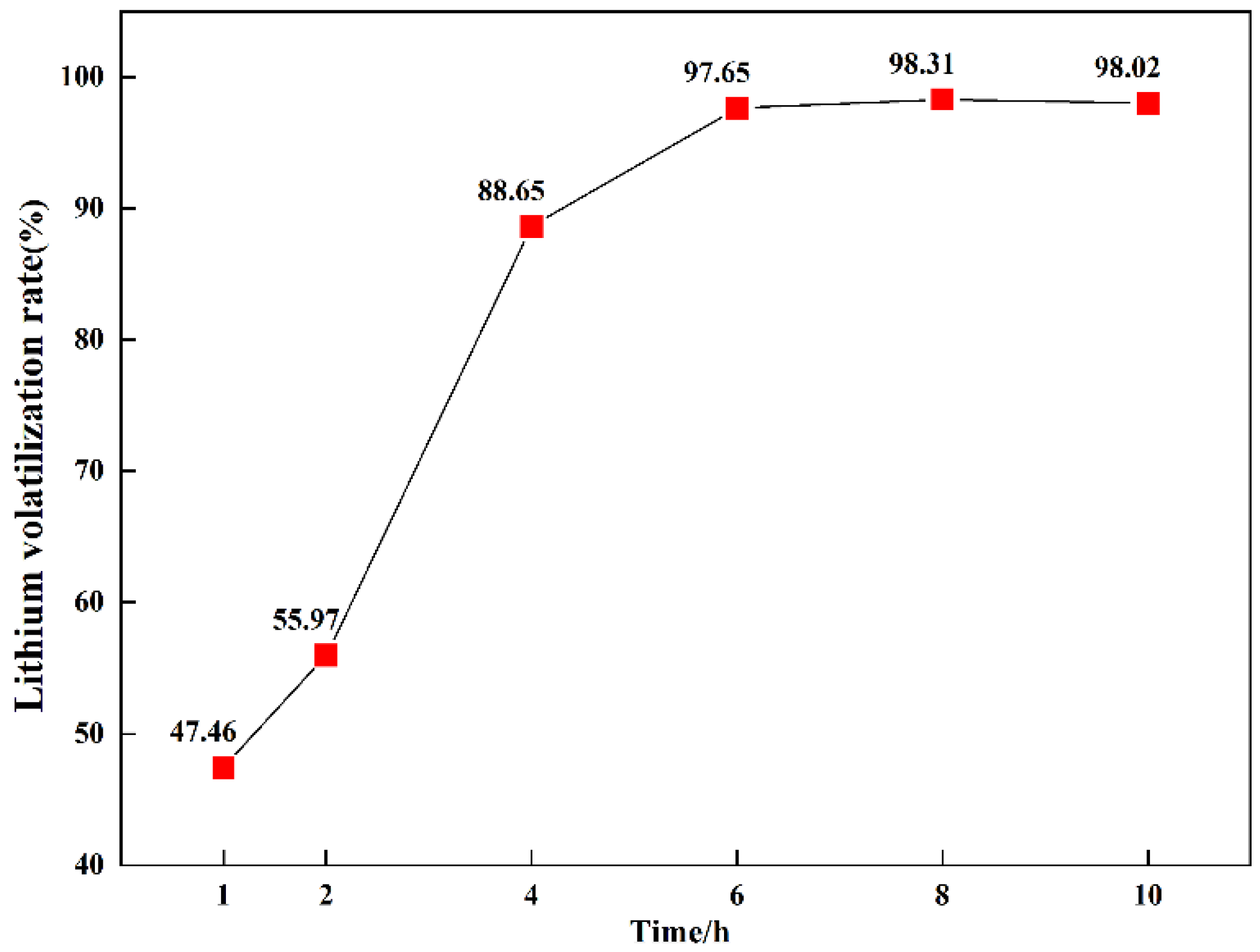

Figure 12. Reduction rates of lithium with varying reduction times.

Based on single-factor experimental analysis, it can be concluded that the optimal parameters for studying lithium enrichment by the carbothermal reduction of spodumene to prepare manganese-silicon alloy were 1873 K and 6 h.

3.5. SEM-EDS Analysis

The upper- and lower-layer materials under the abovementioned optimal conditions were analyzed by SEM-EDS; the results are shown in Figure 13 and Figure 14. Figure 13a shows that the alloy was bright white with a smooth surface and no cracks or other defects. Figure 13b,c shows that the coincidence degree of Mn and Si was high.

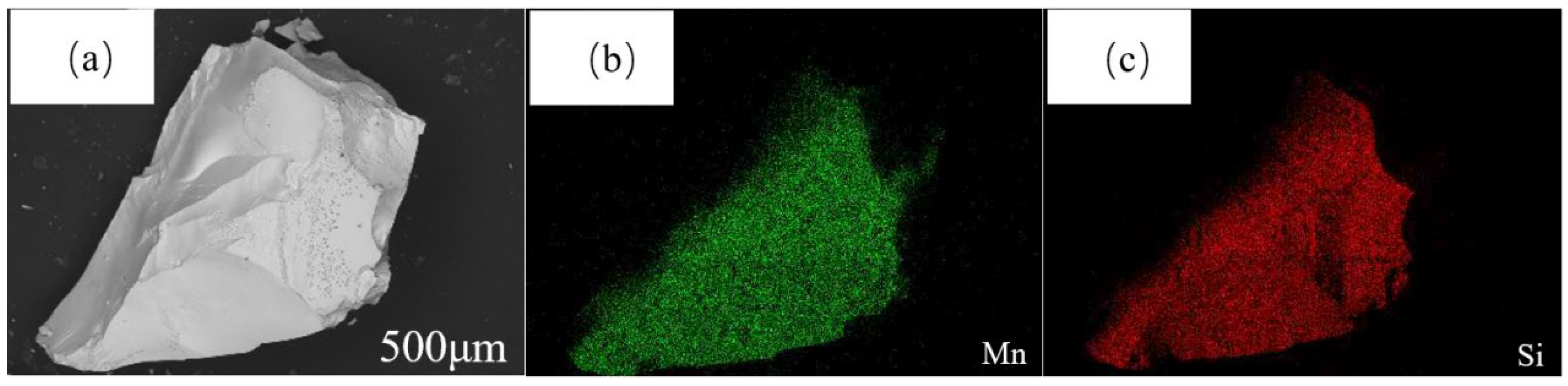

Figure 13. SEM-EDS image of the upper layer at 1873 K and 6 h: (a) SEM image; (b) Mn element distribution; (c) Si element distribution.

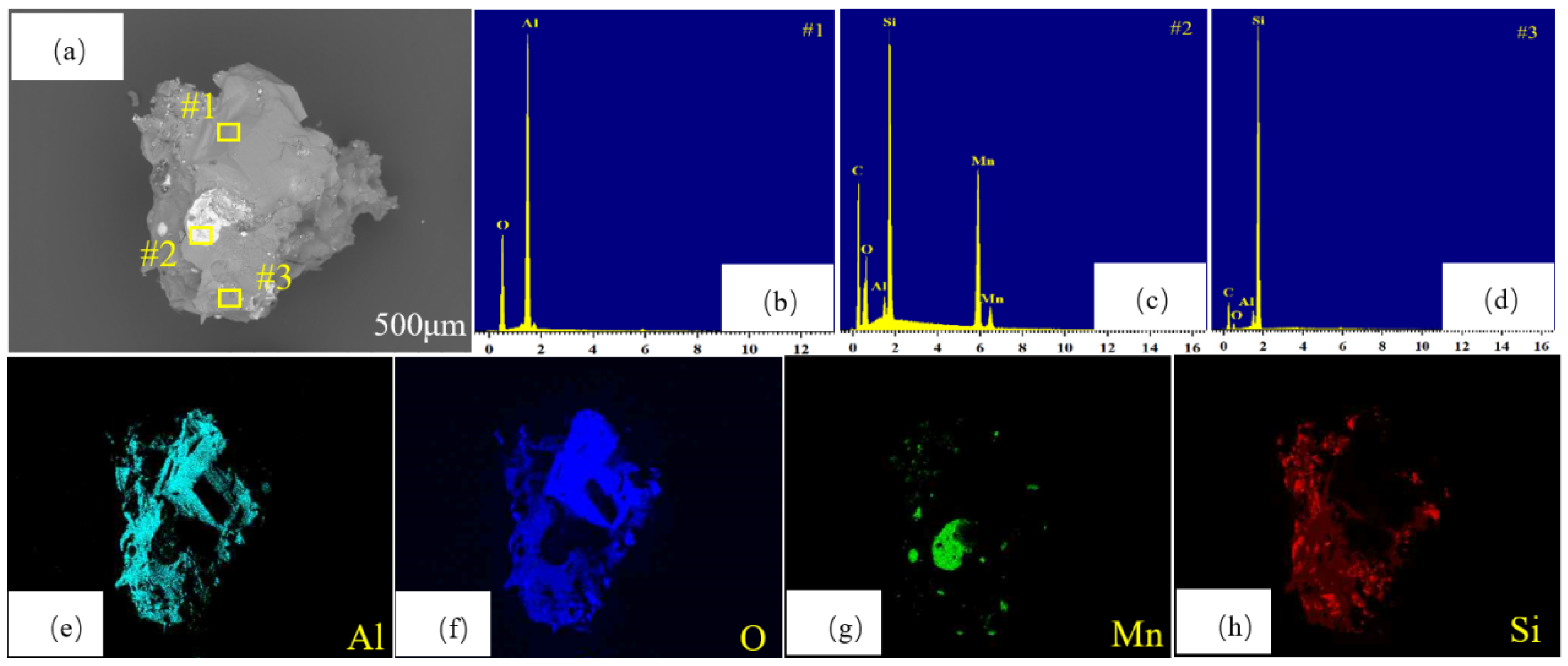

Figure 14. SEM-EDS image of the upper layer at 1873 K and 6 h: (a) SEM image; (b) #1 point scan; (c) #2 point scan; (d) #3 point scan; (e) Al element distribution; (f) O element distribution; (g) Mn element distribution; (h) Si element distribution.

Figure 14a shows the topography of the upper-layer material, which was mainly a gray material, mixed with a small amount of bright white material. Three points were selected for point scanning; the results are shown in Figure 14b–d. The compound at point 1 was Al₂O₃, and that at point 2 was Mn₅Si₃. The inclusions were Al₂O₃ and SiC. The compound at point 3 was SiC, and a small amount of Al₂O₃ was included, which was consistent with the previous XRD analysis results. Figure 14e–h shows the element distribution of the upper-layer material. The surface scan of the upper material showed the presence of highly overlapping Al and O elements, indicating that the upper-layer material mainly comprised Al₂O₃, with a small amount of Mn₅Si₃ mixed in. This indicates that even under the optimal conditions, a small amount of Mn₅Si₃ still entered the upper-layer material because when LiAlSi₂O₆ formed Mn₅Si₃, Al₂O₃ was also decomposed, which caused a small amount of Mn₅Si₃ to be carried into the upper layer by Al₂O₃. The mechanistic process of the reaction was shown in Figure 15.

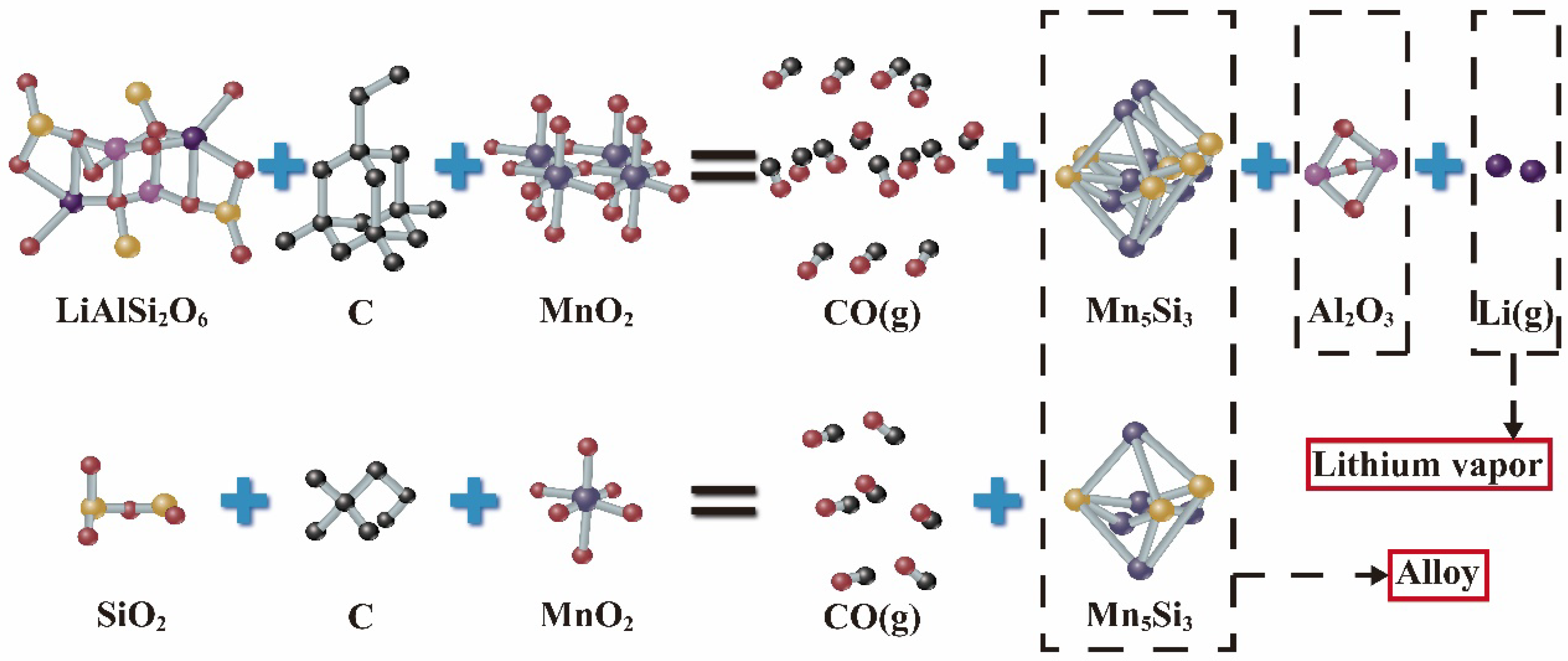

Figure 15. Reaction mechanism diagram.

4. Conclusions

• Thermodynamic calculations were carried out using HSC6.0 thermodynamic software. We found that SiO₂ in the ore preferentially participated in the reaction compared with LiAlSi₂O₆. Compared with the reaction of SiO₂ + C and LiAlSi₂O₆ + C, the decrease was 651 K and 667 K, respectively, indicating that the addition of MnO₂ reduced the reaction temperature and increased the feasibility of the reaction.
• Due to the limited feed amount and the low lithium content in spodumene ore, it was difficult to collect the lithium condensate in a single step, so the lithium-rich condensate was collected through multiple experiments. The collected condensate contained 19.47% Li, which was 10.85 times more enriched compared with spodumene.
