Identification and Origin of Jurassic (~182 Ma) Zircon Grains from Chromitite within the Peridotite of the Jijal Complex, Kohistan Arc in North Pakistan

by
Xiang-Li Ding
1,2,*,
Lin Ding
1,
Li-Yun Zhang
1,
Chao Wang
1 and
Ya-Hui Yue
1
1
Key Laboratory of Continental Collision and Plateau Uplift, Institute of Tibetan Plateau Research, and Center for Excellence in Tibetan Plateau Earth Sciences, Chinese Academy of Sciences, Beijing 100101, China
2
SinoProbe Center, Chinese Academy of Geological Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Minerals 2020, 10(12), 1085; https://doi.org/10.3390/min10121085
Submission received: 20 October 2020 / Revised: 25 November 2020 / Accepted: 1 December 2020 / Published: 3 December 2020
(This article belongs to the Section Mineral Geochemistry and Geochronology)
Browse Figures
Versions Notes

Abstract

:
The Jijal ultramafic–mafic complex in Pakistan probably preserves the most complete fragments of the petrological Moho. However, a few studies argue for multiple origins (including petrogenetic speculations and tectonic reconstructions) for different lithologies. One of the main reasons for this dispute is the lack of direct age information of the ultramafic rocks. Zircon grains, despite generally being exotic in ultramafic rocks, can provide significant insights into the petrogenetic process of the host ultramafic rocks. This study reports the first zircon U–Pb age and Lu–Hf and trace element data for zircon grains separated from chromitite lenses within the peridotite, which is commonly considered the lowermost part of the Jijal complex. These zircon grains yield concordant 206Pb/238U ages of ~182 ± 3 Ma, which is much older than the late Early Cretaceous age (<120 Ma) of the Jijal complex, and lying above it, the other complexes of the Kohistan paleo-arc. Furthermore, these Jurassic zircon grains present radiogenic εHf(t) values (+9.7 to +6.0) which are obviously lower than the values for the Cretaceous zircon grains of the Kohistan arc. From integrated analysis of the zircon trace element signatures (e.g., high Th, U, Th/U, and U/Yb ratios) and regional geology, we speculate that these zircon grains came from a ‘missing’ Early Jurassic arc akin to the Gangdese belt to the east, and entered the mantle by oceanic subduction processes. Although these Jurassic zircon grains cannot actually constrain the formation age of the chromitite as well as the peridotite, it reminds us that some cryptic pre-Cretaceous complexes and geodynamic processes were incorporated in building the oceanic crust of the Jijal intra-oceanic arc, or the mantle section (at least part of it) should probably belong to the Indus ophiolite mélange. Further research, particularly chronological studies on mantle (or ultramafic) rocks, as well as detailed geological mapping, should be carried out in the future for solving this issue.

1. Introduction

The 3 km-thick Jijal ultramafic–mafic complex in northern Pakistan is comprised of a series of rocks ranging from ultramafic to mafic in composition from south to north. They have attracted vast numbers of studies on their formation age and petrogenetic processes because they probably represent a rare preservation of the most complete fragments of the lowermost arc crust and contiguous uppermost sub-arc mantle, namely the petrologic Moho (e.g., [1,2,3,4]). Despite this, debate remains on whether these ultramafic to mafic rocks formed by crystallization and accumulation of genetically related melt, by multistage magmatic melt inflation and interaction at the mantle–crust transition, or if they represent modified, sub-arc, residual mantle (e.g., [1,2,3,4,5]). The general consensus is that they were formed at the late Early Cretaceous time (younger than ~117 Ma; e.g., [6,7]). More importantly, a few studies suspect that the mantle section, at least part of it, potentially belongs to the Indus ophiolite mélange (e.g., [8]). Thus, the origin and tectonic affinity of ultramafic rocks in the Jijal complex are still highly enigmatic, largely hindering our knowledge of the processes of continental crust formation as a result of accretion and metamorphism of oceanic arc complexes. The dispute is mainly related to the fact that the formation age and interpretable isotope values for ultramafic rocks are very hard to obtain.
Zircon (ZrSiO4) is a common accessory mineral in many types of rocks and is resistant to a wide range of chemical and physical conditions, such that zircons can even survive temperatures and pressures up to 1500 °C and 20 GPa (equivalent to ~600 km deep in the Earth), as demonstrated by experimental work and zircon grains obtained from ultra-high pressure (diamond-related) metamorphic terranes ([9] and references therein). More importantly, the U–Pb isotope age, coupled with trace element, Lu–Hf, and stable isotopes (O and Li), makes this mineral an unmatched tool to study the formation of various geological processes, including the age and source of igneous and sedimentary rocks, metamorphic P-T (Pressure and Temperature) condition hydrothermal alteration, mantle–crustal interaction and recycling, and metasomatism (e.g., [9,10]). Zircon is theoretically unable to crystallize from primary peridotite due to its low bulk-rock Zr content and Si-undersaturated affinity, but an increasing number of studies have demonstrated that mantle rocks, including chromitite, peridotite, and pyroxenite, sometimes contain abundant zircon grains (e.g., [10,11,12,13,14,15,16,17]). In general, these zircon grains are thought to be exotic and thus could not represent the formation age of the mantle rocks, but they do provide important access to detect the deep geodynamic processes and origin of the mantle rocks.
This study presents U–Pb dating and Lu–Hf isotope analyses, as well as trace element data, for zircon grains separated from chromitite lenses within peridotite that is generally regarded to be from the lower part of the Jijal complex, in an attempt to reveal the mechanism of zircon occurrence in the chromitite and further explore the petrogenesis of the ultramafic rock suite and its relationship with ‘overlying’ mafic–felsic rocks. This achievement could provide new insights into the building of the Kohistan intra-oceanic arc.

2. Geology Background and Field Occurrence

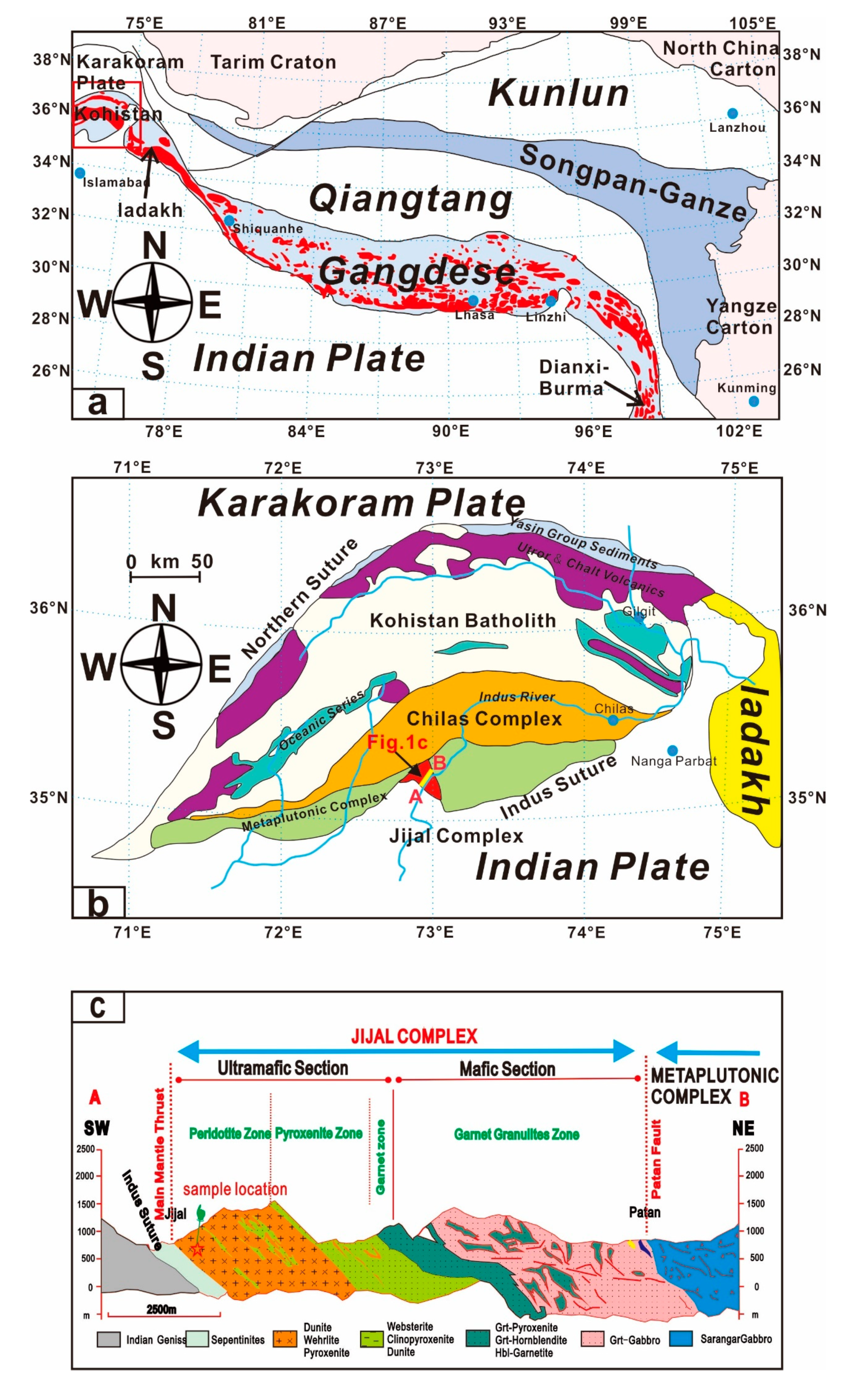

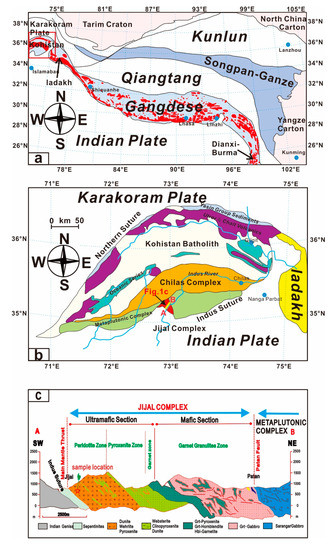

The Indus–Zangbo suture zone marks the boundary between the Indian and Asian plates, but in Pakistan and western Himalaya there is a Cretaceous island arc, i.e., the Kohistan arc, wedged in the two plates (Figure 1) [5,6]. The Kohistan arc can be correlated with the Ladakh, Gangdese and Dianxi–Burma arcs in the east, which collectively comprise a more than 3000 km long granitoid-dominant arc belt resulted from the subduction of Neo-Tethyan lithosphere (e.g., [18]). However, here are two aspects that make the Kohistan arc relatively distinct. First, the arc represents an intra-oceanic arc formed during the Mesozoic northward intra-oceanic subduction of the Neo-Tethyan lithosphere, mainly based on the absence of continental basement and continental-derived sediments (e.g., [1,5,6,19]). Second, and more importantly, the arc accretion to the Karakoram plate at around 85 Ma and subsequent obduction onto the India plate during India–Asian collision(~50 Ma) [5,20], with the result that they probably preserve one of the most intact profiles of the lower crust–Moho zone, which offers us an interesting subject to understand crustal growth at an intra-oceanic arc (e.g., [1,5,6,19]).
The Kohistan arc is mainly made up of three parts, including the Glight complex, the Chilas complex, and the Southern plutonic complex (including the Kamila amphibolites and the Jijal complex). As the southernmost part of the Kohistan arc, the ~150-km2 Jijal complex lies in the hanging wall of the Indus suture (Figure 1) [1,22], which was tectonically emplaced over the gneisses of the Indian plate at 50–45 Ma (e.g., [1,6]). The Jijal complex consists of an upper gabbroic section overlying a thick ultramafic section (Figure 1c). The northern part of the complex is a gabbroic section that contains the main mass of the complex and consists of garnet granulites derived from gabbros, troctolites, pyroxenites, and anorthosites (Figure 1c).
The southern part of the complex consists of a 10 km × 4 km slab of chromite-bearing dunite, peridotite, and pyroxenite, which are commonly layered. Chromitite samples for this study were collected from nearly the southernmost part of the ultramafic section in northern Jijal country (north of the Indus valley), where they are interbedded with dunite layers as lenses or disseminated occurrences. The samples investigated in this study are located (GPS: 72°56′16.66″ E, 35°2′32.41″ N) close to the Indus suture zone. The rocks exposed there are primarily composed of peridotite, and are mostly serpentinized. Compared with the surrounding peridotite and dunite, the chromitite samples are much fresher and only some olivine has altered to serpentine along the crack and rim. The structure of the chromitite samples is massive and disseminated, in a coarse-grained structure, and they are black in color. The chromitite comprises mainly chromite with variable portions of olivine and minor pyroxene; the chromite grains are generally euhedral to subhedral in shape, 0.4–3 mm in length, and black in color (Figure 2).

3. Analytical Methods and Results

3.1. Analytical Methods

All the relevant analyses in the present study were finished at the Key Laboratory of Continental Collision and Plateau Uplift, Institute of Tibetan Plateau Research, Chinese Academy of Sciences (LCPU, ITP CAS). Zircon grains were separated from ~20 kg chromitic samples by using standard magnetic and heavy liquid separation and were individually hand-selected under a binocular microscope. The cathodoluminescence (CL) images were obtained using a JEOL JXA-8100 Super Probe to reveal the internal structures of individual zircon grains. These zircon grains we selected for U–Pb isotope and trace element analyses were generally euhedral to subhedral, colorless, with oscillatory zones, and a lack of complex internal structure. Zircon U–Pb isotope and trace element analyses were conducted using a New Wave UP193FX excimer laser coupled with an Agilent 7500a ICP-MS. During our analysis, the standard zircon 91500 (1064 Ma) [23] and Plešovice (337 Ma) [24] were used as external and internal standards for the U–Pb isotopes, respectively, and NIST 612 glass was used as the external standard for trace elements. The offline isotope ratios and trace element concentrations were calculated using GLITTER 4.0 [25]. We used all the measured isotope ratios of 91500 during our experiment to calculate the external precision (2σ), which was input into the GLITTER. Then the software automatically propagated the standard uncertainty into each spot data during data processing. The common Pb was corrected following the method of [26] and data reduction was performed using the Isoplot/Ex V.3.0 program [27].
Zircon Lu–Hf isotope analyses were performed using a Nu Plasma II multi-collector inductively coupled plasma mass spectrometer (MC-ICPMS, Nu Instruments Ltd., North Wales, UK) equipped with a 193 nm New Wave laser ablation system (New Wave Instruments, Provo, UT, USA). The Lu–Hf isotopic analyses were made on the spots which previously were analyzed for U–Pb ages, as much as possible. The isotope ratio 176Hf/177Hf was normalized to 179Hf/177Hf = 0.7325 using an exponential law for mass bias correction. Correction for isobaric interference of 176Lu on 176Hf and 176Yb on 176Hf was performed using the recommended 176Lu/175Lu ratio of 0.02655 and the 176Yb/171Yb ratio of 0.90184. During the analysis, the Plešovice zircon standards were analyzed as unknown samples. The 176Hf/177Hf values for 20 Penglai zircon grains (the analytical procedure includes samples that are not reported in this study) are from 0.282868 ± 11 to 0.282916 ± 14 with an average of 0.282893 ± 12, which are in good agreement with the published values, within the experimental errors [28]. The detailed analytical procedures for zircon U–Pb and Lu–Hf isotope and trace element analysis are described in Cai et al. [29] and Wang et al. [30].
Chrome spinel chemistry analyses were performed using a JEOL JXA-8230 electron microprobe. The parameters during our analysis were as follows: probe diameter = 5 μm, accelerating voltage = 15 kV, specimen current = 20 nA, counting times for peaks = 10 s, and counting times for upper and lower background levels per element = 5 s. The analytical precision is better than 1%–2%.

3.2. Zircon Trace Element and Isotope Composition

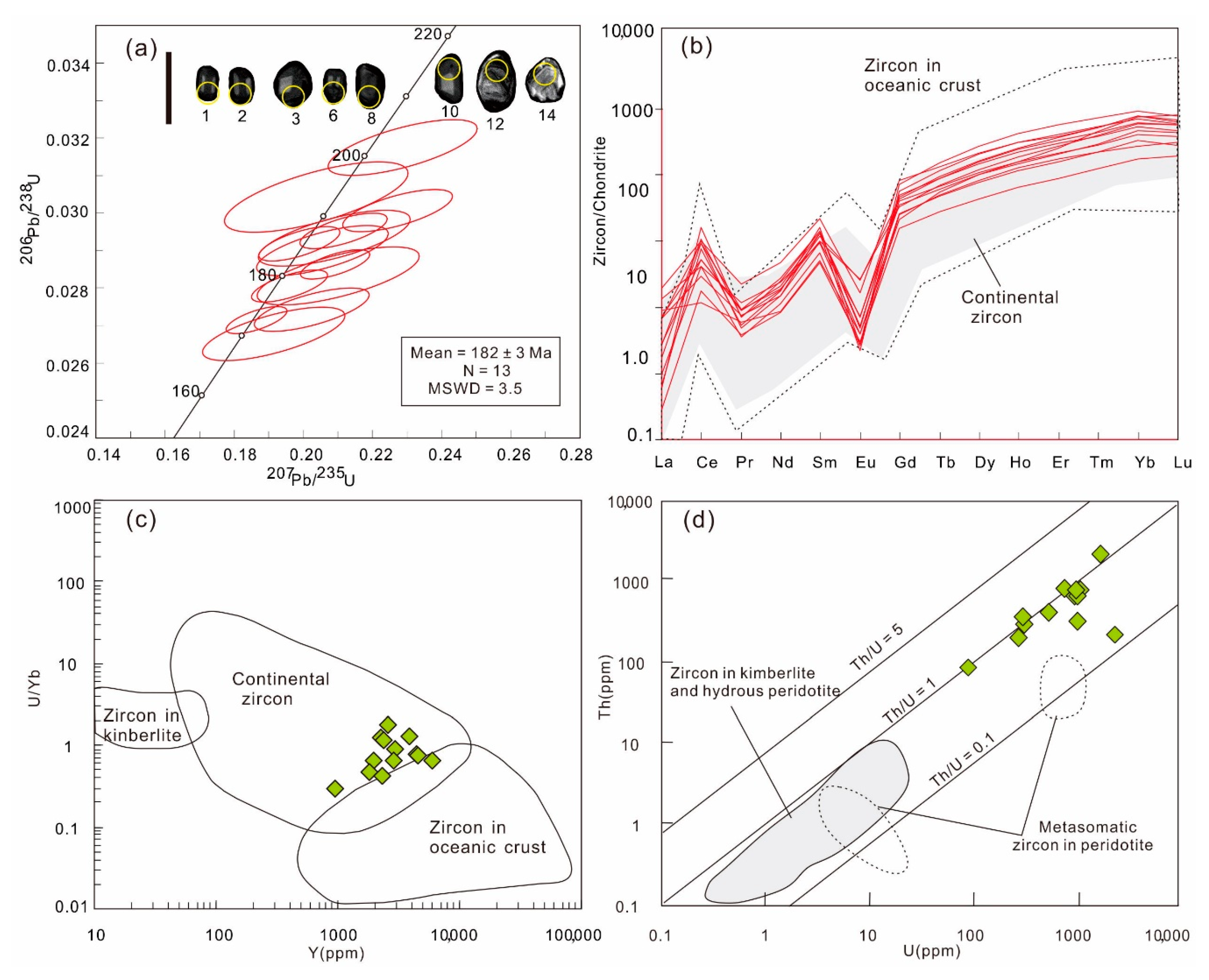

Separated zircon grains from the Jijal chromitite occur as moderate grains (~20–50 μm in length with length–width ranging from 1:1 to 2:1; Figure 3) characterized by colorless and somewhat rounded and subhedral shapes (Figure 3a). They are dominantly smoky or black on cathodoluminescence (CL) images with oscillatory zones and the absence of a complex internal structure (Figure 3a). The zircon U–Pb isotope data are listed in Table A1. All the analyses were performed on the rim of the zircon grains and thirteen data points were obtained (Table A1). As shown in Figure 3a, all of the analyses are concordant and present individual ages ranging from 201 ± 3 Ma to 170 ± 3 Ma, with mean average (concordant 206Pb/238U ages) values of 182 ± 3 Ma (MSWD = 3.5; Figure 3a).
The zircon trace element data are listed in Table A2. All of the analyzed zircon grains have high Th, U, and Th/U ratios (Table A2 and Figure 3d), and their chondrite-normalized rare earth elements (REE) patterns (Figure 3b) are remarkably homogeneous and characterized by strong depletions in La, pronounced positive Ce and negative Eu anomalies, and enrichment in heavy REEs (HREEs). Additionally, on U/Yb versus Y plots, all of them fall in the field of continental zircon grains (Figure 3c) [32].

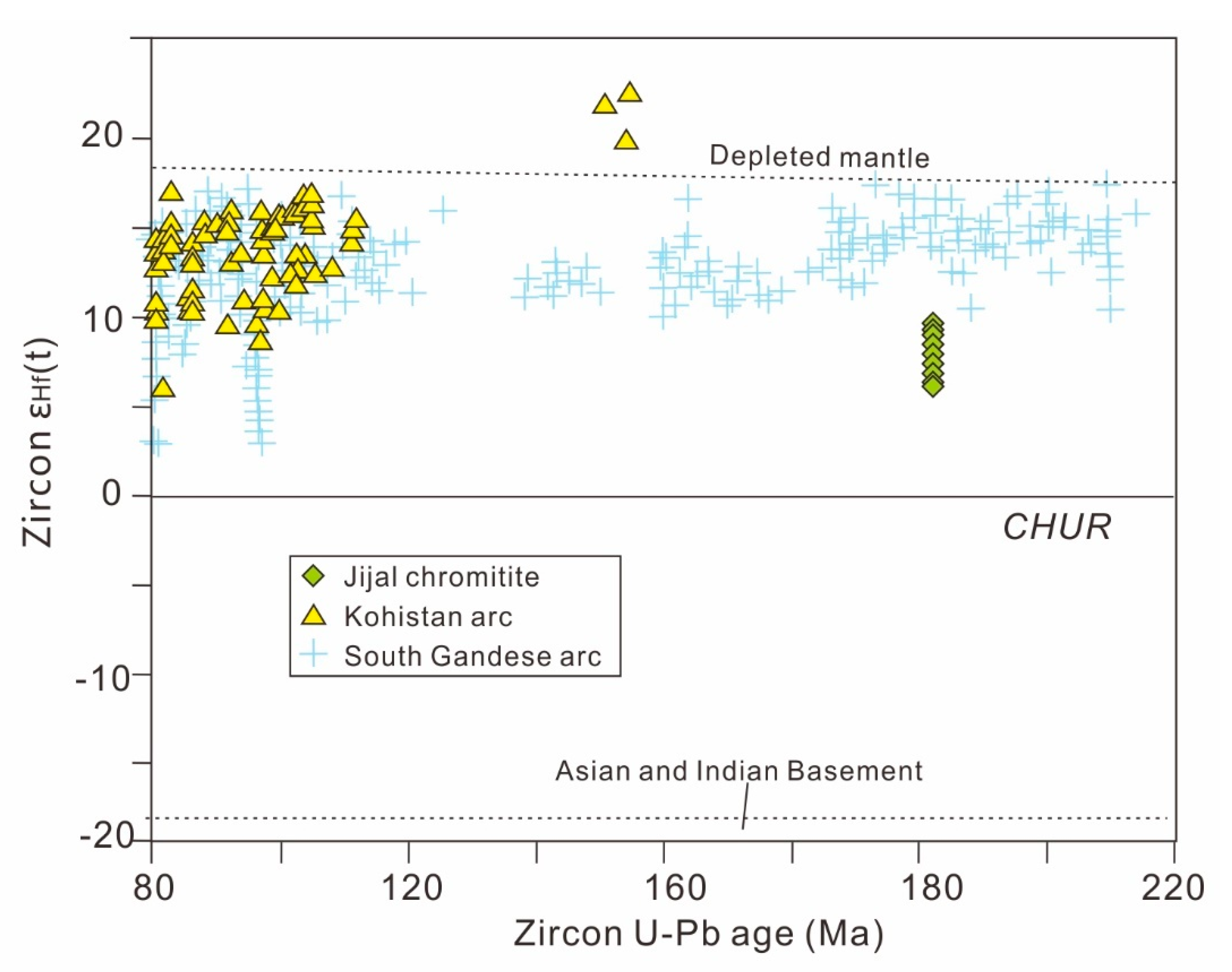

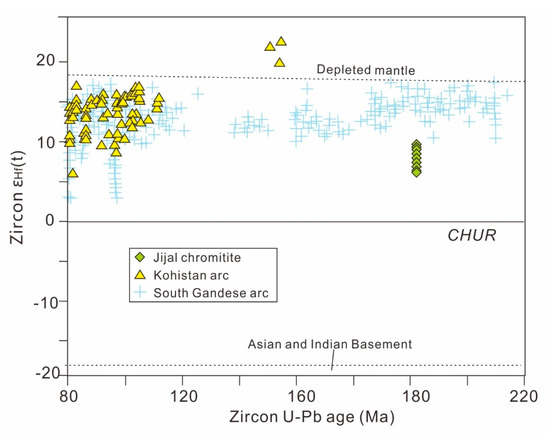

The zircon Lu–Hf isotope data are listed in Table A3 and plotted in Figure 4. The analyzed zircon grains yielded low 176Lu/177Hf ratios (<0.002), suggesting an ignorable radiogenic Hf in-growth after zircon formation. They exhibit a narrow spread in 176Hf/177Hf values of 0.282436–0.282600, and age-corrected (176Hf/177Hf) i values of 0.282836–0.282935, εHf(t) values of 6.0–9.7, and Hf model ages (TDM) of 448–600 Ma.

3.3. Chromite (Chrome Spinel) Chemistry

The in-situ major element compositions for the analyzed chrome spinel grains are listed in Table A4. They are characterized by high Cr2O3, moderate MgO and Al2O3, and low TiO2 contents with chrome spinel Cr numbers (Cr# = Cr/(Cr + Al)) ranging between 0.59 and 0.84, and Mg numbers (Mg# = Mg/(Mg + Fe2+)) between 0.50 and 0.75, typical of Type-I high-Cr chrome spinels. Our new data for chrome spinel composition fall within the range of compositions reported previously [34].

4. Discussion

4.1. Age of the Jijal Complex and Kohistan Arc

Bosch et al. [7] reported zircon U–Pb ages of 97.7 ± 0.7 Ma for the metatonalite and ages of 100.9 ± 0.6 Ma to 89.9 ± 0.5 Ma for the mafic (garnet-bearing) rocks that were located about ~10 km north of the samples investigated in this study, yet precise ages for the Jijal gabbroic rocks are still lacking, let alone for the ultramafic section. However, we note that the previous isochron isotopic ages of the mafic section appear to be consistent with the zircon U–Pb age result, as Sm–Nd isochron ages for the Jijal garnet gabbros and Sarngar gabbros are 98.9 ± 0.4 Ma to 91 ± 6 Ma [34,35,36,37,38,39]. Nevertheless, the Sm–Nd isochron ages for clinopyroxene in pyroxenites from the ultramafic section of the Jijal complex yield a notably older age of 117 ± 7 Ma, which has been interpreted as dating the first episodes of slab dehydration fluids metasomatism in the lithospheric mantle [6], and is therefore a minimum age for initial subduction of the Neo-Tethyan Oceanic lithosphere. This hypothesis needs further exploration (in terms of both the geochronological precision and the tectonic interpretation) because the time interval is too long from subduction initiation to first appearance of arc magmatic rocks. On a larger scale, within the Kohistan arc, zircon U–Pb ages (except those for ultramafic rocks) reveal an overall similar formation age of the late Early Cretaceous (<120 Ma) and all analyzed zircon grains show depleted mantle-like Hf isotope values [7,19,40]. These previous studies collectively suggest the Jijal complex, as well as the Kohistan arc as a whole, mainly formed at the late Early Cretaceous (<120 Ma).
Nonetheless, although the Kohistan arc is generally believed to have formed in the late Early Cretaceous intra-oceanic subduction zone, it probably does contain ancient materials, as demonstrated by single Jurassic zircon grains or small Jurassic dikes. To be specific, Schaltegger et al. [41] and Jagoutz et al. [19] both reported concordant zircon ages of ~155 Ma for the Matum-Das tonalite of the Chilas Complex, so far the oldest rock within the Kohistan arc, which was interpreted as a proto-arc. However, the zircon 206Pb/238U ages of this late Jurassic granitic dike are not very concordant, with a wide range between 128 and 173 Ma (Jagoutz et al. [19]). Similarly, Bosch et al. [7] discovered a ~175 Ma old zircon grain from leucogranite at a location ~10 km northeast of the study area. Our study provides the first identification of Jurassic zircons within the mantle part of the Jijal complex, which provide new insights into the perplexing results of previous studies as to why intra-oceanic arc magmas yield inherited zircon grains much older than the arc system itself.

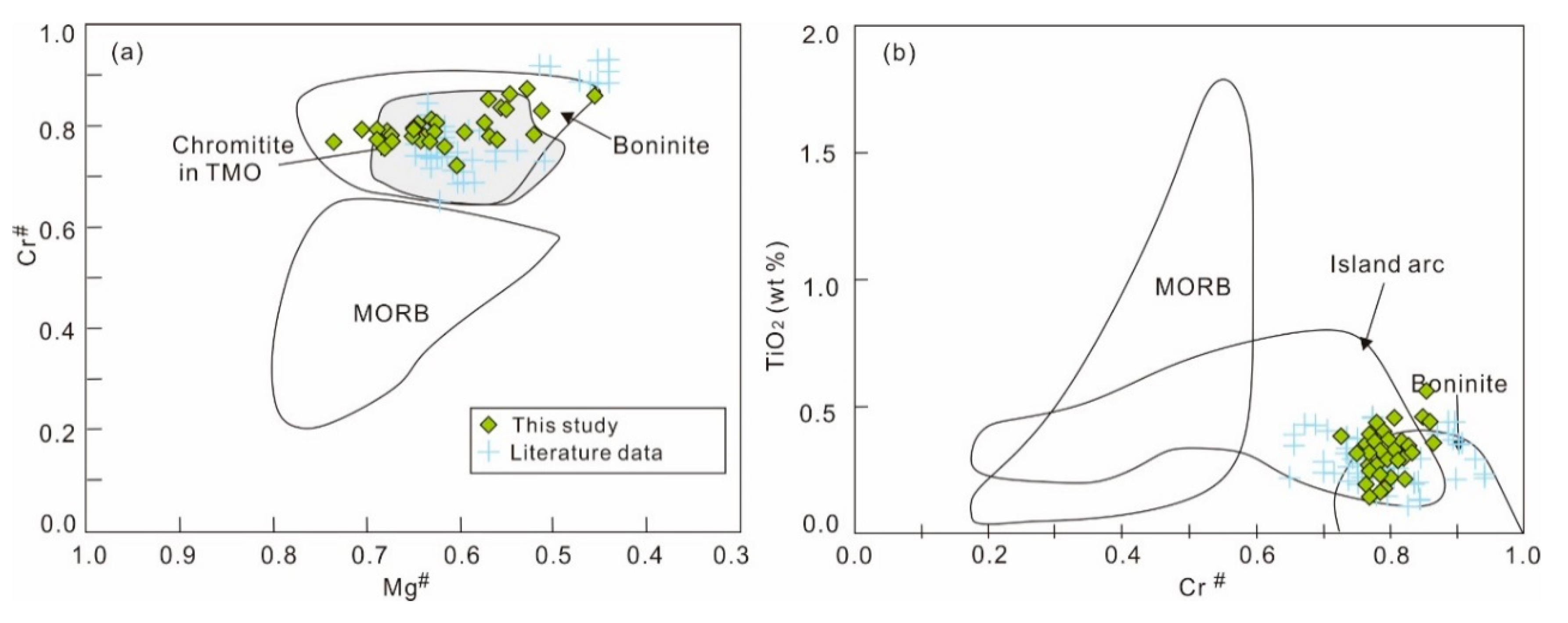

4.2. Parent Magma Equilibrium with Chrome Spinel

It has been shown that chrome spinel is very resistant to alteration, weathering, and metamorphism, and its original composition primarily depends on the makeup of the parent magma (see Zhou et al. [42] for reviews). For instance, based on a large and global dataset, Kamenetsky et al. [43] found a relationship between chrome spinel Al2O3 and TiO2 contents and parent magma—(TiO2melt) = 0.708 ln(TiO2 spinel) + 1.6436, (Al2O3 spinel) = 0.035 (Al2O3 melt)2.42 for high-Al chrome spinel; (TiO2 melt) = 1.0897 (TiO2 spinel) + 0.0892, and (Al2O3 melt) = 5.2253 ln(Al2O3 melt) +1.1232 for high-Cr chrome spinel; see also Zhou et al. [42] and reference therein. As the Jijal chrome spinel belongs to the high-Cr chrome spinel, we use the high-Cr chrome empirical formula to compute these values.
On the other hand, since Mg and Fe are balanced between silicate minerals and non-silicate minerals, the melt FeO/MgO ratio can also be estimated using the empirical formulation proposed by Maurel and Maurel [44]: ln (FeO/MgO)spinel = 0.47 − 1.07 [Al/(Cr+Al+Fe3+)]spinel + 0.64 [Fe3+/(Cr+Al+Fe3+)]spinel. Moreover, another common indicative function of spinel is the source melting degree of the parent magma, reflected by the correlation between the Cr# and Mg# numbers. The computed parent TiO2, Al2O3, and FeO/MgO contents of the equilibrium with the Jijal chrome spinel range from 0.28 to 1.09 wt.%, 8.66 to 11.83 wt.% and 1.22 to 1.42, respectively. Comparison with spinel from various settings demonstrated the boninitic arc-related affinity of studied spinels (Figure 5) [45,46].

4.3. How Did Crustal Zircon Grains Enter the Jijal Chromitite?

One explanation for the source of the zircon grains in the mantle (ultramafic rocks) is that these were introduced during sample processing. This possibility can be precluded because the zircon grains were independently separated by two times, in spite of sparse numbers of grains being obtained each time (six and nine, respectively). Zircon grains in this study present similar concordant 236U/208Pb ages (Figure 3) and show somewhat plausible magmatic features, such as high Th/U ratios, strong HREE-enriched patterns with depletion in La, positive Ce and negative Eu anomalies, and a lack of complex internal structure (Figure 3) [47]. They still should be termed ‘exotic’ given the low Zr and SiO2 contents of the chromitite. This is shown by the generally round zircon grains, and they contain mineral inclusions of quartz, plagioclase, and apatite (Figure 4), which are significantly different from the constituent minerals of chromitite. There are three possible mechanisms that can introduce zircon grains into mantle rocks, as described in detail below.
First, zircon can crystallize from the fluids, hydrous melt, and supercritical fluids released from the down-going slab that metasomatizes the mantle peridotite [48,49]. However, the grains formed in this model generally have complex internal structures, such as a dark core rounded by a white rim in CL images (e.g., [13]). Regardless of the SiO2 and TiO2 activities, the low crystallization temperature attested by the overall low Ti values of the investigated zircon grains [50,51] is inconsistent with the relatively hot hydrous melt-related metasomatism (generally >800 ℃). In addition, zircon grains that crystallized from supercritical fluids would be characterized by a spongy texture and consistent enrichment with light rare earth elements (LREE), Th, U, and high-field strength elements (HFSE) [13,52], which are absent in the metasomatic zircon grains from the Jijal chromitite. Furthermore, it has been demonstrated that in fluid, U is much more mobile than Th [53]. Thus, the high Th/U ratios of the analyzed zircon grains roughly argue against an origin from metasomatic fluid (Figure 3; e.g., [13]). Consequently, we dispute a metasomatic origin for the zircon grains identified in the Jijal chromitite.
Second, zircon grains are likely to be contaminated from continental crust during the emplacement of the mantle rocks [11,48]. Nevertheless, no Cretaceous zircon grains have been found in the studied rocks, whereas Early Cretaceous magmatism is intensive before Eocene emplacement. For the same reason, although there might be a missing Jurassic arc, as we speculate in the following text, it is not precipitated from inflated granitic melts after emplacement, as raised by, e.g., Belousova et al. [11]. On the other hand, the exotic zircon grains in mantle rocks could derive from recycled crustal materials, as they are suggested to be stable at the ultra-high temperature and pressure of the mantle environment. Crustal materials can enter the mantle by subduction or delamination (e.g., [9,16,42]). Irrespective of mechanisms, that lack of Cretaceous and younger zircon grains recognized in the chromitite indicates that the recycling event(s) happened between the early Jurassic and late Early Cretaceous (from ~180 to 120 Ma). As an overthickened crust is a premise for delamination, this hypothesis is disproved by the lack of geological record. Therefore, we infer the zircon grains were recycled into the mantle by subduction. Another fundamental issue is where these exotic minerals ultimately came from, as we will discuss in more length below.

4.4. Where Zircons Came from and Tectonic Implications

Although the zircons investigated in this study are exotic minerals in chromitite, the presence of only one age population led us to advocate that the zircon grains were derived from eroded magmatic rocks instead of sediment/surface rocks, unless the sediment was deposited in the fore-arc basin, a situation that is analogous to the magmatic arc. Importantly, the composition and rock-type of the parent melt that the zircon crystallized from, if not entirely correct, can be approximately inferred from the trace elements and Lu–Hf isotope values (e.g., [10,31,54]). First and foremost, their positive and uniform εHf values suggest any mixing of different source materials, if it happened, would have occurred at the source region. Thus, the parent melt should be derived by partial melting of the juvenile crust or depleted mantle. Crystallization from mafic (mantle-derived) melt is less likely given that their morphologies are akin to zircon grains in felsic (crust-derived) rocks, such as is suggested in Corfu et al. [55]. Their extremely high Th and U contents are more common in granitic rocks rather than in mafic rocks [10]. Besides, their high U/Yb ratios resemble continental zircon grains (including island arc crust) rather than oceanic crust (Figure 3) [10,31], and preclude precipitation from depleted mantle-derived melts while ascending. To our knowledge, with the exception of the aforementioned detrital zircon grains, the Jurassic igneous rocks in the Kohistan area are only limited to ophiolite [56]. After evaluating the potential sources, Bosch et al. [7] also argued for a magmatic origin for the Jurassic zircon grains, but limited it to the oceanic lithosphere, which has been excluded by their trace element composition. Here we propose two alternative explanations for their origin.

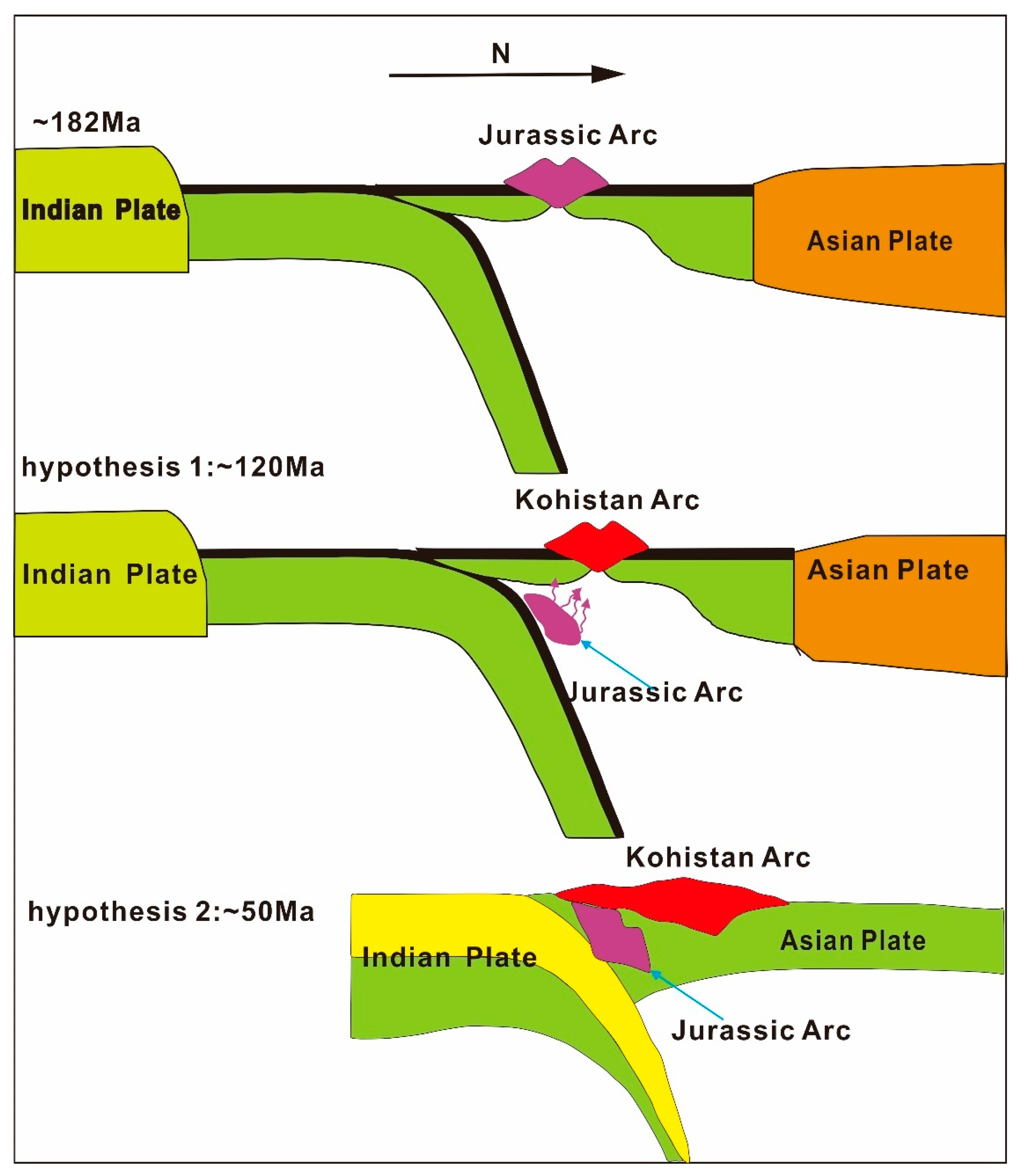

First, there are some “missing” Jurassic arcs that are akin to the Jurassic magmatism in the Gangdese arc to the east (e.g., [18,32,57]). We boldly speculate this hypothesis because Jurassic zircon grains have been identified in the Jijal complex and elsewhere in the Kohistan arc, from ultramafic to felsic rocks. If this is the case, the missing Jurassic arc should have been either underlain by the Cretaceous arc or have been almost entirely eroded away (Figure 6; see the figure captions for more details). This means that some cryptic pre-Cretaceous materials and the geodynamic processes have not been realized in building the Jijal intra-oceanic arc, similar to some studies advocating that the proto-arc started after the Jurassic [19]. Another possibility is that the mantle peridotite, or at least part of it, belongs the Indus ophiolite mélange [34]. We are more in favor of the former hypothesis, as the Jurassic arcs are also limited to the eastern part but are missing in the western part of the ~2000 Km long Gangdese belt (see Kang et al. [57]).
Additionally, since thus far no Hf isotope data exist for any unit from the Jijal complex, and no Hf isotope data have been determined directly on mafic lithologies from any of the plutonic root fragments, the only available data for comparison are compiled from the rutile εHf values for the Jijal complex and the zircon εHf of other segments of the Kohistan arc. Based on the indistinguishable weighted mean εHf (11.4 ± 3.2 to 20.1 ± 5.7) of rutile across the mafic section of the Jijal complex, Ewing and Müntener [3] suggest a consistent source of depleted mantle without the requirement of more enriched materials for the magmas that made up the entire thickness of the gabbros mafic section. However, the zircon grains in chromitite have obviously lower εHf values than those in leucogranite, probably reflecting different source regions. Thus, regardless of which of the two cases we raised, or other possibilities, it reminds us the Kohistan arc is not ‘pure’, and might be composite. In other words, the ultramafic section is chemically decoupled from the mafic section. This view is backed by the high Cr# and low TiO2 values of the chrome spinel in chromitite, as well as the very low TiO2 and total REE concentrations of clinopyroxene in the pyroxenite within the peridotite, which consistently indicate a depleted parent magma, such as boninite melt, and/or they resulted from melt inflation and interaction (Figure 5) and are not cogenetic with the mafic plutonic rocks [5,45,58]. More future work, particularly chronological studies on ultramafic (e.g., bulk-rock and mineral Re–Os and Lu–Hf isotope, spinel U–Th–Pb) rocks, will be instructive in solving this issue to help us to better understand the building of an intra-oceanic arc and/or tectonic evolution of northern Pakistan.

5. Concluding Remarks

First reported here, zircon grains of the chromitite lenses within the peridotite of the Jijal complex yield concordant 206Pb/238U ages of ~182 ± 3 Ma, which is much older than the widely accepted late Early Cretaceous age. From integrated analyses of the zircon U–Pb age, εHf(t), and trace element values with regional geology, we speculate that they should be derived from a ‘missing’ Early Jurassic arc that entered the mantle by subduction, or underlaid the Cretaceous arcs during the Indian and Asian blocks’ convergence. These new data led us to advocate that some cryptic pre-Cretaceous materials and unrealized geodynamic processes have been incorporated in building the Jijal intra-oceanic arc crust, or the mantle section (at least the part of it in the Jijal complex) should probably belong to the Indus ophiolite mélange.

Author Contributions

Conceptualization, X.-L.D. and C.W., methodology, X.-L.D.; software, X.-L.D.; validation, X.-L.D., C.W. and Y.-H.Y.; formal analysis, X.-L.D.; investigation, X.-L.D.; resources, L.D.; data curation, X.-L.D.; writing—original draft preparation, X.-L.D.; writing—review and editing, X.-L.D.; visualization, L.-Y.Z.; supervision, L.D.; project administration, L.D.; funding acquisition, L.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Strategic Priority Research Program of Chinese Academy of Sciences (XDA 20070301), the National Key Research and Development Project of China (2016YFC0600303) and the Second Tibetan Plateau Scientific Expedition and Research Program (2019QZKK0708).

Acknowledgments

We are grateful to Jing Xie for her help in spinel major element analysis. The data used in this paper can be found in the Appendix A or by contacting the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table
Table A1. Zircon U–Pb data of Jijal chromitite.
Table A1. Zircon U–Pb data of Jijal chromitite.
SpotTh (ppm)U (ppm)Th/UIsotopic RatioAge
207Pb/206Pb1σ207Pb/235U1σ206Pb/238U1σ207Pb/206Pb1σ207Pb/235U1σ206Pb/238U1σ
2016PD51-012923160.90.05140.00330.20550.01260.02900.0004259113190111843
2016PD51-02213117171.20.04940.00200.19890.00770.02920.00031687218471852
2016PD51-038027781.00.05170.00370.20900.01450.02930.0005271129193121863
2016PD51-046749540.70.04980.00170.18640.00580.02710.00021875617451732
2016PD51-0578410800.70.05070.00200.19600.00720.02810.00032266718261782
2016PD51-0667110210.70.05380.00410.21010.01550.02830.0005363135194131803
2016PD51-082042780.70.05480.00260.22730.01050.03010.00044058120891912
2016PD51-094095370.80.05360.00300.20250.01100.02740.00043539818791742
2016PD51-103693021.20.05190.00380.19140.01370.02680.0005279131178121703
2016PD51-1131710160.30.05300.00180.20920.00660.02860.00033295519361822
2016PD51-1221723330.10.05200.00210.21160.00830.02950.00032857119571882
2016PD51-1487901.00.04860.00430.20380.01760.03040.0006128154188151934
2016PD51-1576710110.80.05230.00340.22870.01430.03180.0005297115209122013
Table
Table A2. Rare earth elements composition (ppm) of zircon in Jijal chromitite.
Table A2. Rare earth elements composition (ppm) of zircon in Jijal chromitite.
Spot. No2016PD51-012016PD51-022016PD51-032016PD51-042016PD51-052016PD51-062016PD51-082016PD51-092016PD51-102016PD51-112016PD51-122016PD51-142016PD51-15
Ti4.396.773.6453.43.425.3678.945.7126.68.663927.489.9811.81
Y206740493101465762872339188930022402248626569764768
Nb9.5415.3611.8230.0722.388.646.7114.617.7313.869.303.0934.44
La0.230.150.130.420.161.133.241.640.672.012.150.074.57
Ce25.2697.9742.4257.3046.4334.5925.3031.5731.9823.337.2810.6860.85
Pr0.340.680.380.470.510.551.120.820.870.900.560.372.13
Nd5.2311.516.287.058.366.6411.379.4512.798.964.033.9522.28
Sm10.1021.1914.0020.4324.7211.4814.4616.5621.6014.377.747.3033.52
Eu0.150.290.150.130.160.180.230.300.300.410.230.170.97
Gd51.394.173.5117.1148.353.053.985.183.273.143.531.8171.8
Tb18.3135.2127.6443.1857.0420.1817.6728.4825.2723.6820.3910.2449.37
Dy207418328515686240199328271270254111549
Ho71145115177242836611189898937174
Er288603457679938349264424348352419144627
Tm56.03132.0892.55135.09182.0979.1956.9785.1771.0081.83114.3431.35130.75
Yb46513038381201158379556078568885312742931315
Lu78.2169.9111.9148.6199.6111.071.1102.495.0122.7202.349.0163.1
Hf946410,671709583658245869668506608730010,34418,86475998483
Ta2.138.743.71755.7648.66871.8163.55921.88311.7926429.070.929.85
U31617177789541080102127853730210162333901011
Th292213180267478467120440936931721787767
Table
Table A3. Lu–Hf isotopic composition of zircon in Jijal chromitite.
Table A3. Lu–Hf isotopic composition of zircon in Jijal chromitite.
Spot No176Yb/177Hf176Lu/177Hf176Hf/177Hf 2σ176Hf/177Hf(t)iεHf(t)TDM1(Ma)
2016PD51-010.0330.0010.2828470.0000270.2828426.5580
2016PD51-020.0500.0020.2828770.0000280.2828697.5547
2016PD51-030.0310.0010.2828790.0000260.2828757.7532
2016PD51-040.0340.0010.2828410.0000310.2828376.1587
2016PD51-050.0410.0020.2829400.0000390.2829359.7450
2016PD51-060.0230.0010.2829360.0000250.2829339.6448
2016PD51-080.0480.0020.2829220.0000350.2829169.3479
2016PD51-100.0460.0020.2828420.0000280.2828366.0594
2016PD51-110.0480.0020.2828390.0000280.2828326.1600
Table
Table A4. Major element composition (wt.%) of spinel in Jijal chromitite.
Table A4. Major element composition (wt.%) of spinel in Jijal chromitite.
Spot. NoK2OCaOTiO2Na2OMgOAl2O3SiO2Cr2O3MnOFeONiOTotal
2016PD51-010.000.030.150.0114.9511.380.0658.620.3013.080.0298.60
2016PD51-020.010.070.420.0213.6710.740.0559.160.2614.290.1098.80
2016PD51-030.020.050.370.0311.3411.360.0359.360.3316.530.0399.44
2016PD51-040.010.040.410.0210.4011.110.0359.020.2418.360.0499.68
2016PD51-050.000.010.360.0110.346.510.0563.410.2618.490.0599.49
2016PD51-060.000.010.580.028.816.980.0562.610.6419.790.0699.53
2016PD51-070.000.030.440.0210.686.740.0262.540.5618.810.0099.83
2016PD51-080.000.080.320.0210.787.940.0459.490.4519.340.0498.50
2016PD51-090.010.010.180.0711.7710.610.2457.670.4817.400.0698.49
2016PD51-100.010.000.220.0011.279.920.2359.400.5317.060.1298.75
2016PD51-110.010.010.450.0012.6110.040.2258.930.4816.580.1099.43
2016PD51-120.000.040.350.0110.688.310.0560.860.5117.600.0698.45
2016PD51-130.000.000.460.0311.237.130.1061.240.3318.540.0599.12
2016PD51-140.000.020.210.0310.088.730.1861.980.4217.950.0699.65
2016PD51-150.020.090.390.0012.2413.830.1654.620.3817.000.0798.80
2016PD51-160.000.000.210.0113.8412.040.2158.400.4913.410.0298.62
2016PD51-170.010.050.240.0212.7611.690.1959.760.3314.810.0999.94
2016PD51-180.000.010.160.0114.2710.670.0260.060.4513.880.0899.61
2016PD51-190.010.010.330.0413.0210.650.0159.610.5314.990.0099.20
2016PD51-200.000.000.260.0213.6011.930.0659.120.3413.470.0898.89
2016PD51-210.000.000.150.0611.1711.500.2057.380.2518.240.0899.01
2016PD51-220.000.030.320.0012.489.740.1260.300.4015.560.1299.08
2016PD51-230.010.050.390.0013.9911.520.1157.530.5114.980.0999.16
2016PD51-240.020.040.290.0012.469.290.1459.960.4215.450.1098.16
2016PD51-250.000.030.350.0112.6710.650.1759.170.4316.020.1099.59
2016PD51-260.010.040.370.0012.8710.120.0059.300.5215.670.1098.99
2016PD51-270.000.020.220.0213.8410.630.0759.810.5914.170.0599.40
2016PD51-280.010.020.440.0013.0011.040.0558.850.3615.490.1499.41
2016PD51-290.000.010.320.0512.4412.210.0556.930.3917.120.1699.68
2016PD51-300.000.000.350.0112.8711.090.1857.280.4916.580.0698.91

References

  1. Burg, J.P.; Bodinier, J.L.; Chaudhry, S.; Hussain, S.; Dawood, H. Infra-arc mantle–crust transition and intra-arc mantle diapirs in the Kohistan Complex (Pakistani Himalaya): Petro-structural evidence. Terra Nova 1998, 10, 74–80. [Google Scholar] [CrossRef]
  2. Dhuime, B.; Bosch, D.; Garrido, C.J.; Bodinier, J.L.; Bruguier, O.; Hussain, S.S.; Dawood, H. Geochemical architecture of the lower-to middle-crustal section of a paleo-island arc (Kohistan Complex, Jijal–Kamila area, northern Pakistan): Implications for the evolution of an oceanic subduction zone. J. Petrol. 2009, 50, 531–569. [Google Scholar] [CrossRef]
  3. Ewing, T.A.; Müntener, O. The mantle source of island arc magmatism during early subduction: Evidence from Hf isotopes in rutile from the Jijal Complex (Kohistan arc, Pakistan). Lithos 2018, 308, 262–277. [Google Scholar] [CrossRef]
  4. Khan, M.A.; Kakar, M.I.; Ulrich, T.; Ali, L.; Kerr, A.C.; Mahmood, K.; Siddiqui, R.H. Genesis of Manganese Deposits in the Ali Khanzai Block of the Zhob Ophiolite, Pakistan: Inferences from Geochemistry and Mineralogy. J. Earth Sci. 2020, 31, 884–895. [Google Scholar] [CrossRef]
  5. Garrido, C.J.; Bodinier, J.L.; Dhuime, B.; Bosch, D.; Chanefo, I.; Bruguier, O.; Burg, J.P. Origin of the island arc Moho transition zone via melt-rock reaction and its implications for intracrustal differentiation of island arcs: Evidence from the Jijal complex (Kohistan complex, northern Pakistan). Geology 2007, 35, 683–686. [Google Scholar] [CrossRef]
  6. Dhuime, B.; Bosch, D.; Bodinier, J.L.; Garrido, C.J.; Bruguier, O.; Hussain, S.S.; Dawood, H. Multistage evolution of the Jijal ultramafic–mafic complex (Kohistan, N Pakistan): Implications for building the roots of island arcs. Earth Planet. Sci. Lett. 2007, 261, 179–200. [Google Scholar] [CrossRef]
  7. Bosch, D.; Garrido, C.J.; Bruguier, O.; Dhuime, B.; Bodinier, J.L.; Padròn-Navarta, J.A.; Galland, B. Building an island-arc crustal section: Time constraints from a LA-ICP-MS zircon study. Earth Planet. Sci. Lett. 2011, 309, 268–279. [Google Scholar] [CrossRef]
  8. Jan, M.Q.; Windley, B.F. Chromian spinel-silicate chemistry in ultramafic rocks of the Jijal Complex Northwest Pakistan. J. Petrol. 1990, 31, 667–715. [Google Scholar] [CrossRef]
  9. Stern, R.J.; Ali, K.A.; Liegois, J.P.; Johnson, P.R.; Kozdrojs, W.; Kattan, F.H. Distribution and significance of pre-Neoproterozoic zircon grains in juvenile Neoproterozoic igneous rocks of the Arabian–Nubian shield. Am. J. Sci. 2010, 310, 791–811. [Google Scholar] [CrossRef]
  10. Grimes, C.B.; Wooden, J.L.; Cheadle, M.J.; John, B.E. “Fingerprinting” tectono-magmatic provenance using trace elements in igneous zircon. Contrib. Mineralog. Petrol. 2015, 158, 757–783. [Google Scholar] [CrossRef]
  11. Belousova, E.A.; González-Jiménez, J.M.; Graham, I.; Griffin, W.L.; O’Reilly, S.Y.; Pearson, N.; Martin, L.; Craven, S.; Talavera, C. The enigma of crustal zircon grains in upper-mantle rocks: Clues from the Tumut ophiolite, southeast Australia. Geology 2015, 43, 119–122. [Google Scholar] [CrossRef]
  12. González-Jiménez, J.M.; Marchesi, C.; Griffin, W.L.; Gervilla, F.; Belousova, E.A.; Garrido, C.J.; Barra, F. Zircon recycling and crystallization during formation of chromite- and Ni-arsenide ores in the subcontinental lithospheric mantle (Serranía de Ronda, Spain). Ore Geol. Rev. 2017, 90, 193–209. [Google Scholar] [CrossRef]
  13. Li, H.Y.; Chen, R.X.; Zheng, Y.F.; Hu, Z. The crust-mantle interaction in continental subduction channels: Zircon evidence from orogenic peridotite in the Sulu orogen. J. Geophys. Res. Solid Earth. 2016, 121, 687–712. [Google Scholar] [CrossRef] [Green Version]
  14. Liati, A.; Franz, L.; Gebauer, D.; Fanning, C.K. The timing of mantle and crustal events in South Namibia, as defined by SHRIMP-dating of zircon domains from a garnet peridotite xenolith of the Gibeon Kimberlite Province. J. Afr. Earth Sci. 2004, 39, 147–157. [Google Scholar] [CrossRef]
  15. McGowan, N.M.; Griffin, W.L.; González-Jiménez, J.M.; Belousova, E.A.; Afonso, J.; Shi, R.; McCammon, C.A.; Pearson, N.J.; O’Reilly, S.Y. Tibetan chromitites: Excavating the slab graveyard. Geology 2015, 43, 179–182. [Google Scholar] [CrossRef]
  16. Robinson, P.T.; Trumbull, R.B.; Schmitt, Z.; Yang, J.S.; Li, J.W.; Zhou, M.F.; Erzinger, J.; Dare, S.; Xiong, F. The origin and significance of crustal minerals in ophiolitic chromitite and peridotites. Gondwana Res. 2015, 27, 486–506. [Google Scholar] [CrossRef]
  17. Zheng, J.; Griffin, W.L.; O’Reilly, S.Y.; Zhang, M.; Pearson, N. Zircon grains in mantle xenoliths record the Triassic Yangtze–North China continental collision. Earth Planet. Sci. Lett. 2006, 247, 130–142. [Google Scholar] [CrossRef]
  18. Ji, W.Q.; Wu, F.Y.; Chung, S.L.; Li, J.X.; Liu, C.Z. Zircon U–Pb chronology and Hf isotopic constraints on the petrogenesis of Gangdese batholiths, southern Tibet. Chem. Geol. 2009, 262, 229–245. [Google Scholar] [CrossRef]
  19. Jagoutz, O.; Bouilhol, P.; Schaltegger, U.; Müntener, O. The isotopic evolution of the Kohistan Ladakh arc from subduction initiation to continent arc collision. Geol. Soc. Lond. Spec. Publ. 2018, 483, 165–182. [Google Scholar] [CrossRef]
  20. Huang, F.; Xu, J.F.; Wang, B.D.; Zeng, Y.C.; Liu, X.J.; Liu, H.; Yu, H.X. Destiny of Neo-Tethyan Lithosphere during India-Asia Collision. Earth Sci. 2020, 45, 2785–2804. [Google Scholar]
  21. Burg, J.P.; Arbaret, L.; Chaudhry, N.M.; Dawood, H.; Hussain, S.; Zeilinger, G. Shear strain localization from the upper mantle to the middle crust of the Kohistan Arc (Pakistan). In High-Strain Zones: Structure and Physical Properties; Bruhn, D., Burlini, L., Eds.; Geological Society Special Publications: London, UK, 2005; pp. 25–38. [Google Scholar]
  22. Yamamoto, H. Contrasting metamorphic P–T–time paths of the Kohistan granulites and tectonics of the western Himalayas. J. Geol. Soc. Lond. 1993, 150, 843–856. [Google Scholar] [CrossRef]
  23. Wiedenbeck, M.; Alle, P.; Corfu, F.; Griffin, W.L.; Meier, M.; Oberli, F.; Von-Quadt, A.; Doddick, J.C.; Spiegel, W. Three natural zircon standards for U–Th–Pb, Lu–Hf, trace elements and REE analyses. Geostandard. Newslett. 1995, 19, 1–23. [Google Scholar] [CrossRef]
  24. Sláma, J.; Košler, J.; Condon, D.J.; Crowley, J.L.; Gerdes, A.; Hanchar, J.M.; Horstwood, M.S.; Morris, G.A.; Nasdala, L.; Norberg, N. Plešovice zircon—A new natural reference material for U–Pb and Hf isotopic microanalysis. Chem. Geol. 2008, 249, 1–35. [Google Scholar] [CrossRef]
  25. Jackson, S.E.; Pearson, N.J.; Griffin, W.L.; Belousova, E.A. The application of laser ablation-inductively coupled plasma-mass spectrometry to in situ U-Pb zircon geochronology. Chem. Geol. 2004, 211, 47–69. [Google Scholar] [CrossRef]
  26. Andersen, T. Correction of common lead in U-Pb analyses that do not report Pb-204. Chem. Geol. 2002, 192, 59–79. [Google Scholar] [CrossRef]
  27. Ludwig, K.R. (Ed.) User’s Manual for Isoplot 3.00: A Geochronological Toolkit for Microsoft Excel; Berkeley Geochronology Center Special Publication: Berkeley, CA, USA, 2003. [Google Scholar]
  28. Wu, F.Y.; Yang, Y.H.; Xie, L.W.; Yang, J.H.; Xu, P. Hf isotopic compositions of the standard zircons and baddeleyites used in U–Pb geochronology. Chem. Geol. 2006, 234, 105–126. [Google Scholar] [CrossRef]
  29. Cai, F.L.; Ding, L.; Yue, Y.H. Provenance analysis of upper Cretaceous strata in the Tethys Himalaya, southern Tibet: Implications for timing of India-Asia collision. Earth Planet. Sci. Lett. 2011, 305, 195–206. [Google Scholar] [CrossRef]
  30. Wang, C.; Ding, L.; Zhang, L.Y.; Kapp, P.; Pullen, A.; Yue, Y.H. Petrogenesis of Middle–Late Triassic volcanic rocks from the Gangdese belt, southern Lhasa Terrane: Implications for early subduction of Neo–Tethyan oceanic lithosphere. Lithos 2016, 262, 320–333. [Google Scholar] [CrossRef]
  31. Sun, S.S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. In Magmatism in the Ocean Basins; Saunders, A.D., Norry, M.J., Eds.; Geological Society Special Publications: London, UK, 1989; Volume 42, pp. 313–345. [Google Scholar]
  32. Grimes, C.B.; John, B.E.; Kelemen, P.B.; Mazdab, F.K.; Wooden, J.L.; Cheadle, M.J.; Hanghøj, K.; Schwartz, J.J. Trace element chemistry of zircon grains from oceanic crust: A method for distinguishing detrital zircon provenance. Geology 2007, 35, 643–646. [Google Scholar] [CrossRef]
  33. Zhu, D.C.; Zhao, Z.D.; Niu, Y.L.; Mo, X.X.; Chung, S.L.; Hou, Z.Q.; Wang, L.Q.; Wu, F.Y. The Lhasa Terrane: Record of a microcontinent and its histories of drift and growth. Earth Planet. Sci. Lett. 2011, 301, 241–255. [Google Scholar] [CrossRef]
  34. Arif, M.; Jan, M.Q. Petrotectonic significance of the chemistry of chromite in the ultramafic–mafic complexes of Pakistan. J. Asian Earth Sci. 2006, 27, 628–646. [Google Scholar] [CrossRef]
  35. Schaltegger, U.; Zeilinger, G.; Frank, M.; Burg, J.P. Multiple mantle sources during island arc magmatism: U-Pb and Hf isotopic evidence from the Kohistan arc complex, Pakistan. Terra Nova 2002, 14, 461–468. [Google Scholar] [CrossRef]
  36. Zeilinger, G. Structural and geochronological study of the lowest Kohistan complex, Indus Kohistan region in Pakistan, NW Himalaya. J. Comp. Neurol. 2002, 478, 418–426. [Google Scholar]
  37. Anczkiewicz, R.; Vance, D. Isotopic constraints on the evolution of metamorphic conditions in the Jijal-Patan Complex and Kamila Belt of the Kohistan Arc, Pakistan Himalaya, Tectonics of the Nanga Parbat syntaxis and the western Himalaya. Geol. Soc. Spec. Publ. 2000, 170, 321–331. [Google Scholar] [CrossRef]
  38. Yamamoto, H.; Nakamura, E. Sm-Nd dating of garnet granulites from the Kohistan Complex, northern Pakistan. J. Geol. Soc. Lond. 1996, 153, 965–969. [Google Scholar] [CrossRef]
  39. Yamamoto, H.; Nakamura, E. Timing of magmatic and metamorphic events in the Jijal Complex of the Kohistan Arc deduced from Sm-Nd dating of mafic granulites. Geol. Soc. Lond. Spec. Publ. 2000, 170, 313–319. [Google Scholar] [CrossRef]
  40. Bouilhol, P.; Jagoutz, O.; Hanchar, J.M.; Dudas, F.O. Dating the India-Eurasia collision through arc magmatic records. Earth Planet. Sci. Lett. 2013, 366, 163–175. [Google Scholar] [CrossRef]
  41. Schaltegger, U.; Frank, M.; Burg, J.P. A 120 Million Years Record of Magmatism and Crustal Melting in the Kohistan Batholith. In Proceedings of the EGS-AGU-EUG Joint Assembly, Nice, France, 6–11 April 2003. [Google Scholar]
  42. Zhou, M.F.; Robinson, P.T.; Su, B.X.; Gao, J.F.; Li, J.W.; Yang, J.S.; Malpas, J. Com-positions of chromite, associated minerals, and parental magmas of podiform chromite deposits. The role of slab contamination of asthenospheric melts in suprasubduction zone environments. Gondwana Res. 2014, 26, 262–283. [Google Scholar] [CrossRef]
  43. Kamenetsky, V.S.; Crawford, A.J.; Sebastien, M. Factors controlling chemistry of magmatic spinel: An empirical study of associated olivine, Cr-spinel and melt inclusions from primitive rocks. J. Petrol. 2001, 42, 655–671. [Google Scholar] [CrossRef] [Green Version]
  44. Maurel, C.; Maurel, P. Etude experimentale de la distribution de l’aluminium entre bain silicate basique et spinelle chromifere. Implications petrogenetiques: Teneur en chrome des spinelles. Bull. Mineral. 1982, 105, 197–202. [Google Scholar] [CrossRef]
  45. Xiong, F.H.; Yang, J.S.; Robinson, P.T.; Xu, X.Z.; Liu, Z.; Zhou, W.D.; Feng, G.Y.; Xu, J.F.; Li, J.; Niu, X.L. High-Al and high-Cr podiform chromitites from the western Yarlung-Zangbo suture zone, Tibet: Implications from mineralogy and geochemistry of chromian spinel, and platinum-group elements. Ore Geol. Rev. 2017, 80, 1020–1041. [Google Scholar] [CrossRef]
  46. Rui, H.C.; Jiao, J.G.; Xia, M.Z.; Yang, J.S.; Xia, Z.D. Origin of Chromitites in the Songshugou Peridotite Massif, Qinling Orogen (Central China): Mineralogical and Geochemical Evidence. J. Earth Sci. 2019, 3, 467–493. [Google Scholar] [CrossRef]
  47. Hoskin, P.W.O.; Ireland, T.R. Rare earth element chemistry of zircon and its use as a provenance indicator. Geology 2000, 28, 627–630. [Google Scholar] [CrossRef]
  48. Yamamoto, S.; Komiya, T.; Yamamoto, H.; Kaneko, Y.; Terabayashi, M.; Katayama, I. Recycled crustal zircons from podiform chromitites in the Luobusa ophiolite, Southern Tibet. Isl. Arc 2013, 22, 89–103. [Google Scholar] [CrossRef]
  49. Zhang, L.; Zhu, J.J.; Xia, B.; Zhang, C.; Zhang, L.F. Metamorphism and Zircon Geochronological Studies of Metagabbro Vein in the Yushugou Granulite-Peridotite Complex from South Tianshan, China. J. Earth Sci. 2019, 30, 1215–1229. [Google Scholar] [CrossRef]
  50. Zhao, Y.; Zheng, J.P.; Xiong, Q. Zircon from Orogenic Peridotite: An Ideal Indicator for Mantle-Crust Interaction in Subduction Zones. J. Earth Sci. 2019, 30, 666–678. [Google Scholar] [CrossRef]
  51. Ferry, J.M.; Watson, E.B. New thermodynamic models and revised calibrations for the Ti-in-zircon and Zr-in-rutile thermometers. Contrib. Mineral. Petrol. 2007, 154, 429–437. [Google Scholar] [CrossRef]
  52. Xia, Q.X.; Zheng, Y.F.; Chen, Y.X. Protolith control on fluid availability for zircon growth during continental subduction-zone metamorphism in the dabie orogen. J. Asian Earth Sci. 2013, 67–68, 93–113. [Google Scholar] [CrossRef]
  53. Turner, S.; Hawkesworth, C.; Calsteren, P.; Heath, E.; Macdonald, R.; Black, S. U-series isotopes and destructive plate margin magma genesis in the Lesser Antilles. Earth Planet. Sci. Lett. 1996, 142, 191–207. [Google Scholar] [CrossRef]
  54. Schulz, B.; Klemd, R.; Bratz, H. Host rock compositional controls on zircon trace element signatures in metabasites from the austroalpine basement. Geochim. Cosmochim. Acta 2006, 70, 697–710. [Google Scholar] [CrossRef]
  55. Corfu, F.; Hanchar, J.M.; Hoskin, P.; Kinny, P. Atlas of zircon textures. Rev. Mineral. Geochem. 2003, 16, 469–500. [Google Scholar] [CrossRef]
  56. Pedersen, R.B.; Searle, M.T.; Corfield, R.I. U–Pb zircon ages from the Spontang ophiolite, Ladakh Himalaya. J. Geol. Soc. Lond. 2001, 158, 513–520. [Google Scholar] [CrossRef]
  57. Kang, Z.Q.; Xu, J.F.; Wilde, S.A.; Feng, Z.H.; Chen, J.L.; Wang, B.D.; Fu, W.C.; Pan, H.B. Geochronology and geochemistry of the Sangri Group Volcanic Rocks, Southern Lhasa Terrane: Implications for the early subduction history of the Neo-Tethys and Gangdese Magmatic Arc. Lithos 2014, 200, 157–168. [Google Scholar] [CrossRef]
  58. Huang, Y.; Deng, H. Geochemical Characteristics of Zoned Chromites in Peridotites from the Proterozoic Miaowan Ophiolitic Complex, Yangtze Craton: Implications for Element Mobility and Tectonic Setting. J. Earth Sci. 2020, 31, 223–236. [Google Scholar] [CrossRef]
Minerals 10 01085 g001 550
Figure 1. (a) Distribution map of the Transhimalayan batholith (modified after Ji et al. [18]); (b) Simplified geological map showing the location of the Jijal complex of the Kohistan island arc complex, northern Pakistan (after Burg et al. [1]); (c) Geological section of the Jijal mafic–ultramafic complex (modified after Burg et al. [21]).
Figure 1. (a) Distribution map of the Transhimalayan batholith (modified after Ji et al. [18]); (b) Simplified geological map showing the location of the Jijal complex of the Kohistan island arc complex, northern Pakistan (after Burg et al. [1]); (c) Geological section of the Jijal mafic–ultramafic complex (modified after Burg et al. [21]).
Minerals 10 01085 g001
Minerals 10 01085 g002 550

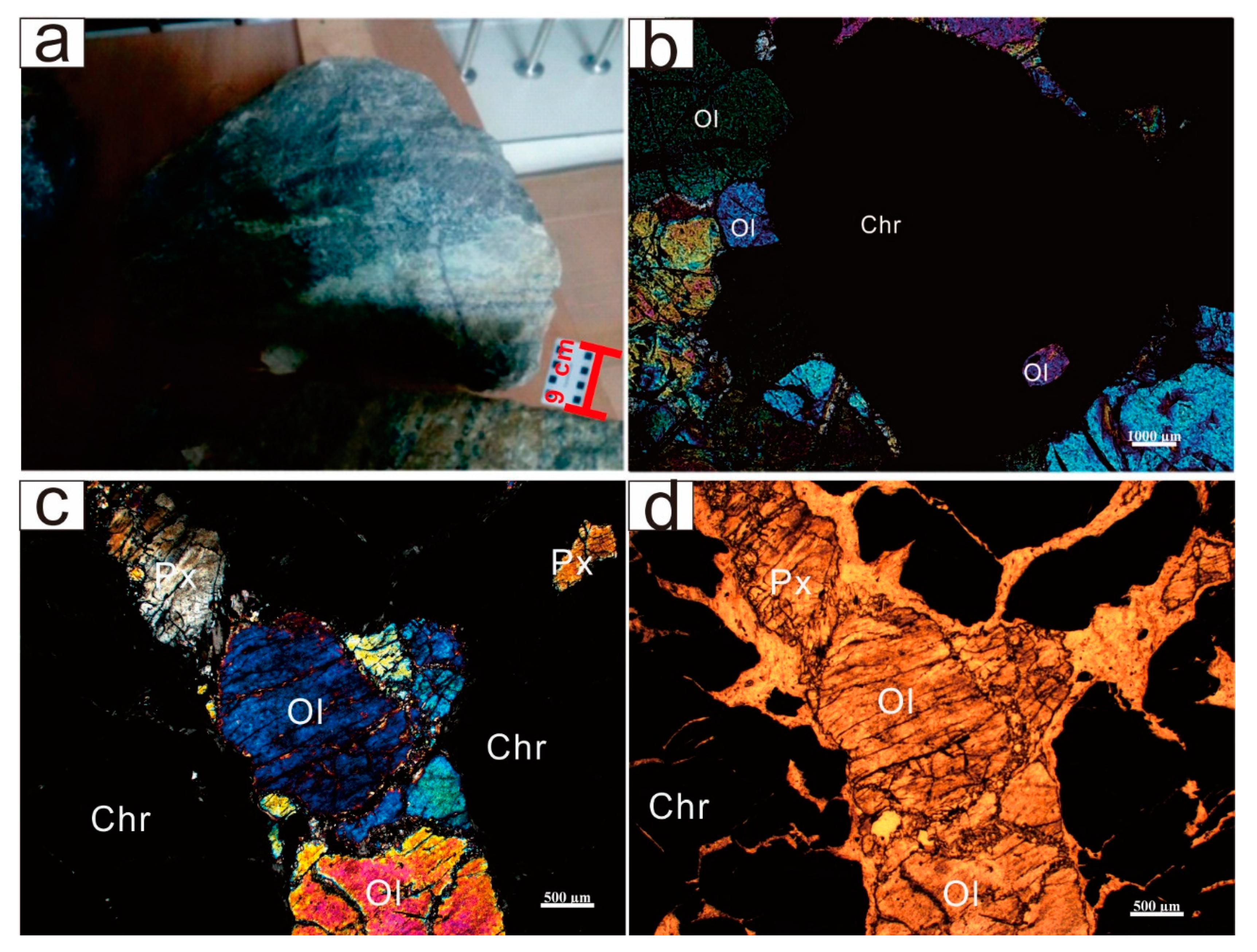

Figure 2. (a) Hand specimen of the chromitite, massive, black in color; (b) and (c) microphotograph in cross-polarized light of the chromitite, euhedral to subhedral chromite; (d) microphotograph in transmitted light of (c). Abbreviations: Chr = chromite; Ol = olivine; Px = pyroxene.
Figure 2. (a) Hand specimen of the chromitite, massive, black in color; (b) and (c) microphotograph in cross-polarized light of the chromitite, euhedral to subhedral chromite; (d) microphotograph in transmitted light of (c). Abbreviations: Chr = chromite; Ol = olivine; Px = pyroxene.
Minerals 10 01085 g002
Minerals 10 01085 g003 550
Figure 3. (a) Zircon U–Pb concordant diagram and representative cathodoluminescence images; (b) chondrite-normalized REE patterns of zircon grains (composition of chondrite according to Sun and McDonough [31]); (c) zircon Y versus U/Yb diagram (based on Grimes et al. [32]); (d) zircon U versus Th diagram (based on Grimes et al. [32] and Li et al. [13]).
Figure 3. (a) Zircon U–Pb concordant diagram and representative cathodoluminescence images; (b) chondrite-normalized REE patterns of zircon grains (composition of chondrite according to Sun and McDonough [31]); (c) zircon Y versus U/Yb diagram (based on Grimes et al. [32]); (d) zircon U versus Th diagram (based on Grimes et al. [32] and Li et al. [13]).
Minerals 10 01085 g003
Minerals 10 01085 g004 550
Figure 4. Zircon U–Pb age (Ma) versus εHf(t) value for zircon grains from the Jijal chromitite. Literature data for zircon εHf(t) values of the Kohistan (Jagoutz et al. [19] and reference therein) and south Gangdese [18,33] paleo-arcs are shown for comparison.
Figure 4. Zircon U–Pb age (Ma) versus εHf(t) value for zircon grains from the Jijal chromitite. Literature data for zircon εHf(t) values of the Kohistan (Jagoutz et al. [19] and reference therein) and south Gangdese [18,33] paleo-arcs are shown for comparison.
Minerals 10 01085 g004
Minerals 10 01085 g005 550
Figure 5. (a) Variations in chrome spinel Mg# versus Cr# (based on Xiong et al. [45]) and (b) spinel Cr# versus TiO2 (wt.%) diagrams. Literature data for the Jijal chromitite are from Arif and Jan [34].
Figure 5. (a) Variations in chrome spinel Mg# versus Cr# (based on Xiong et al. [45]) and (b) spinel Cr# versus TiO2 (wt.%) diagrams. Literature data for the Jijal chromitite are from Arif and Jan [34].
Minerals 10 01085 g005
Minerals 10 01085 g006 550
Figure 6. Hypotheses for the origin of Jurassic zircon grains within the chromitite of the Jijal complex. Hypothesis 1: The Jurassic Kohistan arc was formed during the Jurassic subduction of the Tethyan lithosphere, which was subducted into the mantle during the second stage subduction responsible for the origin of the Early Cretaceous Kohistan arc. The Jurassic zircon grains of crustal materials (i.e., granite) were recycled to the mantle source of the Early Cretaceous arc. Hypothesis 2: The Jurassic and Cretaceous Kohistan arcs were formed by the Jurassic and Cretaceous subduction of the Neo-Tethyan lithosphere, respectively, while the Jurassic arcs (mostly the lower part, as the upper counterparts are easily eroded) probably now underlay the Cretaceous arcs caused by their accretion to the Asian margin and subsequent Indian–Asian collision.
Figure 6. Hypotheses for the origin of Jurassic zircon grains within the chromitite of the Jijal complex. Hypothesis 1: The Jurassic Kohistan arc was formed during the Jurassic subduction of the Tethyan lithosphere, which was subducted into the mantle during the second stage subduction responsible for the origin of the Early Cretaceous Kohistan arc. The Jurassic zircon grains of crustal materials (i.e., granite) were recycled to the mantle source of the Early Cretaceous arc. Hypothesis 2: The Jurassic and Cretaceous Kohistan arcs were formed by the Jurassic and Cretaceous subduction of the Neo-Tethyan lithosphere, respectively, while the Jurassic arcs (mostly the lower part, as the upper counterparts are easily eroded) probably now underlay the Cretaceous arcs caused by their accretion to the Asian margin and subsequent Indian–Asian collision.
Minerals 10 01085 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ding, X.-L.; Ding, L.; Zhang, L.-Y.; Wang, C.; Yue, Y.-H. Identification and Origin of Jurassic (~182 Ma) Zircon Grains from Chromitite within the Peridotite of the Jijal Complex, Kohistan Arc in North Pakistan. Minerals 2020, 10, 1085. https://doi.org/10.3390/min10121085

AMA Style

Ding X-L, Ding L, Zhang L-Y, Wang C, Yue Y-H. Identification and Origin of Jurassic (~182 Ma) Zircon Grains from Chromitite within the Peridotite of the Jijal Complex, Kohistan Arc in North Pakistan. Minerals. 2020; 10(12):1085. https://doi.org/10.3390/min10121085

Chicago/Turabian Style

Ding, Xiang-Li, Lin Ding, Li-Yun Zhang, Chao Wang, and Ya-Hui Yue. 2020. "Identification and Origin of Jurassic (~182 Ma) Zircon Grains from Chromitite within the Peridotite of the Jijal Complex, Kohistan Arc in North Pakistan" Minerals 10, no. 12: 1085. https://doi.org/10.3390/min10121085

APA Style

Ding, X.-L., Ding, L., Zhang, L.-Y., Wang, C., & Yue, Y.-H. (2020). Identification and Origin of Jurassic (~182 Ma) Zircon Grains from Chromitite within the Peridotite of the Jijal Complex, Kohistan Arc in North Pakistan. Minerals, 10(12), 1085. https://doi.org/10.3390/min10121085

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
