# The Hyperbolic Ptolemy’s Theorem in the Poincaré Ball Model of Analytic Hyperbolic Geometry

## Abstract

**:**

## 1. Introduction

- (1)
- The vector addition admits scalar multiplication, giving rise to vector spaces which, in turn, form the algebraic setting for analytic Euclidean geometry. In full analogy,
- (2)
- The Einstein addition, which pertains to relativistically admissible velocities, also permits scalar multiplication, giving rise to Einstein gyrovector spaces, which, in turn, form the algebraic setting for the Klein ball model of analytic hyperbolic geometry [1,2,3,4,5]. Accordingly, the Klein model of hyperbolic geometry is also known as the relativistic model of hyperbolic geometry [6,7]. Furthermore, in full analogy,
- (3)

- (1)
- In [6], we presented the well-known proof of Ptolemy’s theorem in terms of the standard trigonometry of analytic Euclidean plane geometry. In particular, the associated law of cosines was employed.
- (2)
- In full analogy, in [6], we discovered the hyperbolic Ptolemy’s theorem in the Klein (relativistic) model of analytic hyperbolic plane geometry. The proof of the resulting hyperbolic Ptolemy’s theorem is obtained by means of the gyrotrigonometry that the Klein model of analytic hyperbolic geometry admits. In particular, the associated law of gyrocosines was employed.
- (3)
- In full analogy, in this article, we discover the hyperbolic Ptolemy’s theorem in the Poincaré ball model of analytic hyperbolic plane geometry. The proof of the resulting hyperbolic Ptolemy’s theorem is obtained by means of the gyrotrigonometry that the Poincaré model of analytic hyperbolic geometry admits. In particular, the associated law of gyrocosines is employed.

## 2. Möbius Addition and Scalar Multiplication

## 3. Gyrotrigonometry in Möbius Gyrovector Planes and Its Law of Gyrocosines

**Theorem**

**1**

**.**Let $ABC$ be a gyrotriangle in a Möbius gyrovector plane $({\mathbb{R}}_{s}^{n},\oplus ,\otimes )$ with vertices $A,B,C\in {\mathbb{R}}_{s}^{2}$, side gyrolengths $0<a,b,c<s$, and gyroangles $\alpha ,\phantom{\rule{3.33333pt}{0ex}}\beta ,\phantom{\rule{3.33333pt}{0ex}}\gamma $, as shown in Figure 2. Then, the gyrosides and gyroangles of the gyrotriangle satisfy the law of gyrocosines

## 4. Ptolemy’s theorem in the Poincaré Ball Model of Hyperbolic Geometry

**Theorem**

**2**

**.**Let $ABCD$ be a gyrocyclic gyroquadrilateral, shown in Figure 3. Then, the product of the g-modified gyrodiagonals equals the sum of the products of the g-modified opposite gyrosides; that is

## 5. Gyrodiametric Gyrotriangles

**Definition**

**1.**

**Definition**

**2.**

**Theorem**

**3**

**.**Let $ABC$ be a gyrodiametric gyrotriangle in a Möbius gyrovector space $({\mathbb{R}}_{s}^{n},\oplus ,\otimes )$, where $AC$ is the gyrodiametric gyroside. Then, the gyrotriangle gyrosides obey the Pythagorean-like equation

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Ungar, A.A. A Gyrovector Space Approach to Hyperbolic Geometry; Morgan & Claypool Pub.: San Rafael, CA, USA, 2009. [Google Scholar]
- Ungar, A.A. Analytic Hyperbolic Geometry: Mathematical Foundations And Applications; World Scientific Publishing Co. Pte. Ltd.: Hackensack, NJ, USA, 2005. [Google Scholar]
- Ungar, A.A. Analytic Hyperbolic Geometry and Albert Einstein’s Special Theory of Relativity, 2nd ed.; World Scientific Publishing Co. Pte. Ltd.: Hackensack, NJ, USA, 2022. [Google Scholar]
- Ungar, A.A. Gyrovector spaces and their differential geometry. Nonlinear Funct. Anal. Appl.
**2005**, 10, 791–834. [Google Scholar] - Ungar, A.A. Hyperbolic Triangle Centers: The Special Relativistic Approach; Springer: New York, NY, USA, 2010. [Google Scholar]
- Ungar, A.A. Ptolemy’s theorem in the relativistic model of analytic hyperbolic geometry. Symmetry
**2023**, 15, 649. [Google Scholar] [CrossRef] - Ungar, A.A. Hyperbolic trigonometry in the Einstein relativistic velocity model of hyperbolic geometry. Comput. Math. Appl.
**2000**, 40, 313–332. [Google Scholar] - Ungar, A.A. From Möbius to gyrogroups. Amer. Math. Mon.
**2008**, 115, 138–144. [Google Scholar] [CrossRef] - Suksumran, T. The algebra of gyrogroups: Cayley’s theorem, Lagrange’s theorem and isomorphism theorems. In Essays in Mathematics and Its Applications: In Honor of Vladimir Arnold; Rassias, T.M., Pardalos, P.M., Eds.; Springer: New York, NY, USA, 2016; pp. 369–437. [Google Scholar]
- Ferreira, M. Factorizations of Möbius gyrogroups. Adv. Appl. Clifford Algebr.
**2009**, 19, 303–323. [Google Scholar] [CrossRef] [Green Version] - Ferreira, M.; Ren, G. Möbius gyrogroups: A Clifford algebra approach. J. Algebra
**2011**, 328, 230–253. [Google Scholar] - Ferreira, M. Gyrogroups in projective hyperbolic Clifford analysis. In Hypercomplex Analysis and Applications; Trends Math.; Birkhäuser/Springer: Basel, Switzerland, 2011; pp. 61–80. [Google Scholar]
- Ferreira, M. Harmonic analysis on the Einstein gyrogroup. J. Geom. Symmetry Phys.
**2014**, 35, 21–60. [Google Scholar] - Ferreira, M. Harmonic Analysis on the Möbius Gyrogroup. J. Fourier Anal. Appl.
**2015**, 21, 281–317. [Google Scholar] [CrossRef] [Green Version] - Ferreira, M. Harmonic analysis on the proper velocity gyrogroup. Banach J. Math. Anal.
**2017**, 11, 21–49. [Google Scholar] - Ferreira, M.; Suksumran, T. Orthogonal gyrodecompositions of real inner product gyrogroups. Symmetry
**2020**, 12, 941. [Google Scholar] - Ferreira, M. Gyroharmonic analysis on relativistic gyrogroups. Math. Interdiscip. Res.
**2016**, 1, 69–109. [Google Scholar] - Honma, T.; Hatori, O. A gyrogeometric mean in the einstein gyrogroup. Symmetry
**2020**, 12, 1333. [Google Scholar] - Wattanapan, J.; Atiponrat, W.; Suksumran, T. Embedding of strongly topological gyrogroups in path-connected and locally path-connected gyrogroups. Symmetry
**2020**, 12, 1817. [Google Scholar] - Suksumran, T. On metric structures of normed gyrogroups. In Mathematical Analysis and Applications; Springer: Cham, Switzerland, 2019; Volume 154, pp. 529–542. [Google Scholar]
- Suksumran, T. Two theorems on direct products of gyrogroups. AIMS Math.
**2023**, 8, 6278–6287. [Google Scholar] - Suksumran, T. On Schreier graphs of gyrogroup actions. J. Pure Appl. Algebra
**2022**, 226, 107134. [Google Scholar] - Mahdavi, S.; Ashrafi, A.R.; Salahshour, M.A. Normal subgyrogroups of certain gyrogroups. Quasigroups Relat. Syst.
**2022**, 30, 115–122. [Google Scholar] - Li, P.; Shen, R. On topological gyrogroups. Filomat
**2023**, 37, 5087–5093. [Google Scholar] - Zhang, J.; Liang, Q. Extensions of some topological properties in topological gyrogroups. Topol. Appl.
**2022**, 322, 108328. [Google Scholar] - Lal, R.; Kakkar, V. Gyrogroups associated with groups. Comm. Algebra
**2022**, 50, 524–537. [Google Scholar] - Bao, M.; Lin, F. Feathered gyrogroups and gyrogroups with countable pseudocharacter. Filomat
**2019**, 33, 5113–5124. [Google Scholar] - Bao, M.; Lin, F. Submetrizability of strongly topological gyrogroups. Houst. J. Math.
**2021**, 47, 427–443. [Google Scholar] - Kim, S. Ordered gyrovector spaces. Symmetry
**2020**, 12, 1041. [Google Scholar] [CrossRef] - Kim, S. Distributivity on the gyrovector spaces. Kyungpook Math. J.
**2015**, 55, 13–20. [Google Scholar] [CrossRef] [Green Version] - Kim, S. Gyrovector spaces on the open convex cone of positive definite matrices. Math. Interdisc. Res.
**2016**, 1, 173–185. [Google Scholar] - Watanabe, K. A confirmation by hand calculation that the Möbius ball is a gyrovector space. Nihonkai Math. J.
**2016**, 27, 99–115. [Google Scholar] - Watanabe, K. Orthogonal gyroexpansion in Möbius gyrovector spaces. J. Funct. Spaces
**2017**, 13, 1518254. [Google Scholar] [CrossRef] [Green Version] - Watanabe, K. Continuous quasi gyrolinear functionals on möbius gyrovector spaces. J. Funct. Spaces
**2020**, 2020, 1950727. [Google Scholar] [CrossRef] - Watanabe, K. On quasi gyrolinear maps between möbius gyrovector spaces induced from finite matrices. Symmetry
**2021**, 13, 76. [Google Scholar] [CrossRef] - Abe, T.; Watanabe, K. Finitely generated gyrovector subspaces and orthogonal gyrodecomposition in the Möbius gyrovector space. J. Math. Anal. Appl.
**2017**, 449, 77–90. [Google Scholar] [CrossRef] - Abe, T.; Hatori, O. Generalized gyrovector spaces and a Mazur-Ulam theorem. Publ. Math. Debr.
**2015**, 87, 393–413. [Google Scholar] [CrossRef] - Hatori, O. Extension of isometries in generalized gyrovector spaces of the positive cones. In Problems and Recent Methods in Operator Theory; American Mathematical Society: Providence, RI, USA, 2017; Volume 687, pp. 145–156. [Google Scholar]
- Hatori, O. Examples and applications of generalized gyrovector spaces. Results Math.
**2017**, 71, 295–317. [Google Scholar] - Demirel, O. The first sharp gyrotriangle inequality in Möbius gyrovector space (D,⊕,⊗). Forum Geom.
**2017**, 17, 439–447. [Google Scholar]

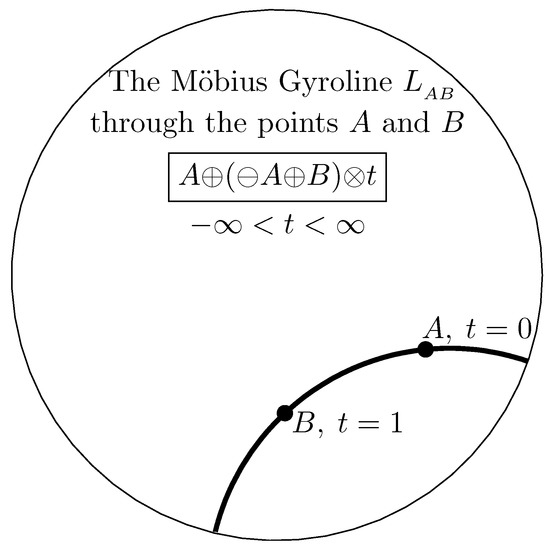

**Figure 1.**In the gyroformalism of analytic hyperbolic geometry, expressions that describe hyperbolic geometric objects take graceful forms analogous to their Euclidean counterparts. This is illustrated here, where the unique gyroline in a Möbius gyrovector plane $({\mathbb{R}}_{s}^{2},\oplus ,\otimes )$ through two given points $A,B\in {\mathbb{R}}_{s}^{2}$ is shown. When the gyroline parameter $t\phantom{\rule{-2.84544pt}{0ex}}\in \phantom{\rule{-2.84544pt}{0ex}}\mathbb{R}$ runs from $-\infty $ to ∞, the point $P\left(t\right)=A\oplus (\ominus A\oplus B)\otimes t$ runs over the gyroline ${L}_{{}_{AB}}$. In particular, at “time” $t=0$, the point is at $P\left(0\right)=A$, and, owing to the left cancellation law of Möbius addition, at “time” $t=1$, the point is at $P\left(1\right)=B$. The Möbius gyroline equation is shown in the box. The analogies it shares with the Euclidean straight line equation in the vector space approach and Euclidean geometry are obvious.

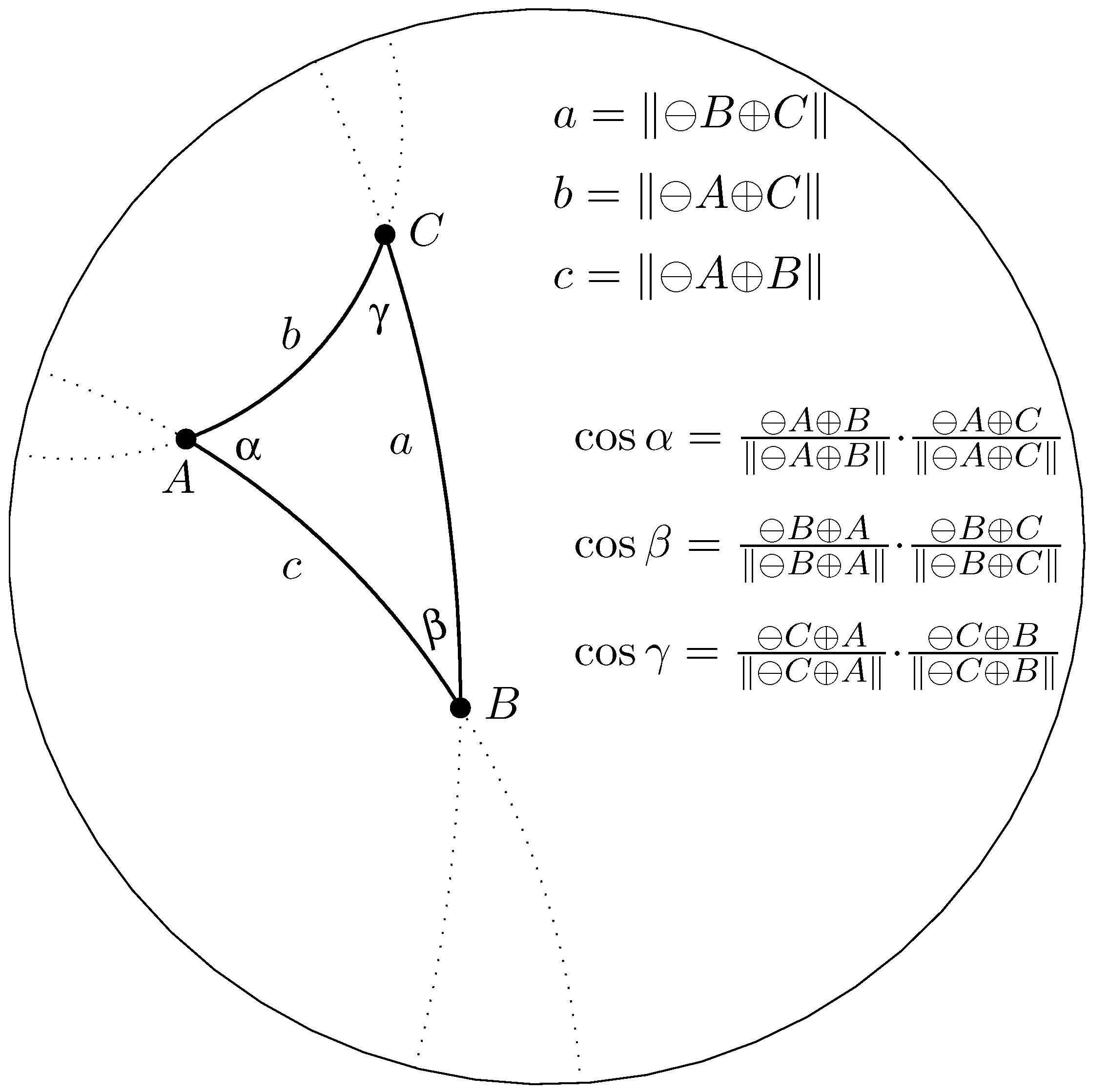

**Figure 2.**A gyrotriangle $ABC$ in the Möbius gyrovector plane $({\mathbb{R}}_{s}^{2},\oplus ,\otimes )$, along with its (i) gyrovertices $A,B,C$, (ii) gyroside gyrolengths $a,b,c$, and (iii) gyroangles $\alpha $, $\beta $, $\gamma $ and their gyrocosines.

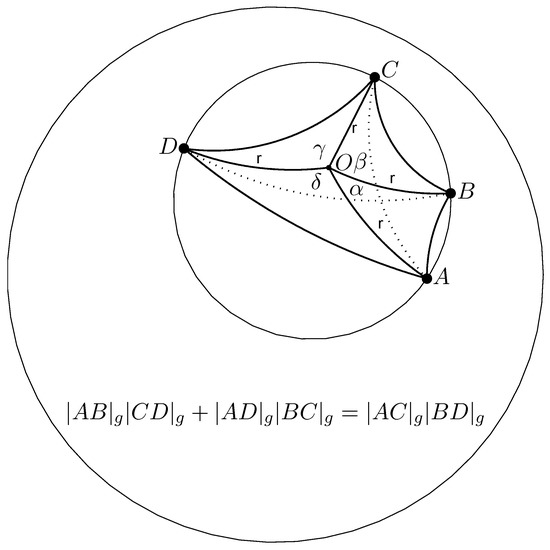

**Figure 3.**Ptolemy’s theorem in the hyperbolic plane regulated by the Möbius gyrovector plane $({\mathbb{R}}_{s}^{2},\oplus ,\otimes )$. A gyrocyclic gyroquadrilateral $ABCD$ inscribed in its circumgyrocircle gyrocentered at its circumgyrocenter O, with gyroradius $r=\parallel \ominus O\oplus A\parallel =\parallel \ominus O\oplus B\parallel =\parallel \ominus O\oplus C\parallel =\parallel \ominus O\oplus D\parallel $ is shown. The O-gyrovertex gyroangles $\alpha $, $\beta $, $\gamma $, and $\delta $ satisfy the following equation: $\alpha +\beta +\gamma +\delta =2\pi $. The Hyperbolic Ptolemy’s theorem is fully analogous to its Euclidean counterpart, asserting that ${\left|AB\right|}_{g}{\left|CD\right|}_{g}+{\left|AD\right|}_{g}{\left|BC\right|}_{g}={\left|AC\right|}_{g}{\left|BD\right|}_{g}$, where ${\left|AB\right|}_{g}$, ect., is defined by (20) along with (6).

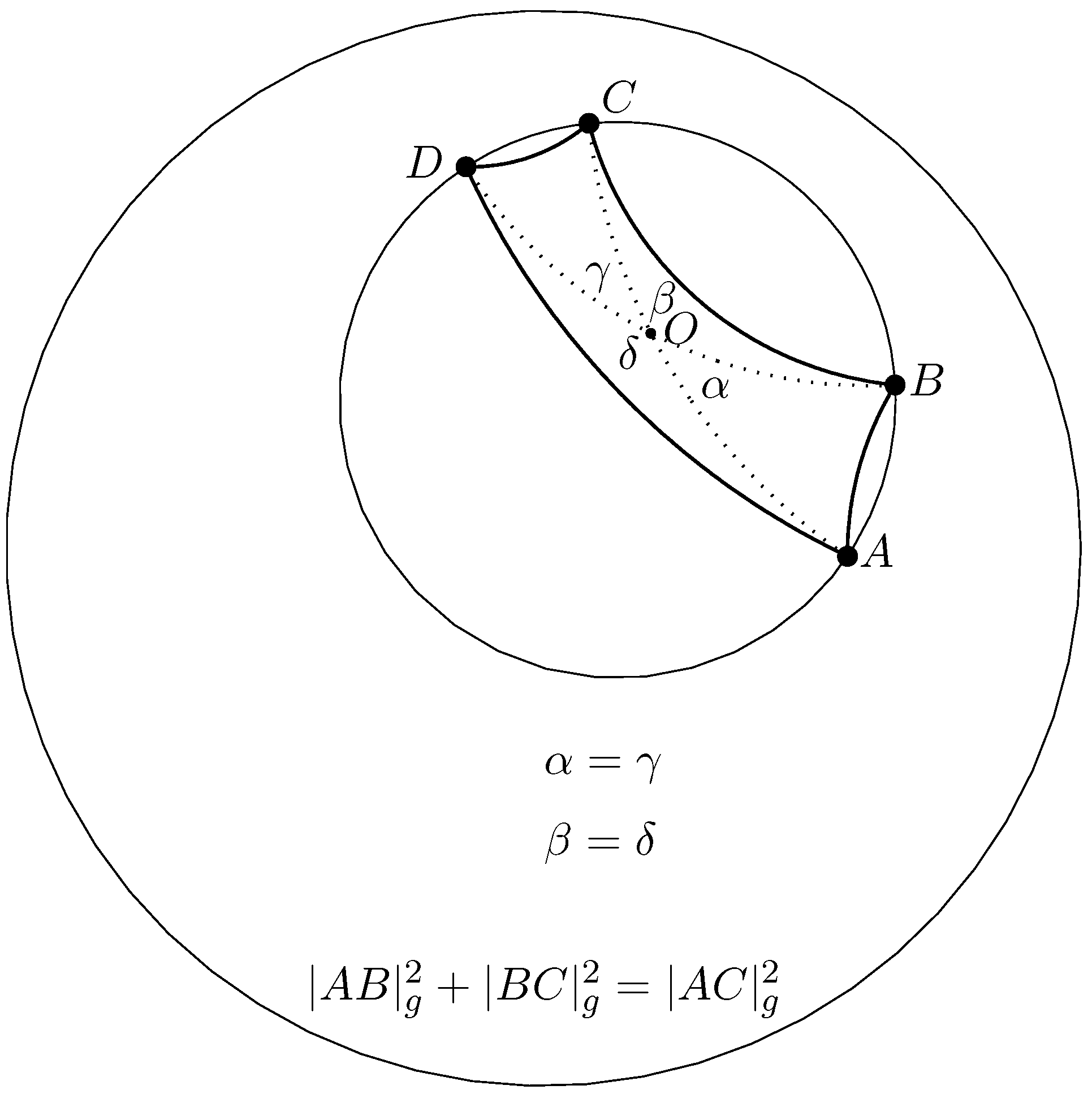

**Figure 4.**A gyrodiametric gyroquadrilateral in a Möbius gyrovector plane. The gyrocyclic gyroquadrilateral $ABCD$ of Figure 3 is depicted here in the special position where the two gyrodiagonals, $AC$ and $BD$, intersect at the gyroquadrilateral circumgyrocenter O, resulting in the two gyrodiametric gyrotriangles, $ABC$ and $ADC$. The common gyroside, $AC$, of these gyrotriangles is a gyrodiameter of the gyroquadrilateral circumgyrocircle. The Pythagorean-like formula that the g-modified gyroside gyrolengths of a gyrodiametric gyrotriangle obey in the Poincaré ball model of hyperbolic geometry is shown.
