Construction of Solitary Wave Solutions to the (3 + 1)-Dimensional Nonlinear Extended and Modified Quantum Zakharov–Kuznetsov Equations Arising in Quantum Plasma Physics

Abstract

Several types of solitary wave solutions of (3 + 1)-dimensional nonlinear extended and modified quantum Zakharov–Kuznetsov equations are established successfully via the implantation of three mathematical methods. The concerned models have many fruitful applications to describe the waves in quantum electron–positron–ion magnetoplasmas and weakly nonlinear ion-acoustic waves in plasma. The derived results via the MEAEM method, ESE method, and modified F-expansion have been retrieved and will be expedient in the future to illuminate the collaboration between lower nonlinear ion-acoustic waves. For the physical behavior of the models, some solutions are plotted graphically in 2D and 3D by imparting particular values to the parameters under the given condition at each solution. Hence explored solutions have profitable rewards in the field of mathematical physics.

1. Introduction

A developing concentration has been engrossed in the research of analytical and numerical solutions of nonlinear evolutions equations (NLEEs) during the previous eras [1,2,3,4,5,6]. NLEEs are used to demonstrate phenomena in dissimilar fields of science and engineering such as optic fibers, plasmas, biology, fluid mechanics, acoustics, and numerous others [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. Exact and solitary wave solutions of NLEEs were made possible with the initiation of the selection of mathematical tools [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. Currently, diverse categories of nonlinear evolution equations were developed using a powerful reductive perturbation technique or a multiscale analysis [32,33,34,35]. Further specifically, the exploration of exact solutions called soliton-like solutions has advanced quickly today, which is one of the significant topics of nonlinear science. Solitons have enormous features because of their stuff (stability, robustness, and the ability to preserve their velocity and shape after interaction) [18,19,20,21,22], and they occur in various forms such as bright, dark, kink, pulses, breather, and so on. Furthermore, lately, novel forms of bright and dark solitons known as W-shape and M-shape have been exposed. A similar number of works have been approved to show the relevance of these results [36,37,38,39,40]. However, searching for the exact traveling wave solutions still poses a problem at times due to not all the known methods can be applied to NLEEs. In this current research, we explore solitary wave solutions by applying three mathematical methods, modified extended auxiliary equation mapping method, extended simple equation method, and modified F-expansion method [41,42]. The derived solutions have great potential to handle nonlinear problems in mathematical physics.

The article is arranged as follows: Section 2 is a survey of the proposed schemes. Section 3 is an implementation of the presented methods to concern models. The obtained solitary wave solutions to the (3 + 1)-Dimensional nonlinear extended and modified quantum Zakharov–Kuznetsov equations are given in Section 4. Section 5 gives the results and summary of the work.

2. Description of the Methods

Let the NPDE has a form as

$$E\left(U,U_t,U_x,U_{xx},U_{xt},\dots \right)=0.$$

(1)

Let

$$U=U\left(\xi \right),\xi =kx-\omega t.$$

(2)

Substitute (2) in (1),

$$F\left(U,U^{\prime },U^{″},\dots \right)=0.$$

(3)

2.1. Modified Extended Auxiliary Equation Mapping Method

Suppose the solution of (3) is,

$$U=\sum _{i=0}^N{A}_i{\mathsf{\Psi }}^i+\sum _{i=-1}^{-N}{B}_{-i}{\mathsf{\Psi }}^i+\sum _{i=2}^N{C}_i{\mathsf{\Psi }}^{i-2}{\mathsf{\Psi }}^{{}^{\prime }}+\sum _{i=1}^N{D}_i{\left(\frac{{\mathsf{\Psi }}^{{}^{\prime }}}{\mathsf{\Psi }}\right)}^i.$$

(4)

Let $\mathsf{\Psi }$ satisfy,

$${\Psi }^{\prime }=\sqrt{{\beta }_1{\Psi }^2+{\beta }_2{\Psi }^3+{\beta }_3{\Psi }^4}.$$

(5)

Put (4) with (5) in (3), we found the solution of (1).

2.2. Extended Simple Equation Method

Let (3) has solution,

$$U\left(\xi \right)=\sum _{i=-N}^N{A}_i{\Psi }^i\left(\xi \right).$$

(6)

Let $\Psi$ satisfy,

$${\Psi }^{\prime }=c_0+c_1\Psi +c_2{\Psi }^2+c_3{\Psi }^3.$$

(7)

Put (6) with (7) in (3). We get the solution of (1).

2.3. Modified F-Expansion Method

Suppose the solution of (3) is:

$$U=a_0+\sum _{i=1}^N{a}_i{F}^i\left(\xi \right)+\sum _{i=1}^N{b}_i{F}^{-i}\left(\xi \right).$$

(8)

Let F obliges,

$$F^{\prime }=A+BF+C{F}^2.$$

(9)

Put (8) with (9) in (3). Solve obtained system to establish the required solution of (1).

3. (3 + 1)-Dimensional Nonlinear Extended Quantum Zakharov–Kuznetsov (NLEQZK) Equation

Let NLEQZK equation [36,38,39].

$$\begin{array}{c}\hfill \frac{\partial U}{\partial t}+\left(\mathrm{PU}+{\mathrm{QU}}^2\right)\frac{\partial U}{\partial z}+R\frac{{}_{{\partial }^{3}U}}{\partial z^3}+S\frac{\partial }{\partial z}\left(\frac{{}_{{\partial }^2}}{\partial x^2}+\frac{{}_{{\partial }^2}}{\partial y^2}\right)U=0.\end{array}$$

(10)

The (3 + 1)-dimensional NLEQZK model has fruitful applications to handle the quantum electron-positron-ion magneto-plasmas, warm ions, and hot isothermal electrons in the existence of a uniform magnetic field.

Let wave transformations,

$$\begin{array}{c}\hfill U(x,y,z,t)=U\left(\xi \right),\xi =\alpha x+\beta y+\gamma z-\omega t.\end{array}$$

(11)

Put (11) in (10), after integrating and omitting the integral constant, we have

$$\begin{array}{c}\hfill \frac{1}{2}\gamma P{U}^2+\frac{1}{3}\gamma Q{U}^3+U^{″}\left({\gamma }^{3}R+\gamma S\left({\alpha }^2+{\beta }^2\right)\right)-U\omega =0.\end{array}$$

(12)

3.1. Application of Modified Extended Auxiliary Equation Mapping Method

Let solution of (12) is,

$$U=A_1\mathsf{\Psi }+A_0+\frac{B_1}{\mathsf{\Psi }}+\frac{D_1{\mathsf{\Psi }}^{\prime }}{\mathsf{\Psi }}.$$

(13)

Put (13) with (5) in (12), we obtained the coefficients of solutions as following

$$\begin{array}{cc}\hfill & A_0=-\frac{P}{2Q},A_1=\frac{\sqrt{{\beta }_3}P}{2\sqrt{{\beta }_1}Q},B_1=0,D_1=\frac{P}{2\sqrt{{\beta }_1}Q},\omega =-\frac{\gamma P^2}{6Q},\hfill \\ & \alpha =\frac{\sqrt{-P^2-6{\beta }_1{\gamma }^{2}QR-6{\beta }^2{\beta }_{1}QS}}{\sqrt{6}\sqrt{{\beta }_1}\sqrt{Q}\sqrt{S}}.\hfill \end{array}$$

(14)

Substitute (14) in (13), we found the solutions of Equation (10)

CASE I:

$$\begin{array}{cc}\hfill U_1=& -\left(\frac{\left(\sqrt{{\beta }_3}P\right)\left({\beta }_1\left(ϵcoth\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+1\right)\right)}{{\beta }_2\left(2\sqrt{{\beta }_1}Q\right)}\right)+\left(\frac{P\left({\beta }_1^{3/2}ϵ{\csc \mathrm{h}}^2\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)\right)}{\frac{\left(2\sqrt{{\beta }_1}Q\right)\left(\left(2{\beta }_2\right)\left(-{\beta }_1\left(ϵcoth\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+1\right)\right)\right)}{{\beta }_2}}\right)\hfill \\ & -\left(\frac{P}{2Q}\right),{\beta }_1>0,{\beta }_2^2-4{\beta }_1{\beta }_3=0.\hfill \end{array}$$

(15)

CASE II:

$$\begin{array}{cc}\hfill U_2=& -\left(\frac{P\left(\sqrt{\frac{{\beta }_1}{{\beta }_3}}\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }-\frac{\sqrt{{\beta }_1}ϵ{sinh}^2\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \right)}^2}\right)\right)}{\left(2\sqrt{{\beta }_1}Q\right)\left(2\left(-\sqrt{\frac{{\beta }_1}{4{\beta }_3}}\left(\frac{ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }+1\right)\right)\right)}\right)-\left(\frac{\left(\sqrt{{\beta }_3}P\right)\left(\sqrt{\frac{{\beta }_1}{4{\beta }_3}}\left(\frac{ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }+1\right)\right)}{2\sqrt{{\beta }_1}Q}\right)\hfill \\ & -\left(\frac{P}{2Q}\right),{\beta }_1>0,{\beta }_3>0,{\beta }_2={\left(4{\beta }_1{\beta }_3\right)}^{1/2}.\hfill \end{array}$$

(16)

CASE III:

$$\begin{array}{cc}\hfill U_3=& \left(\frac{P\left(-\left({\beta }_1\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}-\frac{\sqrt{{\beta }_1}ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}\right)}^2}\right)\right)\right)}{\frac{\left(2\sqrt{{\beta }_1}Q\right)\left({\beta }_2\left(-{\beta }_1\left(\frac{ϵ\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}+1\right)\right)\right)}{{\beta }_2}}\right)-\left(\frac{P}{2Q}\right)+\hfill \\ & \left(\frac{\frac{\sqrt{{\beta }_3}P}{2\sqrt{{\beta }_1}Q}\left(-{\beta }_1\left(\frac{ϵ\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}+1\right)\right)}{{\beta }_2}\right),{\beta }_1>0.\hfill \end{array}$$

(17)

Some solutions are plotted graphically in 2-dimensional and 3-dimensional by imparting particular value to the parameters under the constrain condition on each disquiet solution (Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11).

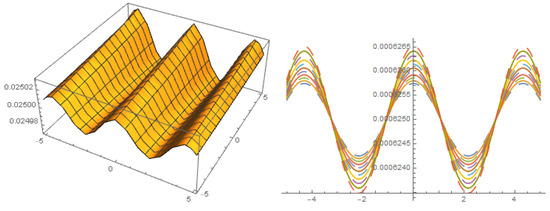

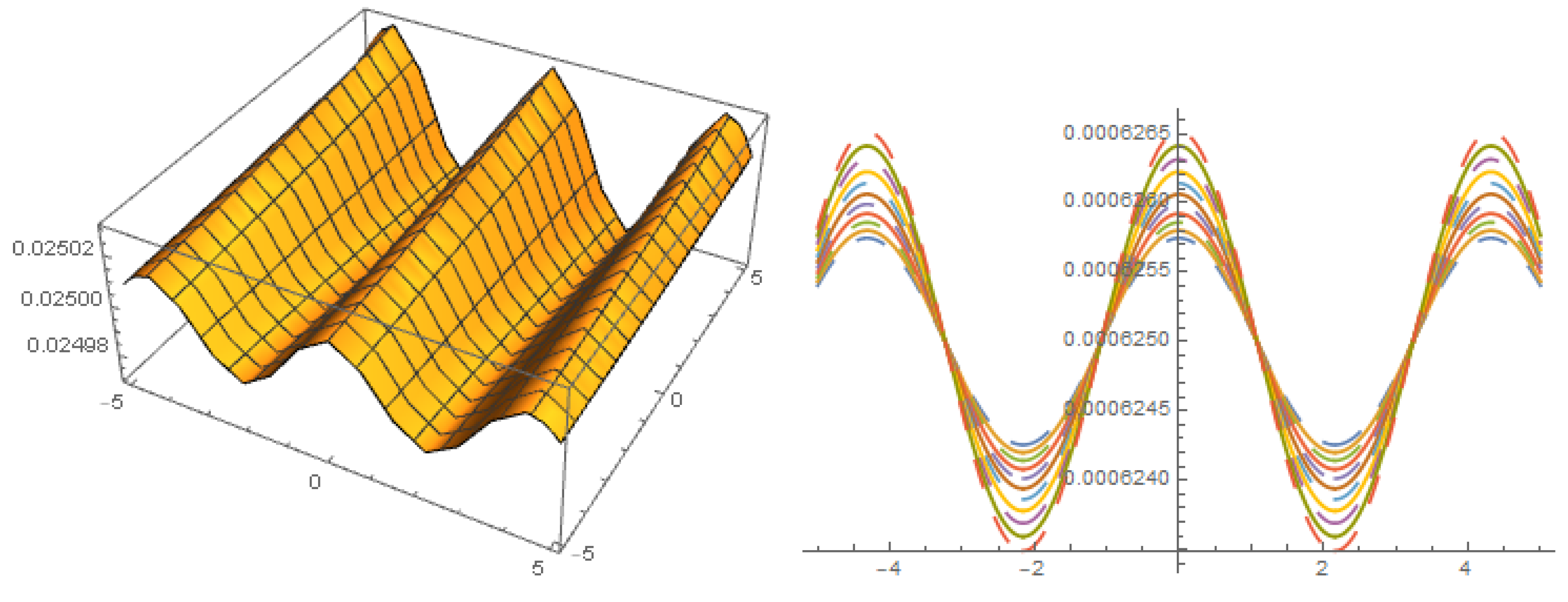

Figure 1. The profile of solution $U_1$ with ${\beta }_1=2,{\beta }_2=-4,{\beta }_3=2,\beta =-0.5,\gamma =4.5,{\xi }_0=-4,$ $P=0.05,Q=2,R=0.1, S=2.5,\omega =0.05,y=1,z=1,ϵ=-1$.

3.2. Application of Extended Simple Equation Method

Let solution of (12) is

$$U=A_1\mathsf{\Psi }+\frac{A_{-1}}{\mathsf{\Psi }}+A_0.$$

(18)

Put (18) with (7) in (12), we derived the coefficients as following

CASE 1: $c_3=0$,

FAMILY-I

$$\begin{array}{cc}\hfill & A_{-1}=0,A_1=-\frac{c_{2}P}{\sqrt{c_1^2{Q}^2-4c_0{c}_2{Q}^2}},A_0=\frac{-\frac{c_{1}PQ}{\sqrt{\left(c_1^2-4c_0{c}_2\right)Q^2}}-P}{2Q},\omega =-\frac{\gamma P^2}{6Q},\hfill \\ & \alpha =-\frac{\sqrt{-6{\gamma }^2{c}_1^{2}QR+24{\gamma }^2{c}_0{c}_{2}QR-6{\beta }^2{c}_1^{2}QS+24{\beta }^2{c}_0{c}_{2}QS-P^2}}{\sqrt{6c_1^{2}QS-24c_0{c}_{2}QS}}.\hfill \end{array}$$

(19)

Put (19) in (18),

$$\begin{array}{cc}\hfill U_4=& \left(\frac{\left(c_{2}P\right)\left(c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)\right)}{\left(2c_2\right)\sqrt{c_1^2{Q}^2-4c_0{c}_2{Q}^2}}\right)+\left(\frac{P\left(-\frac{c_{1}Q}{\sqrt{\left(c_1^2-4c_0{c}_2\right)Q^2}}-1\right)}{2Q}\right),\hfill \\ & 4c_0{c}_2>c_1^2.\hfill \end{array}$$

(20)

FAMILY-II

$$\begin{array}{cc}\hfill & A_{-1}=-\frac{c_{0}P}{\sqrt{c_1^2{Q}^2-4c_0{c}_2{Q}^2}},A_1=0,A_0=\frac{-\frac{c_{1}PQ}{\sqrt{\left(c_1^2-4c_0{c}_2\right)Q^2}}-P}{2Q},\omega =-\frac{\gamma P^2}{6Q},\hfill \\ & \alpha =-\frac{\sqrt{-6{\gamma }^2{c}_1^{2}QR+24{\gamma }^2{c}_0{c}_{2}QR-6{\beta }^2{c}_1^{2}QS+24{\beta }^2{c}_0{c}_{2}QS-P^2}}{\sqrt{6c_1^{2}QS-24c_0{c}_{2}QS}}.\hfill \end{array}$$

(21)

Substitute (21) in (18),

$$\begin{array}{cc}\hfill U_5=& \left(\frac{-\frac{c_{1}PQ}{\sqrt{\left(c_1^2-4c_0{c}_2\right)Q^2}}-P}{2Q}\right)-\left(\frac{c_{0}P}{\frac{\sqrt{c_1^2{Q}^2-4c_0{c}_2{Q}^2}\left(c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)\right)}{2c_2}}\right),\hfill \\ & 4c_0{c}_2>c_1^2.\hfill \end{array}$$

(22)

CASE 2:$c_0=0,c_3=0$,

$$A_{-1}=0,A_1=-\frac{c_{2}P}{c_{1}Q},A_0=-\frac{P}{Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-6{\gamma }^2{c}_1^{2}QR-6{\beta }^2{c}_1^{2}QS-P^2}}{\sqrt{6}{c}_1\sqrt{Q}\sqrt{S}}.$$

(23)

Put (23) in (18),

$$U_6=-\left(\frac{\left(c_{2}P\right)\left(c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)\right)}{\left(c_{1}Q\right)\left(1-c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)\right)}\right)-\left(\frac{P}{Q}\right),c_1>0,$$

(24)

$$U_7=\left(\frac{\left(c_{2}P\right)\left(c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)\right)}{\left(c_{1}Q\right)\left(c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)+1\right)}\right)-\left(\frac{P}{Q}\right),c_1<0.$$

(25)

CASE 3:$c_1=0,c_3=0$,

FAMILY-I

$$\begin{array}{c}\hfill A_{-1}=0,A_1=\frac{i\sqrt{c_2}P}{2\sqrt{c_0}Q},A_0=-\frac{P}{2Q},\alpha =\frac{\sqrt{-24{\gamma }^2{c}_0{c}_{2}QR-24{\beta }^2{c}_0{c}_{2}QS+P^2}}{2\sqrt{6}\sqrt{c_0}\sqrt{c_2}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.\end{array}$$

(26)

Put (26) in (18),

$$\begin{array}{c}\hfill U_8=-\left(\frac{P}{2Q}\right)+\left(\frac{\left(i\sqrt{c_2}P\right)\left(\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2\left(2\sqrt{c_0}Q\right)}\right),c_0{c}_2>0,\end{array}$$

(27)

$$\begin{array}{c}\hfill U_9=-\left(\frac{P}{2Q}\right)+\left(\frac{\left(i\sqrt{c_2}P\right)\left(\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2\left(2\sqrt{c_0}Q\right)}\right),c_0{c}_2<0.\end{array}$$

(28)

FAMILY-II

$$\begin{array}{c}\hfill A_{-1}=\frac{i\sqrt{c_0}P}{2\sqrt{c_2}Q},A_1=0,A_0=-\frac{P}{2Q},\alpha =-\frac{\sqrt{-24{\gamma }^2{c}_0{c}_{2}QR-24{\beta }^2{c}_0{c}_{2}QS+P^2}}{2\sqrt{6}\sqrt{c_0}\sqrt{c_2}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.\end{array}$$

(29)

Put (29) in (18),

$$\begin{array}{c}\hfill U_{10}=-\left(\frac{P}{2Q}\right)+\left(\frac{i\sqrt{c_0}P}{\frac{\left(2\sqrt{c_2}Q\right)\left(\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2}}\right),c_0{c}_2>0,\end{array}$$

(30)

$$\begin{array}{c}\hfill U_{11}=-\left(\frac{P}{2Q}\right)+\left(\frac{i\sqrt{c_0}P}{\frac{\left(2\sqrt{c_2}Q\right)\left(\left(i\sqrt{c_2}P\right)\left(\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)\right)}{c_2\left(2\sqrt{c_0}Q\right)}})\right),c_0{c}_2<0.\end{array}$$

(31)

FAMILY-III

$$\begin{array}{cc}\hfill & A_{-1}=\frac{\sqrt{c_0}P}{2\sqrt{2}\sqrt{c_2}Q},A_1=\frac{\sqrt{c_2}P}{2\sqrt{2}\sqrt{c_0}Q},A_0=-\frac{P}{2Q},\hfill \\ & \alpha =\frac{\sqrt{-48{\gamma }^2{c}_0{c}_{2}QR-48{\beta }^2{c}_0{c}_{2}QS-P^2}}{4\sqrt{3}\sqrt{c_0}\sqrt{c_2}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.\hfill \end{array}$$

(32)

Put (32) in (18),

$$\begin{array}{cc}\hfill U_{12}=& \left(\frac{\left(\sqrt{c_2}P\right)\left(\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2\left(2\sqrt{2}\sqrt{c_0}Q\right)}\right)+\left(\frac{\sqrt{c_0}P}{\frac{\left(2\sqrt{2}\sqrt{c_2}Q\right)\left(\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2}}\right)-\left(\frac{P}{2Q}\right),\hfill \\ & c_0{c}_2>0,\hfill \end{array}$$

(33)

$$\begin{array}{cc}\hfill U_{13}=& \left(\frac{\left(\sqrt{c_2}P\right)\left(\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2\left(2\sqrt{2}\sqrt{c_0}Q\right)}\right)+\left(\frac{\sqrt{c_0}P}{\frac{\left(2\sqrt{2}\sqrt{c_2}Q\right)\left(\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)\right)}{c_2}}\right)-\left(\frac{P}{2Q}\right),\hfill \\ & c_0{c}_2<0.\hfill \end{array}$$

(34)

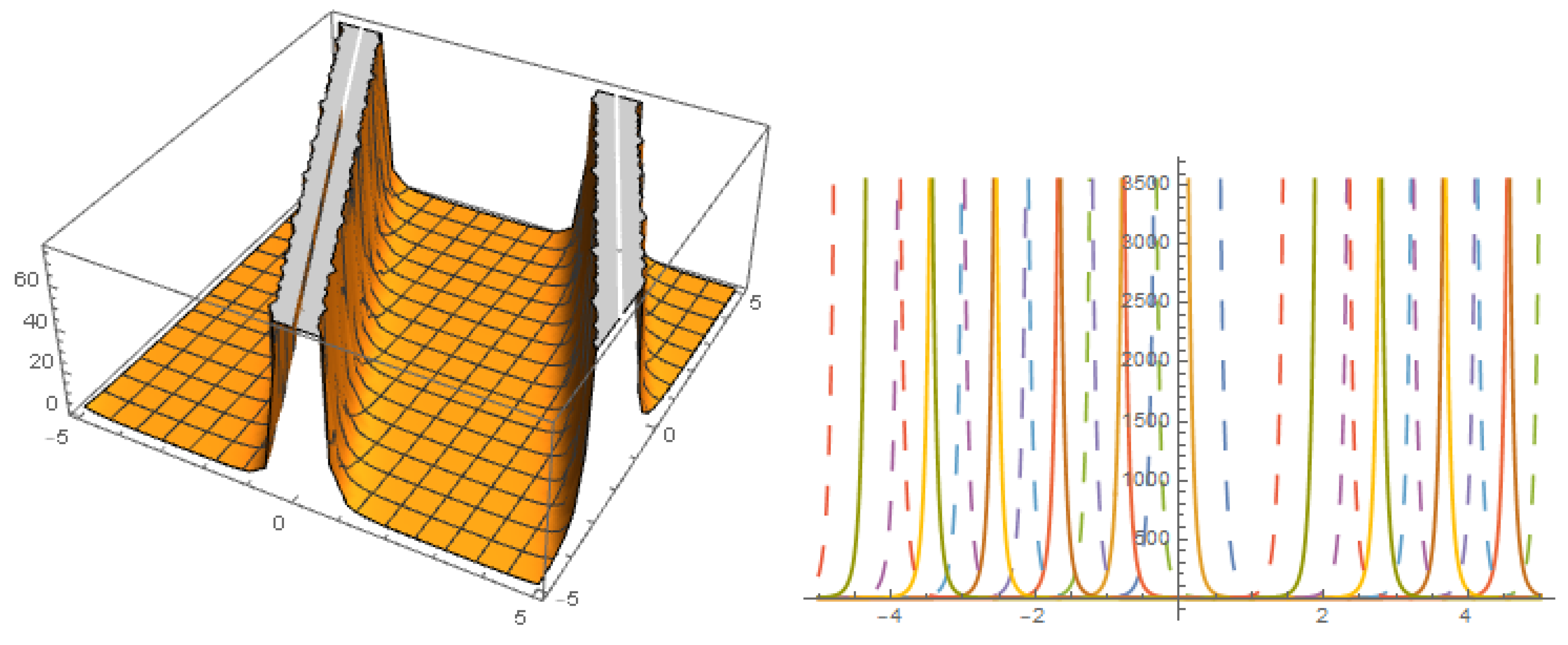

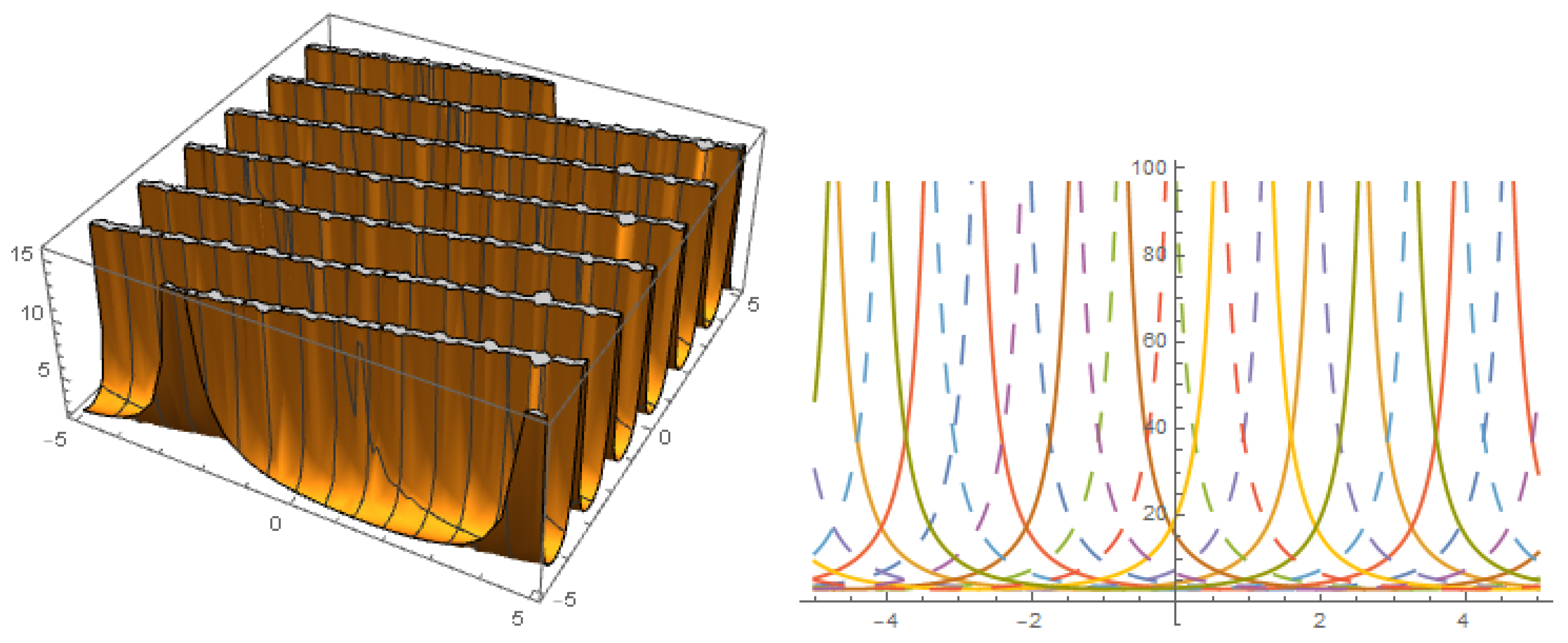

Figure 2. Solution $U_5$ with $\beta =0.01,c_0=1,c_2=1,c_1=0.01,\gamma =-0.05,{\xi }_0=-3.5,$ $P=-4.5,Q=-1.3,R=-2.1,S=-3.5,\omega =-2,y=1,z=1.$

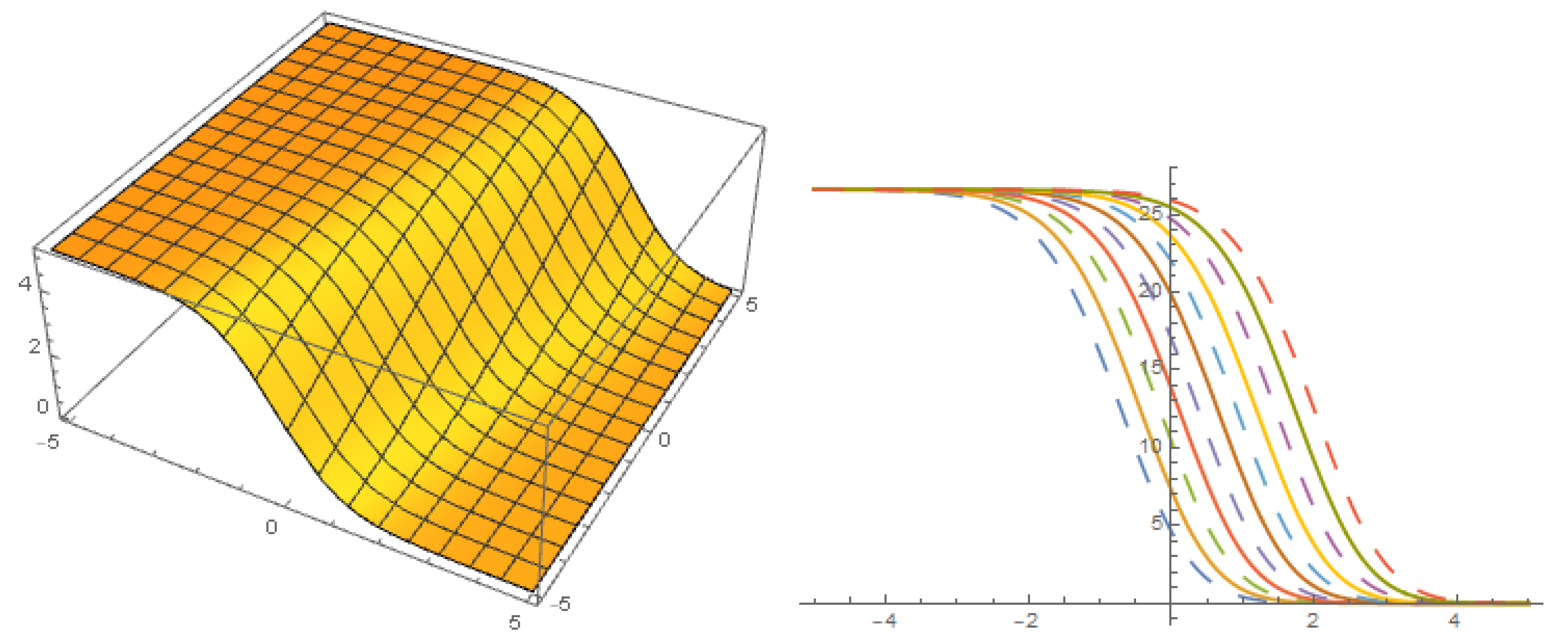

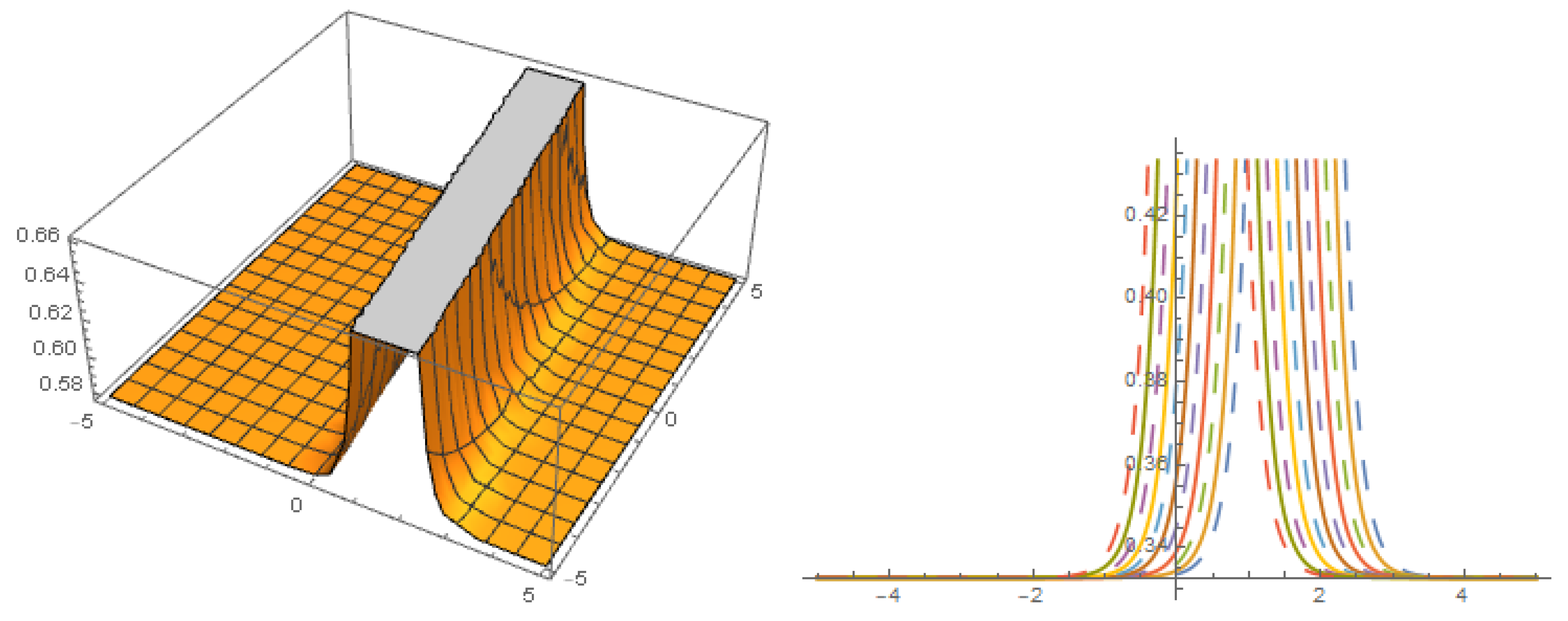

Figure 3. Solution $U_{13}$ with $\beta =0.3,c_0=1,c_2=-0.4,\gamma =0.9,{\xi }_0=0.05,P=1.5,Q=-1.3,R=-1.5,S=0.3,y=1,z=1.$

3.3. Application of Modified F-Expansion Method

Let (12) has solution,

$$U=a_0+a_{1}F+\frac{b_1}{F}$$

(35)

Put (35) with (9) in (12).

A = 0, B = 1, C = −1,

$$a_1=\frac{P}{Q},a_0=-\frac{P}{Q},b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(36)

Put (36) in (35),

$$\begin{array}{c}\hfill U_{14}=\left(\frac{P\left(\frac{1}{2}tanh\left(\frac{\xi }{2}\right)+\frac{1}{2}\right)}{Q}\right)-\left(\frac{P}{Q}\right).\end{array}$$

(37)

A = 0, C = 1, B = −1,

$$a_1=-\frac{P}{Q},a_0=0,b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =-\frac{\sqrt{-P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(38)

Put (38) into (35),

$$\begin{array}{c}\hfill U_{15}=-\left(\frac{P\left(\frac{1}{2}-\frac{1}{2}coth\left(\frac{\xi }{2}\right)\right)}{Q}\right).\end{array}$$

(39)

A = 1/2, B = 0, C = −1/2

FAMILY-I

$$a_0=a_1=-\frac{P}{2Q}=-\frac{P}{2Q},b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =-\frac{\sqrt{-P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(40)

Substitute (40) into (35),

$$\begin{array}{c}\hfill U_{16,1}=-\left(\frac{P(cot(\xi )+csc(\xi \left)\right)}{2Q}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(41)

FAMILY-II

$$a_1=0,a_0=-\frac{P}{2Q},b_1=-\frac{P}{2Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(42)

Put (42) in (35),

$$\begin{array}{c}\hfill U_{16,2}=-\left(\frac{P}{\left(2Q\right)(cot(\xi )+csc(\xi \left)\right)}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(43)

FAMILY-III

$$a_1=-\frac{P}{4Q},a_0=-\frac{P}{2Q},b_1=-\frac{P}{4Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =-\frac{\sqrt{-P^2-24{\gamma }^{2}QR-24{\beta }^{2}QS}}{2\sqrt{6}\sqrt{Q}\sqrt{S}}$$

(44)

Put (44) in (35),

$$\begin{array}{c}\hfill U_{16,3}=-\left(\frac{P(cot(\xi )+csc(\xi \left)\right)}{4Q}\right)-\left(\frac{P}{\left(4Q\right)(cot(\xi )+csc(\xi \left)\right)}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(45)

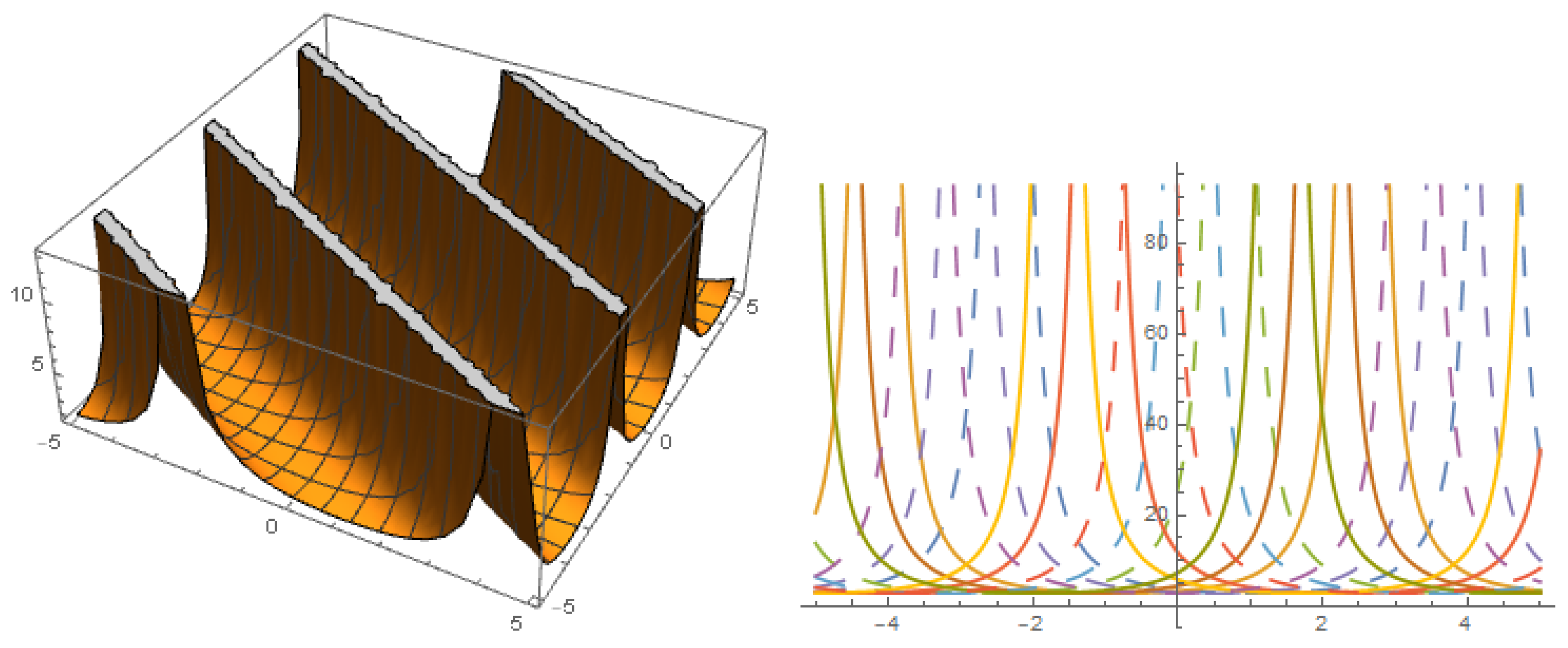

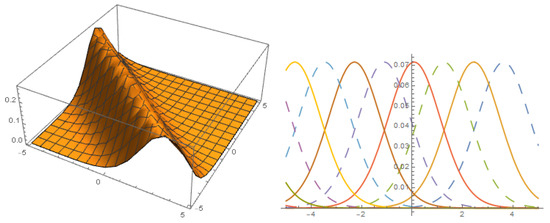

Figure 4. The profile of solution $U_{16,3}$ with $\beta =1,\gamma =3,P=-1.01,Q=5.3,R=0.5,$ $S=-2.1,y=1,z=1.$

A = 1, B = 0, C = −1

FAMILY-I

$$a_1=\frac{P}{2Q},a_0=-\frac{P}{2Q},b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-24{\gamma }^{2}QR-24{\beta }^{2}QS}}{2\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(46)

Put (46) in (35),

$$\begin{array}{c}\hfill U_{17,1}=\left(\frac{Ptanh\left(\xi \right)}{2Q}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(47)

FAMILY-II

$$a_1=0,a_0=-\frac{P}{2Q},b_1=\frac{P}{2Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-24{\gamma }^{2}QR-24{\beta }^{2}QS}}{2\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(48)

Put (48) in (35),

$$\begin{array}{c}\hfill U_{17,2}=\left(\frac{P}{\left(2Q\right)tanh\left(\xi \right)}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(49)

FAMILY-III

$$a_1=\frac{P}{4Q},a_0=-\frac{P}{2Q},b_1=\frac{P}{4Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-96{\gamma }^{2}QR-96{\beta }^{2}QS}}{4\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(50)

Put (50) in (35),

$$\begin{array}{c}\hfill U_{17,3}=\left(\frac{Ptanh\left(\xi \right)}{4Q}+\frac{P}{\left(4Q\right)tanh\left(\xi \right)}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(51)

A = C = 1/2, B = 0,

FAMILY-I

$$a_1=-\frac{iP}{2Q},a_0=-\frac{P}{2Q},b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =-\frac{\sqrt{P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(52)

Put (52) in (35),

$$\begin{array}{c}\hfill U_{18,1}=-\left(\frac{P}{2Q}\right)-\left(\frac{\left(iP\right)(tan(\xi )+sec(\xi \left)\right)}{2Q}\right).\end{array}$$

(53)

FAMILY-II

$$a_1=0,a_0=-\frac{P}{2Q},b_1=\frac{iP}{2Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =-\frac{\sqrt{P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(54)

Put (54) in (35),

$$\begin{array}{c}\hfill U_{18,2}=-\left(\frac{P}{2Q}\right)+\left(\frac{iP}{\left(2Q\right)(tan(\xi )+sec(\xi \left)\right)}\right).\end{array}$$

(55)

FAMILY-III

$$a_1=\frac{P}{2\sqrt{2}Q},a_0=-\frac{P}{2Q},b_1=\frac{P}{2\sqrt{2}Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-12{\gamma }^{2}QR-12{\beta }^{2}QS}}{2\sqrt{3}\sqrt{Q}\sqrt{S}}.$$

(56)

Put (56) in (35),

$$\begin{array}{c}\hfill U_{18,3}=\left(\frac{P(tan(\xi )+sec(\xi \left)\right)}{2\sqrt{2}Q}\right)+\left(\frac{P}{\left(2\sqrt{2}Q\right)(tan\left(\xi \right)+sec\left(\xi \right))}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(57)

A = C = −1/2, B = 0,

FAMILY-I

$$a_1=-\frac{iP}{2Q},a_0=-\frac{P}{2Q},b_1=0,\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(58)

Put (58) in (35),

$$\begin{array}{c}\hfill U_{19,1}=-\left(\frac{P}{2Q}\right)-\left(\frac{\left(iP\right)(sec(\xi )-tan(\xi \left)\right)}{2Q}\right).\end{array}$$

(59)

FAMILY-II

$$a_1=0,a_0=-\frac{P}{2Q},b_1=-\frac{iP}{2Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{P^2-6{\gamma }^{2}QR-6{\beta }^{2}QS}}{\sqrt{6}\sqrt{Q}\sqrt{S}}.$$

(60)

Put (60) in (35),

$$\begin{array}{c}\hfill U_{19,2}=-\left(\frac{P}{2Q}\right)-\left(\frac{iP}{\left(2Q\right)(sec(\xi )-tan(\xi \left)\right)}\right).\end{array}$$

(61)

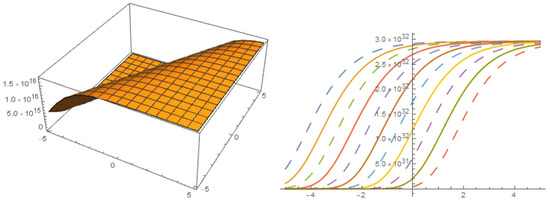

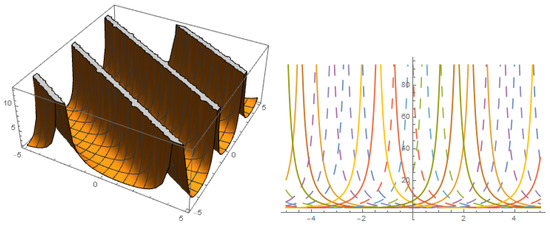

Figure 5. The profile of solution $U_{19,2}$ with $\beta =1,\gamma =3,P=-1.01,Q=0.3,R=0.5,$ $S=-2.1,y=1,z=1.$

FAMILY-III

$$a_1=-\frac{P}{2\sqrt{2}Q},a_0=-\frac{P}{2Q},b_1=-\frac{P}{2\sqrt{2}Q},\omega =-\frac{\gamma P^2}{6Q},\alpha =\frac{\sqrt{-P^2-12{\gamma }^{2}QR-12{\beta }^{2}QS}}{2\sqrt{3}\sqrt{Q}\sqrt{S}}.$$

(62)

Put (62) in (35),

$$\begin{array}{c}\hfill U_{19,3}=-\left(\frac{P(sec(\xi )-tan(\xi \left)\right)}{2\sqrt{2}Q}\right)-\left(\frac{P}{\left(2\sqrt{2}Q\right)(sec\left(\xi \right)-tan\left(\xi \right))}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(63)

A = C = −1, B = 0,

FAMILY-I

$$a_1=-\frac{iP}{2Q},a_0=-\frac{P}{2Q},b_1=0,\alpha =-\frac{\sqrt{P^2-24{\gamma }^{2}QR-24{\beta }^{2}QS}}{2\sqrt{6}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.$$

(64)

Put (64) in (35),

$$\begin{array}{c}\hfill U_{20,1}=-\left(\frac{P}{2Q}\right)-\left(\frac{\left(iP\right)tan\left(\xi \right)}{2Q}\right).\end{array}$$

(65)

FAMILY-II

$$a_1=0,a_0=-\frac{P}{2Q},b_1=-\frac{iP}{2Q},\alpha =\frac{\sqrt{P^2-24{\gamma }^{2}QR-24{\beta }^{2}QS}}{2\sqrt{6}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.$$

(66)

Put (66) in (35),

$$\begin{array}{c}\hfill U_{20,2}=-\left(\frac{P}{2Q}\right)-\left(\frac{iP}{\left(2Q\right)tan\left(\xi \right)}\right).\end{array}$$

(67)

FAMILY-III

$$a_1=\frac{P}{2\sqrt{2}Q},a_0=-\frac{P}{2Q},b_1=\frac{P}{2\sqrt{2}Q},\alpha =\frac{\sqrt{-P^2-48{\gamma }^{2}QR-48{\beta }^{2}QS}}{4\sqrt{3}\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.$$

(68)

Put (68) in (35),

$$\begin{array}{c}\hfill U_{20,3}=\left(\frac{Ptan\left(\xi \right)}{2\sqrt{2}Q}\right)+\left(\frac{P}{\left(2\sqrt{2}Q\right)tan\left(\xi \right)}\right)-\left(\frac{P}{2Q}\right).\end{array}$$

(69)

C = 0

$$a_1=0,a_0=0,b_1=\frac{AP}{BQ},\alpha =-\frac{\sqrt{-6B^2{\gamma }^{2}QR-6{\beta }^2{B}^{2}QS-P^2}}{\sqrt{6}B\sqrt{Q}\sqrt{S}},\omega =-\frac{\gamma P^2}{6Q}.$$

(70)

Put (70) in (35),

$$\begin{array}{c}\hfill U_{21}=\left(\frac{B\left(AP\right)}{\left(BQ\right)(exp(B\xi )-A)}\right).\end{array}$$

(71)

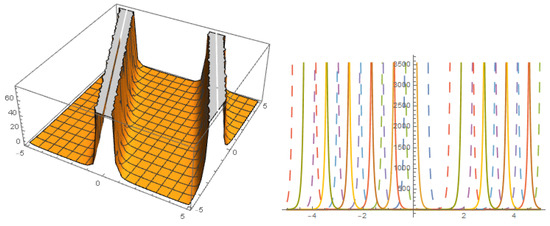

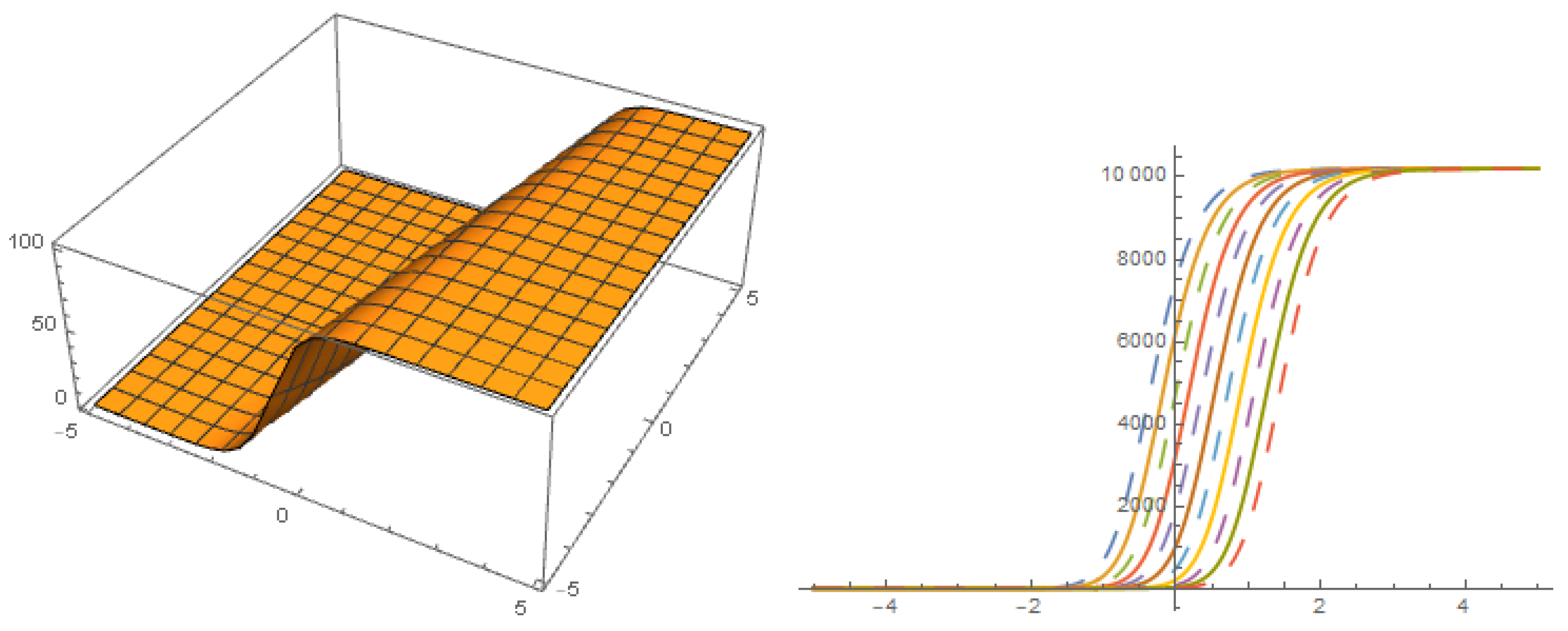

Figure 6. Solution $U_{21}$ with $A=-0.5,\beta =1,B=0.01,\gamma =3,P=-1.01,Q=0.01,R=5.5,$ $S=-2.1,y=1,z=1.$

4. (3 + 1)-Dimensional Nonlinear Modified Quantum Zakharov–Kuznetsov (NLmQZK) Equation

Let NLmQZK equation [40,43].

$$\begin{array}{c}\hfill 16\left(\frac{\partial U}{\partial t}-\mu \frac{\partial U}{\partial x}\right)+30\sqrt{U}\frac{\partial U}{\partial x}+\frac{{\partial }^{3}U}{\partial x^3}+\frac{\partial }{\partial x}\left(\frac{{\partial }^2}{\partial y^2}+\frac{{\partial }^2}{\partial z^2}\right)U=0.\end{array}$$

(72)

The above model is an adequate NLEE which is used to point out the behavior of the electrons associated with the temperature on the latter [40].

Let wave transformations,

$$\begin{array}{c}\hfill U(x,y,z,t)=U\left(\xi \right),\xi =k_{1}x+k_{2}y+k_{3}z-\omega t.\end{array}$$

(73)

Put (73) in (72), after integrating twice with omitting the integral constant, we have

$$\begin{array}{c}\hfill 30k_1{U}^{3/2}+k_1\left(k_1^2+k_2^2+k_3^2\right)U^{″}-16U\left(\mu {\mathrm{k}}_1+\omega \right)=0.\end{array}$$

(74)

Let

$$V=\sqrt{U}.$$

(75)

Put (75) in (74),

$$\begin{array}{c}\hfill 20k_1{V}^3-16V^2\left(k_1\mu +\omega \right)+2k_1\left(k_1^2+k_2^2+k_3^2\right)\left({\left(V^{\prime }\right)}^2+{\mathrm{VV}}^{″}\right)=0.\end{array}$$

(76)

4.1. Application of Modified Extended Auxiliary Equation Mapping Method

Let solution of (76) is,

$$V=A_2{\mathsf{\Psi }}^2+A_1\mathsf{\Psi }+A_0+\frac{B_1}{\mathsf{\Psi }}+\frac{B_2}{{\mathsf{\Psi }}^2}+C_2{\mathsf{\Psi }}^{\prime }+D_2{\left(\frac{{\mathsf{\Psi }}^{\prime }}{\mathsf{\Psi }}\right)}^2+\frac{D_1{\mathsf{\Psi }}^{\prime }}{\mathsf{\Psi }}.$$

(77)

Put (77) with (5) in (76),

$$\begin{array}{c}\hfill \\ & A_0={\beta }_1\left(-D_2\right),A_1=-\frac{1}{4}{\beta }_2\left(4D_2+k_1^2+k_2^2+k_3^2\right),A_2=-\frac{1}{2}{\beta }_3\left(2D_2+k_1^2+k_2^2+k_3^2\right),\hfill \\ & C_2=\frac{1}{2}\sqrt{{\beta }_3}\left(k_1^2+k_2^2+k_3^2\right),D_1=0,B_1=0,B_2=0,\omega =\frac{1}{4}\left({\beta }_1{k}_1^3+{\beta }_1{k}_2^2{k}_1+{\beta }_1{k}_3^2{k}_1-4k_1\mu \right).\hfill \end{array}$$

(78)

Subsitute (78) in (77),

CASE I:

$$\begin{array}{cc}\hfill V_1=& {\beta }_1\left(-D_2\right)-\left(\frac{{\beta }_2\left(4D_2+k_1^2+k_2^2+k_3^2\right)\left(-{\beta }_1\left(ϵcoth\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+1\right)\right)}{4{\beta }_2}\right)\hfill \\ & -\frac{1}{2}{\beta }_3\left(2D_2+k_1^2+k_2^2+k_3^2\right){\left(-\frac{{\beta }_1\left(ϵcoth\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+1\right)}{{\beta }_2}\right)}^2+\frac{1}{2}\sqrt{{\beta }_3}\left(k_1^2+k_2^2+k_3^2\right)\hfill \\ & \left(\frac{{\beta }_1^{3/2}ϵ{\csc \mathrm{h}}^2\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{2{\beta }_2}\right)+D_2{\left(\frac{{\beta }_1^{3/2}ϵ{\csc \mathrm{h}}^2\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{\frac{\left(2{\beta }_2\right)\left(-{\beta }_1\left(ϵcoth\left(\frac{1}{2}\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+1\right)\right)}{{\beta }_2}}\right)}^2,{\beta }_1>0,{\beta }_2^2-4{\beta }_1{\beta }_3=0.\hfill \end{array}$$

(79)

From (75), the solution of (79) can be written as,

$$\begin{array}{c}\hfill U_{22}={\left(V_1\right)}^2,{\beta }_1>0,{\beta }_2^2-4{\beta }_1{\beta }_3=0.\end{array}$$

(80)

CASE II:

$$\begin{array}{cc}\hfill V_2=& -{\beta }_1{D}_2-\frac{1}{4}{\beta }_2\left(4D_2+k_1^2+k_2^2+k_3^2\right)\left(-\sqrt{\frac{{\beta }_1}{4{\beta }_3}}\left(\frac{ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }+1\right)\right)\hfill \\ & -\frac{1}{2}{\beta }_3\left(2D_2+k_1^2+k_2^2+k_3^2\right){\left(-\sqrt{\frac{{\beta }_1}{4{\beta }_3}}\left(\frac{ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }+1\right)\right)}^2+\frac{1}{2}\sqrt{{\beta }_3}\left(k_1^2+k_2^2+k_3^2\right)\hfill \\ & \left(-\frac{1}{2}\sqrt{\frac{{\beta }_1}{{\beta }_3}}\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }-\frac{\sqrt{{\beta }_1}ϵ{sinh}^2\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \right){}^2}\right)\right)+\hfill \\ & \left(D_2{\left(-\frac{\sqrt{\frac{{\beta }_1}{{\beta }_3}}\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }-\frac{\sqrt{{\beta }_1}ϵ{sinh}^2\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \right)}^2}\right)}{2\left(-\sqrt{\frac{{\beta }_1}{4{\beta }_3}}\left(\frac{ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta }+1\right)\right)}\right)}^2\right),{\beta }_1>0,{\beta }_3>0,{\beta }_2={\left(4{\beta }_1{\beta }_3\right)}^{1/2}.\hfill \end{array}$$

(81)

$$\begin{array}{c}\hfill U_{23}={\left(V_2\right)}^2,{\beta }_1>0,{\beta }_3>0,{\beta }_2={\left(4{\beta }_1{\beta }_3\right)}^{1/2}.\end{array}$$

(82)

CASE III:

$$\begin{array}{cc}\hfill V_3=& \left({\beta }_1\left(-D_2\right)-\frac{{\beta }_2\left(4D_2+k_1^2+k_2^2+k_3^2\right)\left(-{\beta }_1\left(\frac{ϵ\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}+1\right)\right)}{4{\beta }_2}\right)\hfill \\ & -\frac{1}{2}{\beta }_3\left(2D_2+k_1^2+k_2^2+k_3^2\right){\left(-\frac{{\beta }_1\left(\frac{ϵ\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}+1\right)}{{\beta }_2}\right)}^2+\frac{1}{2}\sqrt{{\beta }_3}\left(k_1^2+k_2^2+k_3^2\right)\hfill \\ & \left(-\frac{{\beta }_1\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}-\frac{\sqrt{{\beta }_1}ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}\right)}^2}\right)}{{\beta }_2}\right)\hfill \\ & +D_2{\left(-\frac{{\beta }_1\left(\frac{\sqrt{{\beta }_1}ϵcosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}-\frac{\sqrt{{\beta }_1}ϵsinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{\left(cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}\right){}^2}\right)}{\frac{{\beta }_2\left(-{\beta }_1\left(\frac{ϵ\left(sinh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+P\right)}{cosh\left(\sqrt{{\beta }_1}\left(\xi +{\xi }_0\right)\right)+\eta \sqrt{P^2+1}}+1\right)\right)}{{\beta }_2}}\right)}^2,{\beta }_1>0.\hfill \end{array}$$

(83)

$$\begin{array}{c}\hfill U_{24}={\left(V_3\right)}^2,{\beta }_1>0,{\beta }_3>0,{\beta }_2={\left(4{\beta }_1{\beta }_3\right)}^{1/2}.\end{array}$$

(84)

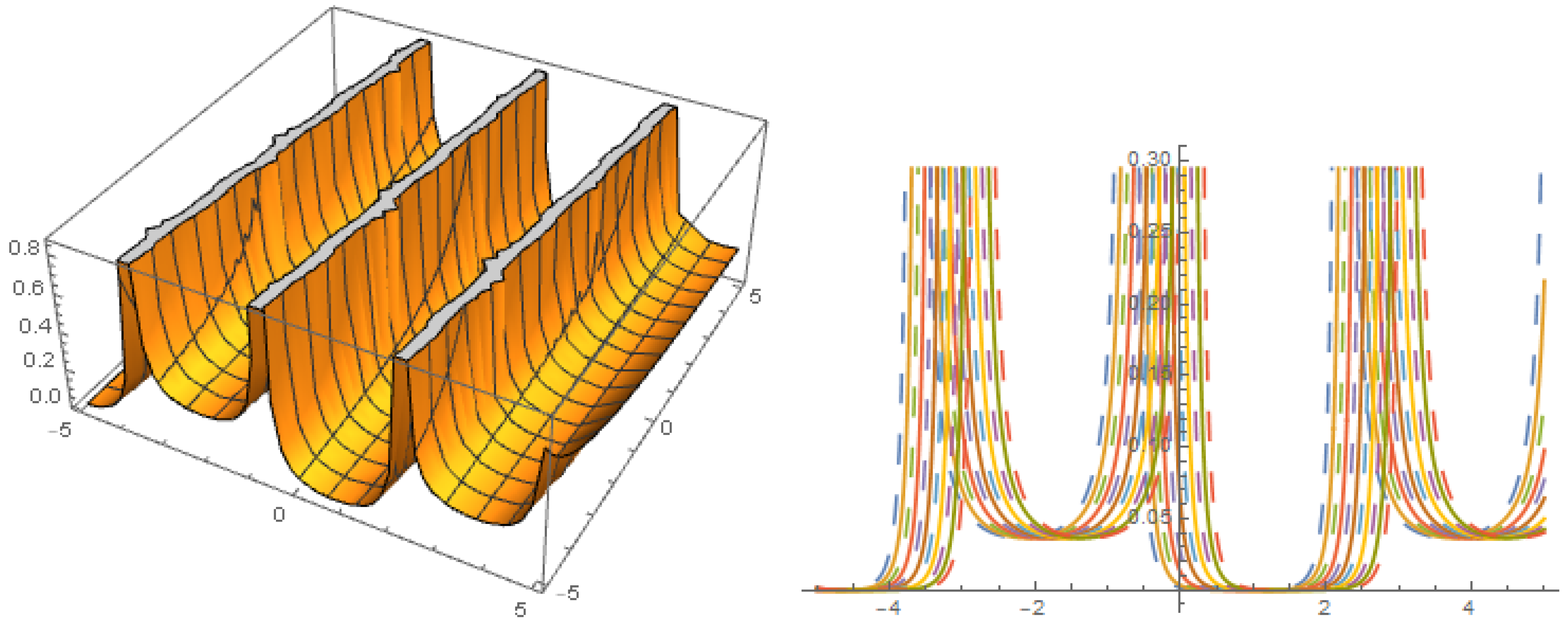

Figure 7. Solution $U_{24}$ with ${\beta }_1=2,{\beta }_2=0.001,{\beta }_3=2,D_2=3.01,\eta =1,{\xi }_0=0.4,k_1=0.7,$ $k_2=-0.0001,k_3=1.3,\mu =0.5,P=1,y=1,z=1,ϵ=1.$

4.2. Application of Extended Simple Equation Method

Let solution of (76) is

$$V=A_2{\Psi }^2+A_1\Psi +\frac{A_{-2}}{{\Psi }^2}+\frac{A_{-1}}{\Psi }+A_0.$$

(85)

Put (85) with (7) in (76),

CASE 1: $c_3=0$,

FAMILY-I

$$\begin{array}{cc}\hfill & A_0=-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),A_{-2}=0,A_{-1}=0,A_2=-c_2^2\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & A_1=-c_1{c}_2\left(k_1^2+k_2^2+k_3^2\right),\omega =\frac{1}{4}{k}_1\left(\left(c_1^2-4c_0{c}_2\right)\left(k_1^2+k_2^2+k_3^2\right)-4\mu \right).\hfill \end{array}$$

(86)

Put (86) in (85),

$$\begin{array}{cc}\hfill V_4=& -c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right)+\left(c_1{c}_2\left(k_1^2+k_2^2+k_3^2\right)\right)\left(\frac{c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)}{2c_2}\right)\hfill \\ & \left(c_2^2\left(k_1^2+k_2^2+k_3^2\right)\right)\left({\left(\frac{c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)}{2c_2}\right)}^2\right),4c_0{c}_2>c_1^2.\hfill \end{array}$$

(87)

$$\begin{array}{c}\hfill U_{25}={\left(V_4\right)}^2,4c_0{c}_2>c_1^2.\end{array}$$

(88)

FAMILY-II

$$\begin{array}{cc}\hfill & A_0=-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),A_{-2}=-c_0^2\left(k_1^2+k_2^2+k_3^2\right),A_{-1}=-c_0{c}_1\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & A_2=0,A_1=0,\omega =\frac{1}{4}{k}_1\left(\left(c_1^2-4c_0{c}_2\right)\left(k_1^2+k_2^2+k_3^2\right)-4\mu \right).\hfill \end{array}$$

(89)

Substitute (89) in (85),

$$\begin{array}{cc}\hfill V_5=& \left(\frac{4c_2^2}{{\left(c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)\right)}^2}\right)\left(-c_0^2\left(k_1^2+k_2^2+k_3^2\right)\right)-\hfill \\ & \left(-c_0{c}_1\left(k_1^2+k_2^2+k_3^2\right)\right)\left(\frac{2c_2}{c_1-\sqrt{4c_2{c}_0-c_1^2}tan\left(\frac{1}{2}\sqrt{4c_2{c}_0-c_1^2}\left(\xi +{\xi }_0\right)\right)}\right)-\left(c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right)\right),\hfill \\ & 4c_0{c}_2>c_1^2.\hfill \end{array}$$

(90)

$$\begin{array}{c}\hfill U_{26}={\left(V_5\right)}^2,4c_0{c}_2>c_1^2.\end{array}$$

(91)

CASE 2: $c_0=0,c_3=0$,

$$\begin{array}{cc}\hfill & A_0=0,A_{-2}=0,A_{-1}=0,A_2=-c_2^2\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & A_1=-c_1{c}_2\left(k_1^2+k_2^2+k_3^2\right),\omega =\frac{1}{4}\left(c_1^2{k}_1^3+c_1^2{k}_2^2{k}_1+c_1^2{k}_3^2{k}_1-4k_1\mu \right).\hfill \end{array}$$

(92)

Put (92) in (85),

$$\begin{array}{cc}\hfill V_6=& \left(-\frac{\left(c_1{c}_2\left(k_1^2+k_2^2+k_3^2\right)\right)\left(c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)\right)}{1-c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)}\right)-\left(c_2^2\left(k_1^2+k_2^2+k_3^2\right)\right)\hfill \\ & {\left(\frac{c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)}{1-c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)}\right)}^2,c_1>0,\hfill \end{array}$$

(93)

$$\begin{array}{c}\hfill U_{27}={\left(V_6\right)}^2,c_1>0.\end{array}$$

(94)

$$\begin{array}{cc}\hfill V_7=& \left(c_2^2\left(-\left(k_1^2+k_2^2+k_3^2\right)\right){\left(-\frac{c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)}{c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)+1}\right)}^2\right)-\left(\frac{\left(-c_1{c}_2\left(k_1^2+k_2^2+k_3^2\right)\right)\left(c_{1}exp\left(c_1\left(\xi +{\xi }_0\right)\right)\right)}{c_{2}exp\left(c_1\left(\xi +{\xi }_0\right)\right)+1}\right),\hfill \\ & c_1<0.\hfill \end{array}$$

(95)

$$\begin{array}{c}\hfill U_{28}={\left(V_6\right)}^2,c_1<0.\end{array}$$

(96)

CASE 3: $c_1=0,c_3=0$,

FAMILY-I

$$\begin{array}{cc}\hfill & A_0=-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),A_{-2}=0,A_{-1}=0,A_2=-c_2^2\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & A_1=0,\omega =-k_1\left(c_0{c}_2{k}_1^2+c_0{c}_2{k}_2^2+c_0{c}_2{k}_3^2+\mu \right).\hfill \end{array}$$

(97)

Put (97) in (85),

$$\begin{array}{c}\hfill V_8=-c_2^2\left(k_1^2+k_2^2+k_3^2\right)\left(\frac{\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right){}^2-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2>0,\end{array}$$

(98)

$$\begin{array}{c}\hfill U_{29}={\left(V_8\right)}^2,c_0{c}_2>0.\end{array}$$

(99)

$$\begin{array}{c}\hfill V_9=-c_2^2\left(k_1^2+k_2^2+k_3^2\right){\left(\frac{\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2<0.\end{array}$$

(100)

$$\begin{array}{c}\hfill U_{30}={\left(V_9\right)}^2,c_0{c}_2<0.\end{array}$$

(101)

Figure 8. Solution $U_{26}$ with $c_0=0.05,c_1=1.07,c_2=1,D_2=3.01,{\xi }_0=0.4,k_1=0.7,$$k_2=-0.1,k_3=1.3,\mu =1.7,y=1,z=1.$

FAMILY-II

$$\begin{array}{cc}\hfill & A_0=-c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),A_{-2}=-c_0^2\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & A_{-1}=0,A_2=0,A_1=0,\omega =-k_1\left(c_0{c}_2{k}_1^2+c_0{c}_2{k}_2^2+c_0{c}_2{k}_3^2+\mu \right).\hfill \end{array}$$

(102)

Put (102) in (85),

$$\begin{array}{c}\hfill V_{10}=\left(-\frac{c_0^2\left(k_1^2+k_2^2+k_3^2\right)}{{\left(\frac{\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2}\right)-c_2{c}_0\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2>0,\end{array}$$

(103)

$$\begin{array}{c}\hfill U_{31}={\left(V_{10}\right)}^2,c_0{c}_2>0,.\end{array}$$

(104)

$$\begin{array}{c}\hfill V_{11}=\left(-\frac{c_0^2\left(k_1^2+k_2^2+k_3^2\right)}{{\left(\frac{\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2}\right)-c_2{c}_0\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2<0.\end{array}$$

(105)

$$\begin{array}{c}\hfill U_{32}={\left(V_{11}\right)}^2,c_0{c}_2<0.\end{array}$$

(106)

FAMILY-III

$$\begin{array}{cc}\hfill & A_0=-2c_0{c}_2\left(k_1^2+k_2^2+k_3^2\right),A_{-2}=-c_0^2\left(k_1^2+k_2^2+k_3^2\right),A_{-1}=0,\hfill \\ & A_2=-c_2^2\left(k_1^2+k_2^2+k_3^2\right),A_1=0,\omega =-4c_0{c}_2{k}_1^3-4c_0{c}_2{k}_2^2{k}_1-4c_0{c}_2{k}_3^2{k}_1-k_1\mu .\hfill \end{array}$$

(107)

Put (107) in (85),

$$\begin{array}{cc}\hfill V_{12}=& -c_2^2\left(k_1^2+k_2^2+k_3^2\right){\left(\frac{\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2-\left(\frac{c_0^2\left(k_1^2+k_2^2+k_3^2\right)}{{\left(\frac{\sqrt{c_0{c}_2}tan\left(\sqrt{c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2}\right)\hfill \\ & -2c_2{c}_0\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2>0,\hfill \end{array}$$

(108)

$$\begin{array}{c}\hfill U_{33}={\left(V_{12}\right)}^2,c_0{c}_2>0,\end{array}$$

(109)

$$\begin{array}{cc}\hfill V_{13}=& -c_2^2\left(k_1^2+k_2^2+k_3^2\right){\left(-\frac{\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2-\left(\frac{c_0^2\left(k_1^2+k_2^2+k_3^2\right)}{{\left(-\frac{\sqrt{-c_0{c}_2}tanh\left(\sqrt{-c_0{c}_2}\left(\xi +{\xi }_0\right)\right)}{c_2}\right)}^2}\right)\hfill \\ & -2c_2{c}_0\left(k_1^2+k_2^2+k_3^2\right),c_0{c}_2<0.\hfill \end{array}$$

(110)

$$\begin{array}{c}\hfill U_{34}={\left(V_{13}\right)}^2,c_0{c}_2<0.,\end{array}$$

(111)

4.3. Application of Modified F-Expansion Method

Let (76) has solution,

$$V=a_2{F}^2+a_{1}F+a_0+\frac{b_2}{F^2}+\frac{b_1}{F}.$$

(112)

Put (112) with (9) in (76).

A = 0, B = 1, C = −1,

$$\begin{array}{cc}\hfill & a_0=0,a_2=-k_1^2-k_2^2-k_3^2,a_1=k_1^2+k_2^2+k_3^2,\hfill \\ & b_1=0,b_2=0,\omega =\frac{1}{4}\left(-4k_1\mu +k_1^3+k_2^2{k}_1+k_3^2{k}_1\right).\hfill \end{array}$$

(113)

Put (113) in (112),

$$\begin{array}{c}\hfill V_{14}=k_3^2\left(\frac{1}{2}tanh\left(\frac{\xi }{2}\right)+\frac{1}{2}\right)+k_1^2+k_2^2+(-k_1^2-k_2^2-k_3^2){\left(\frac{1}{2}tanh\left(\frac{\xi }{2}\right)+\frac{1}{2}\right)}^2.\end{array}$$

(114)

$$\begin{array}{c}\hfill U_{35}={\left(V_{14}\right)}^2.\end{array}$$

(115)

A = 0, C = 1, B = −1,

$$\begin{array}{cc}\hfill & a_0=0,a_2=-\left(k_1^2+k_2^2+k_3^2\right),a_1=k_1^2+k_2^2+k_3^2,\hfill \\ & b_1=0,b_2=0,\omega =\frac{1}{4}\left(-4k_1\mu +k_1^3+k_2^2{k}_1+k_3^2{k}_1\right).\hfill \end{array}$$

(116)

Put (116) into (112),

$$\begin{array}{c}\hfill V_{15}=k_3^2\left(\frac{1}{2}-\frac{1}{2}coth\left(\frac{\xi }{2}\right)\right)+k_1^2+k_2^2+-\left(k_1^2+k_2^2+k_3^2\right){\left(\frac{1}{2}-\frac{1}{2}coth\left(\frac{\xi }{2}\right)\right)}^2.\end{array}$$

(117)

$$\begin{array}{c}\hfill U_{36}={\left(V_{15}\right)}^2.\end{array}$$

(118)

A = 1/2, B = 0, C = −1/2

$$\begin{array}{cc}\hfill & a_0=\frac{1}{4}\left(k_1^2+k_2^2+k_3^2\right),a_2=0,a_1=0,b_1=0,\hfill \\ & b_2=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right),\omega =\frac{1}{4}\left(-4k_1\mu +k_1^3+k_2^2{k}_1+k_3^2{k}_1\right).\hfill \end{array}$$

(119)

Substitute (119) into (112),

$$\begin{array}{c}\hfill V_{16}=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right)\left(\frac{1}{{(cot\left(\xi \right)+csc\left(\xi \right))}^2}\right).\end{array}$$

(120)

$$\begin{array}{c}\hfill U_{37}={\left(V_{16}\right)}^2.\end{array}$$

(121)

A = 1, B = 0, C = −1

$$\begin{array}{cc}\hfill & a_0=k_1^2+k_2^2+k_3^2,a_2=0,a_1=0,b_1=0,\hfill \\ & b_2=-k_1^2-k_2^2-k_3^2,\omega =-k_1\mu +k_1^3+k_2^2{k}_1+k_3^2{k}_1.\hfill \end{array}$$

(122)

Put (122) in (112),

$$\begin{array}{c}\hfill V_{17}=\left(-k_1^2-k_2^2-k_3^2\right.\left)\left(\frac{1}{{tanh}^2\left(\xi \right)}\right.\right).\end{array}$$

(123)

$$\begin{array}{c}\hfill U_{38}={\left(V_{17}\right)}^2.\end{array}$$

(124)

A = C = 1/2, B = 0,

$$\begin{array}{cc}\hfill & a_0=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right),a_2=0,a_1=0,b_1=0,\hfill \\ & b_2=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right),\omega =-\frac{1}{4}{k}_1\left(k_1^2+k_2^2+k_3^2+4\mu \right).\hfill \end{array}$$

(125)

Put (125) in (112),

$$\begin{array}{c}\hfill V_{18}=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right)+\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right)\left(\frac{1}{{(tan\left(\xi \right)+sec\left(\xi \right))}^2}\right).\end{array}$$

(126)

$$\begin{array}{c}\hfill U_{39}={\left(V_{18}\right)}^2.\end{array}$$

(127)

A = C = −1/2, B = 0,

$$\begin{array}{cc}\hfill & a_0=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right),a_2=0,a_1=0,b_1=0,\hfill \\ & b_2=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right),\omega =-\frac{1}{4}{k}_1\left(k_1^2+k_2^2+k_3^2+4\mu \right).\hfill \end{array}$$

(128)

Put (128) in (112),

$$\begin{array}{c}\hfill V_{19}=\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right)+\frac{1}{4}\left(-k_1^2-k_2^2-k_3^2\right)\left(\frac{1}{{(sec\left(\xi \right)-tan\left(\xi \right))}^2}\right).\end{array}$$

(129)

$$\begin{array}{c}\hfill U_{40}={\left(V_{19}\right)}^2.\end{array}$$

(130)

A = C = −1, B = 0,

$$\begin{array}{cc}\hfill & a_0=-k_1^2-k_2^2-k_3^2,a_2=0,a_1=0,\hfill \\ & b_1=0,b_2=-k_1^2-k_2^2-k_3^2,\omega =-k_1\left(k_1^2+k_2^2+k_3^2+\mu \right).\hfill \end{array}$$

(131)

Put (131) in (112),

$$\begin{array}{c}\hfill V_{20}=-k_1^2-k_2^2-k_3^2+\left(k_1^2+k_2^2+k_3^2\right.)\left(\frac{1}{{tan}^2\left(\xi \right)}\right).\end{array}$$

(132)

$$\begin{array}{c}\hfill U_{41}={\left(V_{20}\right)}^2.\end{array}$$

(133)

Figure 9. Solution $U_{29}$ with $c_0=1.3,c_2=0.1,D_2=-0.01,\lambda =-0.4,k_1=1.4,k_2=-1.1,$ $k_3=0.1,\mu =0.03,y=1,z=1$.

Figure 10. Solution $U_{35}$ with $D_2=-0.1,k_1=1.03,k_2=-1.1,k_3=0.1,\mu =0.3,y=1,z=1.$

A = B = 0

$$a_0=0,a_2=-C^2\left(k_1^2+k_2^2+k_3^2\right),a_1=0,b_1=0,b_2=0,\omega =k_1(-\mu ).$$

(134)

Put (134) in (112),

$$\begin{array}{c}\hfill V_{21}=-C^2\left(k_1^2+k_2^2+k_3^2\right){\left(\frac{1}{\mathrm{C}\xi +\eta }\right)}^2.\end{array}$$

(135)

$$\begin{array}{c}\hfill U_{42}={\left(V_{21}\right)}^2.\end{array}$$

(136)

B = C = 0

$$a_0=0,a_2=0,a_1=0,b_1=0,b_2=-A^2\left(k_1^2+k_2^2+k_3^2\right),\omega =k_1(-\mu ).$$

(137)

Put (137) in (112),

$$\begin{array}{c}\hfill V_{22}=-A^2\left(k_1^2+k_2^2+k_3^2\right)\frac{1}{{\left(\frac{1}{\mathrm{A}\xi }\right)}^2}.\end{array}$$

(138)

$$\begin{array}{c}\hfill U_{43}={\left(V_{22}\right)}^2.\end{array}$$

(139)

C = 0

$$\begin{array}{cc}\hfill & a_0=0,a_2=0,a_1=0,b_1=-AB\left(k_1^2+k_2^2+k_3^2\right),\hfill \\ & b_2=-A^2\left(k_1^2+k_2^2+k_3^2\right),\omega =\frac{1}{4}{k}_1\left(B^2{k}_1^2+B^2{k}_2^2+B^2{k}_3^2-4.\mu \right)\hfill \end{array}$$

(140)

Put (140) in (112),

$$\begin{array}{c}\hfill V_{23}=-AB\left(k_1^2+k_2^2+k_3^2\right)\left(\frac{1}{\frac{B}{e^{\mathrm{B}\xi }-A}}\right)-A^2\left(k_1^2+k_2^2+k_3^2\right)\left(\frac{1}{{\left(\frac{B}{e^{\mathrm{B}\xi }-A}\right)}^2}\right).\end{array}$$

(141)

$$\begin{array}{c}\hfill U_{44}={\left(V_{23}\right)}^2.\end{array}$$

(142)

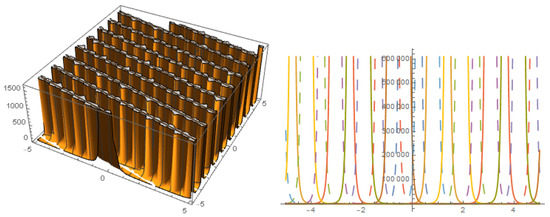

Figure 11. Solution $U_{40}$ with $D_2=-2.1,k_1=-1.03,k_2=-1.1,k_3=2.1,\mu =3.3,y=1,z=1$.

5. Conclusions

Three mathematical schemes have employed to investigate solutions of NLEQZ and NLmQZK models. The derived solutions are in diverse types like exponential, hyperbolic, trigonometric and rational functions. Some solutions are plotted graphically in 2-dimensional and 3-dimensional by imparting particular value to the parameters under the constrain condition on each disquiet solution. Hence, it shows that our proposed mathematical methods are powerful, melodious and capacity be used in supplementary works to originate novel results for NPDEs ascending in physical science.
