Properties Assessment by Quantum Mechanical Calculations for Azulenes Substituted with Thiophen– or Furan–Vinyl–Pyridine
by
Oana Ciocirlan
1,
Eleonora-Mihaela Ungureanu
2,*,
Alina-Alexandra Vasile (Corbei)
1 and
Amalia Stefaniu
3,* 1
Department of Inorganic Chemistry, Physical Chemistry and Electrochemistry, Faculty of Applied Chemistry and Materials Science, University POLITEHNICA of Bucharest, Gheorghe Polizu 1-7, Sector 1, 011061 Bucharest, Romania
2
Doctoral School “Applied Chemistry and Materials Science”, University POLITEHNICA of Bucharest, 011061 Bucharest, Romania
3
National Institute of Chemical, Pharmaceutical Research and Development, Bucharest, Vitan Av. 112, Sector 3, 031299 Bucharest, Romania
*
Authors to whom correspondence should be addressed.
Symmetry 2022, 14(2), 354; https://doi.org/10.3390/sym14020354
Submission received: 16 January 2022
/
Revised: 28 January 2022
/
Accepted: 8 February 2022
/
Published: 10 February 2022
(This article belongs to the Special Issue Electrochemical Behavior of the Nonbenzenoid Aromatic Hydrocarbon Azulene and Its Derivatives)
Abstract
In this paper, azulenes substituted with thiophen– or furan–vinyl–pyridine are reported as heavy metal ligands in systems based on chemically modified electrodes. We undertook a computational study of their structures using density functional theory (DFT). Based on these computations, we obtained properties and key molecular descriptors related to chemical reactivity and electrochemical behavior. We investigated the correlation between some quantum parameters associated with the chemical reactivity and the complexing properties of the modified electrodes based on these ligands. The best correlations for the parameters were retained. We showed that the linear correlation between DFT-computed HOMO/LUMO energies and experimental redox potentials is very good.
1. Introduction
Chemically modified electrodes (CMEs) obtained by electrochemical polymerization of differently substituted azulene monomers have been previously tested and characterized by electrochemistry [1,2]. The previously reported data refer to heavy metals (HMs) ions recognition attempts to detect very low concentrations of contaminants such as cadmium, copper, mercury, chromium, cobalt, nickel, or lead in water [3,4,5]. The advantage is certain in the context of health concerns due to the harmful effects of these HMs on humans; their bioaccumulation in the human body causes acute or chronic toxicity, responsible for serious disorders especially at long-term exposure. Indeed, new research connecting the occurrence of progressive physical and neurological degenerative damages such as Parkinson’s and Alzheimer’s diseases, or even cancer, and HMs accumulation has appeared [6,7,8,9]. Although essential heavy metals are the key constituents of several enzymes involved in biochemical processes and exert important physiological functions (e.g., copper as co-factor of oxidative stress-related enzymes [10] or constituent of metalloenzymes responsible for hemoglobin formation [11]), the danger that they become toxic contaminants must be controlled and prevented.
As part of the ongoing interest in developing methodologies for polyfunctionalization of azulenes [12], we investigated the electrochemistry of a series of 4-(azulen-1yl) pyridines (Figure 1). The investigated compounds are furan–vinyl–pyridine–azulenes (O1–O3) and thiophen–vinyl–pyridine–azulenes (S1–S3). The grafted pyridines were attached in position 1 to 5-isopropyl-3,8-dimethylazulene (O1 and S1), 4,6,8-trimethylazulene (O2 and S2), or azulene (O3 and S3), respectively.
These compounds interact with metal ions due to the property of 2,6-bis((E)-2-(furan/thiophene-2-yl)vinyl)pyridine, which is a Lewis base. They are all valuable synthons for the synthesis of highly conjugated aromatic systems [13,14]. In connection to their capacity to polymerize, they are useful for constructing novel analytical materials for sensor applications [15,16,17].
The ligands’ structures investigated in this paper contain a part of pyridine, known for its HMs complexing properties [18]. The 4-(azulen-1yl) pyridines substituted with furyl–vinyl or thienyl–vinyl lead to more extended conjugated systems, which are easily polymerized. We have previously investigated the electrochemistry of a series of 4-(azulen-1yl) pyridines [19]. Some electrodes based on graphite paste modified with S2 isomer have shown sensors properties for Zn [20]. The study of O1 ligand by electrochemical methods led to the finding of the most suitable potential, where this azulene could be polymerized. These modified electrodes were used for HMs recognition through preconcentration and anodic stripping. A good result has been observed for Pb (detection limit of 10−7 M) [4]. The electrochemical study of ligand established the best conditions for obtaining CMEs, which were tested for the recognition of HMs cations with good results for lead and for copper at concentrations lower than 10−8 M [3]. Modified electrodes based on O3 and S3 ligands have been recently reported for HMs ions recognition [21,22]. In order to establish the best ligand for the complexation of HMs (with the lowest detection limits), the estimated chemical parameters are correlated with experimental electrochemical properties [23].
In silico studies of azulenes substituted with thiophen– or furan–vinyl–pyridines were carried out by density functional theory (DFT), aiming to achieve complete structural insights [24,25]. Recent similar data on other azulene structures have revealed linear correlations of DFT-computed energies for frontier molecular orbitals (FMO) and the experimental oxidation and reduction potentials [26]. Thus, the computer-aided investigation has proven a pertinent approach to identify key parameters for designing novel ligands with better electrochemical properties. Generally, previous computations are based on the correlation of electrochemical oxidation and reduction potentials, with energy levels corresponding to the lowest unoccupied molecular orbital (LUMO) or the highest occupied molecular orbital (HOMO), respectively [27,28,29]. For such quantum computations, the use of the B3LYP level of theory has led to strong linear correlations between the energy of the HOMO/LUMO orbitals and redox potentials [30]. More accurate results have been obtained using ωB97XD hybrid functional [26,31]. DFT computations provided accurate structural details and prediction properties, which were well correlated with the electrochemical behavior and other properties of the investigated ligands.
2. Computational Details
The properties ‘computations and the programs used to depict the molecular electrostatic potential and frontier molecular orbitals surfaces were realized with Spartan 14 software Wavefunction, Inc. Irvine CA, USA [32], for the lowest energy conformers of each structure, in vacuum conditions, at ground state using DFT models [33]. Two levels of theory B3LYP—the Becke’s three-parameter hybrid exchange functional with the Lee–Yang–Parr correlation functional [34] with basis set 6-31G (d, p) [35,36] and ωB97XD with basis set 6-31G (d, p) [37]—were used. In this article, we use the notations B3LYP for B3LYP/ 6-31G (d, p) basis set and ωB97XD for ωB97XD/6-31G (d, p) basis set. QSAR properties were also obtained from Spartan software.
3. Results
3.1. Molecular and QSAR Properties Computations
Table 1 shows the predicted molecular (a–g) and QSAR (h–m) properties resulting from DFT computations using B3LYP and ωB97XD density functional models for the investigated ligands. In addition to the total energy E (in atomic units, au), estimates are also provided for the energy in water (Eaq) and the difference between Eaq and E, which represents the solvation energy (Esolv in kJ⋅mol−1) [38].
Starting from the electronic properties such as EHOMO and ELUMO energies given in Table 1, other related quantum descriptors were calculated. According to Koopman’s theorem [39,40], EHOMO is related to the ionization potential (I = −EHOMO), and ELUMO to the electron affinity (A = −ELUMO). These values are collected in Table 2, together with the HOMO–LUMO energy gap (ΔEgap) values. Additionally, the absolute electronegativity (χ = (I + A)/2), global hardness (η = (I − A)/2), softness (σ = 1/η) of the ligand molecules [41,42], and global electrophilicity index (ω = μ2/2η) [43] values are given in Table 2 for oxygen and sulfur compounds.
Variation in values of Epot (Table 1) for each compound can be visualized from the molecular electrostatic potential map (MEP). This is a useful tool in assessing the reactive sites in a molecule [44]. The MEPs for the investigated oxygen compounds are shown in Figure 2, indicating red and blue sites, with negative and positive regions, susceptible to electrophilic and nucleophilic attacks, respectively. The MEPs for the sulfur compounds (S1–S3) are given in Figure 3.
The frontier molecular orbitals density distributions calculated by using B3LYP, which resulted from the quantum calculation for oxygen compounds (O1–O3), are represented in Figure 4, along with the energy levels and their gaps (ΔEgap) between the HOMO and LUMO (Table 2). Similarly, the representations of FMO density distribution [45] for S1–S3 sulfur compounds are given in Figure 5. The positive and negative phases of the frontier molecular orbitals are represented by red and blue colors, respectively.
3.2. Correlations between DFT-Calculated Frontier Molecular Orbital’s Energies and Experimental Data
The calculated HOMO and LUMO energies were correlated with the experimental oxidation and reduction potentials. The last values were obtained from the electrochemistry experiments performed by differential pulse voltammetry (DPV), which is the most precise method used in our experiments to find the potential for a certain process. The experimental oxidation/reduction potential was assessed as the potential of the first anodic/cathodic DPV peak, denoted Ea and Ec, respectively. These values are listed in Table 3 for oxygen and sulfur derivatives. The data were collected in 0.5 mM solutions of each ligand in 0.1 M tetrabutylammonium perchlorate in acetonitrile [3,4,5,21,22]. The calculated HOMO and LUMO energies (Table 1) were plotted against experimental oxidation and reduction potentials. Linear relationships were noticed. To this end, the reduction and oxidation potentials were correlated both with ionization potential (I) and electron affinity (A) computed using either B3LYP or ωB97XD hybrid functionals. The parameters for the obtained linear correlations (a intercept, b slope, and R2 correlation coefficient) are given in Table 4.
3.3. Correlation between DFT-Computed Molecular and QSAR Properties and Ionization Potential or Electron Affinity
The correlations between computed molecular (E, Eaq, Esolv, μ) and QSAR (S, V, PSA, OI, α, Epot) properties (from Table 1) and the ionization potential (I) or electron affinity (A) are shown in Table 5 and Table 6, respectively. Linear relationships (a intercept, b slope, and R2 correlation coefficient) were considered for most parameters.
3.4. Correlation of Quantum Chemical Reactivity Parameters
The quantum chemical reactivity parameters of the investigated compounds obtained using B3LYP and ωB97XD hybrid functionals were also correlated with the ionization potential (I) or electron affinity (A). Linear correlations were proposed for each quantum chemical reactivity parameter, and the obtained correlation parameters (a intercept, b slope, and R2 correlation coefficient) are given in Table 7 for each type of correlation.
4. Discussion
The calculated values given in Table 1, computed using B3LYP and ωB97XD hybrid functionals, are quite similar for E, Eaq, OI, α, and Epot with those calculated with the B3LYP method, generally being slightly higher (in absolute value). Exceptions are observed for dipole moment (μ) and EHOMO. Additionally, Esolv values for S1 and S2 are equal or lower when computed using B3LYP than ωB97XD.
The dipole moment (μ) for oxygen and sulfur compounds (Table 1) varies in the order: O2 > O1 > O3 and S2 > S1 > S3, respectively, which is the same order of variation for the absolute values of the minimum value of electrostatic potential (Epot): O2 > O1 > O3 and S2 > S1 > S3 (Table 1). Both properties and quantities were used to describe the polarity of the molecule and indicate the unsubstituted compound as the least polar and the substituted ones (O2 and S2) as the most polar. The substitution of the hydrogen atoms in azulene by a methyl group or isopropyl group results in a systematic increase in the minimum value of electrostatic potential Epot for both types of compounds, which can be explained by the +I inductive effects of alkyl groups.
The calculated values for quantum chemical reactivity parameters given in Table 2 predicted by B3LYP and ωB97XD are quite different. For the parameters I, ΔEgap, χ, η, the values calculated with ωB97XD hybrid functional are significantly higher than those obtained from B3LYP computations (Table 2). For the parameters A, σ, and ω, the situation is reversed (Table 2). These findings apply to all oxygen and sulfur compounds.
Concerning ΔEgap values, O3 reveals the smallest ΔEgap and O2 the highest (Table 2). This can be explained by the substitution on the azulene ring by methyl or isopropyl groups (with +I inductive effects), which results in a systematic increase in the energy of the LUMO and an increase in the absolute value for the reduction potential.
Regardless of the method used for computation, it can be noticed that ionization potential (I) ranges in the order O1 < O2 < O3 (Table 1). The same behavior is observed for sulfur compounds (Table 1). The electron affinity values (A) do not show the same regular variation. The highest value of A is for O3; for O1 and O2, the values of A are relatively close (Table 1). For sulfur compounds, S3 has also the highest value for A, while for S1 and S2, the values of A are relatively close (Table 1).
Since our interest for these ligands is the complexation of the heavy metals ions, the donor–acceptor interactions were examined by different parameters: ΔEgap, global electrophilicity index (ω), etc. The descriptor that was used to depict the molecular stability is the difference between HOMO and LUMO energy levels (ΔEgap), which quantifies possible charge transfer interactions within the molecule. The higher the value of ΔEgap, the more stable the compound is. The larger value of ΔEgap for O2 and S2 in their homolog series leads to the conclusion that these substituted structures are more stable (Table 2). Thus, the most reactive compounds seem to be the unsubstituted ones (O3 and S3), which are more likely to be involved in the complexation process of HMs.
A molecule with a small ΔEgap value is generally associated with low kinetic stability, high chemical reactivity, and high polarizability [46]. The unsubstituted compound O3, which has the smallest energy gap (Table 2), possesses the smallest polarizability (α), which means it is the most reactive (Table 1).
Further, the higher value of the global electrophilicity index ω (Table 2) for the substituted azulene compounds (O2 and S2) suggests that they are more electrophilic than the unsubstituted compounds (O3 and S3).
The graphical representations illustrated in Figure 2 and Figure 3 indicate the chemically active regions and facilitate the comparison of the local reactivity sites of the investigated structures. The red area (negative charge) is found around the electronegative N in the pyridine, which indicates the reactive sites for the complexation process of these ligands upon HMs ions. The red region is susceptible to electrophilic attack. These negative areas correspond to the maximum negative values of potential (Epot values from Table 1). The absolute Epot values for oxygen compounds are ordered as follows: O2 > O1 > O3, regardless of the functional. For sulfur series, the order is similar for the B3LYP method (Table 1), that is, S2 > S1 > S3, and is slightly different for the ωB97XD hybrid functional (S3 > S2 > S1).
Comparatively, as expected, the oxygen compounds reveal more negative electrostatic potentials than sulfur compounds, as shown by the variation in the intensity of the red color (Figure 2 and Figure 3).
The recently published molecules ((Z)-5-(azulen-1-ylmethylene)-2-thioxothiazolidin-4-ones) [26], with which our ligands share the azulene rings in common, as well as the same substituents to azulene, have smaller frontier orbital gaps, which means that they are more reactive than our O1–O3 and S1–S3 compounds. Thioxothiazolidin-4-one molecules also have a higher value of global electrophilicity index, with values around 5 D/(eV), compared with the investigated molecules (Table 2) with values around 3 D/(eV), suggesting that the corresponding ligands are more electrophilic than O1–O3 and S1–S3, respectively.
The distribution of HOMO orbitals for oxygen compounds (Figure 4) is localized over azulene and pyridine rings for O1 and O2 compounds. For O3, they are localized on the conjugated system furan–vinyl–pyridine–vinyl–furan. For sulfur compounds (Figure 5), HOMO orbitals are distributed over azulene and pyridine rings for S1 and S2 compounds, and over the whole molecule in the case of S3. The difference between the distribution of HOMO orbitals in the case of O1, O2, and O3 is a very important asset of the calculations, as they relate to the oxidation capacity of these ligands, which is a key parameter in these structures’ electropolymerization.
For both oxygen and sulfur compounds, LUMO distribution is localized over azulene systems (Figure 4 and Figure 5).
Considering our great interest in HMs ions recognition by complexation with the investigated ligands, we examined the donor–acceptor interactions. They can occur between the nitrogen lone pair and the vacant d orbital of the heavy metal.
The electrochemical oxidation and reduction potentials were read from the DPV curves, which indicate more precisely among the electrochemical methods the potentials of processes occurring during the anodic or cathodic scans. The electrochemical oxidation potentials (Ea) for both oxygen and sulfur compounds (Table 3) vary in the order O3 > O2 > O1 and S3 > S2 > S1, respectively, indicating higher Ea values for the unsubstituted compounds, which are decreased by the presence of different substituents with +I inductive effects. The electrochemical reduction potentials Ec (in absolute value) for both oxygen and sulfur compounds (Table 3) vary in the reversed order than the oxidation potential: O2 > O1 > O3 and S2 > S1 > S3, respectively. The substitution of the hydrogen atoms in azulene by methyl or isopropyl groups results in an increase in the absolute value of the reduction potential in respect to unsubstituted compound, but the regular behavior is complicated by symmetry reasons, as O2 is more symmetrical than O1, and its reduction is more difficult to occur.
EHOMO and ELUMO predicted chemical parameters (Table 1) were correlated with experimental electrochemical properties (Table 3). Linear relationships using both B3LYP and ωB97XD hybrid functions were obtained (Table 4). R2 values indicate very good correlations between the calculated and the experimental values for both functionals (greater than 0.990).
The energies of the HOMO orbital follow the same order as the experimental values of the first anodic peak potentials Ea for oxygen and sulfur compounds—namely, O3 > O2 > O1 and S3 > S2 > S1 (absolute values). Thus, the evaluation of the oxidation capacity of the investigated azulenes is in good agreement with the electrochemical data.
The same order of variation for both Ea and Ec is observed for six similar compounds, derived from 4-(azulen-1-yl)-2,6-bis(2-furyl)- and 4-(azulen-1-yl)-2,6-bis(2-thienyl)-pyridines, that had been previously investigated [47].
Table 5 and Table 6 show the correlations between calculated molecular properties (Table 1) and QSAR properties (Table 2) and the ionization potential (I) or electron affinity (A), respectively. Linear relationships were considered for all parameters, but we choose the correct connections using the best correlation coefficients (R2). For instance, the R2 value for the correlation of total energy (E) with I (0.917 in Table 5) is higher than for the corresponding correlation with A (0.842) when using the ωB97XD hybrid functional. Moreover, these values are greater than the ones obtained with the B3LYP method (0.812 and 0.791, respectively).
On the other hand, the R2 value for the correlation of aqueous solvation energy (Eaq from Table 5) with A (0.791) is lower than the one for the correlation with I (0.917) when using the ωB97XD hybrid functional. When using the B3LYP method, both values are lower, 0.719 and 0.873, respectively. The same procedure was followed for all the other properties indicated in Table 1.
Table 8 shows the best correlations of the parameters (R2 over 0.9) and the method used. For oxygen compounds, the best correlations were obtained using the ωB97XD hybrid functional. The dependencies with the ionization potential I are linear, except for PSA and Epot, which are better correlated with A. For sulfur compounds, the best correlations were obtained with I, most of them using the B3LYP method.
Table 7 shows the linear correlations for quantum chemical reactivity parameters from Table 2, with A and I, respectively. For oxygen compounds, the correlations of η, σ, and ω are better with I than with A, while the correlation χ (A) is better than χ (I). The best correlation coefficient is obtained through the B3LYP hybrid functional. For sulfur compounds, the correlations are even worse than those for oxygen compounds. Therefore, good correlations were found only for χ (A) and ω (I), when using the B3LYP hybrid functional. The ωB97XD hybrid functional has a good correlation only for ω (I) for both oxygen and sulfur compounds. Table 9 shows the best correlations of the parameters (R2 over 0.9) and the method used to get them.
5. Conclusions
Quantum chemical calculations for azulenes substituted with thiophen– or furan–vinyl–pyridine showed that the predicted chemical parameters are correlated with the experimental electrochemical potentials. Linear relationships with the electron affinity (A) or ionization potential (I) were considered for the predicted molecular, QSAR properties, and quantum chemical reactivity parameters. For oxygen compounds, the dependencies of the molecular and QSAR properties with I (calculated with ωB97XD hybrid functional) are linear (R2 > 0.9), except for PSA and Epot, which are better correlated with A. For sulfur compounds, the best correlations were obtained with I, most of them by using the B3LYP method. For oxygen compounds, the dependencies of the quantum chemical reactivity parameters indicate better correlations of η, σ, and ω with I than with A, while the correlation χ (A) is better than χ (I). For sulfur compounds, good correlations were found only for χ (A) and ω (I), when using the B3LYP method.
The energies of the HOMO orbital follow the same order as the experimental values of the first anodic peak potentials. The same result was observed for the first cathodic peak potentials, which vary in the opposite direction, as expected. The redox potential is influenced by the number and position of the alkyl groups. Linear dependencies of DFT-computed energies of FMO and the experimental oxidation and reduction potentials were found. This computational study proves to be a good alternative approach to determine valuable parameters if we want to assess whether a certain ligand is good for a certain application. Both used density hybrid functionals give reliable results for properties computations and correlations and, therefore, are useful tools to further assess electrochemical applications. Thus, it is challenging to choose the preferred calculation hybrid functional.
Author Contributions
Conceptualization, E.-M.U., A.S. and O.C.; methodology, A.S.; software, A.S.; validation, O.C. and E.-M.U.; formal analysis, A.-A.V.; investigation, A.-A.V.; resources, E.-M.U.; writing—review and editing, E.-M.U., A.S. and O.C.; visualization, A.S.; supervision, E.-M.U. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Ungureanu, E.-M.; Popescu, M.; Tatu, G.-L.; Birzan, L.; Isopescu, R.; Stanciu, G.; Buica, G.-O. Electrochemical Comparison on New (Z)-5-(Azulen-1-Ylmethylene)-2-Thioxo-Thiazolidin-4-Ones. Symmetry 2021, 13, 588. [Google Scholar] [CrossRef] [Scilit]
- Oprisanu, A.; Matica, O.-T.; Ungureanu, E.M.; Cristea, M.; Birzan, L. Electrochemical study of azulene-pyridine compounds and film formation. UPB Sci. Bull. Series B 2022, in press.
- Oprisanu, A.; Lazar, I.G.; Pop, M.D.; Ungureanu, E.M.; Isopescu, R.; Birzan, L. Polyazulenes Based Materials for Heavy Metal Ions Detection. Rev. Chim. 2017, 68, 2215–2218. [Google Scholar] [CrossRef] [Scilit]
- Pop, M.D.; Anastasoaie, V.; Apostoiu Popescu, M.; Oprisanu, A.; Ungureanu, E.-M.; Cristea, M. New Azulene Modified Electrodes for Heavy Metal Sensing. Rev. Chim. 2017, 68, 2172–2175. [Google Scholar] [CrossRef] [Scilit]
- Lazar, I.-G.; Diacu, E.; Ungureanu, E.-M.; Buica, G.-O.; Birzan, L.; Arnold, G.-L. Modified Electrodes Based on 2,6-Bis((E)-2-(Thiophen-2-yl)Vinyl)-4-(4,6,8-Trimethylazulen-1-yl)Pyridine For Heavy Metals Sensing. UPB Sci. Bull. Ser. B. 2017, 79, 23–36. [Google Scholar]
- Engwa, G.A.; Ferdinand, P.U.; Nwalo, F.N.; Unachukwu, M.N. Mechanism and Health Effects of Heavy Metal Toxicity in Humans. In Poisoning in the Modern World, New Tricks for an Old Dog? Karcioglu, O., Arslan, B., Eds.; IntechOpen: London, UK, 2019; ISBN 978-1-83880-786-3. [Google Scholar]
- Posadas, Y.; López-Guerrero, V.E.; Segovia, J.; Perez-Cruz, C.; Quintanar, L. Dissecting the copper bioinorganic chemistry of the functional and pathological roles of the prion protein: Relevance in Alzheimer’s disease and cancer. Curr. Opin. Chem. Biol. 2022, 66, 102098. [Google Scholar] [CrossRef] [Scilit]
- Gupta, R.; Kumar, P. Integrative analysis of OIP5-AS1/miR-129-5p/CREBBP axis as a potential therapeutic candidate in the pathogenesis of metal toxicity-induced Alzheimer’s disease. Gene Rep. 2022, 26, 101442. [Google Scholar] [CrossRef] [Scilit]
- Huat, T.J.; Camats-Perna, J.; Newcombe, E.A.; Valmas, N.; Kitazawa, M.; Medeiros, R. Metal Toxicity Links to Alzheimer’s Disease and Neuroinflammation. J. Mol. Biol. 2019, 431, 1843–1868. [Google Scholar] [CrossRef] [Scilit]
- Azevedo, J.A.; Azevedo, R.A. Heavy metals and oxidative stress: Where do we go from here? Commun. Biometry Crop. Sci. 2006, 1, 135–138. [Google Scholar]
- Pratt, J.M. Metalloenzymes as Molecular Switches: The Role of Conformation Changes in Controlling Activity. J. Inorg. Biochem. 1986, 28, 145–153. [Google Scholar] [CrossRef] [Scilit]
- Huang, J.; Huang, S.; Zhao, Y.; Feng, B.; Jiang, K.; Sun, S.; Ke, C.; Kymakis, E.; Zhuang, X. Azulene-Based Molecules, Polymers, and Frameworks for Optoelectronic and Energy Applications. Small Methods 2020, 4, 2000628. [Google Scholar] [CrossRef] [Scilit]
- Razus, A.C.; Nica, S.; Cristian, L.; Raicopol, M.; Birzan, L.; Dragu, A.E. Synthesis and physico-chemical properties of highly conjugated azo-aromatic systems. 4-(azulen-1-yl)-pyridines with mono- and bis azo-aromatic moieties at C3-position of azulene. Dye. Pigm. 2011, 91, 55–61. [Google Scholar] [CrossRef] [Scilit]
- Xin, H.; Li, J.; Lu, R.Q.; Gao, X.; Swager, T.M. Azulene–Pyridine-Fused Heteroaromatics. J. Am. Chem. Soc. 2020, 142, 13598–13605. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Murfin, L.C.; Lewis, S.E. Azulene-A Bright Core for Sensing and Imaging. Molecules 2021, 26, 353. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Xin, H.; Gao, X. Application of azulene in constructing organic optoelectronic materials: New tricks for an old dog. ChemPlusChem 2017, 82, 945–956. [Google Scholar] [CrossRef] [Scilit]
- Amir, E.; Murai, M.; Amir, R.J.; Cowart, J.S.; Chabinyc, M.L.; Hawker, C.J. Conjugated oligomers incorporating azulene building blocks–seven-vs. five-membered ring connectivity. Chem. Sci. 2014, 5, 4483–4489. [Google Scholar] [CrossRef] [Scilit]
- Algohary, A.M.; Hassan, M.M.; El-Hashash, M.A.; Rizk, S.A.; Elamin, M.B.; Ahmed, A.H. Novel colorimetric chemosensors containing pyridine moiety for detection of some cations in water and crops samples: Design, synthesis, and evaluation. J. Saudi Chem. Soc. 2021, 25, 101386. [Google Scholar] [CrossRef] [Scilit]
- Razus, A.C.; Birzan, L.; Pavel, C.; Lehadus, O.; Corbu, A.; Chiraleu, F.; Enache, C. Azulene--substituted pyridines and pyridinium salts. Synthesis and structure. 1. Azulene-substituted pyridines. J. Heterocycl. Chem. 2007, 44, 245–250. [Google Scholar] [CrossRef] [Scilit]
- Popa-Tudor, I.; Gugoasa, L.A.; Stefan-Van Staden, R.-I. Electrochemical Sensor for the Assay of Zinc Ions in Whole Blood Samples. UPB Sci. Bull. Ser. B 2019, 81, 103–108. [Google Scholar]
- Brotea, A.G.; Matica, O.-T.; Musina, C.; Ungureanu, E.-M. Polyazulene-Based Materials based on 4-(azulen-1-yl)-2,6-bis((E)-2-(thiophen-2-yl)vinyl)pyridine for Heavy Metals Ions Detection. UPB Sci Bull. 2021, in press.
- Enache, O.-I.; Matica, O.-T.; Bujduveanu, M.-R.; Ungureanu, E.-M.; Cristea, M. Electrochemical proprieties of 2,6-bis((E)-2-(furan-2-yl)vinyl)-4-(azulen-1-yl)pyridine. UPB Sci Bull. 2021, in press.
- Zarrouk, A.; Zarrok, H.; Salghi, R.; Hammouti, B.; Al-Deyab, S.S.; Touzani, R.; Hadda, T.B. A theoretical investigation on the corrosion inhibition of copper by quinoxaline derivatives in nitric acid solution. Int. J. Electrochem. Sci. 2012, 7, 6353–6364. [Google Scholar]
- Korichi, H.; Zouchoune, F.; Zendaoui, S.M.; Zouchoune, B.; Saillard, J.Y. The coordination chemistry of azulene: A comprehensive DFT investigation. Organometallics 2010, 29, 1693–1706. [Google Scholar] [CrossRef] [Scilit]
- Verdal, N.; Rivera, S.A.; Hudson, B.S. Inelastic neutron scattering and periodic DFT studies of crystalline aromatic materials: Azulene. A test of ab initio methods. Chem. Phys. Lett. 2007, 437, 38–44. [Google Scholar] [CrossRef] [Scilit]
- Vasile, A.-A.; Ungureanu, E.-M.; Stanciu, G.; Cristea, M.; Stefaniu, A. Evaluation of (Z)-5-(Azulen-1-ylmethylene)-2-thioxothiazolidin-4-ones Properties Using Quantum Mechanical Calculations. Symmetry 2021, 13, 1462. [Google Scholar] [CrossRef] [Scilit]
- Boulkroune, M.; Ignatovich, L.; Muravenko, V.; Spura, J.; Chibani, A.; Jouikov, V. Correlation of the HOMO–LUMO gap in furyl and thienyl nitrones and nitroethenes with their electrochemical redox potentials. Chem. Heterocycl. Compd. 2014, 49, 1579–1588. [Google Scholar] [CrossRef] [Scilit]
- Brovelli, F.; Rivas, B.L.; Bernède, J.C.; del Valle, M.A.; Díaz, F.R.; Berredjem, Y. Electrochemical and optical studies of 1,4-diaminoanthraquinone for solar cell applications. Polym. Bull. 2007, 58, 521–527. [Google Scholar] [CrossRef] [Scilit]
- Wu, T.Y.; Tsao, M.H.; Chen, F.L.; Su, S.G.; Chang, C.W.; Wang, H.P.; Lin, Y.C.; Sun, I.W. Synthesis and Characterization of Three Organic Dyes with Various Donors and Rhodanine Ring Acceptor for Use in Dye-Sensitized Solar Cells. J. Iran. Chem. Soc. 2010, 7, 707–720. [Google Scholar] [CrossRef] [Scilit]
- Méndez-Hernández, D.D.; Tarakeshwar, P.; Gust, D.; Moore, T.A.; Moore, A.L.; Mujica, V. Simple and accurate correlation of experimental redox potentials and DFT-calculated HOMO/LUMO energies of polycyclic aromatic hydrocarbons. J. Mol. Model. 2013, 19, 2845–2848. [Google Scholar] [CrossRef] [Scilit]
- Chen, L.; Süß, D.; Sukuba, I.; Schauperl, M.; Probst, M.; Maihom, T.; Kaiser, A. Performance of DFT functionals for properties of small molecules containing beryllium, tungsten and hydrogen. Nucl. Mater. Energy. 2020, 22, 100731. [Google Scholar] [CrossRef] [Scilit]
- Shao, Y.; Molnar, L.F.; Jung, Y.; Kussmann, J.; Ochsenfeld, C.; Brown, S.T.; Gilbert, A.T.B.; Slipchenko, L.V.; Levchenko, S.V.; O’Neill, D.P.; et al. Advances in methods and algorithms in a modern quantum chemistry program package. Phys. Chem. Chem. Phys. 2006, 8, 3172–3191. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Parr, R.G.; Yang, W. Density Functional Theory of Atoms and Molecules; Oxford University Press: Oxford, UK, 1989; Volume 16. [Google Scholar]
- Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Hehre, W.J. A Guide to Molecular Mechanics and Quantum Chemical Calculations; Wavefunction, Inc.: Irvine, CA, USA, 2003. [Google Scholar]
- Pritchard, B.P.; Altarawy, D.; Didier, B.; Gibsom, T.D.; Windus, T.L. A New Basis Set Exchange: An Open, Up-to-date Resource for the Molecular Sciences Community. J. Chem. Inf. Model. 2019, 59, 4814–4820. [Google Scholar] [CrossRef] [Scilit]
- Chai, J.D.; Head-Gordon, M. Long-range corrected hybrid density functionals with damped atom–atom dispersion corrections. Phys. Chem. Chem. Phys. 2008, 10, 6615–6620. [Google Scholar] [CrossRef] [Scilit]
- Neese, F. Prediction of molecular properties and molecular spectroscopy with density functional theory: From fundamental theory to exchange-coupling. Coord. Chem. Rev. 2009, 253, 526–563. [Google Scholar] [CrossRef] [Scilit]
- Pearson, R.G. Absolute electronegativity and hardness: Application to inorganic chemistry. Inorg. Chem. 1988, 27, 734–740. [Google Scholar] [CrossRef] [Scilit]
- Yankova, R.; Genieva, S.; Halachev, N.; Dimitrova, G. Molecular structure, vibrational spectra, MEP, HOMO-LUMO and NBO analysis of Hf(SeO3)(SeO4)(H2O)4. J. Mol. Struct. 2016, 1106, 82–88. [Google Scholar] [CrossRef] [Scilit]
- Pearson, R.G. Recent Advances in the Concept of Hard and Soft Acids and Bases. J. Chem. Educ. 1987, 64, 561–567. [Google Scholar] [CrossRef] [Scilit]
- Wang, H.; Wang, X.; Wang, H.; Wang, L.; Liu, A. DFT study of new bipyrazole derivatives and their potential activity as corrosion inhibitors. J. Mol. Model. 2007, 13, 147–153. [Google Scholar] [CrossRef] [Scilit]
- Parr, R.G.; Szentpaly, L.; Liu, S. Electrophilicity Index. J. Am. Chem. Soc. 1999, 121, 1922–1924. [Google Scholar] [CrossRef] [Scilit]
- Vennila, P.; Govindaraju, M.; Venkatesh, G.; Kamal, C. Molecular structure, vibrational spectral assignments (FT-IR and FT-RAMAN), NMR, NBO, HOMO-LUMO and NLO properties of O-methoxybenzaldehyde based on DFT calculations. J. Mol. Struct. 2016, 1111, 151–156. [Google Scholar] [CrossRef] [Scilit]
- Alam, M.J.; Ahmad, S. Anharmonic vibrational studies of L-aspartic acid using HF and DFT calculations. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2012, 96, 992–1004. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Demir, P.; Akman, F. Molecular structure, spectroscopic characterization, HOMO and LUMO analysis of PU and PCL grafted onto PEMA-co-PHEMA with DFT quantum chemical calculations. J. Mol. Struct. 2017, 1134, 404–415. [Google Scholar] [CrossRef] [Scilit]
- Ungureanu, E.M.; Buica, G.O.; Razus, A.C.; Birzan, L.; Weisz, R.; Bujduveanu, M.R. Electrochemical study on 4-(azulen-1-yl)-2, 6-bis (2-furyl)-and 4-(azulen-1-yl)-2, 6-bis (2-thienyl)-pyridines. Rev. Chim. 2012, 63, 27–33. [Google Scholar]

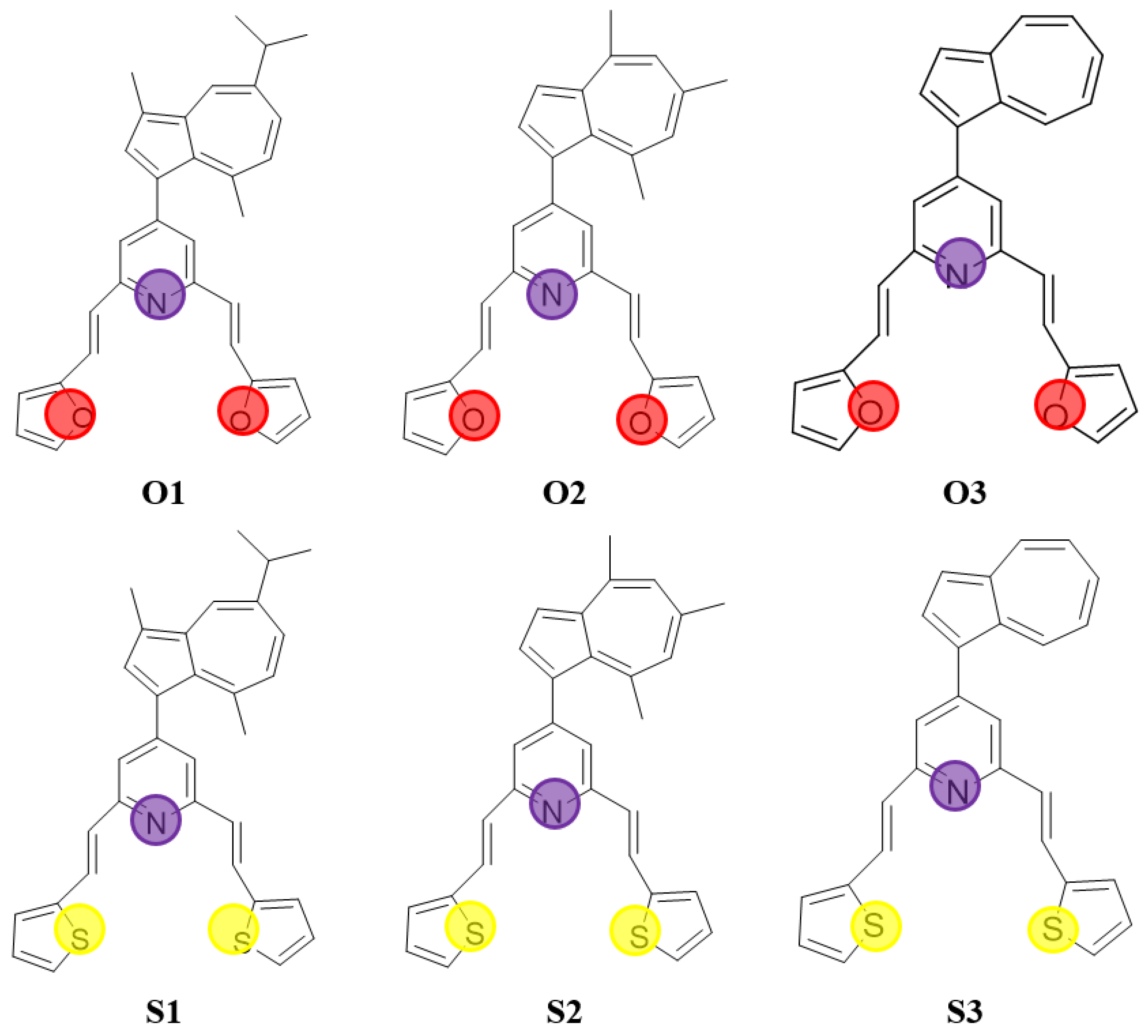

Figure 1.
Structures of the studied molecules.

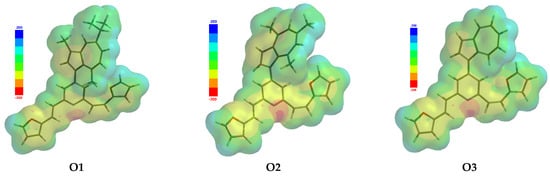

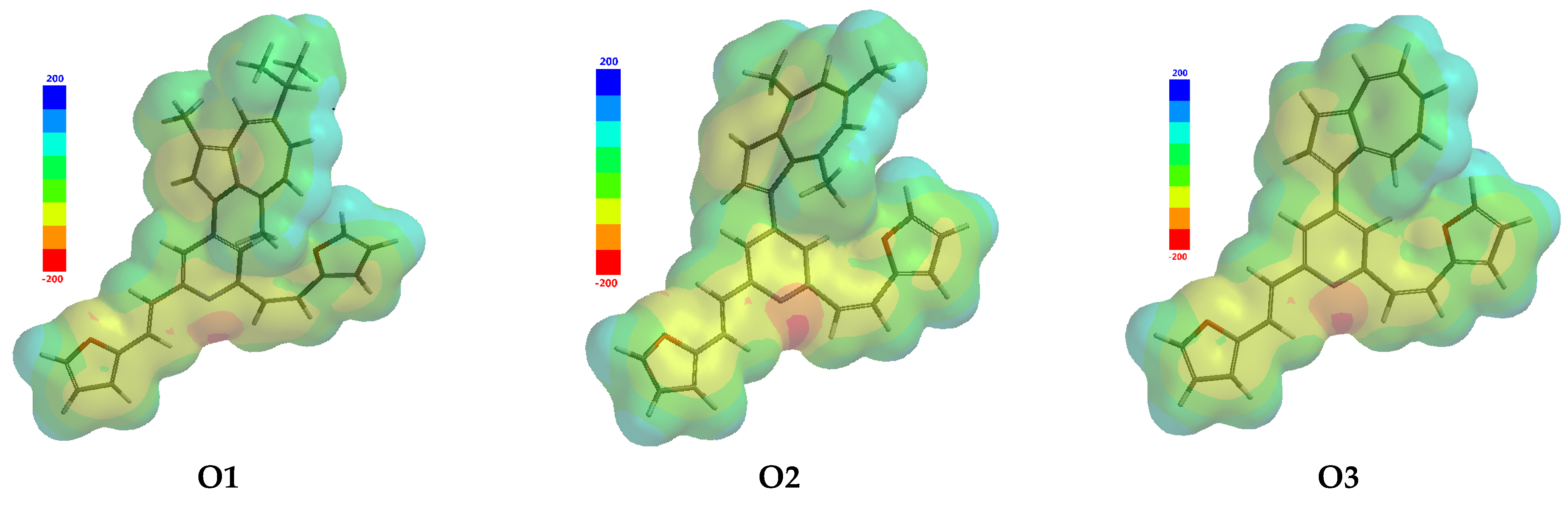

Figure 2.
Predicted molecular electrostatic potential maps for O1–O3 compounds.

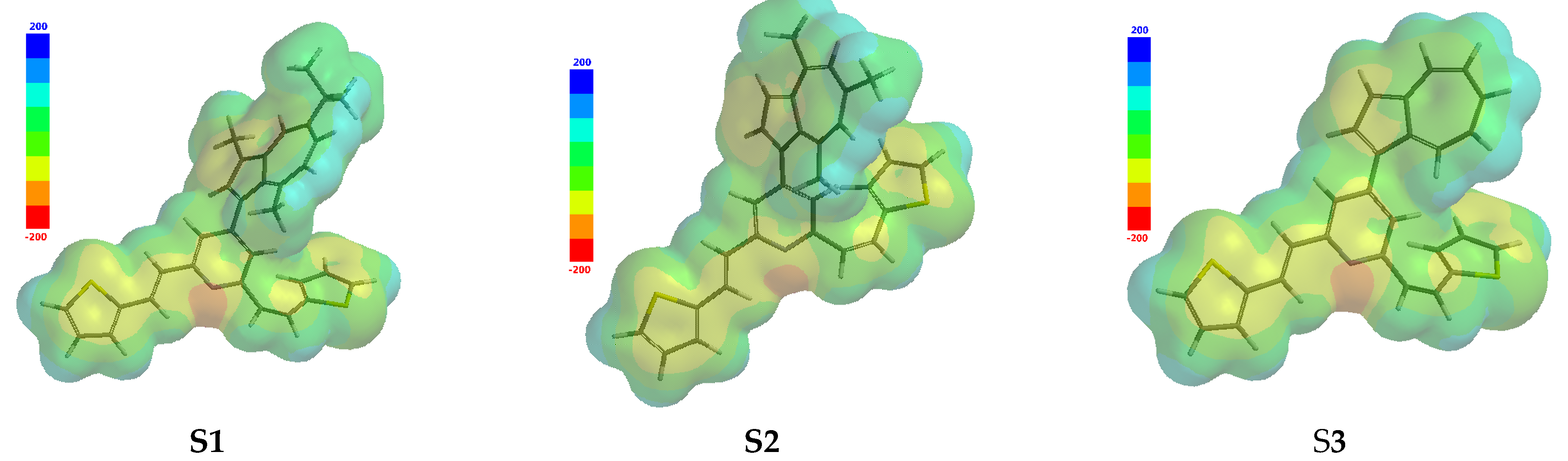

Figure 3.
Predicted molecular electrostatic potential maps for S1–S3 compounds.

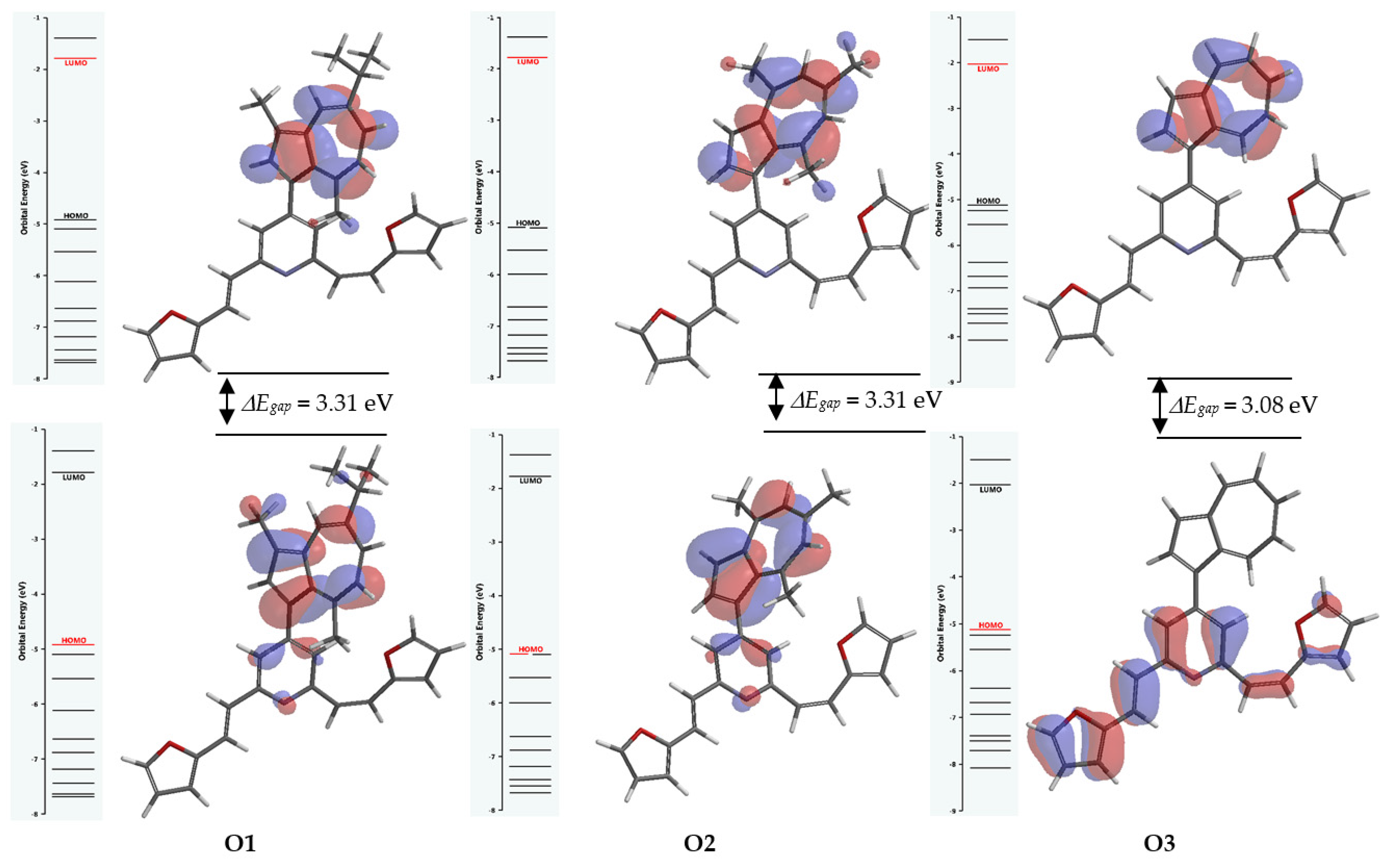

Figure 4.
The frontier molecular orbitals diagram for O1–O3 computed using B3LYP/6-31G (d, p) level. The isovalues are referred to in Table 1.
Figure 4.
The frontier molecular orbitals diagram for O1–O3 computed using B3LYP/6-31G (d, p) level. The isovalues are referred to in Table 1.

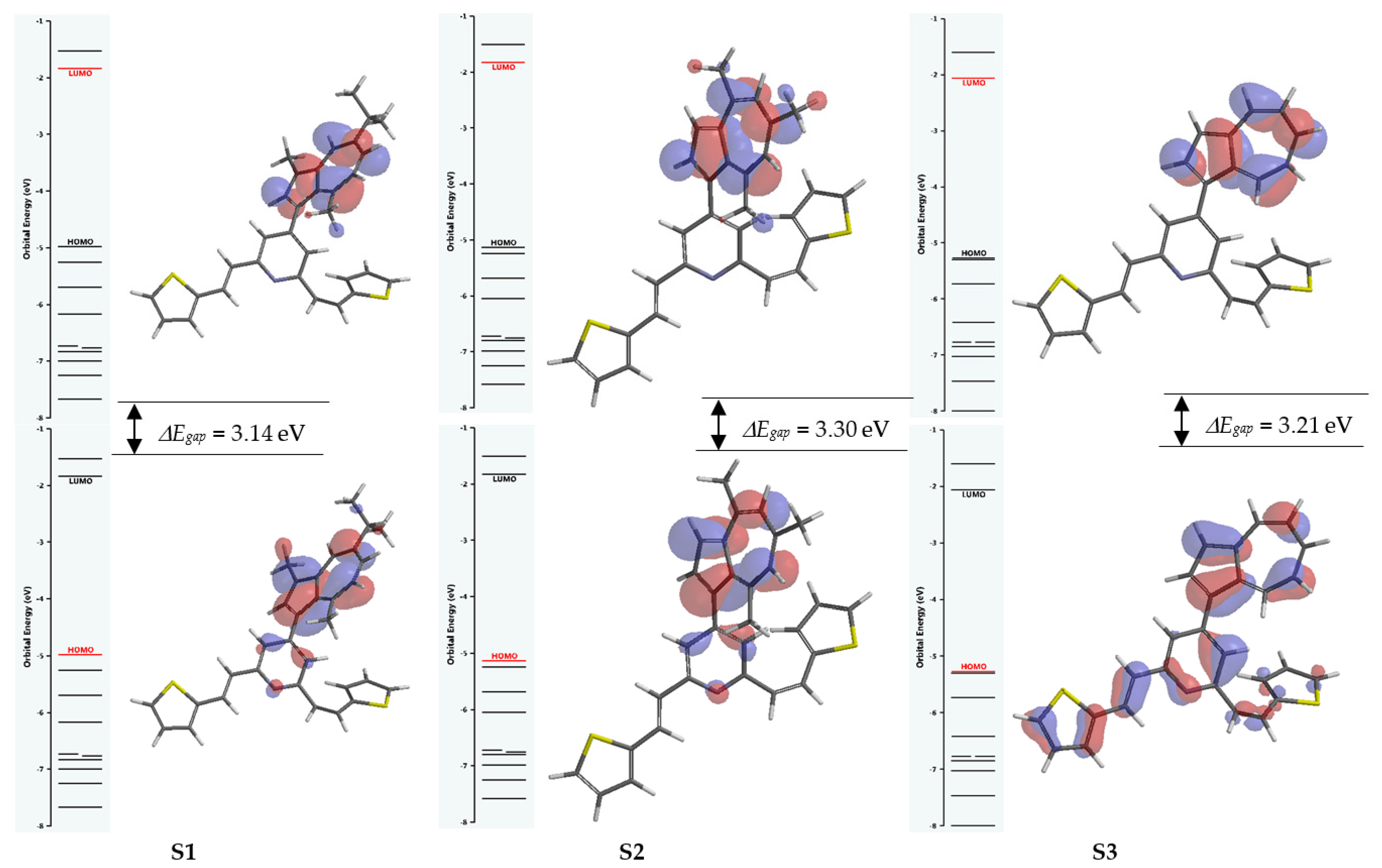

Figure 5.
The frontier molecular orbitals diagram for S1–S3 computed using B3LYP/6-31G (d, p) level. The isovalues are referred to in Table 1.
Figure 5.
The frontier molecular orbitals diagram for S1–S3 computed using B3LYP/6-31G (d, p) level. The isovalues are referred to in Table 1.
Table 1.
Predicted molecular a–g and QSAR h–m properties of oxygen (O1, O2, O3) and sulfur (S1, S2, S3) compounds calculated using B3LYP and ωB97XD DFT models.
Table 1.
Predicted molecular a–g and QSAR h–m properties of oxygen (O1, O2, O3) and sulfur (S1, S2, S3) compounds calculated using B3LYP and ωB97XD DFT models.
| Parameter | O1 C32H29NO2 | O2 C30H25NO2 | O3 C27H19NO2 | |||
|---|---|---|---|---|---|---|
| B3LYP | ωB97XD | B3LYP | ωB97XD | B3LYP | ωB97XD | |
| M a (g⋅mol−1) | 459.59 | 431.54 | 389.45 | |||
| E b (au) | −1441.98 | −1441.51 | −1363.36 | −1362.9 | −1245.42 | −1244.99 |
| Eaq c (au) | −1441.99 | −1441.52 | −1363.37 | −1362.91 | −1245.43 | −1245 |
| Esolv d (kJ⋅mol−1) | −23.72 | −21.35 | −27.97 | −25.92 | −32.7 | −30.16 |
| μ e (D) | 3.10 | 3.27 | 3.43 | 3.67 | 2.91 | 3.11 |
| EHOMOf (eV) | −4.92 | −6.74 | −5.08 | −6.93 | −5.12 | −7.03 |
| ELUMO g (eV) | −1.79 | −0.13 | −1.77 | −0.13 | −2.04 | −0.36 |
| S h (Å2) | 520.42 | 514.08 | 481.21 | 474.27 | 429.84 | 423.09 |
| V i (Å3) | 508.94 | 506.68 | 472.01 | 469.83 | 418.75 | 416.98 |
| PSA j (Å2) | 18.27 | 16.79 | 18.31 | 16.80 | 18.6 | 17.93 |
| OI k | 1.69 | 1.67 | 1.64 | 1.62 | 1.59 | 1.57 |
| α l (10−30⋅m3) | 81.92 | 80.91 | 78.88 | 77.88 | 74.61 | 73.62 |
| Epot m (kJ⋅mol−1) | −166.66 | −167.73 | −167.67 | −168.84 | −164.84 | −163.65 |
| S1 C32H29NS2 | S2 C30H25NS2 | S3 C27H19NS2 | ||||
| B3LYP | ωB97XD | B3LYP | ωB97XD | B3LYP | ωB97XD | |
| M a (g⋅mol−1) | 491.72 | 463.67 | 421.59 | |||
| E b (au) | −2087.94 | −2087.47 | −2009.31 | −2008.86 | −1891.37 | −1890.95 |
| Eaq c (au) | −2087.95 | −2087.48 | −2009.32 | −2008.88 | −1891.38 | −1890.96 |
| Esolv d (kJ⋅mol−1) | −32.25 | −32.25 | −36.99 | −37.13 | −39.55 | −38.56 |
| μ e (D) | 3.11 | 3.22 | 3.33 | 3.55 | 2.79 | 2.82 |
| EHOMOf (eV) | −4.98 | −6.72 | −5.13 | −6.91 | −5.27 | −7.07 |
| ELUMO g (eV) | −1.84 | −0.14 | −1.83 | −0.14 | −2.06 | −0.36 |
| S h (Å2) | 535.76 | 532.51 | 496.12 | 491.29 | 444.51 | 442.36 |
| V i (Å3) | 526.71 | 524.23 | 489.67 | 487.32 | 436.52 | 434.71 |
| PSA j (Å2) | 6.297 | 6.187 | 6.34 | 6.21 | 6.31 | 6.25 |
| OI k | 1.70 | 1.69 | 1.65 | 1.64 | 1.60 | 1.59 |
| α l (10−30⋅m3) | 83.36 | 82.34 | 80.32 | 79.31 | 76.03 | 75.05 |
| Epot m (kJ⋅mol−1) | −160.04 | −152.77 | −165.18 | −154.99 | −159.77 | −160.26 |
a molecular weight (M); b total energy (E); c aqueous solvation energy (Eaq); d solvation energy (Esolv), e dipole moment (μ); f energy of the HOMO orbital (EHOMO); g energy of the LUMO orbital (ELUMO); h area (S), i volume (V); j polar surface area (PSA); k ovality index (OI) (degree of deviation from perfect spherical shape molecule); l polarizability (α); m minimum value of electrostatic potential (Epot).
Table 2.
Quantum chemical reactivity parameters of investigated compounds calculated using B3LYP and ωB97XD DFT models.
Table 2.
Quantum chemical reactivity parameters of investigated compounds calculated using B3LYP and ωB97XD DFT models.
| Parameter | O1 C32H29NO2 | O2 C30H25NO2 | O3 C27H19NO2 | |||
|---|---|---|---|---|---|---|
| B3LYP | ωB97XD | B3LYP | ωB97XD | B3LYP | ωB97XD | |
| I m = −EHOMO (eV) | 4.92 | 6.74 | 5.08 | 6.93 | 5.12 | 7.03 |
| A n = −ELUMO (eV) | 1.79 | 0.13 | 1.77 | 0.13 | 2.04 | 0.36 |
| ΔEgap o = I − A (eV) | 3.13 | 6.61 | 3.31 | 6.8 | 3.08 | 6.67 |
| χ p = (I + A)/2 (eV) | 3.36 | 3.44 | 3.43 | 3.53 | 3.58 | 3.70 |
| η q = (I − A)/2 (eV) | 1.57 | 3.31 | 1.66 | 3.40 | 1.54 | 3.34 |
| σ r = 1/η (eV−1) | 0.64 | 0.30 | 0.60 | 0.29 | 0.65 | 0.30 |
| ω s = μ2/2η (D2⋅ eV−1) | 3.07 | 1.62 | 3.55 | 1.98 | 2.75 | 1.45 |
| S1 C32H29NS2 | S2 C30H25NS2 | S3 C27H19NS2 | ||||
| B3LYP | ωB97XD | B3LYP | ωB97XD | B3LYP | ωB97XD | |
| I m = −EHOMO (eV) | 4.98 | 6.72 | 5.13 | 6.91 | 5.27 | 7.07 |
| A n = −ELUMO (eV) | 1.84 | 0.14 | 1.83 | 0.14 | 2.06 | 0.36 |
| ΔEgap o = I − A (eV) | 3.14 | 6.58 | 3.30 | 6.77 | 3.21 | 6.71 |
| χ p = (I + A)/2 (eV) | 3.41 | 3.43 | 3.48 | 3.53 | 3.67 | 3.72 |
| η q = (I − A)/2 (eV) | 1.57 | 3.29 | 1.65 | 3.39 | 1.61 | 3.36 |
| σ r = 1/η (eV−1) | 0.64 | 0.30 | 0.61 | 0.30 | 0.62 | 0.30 |
| ω s = μ2/2η (D2⋅ eV−1) | 3.08 | 1.58 | 3.36 | 1.86 | 2.42 | 1.19 |
m ionization potential (I); n electron affinity (A); o energy gap (ΔEgap); p electronegativity (χ); q global hardness (η); r softness (σ); s global electrophilicity index (ω).
Table 3.
Experimental oxidation (Ea) and reduction (Ec) potentials [3,4,5,21,22] for O1–O3 and S1–S3 ligands.
| Property | Ligand | ||
|---|---|---|---|
| O1 | O2 | O3 | |
| Ea (V) | 0.318 | 0.487 | 0.553 |
| Ec (V) | −2.071 | −2.084 | −1.854 |
| Reference | [4] | [2] | [22] |
| S1 | S2 | S3 | |
| Ea (V) | 0.338 | 0.470 | 0.567 |
| Ec (V) | −2.065 | −2.090 | −1.858 |
| Reference | [3] | [5] | [21] |
Table 4.
Values of intercept (a), slope (b), and correlation coefficient (R2) from the linear correlation obtained for the oxidation (Ea) and reduction (Ec) potentials with I and A, respectively, for the investigated ligands from computations with B3LYP or ωB97XD hybrid functionals.
Table 4.
Values of intercept (a), slope (b), and correlation coefficient (R2) from the linear correlation obtained for the oxidation (Ea) and reduction (Ec) potentials with I and A, respectively, for the investigated ligands from computations with B3LYP or ωB97XD hybrid functionals.
| Correlation | B3LYP | ωB97XD | ||||
|---|---|---|---|---|---|---|
| a | b | R2 | a | b | R2 | |
| For O1–O3 | ||||||
| Ea vs. I | −5.298 | 1.141 | 0.993 | −5.211 | 0.821 | 0.995 |
| Ec vs. A | −3.606 | 0.859 | 0.9997 | −2.204 | 0.972 | 0.998 |
| For S1–S3 | ||||||
| Ea vs. I | 4.500 | 1.259 | 0.995 | 6.202 | 1.523 | 0.999 |
| Ec vs. A | 3.949 | 1.017 | 0.996 | 2.199 | 0.991 | 0.990 |
Table 5.
Linear correlations between predicted molecular properties and ionization potential (I) or electron affinity (A), computed using B3LYP and ωB97XD hybrid functionals; A and I are expressed in eV.
Table 5.
Linear correlations between predicted molecular properties and ionization potential (I) or electron affinity (A), computed using B3LYP and ωB97XD hybrid functionals; A and I are expressed in eV.
| Correlation * | B3LYP | ωB97XD | ||||
|---|---|---|---|---|---|---|
| a | b | R2 | a | b | R2 | |
| For O1–O3 | ||||||
| E vs. I | −5595.9 | 842.39 | 0.812 | −5786.5 | 642.99 | 0.917 |
| E vs. A | −2441.8 | 584.77 | 0.791 | −1491.1 | 683.54 | 0.842 |
| Eaq vs. I | −5595.9 | 842.39 | 0.812 | −5786.5 | 642.99 | 0.917 |
| Eaq vs. A | −2441.8 | 584.77 | 0.791 | −2441.8 | 584.77 | 0.791 |
| Esolv vs. I | 171.76 | −39.66 | 0.870 | 178.07 | −29.55 | 0.980 |
| Esolv vs. A | 19.12 | −25.31 | 0.720 | −19.95 | −28.37 | 0.730 |
| μ vs. I | nlc ** | nlc ** | ||||
| μ vs. A | nlc ** | nlc ** | ||||
| For S1–S3 | ||||||
| E vs. I | −5595.9 | 842.39 | 0.812 | −5786.5 | 642.99 | 0.917 |
| E vs. A | −3306.9 | 686.25 | 0.813 | −2148.2 | 714.61 | 0.842 |
| Eaq vs. I | −5461.9 | 676.00 | 0.982 | −5838.5 | 556.91 | 0.973 |
| Eaq vs. A | −3306.9 | 686.25 | 0.813 | −2148.2 | 714.64 | 0.842 |
| Esolv vs. I | 93.18 | −25.25 | 0.977 | 90.05 | −18.27 | 0.936 |
| Esolv vs. A | nlc ** | nlc ** | ||||
| μ vs. I | nlc ** | nlc ** | ||||
| μ vs. A | 6.784 | −1.941 | 0.863 | 3.745 | −2.568 | 0.796 |
Table 6.
Linear correlations between predicted QSAR properties and ionization potential (I) or electron affinity (A), computed using B3LYP and ωB97XD hybrid functionals; A and I are expressed in eV.
Table 6.
Linear correlations between predicted QSAR properties and ionization potential (I) or electron affinity (A), computed using B3LYP and ωB97XD hybrid functionals; A and I are expressed in eV.
| Correlation * | B3LYP | ωB97XD | ||||
|---|---|---|---|---|---|---|
| a | b | R2 | a | b | R2 | |
| For O1–O3 | ||||||
| S vs. I | 2460.50 | −393.52 | 0.841 | 2541.00 | −300.07 | 0.939 |
| S vs. A | 968.30 | −263.11 | 0.760 | 534.35 | −309.07 | 0.809 |
| V vs. I | 2422.40 | −388.05 | 0.802 | 2494.20 | −294.16 | 0.924 |
| V vs. A | 964.01 | −266.49 | 0.782 | 528.54 | −309.89 | 0.833 |
| PSA vs. I | nlc ** | nlc ** | ||||
| PSA vs. A | 16.19 | 1.18 | 0.969 | 16.15 | 4.94 | 0.999 |
| OI vs. I | 3.89 | −0.45 | 0.893 | 3.93 | −0.33 | 0.969 |
| OI vs. A | 2.16 | −0.28 | 0.690 | 1.69 | −0.33 | 0.750 |
| α vs. I | 237.41 | −31.54 | 0.826 | 242.59 | −23.93 | 0.927 |
| α vs. A | 118.60 | −21.50 | 0.776 | 82.66 | −25.11 | 0.829 |
| Epot vs. I | nlc ** | nlc ** | ||||
| Epot vs. A | −183.43 | 9.13 | 0.916 | −170.90 | 20.15 | 0.959 |
| For S1–S3 | ||||||
| S vs. I | 2102.20 | −314.06 | 0.991 | 2257.30 | −256.31 | 0.990 |
| S vs. A | 1086.40 | −311.13 | 0.781 | 556.15 | −316.09 | 0.791 |
| V vs. I | 2074.80 | −310.24 | 0.985 | 2233.80 | −253.87 | 0.978 |
| V vs. A | 1081.30 | −312.58 | 0.804 | 551.00 | −323.02 | 0.832 |
| PSA vs. I | nlc ** | 4.99 | 0.1782 | 0.959 | ||
| PSA vs. A | nlc ** | 6.17 | 0.2341 | 0.870 | ||
| OI vs. I | 3.42 | −0.345 | 0.999 | 3.61 | −0.285 | 0.998 |
| OI vs. A | 2.28 | −0.3254 | 0.716 | 1.71 | −0.3409 | 0.750 |
| α vs. I | 209.18 | −25.216 | 0.987 | 221.57 | −20.678 | 0.979 |
| α vs. A | 128.29 | −25.334 | 0.799 | 84.50 | −26.25 | 0.829 |
| Epot vs. I | nlc ** | −10.42 | −21.099 | 0.923 | ||
| Epot vs. A | nlc ** | −149.82 | −29.00 | 0.917 | ||
Table 7.
Linear correlations between predicted quantum chemical reactivity parameters and ionization potential (I) and electron affinity (A), respectively; A and I are expressed in eV.
Table 7.
Linear correlations between predicted quantum chemical reactivity parameters and ionization potential (I) and electron affinity (A), respectively; A and I are expressed in eV.
| Correlation * | B3LYP | ωB97XD | ||||
|---|---|---|---|---|---|---|
| a | b | R2 | a | b | R2 | |
| For O1–O3 | ||||||
| χ vs. I | nlc ** | nlc ** | ||||
| χ vs. A | 2.0664 | 0.743 | 0.942 | 3.3624 | 0.9239 | 0.870 |
| η vs. I | 4.4667 | −0.5714 | 1.000 | 5.1432 | −0.2604 | 0.624 |
| η vs. A | nlc ** | nlc ** | ||||
| σ vs. I | 0.4941 | 0.2232 | 0.999 | 0.14 | 0.023 | 0.617 |
| σ vs. A | nlc ** | nlc ** | ||||
| ω vs. I | 21.971 | −3.7393 | 0.954 | 14.382 | −1.8404 | 0.999 |
| ω vs. A | nlc ** | nlc ** | ||||
| For S1–S3 | ||||||
| χ vs. I | nlc ** | nlc ** | ||||
| χ vs. A | 1.6338 | 0.9867 | 0.948 | 3.3264 | 1.0795 | 0.893 |
| η vs. I | nlc ** | nlc ** | ||||
| η vs. A | nlc ** | nlc ** | ||||
| σ vs. I | nlc ** | nlc ** | ||||
| σ vs. A | nlc ** | nlc ** | ||||
| ω vs. I | 19.407 | −3.2091 | 0.940 | 14.783 | −1.9129 | 0.981 |
| ω vs. A | 9.6175 | −3.4881 | 0.892 | 2.0581 | −2.4249 | 0.823 |
* The significance of the properties is the same as in Table 2; ** nlc—nonlinear correlation.
Table 8.
Linear correlations between molecular and QSAR properties * and I or A using best-performing DFT method; A and I are expressed in eV.
Table 8.
Linear correlations between molecular and QSAR properties * and I or A using best-performing DFT method; A and I are expressed in eV.
| Correlated Parameters | a | b | R2 | DFT Method |
|---|---|---|---|---|
| Oxygen compounds | ||||
| E vs. I | −5786.5 | 642.99 | 0.917 | ωB97XD |
| Eaq vs. I | −5786.5 | 642.99 | 0.917 | ωB97XD |
| Esolv vs. I | 178.07 | −29.55 | 0.980 | ωB97XD |
| S vs. I | 2541.00 | −300.07 | 0.939 | ωB97XD |
| V vs. I | 2494.20 | −294.16 | 0.924 | ωB97XD |
| PSA vs. A | 16.15 | 4.94 | 0.999 | ωB97XD |
| OI vs. I | 3.93 | −0.33 | 0.969 | ωB97XD |
| α vs. I | 242.59 | −23.93 | 0.927 | ωB97XD |
| Epot vs. A | −170.90 | 20.15 | 0.959 | ωB97XD |
| Sulfur compounds | ||||
| E vs. I | −5461.8 | 676.00 | 0.982 | B3LYP |
| Eaq vs. I | −5461.9 | 676.00 | 0.982 | B3LYP |
| Esolv vs. I | 93.18 | −25.25 | 0.977 | B3LYP |
| S vs. I | 2102.20 | −314.06 | 0.991 | B3LYP |
| V vs. I | 2233.80 | −253.87 | 0.985 | B3LYP |
| PSA vs. I | 4.99 | 0.1782 | 0.959 | ωB97XD |
| OI vs. I | 3.42 | −0.345 | 0.999 | B3LYP |
| α vs. I | 209.18 | −25.216 | 0.987 | B3LYP |
| Epot vs. I | −10.42 | −21.099 | 0.923 | ωB97XD |
* The significance of the properties is the same as in Table 1.
Table 9.
Linear correlations between predicted quantum chemical reactivity parameters * and I or A using best-performing DFT method; A and I are expressed in eV.
Table 9.
Linear correlations between predicted quantum chemical reactivity parameters * and I or A using best-performing DFT method; A and I are expressed in eV.
| Correlated Parameters | a | b | R2 | DFT Method |
|---|---|---|---|---|
| Oxygen compounds | ||||
| χ vs. A | 2.0664 | 0.743 | 0.942 | B3LYP |
| η vs. I | 4.4667 | −0.5714 | 1.000 | B3LYP |
| σ vs. I | 0.4941 | 0.2232 | 0.999 | B3LYP |
| ω vs. I | 21.971 | −3.7393 | 0.954 | B3LYP |
| ω vs. I | 14.382 | −1.8404 | 0.999 | ωB97XD |
| Sulfur compounds | ||||
| χ vs. A | 1.6338 | 0.9867 | 0.948 | B3LYP |
| ω vs. I | 19.407 | −3.2091 | 0.940 | B3LYP |
| ω vs. I | 14.783 | −1.9129 | 0.981 | ωB97XD |
* The significance of the properties is the same as in Table 2.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Ciocirlan, O.; Ungureanu, E.-M.; Vasile, A.-A.; Stefaniu, A. Properties Assessment by Quantum Mechanical Calculations for Azulenes Substituted with Thiophen– or Furan–Vinyl–Pyridine. Symmetry 2022, 14, 354. https://doi.org/10.3390/sym14020354
AMA Style
Ciocirlan O, Ungureanu E-M, Vasile A-A, Stefaniu A. Properties Assessment by Quantum Mechanical Calculations for Azulenes Substituted with Thiophen– or Furan–Vinyl–Pyridine. Symmetry. 2022; 14(2):354. https://doi.org/10.3390/sym14020354
Chicago/Turabian StyleCiocirlan, Oana, Eleonora-Mihaela Ungureanu, Alina-Alexandra Vasile (Corbei), and Amalia Stefaniu. 2022. "Properties Assessment by Quantum Mechanical Calculations for Azulenes Substituted with Thiophen– or Furan–Vinyl–Pyridine" Symmetry 14, no. 2: 354. https://doi.org/10.3390/sym14020354
APA StyleCiocirlan, O., Ungureanu, E.-M., Vasile, A.-A., & Stefaniu, A. (2022). Properties Assessment by Quantum Mechanical Calculations for Azulenes Substituted with Thiophen– or Furan–Vinyl–Pyridine. Symmetry, 14(2), 354. https://doi.org/10.3390/sym14020354
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
