# Testing of a Virtualized Distributed Processing System for the Execution of Bio-Inspired Optimization Algorithms

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Bio-Inspired Optimization

#### 1.2. Distributed Processing Systems

#### 1.3. Virtualization Systems

#### 1.4. Document Organization

## 2. Distributed Processing Systems

**Openness:**This attribute ensures that a subsystem is continuously open to interaction with other systems, such as those designed to perform inter-machine interactions over a network by allowing distributed systems to expand and scale.

**Scalable:**A distributed system can function properly even if some aspect of the system scales to a larger size. Three components should be considered: the number of users and other entities that are part of the system, the distance between the farthest nodes of the system, and the number of organizations that exercise administrative control over parts of the system.

**Predictable performance:**Predictable performance is the ability to provide the desired responsiveness in a timely manner, according to a performance metric that may be the response time associated with the time elapsed between a query in a computer system and response. Another metric corresponds to the rate at which a network sends or receives data. Metrics associated with system utilization and network capacity can also be used to establish the performance.

**Security:**Security features are primarily intended to provide confidentiality, integrity, and availability; thus, distributed systems must allow communication between programs, users, and resources on different computers by applying the necessary security tools.

**Fault-tolerant:**Distributed systems consist of a large number of hardware and software modules that can fail in the long-term. Such component failures can result in a lack of service. Therefore, systems should be able to recover from component failures without performing erroneous actions.

**Transparency:**Distributed systems should be perceived by users and application developers as a whole and not as a collection of cooperating components. In this way, for the user the locations of the computer systems involved in the operations, data replication, failures, system recovery, etc., are not visible.

#### Types of Parallel Architecture

- SISD (single instruction stream, single data stream): This classification corresponds to the traditional single-processor computer. It represents the conventional sequential (serial) processor structure where a single control thread, the flow of instructions, guides the sequence of operations performed on a single data set, one operating at a time.
- SIMD (single instruction stream, multiple data streams): This architecture supports multiple streams of data to be processed simultaneously by replicating computer hardware. Single statement means that all data streams are processed using the same calculation logic. It can be seen as an array processor, where a single instruction operates in many data units in parallel.
- MISD (multiple instruction stream, single data stream): Corresponds to a rare architecture, which operates in a single data flow but has multiple computing engines that use the same data flow. That is multiple processors, each with their own flow of instructions, working on the same data with which all the other processors operate. They could be used to provide fault tolerance with heterogeneous systems operating with the same data.

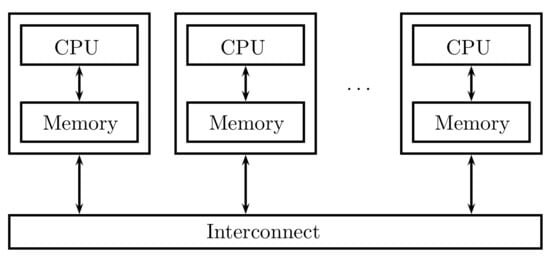

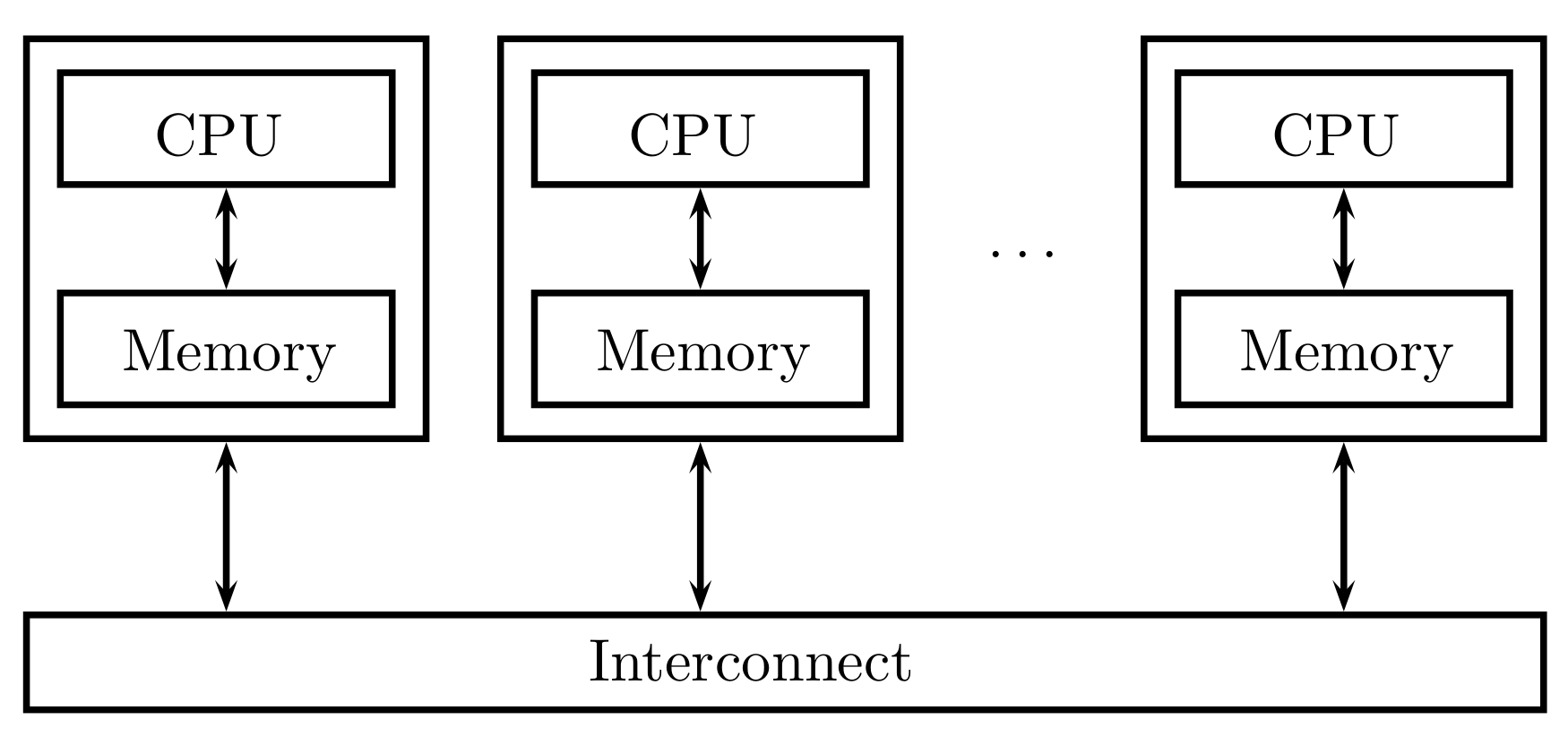

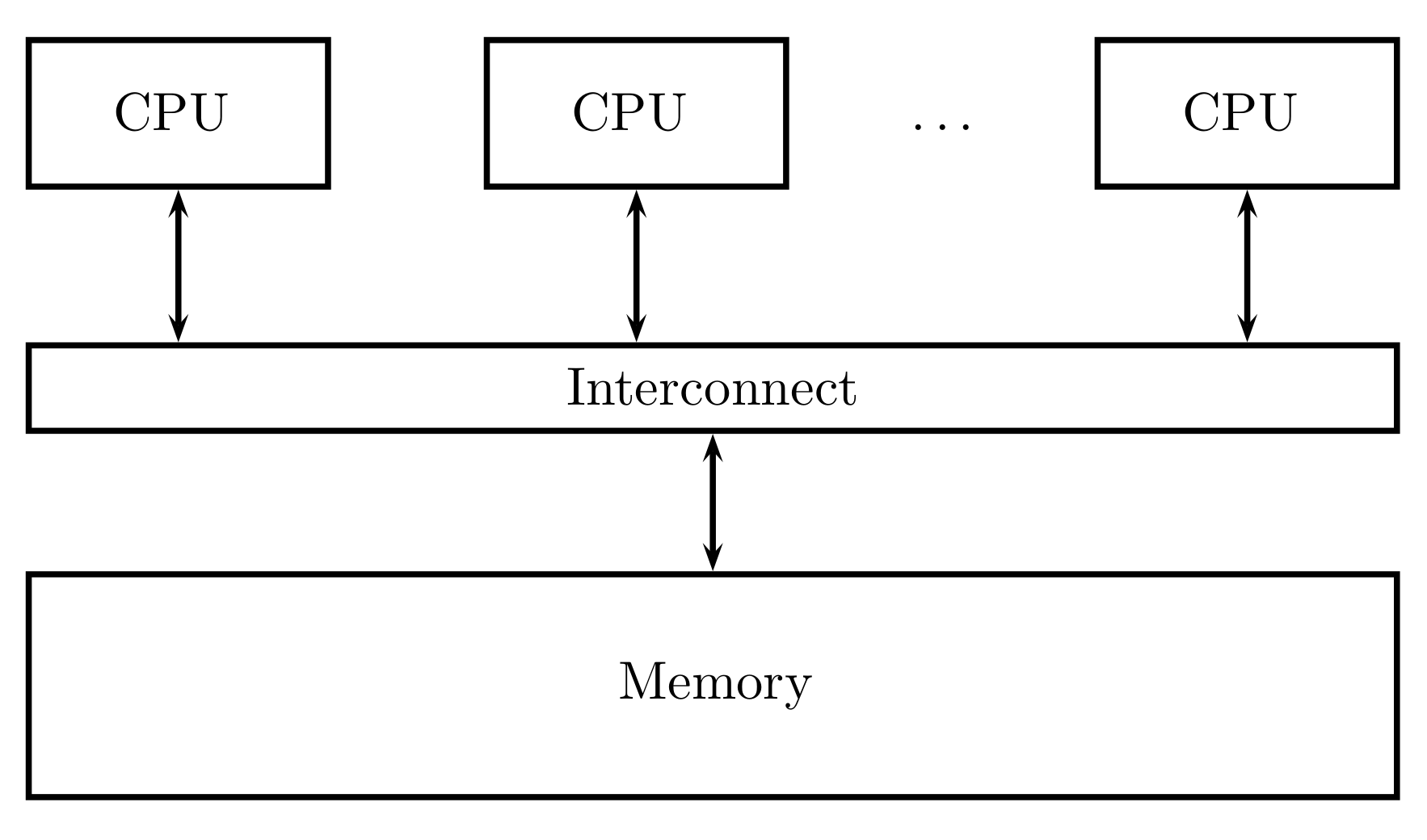

- MIMD (multiple instruction stream, multiple data stream): This is the most generic parallel processing architecture where any type of distributed application is programmed. Multiple stand-alone processors running in parallel work in separate data flows. The logic of the applications running on these processors can also be very different. All distributed systems are recognized as MIMD architectures. At any time, a lot of operations are performed, but they do not have to be the same and are mostly different.

## 3. Description of Virtualization Systems and Process

## 4. Virtualized Distributed Processing System Used

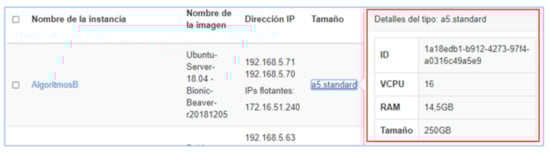

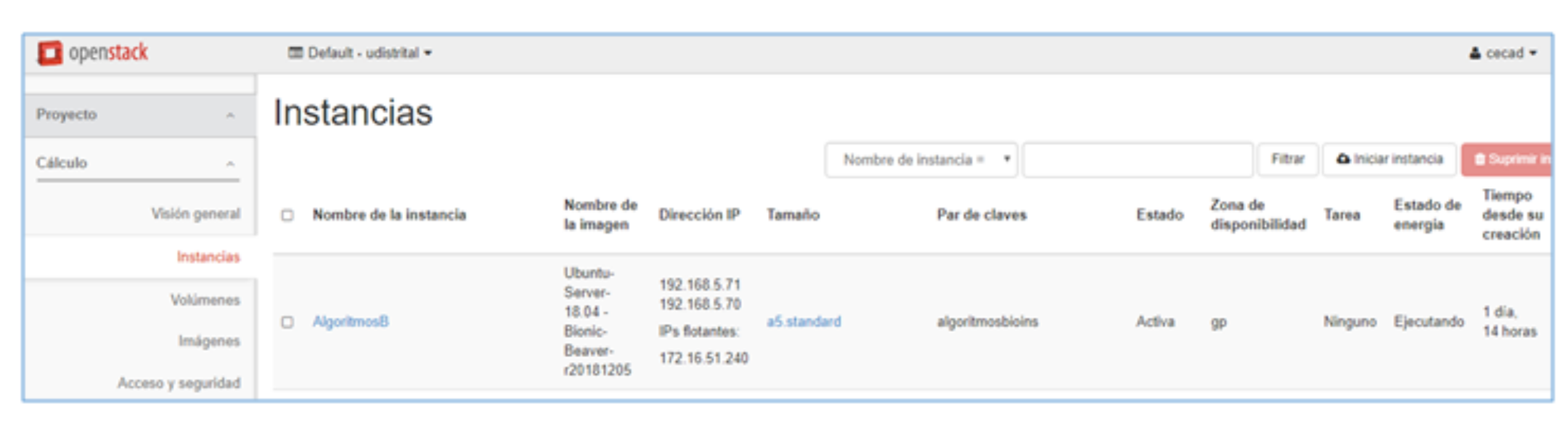

#### Infrastructure Used

- Operating system: Ubuntu Version 18.04.
- RAM memory (GB): 14.5.
- Number of processors: 16.
- Main storage (GB): 80 GB.
- Secondary storage (GB): not used.
- Software used: Octave.

- 16 processors (Xeon E5570, 2.93 GHz).
- 16 GB DDR3.
- 73 GB hard disk.

## 5. Bio-Inspirated Optimization Algorithms

#### 5.1. Genetic Algorithms

- Start the population randomly.
- Evaluate the performance of each individual.
- Stochastically select the best individuals.
- Apply the elitism operator.
- Apply the crossover operator.
- Apply the mutation operator.
- If the completion criterion is not met, return to step 2.
- Finish by meeting the stop criterion and establish the final solution.

#### 5.2. Differential Evolution Algorithm

- Initialize the population in the solution space.
- Apply the subtraction operator.
- Apply the recombination operator.
- Evaluate the performance of each individual.
- Perform the selection process.
- If the completion criterion is not met, return to step 2.
- Finish by meeting the stop criterion and establishing the final solution.

#### 5.3. Particle Swarm Optimization Algorithm

- Initialize the swarm in the solution space.
- Evaluate the performance of each individual.
- Find the best individual and collective performances.
- Calculate the speed and position of each individual.
- Move each individual to the new position.
- If the completion criterion is not met, return to step 2.
- Finish by meeting the stop criterion and establishing the final solution.

## 6. Experiments Configuration

#### 6.1. Configuration for Genetic Algorithms

#### 6.2. Configuration for Differential Evolution

#### 6.3. Particle Swarm Optimization Configuration

## 7. Tests Functions

## 8. Experimental Results

- Operating System: Windows 8.
- RAM Memory (GB): 6.
- Processor: i5 2.60 GHz.
- Main storage (GB): 680 GB.
- Software used: Octave.

#### 8.1. GA Algorithm Results

#### 8.2. DE Algorithm Results

#### 8.3. PSO Algorithm Results

#### 8.4. Algorithm Comparison

#### 8.5. Execution Time Analysis

## 9. Discussion

## 10. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- He, Z.; Liu, G.; Ma, X.; Chen, Q. GeoBeam: A distributed computing framework for spatial data. Comput. Geosci.
**2019**, 131, 15–22. [Google Scholar] [CrossRef] - Espitia, H.; Sofrony, J. Statistical analysis for vortex particle swarm optimization. Appl. Soft Comput.
**2018**, 67, 370–386. [Google Scholar] [CrossRef] - Weise, T. Global Optimization Algorithms—Theory and Application; Self-Published Thomas Weise: 2009. Available online: http://www.it-weise.de/projects/book.pdf (accessed on 7 July 2020).
- Dorigo, M.; Di-Caro, G.; Gambardella, L. Ant algorithms for discrete optimization. Artif. Life
**1999**, 5, 137–172. [Google Scholar] [CrossRef] [Green Version] - Passino, K. Biomimicry of bacterial foraging for distributed optimization and control. IEEE Control. Syst. Mag.
**2002**, 22, 52–67. [Google Scholar] - Russell, E.; James, K. Particle swarm optimization. In Proceedings of the ICNN’95—IEEE Proceedings Neural Networks, Perth, WA, Australia, 27 November–1 December 1995. [Google Scholar]
- Viroli, M.; Beal, J.; Damiani, F.; Audrito, G.; Casadei, R.; Pianini, D. From distributed coordination to field calculus and aggregate computing. J. Log. Algebr. Methods Program.
**2019**, 109, 100486. [Google Scholar] [CrossRef] - Cooke, R.A.; Fahmy, S.A. A model for distributed in-network and near-edge computing with heterogeneous hardware. Future Gener. Comput. Syst.
**2020**, 105, 395–409. [Google Scholar] [CrossRef] - Newhall, T.; Danner, A.; Webb, K.C. Pervasive parallel and distributed computing in a liberal arts college curriculum. J. Parallel Distrib. Comput.
**2017**, 105, 53–62. [Google Scholar] [CrossRef] - Vo, A.V.; Laefer, D.F.; Smolic, A.; Zolanvari, S.M.I. Per-point processing for detailed urban solar estimation with aerial laser scanning and distributed computing. ISPRS J. Photogramm. Remote Sens.
**2019**, 155, 119–135. [Google Scholar] [CrossRef] - Xu, Y.; Liu, H.; Long, Z. A distributed computing framework for wind speed big data forecasting on Apache Spark. Sustain. Energy Technol. Assess.
**2020**, 37, 100582. [Google Scholar] [CrossRef] - Kim, J.; Park, J.; Hyun, S.; Fleisher, D.H.; Kim, K.S. Development of an automated gridded crop growth simulation support system for distributed computing with virtual machines. Comput. Electron. Agric.
**2020**, 169, 105196. [Google Scholar] [CrossRef] - Noshy, M.; Ibrahim, A.; Ali, H.A. Optimization of live virtual machine migration in cloud computing: A survey and future directions. J. Netw. Comput. Appl.
**2018**, 110, 1–10. [Google Scholar] [CrossRef] - Smith, J.E.; Nair, R. Virtual Machines, Versatile Platforms for Systems and Processes; Morgan Kaufmann: Burlington, MA, USA, 2005. [Google Scholar]
- Figueiredo, R.; Dinda, P.A.; Fortes, J. Resource Virtualization Renaissance. Computer
**2005**, 38, 28–31. [Google Scholar] [CrossRef] - Abeni, L.; Biondi, A.; Bini, E. Hierarchical scheduling of real-time tasks over Linux-based virtual machines. J. Syst. Softw.
**2019**, 149, 234–249. [Google Scholar] [CrossRef] - Elsedfy, M.O.; Murtada, W.A.; Abdulqawi, E.F.; Gad-Allah, M. A real-time virtual machine for task placement in loosely-coupled computer systems. Heliyon
**2019**, 5, e01998. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Abohamama, A.S.; Hamouda, E. A hybrid energy-Aware virtual machine placement algorithm for cloud environments. Expert Syst. Appl.
**2020**, 150, 113306. [Google Scholar] [CrossRef] - Wei, C.; Hu, Z.H.; Wang, Y.G. Exact algorithms for energy-efficient virtual machine placement in data centers. Future Gener. Comput. Syst.
**2020**, 106, 77–91. [Google Scholar] [CrossRef] - Hsieh, S.Y.; Liu, C.S.; Buyya, R.; Zomaya, A.Y. Utilization-prediction-aware virtual machine consolidation approach for energy-efficient cloud data centers. J. Parallel Distrib. Comput.
**2020**, 139, 99–109. [Google Scholar] [CrossRef] - Van Steenm, M.; Tanenbaum, A.S. A brief introduction to distributed systems. Computing
**2016**, 98, 967–1009. [Google Scholar] [CrossRef] [Green Version] - Sitaram, D.; Manjunath, G. Chapter 5—Paradigms for Developing Cloud Applications. In Moving to the Cloud Developing Apps in the New World of Cloud Computing; Elsevier: Amsterdam, The Netherlands, 2012; pp. 205–253. [Google Scholar]
- Sterling, T.; Anderson, M.; Brodowicz, M. Chapter 2—HPC Architecture 1: Systems and Technologies. In High Performance Computing Modern Systems and Practices; Morgan Kaufmann: Burlington, MA, USA, 2018; pp. 43–82. [Google Scholar]
- Pacheco, P.S. Chapter 2—Parallel Hardware and Parallel Software. In An Introduction to Parallel Programming; Elsevier: Amsterdam, The Netherlands, 2011; pp. 15–81. [Google Scholar]
- Gélvez, N.; Moreno, C.; Ruiz, D. La virtualización, un enfoque empresarial hacia el futuro. Redes de Ingeniería
**2013**, 4, 116–126. [Google Scholar] [CrossRef] - Holm, N.T. A Cosmology for a Different Computer Universe: Data Model, Mechanisms, Virtual Machine and Visualization Infrastructure. J. Digit. Inf.
**2004**, 5, 77. [Google Scholar] - Turban, E.; King, D.; Lee, J.; Viehland, D. Chapter 19: Building E-Commerce Applications and Infrastructure. In Electronic Commerce A Managerial Perspective, 5th ed.; Prentice-Hall: Upper Saddle River, NJ, USA, 2008; pp. 1–29. [Google Scholar]
- Dillon, T.; Chen, W.; Chang, E. Cloud Computing: Issues and Challenges. In Proceedings of the 24th IEEE International Conference on Advanced Information Networking and Applications, Perth, WA, Australia, 20–23 April 2010. [Google Scholar]
- Uhlig, R.; Neiger, G.; Rodgers, D.; Santoni, A.L.; Martins, F.C.M.; Anderson, A.V.; Bennett, S.M.; Kagi, A.; Leung, F.H.; Smith, L. Intel virtualization technology. Computer
**2005**, 38, 48–56. [Google Scholar] [CrossRef] - Menascé, D.A. Virtualization: Concepts, Applications, and Performance Modeling. In Proceedings of the 31th International Computer Measurement Group Conference, Orlando, FL, USA, 4–9 December 2005; pp. 407–414. [Google Scholar]
- Spall, J. Stochastic optimization. In Handbook of Computational Statistics; Springer: Berlin/Heidelberg, Germany, 2004; pp. 170–194. [Google Scholar]
- Mitchell, M. An introduction to genetic algorithms. In A Bradford Book; The MIT Press: Cambridge, MA, USA, 1998. [Google Scholar]
- Storn, R.; Price, K. Differential evolution—A simple and efficient heuristic for global optimization over continuous spaces. J. Glob. Optim.
**1997**, 11, 341–359. [Google Scholar] [CrossRef] - Price, K.; Storn, R.; Lampinen, J. Differential Evolution A Practical Approach to Global Optimization; Springer Natural Computing Series: Berlin/Heidelberg, Germany, 2005. [Google Scholar]
- Bansal, J.C.; Singh, P.K.; Saraswat, M.; Verma, A.; Jadon, S.; Abraham, A. Inertia Weight Strategies in Particle Swarm Optimization. In Proceedings of the IEEE Third World Congress on Nature and Biologically Inspired Computing, Salamanca, Spain, 19–21 October 2011. [Google Scholar]
- De-Jong, K.; Spears, W. An Analysis of the Interacting Roles of Population Size and Crossover in Genetic Algorithms. In Proceedings of the First Workshop Parallel Problem Solving from Nature, Dortmund, Germany, 1–3 October 1990. [Google Scholar]
- Grefenstette, J.J. Optimization of Control Parameters for Genetic Algorithms. IEEE Trans. Syst. Man Cybern.
**1986**, 16, 122–128. [Google Scholar] [CrossRef] - Hvass, M. Good Parameters for Differential Evolution; Technical Report no. HL1002; Hvass Laboratories: 2010. Available online: https://pdfs.semanticscholar.org/48aa/36e1496c56904f9f6dfc15323e0c45e34a4c.pdf (accessed on 7 July 2020).
- Trelea, I.C. The particle swarm optimization algorithm: Convergence analysis and parameter selection. Inf. Process. Lett.
**2003**, 85, 317–325. [Google Scholar] [CrossRef] - Bratton, D.; Kennedy, J. Defining a standard for particle swarm optimization. In Proceedings of the IEEE Swarm Intelligence Symposium (SIS), Honolulu, HI, USA, 1–5 April 2007. [Google Scholar]
- Evers, G. An Automatic Regrouping Mechanism to Deal with Stagnation in Particle Swarm Optimization. Master’s Thesis, University of Texas-Pan American, Edinburg, TX, USA, 2009. [Google Scholar]
- Hvass, M. Tuning & Simplifying Heuristical Optimization. Ph.D. Thesis, University of Southampton, Southampton, UK, 2010. [Google Scholar]
- Kennedy, J.; Eberhart, R.; Shi, Y. Swarm Intelligence; Morgan Kaufmann Publishers: Burlington, MA, USA, 2001. [Google Scholar]
- GitHub. Available online: https://gist.github.com/shenbennwdsl/a2aa06de6f841e98e187 (accessed on 5 November 2019).
- GitHub. Available online: https://github.com/sriki18/MDEpBX-Matlab/blob/master/deopt.m (accessed on 5 November 2019).
- GitHub. Available online: https://github.com/MatthewPeterKelly/ParticleSwarmOptimization (accessed on 5 November 2019).
- MathWorks. Available online: https://www.mathworks.com/matlabcentral/fileexchange/7506-particle-swarm-optimization-toolbox (accessed on 5 November 2019).
- Virtual Library of Simulation Experiments. Available online: http://www.sfu.ca/~ssurjano/optimization.html (accessed on 5 November 2019).
- GitHub. Available online: https://github.com/IngGelvezGarcia/Experimental-test-Evolutive-Algorithms (accessed on 9 July 2020).
- Fan, S.-K.S.; Chang, J.-M. Dynamic multi-swarm particle swarm optimizer using parallel PC cluster systems for global optimization of large-scale multimodal functions. Eng. Optim.
**2010**, 42, 431–451. [Google Scholar] [CrossRef] - Fan, S.-K.S.; Zahara, E. A Hybrid Simplex Search and Particle Swarm Optimization for Unconstrained Optimization. Eur. J. Oper. Res.
**2007**, 181, 527–548. [Google Scholar] [CrossRef]

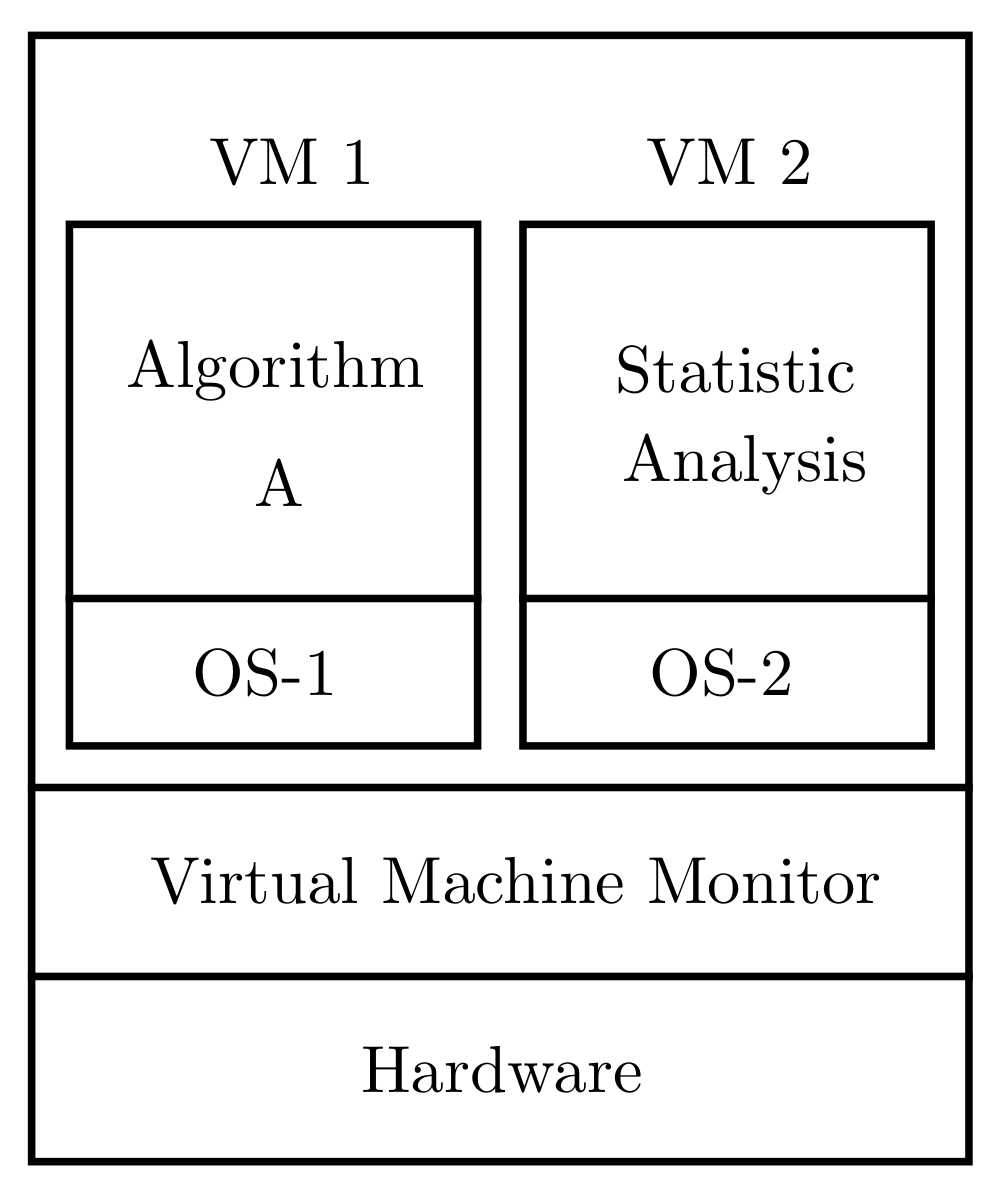

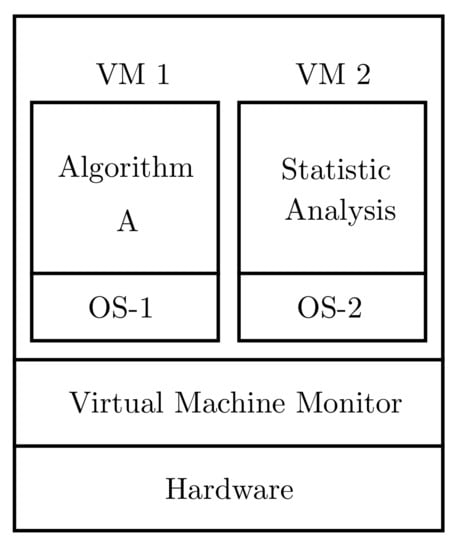

**Figure 3.**Example of the virtualization process [30].

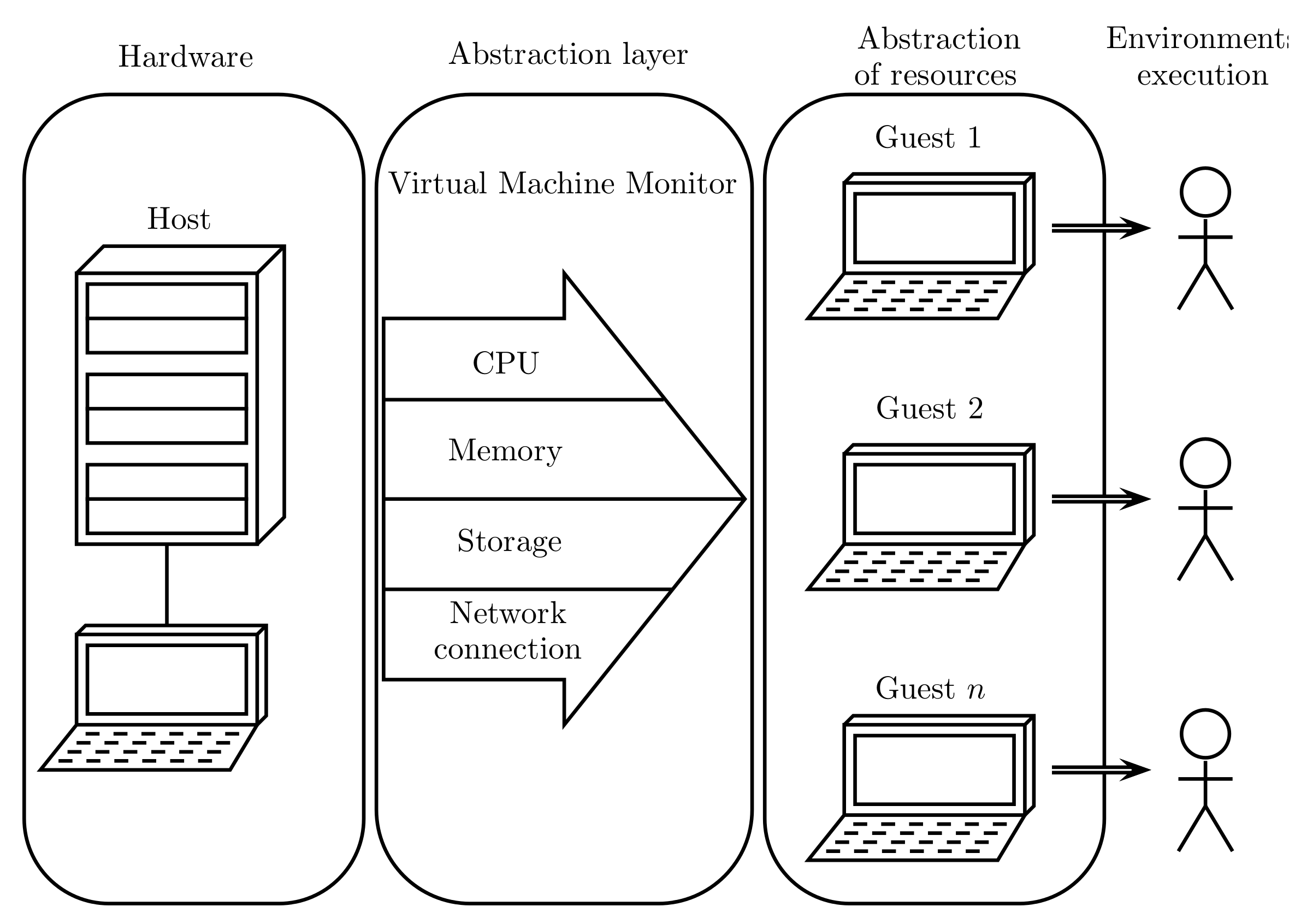

**Figure 4.**Representation of the virtualization process [25].

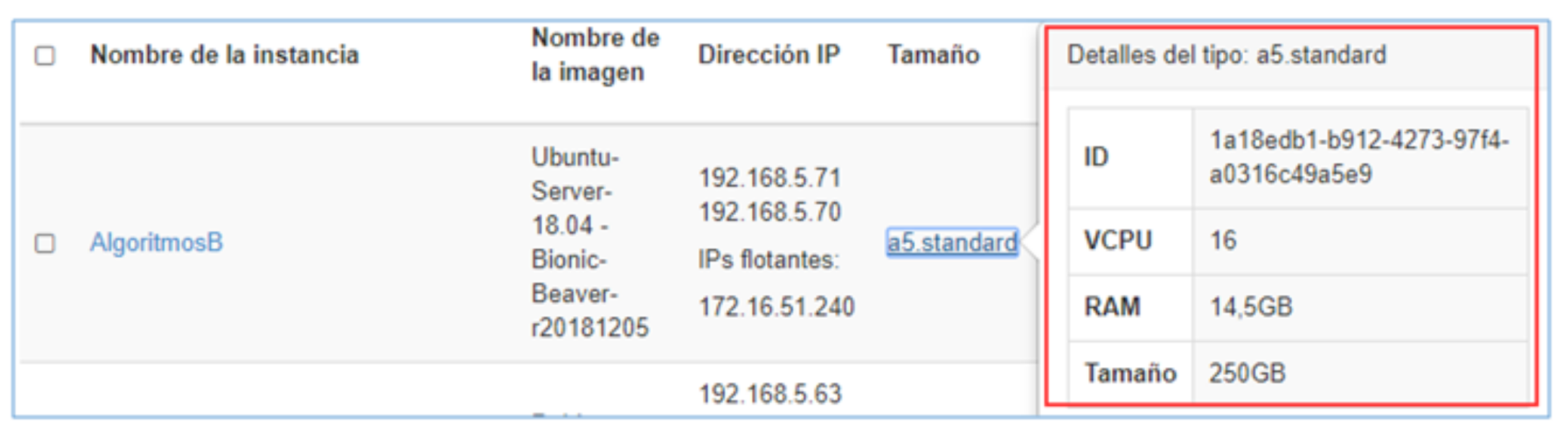

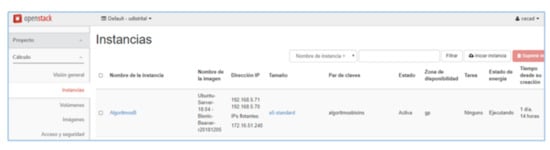

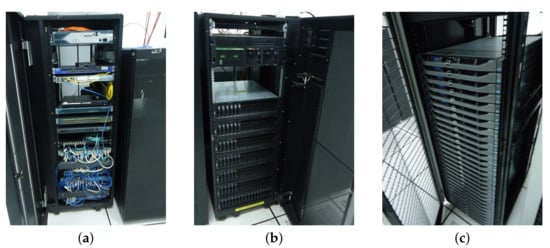

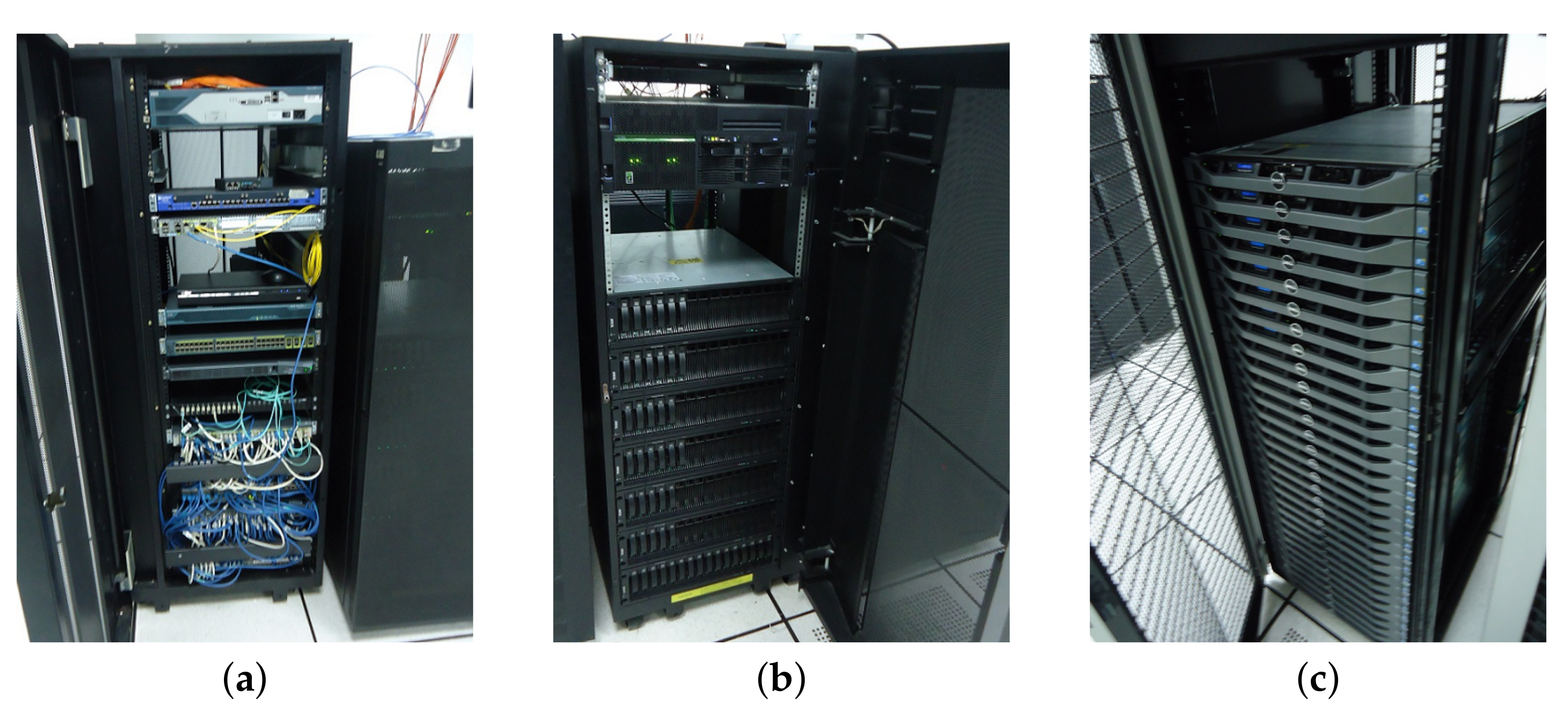

**Figure 5.**Virtualized distributed processing system used. (

**a**) Network equipment used; (

**b**) storage equipment used; (

**c**) processing equipment used.

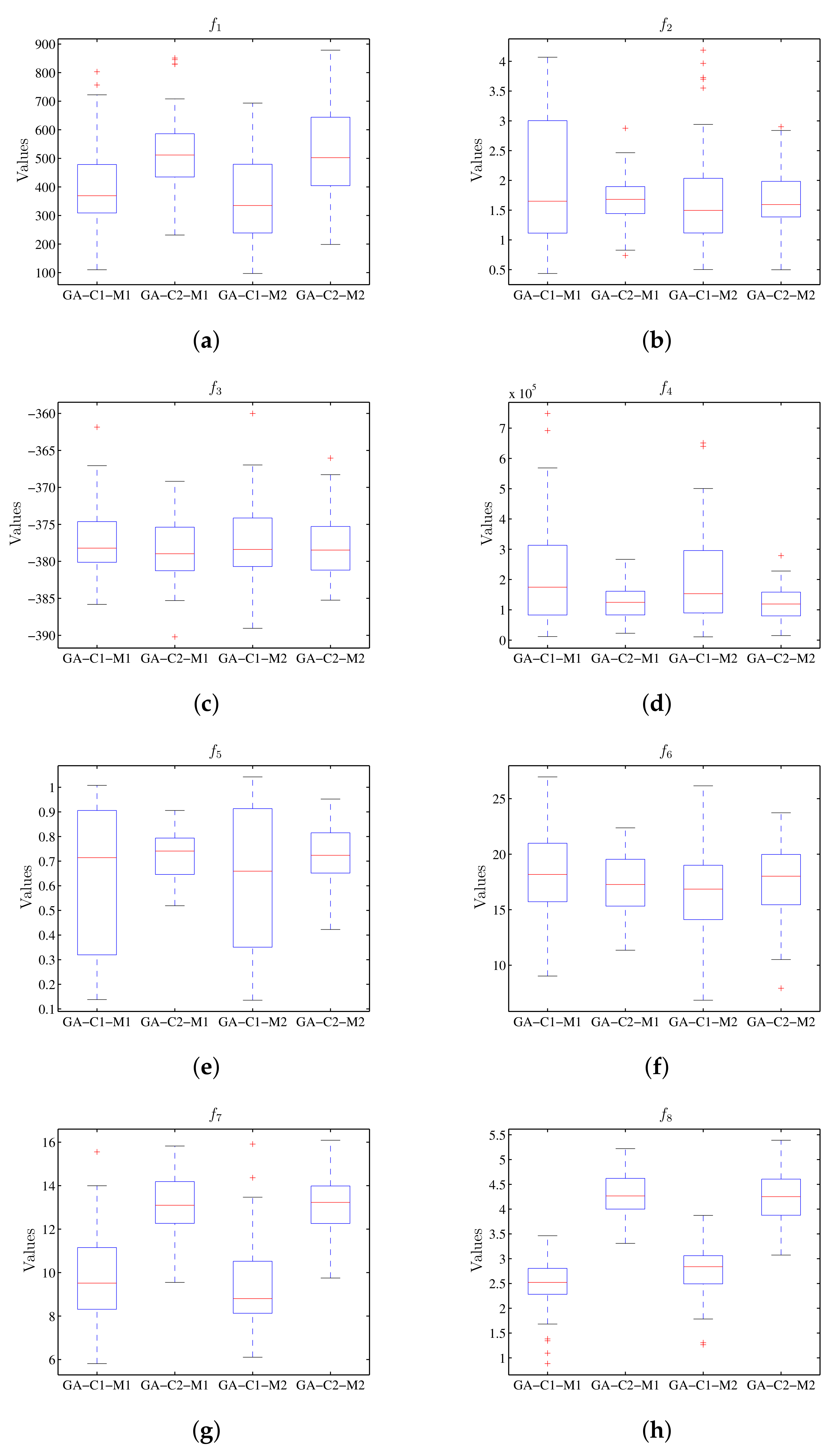

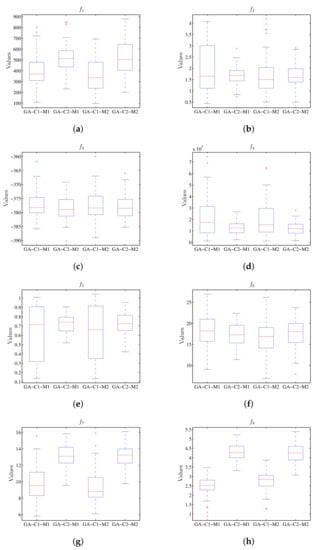

**Figure 8.**Box plot considering the value of the objective function using GA, where the results for M1 and M2 do not present the difference between the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$. (

**h**) Diagram for ${f}_{8}$.

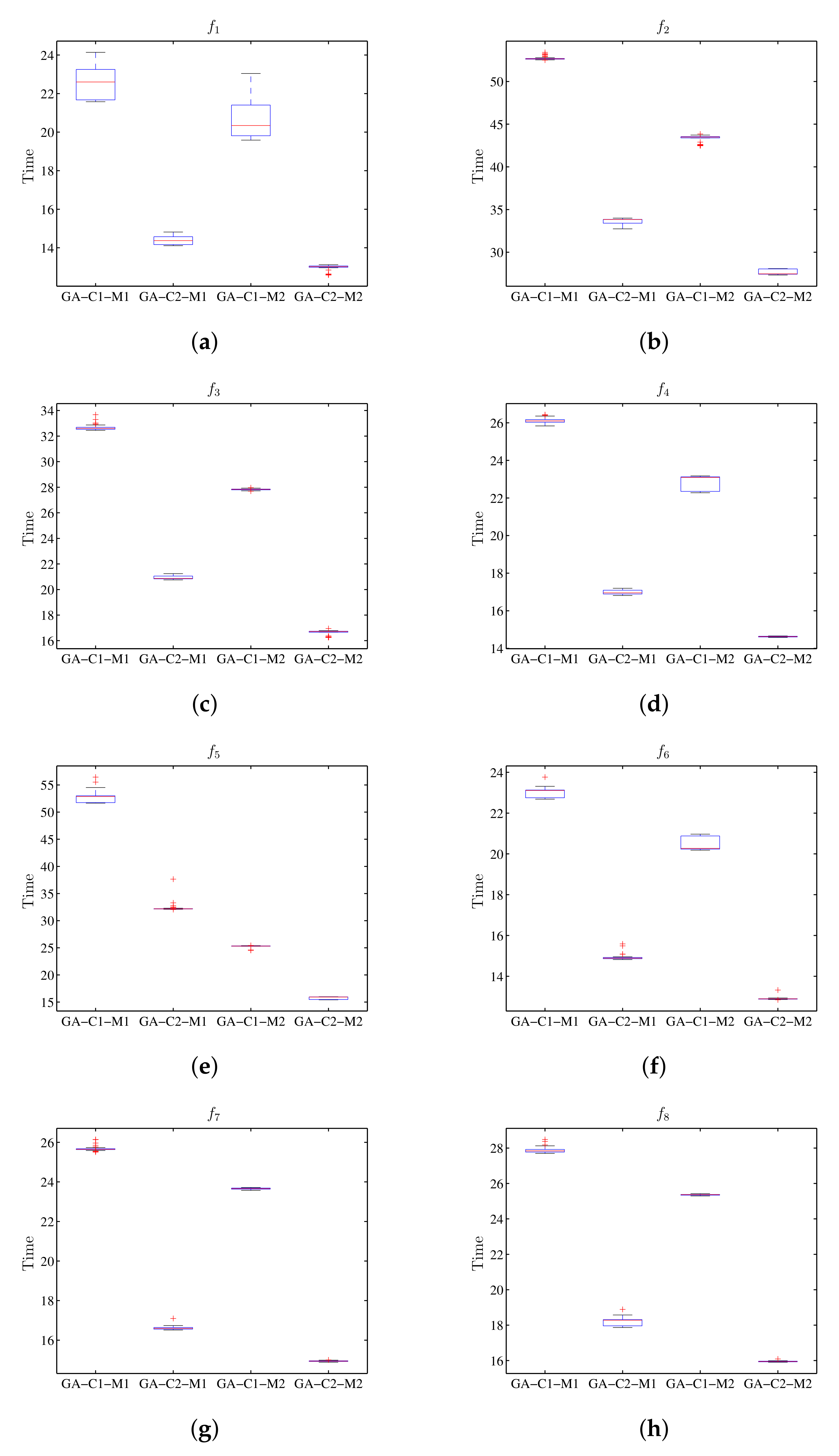

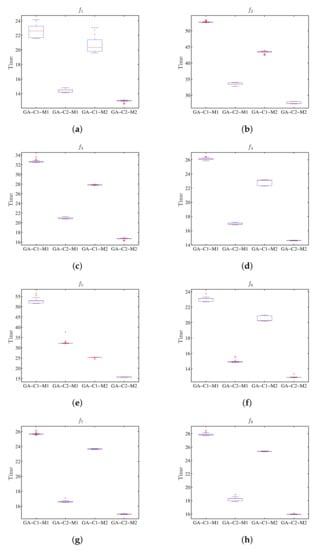

**Figure 9.**Box plot for the value of run-time using GA, where the results for M1 and M2 show the difference between the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$. (

**h**) Diagram for ${f}_{8}$.

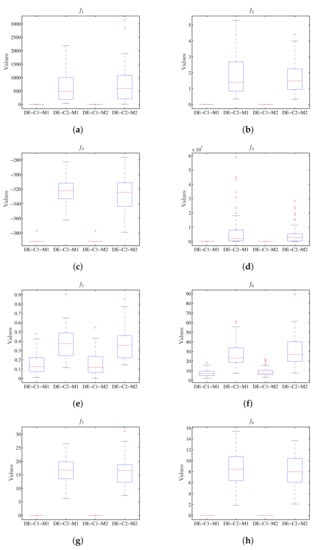

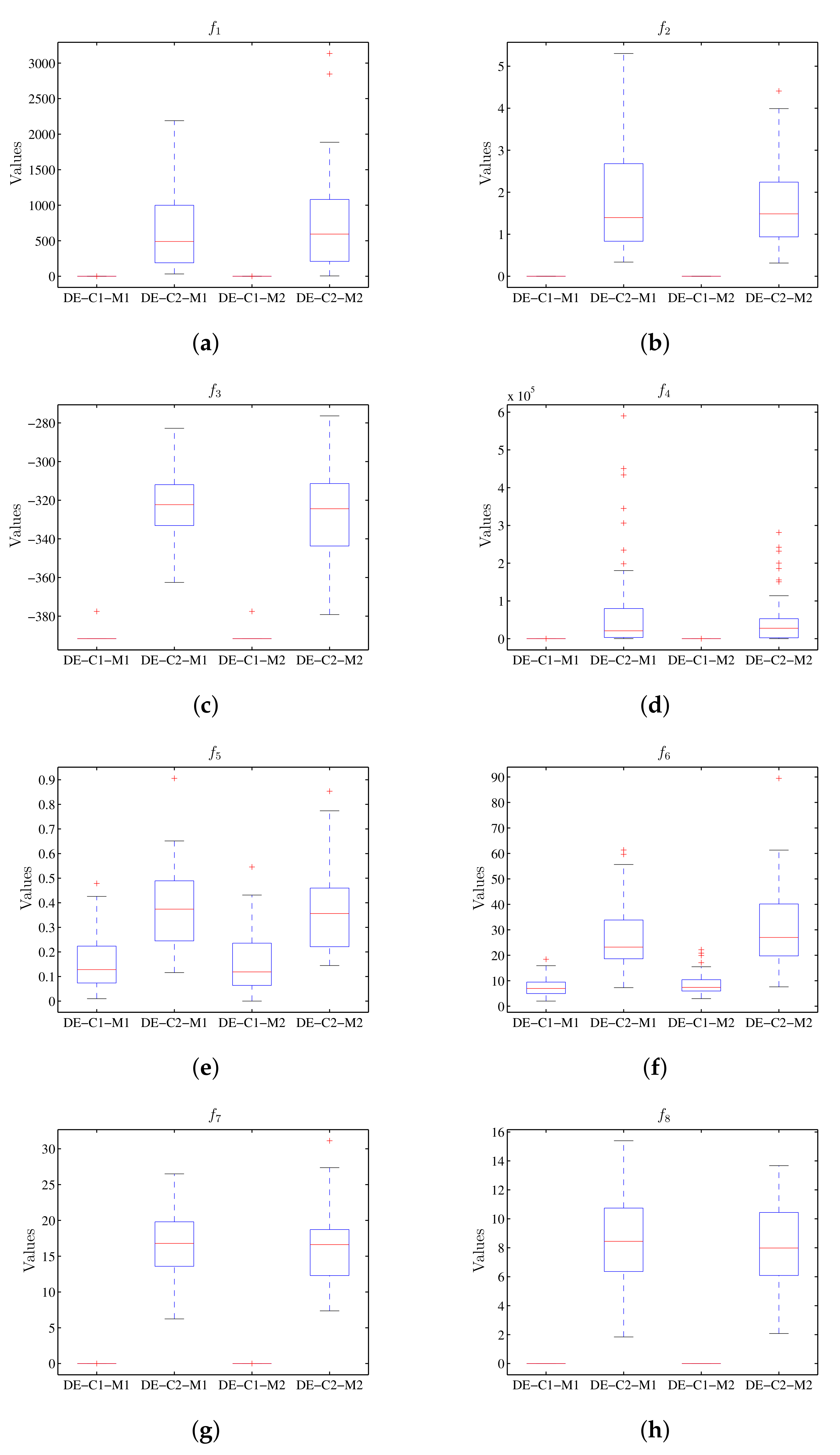

**Figure 10.**Box plot considering the value of the objective function using DE, where the results for M1 and M2 do not present the differences between the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$, (

**h**) Diagram for ${f}_{8}$.

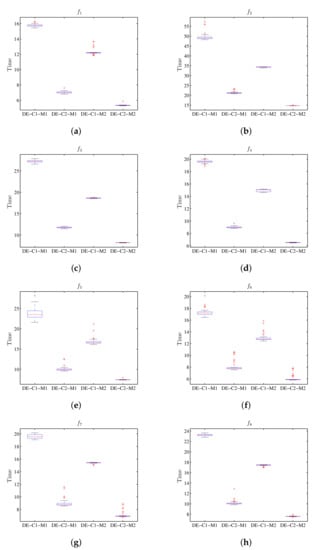

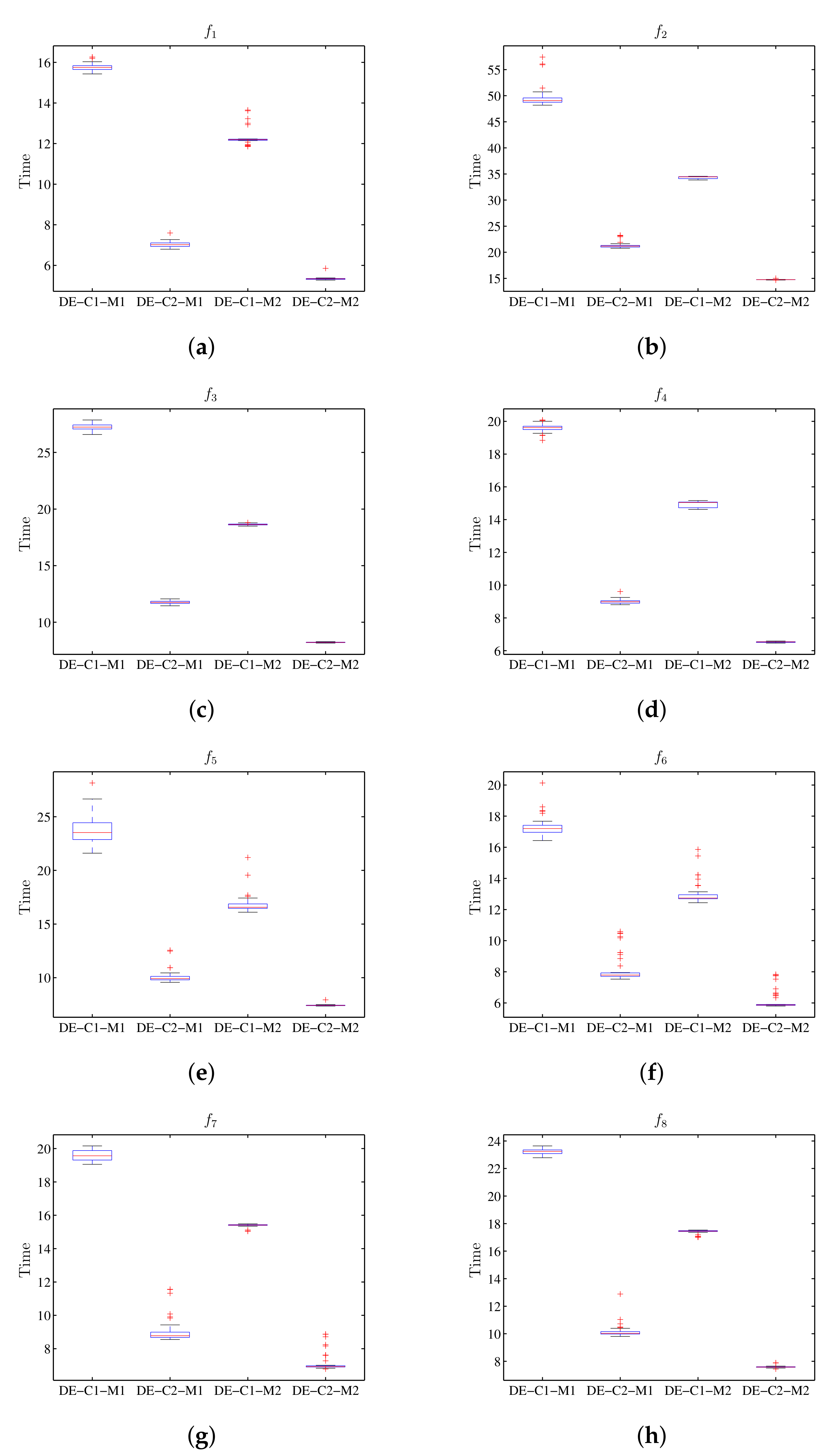

**Figure 11.**Box plot for the value of run-time using DE, where the results for M1 and M2 show the difference between the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$. (

**h**) Diagram for ${f}_{8}$.

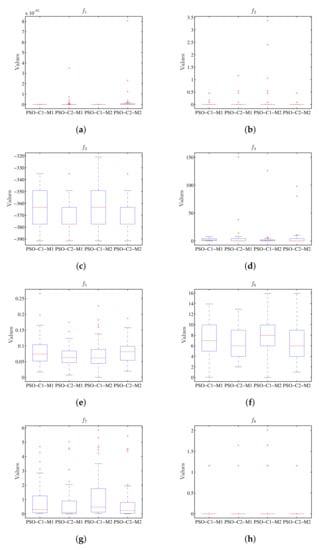

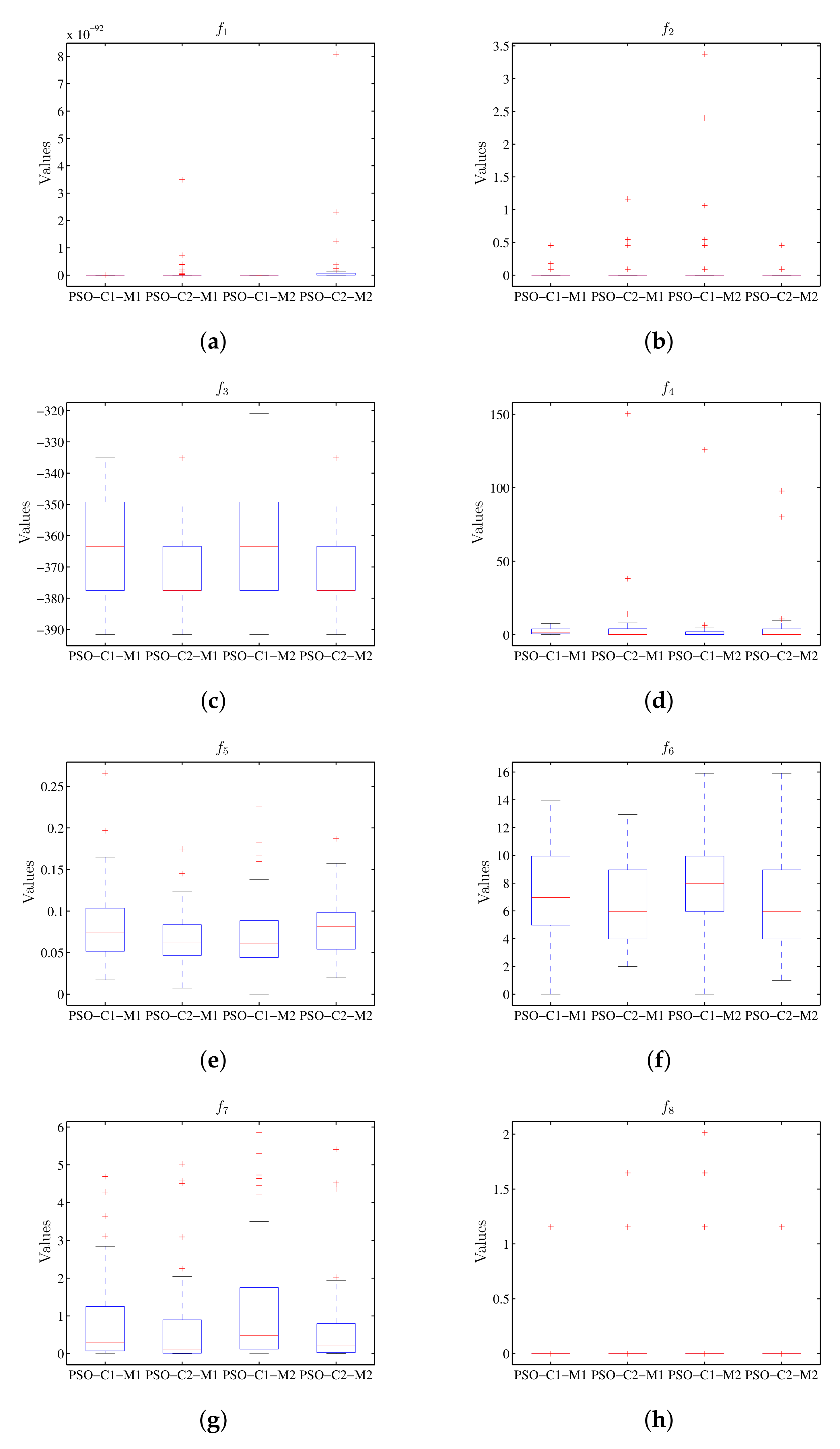

**Figure 12.**Box plot considering the value of the objective function using PSO, where the results for M1 and M2 do not present the difference for the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$. (

**h**) Diagram for ${f}_{8}$.

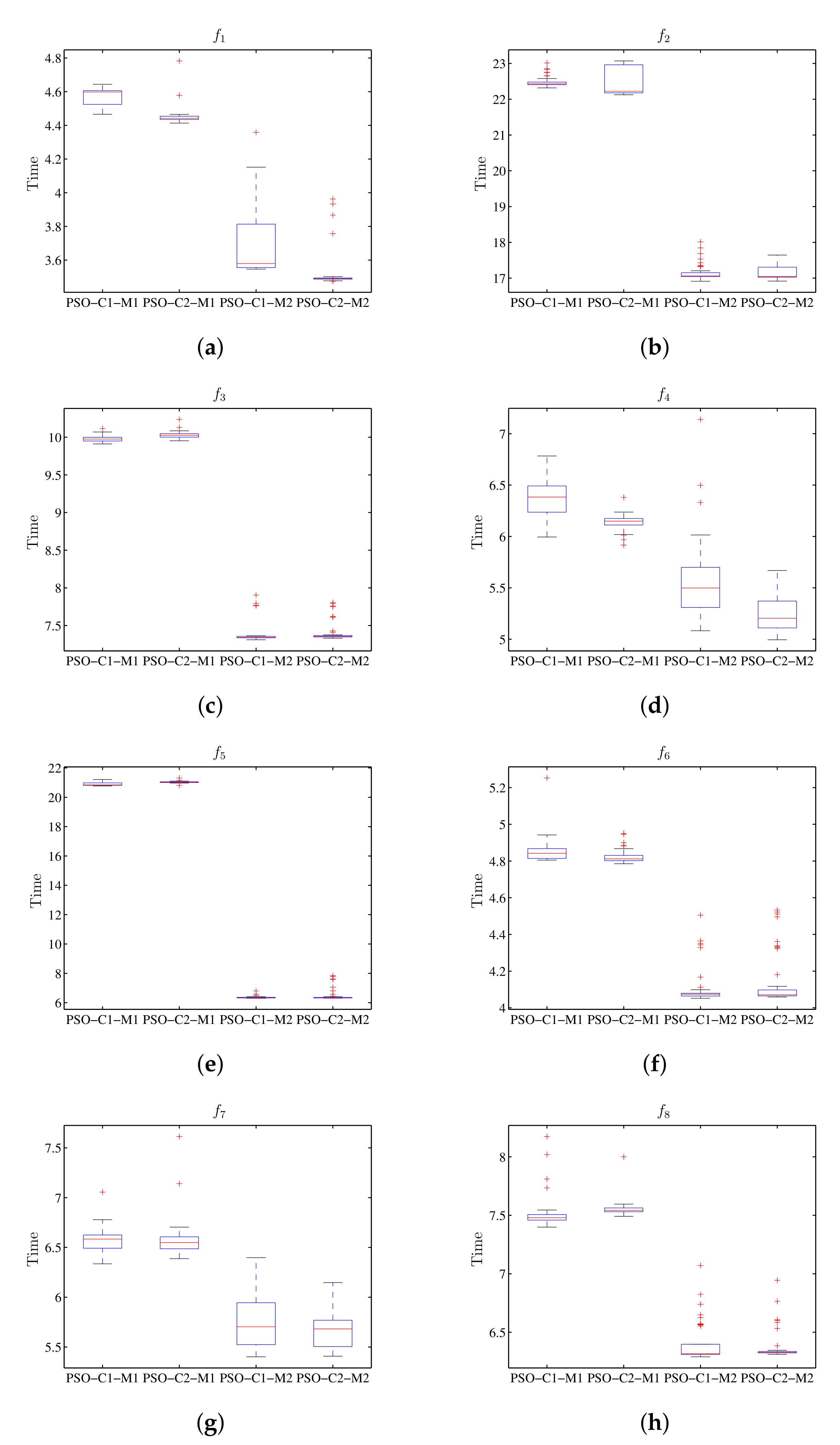

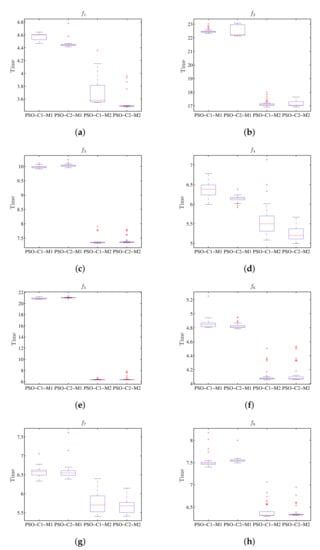

**Figure 13.**Box plot for the value of run-time using PSO, where the results for M1 and M2 show the difference for the respective configurations C1 and C2. (

**a**) Diagram for ${f}_{1}$. (

**b**) Diagram for ${f}_{2}$. (

**c**) Diagram for ${f}_{3}$. (

**d**) Diagram for ${f}_{4}$. (

**e**) Diagram for ${f}_{5}$. (

**f**) Diagram for ${f}_{6}$. (

**g**) Diagram for ${f}_{7}$. (

**h**) Diagram for ${f}_{8}$.

Configuration | Parameters | ||
---|---|---|---|

Population | Mutation (Prob.) | Crossover (Prob.) | |

AG-C1 | 50 | 0.001 | 0.6 |

AG-C2 | 30 | 0.01 | 0.9 |

Configuration | Parameters | ||
---|---|---|---|

Population | Crossover (Prob.) | Step Size | |

DE-C1 | 48 | 0.9784 | 0.6876 |

DE-C2 | 20 | 1 | 0.85 |

Configuration | Parameters | ||
---|---|---|---|

$\mathit{w}$ | ${\mathit{\alpha}}_{\mathit{p}}$ | ${\mathit{\alpha}}_{\mathit{g}}$ | |

PSO-C1 | 0.600 | 1.7 | 1.7 |

PSO-C2 | 0.729 | 1.494 | 1.494 |

Name | Dim | Limits | Equation |
---|---|---|---|

Spherical | D | ${[-100,100]}^{D}$ | ${f}_{1}\left(\overrightarrow{x}\right)={\displaystyle \sum _{i=1}^{D}}{x}_{i}^{2}$ |

Levy | D | ${[-10,10]}^{D}$ | ${f}_{2}\left(\overrightarrow{x}\right)={sin}^{2}\left(\pi {w}_{1}\right)+{\displaystyle \sum _{i=1}^{D-1}}{({w}_{i}-1)}^{2}[1+10{sin}^{2}(\pi {w}_{i}+1)]+{({w}_{D}-1)}^{2}[1+{sin}^{2}\left(2\pi {w}_{D}\right)]$, where, ${w}_{i}=1+\frac{{x}_{i}-1}{4}$ |

Styblinski Tang | D | ${[-5.12,5.12]}^{D}$ | ${f}_{3}\left(\overrightarrow{x}\right)=\frac{1}{2}{\displaystyle \sum _{i=1}^{D}}\left({x}_{i}^{4}-16{x}_{i}^{2}+5{x}_{i}\right)$ |

Rosenbrock Rotate | D | ${[-30,30]}^{D}$ | ${f}_{4}\left(\overrightarrow{x}\right)={\displaystyle \sum _{i=1}^{D-1}}{\left[100{({x}_{i+1}+{x}_{i}^{2})}^{2}+{({x}_{i}+1)}^{2}\right]}^{2}$ |

Griewank | D | ${[-50,50]}^{D}$ | ${f}_{5}\left(\overrightarrow{x}\right)=1+\frac{1}{4000}{\displaystyle \sum _{i=1}^{D}}{x}_{i}^{2}-{\displaystyle \prod _{i=1}^{D}}cos\left(\frac{{x}_{i}}{\sqrt{i}}\right)$ |

Rastrigin | D | ${[-5.12,5.12]}^{D}$ | ${f}_{6}\left(\overrightarrow{x}\right)={\displaystyle \sum _{i=1}^{D}}\left({x}_{i}^{2}-10cos\left(2\pi {x}_{i}\right)+10\right)$ |

Schaffer | D | ${[-30,30]}^{D}$ | ${f}_{7}\left(\overrightarrow{x}\right)={\displaystyle \sum _{i=1}^{D-1}}{({x}_{i}^{2}+{x}_{i+1}^{2})}^{0.25}\left[{sin}^{2}\left(50{({x}_{i}^{2}+{x}_{i+1}^{2})}^{0.1}\right)+1\right]$ |

Ackley | D | ${[-30,30]}^{D}$ | ${f}_{8}\left(\overrightarrow{x}\right)=e+20-20exp\left(-0.2\sqrt{\frac{1}{D}{\displaystyle \sum _{i=1}^{D}}{x}_{i}^{D}}\right)$$-exp\left(\frac{1}{D}{\displaystyle \sum _{i=1}^{D}}cos\left(2\pi {x}_{i}\right)\right)$ |

Name | Dim | Multi-Modal | Optimal Point | Limits | Optimal Value |
---|---|---|---|---|---|

Spherical | D | No | ${\left(0.0\right)}^{D}$ | ${[-100,100]}^{D}$ | 0 |

Levy | D | Yes | ${\left(1.0\right)}^{D}$ | ${[-10,10]}^{D}$ | 0 |

Styblinski Tang | D | Yes | ${(-2.903534)}^{D}$ | ${[-5.12,5.12]}^{D}$ | $-39.16599D$ |

Rosenbrock Rotate | D | Yes | ${(-1.0)}^{D}$ | ${[-30,30]}^{D}$ | 0 |

Griewank | D | Yes | ${\left(0.0\right)}^{D}$ | ${[-50,50]}^{D}$ | 0 |

Rastrigin | D | Yes | ${\left(0.0\right)}^{D}$ | ${[-5.12,5.12]}^{D}$ | 0 |

Schaffer | D | Yes | ${\left(0.0\right)}^{D}$ | ${[-30,30]}^{D}$ | 0 |

Ackley | D | Yes | ${\left(0.0\right)}^{D}$ | ${[-30,30]}^{D}$ | 0 |

${f}_{1}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 803.1 | 851.1 | 693.48 | 878.87 |

Min | 110.12 | 231.66 | 96.881 | 198.67 |

Average | 396.34 | 512.71 | 363.63 | 524.55 |

STD | 164.16 | 145.59 | 165.86 | 165.07 |

${f}_{2}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 4.0682 | 2.8756 | 4.1886 | 2.9012 |

Min | 0.43532 | 0.73858 | 0.50167 | 0.49925 |

Average | 2.0062 | 1.6742 | 1.7204 | 1.6712 |

STD | 1.094 | 0.43556 | 0.91603 | 0.49293 |

${f}_{3}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | −361.86 | −369.18 | −360.01 | −366.04 |

Min | −385.82 | −390.21 | −389.06 | −385.25 |

Average | −376.93 | −378.57 | −377.46 | −378.18 |

STD | 5.3254 | 4.3697 | 5.5337 | 4.2567 |

${f}_{4}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | $7.484\times {10}^{5}$ | $2.6675\times {10}^{5}$ | $6.5106\times {10}^{5}$ | $2.7881\times {10}^{5}$ |

Min | 11809 | 22674 | 10592 | 14904 |

Average | $2.1762\times {10}^{5}$ | $1.2786\times {10}^{5}$ | $2.032\times {10}^{5}$ | $1.1931\times {10}^{5}$ |

STD | $1.81\times {10}^{5}$ | 61355 | $1.6132\times {10}^{5}$ | 59792 |

${f}_{5}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 1.0079 | 0.90574 | 1.0422 | 0.95218 |

Min | 0.13795 | 0.51898 | 0.13518 | 0.4226 |

Average | 0.62559 | 0.72619 | 0.64354 | 0.72477 |

STD | 0.29169 | 0.10053 | 0.27751 | 0.11398 |

${f}_{6}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 26.967 | 22.369 | 26.161 | 23.734 |

Min | 9.0212 | 11.351 | 6.8412 | 7.9241 |

Average | 18.404 | 17.323 | 16.87 | 17.45 |

STD | 4.2545 | 2.6509 | 4.1317 | 3.2635 |

${f}_{7}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 15.554 | 15.825 | 15.913 | 16.091 |

Min | 5.81 | 9.5476 | 6.1036 | 9.749 |

Average | 9.7471 | 13.107 | 9.4184 | 13.142 |

STD | 2.1818 | 1.3576 | 2.1384 | 1.3547 |

${f}_{8}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 3.4624 | 5.2211 | 3.8739 | 5.3901 |

Min | 0.88282 | 3.3081 | 1.2655 | 3.0742 |

Average | 2.4774 | 4.2857 | 2.7235 | 4.253 |

STD | 0.5349 | 0.44425 | 0.55014 | 0.53566 |

${f}_{1}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 24.144 | 14.818 | 23.045 | 13.121 |

Min | 21.58 | 14.109 | 19.585 | 12.583 |

Average | 22.567 | 14.376 | 20.548 | 12.98 |

STD | 0.83158 | 0.21588 | 0.78465 | 0.14111 |

${f}_{2}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 53.419 | 33.995 | 43.846 | 28.084 |

Min | 52.5 | 32.746 | 42.469 | 27.325 |

Average | 52.705 | 33.576 | 43.305 | 27.68 |

STD | 0.19373 | 0.45674 | 0.40224 | 0.29811 |

${f}_{3}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 33.675 | 21.241 | 27.961 | 16.951 |

Min | 32.444 | 20.753 | 27.693 | 16.249 |

Average | 32.656 | 20.933 | 27.829 | 16.625 |

STD | 0.2189 | 0.12987 | 0.051181 | 0.19769 |

${f}_{4}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 26.432 | 17.195 | 23.177 | 14.662 |

Min | 25.832 | 16.809 | 22.28 | 14.579 |

Average | 26.12 | 16.988 | 22.806 | 14.625 |

STD | 0.12577 | 0.10671 | 0.3793 | 0.021441 |

${f}_{5}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 56.463 | 37.643 | 25.431 | 15.981 |

Min | 51.667 | 32.043 | 24.527 | 15.403 |

Average | 52.609 | 32.336 | 25.207 | 15.777 |

STD | 0.98871 | 0.79033 | 0.28878 | 0.2308 |

${f}_{6}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 23.767 | 15.585 | 20.968 | 13.325 |

Min | 22.686 | 14.818 | 20.182 | 12.843 |

Average | 23.014 | 14.918 | 20.424 | 12.898 |

STD | 0.22193 | 0.13802 | 0.30039 | 0.063915 |

${f}_{7}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 26.147 | 17.097 | 23.718 | 15.003 |

Min | 25.505 | 16.514 | 23.571 | 14.883 |

Average | 25.675 | 16.608 | 23.661 | 14.943 |

STD | 0.1198 | 0.087461 | 0.031198 | 0.023558 |

${f}_{8}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |

Max | 28.488 | 18.888 | 25.426 | 16.091 |

Min | 27.7 | 17.862 | 25.294 | 15.904 |

Average | 27.885 | 18.179 | 25.365 | 15.948 |

STD | 0.15947 | 0.21193 | 0.032987 | 0.029009 |

${f}_{1}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | $3.0967\times {10}^{-36}$ | 2189.2 | $6.7457\times {10}^{-36}$ | 3135.8 |

Min | $1.1902\times {10}^{-38}$ | 33.487 | $3.852\times {10}^{-39}$ | 5.1453 |

Average | $4.4506\times {10}^{-37}$ | 637.3 | $5.6028\times {10}^{-37}$ | 738.21 |

STD | $6.8787\times {10}^{-37}$ | 508.86 | $1.1785\times {10}^{-36}$ | 680.65 |

${f}_{2}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | $1.4997\times {10}^{-32}$ | 5.303 | $1.4998\times {10}^{-32}$ | 4.4089 |

Min | $1.4997\times {10}^{-32}$ | 0.33872 | $1.4998\times {10}^{-32}$ | 0.31488 |

Average | $1.4997\times {10}^{-32}$ | 1.8351 | $1.4998\times {10}^{-32}$ | 1.6916 |

STD | $2.7647\times {10}^{-48}$ | 1.2641 | $8.2941\times {10}^{-48}$ | 0.99901 |

${f}_{3}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | −377.52 | −282.82 | −377.52 | −276.36 |

Min | −391.66 | −362.53 | −391.66 | −379.17 |

Average | −390.53 | −322.34 | −391.1 | −324.16 |

STD | 3.8741 | 17.26 | 2.7983 | 24.568 |

${f}_{4}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 3.9866 | $5.9015\times {10}^{5}$ | 3.9866 | $2.8148\times {10}^{5}$ |

Min | 0 | 221.75 | $1.0452\times {10}^{-29}$ | 85.7 |

Average | 0.31893 | 79546 | 0.079732 | 51649 |

STD | 1.0925 | $1.322\times {10}^{5}$ | 0.56379 | 71056 |

${f}_{5}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 0.47846 | 0.90603 | 0.54541 | 0.8534 |

Min | 0.0098573 | 0.11603 | 0 | 0.14461 |

Average | 0.17114 | 0.37272 | 0.15415 | 0.36911 |

STD | 0.12517 | 0.16561 | 0.12216 | 0.17738 |

${f}_{6}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 18.436 | 61.339 | 22.189 | 89.495 |

Min | 1.9899 | 7.284 | 2.9849 | 7.5864 |

Average | 7.6318 | 26.926 | 8.9962 | 30.295 |

STD | 3.5215 | 12.042 | 4.4606 | 15.282 |

${f}_{7}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 0.00025313 | 26.502 | 0.00023235 | 31.125 |

Min | $4.4825\times {10}^{-6}$ | 6.2426 | $2.782\times {10}^{-6}$ | 7.3592 |

Average | $3.1826\times {10}^{-5}$ | 16.616 | $4.163\times {10}^{-5}$ | 16.469 |

STD | $3.8948\times {10}^{-5}$ | 4.8337 | $4.6877\times {10}^{-5}$ | 4.8209 |

${f}_{8}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | $3.1086\times {10}^{-15}$ | 15.395 | $3.1086\times {10}^{-15}$ | 13.672 |

Min | $3.1086\times {10}^{-15}$ | 1.8371 | $3.1086\times {10}^{-15}$ | 2.0741 |

Average | $3.1086\times {10}^{-15}$ | 8.5284 | $3.1086\times {10}^{-15}$ | 7.9863 |

STD | 0 | 2.8974 | 0 | 3.0219 |

${f}_{1}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 16.266 | 7.5975 | 13.654 | 5.8533 |

Min | 15.431 | 6.7975 | 11.854 | 5.2711 |

Average | 15.772 | 7.038 | 12.245 | 5.343 |

STD | 0.18457 | 0.14197 | 0.38329 | 0.078526 |

${f}_{2}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 57.416 | 23.251 | 34.549 | 15.018 |

Min | 48.193 | 20.763 | 33.857 | 14.653 |

Average | 49.606 | 21.304 | 34.325 | 14.75 |

STD | 1.8648 | 0.58789 | 0.20726 | 0.049601 |

${f}_{3}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 27.869 | 12.068 | 18.801 | 8.2856 |

Min | 26.586 | 11.451 | 18.492 | 8.1547 |

Average | 27.24 | 11.765 | 18.633 | 8.2207 |

STD | 0.23964 | 0.13481 | 0.068874 | 0.031299 |

${f}_{4}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 20.083 | 9.6074 | 15.165 | 6.5915 |

Min | 18.842 | 8.8058 | 14.626 | 6.4609 |

Average | 19.604 | 8.9937 | 14.947 | 6.5287 |

STD | 0.22143 | 0.13871 | 0.17267 | 0.032574 |

${f}_{5}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 28.155 | 12.564 | 21.205 | 7.9327 |

Min | 21.609 | 9.5708 | 16.104 | 7.3504 |

Average | 23.728 | 10.065 | 16.841 | 7.4283 |

STD | 1.3008 | 0.57603 | 0.82097 | 0.080032 |

${f}_{6}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 20.134 | 10.592 | 15.865 | 7.8398 |

Min | 16.432 | 7.5325 | 12.441 | 5.7978 |

Average | 17.298 | 8.1412 | 12.988 | 6.0956 |

STD | 0.59429 | 0.8543 | 0.66904 | 0.54322 |

${f}_{7}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 20.159 | 11.566 | 15.484 | 8.8737 |

Min | 19.054 | 8.5482 | 15.042 | 6.7808 |

Average | 19.593 | 9.0394 | 15.397 | 7.171 |

STD | 0.33105 | 0.70994 | 0.088293 | 0.57938 |

${f}_{8}$ | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |

Max | 23.642 | 12.882 | 17.531 | 7.8927 |

Min | 22.782 | 9.805 | 17.011 | 7.4364 |

Average | 23.23 | 10.159 | 17.413 | 7.5943 |

STD | 0.19133 | 0.44989 | 0.13786 | 0.069855 |

${f}_{1}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | $3.4482\times {10}^{-128}$ | $3.4909\times {10}^{-92}$ | $2.0141\times {10}^{-127}$ | $8.0804\times {10}^{-92}$ |

Min | $4.0135\times {10}^{-136}$ | $1.1576\times {10}^{-99}$ | $5.7269\times {10}^{-136}$ | $4.0316\times {10}^{-100}$ |

Average | $2.3691\times {10}^{-129}$ | $1.0474\times {10}^{-93}$ | $7.6416\times {10}^{-129}$ | $2.6889\times {10}^{-93}$ |

STD | $6.8822\times {10}^{-129}$ | $5.0295\times {10}^{-93}$ | $3.1639\times {10}^{-128}$ | $1.1853\times {10}^{-92}$ |

${f}_{2}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 0.45432 | 1.1605 | 3.3738 | 0.45432 |

Min | $1.4997\times {10}^{-32}$ | $1.4997\times {10}^{-32}$ | $1.4998\times {10}^{-32}$ | $1.4998\times {10}^{-32}$ |

Average | 0.036212 | 0.044963 | 0.18755 | 0.023545 |

STD | 0.11155 | 0.18929 | 0.60021 | 0.091378 |

${f}_{3}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | −335.11 | −335.11 | −320.98 | −335.11 |

Min | −391.66 | −391.66 | −391.66 | −391.66 |

Average | −363.95 | −371.02 | −365.37 | −371.02 |

STD | 17.127 | 15.698 | 17.608 | 14.898 |

${f}_{4}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 7.7008 | 150.43 | 125.9 | 97.773 |

Min | 0.001011 | 0.00075109 | $9.3565\times {10}^{-5}$ | $8.2241\times {10}^{-5}$ |

Average | 2.3245 | 5.2944 | 4.0551 | 5.0642 |

STD | 2.2494 | 21.749 | 17.666 | 17.601 |

${f}_{5}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 0.2658 | 0.17454 | 0.22621 | 0.18699 |

Min | 0.017236 | 0.007396 | 0 | 0.01969 |

Average | 0.082166 | 0.067271 | 0.073552 | 0.081583 |

STD | 0.045771 | 0.032932 | 0.046 | 0.036983 |

${f}_{6}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 13.929 | 12.934 | 15.919 | 15.919 |

Min | 0 | 1.9899 | 0 | 0.99496 |

Average | 7.1836 | 6.507 | 7.9995 | 6.6861 |

STD | 3.1674 | 2.942 | 3.5275 | 3.5107 |

${f}_{7}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 4.6907 | 5.0196 | 5.8513 | 5.4093 |

Min | 0.010729 | $5.7752\times {10}^{-23}$ | 0.010729 | $1.0224\times {10}^{-23}$ |

Average | 0.89475 | 0.72333 | 1.2073 | 0.74679 |

STD | 1.2023 | 1.2346 | 1.6043 | 1.2825 |

${f}_{8}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 1.1551 | 1.6462 | 2.0133 | 1.1551 |

Min | $3.1086\times {10}^{-15}$ | $3.1086\times {10}^{-15}$ | $3.1086\times {10}^{-15}$ | $3.1086\times {10}^{-15}$ |

Average | 0.11551 | 0.056027 | 0.26784 | 0.069309 |

STD | 0.35006 | 0.28167 | 0.55746 | 0.27712 |

${f}_{1}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 4.6436 | 4.7827 | 4.3586 | 3.9628 |

Min | 4.466 | 4.4134 | 3.5466 | 3.4743 |

Average | 4.5714 | 4.4524 | 3.6805 | 3.5202 |

STD | 0.055407 | 0.052652 | 0.19825 | 0.10977 |

${f}_{2}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 23.016 | 23.072 | 18.011 | 17.645 |

Min | 22.316 | 22.126 | 16.911 | 16.916 |

Average | 22.479 | 22.46 | 17.142 | 17.17 |

STD | 0.14235 | 0.37272 | 0.22887 | 0.21337 |

${f}_{3}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 10.115 | 10.237 | 7.9032 | 7.8065 |

Min | 9.9116 | 9.9536 | 7.3107 | 7.3321 |

Average | 9.9801 | 10.03 | 7.3871 | 7.4062 |

STD | 0.038899 | 0.045719 | 0.1402 | 0.12795 |

${f}_{4}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 6.7835 | 6.3802 | 7.1389 | 5.6697 |

Min | 5.9945 | 5.9169 | 5.083 | 4.9944 |

Average | 6.3626 | 6.1397 | 5.5549 | 5.2585 |

STD | 0.17224 | 0.073056 | 0.36878 | 0.175 |

${f}_{5}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 21.211 | 21.321 | 6.8068 | 7.8462 |

Min | 20.771 | 20.815 | 6.2976 | 6.3105 |

Average | 20.893 | 21.037 | 6.3604 | 6.502 |

STD | 0.10099 | 0.063159 | 0.087315 | 0.42114 |

${f}_{6}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 5.253 | 4.9498 | 4.5053 | 4.5329 |

Min | 4.8052 | 4.7852 | 4.0516 | 4.0585 |

Average | 4.8528 | 4.8239 | 4.1035 | 4.1364 |

STD | 0.066958 | 0.036578 | 0.096493 | 0.1393 |

${f}_{7}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 7.0562 | 7.6148 | 6.3973 | 6.1467 |

Min | 6.3352 | 6.3872 | 5.4016 | 5.4081 |

Average | 6.5793 | 6.5748 | 5.7444 | 5.6745 |

STD | 0.12996 | 0.18931 | 0.27627 | 0.18781 |

${f}_{8}$ | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 8.1745 | 8.0003 | 7.0702 | 6.945 |

Min | 7.3989 | 7.4915 | 6.2898 | 6.3109 |

Average | 7.5151 | 7.5544 | 6.3969 | 6.3699 |

STD | 0.13768 | 0.068633 | 0.16506 | 0.1237 |

${f}_{1}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 803.1 | 851.1 | 693.48 | 878.87 | $3.10\times {10}^{-36}$ | 2189.2 | $6.75\times {10}^{-36}$ | 3135.8 | ${\mathbf{3.45}\times {\mathbf{10}}^{-\mathbf{128}}}$ | $3.49\times {10}^{-92}$ | $2.01\times {10}^{-127}$ | $8.08\times {10}^{-92}$ |

Min | 110.12 | 231.66 | 96.881 | 198.67 | $1.19\times {10}^{-38}$ | 33.487 | $3.85\times {10}^{-39}$ | 5.1453 | ${\mathbf{4.01}\times {\mathbf{10}}^{-\mathbf{136}}}$ | $1.16\times {10}^{-99}$ | $5.73\times {10}^{-136}$ | $4.03\times {10}^{-100}$ |

Average | 396.34 | 512.71 | 363.63 | 524.55 | $4.45\times {10}^{-37}$ | 637.3 | $5.60\times {10}^{-37}$ | 738.21 | ${\mathbf{2.37}\times {\mathbf{10}}^{-\mathbf{129}}}$ | $1.05\times {10}^{-93}$ | $7.64\times {10}^{-129}$ | $2.69\times {10}^{-93}$ |

STD | 164.16 | 145.59 | 165.86 | 165.07 | $6.88\times {10}^{-37}$ | 508.86 | $1.18\times {10}^{-36}$ | 680.65 | ${\mathbf{6.88}\times {\mathbf{10}}^{-\mathbf{129}}}$ | $5.03\times {10}^{-93}$ | $3.16\times {10}^{-128}$ | $1.19\times {10}^{-92}$ |

${f}_{2}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 4.0682 | 2.8756 | 4.1886 | 2.9012 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 5.303 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 4.4089 | 0.45432 | 1.1605 | 3.3738 | 0.45432 |

Min | 0.43532 | 0.73858 | 0.50167 | 0.49925 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 0.33872 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 0.31488 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ |

Average | 2.0062 | 1.6742 | 1.7204 | 1.6712 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 1.8351 | ${\mathbf{1.50}\times {\mathbf{10}}^{-\mathbf{32}}}$ | 1.6916 | 0.036212 | 0.044963 | 0.18755 | 0.023545 |

STD | 1.094 | 0.43556 | 0.91603 | 0.49293 | ${\mathbf{2.76}\times {\mathbf{10}}^{-\mathbf{48}}}$ | 1.2641 | $8.29\times {10}^{-48}$ | 0.99901 | 0.11155 | 0.18929 | 0.60021 | 0.091378 |

${f}_{3}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | −361.86 | −369.18 | −360.01 | −366.04 | ${-\mathbf{377.52}}$ | −282.82 | ${-\mathbf{377.52}}$ | −276.36 | −335.11 | −335.11 | −320.98 | −335.11 |

Min | −385.82 | −390.21 | −389.06 | −385.25 | ${-\mathbf{391.66}}$ | −362.53 | ${-\mathbf{391.66}}$ | −379.17 | ${-\mathbf{391.66}}$ | ${-\mathbf{391.66}}$ | ${-\mathbf{391.66}}$ | ${-\mathbf{391.66}}$ |

Average | −376.93 | −378.57 | −377.46 | −378.18 | −390.53 | −322.34 | ${-\mathbf{391.1}}$ | −324.16 | −363.95 | −371.02 | −365.37 | −371.02 |

STD | 5.3254 | 4.3697 | 5.5337 | 4.2567 | 3.8741 | 17.26 | ${\mathbf{2.7983}}$ | 24.568 | 17.127 | 15.698 | 17.608 | 14.898 |

${f}_{4}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | $7.48\times {10}^{5}$ | $2.67\times {10}^{5}$ | $6.51\times {10}^{5}$ | $2.79\times {10}^{5}$ | ${\mathbf{3.9866}}$ | $5.90\times {10}^{5}$ | ${\mathbf{3.9866}}$ | $2.81\times {10}^{5}$ | 7.7008 | 150.43 | 125.9 | 97.773 |

Min | 11809 | 22674 | 10592 | 14904 | ${\mathbf{0}}$ | 221.75 | $1.05\times {10}^{-29}$ | 85.7 | 0.001011 | 0.00075109 | $9.36\times {10}^{-5}$ | $8.22\times {10}^{-5}$ |

Average | $2.18\times {10}^{5}$ | $1.28\times {10}^{5}$ | $2.03\times {10}^{5}$ | $1.19\times {10}^{5}$ | 0.31893 | 79546 | ${\mathbf{0.079732}}$ | 51649 | 2.3245 | 5.2944 | 4.0551 | 5.0642 |

STD | $1.81\times {10}^{5}$ | 61355 | $1.61\times {10}^{5}$ | 59792 | 1.0925 | $1.32\times {10}^{5}$ | ${\mathbf{0.56379}}$ | 71056 | 2.2494 | 21.749 | 17.666 | 17.601 |

${f}_{5}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 1.0079 | 0.90574 | 1.0422 | 0.95218 | 0.47846 | 0.90603 | 0.54541 | 0.8534 | 0.2658 | ${\mathbf{0.17454}}$ | 0.22621 | 0.18699 |

Min | 0.13795 | 0.51898 | 0.13518 | 0.4226 | 0.0098573 | 0.11603 | ${\mathbf{0}}$ | 0.14461 | 0.017236 | 0.007396 | ${\mathbf{0}}$ | 0.01969 |

Average | 0.62559 | 0.72619 | 0.64354 | 0.72477 | 0.17114 | 0.37272 | 0.15415 | 0.36911 | 0.082166 | ${\mathbf{0.067271}}$ | 0.073552 | 0.081583 |

STD | 0.29169 | 0.10053 | 0.27751 | 0.11398 | 0.12517 | 0.16561 | 0.12216 | 0.17738 | 0.045771 | ${\mathbf{0.032932}}$ | 0.046 | 0.036983 |

${f}_{6}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 26.967 | 22.369 | 26.161 | 23.734 | 18.436 | 61.339 | 22.189 | 89.495 | 13.929 | ${\mathbf{12.934}}$ | 15.919 | 15.919 |

Min | 9.0212 | 11.351 | 6.8412 | 7.9241 | 1.9899 | 7.284 | 2.9849 | 7.5864 | ${\mathbf{0}}$ | 1.9899 | ${\mathbf{0}}$ | 0.99496 |

Average | 18.404 | 17.323 | 16.87 | 17.45 | 7.6318 | 26.926 | 8.9962 | 30.295 | 7.1836 | ${\mathbf{6.507}}$ | 7.9995 | 6.6861 |

STD | 4.2545 | ${\mathbf{2.6509}}$ | 4.1317 | 3.2635 | 3.5215 | 12.042 | 4.4606 | 15.282 | 3.1674 | 2.942 | 3.5275 | 3.5107 |

${f}_{7}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 15.554 | 15.825 | 15.913 | 16.091 | 0.00025313 | 26.502 | ${\mathbf{0.00023235}}$ | 31.125 | 4.6907 | 5.0196 | 5.8513 | 5.4093 |

Min | 5.81 | 9.5476 | 6.1036 | 9.749 | $4.48\times {10}^{-6}$ | 6.2426 | $2.78\times {10}^{-6}$ | 7.3592 | 0.010729 | $5.78\times {10}^{-23}$ | 0.010729 | ${\mathbf{1.02}\times {\mathbf{10}}^{-\mathbf{23}}}$ |

Average | 9.7471 | 13.107 | 9.4184 | 13.142 | ${\mathbf{3.18}\times {\mathbf{10}}^{-\mathbf{5}}}$ | 16.616 | $4.16\times {10}^{-5}$ | 16.469 | 0.89475 | 0.72333 | 1.2073 | 0.74679 |

STD | 2.1818 | 1.3576 | 2.1384 | 1.3547 | ${\mathbf{3.89}\times {\mathbf{10}}^{-\mathbf{5}}}$ | 4.8337 | $4.69\times {10}^{-5}$ | 4.8209 | 1.2023 | 1.2346 | 1.6043 | 1.2825 |

${f}_{8}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 3.4624 | 5.2211 | 3.8739 | 5.3901 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 15.395 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 13.672 | 1.1551 | 1.6462 | 2.0133 | 1.1551 |

Min | 0.88282 | 3.3081 | 1.2655 | 3.0742 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 1.8371 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 2.0741 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ |

Average | 2.4774 | 4.2857 | 2.7235 | 4.253 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 8.5284 | ${\mathbf{3.11}\times {\mathbf{10}}^{-\mathbf{15}}}$ | 7.9863 | 0.11551 | 0.056027 | 0.26784 | 0.069309 |

STD | 0.5349 | 0.44425 | 0.55014 | 0.53566 | ${\mathbf{0}}$ | 2.8974 | ${\mathbf{0}}$ | 3.0219 | 0.35006 | 0.28167 | 0.55746 | 0.27712 |

${f}_{1}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 24.144 | 14.818 | 23.045 | 13.121 | 16.266 | 7.5975 | 13.654 | 5.8533 | 4.6436 | 4.7827 | 4.3586 | ${\mathbf{3.9628}}$ |

Min | 21.58 | 14.109 | 19.585 | 12.583 | 15.431 | 6.7975 | 11.854 | 5.2711 | 4.466 | 4.4134 | 3.5466 | ${\mathbf{3.4743}}$ |

Average | 22.567 | 14.376 | 20.548 | 12.98 | 15.772 | 7.038 | 12.245 | 5.343 | 4.5714 | 4.4524 | 3.6805 | ${\mathbf{3.5202}}$ |

STD | 0.83158 | 0.21588 | 0.78465 | 0.14111 | 0.18457 | 0.14197 | 0.38329 | 0.078526 | 0.055407 | ${\mathbf{0.052652}}$ | 0.19825 | 0.10977 |

${f}_{2}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 53.419 | 33.995 | 43.846 | 28.084 | 57.416 | 23.251 | 34.549 | ${\mathbf{15.018}}$ | 23.016 | 23.072 | 18.011 | 17.645 |

Min | 52.5 | 32.746 | 42.469 | 27.325 | 48.193 | 20.763 | 33.857 | ${\mathbf{14.653}}$ | 22.316 | 22.126 | 16.911 | 16.916 |

Average | 52.705 | 33.576 | 43.305 | 27.68 | 49.606 | 21.304 | 34.325 | ${\mathbf{14.75}}$ | 22.479 | 22.46 | 17.142 | 17.17 |

STD | 0.19373 | 0.45674 | 0.40224 | 0.29811 | 1.8648 | 0.58789 | 0.20726 | ${\mathbf{0.049601}}$ | 0.14235 | 0.37272 | 0.22887 | 0.21337 |

${f}_{3}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 33.675 | 21.241 | 27.961 | 16.951 | 27.869 | 12.068 | 18.801 | 8.2856 | 10.115 | 10.237 | 7.9032 | ${\mathbf{7.8065}}$ |

Min | 32.444 | 20.753 | 27.693 | 16.249 | 26.586 | 11.451 | 18.492 | 8.1547 | 9.9116 | 9.9536 | ${\mathbf{7.3107}}$ | 7.3321 |

Average | 32.656 | 20.933 | 27.829 | 16.625 | 27.24 | 11.765 | 18.633 | 8.2207 | 9.9801 | 10.03 | ${\mathbf{7.3871}}$ | 7.4062 |

STD | 0.2189 | 0.12987 | 0.051181 | 0.19769 | 0.23964 | 0.13481 | 0.068874 | ${\mathbf{0.031299}}$ | 0.038899 | 0.045719 | 0.1402 | 0.12795 |

${f}_{4}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 26.432 | 17.195 | 23.177 | 14.662 | 20.083 | 9.6074 | 15.165 | 6.5915 | 6.7835 | 6.3802 | 7.1389 | ${\mathbf{5.6697}}$ |

Min | 25.832 | 16.809 | 22.28 | 14.579 | 18.842 | 8.8058 | 14.626 | 6.4609 | 5.9945 | 5.9169 | 5.083 | ${\mathbf{4.9944}}$ |

Average | 26.12 | 16.988 | 22.806 | 14.625 | 19.604 | 8.9937 | 14.947 | 6.5287 | 6.3626 | 6.1397 | 5.5549 | ${\mathbf{5.2585}}$ |

STD | 0.12577 | 0.10671 | 0.3793 | ${\mathbf{0.021441}}$ | 0.22143 | 0.13871 | 0.17267 | 0.032574 | 0.17224 | 0.073056 | 0.36878 | 0.175 |

${f}_{5}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 56.463 | 37.643 | 25.431 | 15.981 | 28.155 | 12.564 | 21.205 | 7.9327 | 21.211 | 21.321 | ${\mathbf{6.8068}}$ | 7.8462 |

Min | 51.667 | 32.043 | 24.527 | 15.403 | 21.609 | 9.5708 | 16.104 | 7.3504 | 20.771 | 20.815 | ${\mathbf{6.2976}}$ | 6.3105 |

Average | 52.609 | 32.336 | 25.207 | 15.777 | 23.728 | 10.065 | 16.841 | 7.4283 | 20.893 | 21.037 | ${\mathbf{6.3604}}$ | 6.502 |

STD | 0.98871 | 0.79033 | 0.28878 | 0.2308 | 1.3008 | 0.57603 | 0.82097 | 0.080032 | 0.10099 | ${\mathbf{0.063159}}$ | 0.087315 | 0.42114 |

${f}_{6}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 23.767 | 15.585 | 20.968 | 13.325 | 20.134 | 10.592 | 15.865 | 7.8398 | 5.253 | 4.9498 | ${\mathbf{4.5053}}$ | 4.5329 |

Min | 22.686 | 14.818 | 20.182 | 12.843 | 16.432 | 7.5325 | 12.441 | 5.7978 | 4.8052 | 4.7852 | ${\mathbf{4.0516}}$ | 4.0585 |

Average | 23.014 | 14.918 | 20.424 | 12.898 | 17.298 | 8.1412 | 12.988 | 6.0956 | 4.8528 | 4.8239 | ${\mathbf{4.1035}}$ | 4.1364 |

STD | 0.22193 | 0.13802 | 0.30039 | 0.063915 | 0.59429 | 0.8543 | 0.66904 | 0.54322 | 0.066958 | ${\mathbf{0.036578}}$ | 0.096493 | 0.1393 |

${f}_{7}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 26.147 | 17.097 | 23.718 | 15.003 | 20.159 | 11.566 | 15.484 | 8.8737 | 7.0562 | 7.6148 | 6.3973 | ${\mathbf{6.1467}}$ |

Min | 25.505 | 16.514 | 23.571 | 14.883 | 19.054 | 8.5482 | 15.042 | 6.7808 | 6.3352 | 6.3872 | ${\mathbf{5.4016}}$ | 5.4081 |

Average | 25.675 | 16.608 | 23.661 | 14.943 | 19.593 | 9.0394 | 15.397 | 7.171 | 6.5793 | 6.5748 | 5.7444 | ${\mathbf{5.6745}}$ |

STD | 0.1198 | 0.087461 | 0.031198 | ${\mathbf{0.023558}}$ | 0.33105 | 0.70994 | 0.088293 | 0.57938 | 0.12996 | 0.18931 | 0.27627 | 0.18781 |

${f}_{8}$ | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |

Max | 28.488 | 18.888 | 25.426 | 16.091 | 23.642 | 12.882 | 17.531 | 7.8927 | 8.1745 | 8.0003 | 7.0702 | ${\mathbf{6.945}}$ |

Min | 27.7 | 17.862 | 25.294 | 15.904 | 22.782 | 9.805 | 17.011 | 7.4364 | 7.3989 | 7.4915 | ${\mathbf{6.2898}}$ | 6.3109 |

Average | 27.885 | 18.179 | 25.365 | 15.948 | 23.23 | 10.159 | 17.413 | 7.5943 | 7.5151 | 7.5544 | 6.3969 | ${\mathbf{6.3699}}$ |

STD | 0.15947 | 0.21193 | 0.032987 | ${\mathbf{0.029009}}$ | 0.19133 | 0.44989 | 0.13786 | 0.069855 | 0.13768 | 0.068633 | 0.16506 | 0.1237 |

f | GA-C1-M1 | GA-C2-M1 | GA-C1-M2 | GA-C2-M2 |
---|---|---|---|---|

${f}_{1}$ | 1128.4 | 718.81 | 1027.4 | 649.02 |

${f}_{2}$ | 2635.3 | 1678.8 | 2165.2 | 1384 |

${f}_{3}$ | 1632.8 | 1046.7 | 1391.4 | 831.26 |

${f}_{4}$ | 1306 | 849.38 | 1140.3 | 731.26 |

${f}_{5}$ | 2630.5 | 1616.8 | 1260.3 | 788.87 |

${f}_{6}$ | 1150.7 | 745.89 | 1021.2 | 644.9 |

${f}_{7}$ | 1283.8 | 830.4 | 1183 | 747.14 |

${f}_{8}$ | 1394.2 | 908.95 | 1268.2 | 797.4 |

Total | 13,162 | 839.6 | 10,457 | 6574 |

f | DE-C1-M1 | DE-C2-M1 | DE-C1-M2 | DE-C2-M2 |
---|---|---|---|---|

${f}_{1}$ | 788.58 | 351.9 | 612.27 | 267.15 |

${f}_{2}$ | 2480.3 | 1065.2 | 1716.3 | 737.48 |

${f}_{3}$ | 1362 | 588.25 | 931.63 | 411.04 |

${f}_{4}$ | 980.19 | 449.69 | 747.37 | 326.44 |

${f}_{5}$ | 1186.4 | 503.27 | 842.07 | 371.42 |

${f}_{6}$ | 864.88 | 407.06 | 649.41 | 304.78 |

${f}_{7}$ | 979.64 | 451.97 | 769.87 | 358.55 |

${f}_{8}$ | 1161.5 | 507.97 | 870.66 | 379.72 |

Total | 9803.5 | 4325.3 | 7139.6 | 3156.6 |

f | PSO-C1-M1 | PSO-C2-M1 | PSO-C1-M2 | PSO-C2-M2 |
---|---|---|---|---|

${f}_{1}$ | 228.57 | 222.62 | 184.03 | 176.01 |

${f}_{2}$ | 1124 | 1123 | 857.1 | 858.52 |

${f}_{3}$ | 499.01 | 501.5 | 369.35 | 370.31 |

${f}_{4}$ | 318.13 | 306.98 | 277.74 | 262.93 |

${f}_{5}$ | 1044.6 | 1051.8 | 318.02 | 325.1 |

${f}_{6}$ | 242.64 | 241.19 | 205.18 | 206.82 |

${f}_{7}$ | 328.97 | 328.74 | 287.22 | 283.73 |

${f}_{8}$ | 375.75 | 377.72 | 319.84 | 318.5 |

Total | 4161.7 | 4153.6 | 2818.5 | 2801.9 |

Algorithm | M1 | M2 | Difference | Percentage TG |
---|---|---|---|---|

GA | 21,557 | 17,031 | 4526 | $10.28\%$ |

DE | 14,129 | 10,296 | 3833 | $8.72\%$ |

PSO | 8315 | 5620 | 2695 | $6.12\%$ |

Total | 44,001 | 32,947 | 11,054 | $25.12\%$ |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Gélvez, N.; Espitia, H.; Bayona, J.
Testing of a Virtualized Distributed Processing System for the Execution of Bio-Inspired Optimization Algorithms. *Symmetry* **2020**, *12*, 1192.
https://doi.org/10.3390/sym12071192

**AMA Style**

Gélvez N, Espitia H, Bayona J.
Testing of a Virtualized Distributed Processing System for the Execution of Bio-Inspired Optimization Algorithms. *Symmetry*. 2020; 12(7):1192.
https://doi.org/10.3390/sym12071192

**Chicago/Turabian Style**

Gélvez, Nancy, Helbert Espitia, and Jhon Bayona.
2020. "Testing of a Virtualized Distributed Processing System for the Execution of Bio-Inspired Optimization Algorithms" *Symmetry* 12, no. 7: 1192.
https://doi.org/10.3390/sym12071192
