# A Double-Density Clustering Method Based on “Nearest to First in” Strategy

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Core Objects and Initial Clustering

#### 2.1. Abbreviations

#### 2.2. Density of Each Point

**Definition**

**1.**

#### 2.3. Core Object

**Definition**

**2.**

**Definition**

**3.**

**Definition**

**4.**

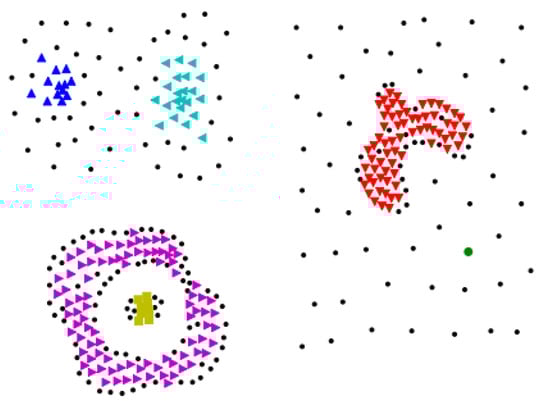

#### 2.4. Initial Clustering

Algorithm 1: Initial clustering. |

Input: data set X, k, ${N}_{k}$, ${R}_{k}$. |

Output: label array L. |

Step 1. Initialize each element of L to 0, and set $Cid$ to 0; |

Step 2. for each ${x}_{i}$ in X: |

Step 3. Compute ${d}_{off}\left({x}_{i}\right)$ by (1); |

Step 4. Calculate ${\rho}_{off}\left({x}_{i}\right)$ and ${\rho}_{R}\left({x}_{i}\right)$ by (2) and (3) respectively; |

Step 5. Calculate the threshold ${\overline{\rho}}_{off}$ by (4) |

Step 6. for each ${x}_{i}$ in X: |

Step 7. if ${\rho}_{off}\left({x}_{i}\right)>{\overline{\rho}}_{off}$ and ${\rho}_{R}\left({x}_{i}\right)>k$: |

Step 8. $L\left({x}_{i}\right)=-1$ |

Step 9. Initialize an empty queue Q |

Step 10. for each ${x}_{i}$ in X: |

Step 11. if $L\left({x}_{i}\right)!=-1$: continue; |

Step 12. $Q.push\left({x}_{i}\right)$, $Cid+=1$; |

Step 13. while Q is not empty: |

Step 14. $x=Q.pop\left(\right)$, $L\left(x\right)=Cid$; |

Step 15. for each y in ${R}_{k}\left(x\right)$: |

Step 16. if $L\left(y\right)==-1$: $Q.push\left(y\right)$; |

Step 17. return L. |

## 3. Nearest-to-First-in Strategy

#### 3.1. Basic Idea of the Strategy

**Definition**

**5.**

**Definition**

**6.**

**Definition**

**7.**

**Definition**

**8.**

#### 3.2. Main Procedures of Nearest-to-First-in Strategy

Algorithm 2: NTFI. |

Input: $X,\phantom{\rule{0.277778em}{0ex}}k\phantom{\rule{0.277778em}{0ex}},{R}_{k},\phantom{\rule{0.277778em}{0ex}}L$. |

Output: label array L. |

Step 1. Put all unclassified point ($L\left(x\right)=0$) into an array $unL$ and create two array D and ${C}_{N}$, each has the same size as $unL$. The value of each element in ${C}_{N}$ is set to −1 and the value of each element in D is set to ∞; |

Step 2. while $unL$ is not empty: |

Step 3. ${d}_{min}=\infty $; |

Step 4. for each x in $unL$: |

Step 5. for each y in ${R}_{k}\left(x\right)$: |

Step 6. if $L\left(y\right)>0$ and $dist(x,y)<D\left(x\right)$: |

Step 7. $D\left(x\right)=dist(x,y),\phantom{\rule{2.em}{0ex}}{C}_{N}\left(y\right)=L\left(y\right)$; |

Step 8. if $D\left(x\right)<{d}_{min}$: ${d}_{min}=D\left(x\right)$; |

Step 9. if ${d}_{min}=\infty $: break; |

Step 10. for each x in $unL$: |

Step 11. if $D\left(x\right)=={d}_{min}$: |

Step 12. $L\left(x\right)={C}_{N}\left(x\right)$; |

Step 13. Remove x from $unL,D,{C}_{N}$; |

Step 14. Return L. |

## 4. Experiments and Results Analysis

#### 4.1. Experiments on Artificial Data Sets and Results Analysis

#### 4.2. Experiments on Real-World Data Sets and Results Analysis

- Data that have null values, uncertain values, or duplicates were removed.
- Most of data sets have a class attribute. Table 3 only gives the number of none class attributes.
- We conserved from the third to ninth features of the data in Echocardiogram because some of its data has missing values.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

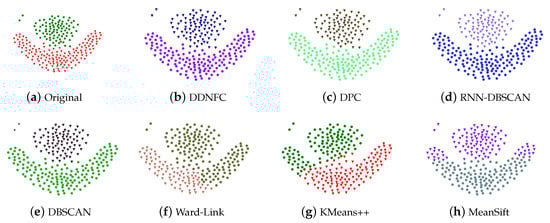

## Appendix A. Figures of Experiment Results

## References

- Aggarwal, C.C.; Reddy, C.K. Data Clustering Algorithms and Applications, 1st ed.; CRC Press: Boca Raton, FL, USA, 2013; pp. 65–210. [Google Scholar]
- Arthur, D.; Vassilvitskii, S. K-means++: The advantages of careful seeding. In Proceedings of the Annual ACM-SIAM Symposium on Discrete Algorithms, New Orleans, LA, USA, 7–9 January 2007; pp. 1027–1035. [Google Scholar]
- Murtagh, F.; Legendre, P. Ward’s Hierarchical Agglomerative Clustering Method: Which Algorithms Implement Ward’s Criterion? J. Classif.
**2014**, 31, 274–295. [Google Scholar] [CrossRef] [Green Version] - Wu, K.L.; Yang, M.S. Mean shift-based clustering. Pattern Recognit.
**2007**, 40, 3035–3052. [Google Scholar] [CrossRef] - Jiang, Z.; Liu, X.; Sun, M. A Density Peak Clustering Algorithm Based on the K-Nearest Shannon Entropy and Tissue-Like P System. Math. Probl. Eng.
**2019**, 2019, 1–13. [Google Scholar] [CrossRef] [Green Version] - Halim, Z.; Khattak, J.H. Density-based clustering of big probabilistic graphs. Evol. Syst.
**2019**, 10, 333–350. [Google Scholar] [CrossRef] - Wu, C.; Lee, J.; Isokawa, T.; Yao, J.; Xia, Y. Efficient Clustering Method Based on Density Peaks with Symmetric Neighborhood Relationship. IEEE Access
**2019**, 7, 60684–60696. [Google Scholar] [CrossRef] - Tan, H.; Gao, Y.; Ma, Z. Regularized constraint subspace based method for image set classification. Pattern Recognit.
**2018**, 76, 434–448. [Google Scholar] [CrossRef] - Chen, Y.; Tang, S.; Zhou, L.; Wang, C.; Du, J.; Wang, T.; Pei, S. Decentralized Clustering by Finding Loose and Distributed Density Cores. Inf. Sci.
**2018**, 433, 510–526. [Google Scholar] [CrossRef] - Wang, Z.; Yu, Z.; Philip Chen, C.L.; You, J.; Gu, T.; Wong, H.S.; Zhang, J. Clustering by Local Gravitation. IEEE Trans. Cybern.
**2018**, 48, 1383–1396. [Google Scholar] [CrossRef] - Oktar, Y.; Turkan, M. A review of sparsity-based clustering methods. Signal Process.
**2018**, 148, 20–30. [Google Scholar] [CrossRef] - Chen, J.; Zheng, H.; Lin, X.; Wu, Y.; Su, M. A novel image segmentation method based on fast density clustering algorithm. Eng. Appl. Artif. Intell.
**2018**, 73, 92–110. [Google Scholar] [CrossRef] - Zhou, R.; Zhang, Y.; Feng, S.; Luktarhan, N. A novel hierarchical clustering algorithm based on density peaks for complex datasets. Complexity
**2018**, 2018, 1–8. [Google Scholar] [CrossRef] - Zhang, X.; Liu, H.; Zhang, X. Novel density-based and hierarchical density-based clustering algorithms for uncertain data. Neural Netw.
**2017**, 93, 240–255. [Google Scholar] [CrossRef] [PubMed] - Wu, B.; Wilamowski, B.M. A fast density and grid based clustering method for data with arbitrary shapes and noise. IEEE Trans. Ind. Inform.
**2017**, 13, 1620–1628. [Google Scholar] [CrossRef] - Lv, Y.; Ma, T.; Tang, M.; Cao, J.; Tian, Y.; Al-Dhelaan, A.; Al-Rodhaan, M. An efficient and scalable density-based clustering algorithm for datasets with complex structures. Neurocomputing
**2016**, 171, 9–22. [Google Scholar] [CrossRef] - Ester, M.; Kriegel, H.P.; Sander, J.; Xu, X. A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases with Noise. In Proceedings of the 2nd International Conference on Knowledge Discovery and Data Mining, Portland, OR, USA, 2–4 August 1996; pp. 226–231. [Google Scholar]
- Rodriguez, A.; Laio, A. Clustering by fast search and find of density peaks. Science
**2014**, 344, 1492–1496. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Vadapalli, S.; Valluri, S.R.; Karlapalem, K. A simple yet effective data clustering algorithm. In Proceedings of the IEEE International Conference on Data Mining, Hong Kong, China, 18–22 December 2006; pp. 1108–1112. [Google Scholar] [CrossRef]
- Fränti, P.; Sieranoja, S. K-means properties on six clustering benchmark datasets. Appl. Intell.
**2018**, 48, 4743–4759. [Google Scholar] [CrossRef] - Bryant, A.; Cios, K. RNN-DBSCAN: A density-based clustering algorithm using reverse nearest neighbor density estimates. IEEE Trans. Knowl. Data Eng.
**2018**, 30, 1109–1121. [Google Scholar] [CrossRef] - Romano, S.; Vinh, N.X.; Bailey, J.; Verspoor, K. Adjusting for chance clustering comparison measures. J. Mach. Learn. Res.
**2016**, 17, 1–32. [Google Scholar] - Xie, J.; Xiong, Z.Y.; Dai, Q.Z.; Wang, X.X.; Zhang, Y.F. A new internal index based on density core for clustering validation. Inf. Sci.
**2020**, 506, 346–365. [Google Scholar] [CrossRef] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V.; et al. Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Von Luxburg, U. A tutorial on spectral clustering. Stat. Comput.
**2007**, 17, 395–416. [Google Scholar] [CrossRef] - Karypis, G.; Han, E.H.; Kumar, V. Chameleon: Hierarchical clustering using dynamic modeling. Computer
**1999**, 32, 68–75. [Google Scholar] [CrossRef] [Green Version] - Dua, D.; Graff, C. UCI Machine Learning Repository. Available online: https://archive.ics.uci.edu/ml/index.php (accessed on 1 October 2017).

Data Set | Size | Dimension | Cluster Number |
---|---|---|---|

Compound | 399 | 2 | 6 |

Pathbased | 300 | 2 | 3 |

Flame | 240 | 2 | 2 |

Aggregation | 788 | 2 | 7 |

Jain | 373 | 2 | 3 |

R15 | 600 | 2 | 15 |

Unbalance | 6500 | 2 | 8 |

A3 | 7500 | 2 | 50 |

S1 | 5000 | 2 | 15 |

t5.8k | 8000 | 2 | 6 |

t7.10k | 10,000 | 2 | 9 |

t8.8k | 8000 | 2 | 8 |

Spiral | 312 | 2 | 3 |

Algorithm | Par | c/C | F1 | AMI | ARI | Par | c/C | F1 | AMI | ARI | |
---|---|---|---|---|---|---|---|---|---|---|---|

Compound | Pathbased | ||||||||||

DDNFC | 9 | 6/6 | 1.00 | 0.99 | 1.00 | 9 | 3/3 | 0.98 | 0.92 | 0.94 | |

DPC | 1.0 | 6/6 | 0.78 | 0.82 | 0.62 | 1.5 | 3/3 | 0.74 | 0.55 | 0.50 | |

RNN-DBSCAN | 8 | 6/6 | 0.89 | 0.86 | 0.86 | 6 | 4/3 | 0.98 | 0.93 | 0.95 | |

DBSCAN | 0.2/5 | 6/6 | 0.94 | 0.89 | 0.93 | 0.3/11 | 3/3 | 0.96 | 0.84 | 0.88 | |

Ward-Link | 6 | 6/6 | 0.72 | 0.69 | 0.55 | 3 | 3/3 | 0.72 | 0.53 | 0.48 | |

KMeans++ | 6 | 6/6 | 0.70 | 0.68 | 0.54 | 3 | 3/3 | 0.70 | 0.51 | 0.46 | |

MeanShift | - | 4/6 | 0.83 | 0.74 | 0.78 | - | 3/3 | 0.70 | 0.51 | 0.46 | |

Jain | Flame | ||||||||||

DDNFC | 18 | 2/2 | 1.00 | 1.00 | 1.00 | 17 | 2/2 | 1.00 | 1.00 | 1.00 | |

DPC | 1.0 | 2/2 | 0.93 | 0.61 | 0.71 | 4.5 | 2/2 | 1.00 | 0.96 | 0.98 | |

RNN-DBSCAN | 15 | 2/2 | 0.99 | 0.92 | 0.97 | 8 | 2/2 | 0.99 | 0.93 | 0.97 | |

DBSCAN | 0.25/14 | 2/2 | 1.00 | 1.00 | 1.00 | 0.45/11 | 3/2 | 0.99 | 0.91 | 0.97 | |

Ward-Link | 2 | 2/2 | 0.87 | 0.47 | 0.51 | 2 | 2/2 | 0.72 | 0.33 | 0.19 | |

KMeans++ | 2 | 2/2 | 0.80 | 0.34 | 0.32 | 2 | 2/2 | 0.84 | 0.39 | 0.45 | |

MeanShift | - | 2/2 | 0.62 | 0.21 | 0.02 | - | 2/2 | 0.86 | 0.43 | 0.50 | |

cluto-t8.8k | cluto-t7.10k | ||||||||||

DDNFC | 24 | 9/9 | 0.94 | 0.92 | 0.95 | 35 | 10/10 | 0.90 | 0.87 | 0.89 | |

DPC | 1.0 | 9/9 | 0.58 | 0.60 | 0.48 | 1.0 | 10/10 | 0.55 | 0.57 | 0.37 | |

RNN-DBSCAN | 22 | 9/9 | 0.94 | 0.91 | 0.94 | 35 | 10/10 | 0.90 | 0.87 | 0.90 | |

DBSCAN | 0.1/23 | 10/9 | 0.92 | 0.90 | 0.91 | 0.1/8 | 10/10 | 0.44 | 0.28 | 0.20 | |

Ward-Link | 9 | 9/9 | 0.49 | 0.53 | 0.33 | 10 | 10/10 | 0.55 | 0.61 | 0.41 | |

KMeans++ | 9 | 9/9 | 0.52 | 0.55 | 0.36 | 10 | 10/10 | 0.47 | 0.54 | 0.34 | |

MeanShift | - | 7/9 | 0.51 | 0.54 | 0.36 | - | 6/10 | 0.54 | 0.58 | 0.44 | |

Aggregation | cluto-t5.8k | ||||||||||

DDNFC | 6 | 7/7 | 0.99 | 0.99 | 0.99 | 34 | 7/7 | 0.82 | 0.79 | 0.78 | |

DPC | 2.0 | 7/7 | 1.00 | 1.00 | 1.00 | 2.0 | 7/7 | 0.79 | 0.79 | 0.74 | |

RNN-DBSCAN | 5 | 7/7 | 1.00 | 0.99 | 0.99 | 39 | 7/7 | 0.82 | 0.80 | 0.79 | |

DBSCAN | 0.3/23 | 7/7 | 0.94 | 0.91 | 0.91 | 0.15/11 | 7/7 | 0.28 | 0.05 | 0.01 | |

Ward-Link | 7 | 7/7 | 0.90 | 0.88 | 0.81 | 7 | 7/7 | 0.78 | 0.79 | 0.74 | |

KMeans++ | 7 | 7/7 | 0.85 | 0.83 | 0.76 | 7 | 7/7 | 0.78 | 0.79 | 0.74 | |

MeanShift | - | 6/7 | 0.90 | 0.84 | 0.84 | - | 6/7 | 0.81 | 0.79 | 0.78 | |

Unbalance | R15 | ||||||||||

DDNFC | 63 | 8/8 | 1.00 | 1.00 | 1.00 | 24 | 15/15 | 0.99 | 0.99 | 0.99 | |

DPC | 1.0 | 8/8 | 1.00 | 1.00 | 1.00 | 1.0 | 15/15 | 1.00 | 0.99 | 0.99 | |

RNN-DBSCAN | 25 | 8/8 | 1.00 | 1.00 | 1.00 | 12 | 15/15 | 1.00 | 0.99 | 0.99 | |

DBSCAN | 0.45/11 | 8/8 | 0.79 | 0.70 | 0.61 | 0.1/17 | 15/15 | 0.76 | 0.62 | 0.27 | |

Ward-Link | 8 | 8/8 | 1.00 | 1.00 | 1.00 | 15 | 15/15 | 0.99 | 0.99 | 0.98 | |

KMeans++ | 8 | 8/8 | 1.00 | 1.00 | 1.00 | 15 | 15/15 | 1.00 | 0.99 | 0.99 | |

MeanShift | - | 8/8 | 1.00 | 1.00 | 1.00 | - | 8/15 | 0.58 | 0.58 | 0.27 | |

S1 | A3 | ||||||||||

DDNFC | 29 | 15/15 | 0.99 | 0.99 | 0.99 | 36 | 50/50 | 0.97 | 0.97 | 0.94 | |

DPC | 2.5 | 15/15 | 0.99 | 0.99 | 0.99 | 1.0 | 50/50 | 0.95 | 0.95 | 0.91 | |

RNN-DBSCAN | 20 | 16/15 | 0.99 | 0.99 | 0.99 | 39 | 49/50 | 0.97 | 0.97 | 0.95 | |

DBSCAN | 0.1/8 | 15/15 | 0.94 | 0.93 | 0.89 | 0.1/29 | 37/50 | 0.78 | 0.86 | 0.67 | |

Ward-Link | 15 | 15/15 | 0.99 | 0.98 | 0.98 | 50 | 50/50 | 0.97 | 0.97 | 0.94 | |

KMeans++ | 15 | 15/15 | 0.99 | 0.99 | 0.99 | 50 | 50/50 | 0.96 | 0.97 | 0.94 | |

MeanShift | - | 9/15 | 0.64 | 0.70 | 0.56 | - | - | - | - | - |

Data Set | Size | Dimension | Cluster Number |
---|---|---|---|

Ionosphere | 351 | 34 | 2 |

Page-blocks | 5437 | 10 | 5 |

Haberman | 306 | 3 | 2 |

SPECT-train | 80 | 22 | 2 |

Segmentation | 2100 | 19 | 7 |

Chess | 3196 | 36 | 2 |

Breast-cancer-Wisconsin | 699 | 10 | 2 |

Pendigits-train | 7494 | 16 | 10 |

Sonar | 208 | 60 | 2 |

Echocardiogram | 106 | 7 | 2 |

Contraceptive-Method-Choice | 1473 | 9 | 3 |

Wilt-train | 4339 | 5 | 2 |

Algorithm | Par | c/C | F1 | AMI | ARI | Par | c/C | F1 | AMI | ARI | |
---|---|---|---|---|---|---|---|---|---|---|---|

Ionosphere | Page-blocks | ||||||||||

DDNFC | 22 | 2/2 | 0.89 | 0.47 | 0.60 | 25 | 5/5 | 0.90 | 0.26 | 0.45 | |

DPC | 4.5 | 2/2 | 0.79 | 0.22 | 0.32 | 1.5 | 5/5 | 0.86 | 0.04 | 0.10 | |

RNN-DBSCAN | 6 | 2/2 | 0.69 | 0.01 | 0.01 | 19 | 5/5 | 0.90 | 0.26 | 0.48 | |

DBSCAN | 0.45/8 | 2/2 | 0.65 | 0.09 | −0.05 | 0.1/5 | 7/5 | 0.86 | 0.04 | 0.07 | |

Ward-Link | 2 | 2/2 | 0.72 | 0.13 | 0.19 | 3 | 5/5 | 0.80 | 0.05 | 0.02 | |

K-Means++ | 2 | 2/2 | 0.72 | 0.13 | 0.18 | 5 | 5/5 | 0.82 | 0.05 | 0.02 | |

MeanShift | - | 1/2 | - | - | - | - | 1/5 | - | - | - | |

Haberman | SPECT-train | ||||||||||

DDNFC | 10 | 2/2 | 0.73 | 0.01 | 0.05 | 4 | 2/2 | 0.70 | 0.14 | 0.21 | |

DPC | 1.5 | 2/2 | 0.61 | −0.00 | 0.01 | 1.0 | 2/2 | 0.66 | −0.01 | −0.00 | |

RNN-DBSCAN | 10 | 2/2 | 0.73 | −0.00 | 0.01 | 19 | 2/2 | 0.64 | 0.10 | 0.04 | |

DBSCAN | 0.1/5 | 1/2 | - | - | - | 0.1/5 | 2/2 | 0.62 | 0.08 | 0.06 | |

Ward-Link | 2 | 2/2 | 0.61 | 0.00 | −0.02 | 2 | 2/2 | 0.61 | 0.03 | 0.04 | |

K-Means++ | 2 | 2/2 | 0.55 | −0.00 | −0.00 | 2 | 2/2 | 0.70 | 0.17 | 0.17 | |

MeanShift | - | 2/2 | 0.73 | −0.00 | 0.01 | - | 1/2 | - | - | - | |

Segmentation | Chess | ||||||||||

DDNFC | 17 | 7/7 | 0.67 | 0.59 | 0.42 | 15 | 2/2 | 0.67 | 0.00 | 0.00 | |

DPC | 1.0 | 7/7 | 0.57 | 0.52 | 0.35 | 2.0 | 2/2 | 0.61 | 0.00 | 0.01 | |

RNN-DBSCAN | 13 | 6/7 | 0.60 | 0.56 | 0.38 | 9 | 2/2 | 0.67 | 0.00 | 0.00 | |

DBSCAN | 0.1/5 | 1/7 | - | - | - | 0.1/5 | 1/2 | - | - | - | |

Ward-Link | 7 | 7/7 | 0.57 | 0.46 | 0.32 | 2 | 2/2 | 0.59 | 0.01 | 0.00 | |

K-Means++ | 7 | 7/7 | 0.54 | 0.48 | 0.33 | 2 | 2/2 | 0.51 | 0.00 | 0.00 | |

MeanShift | - | 7/7 | 0.38 | 0.20 | 0.10 | - | 1/2 | - | - | - | |

Breast-cancer-Wisconsin | Pendigits-train | ||||||||||

DDNFC | 27 | 2/2 | 0.94 | 0.65 | 0.77 | 60 | 10/10 | 0.73 | 0.70 | 0.55 | |

DPC | 3.0 | 2/2 | 0.59 | 0.20 | 0.02 | 1.0 | 10/10 | 0.73 | 0.73 | 0.61 | |

RNN-DBSCAN | 39 | 2/2 | 0.69 | 0.00 | 0.00 | 32 | 10/10 | 0.68 | 0.63 | 0.41 | |

DBSCAN | 0.1/26 | 2/2 | 0.68 | 0.03 | −0.03 | 0.1/5 | 1/10 | - | - | - | |

Ward-Link | 2 | 2/2 | 0.97 | 0.79 | 0.87 | 10 | 10/10 | 0.75 | 0.72 | 0.59 | |

K-Means++ | 2 | 2/2 | 0.96 | 0.74 | 0.85 | 10 | 10/10 | 0.71 | 0.67 | 0.54 | |

MeanShift | - | 4/2 | 0.95 | 0.68 | 0.84 | - | 3/10 | 0.34 | 0.23 | 0.17 | |

Sonar | Echocardiogram | ||||||||||

DDNFC | 11 | 2/2 | 0.66 | 0.02 | 0.01 | 7 | 2/2 | 0.71 | 0.03 | 0.05 | |

DPC | 1.0 | 2/2 | 0.57 | −0.00 | −0.00 | 1.0 | 2/2 | 0.70 | 0.01 | 0.06 | |

RNN-DBSCAN | 7 | 2/2 | 0.67 | −0.00 | −0.00 | 4 | 2/2 | 0.70 | −0.00 | 0.04 | |

DBSCAN | 0.35/5 | 3/2 | 0.65 | 0.05 | −0.01 | 0.1/5 | 1/2 | - | - | - | |

Ward-Link | 2 | 2/2 | 0.58 | −0.00 | −0.00 | 2 | 2/2 | 0.72 | 0.10 | 0.16 | |

K-Means++ | 2 | 2/2 | 0.54 | 0.00 | 0.00 | 2 | 2/2 | 0.73 | 0.11 | 0.19 | |

MeanShift | - | - | - | - | - | - | 2/2 | 0.71 | 0.00 | 0.04 | |

Contraceptive-Method-Choice | Wilt-train | ||||||||||

DDNFC | 9 | 3/3 | 0.52 | 0.00 | −0.00 | 12 | 2/2 | 0.68 | 0.00 | -0.00 | |

DPC | 1.0 | 3/3 | 0.43 | 0.02 | 0.02 | 1.0 | 2/2 | 0.68 | −0.00 | −0.00 | |

RNN-DBSCAN | 19 | 2/3 | 0.52 | −0.00 | −0.00 | 29 | 2/2 | 0.68 | −0.00 | −0.00 | |

DBSCAN | 0.1/5 | 1/3 | - | - | - | 0.1/5 | 1/2 | - | - | - | |

Ward-Link | 3 | 3/3 | 0.39 | 0.03 | 0.02 | 2 | 2/2 | 0.55 | 0.01 | -0.00 | |

K-Means++ | 3 | 3/3 | 0.41 | 0.03 | 0.03 | 2 | 2/2 | 0.55 | 0.00 | 0.00 | |

MeanShift | - | 2/3 | 0.46 | 0.01 | 0.01 | - | 3/2 | 0.68 | 0.01 | −0.01 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Liu, Y.; Liu, D.; Yu, F.; Ma, Z.
A Double-Density Clustering Method Based on “Nearest to First in” Strategy. *Symmetry* **2020**, *12*, 747.
https://doi.org/10.3390/sym12050747

**AMA Style**

Liu Y, Liu D, Yu F, Ma Z.
A Double-Density Clustering Method Based on “Nearest to First in” Strategy. *Symmetry*. 2020; 12(5):747.
https://doi.org/10.3390/sym12050747

**Chicago/Turabian Style**

Liu, Yaohui, Dong Liu, Fang Yu, and Zhengming Ma.
2020. "A Double-Density Clustering Method Based on “Nearest to First in” Strategy" *Symmetry* 12, no. 5: 747.
https://doi.org/10.3390/sym12050747
