# Creep Response of Neat and Carbon-Fiber-Reinforced PEEK and Epoxy Determined Using a Micromechanical Model

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

_{2s}coupons. The authors reviewed the effects of temperature, moisture, and stress levels on the time-dependent shear modulus for two carbon epoxy laminate systems. This study has shown that a moisture concentration of about 1% may be considered as the critical limit for the investigated system. In other words, the viscoelastic deformation occurs much more rapidly beyond this limit. It was further demonstrated that for the above laminate, shear stresses in excess of 50% of the ultimate tensile strength could lead to irreversible deformation during creep.

## 2. Micromechanical Model

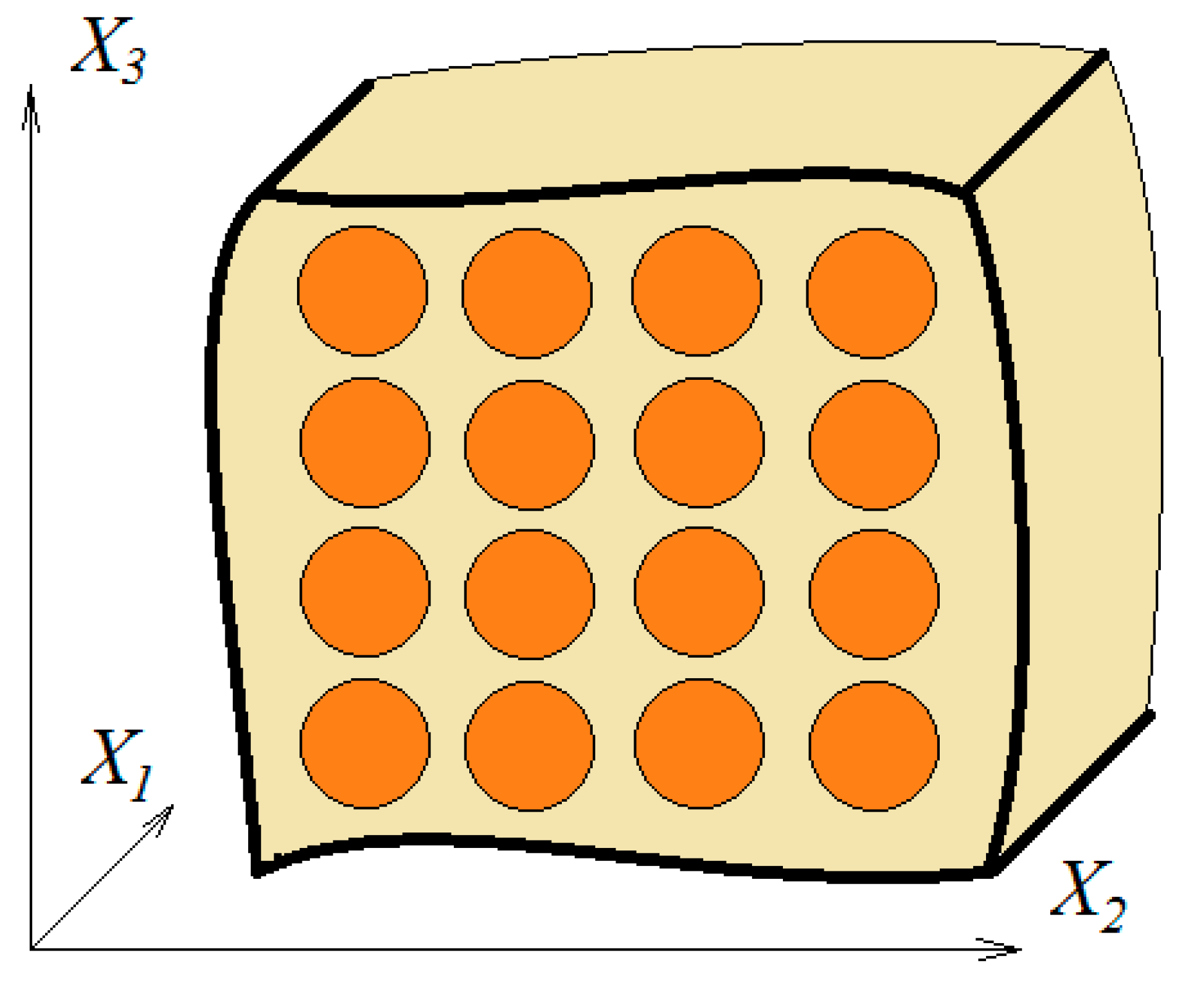

- Continuous fibers, circular in cross section and extended in the X

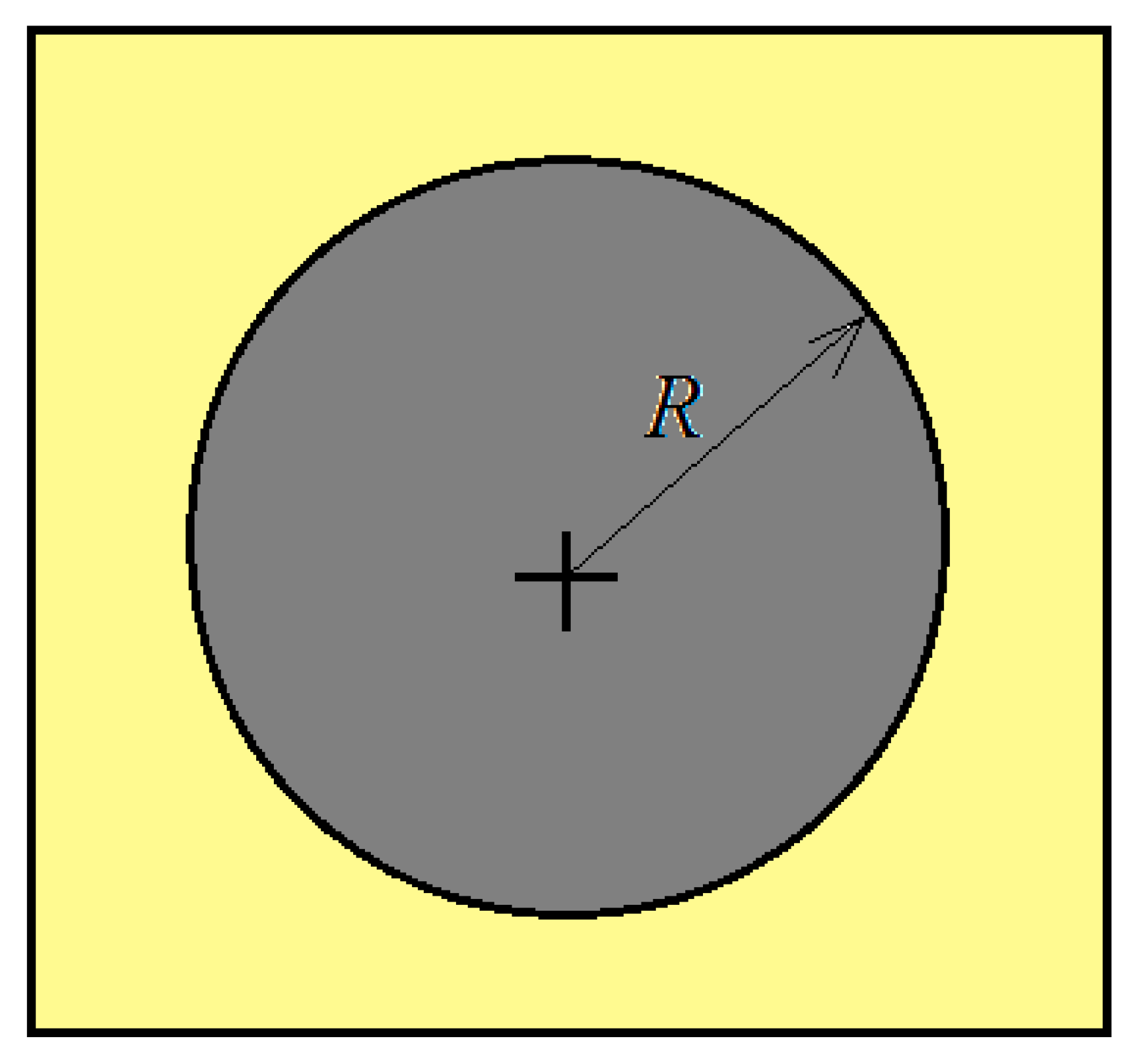

_{1}-direction, are arranged in a rectangular array in the X_{2}–X_{3}plane. - The fibers are supposed to be linearly elastic and anisotropic while the polymeric matrix is nonlinearly viscoelastic but isotropic.
- The interaction between fibers and matrix is merely mechanical and no crack or holes may develop under load.

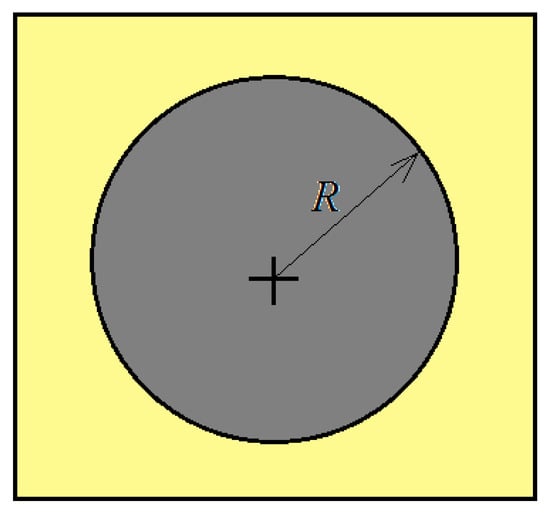

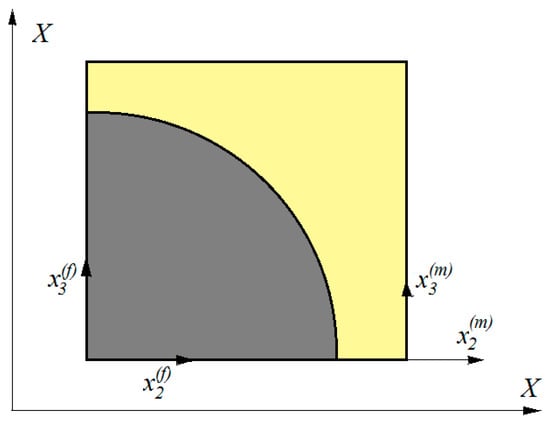

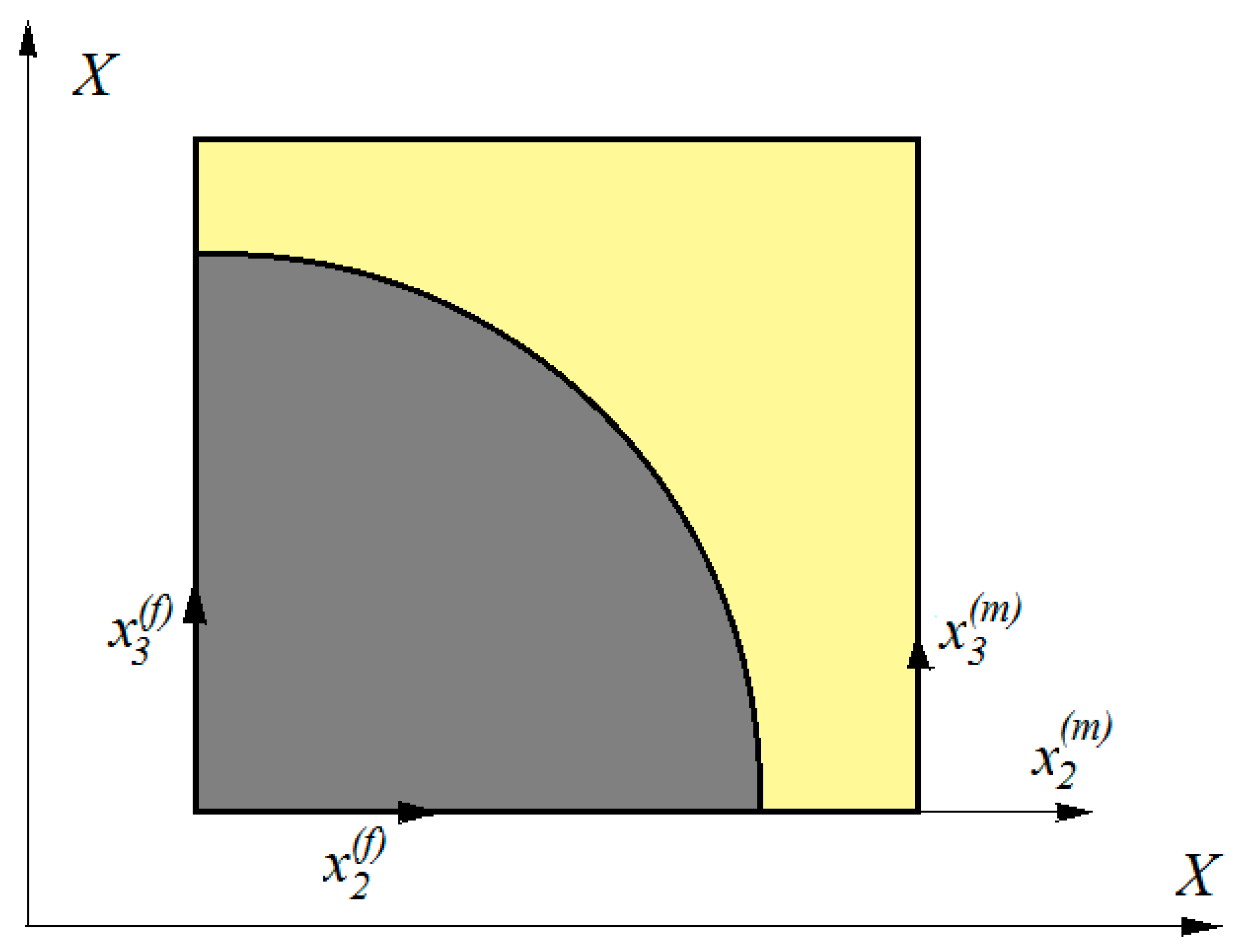

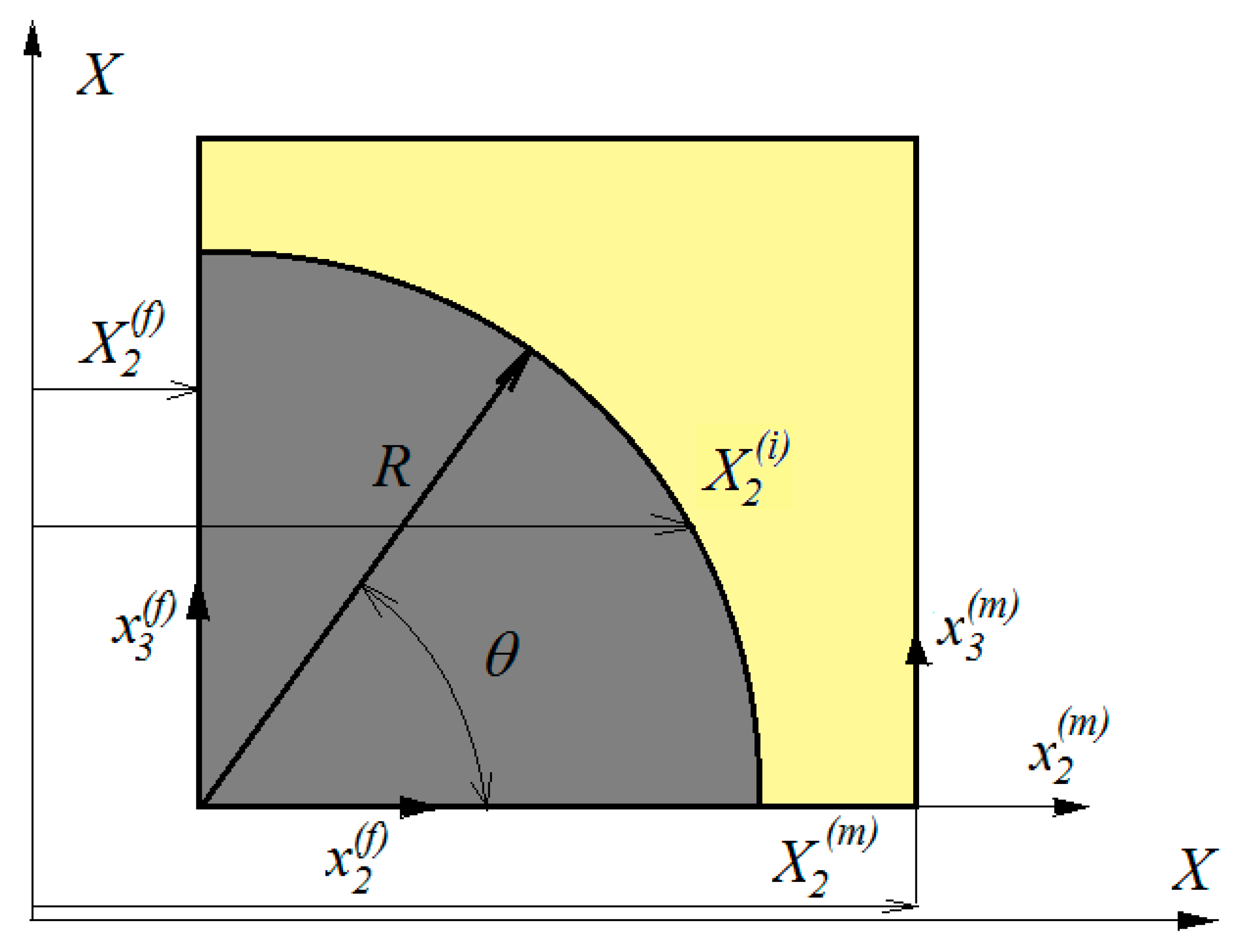

_{1}, ${x}_{2}^{(\lambda )}$, ${x}_{3}^{(\lambda )}$) with its origin located as shown in Figure 4 is introduced. Furthermore, the displacement in each of the two subcells is expressed in a first-order linear expansion as a function of the distance from the origin to the local coordinate axes [27,28]. This means that the displacement at any point in the subcell is:

_{1}is the direction of anisotropy and the X

_{2}–X

_{3}plane is the plane of isotropy.

## 3. Calculation of the Average Stresses in the Unit Cell

_{1}, X

_{2}, X

_{3}) and has a volume V. The problem to be discussed now is that of computing the average stress ${\overline{\sigma}}_{ij}$ in the representative volume cell. This is a sample of the whole composite which contains a sufficient number of the constituent materials and, at the same time, is representative of the bulk material, as far as the structural point of view is concerned. Therefore, the representative volume cell retains the same properties as those of the entire composite. The volume average of the stress distribution can be written as:

## 4. Determination of the Continuity Conditions

## 5. Calculation of the Average Strains in the Unit Cell

- the six subcell stresses ${\overline{S}}_{11}^{(\lambda )}$, ${\overline{S}}_{22}^{(\lambda )}$, and ${\overline{S}}_{33}^{(\lambda )}$;
- the four micro-variables ${\xi}_{2}^{(\lambda )}$ and ${\zeta}_{3}^{(\lambda )}$;
- and the three composite strains ${\overline{\epsilon}}_{11}$, ${\overline{\epsilon}}_{22}$, and ${\overline{\epsilon}}_{33}$.

_{2}, X

_{3}) plane, the relations which can be applied in the X

_{2}direction are

_{3}direction:

_{2}or X

_{3}, the relation corresponding to the direction with no applied load should be replaced accordingly by either:

_{l}was supplied by the manufacturer. Since the transverse properties of the fibers (i.e., E

_{t}, ${\upsilon}_{lt},{\upsilon}_{tt}$) are not available, their values were computed based on an inverse technique.

## 6. Results and Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Cristescu, N.; Craciun, E.-M.; Gaunaurd, G. Mechanics of Elastic Composites (CRC Series in Modern Mechanics and Mathematics). Appl. Mech. Rev.
**2004**, 57, B27. [Google Scholar] [CrossRef] - Zaoui, A. Homogeneization Techniques for Composite Media’, dans ‘Lecture Notes in Physics’; Springer: Berlin, Germany, 1987; Volume 272. [Google Scholar]
- Garajeu, M. Contribution à L’étude du Comportement non Lineaire de Milieu Poreaux Avec ou Sans Renfort. Ph.D. Thesis, Aix-Marseille University, Marseille, France, 1995. [Google Scholar]
- Brauner, C.; Herrmann, A.S.; Niemeier, P.M.; Schubert, K. Analysis of the non-linear load and temperature-dependent creep behaviour of thermoplastic composite materials. J. Thermoplast. Compos. Mater.
**2016**, 30, 302–317. [Google Scholar] [CrossRef] - Fett, T. Review on Creep-Behavior of Simple Structures. Res. Mech.
**1988**, 24, 359–375. [Google Scholar] - Sá, M.F.; Gomes, A.; Correia, J.; Silvestre, N. Creep behavior of pultruded GFRP elements—Part 1: Literature review and experimental study. Compos. Struct.
**2011**, 93, 2450–2459. [Google Scholar] [CrossRef] - Brinson, H.F.; Morris, D.H.; Yeow, Y.I. A New Method for the Accelerated Characterization of Composite Materials. In Proceedings of the Sicth International Conference on Experimental Stress Analysis, Munich, Germany, 18–22 September 1978. [Google Scholar]
- Jinsheng, X.; Hongli, W.; Xiaohong, Y.; Long, H.; ChangSheng, Z. Application of TTSP to non-linear deformation in composite propellant. Emerg. Mater. Res.
**2018**, 7, 19–24. [Google Scholar] [CrossRef] - Nakano, T. Applicability condition of time–temperature superposition principle (TTSP) to a multi-phase system. Mech. Time-Depend. Mater.
**2012**, 17, 439–447. [Google Scholar] [CrossRef] [Green Version] - Achereiner, F.; Engelsing, K.; Bastian, M. Accelerated Measurement of the Long-Term Creep Behaviour of Plastics. Superconductivity
**2017**, 247, 389–402. [Google Scholar] - Schaffer, B.G.; Adams, D.F. Nonlinear Viscoelastic Behavior of a Composite Material Using a Finite Element Micromechanical Analysis; Dept. Report UWME-DR-001-101-1, Dep. Of Mech. Eng.; University of Wyoming: Laramie, WY, USA, 1980. [Google Scholar]
- Schapery, R. Nonlinear viscoelastic solids. Int. J. Solids Struct.
**2000**, 37, 359–366. [Google Scholar] [CrossRef] - Violette, M.G.; Schapery, R. Time-Dependent Compressive Strength of Unidirectional Viscoelastic Composite Materials. Mech. Time-Depend. Mater.
**2002**, 6, 133–145. [Google Scholar] [CrossRef] - Hinterhoelzl, R.; Schapery, R. FEM Implementation of a Three-Dimensional Viscoelastic Constitutive Model for Particulate Composites with Damage Growth. Mech. Time-Depend. Mater.
**2004**, 8, 65–94. [Google Scholar] [CrossRef] - Mohan, R.; Adams, D.F. Nonlinear creep-recovery response of a polymer matrix and its composites. Exp. Mech.
**1985**, 25, 262–271. [Google Scholar] [CrossRef] - Findley, W.N.; Adams, C.H.; Worley, W.J. The Effect of Temperature on the Creep of Two Laminated Plastics as Interpreted by the Hyperbolic Sine Law and Activation Energy Theory. In Proceedings of the Proceedings-American Society for Testing and Materials, Conshohocken, PA, USA, 1 January 1948; Volume 48, pp. 1217–1239. [Google Scholar]
- Findley, W.N.; Khosla, G. Application of the Superposition Principle and Theories of Mechanical Equation of State, Strain, and Time Hardening to Creep of Plastics under Changing Loads. J. Appl. Phys.
**1955**, 26, 821. [Google Scholar] [CrossRef] - Findley, W.N.; Peterson, D.B. Prediction of Long-Time Creep with Ten-Year Creep Data on Four Plastics Laminates. In Proceedings of the American Society for Testing and Materials, Sixty-first(61th) Annual Meeting, Boston, MA, USA, 26–27 June 1958. [Google Scholar]
- Dillard, D.A.; Brinson, H.F. A Nonlinear Viscoelastic Characterization of Graphite Epoxy Composites. In Proceedings of the 1982 Joint Conference on Experimental Mechanics, Oahu, HI, USA, 23–28 May 1982. [Google Scholar]
- Dillard, D.A.; Morris, D.H.; Brinson, H.F. Creep and Creep Rupture of Laminated Hraphite/Epoxy Composites. Ph.D. Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 30 September 1980. [Google Scholar]
- Charentenary, F.X.; Zaidi, M.A. Creep Behavior of Carbon-Epoxy (+/−45o)2s Laminates. In Progess in Sciences and Composites; Hayashi, K., Umekawa, S., Eds.; ICCM-IV; The Japan Society for Composite Materials, c/o Business Center for Academic Societies Japan 2-4-6, Yayoi, Bunkyo-ku, Tokyo 113: Tokyo, Japan, 1982. [Google Scholar]
- Walrath, D.E. Viscoelastic response of a unidirectional composite containing two viscoelastic constituents. Exp. Mech.
**1991**, 31, 111–117. [Google Scholar] [CrossRef] - Hashin, Z. On Elastic Behavior of Fibre Reinforced Materials of Arbitrary Transverse Phase Geometry. J. Mech. Phys. Solids
**1965**, 13, 119–134. [Google Scholar] [CrossRef] - Hashin, Z.; Shtrikman, S. On some variational principles in anisotropic and nonhomogeneous elasticity. J. Mech. Phys. Solids
**1962**, 10, 335–342. [Google Scholar] [CrossRef] - Hashin, Z.; Shtrikman, S. A Variational Approach to the Theory of the Elastic Behavior of Multiphase Materials. J. Mech. Phyds. Solids
**1963**, 11, 127–140. [Google Scholar] [CrossRef] - Hashin, Z.; Rosen, B.W. The Elastic Moduli of Fiber-Reinforced Materials. J. Appl. Mech.
**1964**, 31, 223–232. [Google Scholar] [CrossRef] - Bowles, D.E.; Griffin, O.H., Jr. Micromecjanics Analysis of Space Simulated Thermal Stresses in Composites. Part I: Theory and Unidirectional Laminates. J. Reinf. Plast. Compos.
**1991**, 10, 504–521. [Google Scholar] - Zhao, Y.H.; Weng, G.J. Effective Elastic Moduli of Ribbon-Reinforced Composites. J. Appl. Mech.
**1990**, 57, 158–167. [Google Scholar] [CrossRef] - Hill, R. Theory of Mechanical Properties of Fiber-strengthened Materials: I Elastic Behavior. J. Mech. Phys. Solids
**1964**, 12, 199–212. [Google Scholar] [CrossRef] - Hill, R. Theory of Mechanical Properties of Fiber-strengthened Materials: II Inelastic Behavior. J. Mech. Phys. Solids
**1964**, 12, 213–218. [Google Scholar] [CrossRef] - Hill, R. Theory of Mechanical Properties of Fiber-strengthened Materials: III Self-Consistent Model. J. Mech. Phys. Solids
**1965**, 13, 189–198. [Google Scholar] [CrossRef] - Hill, R. Continuum Micro-Mechanics of Elastoplastic Polycrystals. J. Mech. Phys. Solids
**1965**, 13, 89–101. [Google Scholar] [CrossRef] - Weng, Y.M.; Wang, G.J. The Influence of Inclusion Shape on the Overall Viscoelastic Behavior of Compoisites. J. Appl. Mech.
**1992**, 59, 510–518. [Google Scholar] [CrossRef] - Mori, T.; Tanaka, K. Average Stress in the Matrix and Average Elastic Energy of Materials with Misfitting Inclusions. Acta Metal.
**1973**, 21, 571–574. [Google Scholar] [CrossRef] - Pasricha, A.; Van Duster, P.; Tuttle, M.E.; Emery, A.F. The Nonlinear Viscoelastic/Viscoplastic Behavior of IM6/5260 Graphite/Bismaleimide. In Proceedings of the VII International Congress on Experimental Mechanics, Las Vegas, NV, USA, 8–11 June 1992. [Google Scholar]
- Aboudi, J. Micromechanical characterization of the non-linear viscoelastic behavior of resin matrix composites. Compos. Sci. Technol.
**1990**, 38, 371–386. [Google Scholar] [CrossRef] - Aboudi, J. Mechanics of Composite Materials—A Unified Micromechanical Approach; Elsevier: Amsterdam, The Netherlands, 1991. [Google Scholar]
- Abd-Elaziz, E.M.; Marin, M.; Othman, M.I. On the Effect of Thomson and Initial Stress in a Thermo-Porous Elastic Solid under G-N Electromagnetic Theory. Symmetry
**2019**, 11, 413. [Google Scholar] [CrossRef] [Green Version] - Abbas, I.A.; Marin, M. Analytical solution of thermoelastic interaction in a half-space by pulsed laser heating. Phys. E Low-Dimensional Syst. Nanostruct.
**2017**, 87, 254–260. [Google Scholar] [CrossRef] - Vlase, S.; Teodorescu-Draghicescu, H.; Motoc, D.L.; Scutaru, M.L.; Serbina, L.; Calin, M.R. Behavior of Multiphase Fiber-Reinforced Polymers Under Short Time Cyclic Loading. Optoelectron. Adv. Mater. Rapid Commun.
**2011**, 5, 419–423. [Google Scholar] - Teodorescu-Draghicescu, H.; Stanciu, A.; Vlase, S.; Scutaru, L.; Calin, M.R.; Serbina, L. Finite Element Method Analysis of Some Fibre-Reinforced Composite Laminates. Optoelectron. Adv. Mater. Rapid Commun.
**2011**, 5, 782–785. [Google Scholar] - Stanciu, A.; Teodorescu-Drǎghicescu, H.; Vlase, S.; Scutaru, M.L.; Cǎlin, M.R. Mechanical behavior of CSM450 and RT800 laminates subjected to four-point bend tests. Optoelectron. Adv. Mater. Rapid Commun.
**2012**, 6, 495–497. [Google Scholar] - Niculiţă, C.; Vlase, S.; Bencze, A.; Mihălcică, M.; Calin, M.R.; Serbina, L. Optimum stacking in a multi-ply laminate used for the skin of adaptive wings. Optoelectron. Adv. Mater. Rapid Commun.
**2011**, 5, 1233–1236. [Google Scholar] - Katouzian, M.; Vlase, S.; Calin, M.R. Experimental procedures to determine the viscoelastic parameters of laminated composites. J. Optoelectron. Adv. Mater.
**2011**, 13, 1185–1188. [Google Scholar] - Teodorescu-Draghicescu, H.; Vlase, S.; Stanciu, M.D.; Curtu, I.; Mihalcica, M. Advanced Pultruded Glass Fibers-Reinforced Isophtalic Polyester Resin. Mater. Plast.
**2015**, 52, 62–64. [Google Scholar] - Fliegener, S.; Hohe, J. An anisotropic creep model for continuously and discontinuously fiber reinforced thermoplastics. Compos. Sci. Technol.
**2020**, 194, 108168. [Google Scholar] [CrossRef] - Xu, B.; Xu, W.; Guo, F. Creep behavior due to interface diffusion in unidirectional fiber-reinforced metal matrix composites under general loading conditions: A micromechanics analysis. Acta Mech.
**2020**, 231, 1321–1335. [Google Scholar] [CrossRef] - Lal, H.M.M.; Xian, G.-J.; Thomas, S.; Zhang, L.; Zhang, Z.; Wang, H. Experimental Study on the Flexural Creep Behaviors of Pultruded Unidirectional Carbon/Glass Fiber-Reinforced Hybrid Bars. Materials
**2020**, 13, 976. [Google Scholar] [CrossRef] [Green Version] - Wang, Z.; Smith, D.E. Numerical analysis on viscoelastic creep responses of aligned short fiber reinforced composites. Compos. Struct.
**2019**, 229, 111394. [Google Scholar] [CrossRef]

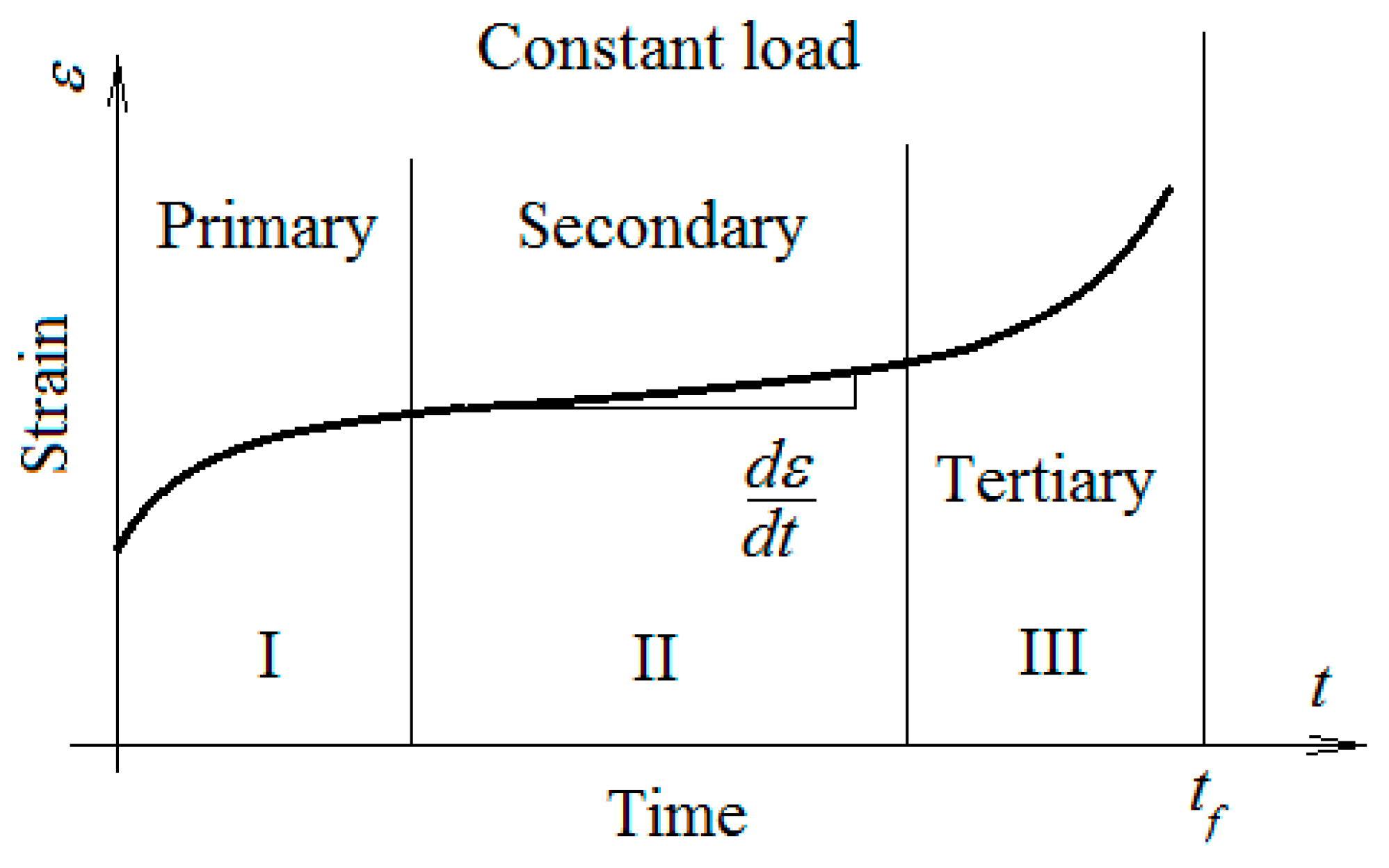

**Figure 1.**The primary, secondary, and tertiary creep (adapted after [2]).

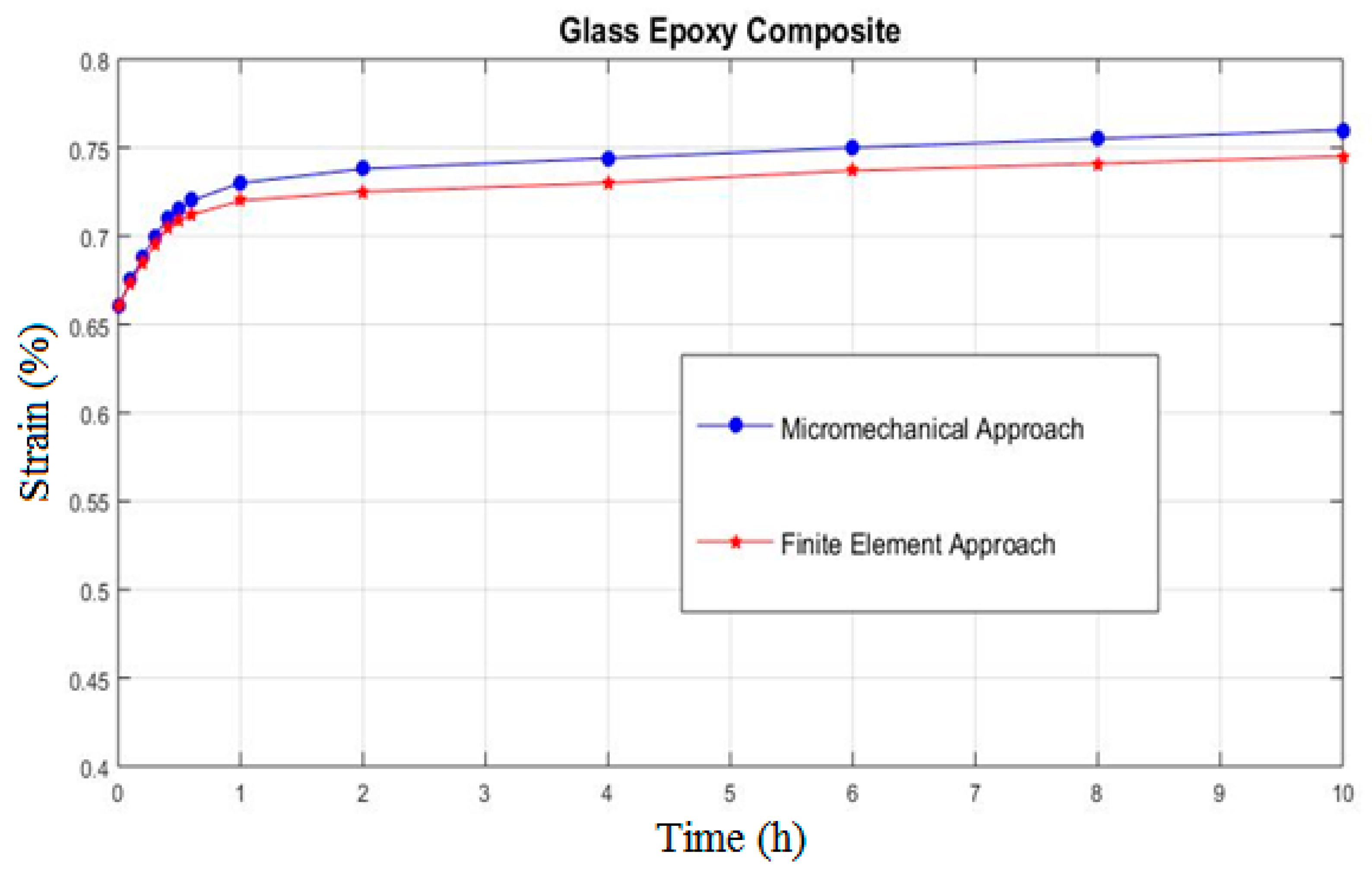

**Figure 6.**Comparison between micromechanical and Finite Element prediction for ${\epsilon}_{22}$ of glass epoxy composite subjected to ${\sigma}_{22}=103.4\text{}\mathrm{MPa}$ and ${\sigma}_{33}=34.5\text{}\mathrm{MPa}$

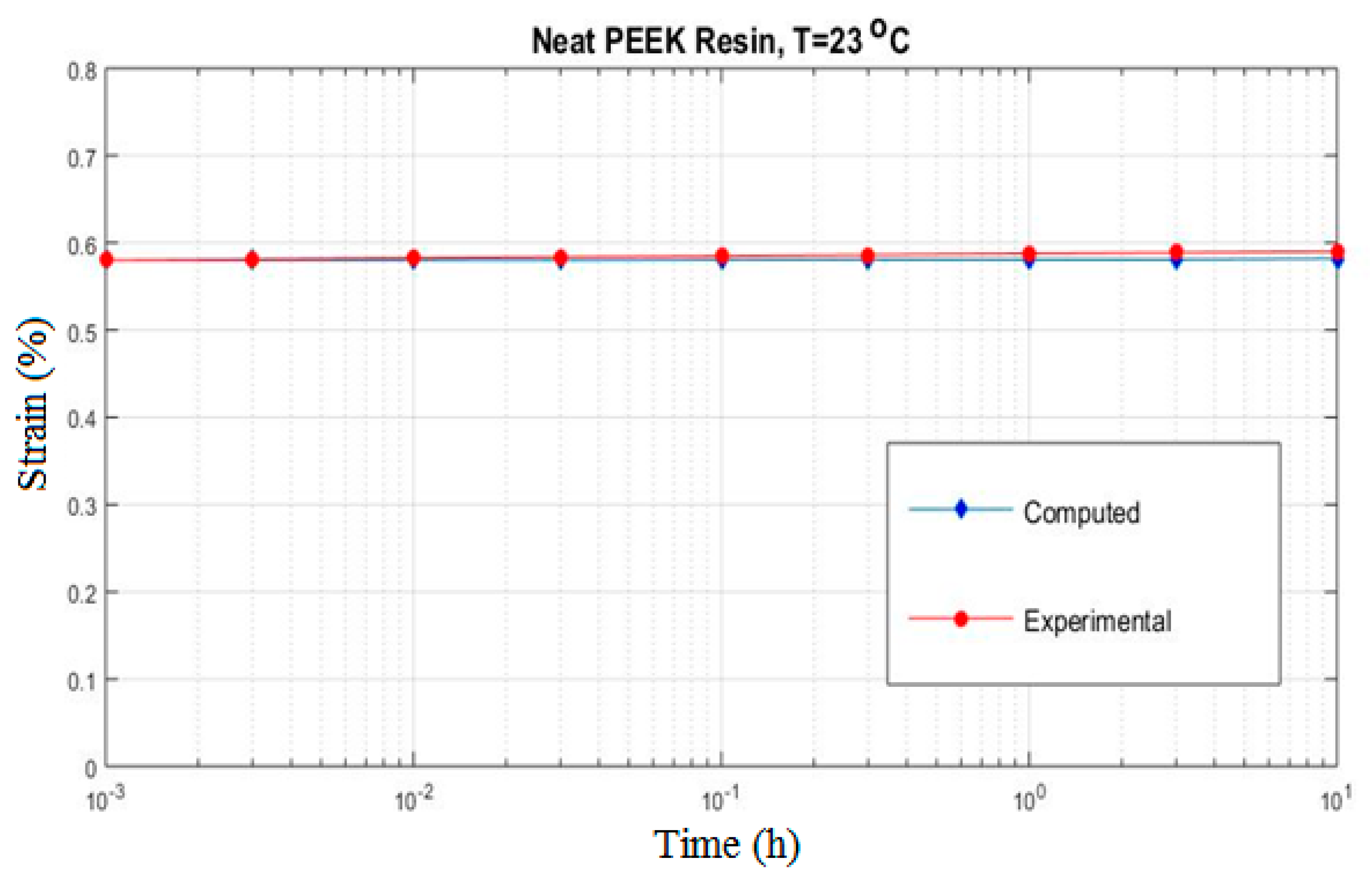

**Figure 7.**The creep strain ${\epsilon}_{22}$ for neat PEEK resin subjected to ${\sigma}_{22}=26\hspace{0.17em}\mathrm{MPa}$ at 23 °C.

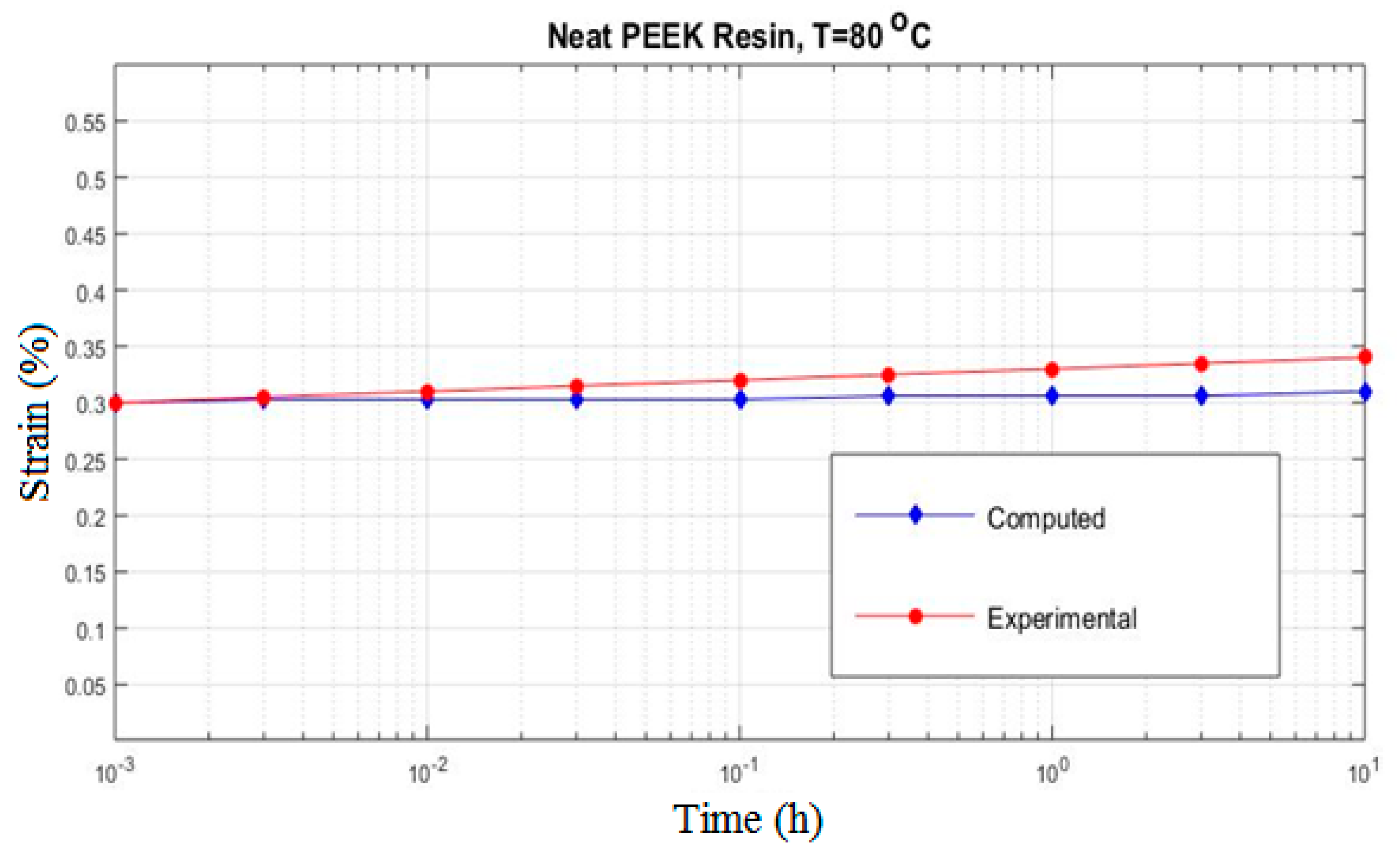

**Figure 8.**The creep strain ${\epsilon}_{22}$ for neat PEEK resin subjected to ${\sigma}_{22}=13\mathrm{MPa}$ at 80 °C.

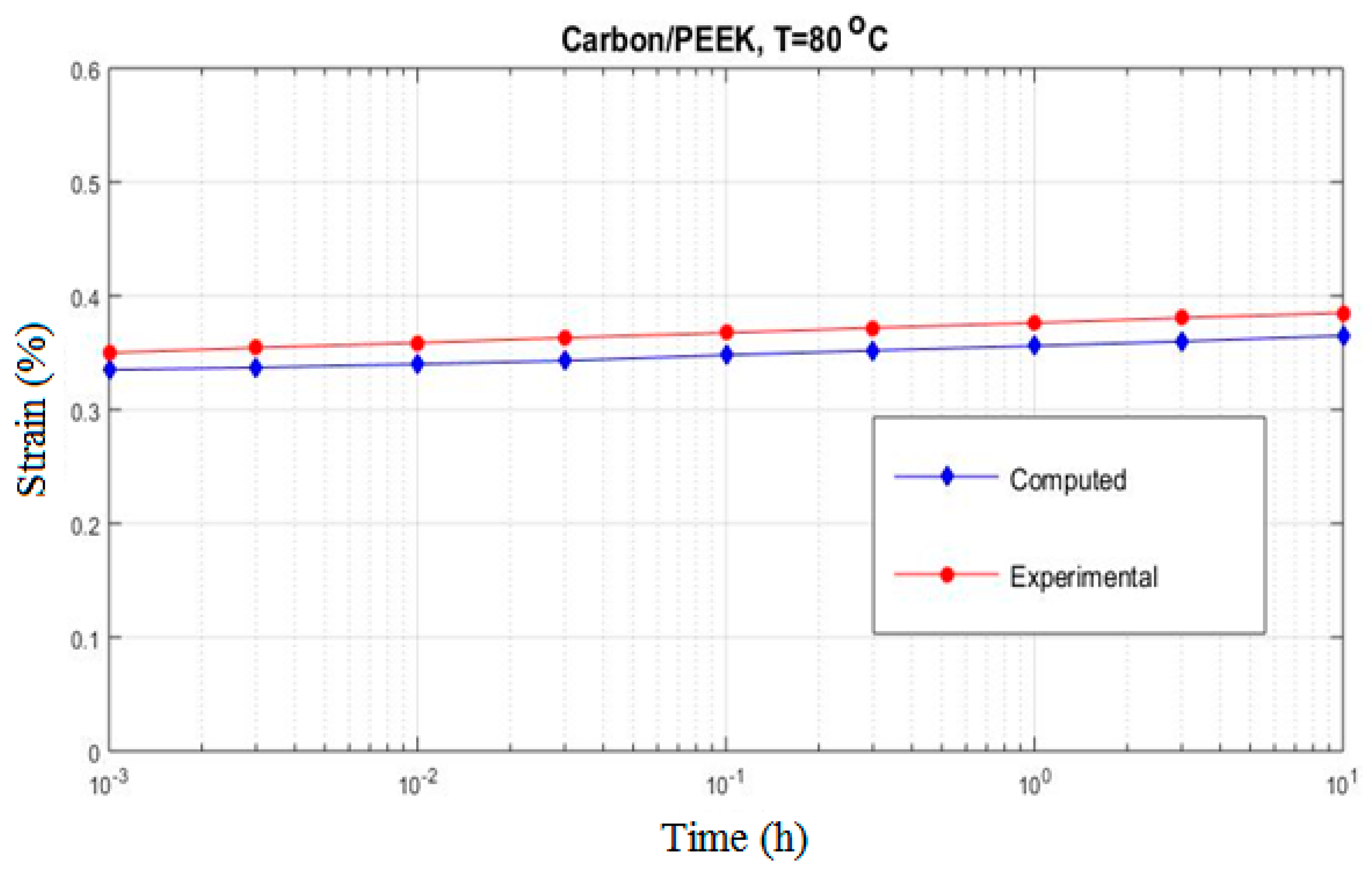

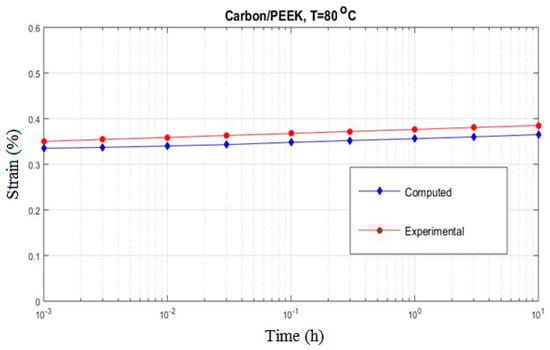

**Figure 9.**The creep strain ${\epsilon}_{22}$ for carbon/PEEK subjected to ${\sigma}_{22}=26\mathrm{MPa}$ at 80 °C.

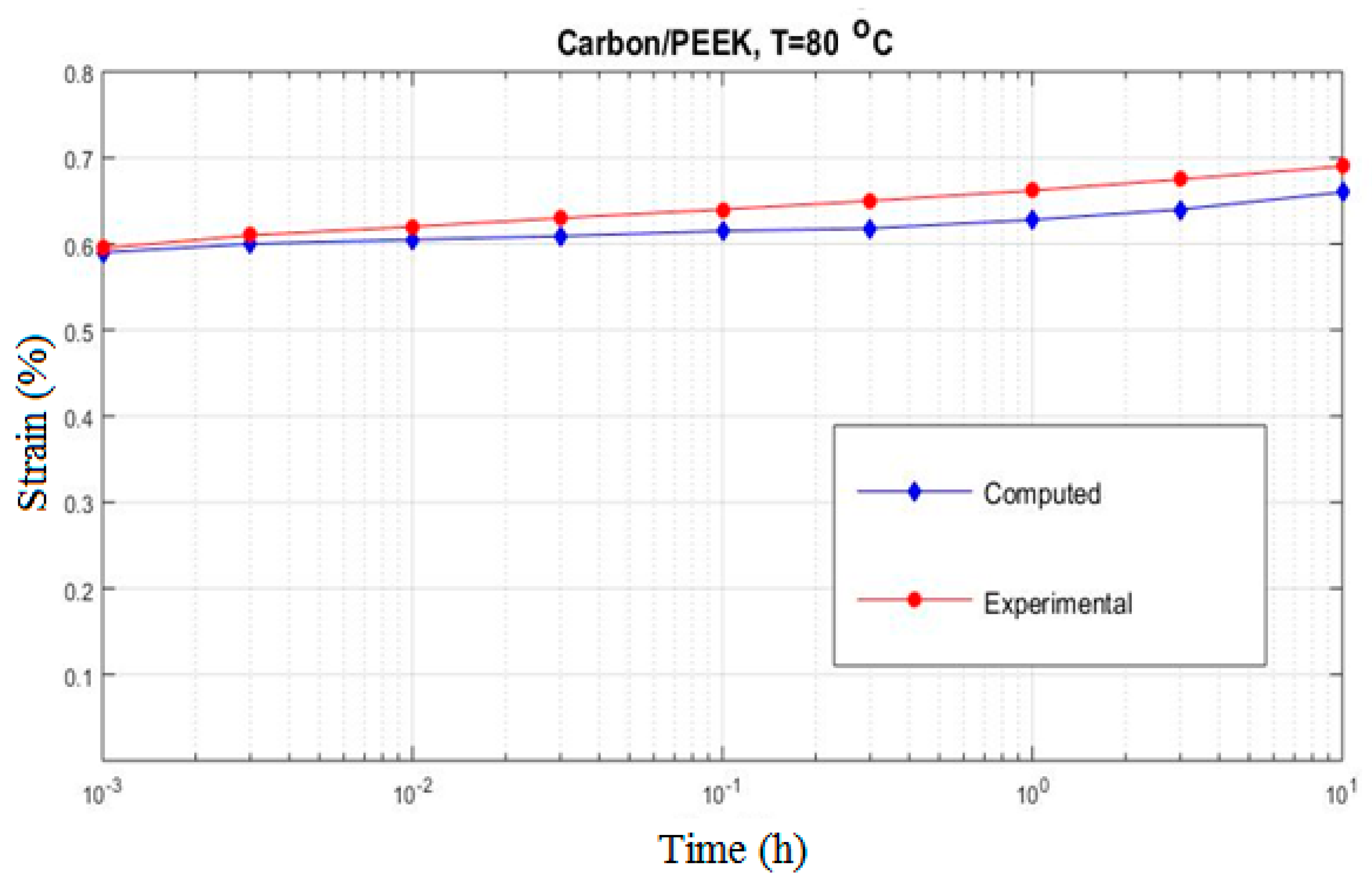

**Figure 10.**The creep strain ${\epsilon}_{22}$ for carbon/PEEK subjected to ${\sigma}_{22}=47\mathrm{MPa}$ at 80 °C.

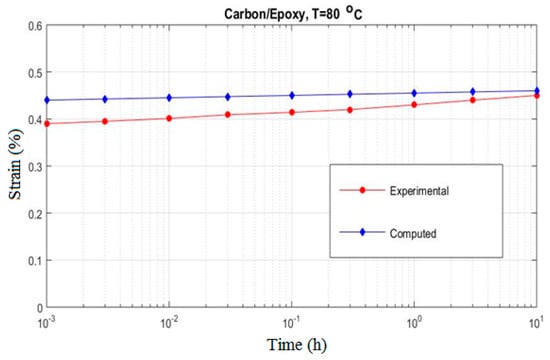

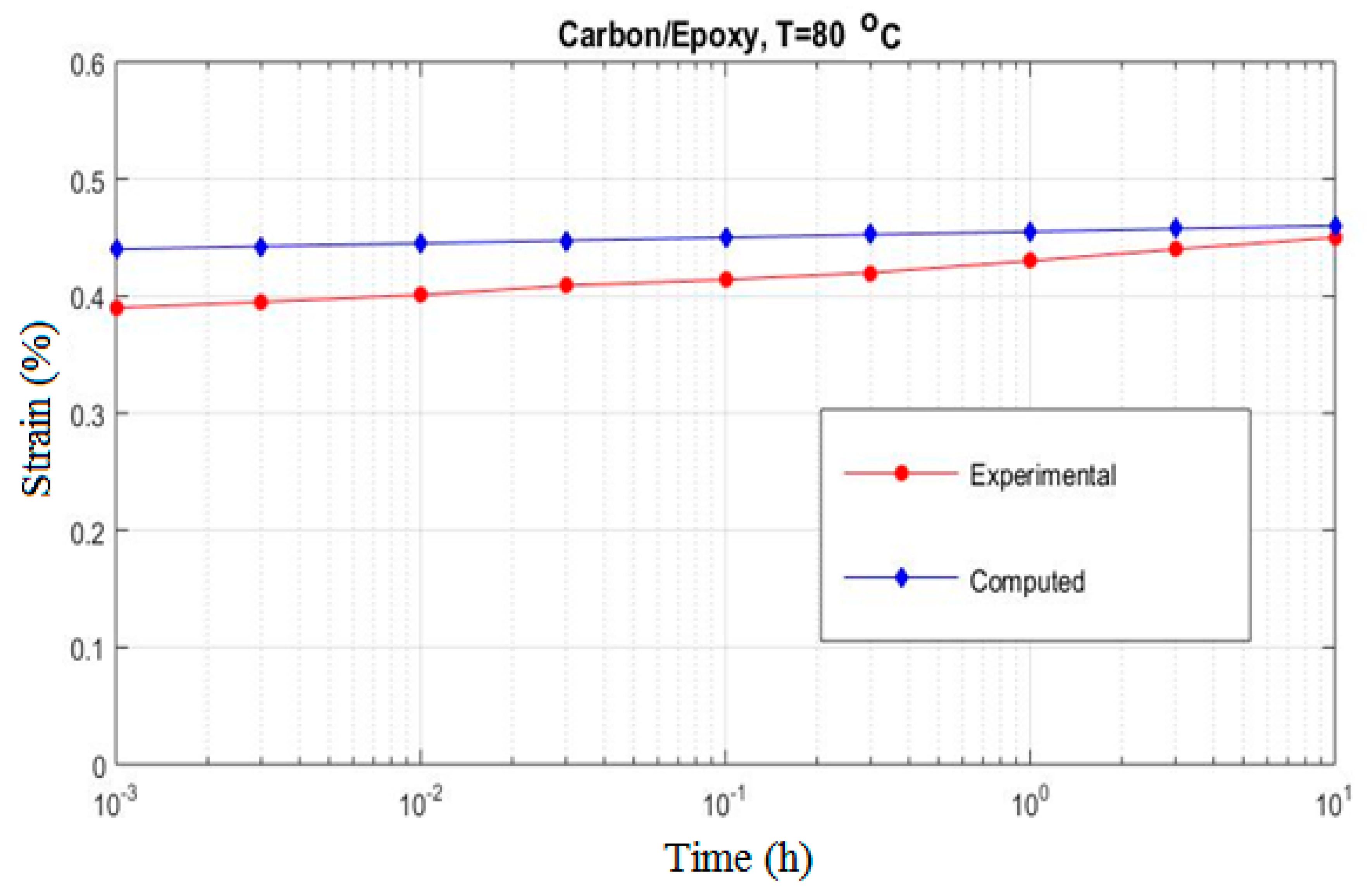

**Figure 11.**The creep strain ${\epsilon}_{22}$ for carbon/epoxy subjected to ${\sigma}_{22}=30\mathrm{MPa}$ at 80 °C.

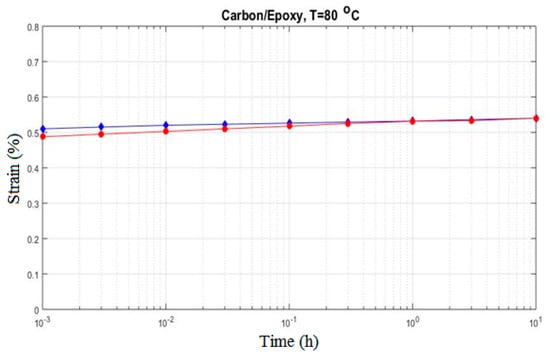

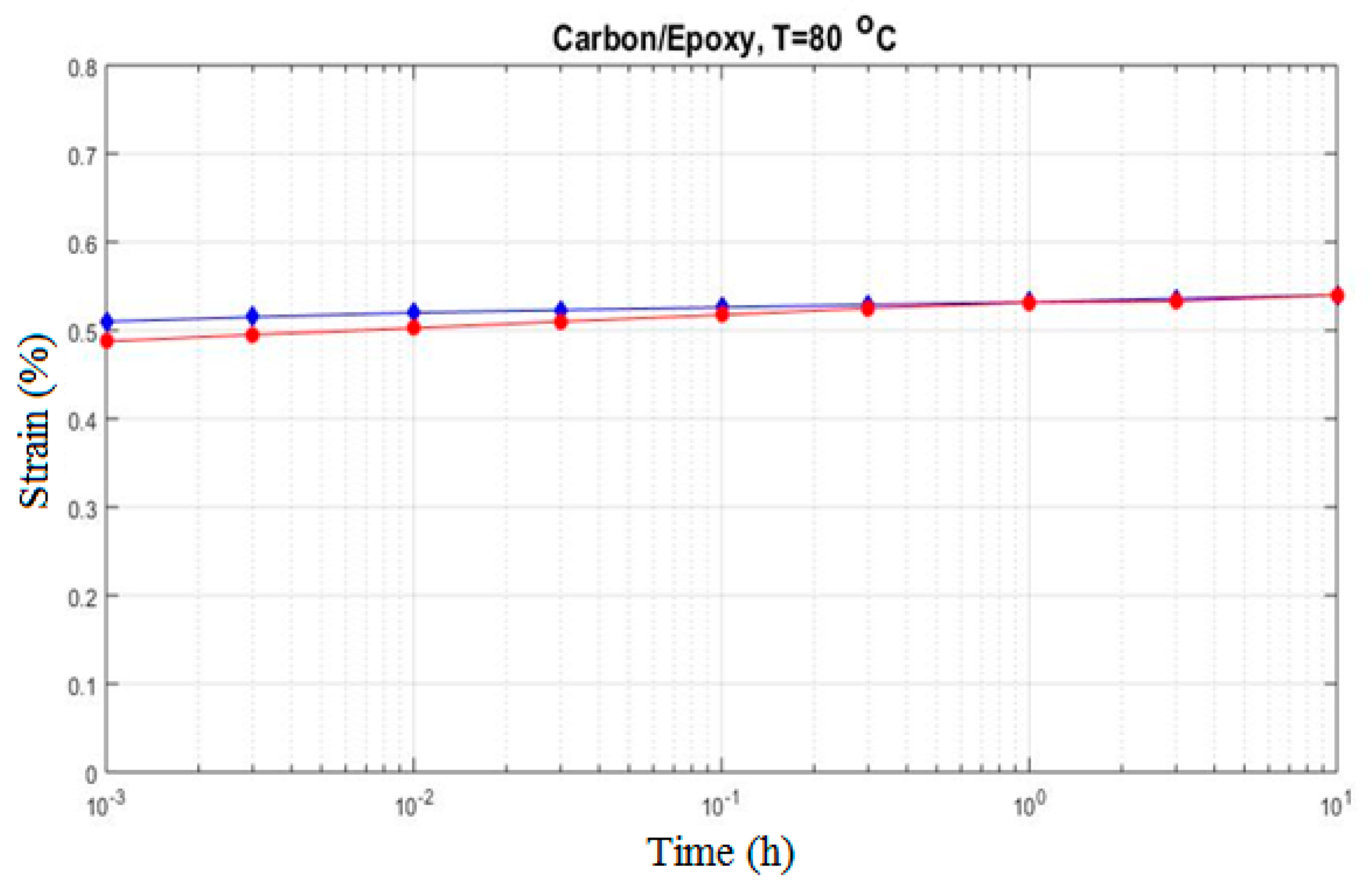

**Figure 12.**The creep strain ${\epsilon}_{22}$ for carbon/epoxy subjected to ${\sigma}_{22}=36\mathrm{MPa}$ at 80 °C.

Material | E_{l} (MPa) | E_{t} (MPa) | v_{l} | v_{t} |
---|---|---|---|---|

T-800 Carbon Fiber | 294.00 | 13.46 | 0.336 | 0.281 |

IM-6 Carbon Fiber | 272.00 | 15.95 | 0.356 | 0.261 |

6373 Epoxy Resin | 3.79 | 3.79 | 0.32 | 0.32 |

APC-2 PEEK Resin | 4.54 | 4.54 | 0.34 | 0.34 |

Glass Fiber | 77 | 77 | 0.2 | 0.2 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Katouzian, M.; Vlase, S.
Creep Response of Neat and Carbon-Fiber-Reinforced PEEK and Epoxy Determined Using a Micromechanical Model. *Symmetry* **2020**, *12*, 1680.
https://doi.org/10.3390/sym12101680

**AMA Style**

Katouzian M, Vlase S.
Creep Response of Neat and Carbon-Fiber-Reinforced PEEK and Epoxy Determined Using a Micromechanical Model. *Symmetry*. 2020; 12(10):1680.
https://doi.org/10.3390/sym12101680

**Chicago/Turabian Style**

Katouzian, Mostafa, and Sorin Vlase.
2020. "Creep Response of Neat and Carbon-Fiber-Reinforced PEEK and Epoxy Determined Using a Micromechanical Model" *Symmetry* 12, no. 10: 1680.
https://doi.org/10.3390/sym12101680
