# A Description of Three-Dimensional Shape of the Posterior Torso Comparing Those with and without Scoliosis

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

^{2}(SD 3.2, range 13.5 to 31.6) for males and mean 19.7 kg/m

^{2}(SD 2.9, range 14.0 to 33.1) for females. In the pre-operative cohort, males had a mean BMI of 20.3 kg/m

^{2}(SD 4.2, range 15.6 to 30.3), and females had a mean BMI of 20.7 kg/m

^{2}(SD 4.2, range 14.1 to 41.9). There were 248 individuals in the main thoracic group and 41 in the main thoracolumbar group (Table 3). The mean time from the pre-operative scan to surgery was 413 days (SD 304, range 1 to 2057), and the mean time from surgery to the post-operative scan was 263 days (SD 270, range 34 to 1984).

## 4. Discussion

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Donaldson, S.; Hedden, D.; Stephens, D.; Alman, B.; Howard, A.; Narayanan, U.; Wright, J.G. Surgeon reliability in rating physical deformity in adolescent idiopathic scoliosis. Spine
**2007**, 32, 363–367. [Google Scholar] [CrossRef] [PubMed] - Sanders, J.O.; Harrast, J.J.; Kuklo, T.R.; Polly, D.W.; Bridwell, K.H.; Diab, M.; Dormans, J.P.; Drummond, D.S.; Emans, J.B.; Johnston, C.E.; et al. The Spinal Appearance Questionnaire: Results of reliability, validity, and responsiveness testing in patients with idiopathic scoliosis. Spine
**2007**, 32, 2719–2722. [Google Scholar] [CrossRef] [PubMed] - Zaina, F.; Negrini, S.; Atanasio, S. TRACE (Trunk Aesthetic Clinical Evaluation), a routine clinical tool to evaluate aesthetics in scoliosis patients: Development from the Aesthetic Index (AI) and repeatability. Scoliosis
**2009**, 4, 3. [Google Scholar] [CrossRef] [PubMed] - Gardner, A.; Berryman, F.; Pynsent, P. What is the variability in shoulder, axillae and waist position in a group of adolescents? J. Anat.
**2017**, 231, 221–228. [Google Scholar] [CrossRef] [PubMed] - Gardner, A.; Berryman, F.; Pynsent, P. The effects of scoliosis and subsequent surgery on the shape of the torso. Scoliosis Spinal Disord.
**2017**, 12, 31. [Google Scholar] [CrossRef] [PubMed] - Dryden, I.; Mardia, K. Statistical Shape Analysis with Applications in R; Wiley and Sons Chichester: Hoboken, NJ, USA, 2016. [Google Scholar]
- Berryman, F.; Pynsent, P.; Fairbank, J.; Disney, S. A new system for measuring three-dimensional back shape in scoliosis. Eur. Spine J.
**2008**, 17, 663–672. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lenke, L.G.; Betz, R.R.; Harms, J.; Bridwell, K.H.; Clements, D.H.; Lowe, T.G.; Blanke, K. Adolescent idiopathic scoliosis: A new classification to determine the extent of spinal arthrodesis. J. Bone Joint Surg. Am.
**2001**, 83, 1169–1181. [Google Scholar] [CrossRef] [PubMed] - Law, M.; Ma, W.; Lau, D.; Chan, E.; Yip, L.; Lam, W. Cumulative radiation exposure and associated cancer risk estimates for scoliosis patients: Impact of repetitive full spine radiography. Eur. J. Radiol.
**2016**, 85, 625–628. [Google Scholar] [CrossRef] [PubMed] - Cobb, J. Outline for the study of scoliosis. AAOS Instrum. Course Lect.
**1948**, 5, 261–275. [Google Scholar] - Dryden, I. 2017 Shapes: Statistical Shape Analysis. R Package Version 1.2.4. Available online: https://CRAN-R-project.org/package=shapes (accessed on 3 March 2018).
- Hotelling, H. The generalisation of Student’s ratio. Ann. Math. Stat.
**1931**, 2, 360–378. [Google Scholar] [CrossRef] - Goodall, C.; Mardia, K. A geometrical derivation of the shape density. Adv. Appl. Probab.
**1991**, 23, 496–514. [Google Scholar] [CrossRef] - James, G. Tests of linear hypotheses in univariate and multivariate analysis when the ratios of the population variances are unknown. Biometrika
**1954**, 41, 19–43. [Google Scholar] [CrossRef] - R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2016; Available online: http://www.R-project.org/ (accessed on 3 March 2018).
- Akel, I.; Pekmezci, M.; Hayran, M.; Genc, Y.; Kocak, O.; Derman, O.; Erdoğan, I.; Yazici, M. Evaluation of shoulder balance in the normal adolescent population and its correlation with radiological parameters. Eur. Spine J.
**2008**, 17, 348–354. [Google Scholar] [CrossRef] [PubMed] - Choudhry, M.; Admad, Z.; Verma, R. Adolescent idiopathic scoliosis. Open Orthop. J.
**2016**, 10, 143–154. [Google Scholar] [CrossRef] [PubMed] - Misterska, E.; Głowacki, M.; Harasymczuk, J. Assessment of spinal appearance in female patients with adolescent idiopathic scoliosis treated operatively. Med. Sci. Monit.
**2011**, 17, CR404–CR410. [Google Scholar] [CrossRef] [PubMed] - Manfreda, E.; Mitteroecker, P.; Bookstein, F.; Schaefer, K. Functional morphology of the first cervical vertebra in humans and nonhuman primates. Anat. Rec. Part B
**2006**, 289, 184–194. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dryden, I.; Oxborrow, N.; Dickson, R. Familial relationships of normal spinal shape. Stat. Med.
**2008**, 27, 1993–2003. [Google Scholar] [CrossRef] [PubMed] - Winter, R.; Lonstein, J.; Denis, F. How much correction is enough? Spine
**2007**, 32, 2641–2643. [Google Scholar] [CrossRef] [PubMed]

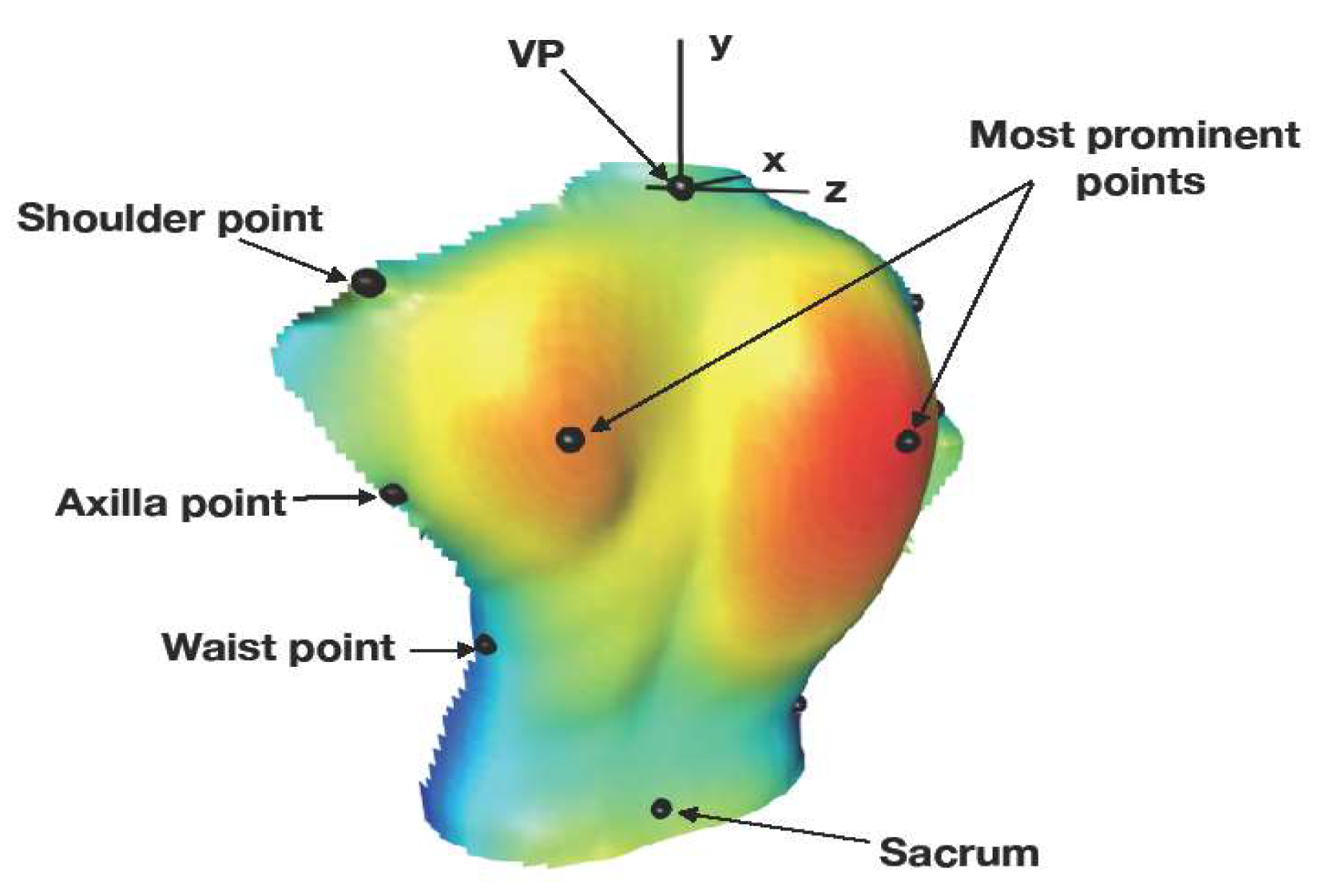

**Figure 1.**A diagram showing the anatomical points identified as the landmarks around the edge of the torso together with the axes.

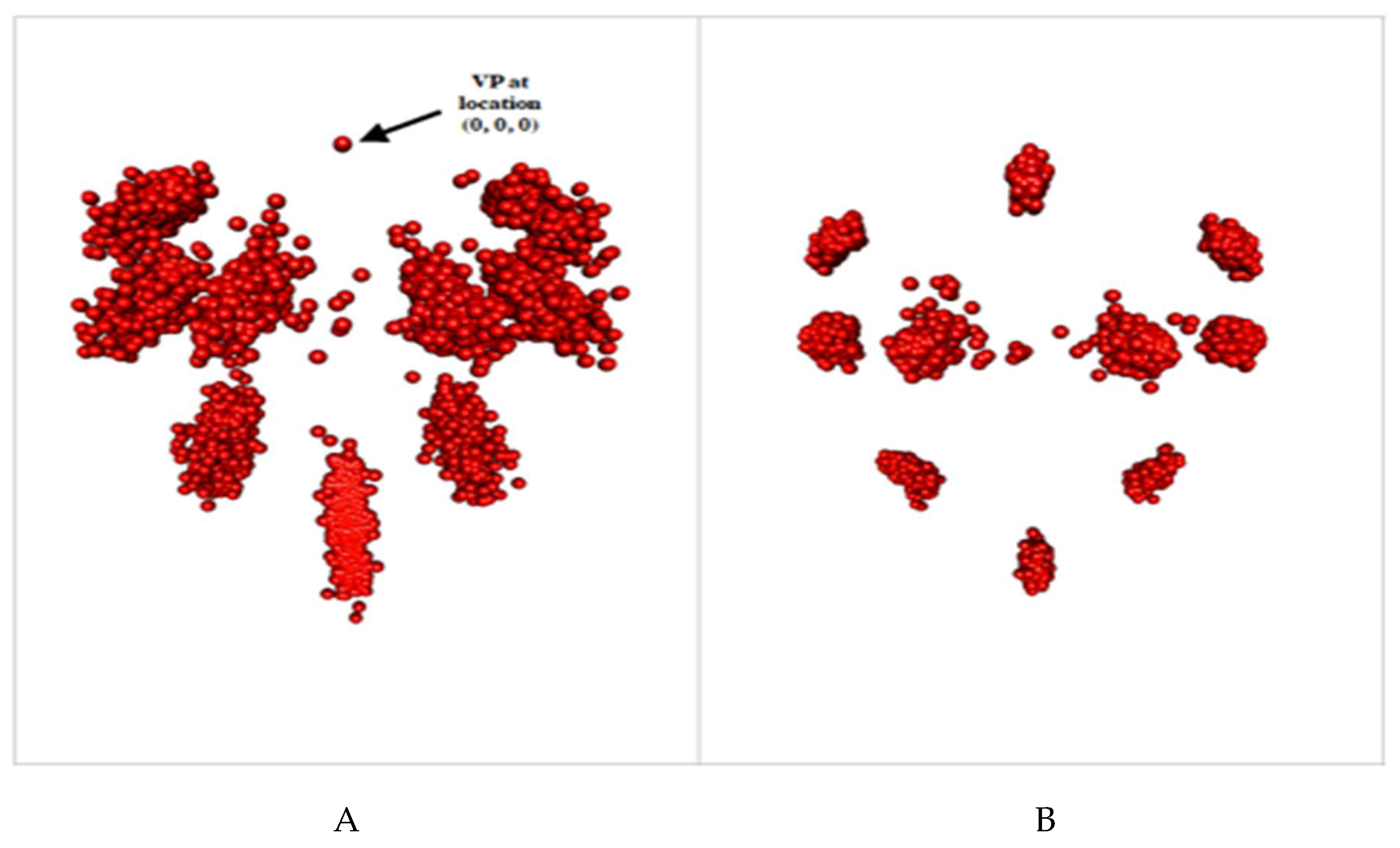

**Figure 2.**The raw data (

**A**) and the translated, rotated and scaled data (

**B**) of the non-scoliotic cohort with a main thoracic curve pattern. In Figure 2A, all images have been manipulated such that the VP point is located at coordinates 0,0,0 (marked).

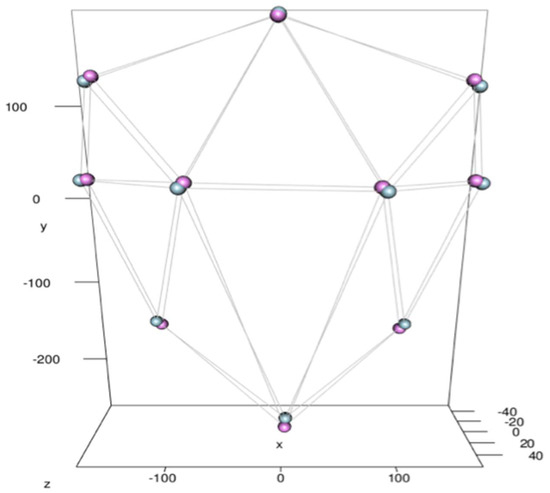

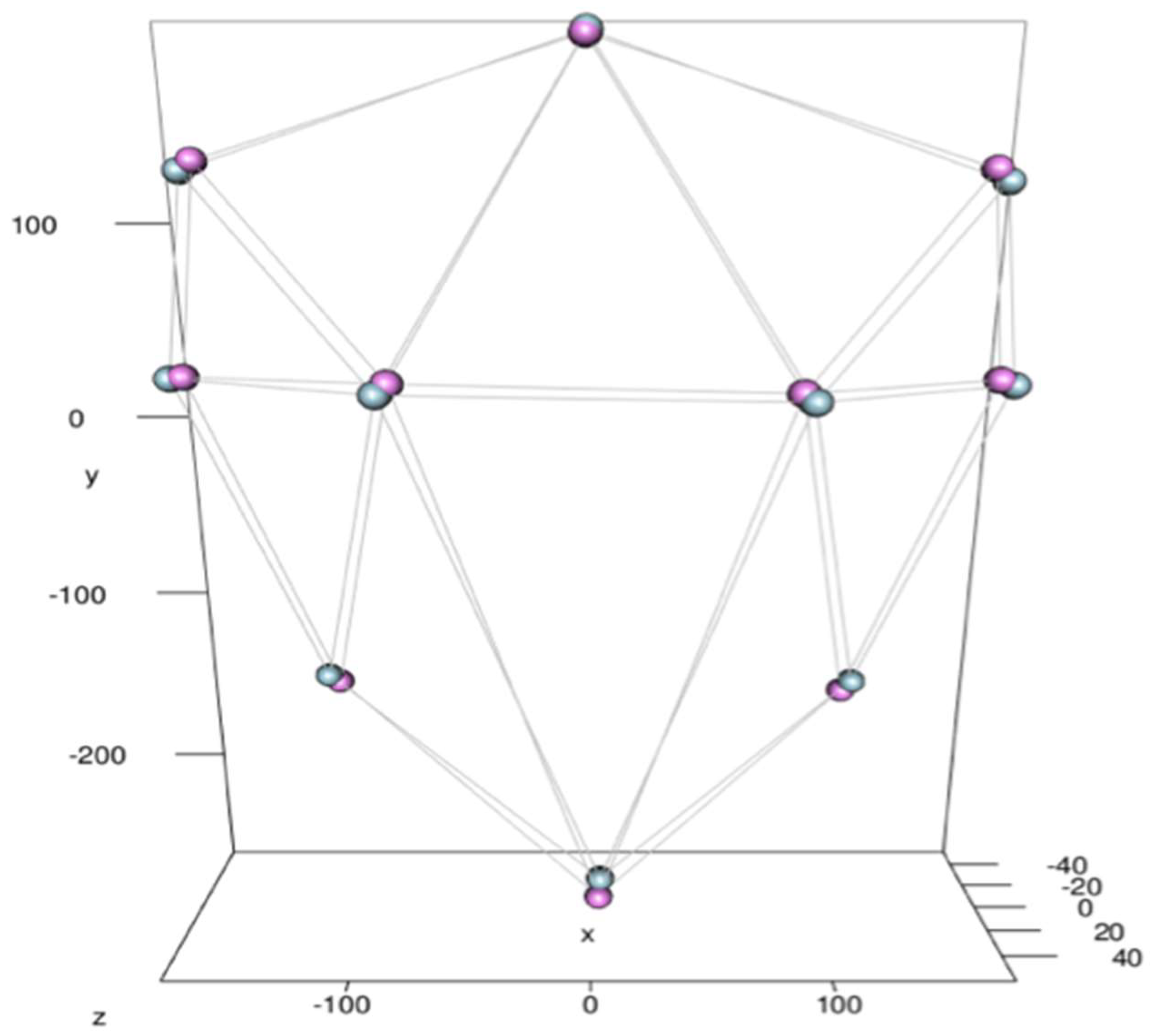

**Figure 3.**Male (blue) and female (pink) mean shapes following ordinary Procrustes analysis (OPA) in the main thoracic curve pattern of the non-scoliotic cohort.

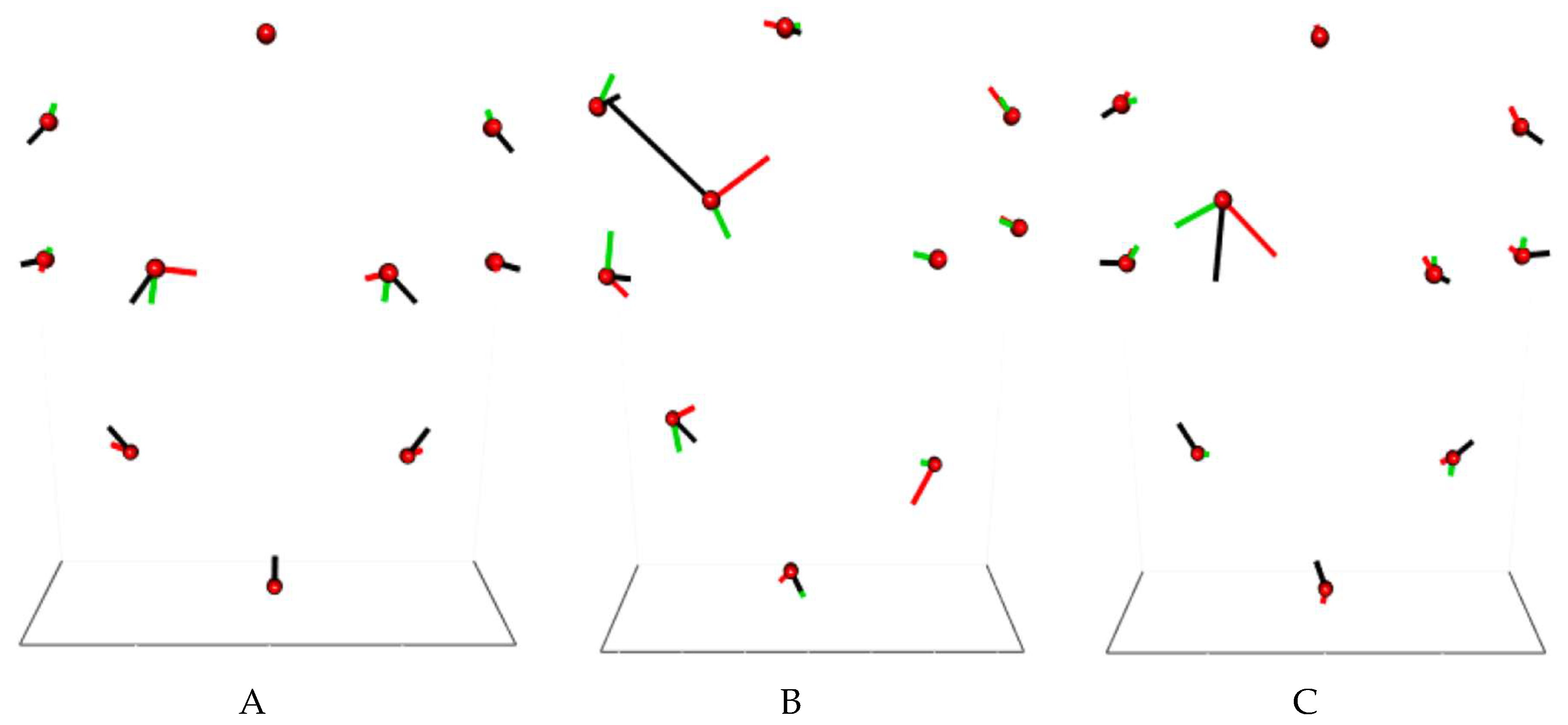

**Figure 4.**The principal component analysis (PCA) plots for the nonscoliotic (

**A**), pre-operative (

**B**) and post-operative (

**C**) for the convex to the right main thoracic group. Black equals the vector of the first principal component (PC1), red equals PC2 and green equals PC3.

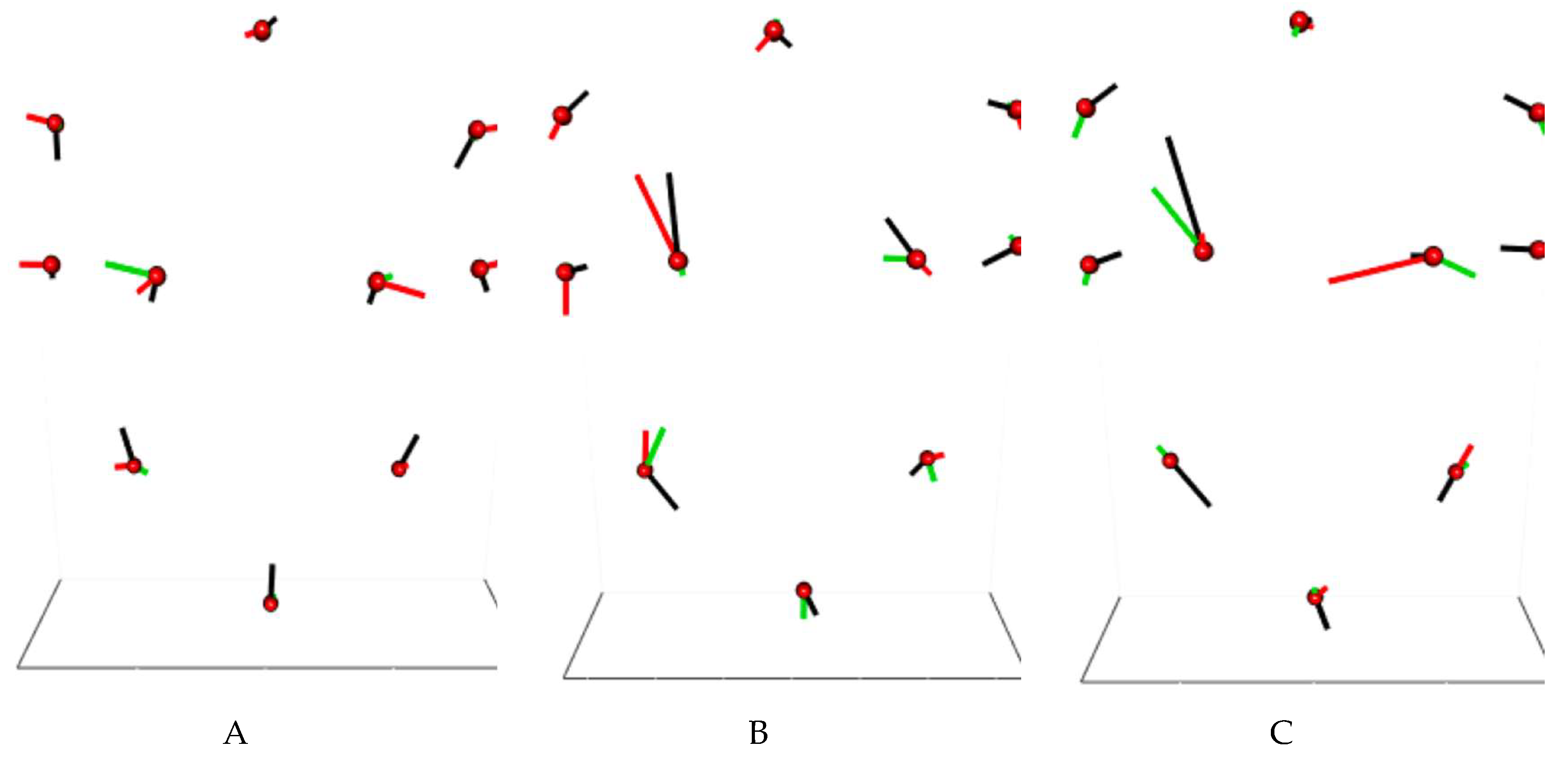

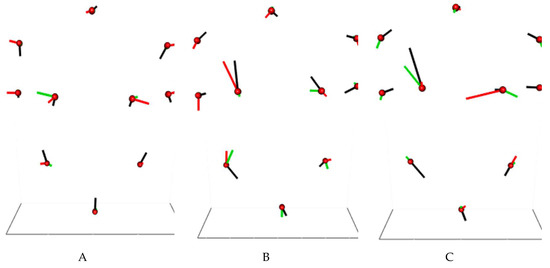

**Figure 5.**The PCA plots for the non-scoliotic (

**A**), pre-operative (

**B**) and post-operative (

**C**) for the convex to the left main thoracolumbar group. The colours are as for Figure 4.

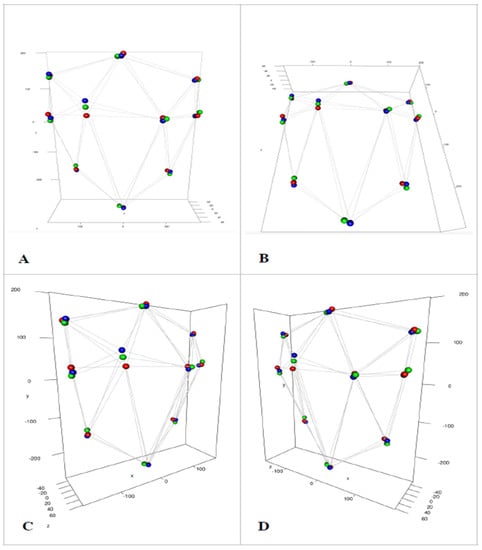

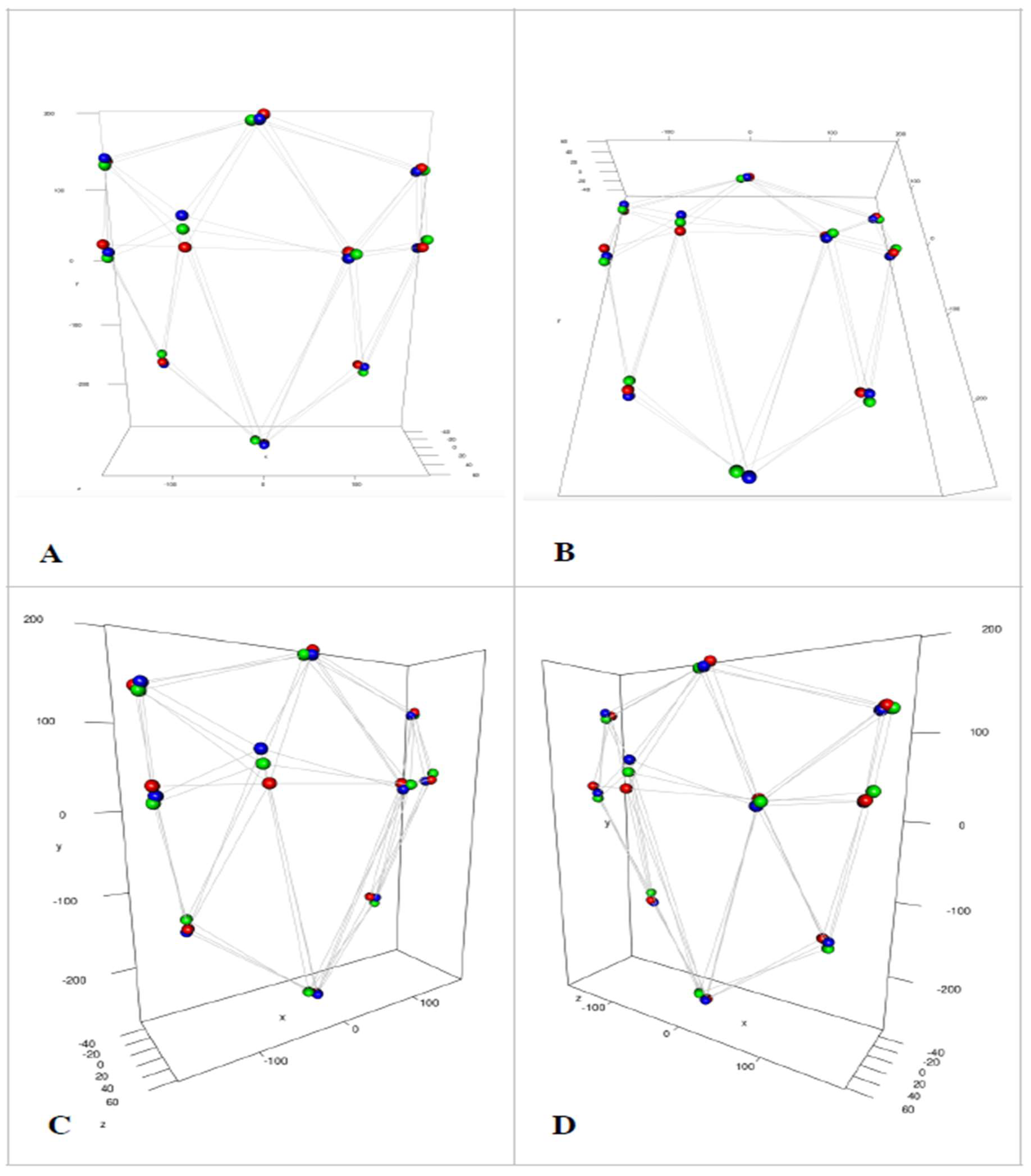

**Figure 6.**The mean shape plots of the non-scoliotic (red), pre-operative (green) and post-operative (blue) data for the convex to the right main thoracic curve type. (

**A**) Posterior view, (

**B**) Adams forward bend view, (

**C**) left rotated view, (

**D**) right rotated view.

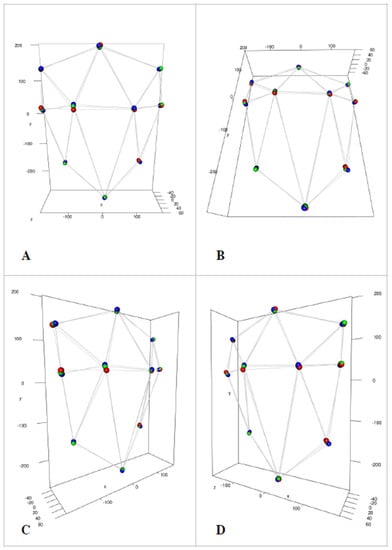

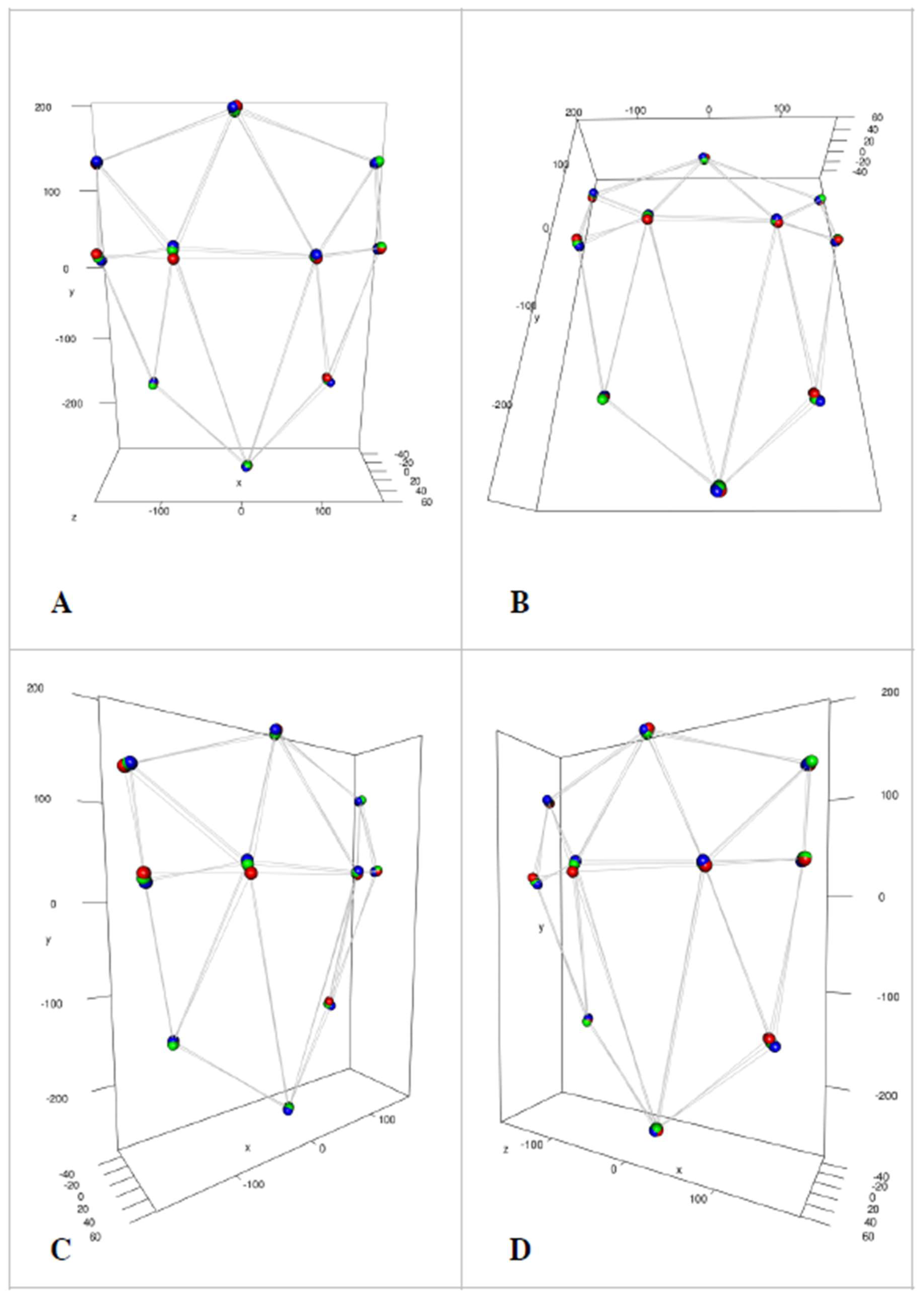

**Figure 7.**The mean shape plots of the non-scoliotic (red), pre-operative (green) and post-operative (blue) data for the convex to the left main thoracolumbar curve type. (

**A**) Posterior view, (

**B**) Adams forward bend view, (

**C**) left rotated view, (

**D**) right rotated view.

**Table 1.**The definitions of the anatomical points shown in Figure 1.

Anatomical Point | Definition |
---|---|

Vertebra prominens (VP) | Palpable spinous process at superior end of the thoracic spine |

Shoulder points | Superior aspect of shoulder girdle vertically above axillary point on the left and right sides of the body |

Axilla points | Superior point of posterior axillary fold on the left and right sides of the body |

Most prominent points over the torso | The most prominent point over the torso on the left and right sides of the body |

Waist points | Most indrawn point of the waist crease on the left and right sides of the body |

Sacrum | Distal end of the spine |

Sex | Number of Main Thoracic Curve Type | Number of Main Thoracolumbar Curve Type |
---|---|---|

Male | 305 | 179 |

Female | 174 | 128 |

Sex | Number of Main Thoracic Curve Type | Number of Main Thoracolumbar Curve Type |
---|---|---|

Male | 35 (mean age 14.5 years, SD 1.6, range 9.9 to 17.9) | 4 (mean age 15.4 years, SD 0.9, range 14.3 to 16.5) |

Female | 213 (mean age 13.7 years, SD 1.5, range 10.2 to 17.7) | 37 (mean age 14.3 years, SD 1.8, range 10.5 to 17.0) |
