# Impact of the Boreholes on the Surrounding Ground

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Analysis

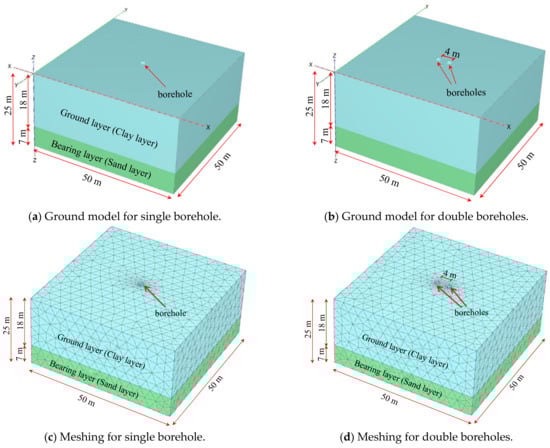

#### 2.1. Model and Method

#### 2.2. Parameters

## 3. Results and Discussion

#### 3.1. Influence of Boreholes on Surrounding Ground under Unloaded Condition

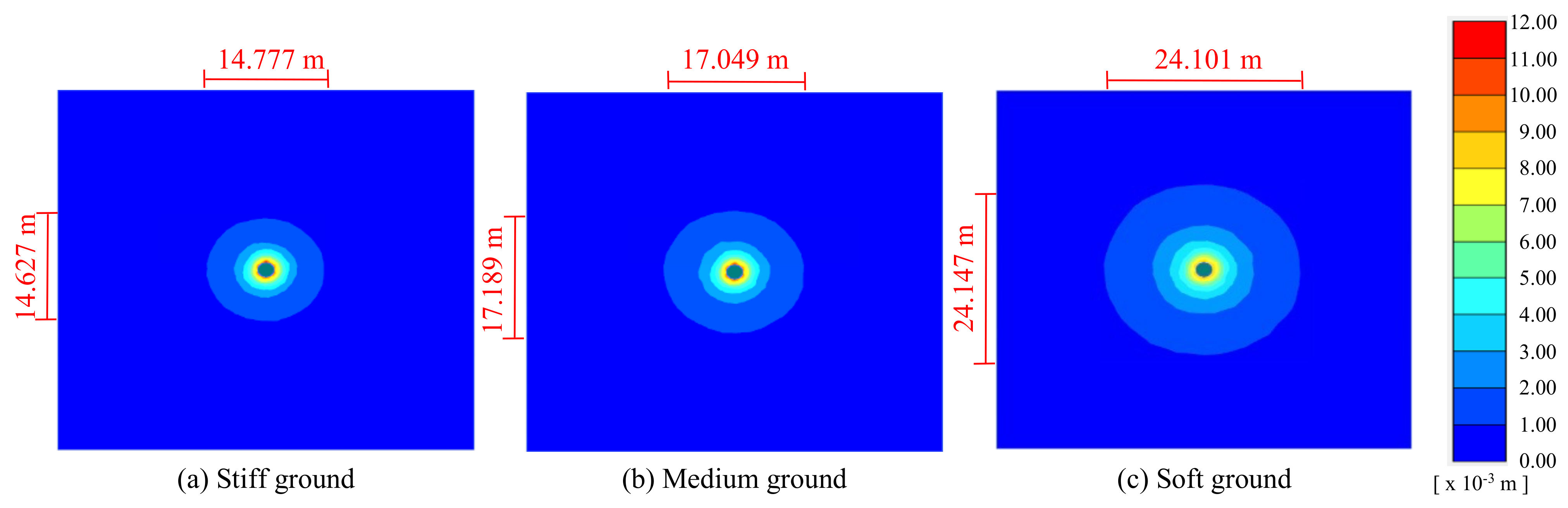

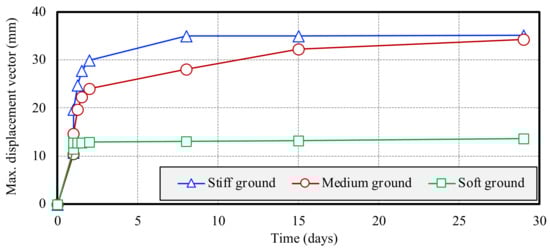

#### 3.1.1. In Case of Single Boreholes Left Vacant

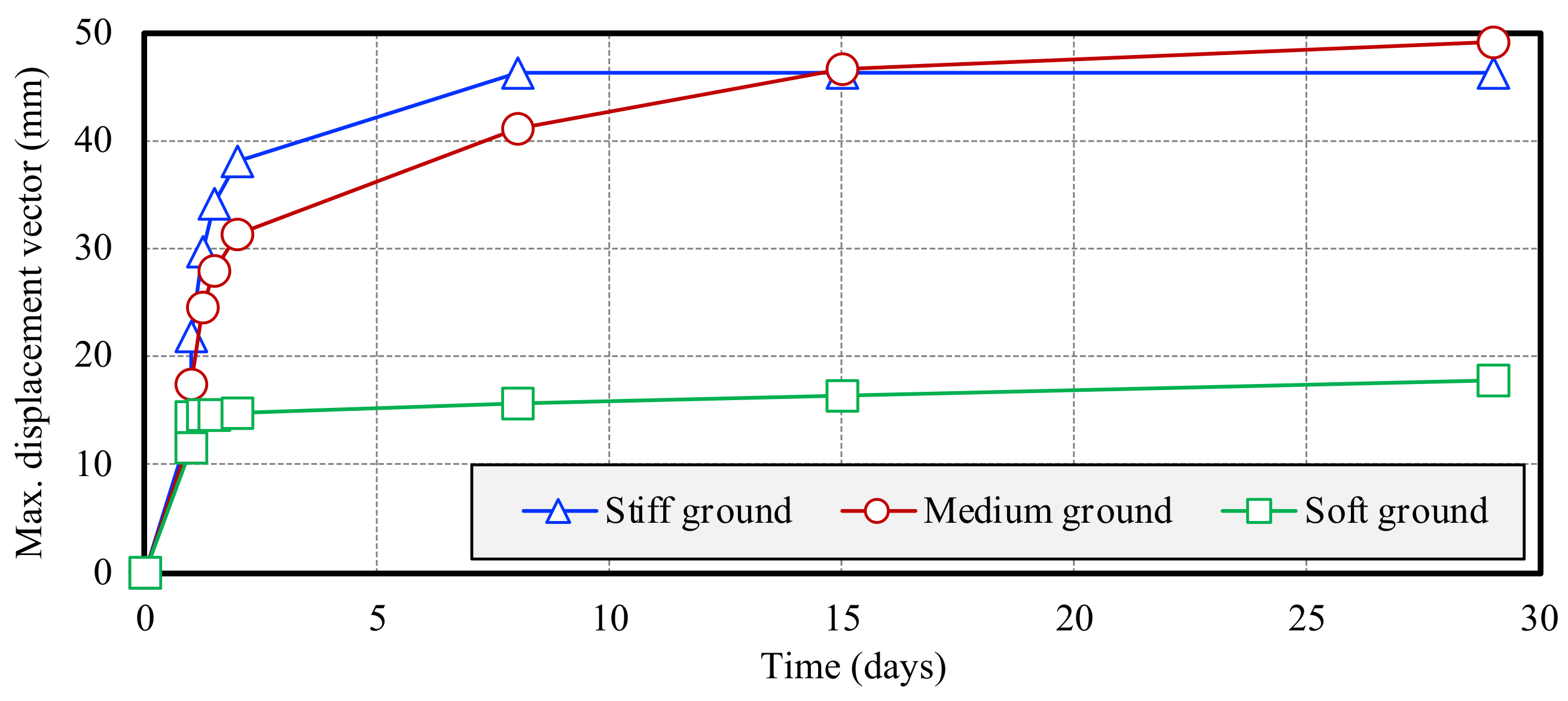

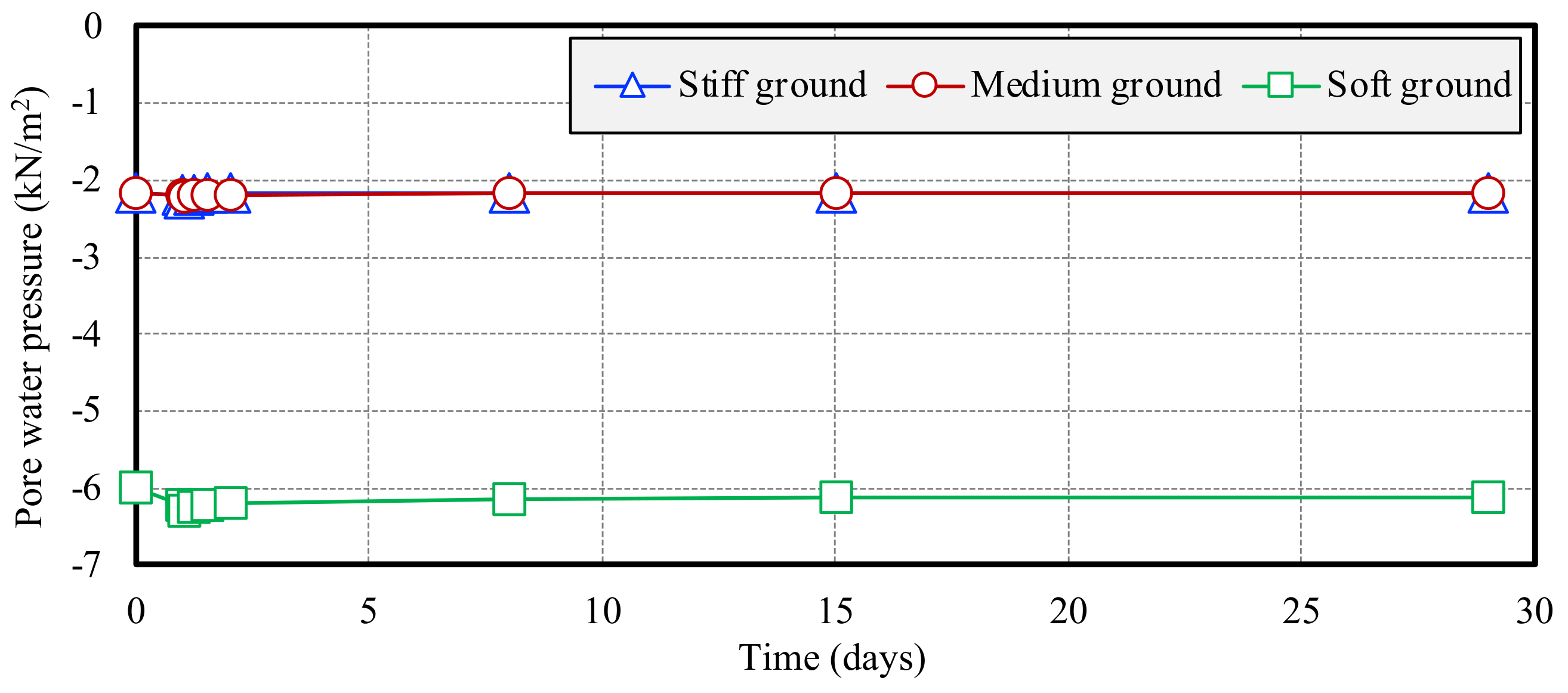

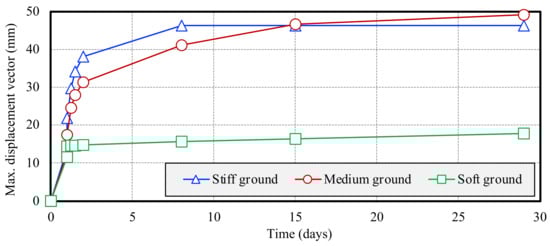

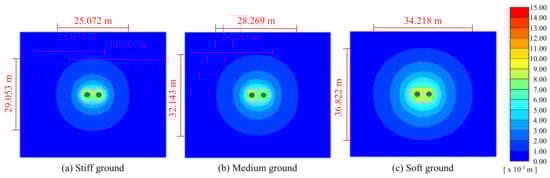

#### 3.1.2. In Case of Double Boreholes Left Vacant

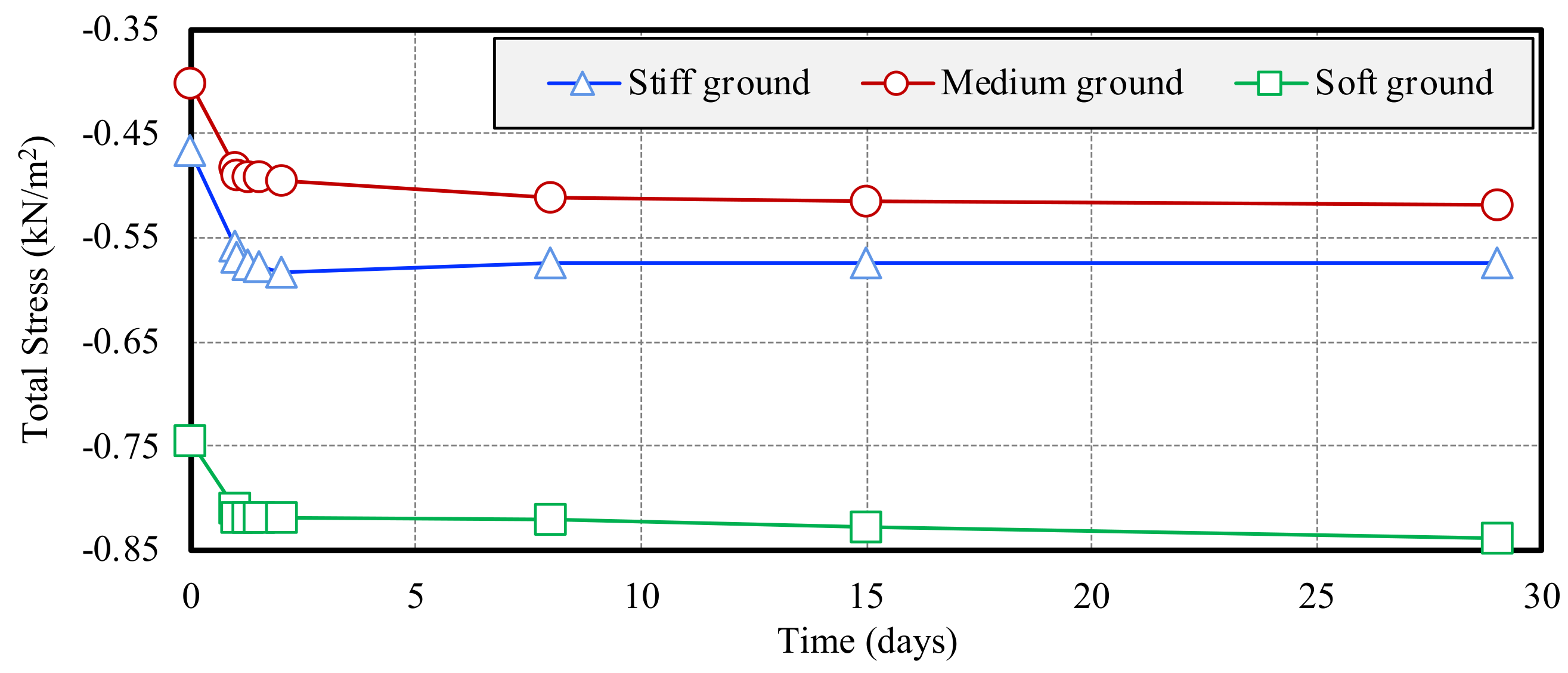

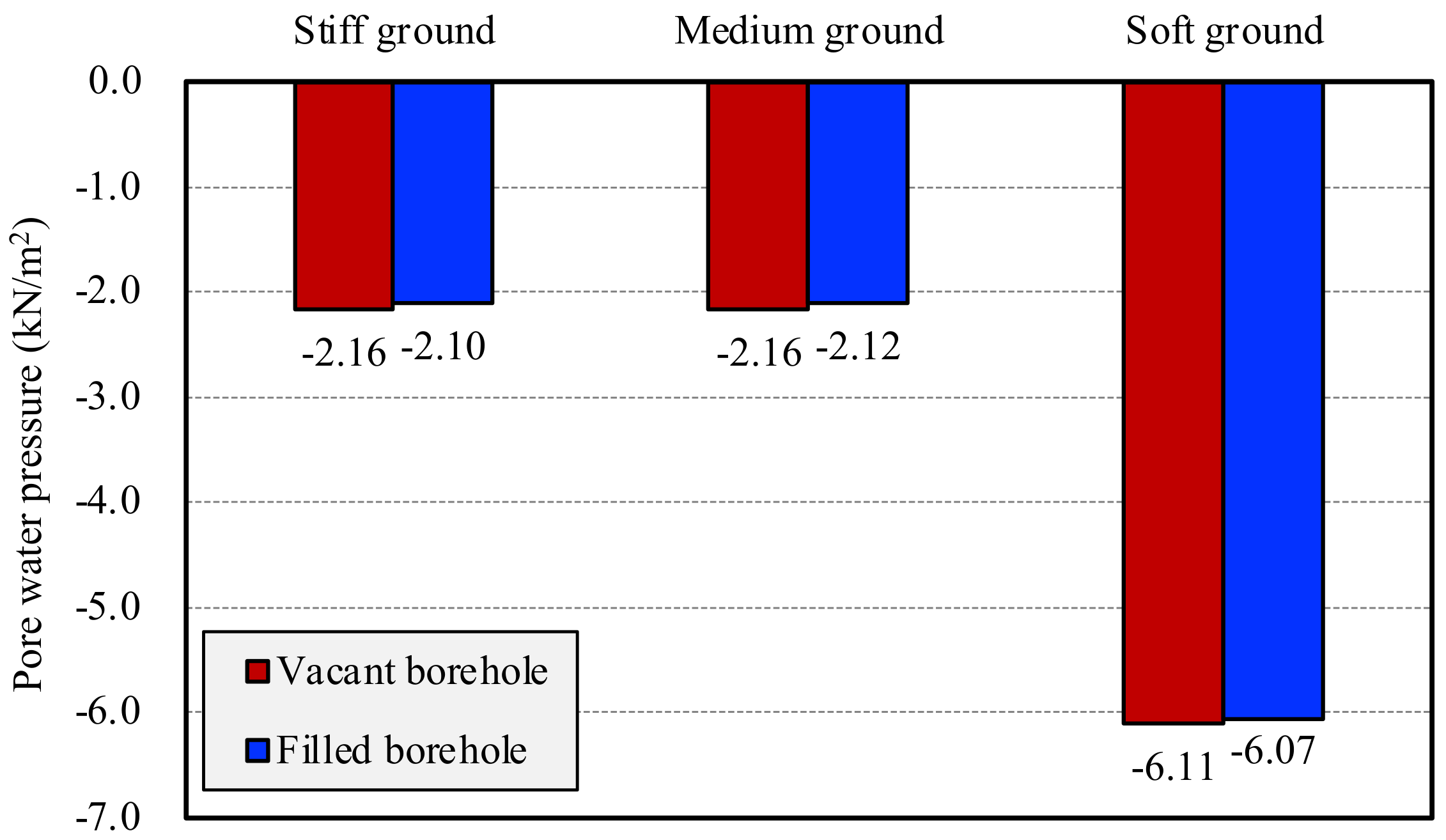

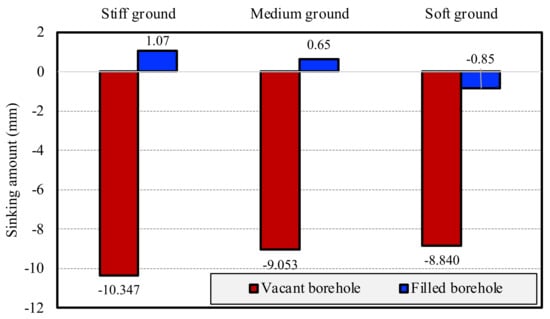

#### 3.1.3. Comparison of Cases of Vacant and Filled Double Boreholes

^{2}, and it was same for medium and soft ground, with a recovery value of 0.04 kN/m

^{2}.

#### 3.2. Influence of Loading on Ground Surrounding Boreholes

^{2}magnitude. The load was set by considering that the load value would not become too large and affect the accuracy of the analysis results.

#### 3.2.1. In Case of Single Boreholes Left Vacant

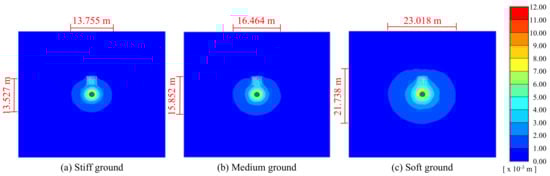

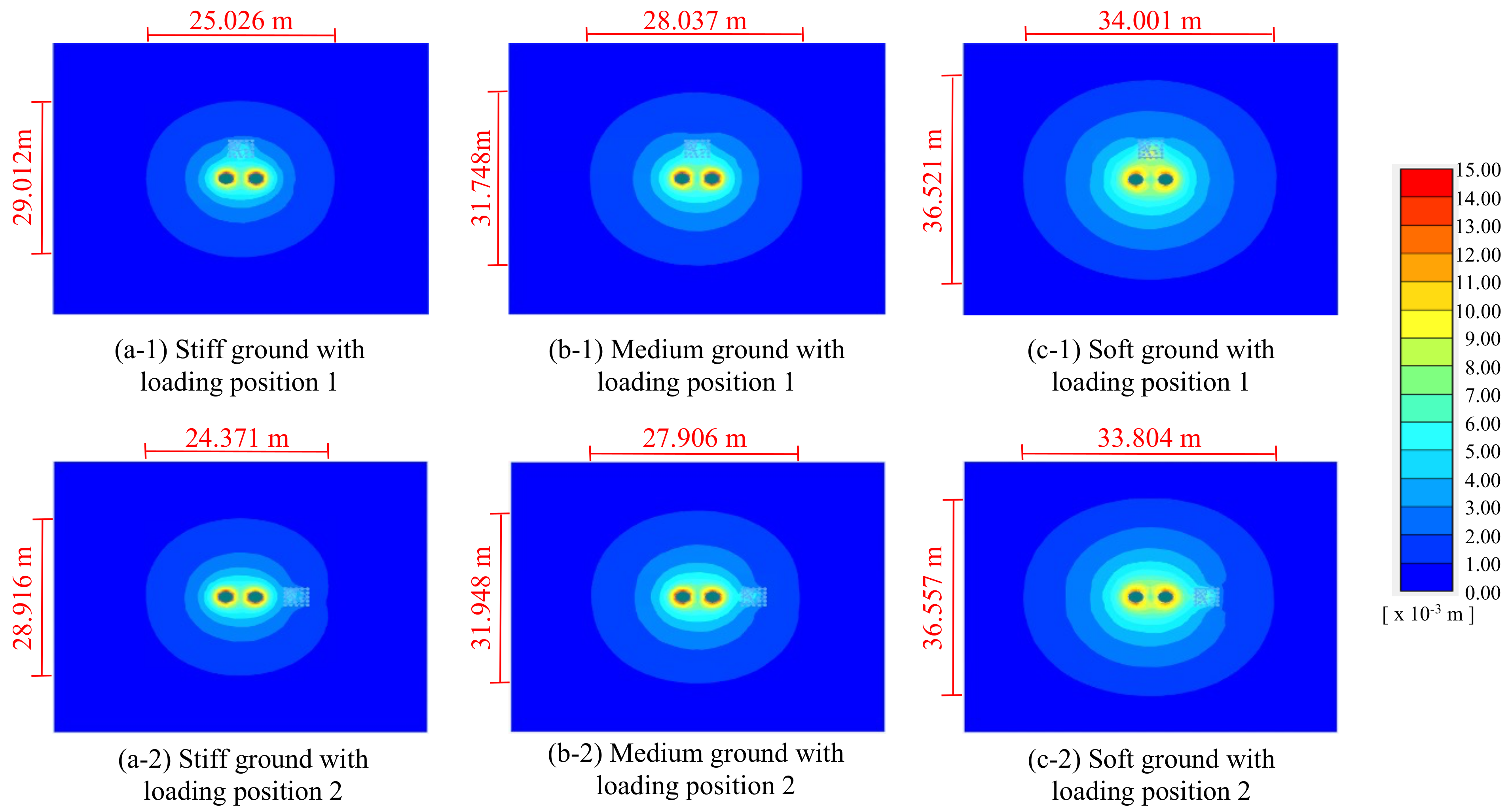

#### 3.2.2. In Case of Two Boreholes Left Vacant and Loading at Different Position

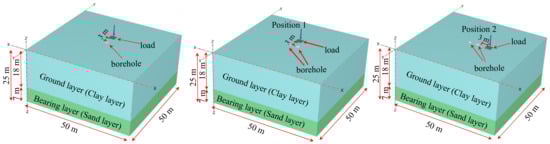

^{2}spanning over 3 × 3 m. Next, the ground model contained only two boreholes; considering that the model is 50 × 50 m, the number of boreholes was too low to impart the maximum impact. For stiff ground, the maximum displacement vector value increased by approximately 2 mm in the case of loading at either position. For soft ground, the changes were negligible in both cases. Meanwhile, for medium ground, the value decreased by approximately 3 mm in the case of loading at position 1, but it remained unchanged in the case of loading at position 2. Although the overall influence of loading at either position remained negligible, the displacement of the ground between the load and the borehole increased, and the range of influence shifted toward the direction of the loading.

## 4. Conclusions

- (1)
- The amount of ground displacement was seen to depend upon the stiffness of the ground. The maximum initial displacement was observed for stiff ground in all cases, except the case of double boreholes, in which the final stabilized displacement value was slightly higher or equal to that of the stiff ground.
- (2)
- Soft ground was found to be relatively more unstable than stiff and medium grounds, as the location of the maximum deformation of this ground was different than that of the other grounds.
- (3)
- The increase in the amount of displacement was observed to be larger for the case of an increased number of boreholes than that due to the loading.
- (4)
- The surrounding ground remained settled if the boreholes were left vacant, but this settlement was prevented if the holes were immediately filled with appropriate filling material. Moreover, the pore water pressure recovery was higher for the filled condition.
- (5)
- The presence of external loading not only contributed to an increase in the amount of displacement, but it also affected the location of the maximum displacement. It was observed that the inclination tended to occur in the direction of loading, indicating susceptibility to external loading.
- (6)
- The influence on the horizontal range and maximum displacement vector of the surrounding ground was lower in location 2. In other words, borehole-related work conducted with machinery located in the existing pile alignment resulted in less influence on the ground.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Yoshioka, S.; Kawasaki, H. Japan’s high-growth postwar period (the role of economic plans). ESRI Res. Note
**2016**, 27, 1–82. [Google Scholar] - Inazumi, S.; Tanaka, S.; Komaki, T.; Kuwahara, S. Effect of insertion of casing by rotation on existing piles in removal of existing pile. Geotech. Res.
**2021**, 8, 25–37. [Google Scholar] [CrossRef] - Ministry of Land, Infrastructure, Transport and Tourism (MLIT). Public Building Construction Standard Specification (Building Work), 2013th ed.; Ministry of Land, Infrastructure, Transport and Tourism: Tokyo, Japan, 2016.
- Inazumi, S.; Kuwahara, S.; Jotisankasa, A.; Chaiprakaikeow, S. Construction method for pulling out existing piles and influence of pulling-out holes on the surrounding ground. Geotech. Geol. Eng.
**2020**, 38, 6107–6123. [Google Scholar] [CrossRef] - Kuwahara, S.; Inazumi, S.; Jotisankasa, A.; Chaiprakaikeow, S. Influence of the condition of pullout holes on the surrounding ground. Int. J. Geo Eng.
**2020**, 11, 10. [Google Scholar] [CrossRef] - Inazumi, S.; Hashimoto, R.; Shinsaka, T.; Nontananandh, S.; Chaiprakaikeow, S. Applicability of additives for ground improvement utilizing fine powder of waste glass. Materials
**2021**, 14, 5169. [Google Scholar] [CrossRef] [PubMed] - Inazumi, S.; Kuwahara, S.; Jotisankasa, A.; Chaiprakaikeow, S. Improvement mechanism of sodium carbonate on traditional composite filler. Ground Improv.
**2021**, 174, 132–139. [Google Scholar] [CrossRef] - Inazumi, S.; Namikawa, T.; Kuwahara, S.; Hamaguchi, S. Influence of pulling out existing piles on the surrounding ground. Int. J. GEOMATE Geotech. Constr. Mater. Environ.
**2017**, 13, 16–21. [Google Scholar] [CrossRef] - Inazumi, S.; Kuwahara, S.; Jotisankasa, A.; Chaiprakaikeow, S. MPS-CAE simulation on dynamic interaction between steel casing and existing pile when pulling out existing piles. Int. J. Geomate Geotech. Constr. Mater. Environ.
**2020**, 18, 68–73. [Google Scholar] [CrossRef] - Inazumi, S.; Kuwahara, S.; Nontananandh, S.; Jotisankasa, A.; Chaiprakaikeow, S. Numerical analysis for ground subsidence caused by extraction holes of removed piles. Appl. Sci.
**2022**, 12, 5481. [Google Scholar] [CrossRef] - Kawahara, T.; Kuwahara, S.; Inazumi, S.; Eguchi, T. Evaluation of the influence of filling material of existing pile extraction holes on the surrounding ground. In Proceedings of the JSCE 73rd Annual Conference, Sapporo, Japan, 29–30 August 2018; pp. 255–256. [Google Scholar]
- Nontananandh, S.; Kuwahara, S.; Shishido, K.; Inazumi, S. Influence of perforated soils on installation of new piles. Appl. Sci.
**2022**, 12, 7712. [Google Scholar] [CrossRef] - Inazumi, S.; Kaneko, M.; Tomoda, Y.; Shigematsu, Y.; Shishido, K. Evaluation of flow-ability on fluidization treated soils based on flow analysis by MPS method. Int. J. GEOMATE Geotech. Constr. Mater. Environ.
**2017**, 12, 53–58. [Google Scholar] [CrossRef] - Inazumi, S.; Kaneko, M.; Shigematsu, Y.; Shishido, K. Fluidity evaluation of fluidisation treated soils based on the moving particle semi-implicit method. Int. J. Geotech. Eng.
**2018**, 12, 325–336. [Google Scholar] [CrossRef] - Inazumi, S.; Shigematsu, Y.; Nakao, K.; Shishido, K. 3-D particle flow analysis for fluidization treated soils. Am. J. Civ. Environ. Eng.
**2018**, 3, 59–67. [Google Scholar] - Wheeler, S.J.; Sharma, R.J.; Buisson, M.S.R. Coupling of hydraulic hysteresis and stress-strain behaviour in unsaturated soils. Geotechnique
**2003**, 53, 41–54. [Google Scholar] [CrossRef] - Wheeler, S.J. Inclusion of specific water volume within an elasto-plastic model for unsaturated soil. Can. Geotech. J.
**1996**, 33, 42–57. [Google Scholar] [CrossRef] - Alonso, E.E.; Gens, A.; Hight, D.W. Special Problem Soils. In Proceedings of the 9th European Conference on Soil Mechanics and Foundation Engineering, Dublin, Ireland, 31 August–3 September 1987; Volume 3, pp. 1087–1146. [Google Scholar]
- Fredlund, D.G.; Morgenstern, N.R. Stress state variables for unsaturated soils. J. Geotech. Eng. Div.
**1977**, 103, 447–466. [Google Scholar] [CrossRef] - Fredlund, D.G.; Morgenstern, N.R.; Widger, R.A. The shear strength of unsaturated soils. Can. Geotech. J.
**1978**, 15, 313–321. [Google Scholar] [CrossRef] - Pradhan, K.K.; Chakraverty, S. Chapter Four-Finite Element Method. Comput. Struct. Mech. Stat. Dyn. Behav.
**2019**, 25–28. [Google Scholar] [CrossRef] - Okamoto, K. Chapter 6—Finite Element Method. In Fundamentals of Optical Waveguides, 3rd ed.; Academic Press: Cambridge, MA, USA, 2022; pp. 271–338. [Google Scholar] [CrossRef]
- Ramirez, W.F. Chapter 8—Solution of Partial Differential Equations. In Computational Methods in Process Simulation, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 1997; pp. 353–430. [Google Scholar] [CrossRef]
- Rapp, B.E. Finite Element Method. In Microfluidics: Modelling, Mechanics and Mathematics; Elsevier: Amsterdam, The Netherlands, 2017. [Google Scholar]
- Ghasemzadeh, H.; Soujoudi, M.H.; Ghoreishian Amiri, S.A.; Karami, M.H. Elastoplastic model for hydro-mechanical behaviour of unsaturated soils. Soils Found.
**2017**, 57, 371–383. [Google Scholar] [CrossRef] - Roscoe, K.H.; Burland, J.B. On the Generalised Stress-Strain Behaviour of Wet Clay; Cambridge University Press: Cambridge, UK, 1968; pp. 535–609. [Google Scholar]
- Liu, K.; Chen, S.L.; Voyiadjis, G.Z. Integration of anisotropic modified Cam Clay model in finite element analysis: Formulation, validation, and application. Comput. Geotech.
**2019**, 116, 103198. [Google Scholar] [CrossRef] - Borja, R.I. Cam-Clay plasticity, Part II: Implicit integration of constitutive equation based on a nonlinear elastic stress predictor. Comput. Methods Appl. Mech. Eng.
**1991**, 88, 225–240. [Google Scholar] [CrossRef] - Borja, R.I.; Lee, S.R. Cam-clay plasticity, Part 1: Implicit integration of elasto-plastic constitutive relations. Comput. Methods Appl. Mech. Eng.
**1990**, 78, 49–72. [Google Scholar] [CrossRef] - Perić, D. Analytical solutions for a three-invariant Cam clay model subjected to drained loading histories. Int. J. Numer. Anal. Methods Geomech.
**2006**, 30, 363–387. [Google Scholar] [CrossRef] - Xu, S.; Xu, G.; Cheng, Y. Review of Cam-Clay model development of soil. Acad. J. Yangtze River Acad. Sci. People’s Repub. China
**2007**, 24, 3. [Google Scholar] - Ikegami, S.; Mizuno, K.; Kiyama, N.; Kinoshita, H.; Tsuchida, T. Evaluation and case analysis of lateral deformation prediction of soft ground. Geotech. Eng. Constr.
**2007**, 25, 133–144. [Google Scholar] - Murakami, T.; Niihara, Y.; Yamada, T.; Ohno, S.; Noguchi, T.; Miyata, M. Deformation prediction of large-scale seawall structures by elasto-viscoplastic FEM analysis. J. Jpn. Soc. Civil. Eng. C
**2012**, 68, 224–238. [Google Scholar] - Kawamura, S.; Ekisaka, K.; Aso, K. Consideration on soil characteristic values in ground in Yamaguchi prefecture. J. Chugoku Branch Jpn. Geotech. Soc. (Soils Constr.)
**2017**, 35, 185–190. [Google Scholar] - Japan Road Association. Road Earthworks-Embankment Guidelines, 14th ed.; Japan Road Association: Tokyo, Japan, 2022; p. 101. [Google Scholar]

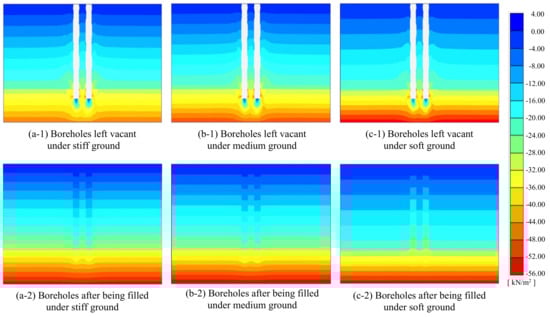

**Figure 8.**Comparison of frontal cross sectional total stress contour for vacant and filled cases of double boreholes.

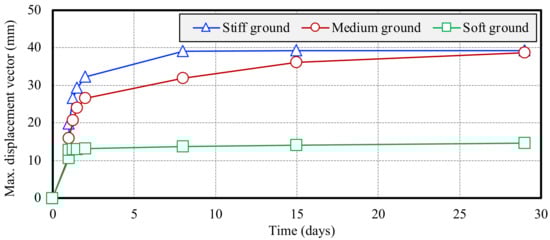

**Figure 13.**Rates of change in maximum displacement vectors for single boreholes under the loading condition.

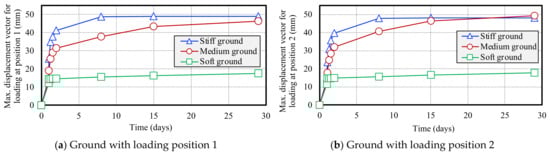

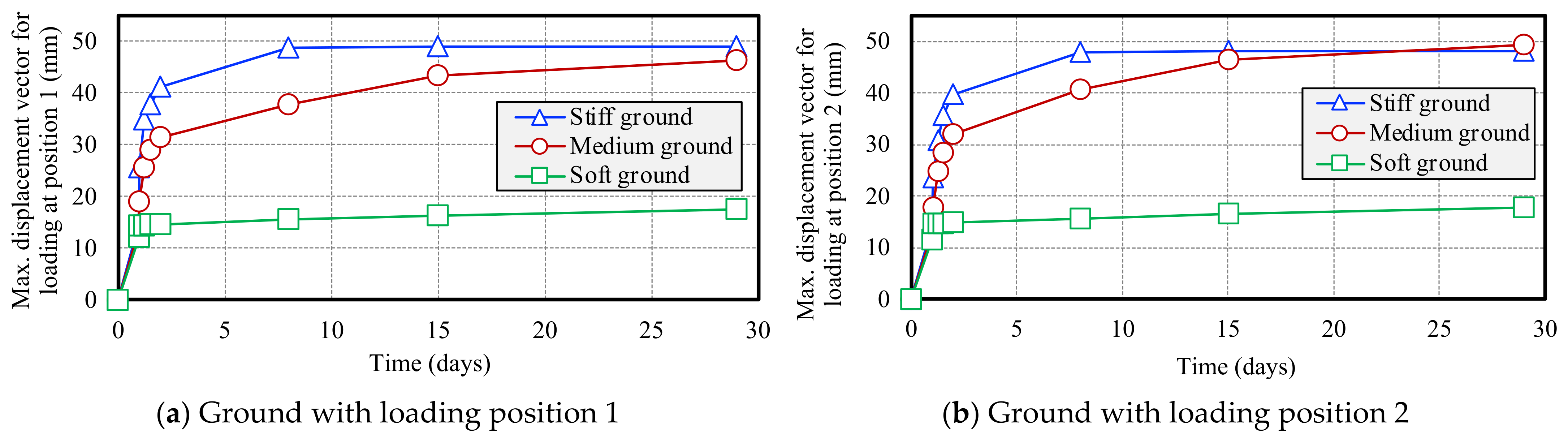

**Figure 15.**Rates of change in maximum displacement vectors for double boreholes under the loading condition.

w_{n} | N-Value | γ_{unsat} (kN/m^{3}) | γ_{sat} (kN/m^{3}) | ν | λ | κ | M | K_{0} | OCR | e_{0} | k_{p} (m/d) | Ground Classification |
---|---|---|---|---|---|---|---|---|---|---|---|---|

30% | 8.88 | 16 | 17 | 0.277 | 0.107 | 0.012 | 1.555 | 0.383 | 1 | 0.817 | 2.23 × 10^{−2} | Stiff |

40% | 6.99 | 15 | 16 | 0.276 | 0.164 | 0.018 | 1.562 | 0.380 | 1 | 1.089 | 4.34 × 10^{−3} | Medium |

80% | 2.68 | 13 | 14 | 0.274 | 0.389 | 0.04 | 1.569 | 0.378 | 1 | 2.177 | 8.47 × 10^{5} | Soft |

Material | γ_{unsat}(kN/m ^{3}) | γ_{sat}(kN/m ^{3}) | q_{u}(kN/m ^{3}) | E (kN/m ^{3}) | ν (-) | Φ (°) | C (kN/m ^{2}) | k_{p}(m/d) | N-Value |
---|---|---|---|---|---|---|---|---|---|

Filler material | 14 | 15 | 100 | 136,223 | 0.48 | 26 | 50 | 8.64 × 10^{−5} | - |

Bearing layer | 20 | 21 | - | 1.4 × 10^{5} | 0.3 | - | 0 | 0.864 | 50 |
