# Selection of a Navigation Strategy According to Agricultural Scenarios and Sensor Data Integrity

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

#### 1.1. Related Works

#### 1.2. Contributions

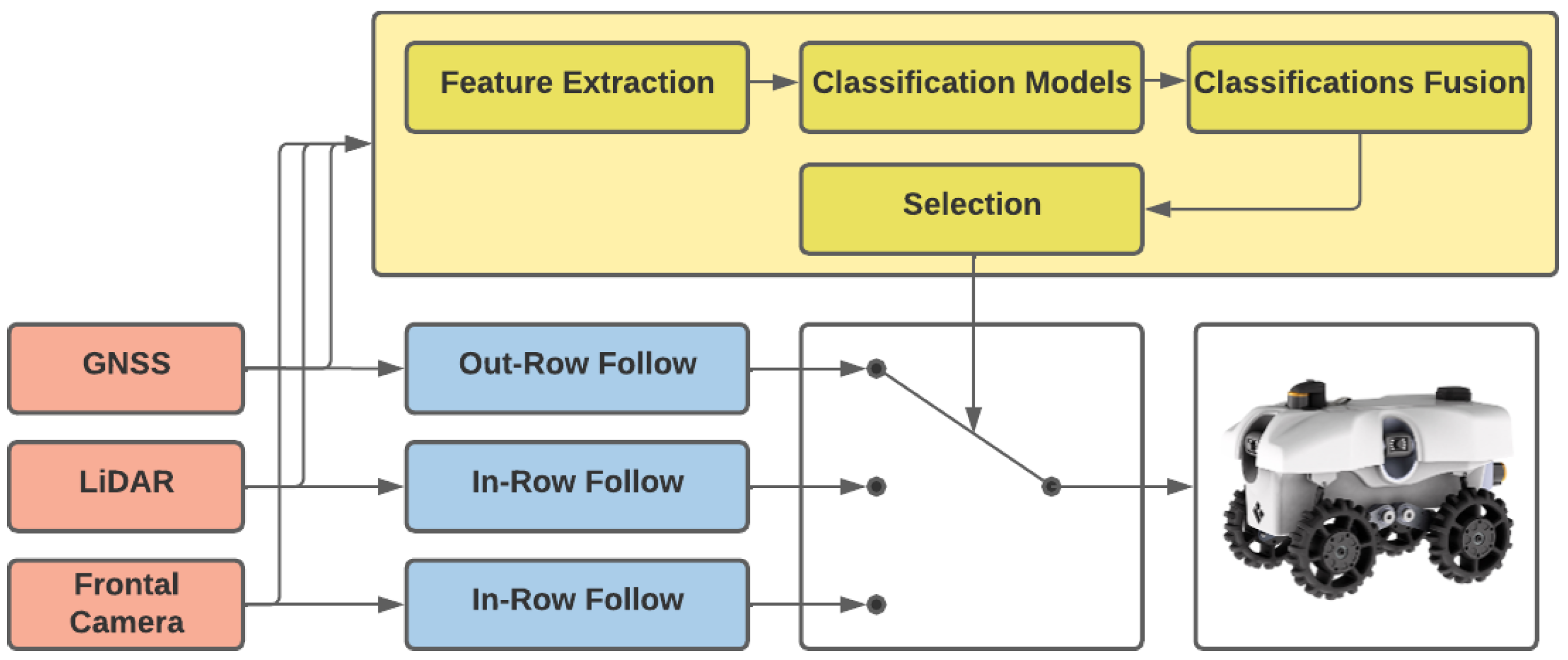

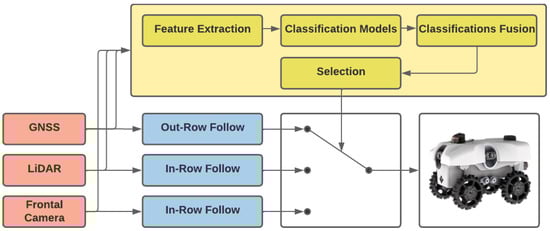

## 2. Materials and Methods

#### 2.1. AgBot

#### 2.2. Experimental Setup

#### 2.3. Predicted and Predictors Variables

#### 2.3.1. GNSS

#### 2.3.2. LiDAR

#### 2.3.3. RGB Camera

#### 2.4. Classifiers Techniques

#### 2.4.1. Multinomial Logistic Regression

#### 2.4.2. Decision Tree

#### 2.4.3. Random Forest

- Minimum sample (min_n): Minimum amount of sample to perform a new partitioning. The values of this hyperparameter were 1, 11, 21, 30, and 40;
- Trees number (trees): Number of weak classifiers. The values of this hyperparameter were 2, 26, 51, 75, and 100.

#### 2.4.4. Gradient Boosting

- Depth of tree (tree_depth): Maximum depth of nodes that the tree can create. The values of this hyperparameter were 1, 4, 8, 11, and 15;
- Learning rate (learn_rate): Learning rate for each weak model. The values of this hyperparameter were ${10}^{-1}$, ${10}^{-3}$, ${10}^{-3}$, ${10}^{-4}$, and ${10}^{-5}$.

#### 2.5. Classifiers Fusion

#### 2.5.1. Classification Vector

#### 2.5.2. Sensors’ Feasibility Matrix

#### 2.5.3. Strategy Selection Vector

## 3. Results

#### 3.1. GNSS

#### 3.2. LiDAR

#### 3.3. Camera

#### 3.4. Navigation Selections or Navigation Methodologies

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

AgBot | Agricultural robot |

AIC | Akaike criterion information |

DOF | Degree of freedom |

DT | Decision Tree |

GB | Gradient Boosting |

GLM | Generalized linear models |

GNSS | Global navigation satellite system |

HSL | Hue, saturation and lightness |

IMU | Inertial measurement unit |

LiDAR | Light detection and ranging |

LL | Log-likelihood |

LRT | Likelihood-ratio test |

MCC | Matthews correlation coefficient |

MLR | Multinomial logistic regression |

RF | Random Forest |

RGB | Red, green and blue |

RNN | Recurrent neural networks |

ROS | Robotic operating system |

RTK | Real-time kinematic |

SLAM | Simultaneous localization and mapping |

## References

- Tantalaki, N.; Souravlas, S.; Roumeliotis, M. Data-Driven Decision Making in Precision Agriculture: The Rise of Big Data in Agricultural Systems. J. Agric. Food Inf.
**2019**, 20, 344–380. [Google Scholar] [CrossRef] - Sparrow, R.; Howard, M. Robots in agriculture: Prospects, impacts, ethics, and policy. Precis. Agric.
**2021**, 22, 818–833. [Google Scholar] [CrossRef] - Thayer, T.C.; Vougioukas, S.; Goldberg, K.; Carpin, S. Routing Algorithms for Robot Assisted Precision Irrigation. In Proceedings of the 2018 IEEE International Conference on Robotics and Automation (ICRA), Brisbane, Australia, 21–25 May 2018; pp. 2221–2228. [Google Scholar] [CrossRef]
- Hoppe, A.; Jefferson, E.; Woodruff, J.; McManus, L.; Phaklides, N.; McKenzie, T. Novel Robotic Approach to Irrigation and Agricultural Land Use Efficiency. In Proceedings of the 2022 IEEE Conference on Technologies for Sustainability (SusTech), Sunny Riverside, CA, USA, 21–23 April 2022; pp. 181–186. [Google Scholar] [CrossRef]
- Quan, L.; Jiang, W.; Li, H.; Li, H.; Wang, Q.; Chen, L. Intelligent intra-row robotic weeding system combining deep learning technology with a targeted weeding mode. Biosyst. Eng.
**2022**, 216, 13–31. [Google Scholar] [CrossRef] - Alam, M.S.; Alam, M.; Tufail, M.; Khan, M.U.; Güneş, A.; Salah, B.; Nasir, F.E.; Saleem, W.; Khan, M.T. TobSet: A New Tobacco Crop and Weeds Image Dataset and Its Utilization for Vision-Based Spraying by Agricultural Robots. Appl. Sci.
**2022**, 12, 1308. [Google Scholar] [CrossRef] - Gao, X.; Li, J.; Fan, L.; Zhou, Q.; Yin, K.; Wang, J.; Song, C.; Huang, L.; Wang, Z. Review of wheeled mobile robots’ navigation problems and application prospects in agriculture. IEEE Access
**2018**, 6, 49248–49268. [Google Scholar] [CrossRef] - Bechar, A.; Vigneault, C. Agricultural robots for field operations: Concepts and components. Biosyst. Eng.
**2016**, 149, 94–111. [Google Scholar] [CrossRef] - Vougioukas, S.G. Agricultural Robotics. Annu. Rev. Control. Robot. Auton. Syst.
**2019**, 2, 365–392. [Google Scholar] [CrossRef] - Siegwart, R.; Nourbakhsh, I.R.; Scaramuzza, D. Introduction to Autonomous Mobile Robots; MIT Press: Cambridge, MA, USA, 2011. [Google Scholar]
- Reitbauer, E.; Schmied, C. Bridging GNSS Outages with IMU and Odometry: A Case Study for Agricultural Vehicles. Sensors
**2021**, 21, 4467. [Google Scholar] [CrossRef] [PubMed] - Kaswan, K.S.; Dhatterwal, J.S.; Baliyan, A.; Jain, V. Special Sensors for Autonomous Navigation Systems in Crops Investigation System. In Virtual and Augmented Reality for Automobile Industry: Innovation Vision and Applications; Hassanien, A.E., Gupta, D., Khanna, A., Slowik, A., Eds.; Springer International Publishing: Cham, Switzerland, 2022; pp. 65–86. [Google Scholar] [CrossRef]
- Winterhalter, W.; Fleckenstein, F.; Dornhege, C.; Burgard, W. Localization for precision navigation in agricultural fields—Beyond crop row following. J. Field Robot.
**2021**, 38, 429–451. [Google Scholar] [CrossRef] - Fountas, S.; Mylonas, N.; Malounas, I.; Rodias, E.; Hellmann Santos, C.; Pekkeriet, E. Agricultural Robotics for Field Operations. Sensors
**2020**, 20, 2672. [Google Scholar] [CrossRef] - Oliveira, L.F.P.; Moreira, A.P.; Silva, M.F. Advances in Agriculture Robotics: A State-of-the-Art Review and Challenges Ahead. Robotics
**2021**, 10, 52. [Google Scholar] [CrossRef] - Sigrist, P.; Coppin, P.; Hermy, M. Impact of forest canopy on quality and accuracy of GPS measurements. Int. J. Remote Sens.
**1999**, 20, 3595–3610. [Google Scholar] [CrossRef] - Yoshimura, T.; Hasegawa, H. Comparing the precision and accuracy of GPS positioning in forested areas. J. For. Res.
**2003**, 8, 147–152. [Google Scholar] [CrossRef] - Chan, C.W.; Schueller, J.K.; Miller, W.M.; Whitney, J.D.; Cornell, J.A. Error Sources Affecting Variable Rate Application of Nitrogen Fertilizer. Precis. Agric.
**2004**, 5, 601–616. [Google Scholar] [CrossRef] - Deng, Y.; Shan, Y.; Gong, Z.; Chen, L. Large-Scale Navigation Method for Autonomous Mobile Robot Based on Fusion of GPS and Lidar SLAM. In Proceedings of the 2018 Chinese Automation Congress (CAC), Xi’an, China, 30 November–2 December 2018; pp. 3145–3148. [Google Scholar] [CrossRef]
- Moeller, R.; Deemyad, T.; Sebastian, A. Autonomous Navigation of an Agricultural Robot Using RTK GPS and Pixhawk. In Proceedings of the 2020 Intermountain Engineering, Technology and Computing (IETC), Orem, UT, USA, 2–3 October 2020; pp. 1–6. [Google Scholar] [CrossRef]
- Manish, R.; Lin, Y.C.; Ravi, R.; Hasheminasab, S.M.; Zhou, T.; Habib, A. Development of a Miniaturized Mobile Mapping System for In-Row, Under-Canopy Phenotyping. Remote Sens.
**2021**, 13, 276. [Google Scholar] [CrossRef] - Higuti, V.A.H.; Velasquez, A.E.B.; Magalhaes, D.V.; Becker, M.; Chowdhary, G. Under canopy light detection and ranging-based autonomous navigation. J. Field Robot.
**2019**, 36, 547–567. [Google Scholar] [CrossRef] - Higuti, V.A.H. 2D LiDAR-Based Perception for under Canopy Autonomous Scouting of Small Ground Robots within Narrow Lanes of Agricultural Fields. Ph.D. Thesis, Universidade de São Paulo, São Paulo, Brazil, 2021. [Google Scholar]
- Weiss, U.; Biber, P. Semantic place classification and mapping for autonomous agricultural robots. In Proceedings of the 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) Workshop: Semantic Mapping and Autonomous Knowledge Acquisition, Taipei, Taiwan, 18–22 October 2010. [Google Scholar]
- Ji, T.; Vuppala, S.T.; Chowdhary, G.; Driggs-Campbell, K. Multi-modal anomaly detection for unstructured and uncertain environments. arXiv
**2020**, arXiv:2012.08637. [Google Scholar] [CrossRef] - Suh, H.K.; Hofstee, J.W.; van Henten, E.J. Improved vegetation segmentation with ground shadow removal using an HDR camera. Precis. Agric.
**2018**, 19, 218–237. [Google Scholar] [CrossRef] [Green Version] - Sunil, G.C.; Zhang, Y.; Koparan, C.; Ahmed, M.R.; Howatt, K.; Sun, X. Weed and crop species classification using computer vision and deep learning technologies in greenhouse conditions. J. Agric. Food Res.
**2022**, 9, 100325. [Google Scholar] [CrossRef] - Gasparino, M.V.; Sivakumar, A.N.; Liu, Y.; Velasquez, A.E.B.; Higuti, V.A.H.; Rogers, J.; Tran, H.; Chowdhary, G. WayFAST: Navigation with Predictive Traversability in the Field. IEEE Robot. Autom. Lett.
**2022**, 7, 10651–10658. [Google Scholar] [CrossRef] - Preti, M.; Verheggen, F.; Angeli, S. Insect pest monitoring with camera-equipped traps: Strengths and limitations. J. Pest Sci.
**2021**, 94, 203–217. [Google Scholar] [CrossRef] - Barbedo, J.G.A. A review on the main challenges in automatic plant disease identification based on visible range images. Biosyst. Eng.
**2016**, 144, 52–60. [Google Scholar] [CrossRef] - Mirbod, O.; Choi, D.; Thomas, R.; He, L. Overcurrent-driven LEDs for consistent image colour and brightness in agricultural machine vision applications. Comput. Electron. Agric.
**2021**, 187, 106266. [Google Scholar] [CrossRef] - Silwal, A.; Parhar, T.; Yandun, F.; Baweja, H.; Kantor, G. A Robust Illumination-Invariant Camera System for Agricultural Applications. In Proceedings of the 2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Prague, Czech Republic, 27 September–1 October 2021; pp. 3292–3298. [Google Scholar] [CrossRef]
- Torres, C.J. Sistema de Controle e Supervisão para Robô Agrícola Móvel Baseado em Fusão de Dados Sensoriais. Ph.D. Thesis, Universidade de São Paulo, São Paulo, Brazil, 2018. [Google Scholar]
- Muñoz-Bañón, M.Á.; del Pino, I.; Candelas, F.A.; Torres, F. Framework for fast experimental testing of autonomous navigation algorithms. Appl. Sci.
**2019**, 9, 1997. [Google Scholar] [CrossRef] [Green Version] - Eiffert, S.; Wallace, N.D.; Kong, H.; Pirmarzdashti, N.; Sukkarieh, S. Experimental evaluation of a hierarchical operating framework for ground robots in agriculture. In Proceedings of the International Symposium on Experimental Robotics, La Valletta, Malta, 9–12 November 2020; Springer: Berlin/Heidelberg, Germany; pp. 151–160. [Google Scholar] [CrossRef]
- FAOSTAT. FAOSTAT Statistics Database; FAOSTAT: Rome, Italy, 2022. [Google Scholar]
- Silva, D.L.G.; Batisti, D.L.S.; Ferreira, M.J.G.; Merlini, F.B.; Camargo, R.B.; Barros, B.C.B. Cana-de-açúcar: Aspectos econômicos, sociais, ambientais, subprodutos e sustentabilidade. Res. Soc. Dev.
**2021**, 10, e44410714163. [Google Scholar] [CrossRef] - Zhou, M.; Cheng, W.; Huang, H.; Chen, J. A Novel Approach to Automated 3D Spalling Defects Inspection in Railway Tunnel Linings Using Laser Intensity and Depth Information. Sensors
**2021**, 21, 5725. [Google Scholar] [CrossRef] [PubMed] - Papoulis, A.; Pillai, S.U. Probability, Random Variables, and Stochastic Processes; Tata McGraw-Hill Education: New York, NY, USA, 2002. [Google Scholar]

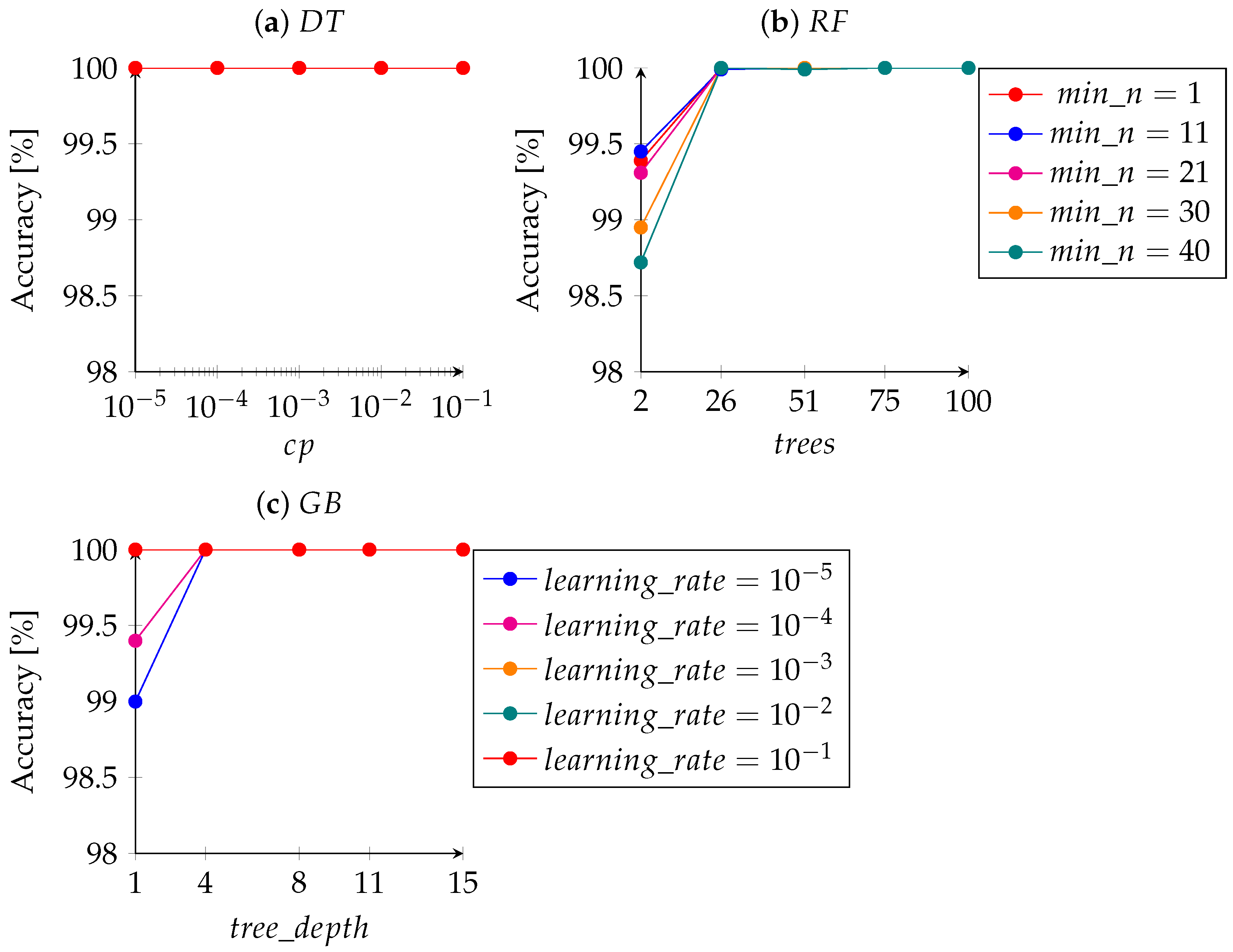

**Figure 2.**Comparison among models using GNSS data: (

**a**) Decision Tree; (

**b**) Random Forest; and (

**c**) Gradient Boosting.

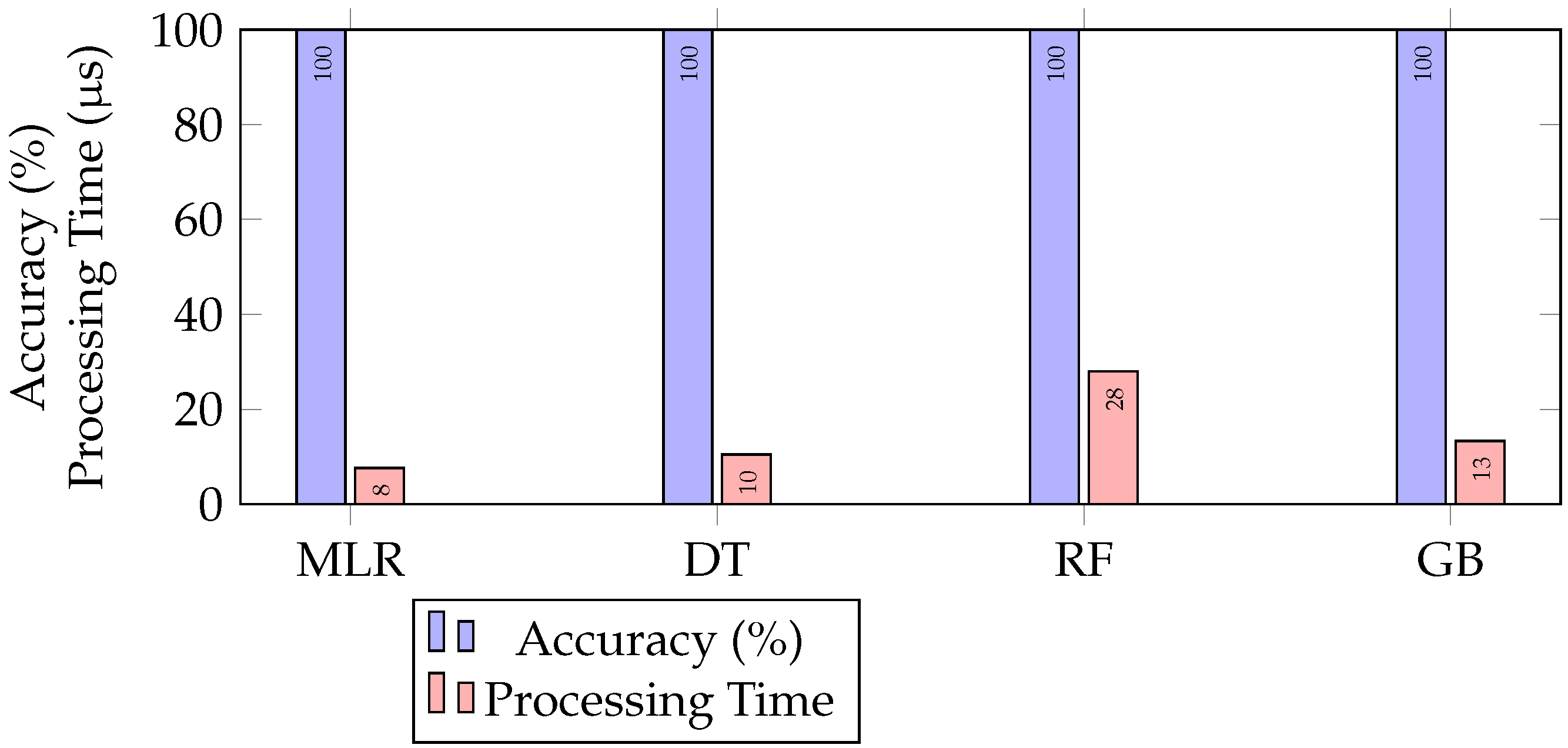

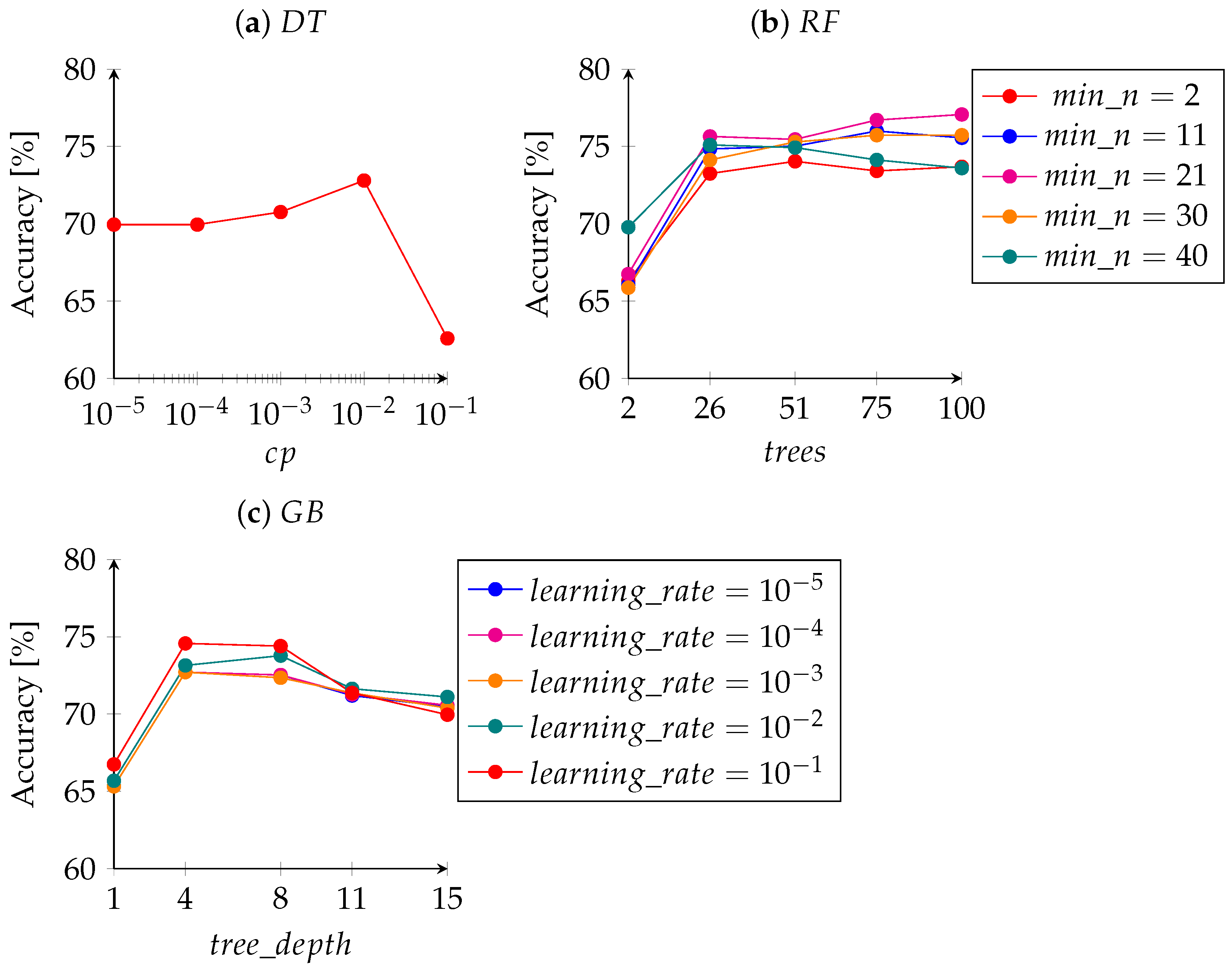

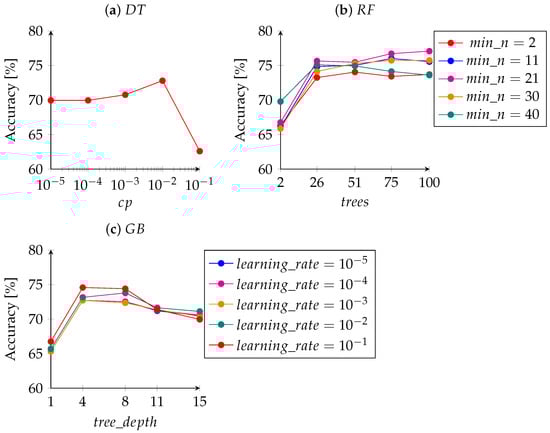

**Figure 4.**Comparison among models using LiDAR data: (

**a**) Decision Tree; (

**b**) Random Forest; and (

**c**) Gradient Boosting.

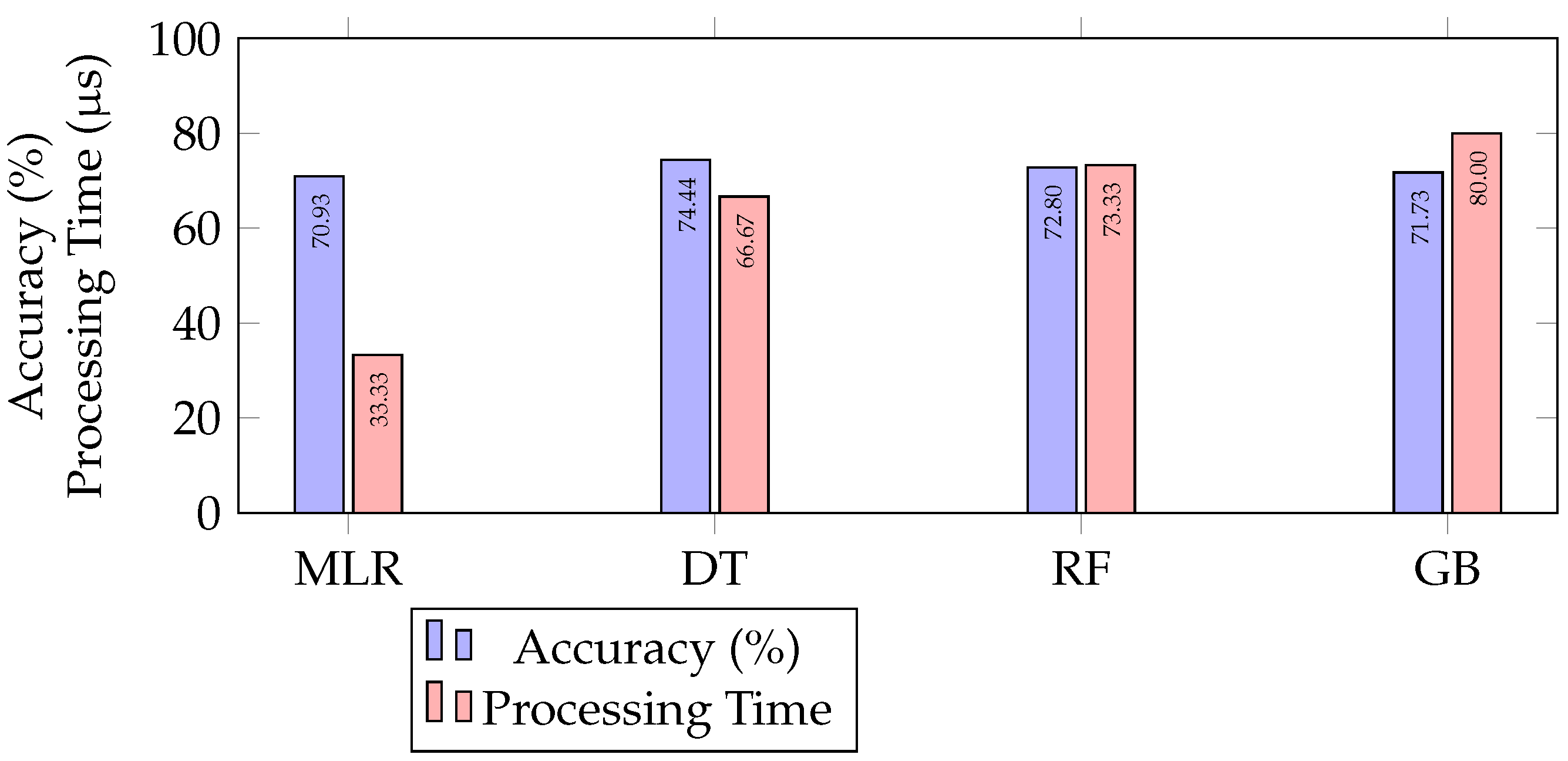

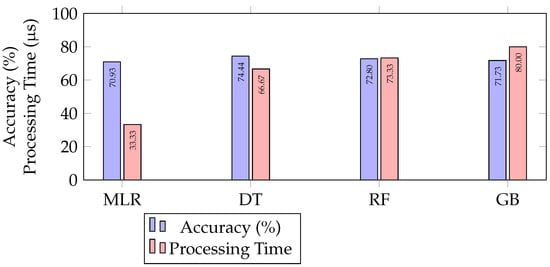

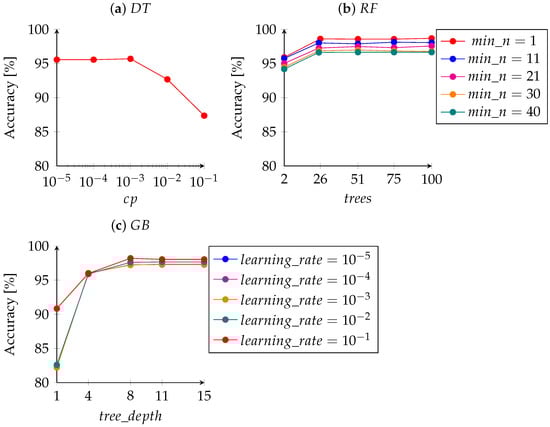

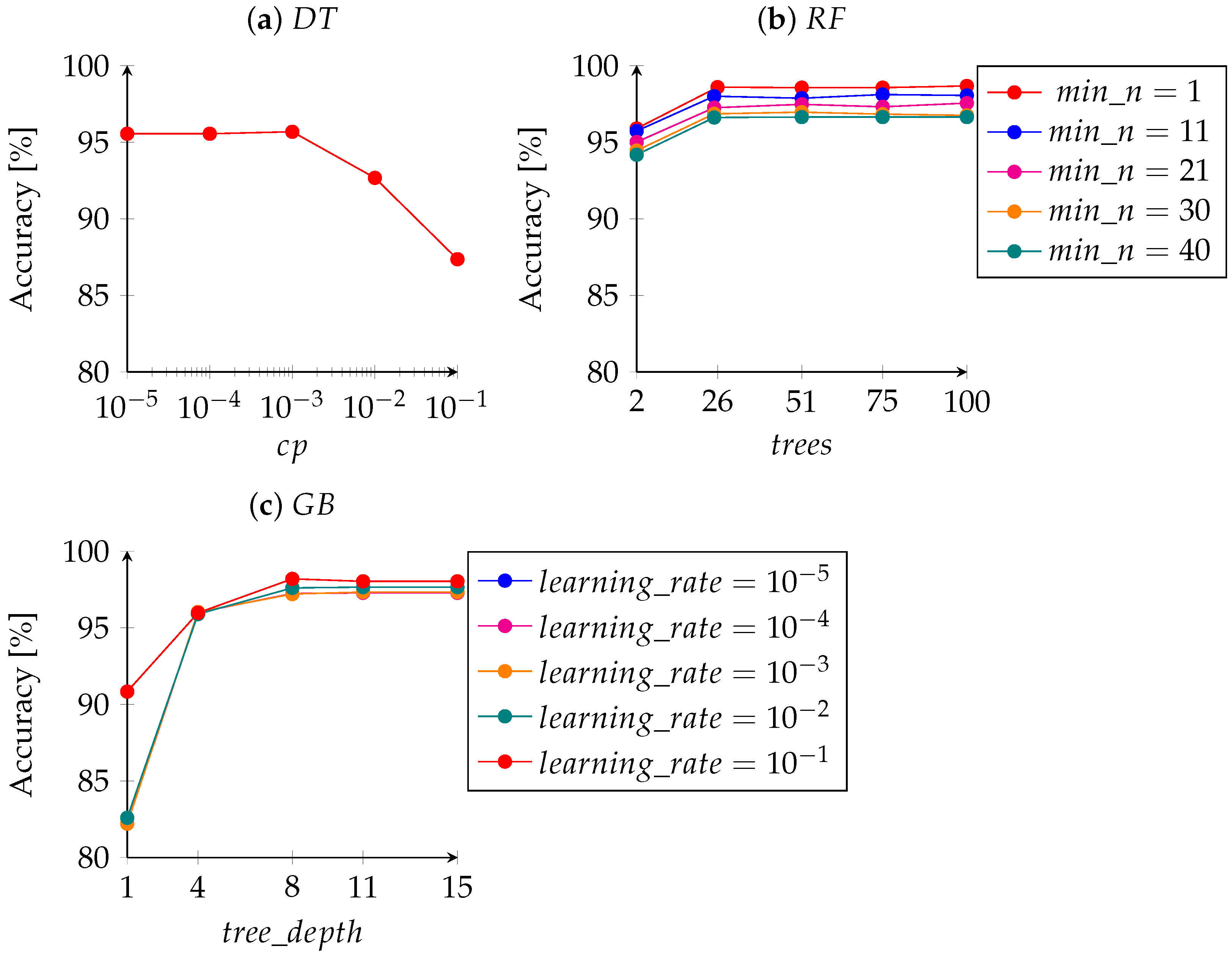

**Figure 6.**Comparison among models using camera data: (

**a**) Decision Tree; (

**b**) Random Forest; and (

**c**) Gradient Boosting.

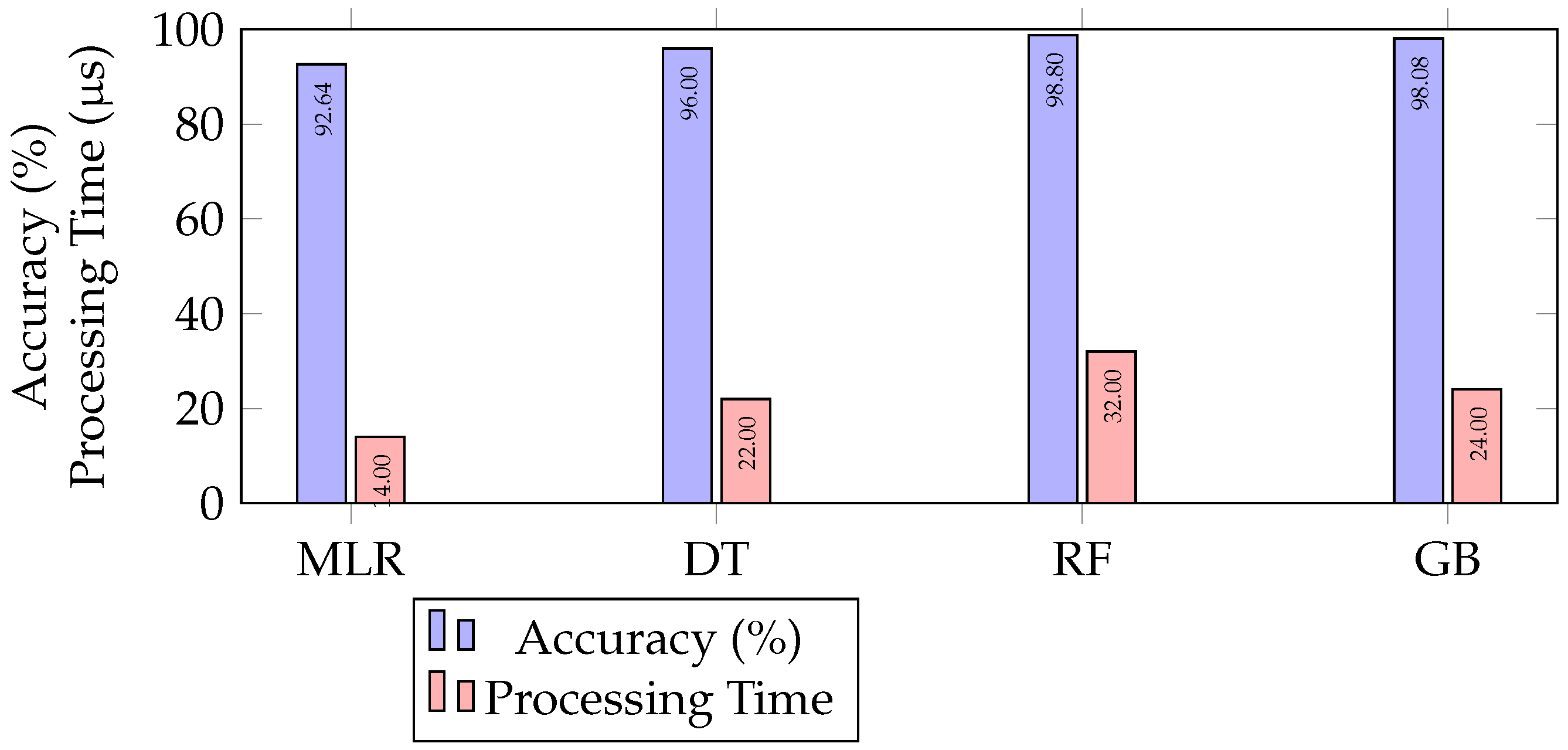

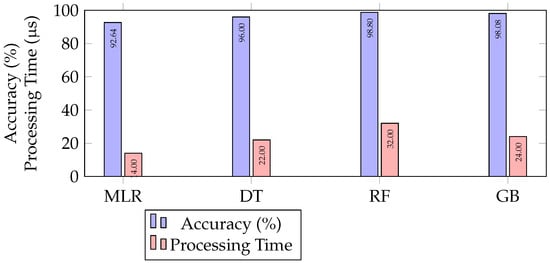

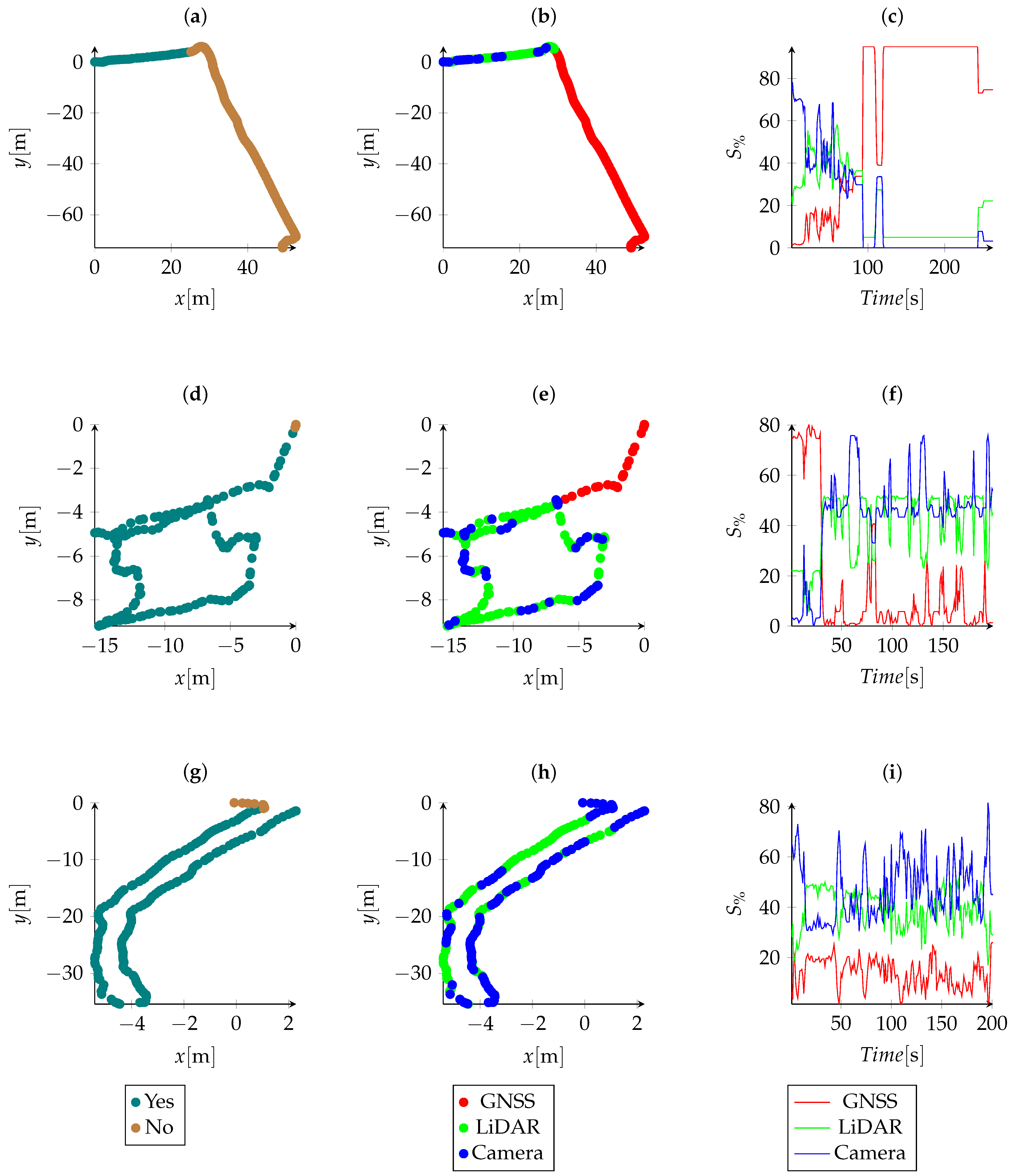

**Figure 8.**Trajectory: (

**a**) InsideCrop to OutsideCrop: Presence of crop; (

**b**) InsideCrop to OutsideCrop: Selection of sensors for navigation; (

**c**) InsideCrop to OutsideCrop: Probability indicated by the methodology of selecting each navigation strategy; (

**d**) OutsideCrop to InsideCrop: Presence of crop; (

**e**) OutsideCrop to InsideCrop: Selection of sensors for navigation; (

**f**) OutsideCrop to InsideCrop: Probability indicated by the methodology of selecting each navigation strategy; (

**g**) OutsideCrop to UnderCanopy: Presence of crop, (

**h**) OutsideCrop to UnderCanopy: Selection of sensors for navigation and (

**i**) OutsideCrop to UnderCanopy: Probability indicated by the methodology of selecting each navigation strategy.

AgBot * | Components | Characteristics |
---|---|---|

Battery | 14.8 V 10,000 mAh | |

Motor | Maytech Brushless Outrunner Hub | |

Computer | NUC-I7 Processor | |

Operational System | Ubuntu 18.04 | |

LiDAR | UST-10LX | |

IMU | Bosch BNO0555 | |

GNSS | Ublox Zed-F9P | |

Camera | RGB cameras with LED Illumination |

Representation | Class | Distance between Crops (m) |
---|---|---|

GNSSOutsideCrop | ≥3.00 | |

GNSSInsideCrop | ≥1.00 | |

UnderCanopy | <1.00 |

Feature | Variable Name | Unit |
---|---|---|

Heading Accuracy | HeadAcc | ${}^{\circ}$ |

Horizontal Accuracy | HorAcc | m |

Speed Accuracy | SpeedAcc | m/s |

Representation | Class | Description |
---|---|---|

LiDAROutsideCrop | There is no crop. | |

LiDARInsideCrop | There is at least one row crop. | |

LiDAROcclusion | Many points surrounding origin. |

Feature | Variable Name | Equation |
---|---|---|

Mean | ${\mu}_{X,Y,I}$ | $\frac{1}{k}{\sum}_{i=1}^{k}\left({x}_{i}\right)$ |

Variance | ${\sigma}_{X,Y,I}$ | $\frac{1}{k}{\sum}_{i=1}^{k}{\left({x}_{i}-\overline{x}\right)}^{2}$ |

Skewness | ${\gamma}_{X,Y,I}$ | $\frac{1}{k}{\sum}_{i=1}^{k}{\left(\frac{{x}_{i}-\overline{x}}{\sigma}\right)}^{3}$ |

Representation | Class | Description |
---|---|---|

Ideal | There is no problem in the image. | |

HighBrightness | Image is too bright. | |

LowBrightness | Image is too dark. | |

Blur | Image loses details. | |

CameraOcclusion | Camera is occluded. |

Feature | Variable Name | Equation |
---|---|---|

Mean | ${\mu}_{G}$ | $-\frac{1}{k}{\sum}_{i=1}^{k}\left({x}_{i}\right)$ |

Variance | ${\sigma}_{G}$ | $\frac{1}{k}{\sum}_{i=1}^{k}{\left({x}_{i}-\overline{x}\right)}^{2}$ |

Skewness | ${\gamma}_{G}$ | $\frac{1}{k}{\sum}_{i=1}^{k}{\left(\frac{{x}_{i}-\overline{x}}{\sigma}\right)}^{3}$ |

Laplacian Descriptor | ${\sigma}_{lap}^{2}$ | $\frac{{\partial}^{2}I(x,y)}{\partial {x}^{2}}+\frac{{\partial}^{2}I(x,y)}{\partial {y}^{2}}$ |

Characteristics | Total Model | Stepwise Model |
---|---|---|

${\beta}_{\mathrm{HeadingAccuracy}}$ | ✔ | ✔ |

${\beta}_{\mathrm{HorizontalAccuracy}}$ | ✔ | - |

${\beta}_{\mathrm{SpeedAccuracy}}$ | ✔ | - |

Accuracy [%] | 100.00 | 100.00 |

AIC | 16.05 | 10.46 |

LL | −0.02 | −1.23 |

DOF | 8 | 4 |

LRT | 2.41 | |

p-value | 0.66 |

GNSSInsideCrop | UnderCanopy | |
---|---|---|

$\alpha $ | −49.75 | 59.76 |

${\beta}_{\mathrm{HorizontalAccuracy}}$ | 337.37 | 103.98 |

${\beta}_{\mathrm{HeadingAccuracy}}$ | - | - |

${\beta}_{\mathrm{SpeedAccuracy}}$ | - | - |

Characteristics | Total Model | Stepwise Model |
---|---|---|

${\beta}_{{\mu}_{X}}$ | ✔ | ✔ |

${\beta}_{{\sigma}_{X}}$ | ✔ | ✔ |

${\beta}_{{\gamma}_{X}}$ | ✔ | ✔ |

${\beta}_{{\mu}_{Y}}$ | ✔ | ✔ |

${\beta}_{{\sigma}_{Y}}$ | ✔ | - |

${\beta}_{{\gamma}_{Y}}$ | ✔ | ✔ |

${\beta}_{{\mu}_{I}}$ | ✔ | ✔ |

${\beta}_{{\sigma}_{I}}$ | ✔ | - |

${\beta}_{{\gamma}_{I}}$ | ✔ | ✔ |

Accuracy [%] | 70.22 | 70.84 |

AIC | 1546.41 | 1541.36 |

LL | −753.21 | −754.68 |

DOF | 20 | 16 |

LRT | 2.944 | |

p-value | 0.57 |

LiDAROcclusion | LiDARInsideCrop | |
---|---|---|

$\alpha $ | −1.32 | 0.73 |

${\beta}_{{\mu}_{X}}$ | 1.65 | 0.47 |

${\beta}_{{\sigma}_{X}}$ | 1.78 | −0.07 |

${\beta}_{{\gamma}_{X}}$ | −1.08 | −0.09 |

${\beta}_{{\mu}_{Y}}$ | −2.31 | −0.44 |

${\beta}_{{\sigma}_{Y}}$ | - | - |

${\beta}_{{\gamma}_{Y}}$ | 0.74 | 0.33 |

${\beta}_{{\mu}_{I}}$ | 5.75 | 1.00 |

${\beta}_{{\sigma}_{I}}$ | - | - |

${\beta}_{{\gamma}_{I}}$ | −0.53 | −0.82 |

Characteristics | Total Model | Stepwise Model |
---|---|---|

${\beta}_{{\mu}_{G}}$ | ✔ | ✔ |

${\beta}_{{\sigma}_{G}}$ | ✔ | ✔ |

${\beta}_{{\gamma}_{G}}$ | ✔ | ✔ |

${\beta}_{{\sigma}_{lap}^{2}}$ | ✔ | ✔ |

Accuracy [%] | 93.76 | 93.76 |

AIC | 1619.65 | 1619.65 |

LL | −789.83 | −789.83 |

DOF | 20 | 20 |

LRT | 0 | |

p-value | 1.00 |

Ideal | HighBrightness | CameraOcclusion | LowBrightness | |
---|---|---|---|---|

$\alpha $ | 2.01 | −4.53 | 1.56 | −13.18 |

${\beta}_{{\mu}_{G}}$ | −3.53 | 17.31 | −2.98 | −13.11 |

${\beta}_{{\sigma}_{G}}$ | −8.72 | 2.65 | −2.09 | −2.22 |

${\beta}_{{\gamma}_{G}}$ | −1.85 | −1.25 | 11.00 | 10.78 |

${\beta}_{{\sigma}_{lap}^{2}}$ | 17.95 | 10.01 | 6.44 | 16.83 |

Crop? | InsideCrop to OutsideCrop | OutsideCrop to InsideCrop | OutsideCrop to UnderCanopy | |||
---|---|---|---|---|---|---|

GNSS | LiDAR or Camera | GNSS | LiDAR or Camera | GNSS | LiDAR or Camera | |

Yes | 0 | 70 | 24 | 165 | 0 | 192 |

No | 170 | 23 | 10 | 0 | 0 | 9 |
