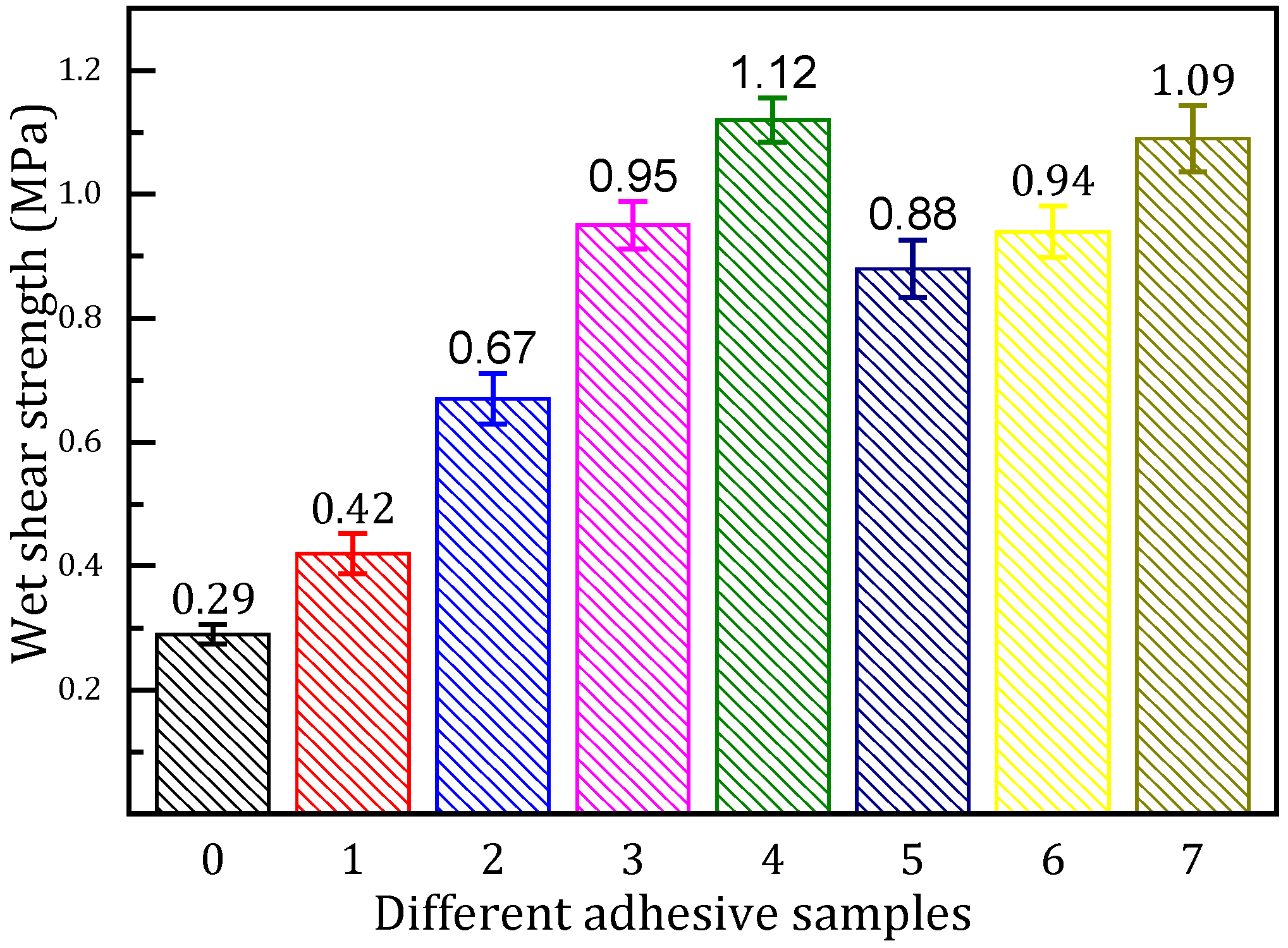

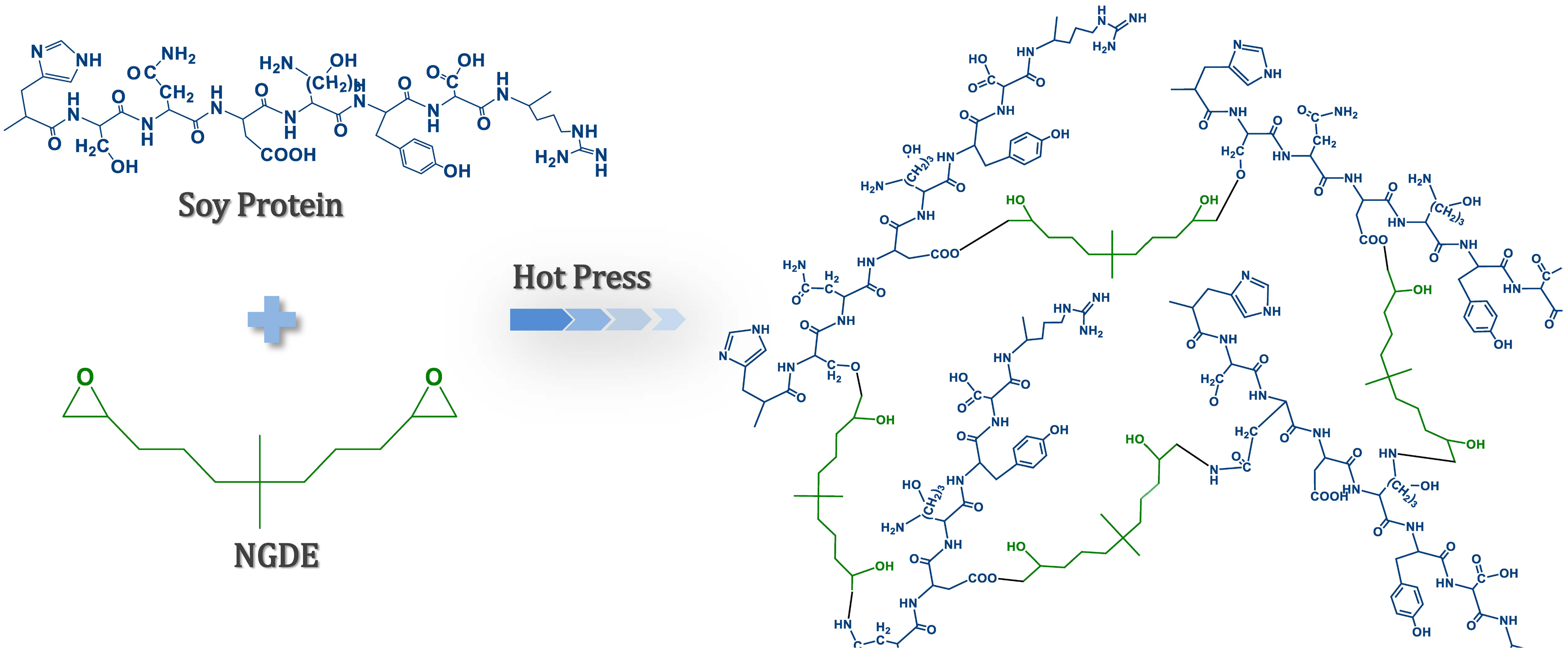

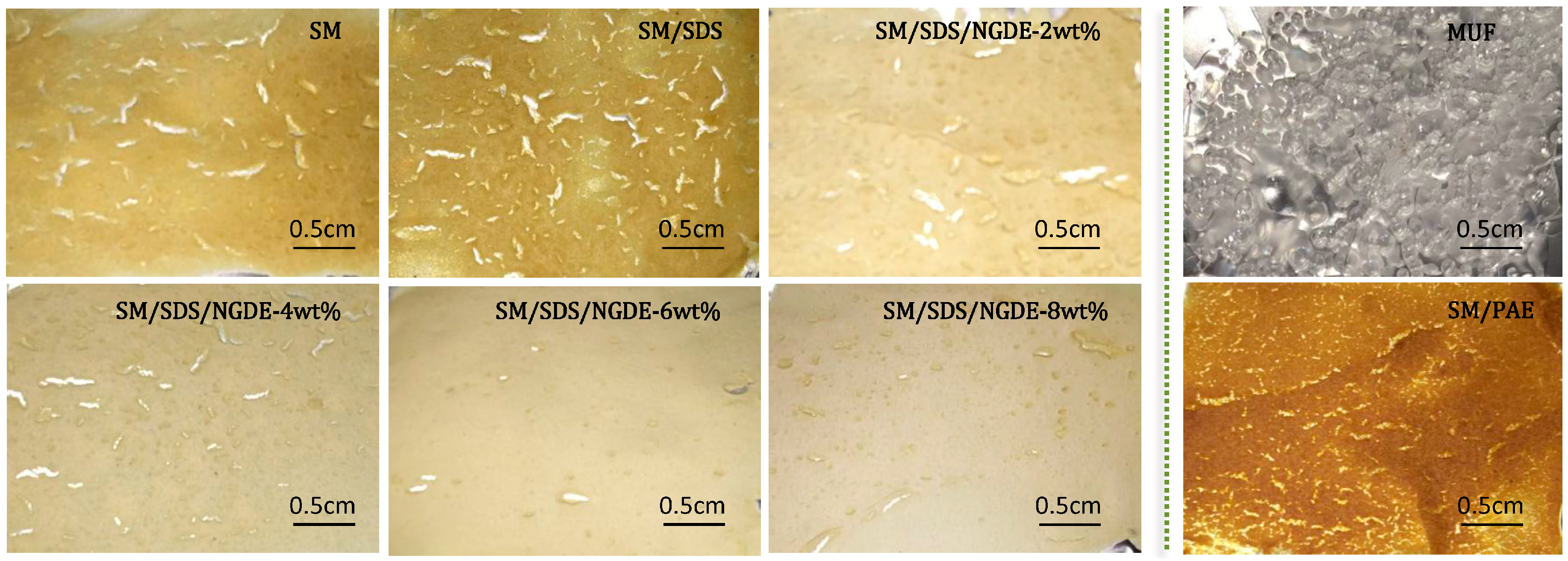

Soy-based adhesives inherently possess low water resistance and brittleness, which limit their application on plywood fabrication. This investigation involves using a long chain cross-linker, neopentyl glycol diglycidyl ether (NGDE), to produce an intrinsic toughening effect to reduce the brittleness and improve the water resistance of a soybean meal–based adhesive. The solids content, viscosity, functional groups, fracture surface micrographs, and thermal stability of the adhesives were measured. Three-layer plywood was fabricated using the resultant adhesive, and the tensile shear strength of the plywood was measured. All adhesive properties were compared with a soybean meal/polyamidoamine-epichlorohydrin (PAE) adhesive and commercial melamine urea formaldehyde resin. The results showed that adding 6 g NGDE improved the water resistance of the soybean meal-based adhesive by 12.5%. This improvement is attributed to the following reasons: (1) a dense cross-linked network is formed by the chemical reaction between NGDE and protein molecules; (2) the toughness of the adhesive increases and a smooth and homogeneous fracture surface is created, which effectively prevents moisture intrusion; (3) the addition of NGDE increases the thermostability of the cured adhesive. The tensile shear strength of the plywood bonded with the soybean meal-based adhesive with 6 g NGDE was 286.2% higher than that without NGDE and attained 1.12 MPa, which was attributed to the reduction in the adhesive’s viscosity, and the improvement in the water resistance and toughness of the adhesive. The tensile shear strength of the plywood bonded with 6 g NGDE was 19.1% higher than that with 6 g PAE and was similar to the MUF resin, which validated the novel adhesive being suitable for use as an industrial plywood adhesive.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
