Next Article in Journal
Influence of Solvent and Substrate on Hydrophobicity of PLA Films
Next Article in Special Issue
Populus alba L., an Autochthonous Species of Spain: A Source for Cellulose Nanofibers by Chemical Pretreatment
Previous Article in Journal
Polybenzoxazine Resins with Cellulose Phosphide: Preparation, Flame Retardancy and Mechanisms
Previous Article in Special Issue
Preparation, Characterisation and Antibacterial Activity of Carvacrol Encapsulated in Gellan Gum Hydrogel
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

A Comprehensive Review on Natural Fibers: Technological and Socio-Economical Aspects

Azizatul Karimah
Muhammad Rasyidur Ridho
Sasa Sofyan Munawar
Yusup Amin
Ratih Damayanti
Muhammad Adly Rahandi Lubis
Asri Peni Wulandari
Apri Heri Iswanto
Ahmad Fudholi
Mochamad Asrofi
Euis Saedah
Nasmi Herlina Sari
Bayu Rizky Pratama
Widya Fatriasari
Deded Sarip Nawawi
Sanjay Mavinkere Rangappa
15,* and
Suchart Siengchin
Research Center for Biomaterials, National Research and Innovation Agency (BRIN), Jl Raya Bogor KM 46, Cibinong 16911, Indonesia
Forest Products Research and Development Center, Ministry of Environment and Forestry, Bogor 16610, Indonesia
Department of Biology, Faculty of Mathematics and Science, University of Padjajaran, Jatinangor 45363, Indonesia
Indonesian Sweetener and Fiber Crops Research Institute (ISFCRI), Ministry of Agriculture, Malang 65152, Indonesia
Department of Forest Product, Faculty of Forestry, Universitas Sumatera Utara, Medan 20155, Indonesia
JATI-Sumatran Forestry Analysis Study Center, Jl. Tridarma Ujung No. 1, Kampus USU, Medan 20155, Indonesia
Solar Energy Research Institute, Universiti Kebangsaan Malaysia, Bangi 43600, Malaysia
Research Centre for Electrical Power and Mechatronics, National Research and Innovation Agency (BRIN), Kawasan LIPI Cisitu, Bandung 40135, Indonesia
Department of Mechanical Engineering, Kampus Tegalboto, University of Jember, Jember 68121, Indonesia
Center for Development of Advanced Science and Technology (CDAST), Advanced Materials Research Group, Kampus Tegalboto, University of Jember, Jember 68121, Indonesia
Indonesia Natural Fiber Council (DSI), Gedung Smesco/SME Tower Lt. G (APINDO UMKM Hub), Jl Gatot Subroto Kav. 94 Pancoran, Jakarta Selatan 12780, Indonesia
Department of Mechanical Engineering, Faculty of Engineering, University of Mataram, Mataram 001016, Indonesia
The Graduate School, Kasetsart University, Chatuchak, Bangkok 10903, Thailand
Department of Forest Products, Faculty of Forestry and Environment, IPB University, Bogor 16680, Indonesia
Natural Composites Research Group Lab, Department of Materials and Production Engineering, The Sirindhorn International Thai-German Graduate School of Engineering (TGGS), King Mongkut’s University of Technology North Bangkok, Bangkok 10800, Thailand
Authors to whom correspondence should be addressed.
Polymers 2021, 13(24), 4280;
Submission received: 5 November 2021 / Revised: 27 November 2021 / Accepted: 30 November 2021 / Published: 7 December 2021


Asian countries have abundant resources of natural fibers, but unfortunately, they have not been optimally utilized. The facts showed that from 2014 to 2020, there was a shortfall in meeting national demand of over USD 2.75 million per year. Therefore, in order to develop the utilization and improve the economic potential as well as the sustainability of natural fibers, a comprehensive review is required. The study aimed to demonstrate the availability, technological processing, and socio-economical aspects of natural fibers. Although many studies have been conducted on this material, it is necessary to revisit their potential from those perspectives to maximize their use. The renewability and biodegradability of natural fiber are part of the fascinating properties that lead to their prospective use in automotive, aerospace industries, structural and building constructions, bio packaging, textiles, biomedical applications, and military vehicles. To increase the range of applications, relevant technologies in conjunction with social approaches are very important. Hence, in the future, the utilization can be expanded in many fields by considering the basic characteristics and appropriate technologies of the natural fibers. Selecting the most prospective natural fiber for creating national products can be assisted by providing an integrated management system from a digitalized information on potential and related technological approaches. To make it happens, collaborations between stakeholders from the national R&D agency, the government as policy maker, and academic institutions to develop national bioproducts based on domestic innovation in order to move the circular economy forward are essential.

Graphical Abstract

1. Introduction

Scientists, researchers, and practitioners around the world have recently been working to maximize the potential of natural fibers to create the most sustainable, biodegradable, and high-quality natural fiber products [1,2,3]. Natural fibers, which are renewable and ecologically acceptable sources of raw materials for producing environmentally friendly products, have played a significant part in human civilization [1]. Natural fibers have many advantages over synthetic fibers, including lower density, lighter weight, lower cost, biodegradability, minimal health hazards during processing, abundant availability and ease of availability, low investment at low cost for production, lower energy requirements, and lower CO2 emissions, indicating that they have great potential as a substitute for glass, carbon, or other synthetic fibers. Natural fibers are desirable bio-sourced materials as an alternative to non-sustainable glass and carbon fiber reinforced composites owing to their availability and technical viability.
From the physical and mechanical properties point of view, natural fiber has relatively high tensile strength and Young’s modulus, good thermal, good acoustic insulation characteristics, and high electrical resistant [1,2,3,4,5,6,7,8]. Furthermore, chemical properties of natural fibers, such as high cellulose content, have a strong relationship with tensile properties, crystallinity, and density [1,7]. Notwithstanding, natural fibers have some drawbacks that need to be enhanced, such as low impact strength, non-uniformity in quality and price, poor moisture resistance, low durability, low compatibility, low adhesion efficiency, moisture absorption, and poor wettability [9,10,11,12,13,14]. Therefore, to achieve adequate uses and overcome some natural fiber limitations such as biocompatibility and hydrophilic properties, appropriate technologies should be applied for instance by surface modifications and chemical treatment methods [3].
Natural fibers have been successfully applied to a wide range of applications, for instance, furniture, automotive, electronic industries, and building construction. According to Ahmed et al., the wear resistance of Areva javanica fiber brake pads is 16% higher than acrylic fiber-based brake pad; hence, the A. javanica fiber can be used as a possible substitute for synthetic acrylic fiber-based disc brake pads [15]. One example in the automotive sector is the utilization of hybrid kenaf-glass reinforced epoxy composite for passenger car bumper beams [16]. Chandramohan and Bharanichandar [17] also develop natural fiber reinforced polymer composites for automobile accessories and conclude that one of the best materials is the hybrid of sisal and rosella. Plastic/wood fiber composites are used in a variety of applications, including decks, docks, window frames, and molded panel components [18]. Furthermore, corn husk fiber/polyester composites have also been used as sound absorbers to replace glass fiber composites [19].
According to all the development technologies and the availability of natural fibers mentioned above, the utilization of natural fibers can improve economic growth and the well-being of citizens. Industries that use natural fibers as a raw material provide a major source of revenue. Various studies have already been conducted on the use of natural fibers, namely, as reinforced composites in biomedical applications [20,21,22], automotive devices [23], aerospace [24], and textile resources [25]. This study provides more information about the potential of Indonesian natural fibers from technological and socio-economical aspects.

2. Overview on Natural Fibers

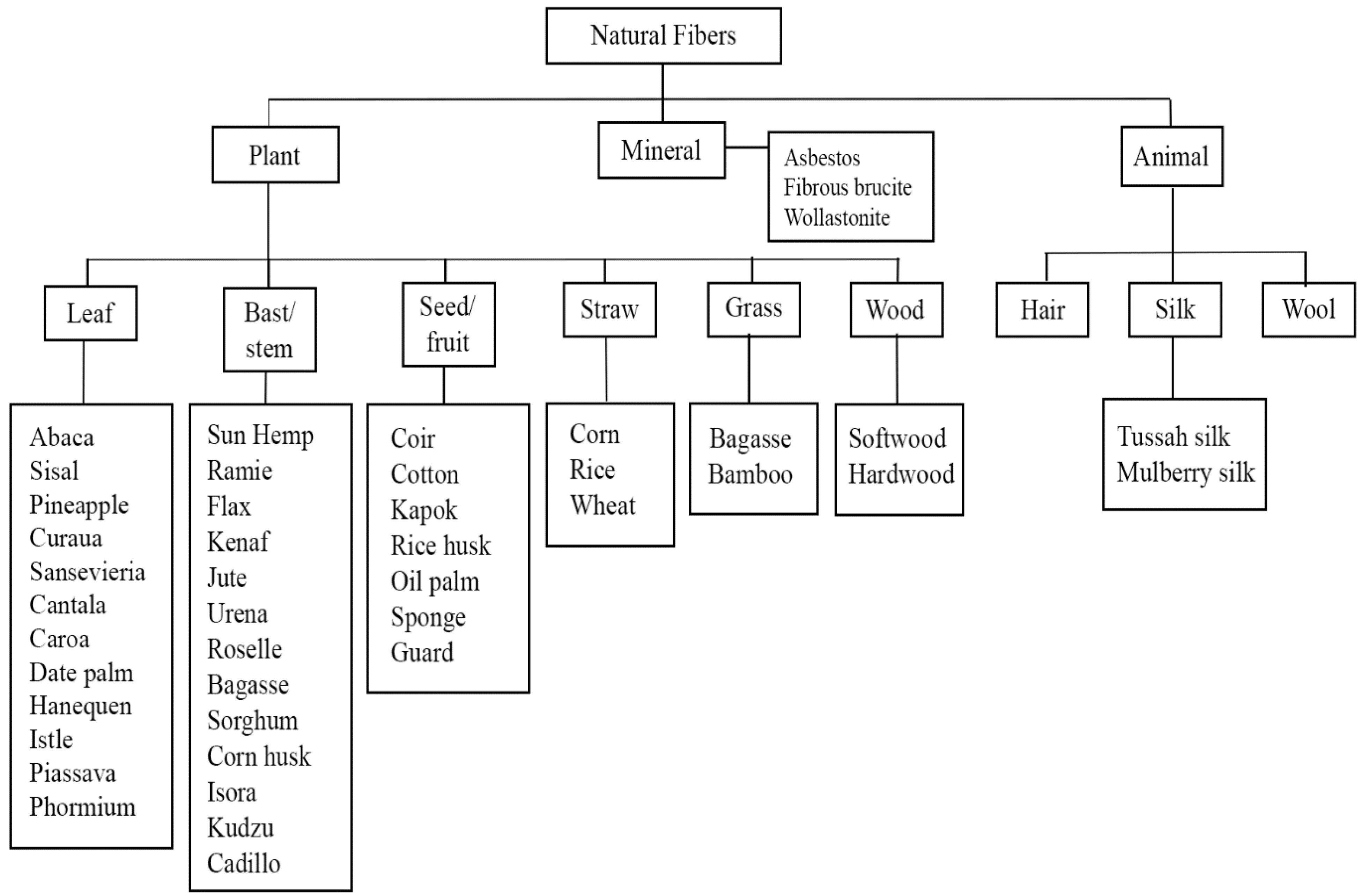

The most common classification for natural fibers is from botanical forms. Natural fibers can be classified into five types [26]: Other forms include (1) bast fibers (for example abaca, sisal, pineapple), (2) leaf fibers (such as ramie, flax, kenaf), (3) seed fibers (coir, cotton, and kapok), (4) grass and reeds (wheat, corn, and rice), and (5) wood and roots. A more comprehensive list of fiber classifications can be found in Figure 1. A variety of fibers are produced by several plants. For example, jute, flax, hemp, and kenaf have both bast and core fibers, whereas agave, coconut, and oil palm have both fruit and stem fibers. Both stem and hull fibers can be found in cereal grains [27].
The musa plants (Musa acuminata) are native to the South-East Asia and belong to the Musaceae family [6,28,29]. This plant produces biomasses that are categorized as useful materials with high fiber materials, such as bunches, pseudo-stems, leaves, and stalk [30]. Banana is widely available in tropical countries such as Malaysia and South India [31]. It is the fourth most important crop in developing countries [32]; meanwhile, tropical and subtropical countries also have sufficient natural resources [6,28,29]. However, approximately 88.84% of the waste with a high fiber content was discarded [33]. The tree becomes waste after one season of fruit harvesting and cutting it allows for the growth of new plants [34]. After the banana trees have been cut down, they are dried and processed to extract the fiber [34,35]. High low elongation at break, light weight, good fire resistance, strong moisture absorption, low density, high tensile strength, and modulus are some of the advantages of banana fiber [36].
Abaca (Musa textilis) fiber is classified as leaf fiber in some classifications, but it is classified as a stem fiber in others, especially those derived from pseudo stem [37]. This plant grows to a height of 4.5 to 7.5 m and has a stem diameter of 12.5 to 20 cm. The stem was surrounded by a tangle of large, piled-up fronds. Fibers with a width and length of 12.5 to 30 cm and 1.5 to 2.5 m, respectively, are found in the leaf fronds [38]. The abaca fiber has high tensile strength and is resistant to banding and sea water. The position of the frond on the stem influences its fiber quality, with the outer part being stronger than the inner part. Additionally, abaca fiber has excellent flotation properties [38]. Abaca is widely planted in Talaud, North Sulawesi, and from this location, five local superior varieties were released in October 2019 [39].
Pineapple leaf fibers (Ananas comosus L. Merr.) are one of the waste materials available in South East Asia, India, and South America that has not been fully explored [40]. In addition, after Philippines and Thailand, Indonesia contributes 23% of pineapple production. Almost all of Indonesia’s regions have ideal tropical climates for growing pineapple plants. On the other hand, the pineapple plantation needs more development by applying superior varieties and appropriate cultivation techniques [41]. These plants grow in moist and dry climates, as well as tropical and subtropical regions [42]. However, these plants tend to grow at temperatures between 18–45 °C and at altitude below 800 mdpl, due to high altitude and extreme temperatures influencing the size and quality of pineapple plants [40]. With a fiber yield of 1.55% to 2.5% [43], pineapple leaf fibers could become a new source of raw material for industries [40], such as polymer composites reinforcement [42], and could also be used to replace synthetic fibers [40,43]. Additionally, they have a softer texture than other vegetable fibers [43], as well as a high strength and smooth surface [42].
Bamboo is a type of lignocellulose material from the grasses (Graminae) family that has a wide range application as a potential fiber source. Bamboo fiber is a type of natural fiber that aligns in longitudinal directions, according to Zakikhani et al. [44] and Wang and Chen [45]. After India and China, Indonesia is ranked the third place in bamboo production [46]. Bamboo has the highest productivity [47], is easy to grow, and harvests quickly when compared to other non-wood forest products [48,49]. Indonesia has 160 bamboo species, 88 of which are endemic [50]. Betung bamboo (Dendrocalamus asper (Schult.f)) is one of the most common species in Indonesia [51]. Betung bamboo has better fiber morphology and physical–chemical properties compared to the other species, followed by the yellow bamboo (Bambusa vulgaris Scharader ex Wendland), andong bamboo (Gigantochloa pseudoarundinaceae (Steud) Widjaja), tali bamboo (Gigantochloa apus (Schutz)), and black bamboo (Gigantochloa atroviolacea Widjaja) [52]. In the textile industry, this plant is used in two ways: to produce natural (bast) fiber by physical and chemical treatment and to spin regenerated (pulp) fiber through retting bamboo plant into pulp [53].
Cotton fiber (Gossypium sp.) is a type of fruit fiber that is used as a primary raw material for textile, health, and beauty products [54]. The cotton production was about 2.558 tons, with a plantation area of 11.287 Ha [55]. Even though the domestic cotton demand is increasing, the supply is not keeping up. Low cotton production and less farmer interest in planting are to blame [56]. Cotton is classified into three classes based on the length and smoothness of the fibers: long, medium, and short cotton fibers with lengths of 1.5, 0.5 to 1.3, and 0.3 to 1 inch, respectively [20]. Training on cultivation techniques and the use of superior seeds are needed to increase cotton productivity [57].
Ramie (Boehmeria nivea S. Gaud) is a kind of compatible fiber, making it is simple to be combined with a variety of other fibers [25]. Ramie is a fast-grown and branchless plant that can reach a height of 1 to 2 m. The stem-extracted bast fibers are the strongest and the longest natural bast fibers [58]. The productivity of ramie fiber is determined by the stem’s height, diameter, skin thickness, and fiber yield (fiber content per stem). Since the fiber production can be carried out every 2 months, harvesting is conducted 5 to 6 times per year in tropical areas like Indonesia. China grass crude fiber contains around 2–4% of fresh stalk, 1–3% of degummed fibers, and 1–2% of hemp top [59,60]. Furthermore, ramie production is about 100 thousand tons per year, which is higher than abaca fiber production, at about 70 thousand tons per year [61]. According to Soeroto [62], these plants could grow in Indonesia’s middle to highland areas, with the highest productivity in the highlands (700 mdpl) from 2.5 to 3.0 tones/ha/year [63]. Ramie productivity per hectare is much higher than cotton [64] and its fiber quality is higher than cotton with the color and luster comparable to natural silk. Furthermore, ramie absorbs 12% of water while cotton absorbs just 8% [65].
Sisal (Agave sisalana L.) is a good fiber-producing plant that can be grown on dry land and is resistant to soil with a high salt content [66]. Because of its ease of cultivation and fast renewal times, sisal fiber accounts for half of all textile production [67]. Indonesia produces 500 tons of sisal fiber per year, which is obtained from the plant’s leaves [61]. According to Mukherjee and Satyanarayana [67], sisal plants can produce 200 to 250 leaves per year, with each leaf containing 1000 to 1200 fiber bundles. Furthermore, each bundle contains 87.25% water, 4% fiber, 0.75% cuticle, and 8% dry matter. Sisal fibers are characterized by their hardness, strength, and yellowish white color. Each leaf of 1000 fiber bundles contains 4% fiber [68], which has not been used to its full potential [37].
Coconut (Cocos nucifera) is a plantation plant that produces fiber from its fruit for use in furniture, crafts, and probably polymer composite reinforcements [69]. Coir fiber can be obtained from coconut, and it has the thickest, the most resistant, and the lowest decomposition rate of all-natural fibers. It is ideal for rope production due to its high strength [70]. Fruit cultivation and pruning produce a significant amount of coir fiber [71,72]. Furthermore, coconut cultivation produces coir and pith, which account for around 35% of the total weight of the crop [73].
Sansevieria is a genus of ornamental plants in the Agavaceae family that grows from lowlands to highlands in the tropics and sub tropics [74]. This plant is xerofit with thick leaves due to high moisture content [75] with a spherical, half-shaped leaf style round, stiff as a blade, short curved, and sunken fleshy. The leaves have smooth and corrugated margins, and the tips are tapered, pointy, and blunt [76]. In addition, fibers from Sansevieria were extracted using the retting method [14]. It may be used as textile raw materials, an absorbent of pollutants, and cancer cell inhibitor [76,77,78,79,80]. It is also used to treat diseases like stomach pain, earaches, diarrhea, hemorrhoids, fungi, scabies infections [81], as well as for anti-inflammatories, analgesics, antipyretics, antioxidants, and antimicrobial activity [82], and as raw material for handicrafts [83].
Jute fibers (Corchorus capsularis and C. olitorius) are off-white to brown in color and range in length from 1 to 4 m, which is obtained from the bast or skin of the plant. Jute fibers with a large amount of cellulose, high tensile strength, and low extensibility could be grown in 4 to 6 months. They have better fabric breathability, are free of narcotics or odor, have strong insulating and anti-static properties, low thermal conductivity, and mild moisture recovery. Jute fibers are appealing because they are biodegradable, recyclable and environmentally friendly [84]. According to Suliyanthini [38], these fibers have very low creep, are brittle, and have a coarse nature that limits the fineness of the yarn. Packaging, sack material, tapestry coatings, electrical insulation, an industrial fiber for carpet coatings, electrical, rigging, tarpaulin, roofing materials, automotive manufacture, and straps are some of these fiber applications [38,85]. Because of broken hair that may cause food contamination, jute fiber is not appropriate for certain forms of food [38]. Jute plants have short, tall, straight stems with leaves at the top of the tree, and the fibers are derived from them. The jute tree grows to a height of 1.5 to 4.8 m and has a stem diameter of 1.25 to 2.0 cm [38]. Furthermore, the retting method may be used to draw these fibers [86].
Kenaf fiber comes from the Hibiscus cannabinus L. plant stem, which has been grown since 1979/1980 as part of the ISKARA (intensification of community sack community) program [87]. These plants are adaptable and can be grown on a variety of surfaces, including peat [88] and flooded soil [88,89]. Depending on the variety and growing climate, kenaf productivity can range from 2.0 to 4.0 tons of dry fiber/ha [90]. It is an annual plant with a stem diameter of 1.25 cm and a height of 2.5 to 3.75 m [38]. According to previous records, India and Pakistan are the world’s top kenaf producers. Tropical and subtropical climates with high humidity, heavy rain, and no strong winds are ideal for these plants. They thrive in loose, well-draining soil and are planted similarly to jute. They can be harvested 4 to 5 months after they begin to bloom [38,91].
Bombix mori caterpillar cocoons are used to make silk fiber [35,92]. Due to its high tensile strength, strong degree of resilience, elasticity, flexibility, biodegradation, and great biocompatibility, it is considered a possible biomaterial that supports cell attachment and proliferation [92,93,94,95,96,97,98]. Silk fibers are strong, smooth and crease resistant, with a high capacity to absorb water. Furthermore, these fibers are used in the manufacture of women’s clothes, socks, ties, and tissue engineering [35]. They are considered as the most desirable and coveted fibers because of their relative rarity, unique luster, softness, and drape [99]. Wool is the most essential animal fiber, and it is obtained from sheep, in either a staple or short form. It contains keratin protein, lanolin (an external lipid), and a small amount of internal wool lipid (about 1.5%) [100,101]. Clothing, sweaters, blankets, rugs, weaving, and knitting all use wool as a raw material [35].
Collagen is a connective tissue extracellular matrix that is derived from the skin and bones of animals and comprises 30% protein [102]. It is commonly used in biomedicine, medicinal food, food and drug growth, and cosmetics [103]. It has been used as a homeostatic agent, bone tissue regeneration, membrane oxygenator, contraception (barrier method), implant, and drug delivery system in biomedicine. In the cosmetics industry, collagen is used as an emulsifier and foaming agent in the food industry, while in the field of cosmetics, it becomes an active ingredient used to avoid the incidence of premature aging (anti-aging) [103]. Chemical processes and the combination of both enzymatic and chemical processes [104] have been used to isolate collagen (acid-soluble collagen and pepsin-soluble collagen) [105]. To make certain products, collagen fibers in animal skin are processed into leather through a tanning process [103]. Footwear, clothing, gloves, leather goods, heavy leather, and upholstery are all made of leather [35].
Corn is the most common crop found in every region of many Asian countries. The potential of corn plants in providing natural fiber is very high, such as the stems, leaves, and skins of corn. Cornhusk fiber contains cellulose, hemicellulose, and lignin of 46.15%, 33.79%, and 8.92%, respectively. The tensile strength value of corn husk fiber is 169.49 MPa, which is higher than the tensile strength of glass fiber, which is 1.7–3.5 MPa [7]. Modification of corn husk fiber using sodium hydroxide (NaOH) solution with a concentration of 0.5–8% is known to reduce the hydrophilic properties, and increase the crystallinity, tensile strength, and thermal resistance of the fibers [7]. The addition of corn husk fiber to polymer composites can increase the tensile strength, bending strength, and toughness properties of the polyester composite [19,106]. Although immersed in water and exposed to ultraviolet (UV) light, the mechanical properties of the corn husk fiber composite were still quite high compared to the “pandan wangi” fiber-reinforced composite. In several previous studies, this corn husk fiber composite was found suitable to be used as a substitute for wood, soundproofing panels, and building materials [19,106]. Figure 2 shows some natural fiber resources.

3. Technological Perspective of Natural Fibers Processing

Temperature, humidity, height, growing site, local climatic conditions, season, and harvesting are all factors influencing the quality and structure of natural fibers [39,107,108,109]. Handling method, storage period and condition, and harvested plant portion can all affect fiber qualities [107,108,109]. Some of the elements should be closely monitored to acquire the best fiber characteristics.
Natural fibers include kapok, ramie, pineapple, sansevieria, kenaf, abaca, sisal, and coconut fiber, as well as bamboo [110]. Bamboo has a greater ultimate strength [111] than other fiber bioresources like jowar and sisal, which may be tested in single unit fiber or fiber-bundle tests. Practically, the last test is preferable because it is easier to administer and yields faster findings [110]. The mechanical properties of fibers were also influenced by their microstructure and chemical composition (cellulose, hemicellulose, and lignin) [112], and the fiber-cross-sectional area became the key variable controlling the fiber strength [110]. Aside from that, the extraction method and chemical treatment have an impact on fiber tensile strength. Deka et al. [113] observed that alkali soaking increased the tensile strength of Parthenium hysterophorus fiber.
According to De Farias et al. [114], cellulose content has a significant impact on tensile strength and Young’s modulus. The lignin content, on the other hand, had an inverse effect on those strength. Hemicellulose, pectin, and wax, like cellulose, play a role in specific Young’s modulus. The moisture gain of fiber is related to the quantity of hemicellulose and lignin [114]. Microfibril angle (MFA) has a negative and positive relationship with the pectin and lignin content, as well as hemicellulose, respectively, while failure strain value was affected by hemicellulose, lignin, and pectin content, respectively. Cellulose and pectin have a positive effect on density, while wax has a negative effect. Based on this knowledge, it is crucial to investigate the chemical composition of fiber as well as its mechanical and physical qualities.
Glass fiber and natural fibers are extensively distributed, with glass fibers being non-renewable and non-recyclable and natural fibers being the opposite. Natural fibers do not abrade the machine and are not harmful to the lungs when inhaled. According to their disposal viewpoint, glass fiber is a non-biodegradable material, whereas natural fibers are the opposite. Natural fibers have lower tensile strength than synthetic fibers, but they have several advantages, such as not being fractured during processing, equivalent stiffness, and specific strength to glass fibers [115]. They also have less Young’s Modulus and density [116] as well as less energy, density, and cost consumption [117] than synthetic fiber.
To match the use of natural fiber, it was necessary to understand the physical-mechanical properties. Natural fibers have porous qualities, which might make it is difficult to estimate a realistic density. Glass fiber has a higher density of 2.4 g/cm3 than natural fiber, which has a density of 1.2–1.6 g/cm3. As a result, it can be used to make light-weight composites [58]. The increase in porosity has a proportionate relationship with the lumen size and density of fiber [110]. Fiber bundle diameter tends to rise as density decreases. The specific toughness of bananas, hemp, pineapples, and jute fibers is high. Natural fibers are suitable as reinforcing components in composites because of their unique specific stiffness and tensile strength. Fiber bundle diameter tends to rise as density decreases. The specific toughness of bananas, hemp, pineapples, and jute fibers is high. Natural fibers are suitable as reinforcing components in composites because of their unique specific stiffness and tensile strength. Some of natural fiber, such as jute and sisal fiber, have the potential to replace glass and carbon fibers [118] in composites that demand a high strength-to-weight ratio and weight reduction in that application [119] due to their ease of availability and low cost.
Ramie, sansevieria, pineapple, sisal, and kenaf had low strain (2–6%) but high stress, while Cocos nucifera husk fiber had high stress (24%) but low strain [110]. Jute fibers displayed a similar pattern on the stress-strain curve of pineapple fiber [86]. Ramie bast fiber has cellulose content (69–97%) and a low spiral angle (7–12%), as well as a high molecular weight (69–97%), resulting in good mechanical properties [120,121,122,123,124]. Sisal fiber also possesses excellent porosity, tensile strength, bulk, folding strength, and absorbency [90]. Bast fibers were found to have low stiffness, but great strength and elongation, as well as elastic recovery. These fibers are widely available, inexpensive, and function well [125]. The mechanical strength of pseudo-stem banana fiber was also discovered. The flexural and tensile strength of glass fibers were enhanced when sisal or jute fiber were mixed in [31]. The addition of hay fiber, milkweed fiber, kusha grass, and sisal fiber boosted the tensile strength of polypropylene composite [126].
The principal constituents of lignocellulose, which included the cell walls, are cellulose, hemicellulose, and lignin. Aside from that, ash, silica, pectin, waxes, and water-soluble compounds [127,128,129] and oil [128,129] can be found in natural fibers. Plant growth conditions, harvesting period, geographical considerations, and fiber extraction technology all affect the chemical component within the same plant species [127]. To assure the quality of the manufacturing process, the impact of various plant material properties must be analyzed [130]. The fiber characteristic is determined by the angle of the microfibrils and their placement within the cell wall [131]. Figure 3 depicts the position of chemical components in the cell wall (a) and layer position in the secondary cell wall of a plant. Cellulose uses lignin and pectin as glue to join with hemicellulose. The cellulose content of cell wall increases from primary layer (S1) to secondary layer (S2), while the lignin content decreases. Hemicellulose content is found in equal amounts in each layer. The S2 layer is primarily responsible for the physical and mechanical strength of fibers. It has lower microfibrillar angle, higher cellulose content, and contribute to improve fiber strength properties [132,133].
Harvesting method, plant age, sample position in plant, environmental growth condition, and extraction fiber methodology all play role in this diversity, as previously indicated. Cotton linter, cotton, ramie, Mamordica charantia, flax, Henequen, and palmyrah are examples of natural fiber with a higher cellulose content than others. Because fibers with low lignin and high cellulose content have high tensile strength, numerous factors might influence this number, and therefore the relationship is not necessarily linear. The crystalline domains of cellulose have a substantial impact on the tensile strength, with more cellulose crystallinity resulting in higher fiber strength. The position of lignin on biomass affects tensile strength because it is wedged between cellulose and hemicellulose.
Some methods have been established in preparation of natural fiber which are summarized in Table 1. Dew retting and water retting process are two common techniques to separate the plant fibers that require about 14 to 28 days to degrade the waxes, pectin, hemicellulose, and lignin [131].

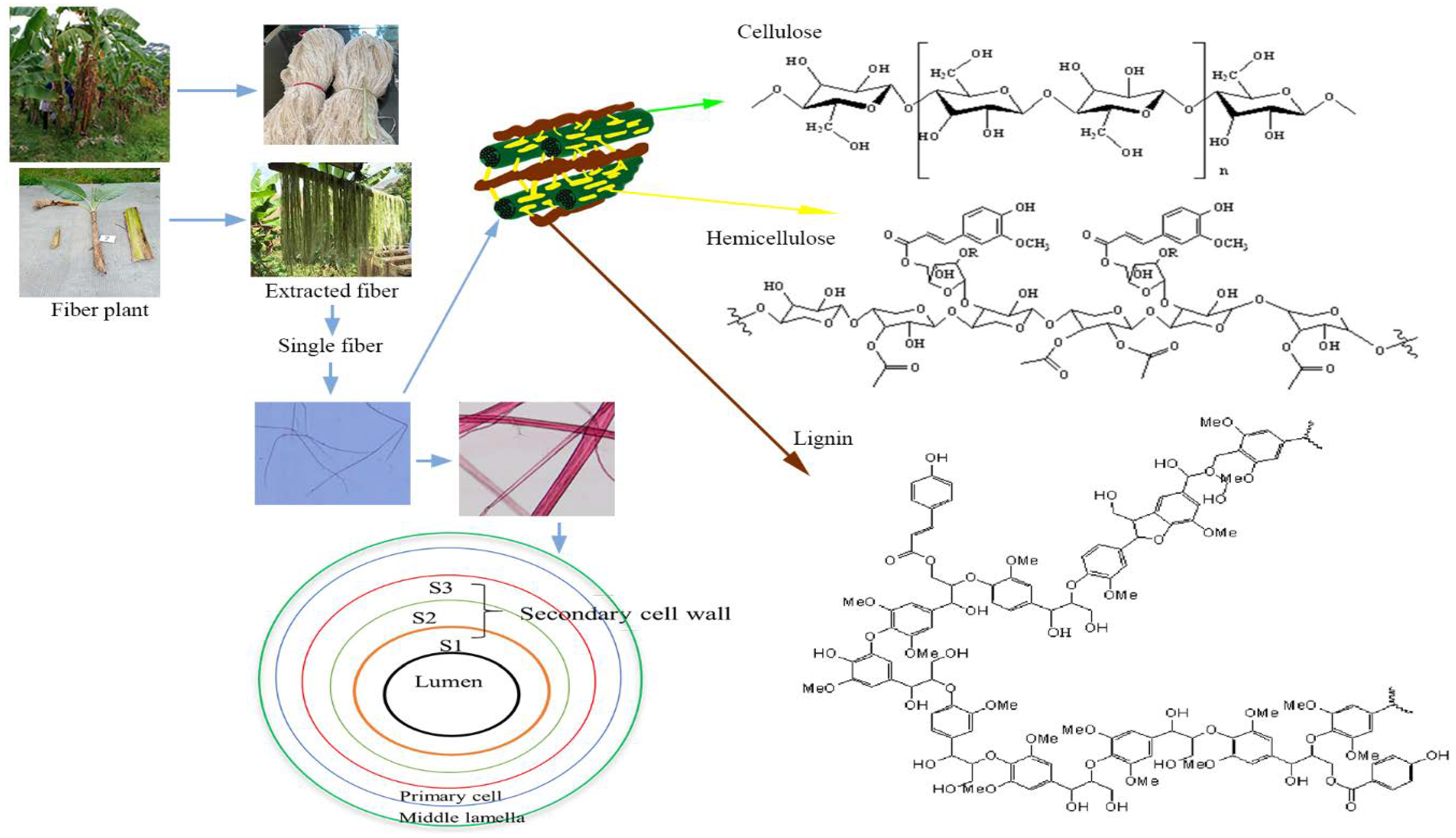

Figure 3 depicts the structures of cellulose, lignin, and hemicellulose [134]. The cellulose content of a plant is determined by its age and species. Cellulose has hexose sugar with greater thermal stability than hemicellulose’s branched structure. It is made up of a linear chain of glucose units linked together by (β (1→4) bonds with a high degree of polymerization (DP). Cellulosic plant fibers have high moisture absorption capacity and poor dimensional stability when exposed to water [144]. The hydrophobicity and hydrophilicity of fibers, as well as their interaction with the matrix, may alter fiber-matrix adhesion with natural fibers as reinforcement [145]. Different cell wall polymers of lignocellulosic materials influence the degradability and properties of natural fibers [146]. Furthermore, cellulose affects natural fiber strength, but lignin prevents UV breakdown and char production [1].
Hemicellulose, which has a low DP, is the third most abundant cell wall constituent of lignocellulosic biomass after cellulose and lignin. As a result, this biopolymer dissolves more quickly in the liquid fraction during biomass pretreatment. Pentose is the most prevalent hemicellulose in non-wood plants, hence a larger concentration effects fiber fibrillation, which raises the bonding potential of pulp sheets [147]. High hemicellulose content improves fiber flexibility during paper sheet usage, allowing it to swell and expand to a large surface area. The higher the crystallinity of cellulose, the less hemicellulose present. As a result, a low hemicellulose content promotes cellulose in the amorphous zone [148]. Thermal, biological, and moisture degradation, as well as absorption, are all caused by hemicelluloses in natural fibers [146]. Hemicellulose material has a favorable relationship with moisture sorption and biodegradation. In addition, hollow natural fibers have a lower/lighter bulk density and contain more water. The degree of crystallinity, orientation, swelling behavior, tensile strength, and porosity of fibers are all affected by their moisture content. As a result, the higher the moisture absorption, the higher the risk of microbial attack [149].
Excess amorphous material such as lignin, pectin, hemicellulose, wax, and cellulose are removed during the alkali process by adding NaOH. Reactive dye fixation is improved by the presence of –OH and –COOH groups in natural fibers [150]. The alkali treatment (adding NaOH) removes excess amorphous content such as cellulose, lignin, hemicellulose, pectin, and wax from natural fibers (Pennisetum orientale grass), whereas the alkali treatment removes excess amorphous content such as lignin, pectin, hemicellulose, wax, and cellulose. As a result, the thermal stability and density of the NaOH-treated fibers were higher than those of the untreated fibers and the HCl-treated fibers [151].
Lignin is a biological substance that helps plants maintain their structural integrity [152]. It is also the second most abundant biopolymer with an aromatic molecular structure after cellulose and forms an ester connection with hemicellulose. Lignin molecules include three active functional groups: namely, coniferyl alcohol (G), p-coumaryl alcohol (H), and synapyl alcohol (S). The most frequent connection in lignin is the aryl ether linkage (β-O-4), which accounts for nearly half of all links. This connection is more easily cleaved during lignin conversion and depolymerization. In natural fibers, lignin is also implicated in UV degradation and the formation of char [146]. Coir has a larger microfibrillar angle, as well as a reduced proportion of hemicellulose and cellulose, which impacts plant qualities like strength, durability, damping, wear, weather resistance, and high elongation at break [58].
Since lignin is an unwanted component in raw materials in pulping, it is typically removed during the pulping process in the pulp and paper industry. A complete delignification process could produce pulp with desirable Kappa numbers. Furthermore, delignification of samples with higher lignin content requires a significant quantity of chemical energy. Delignification of samples with decreased lignin content is possible under lower chemical charges and temperatures [147]. Binder-less fiber board with a high lignin content could be used as an adhesive source. It could also be extracted for use in high-value products including adhesives, biosurfactants, antibacterial agents, fine chemicals, lignosulfonate, and so on [1,153,154,155,156,157].
Cellulose content is one of the most important components in assessing the mechanical and physical properties of natural fibers; it is one of three main components (cellulose, hemicellulose, and lignin). The DP was reduced because of excessive chemical treatments such as pulping and bleaching. The number of glucose molecules in one cellulose chain is measured in DP. Depending on the cellulose source, the length of the cellulose polymer chain varies greatly. Plants with a DP of more than 10,000, for example, are vascular cellulose plants. The amount of DP released by a plant is determined by the process used to isolate and treat it. Pure cellulose has a DP of over 10,000 in most cases. Microcrystalline cellulose is another example, which is a high-level crystalline cellulose after going through hydrolyzed acid. Microcrystalline cellulose has a DP value of between 300 and 600 [158,159]. The DP value of microcrystalline cellulose ranges from 300 to 600. This is due to the strong chemical treatment that results in the breakage of the short cellulose chains, and it also influences the crystallinity, mechanical properties, and morphology of cellulose [160,161].
The crystallinity index, or degree of crystallinity, is used to determine the physical and mechanical properties of natural fibers. X-ray diffraction (XRD) at the crystalline peak at 2θ (22.6°) for diffraction intensity I200 (crystalline region) and 18° for diffraction intensity Iam (amorphous region) can be used to measure the degree of crystallinity of cellulose. The peak height method can be used to calculate the crystallinity [162,163].

4. Social and Economic Aspects on Utilization of Natural Fibers

Since prehistoric times, natural fibers have played a vital role in human society as a sustainable and ecologically beneficial source of raw materials that are easily degraded into environmentally friendly items and have the ability to absorb enough moisture. Natural fibers have a variety of fascinating properties, including low density, light weight, low cost, biodegradability, abundant accessibility, minimal health hazards during processing, relatively good basic strength and modulus, good thermal and acoustic insulation characteristics, physical properties, and ease of availability [125,131].
Natural fibers have been favored over synthetic fibers because of their superior qualities [125,131]. Natural fiber has been used as a raw material in a variety of industries, including aerospace, automotive, marine, building and construction, sports and leisure items, electronic appliances, military vehicles, biomedical purposes [10,11,15,16,21,22,164,165,166] as shown in Figure 4: Natural fiber applications are also increasing in textiles, packaging, printed goods, filters, automobiles, furniture, particleboard, insulation board, and other materials [167,168,169,170]. Woven-kenaf aramid and pineapple leaves were used in military vehicles, especially for ballistic purposes [166], and hard armor plate [166,171], respectively. In biomedical applications, natural fibers are in fiber-reinforced composites (FRC), such as various clinical fields [172] as described in Table 2. Hemp and sisal have been reported for utilization as cementitious construction and fancy materials in the construction field [173,174]. In the biomedical field, the most promising natural fiber candidate is undoubtedly cellulose, in the form of nanofibers. Nanocellulose has a variety of biomedical applications, including drug delivery, vascular grafts, skin tissue regeneration, antimicrobial membranes, medical implants, biosensors and diagnostics, and scaffolds [175]. Several methods have been developed to improve the compatibility of natural fibers and polymer matrices in order to enhance the physical and mechanical properties of targeted bioproducts. However, the acceptability of natural fiber and biocomposite materials by the human body is a critical requirement that must be addressed [176].
Natural fibers are a type of biomaterial used for reinforcement of polymer-based composites. Some agricultural plants, including ramie, sisal, and pineapple leaf fiber [107,108,109,110,183] and hybrid fibers of Egyptian and Qatari palm trees [176] and woven cotton fabrics [184] have reported used as bioresources of FRC. The manufacture of natural fiber composite materials or eco-friendly composites has become a popular topic as people become more aware of environmental sustainability. To minimize material weight, natural fibers may be a suitable option for replacing synthetic materials. Natural fiber reinforced polymer and resin composites have been widely used in a variety of industries, including automotive and aviation interior components, as well as military vehicles [166,185,186,187]. Because of their high specific qualities at a lower cost than synthetic fibers, they are appealing for several applications.
Miller [167] mentions the usage of hemp fiber in textile manufacture. The mechanical properties of the bio-based textile composites studied in this review are like those of some traditional materials. The use of pineapple leaf fiber as a reinforcement in the fabrication of yam starch films with packing potential was defined by Mahardika et al. [168]. Asrofi et al. [188] created a bioplastic made of tapioca starch and sugarcane stem fiber for reinforcement. The interior components of an automobile are composed of hemp fiber/polypropylene composites [169], while kenaf and wheat straw were used as vehicle spall-liners and quarter trim panel storage [189]. Natural fiber mats, aluminum sheets, and epoxy resins provide excellent electromagnetic interference prevention while keeping high mechanical qualities in hybrid composites [170]. Good specific properties, low cost, low density, good formability and processability, good mechanical properties, and a plentiful and sustainable source of raw materials are all the benefits of using natural fibers over synthetic fibers. Natural fibers, on the other hand, have a high moisture sensitivity [190,191]. The development of natural fiber composites in a variety of applications has paved new avenues in both academia and industry for the future applications of sustainable natural fibers.
As previously stated, several of the shortcomings of natural fibers should be addressed during the optimization of natural fiber applications. When used as a composite, the hydrophilic nature of natural fibers makes it difficult to adhere to a hydrophobic matrix, resulting in poor mechanical characteristics and processability [112]. Surface treatment methods applied include chemical and enzymatic treatments, corona treatment, and coupling agent addition [119,120,192,193,194,195,196,197]. Furthermore, the handling of the interfacial region before processing with thermoplastics at a temperature up to 200 °C, the interfacial treatment (surface treatment resins, additives, and coating) must be reinforced to address the low degradation temperature of natural fibers [107,198].
The Indonesian government has taken steps to encourage the use of natural fibers, such as appointing an institution to focus on the development of natural fibers and establishing a multi-stakeholder research community, namely, the Indonesian Ramie Consortium (KORI), to study specific natural fibers, primarily ramie. Ramie is a type of natural fiber that has become a national priority in Indonesia for widespread use. Figure 5 depicts the strategy for manufacturing of ramie development in Indonesia.

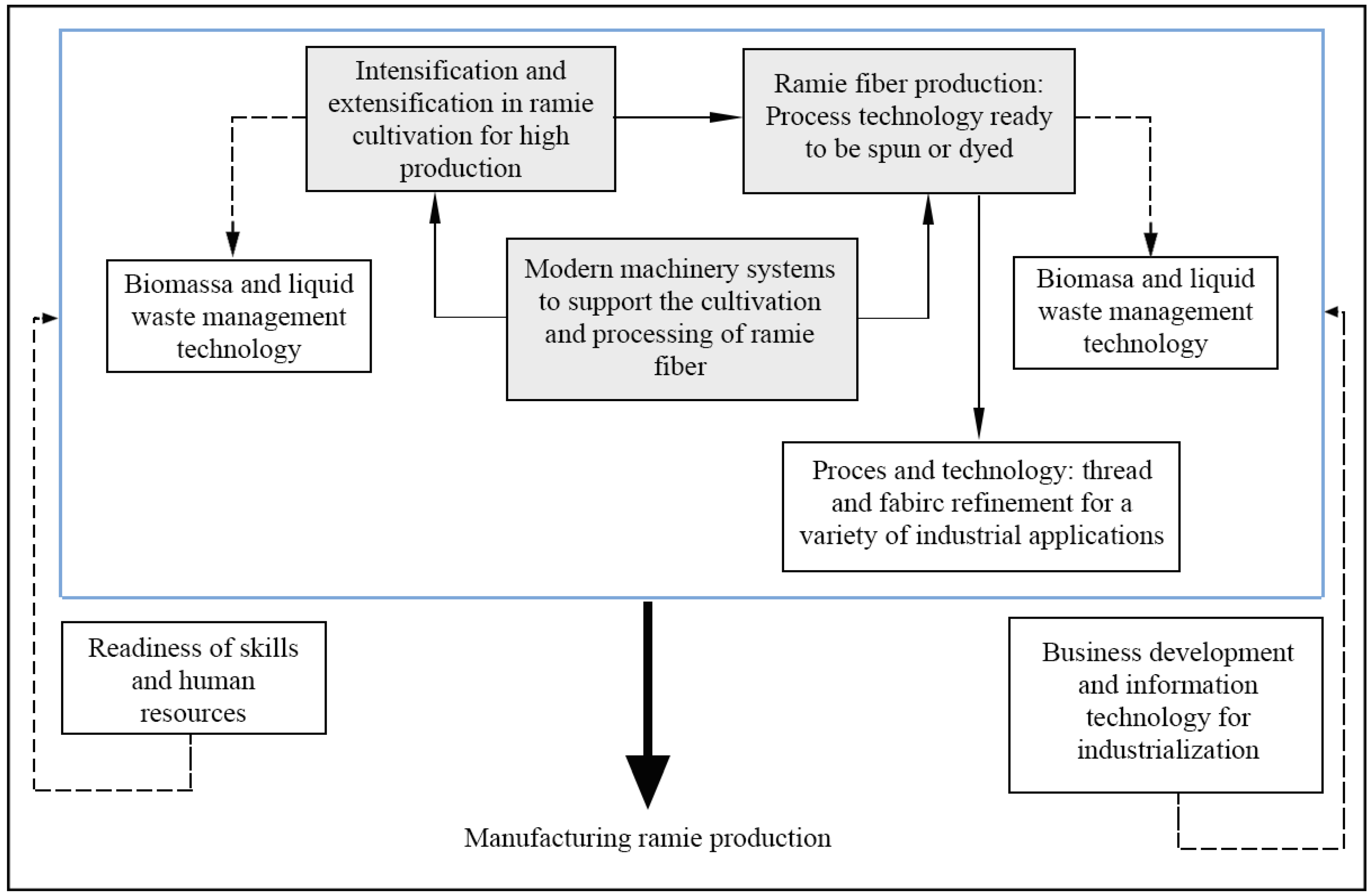

Manufacturing integration strategies in ramie processing systems to support large-scale production are to be developed with an emphasis on three main sub-systems: cultivation, fiber processing technology, and machining. The ramie-based industry will be able to support the functional value of the fiber or fabric of ramie for functional enhancement of the products. Strategies in business concepts and supply of human resources with competence in all aspects of processing systems will be able to support the realization of the manufacturing of ramie production in Indonesia. This research strategy is currently supported by the Indonesian government in the National Research Program, for the period 2020–2024.
Additionally, the Indonesia Natural Fiber Council (DSI) was founded in Indonesia to assist scientists, policymakers, and other stakeholders in the development of bioproducts generated from natural fibers. DSI proposed a road map for the Indonesian fiber sector from 2020 to 2024, with abaca, kenaf, bamboo, pineapple, sisal, cotton, and ramie as types of promising fiber to be further developed [199]. Furthermore, biduri (Calotropis gigantea) is a natural fiber that has the potential to be developed in Indonesia as a thermal and acoustic insulation material and filler material [200] and for winter jacket [201]. Biduri fiber production is predicted to be around 3.6 tons per hectare per year [200]. Some bioproducts, such as biopellets, food, textiles, biocomposites, and ecofriendly shoes, have been launched into the Indonesian market as a result of continued efforts. In addition, several small local businesses extract fiber from fresh pineapple leaves using basic techniques such as retting followed by decortication for clotes, handycraft, and other items. However, the process output is still low, with 2.5 kg of air-dry pineapple fiber produced from 100 kg of fresh leaf fiber and 97.5% of decorticator waste that has yet to be used (visualized in Figure 6). Banana stems are treated in a similar way to make banana fibers in this local enterprise. Until now, cotton has been the main fiber source in the Indonesian textile industry, but the qualities of local cotton have not met the requirements, so nearly all of it is imported, while the other fibers have been used to their full potential. Considering the potency and challenge, continual efforts to disseminate information about the various uses of natural fibers in the community are required.
Natural fibers play an important role in improving the quality of human life. However, waste can be generated during the product life cycle and during the processing of natural fibers into bioproducts. To achieve the most efficient utilization of resources, waste management should be conducted continuously by recycling and/or upcycling of waste, aside from innovation in the design of bioproducts. Shanmugam et al. [202] recognized recycling and the use of bio-based constituents as essential issues in adopting a circular economy (CE). CE adheres to the principles of reduce, reuse, recycle, and replace. CE is beneficial to the environment, economy, and society when used in FRC manufacturing. Given the numerous sustainability challenges confronting our societies, transitioning to a circular economy and closing resource loops through recycling is a viable solution [203]. Figure 7 proposes a CE concept based on natural fibers that is more considered than a linear economy concept for future resource conservation and environmental balance. The CE approach is gaining traction and has been proposed in some fields, such as carbon fiber manufacturing [204], agricultural sector [205] and biomass biorefinery [206], for gradually reducing energy consumption during the manufacturing process. Biomaterials in the CE present numerous challenges for the industry in terms of developing new network and commercial opportunities while remaining focused on consumer demands [206].
The development of an information system for Indonesian natural fibers, as well as collaboration with a variety of stakeholders such as research and development institutions, industries, policymakers (local and national), and universities, are ongoing efforts to bring Indonesian local industry independence. National innovation products made from natural fibers can be created by local industry in the future and sold at least locally, with Indonesians consuming them.
Natural fiber as lignocellulosic biomass has an economic chance to meet industrial needs, depending on the processing level that has been made to make its derivative products, including its market to accomplish. According to Ruamsook and Evelyn [207], there are four levels in which biomass can be processed and turned into value-added goods before being sold to potential demand markets (Figure 8). Farmers become the first important people actors to create their biomass as the major components of industrial needs, as indicated in this picture. Commodities such as corn, wheat, cotton, and hay, as well as other crop farms such as paddy, are the possible resources of rubber and polymer markets. Many industrial polymers and plastics are still made from non-renewable oil and gas resources today. This would cause a supply shock when non-renewable resources are depleted, causing the processed product to bubble to an unacceptably high price [207]. As a result, the growing interest in bio-based polymer and plastic products derived from renewable sources creates a market opportunity for biomass in exchange for enhanced environmental support in reducing climate change pressure.
Farmers will benefit from the potential use of paddy waste as an alternative source of packaging because they have been heavily reliant on agriculture without any additional revenue, as most farmers are still subsistence and have a low-middle income. On the other hand, this will contribute to reducing future climate change issues by allowing farmers to benefit from better climate conditions through sustainable agriculture. Nonetheless, the government must promote this innovation to increase economic potential and to provide an instrument for industrial businesses to improve their knowledge of the sustainable industrial environment. It may not be easy, but once the government steps in to regulate the industrial ecosystem by paying more attention to reducing plastic waste and implementing sustainable bioplastic for bio-packaging for both large industrial ecosystems and small-medium enterprises, it could have structural potential. One of the studies that uses paddy-waste as bioplastic is the usage of rice straw cellulose (Oryza sativa) as bioplastic by the pulping process and phase inversion method [208].
Building an ecosystem of sustainable industry, particularly for consumer behavior, is to use more sustainable packaging or bio-packaging that can be created from natural fiber. As it is known that the production of food packaging made from plastic as well as styrofoam is about 14.000 tons per year, it has affected the use of plastic packaging for food [203]. However, this material is not environmentally friendly and could cause a significant impact both on the user and the environment after its usage, with a long-term impact on climate change. Thus, the government could develop bio packages as a particular potential both for reducing environmental issues and improving the economic opportunity of farmers from the paddy waste produced. Basically, this novel innovation could be started by a small-scale industry where a group of farmers could start to process the paddy waste materials where generally they would not be sold except for burning.
On the other hand, the development of bio-packages made of paddy straw benefits not only farmers in terms of economic earnings, but also consumers, as they have paid more for the environmentally friendly food package to have both future-health preservation as well as the original flavor and scent of stored food from this bio-package material, compared to a conventional plastic food package, which has more influence on their food, particularly when the foods are still at high temperatures. With these kinds of benefits, coupled with intense regulatory aspects, consumers would indeed be willing to pay more to get this type of food package if the government could guarantee that it would not harm them and be rigid in implementing environmental policy in general. If this is accomplished, the introduction of novel food packages made of paddy straw will be imminent, benefiting farmers who are the primary source of this material. Many countries have taken steps to encourage the use of natural fibers, such as appointing an institution to focus on the development of natural fibers and establishing a multi-stakeholder research community.

5. Future Prospects

Many different types of natural fibers are potential raw materials for bioproducts, but it is necessary to select the most locally viable fiber before attempting to employ it in an industry. In several fields, using local potential natural fiber for industrial purposes helps to lessen reliance on imported products. Some efforts will be made to speed up the exploitation of local raw materials for local industry, thereby assisting in the establishment of local industry, mostly on a small and medium scale. The wide diversity of natural fiber characteristics remains a difficulty in manufacturing consistent quality of bioproducts. Therefore, understanding the features is essential when processing natural fiber effectively. Processing of natural fiber with environmentally friendly technology and appropriate procedures should be used in the future as environmental concerns grow for the preservation of sustainable nature. Kenaf and ramie, bamboo, bananas, and pineapple have all been used as commercial bioproducts for a variety of industries, including automotive, building materials, handicrafts, and textiles. Up to now, there has been no exposed intermediate industry in natural fiber; therefore, the biocomponent industry has been initiated in recent years and is able to create environmentally friendly footwear products. This footwear can be built with biocomponents from natural bioresources such as natural fiber. In summary, viability, suitable technology, and social issues in the development of natural fibers are significant components that, when controlled together, can stimulate the use of bioproducts made from natural fibers. It is critical that respective ministries should be involved in natural fiber development and prioritize the agenda to ensure a strong supply chain and sustainability of natural fiber production. The Ministry of Agriculture should be in charge of providing sufficient land for planting as well as the necessary technology for a successful harvest. While the Ministry of Industry can provide the manufacturing technology and create the product diversification design.

6. Conclusions

Natural fibers with enticing properties such as lower density, lighter weight, biodegradability, good specific strength and modulus, good thermal insulation, good acoustic insulation, and high electrical resistance can be used for various applications. Furniture, automotive (car bumper beam, disc brake pads), electronic industries (automobile components), and building construction (molded panel components, window frames) are only a few of the applications for natural fibers. Biomedical application refers to the potential use of natural fibers to cover tissue engineering, biomedical implants, and drug delivery systems that must be biocompatible with the human body. Although natural fibers such as bananas, abaca, pineapples, bamboo, cotton, ramie, sisal, coconut, sansevieria, jute, and kenaf are plentiful and readily available, industrial applications require access to the most readily available. Ramie is being used as a model for developing a national priority bioproduct based on textile innovation, which is facilitated through government support. This way, it will coordinate the efforts of all stakeholders, including industry, research and development agencies, and farmers, in order to maximize benefits. A circular economy that is sustainable can be achieved by developing a biocomponent industry for bioproducts. The establishment of an information system for natural fibers, as well as collaboration with a variety of stakeholders such as research and development institutions, companies, policymakers (local and national), and universities, are ongoing efforts to increase the use of natural fibers in a sustainable circular economy.

Author Contributions

Conceptualization, W.F., S.M.R. and A.F.; methodology, W.F., A.K., S.M.R. and M.A.R.L.; investigation, D.S.N., A.K., W.F., A.H.I. and S.M.R., resources, W.F., R.D., D.S.N.; writing—original draft preparation, A.K., W.F., M.A.R.L., A.H.I., I., R.D., A.P.W., A.F., M.A., N.H.S., B.R.P., N., S.M.R., Y.A. and E.S.; writing—review and editing, W.F., S.M.R., A.H.I., M.A.R.L., R.D. and S.S.M.; validation, M.A.R.L., A.H.I., W.F., S.M.R. and A.F.; visualization, R.D., Y.A., S.S.M., I., A.K., W.F. and M.R.R.; supervision, W.F., A.H.I., S.S., S.M.R. and D.S.N.; project administration, W.F. and D.S.N.; funding acquisition, W.F., R.D., D.S.N. and A.H.I. All authors have read and agreed to the published version of the manuscript.


This study was funded by Program Research of National Research Priorities (PRN) flagship for University FY 2021 with contract number 7457/IT3.L1/PT.01.03/M/B/2021. It was also supported by Productive Innovative Research Activities (RISPRO) Mandatory Themed Education Fund Management Institution (LPDP), National Research Priorities (PRN) FY 2020/2021, Ministry of Finance in collaboration with Ministry of Research and Technology/National Research and Innovation Agency (Kemenristek-BRIN), Republic of Indonesia, under grant No. 273/E1/PRN/2020 and B- 4528/IPH/KS.02.04/VII/2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


Authors appreciate for the facilities, scientific and technical assistance provided by the Advanced Characterization Laboratories Cibinong—Integrated Laboratory of Bioproducts, Indonesian Institute of Sciences via E-Layanan Sains Lembaga Ilmu Pengetahuan Indonesia.

Conflicts of Interest

The authors declare no conflict of interest.


CEcircular economy
DPdegree of polymerization
DSIIndonesia natural fiber council
FRCfiber-reinforced composites
Gconiferyl alcohol
Hsynapyl alcohol
IamIntensity of amorphous region
ISKARAintensification of community sack community
KORIIndonesian Ramie Consortium
MFAmicrofibril angle
NaOHsodium hydroxide
PETpolyethylene terephthalate
PLApolylactic acid
Sp-coumaryl alcohol
S1primary layer
S2secondary layer
S1, S2, S3secondary cell wall 1, 2, 3
SEMscanning electron microscopy
XRDX-ray diffraction


  1. Karimah, A.; Ridho, M.R.; Munawar, S.S.; Adi, D.S.; Ismadi; Damayanti, R.; Subiyanto, B.; Fatriasari, W.; Fudholi, A. A review on natural fibers for development of eco-friendly bio-composite: Characteristics, and utilizations. J. Mater. Res. Technol. 2021, 13, 2442–2458. [Google Scholar] [CrossRef]
  2. Madhu, P.; Sanjay, M.R.; Senthamaraikannan, P.; Pradeep, S.; Siengchin, S.; Jawaid, M.; Kathiresan, M. Effect of various chemical treatments of Prosopis juliflora fibers as composite reinforcement: Physicochemical, thermal, mechanical, and morphological properties. J. Nat. Fibers 2020, 17, 833–844. [Google Scholar] [CrossRef]
  3. Vinod, A.; Sanjay, M.R.; Suchart, S.; Jyotishkumar, P. Renewable and sustainable biobased materials: An assessment on biofibers, biofilms, biopolymers and biocomposites. J. Clean. Prod. 2020, 258, 120978. [Google Scholar] [CrossRef]
  4. Sari, N.H.; Fajrin, J.; Suteja; Fudholi, A. Characterisation of swellability and compressive and impact strength properties of corn husk fibre composites. Compos. Commun. 2020, 18, 49–54. [Google Scholar] [CrossRef]
  5. Zhang, Z.; Zhang, J.; Li, S.; Liu, J.; Dong, M.; Li, Y.; Lu, N.; Lei, S.; Tang, J.; Fan, J.; et al. Effect of graphene liquid crystal on dielectric properties of polydimethylsiloxane nanocomposites. Compos. Part B Eng. 2019, 176, 107338. [Google Scholar] [CrossRef]
  6. Li, K.; Fu, S.; Zhan, H.; Zhan, Y.; Lucia, L. Analysis of the chemical composition and morphological structure of banana pseudo-stem. Bioresources 2010, 5, 10. [Google Scholar] [CrossRef]
  7. Herlina Sari, N.; Wardana, I.N.G.; Irawan, Y.S.; Siswanto, E. Characterization of the chemical, physical, and mechanical properties of NaOH-treated natural cellulosic fibers from corn husks. J. Nat. Fibers 2018, 15, 545–558. [Google Scholar] [CrossRef]
  8. Madhu, P.; Sanjay, M.R.; Pradeep, S.; Subrahmanya Bhat, K.; Yogesha, B.; Siengchin, S. Characterization of cellulosic fibre from Phoenix pusilla leaves as potential reinforcement for polymeric composites. J. Mater. Res. Technol. 2019, 8, 2597–2604. [Google Scholar] [CrossRef]
  9. Jawaid, M.; Abdul Khalil, H.P.S. Cellulosic/synthetic fibre reinforced polymer hybrid composites: A review. Carbohydr. Polym. 2011, 86, 1–18. [Google Scholar] [CrossRef]
  10. Sanjay, M.R.; Siengchin, S. Natural fibers as perspective materials. KMUTNB Int. J. Appl. Scie. Tech. 2018, 11, 233. [Google Scholar]
  11. Sanjay, M.R.; Arpitha, G.R.; Naik, L.L.; Gopalakrishna, K.; Yogesha, B. Applications of natural fibers and its composites: An overview. Nat. Res. 2016, 7, 108. [Google Scholar] [CrossRef] [Green Version]
  12. Bavan, D.S.; Kumar, G.C.M. Potential use of natural fiber composite materials in India. J. Reinf. Plast. Compos. 2010, 29, 3600–3613. [Google Scholar] [CrossRef]
  13. Araújo, J.R.; Waldman, W.R.; De Paoli, M.A. Thermal properties of high density polyethylene composites with natural fibres: Coupling agent effect. Polym. Degrad. Stab. 2008, 93, 1770–1775. [Google Scholar] [CrossRef]
  14. Kant, R.; Alagh, P. Extraction of fiber from Sansevieria trifasciata plant and its properties. IJSR 2015, 7, 2547–2549. [Google Scholar]
  15. Ahmed, M.J.; Balaji, M.A.S.; Saravanakumar, S.S.; Sanjay, M.R.; Senthamaraikannan, P. Characterization of Areva javanica fiber—A possible replacement for synthetic acrylic fiber in the disc brake pad. J. Ind. Text. 2018, 49, 294–317. [Google Scholar] [CrossRef]
  16. Davoodi, M.M.; Sapuan, S.M.; Ahmad, D.; Ali, A.; Khalina, A.; Jonoobi, M. Mechanical properties of hybrid kenaf/glass reinforced epoxy composite for passenger car bumper beam. Mater. Des. 2010, 31, 4927–4932. [Google Scholar] [CrossRef]
  17. Chandramohan, D.; Bharanichandar, J. Natural fiber reinforced polymer composites for automobile accessories. Am. J. Environ. Sci. 2013, 9, 494–504. [Google Scholar] [CrossRef]
  18. John, M.J.; Thomas, S. Biofibres and Biocomposites. Carbohydr. Polym. 2008, 71, 343–364. [Google Scholar] [CrossRef]
  19. Sari, N.H.; Wardana, I.N.G.; Irawan, Y.S.; Siswanto, E. Corn husk fiber-polyester composites as sound absorber: Nonacoustical and acoustical properties. Adv. Acoust. Vib. 2017, 2017, 4319389. [Google Scholar] [CrossRef] [Green Version]
  20. Murdiyanto, D. Potensi serat alam tanaman Indonesia sebagai bahan fiber reinforced composite kedokteran gigi. J. Mater. Kedokt. Gigi 2017, 6, 14–22. [Google Scholar] [CrossRef]
  21. Scribante, A.; Vallittu, P.K.; Özcan, M. Fiber-reinforced composites for dental applications. BioMed Res. Int. 2018, 2018, 4734986. [Google Scholar] [CrossRef]
  22. Adekomaya, O.; Majozi, T. 23-Industrial and biomedical applications of fiber reinforced composites. In Fiber Reinforced Composites; Joseph, K., Oksman, K., George, G., Wilson, R., Appukuttan, S., Eds.; Woodhead Publishing: Sawston, UK, 2021; pp. 753–783. [Google Scholar]
  23. Schlöesser, T.P. Natural Fiber Reinforced Automotive Parts. In Natural Fibers, Plastics and Composites; Wallenberger, F.T., Weston, N.E., Eds.; Springer: Boston, MA, USA, 2004; pp. 275–285. [Google Scholar]
  24. Mansor, M.R.; Nurfaizey, A.H.; Tamaldin, N.; Nordin, M.N.A. 11-Natural fiber polymer composites: Utilization in aerospace engineering. In Biomass, Biopolymer-Based Materials, and Bioenergy; Verma, D., Fortunati, E., Jain, S., Zhang, X., Eds.; Woodhead Publishing: Kidlington, UK, 2019; pp. 203–224. [Google Scholar]
  25. Novarini, E.; Sukardan, M.D. Potensi serat rami (Boehmeria nivea S. Gaud) sebagai bahan baku industri tekstil dan produk tekstil dan tekstil teknik. Arena Tekst. 2015, 30, 113–122. [Google Scholar] [CrossRef]
  26. Rowell, R.M. The Use of Biomass to Produce Bio-Based Composites and Building Materials; Woodhead Publishing Limited: Oxford, UK, 2014. [Google Scholar]
  27. Rowell, R.M. Natural Fibers: Types and Properties; Woodhead Publishing Limited: Boca Raton, FL, USA, 2008. [Google Scholar]
  28. Aziz, N.A.A.; Ho, L.-H.; Azahari, B.; Bhat, R.; Cheng, L.H.; Ibrahim, M.N.M. Chemical and functional properties of the native banana (Musa acuminata × balbisiana Colla cv. Awak) pseudo-stem and pseudo-stem tender core flours. Food Chem. 2011, 128, 748–753. [Google Scholar] [CrossRef]
  29. Sango, T.; Cheumani Yona, A.M.; Duchatel, L.; Marin, A.; Kor Ndikontar, M.; Joly, N.; Lefebvre, J.-M. Step–wise multi–scale deconstruction of banana pseudo–stem (Musa acuminata) biomass and morpho–mechanical characterization of extracted long fibres for sustainable applications. Ind. Crop. Prod. 2018, 122, 657–668. [Google Scholar] [CrossRef]
  30. Zuluaga, R.; Putaux, J.-L.; Restrepo, A.; Mondragon, I.; Gañán, P. Cellulose microfibrils from banana farming residues: Isolation and characterization. Cellulose 2007, 14, 585–592. [Google Scholar] [CrossRef]
  31. Sapuan, S.M.; Leenie, A.; Harimi, M.; Beng, Y.K. Mechanical properties of woven banana fibre reinforced epoxy composites. Mater. Des. 2006, 27, 689–693. [Google Scholar] [CrossRef]
  32. Arias, P.; Dankers, C.; Liu, P.; Pilkauskas, P. The World Banana Economy 1985–2002; Food and Agriculture Organization of United Nations: Rome, Italy, 2003. [Google Scholar]
  33. Zuluaga, R.; Rios, A.; Mauricio, A.; Casas, A.; Ramırez, M.; Kerguel, H.; Ganán, P. Aprovechamiento de losresiduos fibrosos de la Agroindustria bananera. In Proceedings of the VII Jornadas de Investigación, Medellín, Colombia, 5–8 May 2003; Universidad Pontifucia Bolivariana: Medellín, Colombia, 2003; pp. 267–276. [Google Scholar]
  34. Ramesh, M. Hemp, Jute, Banana, Kenaf, Ramie, Sisal Fibers; Elsevier Ltd.: Amsterdam, The Netherlands, 2018. [Google Scholar]
  35. Suparno, O. Upaya potensi dan masa depan serat alam indonesia sebagai bahan baku aneka industri. J. Teknol. Ind. Pertan. 2020, 30, 221–227. [Google Scholar]
  36. Gupta, U.S.; Dhamarikar, M.; Dharkar, A.; Tiwari, S.; Namdeo, R. Study on the effects of fibre volume percentage on banana-reinforced epoxy composite by finite element method. Adv. Compos. Hybrid Mater. 2020, 3, 530–540. [Google Scholar] [CrossRef]
  37. Nurnasari, E.; Nurindah. Karakteristik kimia serat buah, serat batang, dan serat daun. Bul. Tanam. Tembakau Serat Miny. Ind. 2017, 9, 64–72. [Google Scholar] [CrossRef]
  38. Suliyanthini, D. Ilmu Tekstil; Rajawali Perss: Jakarta, Indonesia, 2016. [Google Scholar]
  39. Nebangka, M.; Sumayku, B.R.A.; Pongoh, J. Potensi pengembangan pisang abaka (Musa textilis Nee) di Pulau Karakelang. COCOS 2020, 1, 1–11. [Google Scholar]
  40. Jawaid, M.; Asim, M.; Paridah, T.; Nasir, M. Processing, Properties and Applications; Springer Nature Pte. Ltd.: Singapore, 2020. [Google Scholar]
  41. Hadiyati, S.; Indriyani, N.L.P. Petunjuk Teknis Budidaya Nanas; Balai Penelitian Buah Tropika: Solok, Indonesia, 2008. [Google Scholar]
  42. Setyawan, P.D.; Sari, N.H.; Putra, D.G.P. Pengaruh orientasi dan fraksi volume serat daun nanas (Ananas comosus) terhadap kekuatan putus komposit polyester tak jenuh (UP). J. Din. Tek. Mesin 2012, 2, 31–32. [Google Scholar]
  43. Pandit, P.; Pandey, R.; Singha, K.; Shrivastava, S.; Gupta, V.; Jose, S. Pineapple Leaf Fibre: Cultivation and Production. In Pineapple Leaf Fibers, Green Energy and Technology; Mohammad, J., Mohammad, A., Paridah, M.T., Mohammed, N., Eds.; Springer Nature Pte. Ltd.: Singapore, 2020. [Google Scholar]
  44. Zakikhani, P.; Zahari, R.; Sultan, M.T.H.; Majid, D.L. Extraction and Preparation of Bamboo Fibre-Reinforced Composites. Mater. Des. 2014, 63, 820–828. [Google Scholar] [CrossRef]
  45. Wang, G.; Chen, F. Development of bamboo fiber-based composites. In Advanced High Strength Natural Fibre Composites in Construction; Elsevier Ltd.: Amsterdam, The Netherlands, 2016. [Google Scholar]
  46. Lobovikov, M.; Paudel, S.; Piazza, M.; Ren, H.; Wu, J. World Bamboo Resources: A Thematic Study Prepared in the Framework of the Global Forest Resources Assessment; Non Wood Forest Products; Food and Agricultural Organization of the United Nations: Rome, Italy, 2007. [Google Scholar]
  47. Kant, P. Should Bamboos and Palms Be Included in Cdm Forestry Projects? IGREC Working Paper: New Delhi, India, 2010. [Google Scholar]
  48. Scurlock, J.M.O.; Dayton, D.C.; Hames, B. Bamboo: An overlooked biomass resource? Biomass Bioenergy 2000, 19, 229–244. [Google Scholar] [CrossRef] [Green Version]
  49. Gratani, L.; Crescente, M.F.; Fabrini, L.G.; Digiulio, E. Growth pattern and photosynthetic activity of different bamboo species growing in the botanical garden of Rome. Flora-Morphol. Distrib. Funct. Ecol. Plants 2008, 203, 77–84. [Google Scholar] [CrossRef]
  50. Damayanti, R.; Jasni; Sulastiningsih, I.M.; Djarwanto; Suprapti, S.; Pari, G.; Basri, E.; Komarayati, S.; Abdurahman. Atlas Bambu Indonesia 1; IPB Press: Bogor, Indonesia, 2019. [Google Scholar]
  51. Dransfield, S.; Widjaja, E.A. Plant Resources of South-East Asia No.7 Bamboos; Backhuys Publishers: Leiden, The Netherlands, 1995. [Google Scholar]
  52. Fatriasari, W.; Hermiati, E. Analisis morfologi serat dan sifat fisis-kimia pada enam jenis bambu sebagai bahan baku pulp dan kertas. J. Ilmu Dan Teknol. Has. Hutan 2008, 67–72, 2. [Google Scholar]
  53. Yueping, W.; Ge, W.; Haitao, C.; Genlin, T.; Zheng, L.; Feng, X.Q.; Xiangqi, Z.; Xiaojun, H.; Xushan, G. Structures of bamboo fibre for textiles. Text. Res. J. 2010, 80, 334–343. [Google Scholar] [CrossRef]
  54. Subyakto. Teknologi pengendalian berbasis ekologi dalam mendukung pengembangan kapas. J. Litbang Pertan. 2011, 30, 81–86. [Google Scholar]
  55. Ditjenbun. Komoditas Kapas di Indonesia 2011–2013; Direktorat Jenderal Perkebunan, Kementerian Pertanian RI: Jakarta, Indonesia, 2013.
  56. Sumartini, S.; Sulistyowati, E.; Mulyani, S.; Abdurrakhman. Skrining galur kapas (Gossypium hirsutum L.) toleran terhadap kekeringan PEG-6000 pada fase kecambaH. J. Littri 2013, 19, 139–146. [Google Scholar] [CrossRef]
  57. Ditjenbun. Statistik Perkebunan Indonesia Komoditas Kapas; Direktorat Jenderal Perkebunan, Kementerian Pertanian RI: Jakarta, Indonesia, 2015.
  58. Thyavihalli Girijappa, Y.G.; Mavinkere Rangappa, S.; Parameswaranpillai, J.; Siengchin, S. Natural fibers as sustainable and renewable resource for development of eco-friendly composites: A comprehensive review. Front. Mater. 2019, 6, 226. [Google Scholar] [CrossRef]
  59. Berger, J. Fibre Crops: Their Cultivation and Manuring; Centre d’Etude de I’Azote: Zurich, Switzerland, 1969. [Google Scholar]
  60. Suratman, W.; Murdoko; Darwis, S.N. Tinjauan kemungkinan pengembangan rami di Indonesia. In Proceedings of the Seminar Nasional Rami, Malang, Indonesia, 1993. [Google Scholar]
  61. Eichhorn, S.J.; Baillie, C.A.; Zafeiropoulos, N.; Mwaikambo, L.Y.; Ansell, M.P.; Dufresne, A.; Entwistle, K.M.; Herrera-Franco, P.J.; Escamilla, G.C.; Groom, L.; et al. Review: Current international research into cellulosic fibres and composites. J. Mater. Sci. 2001, 36, 2107–2131. [Google Scholar] [CrossRef]
  62. Soeroto, H. Cultur Technik Boehmeria nivea L. Gaud.; Balai Besar Penyelidikan Pertanian, 1956. [Google Scholar]
  63. Setyo-Budi, U.; Hartati, R.S.; Purwanti, R.D. Biologi Tanaman Rami (Boehmeria nivea L. Gaud); Monograf Balittas Rami: Malang, Indonesia, 2005. [Google Scholar]
  64. Sumantri, R.H.L. Haramay (Ramie), Penanaman, Pemeliharaan dan Kegunaan. 1984. Available online: (accessed on 4 November 2021).
  65. Brink, M.; Escobin, R. Plant Resources of South-East Asia; Backhuys Publisher: Leiden, The Netherlands, 2003. [Google Scholar]
  66. Santoso, B. Peluang pengembangan Agave sebagai sumber serat alam. Perspektif 2009, 8, 84–95. [Google Scholar]
  67. Mukherjee, P.S.; Satyanarayana, K.G. Structure and properties of some vegetable fibres. J. Mater. Sci. 1986, 21, 51–56. [Google Scholar] [CrossRef]
  68. Sanjaygowda, M.; Rangappa, S.M.; Juwaid, M.; Shivana, P.; Basavegowda, Y.; Saba, N. Potential of Natural/Synthetic Hybrid Composites for Aerospace Applications; Woodhead Publishing Series in Composites Science and Engineering; Woodhead Publishing: Duxford, UK, 2018. [Google Scholar]
  69. Amin, M.; Samsudi, R. Pemanfaatan limbah serat sabut kelapa sebagai bahan pembuat helm pengendara kendaraan roda dua. Pros. Semin. Nas. Int. 2010, 3, 314–318. [Google Scholar]
  70. Sapuan, S.M.; Ismail, H.; Zainudin, E.S. Natural fiber reinforced vinyl ester and vinyl polymer composite. In Development, Characterization and Applications; Woodhead Publishing: Duxford, UK, 2018. [Google Scholar]
  71. van Dam, J.E.G.; van den Oever, M.J.A.; Teunissen, W.; Keijsers, E.R.P.; Peralta, A.G. Process for production of high density/high performance binderless boards from whole coconut husk: Part 1: Lignin as intrinsic thermosetting binder resin. Ind. Crop. Prod. 2004, 19, 207–216. [Google Scholar] [CrossRef]
  72. Elseify, L.A.; Midani, M.; Shihata, L.A.; El-mously, H. Review on cellulosic fibers extracted from date palms (Phoenix dactylifera, L.) and their applications. Cellulose 2019, 26, 2209–2232. [Google Scholar] [CrossRef]
  73. Thampan, P.K. Handbook on Coconut Palm; Oxford and IBH Publishing Co.: New Delhi, India, 1991. [Google Scholar]
  74. Heyne, K. Tumbuhan Berguna Indonesia, I; Koperasi Karyawan Departemen Kehutanan: Jakarta, Indonesia, 1987. [Google Scholar]
  75. Puwanto, A.W. Sansevieria Trifasciata Flora Cantik Penyerap Racun; Kanisius: Yogyakarta, Indonesia, 2006. [Google Scholar]
  76. Rosanti, D. Pengaruh pupuk majemuk dalam merangsang pertumbuhan tunas pada stek daun Sansevieria trifasciata. J. Sainmatika 2011, 8. [Google Scholar] [CrossRef]
  77. Trubus, T. Sansevieria; PT Trubus Swadaya, 2008; Available online: (accessed on 4 November 2021).
  78. Huda, Z.M. Ampuhnya Si Penyedot Polutan. Available online: (accessed on 4 November 2021).
  79. Agromedia, R. Tip Jitu Merawat Tanaman Hias Popular; PT Agromedia Pustaka: Jakarta, Indonesia, 2010. [Google Scholar]
  80. Franz, J.B. Tangkis Renggutan Gas Polutan. Available online: (accessed on 4 November 2021).
  81. Hakim, L.; Widyorini, R.; Nugroho, W.D.; Prayitno, T.A. Anatomical, chemical, and mechanical properties of fibrovascular bundles of Salacca (Snake Fruit) frond. BioResources 2019, 14, 7943–7957. [Google Scholar]
  82. Philip, D.; Kaleena, P.K.; Valivittan, K.; Kumar, G. Phytochemical screening and amtimicrobial activity of (Sansevieria roxburghiana schult). J. Middle-East J. Sci. Res. 2011, 10, 512–518. [Google Scholar]
  83. Rikara, D. Menjilati Polusi Dengan Lidah Mertua. Available online: (accessed on 4 November 2021).
  84. Chand, N.; Fahim, M. Jute reinforced polymer composites. In Tribology of Natural Fiber Polymer Composites; Elsevier: Amsterdam, The Netherlands, 2008; pp. 108–128. [Google Scholar]
  85. Bismarck, A.; Mishra, S.; Lampke, T. Plant Fibers as Reinforcement for Green Composites: Natural Fibers, Biopolymers, and Biocomposite; CRC Press Taylor and Francis Group: Boca Raton, FL, USA, 2005. [Google Scholar]
  86. Ramamoorthy, S.K.; Skrifvars, M.; Persson, A. A review of natural fibers used in biocomposites: Plant, animal, and regenerated cellulose fibers. Polym. Rev. 2015, 55, 107–162. [Google Scholar] [CrossRef]
  87. Sudjindro. Arah pengembangan kenaf di Indonesia menyongsong bangkitnya serat alam dunia 2009. War. Penelit. Pengemb. Tanam. Ind. 2008, 14, 20–22. [Google Scholar]
  88. Sudjindro; Marjani; Heliyanto, B.; Sunardi, D. Galur harapan kenaf adaptif di lahan Bonorowo Kabupaten Lamongan. J. Penelit. Tanam. Ind. 2001, 7, 31–34. [Google Scholar] [CrossRef]
  89. Sudjindro; Marjani; Heliyanto, B.; Purwati, R.D. Uji Daya Hasil Galur-Galur Kenaf (Hibiscus cannabinus L.). In Proceedings of the Simposium V Peripi, 8–9 September 1998. [Google Scholar]
  90. Sudjindro; Marjani. Pemuliaan tanaman kenaf (Hibiscus cannabinus L.). In Monograf Kenaf; 2009. [Google Scholar]
  91. Sudjindro. Prospek serat alam untuk bahan baku kertas uang. Perspektif 2011, 10, 92–104. [Google Scholar]
  92. Luong, T.-H.; Dang, T.-N.; Ngoc, O.P.; Thi, D.-T.; Nguyen, T.-H.; Toi, V.V.; Duong, H.T.; Son, H. Investigation of the silk fiber extraction process from the vietnam natural bombyx mori silkworm cocoon. In Proceedings of the 5th International Conference on Biomedical Engineering in Vietnam, Ho Chi Minh City, Vietnam, 16–18 June 2014; pp. 325–328. [Google Scholar]
  93. Kearns, V.; Maclntosh, A.C.; Crawford, A.; Hatton, P.V. Silk-based biomaterials for tissue engineering. Top. Tissue Eng. 2008, 4, 1–19. [Google Scholar]
  94. Altman, G.H.; Diaz, F.; Jakuba, C.; Calabro, T.; Horan, R.L.; Chen, J.; Lu, H.; Richmon, J.; Kaplan, D.L. Silk-based biomaterials. Biomaterials 2003, 24, 401–416. [Google Scholar] [CrossRef] [Green Version]
  95. Yang, C.; Wang, B. Biodegradation of silk biomaterials. Int. J. Mol. Sci. 2009, 10, 1514–1524. [Google Scholar]
  96. Wang, Y.; Kim, H.-J.; Vunjak-Novakovic, G.; Kaplan, D.L. Stem cell-based tissue engineering with silk biomaterials. Biomaterials 2006, 27, 6064–6082. [Google Scholar] [CrossRef]
  97. Hakimi, O.; Vollart, F.V.; Carr, A.J. Evaluation of silk as a scaffold for musculoskeletal regeneration—The path from the laboratory to clinical trials. In Comprehensive Biotechnology; Elsevier: Amsterdam, The Netherlands, 2011. [Google Scholar]
  98. Mandal, B.B.; Kundu, S.C. Cell proliferation and migration in silk fibroin 3D scaffolds. Biomaterials 2009, 30, 2956–2965. [Google Scholar] [CrossRef] [PubMed]
  99. Babu, K.M. Silk: Processing, Properties and Application. In The Textile Institute Book Series; Elsevier: Amsterdam, The Netherlands, 2019. [Google Scholar]
  100. Coderch, L.; de la Maza, A.; Soriano, C.; Erra, P.; Parra, J.L. Chromatographic characterization of internal polar lipids from wool. J. Am. Oil Chem. Soc. 1995, 72, 715–720. [Google Scholar] [CrossRef]
  101. Schaefer, H.; Redelmeier, T.E. Skin Barrier: Principles in percutaneous penetration. Arch. Dermatol. 1997, 133, 924. [Google Scholar] [CrossRef]
  102. Gelse, K.; Poschlb, E.; Aigner, T. Collagens-structure, function, and biosynthesis. Adv. Drug Deliv. Rev. 2003, 55, 1531–1546. [Google Scholar] [CrossRef] [Green Version]
  103. Suparno, O.; Prasetyo, N.B. Isolation of collagen from chicken feet with hydroextraction method and its physico-chemical characterisation. In Proceedings of the ICDALC 2018, Bogor, Indonesia, 20–21 September 2018; pp. 1–11. [Google Scholar]
  104. Karim, A.A.; Bhat, R. Fish gelatin: Properties, challenges, and prospects as an alternative to mammalian gelatins. Food Hydrocoll. 2009, 23, 563–576. [Google Scholar] [CrossRef]
  105. Aberoumand, A. Comparative study between different methods of collagen extraction from fish and its properties. World Appl. Sci. J. 2012, 16, 316–319. [Google Scholar]
  106. Sari, N.H.; Pruncu, C.I.; Sapuan, S.M.; Ilyas, R.A.; Catur, A.D.; Suteja, S.; Sutaryono, Y.A.; Pullen, G. The effect of water immersion and fibre content on properties of corn husk fibres reinforced thermoset polyester composite. Polym. Test. 2020, 91, 106751. [Google Scholar] [CrossRef]
  107. Vinod, A.; Vijay, R.; Singaravelu, D.L. ThermoMechanical characterization of Calotropis gigantea stem powder-filled jute fiber-reinforced epoxy composites. J. Nat. Fibers 2018, 15, 648–657. [Google Scholar] [CrossRef]
  108. Jothibasu, S.; Mohanamurugan, S.; Vijay, R.; Lenin Singaravelu, D.; Vinod, A.; Sanjay, M.R. Investigation on the mechanical behavior of areca sheath fibers/jute fibers/glass fabrics reinforced hybrid composite for light weight applications. J. Ind. Text. 2018, 49, 1036–1060. [Google Scholar] [CrossRef]
  109. Vijay, R.; Lenin Singaravelu, D.; Vinod, A.; Sanjay, M.R.; Siengchin, S.; Jawaid, M.; Khan, A.; Parameswaranpillai, J. Characterization of raw and alkali treated new natural cellulosic fibers from Tridax procumbens. Int. J. Biol. Macromol. 2019, 125, 99–108. [Google Scholar] [CrossRef]
  110. Munawar, S.S.; Umemura, K.; Kawai, S. Manufacture of oriented board using mild steam treatment of plant fiber bundles. J. Wood Sci. 2008, 54, 369–376. [Google Scholar] [CrossRef]
  111. Chen, H.; Miao, M.; Ding, X. Influence of moisture absorption on the interfacial strength of bamboo/vinyl ester composites. Compos. Part A Appl. Sci. Manuf. 2009, 40, 2013–2019. [Google Scholar] [CrossRef]
  112. Okubo, K.; Fujii, T.; Yamamoto, Y. Development of bamboo-based polymer composites and their mechanical properties. Compos. Part A Appl. Sci. Manuf. 2004, 35, 377–383. [Google Scholar] [CrossRef]
  113. Deka, H.; Misra, M.; Mohanty, A. Renewable resource based “all green composites” from kenaf biofiber and poly(furfuryl alcohol) bioresin. Ind. Crop. Prod. 2013, 41, 94–101. [Google Scholar] [CrossRef]
  114. de Farias, J.G.; Cavalcante, R.C.; Canabarro, B.R.; Viana, H.M.; Scholz, S.; Simão, R.A. Surface lignin removal on coir fibers by plasma treatment for improved adhesion in thermoplastic starch composites. Carbohydr. Polym. 2017, 165, 429–436. [Google Scholar] [CrossRef]
  115. Yousif, B.F.; Shalwan, A.; Chin, C.W.; Ming, K.C. Flexural properties of treated and untreated kenaf/epoxy composites. Mater. Des. 2012, 40, 378–385. [Google Scholar] [CrossRef]
  116. Yan, L.; Chouw, N.; Huang, L.; Kasal, B. Effect of alkali treatment on microstructure and mechanical properties of coir fibres, coir fibre reinforced-polymer composites and reinforced-cementitious composites. Constr. Build. Mater. 2016, 112, 168–182. [Google Scholar] [CrossRef]
  117. Li, X.; Tabil, L.; Panigrahi, S. Chemical treatments of natural fiber for use in natural fiber-reinforced composites: A review. J. Polym. Environ. 2007, 15, 25–33. [Google Scholar] [CrossRef]
  118. Hajiha, H.; Sain, M.; Mei, L.H. Modification and Characterization of Hemp and Sisal Fibers. J. Nat. Fibers 2014, 11, 144–168. [Google Scholar] [CrossRef]
  119. George, M.; Mussone, P.G.; Bressler, D.C. Surface and thermal characterization of natural fibres treated with enzymes. Ind. Crop. Prod. 2014, 53, 365–373. [Google Scholar] [CrossRef]
  120. Poyyamozhi, V.S.; Kadirvel, R. The value of banana stalk as a feed for goats. Anim. Feed Sci. Technol. 1986, 15, 95–100. [Google Scholar] [CrossRef]
  121. Viswanathan, K.; Kadirvel, R.; Chandrasekaran, D. Nutritive value of banana stalk (Musa cavendishi) as a feed for sheep. Anim. Feed Sci. Technol. 1989, 22, 327–332. [Google Scholar] [CrossRef]
  122. Chiena, E. Estudio del ensilado del raquis de banana (Musa acuminata Colla, subgrupo ‘Cavendish’) para la alimentaci óndel ganado caprino en las Islas Canarias. Rev. Fac. Agron. 1999, 16, 291–305. [Google Scholar]
  123. Pothan, L.A.; Thomas, S. Polarity parameters and dynamic mechanical behaviour of chemically modified banana fiber reinforced polyester composites. Compos. Sci. Technol. 2003, 63, 1231–1240. [Google Scholar] [CrossRef]
  124. Pothan, L.A.; Thomas, S.; Groeninckx, G. The role of fibre/matrix interactions on the dynamic mechanical properties of chemically modified banana fibre/polyester composites. Compos. Part A Appl. Sci. Manuf. 2006, 37, 1260–1269. [Google Scholar] [CrossRef]
  125. Vinod, A.; Vijay, R.; Singaravelu, D.L.; Sanjay, M.R.; Siengchin, S.; Moure, M.M. Characterization of untreated and alkali treated natural fibers extracted from the stem of Catharanthus roseus. Mater. Res. Express 2019, 6, 085406. [Google Scholar] [CrossRef]
  126. Idicula, M.; Boudenne, A.; Umadevi, L.; Ibos, L.; Candau, Y.; Thomas, S. Thermophysical properties of natural fibre reinforced polyester composites. Compos. Sci. Technol. 2006, 66, 2719–2725. [Google Scholar] [CrossRef]
  127. Venkateshwaran, N.; ElayaPerumal, A.; Alavudeen, A.; Thiruchitrambalam, M. Mechanical and water absorption behaviour of banana/sisal reinforced hybrid composites. Mater. Des. 2011, 32, 4017–4021. [Google Scholar] [CrossRef]
  128. Quintana, G.; Velásquez, J.; Betancourt, S.; Gañán, P. Binderless fiberboard from steam exploded banana bunch. Ind. Crop. Prod. 2009, 29, 60–66. [Google Scholar] [CrossRef]
  129. Mohapatra, D.; Mishra, S.; Sutar, N. Banana and its by-product utilisation: An overview. J. Sci. Ind. Res. 2010, 69, 323–329. [Google Scholar]
  130. Bello, K.; Sarojini, B.K.; Narayana, B.; Rao, A.; Byrappa, K. A study on adsorption behavior of newly synthesized banana pseudo-stem derived superabsorbent hydrogels for cationic and anionic dye removal from effluents. Carbohydr. Polym. 2018, 181, 605–615. [Google Scholar] [CrossRef] [PubMed]
  131. Sanjay, M.R.; Siengchin, S.; Parameswaranpillai, J.; Jawaid, M.; Pruncu, C.I.; Khan, A. A comprehensive review of techniques for natural fibers as reinforcement in composites: Preparation, processing and characterization. Carbohydr. Polym. 2019, 207, 108–121. [Google Scholar] [CrossRef]
  132. Jordan, W.; Chester, P. Improving the properties of banana fiber reinforced polymeric composites by treating the fibers. Procedia Eng. 2017, 200, 283–289. [Google Scholar] [CrossRef]
  133. Ray, D.; Nayak, L.; Ammayappan, L.; Shambhu, V.; Nag, D. Energy conservation drives for efficient extraction and utilization of banana fibre. Int. J. Emerg. Technol. Adv. Eng. 2013, 3, 296–310. [Google Scholar]
  134. Bertella, S.; Luterbacher, J.S. Lignin functionalization for the production of novel materials. Trends Chem. 2020, 2, 440–453. [Google Scholar] [CrossRef]
  135. Kabir, M.M.; Wang, H.; Lau, K.T.; Cardona, F. Chemical treatments on plant-based natural fibre reinforced polymer composites: An overview. Compos. Part B Eng. 2012, 43, 2883–2892. [Google Scholar] [CrossRef]
  136. Sathishkumar, T.P.; Navaneethakrishnan, P.; Shankar, S.; Rajasekar, R. Characterization of new cellulose sansevieria ehrenbergii fibers for polymer composites. Compos. Interfaces 2013, 20, 575–593. [Google Scholar] [CrossRef]
  137. Arthanarieswaran, V.P.; Kumaravel, A.; Saravanakumar, S.S. Physico-chemical properties of alkali-treated Acacia leucophloea fibers. Int. J. Polym. Anal. Charact. 2015, 20, 704–713. [Google Scholar] [CrossRef]
  138. Indran, S.; Raj, R.E.; Daniel, B.S.S.; Saravanakumar, S.S. Cellulose powder treatment on Cissus quadrangularis stem fiber-reinforcement in unsaturated polyester matrix composites. J. Reinf. Plast. Compos. 2015, 35, 212–227. [Google Scholar] [CrossRef]
  139. Jayaramudu, J.; Maity, A.; Sadiku, E.R.; Guduri, B.R.; Varada Rajulu, A.; Ramana, C.V.V.; Li, R. Structure and properties of new natural cellulose fabrics from Cordia dichotoma. Carbohydr. Polym. 2011, 86, 1623–1629. [Google Scholar] [CrossRef]
  140. Kommula, V.P.; Reddy, K.O.; Shukla, M.; Marwala, T.; Reddy, E.V.S.; Rajulu, A.V. Extraction, modification, and characterization of natural ligno-cellulosic fiber strands from napier grass. Int. J. Polym. Anal. Charact. 2016, 21, 18–28. [Google Scholar] [CrossRef]
  141. Saravanakumar, S.S.; Kumaravel, A.; Nagarajan, T.; Moorthy, I.G. Effect of chemical treatments on physicochemical properties of Prosopis juliflora fibers. Int. J. Polym. Anal. Charact. 2014, 19, 383–390. [Google Scholar] [CrossRef]
  142. Rashid, B.; Leman, Z.; Jawaid, M.; Ghazali, M.J.; Ishak, M.R. Physicochemical and thermal properties of lignocellulosic fiber from sugar palm fibers: Effect of treatment. Cellulose 2016, 23, 2905–2916. [Google Scholar] [CrossRef]
  143. Rangappa, S.; Siengchin, S.; Parameswaranpillai, J.; Jawaid, M.; Ozbakkaloglu, T. Lignocellulosic fiber reinforced composites: Progress, performance, properties, applications, and future perspectives. Polym. Compos. 2021, 1–47. Available online: (accessed on 4 November 2021). [CrossRef]
  144. Silva, G.; Kim, S.; Aguilar, R.; Nakamatsu, J. Natural fibers as reinforcement additives for geopolymers—A review of potential eco-friendly applications to the construction industry. Sustain. Mater. Technol. 2020, 23, e00132. [Google Scholar] [CrossRef]
  145. Yan, L.; Kasal, B.; Huang, L. A review of recent research on the use of cellulosic fibres, their fibre fabric reinforced cementitious, geo-polymer and polymer composites in civil engineering. Compos. Part B Eng. 2016, 92, 94–132. [Google Scholar] [CrossRef]
  146. Azwa, Z.N.; Yousif, B.F.; Manalo, A.C.; Karunasena, W. A review on the degradability of polymeric composites based on natural fibres. Mater. Des. 2013, 47, 424–442. [Google Scholar] [CrossRef] [Green Version]
  147. Ferdous, T.; Quaiyyum, M.A.; Bashar, S.; Jahan, M.S. Anatomical, morphological and chemical characteristics of kaun straw (Seetaria-ltalika). Nord. Pulp Pap. Res. J. 2020, 35, 288–298. [Google Scholar] [CrossRef]
  148. Wan, J.; Wang, Y.; Xiao, Q. Effects of hemicellulose removal on cellulose fiber structure and recycling characteristics of eucalyptus pulp. Bioresour. Technol. 2010, 101, 4577–4583. [Google Scholar] [CrossRef]
  149. Joseph, S.; Sreekala, M.S.; Oommen, Z.; Koshy, P.; Thomas, S. A comparison of the mechanical properties of phenol formaldehyde composites reinforced with banana fibres and glass fibres. Compos. Sci. Technol. 2002, 62, 1857–1868. [Google Scholar] [CrossRef]
  150. Cesarino, I.R.G.; Bronzato, F.; Leao, A. Pineapple Leaf Fibers; Springer: Berlin, Germany, 2020. [Google Scholar]
  151. Vijay, R.; Vinod, A.; Lenin Singaravelu, D.; Sanjay, M.R.; Siengchin, S. Characterization of chemical treated and untreated natural fibers from Pennisetum orientale grass—A potential reinforcement for lightweight polymeric applications. Int. J. Lightweight Mater. Manuf. 2021, 4, 43–49. [Google Scholar] [CrossRef]
  152. Mohanty, A.K.; Misra, M.; Drzal, L.T. Natural Fibers, Biopolymer and Biocomposites; CRC Press: London, UK, 2005. [Google Scholar]
  153. Fatriasari, W.; Hamzah, F.N.; Pratomo, B.I.; Fajriutami, T.; Ermawar, R.A.; Falah, F.; Laksana, R.P.B.; Ghozali, M.; Iswanto, A.H.; Hermiati, E.; et al. Optimizing the synthesis of lignin derivatives from Acacia mangium to improve the enzymatic hydrolysis of kraft pulp sorghum bagasse. Int. J. Renew. Energy Dev. 2020, 9, 227–235. [Google Scholar] [CrossRef]
  154. Solihat, N.; Sari, F.; Falah, F.; Ismayati, M.; Lubis, M.; Fatriasari, W.; Santoso, E.; Syafii, W. Lignin as an active biomaterial: A review. J. Sylva Lestari 2021, 9, 1–22. [Google Scholar] [CrossRef]
  155. Fatriasari, W.; Nurhamzah, F.; Raniya, R.; Laksana, R.; Anita, S.H.; Iswanto, A.H.; Hermiati, E. Enzymatic hydrolysis performance of biomass by the addition of a lignin based biosurfactant. J. Korean Wood Sci. Technol. 2020, 48, 651–665. [Google Scholar]
  156. Falah, F.; Lubis, M.; Triastuti; Fatriasari, W.; Sari, F. Utilization of lignin from the waste of bioethanol production as a mortar additive. J. Sylva Lestari 2020, 8, 326–339. [Google Scholar] [CrossRef]
  157. Solihat, N.; Raniya, R.; Fajriutami, T.; Iswanto, A.; Fatriasari, W.; Fudholi, A. Design and performance of amphiphilic lignin derivatives in enzymatic hydrolysis of sweet sorghum bagasse for bioethanol production. BioResources 2021, 16, 5875–5889. [Google Scholar] [CrossRef]
  158. Zhang, J.; Song, H.; Lin, L.; Zhuang, J.; Pang, C.; Liu, S. Microfibrillated cellulose from bamboo pulp and its properties. Biomass Bioenergy 2012, 39, 78–83. [Google Scholar] [CrossRef]
  159. Shlieout, G.; Arnold, K.; Müller, G. Powder and mechanical properties of microcrystalline cellulose with different degrees of polymerization. AAPS PharmSciTech 2002, 3, 45–54. [Google Scholar] [CrossRef] [PubMed]
  160. Jonoobi, M.; Oksman Niska, K.; Harun, J.; Misra, M. Chemical composition, crystallinity, and thermal degradation of bleached and unbleached kenaf bast (Hibiscus cannabinus) pulp and nanofibers. BioResources 2009, 4, 626–639. [Google Scholar]
  161. Granstrom, M. Cellulose Derivatives: Synthesis, Properties and Applications; University of Helsinki: Helsinki, Finland, 2009. [Google Scholar]
  162. Asrofi, M.; Abral, H.; Kasim, A.; Pratoto, A.; Mahardika, M.; Park, J.-W.; Kim, H.-J. Isolation of Nanocellulose from Water Hyacinth Fiber (WHF) Produced via Digester-Sonication and Its Characterization. Fibers Polym. 2018, 19, 1618–1625. [Google Scholar] [CrossRef]
  163. Park, S.; Baker, J.O.; Himmel, M.E.; Parilla, P.A.; Johnson, D.K. Cellulose crystallinity index: Measurement techniques and their impact on interpreting cellulase performance. Biotechnol. Biofuels 2010, 3, 1–10. [Google Scholar] [CrossRef] [Green Version]
  164. Puglia, D.; Biagiotti, J.; Kenny, J.M. A Review on Natural Fibre-Based Composites—Part II. J. Nat. Fibers 2005, 1, 23–65. [Google Scholar] [CrossRef]
  165. Nurazzi, N.M.; Asyraf, M.; Khalina, A.; Abdullah, N.; Aisyah, H.A.; Rafiqah, S.A.; Sabaruddin, F.A.; Kamarudin, S.H.; Norrrahim, M.; Ilyas, R.A.; et al. A Review on Natural Fiber Reinforced Polymer Composite for Bullet Proof and Ballistic Applications. Polymers 2021, 13, 646. [Google Scholar] [CrossRef]
  166. Yahaya, R.; Sapuan, S.M.; Jawaid, M.; Leman, Z.; Zainudin, E.S. Investigating ballistic impact properties of woven kenaf-aramid hybrid composites. Fibers Polym. 2016, 17, 275–281. [Google Scholar] [CrossRef]
  167. Miller, S.A. Natural fiber textile reinforced bio-based composites: Mechanical properties, creep, and environmental impacts. J. Clean. Prod. 2018, 198, 612–623. [Google Scholar] [CrossRef]
  168. Mahardika, M.; Abral, H.; Kasim, A.; Arief, S.; Hafizulhaq, F.; Asrofi, M. Properties of cellulose nanofiber/bengkoang starch bionanocomposites: Effect of fiber loading. LWT 2019, 116, 108554. [Google Scholar] [CrossRef]
  169. Al-Oqla, F.M.; Sapuan, S.M.; Ishak, M.R.; Nuraini, A.A. A decision-making model for selecting the most appropriate natural fiber—Polypropylene-based composites for automotive applications. J. Compos. Mater. 2015, 50, 543–556. [Google Scholar] [CrossRef]
  170. Xia, C.; Yu, J.; Shi, S.Q.; Qiu, Y.; Cai, L.; Wu, H.F.; Ren, H.; Nie, X.; Zhang, H. Natural fiber and aluminum sheet hybrid composites for high electromagnetic interference shielding performance. Compos. Part B Eng. 2017, 114, 121–127. [Google Scholar] [CrossRef]
  171. Luz, F.S.D.; Garcia Filho, F.D.C.; Oliveira, M.S.; Nascimento, L.F.C.; Monteiro, S.N. Composites with Natural Fibers and Conventional Materials Applied in a Hard Armor: A Comparison. Polymers 2020, 12, 1920. [Google Scholar] [CrossRef]
  172. Murali Mohan, S.; Mahesh Gowda, E.; Shashidhar, M.P. Clinical evaluation of the fiber post and direct composite resin restoration for fixed single crowns on endodontically treated teeth. Med. J. Armed Forces India 2015, 71, 259–264. [Google Scholar] [CrossRef] [Green Version]
  173. Anidha, S.; Latha, N.; Muthukkumar, M. Effect of polyaramid reinforced with sisal epoxy composites: Tensile, impact, flexural and morphological properties. J. Mater. Res. Technol. 2020, 9, 7947–7954. [Google Scholar] [CrossRef]
  174. Zhou, X.; Saini, H.; Kastiukas, G. Engineering properties of treated natural hemp fiber-reinforced concrete. Front. Built Environ. 2017, 3, 33. [Google Scholar] [CrossRef] [Green Version]
  175. Luzi, F.; Puglia, D.; Torre, L. Natural Fiber Biodegradable Composites and Nanocomposites: A Biomedical Application; Elsevier Ltd.: Kidlington, UK, 2019. [Google Scholar]
  176. Namvar, F.; Jawaid, M.; Md Tahir, P.; Mohamad, R.; Azizi, S.; Khodavandi, A.; Rahman, H.S.; Nayeri, M.D. Potential use of plant fibres and their composites for biomedical applications. BioResources 2014, 9, 5688–5706. [Google Scholar] [CrossRef]
  177. Ahad, N.; Rozali, F.; Hanif, N.; Rosli, N. Oils and water absorption behavior of natural fibers filled TPU composites for biomedical applications. J. Eng. Res. Educ. 2018, 10, 16–21. [Google Scholar]
  178. Goyal, A.; Sharma, V.; Upadhyay, N.; Gill, S.; Sihag, M. Flax and flaxseed oil: An ancient medicine & modern functional food. J. Food Sci. Technol. 2014, 51, 1633–1653. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  179. Kulma, A.; Skórkowska-Telichowska, K.; Kostyn, K.; Szatkowski, M.; Skała, J.; Drulis-Kawa, Z.; Preisner, M.; Żuk, M.; Szperlik, J.; Wang, Y.F.; et al. New flax producing bioplastic fibers for medical purposes. Ind. Crop. Prod. 2015, 68, 80–89. [Google Scholar] [CrossRef]
  180. Song, J.; Chen, Z.; Liu, Z.; Yi, Y.; Tsigkou, O.; Li, J.; Li, Y. Controllable release of vascular endothelial growth factor (VEGF) by wheel spinning alginate/silk fibroin fibers for wound healing. Mater. Des. 2021, 212, 110231. [Google Scholar] [CrossRef]
  181. Cherian, B.M.; Leão, A.L.; de Souza, S.F.; Thomas, S.; Pothan, L.A.; Kottaisamy, M. Isolation of nanocellulose from pineapple leaf fibres by steam explosion. Carbohydr. Polym. 2010, 81, 720–725. [Google Scholar] [CrossRef]
  182. Giri, J.; Adhikari, R.; Campus, T. A brief review on extraction of nanocellulose and its application. Nepal J. Online 2013, 9, 81–87. [Google Scholar] [CrossRef]
  183. Alharbi, M.A.H.; Hirai, S.; Tuan, H.A.; Akioka, S.; Shoji, W. Effects of chemical composition, mild alkaline pretreatment and particle size on mechanical, thermal, and structural properties of binderless lignocellulosic biopolymers prepared by hot-pressing raw microfibrillated Phoenix dactylifera and Cocos nucifera fibers and leaves. Polym. Test. 2020, 84, 106384. [Google Scholar] [CrossRef]
  184. Daunton, C.; Kothari, S. A history of materials and practices for wound management. Wound Manag. 2012, 20, 174–186. [Google Scholar]
  185. Asim, M.; Saba, N.; Jawaid, M.; Nasir, M. 12-Potential of natural fiber/biomass filler-reinforced polymer composites in aerospace applications. In Sustainable Composites for Aerospace Applications; Jawaid, M., Thariq, M., Eds.; Woodhead Publishing: Kidlington, UK, 2018; pp. 253–268. [Google Scholar]
  186. Potluri, R. Natural Fiber-Based Hybrid Bio-composites: Processing, Characterization, and Applications. In Green Composites: Processing, Characterisation and Applications for Textiles; Muthu, S.S., Ed.; Springer: Singapore, 2019; pp. 1–46. [Google Scholar]
  187. Arockiam, N.J.; Jawaid, M.; Saba, N. 6-Sustainable bio composites for aircraft components. In Sustainable Composites for Aerospace Applications; Elsevier: Selangor, Malaysia, 2018; pp. 109–123. [Google Scholar]
  188. Asrofi, M.; Sapuan, S.M.; Ilyas, R.A.; Ramesh, M. Characteristic of composite bioplastics from tapioca starch and sugarcane bagasse fiber: Effect of time duration of ultrasonication (Bath-Type). Mater. Today Proc. 2021, 46, 1626–1630. [Google Scholar] [CrossRef]
  189. Baltazar-Y-Jimenez, A.; Sain, M. Natural Fibres for Automotive Applications; Woodhead Publishing Limited: New Delhi, India, 2012. [Google Scholar]
  190. Moudood, A.; Rahman, A.; Khanlou, H.M.; Hall, W.; Öchsner, A.; Francucci, G. Environmental effects on the durability and the mechanical performance of flax fiber/bio-epoxy composites. Compos. Part B Eng. 2019, 171, 284–293. [Google Scholar] [CrossRef]
  191. Fuentes, C.A.; Ting, K.W.; Dupont-Gillain, C.; Steensma, M.; Talma, A.G.; Zuijderduin, R.; Van Vuure, A.W. Effect of humidity during manufacturing on the interfacial strength of non-pre-dried flax fibre/unsaturated polyester composites. Compos. Part A Appl. Sci. Manuf. 2016, 84, 209–215. [Google Scholar] [CrossRef] [Green Version]
  192. George, M.; Mussone, P.G.; Alemaskin, K.; Chae, M.; Wolodko, J.; Bressler, D.C. Enzymatically treated natural fibres as reinforcing agents for biocomposite material: Mechanical, thermal, and moisture absorption characterization. J. Mater. Sci. 2016, 51, 2677–2686. [Google Scholar] [CrossRef]
  193. Mohammed, L.; Ansari, M.N.M.; Pua, G.; Jawaid, M.; Islam, M.S. A Review on natural fiber reinforced polymer composite and its applications. Int. J. Polym. Sci. 2015, 2015, 243947. [Google Scholar] [CrossRef] [Green Version]
  194. Rohit, K.; Dixit, S. A Review—Future aspect of natural fiber reinforced composite. Polym. Renew. Resour. 2016, 7, 43–59. [Google Scholar] [CrossRef]
  195. Mahesha, G.T.; Satish, S.B.; Vijaya, K.M.; Bhat, K.S. Preparation of unidirectional Grewia serrulata fiber-reinforced polyester composites and evaluation of tensile and flexural properties. J. Nat. Fibers 2016, 13, 547–554. [Google Scholar] [CrossRef]
  196. Safri, S.N.A.; Sultan, M.T.H.; Jawaid, M.; Jayakrishna, K. Impact behaviour of hybrid composites for structural applications: A review. Compos. Part B Eng. 2018, 133, 112–121. [Google Scholar] [CrossRef]
  197. Yang, X.; Wang, K.; Tian, G.; Liu, X.E.; Yang, S. Evaluation of chemical treatments to tensile properties of cellulosic bamboo fibers. Eur. J. Wood Wood Prod. 2018, 76, 1303–1310. [Google Scholar] [CrossRef]
  198. Shih, Y.-F. Mechanical and thermal properties of waste water bamboo husk fiber reinforced epoxy composites. Mater. Sci. Eng. A 2007, 445, 289–295. [Google Scholar] [CrossRef]
  199. Kemenperin. Kemenperin: Kemenperin Akselerasi Penggunaan Serat Alam Jadi Bahan Baku Industri. Available online: (accessed on 4 November 2021).
  200. Sukardan, D.M.; Natawijaya, D.; Prettyanti, P.; Cahyadi; Novarini, E. Characterization of the fiber from biduri (Calotropis gigantea) and the identification of it’s utilization possibility as a textile fiber. Arena Tekst. 2016, 31, 51–62. [Google Scholar]
  201. Sana, A.W.; Noerati, N.; Sugiyana, D.; Sukardan, D.M. The application of biduri natural fiber (Calotropis gigantea) as an insulative filler material in winter jacket. Arena Tekst. 2020, 35, 1–12. [Google Scholar]
  202. Shanmugam, V.; Mensah, R.A.; Försth, M.; Sas, G.; Restás, Á.; Addy, C.; Xu, Q.; Jiang, L.; Neisiany, R.E.; Singha, S.; et al. Circular economy in biocomposite development: State-of-the-art, challenges and emerging trends. Compos. Part C Open Access 2021, 5, 100138. [Google Scholar] [CrossRef]
  203. Martina, R.A.; Oskam, I.F. Practical guidelines for designing recycling, collaborative, and scalable business models: A case study of reusing textile fibers into biocomposite products. J. Clean. Prod. 2021, 318, 128542. [Google Scholar] [CrossRef]
  204. Khayyam, H.; Naebe, M.; Milani, A.S.; Fakhrhoseini, S.M.; Date, A.; Shabani, B.; Atkiss, S.; Ramakrishna, S.; Fox, B.; Jazar, R.N. Improving energy efficiency of carbon fiber manufacturing through waste heat recovery: A circular economy approach with machine learning. Energy 2021, 225, 120113. [Google Scholar] [CrossRef]
  205. Velasco-Muñoz, J.F.; Mendoza, J.M.F.; Aznar-Sánchez, J.A.; Gallego-Schmid, A. Circular economy implementation in the agricultural sector: Definition, strategies and indicators. Resour. Conserv. Recycl. 2021, 170, 105618. [Google Scholar] [CrossRef]
  206. Awasthi, M.K.; Sarsaiya, S.; Patel, A.; Juneja, A.; Singh, R.P.; Yan, B.; Awasthi, S.K.; Jain, A.; Liu, T.; Duan, Y.; et al. Refining biomass residues for sustainable energy and bio-products: An assessment of technology, its importance, and strategic applications in circular bio-economy. Renew. Sustain. Energy Rev. 2020, 127, 109876. [Google Scholar] [CrossRef]
  207. Ruamsook, K.; Thomchick, E. Market opportunity for lignocellulosic biomass. NewBio 2014, 1–108. Available online: (accessed on 4 November 2021).
  208. Pratiwi, R.; Rahayu, D.; Barliana, M.I. Pemanfaatan selulosa dari limbah jerami padi (Oryza sativa) sebagai bahan bioplastik. Indones. J. Pharm. Sci. Technol. 2016, 3, 83–91. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of fiber classification, reprint with permission from ref. [26]. Copyright © 2021 Woodhead Publishing Limited.
Figure 1. Schematic representation of fiber classification, reprint with permission from ref. [26]. Copyright © 2021 Woodhead Publishing Limited.
Polymers 13 04280 g001
Figure 2. Some natural fiber resources (Pic courtesy authors collection).
Figure 2. Some natural fiber resources (Pic courtesy authors collection).
Polymers 13 04280 g002
Figure 3. The hierarchical cell wall structure of lignocellulosic biomass (adapted from [134], Copyright © 2021 Elsevier Inc., License Number: 5193031271486) Cell wall layer position of plants (modified from [135], Copyright © 2021 Elsevier Ltd., License Number: 5193040344374).
Figure 3. The hierarchical cell wall structure of lignocellulosic biomass (adapted from [134], Copyright © 2021 Elsevier Inc., License Number: 5193031271486) Cell wall layer position of plants (modified from [135], Copyright © 2021 Elsevier Ltd., License Number: 5193040344374).
Polymers 13 04280 g003
Figure 4. Potential application of natural fibers in many sectors such as (a) aerospace, (b) automotive, (c) marine such as boat hulls, (d) building and construction such as insolation board, (e) sport and leisure goods, (f) electronic appliances such as handphone casing, (g) paper and packaging, (h) textile, (i) biomedical, and (j) military fields.
Figure 4. Potential application of natural fibers in many sectors such as (a) aerospace, (b) automotive, (c) marine such as boat hulls, (d) building and construction such as insolation board, (e) sport and leisure goods, (f) electronic appliances such as handphone casing, (g) paper and packaging, (h) textile, (i) biomedical, and (j) military fields.
Polymers 13 04280 g004
Figure 5. Manufacturing integration strategy in the ramie production system in Indonesia.
Figure 5. Manufacturing integration strategy in the ramie production system in Indonesia.
Polymers 13 04280 g005

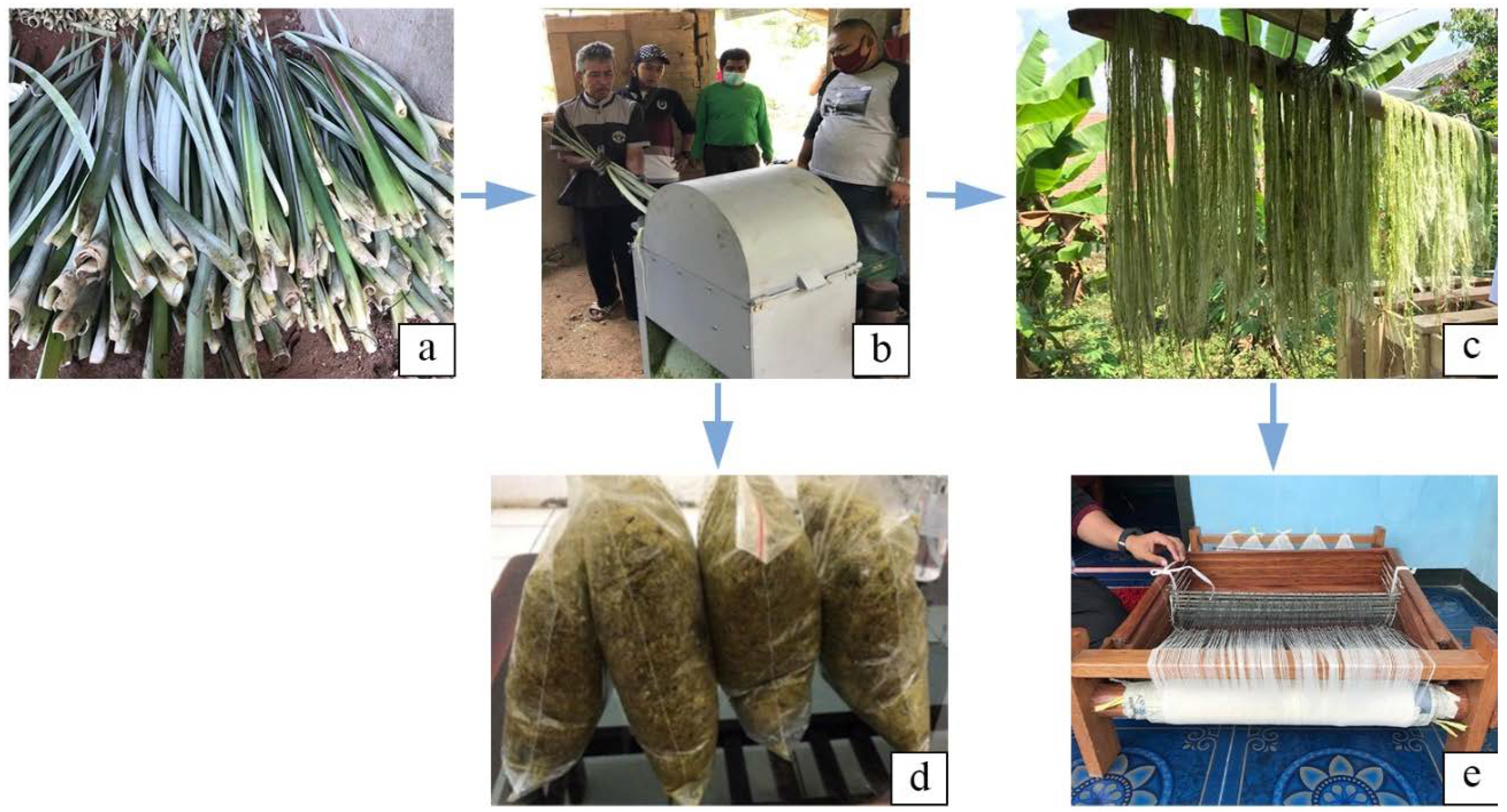

Figure 6. The process production of extracted fiber from fresh leaf pineapple, (a) fresh leaf fiber, (b) decorticator process, (c) wet extracted fiber, (d) decorticator waste, (e) dried fiber that ready for spinning.
Figure 6. The process production of extracted fiber from fresh leaf pineapple, (a) fresh leaf fiber, (b) decorticator process, (c) wet extracted fiber, (d) decorticator waste, (e) dried fiber that ready for spinning.
Polymers 13 04280 g006

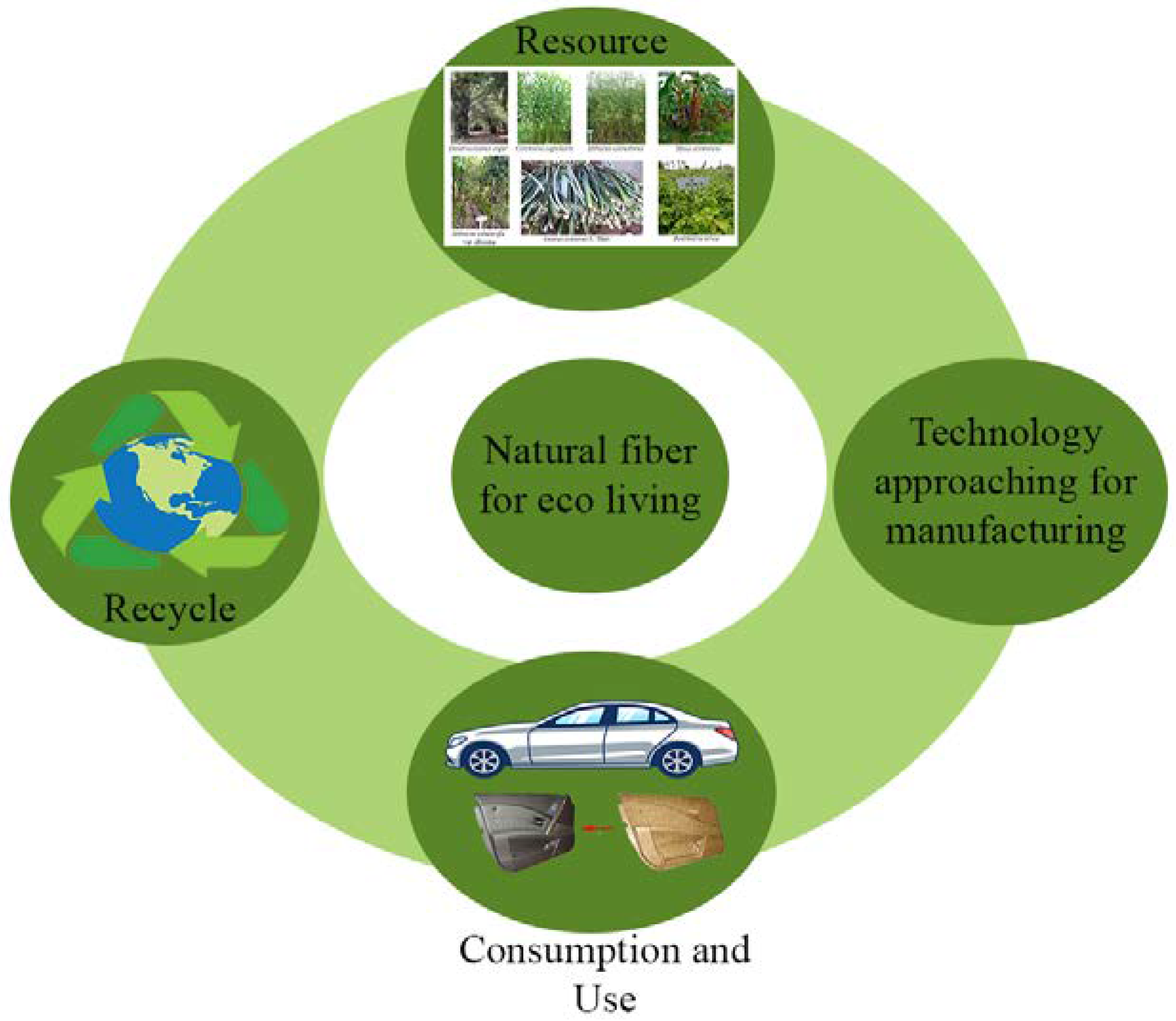

Figure 7. Circular economy concept to conserve the natural fiber for future eco living.
Figure 7. Circular economy concept to conserve the natural fiber for future eco living.
Polymers 13 04280 g007

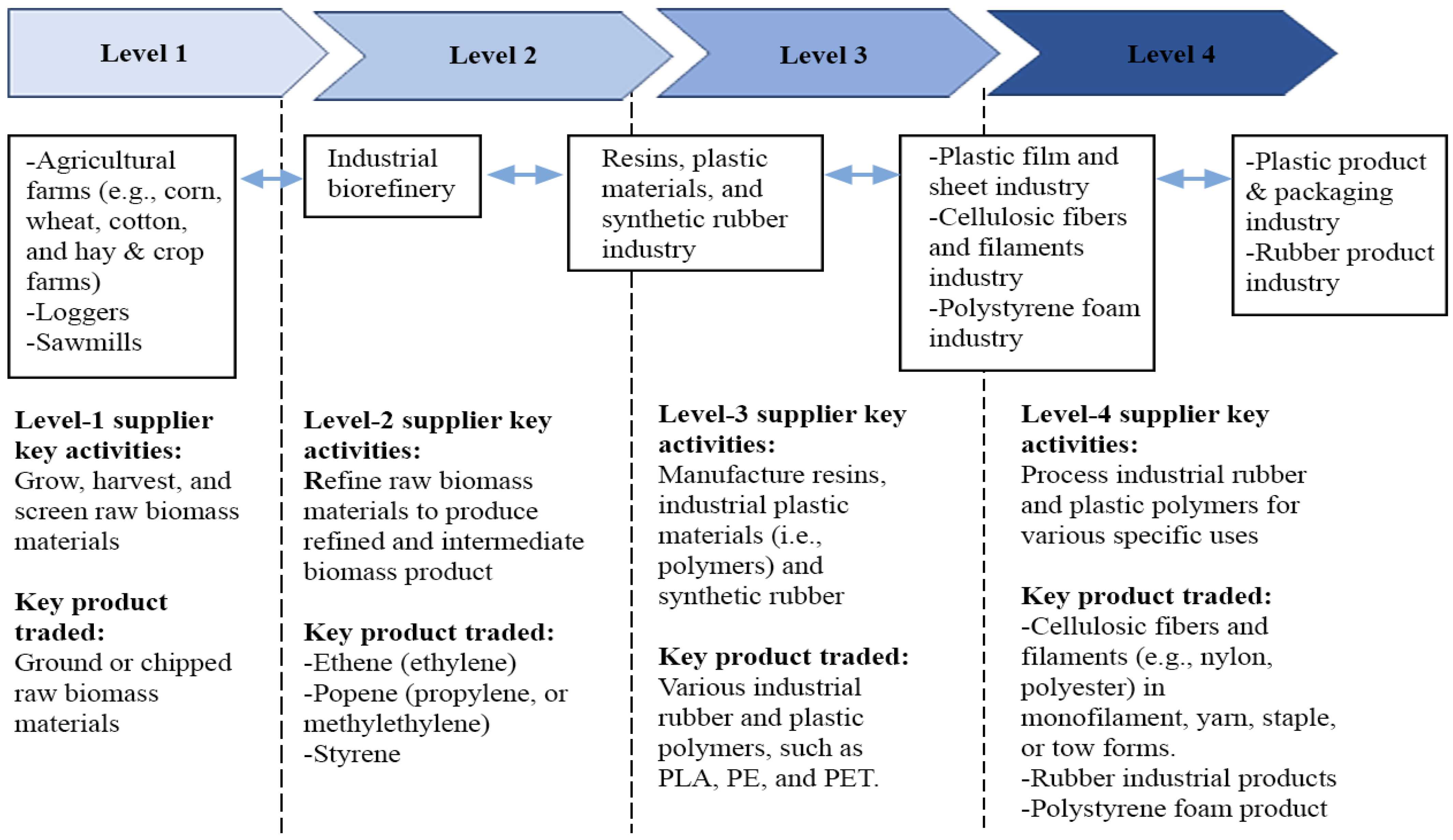

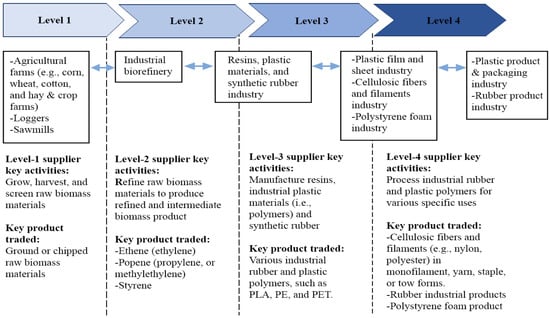

Figure 8. Simplified example of multi-level rubber and polymer markets for biomass (adapted from [207]).
Figure 8. Simplified example of multi-level rubber and polymer markets for biomass (adapted from [207]).
Polymers 13 04280 g008
Table 1. Preparation method for producing the extracted natural bast fibers.
Table 1. Preparation method for producing the extracted natural bast fibers.
Introducing MethodsAdvantagesDisadvantagesReferences
Dew retting
  • Relative ecofriendly or less energy process by using bacteria and moisture in the plant for separating individual fibers from the plant
  • Common in areas with heavy night dew and warm days, as well as areas with water shortages.
  • Excessive retting brings difficulties in separating individual fibers or tend to weak the fiber strength
  • Required long processing time (2–3 weeks) depending on climatic condition
  • Obtaining dark fiber and poor quality
Water retting
  • Produce fiber with high cellulose content, which gives the fiber a higher tensile strength
  • Produce fiber with lower density which is suitable for low weight composite applications
  • Duration of process for 7–14 days
  • Need surface treatment as initial step to increase the surface roughness
  • High cost
  • High water treatment maintenance
Mechanical extraction
  • Produce a significant amount of acceptable quality of fibers
  • Short time process duration
  • Damage fiber cell wall structures, resulting in dislocations, kink bands or node that have a negative impact on tensile mechanical properties and may even compromise composite performance
  • High cost
Chemical treatment
  • Produce fiber with high cellulose content, higher tensile strength, thermal stability, and crystallinity index
  • The surface roughness of the fiber relatively good (based on SEM analysis)
  • Enhance the physicochemical properties of the fibers
  • Some chemical treatment waste can pollute the environment
Table 2. Application of natural fiber composites in biomedical field.
Table 2. Application of natural fiber composites in biomedical field.
Specific Area Application of Fiber CompositeSource of FiberReferences
  • Blood bag
  • Drug/gene delivery scaffold
Pineapple, rambutan and banana skin[177]
  • Ancient medicine
  • Modern functional food
Flax and flaxseed oil[178]
  • Wound dressings
  • Drug delivery
  • Wound healing
Bombyx mori silk[180]
  • Tissue engineering
  • Drug delivery
  • Wound dressing
  • Medical implants
  • Cardiovascular implants
  • Scaffolds for tissue engineering
Pineapple leaf[181,182]
  • Prosthodontics
  • Orthopedics
  • Cosmetic orthodontics
  • Dental application
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Karimah, A.; Ridho, M.R.; Munawar, S.S.; Ismadi; Amin, Y.; Damayanti, R.; Lubis, M.A.R.; Wulandari, A.P.; Nurindah; Iswanto, A.H.; et al. A Comprehensive Review on Natural Fibers: Technological and Socio-Economical Aspects. Polymers 2021, 13, 4280.

AMA Style

Karimah A, Ridho MR, Munawar SS, Ismadi, Amin Y, Damayanti R, Lubis MAR, Wulandari AP, Nurindah, Iswanto AH, et al. A Comprehensive Review on Natural Fibers: Technological and Socio-Economical Aspects. Polymers. 2021; 13(24):4280.

Chicago/Turabian Style

Karimah, Azizatul, Muhammad Rasyidur Ridho, Sasa Sofyan Munawar, Ismadi, Yusup Amin, Ratih Damayanti, Muhammad Adly Rahandi Lubis, Asri Peni Wulandari, Nurindah, Apri Heri Iswanto, and et al. 2021. "A Comprehensive Review on Natural Fibers: Technological and Socio-Economical Aspects" Polymers 13, no. 24: 4280.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
