Synthesis, Structural Characterization and Ligand-Enhanced Photo-Induced Color-Changing Behavior of Two Hydrogen-Bonded Ho(III)-Squarate Supramolecular Compounds

by
Chih-Chieh Wang
1,*,
Szu-Yu Ke
1,
Yun Feng
1,
Mei-Lin Ho
1,*,
Chung-Kai Chang
2,
Yu-Chun Chuang
2 and
Gene-Hsiang Lee
3
1
Department of Chemistry, Soochow University, Taipei 11102, Taiwan
2
Instrumentation Center, National Taiwan University, Taipei 10617, Taiwan
3
Materials Science Group, National Synchrotron Radiation Research Center, Hsinchu 30076, Taiwan
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(8), 1369; https://doi.org/10.3390/polym11081369
Submission received: 12 July 2019 / Revised: 8 August 2019 / Accepted: 15 August 2019 / Published: 19 August 2019
(This article belongs to the Special Issue Metal-Organic Frameworks)
Browse Figures
Review Reports Versions Notes

Abstract

:
Two coordination polymers (CPs) with chemical formulas, [Ho2(C4O4)2(C2O4)(H2O)8]·4H2O (1) and [Ho(C4O4)1.5(H2O)3] (2), (C4O42− = dianion of squaric acid, C2O42− = oxalate), have been synthesized and their structures were determined by single-crystal X-ray diffractometer (XRD). In compound 1, the coordination environment of Ho(III) ion is eight-coordinate bonded to eight oxygen atoms from two squarate, one oxalate ligands and four water molecules. The squarates and oxalates both act as bridging ligands with μ1,2-bis-monodentate and bis-chelating coordination modes, respectively, connecting the Ho(III) ions to form a one-dimensional (1D) ladder-like framework. Adjacent ladders are interlinked via O–H⋅⋅⋅O hydrogen bonding interaction to form a hydrogen-bonded two-dimensional (2D) layered framework and then arranged orderly in an AAA manner to construct its three-dimensional (3D) supramolecular architecture. In compound 2, the coordination geometry of Ho(III) is square-antiprismatic eight coordinate bonded to eight oxygen atoms from five squarate ligands and three water molecules. The squarates act as bridging ligands with two coordination modes, μ1,2,3-trismonodentate and μ1,2-bis-monodentate, connecting the Ho(III) ions to form a 2D bi-layered framework. Adjacent 2D frameworks are then parallel stacked in an AAA manner to construct its 3D supramolecular architecture. Hydrogen bonding interactions between the squarate ligands and coordinated water molecules in 1 and 2 both play important roles on the construction of their 3D supramolecular assembly. Compounds 1 and 2 both show remarkable ligand-enhanced photo-induced color-changing behavior, with their pink crystals immediately turning to yellow crystals under UV light illumination.

1. Introduction

Lanthanide metal-organic frameworks (LnMOFs) have received much attention, not only for their fascinating structural variety, but also for their potential applications of MOFs like porosity for gas storage [1,2,3,4,5,6,7,8,9], their specific characteristics arising from 4f electrons for luminescence [10,11,12,13,14,15,16,17,18,19,20,21,22]. The inherent character of lanthanide ions with high affinity for oxygen atoms and high coordination numbers, result in the formation of a number of MOFs with flexible coordination geometry and various structural dimensionality from multi-carboxylate ligands [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29]. The squarate, C4O42−, has been widely used as a polyfunctional ligand, including (1) acts as a bridging ligand with various coordination modes (μ2 to μ6 bridges shown in Scheme 1) to build up many coordination polymers with novel extended networks, including 1D chain, 2D layer, 3D cube- and cage-like frameworks and so forth and (2) behaviors as hydrogen bond donor, acceptor or π−π constructor for the assembly of extended supramolecular architecture [30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63]. In the previous investigation, several 2D and 3D LnMOFs constructed via the bridges of lanthanide and squarate ligand with various coordination modes have been synthesized under hydrothermal or solvothermal conditions [64,65,66,67,68,69,70]. Their thermal behavior, magnetic property and photo-luminescence spectra of 2D and 3D LnMOFs have also been studied. With our continuous effort on the study of metal-squarate coordination polymers (CPs) [58,59,60,61,62,63], we report here the synthesis, structural characterization, thermal stability and light-induced color-changing behavior of two Ho(III)-squarate hydrogen-bonded supramolecular networks, [Ho2(C2O4)(C4O4)2(H2O)8]·4H2O (1) and [Ho(C4O4)1.5(H2O)3] (2), (C4O42− = dianion of squaric acid, C2O42− = dianion of oxalic acid), in which the squarate acts as the bridging ligands with μ1,2-coordination mode (Scheme 1b) for 1 and combined μ1,2-plus μ1,2,3-coordination modes (Scheme 1b,c) for 2 to build up 1D ladder-like CP and 2D bi-layered MOF, respectively.

2. Materials and Methods

2.1. Materials and General Methods

All the reagents (Sigma-Aldrich Inc., Taipei, Taiwan) were purchased commercially and used without further purification. Elementary microanalyses (EA) (C, H and N) were performed using a Perkin-Elmer 2400 elemental analyzer (PerkinElmer, Taipei, Taiwan). FTIR spectra (500–4000 cm−1) were recorded from KBr pellets with a Nicolet Fourier Transform IR, MAGNA-IR 500 spectrometer (ThermoFisherScientific, Waltham, MA, USA). Thermal analysis (TGA) was carried out using a Perkin-Elmer 7 Series/UNIX TGA7 analyzer (PerkinElmer, Taipei, Taiwan) under a nitrogen atmosphere in the temperature range of 25 °C–700 °C with a ramp rate of 5 °C/min.

2.2. Synthesis of [Ho2(C2O4)(C4O4)2(H2O)8]·4H2O (1) and [Ho(C4O4)1.5(H2O)3]·H2O (2)

Method 1: Squaric acid (H2C4O4, 8.6 mg, 0.075 mmol) was dissolved in 3 mL mixed solvents of distilled water and EtOH (1:1, v/v) and then added into the solution of Ho(NO3)3⋅5H2O (22.1 mg, 0.05 mmol) and 4,4’-bipyridyl-N,N’-dioxide hydrate (bpno, 9.4 mg, 0.05mmol) in 6 mL mixed solvents of distilled water and EtOH at room temperature to give a colorless solution. Light-pink needle-like and block-like crystals of 1 and 2, respectively, were obtained after several weeks in 2.69% and 47.3% yields. The resulting crystals were collected by filtration, washed several times with distilled water and dried in air.
Method 2: The synthetic procedure was similar to method 1 except Na2C2O4 was added into the reaction solution, with the molar ratios of squaric acid (H2C4O4, 8.5 mg, 0.075 mmol), Ho(NO3)3⋅5H2O (44.1 mg, 0.1 mmol), 4,4’-bipyridyl-N,N’-dioxide hydrate (bpno, 9.4 mg, 0.05mmol) and Na2C2O4 (10.1 mg, 0.075 mmol) in 12 mL mixed solvents of distilled water and EtOH at room temperature. Only light-pink needle-like crystals of 1 were obtained after four weeks in 66.4% yields. The resulting crystals were collected by filtration, washed several times with distilled water and dried in air.
Anal. Calcd for HoC5H12O12 (1) (Mw=429.07): C 14.00, H 2.82. Found: C 13.92, H 2.81. IR (KBr pellet): ν = 3340 (s), 1681 (s), 1607 (s), 1536 (s), 1477 (vs), 1317 (m), 1098 (m), 869 (m), 830 (m), 659 (m), 537 (m), 494 (m) cm−1. Anal. Calcd for HoC6H8O10 (2) (Mw = 405.05): C 17.79, H 1.99 Found: C 17.68, H 1.85. IR (KBr pellet): 3420 (s), 3101 (m), 1605 (s), 1509 (vs), 1097 (m), 858 (m), 741 (m), 671 (m), 645 (m) cm−1.

2.3. Crystallographic Data Collection and Refinements

Single crystals of 1 and 2 suitable for X-ray structural analyses were selected and their crystallographic data were collected at 150 K and 250 K, respectively, on a Siemens SMART CCD diffractometer using Mo radiation (λ = 0.71073 Å) in the ω scan mode. Cell parameters were retrieved using SMART [71] software and the detector frames were integrated by use of program SAINT [72]. Data reduction was performed by use of program SAINT [73] and corrected for Lorentz and polarization effects. The empirical absorption corrections were performed using the SADABS [73] program. Both the structures were solved by direct method and refined by full-matrix, least-squares procedures using the SHELXTL-PC V 5.03 software [74]. All non-hydrogen atoms were refined subjected to anisotropic refinements. The hydrogen atoms of the coordinated and solvated water molecules were located in the Difference Fourier map with the corresponding positions and isotropic displacement parameters being refined. The final full-matrix, least-squares refinement on F2 was applied for all observed reflections (I > 2σ(I)). Details of crystallographic data, data collections and structure refinements 1 and 2 are summarized in Table 1. CCDC 1940248 and 1940249 for 1 and 2, respectively.

2.4. In Situ Powder X-ray Diffraction

The powder X-ray diffraction patterns of 1 and 2 were measured at the BL01C2 in National Synchrotron Radiation Research Center (NSRRC). The wavelength of the incident X-rays was 1.0332 Å (12.0 keV) and diffraction signals were recorded with a Mar345 imaging-plate detector. The powder sample was packed into a 0.3 mm diameter glass capillary. The diffraction geometry was calibrated by NIST standard reference material, lanthanum hexaboride (SRM660b). The one-dimensional diffraction pattern was converted with GSAS-II program [75].

2.5. Spectral Measurement

UV-vis diffusive reflectance spectra for compounds 1 and 2 were obtained with a HITACHI U-3900H spectrophotometer (Hitachi High Technologies America Inc., Schaumburg, IL, USA) equipped with an integrating sphere accessory (Al2O3 was used as a reference) [76].

3. Results and Discussion

3.1. Syntheses and Characterization of Compounds 1 and 2

Compounds 1, [Ho(C2O4)0.5(C4O4)(H2O)4]·2(H2O) and 2, [Ho(C4O4)1.5(H2O)3], were synthesized by direct mixing of Ho(NO3)3⋅5H2O, squaric acid (H2C4O4) and 4,4’-bipyridyl-N,N’-dioxide (bpno) in the mixed solvents of distilled water and EtOH at room temperature (method 1) as shown in Scheme 2. In addition, compound 1 can also be obtained by the direct mixing of Ho(NO3)3⋅5H2O, H2C4O4, bpno and Na2C2O4 in the mixed solvents of distilled water and EtOH (method 2). The yields of 1 are increasing from 2.69% to 66% but the crystals quality is not as good as those obtained by method 1. The bpno may act as a base for the deprotonation of the squaric acid. In the absence of bpno, compounds 1 and 2 were not produced during the reaction. In method 1, the oxalate ligand was obtained via the in-situ synthesis from the squarate ligand, indicating a slow release of oxalate from the squarate could be helpful for the formation of compound 1. However, the formation mechanism of oxalate is not clear and may be through an in situ oxidation ring-opening reaction of squarate. This type of ring opening oxidation reaction has been proposed previously [77,78,79]. The most relevant IR features are those related to the bridging oxalate and squarate ligands. Strong bands are found centered at around 1681, 1607, 1536, 1477 and 1605, 1509 cm−1 for 1 and 2, respectively, which are attributed to the vibration modes of the C=O and mixtures of C–O and C−C stretching motions. They are in agreement with the characteristic of the oxalate and (CO)n2− salts [80]. Additional broad peaks for 1 and 2 appear in the region of 3100–3500 cm−1, corresponding to the stretching vibration of ν(O−H) from water molecules.

3.2. Structure Description of {[Ho(C2O4)0.5(C4O4)(H2O)4]·2H2O}n (1)

The molecular structure of 1, shown in Figure 1a, reveals that the Ho(III) ion is eight coordinate bonded with two oxygen donors from two squarate (C4O42−) ligands, two oxygen donors from one oxalate (C2O42−) ligand and four water molecules, with Ho(III)–O distances in the range of 2.314(6)–2.470(6). The related bond distances and angles around the Ho(III) ion are listed in Table 2. The C4O42− acts as a bridging ligand with μ1,2-bis-monodentate coordination mode (Scheme 1b) connecting the Ho(III) ions to form a one-dimensional (1D) linear chain. Two linear chains are interlinked via the bridges of the Ho(III) ions and C2O42− ligand with bis-chelating coordination mode, forming a 1D ladder-like CP (Figure 1b). Intra-ladder O−H⋅⋅⋅O type hydrogen bonds between the coordinated water molecules and uncoordinated oxygen of C4O42− provide extra energy on the stabilization of these 1D CPs. The Ho⋅⋅⋅Ho separations bridged by the C4O42− and C2O42− ligands are 7.696(1) and 6.372(5) Å, respectively. It is worth to note that hydrogen bonding interaction in 1 play an important role on the extension of 1D ladder-like chains to 2D layered networks and then a 3D supramolecular architecture, as shown in Figure 1c,d. Firstly, adjacent 1D ladder-like polymeric chains are mutually interlinked via two inter-ladder O−H⋅⋅⋅O type hydrogen bonds between the coordinated water molecules (O(8) and O(9)) and uncoordinated oxygen atoms (O(3) and O(4)) of C4O42− ligands, with O⋅⋅⋅O distance of 2.761(10) and 2.675(10) Å, respectively, extended to a two-dimensional (2D) hydrogen-bonded layered network (Figure 1c). Adjacent 2D hydrogen-bonded layers are arrayed in an orderly AAA stacking manner and then extended to its 3D supramolecular network (Figure 1d,e) via the intermolecular O−H⋅⋅⋅O type hydrogen bonds among the coordinated water molecules and the oxygen atoms of carbonyl groups of C4O42− and C2O42− ligands (yellow dashed lines shown in Figure 1d), with the O⋅⋅⋅O distance in the range of 2.677(10) ~ 2.825(10) Å. The 1D hydrophilic pores surrounded by squarate and oxalate ligands are generated with the pore size of 6.37 × 7.70 Å, as viewing along a axis (Figure 1e). Two guest water molecules (O(11) and O(12)) are intercalated into the 1D hydrophilic pores in the 3D supramolecular network (Figure 1e) and further stabilized via four O−H⋅⋅⋅O type hydrogen bonds between the oxygen atoms of C4O42− and C2O42− ligands in 1D polymeric chains and the guest water molecules. The related parameters of hydrogen bonds in 1 are listed in Table 3.

3.3. Structure Description of [Ho(C4O4)1.5(H2O)3]n (2)

The molecular structure of 2, shown in Figure 2a, reveals that the Ho(III) ion is eight coordinate in a square antiprismatic geometry bonded with three oxygen donors from three μ1,2,3-squarates, two oxygen donors from two μ1,2-squarates and three water molecules with Ho(III)–O distances in the range of 2.305(5)–2.415(5). The related bond distances and angles around the Ho(III) ions are listed in Table 4. The C4O42− acts as a bridging ligand with two types of coordination modes, μ1,2,3-tris-monodentate (Scheme 1c) and μ1,2-bis-monodentate (Scheme 1b) coordination modes, in which the first one connect the Ho(III) centers to form a two-dimensional (2D) layered framework (Figure 2b, left). Two layers are mutually interlinked via the bridges of the Ho(III) ions and disorder μ1,2-bis-monodentate C4O42− (Figure 2b, right), forming a 2D bi-layered MOF (Figure 2b, center). The Ho⋅⋅⋅Ho separations bridged by the μ1,2,3-tris-monodentate C4O42− ligand are 6.399(1), 6.486(1) and 8.132(1) Å and bridged by the μ1,2-bis-monodentate C4O42− ligand is 6.508(4) Å, respectively. Similar to 1, hydrogen bonding interaction in 2 also play an important role on the extension of 2D bi-layered MOFs to a 3D supramolecular architecture, as shown in Figure 2c. Adjacent 2D bi-layered MOFs are arrayed in an orderly AAA stacking manner and extended to its 3D supramolecular network (Figure 2c,d) via the intermolecular O−H⋅⋅⋅O type hydrogen bonds among the coordinated water molecules and the oxygen atoms of C4O42− (yellow dashed lines in Figure 2c,d) with the O⋅⋅⋅O distance in the range of 2.668(5)–2.914(5) Å. The related parameters of hydrogen bonds are listed in Table 5.
Compared 1, 2 and the other Ho(III)-squarate polymeric framework, [Ho2(C4O4)3(H2O)4]n (3), synthesized under solvothermal condition reported in the previous literature [66]. The Ho(III) ions in 1 an 2 are both eight-coordinate, but, in 3, is nine coordinate with a tricapped trigonal prismatic coordination environment. The inherent character of Ho(III) ion with high affinity for oxygen atoms and high coordination numbers [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29], result in the formation of Ho(III)-squarate coordination polymers with flexible coordination geometry and various structural dimensionality. The squarate act as bridging ligands with μ1,2-bis-monodentate (Scheme 1b) coordination mode in 1, μ1,2,3-tris-monodentate (Scheme 1c) and μ1,2-bis-monodentate (Scheme 1b) coordination modes in 2 and bidentate/monodentate μ3− (Scheme 1g) and bidentate/monodentate μ4– (Scheme 1i) coordination modes in 3, connecting the Ho(III) ions forming 1D chain, 2D bi-layer and 2D network structures, respectively. The numbers of oxygen atoms of squarate ligand bonded to the Ho(III) ion in 1, 2 and 3 are 2, 5 and 5, respectively. The oxalate ligands in 1, instead of squarate ligands, bonded to the Ho(III) ion in a bis-chelating bridging mode connect two Ho(III)-squarate chain forming a 1D ladder-like polymeric framework, which generate 1D hydrophilic pores for the accumulation of guest water molecules in the 3D supramolecular architecture. It is important to note that both the coordinated and guest water molecules play important roles on the construction of their 3D supramolecular architectures and further stabilized via the intermolecular O−H⋅⋅⋅O hydrogen bonds among the squarate or oxalate ligands, coordinated and guest water molecules.

3.4. Thermal Stability of CPs 1 and 2

In order to investigate the thermal stability and structural variation of compounds 1 and 2, thermogravimetric analysis (TGA) and in-situ temperature dependent XRD measurements were performed as shown in Figure 3 and Figure 4, respectively. During the heating process, the TGA of 1 (Figure 3a) revealed that a two-steps weight-losses were observed with the first weight loss of 24.7% occurred in the range of approximate 47–269 °C, corresponding to the losses of coordinated and solvated water molecules (calc. 25.2%) and then thermal stable up to 375 °C without any weight loss. On further heating, samples decomposed at approximately 375–700 °C. The TGA of 2 (Figure 4a) revealed that 2 is thermally stable up to 95 °C and then a two-step weight-losses were observed with the first weight loss of 17.4% occurred in the range of approximate 95–197 °C, corresponding to the loss of coordinated water molecules (calc. 17.0%) and then thermal stable up to 403 °C without any weight loss. On further heating, these samples decomposed at approximately 403–700 °C. To gain the structural changes as a function of the temperature, in situ powder XRD patterns of 1 and 2 were performed and the results at several specific temperatures were shown in Figure 3b and Figure 4b, respectively. Based on the result of TGA, the guest and coordinated water molecules in 1 are lost in the first-step weight loss. The subtle relative intensity varies between RT data and simulation pattern, it may be due to the composition change of solvated and coordinated water molecules. Above 140 °C, the crystallinity becomes worse and worse. As the temperature rising from 170 °C to 200 °C, the framework structure collapsed. The powder XRD patterns of 2 was shown in Figure 4b. The pattern at RT is almost identical to the simulation one obtained from single-crystal X-ray diffraction data. As the temperature rising to 200 °C, a phase transition occurred and can be sustained at 440 °C. As the temperature above 470 °C, 2 decomposed to an amorphous phase. All of the in-situ PXRD measurements are in agreement with the TGA.

3.5. UV-Visible Spectroscopy of CPs 1 and 2

The solid-state adsorption spectra of [Ho(C2O4)0.5(C4O4)(H2O)4]·2(H2O) (1) and [Ho(C4O4)(H2O)3]n (2) were investigated at room temperature. As shown in Figure 5, the adsorption spectra bands of [Ho(C2O4)0.5(C4O4)(H2O)4]·2(H2O) (1, black line) and [Ho(C4O4)1.5(H2O)3]n (2, black line) both shows peaks at 361, 386, 418, 451, 468, 474, 486, 537 and 642 nm which can be ascribed to the (3H6, 5G5) ← 5I8, 3K7 ← 5I8, 5G5 ← 5I8, (5F1, 5G6) ← 5I8, 3K8 ← 5I8, 5F2 ← 5I8, 5F3 ← 5I8, (5F4, 5S2) ← 5I8 and 5F5 ← 5I8 transitions of the Ho3+ ion, respectively [81,82]. Interestingly, Figure 5a–d) also show reversible color changes immediately and UV-Vis spectra of 1 and 2 under illumination from an incandescent source/daylight to a LED light with a cellphone. The color change between pink (Figure 5a of 1 and Figure 5c of 2 and light yellow (Figure 5b of 1 and Figure 5d of 2 of the Ho3+ ion is caused by two absorption bands: (5F1, 5G6) ← 5I8 and (5F4, 5S2) ← 5I8. The 5G6 ← 5I8 transition at 447 nm is a so called “hypersensitive transition,” which intensity is dependent on the local surrounding of the holmium ion in symmetry and the ligand type [81]. Accordingly, in comparison to the Figure 5a,c, 1 and 2 have an enhanced adsorption in the region around 450–480 nm (red line in the UV spectra), indicating that the ligand may enhance the absorption of whole coordination polymers.

4. Conclusions

In conclusion, two 3D supramolecular frameworks, [Ho2(C2O4)(C4O4)2(H2O)8]·4(H2O) (1) and [Ho(C4O4)1.5(H2O)3] (2), have been successfully synthesized under a facile one-pot synthetic route and their structural versatility of the Ho(III) ion bridged by C4O42− ligands have been studied in detail. The high affinity for oxygen atoms and high coordination numbers of Ho(III) ions result in the formation of eight-coordinate environments bonded to oxygen atoms of two squarate, one oxalate and four water molecules in 1 and five squarate and three water molecules in 2, respectively. In 1, both the squarate and oxalate act as bridging ligands adopting μ1,2-bis-monodentate and bis-chelating coordination modes, respectively, connecting the Ho(III) ions forming the 1D ladder-like CPs, which generates hydrophilic pores intercalated guest water molecules. In 2, the squarate acts as bridging ligand with two coordination modes, μ1,2-bis-monodentate and μ1,2,3-tris-monodentate, connecting the Ho(III) ions forming 2D bi-layered MOFs. Intermolecular hydrogen bonds among the squarate, oxalate ligands and coordinated, guest water molecules provide the main force on the structural extension from their 1D ladder-like CP or 2D layered MOF to 3D supramolecular architectures. The solid-state adsorption spectra of 1 and 2 both show reversible color-changing images under illumination from an incandescent source/daylight to a LED light with a cellphone. Both 1 and 2 have an enhanced adsorption in the region around 450-480 nm (red line in the UV spectra), indicating that the ligand may enhance the absorption of whole coordination polymers.

Author Contributions

C.-C.W. conceived and designed the experiments; S.-Y.K. and Y.F. performed the experimental parts, including synthesis, structural characterization, EA, IR and TGA of compounds; M.-L.H., contributed to measurements of luminescence property and analyzed the data; G.-H.L. contributed to the single-crystal X-ray Data collection and structural analysis of compounds 1 and 2; C.-K.C. and Y.-C.C. contributed to the powder X-ray diffraction measurements by synchrotron radiation light source; C.-C.W., Y.-C.C. and M.-L.H. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

We appreciate the financial support from the Ministry of Science and Technology and Soochow University of Taiwan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bradshaw, D.; Claridge, J.B.; Cussen, E.J.; Prior, T.J.; Rosseinsky, M.J. Design, Chirality and Flexibility in Nanoporous Molecule-Based Materials. Acc. Chem. Res. 2015, 38, 273–282. [Google Scholar] [CrossRef] [PubMed]
  2. Kitagawa, S.; Kitaura, R.; Noro, S.I. Functional Porous Coordination Polymers. Angew. Chem. Int. Ed. 2004, 43, 2334–2375. [Google Scholar] [CrossRef] [PubMed]
  3. Uemura, T.; Horike, S.; Kitagawa, S. Polymerization in Coordination Nanospaces. Chem. Asian J. 2006, 1, 36–44. [Google Scholar] [CrossRef] [PubMed]
  4. Férey, G. Hybrid Porous Solids: Past, Present, Future. Chem. Soc. Rev. 2008, 37, 191–214. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, B.; Côté, A.P.; Furukawa, H.; O’Keeffe, M.; Yaghi, O.M. Colossal Cages in Zeolitic Imidazolate Frameworks as Selective Carbon Dioxide reservoirs. Nature 2008, 453, 207–211. [Google Scholar] [CrossRef] [PubMed]
  6. Rosi, N.L.; Kim, J.; Eddaoudi, M.; Chen, B.L.; O’Keeffe, M.; Yaghi, O.M. Rod Packings and Metal-Organic Frameworks Constructed from Rod-Shaped Secondary Building Units. J. Am. Chem. Soc. 2005, 127, 1504–1518. [Google Scholar] [CrossRef] [PubMed]
  7. Hayashi, H.; Côté, A.P.; Furukawa, H.; O’keeffe, M.; Yaghi, O.M. Zeolite, A Imidazolate Frameworks. Nat. Mater. 2007, 6, 501–506. [Google Scholar] [CrossRef]
  8. Thallapally, P.K.; Mcgrail, B.P.; Dalgarno, S.J.; Schaef, H.T.; Tian, J.; Atwood, J.L. Gas-Induced Transformation and Expansion of a Non-Porous Organic Solid. Nat. Mater. 2008, 7, 146–150. [Google Scholar] [CrossRef]
  9. Banerjee, R.; Phan, A.; Wang, B.; Knobler, C.; Furukawa, H.; O’Keeffe, M.; Yaghi, O.M. High-Throughput Synthesis of Zeolitic Imidazolate Frameworks and Application to CO2 Capture. Science 2008, 319, 939–943. [Google Scholar] [CrossRef]
  10. Benelli, C.; Gatteschi, D. Magnetism of Lanthanides in Molecular Materials with Transition-Metal Ions and Organic Radicals. Chem. Rev. 2002, 102, 2369–2388. [Google Scholar] [CrossRef]
  11. Bünzli, J.C.G.; Piguet, C. Taking Advantage of Luminescent Lanthanide ions. Chem. Soc. Rev. 2005, 34, 1048–1077. [Google Scholar] [CrossRef]
  12. Chandler, B.D.; Cram, D.T.; Shimizu, G.K.H. Microporous Metal-Organic Frameworks Formed in a Stepwise Manner from Luminescent Building Blocks. J. Am. Chem. Soc. 2006, 128, 10403–10412. [Google Scholar] [CrossRef]
  13. Wang, P.; Ma, J.P.; Dong, Y.B.; Huang, R.Q. Tunable Luminescent Lanthanide Coordination Polymers Based on Reversible Solid-State Ion-Exchange Monitored by Ion-Dependent Photoinduced Emission Spectra. J. Am. Chem. Soc. 2007, 129, 10620–10621. [Google Scholar] [CrossRef]
  14. Guo, X.D.; Zhu, G.S.; Fang, Q.R.; Xue, M.; Tian, G.; Sun, J.Y.; Li, X.T.; Qiu, S.L. Synthesis, Structure and Luminescent Properties of Rare Earth Coordination Polymers Constructed from Paddle-Wheel Building Blocks. Inorg. Chem. 2005, 44, 3850–3855. [Google Scholar] [CrossRef]
  15. Guo, X.D.; Zhu, G.S.; Li, Z.Y.; Chen, Y.; Li, X.T.; Qiu, S.L. Rare Earth Coordination Polymers with Zeolite Topology Constructed from 4-Connected Building Units. Inorg. Chem. 2006, 45, 4065–4070. [Google Scholar] [CrossRef]
  16. Devic, T.; Serre, C.; Audebrand, N.; Marrot, J.; Férey, G. MIL-103, A 3-D Lanthanide-Based Metal Organic Framework with Large One-Dimensional Tunnels and A High Surface Area. J. Am. Chem. Soc. 2005, 127, 12788–12789. [Google Scholar] [CrossRef]
  17. Harbuzaru, B.V.; Corma, A.; Rey, F.; Atienzar, P.; Jordá, J.L.; García, H.; Ananias, D.; Carlos, L.D.; Rocha, J. Metal-Organic Nanoporous Structures With Anisotropic Photoluminescence and Magnetic Properties and Their Use as Sensors. Angew. Chem. Int. Ed. 2008, 47, 1080–1083. [Google Scholar] [CrossRef]
  18. Wang, J.G.; Huang, C.C.; Huang, X.H.; Liu, D.S. Three-Dimensional Lanthanide Thiophenedicarboxylate Framework with an Unprecedented (4,5)-Connected Topology. Cryst. Growth Des. 2008, 8, 795–798. [Google Scholar] [CrossRef]
  19. Liu, Y.L.; Kravtsov, V.C.; Eddaoudi, M. Template-Directed Assembly of Zeolite-Like Metal-Organic Frameworks (ZMOFs): A Usf-ZMOF with an Unprecedented Zeolite Topology. Angew. Chem. Int. Ed. 2008, 47, 8446–8449. [Google Scholar] [CrossRef]
  20. Pan, L.; Woodlock, E.B.; Wang, X. A New Porous Three-Dimensional Lanthanide Coordination Polymer. Inorg. Chem. 2000, 39, 4174–4178. [Google Scholar] [CrossRef]
  21. Lipstman, S.; Muniappan, S.; George, S.; Goldberg, I. Framework Coordination Polymers of Tetra(4-carboxyphenyl)porphyrin and Lanthanide Ions in Crystalline Solids. Dalton Trans. 2007, 30, 3273–3281. [Google Scholar] [CrossRef]
  22. Muniappan, S.; Lipstman, S.; George, S.; Goldberg, I. Porphyrin Framework Solids. Synthesis and Structure of Hybrid Coordination Polymers of Tetra(carboxyphenyl)porphyrins and Lanthanide-Bridging Ions. Inorg. Chem. 2007, 46, 5544–5554. [Google Scholar] [CrossRef]
  23. He, Y.; Furukawa, H.; Wu, C.; O’Keeffe, M.; Chen, B. A Mesoporous Lanthanide-Organic Framework Constructed from a Dendritic Hexacarboxylate with Cages of 2.4 nm†. CrystEngComm 2013, 15, 9328–9331. [Google Scholar] [CrossRef]
  24. He, Y.; Furukawa, H.; Wu, C.; O’Keeffe, M.; Krishna, R.; Chen, B. Low-energy regeneration and high productivity in a lanthanide–hexacarboxylate framework for high-pressure CO2–CH4–H2 separation. Chem. Commun. 2013, 49, 6773–6775. [Google Scholar] [CrossRef]
  25. He, H.Y.; Ma, H.Q.; Sun, D.; Zhang, L.L.; Wang, R.M.; Sun, D.F. Porous Lanthanide-Organic Frameworks: Control over Interpenetration, Gas Adsorption and Catalyst Properties. Cryst. Growth Des. 2013, 13, 3154–3161. [Google Scholar] [CrossRef]
  26. Mihalcik, D.J.; Zhang, T.; Ma, L.; Lin, W. Highly Porous 4,8-Connected Metal-Organic Frameworks: Synthesis, Characterization and Hydrogen Uptake. Inorg. Chem. 2012, 51, 2503–2508. [Google Scholar] [CrossRef]
  27. Decadt, R.; Van Hecke, K.; Depla, D.; Leus, K.; Weinberger, D.; Van Driessche, I.; Van Der Voort, P.; Van Deun, R. Synthesis, Crystal Structures and Luminescence Properties of Carboxylate Based Rare-Earth Coordination Polymers. Inorg. Chem. 2012, 51, 11623–11634. [Google Scholar] [CrossRef]
  28. Yan, L.; Yue, Q.; Jia, Q.X.; Lemercier, G.; Gao, E.Q. Lanthanide Metal-Organic Frameworks Based on Octahedral Secondary Building Units: Rare Net Topology and Luminescence. Cryst. Growth Des. 2009, 9, 2984–2987. [Google Scholar] [CrossRef]
  29. Yang, J.; Yue, Q.; Li, G.D.; Cao, J.J.; Li, G.H.; Chen, J.S. Structures, Photoluminescence, Up-Conversion and Magnetism of 2D and 3D Rare-Earth Coordination Polymers with Multicarboxylate Linkages. Inorg. Chem. 2006, 45, 2857–2865. [Google Scholar] [CrossRef]
  30. Khan, M.I.; Chang, Y.D.; Chen, Q.; Salta, J.; Lee, Y.S.; O’Connor, C.J.; Zubieta, J. Synthesis and Characterization of Binuclear Oxo-Vanadium Complexes of Carbon Oxoanion Ligands. Crystal Structures of the Binuclear Vanadium(IV) Complex (NH4)[V2O2(OH)(C4O4)2(H2O)3].cntdot.H2O, of the Mixed-Valence Vanadium(V)/Vanadium(IV)-Squarate Species [(n-C4H9)4N] [V2O3(C4O4)2(H2O)3].cntdot.3H2O and [(C4H9)4N]4[V4O6(C4O4)5(H2O)4]. cntdot. 6H2O and of the Binuclear Vanadium(IV)-Oxalate Species [V2O2Cl2(C2O4)(CH3OH)4].cntdot.2Ph4PCl. Inorg. Chem. 1994, 33, 6340–6350. [Google Scholar]
  31. Lee, C.R.; Wang, C.C.; Wang, Y. Structural Relationship of Various Squarates. Acta. Cryst. 1996, 52, 966–975. [Google Scholar] [CrossRef]
  32. Trombe, J.C.; Petit, J.-F.; Gleizes, A. Lanthanide Oxalato-Squarates-Preparation and Crystal-Structures of (CE2 (H2O) 8 (C4O4) 2 (C2O4)). 3H2O and EU2 (H2O) 4 (C4O4) 2 (C2O4). Eur. J. Solid State Inorg. Chem. 1991, 28, 669–681. [Google Scholar]
  33. Trombe, J.C.; Sabadie, L.; Millet, P. Synthesis and Crystal Structure of La(H2O)(C2O4)2·(CN3H6) and of [Nd(H2O)]2(C2O4)4·(NH4)(CN3H6). Solid State Sci. 2002, 4, 1199–1208. [Google Scholar]
  34. Soules, R.; Dahan, F.J.; Laurent, P.; Castan, P. A Novel Co-Ordination Mode for the Squarate Ligand [Dihydroxycyclobutenedionate(2–)]: Synthesis, Crystal Structure and Magnetic Properties of Catena-Diaqua(2,2′-Bipyridyl)-µ-(Squarato- O1, O2)-Nickel( II) Dihydrate. J. Chem. Soc. Dalton Trans. 1988, 3, 587–590. [Google Scholar] [CrossRef]
  35. Hall, L.A.; Williams, D.J.; Menzer, S.; White, A.J.P. The Complexing Properties of 1-Aminosquarate Derivatives with Lead. Inorg. Chem. 1997, 36, 3096–3101. [Google Scholar] [CrossRef]
  36. Alleyne, B.D.; Hall, L.A.; Hosein, H.A.; Jaggernauth, H.; White, A.J.P.; Williams, D.J. Hydrogen-Bonding Interactions in the Deries of Complexes [M(C4O4)(OH2)2(dmf)2] and [M(C4O4)(OH2)4] (M = Mn, Co, Ni, Cu, Zn). J. Chem. Soc. Dalton Trans. 1998, 22, 3845–3850. [Google Scholar] [CrossRef]
  37. Lai, S.F.; Cheng, C.Y.; Lin, K. Hydrothermal Synthesis of a Thermally Stable Poroussupramolecular π–π Framework:[{Co2(C12H8N2)4(μ-C4O4)(OH2)2}C4O4]·8H2O. J. Chem. Commun. 2001, 1082–1083. [Google Scholar] [CrossRef]
  38. Grove, H.; Sletten, J.; Julve, M.; Lloret, F.; Cano, J. Syntheses, Crystal Structures and Magnetic Properties of One- and Two-Dimensional Pap-Containing Copper(II) Complexes (Pap = Pyrazino[2–f][4,7]Phenanthroline). J. Chem. Soc. Dalton Trans. 2001, 3, 259–265. [Google Scholar] [CrossRef]
  39. Nather, C.; Greve, J.; Jess, I. New Coordination Polymer Changing Its Color upon Reversible Deintercalation and Reintercalation of Water:  Synthesis, Structure and Properties of Poly[Diaqua-(μ2-Squarato-O,O‘)-(μ2-4,4‘-Bipyridine-N,N‘)- Manganese(II)] Trihydrate. Chem. Mater. 2002, 14, 4536–4542. [Google Scholar] [CrossRef]
  40. Piggott, P.M.T.; Hall, L.A.; White, A.J.P.; Williams, D.J. Attempted Syntheses of Lanthanide(III) Complexes of the Anisole- and Anilinosquarate Ligands. Inorg. Chem. 2003, 42, 8344–8352. [Google Scholar] [CrossRef]
  41. Yang, B.P.; Mao, J.G. New Types of Metal Squarato-phosphonates:  Condensation of Aminodiphosphonate with Squaric Acid under Hydrothermal Conditions. Inorg. Chem. 2005, 44, 566–571. [Google Scholar] [CrossRef]
  42. Konar, S.; Corbella, M.; Zangrando, E.; Ribas, J.; Chaudhuri, N.R. The First Unequivocally Ferromagnetically Coupled Squarato Complex: Origin of the Ferromagnetism in an Interlocked 3D Fe(II) System. Chem. Commun. 2003, 12, 1424–1425. [Google Scholar] [CrossRef]
  43. Ghosh, A.K.; Ghoshal, D.; Zangrando, E.; Ribas, J.; Chaudhuri, N.R. Structural Diversity in Manganese Squarate Frameworks Using N,N-Donor Chelating/Bridging Ligands: Syntheses, Crystal Structures and Magnetic Properties. Dalton Trans. 2006, 12, 1554–1563. [Google Scholar] [CrossRef]
  44. Chen, Q.; Liu, S.; Zubieta, J. Coordination Chemistry of Polyoxomolybdates: The Structure of a Dodecanuclear Molybdate Cage Incorporating Hydrogen Squarate Ligands, [(C4H9)4N]4 [Mo12O36(C4O4H)4] · 10Et2O. Angew Chem. Int. Ed. 1990, 29, 70–72. [Google Scholar] [CrossRef]
  45. Lin, K.J.; Lii, K.H. Binuclear Vanadium(III) Squarates with Layered and Framework Structures: Hydrothermal Synthesis and Structures of [{V(OH)(C4O4)(H2O)}2] and [{V(OH)(C4O4)}2]·4H2O. Angew. Chem. Int. Ed. Engl. 1997, 36, 2076–2077. [Google Scholar] [CrossRef]
  46. Hosein, H.A.; Hall, L.A.; Lough, A.J.; Desmarais, W.; Vela, M.J.; Foxman, B.M. Attempted Syntheses of Transition Metal and Lanthanide (Dialkylamino)squarates. The Hydrolysis Problem. Inorg. Chem. 1998, 37, 4184–4189. [Google Scholar] [CrossRef]
  47. Hosein, H.A.; Jaggernauth, H.; Alleyne, B.D.; Hall, L.A.; White, A.J.P.; Williams, D.J. First-Row Transition-Metal Complexes of the 1-Methoxycyclobutenedionate(1−) Ion. Inorg. Chem. 1999, 38, 3716–3720. [Google Scholar] [CrossRef]
  48. Spandl, J.; Brüdgam, I.; Hartl, H. Solvothermal Synthesis of a 24-Nuclear, Cube-Shaped Squarato-oxovanadium (IV) Framework: [N(nBu)4]8[V24O24(C4O4)12(OCH3)32]. Angew. Chem. Int. Ed. Engl. 2001, 40, 4018–4020. [Google Scholar] [CrossRef]
  49. Maji, T.K.; Mostafa, G.; Sain, S.; Prasad, J.S.; Chaudhuri, N.R. Construction of a 3D Array of Cadmium(II) Using Squarate as a Building Block. CrystEngComm 2001, 3, 155–158. [Google Scholar] [CrossRef]
  50. Mukherjee, P.S.; Konar, S.; Zangrando, E.; Diaz, C.; Chaudhuri, N.R. Synthesis, Crystal Structure and Magneto-Structural Correlation of Two Bi-Bridging 1D Copper(II) Chains. J. Chem. Soc. Dalton Trans. 2002, 18, 3471–3476. [Google Scholar] [CrossRef]
  51. Neeraj, S.; Noy, M.L.; Rao, C.N.R.; Cheetham, A.K. Sodalite Networks Formed by Metal Squarates. Solid State Sci. 2002, 4, 1231–1236. [Google Scholar] [CrossRef]
  52. Dan, M.; Rao, C.N.R. An Open-Framework Cobalt Oxalato-Squarate Containing a Ligated Amine. Solid State Sci. 2003, 5, 615–620. [Google Scholar] [CrossRef]
  53. Kurmoo, M.; Kumagai, H.; Chapman, K.W.; Kepert, C.J. Reversible Ferromagnetic-Antiferromagnetic Transformation Upon Dehydration-Hydration of the Nanoporous Coordination Framework, [Co3(OH)2(C4O4)2]·3H2O. Chem. Commun. 2005, 3012–3014. [Google Scholar] [CrossRef]
  54. Gandara, F.; Gomez-Lor, B.; Iglesias, M.; Snejko, N.; Gutierrez-Puebla, E. A New Scandium Metal Organic Framework Built up from Octadecasil Zeolitic Cages as Heterogeneous Catalyst. Chem. Commun. 2009, 2393–2395. [Google Scholar] [CrossRef]
  55. Gutschke, S.O.H.; Molinier, M.; Powell, A.K.; Wood, P.T. Hydrothermal Synthesis of Microporous Transition Metal Squarates: Preparation and Structure of [CO3(μ3-OH)2(C4O4)2]·3H2O. Angew. Chem. Int. Ed. Engl. 1997, 36, 991–992. [Google Scholar] [CrossRef]
  56. Yufit, D.S.; Price, D.J.; Howard, J.A.K.; Gutschke, S.O.H.; Powell, A.K.; Wood, P.T. New Type of Metal Squarates. Magnetic and Multi-Temperature X-ray Study of Di-Hydroxy(µ6-squarato)manganese†. Chem. Commun. 1999, 16, 1561–1562. [Google Scholar] [CrossRef]
  57. Trombe, J.C.; Sabadie, L.; Millet, P. Hydrothermal Synthesis and Structural Characterization of Fe(II)-squarate Fe2(OH)2(C4O4). Solid State Sci. 2002, 4, 1209–1212. [Google Scholar] [CrossRef]
  58. Yang, C.H.; Chou, C.M.; Lee, G.H.; Wang, C.C. Self-Assembly of Two Mixed-Ligands Metal-Organic Coordination Polymers,[MII2 (DPA)2(C4O4)(C2O4)](M= Cu, Zn). Inorg. Chem. Commun. 2003, 6, 135–140. [Google Scholar] [CrossRef]
  59. Wang, C.C.; Yang, C.H.; Tseng, S.M.; Lee, G.H.; Sheu, H.S.; Phyu, K.W. A New Moisture-Sensitive Metal-Coordination Solids {[Cd(C4O4)(bipy)(H2O)2] 3H2O}∞ (bipy = 4,4′-bipyridine). Inorg. Chim. Acta 2004, 357, 3759–3764. [Google Scholar] [CrossRef]
  60. Wang, C.C.; Yang, C.H.; Lee, G.H.; Tsai, H.L. Syntheses, Structures and Magnetic Properties of Two 1D, Mixed-Ligand,Metal Coordination Polymers, [M(C4O4)(dpa)(OH2)] (M = CoII, NiII and ZnII; dpa = 2,2’-dipyridylamine) and [Cu(C4O4)(dpa)(H2O)]2·(H2O). Eur. J. Inorg. Chem. 2005, 7, 1334–1342. [Google Scholar] [CrossRef]
  61. Wang, C.C.; Yang, C.H.; Lee, G.H. Hydrothermal Synthesis and Structural Characterization of Two pH-Controlled Cd–Squarate Coordination Frameworks, [Cd2(C4O4)2.5(H2O)4]·(dpaH)·1.5(H2O) and [Cd(C4O4)(dpa)(OH2)] (dpa = 2,2′-dipyridylamine). Eur. J. Inorg. Chem. 2006, 4, 820–826. [Google Scholar] [CrossRef]
  62. Wang, C.C.; Tseng, S.M.; Lin, S.Y.; Liu, F.C.; Dai, S.C.; Lee, G.H.; Shih, W.J.; Sheu, H.S. Assemblies of Two Mixed-Ligand Coordination Polymers with Two-Dimensional Metal-Organic Frameworks Constructed from M(II) Ions with Croconate and 1,2-Bis-(4-pyridyl)ethylene (M = Cd and Zn). Cryst. Growth Des. 2007, 7, 1783–1790. [Google Scholar] [CrossRef]
  63. Wang, C.C.; Ke, S.Y.; Chen, K.T.; Hsieh, Y.F.; Wang, T.H.; Lee, G.H.; Chuang, Y.C. Reversible Single-Crystal-to-Single-Crystal Structural Transformation in a Mixed-Ligand 2D Layered Metal-Organic Framework: Structural Characterization and Sorption Study. Crystals 2017, 7, 364. [Google Scholar] [CrossRef]
  64. Lin, X.Y.; Zhao, L.M.; Wang, D.H.; Wang, Y.K.; Li, M.; Li, H.H.; Chen, Z.R. Structural Diversities of Squarate-Based Complexes: Photocurrent Responses and Thermochromic Behaviours Enhanced by Viologens. Inorg. Chem. Front. 2018, 5, 189–199. [Google Scholar] [CrossRef]
  65. Liu, C.M.; Xiang, D.Z.; Hao, X.; Zhu, D.B. Field-Induced Relaxation of Magnetization in a Three-Dimensional LnMOF with the Second Bridging Ligand Squarate. ACS Omega 2016, 1, 286–292. [Google Scholar] [CrossRef]
  66. Wang, L.; Gu, W.; Deng, X.J.; Zeng, L.F.; Liao, S.Y.; Zhang, M.; Yang, L.Y.; Liu, X. A Series of 2D and 3D Novel Lanthanide Complexes Constructed from Squarate C4O42−: Syntheses, Structures, Magnetic Properties and Near-infrared Emission Properties. Aust. J. Chem. 2011, 64, 1373–1382. [Google Scholar] [CrossRef]
  67. Wang, C.M.; Lii, K.H. Synthesis of Novel Organic-Inorganic Hybrid Compounds: Lanthanide Phosphites Incorporating a Squarate Ligand. Inorg. Chem. 2009, 48, 6335–6337. [Google Scholar] [CrossRef]
  68. Akkari, H.; Bénard-Rocherullé, P.; Mérazig, H.; Roisnel, T.; Rocherullé, J. Hydrothermal Synthesis, Crystal Structure and Thermal Behavior of the First Lanthanide Sulfato-Squarate, La2(H2O)4(SO4)2(C4O4). Solid State Sci. 2006, 8, 704–715. [Google Scholar] [CrossRef]
  69. Mahé, N.; Bataille, T. Synthesis, Crystal Structure from Single-Crystal and Powder X-ray Diffraction Data and Thermal Behavior of Mixed Potassium Lanthanide Squarates: Thermal Transformations of layered [Ln(H2O)6]K(H2C4O4)(C4O4)2 into Pillared LnK(C4O4)2 (Ln = Y, La, Gd, Er). Inorg. Chem. 2004, 43, 8379–8386. [Google Scholar] [CrossRef]
  70. Heinl, U.; Hinse, P.; Mattes, R. Oxalato- and Quadratato-Komplexe Hochkoordinierter Metallionen: Die Raumnetzstrukturten von La2(C2O4)(C4O4)(H2O)8⋅2,5H2O und K[Bi(C2O4)2⋅5H2O. Z. Anorg. Allg. Chem. 2001, 627, 2173–2177. [Google Scholar] [CrossRef]
  71. SMART V 4 043 Software for CCD Detector System; Siemens Analytical Instruments Division: Madison, WI, USA, 1995.
  72. SAINT V 4 035 Software for CCD Detector System; Siemens Analytical Instruments Division: Madison, WI, USA, 1995.
  73. Sheldrick, G.M. Program for the Refinement of Crystal Structures. Shelxl97 1997. [Google Scholar]
  74. SHELXTL 5 03 (PC-Version), Program Liberary for Structure Solution and Molecular Graphics; Siemens Analytical Instruments Division: Madison, WI, USA, 1995.
  75. Toby, B.H.; Von Dreele, R.B. GSAS-II: The Genesis of a Modern Open-Source All Purpose Crystallography Software Package. J. Appl. Crystallogr. 2013, 46, 544–549. [Google Scholar] [CrossRef]
  76. Chen, Y.T.; Lin, C.Y.; Lee, G.H.; Ho, M.L. Four New Lead(II)–Iridium(III) Heterobimetallic Coordination Frameworks: Synthesis, Structures, Luminescence and Oxygen-Sensing Properties. CrystEngComm 2015, 17, 2129–2140. [Google Scholar] [CrossRef]
  77. Fabre, P.L.; Castan, P.; Deguenon, D.; Paillous, N. A Photo-Oxidation of Croconic Acid into Oxalic Acid. Can. J. Chem. 1995, 73, 1298–1304. [Google Scholar] [CrossRef]
  78. Reinoso, S.; Vitoria, P.; Felices, L.S.; Montero, A.; Lezama, L.; Gutirrez-Zorrilla, M.M. NEXTTetrahydroxy-p-benzoquinone as a Source of Polydentate O-Donor Ligands. Synthesis, Crystal Structure and Magnetic Properties of the [Cu(bpy)(dhmal)]2 Dimer and the Two-Dimensional [{SiW12O40}{Cu2(bpy)2(H2O)(ox)}2]·16H2O Inorganic-Metalorganic Hybrid. Inorg. Chem. 2007, 46, 1237–1249. [Google Scholar] [CrossRef]
  79. Ke, S.Y.; Yeh, C.T.; Wang, C.C.; Lee, G.H.; Hwo-Shuenn, S. A 3d-4f Complex Constructed by the Assembly of a Cationic Template, [Cu(en)2]2+ and a 3D Anionic Coordination Polymer, [Sm2(C2O4)3(C5O5)(H2O)2]2−. Z. Anorg. Allg. Chem. 2017, 643, 657–663. [Google Scholar] [CrossRef]
  80. Ito, M.; West, R. New Aromatic Anions. IV. Vibrational Spectra and Force Constants for C4O4−2 and C5O5−2. J. Am. Chem. Soc. 1963, 85, 2580–2584. [Google Scholar] [CrossRef]
  81. Binnemans, K.; Görller-Walrand, C. On the Color of the Trivalent Lanthanide Ions. Chem. Phys. Lett. 1995, 235, 163–174. [Google Scholar] [CrossRef]
  82. Marques, L.F.; Correa, C.C.; Ribeiro, S.J.L.; dos Santos, M.V.; Dutra, J.D.L.; Freire, R.O.; Machado, F.C. Synthesis, Structural Characterization, Luminescent Properties and Theoretical Study of Three Novel Lanthanide Metal-Organic Frameworks of Ho(III), Gd(III) and Eu(III) with 2,5-Thiophenedicarboxylate Anion. J. Solid State Chem. 2015, 27, 68–78. [Google Scholar] [CrossRef]
Polymers 11 01369 sch001 550

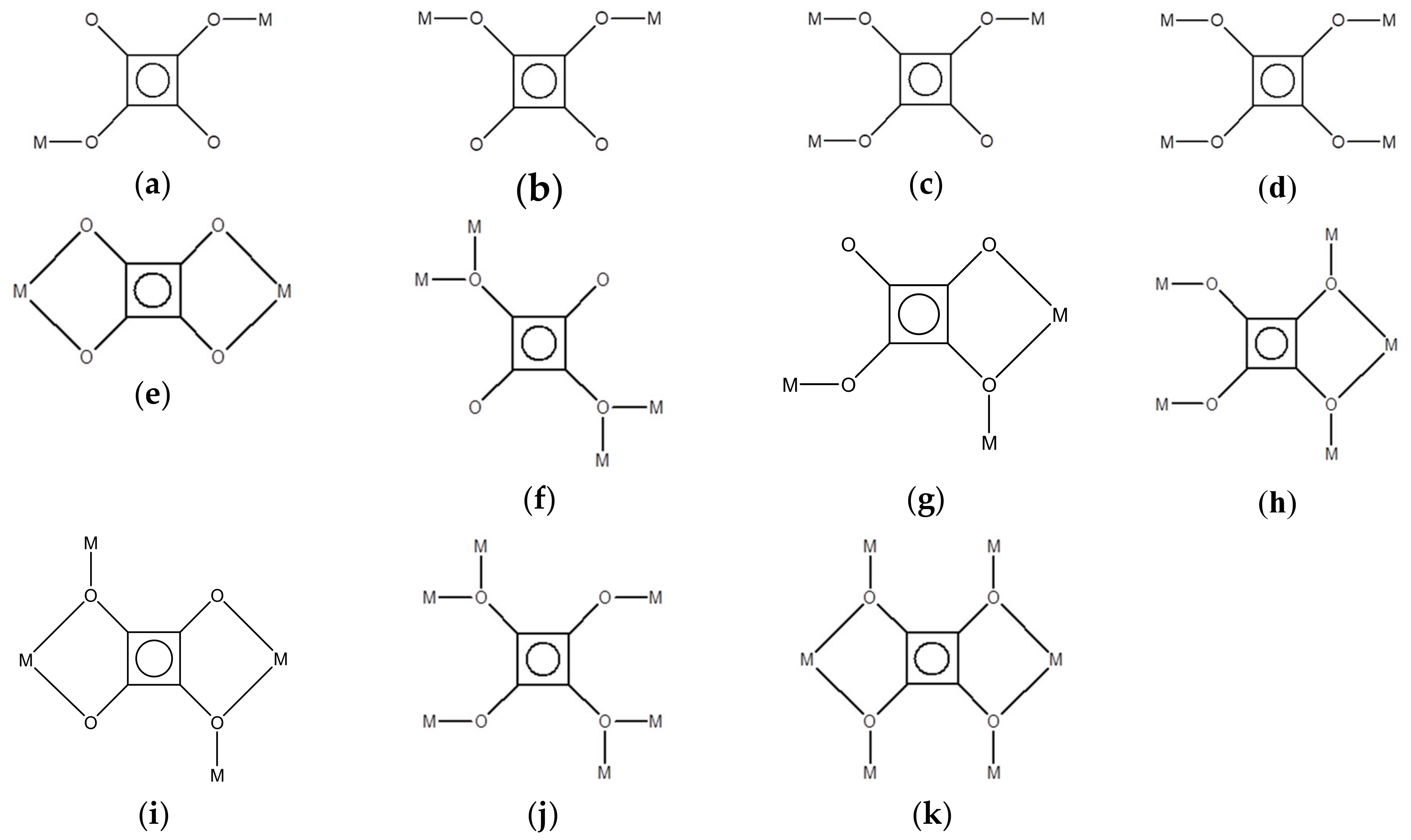

Scheme 1. Coordination modes of squarate on the construction of extended 1D, 2D or 3D networks: (a) μ1,3-bis-monodentate, (b) μ1,2-bis-monodentate, (c) μ1,2,3-tris-monodentate, (d) μ1,2,3,4-tetrakis-monodentate, (e) bidentate μ2–, (f) monodentate μ4–, (g) bidentate/monodentate μ3–, (h) bidentate/monodentate μ5–, (i) bidentate/monodentate μ4–, (j) monodentate μ6–, (k) bidentate/monodentate μ6–.
Scheme 1. Coordination modes of squarate on the construction of extended 1D, 2D or 3D networks: (a) μ1,3-bis-monodentate, (b) μ1,2-bis-monodentate, (c) μ1,2,3-tris-monodentate, (d) μ1,2,3,4-tetrakis-monodentate, (e) bidentate μ2–, (f) monodentate μ4–, (g) bidentate/monodentate μ3–, (h) bidentate/monodentate μ5–, (i) bidentate/monodentate μ4–, (j) monodentate μ6–, (k) bidentate/monodentate μ6–.
Polymers 11 01369 sch001
Polymers 11 01369 sch002 550
Scheme 2. Synthetic representation of compounds 1 and 2 (red for O atom, and gray-white for Ho and C atoms).
Scheme 2. Synthetic representation of compounds 1 and 2 (red for O atom, and gray-white for Ho and C atoms).
Polymers 11 01369 sch002
Polymers 11 01369 g001 550

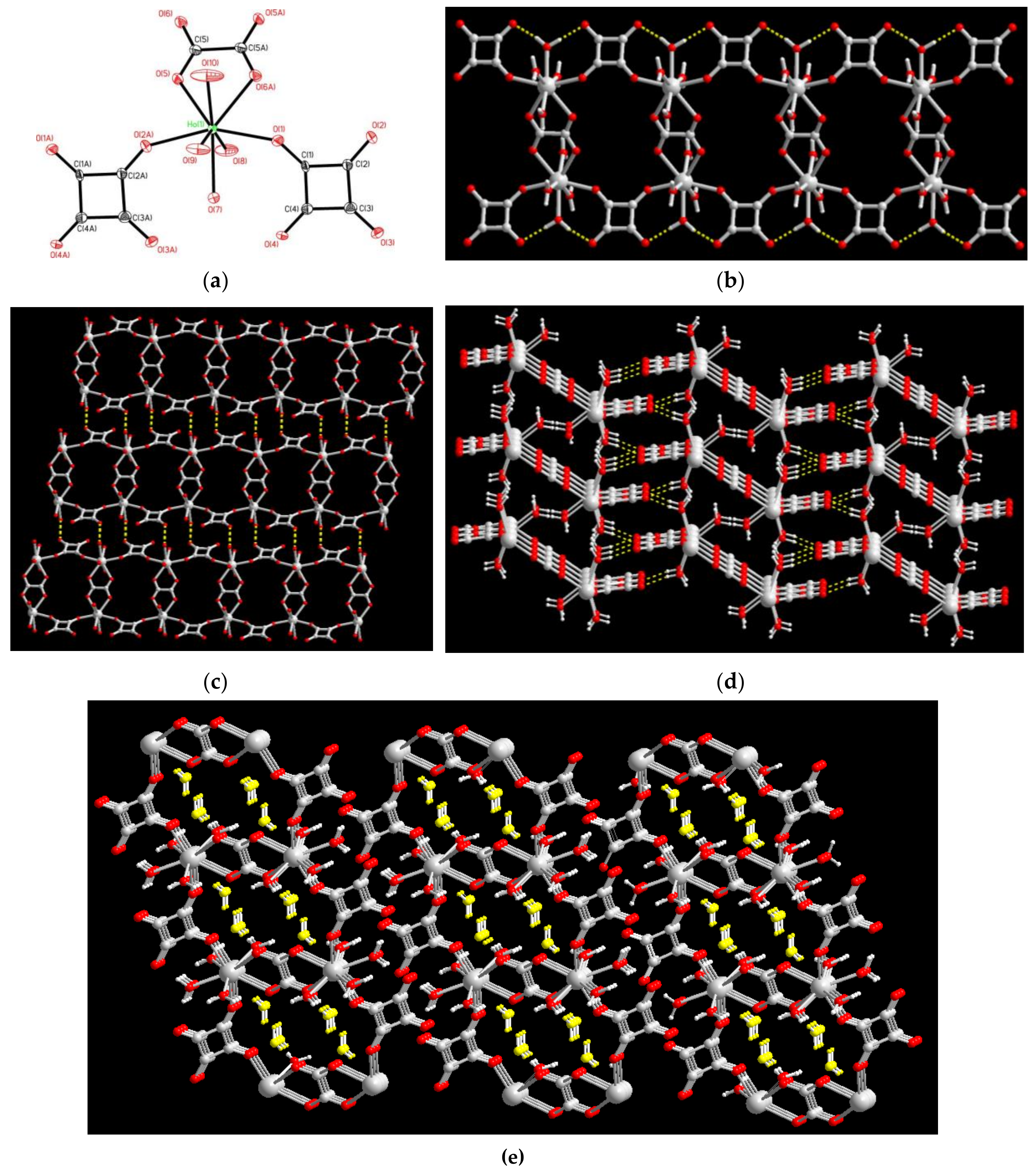

Figure 1. (a) Coordination environments of Ho(III) ion in 1 with atom labelling scheme (ORTEP drawing, 30% thermal ellipsoids). The guest water molecules and H atoms are omitted for clarity. (b) The 1D ladder-like framework constructed via the bridges of Ho(III) ions and C2O42−, C4O42− ligands. (c) The 2D layered framework constructed via inter-ladder O−H⋅⋅⋅O hydrogen bonds (yellow dashed lines) between the squarate ligands and coordinated water molecules. (d) The 3D supramolecular assembly of 1 via the assembly of 1D ladder-like Chains. (Yellow dashed lines for inter-ladder O−H⋅⋅⋅O hydrogen bonds) (e) The 3D supramolecular assembly of 1 viewing along the a axis showing the guest water molecules (yellow color) intercalated into the 1D pores. (red for O atom, and gray-white for Ho and C atoms; yellow color for water molecules; yellow dashed lines for O−H⋅⋅⋅O hydrogen bonds).
Figure 1. (a) Coordination environments of Ho(III) ion in 1 with atom labelling scheme (ORTEP drawing, 30% thermal ellipsoids). The guest water molecules and H atoms are omitted for clarity. (b) The 1D ladder-like framework constructed via the bridges of Ho(III) ions and C2O42−, C4O42− ligands. (c) The 2D layered framework constructed via inter-ladder O−H⋅⋅⋅O hydrogen bonds (yellow dashed lines) between the squarate ligands and coordinated water molecules. (d) The 3D supramolecular assembly of 1 via the assembly of 1D ladder-like Chains. (Yellow dashed lines for inter-ladder O−H⋅⋅⋅O hydrogen bonds) (e) The 3D supramolecular assembly of 1 viewing along the a axis showing the guest water molecules (yellow color) intercalated into the 1D pores. (red for O atom, and gray-white for Ho and C atoms; yellow color for water molecules; yellow dashed lines for O−H⋅⋅⋅O hydrogen bonds).
Polymers 11 01369 g001
Polymers 11 01369 g002 550

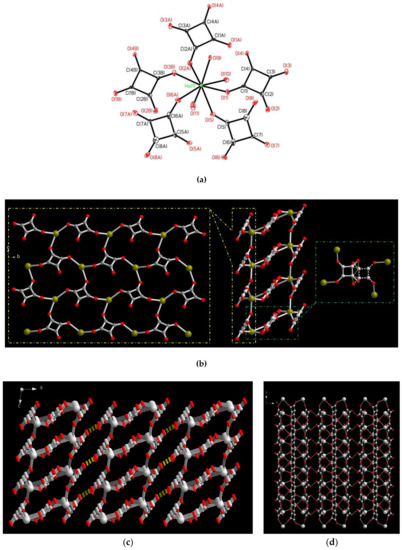

Figure 2. (a) A square antiprismatic geometry of Ho(III) ion in 2 with atom labelling scheme (ORTEP drawing, 30% thermal ellipsoids) The H atoms are omitted for clarity. (b) Left: The 2D layered framework via the bridges of Ho(III) ions and μ1,2,3-C4O42−. Middle: The 2D bi-layers MOFs constructed via the bridges of Ho(III) and μ1,2,3- and μ1,2-C4O42−. Right: The bridges of Ho(III) and disorder μ1,2-C4O42−. (red for O atom, gray-white for C atom and green-gray for Ho atom) (c) The 3D supramolecular assembly of 2 viewing along the b axis. (red for O atom, and gray-white for Ho and C atoms) (d) The 3D supramolecular assembly of 2 viewing along the c axis.
Figure 2. (a) A square antiprismatic geometry of Ho(III) ion in 2 with atom labelling scheme (ORTEP drawing, 30% thermal ellipsoids) The H atoms are omitted for clarity. (b) Left: The 2D layered framework via the bridges of Ho(III) ions and μ1,2,3-C4O42−. Middle: The 2D bi-layers MOFs constructed via the bridges of Ho(III) and μ1,2,3- and μ1,2-C4O42−. Right: The bridges of Ho(III) and disorder μ1,2-C4O42−. (red for O atom, gray-white for C atom and green-gray for Ho atom) (c) The 3D supramolecular assembly of 2 viewing along the b axis. (red for O atom, and gray-white for Ho and C atoms) (d) The 3D supramolecular assembly of 2 viewing along the c axis.
Polymers 11 01369 g002
Polymers 11 01369 g003 550

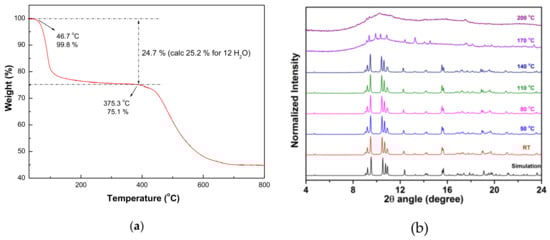

Figure 3. (a) Thermogravimetric analysis (TGA) and (b) in-situ temperature dependent powder X-ray diffraction (XRD) measurements of 1.
Figure 3. (a) Thermogravimetric analysis (TGA) and (b) in-situ temperature dependent powder X-ray diffraction (XRD) measurements of 1.
Polymers 11 01369 g003
Polymers 11 01369 g004 550

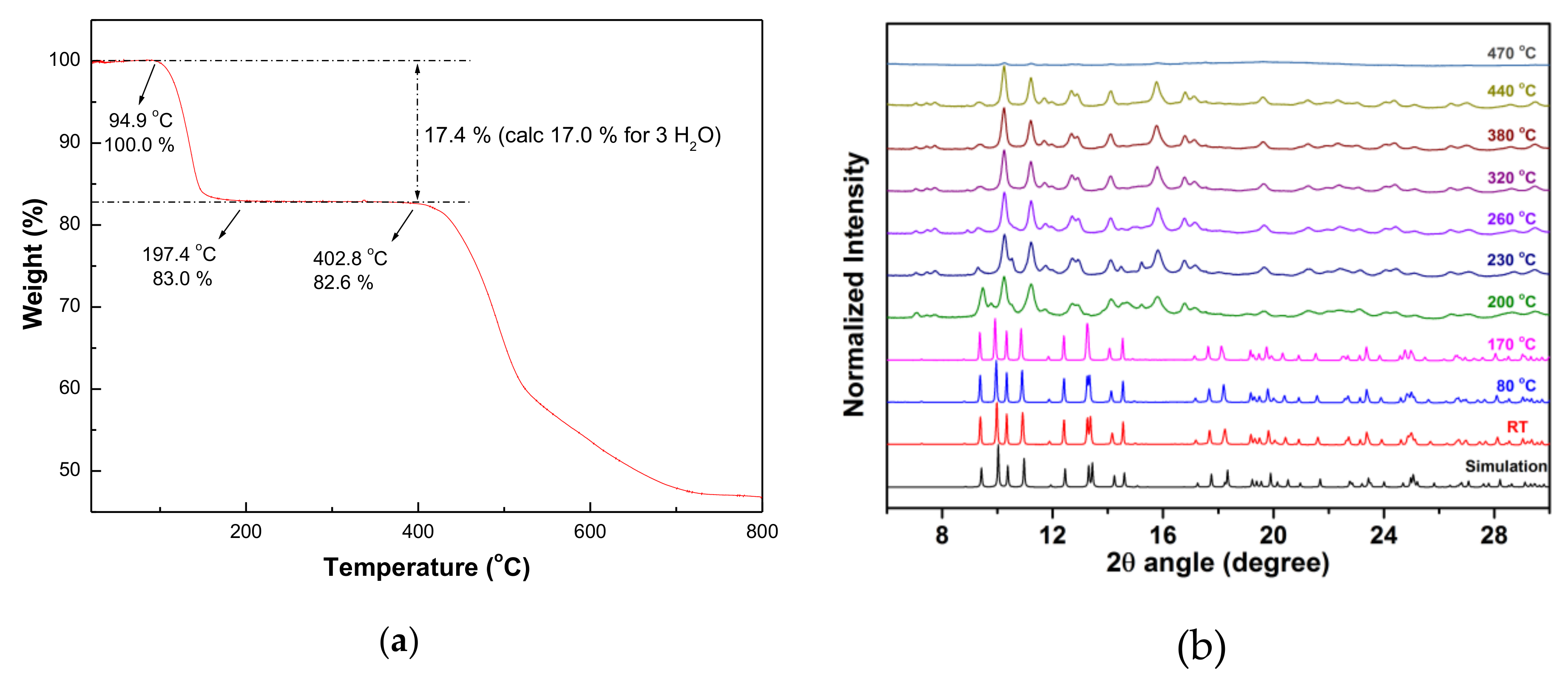

Figure 4. (a) TGA and (b) in-situ temperature dependent powder XRD measurements of 2.
Figure 4. (a) TGA and (b) in-situ temperature dependent powder XRD measurements of 2.
Polymers 11 01369 g004
Polymers 11 01369 g005 550

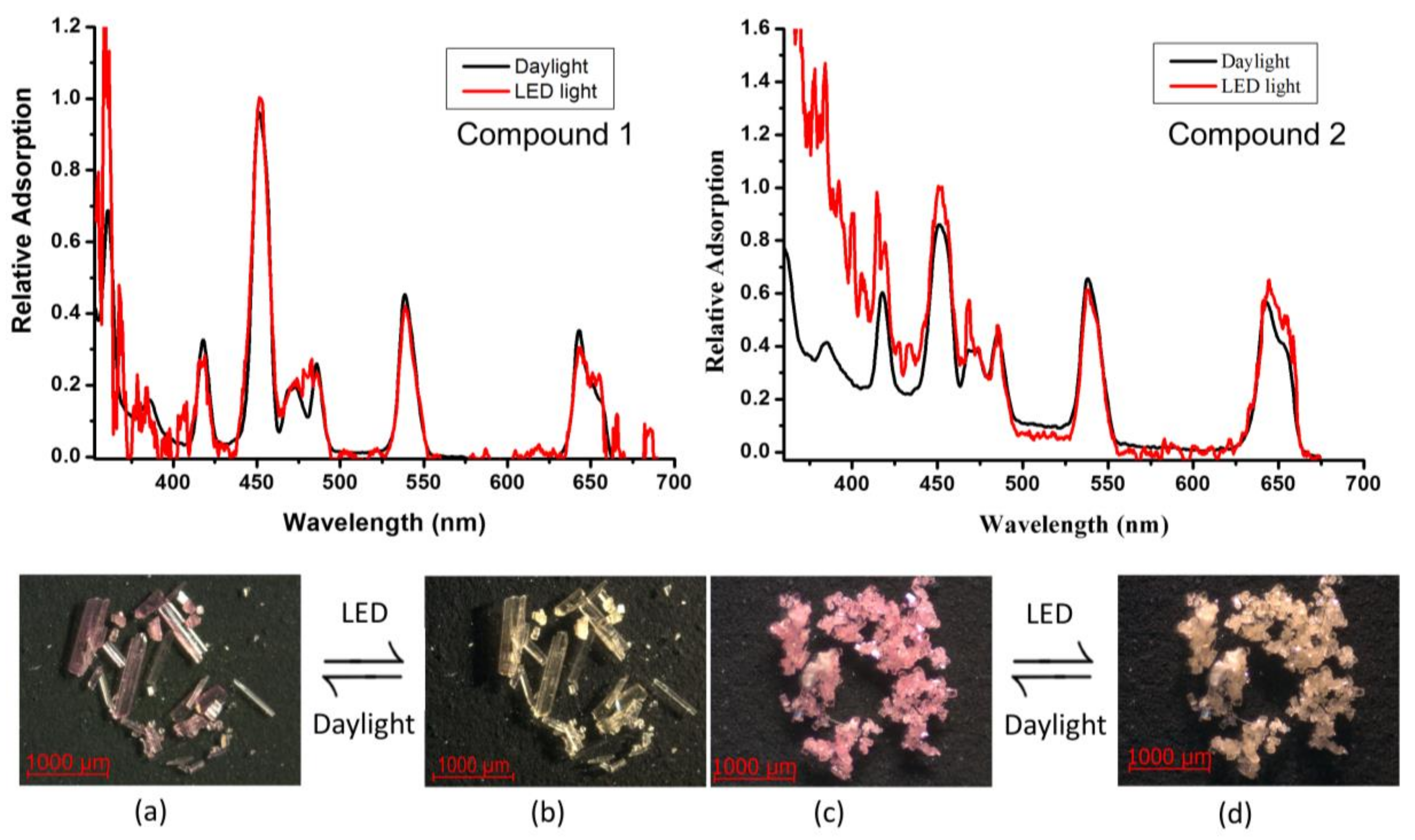

Figure 5. The color-changing images and UV spectra of 1 (a) & (b) and 2 (c) & (d).
Figure 5. The color-changing images and UV spectra of 1 (a) & (b) and 2 (c) & (d).
Polymers 11 01369 g005
Table
Table 1. Crystal data and refinement details of compounds 1 and 2.
Table 1. Crystal data and refinement details of compounds 1 and 2.
Compound12
empirical formulaC10H24Ho2O24C6H8Ho1O10
formula mass (g mol−1)858.15405.05
crystal systemTriclinicMonoclinic
space groupP-1P21/c
a (Å)7.2463(8)11.8844(11)
b (Å)7.4084(8)8.1321(7)
c (Å)12.6393(14)9.9939(9)
α (deg)96.599(2)90.00
β (deg)93.691(2)96.097(2)
γ (deg)116.651(2)90.00
V (Å3)597.26(11)960.40(15)
Z24
T (K)150(2)250(2)
Dcalcd (g cm−3)2.3862.801
μ (mm−1)6.6828.288
θ range (deg)1.64−27.51.72−27.5
total no. of data collected76866229
no. of unique data27332215
no. of obsd data (I > 2 σ (I))25702037
Rint0.05140.0424
refine params163181
R1, wR21 (I > 2 σ (I))0.0430, 0.10890.0391, 0.0926
R1, wR21 (all data)0.0463, 0.11030.0424, 0.0940
GOF 21.2161.296
1R1 = Σ||Fo − Fc||/Σ|Fo|; wR2(F2) = [Σw|Fo2 − Fc2|2/Σw(Fo4)]1/2. 2 GOF = {Σ[w|Fo2 − Fc2|2]/(n−p)}1/2.
Table
Table 2. Bond lengths (Å) and angles (°) around Ho(III) ion in 1 1.
Table 2. Bond lengths (Å) and angles (°) around Ho(III) ion in 1 1.
Ho(1)−O(1)2.314(6)Ho(1)−O(2)i2.317(6)
Ho(1)−O(10)2.319(7)Ho(1)−O(8)2.300(7)
Ho(1)−O(7)2.326(6)Ho(1)−O(9)2.343(7)
Ho(1)−O(5)2.431(6)Ho(1)−O(6)ii2.470(6)
O(1)−Ho(1)−O(2)i153.3(2)O(1)−Ho(1)−O(10)92.0(3)
O(2)i−Ho(1)−O(10)100.3(3)O(1)−Ho(1)−O(8)90.3(3)
O(2)i−Ho(1)−O(8)91.9(3)O(10)−Ho(1)−O(8)147.2(3)
O(1)−Ho(1)−O(7)78.8(2)O(2)−Ho(1)−O(7)76.5(2)
O(10)−Ho(1)−O(7)140.2(3)O(8)−Ho(1)−O(7)72.2(2)
O(1)−Ho(1)−O(9)83.6(3)O(2)i−Ho(1)−O(9)79.4(3)
O(10)−Ho(1)−O(9)67.9(3)O(8)−Ho(1)−O(9)144.8(2)
O(7)−Ho(1)−O(9)72.6(2)O(1)−Ho(1)−O(5)136.0(2)
O(2)i−Ho(1)−O(5)70.3(2)O(10)−Ho(1)−O(5)76.5(3)
O(8)−Ho(1)−O(5)79.3(2)O(7)−Ho(1)−O(5)135.0(2)
O(9)−Ho(1)−O(5)127.5(3)O(1)−Ho(1)−O(6)ii70.9(2)
O(2)i−Ho(1)−O(6)ii135.3(2)O(10)−Ho(1)−O(6)ii73.2(3)
O(8)−Ho(1)−O(6)ii76.7(2)O(7)−Ho(1)−O(6)ii136.0(2)
O(9)−Ho(1)−O(6)ii132.2(2)O(5)−Ho(1)−O(6)ii65.1(2)
1 Symmetry transformations used to generate equivalent atoms: i = x−1, y−1, z; ii = −x, −y, −z+1.
Table
Table 3. The O–H⋅⋅⋅O hydrogen bonds for 1 1.
Table 3. The O–H⋅⋅⋅O hydrogen bonds for 1 1.
D−H⋅⋅⋅AD−H (Å)H⋅⋅⋅A (Å)D⋅⋅⋅A (Å)∠ D−H⋅⋅⋅A (°)
O(7)−H(7A)⋅⋅⋅O(4)0.852(6)1.778(6)2.627(10)174.3(5)
O(7)−H(7B)⋅⋅⋅O(3)i0.851(6)1.812(6)2.654(10)169.8(6)
O(8)−H(8A)⋅⋅⋅O(3)ii0.853(6)1.918(6)2.761(10)169.6(6)
O(8)−H(8B)⋅⋅⋅O(11)0.850(6)1.915(6)2.816(10)170.2(6)
O(9)−H(9A)⋅⋅⋅O(4)iii0.851(6)1.832(6)2.675(10)170.2(6)
O(9)−H(9B)⋅⋅⋅O(12)iv0.849(6)1.887(6)2.706(10)161.7(6)
O(10)−H(10A)⋅⋅⋅O(12))iv0.849(6)1.831(6)2.678(10)174.5(6)
O(10)−H(10B)⋅⋅⋅O(11)v0.849(6)1.829(6)2.677(10)175.6(6)
O(11)−H(11A)⋅⋅⋅O(2)vi0.848(6)2.058(6)2.772(10)141.4(6)
O(11)−H(11B)⋅⋅⋅O(1)vi0.846(6)1.998(6)2.785(10)154.3(6)
O(12)−H(12A)⋅⋅⋅O(6)v0.846(6)1.946(6)2.782(10)169.2(6)
O(12)−H(12B)⋅⋅⋅O(5)vii0.852(6)1.997(6)2.825(10)163.6(6)
1 Symmetry transformations used to generate equivalent atoms: i = x−1, y−1, z; ii = −x+1, −y+1, −z+2; iii = −x, −y+2, −z+2; iv = x−1, y, z; v = −x, −y+1, −z+1; vi = x, y−1, z; viii = x+1, y+1, z.
Table
Table 4. Bond lengths (Å) and angles (°) around Ho(III) ion in 2 1.
Table 4. Bond lengths (Å) and angles (°) around Ho(III) ion in 2 1.
Ho(1)–O(9)2.305(5)Ho(1)–O(6)i2.317(6)
Ho(1)–O(10)2.327(6)Ho(1)–O(3)ii2.367(5)
Ho(1)–O(11)2.375(6)Ho(1)–O(5)2.379(6)
Ho(1)–O(1)2.408(5)Ho(1)–O(2)iii2.415(5)
O(9)–Ho(1)–O(6)i143.2(2)O(9)–Ho(1)–O(10)81.6(2)
O(6)i–Ho(1)–O(10)109.8(2)O(9)–Ho(1)–O(3)ii74.6(2)
O(6)i–Ho(1)–O(3)ii77.4(2)O(10)–Ho(1)–O(3)ii145.0(2)
O(9)–Ho(1)–O(11)109.5(2)O(6)i–Ho(1)–O(11)85.1(2)
O(10)–Ho(1)–O(11)139.2(3)O(3)ii−Ho(1)−O(11)74.2(2)
O(9)–Ho(1)–O(5)142.9(2)O(6)i–Ho(1)–O(5)72.1(2)
O(10)–Ho(1)–O(5)72.0(3)O(3)ii–Ho(1)–O(5)139.7(2)
O(11)–Ho(1)–O(5)77.5(2)O(9)–Ho(1)–O(1)74.4(2)
O(6)i–Ho(1)–O(1)141.6(2)O(10)–Ho(1)–O(1)76.8(3)
O(3)ii–Ho(1)–O(1)119.6(2)O(11)–Ho(1)–O(1)69.4(2)
O(5)–Ho(1)–O(1)74.6(2)O(9)−Ho(1)–O(2)iii76.1(2)
O(6)i–Ho(1)–O(2)iii73.6(2)O(10)−Ho(1)–O(2)iii75.2(2)
O(3)ii–Ho(1)–O(2)iii74.3(2)O(11)–Ho(1)–O(2)iii145.0(2)
O(5)–Ho(1)–O(2)iii119.7(2)O(1)–Ho(1)–O(2)iii141.6(2)
1 Symmetry transformations used to generate equivalent atoms: i = −x+1, −y+1, −z+1; ii = x, y+1, z; iii = x, −y+1/2, z−1/2.
Table
Table 5. The O–H⋅⋅⋅O hydrogen bonds for 2 1.
Table 5. The O–H⋅⋅⋅O hydrogen bonds for 2 1.
D–H⋅⋅⋅AD–H (Å)H⋅⋅⋅A (Å)D⋅⋅⋅A (Å)∠ D–H⋅⋅⋅A (°)
O(9)–H(9A)⋅⋅⋅O(4)0.854(6)1.869(5)2.689(8)160.4(4)
O(9)–H(9B)⋅⋅⋅O(4)i0.848(6)1.848(5)2.696(8)177.7(4)
O(10)–H(10A)⋅⋅⋅O(1)ii0.856(6)1.886(5)2.668(8)151.1(4)
O(10)–H(10B)⋅⋅⋅O(7)iii0.856(6)2.011(5)2.774(5)147.9(4)
O(10)–H(10B)⋅⋅⋅O(8)0.856(6)2.026(5)2.678(5)132.2(4)
O(11)–H(11A)⋅⋅⋅O(2)iv0.857(6)1.918(5)2.746(5)162.1(4)
O(11)–H(11B)⋅⋅⋅O(4)v0.853(6)2.181(5)2.941(5)148.1(4)
1 Symmetry transformations used to generate equivalent atoms: i = −x+2, −y, −z; ii = x, −y+1/2, z−1/2; iii = −x+1, y+1/2, −z+3/2; iv = x, y+1, z; v = x, −y+1/2, z+1/2.

Share and Cite

MDPI and ACS Style

Wang, C.-C.; Ke, S.-Y.; Feng, Y.; Ho, M.-L.; Chang, C.-K.; Chuang, Y.-C.; Lee, G.-H. Synthesis, Structural Characterization and Ligand-Enhanced Photo-Induced Color-Changing Behavior of Two Hydrogen-Bonded Ho(III)-Squarate Supramolecular Compounds. Polymers 2019, 11, 1369. https://doi.org/10.3390/polym11081369

AMA Style

Wang C-C, Ke S-Y, Feng Y, Ho M-L, Chang C-K, Chuang Y-C, Lee G-H. Synthesis, Structural Characterization and Ligand-Enhanced Photo-Induced Color-Changing Behavior of Two Hydrogen-Bonded Ho(III)-Squarate Supramolecular Compounds. Polymers. 2019; 11(8):1369. https://doi.org/10.3390/polym11081369

Chicago/Turabian Style

Wang, Chih-Chieh, Szu-Yu Ke, Yun Feng, Mei-Lin Ho, Chung-Kai Chang, Yu-Chun Chuang, and Gene-Hsiang Lee. 2019. "Synthesis, Structural Characterization and Ligand-Enhanced Photo-Induced Color-Changing Behavior of Two Hydrogen-Bonded Ho(III)-Squarate Supramolecular Compounds" Polymers 11, no. 8: 1369. https://doi.org/10.3390/polym11081369

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
