Influence of Temperature on Charge Accumulation in Low-Density Polyethylene Based on Depolarization Current and Space Charge Decay

1
State Key Laboratory of Electrical Insulation and Power Equipment, Xi’an Jiaotong University, Xi’an 710049, China
2
Institute of Advanced Electrical Materials, Qingdao University of Science and Technology, Qingdao 266042, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(4), 587; https://doi.org/10.3390/polym11040587
Received: 16 February 2019 / Revised: 25 March 2019 / Accepted: 25 March 2019 / Published: 1 April 2019
  |
PDF [2628 KB, uploaded 1 April 2019]
  |

Abstract

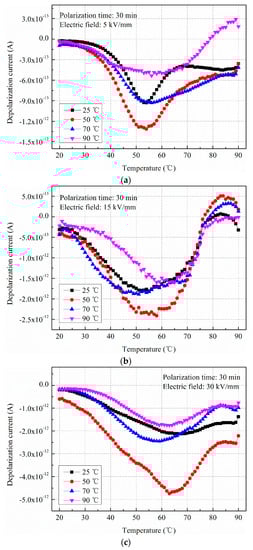

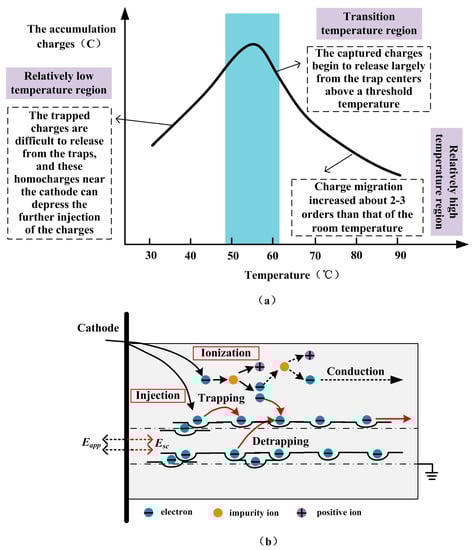

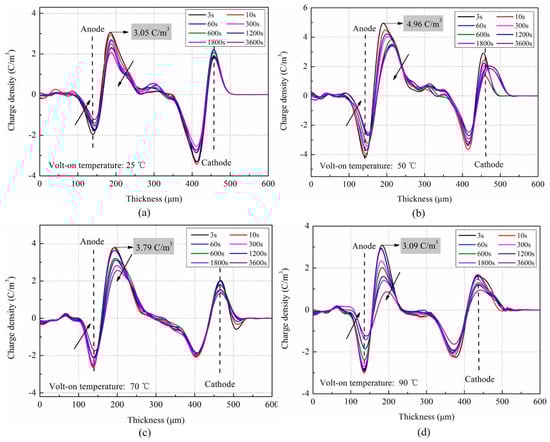

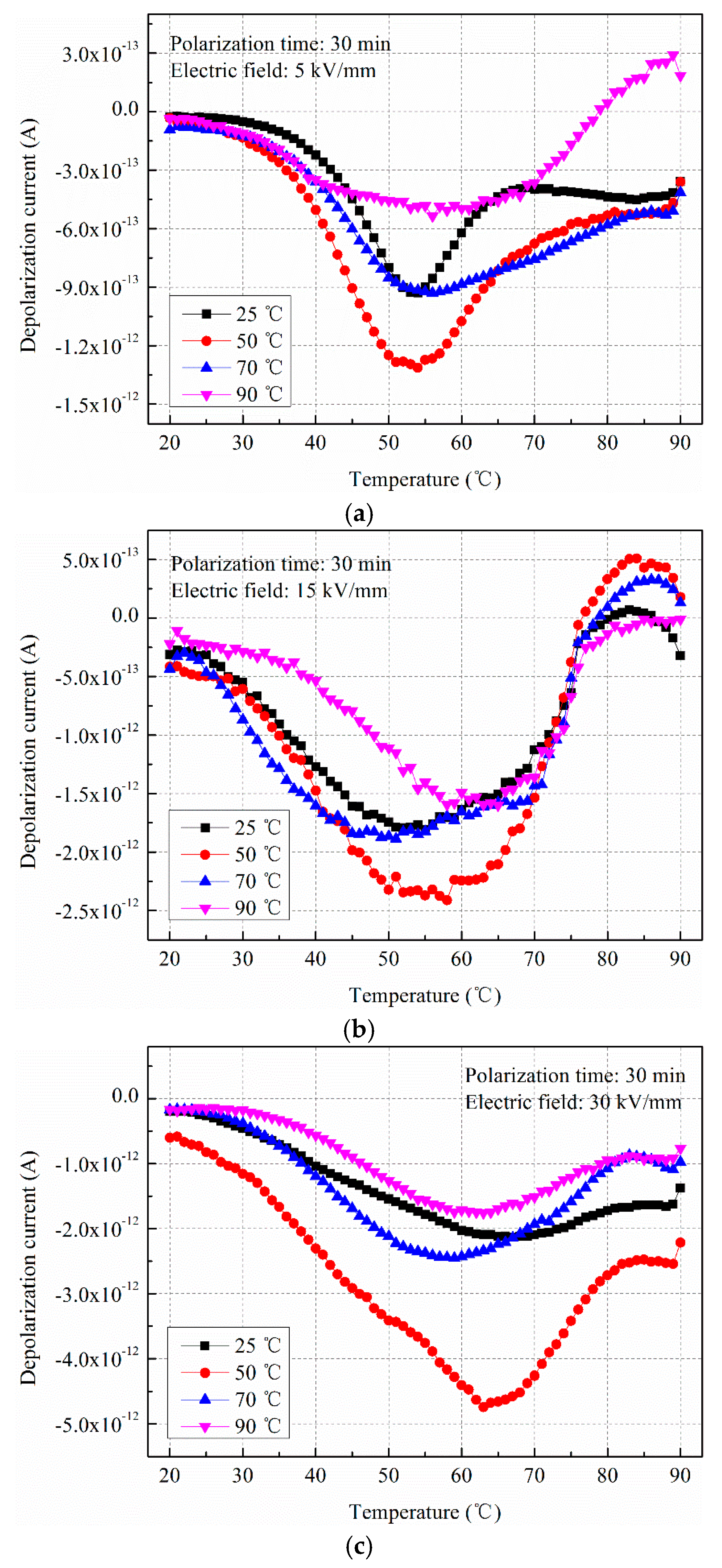

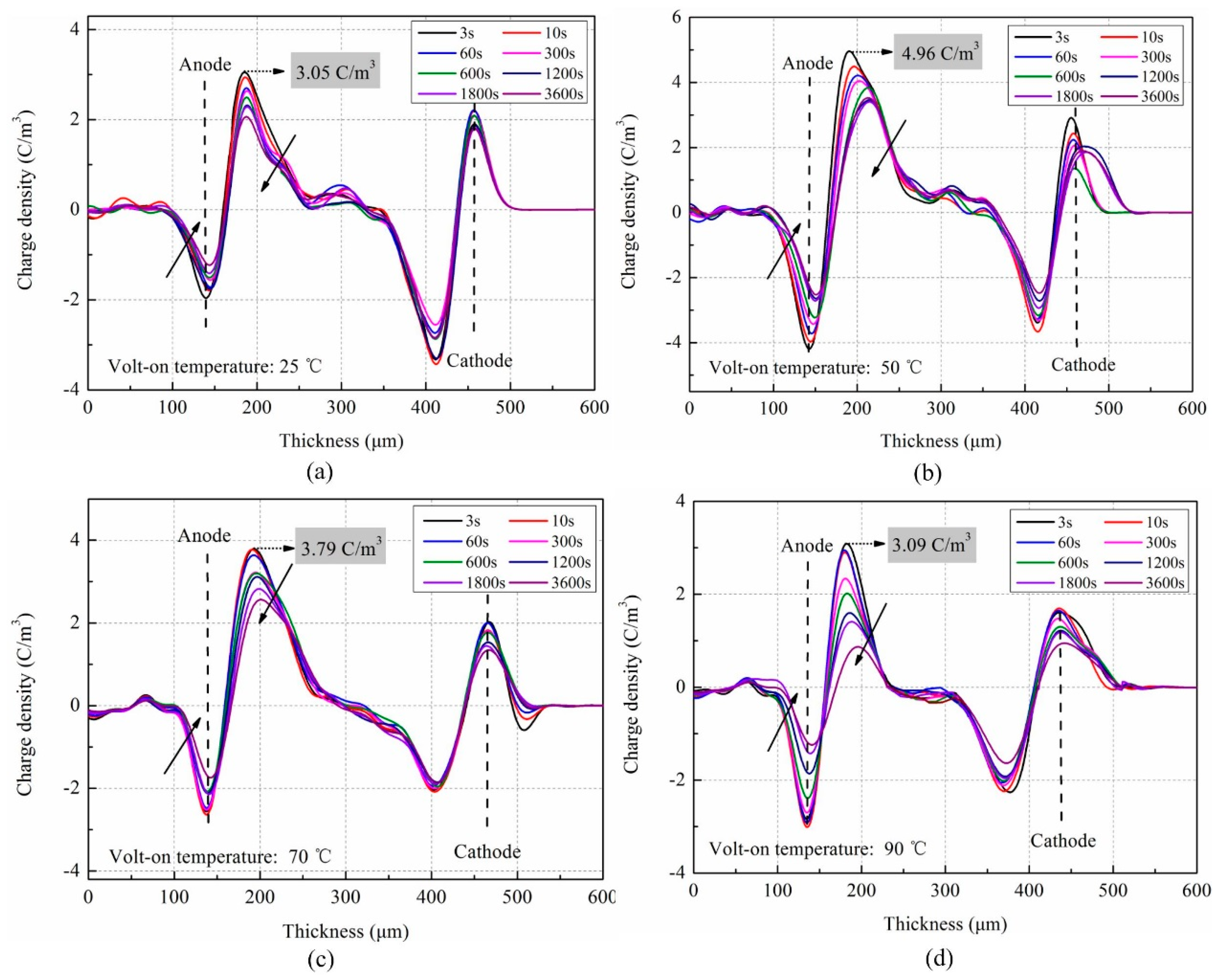

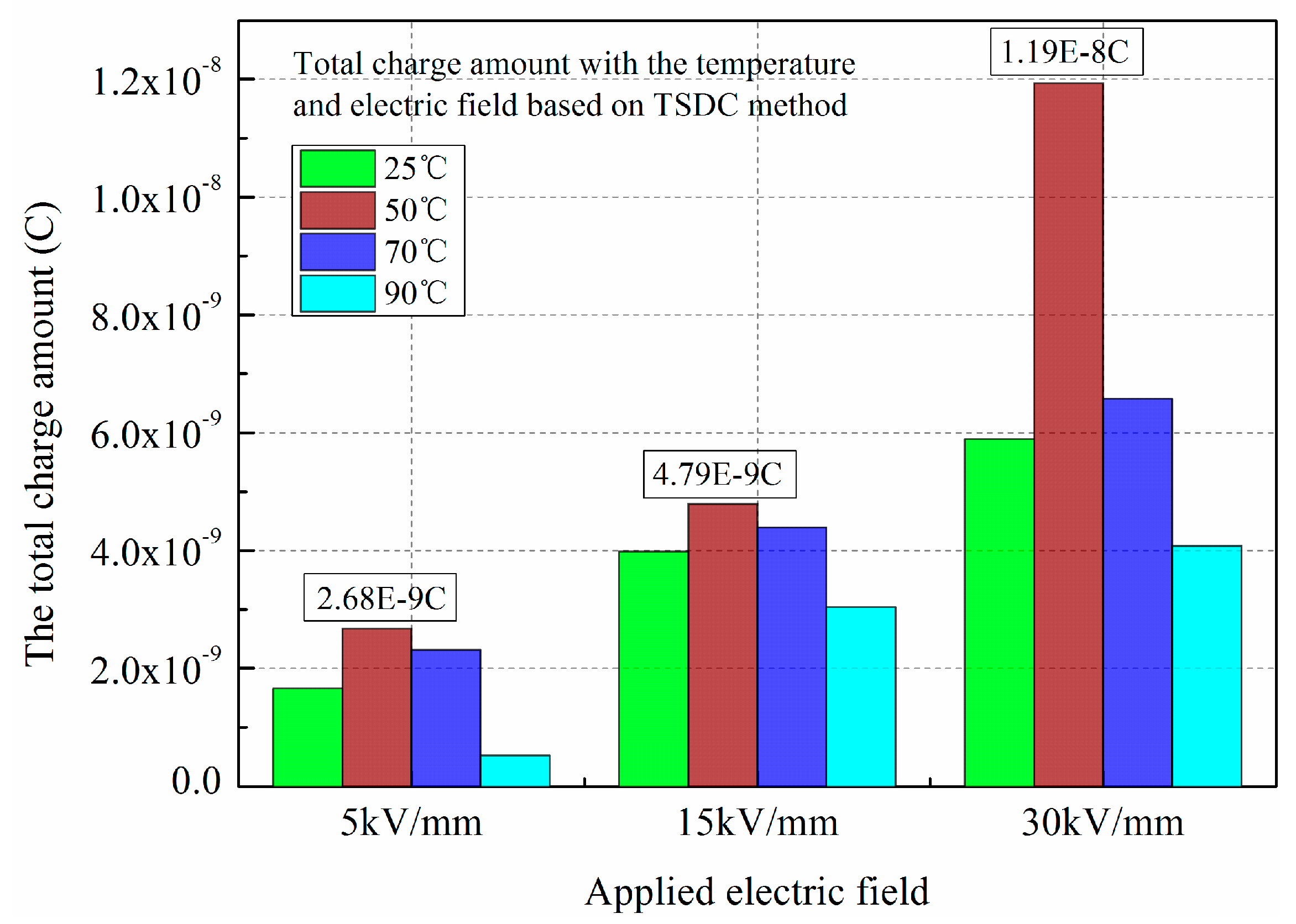

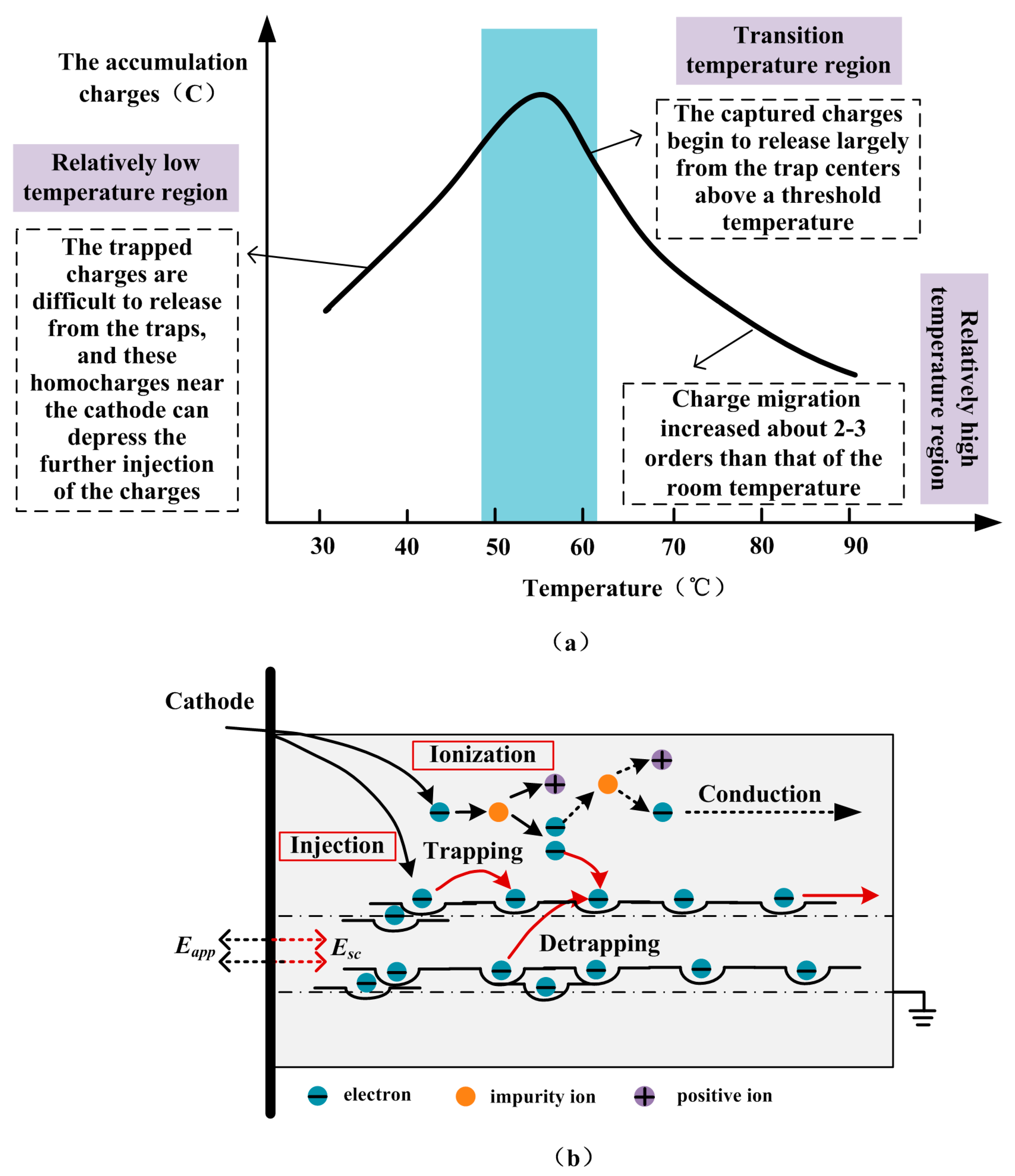

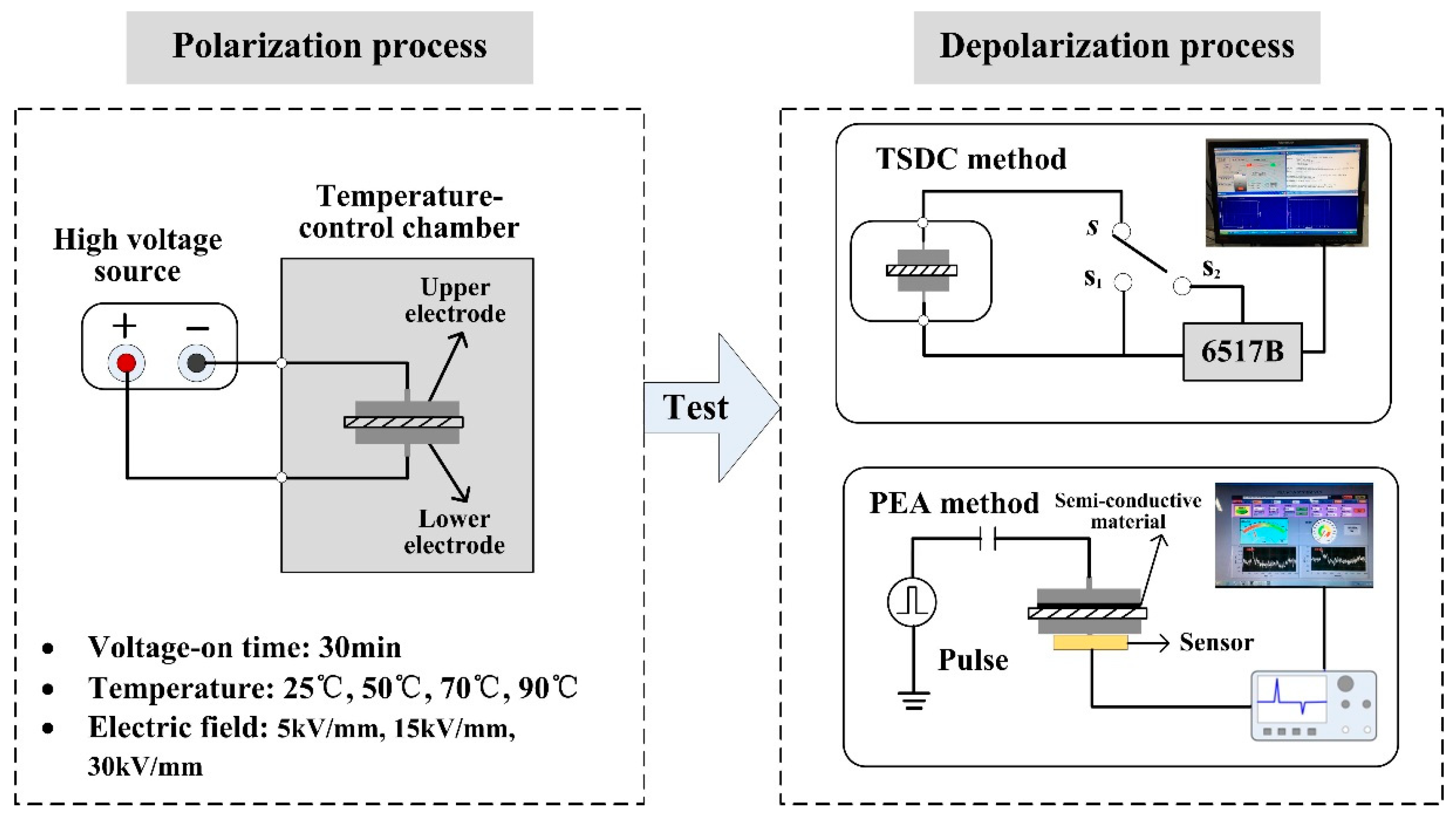

Temperature is one of the key factors affecting space charge accumulation in high voltage direct current (HVDC) cable insulation material. The influence of temperature on charge accumulation in low density polyethylene (LDPE) has been investigated with a combined thermally stimulated depolarization current (TSDC) method and pulsed electro-acoustic (PEA) method. The experimental results indicate that there exists a transition temperature region of charge accumulation around 50 °C. The total accumulated charges all firstly increase and then decrease with the increasing polarization temperature under three typical polarization electric fields, and they have more accumulated charges in LDPE around 50 °C. The phenomenon has a close link with the dynamic processes of charge trapping and de-trapping, which were verified by TSDC results. At room temperature, the trapped charges are difficult to release from the traps, and these homocharges near the cathode can depress the further injection of the charges. More charges can be injected from the electrodes with the increase of temperature, while the charge migration is relatively lower before 50 °C, leading to more accumulated charges. When the temperature exceeds around 50 °C, the molecular movement is accelerated which can enhance the hopping probability of charges between the adjacent traps, resulting in few accumulated charges. View Full-Text
Keywords: charge accumulation; low density polyethylene (LDPE); thermally stimulated depolarization current; space charge decay charge accumulation; low density polyethylene (LDPE); thermally stimulated depolarization current; space charge decay
Figures

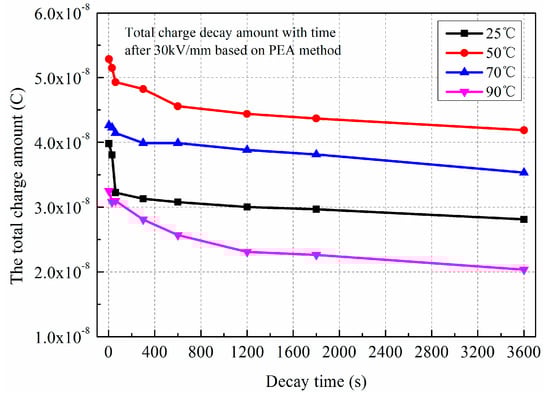

Figure 1
