Next Article in Journal
High Mechanical and Thermal Properties of Epoxy Composites with Liquid Crystalline Polyurethane Modified Graphene
Next Article in Special Issue
Hyperbranched Polysiloxanes Based on Polyhedral Oligomeric Silsesquioxane Cages with Ultra-High Molecular Weight and Structural Tuneability
Previous Article in Journal
Partially Renewable Poly(butylene 2,5-furandicarboxylate-co-isophthalate) Copolyesters Obtained by ROP
Previous Article in Special Issue
Non-Leachable Hydrophilic Additives for Amphiphilic Coatings
Open AccessArticle

Synthesis, Characterization and Microstructure of New Liquid Poly(methylhydrosiloxanes) Containing Branching Units SiO4/2

1
Textile Research Institute, Brzezińska Str. 5/15, 92-103 Łódź, Poland
2
The Institute of Security Technologies “MORATEX”, Marii Skłodowskiej-Curie Str. 3, 90-505 Łódź, Poland
3
Centre of Molecular and Macromolecular Studies, Polish Academy of Sciences, Sienkiewicza Str. 112, 90-363 Łódź, Poland
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(5), 484; https://doi.org/10.3390/polym10050484
Received: 28 March 2018 / Revised: 25 April 2018 / Accepted: 25 April 2018 / Published: 28 April 2018
(This article belongs to the Special Issue Siloxane-Based Polymers)

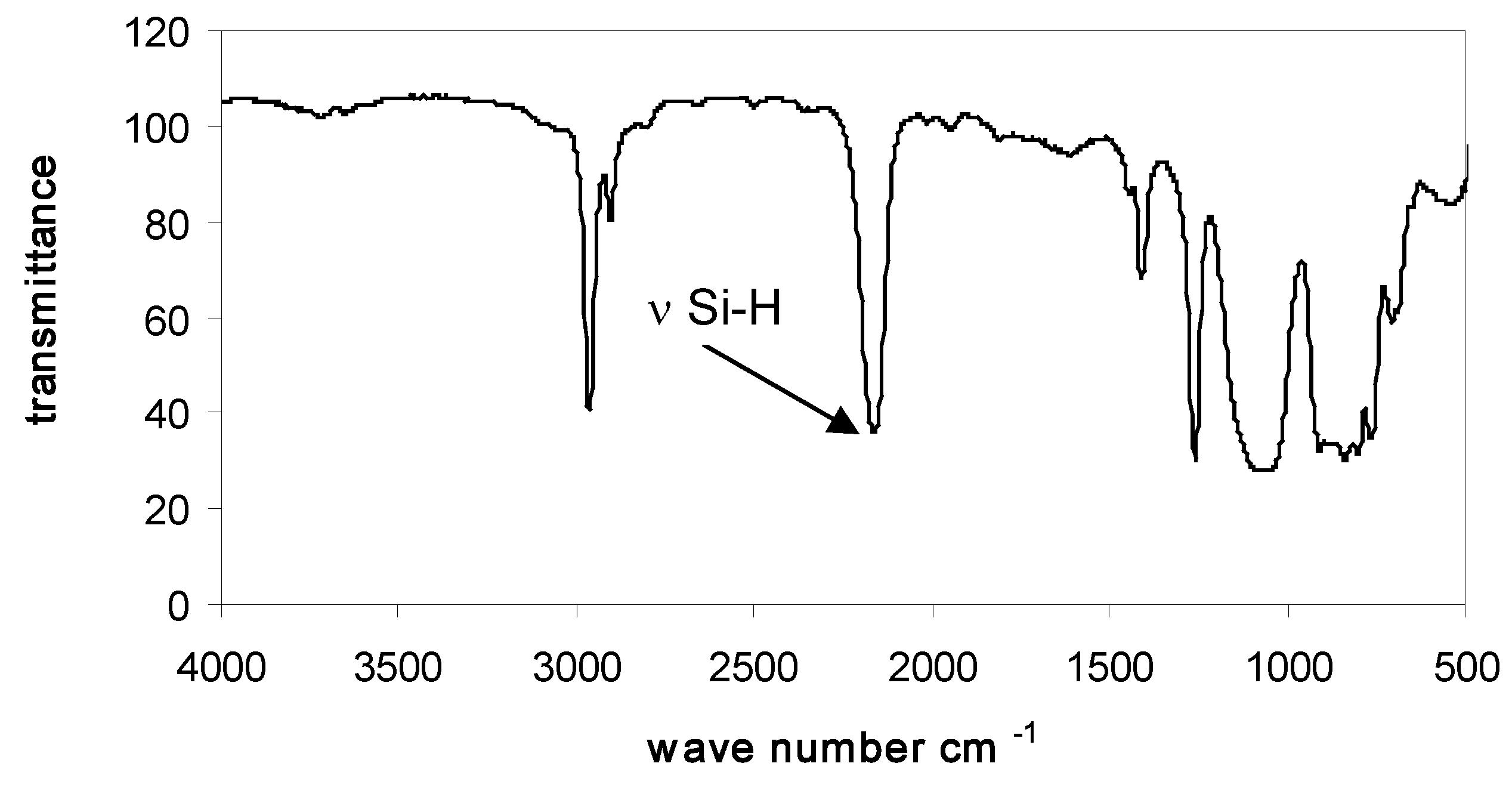

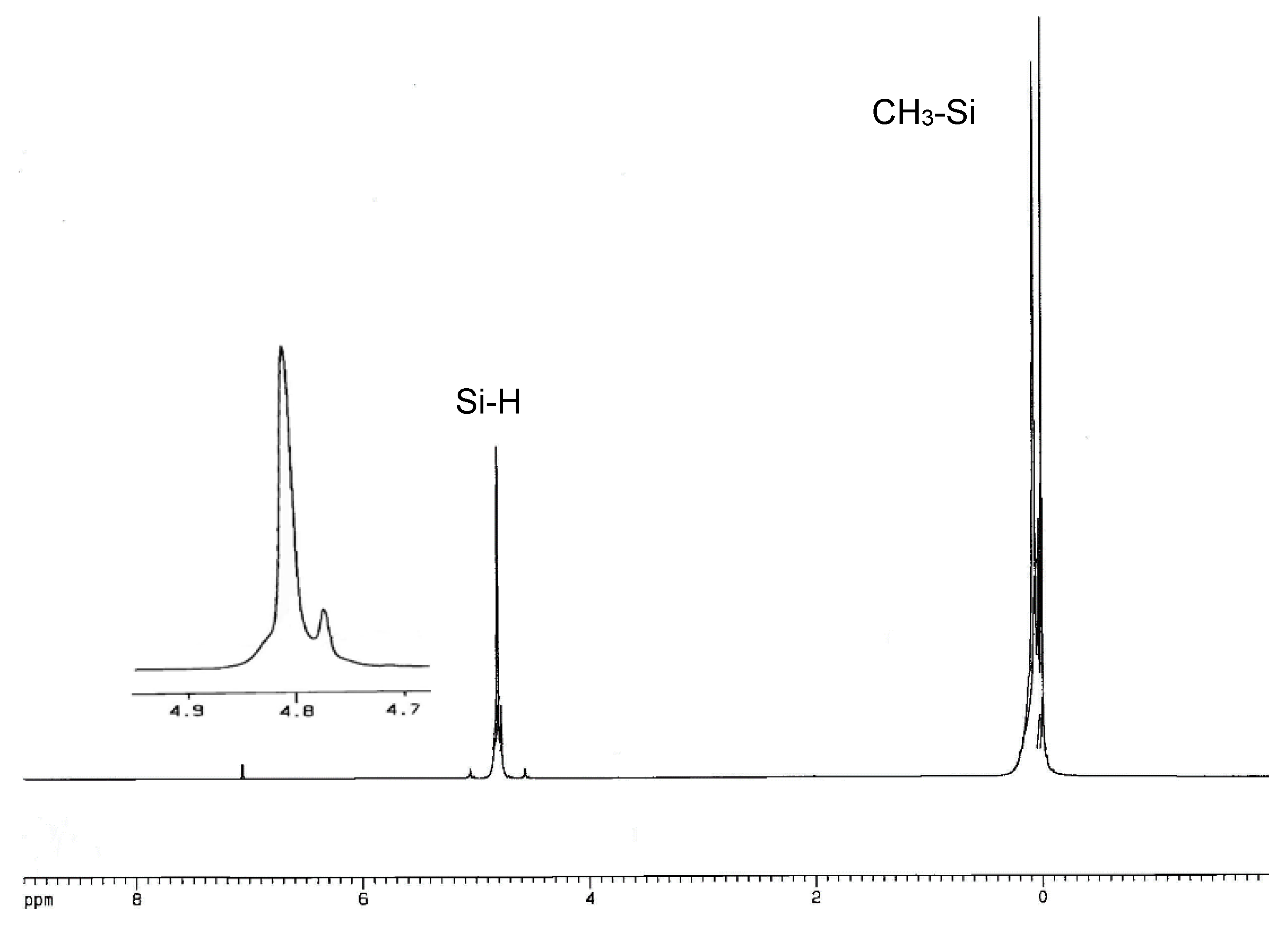

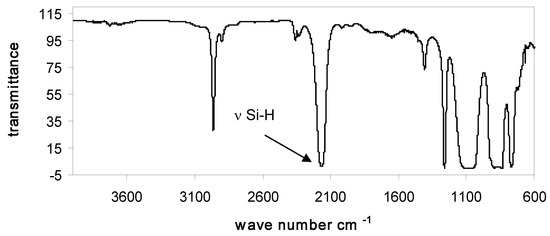

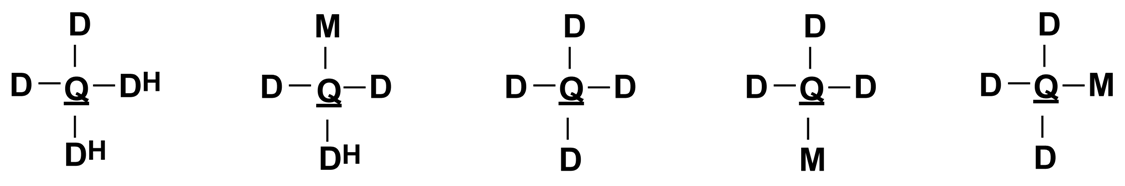

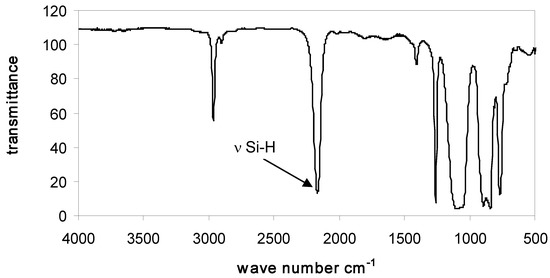

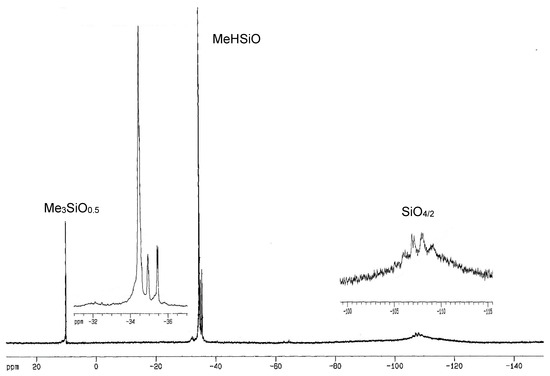

Six liquid branched poly(methylhydrosiloxanes) of new random structures (PMHS-Q), containing quadruple branching units SiO4/2 (Q), both MeHSiO (DH) and Me2SiO (D) chain building units (or only mers MeHSiO), and terminal groups Me3SiO0.5 (M) were prepared by a hydrolytic polycondensation method of appropriate organic chlorosilanes and tetraethyl ortosilicate (TEOS), in diethyl ether medium at temperature below 0 °C. Volatile low molecular weight siloxanes were removed by a vacuum distillation at 150–155 °C. Yields of PMHS-Q reached from 55–69 wt%. Their dynamic viscosities were measured in the Brookfield HBDV+IIcP cone-plate viscometer and ranged from 10.7–13.1 cP. Molecular weights (MW) of PMHS-Q (Mn = 2440–6310 g/mol, Mw = 5750–10,350 g/mol) and polydispersities of MW (Mw/Mn = 2.0–2.8) were determined by a size exclusion chromatography (SEC). All polymers were characterized by FTIR, 1H- and 29Si-NMR, and an elemental analysis. A microstructure of siloxane chains was proposed on a basis of 29Si-NMR results and compared with literature data. View Full-Text
Keywords: hyperbranched poly(methylhydrosiloxanes); hydrolytic polycondensation; 29Si-NMR; topology of polysiloxane chains hyperbranched poly(methylhydrosiloxanes); hydrolytic polycondensation; 29Si-NMR; topology of polysiloxane chains
Show Figures

Figure 1

MDPI and ACS Style

Chruściel, J.J.; Fejdyś, M.; Fortuniak, W. Synthesis, Characterization and Microstructure of New Liquid Poly(methylhydrosiloxanes) Containing Branching Units SiO4/2. Polymers 2018, 10, 484.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
