Lattice Correspondence and Growth Structures of Monoclinic Mg4Zn7 Phase Growing on an Icosahedral Quasicrystal

Research Center for Structural Materials, National Institute for Materials Science (NIMS), Sengen 1-2-1, Tsukuba, Ibaraki 305-0047, Japan
*
Author to whom correspondence should be addressed.
Current address: Erich Schmid Institute of Materials Science, 8700 Leoben, Austria.
Crystals 2018, 8(5), 194; https://doi.org/10.3390/cryst8050194
Received: 11 April 2018 / Revised: 26 April 2018 / Accepted: 27 April 2018 / Published: 1 May 2018
(This article belongs to the Special Issue Structure and Properties of Quasicrystalline Materials)
  |
PDF [3280 KB, uploaded 3 May 2018]
  |

Abstract

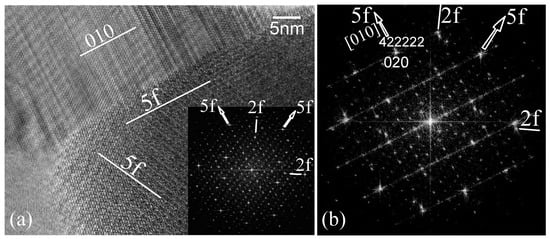

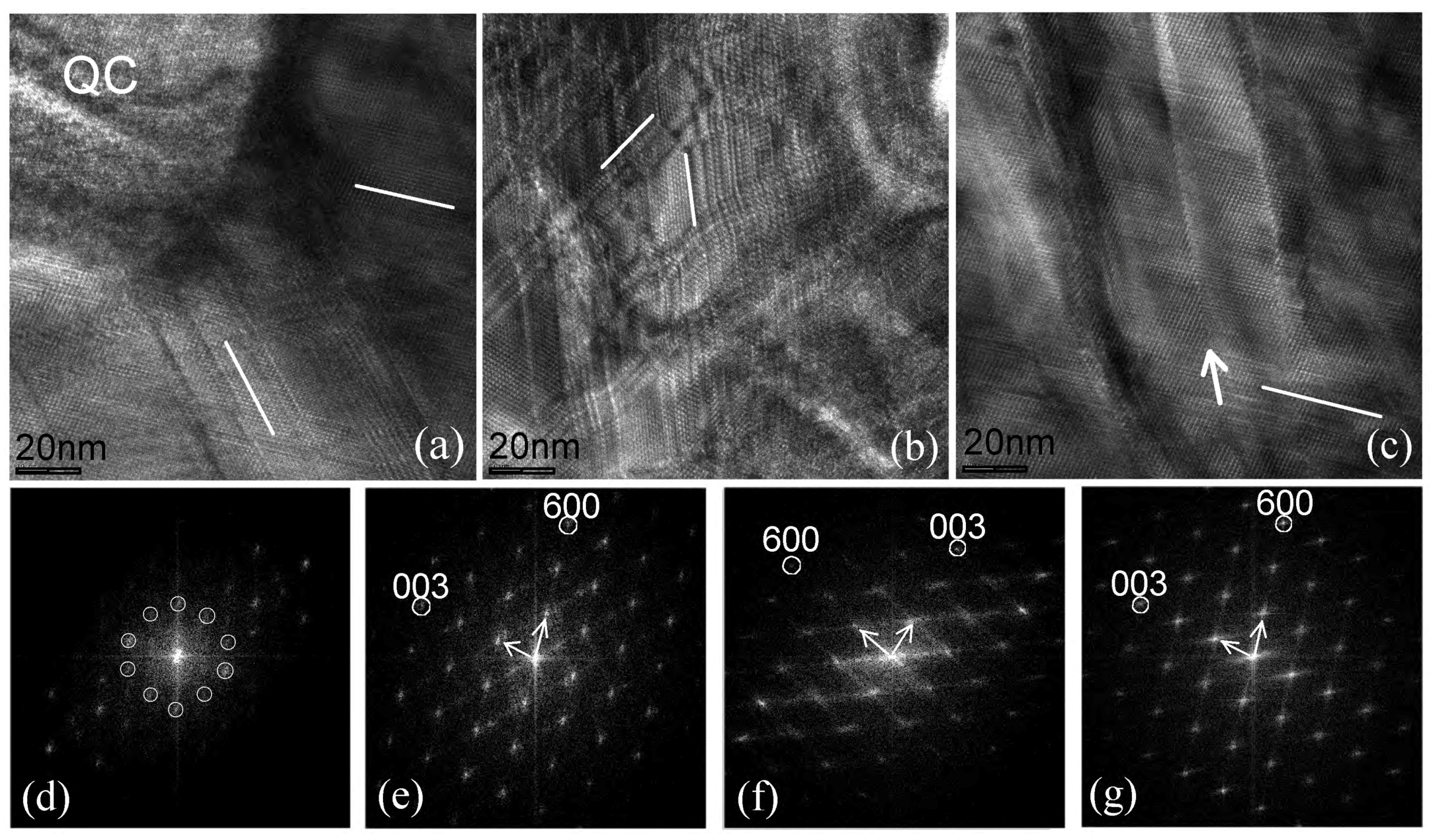

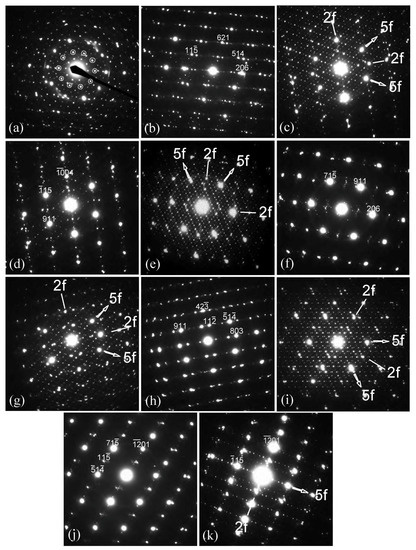

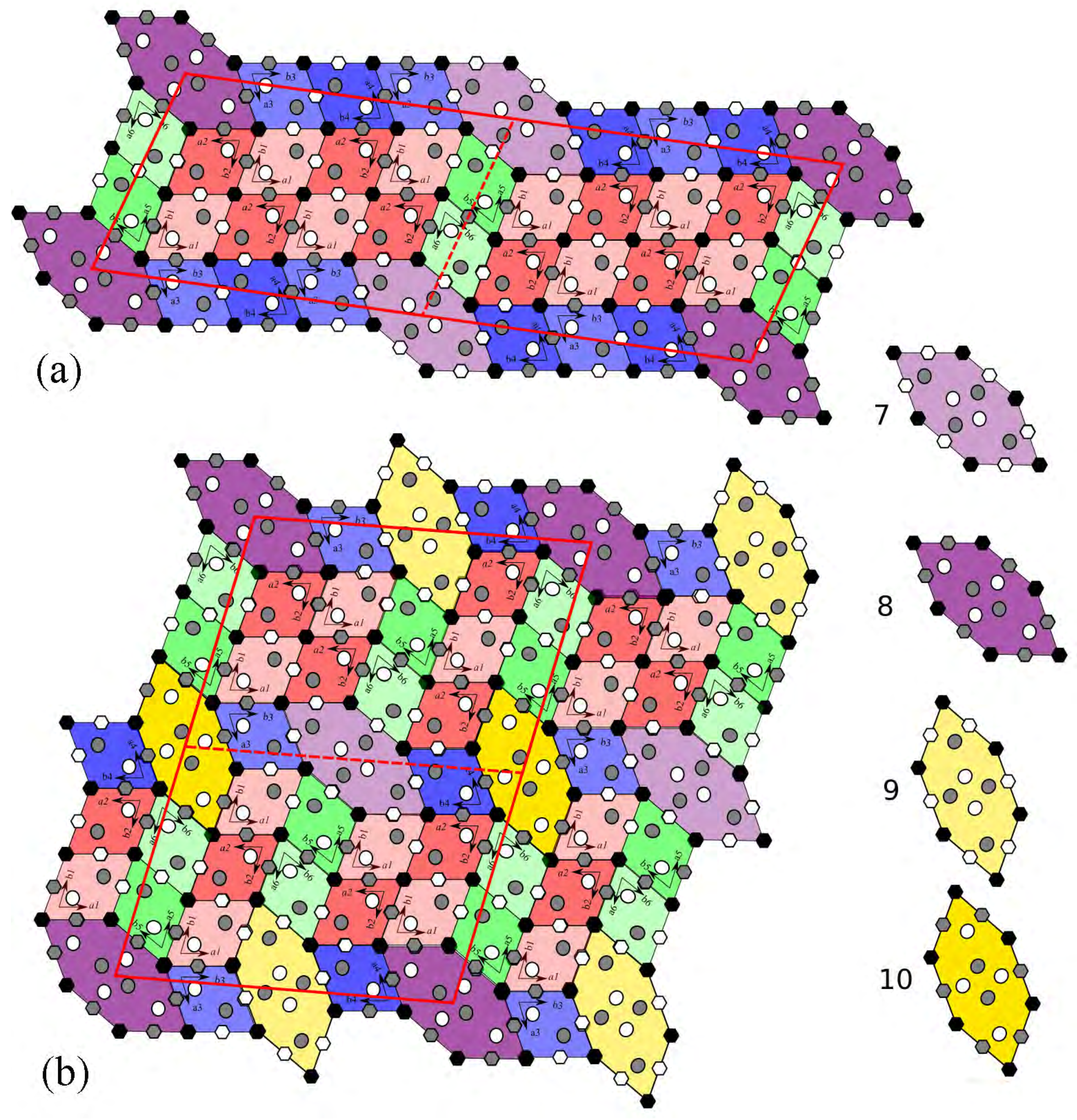

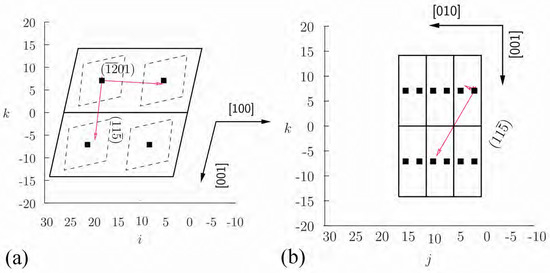

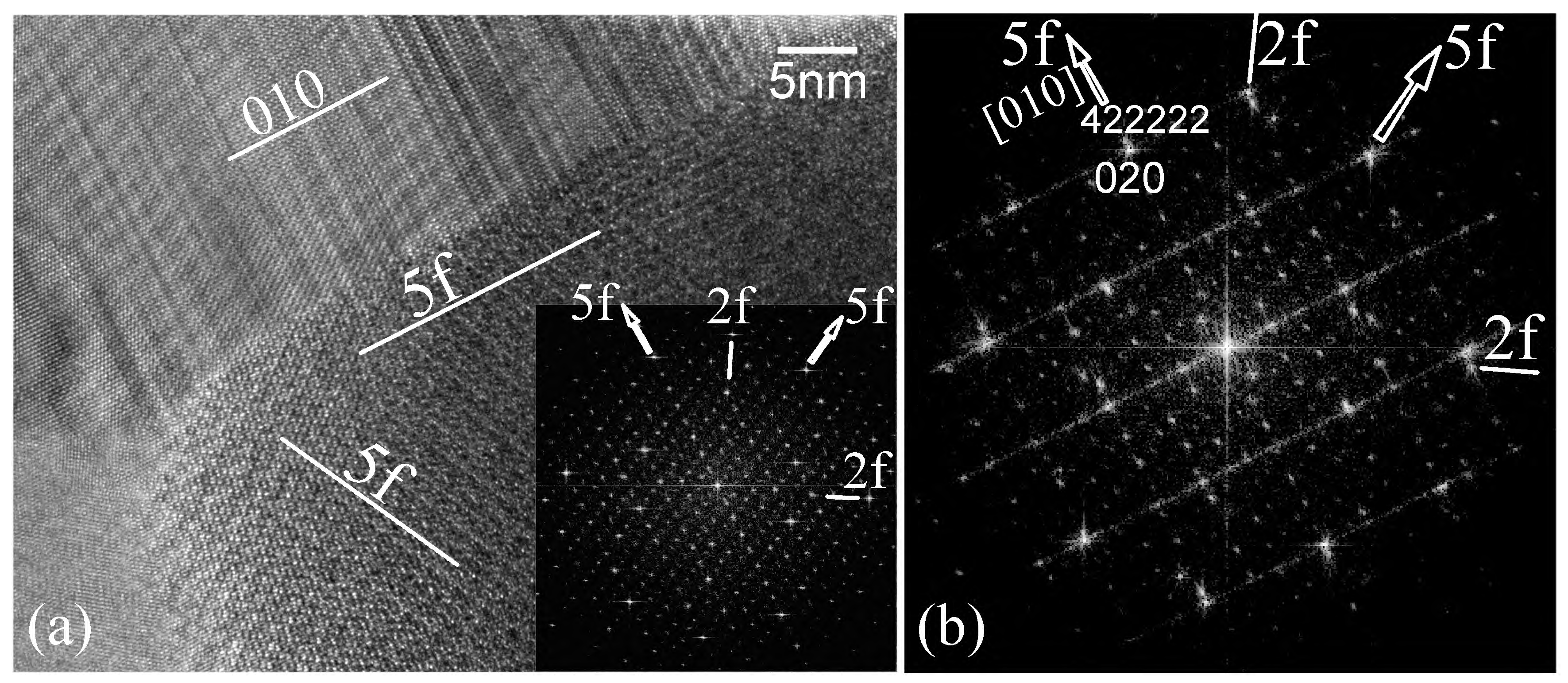

Mg 4 Zn 7 phase, with a monoclinic unit cell, a layered structure and a unique axis showing pseudo-tenfold symmetry, grows over icosahedral quasicrystalline phase in a manner similar to a decagonal quasicrystal. In this study, the relationship of this phase to icosahedral quasicrystal is brought out by a transmission electron microscopy study of Mg 4 Zn 7 phase growing on icosahedral phase in a cast Mg-Zn-Y alloy. Lattice correspondences between the two phases have been determined by electron diffraction. Planes related to icosahedral fivefold and pseudo-twofold symmetry are identified. Possible orthogonal cells bounded by twofold symmetry-related planes have been determined. Mg 4 Zn 7 phase growing on an icosahedral phase exhibits a number of planar faults parallel to the monoclinic axis, presumably to accommodate the quasiperiodicity at the interface. Two faults were identified, which were on {200} and { 2 ¯ 01} planes. Their structures have been determined by high resolution imaging in TEM. They produce two different unit cells at the interface. View Full-Text
Keywords: quasicrystal; complex metallic alloys; approximant; transmission electron microscopy (TEM) quasicrystal; complex metallic alloys; approximant; transmission electron microscopy (TEM)
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
