Open AccessArticle
Crystals 2018, 8(4), 179; https://doi.org/10.3390/cryst8040179

Size Control of Cobalt-Doped ZnO Nanoparticles Obtained in Microwave Solvothermal Synthesis

1
Institute of High Pressure Physics, Polish Academy of Sciences, Sokolowska 29/37, 01-142 Warsaw, Poland
2
Faculty of Chemistry, Biological and Chemical Research Centre, University of Warsaw, Żwirki i Wigury 101, 02-089 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Received: 13 February 2018 / Revised: 9 April 2018 / Accepted: 17 April 2018 / Published: 19 April 2018
(This article belongs to the Special Issue Microwave-Assisted Synthesis of Nanocrystals and Nanostructures)
Full-Text   |   PDF [34687 KB, uploaded 3 May 2018]   |

Abstract

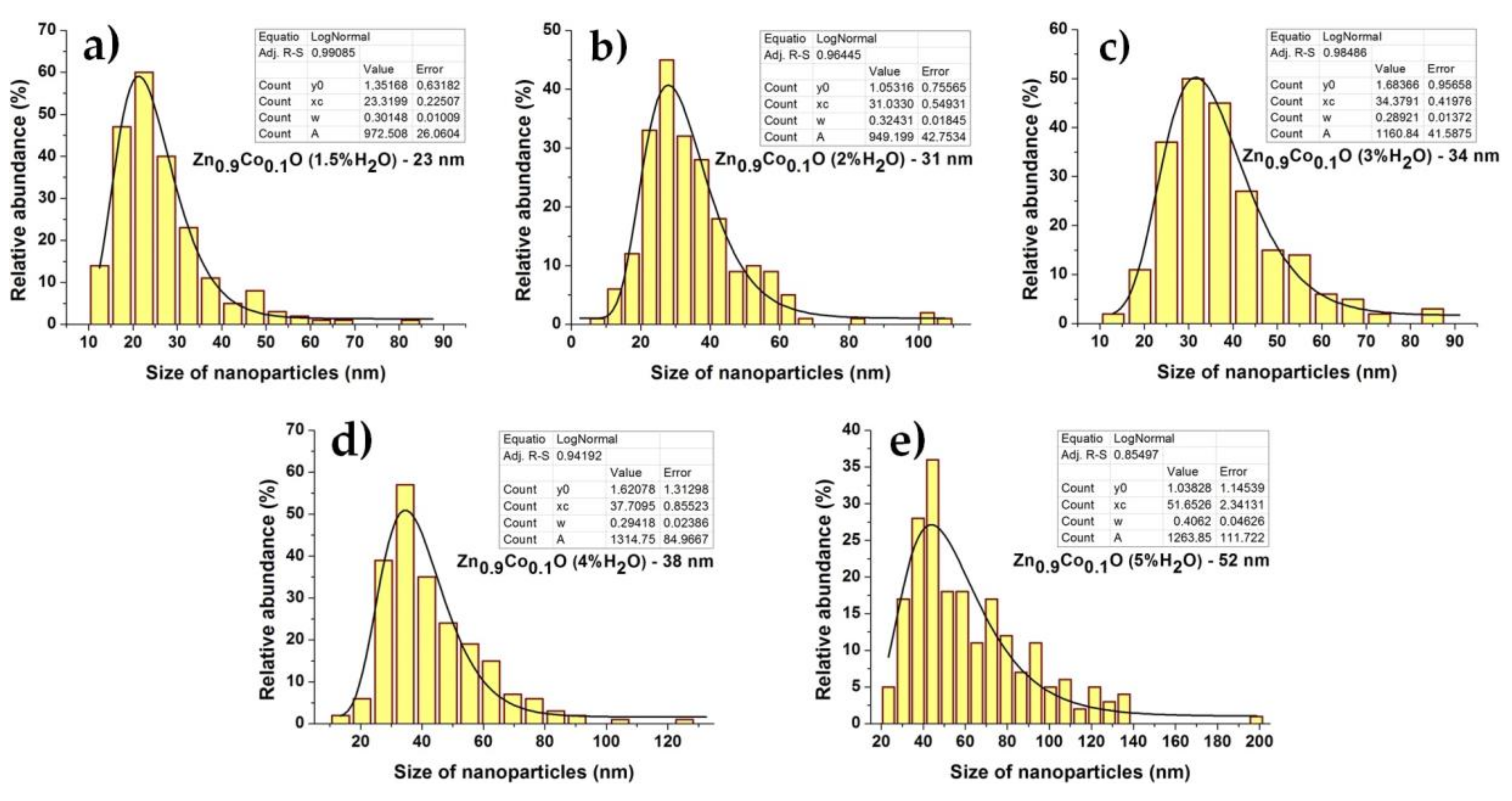

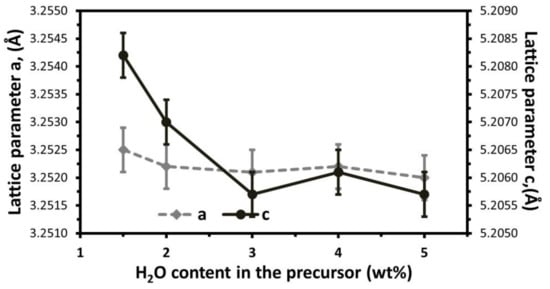

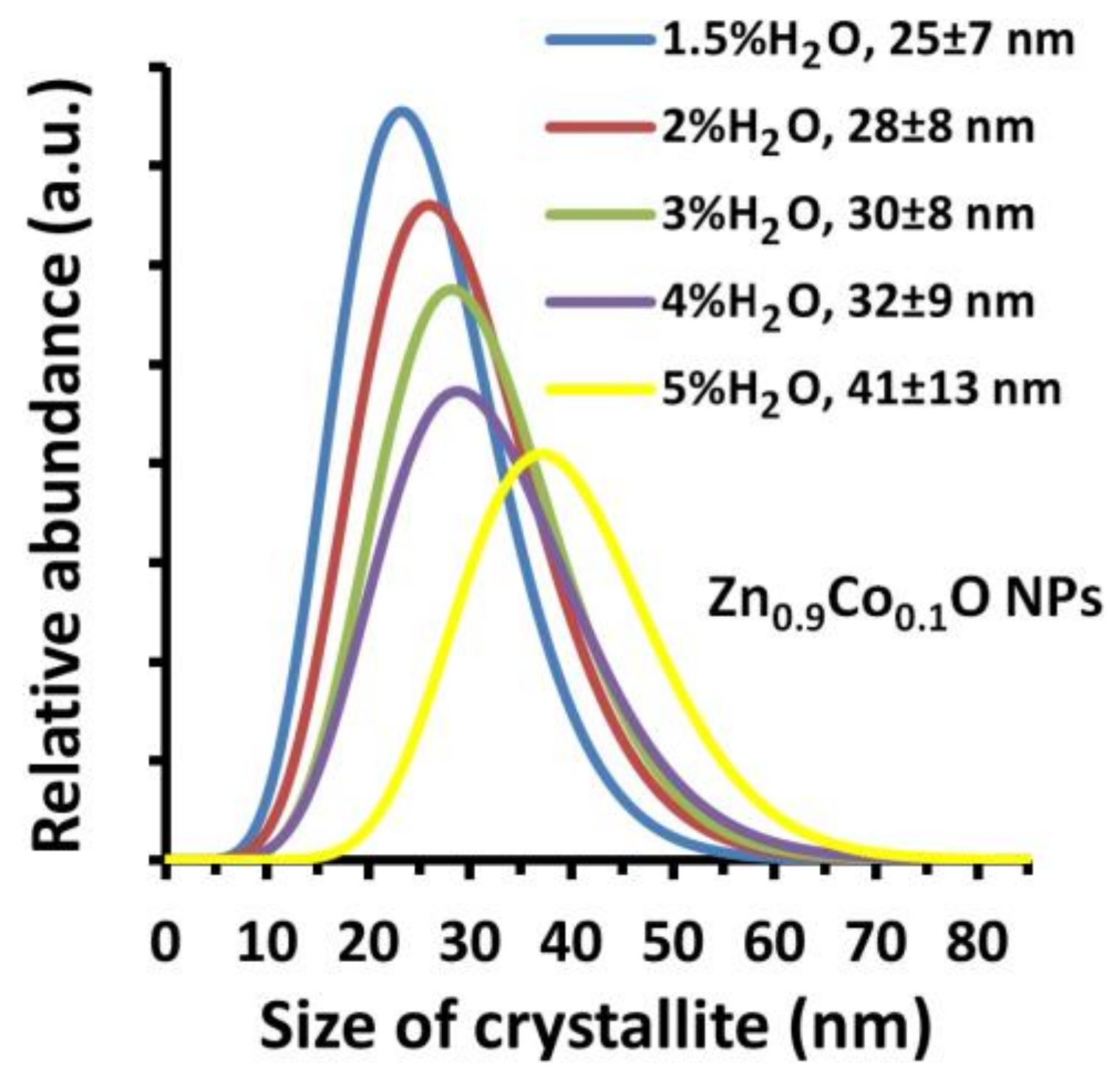

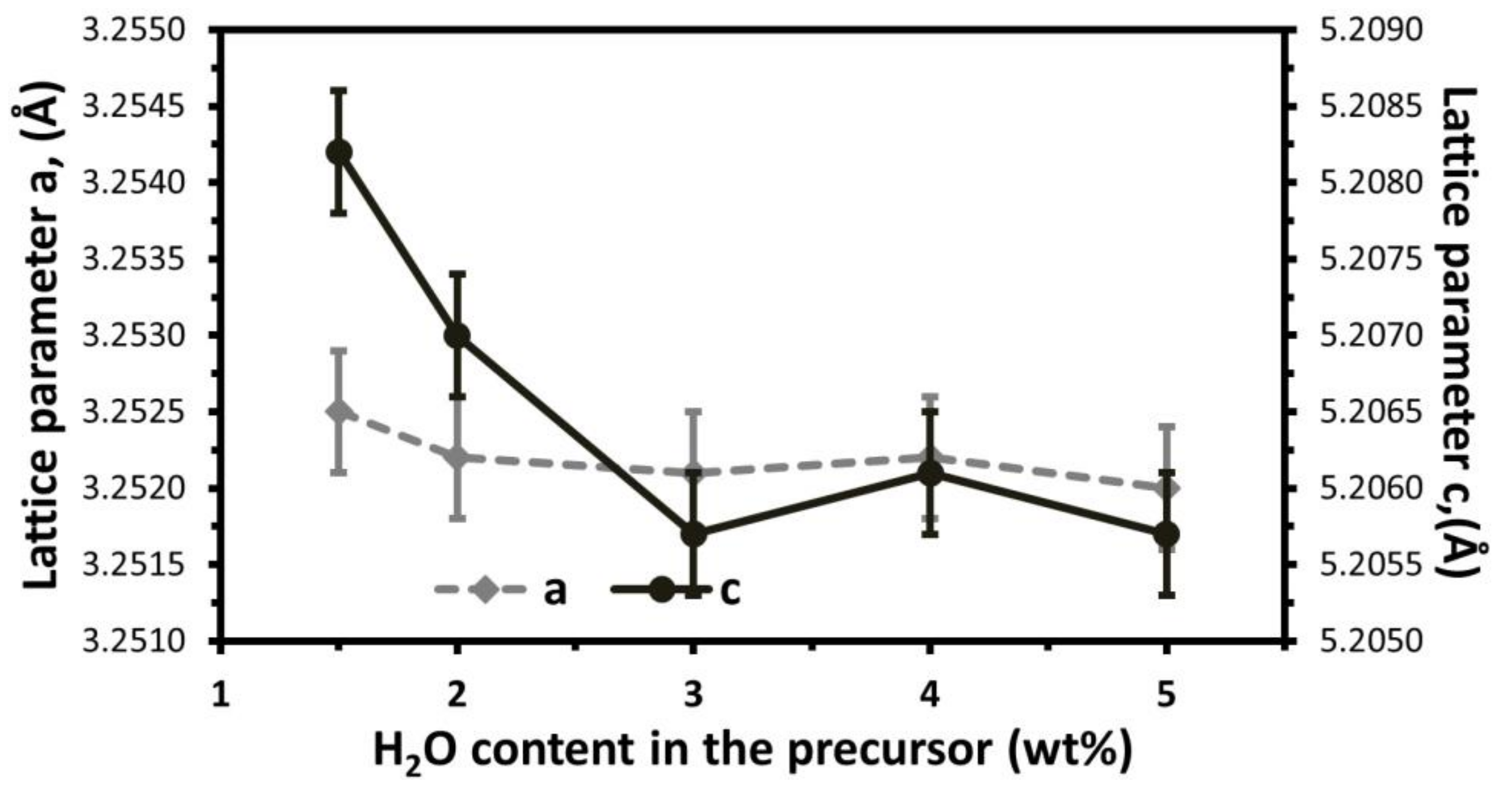

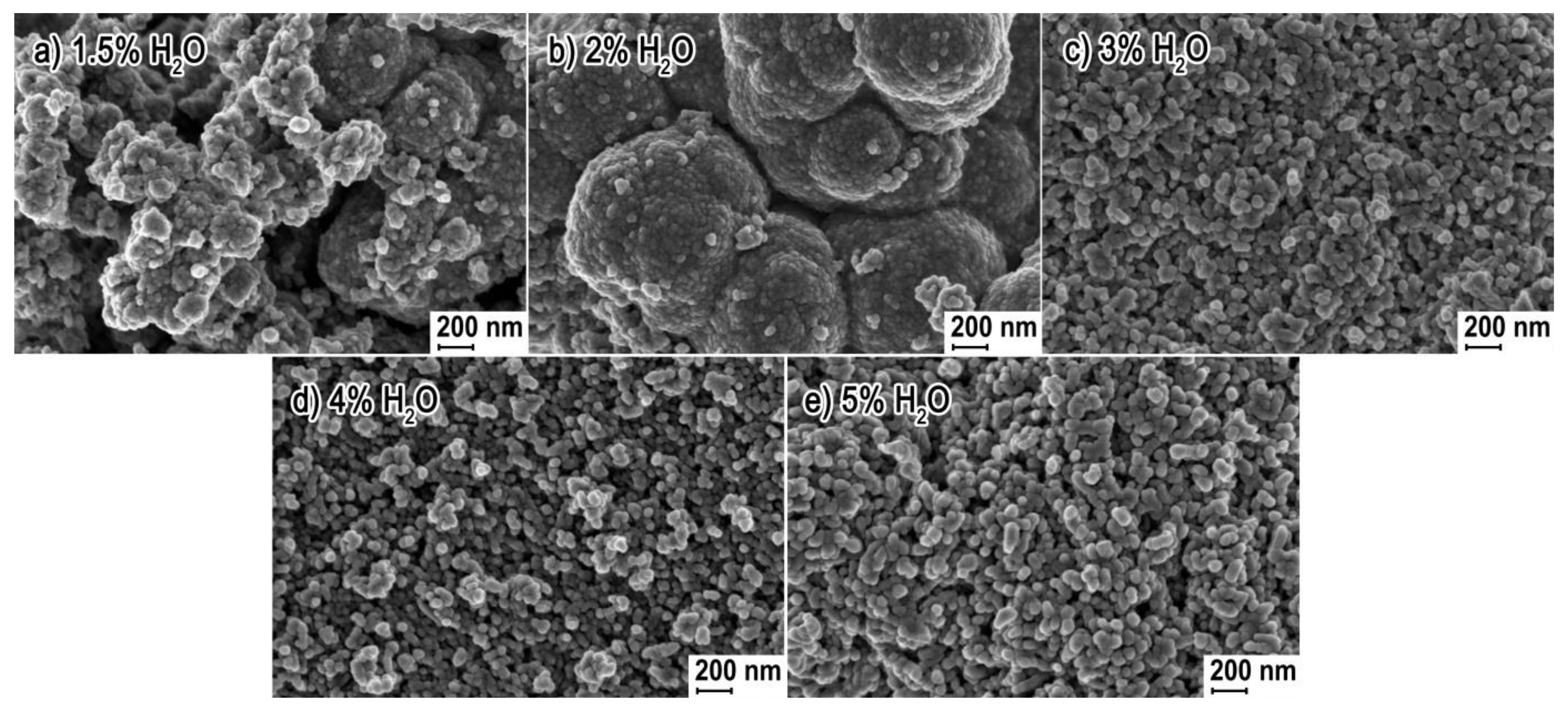

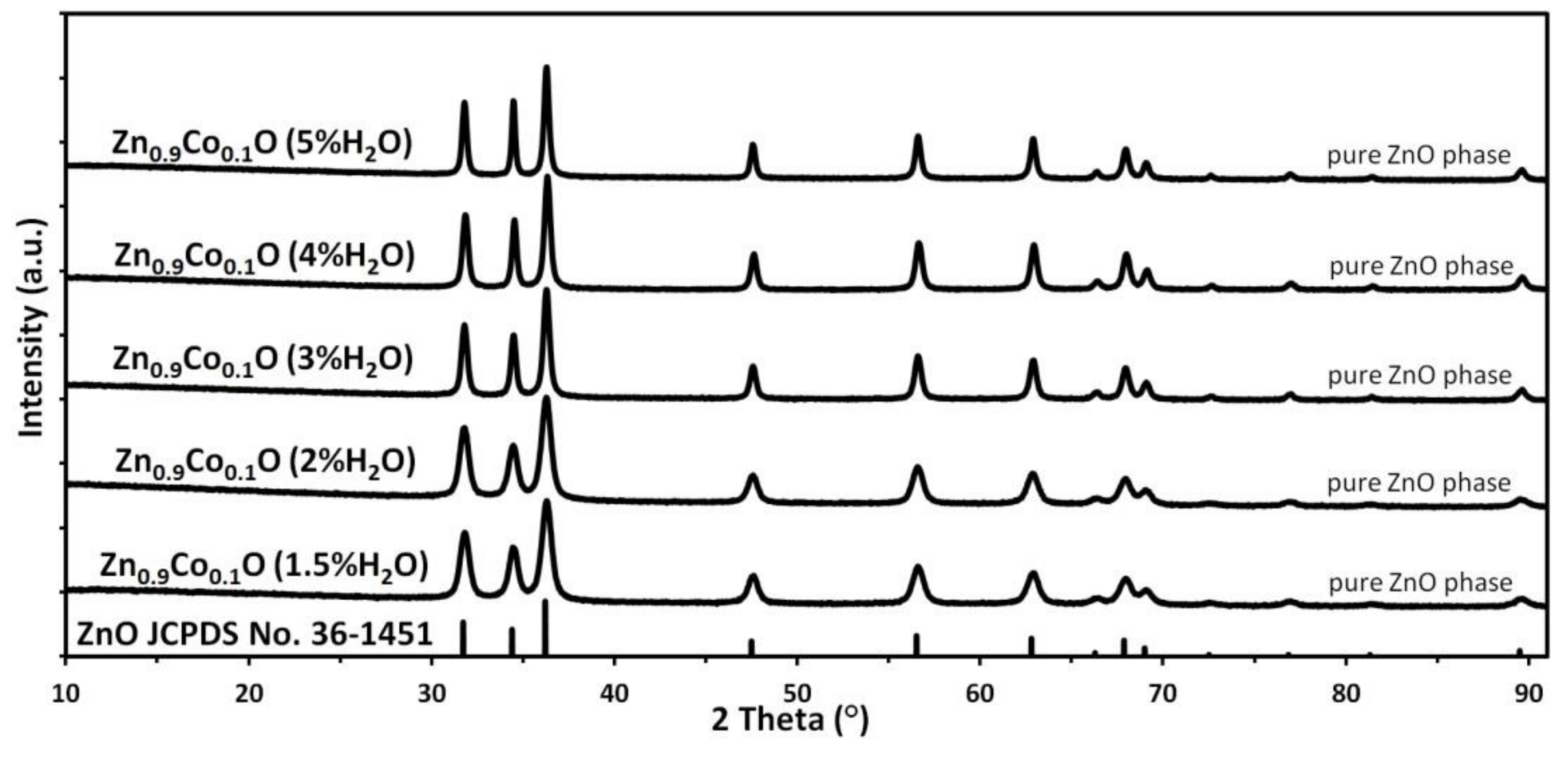

This article presents the method of size control of cobalt-doped zinc oxide nanoparticles (Zn1−xCoxO NPs) obtained by means of the microwave solvothermal synthesis. Zinc acetate dihydrate and cobalt(II) acetate tetrahydrate dissolved in ethylene glycol were used as the precursor. It has been proved by the example of Zn0.9Co0.1O NPs (x = 10 mol %) that by controlling the water quantity in the precursor it is possible to precisely control the size of the obtained Zn1−xCoxO NPs. The following properties of the obtained Zn0.9Co0.1O NPs were tested: skeleton density (helium pycnometry), specific surface area (BET), dopant content (ICP-OES), morphology (SEM), phase purity (XRD), lattice parameter (Rietveld method), average crystallite size (FW1/5/4/5M method and Scherrer’s formula), crystallite size distribution (FW1/5/4/5M method), and average particle size (from TEM and SSA). An increase in the water content in the precursor between 1.5% and 5% resulted in the increase in Zn0.9Co0.1O NPs size between 28 nm and 53 nm. The X-ray diffraction revealed the presence of only one hexagonal phase of ZnO in all samples. Scanning electron microscope images indicated an impact of the increase in water content in the precursor on the change of size and shape of the obtained Zn0.9Co0.1O NPs. The developed method of NPs size control in the microwave solvothermal synthesis was used for the first time for controlling the size of Zn1−xCoxO NPs. View Full-Text
Keywords: Co2+-doped zinc oxide nanoparticles (Zn1−xCoxO NPs); cobalt-doped ZnO NPs; size control of Co2+-doped ZnO NPs; synthesis and characterisation of Co2+-doped ZnO NPs; microwave solvothermal synthesis (MSS) of Co2+-doped NPs; microwave-assisted synthesis of Co2+-doped NPs; microwave reactor Co2+-doped zinc oxide nanoparticles (Zn1−xCoxO NPs); cobalt-doped ZnO NPs; size control of Co2+-doped ZnO NPs; synthesis and characterisation of Co2+-doped ZnO NPs; microwave solvothermal synthesis (MSS) of Co2+-doped NPs; microwave-assisted synthesis of Co2+-doped NPs; microwave reactor
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wojnarowicz, J.; Chudoba, T.; Gierlotka, S.; Sobczak, K.; Lojkowski, W. Size Control of Cobalt-Doped ZnO Nanoparticles Obtained in Microwave Solvothermal Synthesis. Crystals 2018, 8, 179.
