Crystals 2018, 8(12), 453; https://doi.org/10.3390/cryst8120453

Effects of Microsphere Size on the Mechanical Properties of Photonic Crystals

1
Center for Composite Materials and Structure, Science and Technology on Advanced Composites in Special Environment Laboratory, Harbin Institute of Technology, Harbin 150080, China
2
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150080, China
3
School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150080, China
*
Authors to whom correspondence should be addressed.
Received: 29 September 2018 / Revised: 2 December 2018 / Accepted: 3 December 2018 / Published: 6 December 2018
(This article belongs to the Section Crystalline Materials)
Full-Text   |   PDF [3417 KB, uploaded 6 December 2018]   |

Abstract

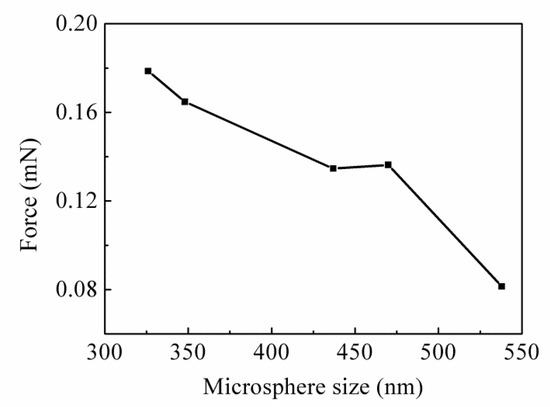

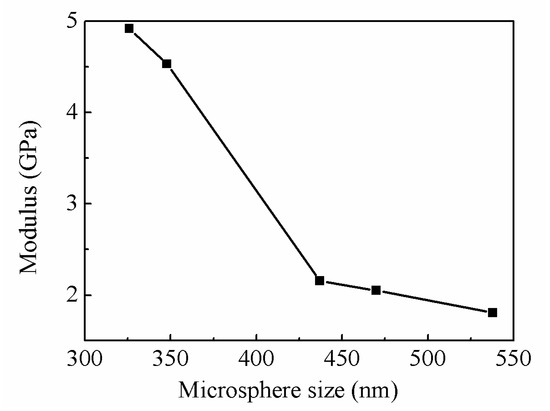

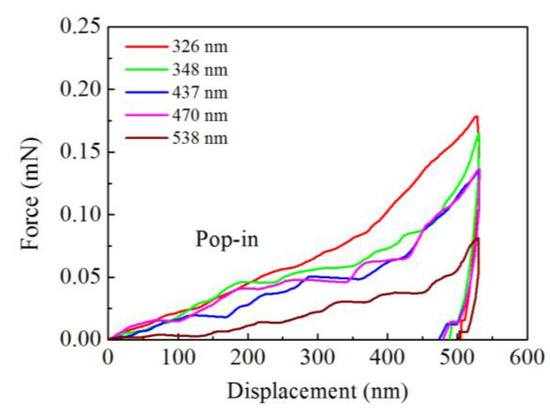

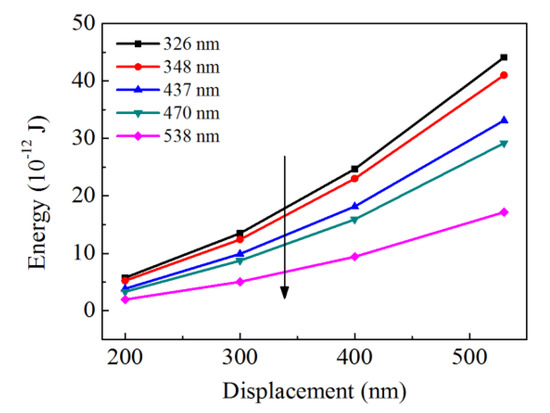

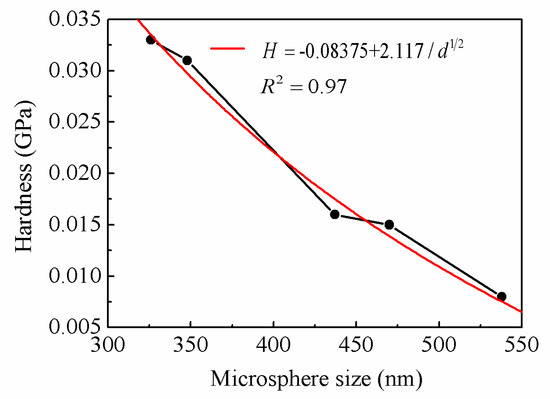

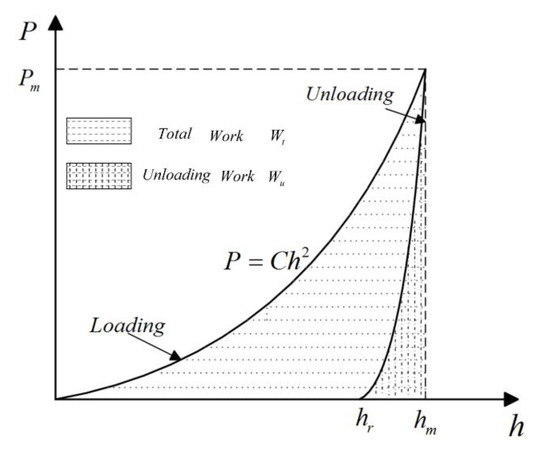

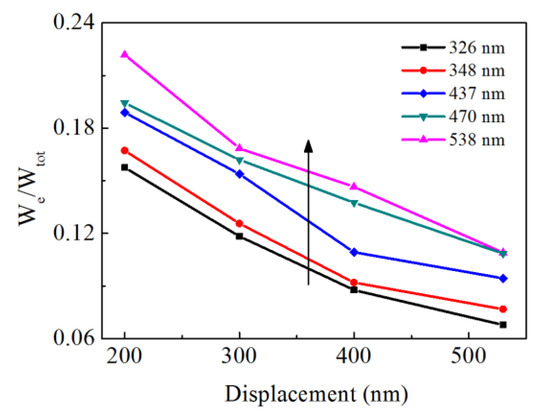

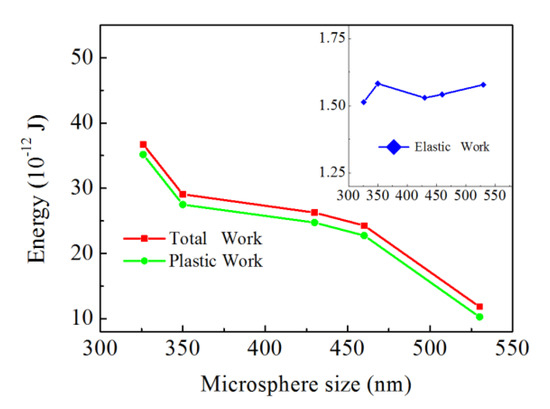

Photonic crystal (PC) thin films that are self-assembled from different-sized silica microspheres were prepared for studying mechanical properties via nanoindentation at the submicron scale. We found that the silica photonic crystals (PCs) possessed a face-centered cubic (FCC) microstructure and their elastic modulus and hardness were in the range of ~1.81–4.92 GPa and 0.008–0.033 GPa, respectively. The calculated results proved that there were size-dependent properties in the silica PCs, in that the elastic modulus and hardness increased as the diameter decreased from 538 nm to 326 nm. After studying the total work and plastic work in the progressive deformation of silica PCs during the nanoindentation tests, we developed a two-stage deformation model to explain how the microsphere size affects the mechanical properties of PC thin films. The phenomenon of “smaller is stronger” is mainly due to the energy consumption, which combines the effects of microstructure collapse, microsphere slide, and reduced porosity during the whole loading and unloading process. In addition, the results of numerical simulation matched the experimental data and reflected the energy change rules of PCs during the indentation process. Furthermore, the study affords useful guidance for constructing high-performance films with proper design and potential application in next-generation PC materials. View Full-Text
Keywords: nanoindentation; size-dependent; photonic crystals; deformation mechanism nanoindentation; size-dependent; photonic crystals; deformation mechanism
