Spectroscopic Characteristics and Coloring Mechanisms of Different Colored Spinels from Myanmar
Abstract
1. Introduction
2. Materials and Methods

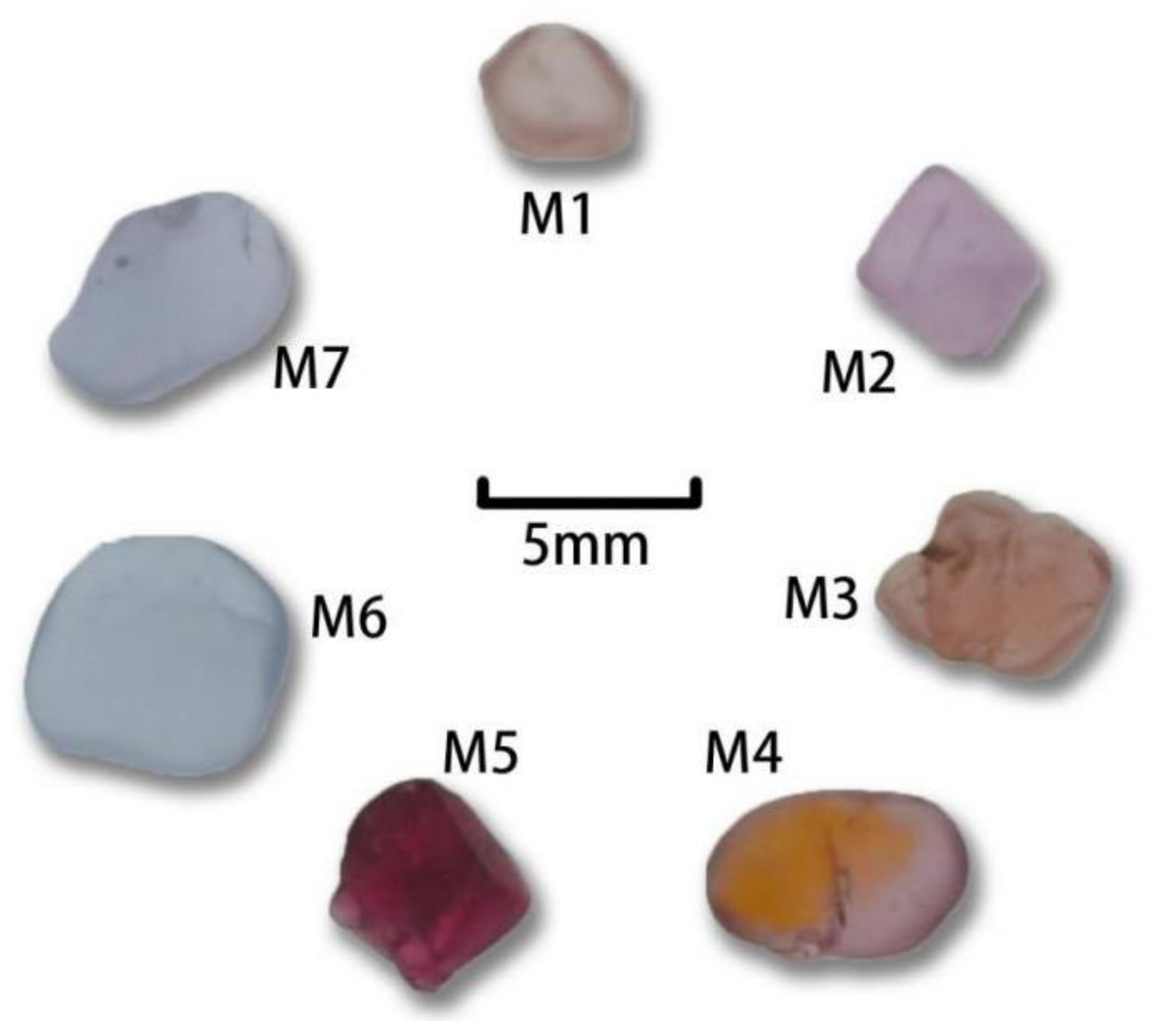

2.1. Materials
2.2. Methods
3. Results and Discussion

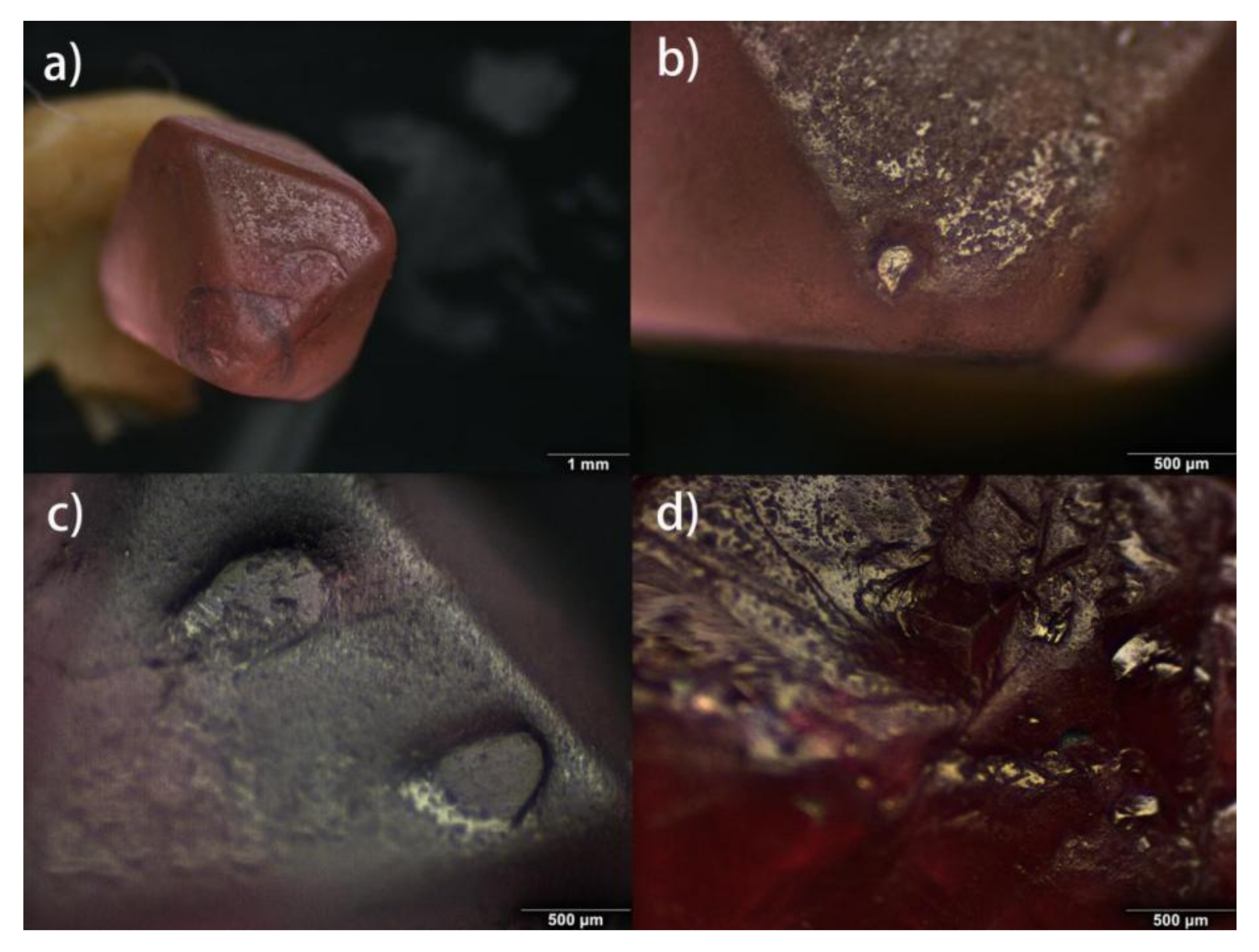

3.1. Gemological and Crystallographic Characteristics
3.2. Composition Analysis of Myanmar Spinel
X-ray Fluorescence Spectroscopy (XRF)
3.3. Spectroscopy Analysis of Myanmar Spinel

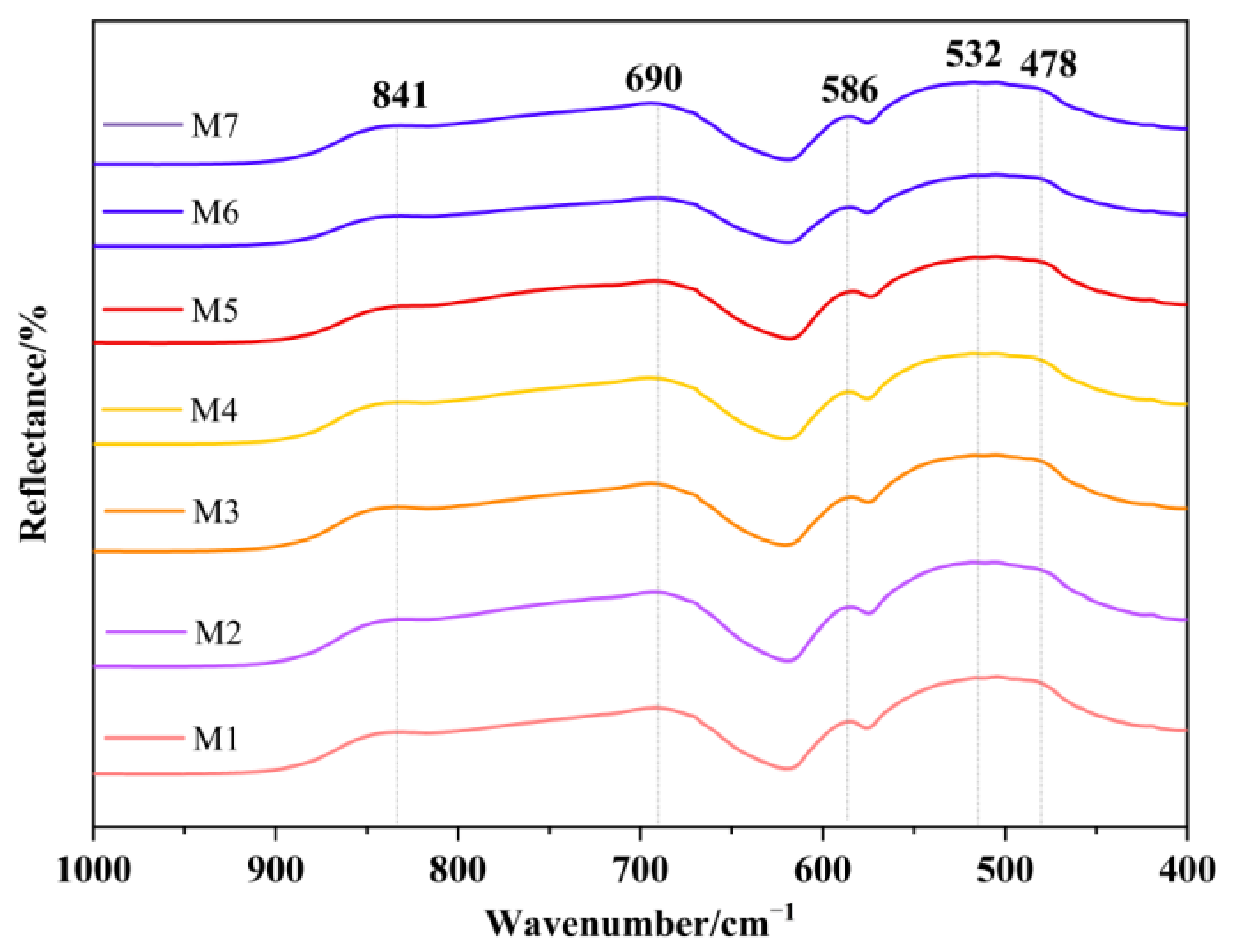

3.3.1. Fourier Transform Infrared Spectroscopy (FTIR)

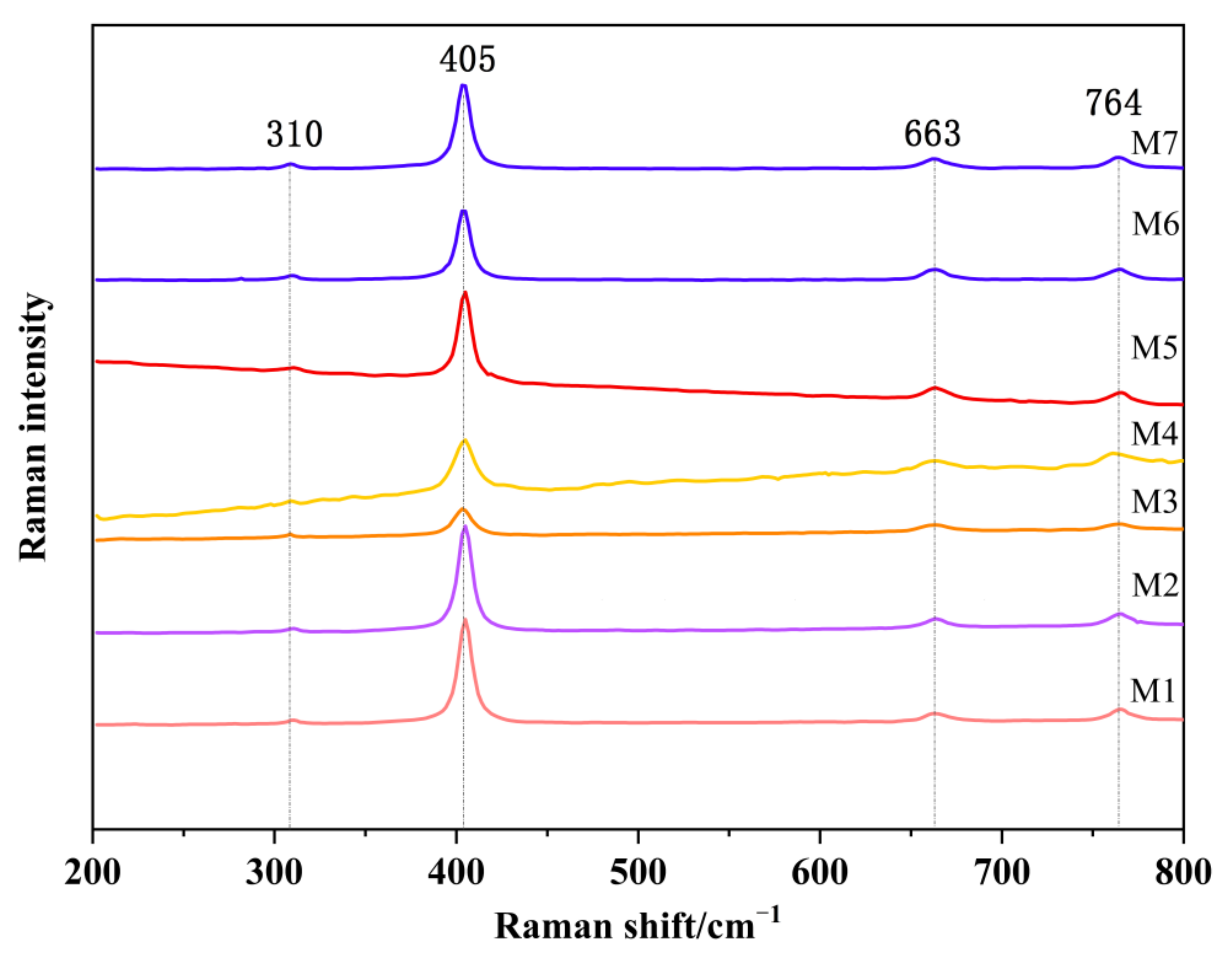

3.3.2. Raman Spectra

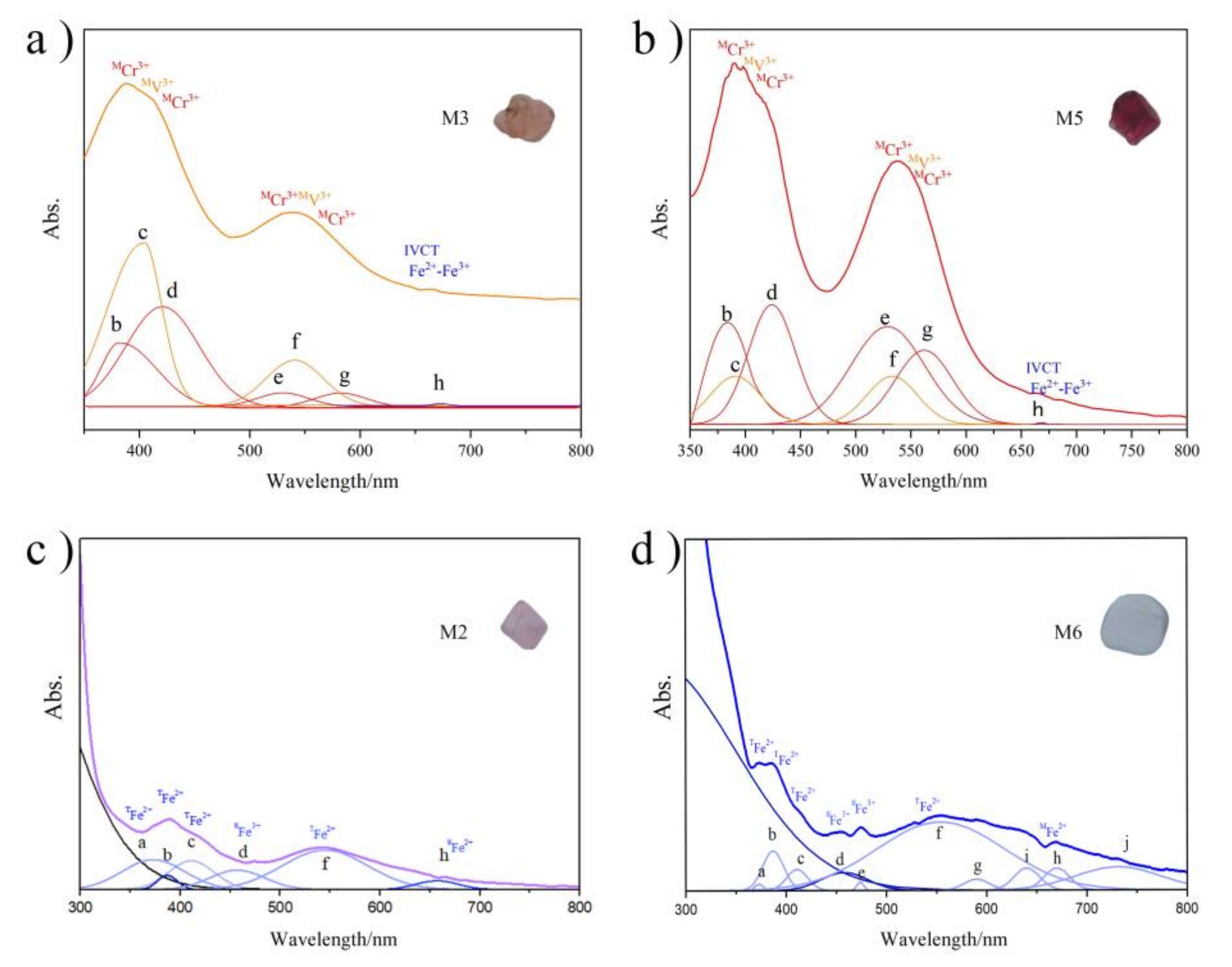

3.3.3. UV-Vis Spectroscopy
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zhang, Y.; Zhu, J.R.; Yu, X.Y. A Comparative Study of the Gemological Characteristics and Inclusions in Spinels from Myanmar and Tajikistan. Crystals 2022, 12, 617. [Google Scholar] [CrossRef]
- Pluthametwisute, T.; Wanthanachaisaeng, B.; Saiyasombat, C.; Sutthirat, C. Minor Elements and Color Causing Role in Spinel:Multi-Analytical Approaches. Minerals 2022, 12, 928. [Google Scholar] [CrossRef]
- Zhao, L.P.; Li, G.; Weng, L.Q. Gemological and Spectroscopic Characteristics of “Jedi” Spinel from Man Sin, Myanmar. Minerals 2022, 12, 1359. [Google Scholar] [CrossRef]
- Bosi, F.; Biagioni, C.; Pasero, M. Nomenclature and classification of the spinel supergroup. Eur. J. Mineral. 2019, 31, 183–192. [Google Scholar] [CrossRef]
- Hill, R.J.; Craig, J.R.; Gibbs, G.V. Systematics of the spinel structure type. Phys. Chem. Miner. 1979, 4, 317–339. [Google Scholar] [CrossRef]
- Li, S.R. Crystallgraphy and Mineralogy; Geological Publishing House: Beijing, China, 2008. [Google Scholar]
- Wang, C.Q.; Zhang, L.K. Gemmology; Geological Publishing House: Beijing, China, 2017; p. 380. [Google Scholar]
- Vincent, P. Hunting for “Jedi” Spinels in Mogok. Gems Gemol. 2014, 50, 46–57. [Google Scholar]
- Günelin, E.J.; Koivula, J.I. Photoatlas of Inclusion in Gemstones; Da Zhi Publishing House: Taiwan, China, 1995; Volume 372–382, pp. 662–714. [Google Scholar]
- Peretti, A.; Günther, D.; Graber, A.L. The Beryllium Treatment of Fancy Sapphires with a New Heat-treatment Technique (Part B). Contrib. Gemol. 2003, 8, 21–34. [Google Scholar]
- Taran, M.N.; Koch-Müller, M.; Langer, K. Electronic absorption spectroscopy of natural (Fe2+, Fe3+)-bearing spinels of spinel s.s.-hercynite and gahnite-hercynite solid solutions at different temperatures and high-pressures. Phys. Chem. Miner. 2005, 32, 175–188. [Google Scholar] [CrossRef]
- Fregola, R.A.; Skogby, H.; Bosi, F.; D’Ippolito, V.; Andreozzi, G.B.; Halenius, U. Optical absorption spectroscopy study of the causes for color variations in natural Fe-bearing gahnite: Insights from iron valency and site distribution data. Am. Miner. 2014, 99, 2187–2195. [Google Scholar] [CrossRef]
- D’Ippolito, V.; Andreozzi, G.B.; Hålenius, U.; Skogby, H.; Hametner, K.; Günther, D. Color mechanisms in spinel: Cobalt and iron interplay for the blue color. Phys. Chem. Miner. 2015, 42, 431–439. [Google Scholar] [CrossRef]
- Gorghinian, A.; Mottana, A.; Rossi, A.; Oltean, F.M.; Esposito, A.; Marcelli, A. Investigating the colour of spinel: 1. Red gem-quality spinels (“balas”) from Ratnapura (Sri Lanka). Rend. Lincei 2013, 24, 127–140. [Google Scholar] [CrossRef]
- Andreozzi, G.B.; D’Ippolito, V.; Skogby, H.; Halenius, U.; Bosi, F. Color mechanisms in spinel: A multi-analytical investigation of natural crystals with a wide range of coloration. Phys. Chem. Miner. 2019, 46, 343–360. [Google Scholar] [CrossRef]
- Boris, C.; Benjamin, R.; Emmanuel, F.; Phillipe, R.; Jean-Luc, D. Blue spinel from the Luc Yen District of Vi-etnam. Gems Gemol. 2015, 51, 2–17. [Google Scholar]
- Kane, R.E.; Kammerling, R.C. Status of Ruby and Sapphire Mining in the Mogok Stone Tract. Gems Gemol. 1992, 28, 152–174. [Google Scholar] [CrossRef]
- Mitchell, A.H.G.; Htay, M.T.; Htun, K.M.; Win, M.N.; Oo, T.; Hlaing, T. Rock relationships in the Mogok metamorphic belt, Tatkon to Mandalay, central Myanmar. J. Asian Earth Sci. 2007, 29, 891–910. [Google Scholar] [CrossRef]
- Keller, P.C. The Rubies of Burma: A Review of the Mogok Stone Tract. Gems Gemol. 1983, 19, 209–219. [Google Scholar] [CrossRef]
- Giuliani, G.; Fallick, A.E.; Boyce, A.J.; Pardieu, V.; Pham, V.L. Pink and Red Spinels In Marble: Trace Elements, Oxygen Isotopes, and Sources. Can. Miner. 2017, 55, 743–761. [Google Scholar] [CrossRef]
- Palke, A.C.; Sun, Z.Y. What Is Cobalt Spinel Unraveling the Causes of Color in Blue Spinels. Gems Gemol. 2018, 54, 262. [Google Scholar]
- White, W.B.; DeAngelis, B.A. Interpretation of the vibrational spectra of spinels. Spectrochim. Acta Part A 1967, 23, 985–995. [Google Scholar] [CrossRef]
- Farmer, V.C. The Infrared Spectra of Minerals; Mineralogical Society: Chantilly, VA, USA, 1974. [Google Scholar]
- Vernidub, N.M.; Pasechnik, Y.A.; Shportko, K.V. Reststrahlen Spectroscopy of MgAl2O4 Spinel. Semicond. Phys. Quantum Electron. Optoelectron. 2002, 5, 95–100. [Google Scholar]
- O’Horo, M.P.; Frisillo, A.L.; White, W.B. Lattice vibrations of MgAl2O4 spinel. J. Phys. Chem. Solids 1973, 34, 23–28. [Google Scholar] [CrossRef]
- Shebanova, O.N.; Lazor, P. Raman study of magnetite (Fe3O4): Laser-induced thermal effects and oxidation. J. Raman Spectrosc. 2003, 34, 845–852. [Google Scholar] [CrossRef]
- D’Ippolito, V.; Andreozzi, G.B.; Bersani, D. Raman fingerprint of chromate, aluminate and ferrite spinels. J. Raman Spectrosc. 2015, 46, 1255–1264. [Google Scholar] [CrossRef]
- Lenaz, D.; Lughi, V. Raman study of MgCr2O4–Fe2+ Cr2O4 and MgCr2O4–MgFe23+ O4 synthetic series: The effects of Fe2+ and Fe3+ on Raman shifts. Phys. Chem. Miner. 2013, 40, 491–498. [Google Scholar] [CrossRef]
- Schmetzer, K.; Haxel, C.; Bank, H. Colour of natural spinels, gahnospinels and gahnites. Neues Jahrb. Fur Mineral. 1989, 160, 159–180. [Google Scholar]
- Lenaz, D.; Skogby, H.; Princivalle, F.; Halenius, U. Structural changes and valence states in the MgCr2O4–FeCr2O4 solid solution series. Phys. Chem. Miner. 2004, 31, 633–642. [Google Scholar] [CrossRef]
- Halenius, U.; Andreozzi, G.B.; Skogby, H. Structural relaxation around Cr3+ and the red-green color change in the spinel (sensu stricto)-magnesiochromite (MgAl2O4–MgCr2O4) and gahnitezincochromite (ZnAl2O4–ZnCr2O4) solid-solution series. Am. Miner. 2010, 95, 456–462. [Google Scholar] [CrossRef]
- Malsy, A.K.; Karampelas, S.; Schwarz, D.; Klemm, L.; Armbruster, T. Tuan DA Orangey-red to orangey-pink gem spinels from a new deposit at Lang Chap (Tan Huong-Truc Lau), Vietnam. J. Gemmol. 2012, 33, 19–27. [Google Scholar] [CrossRef]

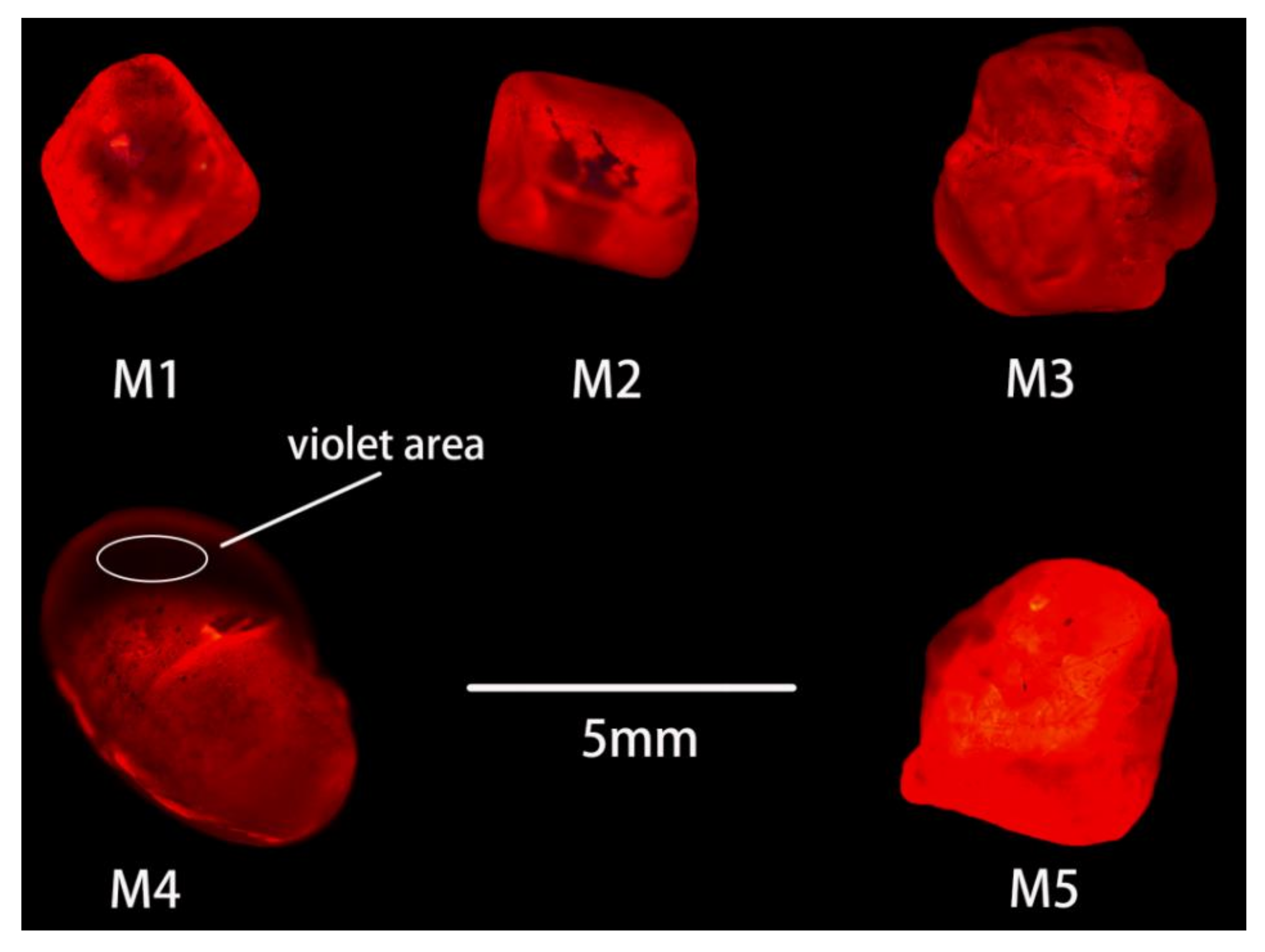

Sample | Color | Weight (c t) | Specific Grsavity | Fluorescence (LW) | Chelsea Color Filter | Grating Spectroscope (Hand-Held) |
---|---|---|---|---|---|---|
M1 | Pink | 0.228 | 3.45 | Dark red | No change | / |
M2 | Light violet | 0.338 | 3.56 | Dark red | Pink tones | / |
M3 | Orange | 0.586 | 3.55 | Red | No change | / |
M4 | Orange-Violet | 0.727 | 3.55 | Bright Red | No change | / |
M5 | Red | 0.377 | 3.59 | Bright Red | Bright red tones | Chromium absorption |
M6 | Light blue | 0.515 | 3.58 | None | No change | / |
M7 | Blue | 0.394 | 3.58 | None | No change | Ferrum absorption |
Sample Number | Color | Al2O3 | MgO | Cr2O3 | V2O5 | Fe2O3 | ZnO | SiO2 | SO3 | TiO2 |
---|---|---|---|---|---|---|---|---|---|---|
M1 | pink | 68.311 | 28.501 | 0.161 | 0.173 | 0.118 | 0.087 | 1.667 | 0.917 | ND |
M2 | violet | 57.808 | 25.346 | 0.297 | 0.181 | 0.739 | 1.980 | 2.504 | 0.956 | ND |
M3 | orange | 66.665 | 30.3271 | 0.076 | 0.489 | 0.077 | 0.084 | 1.260 | 0.939 | ND |
M4 | orange-violet | 67.507 | 29.809 | 0.148 | 0.038 | 0.399 | 0.079 | 1.079 | 0.822 | ND |
M5 | red | 65.668 | 30.229 | 1.537 | 0.277 | 0.124 | 0.051 | 1.852 | ND | 0.149 |
M6 | blue | 69.355 | 18.028 | 0.230 | 0.046 | 1.559 | 0.610 | 5.162 | 4.666 | 0.081 |
M7 | blue | 69.576 | 16.238 | ND | 0.312 | 1.901 | 0.159 | 5.284 | 6.340 | 0.044 |

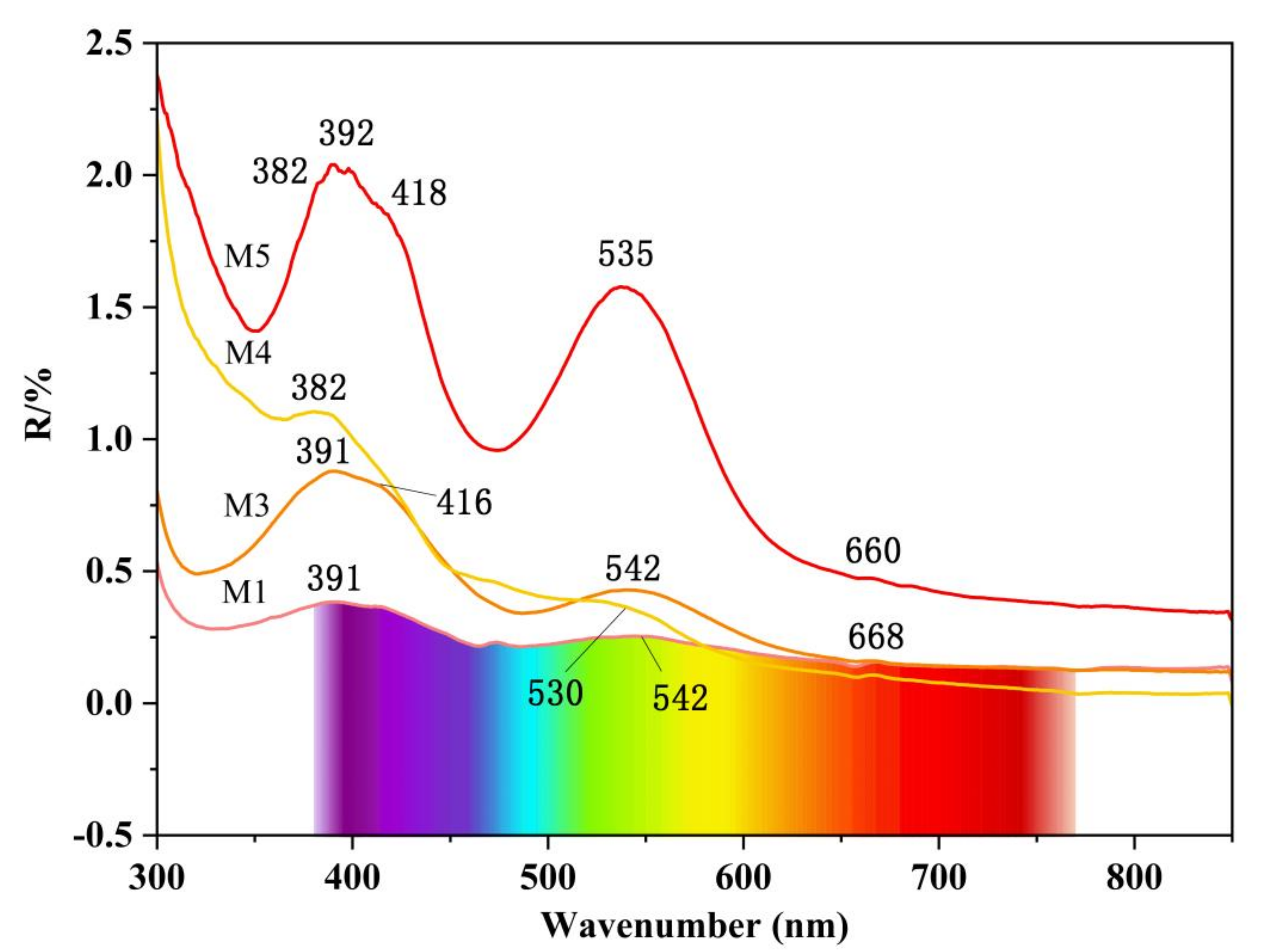

Sample | M1 Pink | M3 Orange | M4 Orange | M5 Red | Assignment | Electronic Transition |
---|---|---|---|---|---|---|
a | / | / | / | / | MCr3+ | Spin-forbidden 4A2g(4F) → 2T1g(2G) |
b | / | / | 382 | 382 | MCr3+ | Spin-allowed 4A2g → 2T1g(F) |
c | 391 | 391 | 390 | 392 | MV3+ | Spin-allowed 3T1g(F) → 3T1g(P) |
d | 410 | 416 | / | 418 | MCr3+ | Spin-allowed 4A2g → 2T1g(F) |
e | / | / | 530 | 535 | MCr3+ | Spin-allowed 4A2g → 2T2g(F) |
f | 542 | 542 | / | / | MV3+ | Spin-allowed 3T1(F) → 3T2(F) |
g | / | / | / | / | MCr3+ | Spin-allowed 4A2g → 2T2g(F) |
h | 669 | 668 | 668 | 660 | Fe2+-Fe3+ | Fe2+-Fe3+ charge transfer |
i | / | / | / | / | MFe2+ | Spin-allowed 5T2g → 5Eg |
Sample | M2 Violet | M6 Blue | Assignment | Electronic Transition |
---|---|---|---|---|
a | 373 | 373 | TFe2+ | Spin-forbidden5E → 3E |
b | 387 | 387 | TFe2+ | Spin-forbidden 5E → 3T1, 3T2 |
c | 411 | 411 | TFe2+ | Spin-forbidden 5E → 3T1 |
d | 457 | 458 | MFe3+ | 6A1g → 4A1g, 4Eg |
e | / | 474 | MFe3+ | |
f | 555 | 554 | TFe2+ | Spin-forbidden 5E → 3T2 |
g | / | 590 | TFe2+ | Spin-forbidden 5E → 3T2 |
h | 657 | 670 | MFe2+ | Fe2-Fe3+ charge transfer |
