# Predicting Perovskite Performance with Multiple Machine-Learning Algorithms

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

_{3}with matching compatible sizes of A-site and B-site cations. In this work, four different prediction models of machine learning algorithms, including support vector regression based on radial basis kernel function (SVM-RBF), ridge regression (RR), random forest (RF), and back propagation neural network (BPNN), are established to predict the formation energy, thermodynamic stability, crystal volume, and oxygen vacancy formation energy of perovskite materials. Combined with the fitting diagrams of the predicted values and DFT calculated values, the results show that SVM-RBF has a smaller bias in predicting the crystal volume. RR has a smaller bias in predicting the thermodynamic stability. RF has a smaller bias in predicting the formation energy, crystal volume, and thermodynamic stability. BPNN has a smaller bias in predicting the formation energy, thermodynamic stability, crystal volume, and oxygen vacancy formation energy. Obviously, different machine learning algorithms exhibit different sensitivity to data sample distribution, indicating that we should select different algorithms to predict different performance parameters of perovskite materials.

## 1. Introduction

_{3}perovskite composite oxides have attracted great interest [3,4,7,8,9,10,11,12,13,14,15]. Research has focused on the development of new perovskite materials to improve activity, selectivity, and stability, as well as the development of advanced manufacturing techniques to reduce their cost while ensuring their reliability, safety, and reproducibility [14,15,16]. In ABO

_{3}perovskite oxides, the A site is the rare earth or alkaline earth metal ions, which usually stabilize the structure, while the B site is occupied by the smaller transition metal ions [17]. Through partial substitution of A and B sites, multi-component perovskite compounds can be combined [16]. When A or B sites are partially replaced by other metal ions, anion defects or B sites at different valences can be formed. This improves the properties of the compounds but does not fundamentally change the crystal structure [17]. This kind of composite oxide has gas sensitivity, oxidation catalytic property, conductivity, oxygen permeability, and other properties. In addition, its structure and performance are closely related to the composition of the system [17]. Perovskite-type oxides can form compounds through partial doping of metal ions at A and B sites on the basis of maintaining stable crystal structure, as well as controlling the elements and valence states so that the performance of perovskite materials present rich diversity [18,19,20].

_{3}A

_{2}D

_{3}O

_{12}garnets and ABO

_{3}perovskites with low mean absolute errors (MAEs) [34]. Wei et al. developed machine learning models to predict the thermodynamic phase stability of perovskite oxides using a dataset of more than 1900 DFT-calculated perovskite. The results showed that that error is within the range of errors in DFT formation energies relative to elemental reference states when compared to experiments and, therefore, may be considered sufficiently accurate to use in place of full DFT calculations [35]. Using different machine learning algorithms, the formation energy, thermodynamic stability, crystal volume, and oxygen vacancy formation energy of perovskite materials were predicted [36,37].

## 2. Principles and Methods

#### 2.1. Regression Prediction of Support Vector Machines

#### 2.2. Random Forest

_{1}, θ

_{2}, …, and θ

_{k}use each training set to generate the corresponding decision tree {T(x, θ

_{1})}, {T(x, θ

_{2})}, …, and {T(x, θ

_{k})}.

_{i}(i = 1, 2, …, n) of the dependent variable, and the predicted value $\widehat{u}$ of a single decision tree is shown in Equation (3).

_{i}(x, θ

_{t})(t = 1, 2, … k) of the decision tree, as shown in Equations (4) and (5).

#### 2.3. Ridge Regression

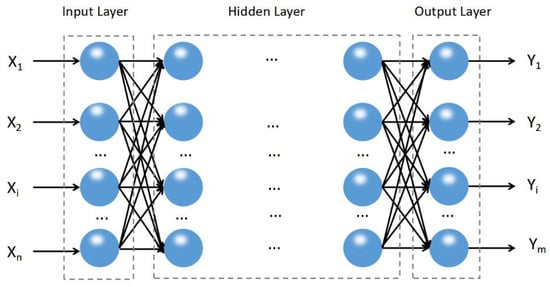

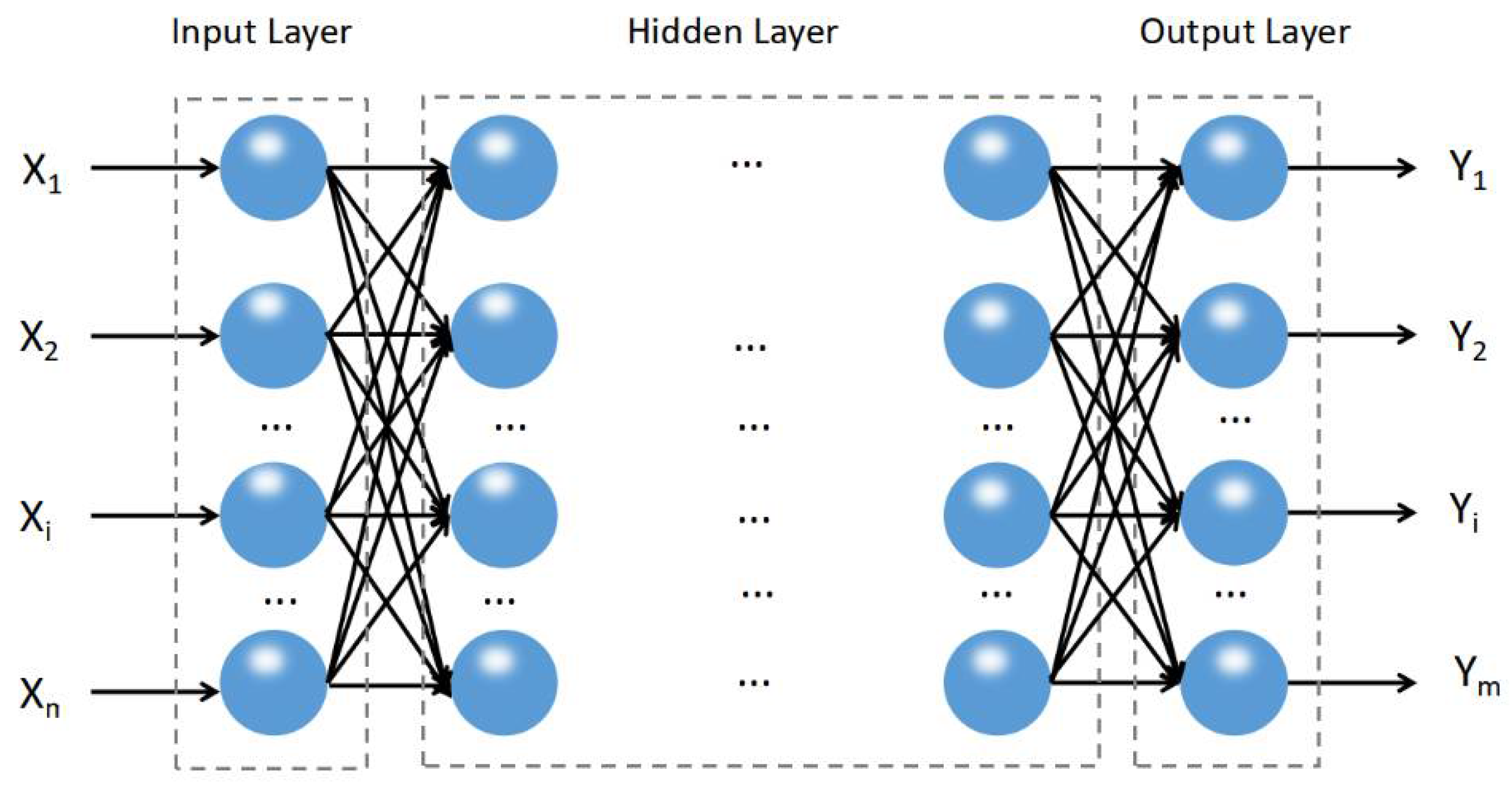

#### 2.4. BP Neural Network

_{1}, X

_{2}, …, and X

_{n}represent the input value of the BP neural network, and Y

_{1}, Y

_{2}, …, and Y

_{n}represent the output value of the BP neural network [56].

#### 2.5. Performance Evaluation

^{2}) were used to observe and measure the prediction accuracy of the model and to compare the performance differences of different models. The smaller MAE and MSE are, the larger R

^{2}is, and the closer to 1 is, indicating that the prediction effect of the model is better [42,49,57]. Their formula is as follows:

_{j}is the true value, $\widehat{{y}_{j}}$ is the predicted value, and $\overline{y}$ is the average value.

## 3. Model Construction

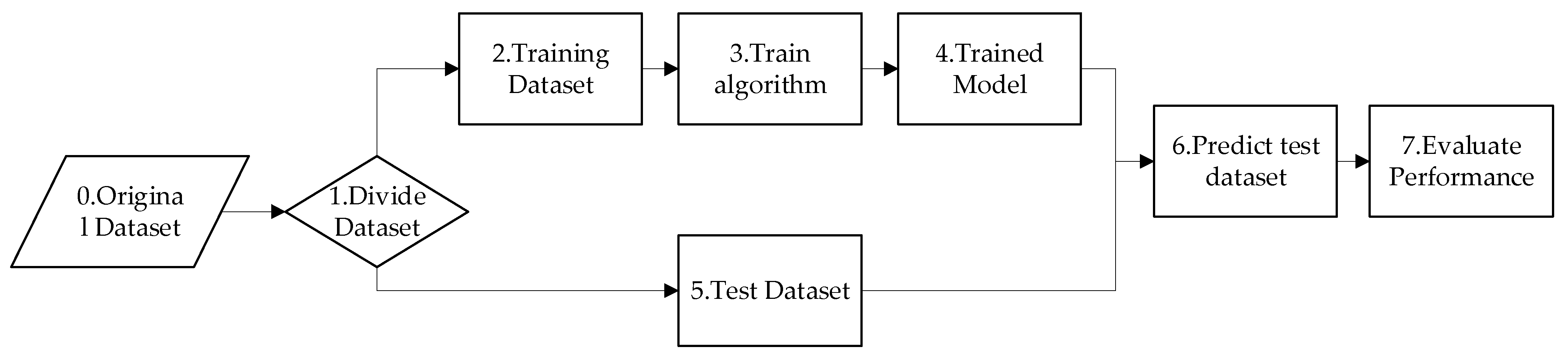

_{3}perovskite high-throughput data sets were obtained, and four characteristic performance parameters including formation energy, thermodynamic stability, crystal volume, and oxygen vacancy formation energy in the original material data set were going to predict [58].

^{2}were used to evaluate the model effect.

## 4. Results and Discussion

^{2}were used to evaluate the model, and the results are shown in Figure 3. It can be seen that the R

^{2}value of RF is the highest, which is 0.7231, and the values of MAE and MSE are the lowest, which are 0.3731 and 0.2449, respectively. RF has the best prediction effect on the formation energy. For the stability prediction, the R

^{2}value of SVM-RBF is 0.8081, and the MAE and MSE are 0.2074 and 0.0898, respectively, which are the best for the stability prediction. For crystal volume prediction, the R

^{2}value of BPNN is the largest, which is 0.9372, and the MAE and MSE are the smallest, which are 0.4134 and 0.4679, respectively. For the prediction of oxygen vacancy formation energy, the evaluation indexes of SVM-RBF and RF are similar, and the prediction effect is better than that of RR and BPNN.

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Suntivich, J.; Gasteiger, H.A.; Yabuuchi, N.; Nakanishi, H.; Goodenough, J.B.; Shao-Horn, Y. Design principles for oxygen-reduction activity on perovskite oxide catalysts for fuel cells and metal–air batteries. Nat. Chem.
**2011**, 3, 546–550. [Google Scholar] [CrossRef] - Suntivich, J.; May, K.; Gasteiger, H.A.; Goodenough, J.B.; Shao-Horn, Y. A Perovskite Oxide Optimized for Oxygen Evolution Catalysis from Molecular Orbital Principles. Science
**2011**, 334, 1383–1385. [Google Scholar] [CrossRef] - Lee, M.M.; Teuscher, J.; Miyasaka, T.; Murakami, T.N.; Snaith, H.J. Efficient Hybrid Solar Cells Based on Meso-Superstructured Organometal Halide Perovskites. Science
**2012**, 338, 643–647. [Google Scholar] [CrossRef] [Green Version] - Liu, M.; Johnston, M.; Snaith, H.J. Efficient planar heterojunction perovskite solar cells by vapour deposition. Nat. Cell Biol.
**2013**, 501, 395–398. [Google Scholar] [CrossRef] - Bian, H.; Li, D.; Yan, J.; Liu, S.F. Perovskite—A wonder catalyst for solar hydrogen production. J. Energy Chem.
**2021**, 57, 325–340. [Google Scholar] [CrossRef] - Cao, J.; Su, C.; Ji, Y.; Yang, G.; Shao, Z. Recent advances and perspectives of fluorite and perovskite-based dual-ion conducting solid oxide fuel cells. J. Energy Chem.
**2021**, 57, 406–427. [Google Scholar] [CrossRef] - Hwang, J.; Rao, R.R.; Giordano, L.; Katayama, Y.; Yu, Y.; Shao-Horn, Y. Perovskites in catalysis and electrocatalysis. Science
**2017**, 358, 751–756. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bednorz, J.G.; Müller, K.A. Possible high Tc superconductivity in the Ba-La-Cu-O system. Z. Phys. B Condens. Matter
**1986**, 64, 189–193. [Google Scholar] [CrossRef] - Tao, S.; Irvine, J. A redox-stable efficient anode for solid-oxide fuel cells. Nat. Mater.
**2003**, 2, 320–323. [Google Scholar] [CrossRef] - Ohtomo, A.; Hwang, H.Y. A high-mobility electron gas at the LaAlO
_{3}/SrTiO_{3}heterointerface. Nat. Cell Biol.**2004**, 427, 423–426. [Google Scholar] [CrossRef] [PubMed] - Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc.
**2009**, 131, 6050–6051. [Google Scholar] [CrossRef] - Burschka, J.; Pellet, N.; Moon, S.-J.; Humphry-Baker, R.; Gao, P.; Nazeeruddin, M.K.; Grätzel, M. Sequential deposition as a route to high-performance perovskite-sensitized solar cells. Nat. Cell Biol.
**2013**, 499, 316–319. [Google Scholar] [CrossRef] - Stranks, S.D.; Eperon, G.E.; Grancini, G.; Menelaou, C.; Alcocer, M.J.P.; Leijtens, T.; Herz, L.M.; Petrozza, A.; Snaith, H.J. Electron-Hole Diffusion Lengths Exceeding 1 Micrometer in an Organometal Trihalide Perovskite Absorber. Science
**2013**, 342, 341–344. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Besegatto, S.V.; da Silva, A.; Campos, C.E.M.; de Souza, S.M.A.G.U.; de Souza, A.A.U.; González, S.Y.G. Perovskite-based Ca-Ni-Fe oxides for azo pollutants fast abatement through dark catalysis. Appl. Catal. B Environ.
**2021**, 284, 119747. [Google Scholar] [CrossRef] - Yashima, M.; Tsujiguchi, T.; Sakuda, Y.; Yasui, Y.; Zhou, Y.; Fujii, K.; Torii, S.; Kamiyama, T.; Skinner, S.J. High oxide-ion conductivity through the interstitial oxygen site in Ba
_{7}Nb_{4}MoO_{20}-based hexagonal perovskite related oxides. Nat. Commun.**2021**, 12, 1–7. [Google Scholar] [CrossRef] - Tao, Q.; Xu, P.; Li, M.; Lu, W. Machine learning for perovskite materials design and discovery. npj Comput. Mater.
**2021**, 7, 1–18. [Google Scholar] [CrossRef] - Peña, M.A.; Fierro, J.L.G. Chemical Structures and Performance of Perovskite Oxides. Chem. Rev.
**2001**, 101, 1981–2018. [Google Scholar] [CrossRef] [PubMed] - Fop, S.; McCombie, K.; Wildman, E.J.; Skakle, J.M.S.; Irvine, J.T.S.; Connor, P.A.; Savaniu, C.; Ritter, C.; McLaughlin, A.C. High oxide ion and proton conductivity in a disordered hexagonal perovskite. Nat. Mater.
**2020**, 19, 752–757. [Google Scholar] [CrossRef] - Zhang, H.T.; Park, T.J.; Zaluzhnyy, I.A.; Wang, Q.; Wadekar, S.N.; Manna, S.; Andrawis, R.; Sprau, P.O.; Sun, Y.; Zhang, Z.; et al. Perovskite neural trees. Nat. Commun.
**2020**, 11, 2245. [Google Scholar] [CrossRef] - Zhao, J.; Gao, J.; Li, W.; Qian, Y.; Shen, X.; Wang, X.; Shen, X.; Hu, Z.; Dong, C.; Huang, Q.; et al. A combinatory ferroelectric compound bridging simple ABO
_{3}and A-site-ordered quadruple perovskite. Nat. Commun.**2021**, 12, 747. [Google Scholar] [CrossRef] - Butler, K.T.; Davies, D.W.; Cartwright, H.; Isayev, O.; Walsh, A. Machine learning for molecular and materials science. Nat. Cell Biol.
**2018**, 559, 547–555. [Google Scholar] [CrossRef] - Pilania, G.; Wang, C.; Jiang, X.; Rajasekaran, S.; Ramprasad, R. Accelerating materials property predictions using machine learning. Sci. Rep.
**2013**, 3, 2810. [Google Scholar] [CrossRef] - Raccuglia, P.; Elbert, K.C.; Adler, P.D.F.; Falk, C.; Wenny, M.B.; Mollo, A.; Zeller, M.; Friedler, S.A.; Schrier, J.; Norquist, A.J. Machine-learning-assisted materials discovery using failed experiments. Nat. Cell Biol.
**2016**, 533, 73–76. [Google Scholar] [CrossRef] [PubMed] - Ramprasad, R.; Batra, R.; Pilania, G.; Mannodi-Kanakkithodi, A.; Kim, C. Machine learning in materials informatics: Recent applications and prospects. npj Comput. Mater.
**2017**, 3, 54. [Google Scholar] [CrossRef] - Olivares-Amaya, R.; Amador-Bedolla, C.; Hachmann, J.; Atahan-Evrenk, S.; Sánchez-Carrera, R.S.; Vogt, L.; Aspuru-Guzik, A.; Vogt-Maranto, L. Accelerated computational discovery of high-performance materials for organic photovoltaics by means of cheminformatics. Energy Environ. Sci.
**2011**, 4, 4849–4861. [Google Scholar] [CrossRef] [Green Version] - Tshitoyan, V.; Dagdelen, J.; Weston, L.; Dunn, A.; Rong, Z.; Kononova, O.; Persson, K.A.; Ceder, G.; Jain, A. Unsupervised word embeddings capture latent knowledge from materials science literature. Nat. Cell Biol.
**2019**, 571, 95–98. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ren, F.; Ward, L.; Williams, T.; Laws, K.J.; Wolverton, C.; Hattrick-Simpers, J.; Mehta, A. Accelerated discovery of metallic glasses through iteration of machine learning and high-throughput experiments. Sci. Adv.
**2018**, 4, eaaq1566. [Google Scholar] [CrossRef] [Green Version] - Juan, Y.; Dai, Y.; Yang, Y.; Zhang, J. Accelerating materials discovery using machine learning. J. Mater. Sci. Technol.
**2021**, 79, 178–190. [Google Scholar] [CrossRef] - Tabor, D.P.; Roch, L.M.; Saikin, S.K.; Kreisbeck, C.; Sheberla, D.; Montoya, J.H.; Dwaraknath, S.; Aykol, M.; Ortiz, C.; Tribukait, H.; et al. Accelerating the discovery of materials for clean energy in the era of smart automation. Nat. Rev. Mater.
**2018**, 3, 5–20. [Google Scholar] [CrossRef] [Green Version] - Ahn, J.J.; Lee, S.J.; Oh, K.J.; Kim, T.Y.; Lee, H.Y.; Kim, M.S. Machine learning algorithm selection for forecasting behavior of global institutional investors. In Proceedings of the 42nd Annual Hawaii International Conference on System Sciences, HICSS, Waikoloa, HI, USA, 5–8 January 2009. [Google Scholar]
- Portugal, I.; Alencar, P.; Cowan, D. The use of machine learning algorithms in recommender systems: A systematic review. Expert Syst. Appl.
**2018**, 97, 205–227. [Google Scholar] [CrossRef] [Green Version] - Sharma, N.; Chawla, V.; Ram, N. Comparison of machine learning algorithms for the automatic programming of computer numerical control machine. Int. J. Data Netw. Sci.
**2020**, 4, 1–14. [Google Scholar] [CrossRef] - Emery, A.A.; Wolverton, C. High-throughput DFT calculations of formation energy, stability and oxygen vacancy formation energy of ABO3 perovskites. Sci. Data
**2017**, 4, 170153. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ye, W.; Chen, C.; Wang, Z.; Chu, I.-H.; Ong, S.P. Deep neural networks for accurate predictions of crystal stability. Nat. Commun.
**2018**, 9, 1–6. [Google Scholar] [CrossRef] [PubMed] - Li, W.; Jacobs, R.; Morgan, D. Predicting the thermodynamic stability of perovskite oxides using machine learning models. Comput. Mater. Sci.
**2018**, 150, 454–463. [Google Scholar] [CrossRef] [Green Version] - Ling, J.; Jones, R.; Templeton, J. Machine learning strategies for systems with invariance properties. J. Comput. Phys.
**2016**, 318, 22–35. [Google Scholar] [CrossRef] [Green Version] - Schmidt, J.; Marques, M.R.G.; Botti, S.; Marques, M.A.L. Recent advances and applications of machine learning in solid-state materials science. npj Comput. Mater.
**2019**, 5, 83. [Google Scholar] [CrossRef] - Maenhout, S.; De Baets, B.; Haesaert, G. Prediction of maize single-cross hybrid performance: Support vector machine regression versus best linear prediction. Theor. Appl. Genet.
**2009**, 120, 415–427. [Google Scholar] [CrossRef] - Chen, Z.-B. Research on Application of Regression Least Squares Support Vector Machine on Performance Prediction of Hydraulic Excavator. J. Control Sci. Eng.
**2014**, 2014, 1–4. [Google Scholar] [CrossRef] [Green Version] - Horvath, D.; Marcou, G.; Varnek, A.; Kayastha, S.; León, A.D.L.V.D.; Bajorath, J. Prediction of Activity Cliffs Using Condensed Graphs of Reaction Representations, Descriptor Recombination, Support Vector Machine Classification, and Support Vector Regression. J. Chem. Inf. Model.
**2016**, 56, 1631–1640. [Google Scholar] [CrossRef] - Zang, Q.; Rotroff, D.; Judson, R.S. Binary Classification of a Large Collection of Environmental Chemicals from Estrogen Receptor Assays by Quantitative Structure–Activity Relationship and Machine Learning Methods. J. Chem. Inf. Model.
**2013**, 53, 3244–3261. [Google Scholar] [CrossRef] - Pardakhti, M.; Moharreri, E.; Wanik, D.; Suib, S.L.; Srivastava, R. Machine Learning Using Combined Structural and Chemical Descriptors for Prediction of Methane Adsorption Performance of Metal Organic Frameworks (MOFs). ACS Comb. Sci.
**2017**, 19, 640–645. [Google Scholar] [CrossRef] - Stamp, M. Introduction to Machine Learning with Applications in Information Security; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
- Wu, D.; Jennings, C.; Terpenny, J.; Gao, R.X.; Kumara, S. A Comparative Study on Machine Learning Algorithms for Smart Manufacturing: Tool Wear Prediction Using Random Forests. J. Manuf. Sci. Eng.
**2017**, 139, 071018. [Google Scholar] [CrossRef] - Maronna, R.A. Robust Ridge Regression for High-Dimensional Data. Technometrics
**2011**, 53, 44–53. [Google Scholar] [CrossRef] - Jain, A.; Hautier, G.; Ong, S.P.; Persson, K. New opportunities for materials informatics: Resources and data mining techniques for uncovering hidden relationships. J. Mater. Res.
**2016**, 31, 977–994. [Google Scholar] [CrossRef] [Green Version] - Cherdantsev, D.V.; Stroev, A.V.; Mangalova, E.S.; Kononova, N.V.; Chubarova, O.V. The use of ridge regression for estimating the severity of acute pancreatitis. Bull. Sib. Med.
**2019**, 18, 107–115. [Google Scholar] [CrossRef] - Feng, X.; Zhang, R.; Liu, M.; Liu, Q.; Li, F.; Yan, Z.; Zhou, F. An accurate regression of developmental stages for breast cancer based on transcriptomic biomarkers. Biomark. Med.
**2019**, 13, 5–15. [Google Scholar] [CrossRef] [PubMed] - Zheng, W.D.; Zhang, H.R.; Hu, H.Q.; Liu, Y.; Li, S.Z.; Ding, G.T.; Zhang, J.C. Performance prediction of perovskite materials based on different machine learning algorithms. Zhongguo Youse Jinshu Xuebao/Chin. J. Non-Ferr. Met.
**2019**, 29, 803–809. [Google Scholar] - Zou, Y.; Ding, Y.; Tang, J.; Guo, F.; Peng, L. FKRR-MVSF: A fuzzy kernel ridge regression model for identifying DNA-binding proteins by multi-view sequence features via chou’s five-step rule. Int. J. Mol. Sci.
**2019**, 20, 4175. [Google Scholar] [CrossRef] [Green Version] - Suah, F.M.; Ahmad, M.; Taib, M.N. Applications of artificial neural network on signal processing of optical fibre pH sensor based on bromophenol blue doped with sol-gel film. Sens. Actuators B Chem.
**2003**, 90, 182–188. [Google Scholar] [CrossRef] - Assarzadeh, S.; Ghoreishi, M. Neural-network-based modeling and optimization of the electro-discharge machining process. Int. J. Adv. Manuf. Technol.
**2007**, 39, 488–500. [Google Scholar] [CrossRef] - Demetgul, M.; Tansel, I.; Taskin, S. Fault diagnosis of pneumatic systems with artificial neural network algorithms. Expert Syst. Appl.
**2009**, 36, 10512–10519. [Google Scholar] [CrossRef] - Mandal, S.; Sivaprasad, P.; Venugopal, S.; Murthy, K. Artificial neural network modeling to evaluate and predict the deformation behavior of stainless steel type AISI 304L during hot torsion. Appl. Soft Comput.
**2009**, 9, 237–244. [Google Scholar] [CrossRef] - Ahmadi, M.A.; Golshadi, M. Neural network based swarm concept for prediction asphaltene precipitation due to natural depletion. J. Pet. Sci. Eng.
**2012**, 98–99, 40–49. [Google Scholar] [CrossRef] - Zhu, D.; Cheng, C.; Zhai, W.; Li, Y.; Li, S.; Chen, B. Multiscale Spatial Polygonal Object Granularity Factor Matching Method Based on BPNN. ISPRS Int. J. Geo-Inf.
**2021**, 10, 75. [Google Scholar] [CrossRef] - Anjana, T.; Blas, U.P.; Christopher, S.R.; Ghanshyam, P. A Machine Learning Approach for the Prediction of Forma-bility and Thermodynamic Stability of Single and Double Perovskite Oxides. Chem. Mater.
**2021**, 33, 845–858. [Google Scholar] - Zandi, S.; Saxena, P.; Razaghi, M.; Gorji, N.E. Simulation of CZTSSe Thin-Film Solar Cells in COMSOL: Three-Dimensional Optical, Electrical, and Thermal Models. IEEE J. Photovolt.
**2020**, 10, 1503–1507. [Google Scholar] [CrossRef]

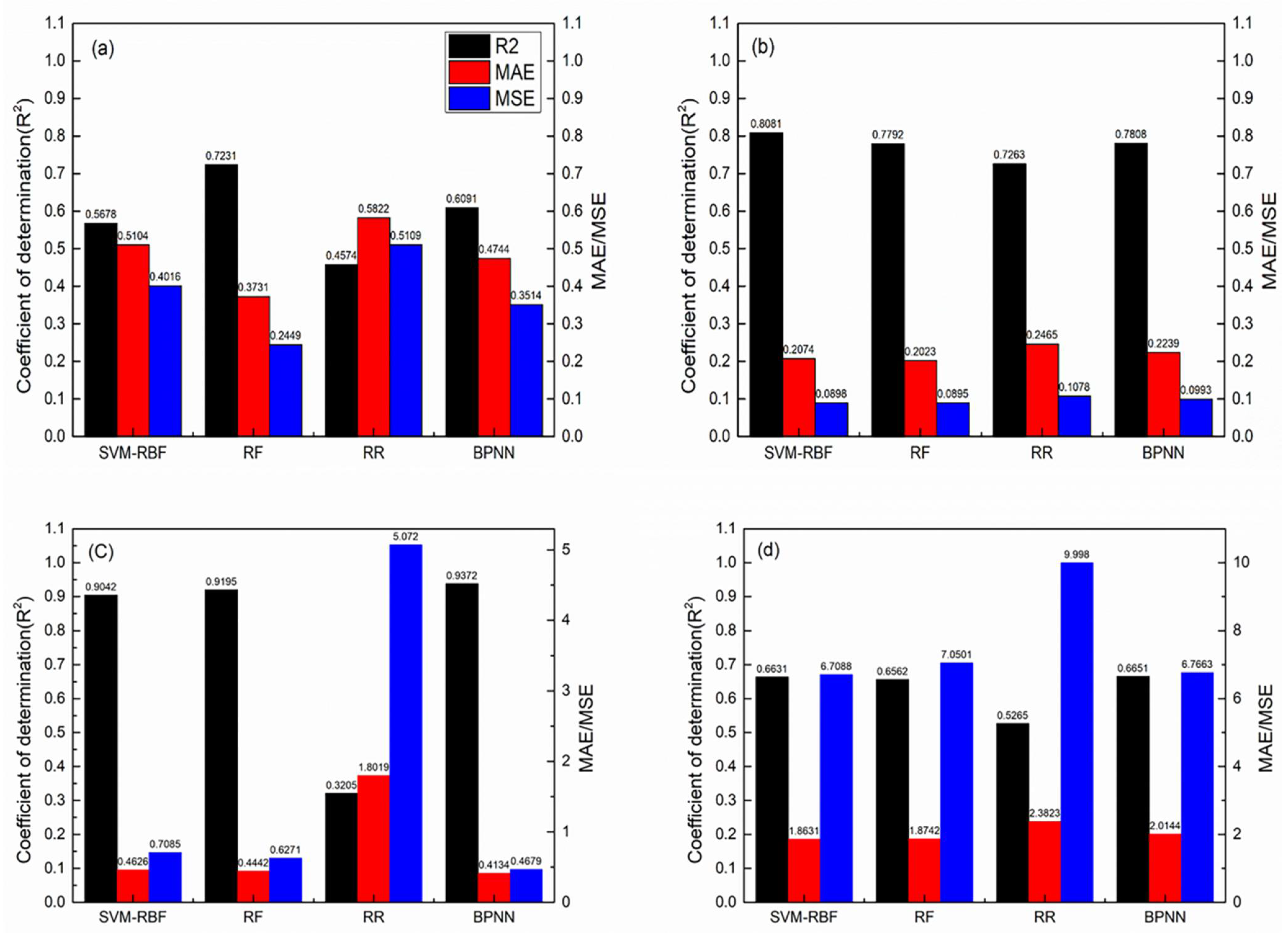

**Figure 3.**Prediction performance of machine learning model on test set, (

**a**) prediction performance of formation energy, (

**b**) prediction performance of stability, (

**c**) prediction performance of volume, and (

**d**) prediction performance of formation energy of oxygen vacancy.

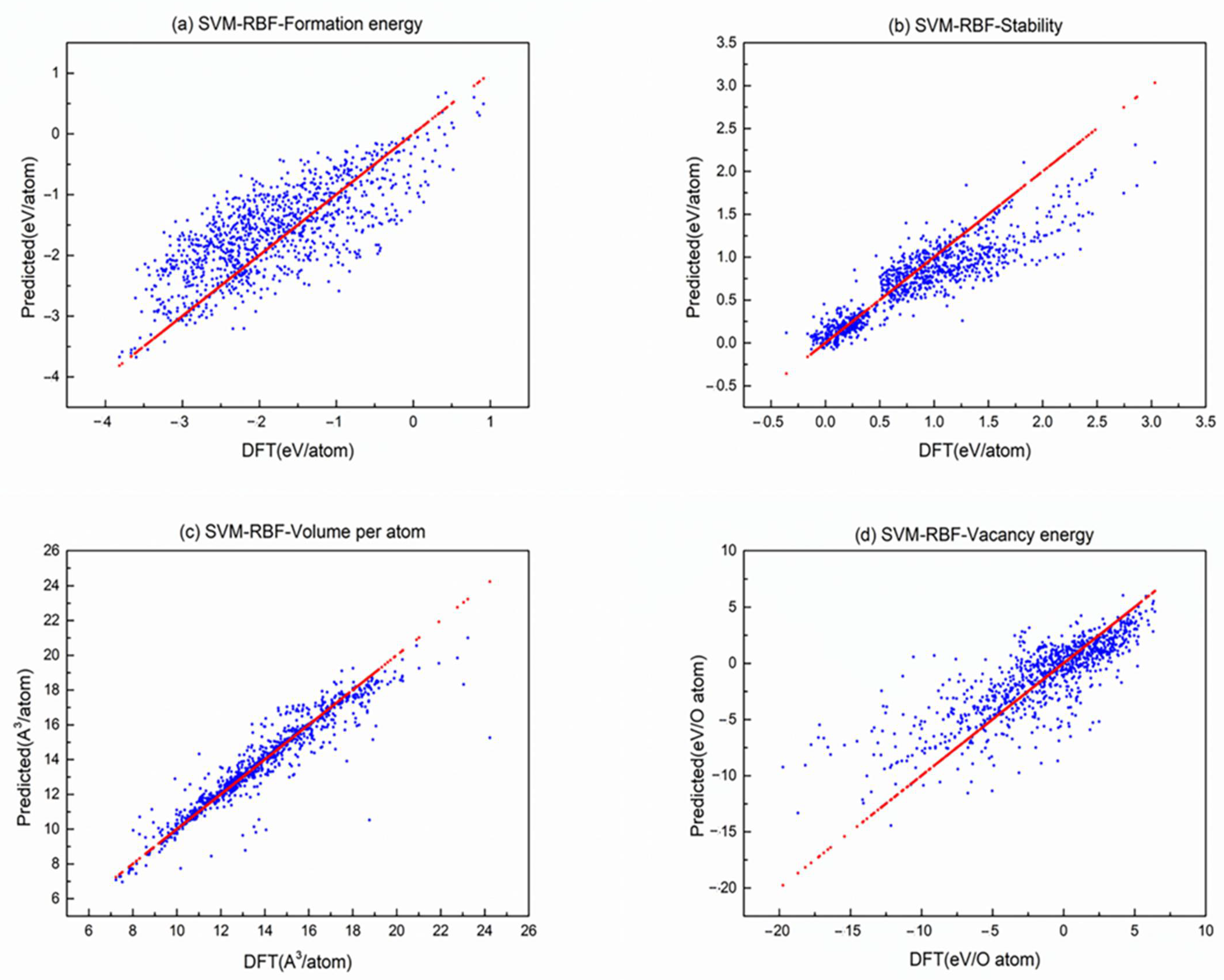

**Figure 4.**The fitting diagram based on the predicted value of SVM-RBF and the calculated value of DFT is (

**a**) the fitting diagram of formation energy, (

**b**) the fitting diagram of stability, (

**c**) the fitting diagram of volume, and (

**d**) the fitting diagram of oxygen vacancy formation energy. Red points work as reference points, which is ideal values obeyed y = x.

**Figure 5.**Fitting diagram based on RF predicted value and DFT calculated value: (

**a**) fitting diagram for formation energy, (

**b**) fitting diagram for stability, (

**c**) fitting diagram for volume, and (

**d**) fitting diagram for formation energy of oxygen vacancy. Red points work as reference points, which is ideal values obeyed y = x.

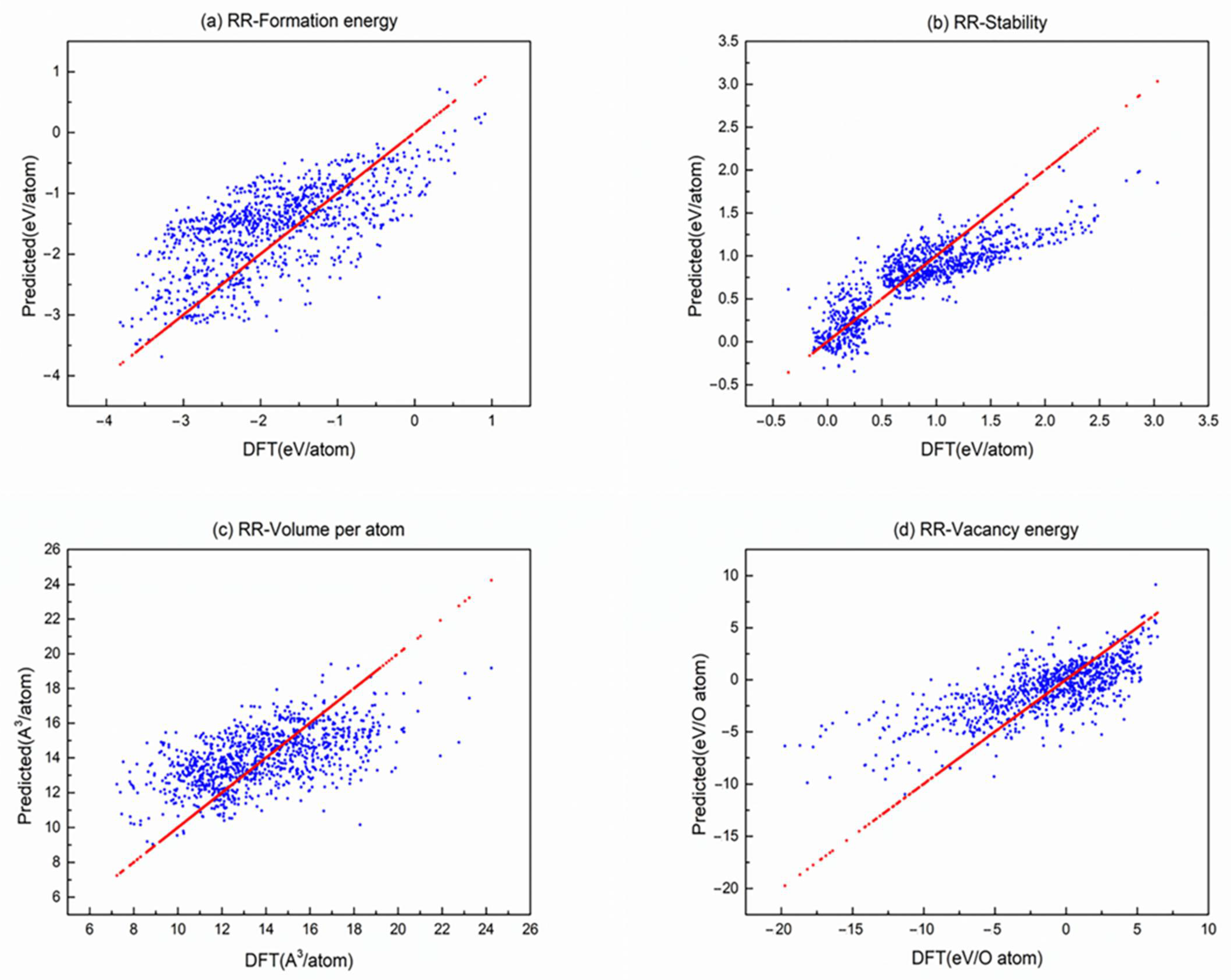

**Figure 6.**The fitting diagram based on the predicted value of RR and the calculated value of DFT is (

**a**) the fitting diagram of formation energy, (

**b**) the fitting diagram of stability, (

**c**) the fitting diagram of volume, and (

**d**) the fitting diagram of formation energy of oxygen vacancy. Red points work as reference points, which is ideal values obeyed y = x.

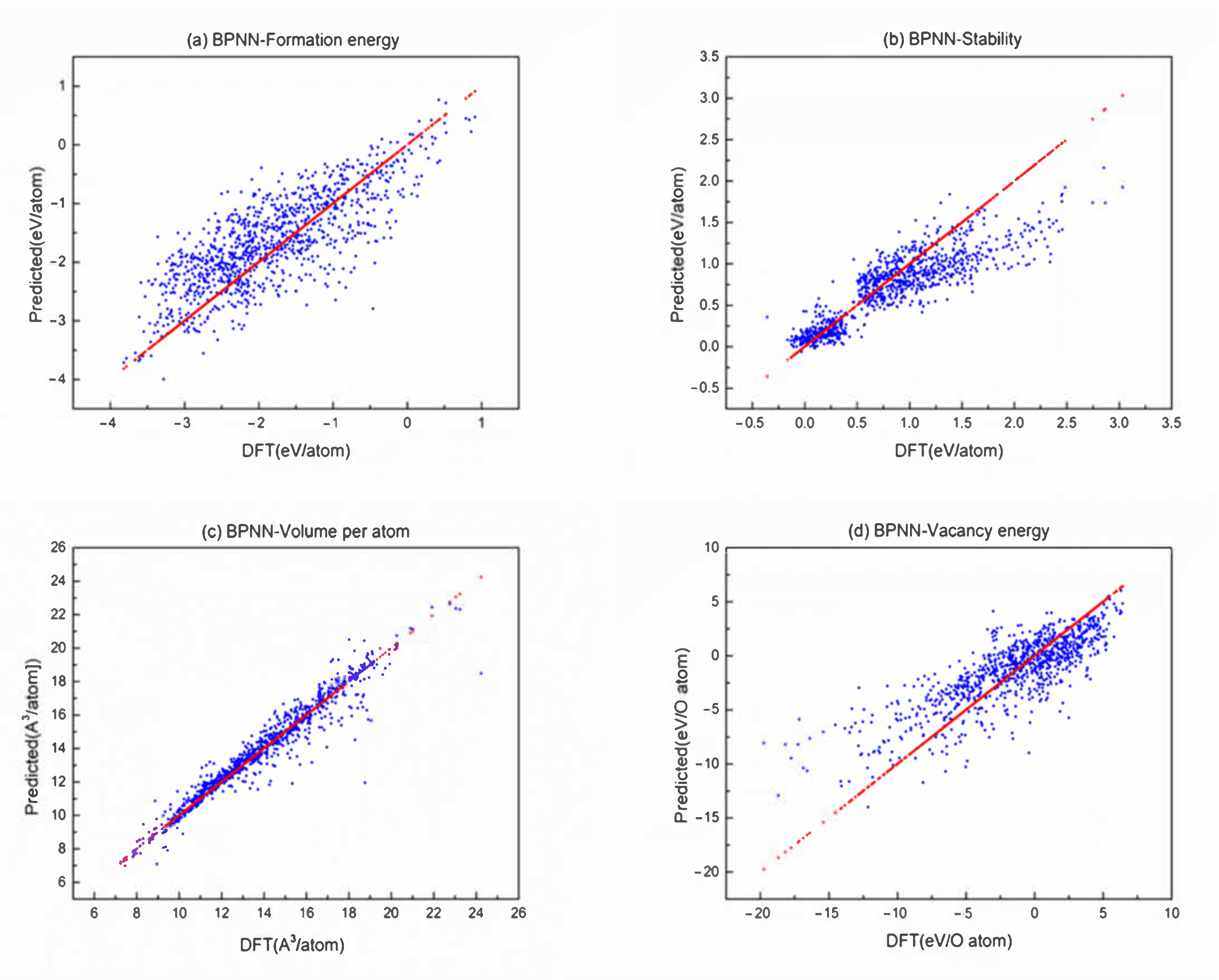

**Figure 7.**The fitting diagram based on the predicted value of BPNN and the calculated value of DFT is (

**a**) the fitting diagram of formation energy, (

**b**) the fitting diagram of stability, (

**c**) the fitting diagram of volume, and (

**d**) the fitting diagram of formation energy of oxygen vacancy. Red points work as reference points, which is ideal values obeyed y = x.

No. | Property | Type | Unit | Description |
---|---|---|---|---|

1 | Radius A | number | ang | Shannon ionic radius of atom A. |

2 | Radius B | number | ang | Shannon ionic radius of atom B. |

3 | Formation energy | number | eV/atom | Formation energy as calculated by equation of the distortion with the lowest energy. |

4 | Stability | number | eV/atom | Stability as calculated by equation of the distortion with the lowest energy. |

5 | Volume per atom | number | A^{3}/atom | Volume per atom of the relaxed structure. |

6 | Band gap | number | eV | PBE band gap obtained from the relaxed structure. |

7 | a | number | ang | Lattice parameter a of the relaxed structure. |

8 | b | number | ang | Lattice parameter b of the relaxed structure. |

9 | c | number | ang | Lattice parameter c of the relaxed structure. |

10 | alpha | number | deg | α angle of the relaxed structure. |

11 | beta | number | deg | β angle of the relaxed structure. |

12 | gamma | number | deg | γ angle of the relaxed structure. |

13 | Vacancy energy | number | eV/O atom | Thermodynamic stability was assessed using an energy convex hull construction. |

Property | Method | Evaluation Index | ||
---|---|---|---|---|

MAE | MSE | R^{2} | ||

Formation energy | SVM-RBF | 0.5104 | 0.4016 | 0.5607 |

RF | 0.3731 | 0.2449 | 0.7231 | |

RR | 0.5822 | 0.5109 | 0.4574 | |

BPNN | 0.4744 | 0.3514 | 0.6091 | |

Stability | SVM-RBF | 0.2074 | 0.0898 | 0.8081 |

RF | 0.2023 | 0.0895 | 0.7792 | |

RR | 0.2465 | 0.1078 | 0.7263 | |

BPNN | 0.2239 | 0.0993 | 0.7808 | |

Volume per atom | SVM-RBF | 0.4626 | 0.7085 | 0.9042 |

RF | 0.4442 | 0.6271 | 0.9195 | |

RR | 1.8019 | 5.0720 | 0.3205 | |

BPNN | 0.4134 | 0.4679 | 0.9372 | |

Vacancy energy | SVM-RBF | 1.8631 | 6.7088 | 0.6631 |

RF | 1.8742 | 7.0501 | 0.6562 | |

RR | 2.3823 | 9.9980 | 0.5265 | |

BPNN | 2.0144 | 6.7663 | 0.6651 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Li, R.; Deng, Q.; Tian, D.; Zhu, D.; Lin, B.
Predicting Perovskite Performance with Multiple Machine-Learning Algorithms. *Crystals* **2021**, *11*, 818.
https://doi.org/10.3390/cryst11070818

**AMA Style**

Li R, Deng Q, Tian D, Zhu D, Lin B.
Predicting Perovskite Performance with Multiple Machine-Learning Algorithms. *Crystals*. 2021; 11(7):818.
https://doi.org/10.3390/cryst11070818

**Chicago/Turabian Style**

Li, Ruoyu, Qin Deng, Dong Tian, Daoye Zhu, and Bin Lin.
2021. "Predicting Perovskite Performance with Multiple Machine-Learning Algorithms" *Crystals* 11, no. 7: 818.
https://doi.org/10.3390/cryst11070818
