Mueller Matrix Polarimetric Imaging Analysis of Optical Components for the Generation of Cylindrical Vector Beams

1
Instituto de Bioingeniería, Universidad Miguel Hernández de Elche, Avda. Universidad s/n, 03202 Elche, Spain
2
Departamento de Física Aplicada, Universidad Miguel Hernández de Elche, Avda. Universidad s/n, 03202 Elche, Spain
3
Departamento de Física, Universitat Autònoma de Barcelona, 08193 Bellaterra, Spain
4
Departamento de Ciencia de Materiales, Óptica y Tecnología Electrónica, Universidad Miguel Hernández de Elche, Avda. Universidad s/n, 03202 Elche, Spain
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(12), 1155; https://doi.org/10.3390/cryst10121155
Received: 14 November 2020 / Revised: 5 December 2020 / Accepted: 15 December 2020 / Published: 18 December 2020
(This article belongs to the Special Issue Patterned-Liquid-Crystal for Novel Displays)

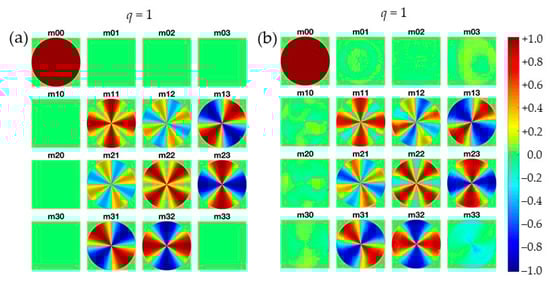

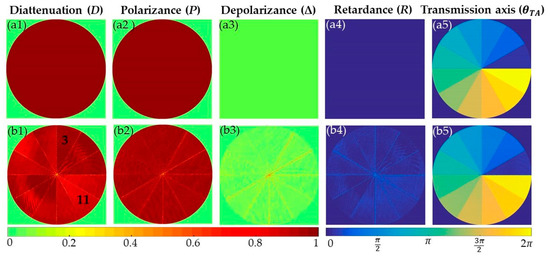

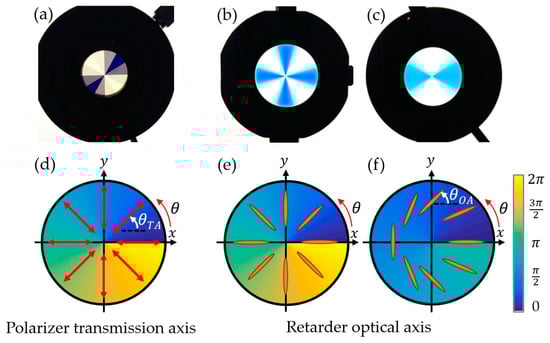

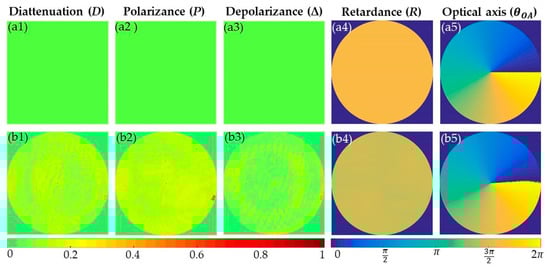

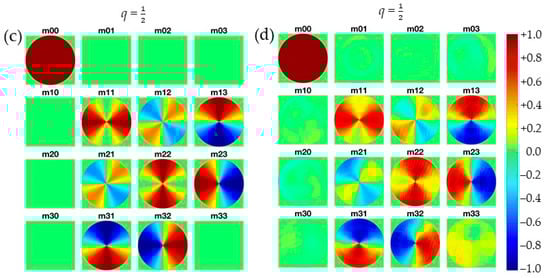

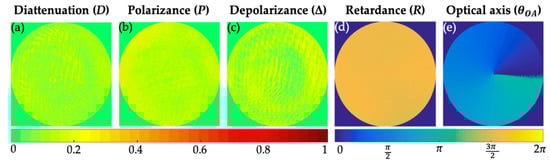

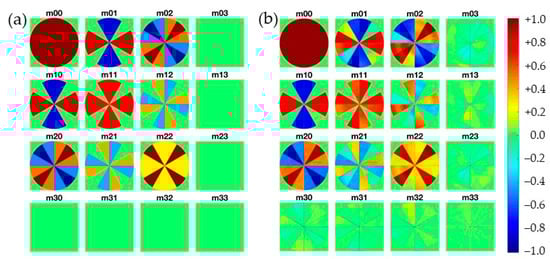

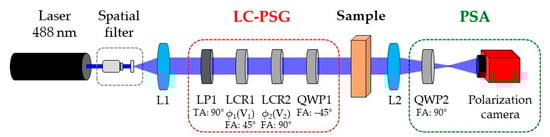

In this work, we performed a Mueller matrix imaging analysis of two commercial optical components usually employed to generate and manipulate vector beams—a radial polarizer and a liquid-crystal q-plate. These two elements generate vector beams by different polarization mechanisms—polarizance and retardance, respectively. The quality of the vector beams relies on the quality of the device that generates them. Therefore, it is of interest to apply the well-established polarimetric imaging techniques to evaluate these optical components by identifying their spatial homogeneity in diattenuation, polarizance, depolarization, and retardance, as well as the spatial variation of the angles of polarizance and retardance vectors. For this purpose, we applied a customized imaging Mueller matrix polarimeter based on liquid-crystal retarders and a polarization camera. Experimental results were compared to the numerical simulations, considering the theoretical Mueller matrix. This kind of polarimetric characterization could be very helpful to the manufacturers and users of these devices. View Full-Text
Keywords: vector beams; polarimetric imaging; radial polarizers; q-plates; liquid-crystal retarders; polarimetric camera vector beams; polarimetric imaging; radial polarizers; q-plates; liquid-crystal retarders; polarimetric camera
Show Figures

Figure 1
