Valorization of Eggshell Powder as a Catalytic Activation Agent for Producing Porous Carbon Materials from Lignocellulosic Waste

by
Chi-Hung Tsai
1,
Hervan Marion Morgan, Jr.
2 and
Wen-Tien Tsai
3,*
1
Department of Resources Engineering, National Cheng Kung University, Tainan 701, Taiwan
2
Department of Tropical Agriculture and International Cooperation, National Pingtung University of Science and Technology, Neipu Township, Pingtung 912, Taiwan
3
Graduate Institute of Bioresources, National Pingtung University of Science and Technology, Pingtung 912, Taiwan
*
Author to whom correspondence should be addressed.
Catalysts 2025, 15(8), 712; https://doi.org/10.3390/catal15080712
Submission received: 30 June 2025 / Revised: 21 July 2025 / Accepted: 24 July 2025 / Published: 26 July 2025
(This article belongs to the Special Issue Catalytic Technologies for Solid Waste Management, Utilization, and Sustainability)
Browse Figures
Versions Notes

Abstract

This study explored the potential of reusing eggshell powders as a renewable activating agent for producing porous carbon materials from coffee husk. Carbonization and activation experiments were conducted by heating the samples at a rate of 10 °C/min up to 850 °C under a nitrogen atmosphere. A custom-designed double steel-mesh sample holder was used to hold approximately 2.0 g coffee husk on the top, with varying masses of eggshell at the bottom to achieve eggshells to coffee husk mass ratios of 2:1, 4:1, 6:1 and 8:1. The results demonstrated that CO2 released from the thermal decomposition of the eggshell powder significantly enhanced pore development at 850 °C. Compared to the pore properties of carbon material produced without eggshell (e.g., BET surface area of 321 m2/g), the activated carbon samples exhibited substantially improved pore properties (e.g., BET surface area in the range of 592 to 715 m2/g). Furthermore, the pore characteristics improved consistently with increasing eggshell content. Observations by scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDS) and Fourier-transform infrared spectroscopy (FTIR) confirmed the structural and chemical transformations of the resulting carbon materials. Under optimal carbonization-activation conditions, the resulting carbon materials derived from coffee husk exhibited microporous structures and slit-shaped pores, as indicated by the Type I isotherms and H4 hysteresis loops.

1. Introduction

Activated carbons (AC) may be the most widely used adsorbents due to their exceptional properties (particularly their specific surface area and total pore volume), which enable effective adsorption of contaminants from various fluid streams such as vent gas, drinking water and wastewater [1,2]. Typically, carbons or biochars derived from lignocellulosic feedstock such as wood, coconut shell, or other agricultural residues under an inert atmosphere are predominantly microporous (i.e., pore widths < 2.0 nm). However, when subjected to chemical activation or physical activation through gasification using oxidizing gases such as carbon dioxide (CO2) or steam at elevated temperatures, the microporous structure can be significantly enhanced. Physical activation refers to the development of microporosity via gasification with an oxidizing agent at temperatures ranging from 700 to 1100 °C [3]. For example, CO2 used as an oxidizing gas, its reaction can be simplified as follows:
C (solid) + CO2 (gas) → 2CO (gas)
During the gasification reaction, CO2 must diffuse into the interior of the particle, where it dislodges a carbon atom from its position, thus generating micropores and mesopores (i.e., pore width between 2.0 and 50 nm).
In recent years, calcium carbonate (CaCO3) nanoparticles have been utilized as templates for synthesizing microporous carbon materials, particularly for electrode applications in energy storage devices [4,5,6,7]. Notably, biomass materials rich in CaCO3, such as eggshells, release CO2 upon calcination at temperatures above 800 °C. This evolved CO2 can be reused in situ as an activating gas for carbon material production, a concept explored in a growing number of studies [8,9,10,11,12]. Shen et al. [8] demonstrated the synthesis of hierarchical porous carbon by reusing dairy manure as a low-cost carbon precursor and eggshell as both a hard template and activating agent. At an optimized temperature of 800 °C and eggshell to dairy manure mass ratio of (2:1), the resulting porous carbon achieved a surface area of 543.6 m2/g and total pore volume of 0.48 cm3/g. Panchal et al. [9] developed a novel method for producing ordered porous carbon from eggshell and coconut shell powder using four mass ratios (eggshell/coconut shell: 1/1, 1/2, 1/3, and 1/4). Their research identified the 1:1 ratio at 800 °C as optimal, yielding a BET surface area of 375.4 m2/g and total pore volume of 0.248 cm3/g. Hsu et al. [10] synthesized nitrogen-doped porous carbons using water-caltrop shell and eggshell, with the eggshell serving as the activating agent. At 900 °C and residence time of 3 h, and the mass ratio of 2/1 (eggshell/water-caltrop shell), a BET surface area of 677 m2/g was achieved. Liu et al. [11] produced eggshell-catalyzed biochar for Pb2+ adsorption from aqueous solution. These biochars were produced utilizing 1:10, 1:2, and 1:1 mass ratios of eggshell to Eupatorium adenophorum, pyrolyzed at 800 °C and 8 °C/min under N2 atmosphere with 1.5 h residence time. The respective BET surface areas were 67, 621, and 269 m2/g. Similarly, Li et al. [12] adopted various mass ratios (eggshell/sawdust: 0/1, 0.2/1, 0.4/1, 0.6/1. 0.8/1, and 1/1) to generate porous carbon materials at 900 °C, a heating rate of 5 °C/min and a residence time of 30 min. The materials activated by CO2 evolved from eggshells exhibited BET surface areas between 601.2 and 665.1 m2/g, substantially higher than the 486.4 m2/g observed from sawdust alone indicating that surface area increased proportionally with the eggshell content.
Coffee husk, a by-product of coffee processing, constitutes about 30–50 wt% of the total coffee bean weight and is rich in lignocellulosic components such as hemicellulose, cellulose, and lignin. Its composition makes it a promising feedstock for the production of value-added products such as organic fertilizers, animal feeds, biofuels and carbon materials, as reviewed in recent studies [13,14,15,16,17]. However, there is limited availability of studies using coffee husk for the production of biochar [18,19,20,21,22,23]. In addition, carbonization processes of the aforementioned studies operated at relatively low to moderate temperatures (<800 °C), without specific focus on producing the resulting biochar (or carbon) materials that have improved pore properties. Moreover, coffee husk exhibited low ash content and high volatile matter [24], implying that it could be an excellent precursor for producing porous carbon materials, or utilized as an alternative energy source [25].
The aim of the study was to increase the pore properties of the carbon products derived from coffee husk by utilizing eggshells as a renewable source of activating gas (CO2). Various mass ratios of eggshell/coffee husk were investigated to understand the effect of the evolved CO2 on the pore properties of resulting carbon materials. Proximate analysis, calorific value, elemental composition, thermogravimetric analysis (TGA) and its derivative thermogravimetry (DTG) were conducted to establish baseline information on the feedstock materials. TGA and DTG data for eggshells were also used to define appropriate carbonization conditions. Subsequently, carbonization experiments were conducted under specific parameters and the resulting carbon materials were characterized using nitrogen adsorption/desorption analysis, scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDS) and Fourier-transform infrared spectroscopy (FTIR). These analyses were used to correlate the pore, textural and chemical characteristics of resulting carbon materials with the carbonization conditions applied.

2. Results and Discussion

2.1. Thermochemical Characteristics of Coffee Husk and Eggshell

The thermal behaviors of the starting materials, as determined by TGA/DTG analysis at a heating rate of 10 °C/min is presented in Figure 1a. As expected, majority of the coffee husk sample had a mass loss in the temperature range 250 °C to 450 °C, corresponding to the thermal decomposition of lignocellulosic components such as hemicellulose, cellulose, and lignin [26]. At 900 °C, the residual mass was approximately 25 wt%, comprising primarily inorganic minerals, fixed carbon and other charring residues. Table 1 summarizes the proximate analysis, calorific value and elemental compositions of coffee husk. The biomass was characterized by high volatile matter (79.36 wt%), moderate fixed carbon content (19.60 wt%) and low ash content (1.05 wt%) on a dry basis. These characteristics are consistent with its high carbon content (45.60 wt%) and calorific value of 19.40 MJ/kg. These results gave further reason that the coffee husk biomass, is a promising precursor for producing carbon materials under the appropriate carbonization conditions [27].
In contrast the TGA/DTG profile of eggshell powder, shown in Figure 1b, reflects its non-lignocellulose, CaCO3-rich nature [28]. The most significant change occurred in the temperature range of 800–950 °C (over a 15 min time span) where CaCO3 thermally decomposed into calcium oxide (CaO) and carbon dioxide CO2. The residual mass of the eggshell sample at 900 °C was about 60 wt% consistent with the molecular weights of CaCO3 (100) and CaO (56). Based on this, the carbon-activation experiments were conducted at 850 °C with holding times ranging from 10 to 30 min, ensuring sufficient decomposition of the eggshell and activation of the carbon material by the evolved CO2 gas. However, these conditions also resulted in relatively low yields (13–22 wt%) [29].

2.2. Pore Properties of Resulting Carbon Materials

The primary pore characteristics of the resulting carbon materials is presented in Table 2. The data reveal that CO2 gas released from the eggshell powder at 850 °C significantly enhanced pore development. For instance, compared to the biochar sample (CFH-BC-850-30), which had a BET surface area of 321 m2/g, the activated carbon materials (CFH-AC-850 series) exhibited markedly higher surface areas ranging from 592 to 715 m2/g. A clear trend was observed in which increasing the eggshell-to-coffee husk mass ratio from 2.0 to 8.0 led to further enhancement in pore properties. This indicated that the amount of evolved CO2 played in vital role in the formation of pores via activation (or gasification) reactions, resulting in improved characteristics of the carbon materials (CFH-AC-850 series) [1]. On the other hand, variation in holding time between 10 and 30 min had a negligible impact on pore development. The data also show that the portion of residual eggshell increased with higher eggshell loading; this suggested that the eggshell powder did not decompose completely into CaO and CO2 under the applied conditions. Table 3 compares the full pore property data for the biochar (CFH-BC-850-30) and the optimal activated carbon (CFH-AC-850-30-8). Notably, the BET surface area and micropore volume of the activated carbon were more than double those of the biochar (155.59 m2/g vs. 714.56 m2/g, respectively). Figure 2 presents the nitrogen adsorption–desorption isotherms of the representative BC and AC materials. Both curves conform to Type I isotherms with H4-type hysteresis loops, which are characteristic of microporous materials with slit-like pore structures [30,31]. Analyzing the data of the nitrogen adsorption–desorption isotherms, the pore size distribution can be described using the 2D-NLDFT-HS model [32]. According to the Horvath–Kawazoe method for predicting the isotherms in micropores [31], a typical micropore size distribution curve for the carbon product CFH-AC-850-30-8 was depicted in Figure 3, showing a dominant presence of slit micropores in the range of 0.50 to 1.00 nm.
It should be noted that the present study featured the one-pot process for producing porous carbon material and CaO-rich product separately. All of these resulting products are a variety of applications. For example, CaO-rich product can be used as organic fertilizer, cement/mortar additive, metallurgical agent for steel production, water treatment agent, desulfurization agent, adsorbent for acidic substances, catalyst for biodiesel production, disinfectant, and so on [33]. In addition, the addition of eggshell-based CaO into rice straw-derived biochar for producing composited adsorbent and its enhanced phosphate adsorption performance from aqueous solution have been published in the literature [34]. Also indicated in Table 2, the data on the residual eggshell ranged from 60 wt% to 80 wt%, implying that most of CaCO3 in the eggshell have been thermally decomposed to CaO and CO2 gas. Theoretically, the solid yield of CaO should be 56 wt% because the molecular weights of CaCO3 and CaO are 100 and 56 g/mol, respectively.

2.3. Textural and Chemical Characteristics of Resulting Carbon Materials

The porous structure inferred from nitrogen adsorption–desorption analysis (Table 2 and Table 3, and Figure 2) was further confirmed by scanning electron microscopy (SEM). Representative samples CFH-BC-850-30 and CFH-AC-850-30-8 were selected for surface morphology analysis. As shown in Figure 4, the AC material exhibited a significantly more porous structure compared to the biochar under the two magnifications (i.e., ×1000 and ×3000). These observations were consistent with the pore properties derived from BET analysis and the nitrogen adsorption–desorption isotherms. The SEM images also revealed a shriveled, rod-like morphology on the surface of the carbon matrix, which may be attributed to the vascular structure of the lignocellulosic biomass (i.e., coffee husk) and its transformation under high temperature carbonization (850 °C).
Elemental composition analysis of the coffee husk and its resulting carbon materials was performed using energy dispersive X-ray spectroscopy (EDS), due to its speed and simplicity. As indicated in Table 1, the original coffee husk contained 45.60 wt% carbon and 53.45 wt% oxygen. After carbonization and activation, the carbon content of resulting materials increased to over 85 wt%, indicating a high degree of charring under the conditions 850 °C and 10–30 min holding time. Simultaneously, oxygen content was drastically reduced due to the release of oxygen-rich volatiles such as H2O, CO, and CO2 during thermal treatment. Regarding the compositions on the other elements (e.g., S, Mg and Ca), they contained less amounts (<1.0 wt%). For example, the elemental compositions of the optimal carbon product (CFH-AC-850-30-8) for carbon, oxygen, calcium, aluminum, sulfur and magnesium were 86.14, 12.09, 0.57, 0.43, 042 and 0.35 wt.%, respectively. Despite the reduction in oxygen, the carbon materials retained some oxygen-containing functional groups, which can have an impact on the materials surface chemistry affecting the electrostatic interactions. FTIR spectra of the original coffee husk (CFH) and the carbon materials (CFH-BC-850-30 and CFH-AC-850-30-8) are presented in Figure 5. The key absorption peaks positioned at approximately 3460, 2920, 1650, 1390, and 1045 cm−1 which could be ascribed to the absorption of -OH, C-H (stretching), C-O-C (carbonyl group), C-H (bending), and C-O (stretching), respectively [35,36,37,38]. Additionally, the peak heights or regions of the carbon materials in Figure 5 were relatively less than those of the raw coffee husk, which is consistent with the results of the EDS findings.

3. Materials and Methods

3.1. Materials

Coffee husk and eggshell were sourced from a local coffee bean manufacturer in Taiwu Township, Pingtung County, Taiwan and breakfast shop in Qianzhen District, Kaohsiung City, Taiwan, respectively. The yellow coffee by-product, referred to as coffee husk, derived from the parchment layer during the washing and drying stages of coffee processing. Prior to characterization and carbonization experiments, the biomass sample was oven-dried at 105 °C and stored in an air-circulating oven. Eggshells were treated by immersion in dilute acetic acid to remove the inner membrane, followed by drying and grinding into powder. The prepared eggshell powder was stored in airtight glass containers until further use.

3.2. Thermochemical Properties and Thermogravimetric Analysis of Coffee Husk and Eggshell

Thermogravimetric analysis (TGA) was carried out using the instrument TGA-51, Shimadzu Co., Tokyo, Japan, in order to investigate the thermal decomposition behaviors of coffee husk and eggshell. The heating profile involved a temperature increase from room temperature to 1000 °C at a rate of 10 °C/min under a nitrogen flow of 50 cm3/min. Proximate analysis of the dried coffee husk, including ash, volatile matter, and fixed carbon, was performed in accordance with the Standard Methods of the American Society for Testing and Materials (ASTM). The fixed carbon was calculated by subtracting the ash and volatile matter percentages from 100%. The calorific value, which is closely related to the materials volatile matter and fixed carbon, was determined using a bomb calorimeter (Model: CALORIMETER ASSY 6200; Parr Co., Moline, IL, USA). To better understand the differences between the precursor material (i.e., coffee husk) and resulting carbon materials, additional analyses of the elemental composition and surface oxygen-containing functional groups were also conducted, as described later in this section.

3.3. Carbonization-Activation Experiments

Based on the TGA/DTG results of the eggshell, carbonization-activation experimental conditions were determined and carried out in a vertical fixed-bed reactor. Nitrogen gas (purity > 97%) was introduced at a flowrate of 500 cm3/min, with a heating rate of 10 °C/min up to a final temperature of 850 °C, followed by holding times from 10 to 30 min. During this period, CO2 evolved from the thermal decomposition of eggshells acted as the activating gas. A custom double steel-mesh sample holder was used to support the materials, approximately 2.0 g coffee husk was placed in the top holder, while a certain mass of eggshell powder was placed in the bottom of the holder. These combinations achieved mass ratios of eggshells to coffee husk of 2:1, 4:1, 6:1 and 8:1. To evaluate the effect of holding time on the pore properties of resulting carbon materials, two additional times (i.e., 10 and 20 min) were performed under identical process parameters. In total, seven experiments were performed, including one carbonization run without eggshell as a control. The yields of the resulting porous carbon materials and residual eggshell were calculated based on the mass difference before and after the carbonization-activation experiments. The resulting carbon (i.e., biochar) materials from coffee husk (abbreviated as CFH) were coded as follows. CFH-BC-850-30 referred to the biochar (abbreviated as BC) material produced at 850 °C and a holding time of 30 min, while CFH-AC-850-30-8 referred to activated carbon (abbreviated as AC) materials produced at 850 °C and a holding time of 30 min using an eggshell/coffee husk mass ratio of 8:1.

3.4. Determinations of Textural and Chemical Characteristics of Coffee Husk-Based Biochar Products

The pore properties of resulting carbon materials were analyzed via nitrogen adsorption–desorption isotherms at −196 °C using an automated analyzer (Model: ASAP 2020; Micromeritics Co., Norcross, GA, USA). Prior to analysis, the carbon samples were degassed to remove moisture and other adsorbed substances. Degassing conditions included heating at 5 °C/min up to 90 °C under a vacuum of 10 μmHg for 60 min followed by a ramping to 200 °C and held for 10 h. BET, Langmuir, and single-point surface areas were calculated based on relative pressure (P/P0) in the range of 0.05–0.15. Total pore volume was estimated from the amount of nitrogen adsorbed at a relative pressure of 0.995 and converted into liquid volume [31]. Micropore surface area and volume were determined using the t-plot statistical thickness method, based on the Harkins & Jura model corresponding to the thickness between 0.35 and 0.5 nm [31]. Surface morphology was observed using scanning electron microscopy (SEM; Model: S-3000N; Hitachi Co., Tokyo, Japan). To improve conductivity, non-conductive samples were coated with a thin gold film using an ion sputter (Model: E1010; Hitachi Co., Tokyo, Japan). Elemental analysis was performed using energy-dispersive X-ray spectroscopy (EDS; Model: X-stream-2; Oxford Instruments, Abingdon, UK). Surface functional groups were identified by Fourier-transform infrared spectroscopy (FTIR; Model: FT/IR-4600; JASCO Co., Tokyo, Japan). For FTIR analysis, samples were mixed with high-purity (purity > 99.9%) potassium bromide (KBr) cube and ground with an agate mortar to form translucent pellets.

4. Conclusions

This study demonstrated that coffee husk, a major by-product from coffee bean processing, has the potential to produce porous carbon material. Carbonization–activation experiments were conducted in a vertical fixed-bed reactor at a heating rate of 10 °C/min up to 850 °C under nitrogen atmosphere. A custom-designed double-mesh holder was used to enable upward activation of coffee husk by CO2 evolved from eggshell decomposition. The mass ratios of eggshells to coffee husk used in this experiment were ratios of 2:1, 4:1, 6:1 and 8:1. The results confirmed that CO2 released from eggshell powder decomposition significantly enhanced pore development in the carbon materials at 850 °C. Compared to the unactivated biochar (BET surface area of 321 m2/g), the eggshell derived CO2- activated samples exhibited much higher BET surface areas, ranging from 592 to 715 m2/g. These materials showed Type I isotherms with H4 hysteresis loops, indicating the presence of micropores and slit-shaped pores. Increased eggshell loading corresponded to a consistent enhancement in pore properties. SEM, EDS, and FTIR analyses further supported the observed morphological and compositional transformations. Overall, the study demonstrated that high-temperature carbonization of coffee husk, assisted by CO2 activation from eggshells, is an effective strategy for producing microporous carbon materials with desirable structural and surface characteristics.

Author Contributions

Conceptualization, W.-T.T.; formal analysis, C.-H.T. and H.M.M.J.; data curation, C.-H.T. and H.M.M.J.; writing—original draft preparation, W.-T.T.; writing—review and editing, W.-T.T. and H.M.M.J.; supervision, W.-T.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data is contained within the article.

Acknowledgments

Sincere appreciation was expressed to acknowledge the National Pingtung University of Science and Technology for the assistance in the scanning electron microscopy (SEM).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Marsh, H.; Rodriguez-Reinoso, F. Activated Carbon; Elsevier: Amsterdam, The Netherlands, 2006. [Google Scholar]
  2. Bansal, R.C.; Goyal, M. Activated Carbon Adsorption; CRC Press: Bocca Raton, FL, USA, 2005. [Google Scholar]
  3. Mehdi, R.; Khoja, A.H.; Naqvi, S.R.; Gao, N.; Amin, N.A.S. A Review on production and surface modifications of biochar materials via biomass pyrolysis process for supercapacitor applications. Catalysts 2022, 12, 798. [Google Scholar] [CrossRef]
  4. Li, T.; Yang, G.; Wang, J.; Zhou, Y.; Han, H. Excellent electrochemical performance of nitrogen-enriched hierarchical porous carbon electrodes prepared using nano-CaCO3 as template. J. Solid State Electrochem. 2013, 17, 2651–2660. [Google Scholar] [CrossRef]
  5. Wang, Z.; Xiong, Y.; Guan, S. A simple CaCO3-assisted template carbonization method for producing nitrogen doped porous carbons as electrode materials for supercapacitors. Electrochim. Acta 2016, 188, 757–766. [Google Scholar] [CrossRef]
  6. Xing, B.; Zhang, C.; Liu, Q.; Zhang, C.; Huang, G.; Guo, H.; Cao, J.; Cao, Y.; Yu, J.; Chen, Z. Green synthesis of porous graphitic carbons from coal tar pitch templated by nano-CaCO3 for high-performance lithium-ion batteries. J. Alloys Compd. 2019, 795, 91–102. [Google Scholar] [CrossRef]
  7. Yang, Y.; Yan, Y.; Ren, B.; Fan, C.; Liu, Y.; Deng, Q.; Zhong, L.; You, C.; Xu, Y.; Yang, R. Modified nano-CaCO3 hard template method for hierarchical porous carbon powder with enhanced electrochemical performance in lithium-sulfur battery. Adv. Powder Technol. 2021, 32, 3574–3584. [Google Scholar] [CrossRef]
  8. Shen, F.; Qiu, M.; Hua, Y.; Qi, X. Dual-functional templated methodology for the synthesis of hierarchical porous carbon for supercapacitor. ChemistrySelect 2018, 3, 586–591. [Google Scholar] [CrossRef]
  9. Panchal, M.; Raghvendra, G.; Ojha, S.; Omprakash, M.; Acharya, S.K. A single step process to synthesize ordered porous carbon from coconut shells-eggshells biowaste. Mater. Res. Express 2019, 6, 115613. [Google Scholar] [CrossRef]
  10. Hsu, C.H.; Pan, Z.B.; Qu, H.T.; Chen, C.R.; Lin, H.P.; Sun, I.W.; Huang, C.Y.; Li, C.H. Green synthesis of nitrogen-doped multiporous carbons for oxygen reduction reaction using water-caltrop shells and eggshell waste. RSC Adv. 2021, 11, 15738–15747. [Google Scholar] [CrossRef]
  11. Liu, D.; Hao, Z.; Chen, D.; Jiang, L.; Li, T.; Tian, B.; Yan, C.; Luo, Y.; Chen, G.; Ai, H. Use of eggshell-catalyzed biochar adsorbents for Pb removal from aqueous solution. ACS Omega 2022, 7, 21808–21819. [Google Scholar] [CrossRef]
  12. Li, C.; Zhou, S.; Li, Q.; Gao, G.; Zhang, L.; Zhang, S.; Huang, Y.; Ding, K.; Hu, X. Activation of sawdust with eggshells. J. Anal. Appl. Pyrolysis 2023, 171, 105968. [Google Scholar] [CrossRef]
  13. Janissen, B.; Huynh, T. Chemical composition and value-adding applications of coffee industry by-products: A review. Resour. Conserv. Recycl. 2018, 128, 110–117. [Google Scholar] [CrossRef]
  14. Klingel, T.; Kremer, J.I.; Gottstein, V.; Rajcic de Rezende, T.; Schwarz, S.; Lachenmeier, D.W. A Review of coffee by-products including leaf, flower, cherry, husk, silver skin, and spent grounds as novel foods within the European Union. Foods 2020, 9, 665. [Google Scholar] [CrossRef]
  15. Hoseini, M.; Cocco, S.; Casucci, C.; Cardelli, V.; Corti, G. Coffee by-products derived resources. A review. Biomass Bioenergy 2021, 148, 106009. [Google Scholar] [CrossRef]
  16. Sugebo, B. A review on enhanced biofuel production from coffee by-products using different enhancement techniques. Mater. Renew. Sustain. Energy 2022, 11, 91–103. [Google Scholar] [CrossRef]
  17. Mora-Villalobos, J.A.; Aguilar, F.; Carballo-Arce, A.F.; José-Roberto Vega-Baudrit, J.R.; Trimino-Vazquez, H.; Villegas-Peñaranda, L.R.; Stöbener, A.; Eixenberger, D.; Bubenheim, P.; Sandoval-Barrantes, M.; et al. Tropical agroindustrial biowaste revalorization through integrative biorefineries—Review part I: Coffee and palm oil by-products. Biomass Convers. Biorefinery 2023, 13, 1469–1487. [Google Scholar] [CrossRef]
  18. Domingues, R.R.; Trugilho, P.F.; Silva, C.A.; de Melo, I.C.N.A.; Melo, L.C.A.; Magriotis, Z.M.; Sannchez-Monedero, M.A. Properties of biochar derived from wood and high-nutrient biomasses with the aim of agronomic and environmental benefits. PLoS ONE 2017, 12, e0176884. [Google Scholar] [CrossRef]
  19. Schellekens, J.; Silva, C.A.; Buurman, P.; Rittl, T.F.; Domingues, R.R.; Justi, M.; Vidal-Torrado, P.; Trugilho, P.F. Molecular characterization of biochar from five Brazilian agricultural residues obtained at different charring temperatures. J. Anal. Appl. Pyrolysis 2018, 130, 106–117. [Google Scholar] [CrossRef]
  20. Asfaw, E.; Nebiyu, A.; Bekele, E.; Ahmed, M.; Astatkie, T. Coffee-husk biochar application increased AMF root colonization, P accumulation, N2 fixation, and yield of soybean grown in a tropical Nitisol, southwest Ethiopia. J. Plant Nutr. Soil Sci. 2019, 181, 419–428. [Google Scholar] [CrossRef]
  21. Nguyen, X.C.; Nguyen, T.T.H.; Nguyen, T.H.C.; Le, Q.V.; Vo, T.Y.B.; Tran, T.C.P.; La, D.D.; Kumar, G.; Nguyen, V.K.; Chang, S.W.; et al. Sustainable carbonaceous biochar adsorbents derived from agro-wastes and invasive plants for cation dye adsorption from water. Chemosphere 2021, 282, 131009. [Google Scholar] [CrossRef]
  22. Ngalani, G.P.; Ondo, J.A.; Njimou, J.R.; Njiki, C.P.N.; Prudent, P.; Ngameni, E. Effect of coffee husk and cocoa pods biochar on phosphorus fixation and release processes in acid soils from West Cameroon. Soil Use Manag. 2023, 39, 817–832. [Google Scholar] [CrossRef]
  23. Setiawan, A.; Nurjannah, S.; Riskina, S.; Fona, Z.; Muhammad; Drewery, M.; Kennedy, E.M.; Stockenhuber, M. Understanding the thermal and physical properties of biochar derived from pre-washed arabica coffee agroindustry residues. Bioenergy Res. 2025, 18, 16. [Google Scholar] [CrossRef]
  24. Saenger, M.; Hartge, E.U.; Werther, J.; Ogada, T.; Siagi, Z. Combustion of coffee husks. Renew. Energy 2001, 23, 103–121. [Google Scholar] [CrossRef]
  25. Carneiro, A.d.C.O.; Zanuncio, A.J.V.; Carvalho, A.G.; Jorge, J.A.C.G.; dos Santos, R.J.C.; Demuner, I.F.; Peres, L.C.; Winter, S.G.; de Castro, V.R.; Branco-Vieira, M.; et al. Sustainable production of coffee husk pellets: Applying circular economy in waste management and renewable energy production. Resources 2025, 14, 26. [Google Scholar] [CrossRef]
  26. Chen, D.; Cen, K.; Zhuang, X.; Gan, Z.; Zhou, J.; Zhang, Y.; Zhang, H. Insight into biomass pyrolysis mechanism based on cellulose, hemicellulose, and lignin: Evolution of volatiles and kinetics, elucidation of reaction pathways, and characterization of gas, biochar and bio-oil. Combust. Flame 2022, 242, 112142. [Google Scholar] [CrossRef]
  27. Bansal, R.C.; Donnet, J.B.; Stoeckli, F. Active Carbon; Marcel Dekker: New York, NY, USA, 1988. [Google Scholar]
  28. Tsai, W.T.; Yang, J.M.; Hsu, H.C.; Lin, K.Y.; Chiu, C.S.; Chiu, C.H. Development and characterization of mesoporosity in eggshell ground by planetary ball milling. Microporous Mesoporous Mater. 2008, 111, 379–386. [Google Scholar] [CrossRef]
  29. Keiluweit, M.; Vico, P.S.; Johnson, M.G.; Kleber, M. Dynamic molecular structure of plant biomass-derived black carbon (biochar). Environ. Sci. Technol. 2010, 44, 1247–1253. [Google Scholar] [CrossRef]
  30. Condon, J.B. Surface Area and Porosity Determinations by Physisorption: Measurements and Theory; Elsevier: Amsterdam, The Netherlands, 2006. [Google Scholar]
  31. Lowell, S.; Shields, J.E.; Thomas, M.A.; Thommes, M. Characterization of Porous Solids and Powders: Surface Area, Pore Size and Density; Springer: Dordrecht, The Netherlands, 2006. [Google Scholar]
  32. Jagiello, J.; Castro-Gutierrez, J.; Canevesi, R.L.S.; Celzard, A.; Fierro, V. Comprehensive analysis of hierarchical porous carbons using a dual-shape 2D-NLDFT model with an adjustable slit-cylinder pore shape Boundary. ACS Appl. Mater. Interfaces 2021, 13, 49472–49481. [Google Scholar] [CrossRef]
  33. Gautam, S.; Charak, R. Calcium oxide: Synthesis and applications. In Calcium-Based Materials: Processing, Characterization, and Applications; Nanda, S.S., Singh, J.P., Gautam, S., Yi, D.K., Eds.; CRC Press: Boca Raton, FL, USA, 2024; pp. 88–105. [Google Scholar]
  34. Liu, X.; Shen, F.; Qi, X. Adsorption recovery of phosphate from aqueous solution by CaO-biochar composites prepared from eggshell and rice straw. Sci. Total Environ. 2019, 666, 694–702. [Google Scholar] [CrossRef]
  35. Li, L.; Yao, X.; Li, H.; Liu, Z.; Ma, W.; Liang, X. Thermal stability of oxygen-containing functional groups on activated carbon surfaces in a thermal oxidative environment. J. Chem. Eng. Jpn. 2004, 47, 21–27. [Google Scholar] [CrossRef]
  36. Islam, M.S.; Ang, B.C.; Gharehkhani, S.; Afifi, A.B.M. Adsorption capability of activated carbon synthesized from coconut shell. Carbon Lett. 2016, 20, 1–9. [Google Scholar] [CrossRef]
  37. Johnston, C.T. Biochar analysis by Fourier-transform infra-red spectroscopy. In Biochar: A Guide to Analytical Methods; Singh, B., Camps-Arbestain, M., Lehmann, J., Eds.; CRC Press: Boca Raton, FL, USA, 2017; pp. 199–228. [Google Scholar]
  38. Qiu, C.; Jiang, L.; Gao, Y.; Sheng, L. Effects of oxygen-containing functional groups on carbon materials in supercapacitors: A review. Mater. Des. 2023, 230, 111952. [Google Scholar] [CrossRef]
Catalysts 15 00712 g001

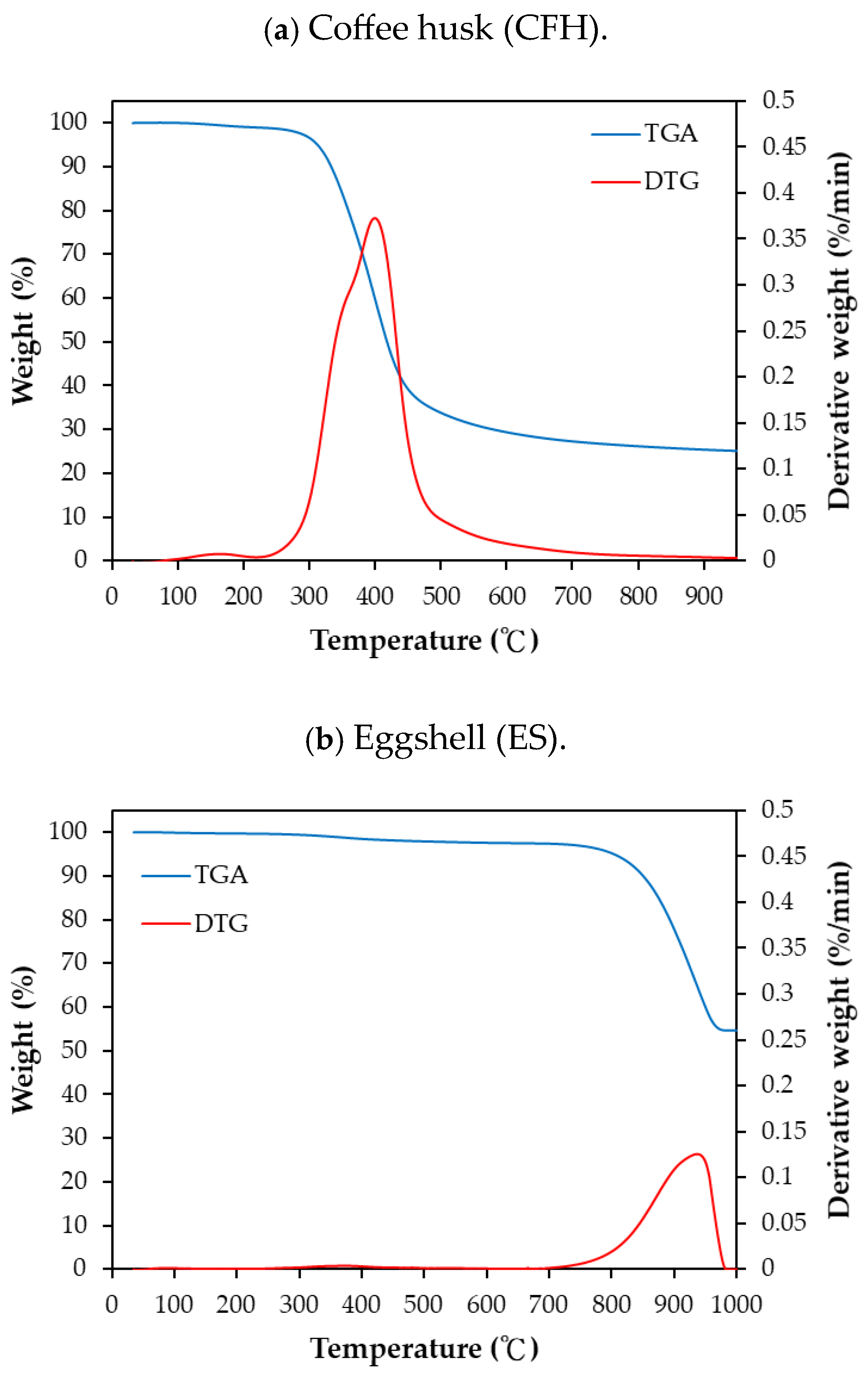

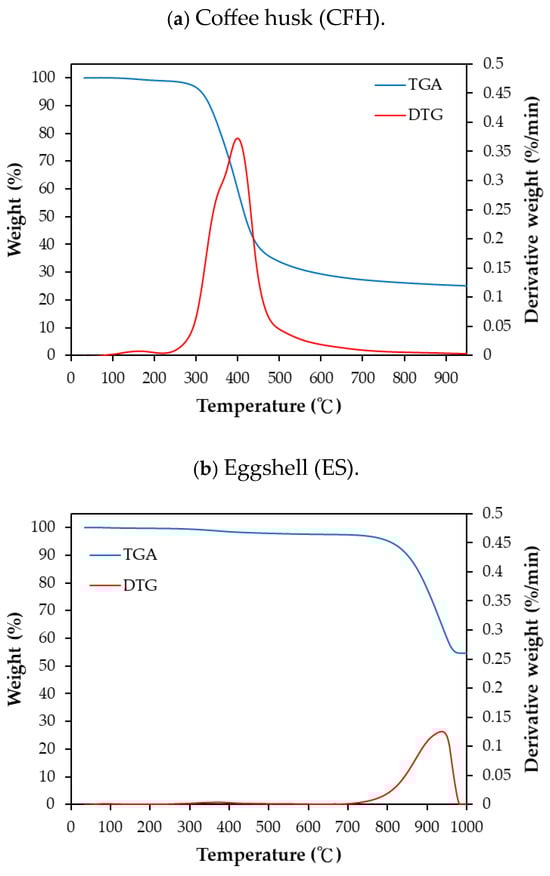

Figure 1. (a) Thermogravimetric analysis/derivative thermogravimetry (TGA/DTG) curves of (a) coffee husk and (b) eggshell at the heating rates of 10 °C/min.
Figure 1. (a) Thermogravimetric analysis/derivative thermogravimetry (TGA/DTG) curves of (a) coffee husk and (b) eggshell at the heating rates of 10 °C/min.
Catalysts 15 00712 g001
Catalysts 15 00712 g002

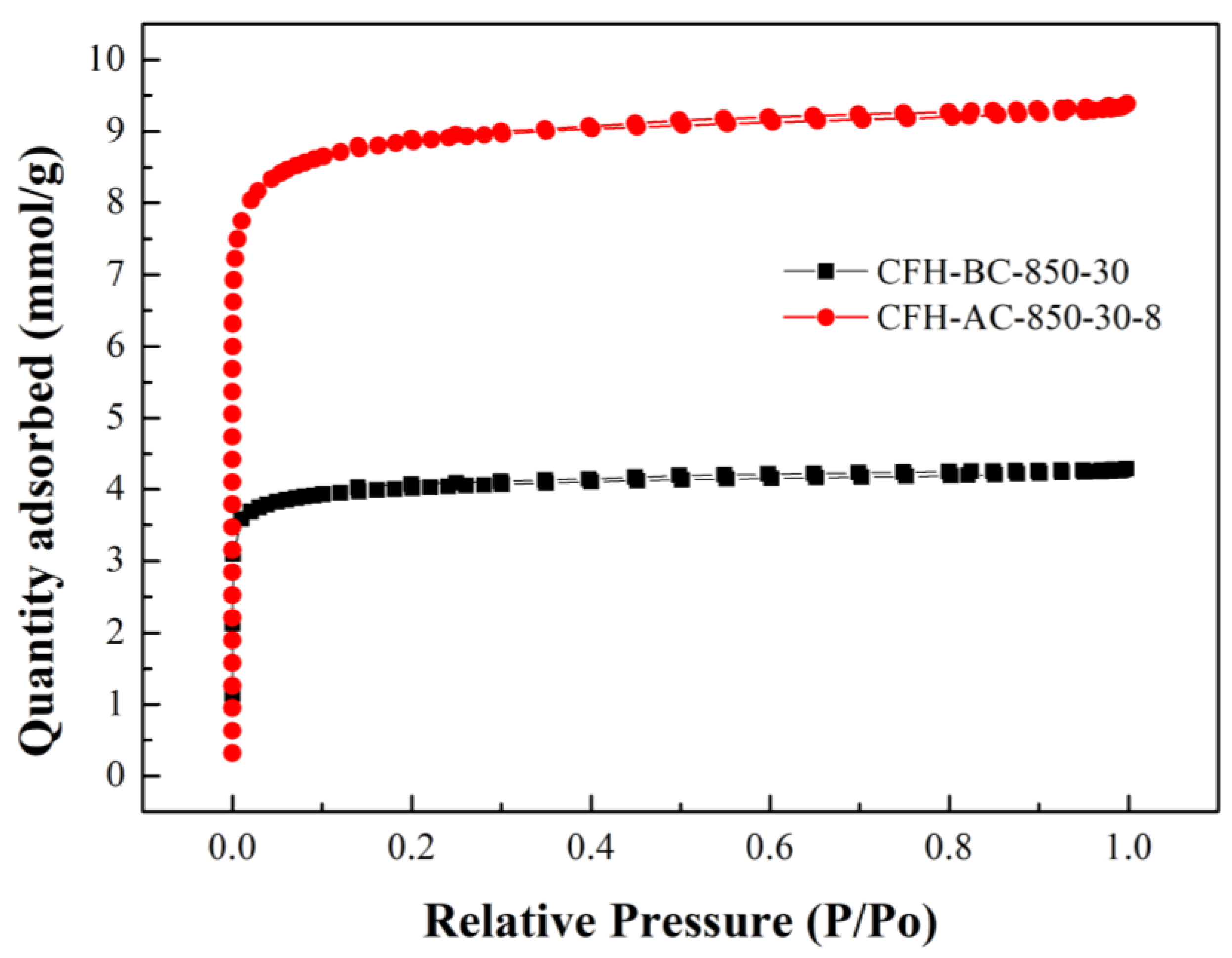

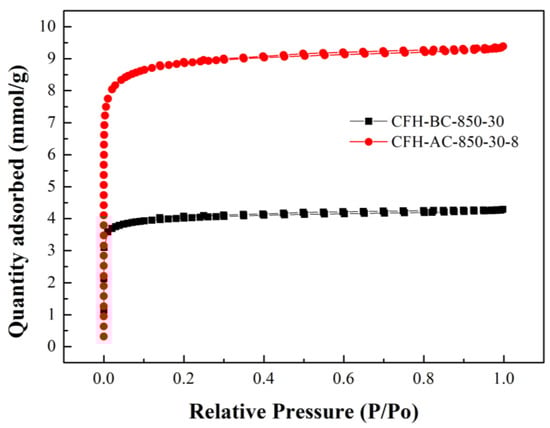

Figure 2. N2 adsorption–desorption isotherms of resulting carbon materials (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Figure 2. N2 adsorption–desorption isotherms of resulting carbon materials (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Catalysts 15 00712 g002
Catalysts 15 00712 g003

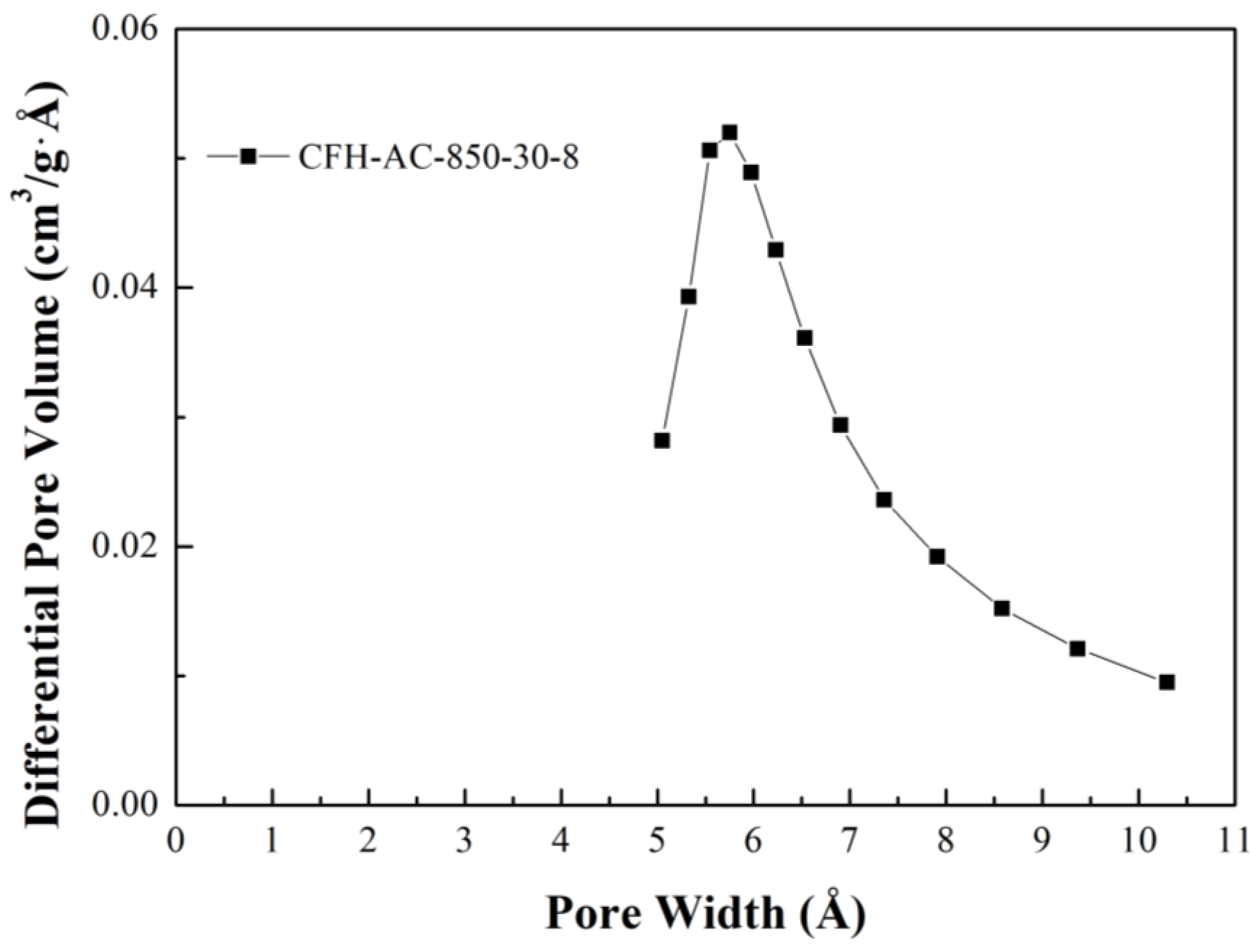

Figure 3. Horvath–Kawazoe differential pore volume plot of resulting carbon product (i.e., CFH-AC-850-30-8).
Figure 3. Horvath–Kawazoe differential pore volume plot of resulting carbon product (i.e., CFH-AC-850-30-8).
Catalysts 15 00712 g003
Catalysts 15 00712 g004

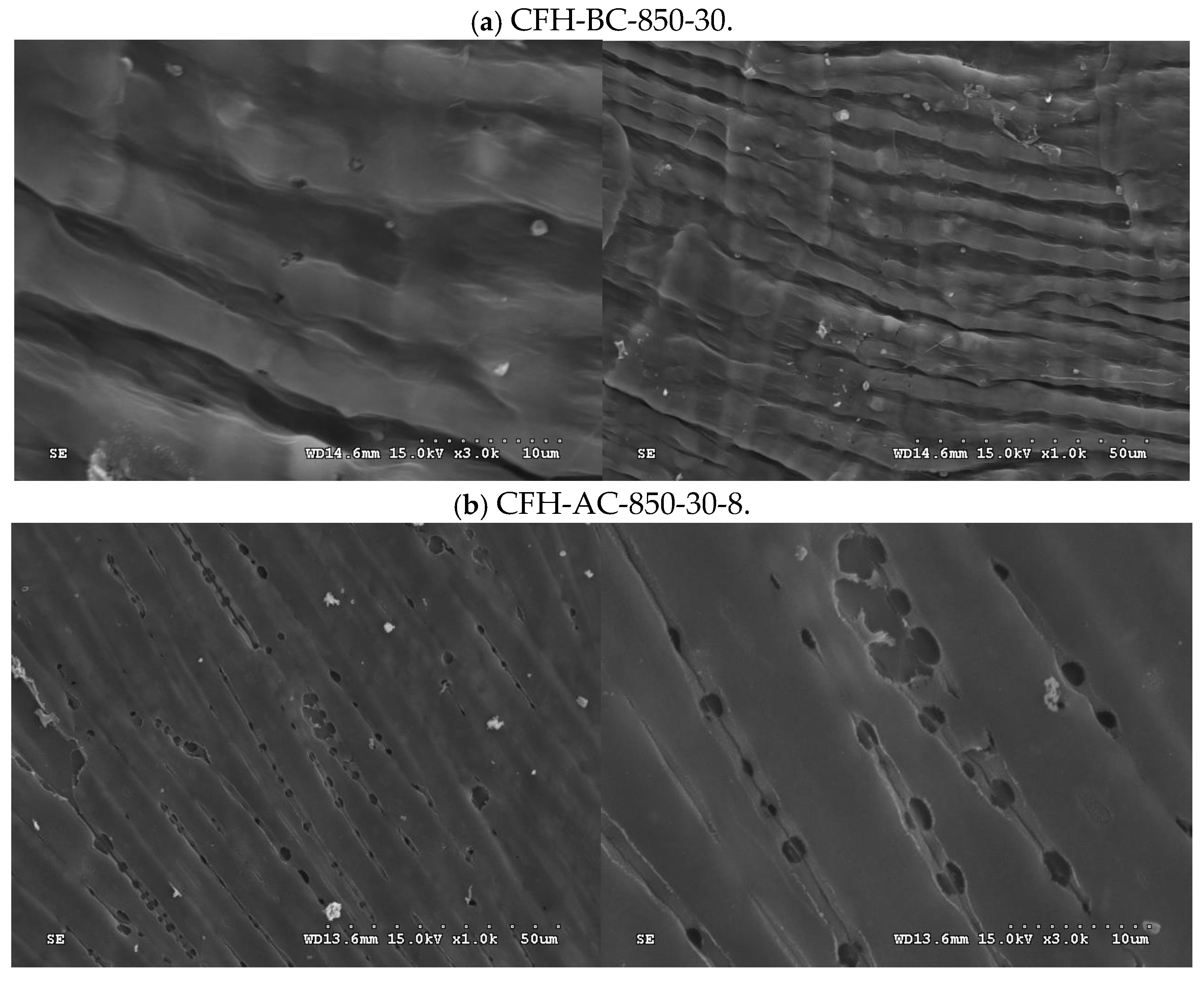

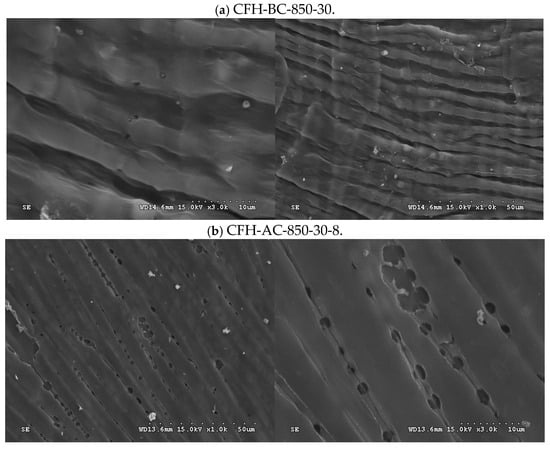

Figure 4. SEM images (Left: ×1000; Right: ×3000) of (a) CFH-BC-850-30 and (b) CFH-AC-850-30-8.
Figure 4. SEM images (Left: ×1000; Right: ×3000) of (a) CFH-BC-850-30 and (b) CFH-AC-850-30-8.
Catalysts 15 00712 g004
Catalysts 15 00712 g005

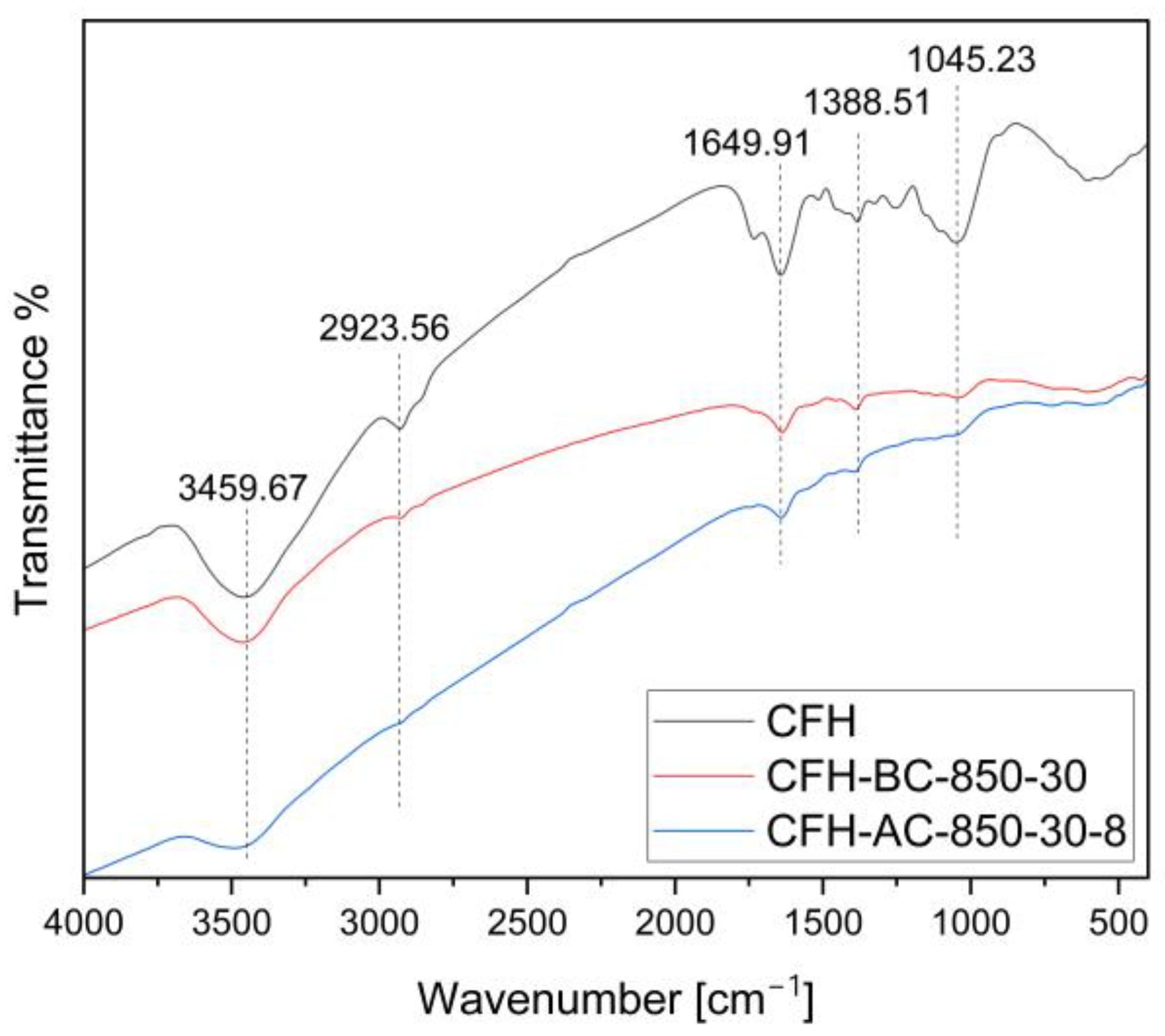

Figure 5. Fourier Transform infrared spectroscopy (FTIR) spectra of coffee husk (CFH) and the resulting carbon materials (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Figure 5. Fourier Transform infrared spectroscopy (FTIR) spectra of coffee husk (CFH) and the resulting carbon materials (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Catalysts 15 00712 g005
Table 1. Proximate analysis and calorific value of coffee husk.
Table 1. Proximate analysis and calorific value of coffee husk.
PropertyValue
Proximate analysis a,b
Ash (wt%) (wt%)1.05 ± 0.33
Volatile matter (wt%)79.60 ± 0.96
Fixed carbon c (wt%)19.36
Elemental analysis by EDS b,d
Carbon (wt%)45.60
Oxygen (wt%)53.45
Sulfur (wt%)0.13
Magnesium (wt%)0.46
Calcium (wt%)0.36
Calorific value b (MJ/kg)19.41 ± 0.80
a Mean ± standard deviation for three determinations. b Dry basis. c By difference. d Determined by Energy Dispersive Spectrometer (EDS).
Table 2. Data on BET surface area and total pore volume of CFH-based carbon products and their residual eggshell percentages.
Table 2. Data on BET surface area and total pore volume of CFH-based carbon products and their residual eggshell percentages.
Carbon Product CodeBET Surface Area a
(m2/g)		Total Pore Volume b
(cm3/g)		Residual Eggshell
(wt%)
CFH-BC-850-30321.380.148-
CFH-AC-850-30-2592.460.27160.65
CFH-AC-850-30-4636.770.29171.72
CFH-AC-850-30-6694.400.32173.04
CFH-AC-850-30-8714.560.32478.75
CFH-AC-850-20-8687.450.25979.06
CFH-AC-850-10-8712.240.32179.44
a Based on relative pressure range of 0.05–0.15 (7 points). b Single-point adsorption total pore volume of pores at P/Po of about 0.995.
Table 3. Pore properties of carbon products (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Table 3. Pore properties of carbon products (i.e., CFH-BC-850-30 and CFH-AC-850-30-8).
Pore PropertyCarbon Product Code
CFH-BC-850-30CFH-AC-850-30-8
Surface area
Single-point surface area (m2/g, at P/P0 of about 0.14)332.78732.97
BET surface area (m2/g) a321.38714.56
Langmuir surface area (m2/g)402.40887.67
t-plot micropore area (m2/g) b280.01620.14
t-plot external surface area (m2/g)41.3794.42
Pore volume
Single-point adsorption total pore volume of pores at P/Po of about 0.995 (cm3/g)0.1480.324
t-plot micropore volume (cm3/g) b0.1210.265
a Based on relative pressure range of 0.05–0.15 (7 points). b Obtained by using the t-plot method.
