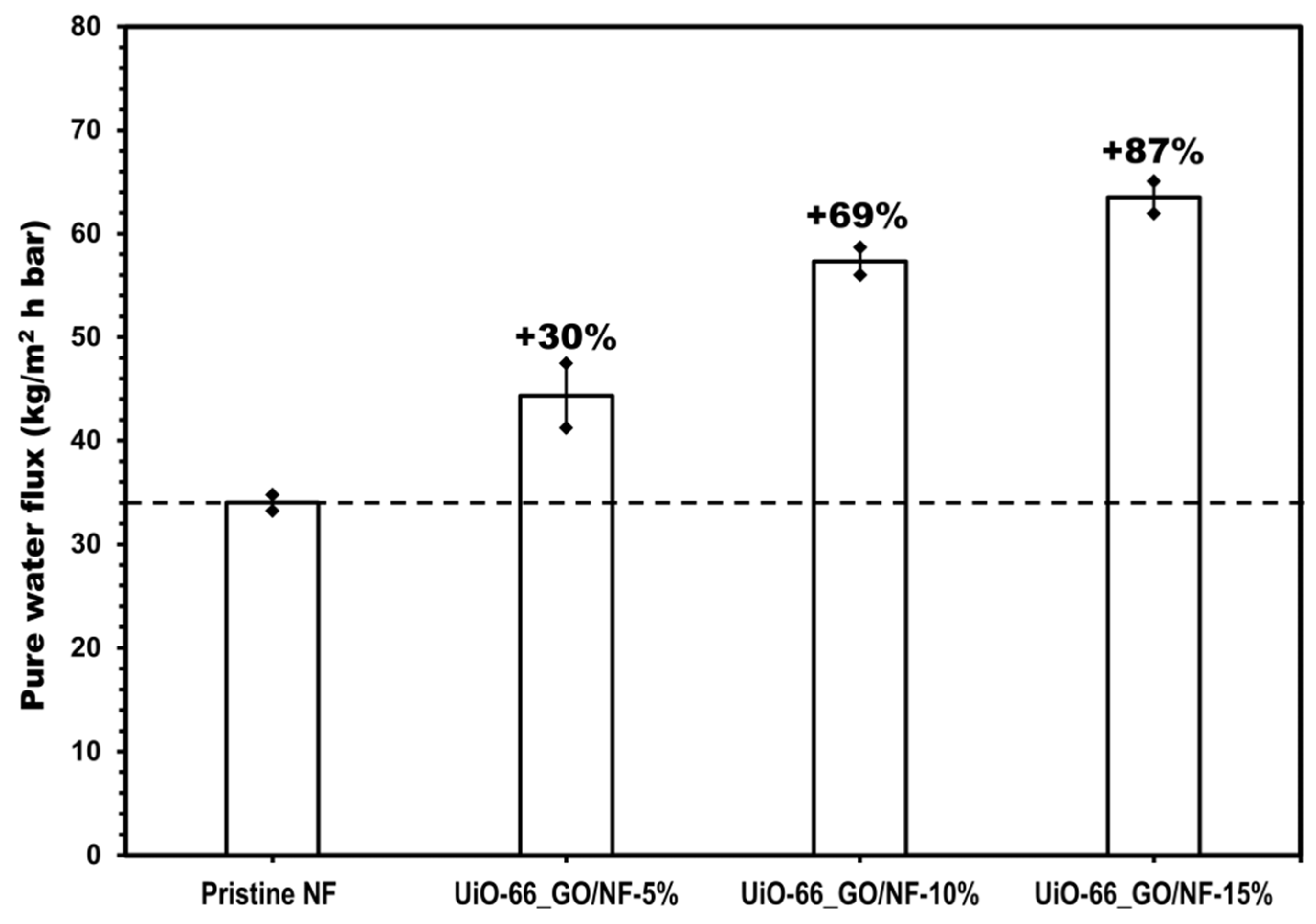

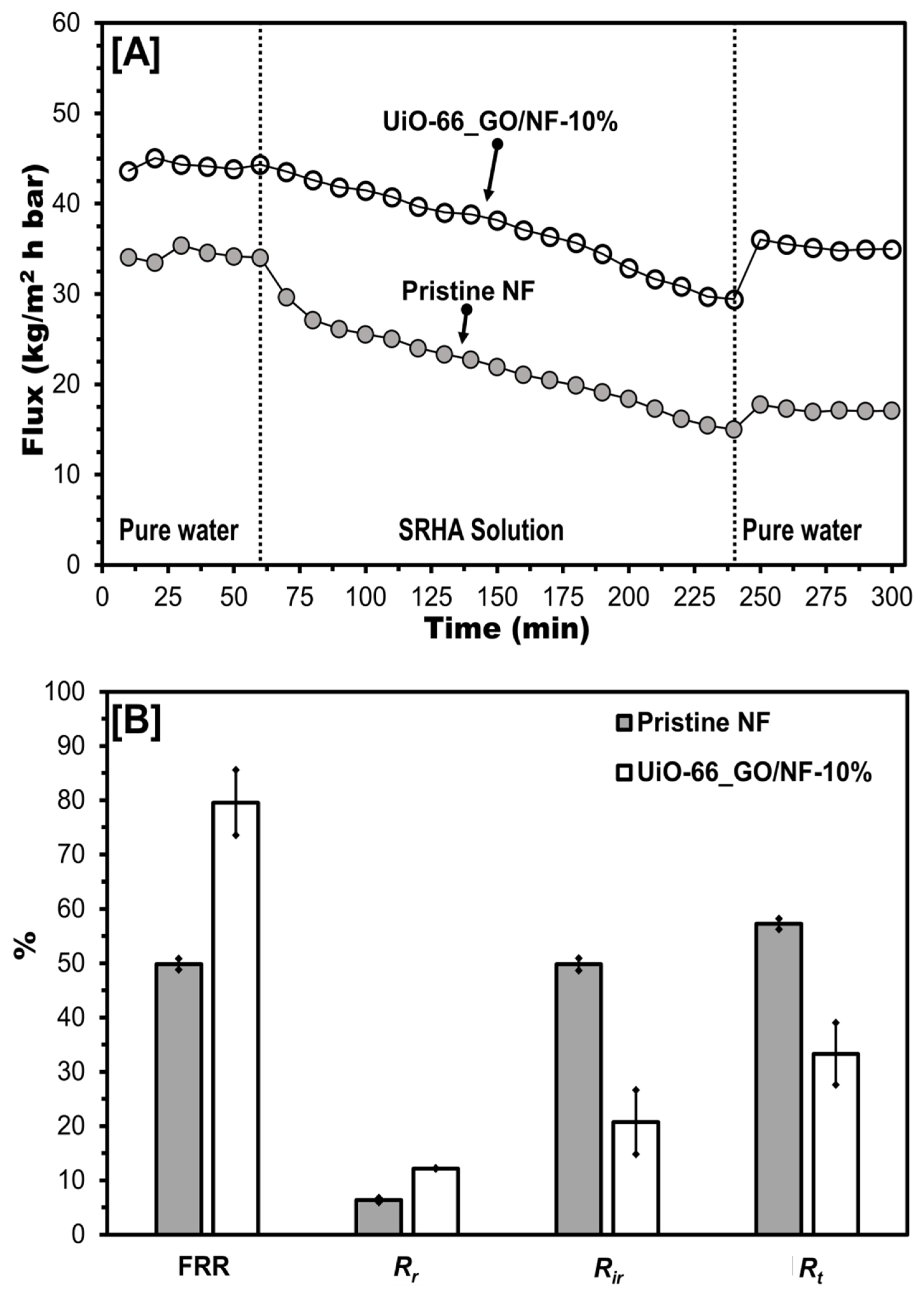

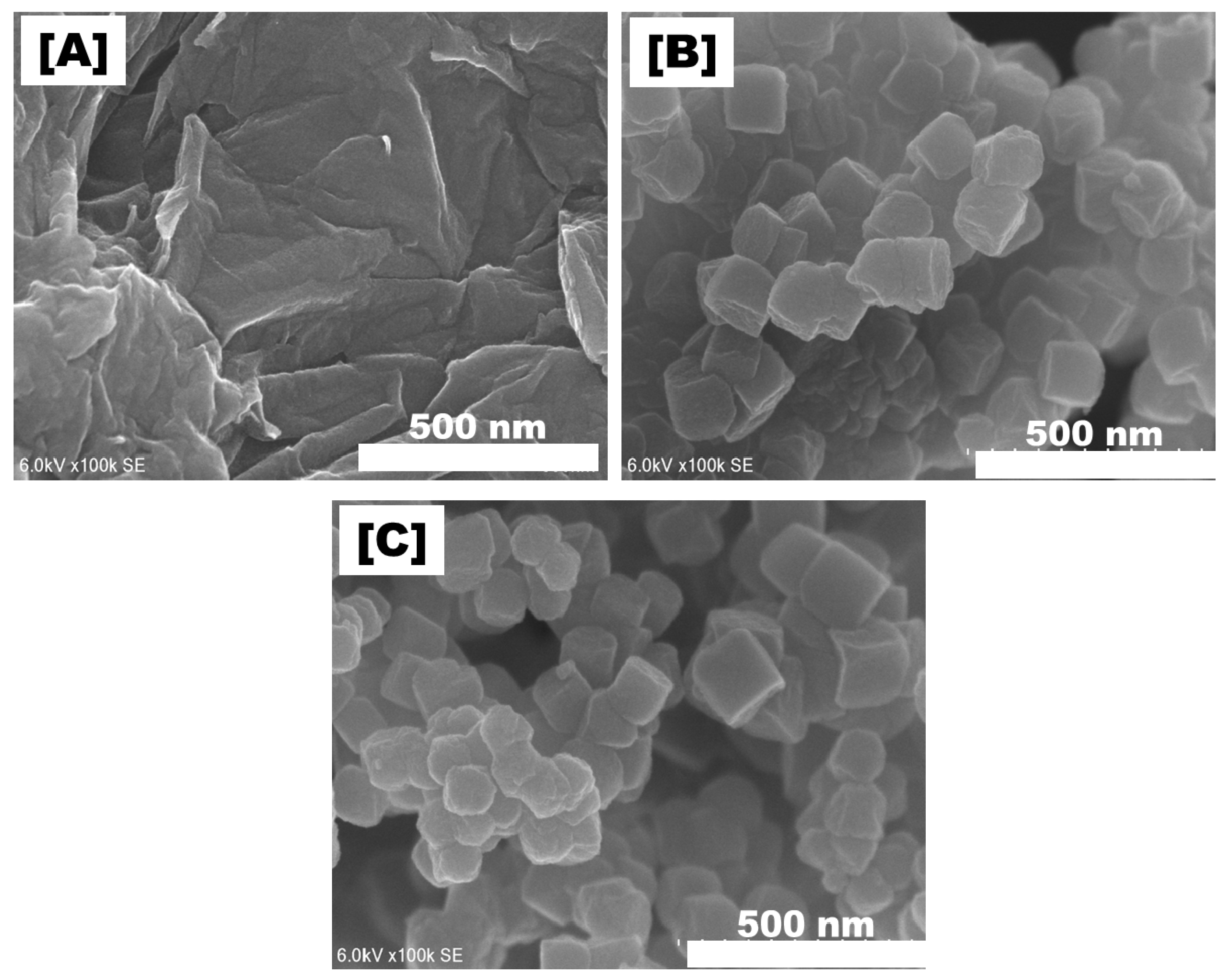

Photocatalytic nanofiltration (NF) membranes with enhanced flux and anti-fouling properties were prepared from a layered in situ nanocomposite of metal organic framework (i.e., UiO-66) and graphene oxide (UiO-66_GO) on a polyamide NF membrane using a pressure-assisted self-assembly method. For filtering pure water and humic acid, the composite membrane with a 10% UiO-66_GO loading (UiO-66_GO/NF-10%) showed a higher water flux (up to 63 kg/m2

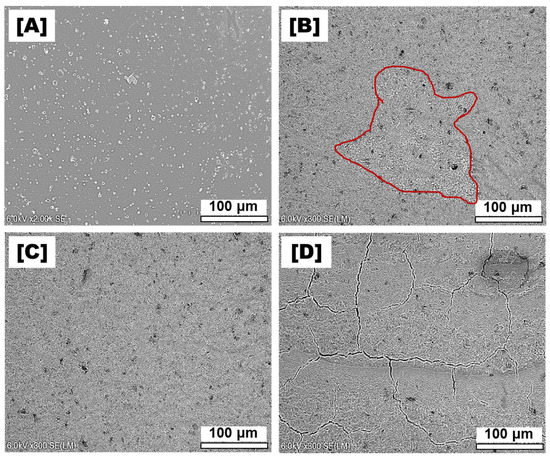

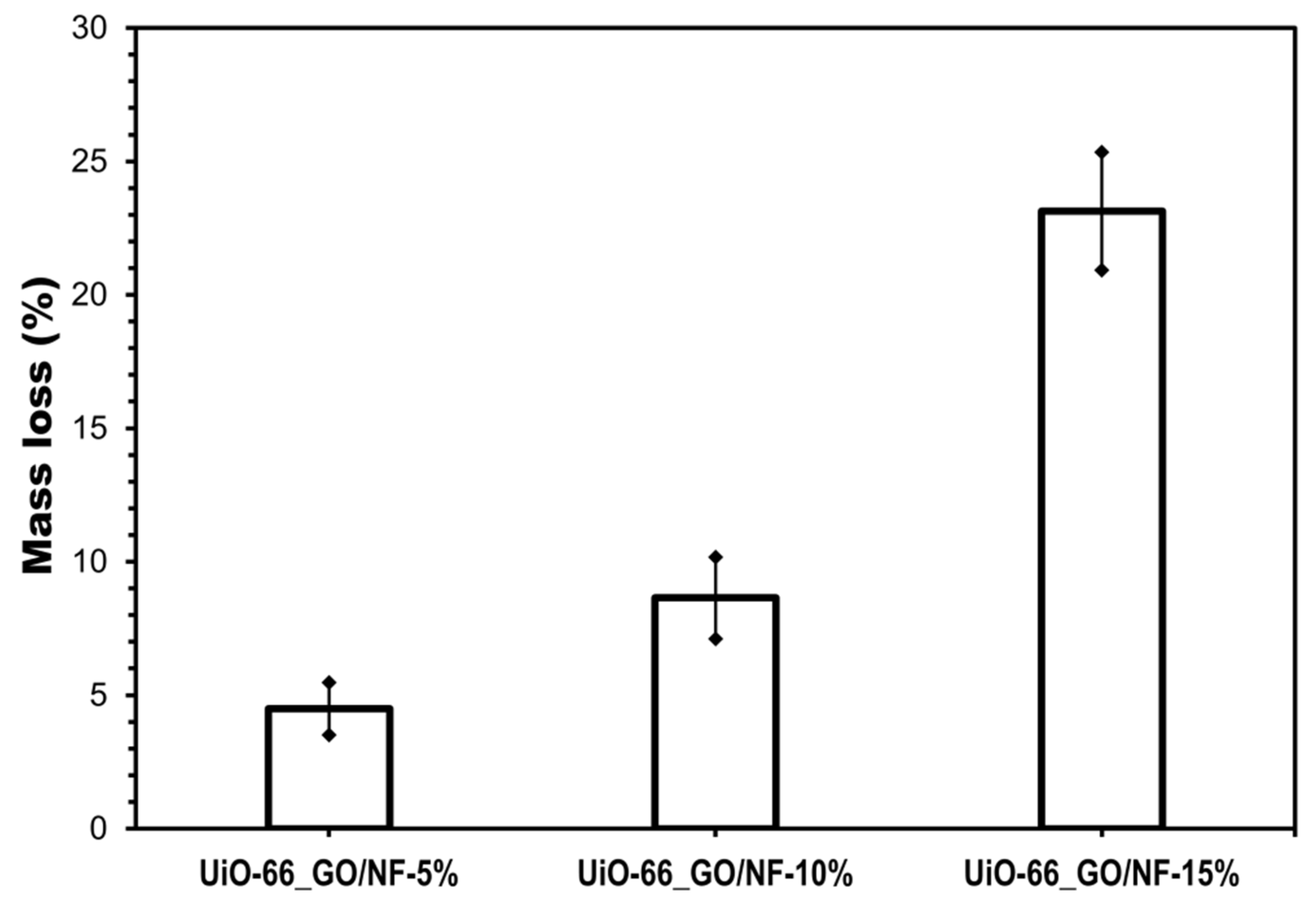

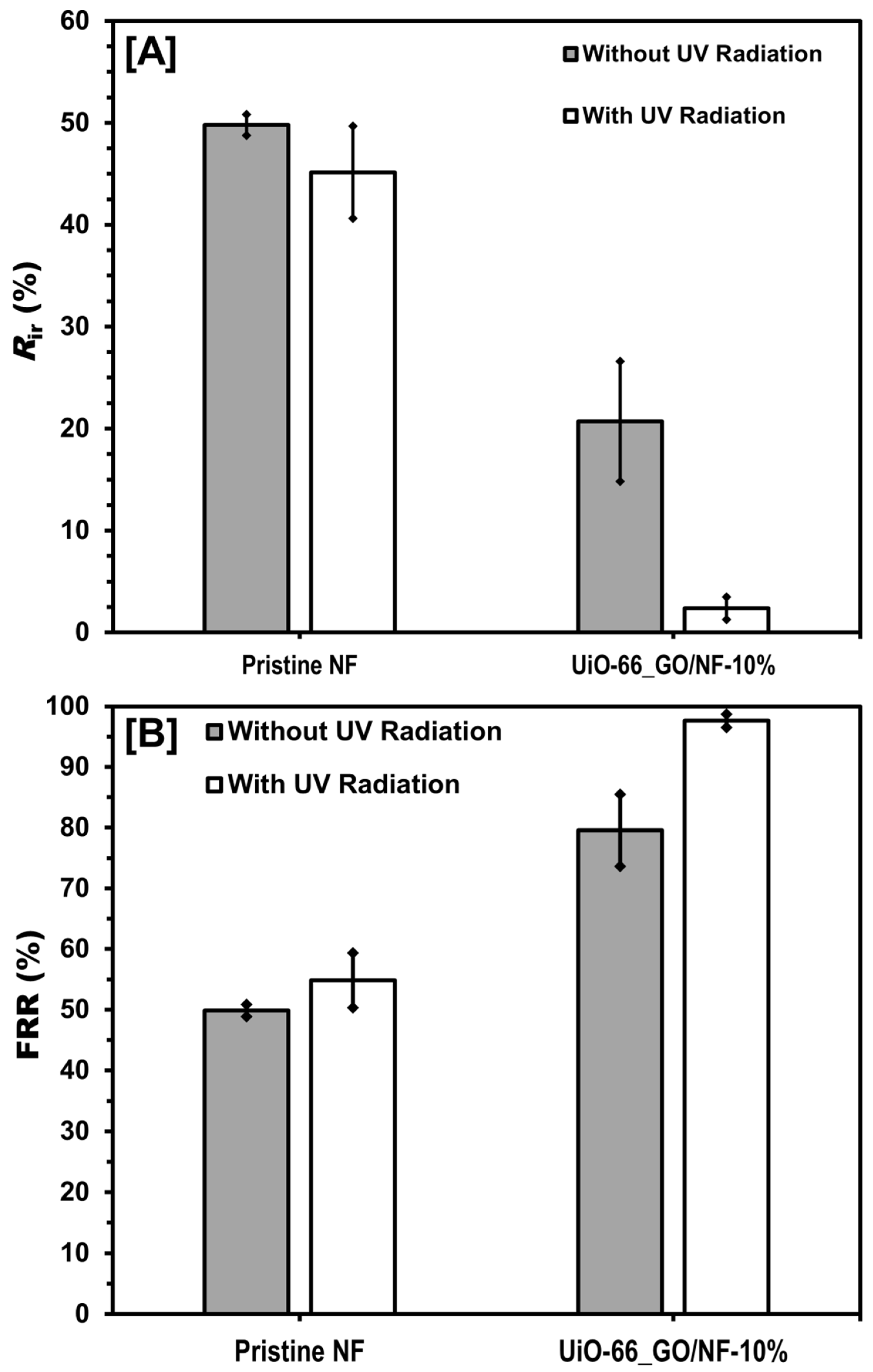

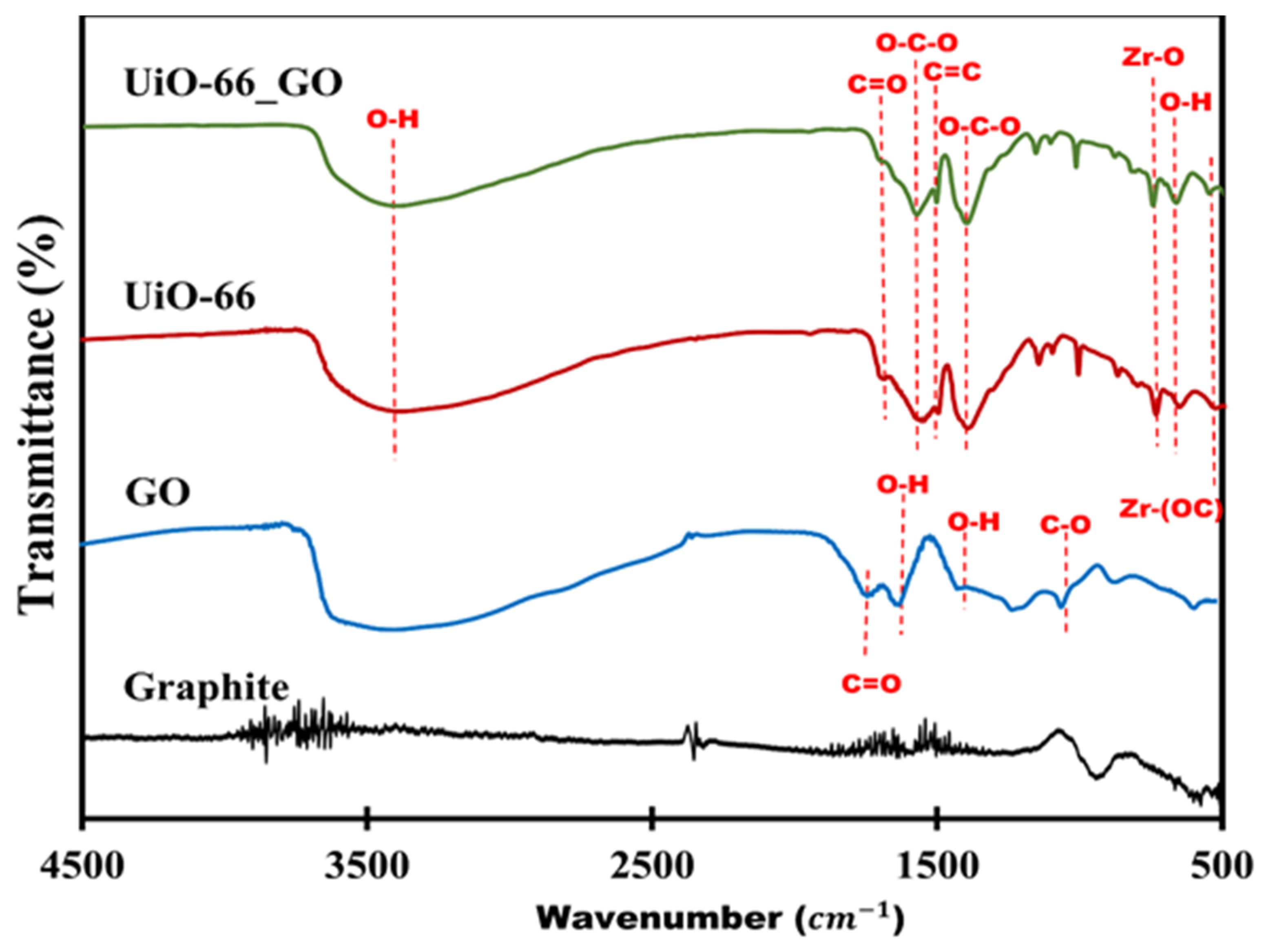

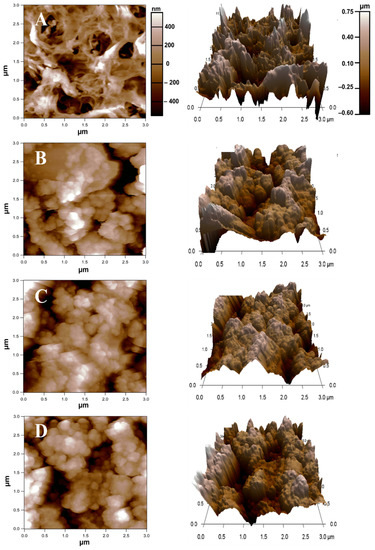

h bar), flux recovery (80%), and total fouling resistance (33%) than the pristine NF membrane. Physical and chemical characterization revealed that this performance was attributed to improvements in hydrophilicity, porosity, surface smoothness, and charge repulsion. The UiO-66_GO/NF-10% composite membrane exhibited better physical stability with a relatively low mass loss (8.64%) after five washes than the membranes with mass loadings of 5 and 15 wt%. Furthermore, the UiO-66_GO/NF-10% composite membrane exhibited considerable photocatalytic activity under ultraviolet (UV) irradiation (bandgap: 3.45 eV), which reduced irreversible fouling from 20.7% to 2.4% and increased flux recovery to 98%. This study demonstrated that surface modification with the UiO-66_GO nanocomposite produced a high-flux anti-fouling photocatalytic NF membrane, which is promising for water purification.

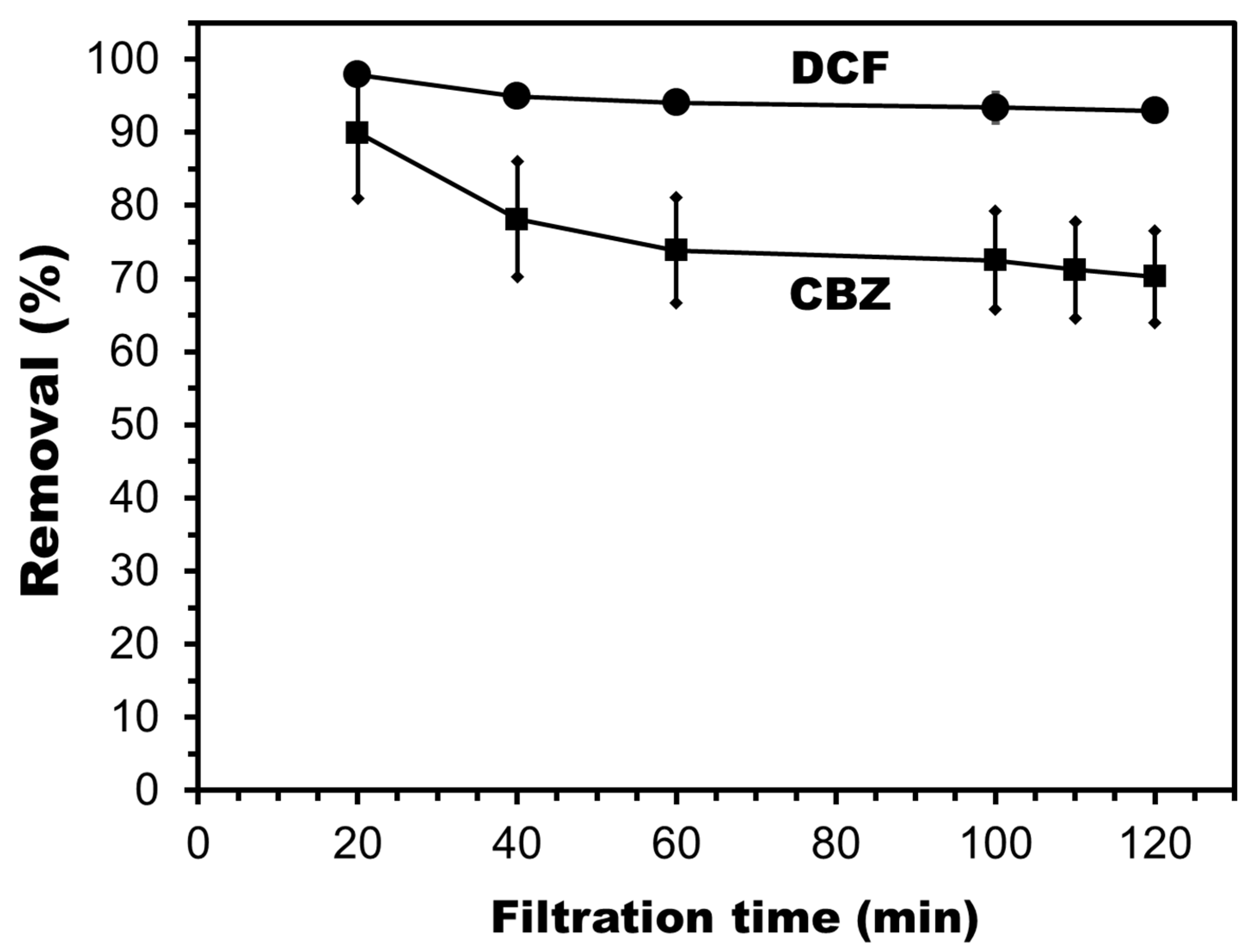

This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
