Catalytic Mechanism Comparison Between 1,2-Dichloroethane-Acetylene Exchange Reaction and Acetylene Hydrochlorination Reaction for Vinyl Chloride Production: DFT Calculations and Experiments

Abstract

The catalytic mechanism and activation energies of metal chlorides RuCl₃, AuCl₃, and BaCl₂ for 1,2-dichloroethane (DCE)-acetylene exchange reaction were studied with a combination of density functional theory (DFT) calculations and experiments. Two reported reaction pathways were discussed and acetylene-DCE complex pathway was supported through adsorption energy analysis. The formation of the second vinyl chloride monomer (VCM) was proven to be the rate-determining step, according to energy profile analysis. Activity sequence of BaCl₂ > RuCl₃ > AuCl₃ was predicted and experimentally verified. Furthermore, reversed activity sequences of this reaction and commercialized acetylene hydrochlorination reaction were explained: the adsorption abilities of reactants are important for the former reaction, but chlorine transfer is important for the latter.

1. Introduction

Poly vinyl chloride (PVC) is one of the most versatile plastics synthesized by radical polymerization of vinyl chloride monomer (VCM). China is the biggest PVC production country in the world, and over 80% of VCM is produced through the acetylene method (also called calcium carbide method) [1,2]. Acetylene hydrochlorination is the core reaction in the process [3,4]:

$$\mathrm{CH}\equiv \mathrm{CH}+\mathrm{HCl}\stackrel{\mathrm{Catalyst}}{\to }{\mathrm{CH}}_2=\mathrm{CHCl}\mathsf{\Delta }H=-124.8\mathrm{kJ}·{\mathrm{mol}}^{-1}$$

Mercury chloride that is loaded on carbon is the traditional industrial catalyst for this reaction, while the high toxicity and volatility can be a great threat to human and environment [5]. A worldwide Minamata Convention came into effect in 2017, which regulates specific policies on mercury inhibition [6]. New reaction routes and non-mercury catalysts for VCM production is urgently needed for future green PVC industry.

1,2-dichloroethane (DCE) is an important intermediate for organic synthesis, which is also the by-product of the coal-based industrial VCM process. However, its use is avoided in daily life and a further conversion is preferred due to toxicity and carcinogenicity. Therefore, the exchange reaction between DCE and acetylene to produce VCM is attractive in the academic field. This new process has been firstly reported by Jiang and Zhong et al. [7], and is therefore also called the “Jiang-Zhong VCM process”. The core reaction in this new process can be written as [4]:

$$\mathrm{CH}\equiv \mathrm{CH}+{\mathrm{ClCH}}_2{\mathrm{CH}}_2\mathrm{Cl}\stackrel{\mathrm{Catalyst}}{\to }2{\mathrm{CH}}_2=\mathrm{CHCl}\mathsf{\Delta }H=-29.7\mathrm{kJ}·{\mathrm{mol}}^{-1}$$

When comparing with traditional acetylene hydrochlorination process, the newly reported Jiang-Zhong VCM process has outstanding advantages: (1) higher yield of main product due to reuse of byproduct DCE; (2) lower heat effect due to good balance of endothermic (DCE decomposition) and exothermic (acetylene hydrochlorination) reactions; (3) avoidance of corrosive HCl; and, (4) halved acetylene consumption and corresponding waste generated from coal-based acetylene production. The new route can be regarded as a combination of the coal and petroleum chemical industry and it opens up new possibilities for greener VCM production. However, the published results on this new route are notably limited and an instructive understanding is of great importance.

Density functional theory (DFT) is becoming a very useful tool for computational material science and chemistry [8]. However, to the best of our knowledge, no DFT study has been reported for the new Jiang-Zhong VCM process, and the experimental exploration is also in the early stage. It is highly useful for guiding the rational development of novel DCE-acetylene exchange catalysts with the assistance of computational chemistry.

In this work, the catalytic reaction mechanisms of RuCl₃, AuCl₃, and BaCl₂ for DCE-acetylene exchange reaction were studied in detail by DFT calculation. The experiments were further carried out and a high consistency between DFT calculations and experimental results was achieved. When comparing with the traditional acetylene hydrochlorination reaction, the reversed activity sequence was anticipated, which was explained by the differences in mechanisms. The work provided guidance for the deep understanding and screening methodology of catalysts for DCE-acetylene exchange reaction, which can accelerate the development of this green and highly efficient route for VCM production.

2. Results and Discussion

2.1. Selection and Structure of Metal Chlorides

As for DCE-acetylene exchange reaction, Jiang et al. first reported the activity of BaCl₂ in 2013 [7]. Future work suggested that the BaCl₂ catalyst demonstrates 70% acetylene conversion and 98% selectivity to VCM at the temperature of 200–230 °C and acetylene GHSV (gas hourly space velocity) of 24 h⁻¹ [9]. In 2016, Zhao et al. reported a Ru-based catalyst for the reaction, which showed 15% acetylene conversion and 99% VCM selectivity at 250 °C and 57 h⁻¹ acetylene GHSV [10]. Besides, AuCl₃ also demonstrated unique adsorption and activation ability of acetylene, which is also advantageous for this reaction [11]. Therefore, these three metal chlorides were adopted as initial exploration in this work.

Metal chlorides were considered as the main active sites for this reaction, due to the fact that a reduced catalyst with metal clusters/particles demonstrates significantly reduced activity (Figure S8). A reasonable simplification was applied and the simplest structures of metal chlorides were selected during calculation. First, metal chlorides in its original form were optimized and Figure S1 shows the results. It can be concluded that RuCl₃ and BaCl₂ are non-polar molecules (zero dipole moment) with regular plane triangular and linear structure, respectively, while AuCl₃ demonstrates an isosceles triangular structure with a dipole moment of 0.0671 Debye. Other references also confirmed these specific structures [12,13,14,15,16].

2.2. Possible Reaction Mechanisms

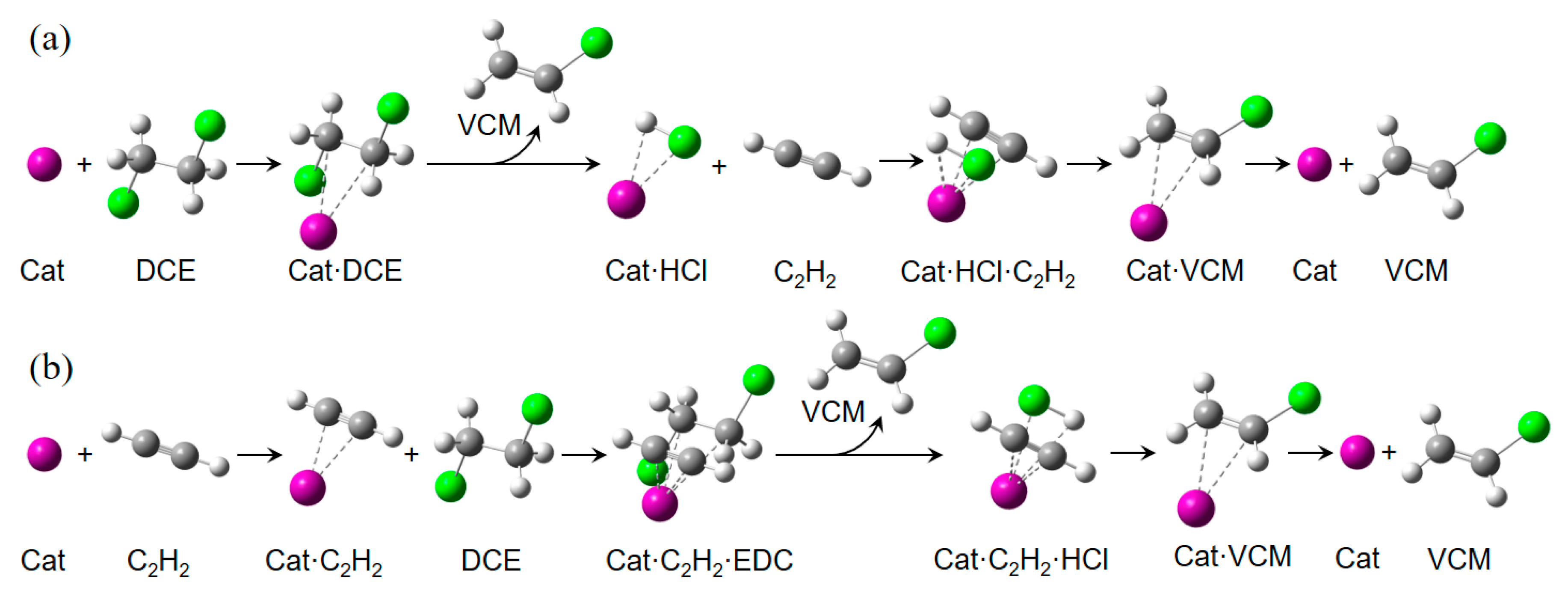

In this work, two possible reaction pathways were taken into consideration, which were also discussed in previous work [17,18]. Figure 1 shows the illustration of two pathways, in which the catalyst (Cat) is temporarily represented by a dummy atom for clarity. The first pathway is defined as the DCE decomposition pathway. In this pathway, DCE first gets adsorbed on the catalytic surface and releases one VCM molecule, leaving one adsorbed HCl molecule. Afterwards, the catalyst further adsorbs one C₂H₂ molecule and another VCM molecule is formed. Finally, the catalyst returns to its original form after the desorption of the second VCM molecule. The second pathway is defined as the acetylene-DCE complex pathway. In the first step, C₂H₂ rather than DCE gets adsorbed. Next, one DCE molecule gets adsorbed, subsequently forming an acetylene-DCE complex. Subsequently, one VCM molecule gets released and the rest HCl and C₂H₂ molecules form another VCM. Finally, the second VCM gets desorbed and the catalyst returns to its original form. It can be seen that the most significant difference between the two pathways is the adsorption sequence in the first step: DCE gets adsorbed prior to C₂H₂ in the first pathway and C₂H₂ gets adsorbed prior to DCE in the second pathway. Therefore, the adsorption ability of C₂H₂ and DCE becomes a crucial criterion for the priority of two pathways.

2.3. Adsorption Energy on Metal Chlorides

The adsorption energy calculation of the important species in this reaction was carried out in the optimized metal chloride systems. Figure S2 gives the structures and

Table 1. Adsorption energies of DCE, C₂H₂, HCl, and vinyl chloride monomer (VCM) on the catalytic surfaces. Unit: kJ mol⁻¹.

Catalyst	Eads(DCE)	Eads(C2H2)	Eads(HCl)	Eads(VCM)
RuCl3	−22.6	−149.3	36.0	−193.4
AuCl3	−51.4	−106.0	39.1	−179.0
BaCl2	−122.9	−161.9	−73.9	−215.0

lists the corresponding adsorption energies. Besides, Table S1 lists important structure parameters of each species. It should be noted that the adsorption of C₂H₂ is stronger than DCE for all catalysts, which indicates that C₂H₂ tends to be adsorbed on the catalytic surface prior to DCE. Therefore, the second pathway (acetylene-DCE complex pathway) in Figure 1b is supported, as discussed in the previous part. Furthermore, the adsorption of VCM is also stronger than HCl for all cases, which indicates that the adsorbed HCl species tends to desorb prior to VCM. This conclusion is another evidence against the first pathway (DCE decomposition pathway): VCM gets desorbed prior to HCl in this pathway, contradicting with calculated adsorption energies. However, no VCM gets desorbed prior to HCl or C₂H₂, respectively (rather than the co-adsorbed species), in the second pathway, and it is thus proved to be more reasonable.

According to Table 1, BaCl₂ demonstrates the strongest adsorption ability for all four species. Especially for HCl, BaCl₂ leads to moderate adsorption energy, while the adsorption of HCl is not favorable on RuCl₃ and AuCl₃ (positive adsorption energy). This tendency can be explained by the flexibility of BaCl₂, since the linear structure can be easily deformed to suit for adsorbates, as shown in Figure S2. The conclusion is also proved by the structure parameters listed in Table S1, since the bond lengths of adsorbed species increase the most on BaCl₂ surface. The strong adsorption of reactant is a great advantage of BaCl₂ to be the suitable catalyst for DCE-acetylene exchange reaction.

2.4. Energy Profiles

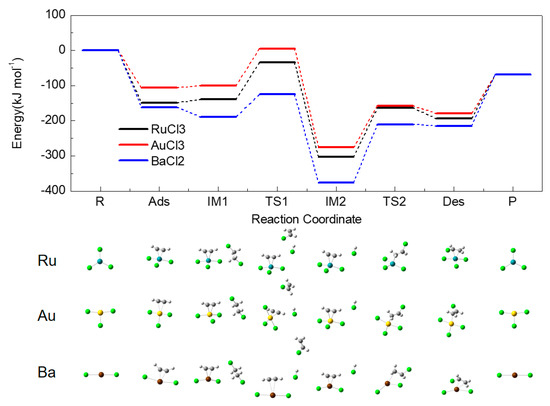

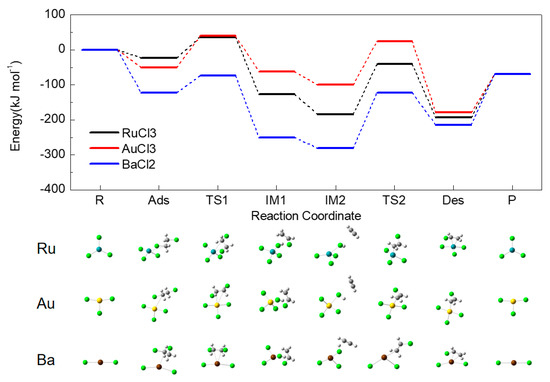

The energy profiles for two reaction pathways were calculated. Tables S2 and S3 list the original energy values. Figure 2 and Figure 3 shows the energy profiles and corresponding structures. It can be seen that, in both pathways, the energies of transition states (TS1 and TS2 in Figure 2 and Figure 3) have the sequence of BaCl₂ < RuCl₃ < AuCl₃. A sequence of BaCl₂ > RuCl₃ > AuCl₃ can be expected for assisting the reaction since lower energy leads to more stable reaction intermediates. This conclusion is consistent with the discussion in the previous part and published experimental studies, in which BaCl₂ gives the highest activity [9,10]. It is interesting that noble metals, such as Au and Ru, do not show advantages for this reaction, despite their prominent performance for acetylene hydrochlorination reaction (activity sequence of AuCl₃ > RuCl₃ > BaCl₂ has been reported, Figure S3) [19,20,21,22]. Section 2.7 provides the explanation of reversed activity sequences for the two reactions.

2.5. Activation Energy

Table 2. Activation energies for two reaction pathways at 473.15 K. Experimental values and the relative errors are also listed. Energy unit: kJ mol⁻¹.

Catalyst	DCE Decomposition			Acetylene-DCE Complex			Ea (exp)	Error (%)
	Ea1	Ea2	ΔGRDS	Ea1	Ea2	ΔGRDS
RuCl3	58.6	142.9	185.5	105.4	139.6	189.1	152.8	−19.2
AuCl3	90.6	125.5	128.0	106.6	118.5	141.4	134.2	−5.1
BaCl2	49.0	159.7	176.6	64.8	165.8	167.3	141.3	−15.5

lists the energy barriers of metal chloride systems during the two reaction pathways. E_a1 refers to E_TS1-E_Ads in DCE-decomposition pathway and E_TS1-E_IM1 in acetylene-DCE complex pathway, while E_a2 denotes E_TS2-E_IM2 in both pathways. It can be seen that E_a2 > E_a1 in all cases, indicating the formation of the second VCM is the rate-determining step for all catalysts in both pathways. The activation energy ΔG_RDS (at 473.15 K) was calculated as the Gibbs free energy difference of the rate-determining step. It can be seen that the activation energy in two pathways are similar for all of the metal chloride catalysts, which can be explained by the similarity of the last step in both reaction pathways. The corresponding activation energies of RuCl₃, AuCl₃, and BaCl₂ are adopted to be 189.1, 141.4, and 167.3 kJ mol⁻¹, respectively, since the second pathway is proved to be favorable. These values can be further compared with experimental activation energies (E_a(exp)), which will be shown in Section 2.6.

2.6. Comparison with Experimental Data

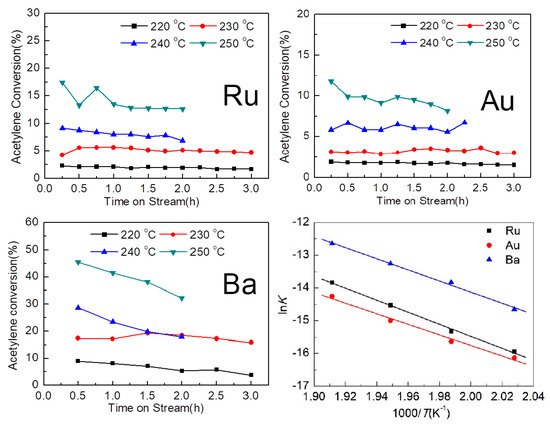

Experiments were carried out to further verify the predictions based on DFT calculations. All metal chlorides were loaded on activated carbon support with a 10% weight content through impregnation in order to facilitate the dispersion of active metal chlorides and produce comparable results. The support activated carbon was proved to show extremely limited activity in the DCE-acetylene exchange reaction, as shown in Figure S8. Detailed evaluation process (Figure S4) and kinetic study can be found in the Supplementary Information (Figures S5–S7). Figure 4 shows the logarithm of reaction rate constant K vs the reciprocal of reaction temperature (1/T) results.

It can be seen that at a certain temperature, the lnK value of catalysts follows the sequence of BaCl₂ > RuCl₃ > AuCl₃, which also indicates the same catalytic activity sequence. Besides, the experimental activation energies (E_a(exp)) are also compared with the DFT calculation results (ΔG_RDS) given in Table 2. The relative errors are less than 20% for all metal chlorides and the values among different metal catalysts are in the same sequence, which indicates great consistency between the experimental data and theoretical calculation. The successful prediction of catalytic activity can also be greatly helpful for the further design of catalysts for this reaction.

2.7. Comparison with Acetylene Hydrochlorination Process

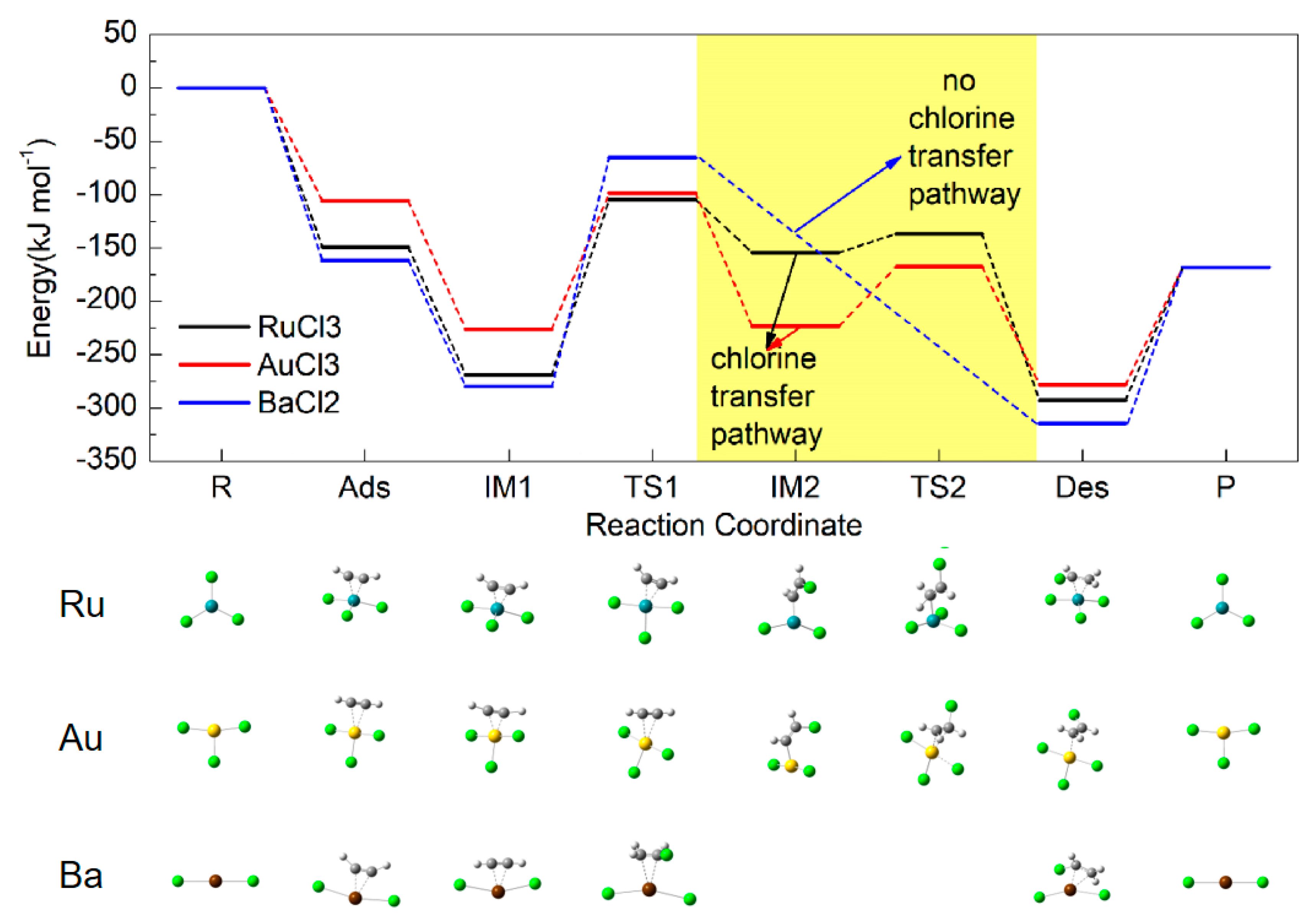

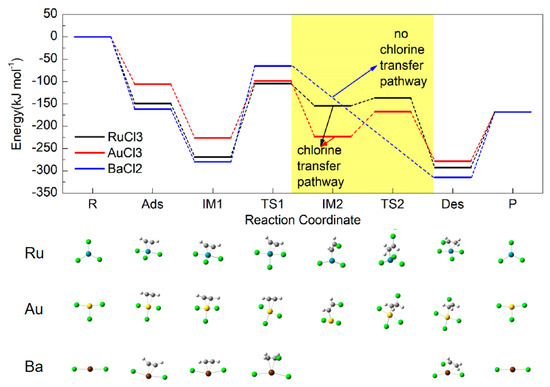

Further energy analysis of acetylene hydrochlorination reaction was carried out to explain the reversed activity of metal chlorides for two reactions, as mentioned previously. Table S4 lists original energy values. Figure 5 shows the energy profiles and corresponding structures. AuCl₃ and RuCl₃ undergo a chlorine transfer pathway reported in previous study [23], in which one Cl atom is transferred from metal chloride to C₂H₂ molecule during the reaction. This pathway significantly reduces the energies of intermediates and facilitates the reaction, and the excellent chlorine transfer ability makes AuCl₃ the ideal catalyst for this reaction [23,24]. However, the energy of IM2 in chlorine transfer pathway is so high (−27.8 kJ mol⁻¹ for BaCl₂ compared with −136.7 for RuCl₃ and −167.7 for AuCl₃) that the corresponding calculations do not give a converged structure of TS2, although BaCl₂ still demonstrates the strongest adsorption of C₂H₂ in the first step (formation of Ads). Therefore, the chloride transfer pathway is not suitable for BaCl₂, and a direct C₂H₂ and HCl combination pathway is adopted, which gives unique IM1 and TS1 species. The energy of transition state in rate-determining step has the sequence of BaCl₂ < RuCl₃ < AuCl₃ and the activation energy is calculated to be 349.4, 158.5, and 122.3 kJ mol⁻¹ for BaCl₂, RuCl₃, and AuCl₃ respectively, due to the difference in chloride transfer ability. Therefore, the activity sequence AuCl₃ > RuCl₃ > BaCl₂ for this reaction can be explained. This conclusion is crucial for catalyst design, because the screening criteria of metal chlorides for DCE-acetylene exchange reaction are significantly different from those for acetylene hydrochlorination reaction. Chlorides with higher adsorption energy of reactants are anticipated to be preferable for the previous reaction, while the chlorine transfer ability is important for the latter.

3. Calculation Methodology

Gaussian 09 software (Gaussian, Inc., Wallingford, CT, USA) [25] was used in the entire calculation process. B3LYP functional, which is also widely used in relevant DFT studies, was selected to achieve the balance of accuracy and calculation expenses and produce data that can be easily compared with other published results. Therefore, B3LYP functional with default electron spin was used throughout the study [26]. Mixed electron basis set was adopted for calculation to make the best of calculation expenses. Specifically, light atoms, including H, C, and Cl, were described by 6–31 g (d) basis set and metal atoms were described by the Lanl2dz effective core potential (ECP) basis set. Energy minimum was achieved for all optimized structures, except transition states (TS), and the energy of TS was confirmed to be saddle point with one imaginary frequency.

Adsorption energies were used to quantify the adsorption strength of relevant species and defined, as in Equation (1):

$$E_{\mathrm{Ads}}=E_{\mathrm{A}-\mathrm{C}}-E_{\mathrm{A}}-E_{\mathrm{C}}$$

(1)

where E_Ads is the adsorption energy, E_A-C is the energy of adsorbed species together with catalyst, E_A is the energy of free adsorbate, and E_C is the energy of catalyst in its original form.

The energy of catalysts and reactants in original form was set to zero (symbol R in reaction coordinate) in the illustration of energy profiles in order to keep clarity. Subsequently, the energy of each species in reaction pathways was corrected by Equation (2):

$$E_{\mathrm{S}}=E_{\mathrm{S}0}-E_{\mathrm{C}}-E_{\mathrm{DCE}}-E_{\mathrm{C}2\mathrm{H}2}$$

(2)

where E_S is the corrected energy of species S and it is shown in energy profiles, E_S0 is the original calculated energy of species S, and E_C, E_DCE, and E_C2H2 refer to the energy of catalyst, 1,2-dichloroethane, acetylene in the original form, respectively.

The calculated activation energy E_a was determined by the Gibbs free energy difference in the rate-determining step of corresponding reaction pathway, as shown in Equation (3):

$$E_a=\mathsf{\Delta }{G}_{\mathrm{RDS}}={\displaystyle \sum G_{\mathrm{Product}}-{\displaystyle \sum G_{\mathrm{Reactant}}}}$$

(3)

In Equation (3), the Gibbs free energy of each species was derived from thermal correction of electronic energies through frequency calculation. The typical temperature of 473.15 K (200 °C), which is most commonly used for this reaction, was applied throughout the calculation.

4. Conclusions

Two possible reaction pathways for DCE-acetylene exchange reaction, namely the DCE decomposition pathway and the acetylene-DCE complex pathway, were proposed and the second pathway was proved to be more favourable through adsorption energy calculation. The combination of C₂H₂ and HCl to form the second VCM molecule was proved to be the rate-determining step. An activity sequence of BaCl₂ > RuCl₃ > AuCl₃ was predicted, and the activation energies were determined to be 189.1, 141.4, and 167.3 kJ mol⁻¹ for RuCl₃, AuCl₃, and BaCl₂ respectively. These calculation results were confirmed by experiments, and it is quite interesting that non-noble metals are more suitable than noble metals for this reaction, which can be an obvious cost advantage for practical applications. The different performances of the metal chlorides for two VCM producing reactions were successfully predicted and explained by revealing corresponding mechanisms, in which the adsorption ability is important for DCE-acetylene exchange reaction, while chloride transfer ability is important for acetylene hydrochlorination reaction. The results give instructions for catalyst design and preparation before the experimental study, which can accelerate the development of catalysts in the environmentally friendly new DCE route for VCM production.
