Fully Automatic Deep Learning Framework for Pancreatic Ductal Adenocarcinoma Detection on Computed Tomography

1
Diagnostic Image Analysis Group, Department of Medical Imaging, Radboud University Medical Center, 6500 HB Nijmegen, The Netherlands
2
Department of Medical Imaging, Radboud Institute for Health Sciences, 6500 HB Nijmegen, The Netherlands
*
Author to whom correspondence should be addressed.
Cancers 2022, 14(2), 376; https://doi.org/10.3390/cancers14020376
Submission received: 30 November 2021 / Revised: 6 January 2022 / Accepted: 12 January 2022 / Published: 13 January 2022

Abstract

:

Simple Summary

Early image-based diagnosis is crucial to improve outcomes in pancreatic ductal adenocarcinoma (PDAC) patients, but is challenging even for experienced radiologists. Artificial intelligence has the potential to assist in early diagnosis by leveraging high amounts of data to automatically detect small (<2 cm) lesions. In this study, the state-of-the-art, self-configuring framework for medical segmentation nnUnet was used to develop a fully automatic pipeline for the detection and localization of PDAC lesions on contrast-enhanced computed tomography scans, with a focus on small lesions. Furthermore, the impact of integrating the surrounding anatomy (which is known to be relevant to clinical diagnosis) into deep learning models was assessed. The developed automatic framework was tested in an external, publicly available test set, and the results showed that state-of-the-art deep learning can detect small PDAC lesions and benefits from anatomy information.

Abstract

Early detection improves prognosis in pancreatic ductal adenocarcinoma (PDAC), but is challenging as lesions are often small and poorly defined on contrast-enhanced computed tomography scans (CE-CT). Deep learning can facilitate PDAC diagnosis; however, current models still fail to identify small (<2 cm) lesions. In this study, state-of-the-art deep learning models were used to develop an automatic framework for PDAC detection, focusing on small lesions. Additionally, the impact of integrating the surrounding anatomy was investigated. CE-CT scans from a cohort of 119 pathology-proven PDAC patients and a cohort of 123 patients without PDAC were used to train a nnUnet for automatic lesion detection and segmentation (nnUnet_T). Two additional nnUnets were trained to investigate the impact of anatomy integration: (1) segmenting the pancreas and tumor (nnUnet_TP), and (2) segmenting the pancreas, tumor, and multiple surrounding anatomical structures (nnUnet_MS). An external, publicly available test set was used to compare the performance of the three networks. The nnUnet_MS achieved the best performance, with an area under the receiver operating characteristic curve of 0.91 for the whole test set and 0.88 for tumors <2 cm, showing that state-of-the-art deep learning can detect small PDAC and benefits from anatomy information.

1. Introduction

Pancreatic ductal adenocarcinoma (PDAC) is the most common form of pancreatic cancer, which has the worst prognosis of all cancer diseases worldwide with a 5-year relative survival rate of only 10.8% [1,2]. The incidence of pancreatic cancer is increasing, and it is estimated to become the second leading cause of cancer-related deaths in Western societies by 2030 [2,3]. Patients diagnosed in early disease stages, where the tumors are small (size < 2 cm) and frequently resectable, present a much higher 3-year survival rate (82%) than patients diagnosed in later disease stages where the tumors are larger (17%) [4]. Unfortunately, tumors are rarely found in early stages, and approximately 80–85% of patients present with either unresectable or metastatic disease at the time of diagnosis [1]. Given these statistics, it is clear that early diagnosis of PDAC is crucial to improve patient outcomes, as reversing the stage distribution would more than double the overall survival, without any additional improvements in therapy [5].
Early PDAC detection is challenging, as most patients do not present specific symptoms until advanced disease stages, and screening the general population is cost-prohibitive with current technology [5,6]. Furthermore, PDAC tumors are difficult to visualize in computed tomography (CT) scans, which are the most used modality for initial diagnosis, as lesions present irregular contours and poorly-defined margins [5]. This becomes an even more significant challenge in the initial disease stages as lesions are not only small (<2 cm), but are also often iso-attenuating, making them easily overlooked even by experienced radiologists [7]. A recent study that reconstructed the progression of CT changes in prediagnostic PDAC showed that suspicious changes could be retrospectively observed 18 to 12 months before clinical PDAC diagnosis. However, the radiologists’ sensitivity at identifying those changes, and consequently referring patients for further investigation, was only 44% [8].
Artificial intelligence (AI) can potentially assist radiologists in early PDAC detection by leveraging high amounts of imaging data. Deep learning models, and more specifically convolutional neural networks (CNNs), are a class of AI algorithms especially suited for image analysis and have shown high accuracy in the image-based diagnosis of various types of cancer [9,10,11]. CNNs take the scan as the input and automatically extract relevant features for the diagnostic task by performing a series of sequential convolution and pooling operations.
Clinically relevant computer-aided diagnostic systems should have the ability to both detect the presence of cancer and, in the positive cases, localize the lesion in the input image, with minimal to no required user interaction.
Recently, deep learning models have started to be investigated for automatic PDAC diagnosis [12,13,14,15,16,17]. However, most studies perform only binary classification of the input image as cancerous or not cancerous, without simultaneous lesion localization. Furthermore, the majority of publications do not focus on small, early-stage lesions, with only one study reporting the model performance for tumors with size < 2 cm [15].
In this study, we hypothesize that state-of-the-art deep learning architectures can be used to detect and localize PDAC lesions accurately, especially regarding the subgroup of tumors with a size < 2 cm. We propose a fully automatic deep-learning framework that takes an abdominal CE-CT scan as the input and produces a tumor likelihood score and a likelihood map as the output. Furthermore, we assess the impact of surrounding anatomy integration, which is known to be relevant for clinical diagnosis [7], on the performance of the deep-learning models. The framework performance is validated using an external, publicly available test set, and the results on the subgroup of tumors < 2 cm in size are also reported.

2. Materials and Methods

2.1. Dataset

This study was approved by the institutional review board (Radboud University Medical Centre, Nijmegen, The Netherlands, CMO2016-3045, protocol version 3, 21 September 2018), and informed consent from individual patients was waived due to its retrospective design. CE-CT scans in the portal venous phase from 119 patients with pathology-proven PDAC in the pancreatic head (PDAC cohort) and 123 patients with normal pancreas (non-PDAC cohort), acquired between 1 January 2013 and 1 June 2020, were selected for model development.
Two publicly available abdominal CE-CT datasets containing scans in the portal venous phase were combined and used for model testing: (1) The training set of the “The Medical Segmentation Decathlon” pancreatic dataset (MSD) from the Memorial Sloan Kettering Cancer Center (Manhattan, NY, USA), consisting of 281 patients with pancreatic malignancies (including lesions in the head, neck, body, and tail of the pancreas) and voxel-level annotations for the pancreas and lesion [18], and (2) “The Cancer Imaging Archive” dataset from the US National Institutes of Health Clinical Center, containing 80 patients with normal pancreas and respective voxel-level annotations [19,20].
The size of the tumors was measured from the tumor segmentation as the maximum diameter in the axial plane.

2.2. Image Acquisition and Labeling

The CE-CT scans were acquired with five scanners (Aquilion One, Toshiba (Tochigi, Japan); Sensation 64 and SOMATOM Definition AS+, Siemens Healthcare (Forchheim, Germany); Brilliance 64, Philips Healthcare (Best, The Netherlands); BrightSpeed, GE Medical system, (Milwaukee, WI, USA)). The slice thickness was 1.0–5.0 mm, and the image size was either 512 × 512 pixels (232 images) or 1024 × 1024 pixels (10 images). Images with 1024 × 1024 pixels were resampled to 512 × 512 prior to inclusion in model development.
All images from the PDAC-cohort were manually segmented using ITK-SNAP version 3.8.0 [21] by trained medical students, and were verified and corrected by an abdominal radiologist with 17 years of experience in pancreatic radiology. The annotations included the segmentation of the tumor, pancreas parenchyma, and six surrounding relevant anatomical structures, namely the surrounding veins (portal vein, superior mesenteric vein, and splenic vein), arteries (aorta, superior mesenteric artery, celiac trunk, hepatic artery, and splenic artery), pancreatic duct, common bile duct, pancreatic cysts (if present), and portomeseneric vein thrombosis (if present).

2.3. Automatic PDAC Detection Framework

This study uses a segmentation-oriented approach for automatic PDAC detection and localization, where each voxel in the image is assigned either a tumor or non-tumor label. The models in the proposed pipeline were developed using the state-of-the-art, self-configuring framework for medical segmentation, nnUnet [22]. All models employed a 3D U-Net [23] as the base architecture and were trained for 250,000 training steps with five-fold cross-validation.
Regions of interest (ROIs) around the pancreas were manually extracted for both the PDAC and non-PDAC cohorts. An anatomy segmentation network was trained to segment the pancreas and the other anatomical structures (refer to the previous section), using the extracted ROIs from the scans in the PDAC cohort. This network was used to automatically annotate the ROIs from the non-PDAC cohort, which were then combined with the manually annotated PDAC cohort to train three different nnUnet models for PDAC detection and localization, namely: (1) segmenting only the tumor (nnUnet_T); (2) segmenting the tumor and pancreas (nnUnet_TP); and (3) segmenting the tumor, pancreas, and the multiple surrounding anatomical structures (nnUnet_MS). These networks were trained with two different initializations and identical five-fold cross-validation splits, creating ten models for each configuration. The cross-entropy loss function was used for the PDAC detection networks as it has been shown to be more suitable for segmentation-oriented detection tasks than the soft DICE + cross-entropy loss function, which is selected by default in the nnUnet framework [24,25]. Additionally, the full CE-CT scans from the PDAC cohort were downsampled to a resolution of 256 × 256 and were used to train a low-resolution pancreas segmentation network, which was then employed to automatically extract the pancreas ROI from unseen images during inference.
At the inference time, images were downsampled, and the low-resolution pancreas segmentation network was used to obtain a coarse segmentation of the pancreas. This coarse mask was upsampled back to the original image resolution and dilated with a spherical kernel to close any existing gaps. Finally, a fixed margin was applied to automatically extract the ROI, which was the input to the previously described PDAC detection models.
This extraction margin was defined based on the cross-validation results obtained with the PDAC cohort, so that no relevant information was lost while cropping the ROI.
Each of the PDAC detection models (nnUnet_T, nnUnet_TP, and nnUnet_MS) outputs a voxel-level tumor likelihood map, which indicates the regions of the image where the network predicts a PDAC lesion and the respective prediction confidence. In the case of the nnUnet_TP and nnUnet_MS networks, a segmentation of the pancreas is also produced. This segmentation was used in post-processing to reduce false positives outside the pancreas by masking the tumor confidence maps so that only the PDAC predictions in the pancreas region were maintained.
After post-processing, candidate PDAC lesions were extracted iteratively from the tumor likelihood map by selecting the voxel with a maximum predicted likelihood and including all connected voxels (in 3D) with at least 40% of this peak likelihood value. Then, the candidate lesion was removed from the model prediction, and the process was repeated until no candidates remained or a maximum of five lesions were extracted. The final output of the framework was a tumor likelihood defined as the maximum value of the tumor likelihood map.
A schematic representation of the inference pipeline from the original image input to the final tumor likelihood prediction is shown in Figure 1.

2.4. Analysis

Patient-level performance was evaluated using the receiver operating characteristic (ROC) curve, while lesion-level performance was evaluated using the free-response receiver operating characteristic (FROC) curve. The ROC analysis assesses the model’s confidence whether a tumor is or is not present by plotting the true positive rate (sensitivity) against the false positive rate (1-specificity) at different thresholds for the model output, defined as the maximum value of the tumor likelihood map. The FROC analysis additionally assesses whether the model identified the lesion in the correct location by plotting the true positive rate against the average number of false positives per image at different thresholds for each individual lesion prediction [26,27]. Each 3D candidate lesion extracted from the tumor detection likelihood map was represented by the maximum confidence value within that lesion candidate for the subsequent FROC analysis. A candidate lesion was considered a true positive if the DICE similarity coefficient with the ground truth (calculated in 3D between the whole extracted candidate lesion volume and the tumor ground truth volume) was at least 0.1. This threshold was set in line with well-established previously published studies of the same nature considering other cancer diseases [10,28] as it addresses the clinical need for object-level localization, while also taking into account the non-overlapping nature of objects in 3D.
To compare the three different PDAC-detection configurations, the ten trained models for each were applied individually to the test set. A permutation test with 100,000 iterations was then used to assess statistically significant differences between the area under the ROC curve (AUC-ROC) and partial area under the FROC curve (pAUC-FROC), which was calculated in the interval of [0.001–5] false positives per patient. A confidence level of 97.5% was used to assess statistical significance (with Bonferroni correction for multiple comparisons). The final performance for each configuration was obtained by ensembling the predictions of the ten models.

3. Results

The clinical characteristics of the patients in the PDAC cohort are summarized in Table 1. For the non-PDAC cohort, the mean age was 52.3 ± 21.4 (years), and there were 54 female and 69 male patients.
The performances of the three different PDAC detection network configurations on the internal five-fold cross-validation sets are shown in Table 2. At the patient level, nnUnet_MS achieves the best performance, with an AUC-ROC of 0.991. Regarding lesion localization performance, the three configurations achieve a similar pAUC-FROC, with nnUnet_MS and nnUnet_TP performing slightly better than nnUnet_T.
The mean ROC and FROC curves obtained on the external test set with each PDAC detection network configuration are shown in Figure 2, with the respective 95% confidence intervals. These curves were calculated using the 10 different trained models (two initializations with five-fold cross-validation) for each configuration. nnUnet_MS and nnUnet_TP both achieve an AUC-ROC around 0.89, which is significantly higher than nnUnet_T (p = 0.007 and p = 0.009, respectively). At a lesion level, nnUnet_MS achieves a significantly higher pAUC-FROC than both nnUnet_TP and nnUnet_T (p < 10−4).
The median size of the tumors in the MSD dataset was 2.5 cm (IQR: 2.0–3.2). There were 73 tumors < 2 cm in size in the MSD dataset. Figure 3 shows the patient and lesion level results for each configuration on this sub-set of smaller tumors. At a patient level, the AUC-ROC decreases by about 0.05 for each configuration, when compared to the results obtained on the whole dataset. nnUnet_MS and nnUnet_TP continued to outperform the nnUnet_T, although the differences were not statistically significant at a confidence level of 97.5% (p = 0.034 and p = 0.077, respectively). Regarding lesion-level performance, the pAUC-FROC for nnUnet_MS is still significantly higher than for nnUnet_TP and nnUnet_T (p < 10−4 and p = 4.8 × 10−4, respectively). The results obtained by ensembling the 10 models for each configuration are shown in Table 3.
Figure 4 shows an example of the network outputs of nnUnet_TP and nnUnet_MS for an iso-attenuating lesion in the neck-body of the pancreas. This lesion is missed by both nnUnet_T and nnUnet_TP, but is correctly identified by the nnUnet_MS model.

4. Discussion

In this study, the state-of-the-art, self-configuring framework for medical segmentation, nnUnet [22], was used to develop a fully automatic pipeline for the detection and localization of PDAC tumors on CE-CT scans. Furthermore, the impact of integrating the surrounding anatomy was assessed.
A significant challenge of applying deep learning to PDAC detection is that the pancreas occupies only a small portion of abdominal CE-CT scans, with the lesions being an even smaller target within that region. Training and testing the networks with full CE-CT scans would be very resource-consuming and provide a lot of unnecessary information regarding the surrounding organs, distracting the model’s attention from the pancreatic lesion location. In this way, it is necessary to select a small volume of interest around the pancreas, but having expert professionals manually annotate the pancreas before running each image through the network requires extra time and resources, which would significantly diminish the model’s clinical usefulness. To address this issue, the first step in our PDAC detection framework is to automatically extract a smaller volume of interest from the full input CE-CT scan by obtaining a coarse pancreas segmentation with a low-resolution nnUnet. To the best of our knowledge, this is the first study to develop a deep-learning-based fully automatic PDAC detection framework and to externally validate it on a publicly available test set.
Previous studies have employed deep CNNs for automatic PDAC detection on CT scans [12,13,14,15,16,17], but only two studies validated their models on an external test set [15,16], with one using the publicly available pancreas dataset. Liu and Wu et al. [15] developed a 2D, patch-based deep learning model using the VGG architecture to distinguish pancreatic cancer tissue from non-cancerous pancreatic tissue. This approach required prior expert delineation of the pancreas, which was then processed by the network in patches that were classified as cancerous or non-cancerous. At a patient level, the presence of a tumor was then determined based on the proportion of patches that the model classified as cancerous. The authors tested this model on the external test set and achieved an AUC-ROC of 0.750 (95%CI (0.749–0.752)) for the patch-based classifier, and 0.920 (95%CI (0.891–0.948)) for the patient-based classifier [15]. On the sub-group of tumors < 2 cm in size, the model achieved a sensitivity of 0.631 (0.502 to 0.747). More recently, Si et al. [16] developed an end-to-end diagnosis pipeline for pancreatic malignancies, achieving an AUC-ROC of 0.871 in an external test set, but validation on the publicly available dataset was not performed.
Our proposed automatic PDAC detection framework achieved a maximum ROC-AUC of 0.914 for the whole external test set and 0.876 for the subgroup of tumors < 2 cm in size. This performance is comparable to the current state-of-the-art for this test dataset [15], but with the advantage of being obtained automatically from the input image, with no user interaction required. Another advantage of our framework is that the lesion location is also identified and so the classification outcomes are immediately interpretable as they directly arise from the network’s segmentation of the tumor. Moreover, the achieved results set a new baseline performance for fully automatic PDAC detection, noticeably improving on the previous best AUC-ROC of 0.871 reported by Si et al. [16].
To the best of our knowledge, this is the first study to assess the impact of multiple surrounding anatomical structures in the performance of deep learning models for PDAC detection. Pancreatic lesions often present low contrast and poorly defined margins on CE-CT scans, with 5.4–14% of tumors being completely iso-attenuating and impossible to differentiate from normal pancreatic tissue [29]. These iso-attenuating tumors are identified only by the presence of secondary imaging findings (such as the dilation of the pancreatic duct) and are more prevalent in early disease stages [7,29]. In clinical practice, surrounding structures such as the pancreatic duct, the common bile duct, the surrounding veins (protomesenteric and splenic veins), and arteries (celiac trunk, superior mesenteric, common hepatic, and splenic arteries) are essential for PDAC diagnosis and local staging [7,29]. However, so far, deep-learning models have focused only on the tumor and noncancerous pancreas parenchyma, not taking the diagnostic information provided by all of the surrounding anatomy into account.
In this framework, the anatomy information was incorporated in the nnUnet_MS model, which was trained to segment not only the tumor and pancreas parenchyma, but also several other relevant anatomical structures. The rationale behind this approach was that by learning to differentiate between the different types of tissue present in the pancreas volume of interest, the network could learn underlying relationships between the structures and consequently better localize the lesions. This network was compared to nnUnet_T, which was trained to segment only the tumor, and nnUnet_TP, trained to segment the tumor and pancreas parenchyma, in order to assess the impact of adding surrounding anatomy.
The results on the external test set show that, at a patient level, there is a clear benefit in adding the pancreas parenchyma when compared to training with only the tumor segmentation, as both nnUnet_TP and nnUnet_MS achieved a significantly higher AUC-ROC than nnUnet_T. There were however no differences in the performances of the nnUnet_TP and nnUnet_MS networks. Contrastingly, at a lesion-level, there was a clear separation between the three FROC curves both on the whole test set and on the subgroup of tumors < 2 cm in size (Figure 2 and Figure 3), with nnUnet_MS achieving significantly higher pAUC-FROC than the two other configurations. This shows that the addition of surrounding anatomy improves the model’s ability to localize PDAC lesions. Figure 4 illustrates the advantage of anatomy integration in the case of an iso-dense lesion that is obstructing the pancreatic duct, causing its dilation. Both the nnUnet_T and nnUnet_TP models fail to identify this lesion, as there are no visible differences between the tumor and healthy pancreas parenchyma. However, nnUnet_MS can accurately detect its location in the pancreatic neck-body following the termination of the dilated duct. By providing supervised training to segment the duct and other surrounding structures, the neural model can better focus on the remaining regions in the pancreas parenchyma, which may explain its ability to detect faint tumors. Furthermore, the multi-structure segmentation provided by nnUnet_MS presents useful information to the radiologist that can assist the interpretation of the network output regarding the tumor.
Despite the promising results, there are two main limitations to this study. First, the models were trained with a relatively low number of patients and only included tumors in the pancreatic head, which could be holding back the performance on external cohorts with heterogeneous imaging data. We are currently working on extending the training dataset to incorporate more patients, including tumors in the body and tail of the pancreas, in order to mitigate this issue. Second, training the anatomy segmentation network requires manual labeling of the different structures, which is resource-intensive. To address this problem, we only manually labeled the images from the PDAC-cohort and used self-learning to automatically segment the non-PDAC cohort, which could be introducing errors in training. Like the previous issue, the solution to this problem is to increase the size of the training dataset so that the model can learn better representations of the anatomy and consequently perform higher quality automatic annotations.

5. Conclusions

This study proposes a fully automatic, deep-learning-based framework that can identify whether a patient suffers from PDAC or not, and localize the tumor in CE-CT scans. The proposed models achieve a maximum AUC of 0.914 in the whole external test set and 0.876 for the subgroup of tumors < 2 cm in size, indicating that state-of-the-art deep learning models are able to identify small PDAC lesions and could be useful at assisting radiologists in early PDAC diagnosis. Moreover, we show that adding surrounding anatomy information significantly increases model performance regarding lesion localization. Despite these promising results, additional validation with better curated external, multi-center datasets is still required before these models can be implemented in clinical practice.

Author Contributions

Conceptualization, N.A., M.S., J.H. and H.H.; methodology, N.A. and H.H.; software, N.A. and J.S.B.; validation, N.A.; formal analysis, N.A.; investigation, N.A., M.S., G.L., J.S.B., J.H. and H.H.; resources, N.A., J.H. and H.H.; data curation, N.A., M.S. and G.L.; writing—original draft preparation, N.A.; writing—review and editing, M.S., G.L., J.S.B., J.H. and H.H.; visualization, N.A.; supervision, J.H. and H.H.; project administration, H.H.; funding acquisition, H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This project received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No. 101016851, project PANCAIM.

Institutional Review Board Statement

This study received approval from the institutional review board (Commissie Mensgebonden Onderzoek (CMO) approval) under the umbrella protocol for retrospective research reusing care data within the department of Radiology and Nuclear Medicine of Radboud University Medical Center (CMO2016-3045).

Informed Consent Statement

Patient informed consent was waived in accordance with the Code of Conduct for the Use of Data in Health Research (Code Goed Gedrag), as this study deals only with retrospective and completely anonymized patient data.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author dependent on ethics board approval. The data are not publicly available due to data protection legislation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ryan, D.P.; Hong, T.S.; Bardeesy, N. Pancreatic adenocarcinoma. N. Engl. J. Med. 2014, 371, 1039–1049. [Google Scholar] [CrossRef] [PubMed]
  2. Cancer Stat Facts-Pancreatic Cancer. Available online: https://seer.cancer.gov/statfacts/html/pancreas.html (accessed on 19 November 2021).
  3. Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics, 2020. CA Cancer J. Clin. 2020, 70, 7–30. [Google Scholar] [CrossRef] [PubMed]
  4. Ardengh, J.C.; De Paulo, G.A.; Ferrari, A.P. Pancreatic carcinomas smaller than 3.0 cm: Endosonography (EUS) in diagnosis, staging and prediction of resectability. HPB Off. J. Int. Hepato Pancreato Biliary Assoc. 2003, 5, 226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Kenner, B.; Chari, S.T.; Kelsen, D.; Klimstra, D.S.; Pandol, S.J.; Rosenthal, M.; Rustgi, A.K.; Taylor, J.A.; Yala, A.; Abul-Husn, N.; et al. Artificial Intelligence and Early Detection of Pancreatic Cancer. Pancreas 2021, 50, 251–279. [Google Scholar] [CrossRef]
  6. Gheorghe, G.; Bungau, S.; Ilie, M.; Behl, T.; Vesa, C.M.; Brisc, C.; Bacalbasa, N.; Turi, V.; Costache, R.S.; Diaconu, C.C. Early Diagnosis of Pancreatic Cancer: The Key for Survival. Diagnostics 2020, 10, 869. [Google Scholar] [CrossRef]
  7. Yoon, S.H.; Lee, J.M.; Cho, J.Y.; Lee, K.B.; Kim, J.E.; Moon, S.K.; Kim, S.J.; Baek, J.H.; Kim, S.H.; Kim, S.H.; et al. Small (≤20 mm) pancreatic adenocarcinomas: Analysis of enhancement patterns and secondary signs with multiphasic multidetector CT. Radiology 2011, 259, 442–452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Singh, D.P.; Sheedy, S.; Goenka, A.H.; Wells, M.; Lee, N.J.; Barlow, J.; Sharma, A.; Kandlakunta, H.; Chandra, S.; Garg, S.K.; et al. Computerized tomography scan in pre-diagnostic pancreatic ductal adenocarcinoma: Stages of progression and potential benefits of early intervention: A retrospective study. Pancreatology 2020, 20, 1495–1501. [Google Scholar] [CrossRef]
  9. Esteva, A.; Kuprel, B.; Novoa, R.A.; Ko, J.; Swetter, S.M.; Blau, H.M.; Thrun, S. Dermatologist-level classification of skin cancer with deep neural networks. Nature 2017, 542, 115–118. [Google Scholar] [CrossRef]
  10. McKinney, S.M.; Sieniek, M.; Godbole, V.; Godwin, J.; Antropova, N.; Ashrafian, H.; Back, T.; Chesus, M.; Corrado, G.C.; Darzi, A.; et al. International evaluation of an AI system for breast cancer screening. Nature 2020, 577, 89–94. [Google Scholar] [CrossRef] [PubMed]
  11. Yasaka, K.; Akai, H.; Abe, O.; Kiryu, S. Deep Learning with Convolutional Neural Network for Differentiation of Liver Masses at Dynamic Contrast-enhanced CT: A Preliminary Study. Radiology 2018, 286, 887–896. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zhu, Z.; Xia, Y.; Xie, L.; Fishman, E.K.; Yuille, A.L. Multi-scale Coarse-to-Fine Segmentation for Screening Pancreatic Ductal Adenocarcinoma. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Cham, Switzerland, 2019; Volume 11769 LNCS, pp. 3–12. [Google Scholar] [CrossRef] [Green Version]
  13. Xia, Y.; Yu, Q.; Shen, W.; Zhou, Y.; Fishman, E.K.; Yuille, A.L. Detecting Pancreatic Ductal Adenocarcinoma in Multi-phase CT Scans via Alignment Ensemble. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Cham, Switzerland, 2020; Volume 12263 LNCS, pp. 285–295. [Google Scholar]
  14. Ma, H.; Liu, Z.X.; Zhang, J.J.; Wu, F.T.; Xu, C.F.; Shen, Z.; Yu, C.H.; Li, Y.M. Construction of a convolutional neural network classifier developed by computed tomography images for pancreatic cancer diagnosis. World J. Gastroenterol. 2020, 26, 5156–5168. [Google Scholar] [CrossRef]
  15. Liu, K.L.; Wu, T.; Chen, P.T.; Tsai, Y.M.; Roth, H.; Wu, M.S.; Liao, W.C.; Wang, W. Deep learning to distinguish pancreatic cancer tissue from non-cancerous pancreatic tissue: A retrospective study with cross-racial external validation. Lancet Digit. Health 2020, 2, e303–e313. [Google Scholar] [CrossRef]
  16. Si, K.; Xue, Y.; Yu, X.; Zhu, X.; Li, Q.; Gong, W.; Liang, T.; Duan, S. Fully end-to-end deep-learning-based diagnosis of pancreatic tumors. Theranostics 2021, 11, 1982–1990. [Google Scholar] [CrossRef]
  17. Wang, Y.; Tang, P.; Zhou, Y.; Shen, W.; Fishman, E.K.; Yuille, A.L. Learning Inductive Attention Guidance for Partially Supervised Pancreatic Ductal Adenocarcinoma Prediction. IEEE Trans. Med. Imaging 2021, 40, 1. [Google Scholar] [CrossRef]
  18. Simpson, A.L.; Antonelli, M.; Bakas, S.; Bilello, M.; Farahani, K.; van Ginneken, B.; Kopp-Schneider, A.; Landman, B.A.; Litjens, G.; Menze, B.; et al. A large annotated medical image dataset for the development and evaluation of segmentation algorithms. Meml. Sloan Kettering Cancer Cent. 2019. [Google Scholar]
  19. Clark, K.; Vendt, B.; Smith, K.; Freymann, J.; Kirby, J.; Koppel, P.; Moore, S.; Phillips, S.; Maffitt, D.; Pringle, M.; et al. The cancer imaging archive (TCIA): Maintaining and operating a public information repository. J. Digit. Imaging 2013, 26, 1045–1057. [Google Scholar] [CrossRef] [Green Version]
  20. Pancreas-CT. The Cancer Imaging Archive (TCIA) Public Access-Cancer Imaging Archive Wiki. Available online: https://wiki.cancerimagingarchive.net/display/Public/Pancreas-CT (accessed on 15 November 2021).
  21. Yushkevich, P.A.; Piven, J.; Hazlett, H.C.; Smith, R.H.; Ho, S.; Gee, J.C.; Gerig, G. User-guided 3D active contour segmentation of anatomical structures: Significantly improved efficiency and reliability. Neuroimage 2006, 31, 1116–1128. [Google Scholar] [CrossRef] [Green Version]
  22. Isensee, F.; Jaeger, P.F.; Kohl, S.A.; Petersen, J.; Maier-Hein, K.H. nnU-Net: A self-configuring method for deep learning-based biomedical image segmentation. Nat. Methods 2021, 18, 203–211. [Google Scholar] [CrossRef]
  23. Cicek, O.; Abdulkadir, A.; Lienkamp, S.S.; Brox, T.; Ronneberger, O. 3D U-Net: Learning Dense Volumetric Segmentation from Sparse Annotation. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Cham, Switzerland, 2016; Volume 9901 LNCS, pp. 424–432. [Google Scholar] [CrossRef] [Green Version]
  24. Baumgartner, M.; Jäger, P.F.; Isensee, F.; Maier-Hein, K.H. nnDetection: A Self-configuring Method for Medical Object Detection. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Cham, Switzerland, 2021; Volume 12905 LNCS, pp. 530–539. [Google Scholar] [CrossRef]
  25. Saha, A.; Bosma, J.; Linmans, J.; Hosseinzadeh, M.; Huisman, H. Anatomical and Diagnostic Bayesian Segmentation in Prostate MRI -Should Different Clinical Objectives Mandate Different Loss Functions? arXiv 2021, arXiv:2110.12889. [Google Scholar]
  26. Chakrabortv, D.P. Maximum likelihood analysis of free-response receiver operating characteristic (FROC) data. Med. Phys. 1989, 16, 561–568. [Google Scholar] [CrossRef] [PubMed]
  27. Bunch, P.C.; Hamilton, J.F.; Sanderson, G.K.; Simmons, A.H. A Free Response Approach to The Measurement and Characterization of Radiographic Observer Performance. In Proceedings of the SPIE 0127, Application of Optical Instrumentation in Medicine VI, Boston, MA, USA, 27 December 1977; pp. 124–135. [Google Scholar] [CrossRef]
  28. Saha, A.; Hosseinzadeh, M.; Huisman, H. End-to-end prostate cancer detection in bpMRI via 3D CNNs: Effects of attention mechanisms, clinical priori and decoupled false positive reduction. Med. Image Anal. 2021, 73, 102155. [Google Scholar] [CrossRef]
  29. Blouhos, K.; Boulas, K.A.; Tsalis, K.; Hatzigeorgiadis, A. The isoattenuating pancreatic adenocarcinoma: Review of the literature and critical analysis. Surg. Oncol. 2015, 24, 322–328. [Google Scholar] [CrossRef]

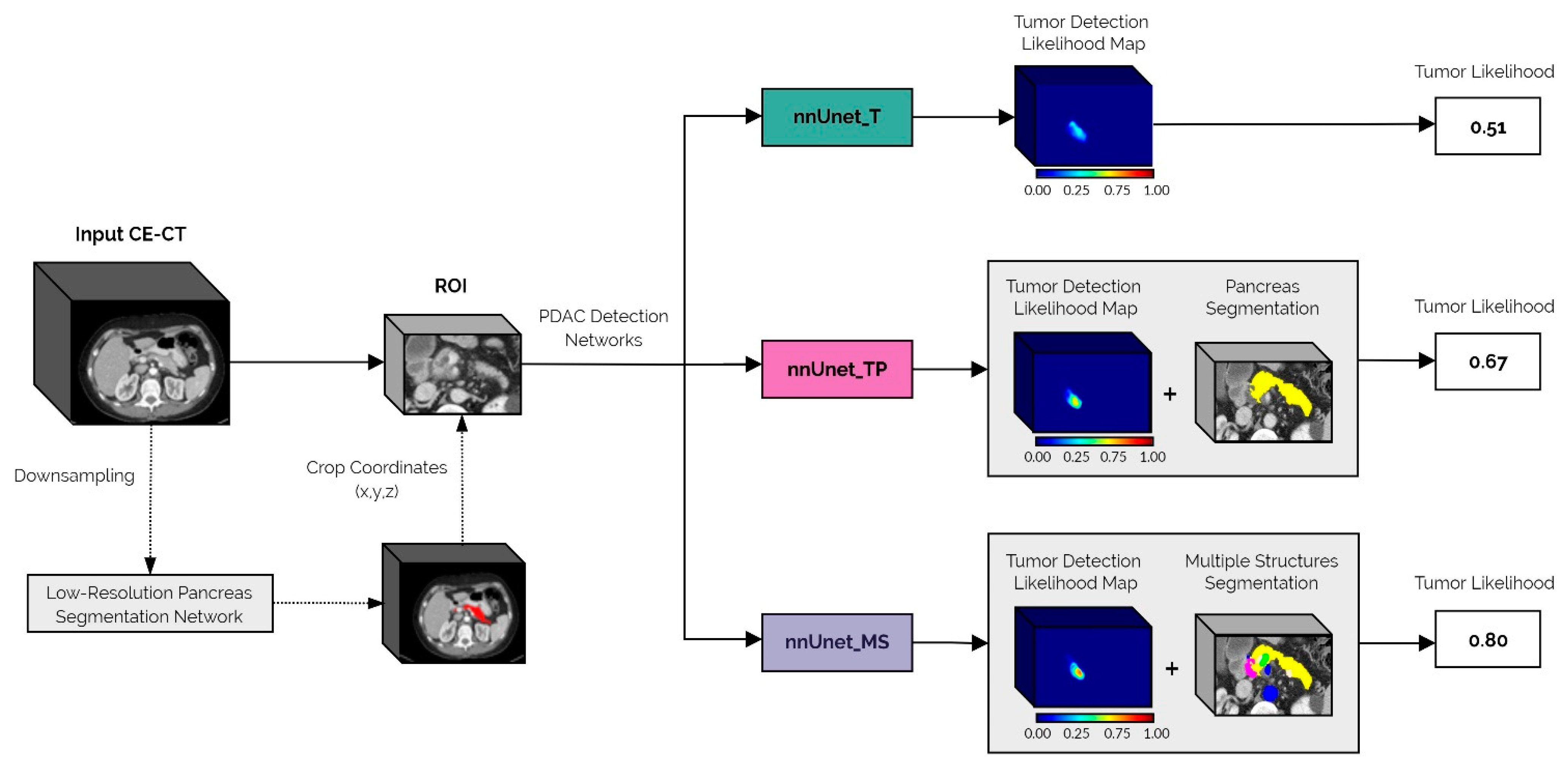

Figure 1. Schematic overview of the proposed automatic PDAC detection framework. The first step in the pipeline is to automatically extract the ROI from the full input CE-CT scan, using the low-resolution pancreas segmentation network. This ROI is then fed to each of the PDAC detection networks: nnUnet_T, nnUnet_TP, and nnUnet_MS. The final tumor likelihood output is derived from the networks’ tumor detection likelihood maps, which in the case of the nnUnet_TP and nnUnet_MS models, are post-processed using the automatically generated pancreas segmentation.
Figure 1. Schematic overview of the proposed automatic PDAC detection framework. The first step in the pipeline is to automatically extract the ROI from the full input CE-CT scan, using the low-resolution pancreas segmentation network. This ROI is then fed to each of the PDAC detection networks: nnUnet_T, nnUnet_TP, and nnUnet_MS. The final tumor likelihood output is derived from the networks’ tumor detection likelihood maps, which in the case of the nnUnet_TP and nnUnet_MS models, are post-processed using the automatically generated pancreas segmentation.
Cancers 14 00376 g001

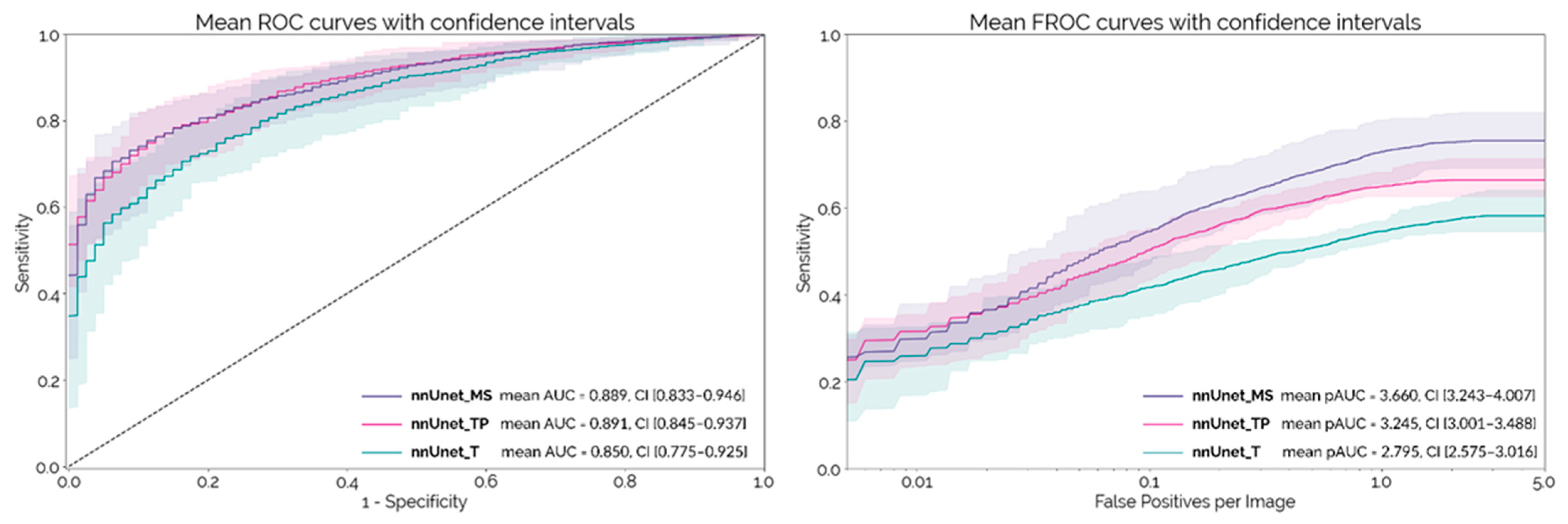

Figure 2. Mean ROC and FROC curves with respective confidence intervals for the external test set.
Figure 2. Mean ROC and FROC curves with respective confidence intervals for the external test set.
Cancers 14 00376 g002

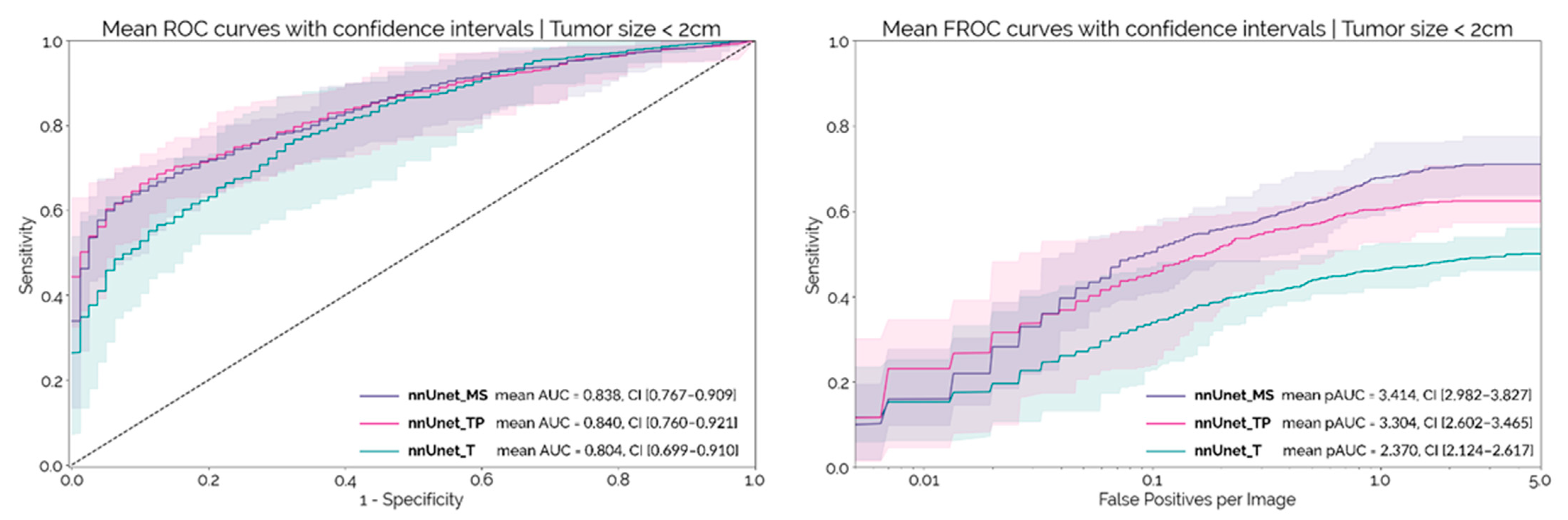

Figure 3. Mean ROC and FROC curves with respective confidence intervals for the external set considering only the subgroup of tumors < 2 cm in size.
Figure 3. Mean ROC and FROC curves with respective confidence intervals for the external set considering only the subgroup of tumors < 2 cm in size.
Cancers 14 00376 g003

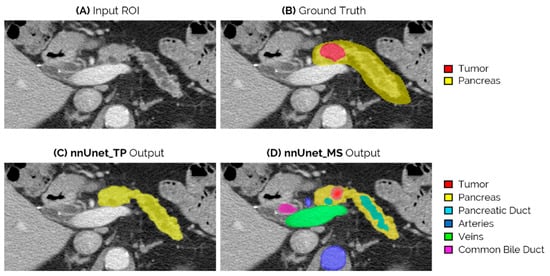

Figure 4. Example of an iso-attenuating tumor from the external test set, which was missed by both the nnUnet_T and nnUnet_TP, but could be correctly localized by nnUnet_MS. (A) Slice of the original ROI input; (B) ground truth segmentation of tumor and pancreas; (C) output of nnUnet_TP, which in this case is only the pancreas segmentation as the tumor is not detected; and (D) output of the nnUnet_MS, which is the segmentation of the detected tumor and surrounding anatomy.
Figure 4. Example of an iso-attenuating tumor from the external test set, which was missed by both the nnUnet_T and nnUnet_TP, but could be correctly localized by nnUnet_MS. (A) Slice of the original ROI input; (B) ground truth segmentation of tumor and pancreas; (C) output of nnUnet_TP, which in this case is only the pancreas segmentation as the tumor is not detected; and (D) output of the nnUnet_MS, which is the segmentation of the detected tumor and surrounding anatomy.
Cancers 14 00376 g004
Table 1. Clinical characteristics of the patients in the PDAC cohort. Data are mean ± standard deviation or median (interquartile range). The tumor stages are I—locally resectable; II—borderline resectable; III—locally advanced; IV—metastasized.
Table 1. Clinical characteristics of the patients in the PDAC cohort. Data are mean ± standard deviation or median (interquartile range). The tumor stages are I—locally resectable; II—borderline resectable; III—locally advanced; IV—metastasized.
Clinical Characteristics
Age (years)69.2 ± 8.5
Gender (M/F)67/52
Tumor Stage (I/II/III/IV)22/21/47/29
Tumor size (cm)2.8 (2.3–3.7)
Table 2. Mean and 95% confidence interval (95% CI) of the area under the ROC curve (AUC-ROC) and partial area under the FROC curve (pAUC-FROC) for the internal five-fold cross-validation for each configuration.
Table 2. Mean and 95% confidence interval (95% CI) of the area under the ROC curve (AUC-ROC) and partial area under the FROC curve (pAUC-FROC) for the internal five-fold cross-validation for each configuration.
ConfigurationMean AUC-ROC (95%CI)Mean pAUC-FROC (95%CI)
nnUnet_T0.963 (0.914–1.0)3.855 (3.156–4.553)
nnUnet_TP0.986 (0.956–1.0)3.999 (3.252–4.747)
nnUnet_MS0.991 (0.970–1.0)3.996 (3.027–4.965)
Table 3. Ensemble results for the area under the ROC curve (AUC-ROC) and partial area under the FROC curve (pAUC-FROC) from configuration on the whole test set and the subgroup of tumors < 2 cm in size.
Table 3. Ensemble results for the area under the ROC curve (AUC-ROC) and partial area under the FROC curve (pAUC-FROC) from configuration on the whole test set and the subgroup of tumors < 2 cm in size.
SubgroupConfigurationAUC-ROCpAUC-FROC
Whole Test DatasetnnUnet_T0.8723.031
nnUnet_TP0.9143.397
nnUnet_MS0.9093.700
Tumors size < 2 cmnnUnet_T0.8312.671
nnUnet_TP0.8673.289
nnUnet_MS0.8763.553
