Evaluation of HY-2C and CFOSAT Satellite Retrieval Offshore Wind Energy Using Weather Research and Forecasting (WRF) Simulations

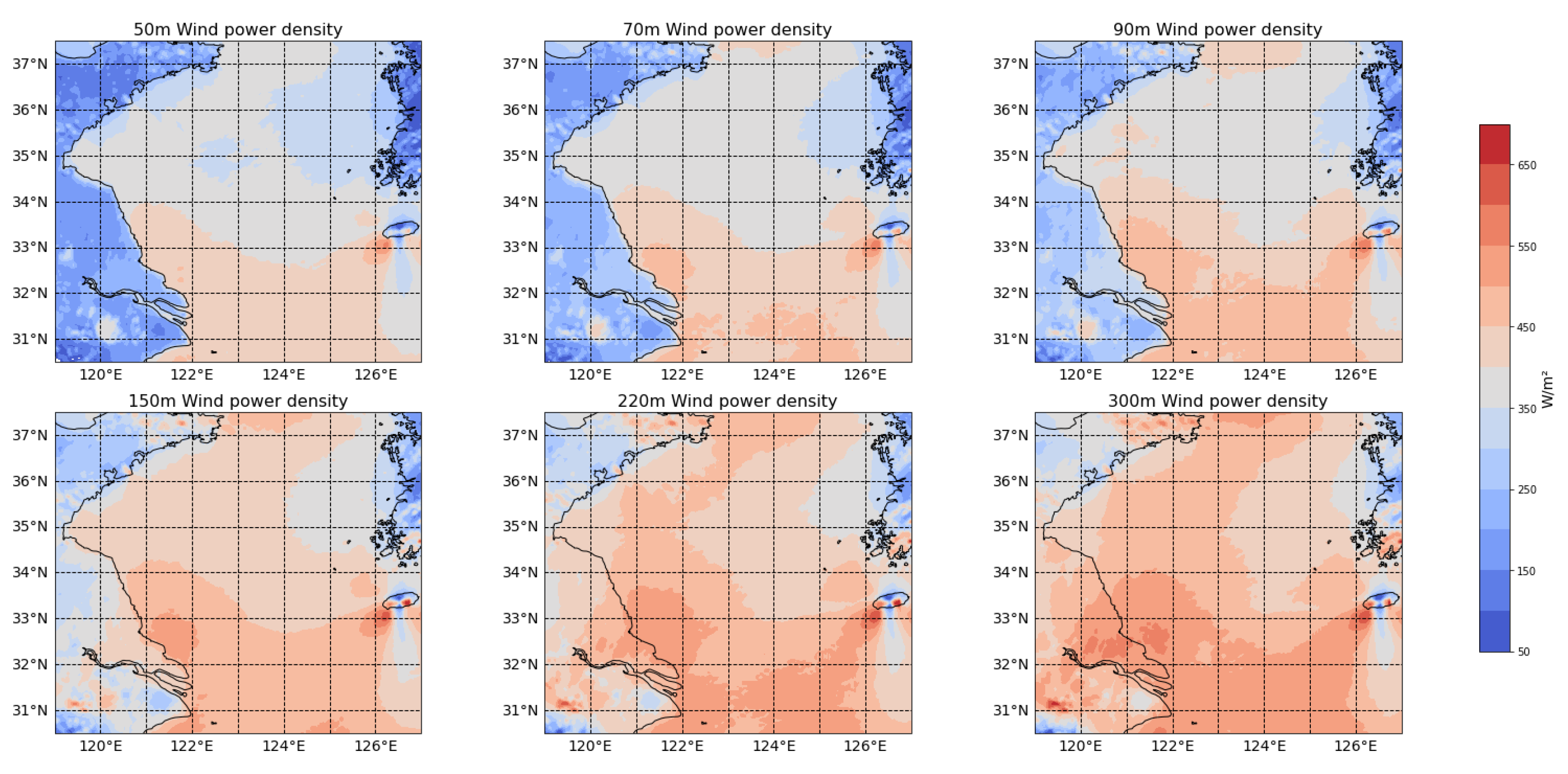

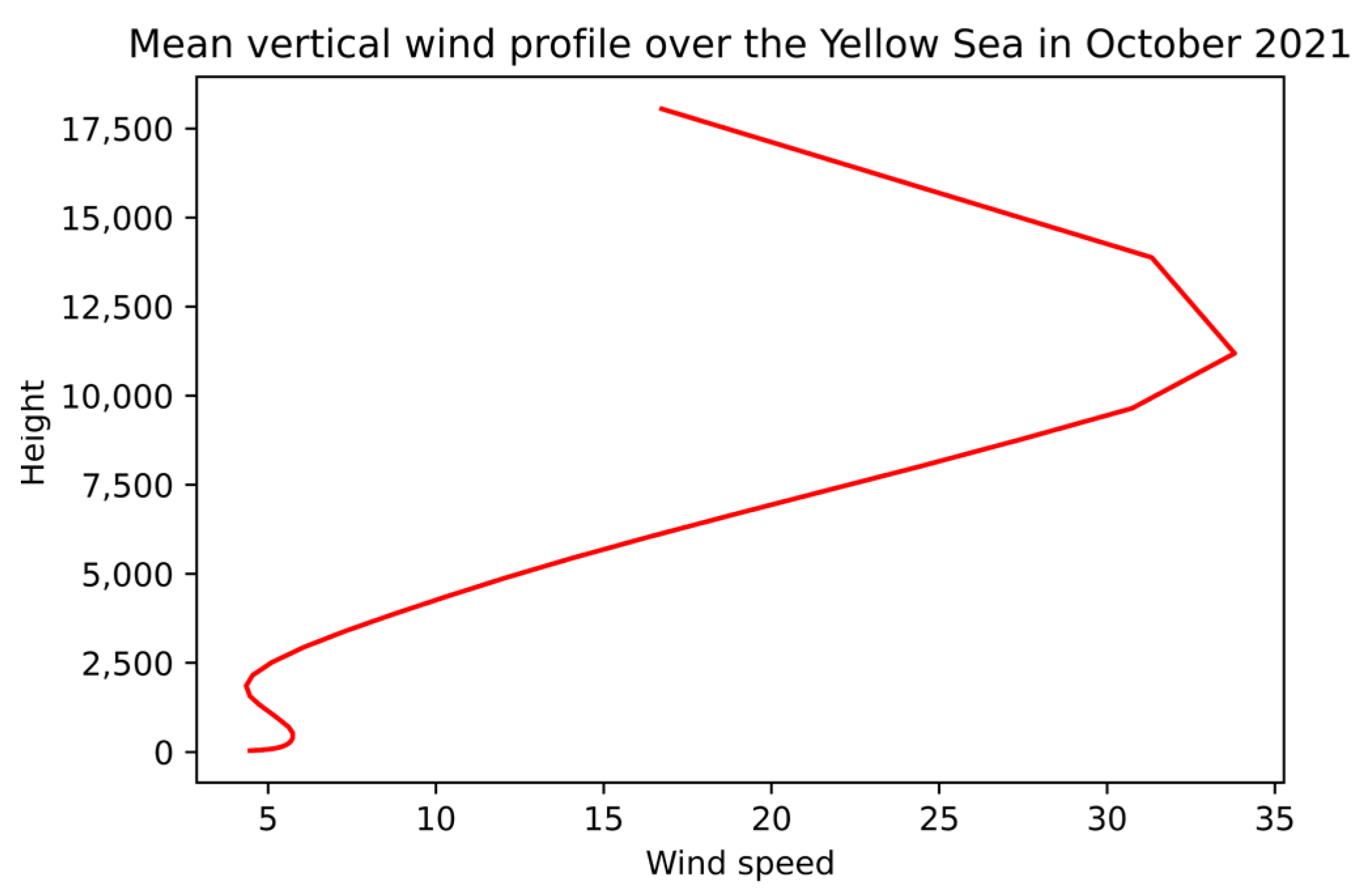

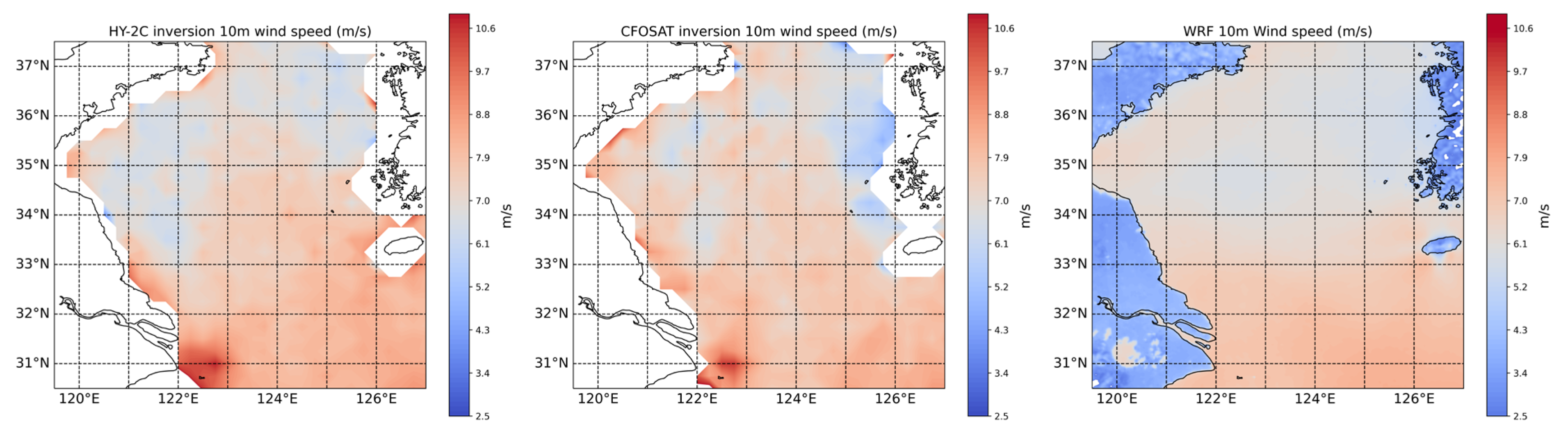

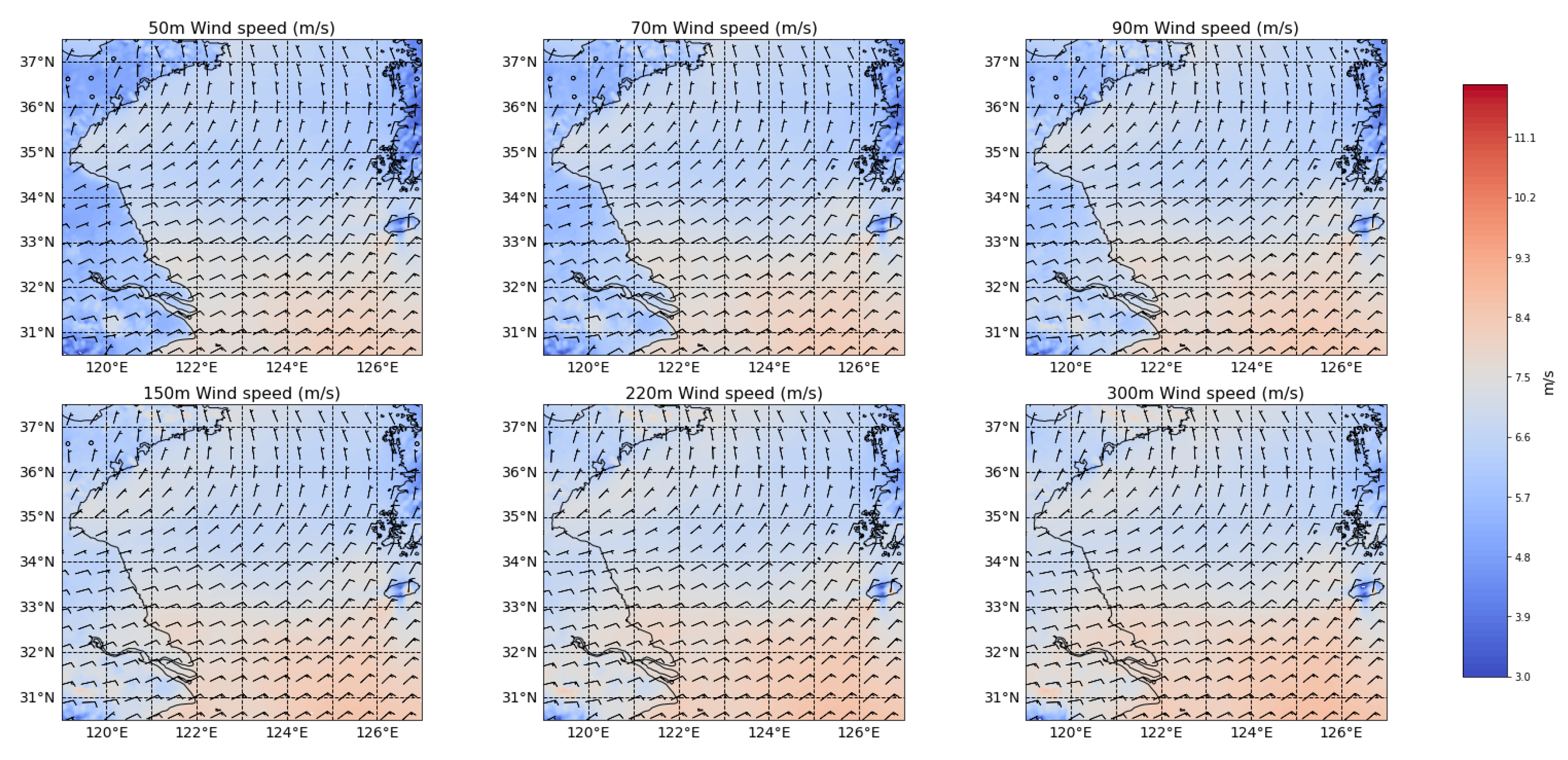

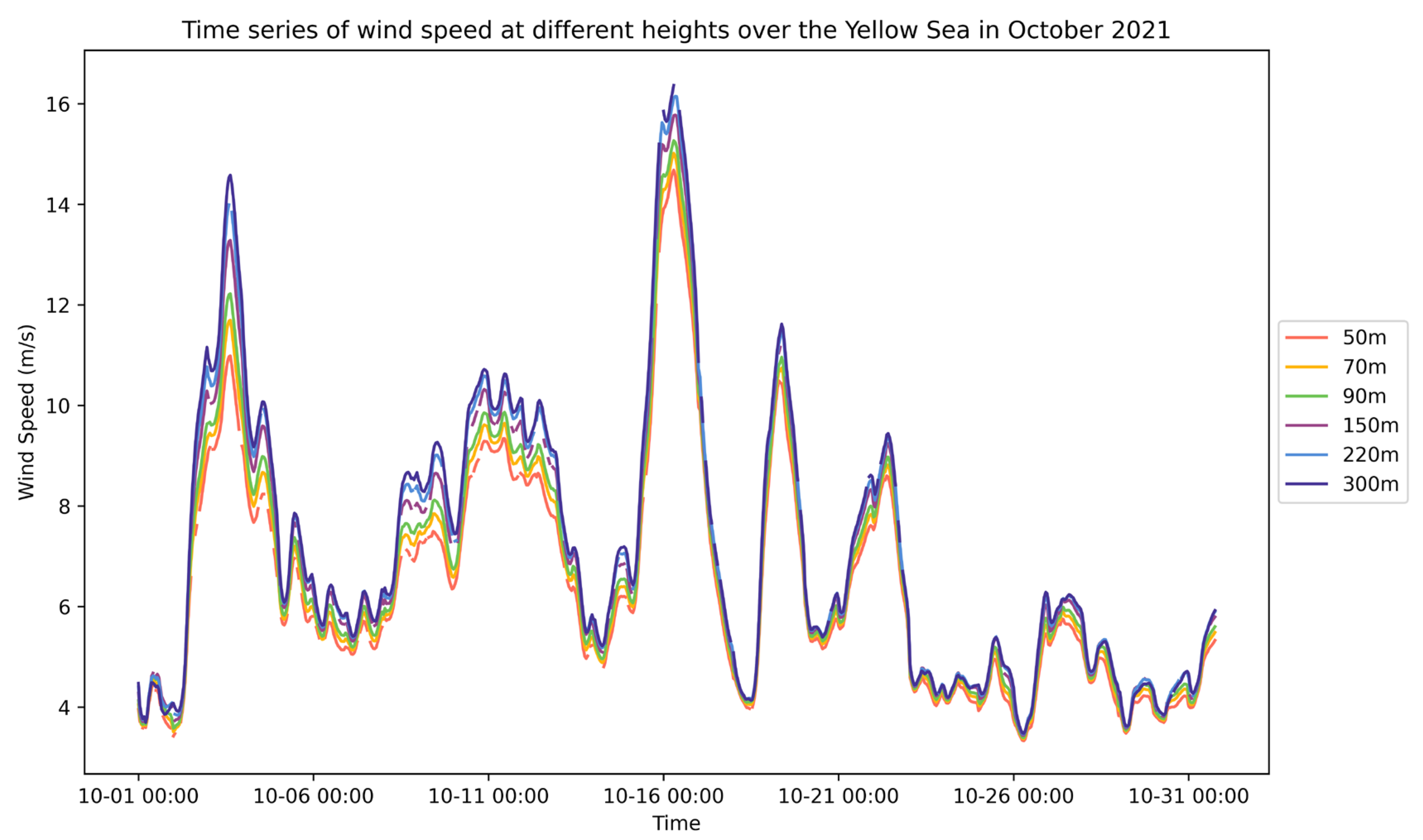

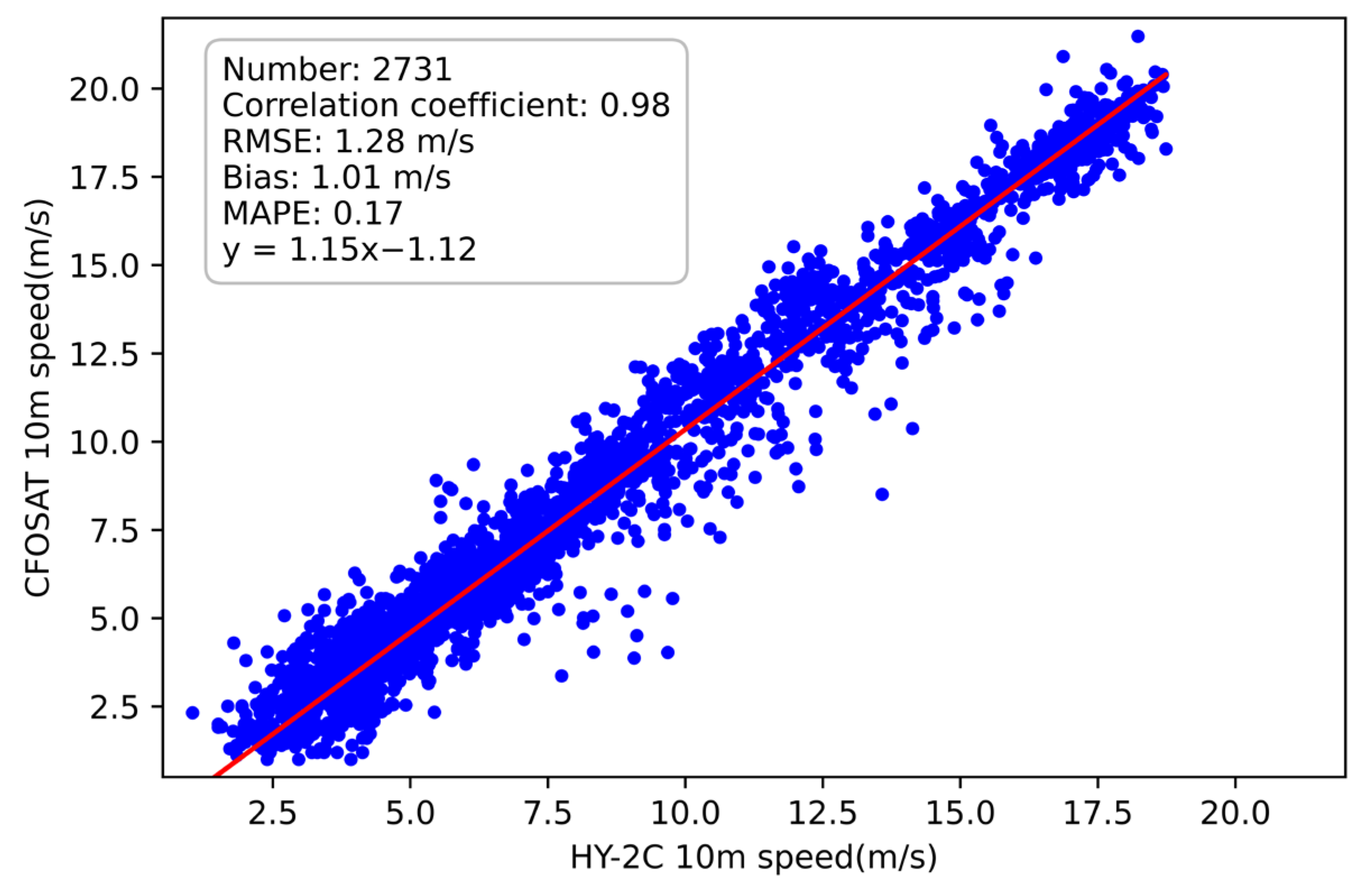

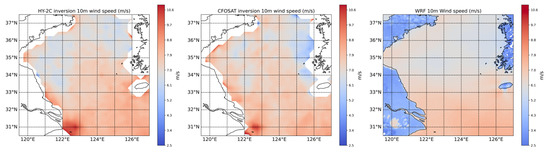

This study simulated the spatial distribution of wind speeds and wind energy density by using the WRF model, and we used the WRF-simulated results to evaluate the sea surface wind speeds retrieved from the HY-2C and CFOSAT satellite-borne microwave scatterometers over the Yellow Sea region. The main conclusions were as follows: (1) The combination of the MRF boundary layer parameterization scheme, the MM5 near-surface parameterization scheme, and the Global Data Assimilation System (GDAS) initial field demonstrated the best performance in simulating the 10 m wind speed in the Yellow Sea region, with a root-mean-square error (RMSE) of 1.57, bias of 1.24 m/s, and mean absolute percentage error (MAPE) of 17%. (2) The MAPE of the HY-2C inversion data was 9%, while the CFOSAT inversion data had an MAPE of 6%. The sea surface wind speeds derived from the HY-2C and CFOSAT satellite scatterometer inversions demonstrated high accuracy and applicability in this region. (3) The wind speed was found to increase with altitude over the Yellow Sea, with higher wind speeds observed in the southern region compared to the northern region. The wind power density increased with altitude, and the wind power density in the southern area of the Yellow Sea was higher than in the northern region. (4) The CFOSAT satellite inversion products were in good agreement with the WRF simulation results under low wind speed conditions. In contrast, the HY-2C satellite inversion products showed better agreement under moderate wind speed conditions. Under high wind speed conditions, both satellite inversion products exhibited minor deviations, but the HY-2C product had an overall overestimation, while the CFOSAT product remained within the range of −1 to 1 m/s. (6) The wind power density increased with the satellite-inverted 10 m wind speed. When the 10 m wind speed was less than 9 m/s, the wind power density exhibited a roughly cubic trend of increase. However, when the 10 m wind speed exceeded 9 m/s, the wind power density no longer increased with the rise in 10 m wind speed. These findings provide valuable insights into wind energy resources in the Yellow Sea region and demonstrate the effectiveness of satellite scatterometer inversions for wind speed estimation. The results have implications for renewable energy planning and management in the area.
