# Incorporating Vehicle-Routing Problems into a Closed-Loop Supply Chain Network Using a Mixed-Integer Linear-Programming Model

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

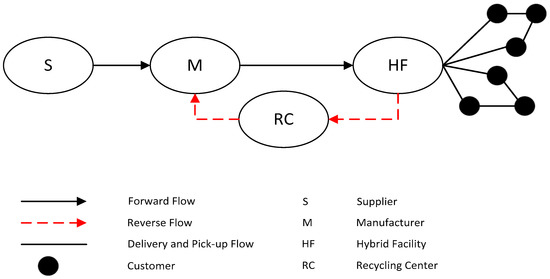

## 3. Model Description and Formulation

- To select the optimum CLSC-network configuration.
- Finding the routes for the limited number of vehicles to serve a group of customers with their demand.

- Facility locations are known beforehand.
- The following of products between HFs is not allowed.
- The set-up cost of facilities is considered as fixed and predefined.

#### 3.1. Objective Function

#### 3.2. Constraints

$\sum _{h\in H}^{}{\displaystyle \sum _{vi\in VI}^{}{X}_{1}{}_{{}_{mhvi}}}}\le C{M}_{m$ | $\forall m\in M$ | (10) |

${R}_{2}{}_{{}_{h}}\le C{D}_{h}{U}_{1}{}_{{}_{h}}$ | $\forall h\in H$ | (11) |

$\sum _{h\in H}^{}{\displaystyle \sum _{vj\in VJ}^{}{X}_{3}{}_{{}_{hcvj}}}}\le C{C}_{c$ | $\forall c\in C$ | (12) |

$\sum _{m\in M}^{}{X}_{4}{}_{{}_{cim}}}\le C{C}_{c}{U}_{i$ | $\forall c\in C;\forall i\in I$ | (13) |

$\sum _{m\in M}^{}{\displaystyle \sum _{h\in H}^{}{X}_{1}{}_{{}_{mhvi}}}}\le {C}_{1}{}_{{}_{vi}$ | $\forall vi\in VI$ | (14) |

${L}_{2}{}_{{}_{k}}\le {C}_{2}{}_{{}_{k}}$ | $\forall k\in K$ | (15) |

$L{t}_{j{j}^{\prime}k}\le {C}_{2}{}_{{}_{k}}$ | $\forall j,{j}^{\prime}\in b;\forall k\in K$ | (16) |

$L{{t}^{\prime}}_{j{j}^{\prime}k}\le {C}_{2}{}_{{}_{k}}$ | $\forall j,{j}^{\prime}\in b;\forall k\in K$ | (17) |

$\sum _{h\in H}^{}{\displaystyle \sum _{c\in C}^{}{X}_{3}{}_{{}_{hcvj}}}}\le {C}_{3}{}_{{}_{vj}$ | $\forall vj\in VJ$ | (18) |

$\sum _{h\in H}^{}{X}_{4}{}_{{}_{cim}}}+{\displaystyle \sum _{s\in S}^{}{X}_{0}{}_{{}_{sim}}}={\displaystyle \sum _{h\in H}^{}{\displaystyle \sum _{vi\in VI}^{}{U}_{i}{X}_{1}{}_{{}_{mhvi}}}$ | $\forall m\in M;\forall i\in I$ | (19) |

$\sum _{h\in H}^{}{\displaystyle \sum _{vi\in VI}^{}{U}_{i}{X}_{3}{}_{{}_{hcvj}}}}={\displaystyle \sum _{m\in M}^{}{X}_{4}{}_{{}_{cim}}$ | $\forall c\in C;\forall i\in I$ | (20) |

$\sum _{h\in H}^{}{\displaystyle \sum _{vj\in VJ}^{}{X}_{3}{}_{{}_{hcvj}}}}={{R}^{\prime}}_{{{}_{2}}_{{}_{h}}$ | $\forall h\in h$ | (21) |

$\sum _{k\in K}^{}{\displaystyle \sum _{j\in b}^{}{X}_{2}{}_{{}_{j{j}^{\prime}k}}=1}$ | $\forall {j}^{\prime}\in R$ | (22) |

$\sum _{{j}^{\prime}\in b}^{}{X}_{2}{}_{{}_{{j}^{\prime}jk}}={\displaystyle \sum _{{j}^{\prime}\in b}^{}{X}_{2}{}_{{}_{j{j}^{\prime}k}}}$ | $\forall j\in R;\forall k\in K$ | (23) |

$\sum _{{j}^{\prime}\in R}^{}{X}_{2}{}_{{}_{j{j}^{\prime}k}}={\displaystyle \sum _{{j}^{\prime}\in R}^{}{X}_{2}{}_{{}_{{j}^{\prime}jk}}}$ | $\forall k\in K;\forall j\in H$ | (24) |

$\sum _{j\in H}^{}{\displaystyle \sum _{{j}^{\prime}\in R}^{}{X}_{2}{}_{{j}_{{j}^{\prime}k}}\le 1}$ | $\forall k\in K$ | (25) |

$\sum _{r\in R}^{}{Y}_{2}{}_{{}_{hr}}^{}}\ge {U}_{1}{}_{{}_{h}$ | $\forall h\in H$ | (26) |

${M}_{2}{}_{{}_{rk}}-{M}_{2}{}_{{}_{{r}^{\prime}k}}+\left({B}_{2}{X}_{2}{}_{{}_{j{j}^{\prime}k}}\right)\le {B}_{2}-1$ | $\forall r,{r}^{\prime}\in R;\forall k\in K$ | (27) |

${X}_{2}{}_{{}_{j{j}^{\prime}k}}=0$ | $\forall k\in K;\forall j,{j}^{\prime}\in H$ | (28) |

$\sum _{j\in b}^{}{\displaystyle \sum _{{j}^{\prime}\in b}^{}{d}_{2}{}_{{}_{j{j}^{\prime}}}{X}_{2}{}_{{}_{{j}_{{j}^{\prime}k}}}}\le M{D}_{2}{}_{{}_{k}}$ | $\forall k\in K$ | (29) |

$\sum _{{j}^{\prime}\in b}^{}{X}_{2}{}_{{}_{j{j}^{\prime}k}}}+{\displaystyle \sum _{{j}^{\prime}\in b}^{}{X}_{2}{}_{{}_{i{j}^{\prime}k}}-{Y}_{2}{}_{{}_{hr}}\le 1$ | $\forall j\in R;\forall i\in H;\forall k\in K$ | (30) |

$\sum _{h\in H}^{}{Y}_{2}{}_{{}_{hr}}}=1$ | $\forall r\in R$ | (31) |

$\sum _{m\in M}^{}{\displaystyle \sum _{vi\in VI}^{}{X}_{1}{}_{{}_{mhvi}}}}\ge {R}_{2}{}_{{}_{h}}^{$ | $\forall h\in H$ | (32) |

${L}_{2}{}_{{}_{k}}\ge {\displaystyle \sum _{j\in b}^{}{\displaystyle \sum _{{j}^{\prime}\in R}^{}{\tilde{D}}_{r}{X}_{2}{}_{{}_{j{j}^{\prime}k}}}}$ | $\forall k\in K$ | (33) |

${R}_{2}{}_{{}_{h}}\ge {\displaystyle \sum _{r\in R}^{}{\tilde{D}}_{r}{y}_{2}{}_{{}_{hr}}}$ | $\forall h\in H$ | (34) |

$L{t}_{j{j}^{\prime}k}\le {X}_{2}{}_{{}_{j{j}^{\prime}k}}{\displaystyle \sum _{r\in R}{D}_{r}}$ | $\forall j,{j}^{\prime}\in b;\forall k\in K$ | (35) |

$\sum _{k\in K}{\displaystyle \sum _{b\in B}L{t}_{brk}}}\le {\displaystyle \sum _{k\in K}{\displaystyle \sum _{b\in B}L{t}_{rbk}+}}{D}_{r$ | $\forall r\in R$ | (36) |

${L}_{{2}^{\prime}}{}_{{}_{k}}\ge {\displaystyle \sum _{j\in b}^{}{\displaystyle \sum _{{j}^{\prime}\in R}^{}{\tilde{P}}_{r}{X}_{2}{}_{{}_{j{j}^{\prime}k}}}}$ | $\forall k\in K$ | (37) |

${R}_{{2}^{\prime}}{}_{{}_{h}}\ge {\displaystyle \sum _{r\in R}^{}{\tilde{P}}_{r}{Y}_{2}{}_{{}_{hr}^{}}}$ | $\forall j\in H$ | (38) |

$L{{t}^{\prime}}_{j{j}^{\prime}k}\le {X}_{2}{}_{{}_{j{j}^{\prime}k}}{\displaystyle \sum _{r\in R}{P}_{r}}$ | $\forall j,{j}^{\prime}\in b;\forall k\in K$ | (39) |

$\sum _{k\in K}{\displaystyle \sum _{b\in B}L{{t}^{\prime}}_{brk}}}\le {\displaystyle \sum _{k\in K}{\displaystyle \sum _{b\in B}L{{t}^{\prime}}_{rbk}-}}{P}_{r$ | $\forall r\in R$ | (40) |

#### 3.3. Proposed Solution

- Parameters need to be determined before the value of a random variable.
- Parameters need to be determined after the random event has happened.

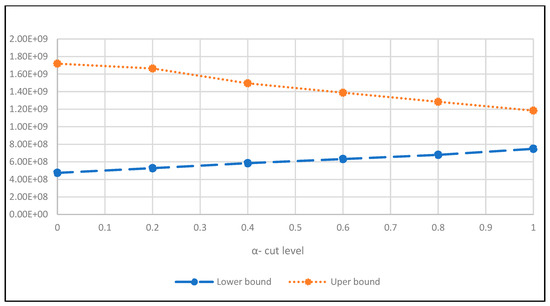

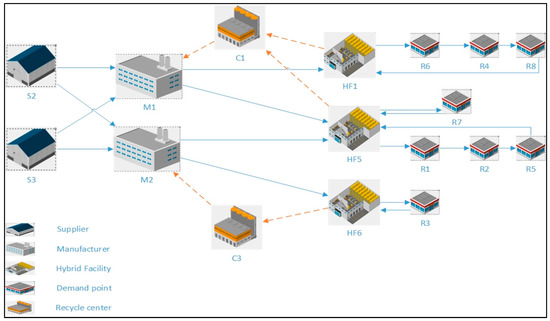

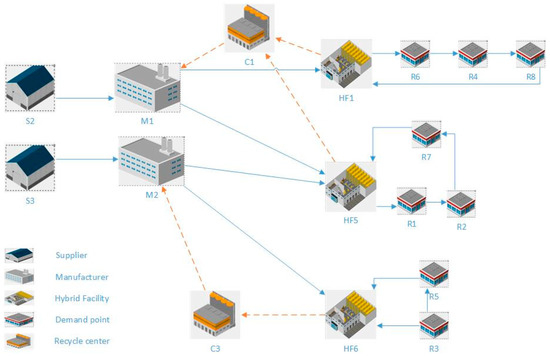

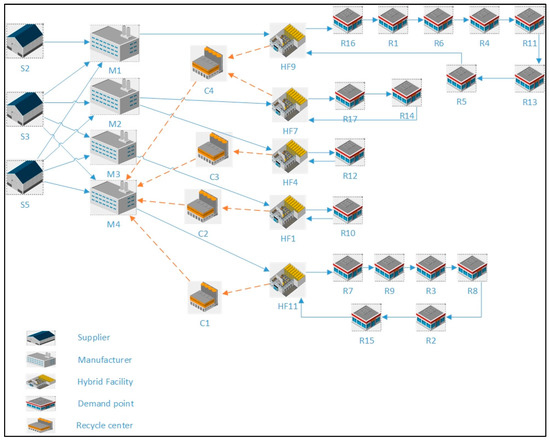

#### 3.4. Numerical Study

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

s | set of suppliers $s\in S$ |

i | set of raw materials $i\in I$ |

m | set of plants $m\in M$ |

h | set of hybrid facilities $(H{F}_{s})$ $h\in H$ |

r&j | set of customers |

b | aggregate set of hybrid facilities and customers ($h\cup r$) |

c | set of recycling centers $c\in C$ |

vi | set of vehicles $vi\in VI$ at node M |

k | set of vehicles $k\in K$ |

vj | set of vehicles $vj\in VJ$ at node RC |

Parameters: | |

${d}_{1}{}_{mh}$ | distance between plants $m\in M$ and hybrid facility $h\in H$ |

${d}_{2}{}_{j{j}^{\prime}}$ | distance between customer in node $j\in J$ and ${j}^{\prime}\in J$ |

${d}_{{3}_{hc}}$ | distance between hybrid facility $h\in H$ and recycling center $c\in C$ |

${\tilde{D}}_{r}$ | demand of customer $r\in R$ |

${\tilde{P}}_{r}$ | pickup customer $r\in R$ |

$M{D}_{2}{}_{{}_{k}}$ | maximum distance which vehicle $k\in K$ covers in a tour |

${C}_{1}{}_{{}_{vi}}$ | capacity of vehicle $vi\in VI$ |

${C}_{2}{}_{{}_{k}}$ | capacity of vehicle $k\in K$ |

${C}_{3}{}_{{}_{vj}}$ | capacity of vehicle $vj\in VJ$ |

$C{S}_{si}$ | capacity of supplier $s\in S$ to supply raw material $i\in I$ |

$C{M}_{m}$ | production capacity of plant $m\in M$ |

$C{D}_{h}$ | distribution capacity of hybrid facility $h\in H$ |

$C{C}_{c}$ | recycling capacity of recycling center $c\in C$ |

$P{S}_{si}$ | purchasing cost per unit of material $i\in I$ from supplier $s\in S$ |

$P{M}_{m}$ | production cost per unit of product at plant $m\in M$ |

$P{R}_{c}$ | recycling cost per unit of product at recycling center $c\in C$ |

$P{C}_{ci}$ | purchasing cost of unit of material $i\in I$ from recycling center $c\in C$ |

${B}_{2}$ | total number of customers |

${F}_{1}{}_{{}_{h}}$ | fixed opening cost of hybrid facility $h\in H$ |

$T{C}_{1}{}_{{}_{mhvi}}$ | transportation cost per unit of product of vehicle $vi\in VI$ between plant $m\in M$ and hybrid facility $h\in H$ |

$T{C}_{2}{}_{{}_{{j}_{{j}^{\prime}k}}}$ | transportation cost per unit of product of vehicle $k\in K$ between customer $j\in J$ and customer ${j}^{\prime}\in J$ |

$T{C}_{3}^{}{}_{{}_{hcvj}}$ | transportation cost per unit of product of vehicle $vj\in VJ$ between hybrid facility $h\in H$ and recycling center $c\in C$ |

${u}_{i}$ | utilization rate of material $i\in I$ |

$SP$ | selling price of end-of-life product |

Decision variables: | |

${X}_{2}{}_{{}_{j{j}^{\prime}k}}$ | binary variable indicating whether vehicle $k\in K$ travels directly from node $j\in J$ to node ${j}^{\prime}\in J$ |

${Y}_{2}{}_{{}_{hr}}$ | binary variable if hybrid facility $h\in H$ is assigned to customer $r\in R$ |

${U}_{1}{}_{{}_{h}}$ | $\mathrm{binary}\mathrm{variable}\mathrm{if}\mathrm{hybrid}\mathrm{facility}h\in H$ is open |

${L}_{2}{}_{{}_{k}}$ | load of vehicle $k\in K$ when leaving hybrid facility |

${L}_{{2}^{\prime}}{}_{{}_{k}}$ | load of vehicle $k\in K$ after having serviced all assigned customers |

${M}_{2}{}_{{}_{rk}}$ | sub-tour elimination variable for customer $r\in R$ $\mathrm{in}k\in K$ |

${R}_{2}{}_{{}_{h}}$ | distribution quantity of hybrid facility $h\in H$ |

${R}_{{2}^{\prime}}{}_{{}_{h}}$ | pick-up quantity for return product of hybrid facility $h\in H$ |

${X}_{0}{}_{{}_{sim}}$ | shipment quantity of raw material $i\in I$ between supplier $s\in S$ and plant $m\in M$ |

${X}_{1}{}_{{}_{mhvi}}$ | shipment quantity between plant $m\in M$ and hybrid facility $h\in H$ with vehicle $vi\in VI$ |

${X}_{3}{}_{{}_{hcvj}}$ | shipment quantity between hybrid facility $h\in H$ and recycling center $c\in C$ with vehicle $vj\in VJ$ |

${X}_{4}{}_{{}_{cim}}$ | shipment quantity of raw material $i\in I$ between recycling center $c\in C$ and plant $m\in M$ |

${L}_{t}{}_{{{}_{j}}_{{j}^{\prime}k}}$ | unload of demand for vehicle $k\in K$ from node $j\in J$ to node ${j}^{\prime}\in J$ |

${L}_{{t}^{\prime}}{}_{{}_{j{j}^{\prime}k}}$ | load of vehicle $k\in K$ from node $j\in J$ to node ${j}^{\prime}\in J$ |

## References

- United Nations Climate Change. 2015. Available online: https://unfccc.int/process-and-meetings/the-paris-agreement/the-paris-agreement (accessed on 1 December 2022).
- Carlson, C.J.; Albery, G.F.; Merow, C.; Trisos, C.H.; Zipfel, C.M.; Eskew, E.A.; Olival, K.J.; Ross, N.; Bansal, S. Climate change increases cross-species viral transmission risk. Nature
**2022**, 607, 555–562. [Google Scholar] [CrossRef] - World Health Organization. Biodiversity and Health. 2015. Available online: https://www.who.int/news-room/fact-sheets/detail/biodiversity-and-health (accessed on 1 December 2022).
- Acero, L.; Savaget, P. Plural understandings of sociotechnical progress within the OECD. In Proceedings of the 12th Globelics International Conference, Addis Ababa, Ethiopia, 29–31 October 2014. [Google Scholar]
- Hák, T.; Janoušková, S.; Moldan, B. Sustainable Development Goals: A need for relevant indicators. Ecol. Indic.
**2016**, 60, 565–573. [Google Scholar] [CrossRef] - Bonviu, F. The European economy: From a linear to a circular economy. Rom. J. Eur. Aff.
**2014**, 14, 78. [Google Scholar] - Pishvaee, M.S.; Farahani, R.Z.; Dullaert, W. A memetic algorithm for bi-objective integrated forward/reverse logistics network design. Comput. Oper. Res.
**2010**, 37, 1100–1112. [Google Scholar] [CrossRef] - Govindan, K.; Soleimani, H.; Kannan, D. Reverse logistics and closed-loop supply chain: A comprehensive review to explore the future. Eur. J. Oper. Res.
**2015**, 240, 603–626. [Google Scholar] [CrossRef] - Oliveira, L.S.; Machado, R.L. Application of optimization methods in the closed-loop supply chain: A literature review. J. Comb. Optim.
**2021**, 41, 357–400. [Google Scholar] [CrossRef] - Zhalechian, M.; Tavakkoli-Moghaddam, R.; Zahiri, B.; Mohammadi, M. Sustainable design of a closed-loop loca-tion-routing-inventory supply chain network under mixed uncertainty. Transp. Res. Part E Logist. Transp. Rev.
**2016**, 89, 182–214. [Google Scholar] [CrossRef] - Wang, N.; He, Q.; Jiang, B. Hybrid closed-loop supply chains with competition in recycling and product markets. Int. J. Prod. Econ.
**2019**, 217, 246–258. [Google Scholar] [CrossRef] - Zheng, X.-X.; Li, D.-F.; Liu, Z.; Jia, F.; Sheu, J.-B. Coordinating a closed-loop supply chain with fairness concerns through varia-ble-weighted Shapley values. Transp. Res. Part E Logist. Transp. Rev.
**2019**, 126, 227–253. [Google Scholar] [CrossRef] - Chen, Z.-S.; Zhang, X.; Govindan, K.; Wang, X.-J.; Chin, K.-S. Third-party reverse logistics provider selection: A computa-tional semantic analysis-based multi-perspective multi-attribute decision-making approach. Expert Syst. Appl.
**2021**, 166, 114051. [Google Scholar] [CrossRef] - Roboredo, M.; Sadykov, R.; Uchoa, E. Solving vehicle routing problems with intermediate stops using VRPSolver models. Networks
**2022**. [Google Scholar] [CrossRef] - Zeballos, L.J.; Mendez, C.; Barbosa-Póvoa, A.P.; Novais, A.Q. Multi-stage stochastic optimization of the design and planning of a Closed-Loop Supply Chain. Comput. Aided Chem. Eng.
**2013**, 32, 691–696. [Google Scholar] [CrossRef] - Pishvaee, M.S.; Rabbani, M.; Torabi, S. A robust optimization approach to closed-loop supply chain network design under un-certainty. Appl. Math. Model.
**2011**, 35, 637–649. [Google Scholar] [CrossRef] - Khalili-Damghani, K.; Tavana, M.; Amirkhan, M. A fuzzy bi-objective mixed-integer programming method for solving supply chain network design problems under ambiguous and vague conditions. Int. J. Adv. Manuf. Technol.
**2014**, 73, 1567–1595. [Google Scholar] [CrossRef] - Talaei, M.; Moghaddam, B.F.; Pishvaee, M.S.; Bozorgi-Amiri, A.; Gholamnejad, S. A robust fuzzy optimization model for carbon-efficient closed-loop supply chain network design problem: A numerical illustration in electronics industry. J. Clean. Prod.
**2016**, 113, 662–673. [Google Scholar] [CrossRef] - Kazemi, N.; Modak, N.M.; Govindan, K. A review of reverse logistics and closed loop supply chain management studies published in IJPR: A bibliometric and content analysis. Int. J. Prod. Res.
**2018**, 57, 4937–4960. [Google Scholar] [CrossRef] - Govindan, K.; Soleimani, H. A review of reverse logistics and closed-loop supply chains: A Journal of Cleaner Production focus. J. Clean. Prod.
**2017**, 142, 371–384. [Google Scholar] [CrossRef] - Cammarano, A.; Perano, M.; Michelino, F.; Del Regno, C.; Caputo, M. SDG-Oriented Supply Chains: Business Practices for Procurement and Distribution. Sustainability
**2022**, 14, 1325. [Google Scholar] [CrossRef] - Quattrociocchi, B.; Mercuri, F.; Perano, M.; Calabrese, M. Tourism supply chain & strategic partnerships for managing the com-plexity in tourism industry. Enl. Tour. A Pathmaking J.
**2017**, 7, 62–93. [Google Scholar] - Mital, M.; Del Giudice, M.; Papa, A. Comparing supply chain risks for multiple product categories with cognitive mapping and Analytic Hierarchy Process. Technol. Forecast. Soc. Chang.
**2018**, 131, 159–170. [Google Scholar] [CrossRef] - Yu, H.; Solvang, W.D. A fuzzy-stochastic multi-objective model for sustainable planning of a closed-loop supply chain considering mixed uncertainty and network flexibility. J. Clean. Prod.
**2020**, 266, 121702. [Google Scholar] [CrossRef] - Ghomi-Avili, M.; Naeini, S.G.J.; Tavakkoli-Moghaddam, R.; Jabbarzadeh, A. A fuzzy pricing model for a green competitive closed-loop supply chain network design in the presence of disruptions. J. Clean. Prod.
**2018**, 188, 425–442. [Google Scholar] [CrossRef] - Jabbarzadeh, A.; Haughton, M.; Khosrojerdi, A. Closed-loop supply chain network design under disruption risks: A robust approach with real world application. Comput. Ind. Eng.
**2018**, 116, 178–191. [Google Scholar] [CrossRef] - Wu, X.; Zhou, Y. Buyer-specific versus uniform pricing in a closed-loop supply chain with third-party remanufacturing. Eur. J. Oper. Res.
**2018**, 273, 548–560. [Google Scholar] [CrossRef] - Zhen, L.; Huang, L.; Wang, W. Green and sustainable closed-loop supply chain network design under uncertainty. J. Clean. Prod.
**2019**, 227, 1195–1209. [Google Scholar] [CrossRef] - Liu, Z.; Li, K.W.; Li, B.-Y.; Huang, J.; Tang, J. Impact of product-design strategies on the operations of a closed-loop supply chain. Transp. Res. Part E Logist. Transp. Rev.
**2019**, 124, 75–91. [Google Scholar] [CrossRef] - Mohtashami, Z.; Aghsami, A.; Jolai, F. A green closed loop supply chain design using queuing system for reducing en-vironmental impact and energy consumption. J. Clean. Prod.
**2020**, 242, 118452. [Google Scholar] [CrossRef] - Govindan, K.; Mina, H.; Esmaeili, A.; Gholami-Zanjani, S.M. An Integrated Hybrid Approach for Circular supplier selection and Closed loop Supply Chain Network Design under Uncertainty. J. Clean. Prod.
**2019**, 242, 118317. [Google Scholar] [CrossRef] - Yavari, M.; Zaker, H. Designing a resilient-green closed loop supply chain network for perishable products by considering disruption in both supply chain and power networks. Comput. Chem. Eng.
**2019**, 134, 106680. [Google Scholar] [CrossRef] - Fathollahi-Fard, A.M.; Ahmadi, A.; Al-E-Hashem, S.M. Sustainable closed-loop supply chain network for an integrated water supply and wastewater collection system under uncertainty. J. Environ. Manag.
**2020**, 275, 111277. [Google Scholar] [CrossRef] - Szmelter-Jarosz, A.; Ghahremani-Nahr, J.; Nozari, H. A Neutrosophic Fuzzy Optimisation Model for Optimal Sustainable Closed-Loop Supply Chain Network during COVID-19. J. Risk Financial Manag.
**2021**, 14, 519. [Google Scholar] [CrossRef] - Shabbir, M.S.; Mahmood, A.; Setiawan, R.; Nasirin, C.; Rusdiyanto, R.; Gazali, G.; Arshad, M.A.; Khan, S.; Batool, F. Closed-loop Supply Chain Network Design with Sustainability and Resiliency Criteria. Ph.D. Thesis, Petra Christian University, Surabaya, Indonesia, 2021. [Google Scholar]
- Liao, Y.; Kaviyani-Charati, M.; Hajiaghaei-Keshteli, M.; Diabat, A. Designing a closed-loop supply chain network for citrus fruits crates considering environmental and economic issues. J. Manuf. Syst.
**2020**, 55, 199–220. [Google Scholar] [CrossRef] - Amin, S.H.; Zhang, G. A proposed mathematical model for closed-loop network configuration based on product life cycle. Int. J. Adv. Manuf. Technol.
**2011**, 58, 791–801. [Google Scholar] [CrossRef] - Shi, Y.; Nie, J.; Qu, T.; Chu, L.-K.; Sculli, D. Choosing reverse channels under collection responsibility sharing in a closed-loop supply chain with re-manufacturing. J. Intell. Manuf.
**2013**, 26, 387–402. [Google Scholar] [CrossRef] - Sasikumar, P.; Haq, A.N. Integration of closed loop distribution supply chain network and 3PRLP selection for the case of battery recycling. Int. J. Prod. Res.
**2011**, 49, 3363–3385. [Google Scholar] [CrossRef] - Das, K.; Posinasetti, N.R. Addressing environmental concerns in closed loop supply chain design and planning. Int. J. Prod. Econ.
**2015**, 163, 34–47. [Google Scholar] [CrossRef] - Garg, K.; Kannan, D.; Diabat, A.; Jha, P. A multi-criteria optimization approach to manage environmental issues in closed loop supply chain network design. J. Clean. Prod.
**2015**, 100, 297–314. [Google Scholar] [CrossRef] - Taleizadeh, A.A.; Haghighi, F.; Niaki, S.T.A. Modeling and solving a sustainable closed loop supply chain problem with pricing decisions and discounts on returned products. J. Clean. Prod.
**2018**, 207, 163–181. [Google Scholar] [CrossRef] - Hasanov, P.; Jaber, M.; Tahirov, N. Four-level closed loop supply chain with remanufacturing. Appl. Math. Model.
**2018**, 66, 141–155. [Google Scholar] [CrossRef] - Mawandiya, B.K.; Jha, J.; Thakkar, J. Optimal production-inventory policy for closed-loop supply chain with reman-ufacturing under random demand and return. Oper. Res.
**2018**, 20, 1623–1664. [Google Scholar] - Giri, B.C.; Masanta, M. A closed-loop supply chain model with uncertain return and learning-forgetting effect in pro-duction under consignment stock policy. Oper. Res.
**2022**, 22, 947–975. [Google Scholar] - Wang, H.-F.; Hsu, H.-W. Resolution of an uncertain closed-loop logistics model: An application to fuzzy linear programs with risk analysis. J. Environ. Manag.
**2010**, 91, 2148–2162. [Google Scholar] [CrossRef] - Zceylan, E. Simultaneous optimization of closed- and open-loop supply chain networks with common components. J. Manuf. Syst.
**2016**, 41, 143–156. [Google Scholar] [CrossRef] - Ma, R.; Yao, L.; Jin, M.; Ren, P.; Lv, Z. Robust environmental closed-loop supply chain design under uncertainty. Chaos Solitons Fractals
**2016**, 89, 195–202. [Google Scholar] [CrossRef] - Kisomi, M.S.; Solimanpur, M.; Doniavi, A. An integrated supply chain configuration model and procurement management under uncertainty: A set-based robust optimization methodology. Appl. Math. Model.
**2016**, 40, 7928–7947. [Google Scholar] [CrossRef] - Soleimani, H.; Seyyed-Esfahani, M.; Kannan, G. Incorporating risk measures in closed-loop supply chain network design. Int. J. Prod. Res.
**2013**, 52, 1843–1867. [Google Scholar] [CrossRef] - Subulan, K.; Baykasoğlu, A.; Özsoydan, F.; Taşan, A.; Selim, H. A case-oriented approach to a lead/acid battery closed-loop supply chain network design under risk and uncertainty. J. Manuf. Syst.
**2015**, 37, 340–361. [Google Scholar] [CrossRef] - Dai, Z.; Zheng, X. Design of close-loop supply chain network under uncertainty using hybrid genetic algorithm: A fuzzy and chance-constrained programming model. Comput. Ind. Eng.
**2015**, 88, 444–457. [Google Scholar] [CrossRef] - Khatami, M.; Mahootchi, M.; Farahani, R.Z. Benders’ decomposition for concurrent redesign of forward and closed-loop supply chain network with demand and return uncertainties. Transp. Res. Part E Logist. Transp. Rev.
**2015**, 79, 1–21. [Google Scholar] [CrossRef] - Radhi, M.; Zhang, G. Optimal configuration of remanufacturing supply network with return quality decision. Int. J. Prod. Res.
**2015**, 54, 1487–1502. [Google Scholar] [CrossRef] - Keyvanshokooh, E.; Ryan, S.M.; Kabir, E. Hybrid robust and stochastic optimization for closed-loop supply chain network design using accelerated Benders decomposition. Eur. J. Oper. Res.
**2016**, 249, 76–92. [Google Scholar] [CrossRef] - Saedinia, R.; Vahdani, B.; Etebari, F.; Nadjafi, B.A. Robust gasoline closed loop supply chain design with redistricting, service sharing and intra-district service transfer. Transp. Res. Part E Logist. Transp. Rev.
**2019**, 123, 121–141. [Google Scholar] [CrossRef] - Jeihoonian, M.; Zanjani, M.K.; Gendreau, M. Closed-loop supply chain network design under uncertain quality status: Case of durable products. Int. J. Prod. Econ.
**2017**, 183, 470–486. [Google Scholar] [CrossRef] - Zhen, L.; Sun, Q.; Wang, K.; Zhang, X. Facility location and scale optimisation in closed-loop supply chain. Int. J. Prod. Res.
**2019**, 57, 7567–7585. [Google Scholar] [CrossRef] - Montoya-Torres, J.R.; Franco, J.L.; Isaza, S.N.; Jiménez, H.F.; Herazo-Padilla, N. A literature review on the vehicle routing problem with multiple depots. Comput. Ind. Eng.
**2015**, 79, 115–129. [Google Scholar] [CrossRef] - Nagy, G.; Salhi, S.D. Heuristic algorithms for single and multiple depot vehicle routing problems with pickups and de-liveries. Eur. J. Oper. Res.
**2005**, 162, 126–141. [Google Scholar] [CrossRef] - Ahmadi Javid, A.; Azad, N. Incorporating location, routing and inventory decisions in supply chain network design. Transp. Res. Part E Logist. Transp. Rev.
**2010**, 46, 582–597. [Google Scholar] [CrossRef] - Nekooghadirli, N.; Tavakkoli-Moghaddam, R.; Ghezavati, V.; Javanmard, S. Solving a new bi-objective loca-tion-routing-inventory problem in a distribution network by meta-heuristics. Comput. Ind. Eng.
**2014**, 76, 204–221. [Google Scholar] [CrossRef] - Bae, H.; Moon, I. Multi-depot vehicle routing problem with time windows considering delivery and installation vehicles. Appl. Math. Model.
**2016**, 40, 6536–6549. [Google Scholar] [CrossRef] - Archetti, C.; Desaulniers, G.; Speranza, M.G. Minimizing the logistic ratio in the inventory routing problem. EURO J. Transp. Logist.
**2017**, 6, 289–306. [Google Scholar] [CrossRef] - Iassinovskaia, G.; Limbourg, S.; Riane, F. The inventory-routing problem of returnable transport items with time windows and simultaneous pickup and delivery in closed-loop supply chains. Int. J. Prod. Econ.
**2017**, 183, 570–582. [Google Scholar] [CrossRef] - Wang, K.; Shao, Y.; Zhou, W. Matheuristic for a two-echelon capacitated vehicle routing problem with environmental considerations in city logistics service. Transp. Res. Part D Transp. Environ.
**2017**, 57, 262–276. [Google Scholar] [CrossRef] - Ahmadi-Javid, A.; Amiri, E.; Meskar, M. A Profit-Maximization Location-Routing-Pricing Problem: A Branch-and-Price Algorithm. Eur. J. Oper. Res.
**2018**, 271, 866–881. [Google Scholar] [CrossRef] - Madankumar, S.; Rajendran, C. Mathematical models for green vehicle routing problems with pickup and delivery: A case of semiconductor supply chain. Comput. Oper. Res.
**2018**, 89, 183–192. [Google Scholar] [CrossRef] - Abu Al Hla, Y.; Othman, M.; Saleh, Y. Optimising an eco-friendly vehicle routing problem model using regular and occasional drivers integrated with driver behaviour control. J. Clean. Prod.
**2019**, 234, 984–1001. [Google Scholar] [CrossRef] - Madankumar, S.; Rajendran, C. A mixed integer linear programming model for the vehicle routing problem with sim-ultaneous delivery and pickup by heterogeneous vehicles, and constrained by time windows. Sādhanā
**2019**, 44, 39. [Google Scholar] [CrossRef] - Zhou, H.; Qin, H.; Zhang, Z.; Li, J. Two-echelon vehicle routing problem with time windows and simultaneous pickup and delivery. Soft Comput.
**2022**, 26, 3345–3360. [Google Scholar] [CrossRef] - Özceylan, E.; Demirel, N.; Çetinkaya, C.; Demirel, E. A closed-loop supply chain network design for automotive industry in Turkey. Comput. Ind. Eng.
**2017**, 113, 727–745. [Google Scholar] [CrossRef] - Farrokh, M.; Azar, A.; Jandaghi, G.; Ahmadi, E. A novel robust fuzzy stochastic programming for closed loop supply chain network design under hybrid uncertainty. Fuzzy Sets Syst.
**2018**, 341, 69–91. [Google Scholar] [CrossRef] - Jerbia, R.; Boujelben, M.K.; Sehli, M.A.; Jemai, Z. A stochastic closed-loop supply chain network design problem with multiple recovery options. Comput. Ind. Eng.
**2018**, 118, 23–32. [Google Scholar] [CrossRef] - Almaraj, I.I.; Trafalis, T.B. An integrated multi-echelon robust closed- loop supply chain under imperfect quality production. Int. J. Prod. Econ.
**2019**, 218, 212–227. [Google Scholar] [CrossRef] - Zhou, J.; Xia, W.; Wang, K.; Li, H.; Zhang, Q. Fuzzy Bi-Objective Closed-Loop Supply Chain Network Design Problem with Multiple Recovery Options. Sustainability
**2020**, 12, 6770. [Google Scholar] [CrossRef] - Diabat, A.; Jebali, A. Multi-product and multi-period closed loop supply chain network design under take-back legislation. Int. J. Prod. Econ.
**2020**, 231, 107879. [Google Scholar] [CrossRef] - Chouhan, V.K.; Khan, S.; Hajiaghaei-Keshteli, M. Metaheuristic approaches to design and address multi-echelon sug-arcane closed-loop supply chain network. Soft Comput.
**2021**, 25, 11377–11404. [Google Scholar] [CrossRef] - Chiu, C.-Y.; Cheng, C.-Y.; Wu, T.-Y. Integrated Operational Model of Green Closed-Loop Supply Chain. Sustainability
**2021**, 13, 6041. [Google Scholar] [CrossRef] - Easwaran, G.; Uster, H. A closed-loop supply chain network design problem with integrated forward and reverse channel decisions. IIE Trans.
**2010**, 42, 779–792. [Google Scholar] [CrossRef] - Pedram, A.; Bin Yusoff, N.; Udoncy, O.E.; Mahat, A.B.; Pedram, P.; Babalola, A. Integrated forward and reverse supply chain: A tire case study. Waste Manag.
**2017**, 60, 460–470. [Google Scholar] [CrossRef] - Guo, P.; Huang, G. Inexact fuzzy-stochastic mixed-integer programming approach for long-term planning of waste management—Part A: Methodology. J. Environ. Manag.
**2009**, 91, 461–470. [Google Scholar] [CrossRef] - Li, Y.; Liu, J.; Huang, G. A hybrid fuzzy-stochastic programming method for water trading within an agricultural system. Agric. Syst.
**2013**, 123, 71–83. [Google Scholar] [CrossRef] - Freeze, R.A.; Massmann, J.; Smith, L.; Sperling, T.; James, B. Hydrogeological Decision Analysis: 1. A Framework. Groundwater
**1990**, 28, 738–766. [Google Scholar] [CrossRef] - Mendoza, G.A.; Bare, B.B.; Zhou, Z. A fuzzy multiple objective linear programming approach to forest planning under uncertainty. Agric. Syst.
**1993**, 41, 257–274. [Google Scholar] [CrossRef] - Iskander, M.G. A suggested approach for possibility and necessity dominance indices in stochastic fuzzy linear programming. Appl. Math. Lett.
**2005**, 18, 395–399. [Google Scholar] [CrossRef] - Kaufmann, A.; Aluja, J.G.; Kaufmann, J.A. Técnicas de Gestión de Empresa: Previsiones, Decisiones y Estrategias; FisicalBook: Madrid, Spain, 1992. [Google Scholar]
- Aghelie, A.; Sorooshian, S.; Azizan, N. Research gap in sustainopreneurship. Indian J. Sci. Technol.
**2016**, 9, 1–6. [Google Scholar] [CrossRef] - Sorooshian, S.; Qi, L.C.; Fei, L.L. Characterization of ISO 14001 implementation. Environ. Qual. Manag.
**2018**, 27, 97–105. [Google Scholar] [CrossRef] - Sorooshian, S.; Ting, K.C. Reasons for implementing ISO 14001 in Malaysia. Environ. Qual. Manag.
**2018**, 27, 125–133. [Google Scholar] [CrossRef] - Pedram, A.; Pedram, P.; Yusoff, N.; Sorooshian, S. Development of closed–loop supply chain network in terms of cor-porate social responsibility. PLoS ONE
**2017**, 12, e0174951. [Google Scholar] - Kabak, Ö.; Ruan, D. A comparison study of fuzzy MADM methods in nuclear safeguards evaluation. J. Glob. Optim.
**2010**, 51, 209–226. [Google Scholar] [CrossRef] - Fallahpour, A.; Nayeri, S.; Sheikhalishahi, M.; Wong, K.; Tian, G.; Fathollahi-Fard, A. A hyper-hybrid fuzzy deci-sion-making framework for the sustainable-resilient supplier selection problem: A case study of Malaysian Palm oil industry. Environ. Sci. Pollut. Res.
**2021**, 1–21. [Google Scholar] [CrossRef]

**Figure 4.**Network configuration when α- cut level is 0.4 for the lower bound for problem number two.

Model Characteristics | Özceylan, Demirel [72] | Farrokh, Azar [73] | Jabbarzadeh, Haughton [26] | Jerbia, Kchaou Boujelben [74] | Almaraj and Trafalis [75] | Zhou, Xia [76] | Diabat and Jebali [77] | Chouhan, Khan [78] | Chiu, Cheng [79] | This Paper |
---|---|---|---|---|---|---|---|---|---|---|

Product | ||||||||||

Single | X | X | X | X | X | |||||

Multiple | X | X | X | X | X | |||||

Period | ||||||||||

Single | X | X | X | |||||||

Multiple | X | X | X | X | X | X | X | |||

Modeling Approach | ||||||||||

Deterministic | X | X | X | |||||||

Stochastic-robust optimization | ||||||||||

Fuzzy programming | X | X | ||||||||

Scenario-based robust optimization | X | |||||||||

Mixed-integer linear programming | X | X | X | X | X | X | X | X | ||

Two-stage stochastic program | X | |||||||||

Robust optimization | X | |||||||||

Fuzzy-stochastic programming | X | X | ||||||||

Solution approach | ||||||||||

Optimization software package | X | X | X | X | X | X | X | |||

Lagrangian relaxation | X | |||||||||

Metaheuristics algorithms | X | |||||||||

Decomposition method | X | |||||||||

Uncertain parameters | ||||||||||

Demand | X | X | X | X | X | |||||

Capacity | X | X | X | X | ||||||

Cost | X | X | X | X | X | |||||

Return | X | X | X | |||||||

Recovery rate | X | |||||||||

Revenue | X | X | ||||||||

Error type | X | |||||||||

Delivery time | X | |||||||||

Disposal and repair | X | |||||||||

Objective-function components | ||||||||||

Transportation cost (min) | X | X | X | X | X | X | X | X | X | |

Inventory cost (min) | X | X | X | X | X | X | ||||

Facility fixed-cost opening (min) | X | X | X | X | X | X | ||||

Penalty cost (min) | X | X | ||||||||

Disposal (min) | X | X | X | |||||||

Purchasing (min) | X | X | X | X | X | |||||

Collection (min) | X | X | X | X | X | |||||

Manufacturing (min) | X | X | X | X | X | X | X | |||

Disassembling (min) | X | |||||||||

Recycling cost (min) | X | X | X | |||||||

Lost cost (min) | X | |||||||||

Profit (max) | X | X | ||||||||

Remanufacturing cost (min) | X | X | ||||||||

Repair cost (min) | X | |||||||||

Distribution cost (min) | X | |||||||||

Procurement cost (min) | X | |||||||||

Labor cost (min) | X | |||||||||

Allocation cost (min) | X | |||||||||

Processing cost (min) | X | X | X |

Problem No. | No. of Potential Suppliers | No. of Potential Manufacturers | No. of Hybrid Facilities | No. of Existing Customers | No. of Potential Recycling Centers |
---|---|---|---|---|---|

1 | 4 | 2 | 6 | 8 | 3 |

2 | 6 | 4 | 11 | 17 | 4 |

3 | 5 | 3 | 10 | 15 | 6 |

4 | 5 | 5 | 15 | 20 | 5 |

Parameter | Value | |||
---|---|---|---|---|

${\tilde{D}}_{r}$ | ~Unif (20,000, 30,000) | ~Unif (30,000, 40,000) | ~Unif (40,000, 50,000) | ~Unif (50,000, 60,000) |

${\tilde{P}}_{r}$ | ~Unif (5000, 10,000) | ~Unif (10,000,15,000) | ~Unif (15,000,20,000) | ~Unif (20,000, 25,000) |

${\tilde{C}}_{1}{}_{{}_{vi}}$ | ~Unif (3,000,000, 4,000,000) | ~Unif (4,000,000, 5,000,000) | ~Unif (5,000,000, 6,000,000) | ~Unif (6,000,000, 7,000,000) |

${\tilde{C}}_{2}{}_{{}_{{}_{k}}}$ | ~Unif (3,000,000, 4,000,000) | ~Unif (4,000,000, 5,000,000) | ~Unif (5,000,000, 6,000,000) | ~Unif (6,000,000, 7,000,000) |

${\tilde{C}}_{3}{}_{vj}$ | ~Unif (3,000,000, 4,000,000) | ~Unif (4,000,000, 5,000,000) | ~Unif (5,000,000, 6,000,000) | ~Unif (6,000,000, 7,000,000) |

$\tilde{C}{S}_{si}$ | ~Unif (2,000,000, 3,000,000) | ~Unif (3,000,000, 4,000,000) | ~Unif (4,000,000, 5,000,000) | ~Unif (5,000,000, 6,000,000) |

$\tilde{C}{M}_{m}$ | ~Unif (2,000,000, 2,500,000) | ~Unif (2,500,000, 3,500,000) | ~Unif (3,500,000, 4,500,000) | ~Unif (4,500,000, 5,500,000) |

$\tilde{C}{D}_{h}$ | ~Unif (900,000, 1,000,000) | ~Unif (1,000,000, 1,500,000) | ~Unif (1,500,000, 2,000,000) | ~Unif (2,000,000, 2,500,000) |

$\tilde{C}{C}_{c}$ | ~Unif (900,000, 1,000,000) | ~Unif (1,000,000, 1,500,000) | ~Unif (1,500,000, 2,000,000) | ~Unif (2,000,000, 2,500,000) |

${\tilde{F}}_{1}{}_{{}_{h}}$ | ~Unif (200,000, 250,000) | ~Unif (250,000, 300,000) | ~Unif (300,000, 350,000) | ~Unif (350,000, 400,000) |

$\tilde{P}{S}_{si}$ | ~Unif (1, 3) | ~Unif (3, 6) | ~Unif (6, 9) | ~Unif (9, 12) |

$\tilde{P}{M}_{m}$ | ~Unif (2, 4) | ~Unif (4, 6) | ~Unif (6, 8) | ~Unif (8, 10) |

$\tilde{P}{R}_{c}$ | ~Unif (2, 4) | ~Unif (4, 6) | ~Unif (6, 8) | ~Unif (8, 10) |

$\tilde{P}{C}_{ci}$ | ~Unif (2, 4) | ~Unif (4, 6) | ~Unif (6, 8) | ~Unif (8, 10) |

$\tilde{T}{C}_{1}{}_{{}_{mhvi}}$ | ~Unif (10, 12) | ~Unif (12, 14) | ~Unif (14, 16) | ~Unif (14, 18) |

$\tilde{T}{C}_{2}{}_{{}_{j{j}^{\prime}k}}$ | ~Unif (10, 12) | ~Unif (12, 14) | ~Unif (14, 16) | ~Unif (14, 18) |

$\tilde{T}{C}_{3}{}_{{}_{hcvj}}$ | ~Unif (10, 12) | ~Unif (12, 14) | ~Unif (14, 16) | ~Unif (14, 18) |

$SP$ | 20 | 30 | 40 | 50 |

Problem No. | ||||
---|---|---|---|---|

$\alpha -cutlevel$ | 1 | 2 | 3 | 4 |

$\alpha =0$ | [190,528,300, 773,505,400] | [474,328,100, 1,719,479,000] | [590,739,600, 2,150,690,000] | [306,343,100, 1,191,767,000] |

$\alpha =0.2$ | [217,807,900, 726,333,400] | [527,852,300, 1,663,605,000] | [662,951,500, 2,150,690,000] | [342,264,400, 1,138,206,000] |

$\alpha =0.4$ | [246,618,800, 680,223,700] | [584,420,000, 1,494,726,000] | [727,251,800, 2,032,501,000] | [421,803,700, 1,076,690,000] |

$\alpha =0.6$ | [276,812,200, 6,302,216,00] | [631,762,400, 1,387,619,000] | [775,098,100, 1,748,506,000] | [464,338,500, 995,462,700] |

$\alpha =0.8$ | [308,375,900, 577,293,400] | [679,946,900, 128,397,3000] | [845,901,700, 1,599,929,000] | [500,146,300, 912,892,800] |

$\alpha =1$ | [341,418,500, 526,630,300] | [748,914,300, 1,183,985,000] | [986,029,000, 1,457,822,000] | [554,242,300, 833,767,800] |
