# Evacuation Shelter Decision Method Considering Non-Cooperative Evacuee Behavior to Support the Disaster Weak

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- First, we focus on the issues of the disaster weak and critical support for their quick evacuation. To support the disaster weak, our strategy not only gives priority to them but also tries to avoid burdening them further due to evacuees’ selfish behaviors. To achieve this, we extend the procedure of limiting the assignment number of each shelter to the method by Umeki et al. [7], and the disaster weak are also given priority in the shelter decision procedure.
- Second, we further propose a unique method for assigning evacuees to shelters. We conduct simulations of evacuation behavior to estimate how the disaster weak will be affected when evacuees ignore evacuation instructions. The estimation determines how to assign evacuees to shelters. We estimate which shelters get crowded and how many evacuees will be rejected in advance. Based on the estimation result, we set the maximum number of evacuees to assign to each shelter.
- Finally, we evaluate our methods using multi-agent system simulations for the scenario of evacuation of 30,000 visitors for Gion Festival to show the effectiveness of the proposed methods. As a result, our methods can reduce the average evacuation time of the disaster weak and evacuate more of the disaster weak in a shorter time compared with the existing methods when the number of evacuees who are non-cooperative is less than the expected number.

## 2. Related Work

#### 2.1. Studies for Disaster Events

#### 2.2. Studies on People with Disabilities in Disaster Situations

#### 2.3. Our Approach

## 3. Preliminary Work

#### 3.1. Outline and Prerequisite

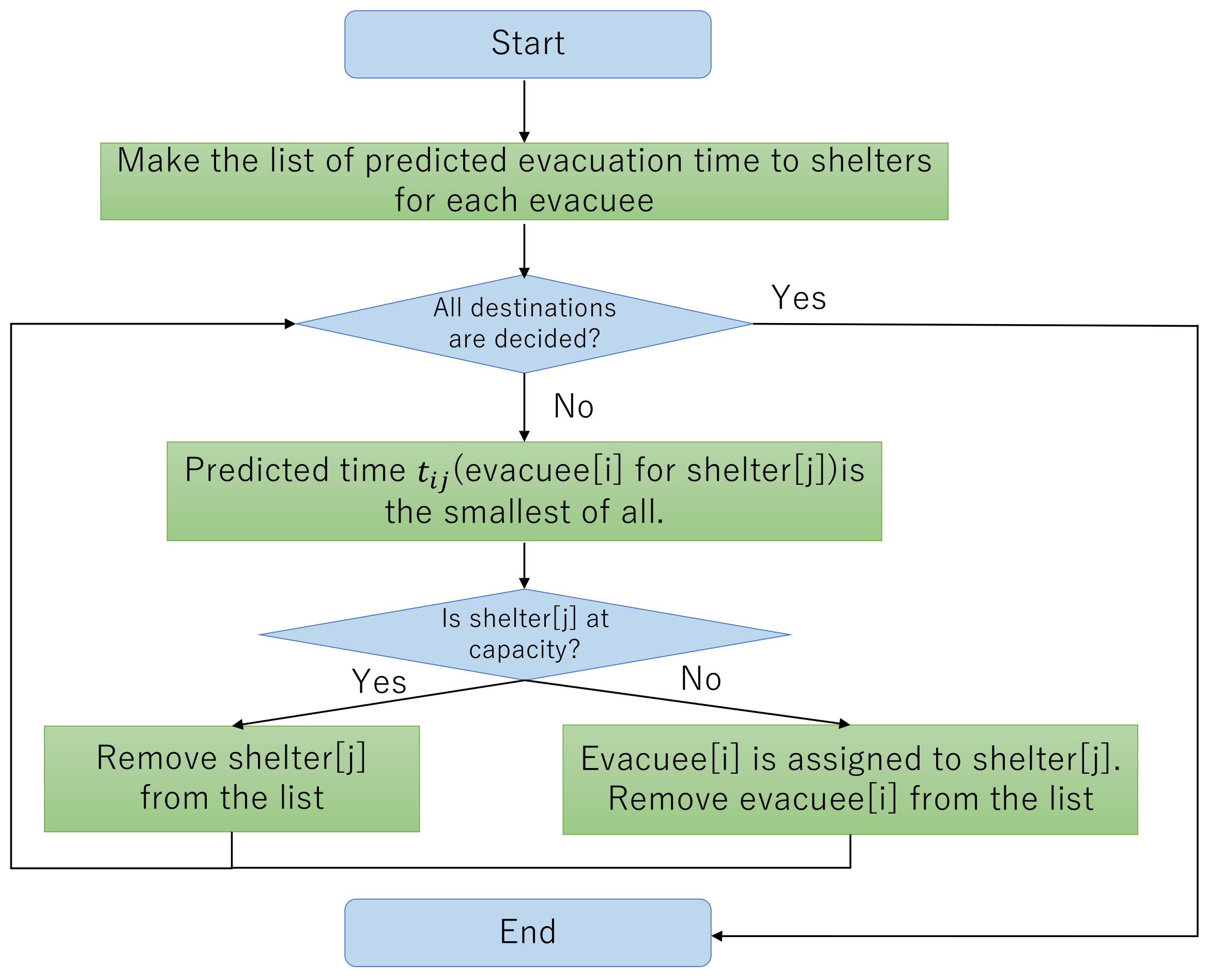

#### 3.2. Method by Solving Combinatorial Optimization Problem

#### 3.3. Problems with COP Involving Disaster Weak

## 4. Proposed Methods

#### 4.1. Outline

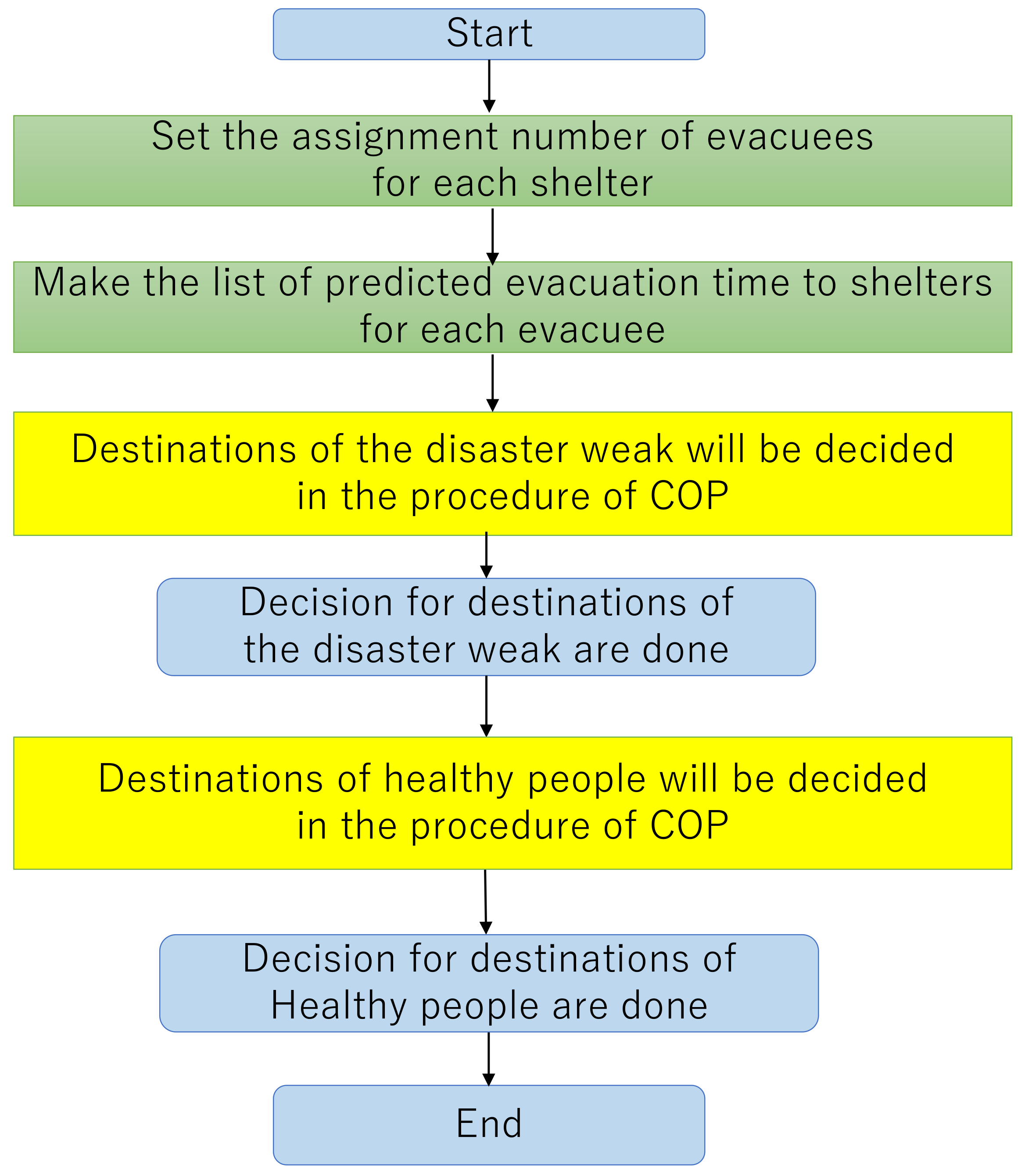

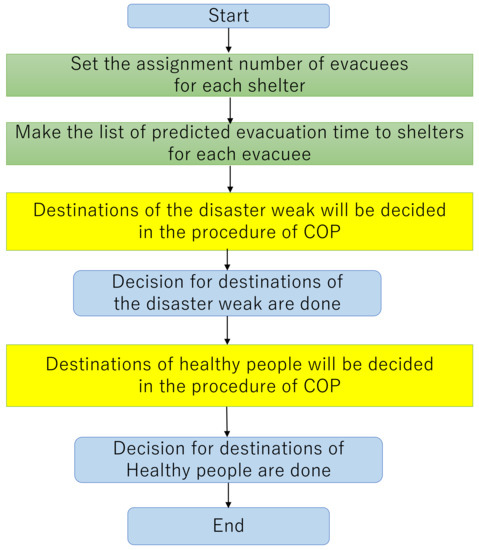

#### 4.2. Fixed-Rate Reduction Method (FRM)

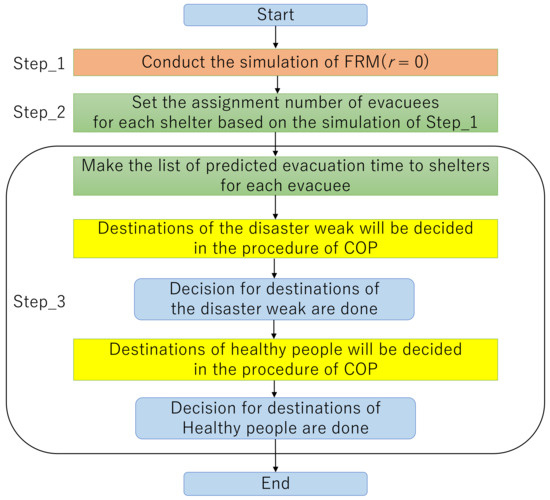

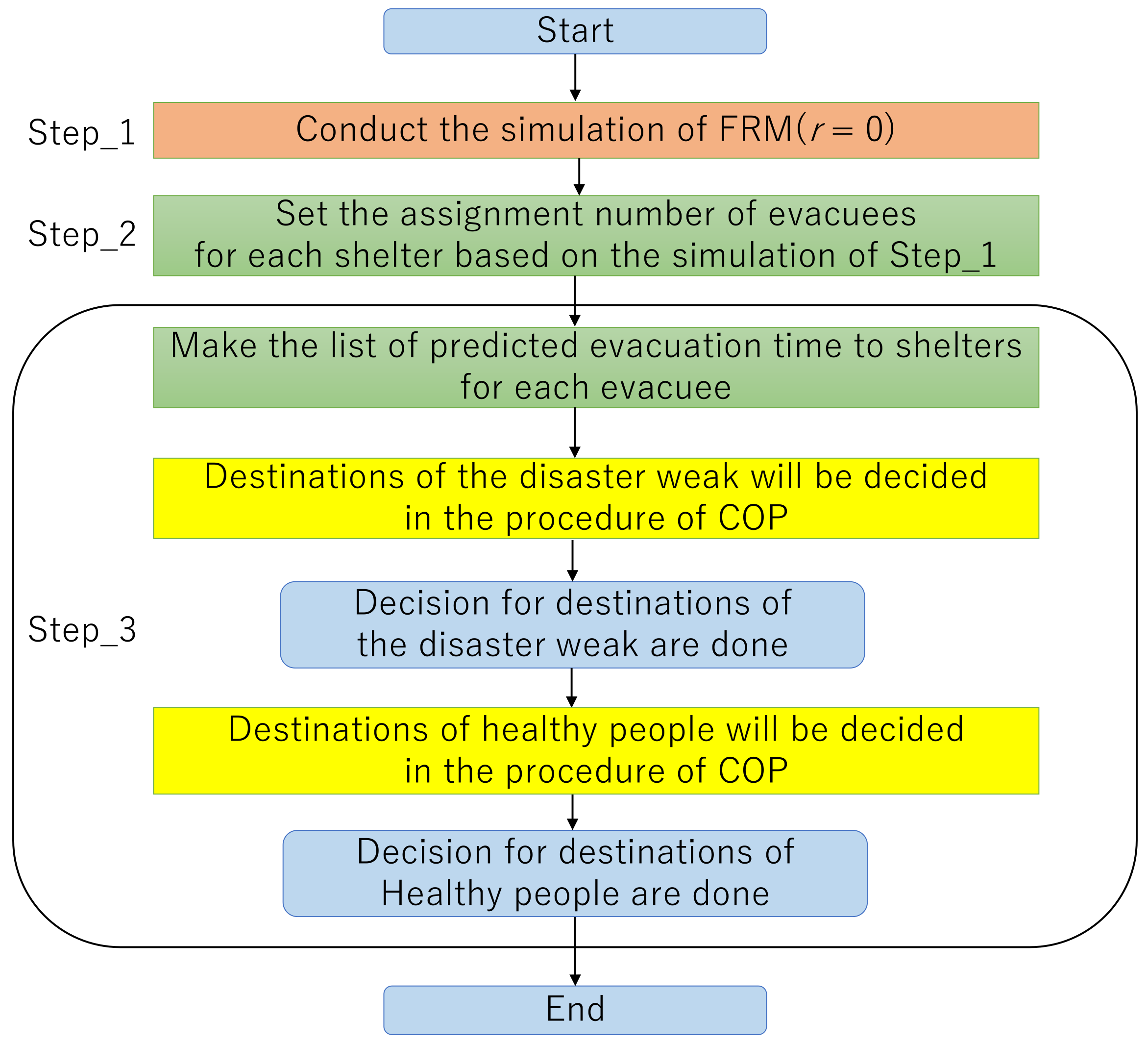

#### 4.3. Simulation-Based Reduction Method (SRM)

**Step_1: Detecting which shelters will be crowded by simulation**

- The number of evacuees who will arrive at shelter i.
- The number of evacuees who will be refused by shelters.

**Step_2: Setting the number of evacuees to assign**

**Step_3: Combinatorial optimization problem method with priority for disaster weak**

## 5. Performance Evaluations

#### 5.1. Evaluation Environments

- OS: CentOS 7
- Memory: 125.7 GiB
- CPU: Intel Core i7-6850K CPU @ 3.60 GHz × 12

#### 5.2. Parameters

#### 5.2.1. Walking Speed

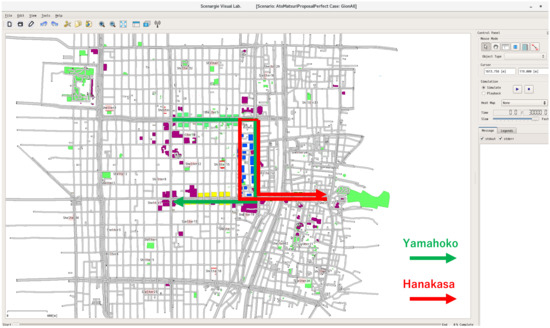

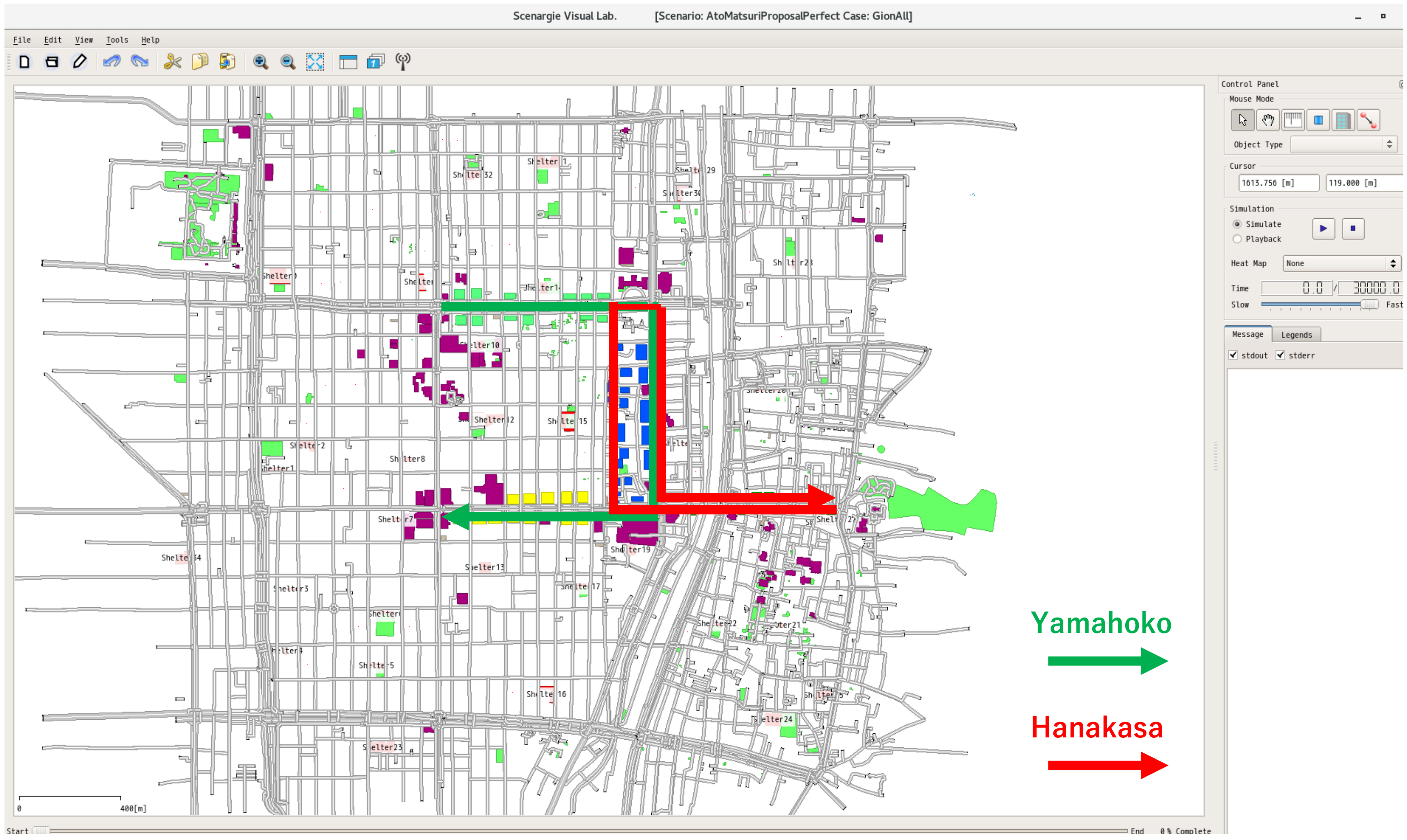

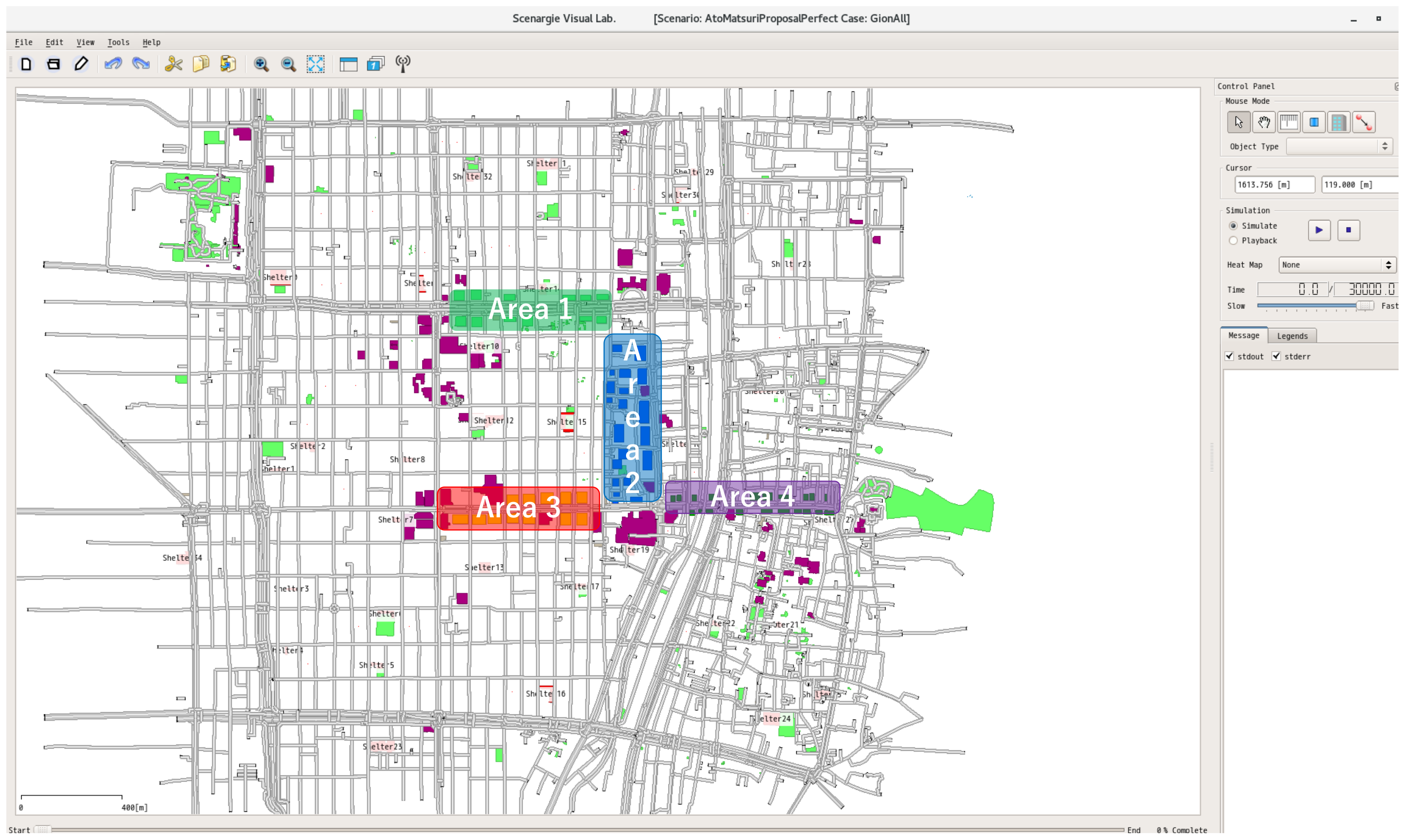

#### 5.2.2. Initial Locations

- Group 1: 4000 evacuees start from Area 1.
- Group 2: 8000 evacuees start from Area 2.
- Group 3: 4000 evacuees start from Area 3.
- Group 4: 4000 evacuees start from Area 4.
- Group 5: 10,000 evacuees start from random points on the map.

#### 5.2.3. Shelter Capacity

#### 5.2.4. Evacuees Behavior

#### 5.3. Comparison Methods

#### 5.3.1. Nearest-Shelter Selection Method

#### 5.3.2. COP

#### 5.3.3. FRM

#### 5.3.4. SRM

#### 5.4. Results

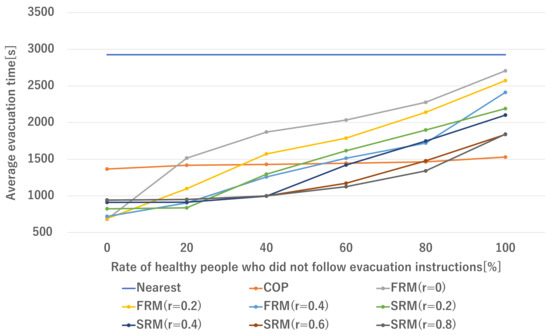

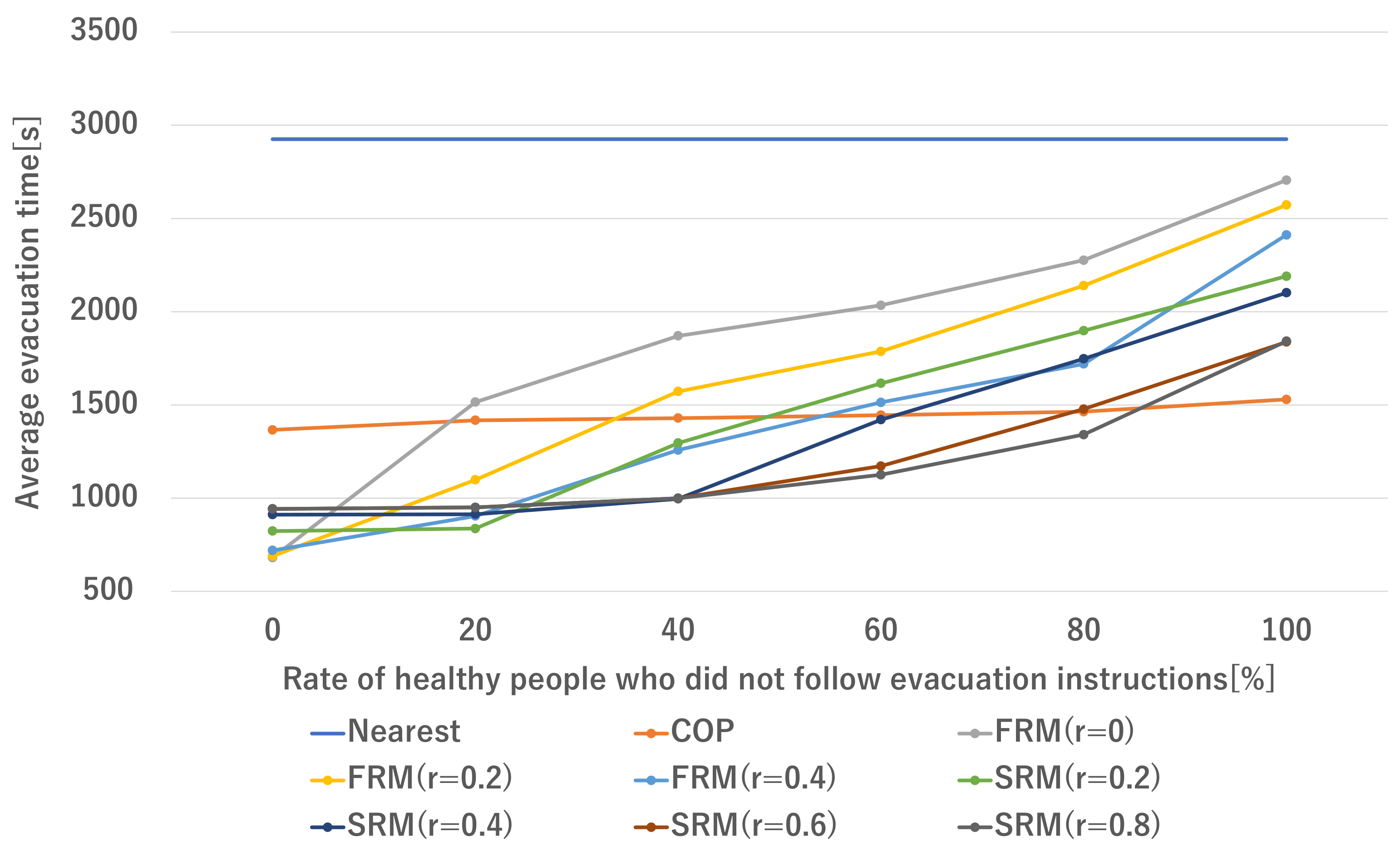

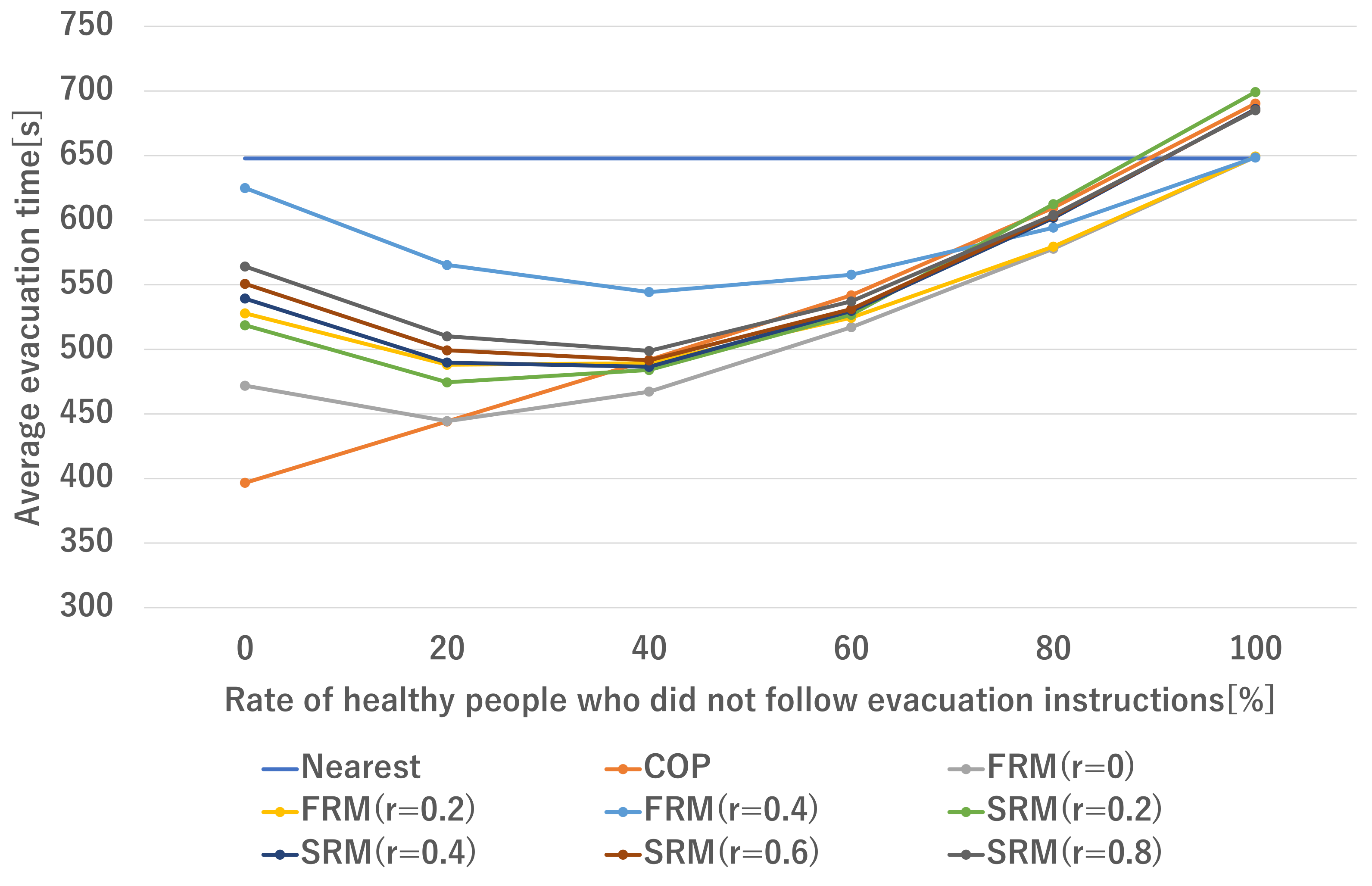

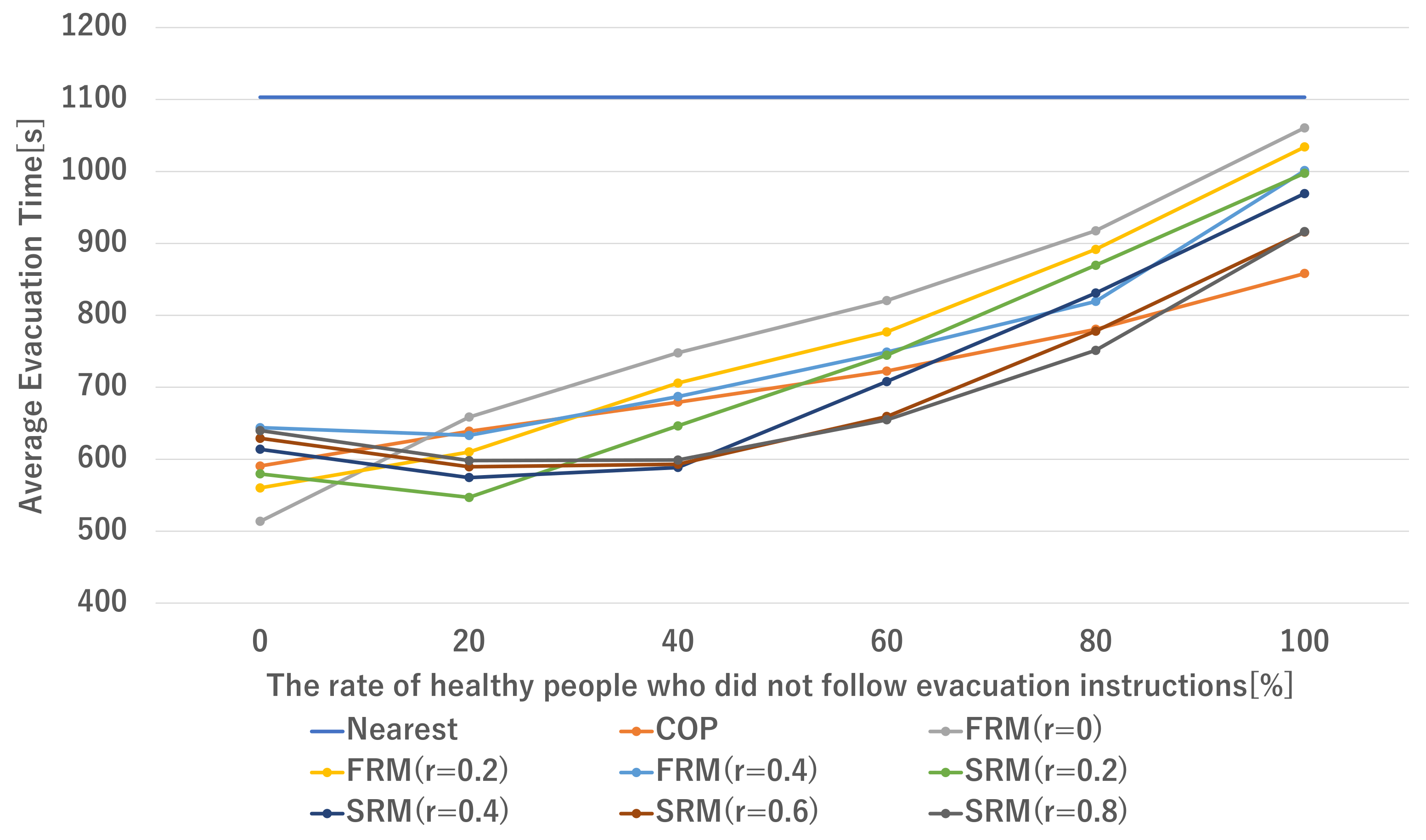

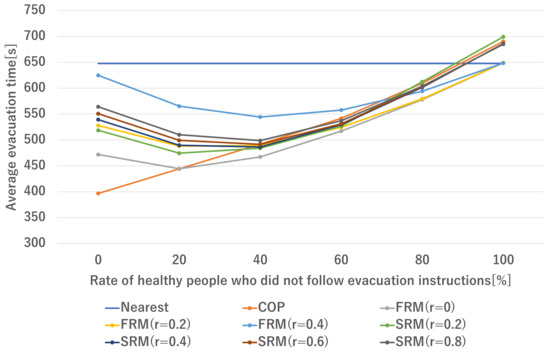

#### 5.4.1. Average Evacuation Time

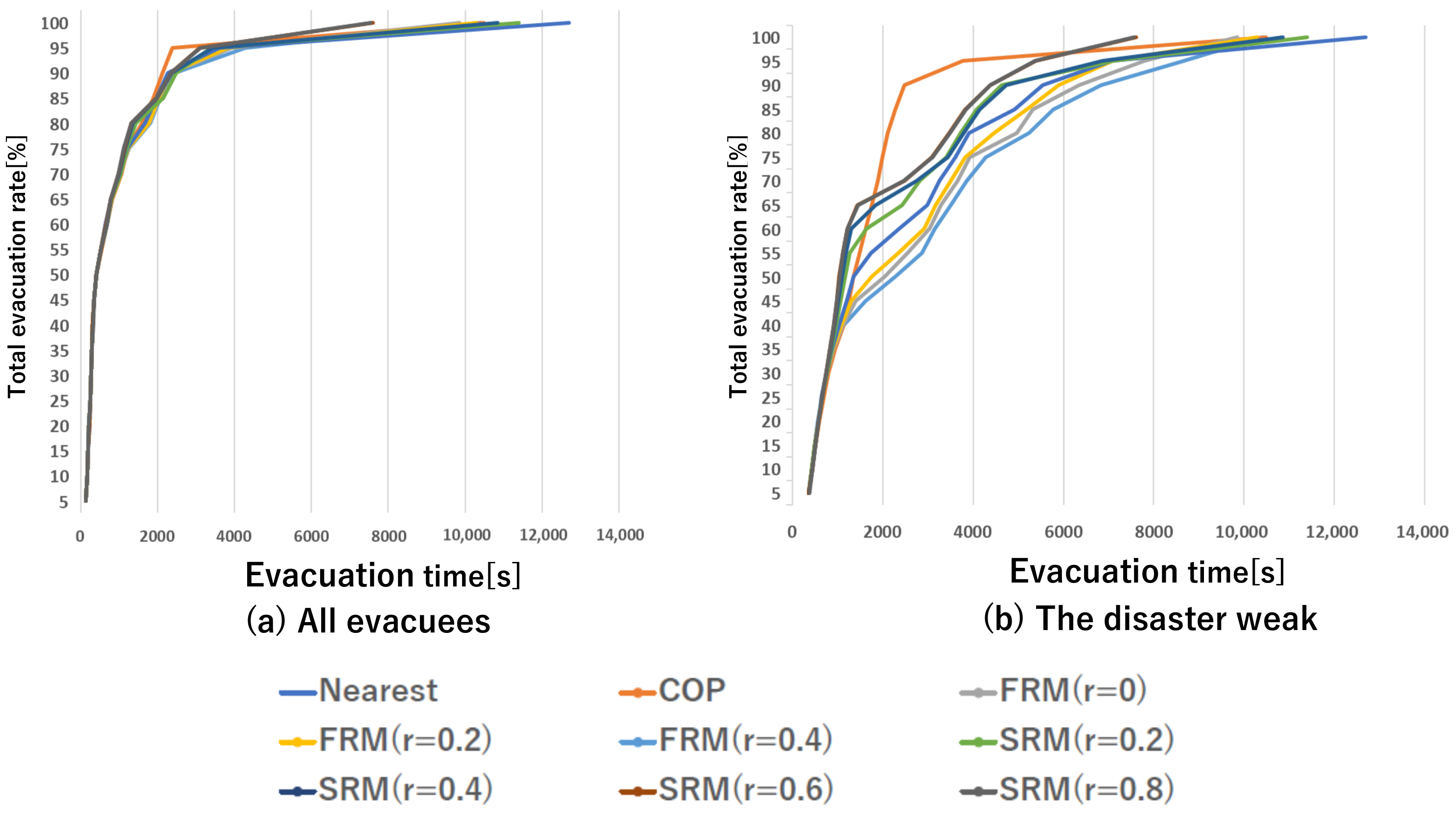

#### 5.4.2. Total Evacuation Rate

## 6. Discussion

## 7. Conclusions

- Giving priority to the disaster weak can make healthy people take longer time for evacuation. When some healthy people are non-cooperative with evacuation instructions, the disaster weak can be turned away by shelters. Thus, it is important to assume non-cooperative evacuees’ behavior for strategies that attempt to ease burdens on the disaster weak.
- FRM with a margin rate, which sets the assignment number at the same percentage for all shelters, can reduce the evacuation time of the disaster weak compared to the method that only gives priority to them. However, if the value of the margin rate is too high, FRM is not able to decide the destinations of evacuees.
- SRM, which estimates how congestion in disaster areas occurs by simulations, sets the assignment number for shelters based on estimation instead of limiting the assignment numbers for all shelters uniformly like FRM. Compared to FRM, SRM can evacuate more of the disaster weak earlier.
- SRM can reduce the average evacuation time of the disaster weak and evacuate more of the disaster weak compared to COP when the number of non-cooperative evacuees is less than the assumed number.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Namba, Y.; Furukawa, Y. Present condition grasp of the disaster weak and evacuation at the time of disaster: Case study on Higashihiroshima City. In Research Reports of the School of Engineering; Kinki University: Osaka, Japan, 2006; pp. 41–46. (In Japanese) [Google Scholar]
- Kawata, Y.; Tsuji, Y.; Syamsudin, A.; Matsuyama, M.; Matsutomi, H.; Imamura, F.; Takahashi, T. Response of residents at the moment of tsunamis-The 1992 Flores Island earthquake tsunami, Indonesia. In Tsunami: Progress in Prediction, Disaster Prevention and Warning; Springer: Berlin/Heidelberg, Germany, 1995; pp. 173–185. [Google Scholar]
- Tatsuki, S. Old Age, Disability, and the Tohoku-Oki Earthquake. Earthq. Spectra
**2013**, 29, S403–S432. [Google Scholar] [CrossRef] [Green Version] - Chanta, S.; Sangsawang, O. Shelter-site selection during flood disaster. Lect. Notes Manag. Sci.
**2012**, 4, 282–288. [Google Scholar] - Kasai, Y.; Sasabe, M.; Kasahara, S. Congestion-aware route selection in automatic evacuation guiding based on cooperation between evacuees and their mobile nodes. EURASIP J. Wirel. Commun. Netw.
**2017**, 2017, 1–11. [Google Scholar] [CrossRef] [Green Version] - Komatsu, N.; Sasabe, M.; Kawahara, J.; Kasahara, S. Automatic evacuation guiding scheme based on implicit interactions between evacuees and their mobile nodes. GeoInformatica
**2018**, 22, 127–141. [Google Scholar] [CrossRef] - Umeki, K.; Nakamura, Y.; Fujimoto, M.; Mizumoto, T.; Suwa, H.; Arakawa, Y.; Yasumoto, K. Evacuation Center Determination Method Considering Bias of Congestion Degree on Areas. J. Inf. Process.
**2019**, 60, 608–616. (In Japanese) [Google Scholar] - Fitrianie, S.; Rothkrantz, L. Dynamic routing during disaster events. In Proceedings of the 12th International Conference on Information Systems for Crisis Response and Management, Kristiansand, Norway, 24–27 May 2015; pp. 1–9. [Google Scholar]
- Murotsu, H.; Fujimoto, M.; Suzuki, T.; Ebara, H.; Wada, T.; Okada, H. A novel evacuation route search algorithm for route distribution of evacuees groups in fire disasters. In Proceedings of the 2014 Australasian Telecommunication Networks and Applications Conference (ATNAC), Southbank, Australia, 26–28 November 2014; IEEE: New York, NY, USA, 2014; pp. 182–188. [Google Scholar]
- Tsunemine, T.; Kadokawa, E.; Ueda, Y.; Fukumoto, J.; Wada, T.; Ohtsuki, K.; Okada, H. Emergency urgent communications for searching evacuation route in a local disaster. In Proceedings of the 2008 5th IEEE Consumer Communications and Networking Conference, Las Vegas, NV, USA, 10–12 January 2008; IEEE: New York, NY, USA, 2008; pp. 1196–1200. [Google Scholar]
- Trono, E.M.; Fujimoto, M.; Suwa, H.; Arakawa, Y.; Yasumoto, K. Generating pedestrian maps of disaster areas through ad hoc deployment of computing resources across a DTN. Comput. Commun.
**2017**, 100, 129–142. [Google Scholar] [CrossRef] - Fujimoto, M.; Matsumoto, S.; Trono, E.M.; Arakawa, Y.; Yasumoto, K. Effective application distribution system for internet-less communication during disasters. Sens. Mater.
**2020**, 32, 79–95. [Google Scholar] [CrossRef] - Sbayti, H.; Mahmassani, H.S. Optimal scheduling of evacuation operations. Transp. Res. Rec.
**2006**, 1964, 238–246. [Google Scholar] [CrossRef] - Chen, X.; Zhan, F.B. Agent-based modeling and simulation of urban evacuation: Relative effectiveness of simultaneous and staged evacuation strategies. In Agent-Based Modeling and Simulation; Springer: Berlin/Heidelberg, Germany, 2014; pp. 78–96. [Google Scholar]
- Mas, E.; Suppasri, A.; Imamura, F.; Koshimura, S. Agent-based simulation of the 2011 great east japan earthquake/tsunami evacuation: An integrated model of tsunami inundation and evacuation. J. Nat. Disaster Sci.
**2012**, 34, 41–57. [Google Scholar] [CrossRef] [Green Version] - Bangate, J.; Dugdale, J.; Beck, E.; Adam, C. A multi-agent system approach in evaluating human spatio-temporal vulnerability to seismic risk using social attachment. WIT Trans. Eng. Sci.
**2018**, 121, 47–58. [Google Scholar] - Sharbini, H.; Sallehuddin, R.; Haron, H. An Analysis of a Modified Social Force Model in Crowd Emergency Evacuation Simulation. Appl. Model. Simul.
**2019**, 3, 135–144. [Google Scholar] - Makinoshima, F.; Imamura, F.; Abe, Y. Enhancing a tsunami evacuation simulation for a multi-scenario analysis using parallel computing. Simul. Model. Pract. Theory
**2018**, 83, 36–50. [Google Scholar] [CrossRef] - McGuire, L.C.; Ford, E.S.; Okoro, C.A. Natural disasters and older US adults with disabilities: Implications for evacuation. Disasters
**2007**, 31, 49–56. [Google Scholar] [CrossRef] [PubMed] - Arai, K.; Sang, T.X. Decision making and emergency communication system in rescue simulation for people with disabilities. Int. J. Adv. Res. Artif. Intell.
**2013**, 2, 77–85. [Google Scholar] [CrossRef] [Green Version] - Koo, J.; Kim, Y.S.; Kim, B.I.; Christensen, K.M. A comparative study of evacuation strategies for people with disabilities in high-rise building evacuation. Expert Syst. Appl.
**2013**, 40, 408–417. [Google Scholar] [CrossRef] - Manley, M.; Kim, Y.S. Modeling emergency evacuation of individuals with disabilities (exitus): An agent-based public decision support system. Expert Syst. Appl.
**2012**, 39, 8300–8311. [Google Scholar] [CrossRef] - Koo, J.; Kim, Y.S.; Kim, B.I. Estimating the impact of residents with disabilities on the evacuation in a high-rise building: A simulation study. Simul. Model. Pract. Theory
**2012**, 24, 71–83. [Google Scholar] [CrossRef] - Christensen, K.; Sharifi, M.S.; Chen, A. Considering individuals with disabilities in a building evacuation: An agent-based simulation study. In Proceedings of the 92nd Annual Meeting of the Transportation Research Board, Washington, DC, USA, 13–17 January 2013; pp. 11–13. [Google Scholar]
- Christensen, K.; Sasaki, Y. Agent-based emergency evacuation simulation with individuals with disabilities in the population. J. Artif. Soc. Soc. Simul.
**2008**, 11, 9. [Google Scholar] - Kyoto Shimbun. Available online: https://www.kyoto-np.co.jp/articles/-/228391 (accessed on 30 April 2021).
- Mainichi Shimbun. Available online: https://mainichi.jp/articles/20200420/k00/00m/040/125000c (accessed on 30 April 2021).
- Asahi Shimbun. Available online: https://www.asahi.com/articles/ASN4K413KN4KPLZB00B.html (accessed on 30 April 2021).
- The Nikkei. Available online: https://www.nikkei.com/article/DGXMZO58168340X10C20A4000000 (accessed on 30 April 2021).
- Kyoto City Official Website. Available online: https://www.city.kyoto.lg.jp/sankan/cmsfiles/contents/0000271/271655/honsatu.pdf (accessed on 30 April 2021). (In Japanese).
- Statistics Bureau of Japan. Available online: https://www.stat.go.jp/data/jinsui/pdf/202001.pdf (accessed on 30 April 2021). (In Japanese)
- Chu, H.; Yu, J.; Wen, J.; Yi, M.; Chen, Y. Emergency Evacuation Simulation and Management Optimization in Urban Residential Communities. Sustainability
**2019**, 11, 795. [Google Scholar] [CrossRef] [Green Version]

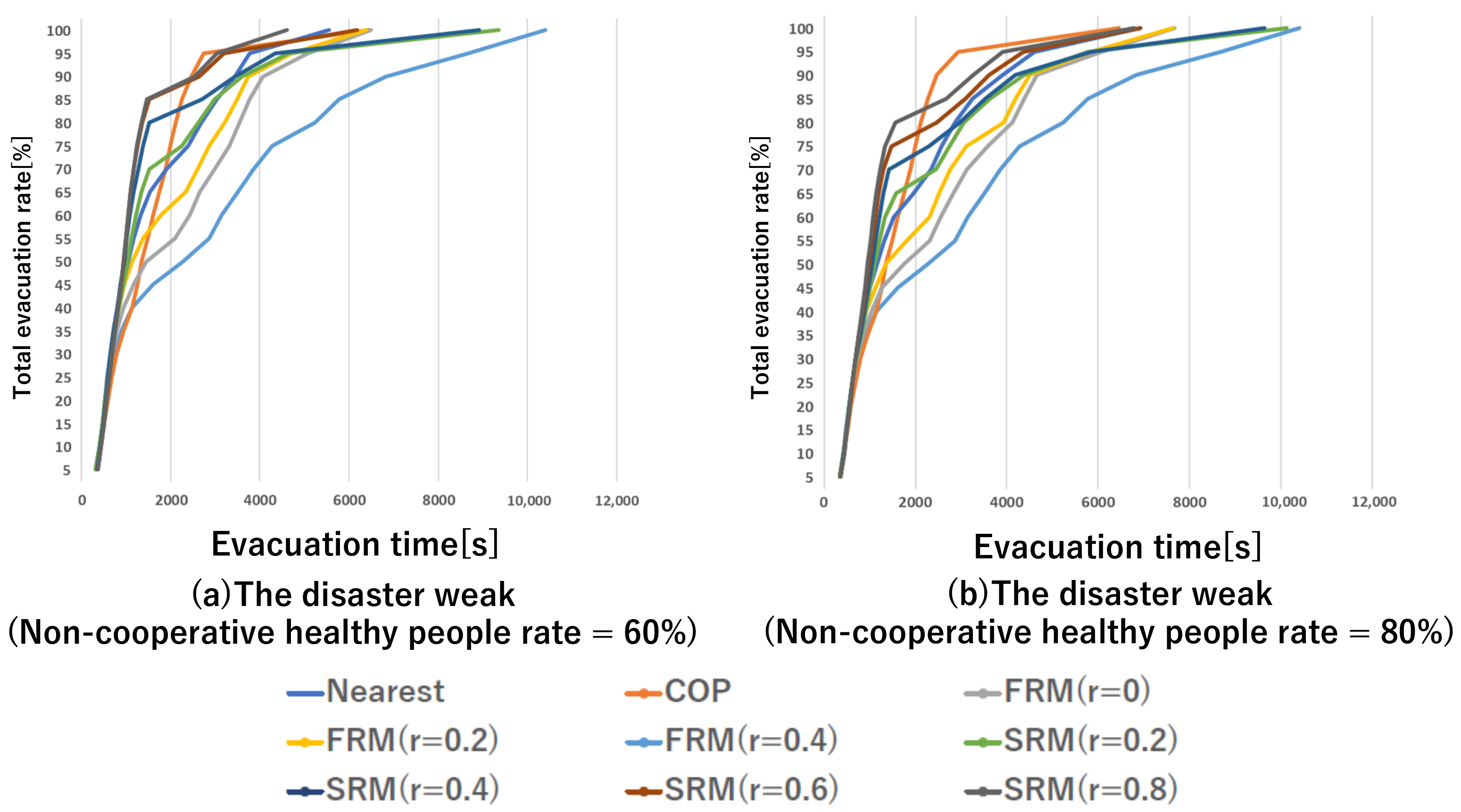

**Figure 10.**Total Evacuation Rate of disaster weak (when percentage of non-cooperative healthy people is 60 and 80%).

Shelter 0 (Capacity: One Person) | Shelter 1 (Capacity: Two People) | Shelter 2 (Capacity: Two People) | |
---|---|---|---|

Evacuee_1 | 5 min | 35 min | 35 min |

Evacuee_2 | 30 min | 10 min | 20 min |

Evacuee_3 | 25 min | 20 min | 15 min |

Evacuee_4 | 15 min | 20 min | 25 min |

Evacuee_5 | 40 min | 30 min | 25 min |

Shelter 0 (Capacity: One Person) | Shelter 1 (Capacity: Two People) | Shelter 2 (Capacity: Two People) |
---|---|---|

5 min (Evacuee_1) | 10 min (Evacuee_2) | 15 min (Evacuee_3) |

15 min (Evacuee_4) | 20 min (Evacuee_4) | 20 min (Evacuee_2) |

25 min (Evacuee_3) | 20 min (Evacuee_3) | 25 min (Evacuee_5) |

30 min (Evacuee_2) | 30 min (Evacuee_5) | 35 min (Evacuee_1) |

40 min (Evacuee_5) | 35 min (Evacuee_1) | 40 min (Evacuee_4) |

Shelter 0 (Capacity: One Person) | Shelter 1 (Capacity: Two People) | Shelter 2 (Capacity: Two People) | |
---|---|---|---|

Evacuee_1 (Healthy People) | 5 min | 20 min | 30 min |

Evacuee_2 (Healthy People) | 15 min | 10 min | 30 min |

Evacuee_3 (Healthy People) | 25 min | 15 min | 25 min |

Evacuee_4 (Disaster Weak) | 60 min | 65 min | 85 min |

Evacuee_5 (Disaster Weak) | 70 min | 50 min | 90 min |

Shelter 0 (Capacity: One Person) | Shelter 1 (Capacity: Two People) | Shelter 2 (Capacity: Two People) |
---|---|---|

5 min [Evacuee_1 (Healthy)] | 10 min [Evacuee_2 (Healthy)] | 25 min [Evacuee_3 (Healthy)] |

15 min [Evacuee_2 (Healthy)] | 15 min [Evacuee_3 (Healthy)] | 30 min [Evacuee_1 (Healthy)] |

25 min [Evacuee_3 (Healthy)] | 20 min [Evacuee_1 (Healthy)] | 30 min [Evacuee_2 (Healthy)] |

60 min [Evacuee_4 (Weak)] | 50 min [Evacuee_5 (Weak)] | 85 min [Evacuee_4 (Weak)] |

70 min [Evacuee_5 (Weak)] | 65 min [Evacuee_4 (Weak)] | 90 min [Evacuee_5 (Weak)] |

Variables | Definitions |
---|---|

${C}_{i}$ | Capacity of Shelter i |

${A}_{i}$ | Maximum number of evacuees to assign to Shelter i (${A}_{i}$ ≥ 0) |

${m}_{i}$ | Decreased number of evacuees to assign to Shelter i |

${f}_{i}$ | Number of healthy people whose destination in the simulation
conducted in Step_1 of SRM is not the nearest shelter, which is shelter i |

r | Margin rate for shelters (0 ≤ r < 1) |

E | The number of all evacuees. |

s | The number of all shelters. |

Shelter 0 (One Person) | Shelter 1 (Two People) | Shelter 2 (Two People) |
---|---|---|

60 min [Evacuee_4 (Weak)] | 50 min [Evacuee_5 (Weak)] | 85 min [Evacuee_4 (Weak)] |

70 min [Evacuee_5 (Weak)] | 65 min [Evacuee_4 (Weak)] | 90 min [Evacuee_5 (Weak)] |

5 min [Evacuee_1 (Healthy)] | 10 min [Evacuee_2 (Healthy)] | 25 min [Evacuee_3 (Healthy)] |

15 min [Evacuee_2 (Healthy)] | 15 min [Evacuee_3 (Healthy)] | 30 min [Evacuee_1 (Healthy)] |

25 min [Evacuee_3 (Healthy)] | 20 min [Evacuee_1 (Healthy)] | 30 min [Evacuee_2 (Healthy)] |

Parameters | Values | |
---|---|---|

Map Size | 2.5 km × 2.5 km | |

Number of Evacuation Shelter | 32 shelters | |

Number of Evacuees | Healthy People | 30,000 people |

Disaster Weak | 6000 people | |

Standard Walking Speed | Healthy People | 1.0–1.5 m/s |

Disaster Weak | 0.4–0.7 m/s | |

Margin Rate | 0.2, 0.4, 0.6, 0.8 |
