Locating Battery Swapping Stations for a Smart eBus System
Abstract

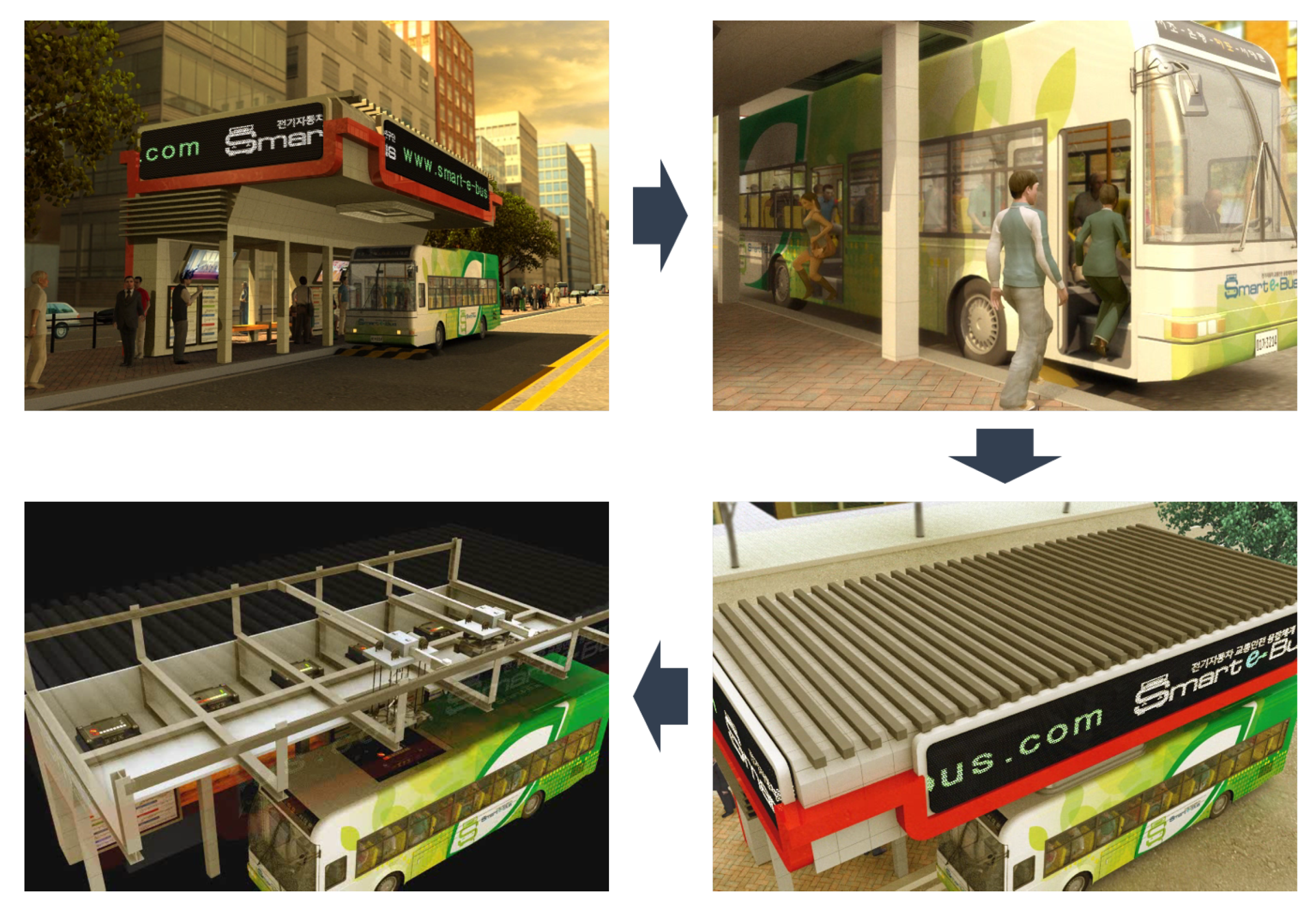

:1. Introduction
2. Model
2.1. Assumption
2.2. Notation
2.3. Mathematical Programming Formulations

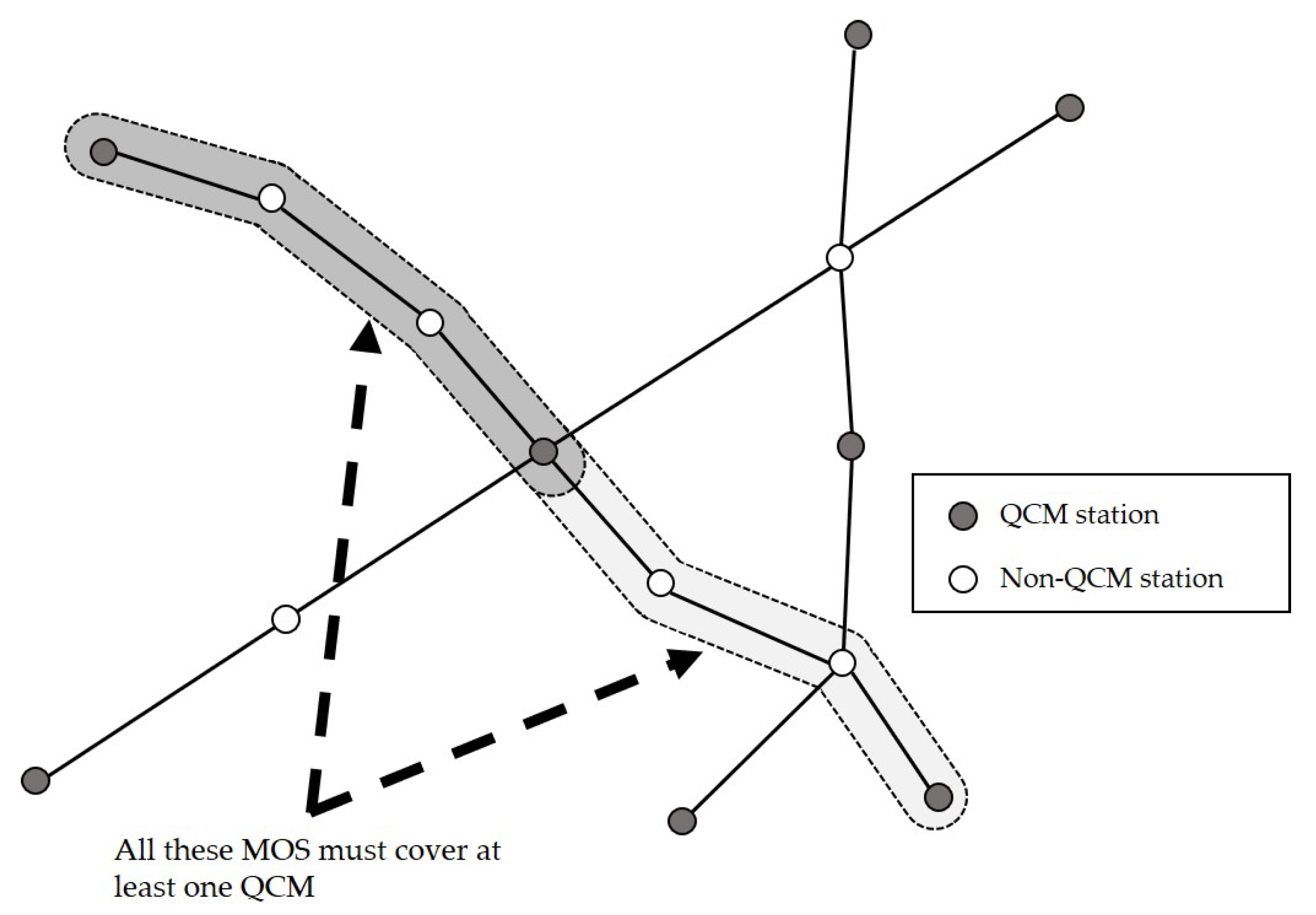

2.3.1. SetCovering Formulation
2.3.2. FlowBased Formulation
2.3.3. PathBased Formulation

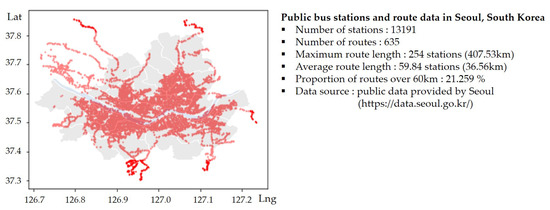

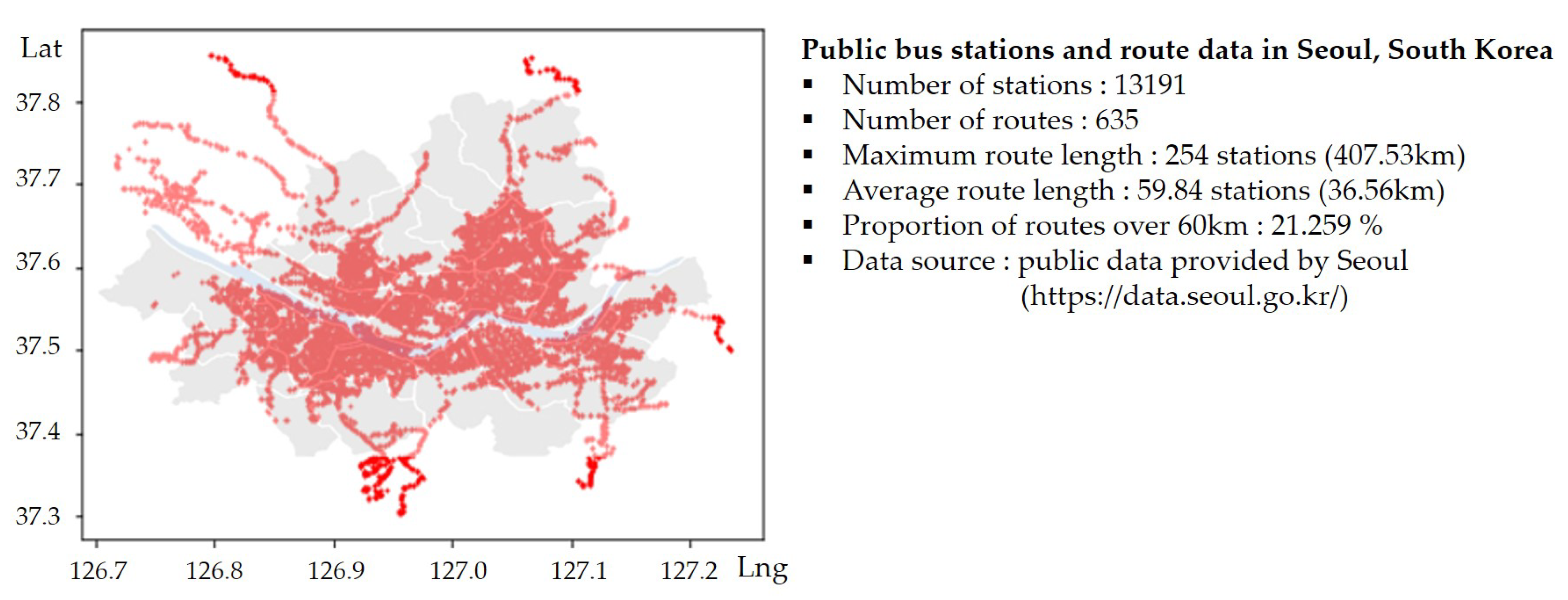

3. Case Study on a Smart eBus System

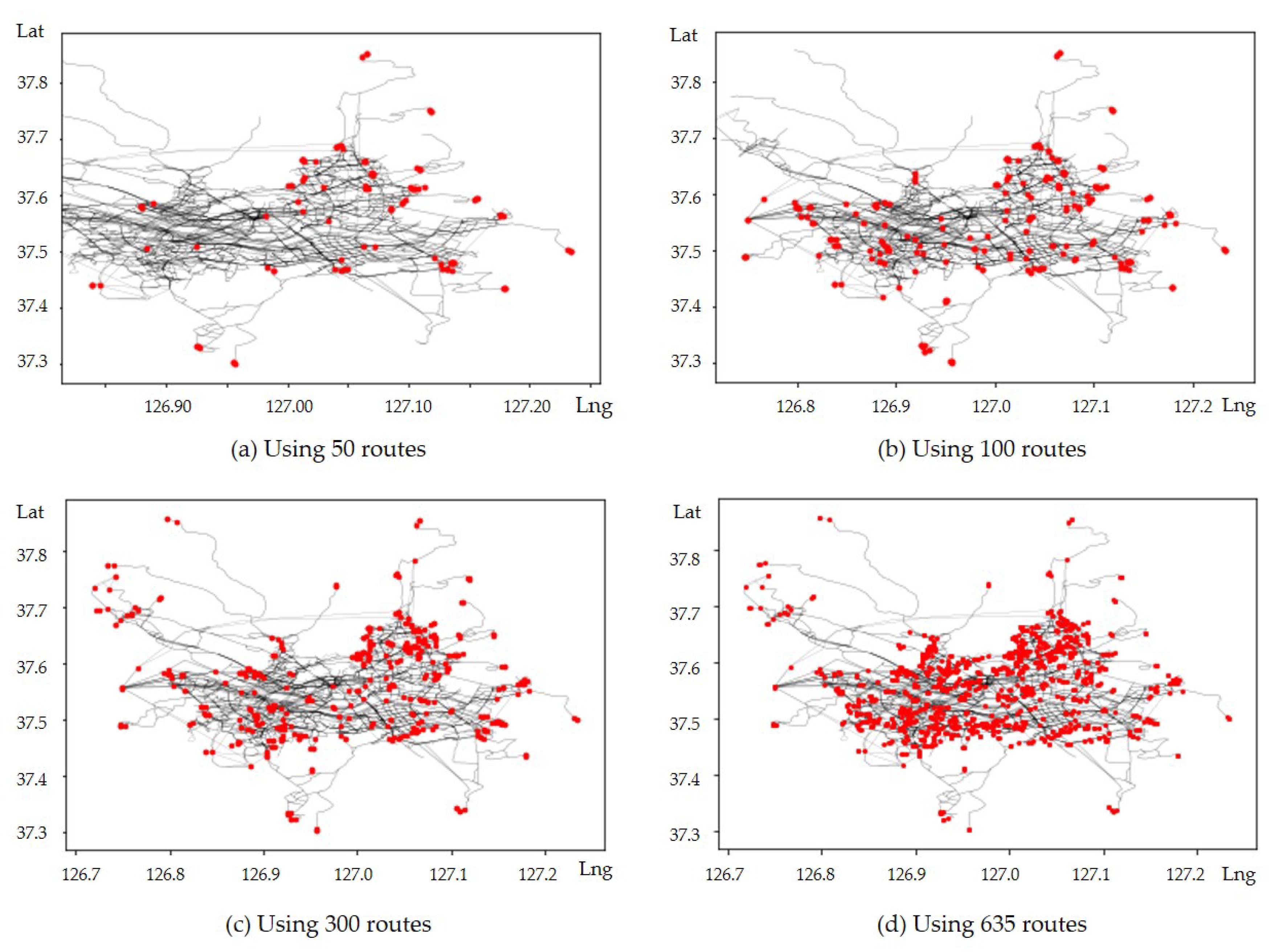

3.1. Experiments with SetCovering Model

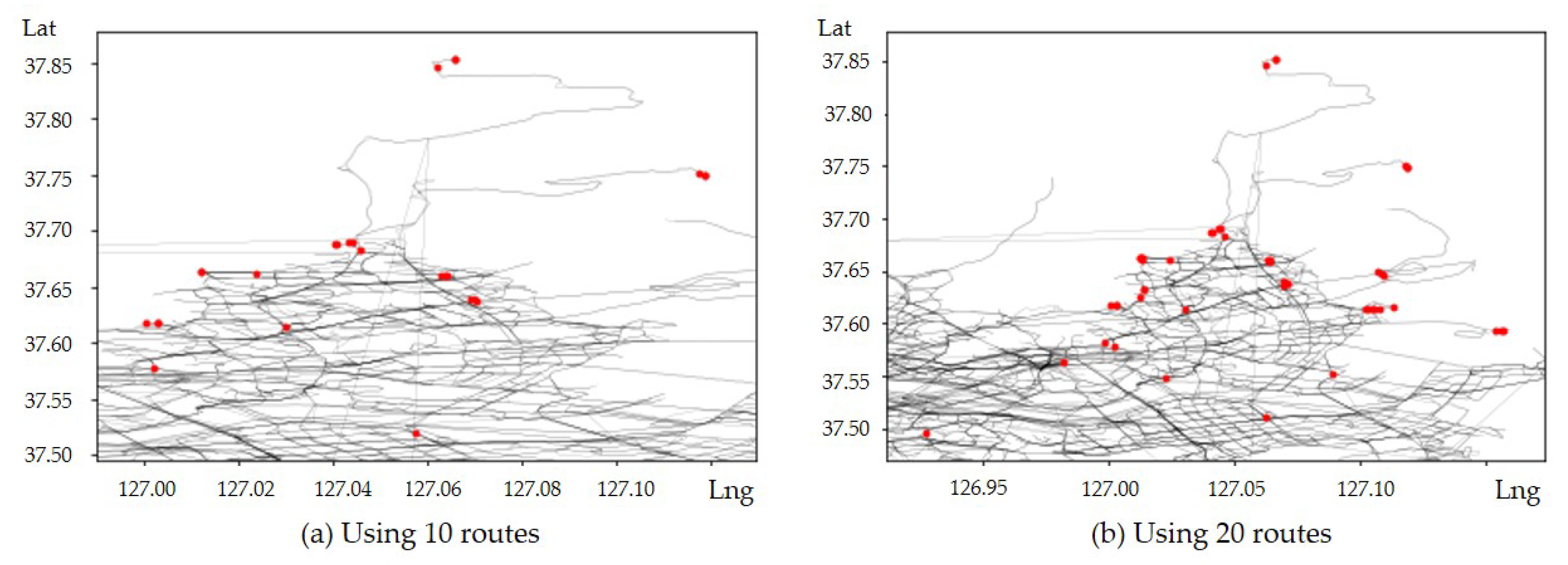

3.2. Experiments with FlowBased Model

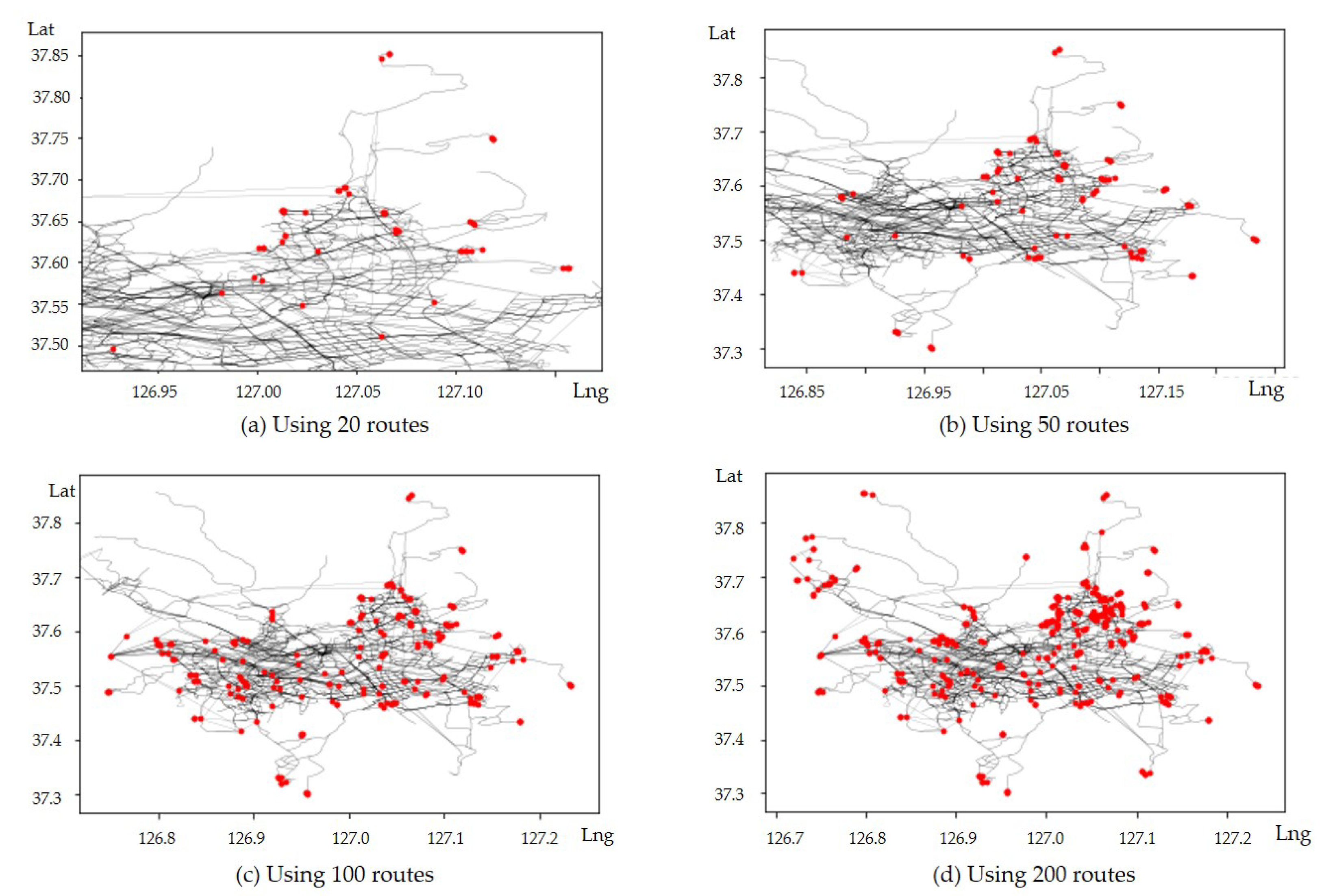

3.3. Experiments with PathBased Model
3.4. Model Comparison

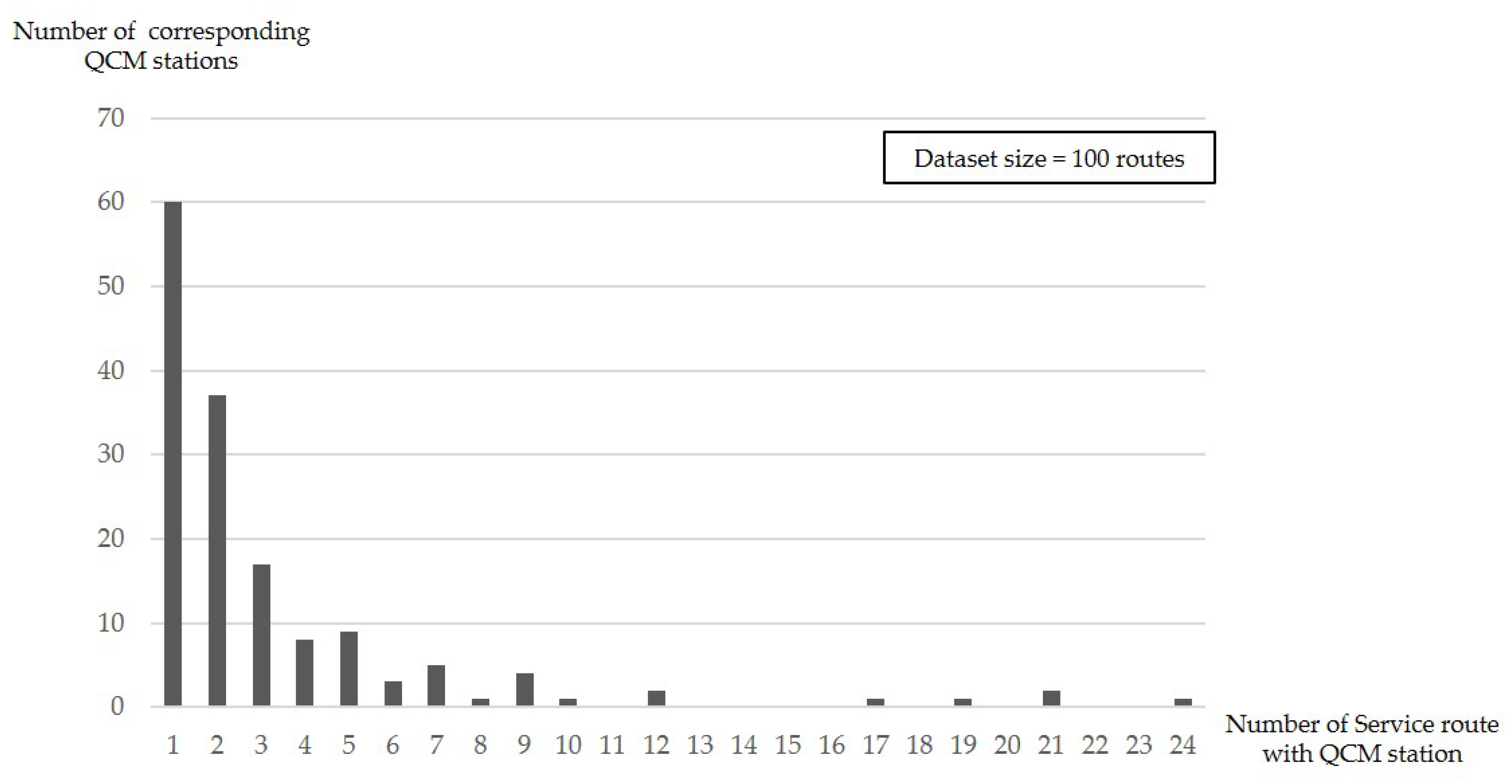

3.5. Quality of Service Analysis for Electric Buses
4. Conclusions and Future Research
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 Jeju Introduces Electric Buses with Swapping Battery. Available online: https://kojects.com/2016/07/25/jejuintroduceselectricbuseswithswappingbattery/ (accessed on 20 November 2019).
 China Electric Bus Market—Growth, Trends, and Forecast (2019–2024). Available online: https://www.mordorintelligence.com/industryreports/chinaautomotiveelectricbusmarket (accessed on 20 November 2019).
 Kim, S.; Pelton, R.E.; Smith, T.M.; Lee, J.; Jeon, J.; Suh, K. Environmental Implications of the National Power Roadmap with Policy Directives for Battery Electric Vehicles (BEVs). Sustainability 2019, 11, 6657. [Google Scholar] [CrossRef] [Green Version]
 The U.S. Has a Fleet of 300 Electric Buses. China Has 421,000. Available online: https://www.bloomberg.com/news/articles/20190515/inshifttoelectricbusitschinaaheadofus421000to300 (accessed on 20 November 2019).
 Seoul Introduces Electric Bus (Posted on November 15, 2018). Available online: http://koreabizwire.com/seoulintroduceselectricbus/127453 (accessed on 20 November 2019).
 Teoh, L.E.; Khoo, H.L.; Goh, S.Y.; Chong, L.M. Scenariobased electric bus operation: A case study of Putrajaya, Malaysia. Int. J. Transp. Sci. Technol. 2018, 7, 10–25. [Google Scholar] [CrossRef]
 Rogge, M.; van der Hurk, E.; Larsen, A.; Sauer, D.U. Electric bus fleet size and mix problem with optimization of charging infrastructure. Appl. Energy 2018, 211, 282–295. [Google Scholar] [CrossRef] [Green Version]
 Liu, H.; Wang, D.Z. Locating multiple types of charging facilities for battery electric vehicles. Transp. Res. Part Methodol. 2017, 103, 30–55. [Google Scholar] [CrossRef]
 Ko, J.; Shim, J.S. Locating battery exchange stations for electric taxis: A case study of Seoul, South Korea. Int. J. Sustain. Transp. 2016, 10, 139–146. [Google Scholar] [CrossRef]
 Chao, Z.; Xiaohong, C. Optimizing battery electric bus transit vehicle scheduling with battery exchanging: Model and case study. ProcediaSoc. Behav. Sci. 2013, 96, 2725–2736. [Google Scholar] [CrossRef] [Green Version]
 Kang, Q.; Wang, J.; Zhou, M.; Ammari, A.C. Centralized charging strategy and scheduling algorithm for electric vehicles under a battery swapping scenario. IEEE Trans. Intell. Transp. Syst. 2015, 17, 659–669. [Google Scholar] [CrossRef]
 Sarker, M.R.; Pandžić, H.; OrtegaVazquez, M.A. Optimal operation and services scheduling for an electric vehicle battery swapping station. IEEE Trans. Power Syst. 2014, 30, 901–910. [Google Scholar] [CrossRef]
 Pilot Operation of Electric Battery Bus in Pohang, South Korea. Available online: http://www.molit.go.kr/USR/NEWS/m_71/dtl.jsp?lcmspage=3&id=95072972 (accessed on 20 November 2019).
 Marinakis, Y. Location routing problemLocation Routing Problem. In Encyclopedia of Optimization; Floudas, C.A., Pardalos, P.M., Eds.; Springer US: Boston, MA, USA, 2009; pp. 1919–1925. [Google Scholar] [CrossRef]
 AlbaredaSambola, M. Locationrouting. In Location Science; Springer: Berlin/Heidelberg, Germany, 2015; pp. 399–418. [Google Scholar]
 Ghiani, G.; Laporte, G. Locationarc routing problems. Opsearch 2001, 38, 151–159. [Google Scholar] [CrossRef]
 Corberán, A.; Prins, C. Recent results on arc routing problems: An annotated bibliography. Networks 2010, 56, 50–69. [Google Scholar] [CrossRef]
 Prodhon, C.; Prins, C. A survey of recent research on locationrouting problems. Eur. J. Oper. Res. 2014, 238, 1–17. [Google Scholar] [CrossRef]
 Golumbic, M.C.; Hartman, I.B.A. Graph Theory, Combinatorics and Algorithms: Interdisciplinary Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006; Volume 34. [Google Scholar]
 Amaya, A.; Langevin, A.; TréPanier, M. The capacitated arc routing problem with refill points. Oper. Res. Lett. 2007, 35, 45–53. [Google Scholar] [CrossRef]
 Xing, L.; Rohlfshagen, P.; Chen, Y.; Yao, X. An evolutionary approach to the multidepot capacitated arc routing problem. IEEE Trans. Evol. Comput. 2009, 14, 356–374. [Google Scholar] [CrossRef] [Green Version]
 Bektaş, T.; Elmastaş, S. Solving school bus routing problems through integer programming. J. Oper. Res. Soc. 2007, 58, 1599–1604. [Google Scholar] [CrossRef]
 Yang, J.; Sun, H. Battery swap station locationrouting problem with capacitated electric vehicles. Comput. Oper. Res. 2015, 55, 217–232. [Google Scholar] [CrossRef]
 Boccia, M.; Sforza, A.; Sterle, C. Flow intercepting facility location: Problems, models and heuristics. J. Math. Model. Algorithms 2009, 8, 35–79. [Google Scholar] [CrossRef]
 Desaulniers, G.; Desrosiers, J.; Solomon, M.M. Column Generation; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006; Volume 5. [Google Scholar]
 Seoul Open Data Center. Available online: https://data.seoul.go.kr/ (accessed on 20 November 2019).
Sets and Parameters
$\mathcal{N}$  $=\left\{1,2,\dots ,N\right\}$. Set of bus stops
$\mathcal{A}$  $=\left\{(i,j)i,j\in \mathcal{N},j(\ne i\left)\phantom{\rule{4.pt}{0ex}}\mathrm{is}\phantom{\rule{4.pt}{0ex}}\mathrm{directly}\phantom{\rule{4.pt}{0ex}}\mathrm{accessible}\phantom{\rule{4.pt}{0ex}}\mathrm{from}\phantom{\rule{4.pt}{0ex}}i\phantom{\rule{4pt}{0ex}}\right(i.e.,\phantom{\rule{4pt}{0ex}}i\to j)\right\}$. Set of arcs
${\mathcal{N}}_{s}\subseteq \mathcal{N}$  Set of potential bus stops equipped with battery swapping facility (Quick Change Machine (QCM))
$\mathcal{R}$  $=\left\{1,2,\dots ,R\right\}$. Set of bus routes
${\mathcal{D}}_{o}\subset {\mathcal{N}}_{s}$  Set of origins (depots) for all bus routes
${\mathcal{D}}_{d}\subset {\mathcal{N}}_{s}$  Set of destinations (depots) for all bus routes
${\phantom{\rule{3.33333pt}{0ex}}}_{r}$  Total number of bus stops on route $r\in \mathcal{R}$
${D}_{max}$  Maximum travel distance per charge
${\overrightarrow{T}}^{r}$  $\equiv ({n}_{1}^{r},{n}_{2}^{r},\dots ,{n}_{{\phantom{\rule{3.33333pt}{0ex}}}_{r}}^{r})$. Ordered sequence of bus stops on route $r\in \mathcal{R}$ where ${n}_{i}^{r}\in \mathcal{N}$ for all $i=1,2,\dots ,{\phantom{\rule{3.33333pt}{0ex}}}_{r}$. Note that (i) $({n}_{i}^{r},{n}_{i+1}^{r})\in \mathcal{A}$ for $i=1,\dots ,{\phantom{\rule{3.33333pt}{0ex}}}_{r}1$ and (ii) ${n}_{i}^{r}{\prec}_{r}{n}_{j}^{r}$ holds for any i and j such that $i<j$ where the precedence relationship in the ordered sequence is denoted by ${\prec}_{r}$.
${\mathcal{T}}^{r}$  $=\left\{{n}_{1}^{r},{n}_{2}^{r},\dots ,{n}_{{\phantom{\rule{3.33333pt}{0ex}}}_{r}}^{r}\right\}$. Ordered set of bus stops on route $r\in \mathcal{R}$
${D}^{r}(\alpha ,\beta )$  Travel distance from bus stop $\alpha \in \mathcal{N}$ to bus stop $\beta \in \mathcal{N}$ on route $r\in \mathcal{R}$
${\mathcal{N}}_{s}^{r}$  $=\left({\mathcal{T}}^{r}\cap {\mathcal{N}}_{s}\right)$. Set of potential QCMs in ${\mathcal{T}}^{r}$
${\mathcal{T}}_{\alpha}^{r}$  $=\left\{\alpha \equiv {n}_{i}^{r},{n}_{i+1}^{r},\dots ,{n}_{j}^{r}\right\}\subset {\mathcal{T}}^{r}$. Maximal ordered subset (MOS) of ${\mathcal{T}}^{r}$, starting from a potential QCM $\alpha \in {\mathcal{N}}_{s}^{r}$ such that ${D}^{r}({n}_{i}^{r},{n}_{j}^{r})\le {D}_{max}$ and ${D}^{r}({n}_{i}^{r},{n}_{j+1}^{r})>{D}_{max}$

Decision variables
${y}_{i}$  1 if a QCM is located at bus stop $i\in {\mathcal{N}}_{s}$, and 0 otherwise
Sets and Parameters
${L}^{r}\left({n}_{i}^{r}\right)$  Last bus stop where a QCM is installed in ${\mathcal{T}}_{{n}_{i}^{r}}^{r}$ (i.e., ${L}^{r}\left({n}_{i}^{r}\right)={n}_{j}^{r}$ if the ordered set of ${\mathcal{T}}_{{n}_{i}^{r}}^{r}\cap {\mathcal{N}}_{s}$ with respect to ${\prec}_{r}$ is equal to $\left\{{n}_{i}^{r},\dots ,{n}_{j}^{r}\right\}$).
${\mathcal{I}}^{r}\left(\alpha \right)$  $\equiv \left({\mathcal{T}}_{\kappa}^{r}\setminus \left\{\alpha \right\}\right)\cap {\mathcal{N}}_{s}^{r}$ where ${L}^{r}\left(\kappa \right)=\alpha $. Note that ${\mathcal{I}}^{r}\left(\alpha \right)=\varphi $ if $\alpha \in {\mathcal{D}}_{o}$.
${\mathcal{O}}^{r}\left(\alpha \right)$  $\equiv \left({\mathcal{T}}_{\alpha}^{r}\setminus \left\{\alpha \right\}\right)\cap {\mathcal{N}}_{s}^{r}$. Note that ${\mathcal{O}}^{r}\left(\alpha \right)=\varphi $ if $\alpha \in {\mathcal{D}}_{d}$.
Decision variables
${x}_{\alpha \kappa}^{r}$  1 if a bus on the route r performs a battery swapping at QCM $\alpha $ and the next immediate battery swapping is performed at QCM $\kappa $ where $\alpha ,\kappa \in {\mathcal{N}}_{s}^{r}$ and $\alpha {\prec}_{r}\kappa $, and 0 otherwise.
Sets and Parameters
$\mathcal{P}\left(r\right)$  Set of paths for the route $r\in \mathcal{R}$ where a path is a set of consecutive subroutes where connecting points correspond to QCMs
${\mathcal{N}}_{r}\left(l\right)$  Set of stations which the path l for the route r visits.
Decision variables
${x}_{l}^{r}$  1 if the path $l\in \mathcal{P}\left(r\right)$ is selected, and 0 otherwise.

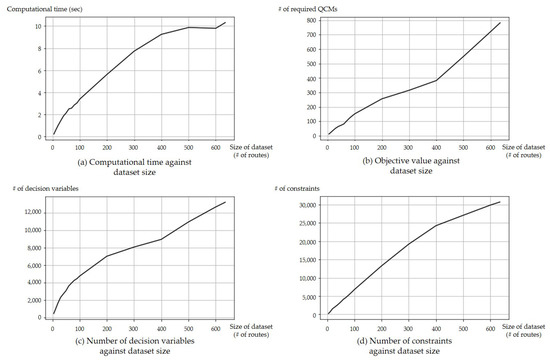

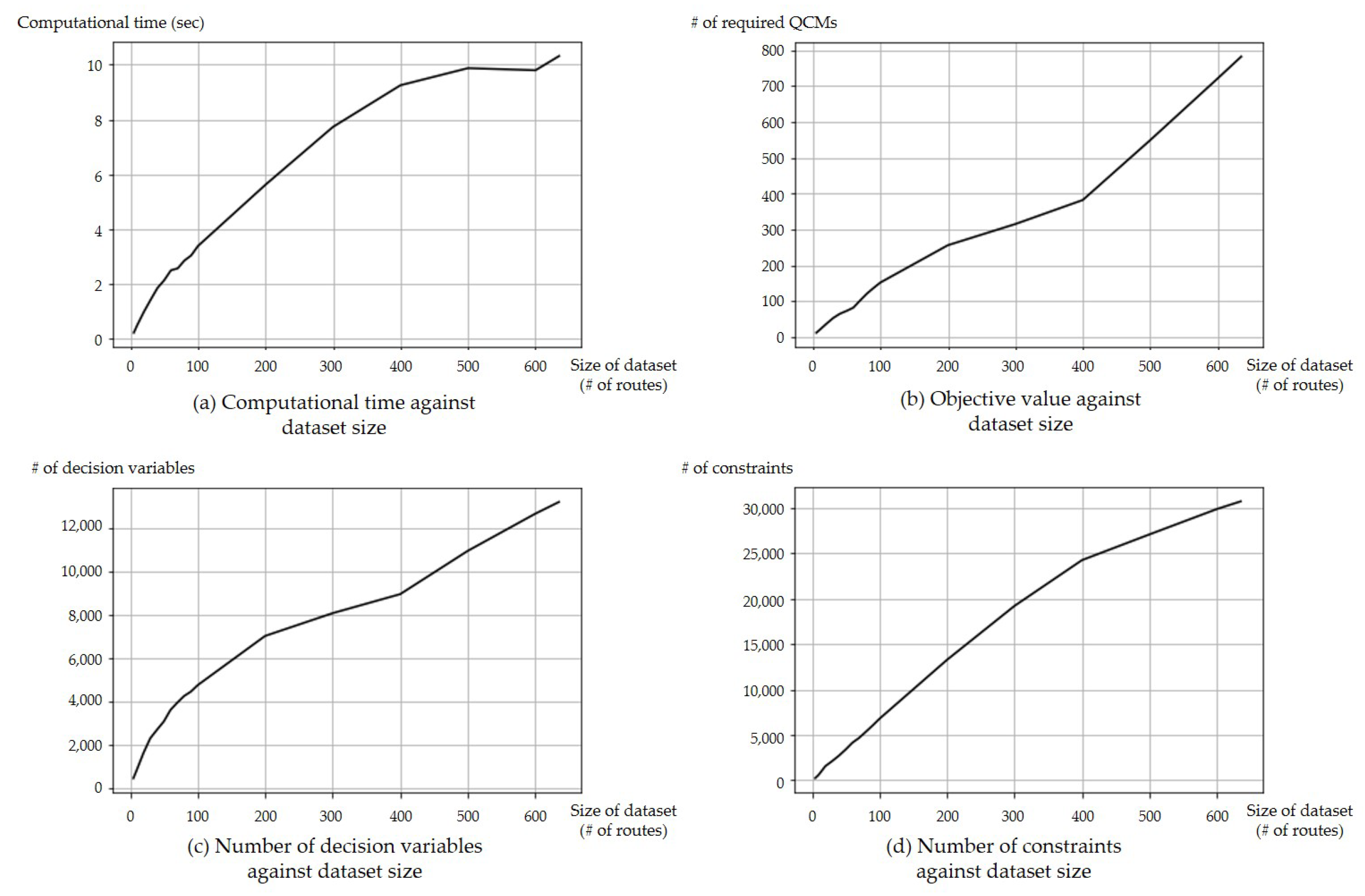

# of Routes (# of Stations)  Optimal # of QCM Stations  Avg. CPU Time (sec)  Max Gap between CPU Times (sec)  # of Variables  # of Constraints

5 (441)  12  0.086  0.012  441  595
10 (822)  20  0.301  0.076  822  1185
20 (1611)  37  0.708  0.071  1611  2422
30 (2286)  53  0.968  0.066  2286  3631
40 (2681)  65  1.326  0.411  2681  4710
50 (3058)  73  2.001  0.444  3058  5822
60 (3597)  82  2.493  0.558  3597  7074
70 (3929)  102  2.561  0.329  3929  7880
80 (4235)  121  2.848  0.186  4235  8537
90 (4435)  137  3.034  0.11  4435  9282
100 (4732)  152  3.378  0.121  4732  10,287
200 (7008)  256  5.614  0.233  7008  18,194
300 (8059)  315  7.725  1.17  8059  25,352
400 (8937)  382  9.246  0.377  8937  31,492
500 (10,934)  549  9.87  0.4  10,934  34,908
600 (12,650)  721  9.793  0.459  12,650  37,799
635 (13,191)  782  10.313  1.357  13,191  38,636

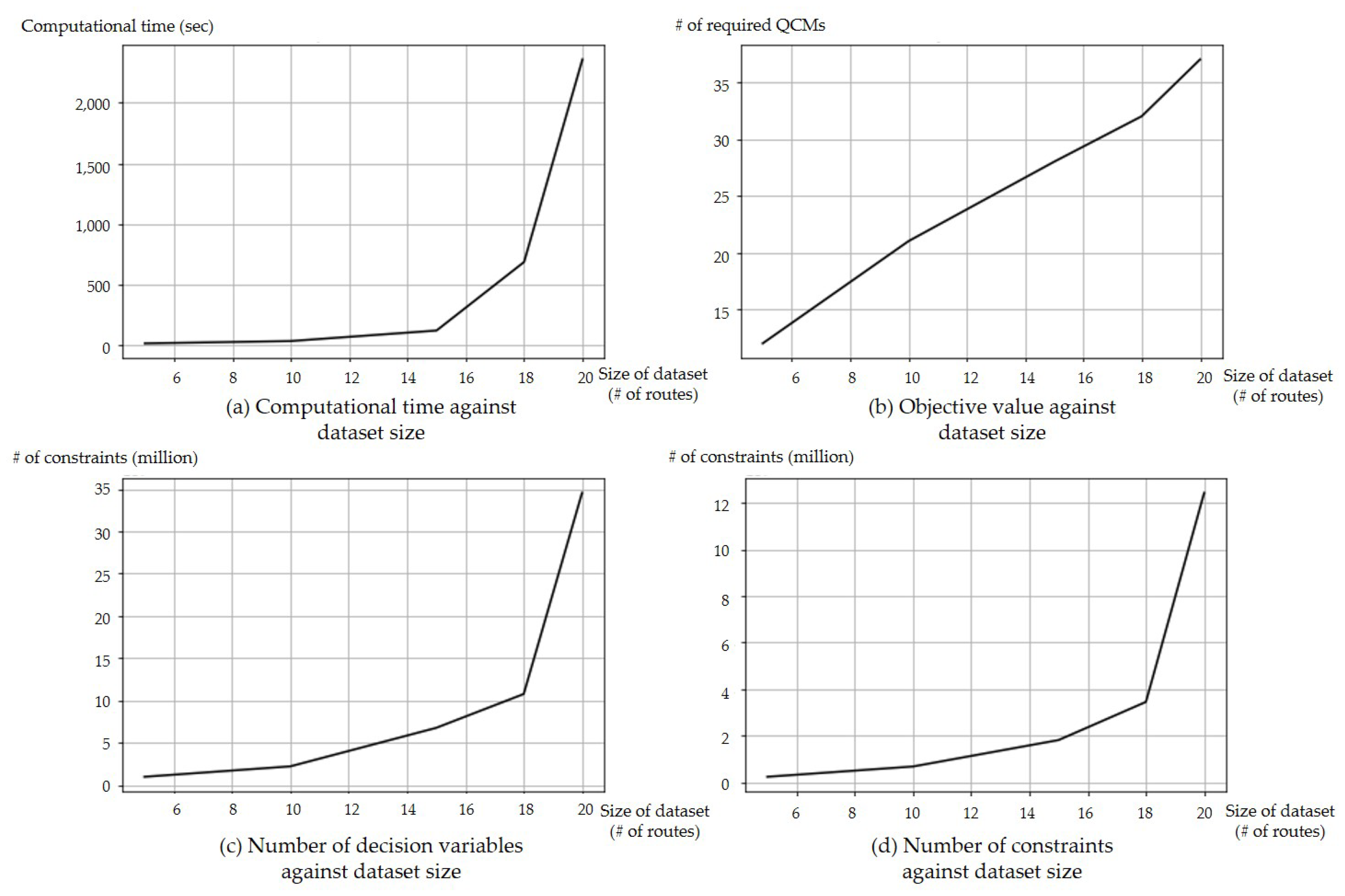

# of Routes (# of Stations)  Optimal # of QCM Stations  Avg. CPU Time (sec)  Max Gap between CPU Times (sec)  # of Variables  # of Constraints

5 (441)  12  16.835  0.202  972,846  240,434
10 (822)  21  35.891  1.223  2,205,658  681,564
15 (1230)  28  122.667  1.658  6,757,662  1,816,809
18 (1552)  32  687.125  5.805  10,757,662  4,816,809
20 (1611)  37  2356.156  15.425  34,541,551  12,426,973
30 (2286)
40 (2681)
50 (3058)

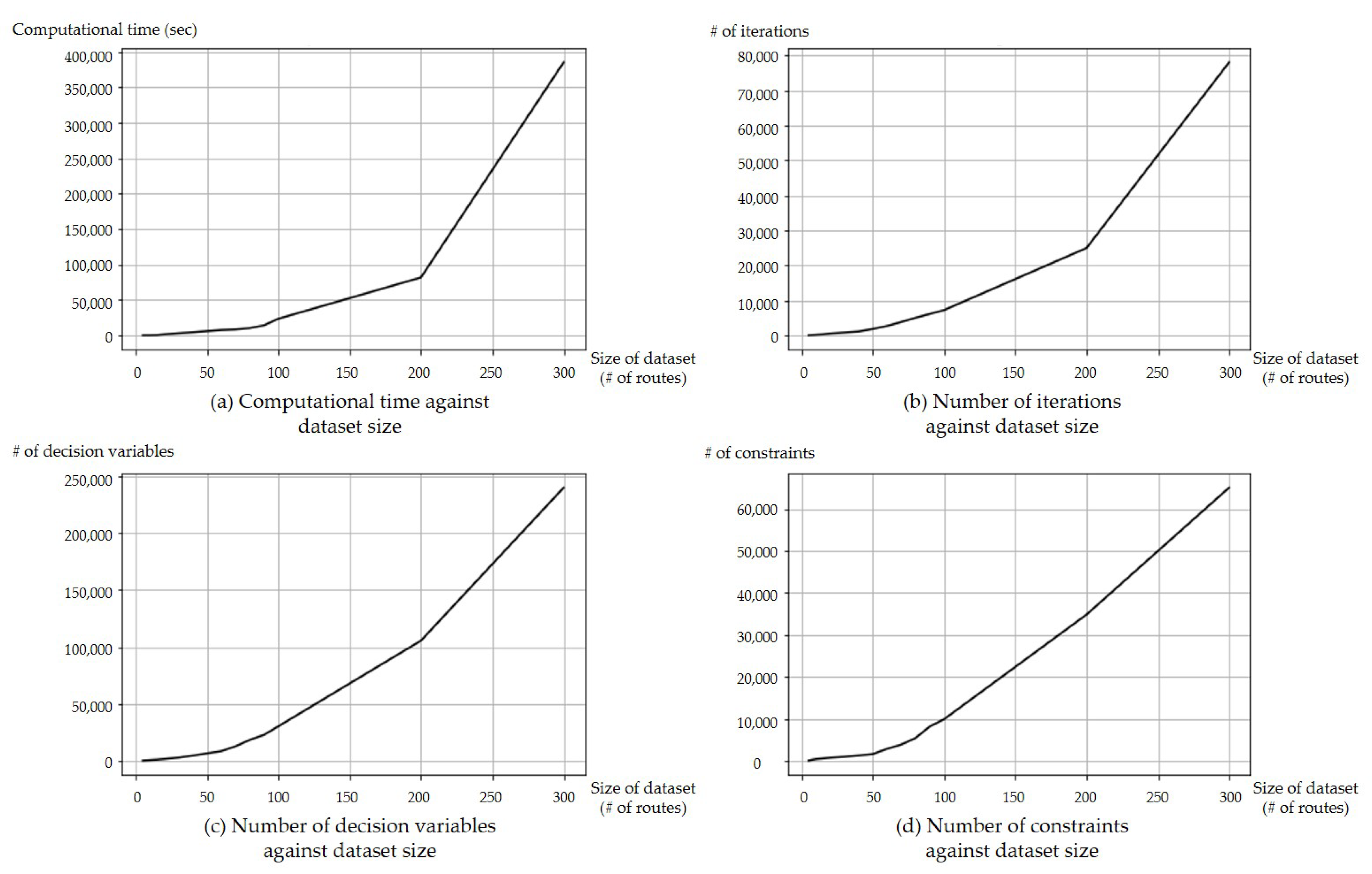

# of Routes (# of Stations)  Optimal # of QCM Stations  Avg. CPU Time (sec)  Max Gap between CPU Times (sec)  # of Variables  # of Constraints  Avg. # of Iterations

5 (441)  12  15.781  0.042  515  202  86
10 (822)  21  60.418  0.084  956  422  215
15 (1230)  28  285.118  1.584  1355  569  348
20 (1611)  37  1296.621  3.584  1950  744  586
30 (2286)  53  2874.516  6.871  3125  968  863
40 (2681)  65  4225.889  10.668  4857  1268  1153
50 (3058)  73  5826.146  15.139  22,618  1605  1868
60 (3597)  82  7361.411  23.584  30,520  2841  2735
70 (3929)  102  8165.156  43.458  37,211  3869  3868
80 (4235)  121  10,041.453  167.165  43,584  5412  5066
90 (4435)  137  14,025.584  304.545  51,251  8169  6166
100 (4732)  152  23,218.975  518.107  58,518  9887  7259
200 (7008)  256  81,540.145  682.618  135,685  34,815  25,015
300 (8059)  315  345,154.587  822.123  209,871  65,036  68,121

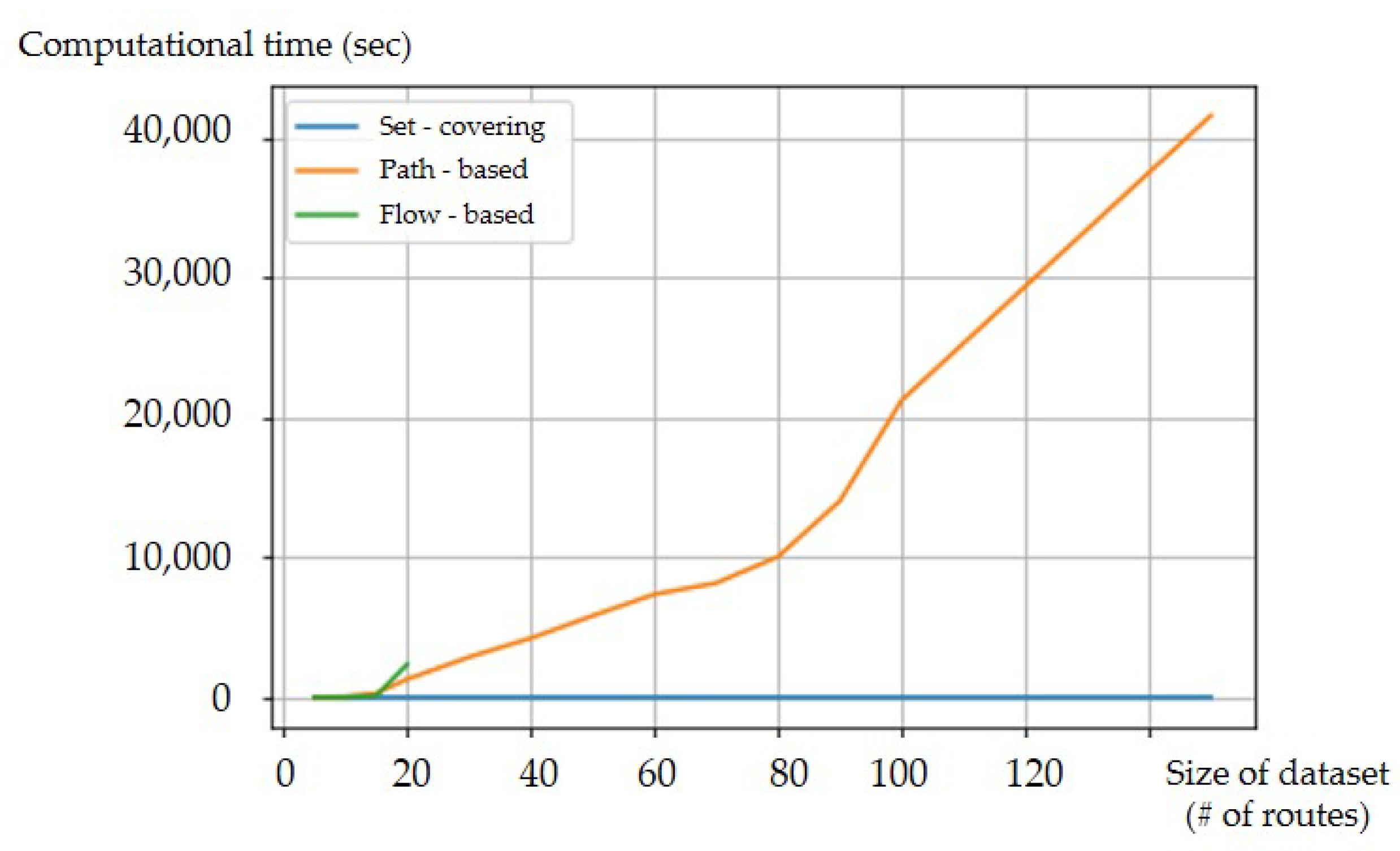

SetCovering Model  FlowBased Model  PathBased Model

# of Routes (# of Stations)  CPU Time (sec)  Optimal # of QCM Stations  CPU Time (sec)  Optimal # of QCM Stations  CPU Time (sec)  Optimal # of QCM Stations
5 (441)  0.086  12  16.835  12  15.781  12
10 (822)  0.301  21  35.891  21  60.418  21
15 (1230)  0.514  28  122.667  28  285.118  28
20 (1611)  0.708  37  2356.156  37  1296.621  37
30 (2286)  0.968  53      2874.516  53
40 (2681)  1.326  65      4225.889  65
50 (3058)  2.001  73      5826.146  73
60 (3597)  2.493  82      7361.411  82
70 (3929)  2.561  102      8165.156  102
80 (4235)  2.848  121      10,041.453  121
90 (4435)  3.034  137      14,025.584  137
100 (4732)  3.378  152      23,218.975  152
200 (7008)  5.614  256      81,540.145  256
300 (8059)  7.725  315      345,154.587  315
400 (8937)  9.246  382
500 (10,934)  9.87  549
600 (12,650)  9.793  721
635 (13,191)  10.313  782
Additional Parameter
$\gamma $  Maximally allowable number of bus routes stopping at a QCM station for battery swapping

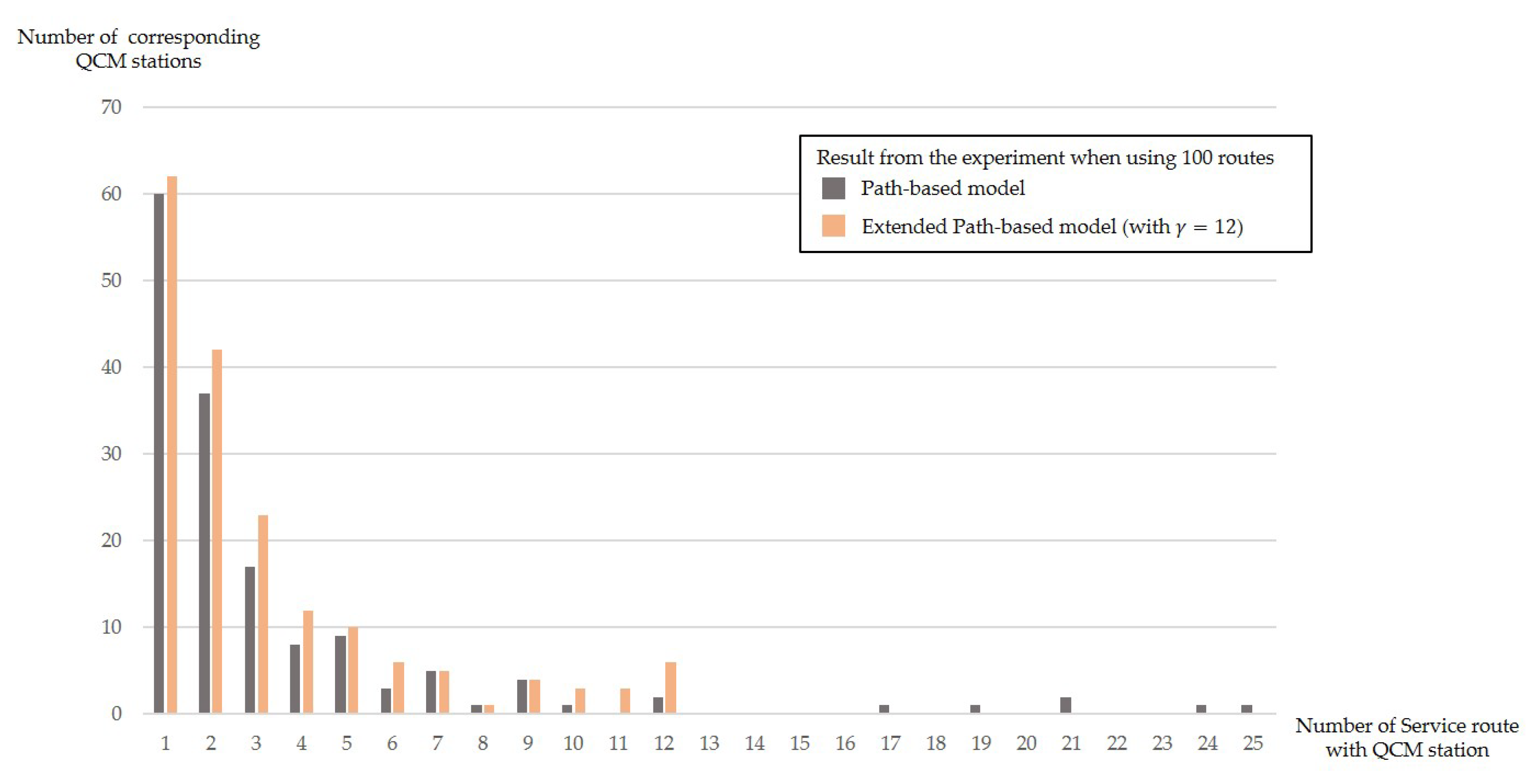

Original PathCovering Model  Extended PathBased Model

# of Routes (# of Stations)  # of QCM Stations  Maximum Flock ($\gamma $)  Variance of Flocking  CPU Time (sec)  # of QCM Stations  Maximum Flock ($\gamma $)  Variance of Flocking  CPU Time (sec)
5 (441)  12  4  1.401  15.781  14  2  0.863  16.115
10 (822)  21  7  1.987  60.418  22  4  1.478  69.054
15 (1230)  28  9  2.081  285.118  29  5  1.975  308.487
20 (1611)  37  9  1.993  1296.621  39  5  1.072  1583.142
30 (2286)  53  9  1.974  2874.516  55  5  1.882  3593.145
40 (2681)  65  9  2.013  4225.889  67  5  1.342  5451.396
50 (3058)  73  9  1.955  5826.146  76  5  1.277  9828.708
60 (3597)  82  11  2.154  7361.411  85  7  1.270  10,453.203
70 (3929)  102  15  3.377  8165.156  104  8  1.483  13,717.462
80 (4235)  121  21  3.670  10,041.453  125  10  2.495  12,903.267
90 (4435)  137  24  3.823  14,025.584  141  10  2.478  19,032.717
100 (4732)  152  25  4.284  23,218.975  158  12  2.876  34,317.645
Extended PathBased Model Experimented with 60 Routes

$\gamma $  # of QCM Stations  Maximum Flock  Variance of Flocking  CPU Time (sec)
6  infeasible
7  85  7  1.270  10,453.204
8  84  8  1.621  9358.721
9  84  9  1.819  8715.780
10  82  10  2.084  7521.184
11 (no restict)  82  11  2.154  7361.411
