# Application of Nonnegative Tensor Factorization for Intercity Rail–Air Transport Supply Configuration Pattern Recognition

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Study Area, Data, and Methodology

#### 2.1. Study Area and Data Sources

#### 2.2. Nonnegative Tensor Factorization

## 3. Patterns Recognition Result

## 4. Result Analysis

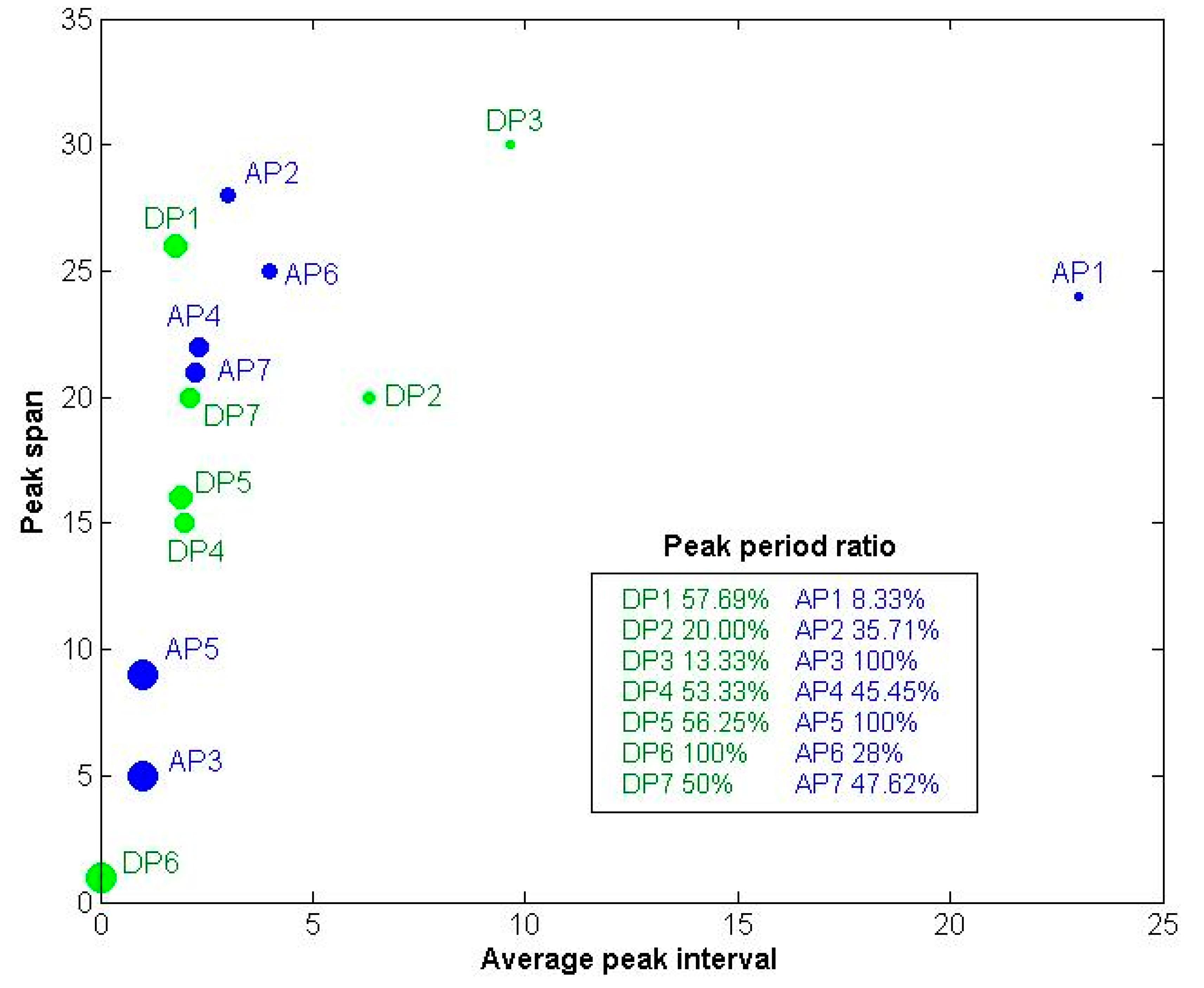

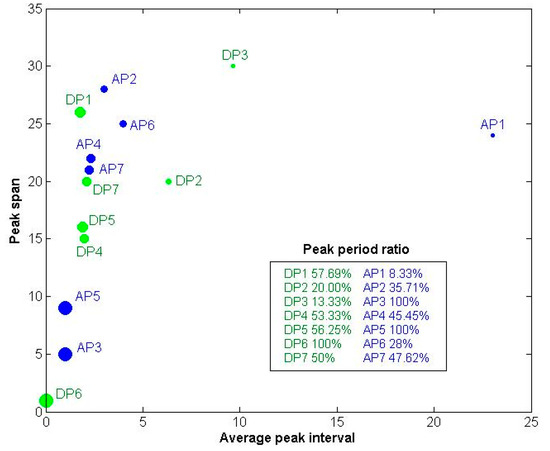

#### 4.1. Overall Evaluation of the Pattern

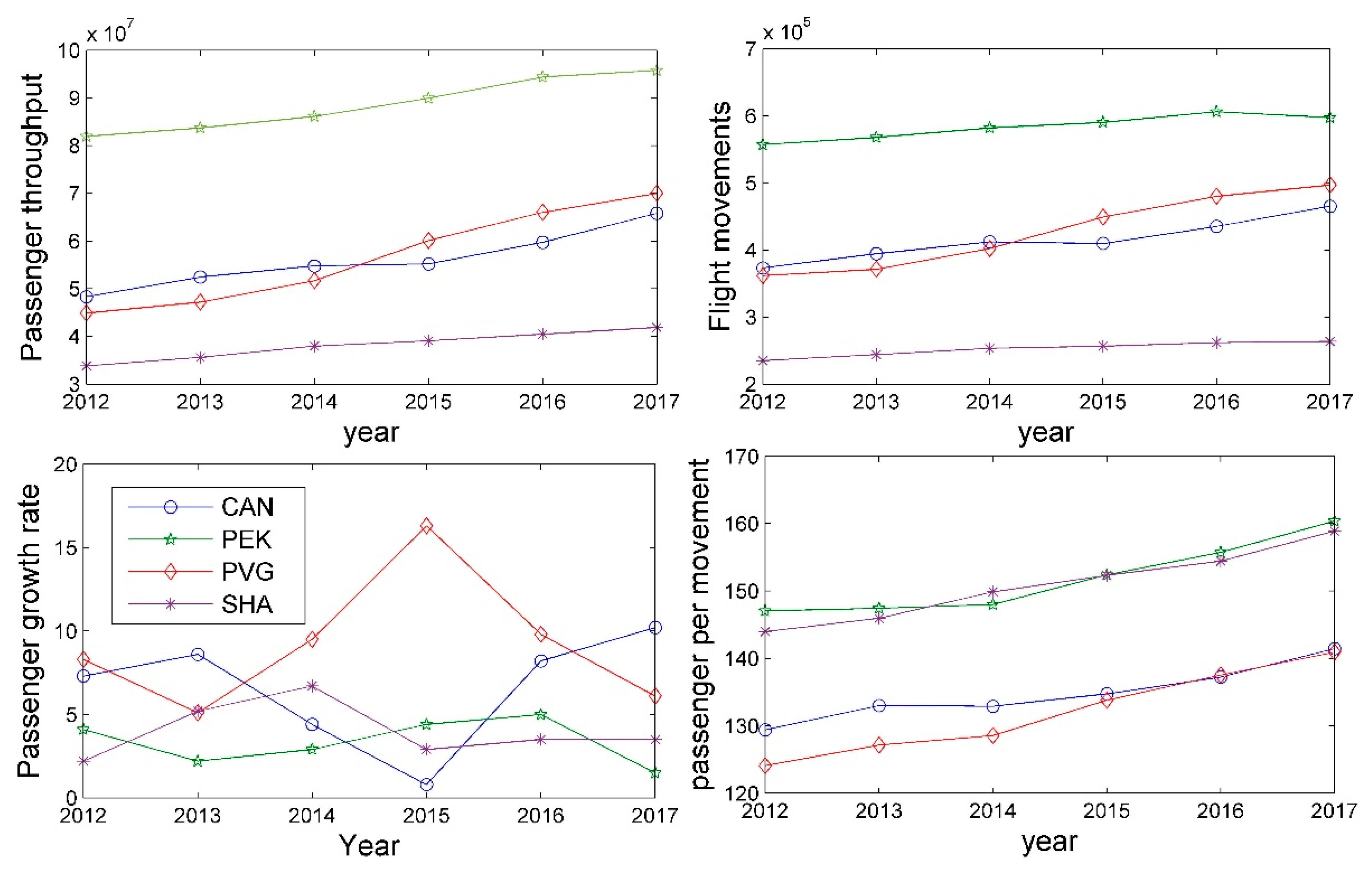

#### 4.2. The Trend of Development of CAT1 Airports

#### 4.3. Pattern Analysis and Comparison

#### 4.3.1. Departure Traffic

#### 4.3.2. Arrival Traffic

#### 4.4. Inspiration for Practical Application

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Zhang, Q.; Yang, H.; Wang, Q. Impact of high-speed rail on China’s Big Three airlines. Transp. Res. Part A
**2017**, 98, 77–85. [Google Scholar] [CrossRef] - Yang, H.; Dobruszkes, F.; Wang, J.; Dijst, M.; Witte, P. Comparing China’s urban systems in high-speed railway and airline networks. J. Transp. Geogr.
**2018**, 68, 233–244. [Google Scholar] [CrossRef] - Jiang, C.; Zhang, A. Effects of high-speed rail and airline cooperation under hub airport capacity constraint. Transp. Res. Part B
**2014**, 60, 33–49. [Google Scholar] [CrossRef] - Román, C.; Martín, J.C. Integration of HSR and air transport: Understanding passengers’ preferences. Transp. Res. Part E Logist. Transp. Rev.
**2014**, 71, 129–141. [Google Scholar] [CrossRef] - Takebayashi, M. How could the collaboration between airport and high-speed rail affect the market? Transp. Res. Part A
**2016**, 92, 277–286. [Google Scholar] [CrossRef] - Jiang, C.; Zhang, A. Airline network choice and market coverage under high-speed rail competition. Transp. Res. Part A Policy Pract.
**2016**, 92, 248–260. [Google Scholar] [CrossRef] - Chen, Z. Impacts of high-speed rail on domestic air transportation in China. J. Transp. Geogr.
**2017**, 62, 184–196. [Google Scholar] [CrossRef] - Lee, D.D.; Seung, H.S. Learning the parts of objects by non-negative matrix factorization. Nature
**1999**, 401, 788–791. [Google Scholar] [CrossRef] [PubMed] - Marti-Henneberg, J. Attracting travellers to the high-speed train: A methodology for comparing potential demand between stations. J. Transp. Geogr.
**2015**, 42, 145–156. [Google Scholar] [CrossRef] - Escobari, D. Airport, airline and departure time choice and substitution patterns: An empirical analysis. Transp. Res. Part A Policy Pract.
**2017**, 103, 198–210. [Google Scholar] [CrossRef] [Green Version] - Ministry of Housing and Urban-Rural Development of the People’s Republic of China (MOHURD) Home Page. Available online: http://www.mohurd.gov.cn/xytj/index.html (accessed on 18 July 2018).
- 12306 CHINA RAILWAY Home Page. Available online: https://www.12306.cn/index/ (accessed on 21 January 2018).
- China Railway High-speed Home Page. Available online: http://shike.gaotie.cn/ (accessed on 21 January 2018).
- Kolda, T.G.; Bader, B.W. Tensor Decompositions and Applications. Siam Rev.
**2009**, 51, 455–500. [Google Scholar] [CrossRef] [Green Version] - Carroll, J.D.; Chang, J.J. Analysis of individual differences in multidimensional scaling via an N-way generalization of Eckart-Young decomposition. Psychometrika
**1970**, 35, 283. [Google Scholar] [CrossRef] - Harshman, R.A. Foundations of the PARAFAC procedure: Model and conditions for an “explanatory’’ multi-mode factor analysis. UCLA Work. Pap. Phon.
**1970**, 16, 1–84. [Google Scholar] - Tucker, L.R. Some mathematical notes on 3-mode factor analysis. Psychometrika
**1966**, 31, 279–311. [Google Scholar] [CrossRef] [PubMed] - Xu, Y.; Yin, W. A Block Coordinate Descent Method for Regularized Multiconvex Optimization with Applications to Nonnegative Tensor Factorization and Completion. Siam J. Imaging Sci.
**2012**, 6, 1758–1789. [Google Scholar] [CrossRef] - Kolda, T.G. Multilinear Operators for Higher-Order Decompositions; Office of Scientific & Technical Information Technical Reports; OSTI: Washington, DC, USA, 2006. [Google Scholar]
- Fackler, P.L. Notes on Matrix Calculus. 2005. Available online: http://www4.ncsu.edu/~pfackler/ (accessed on 24 March 2019).
- Cascetta, E.; Coppola, P.; Rose, J. Assessment of schedule-based and frequency-based assignment models for strategic and operational planning of high-speed rail services. Transp. Res. Part A
**2016**, 84, 93–108. [Google Scholar] [CrossRef]

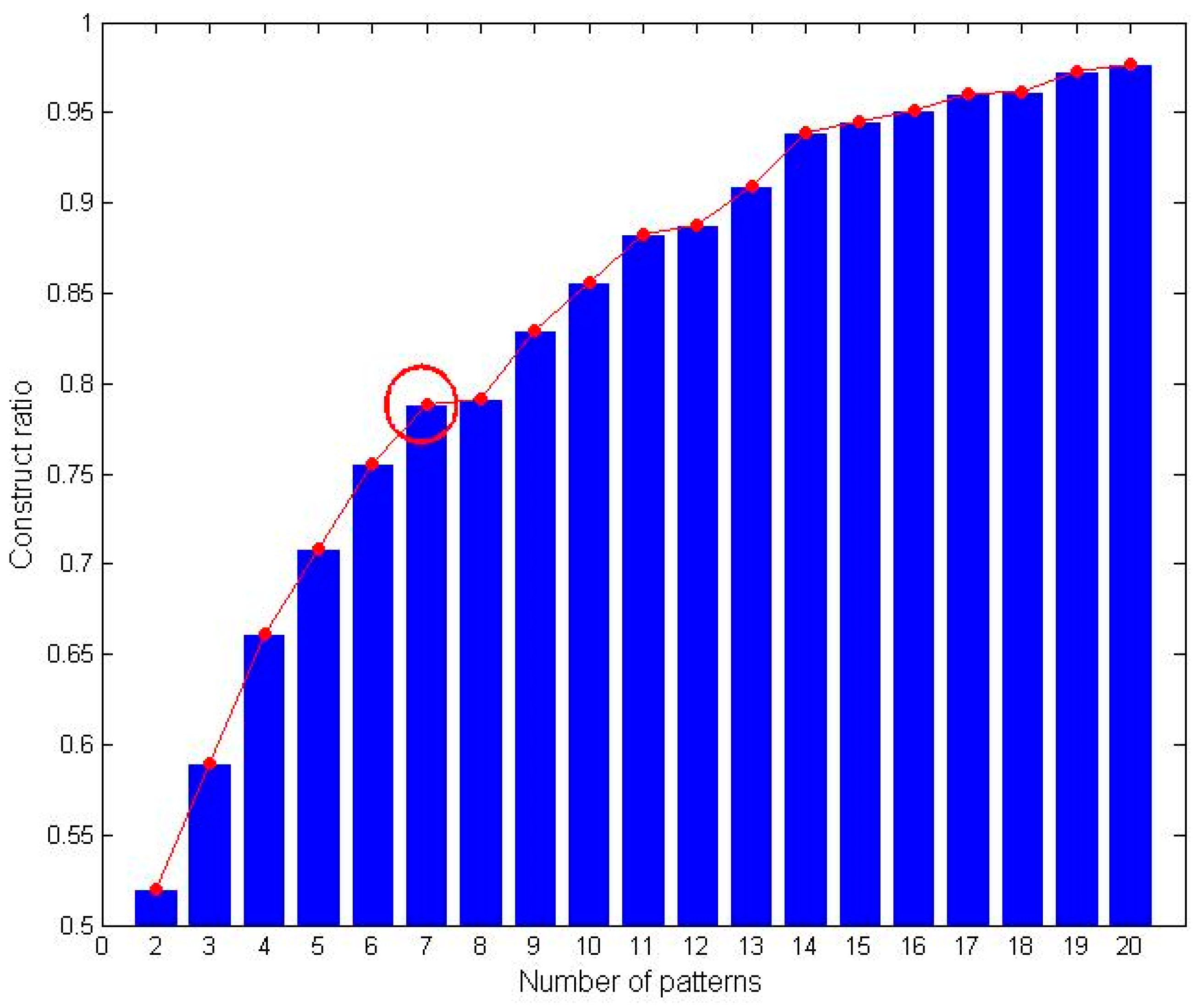

**Figure 1.**Number of patterns computation result. The red dot and red circle indicates the construct ratio corresponding to the different number of patterns and the selected number of patterns.

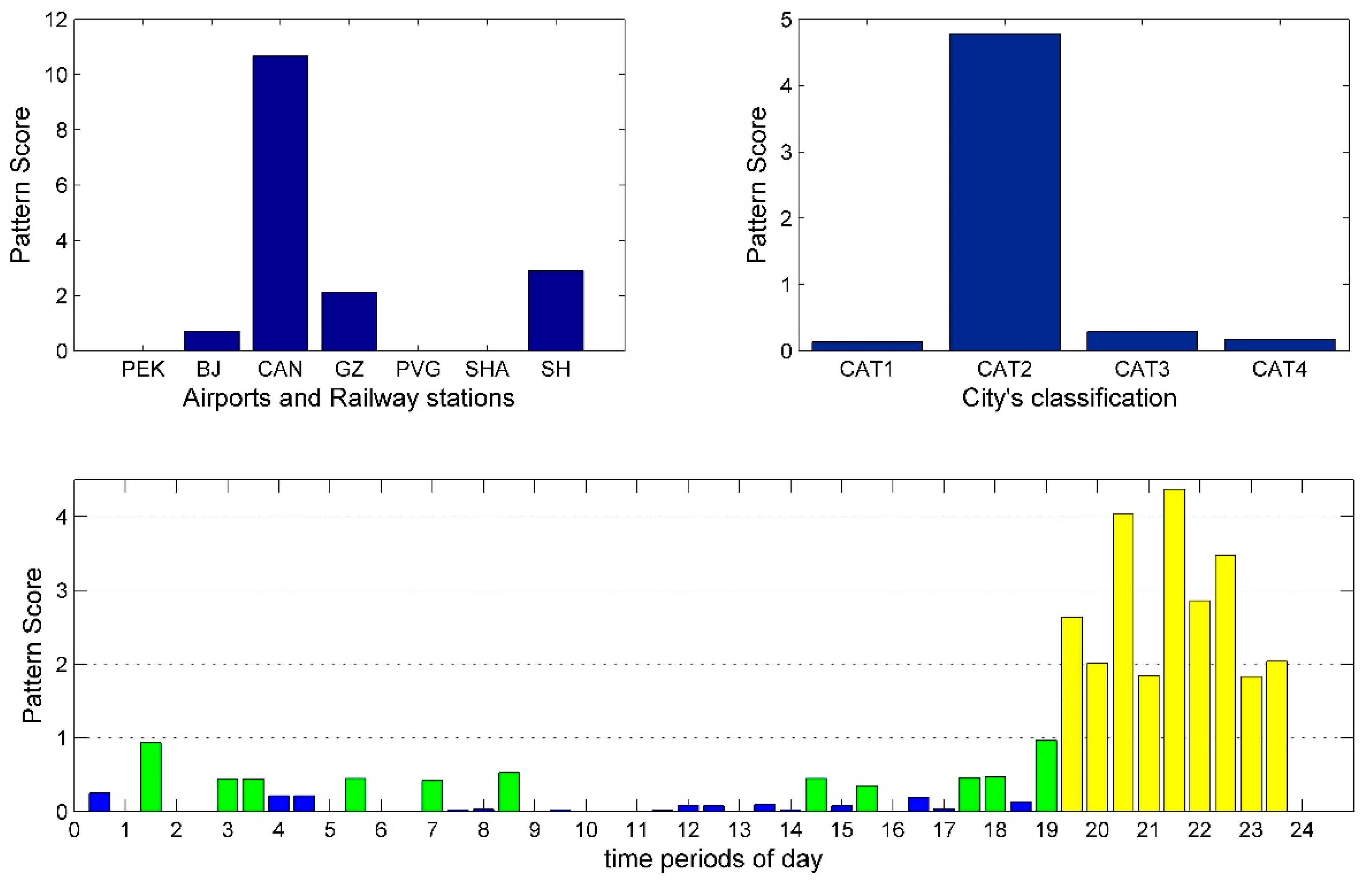

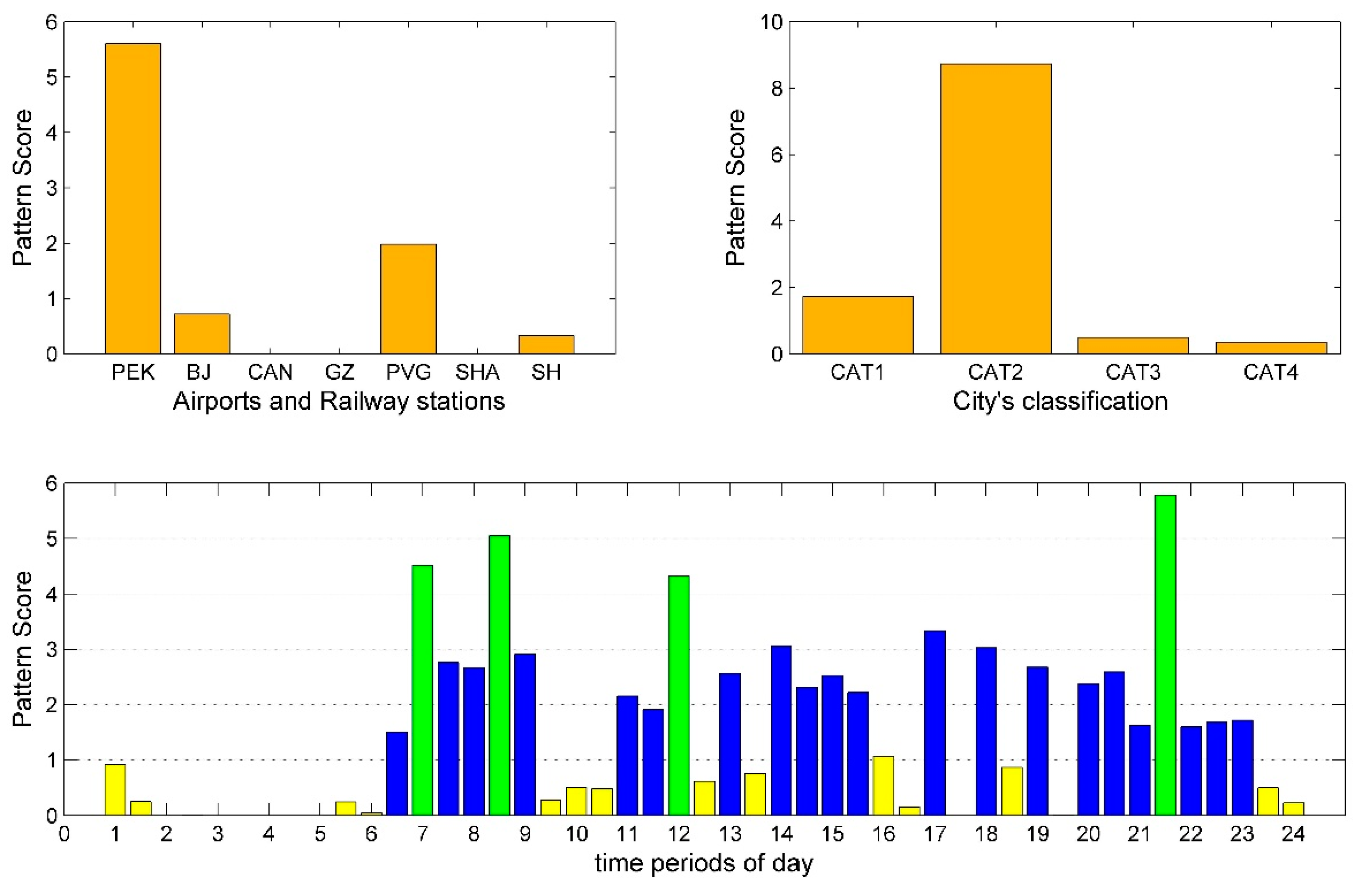

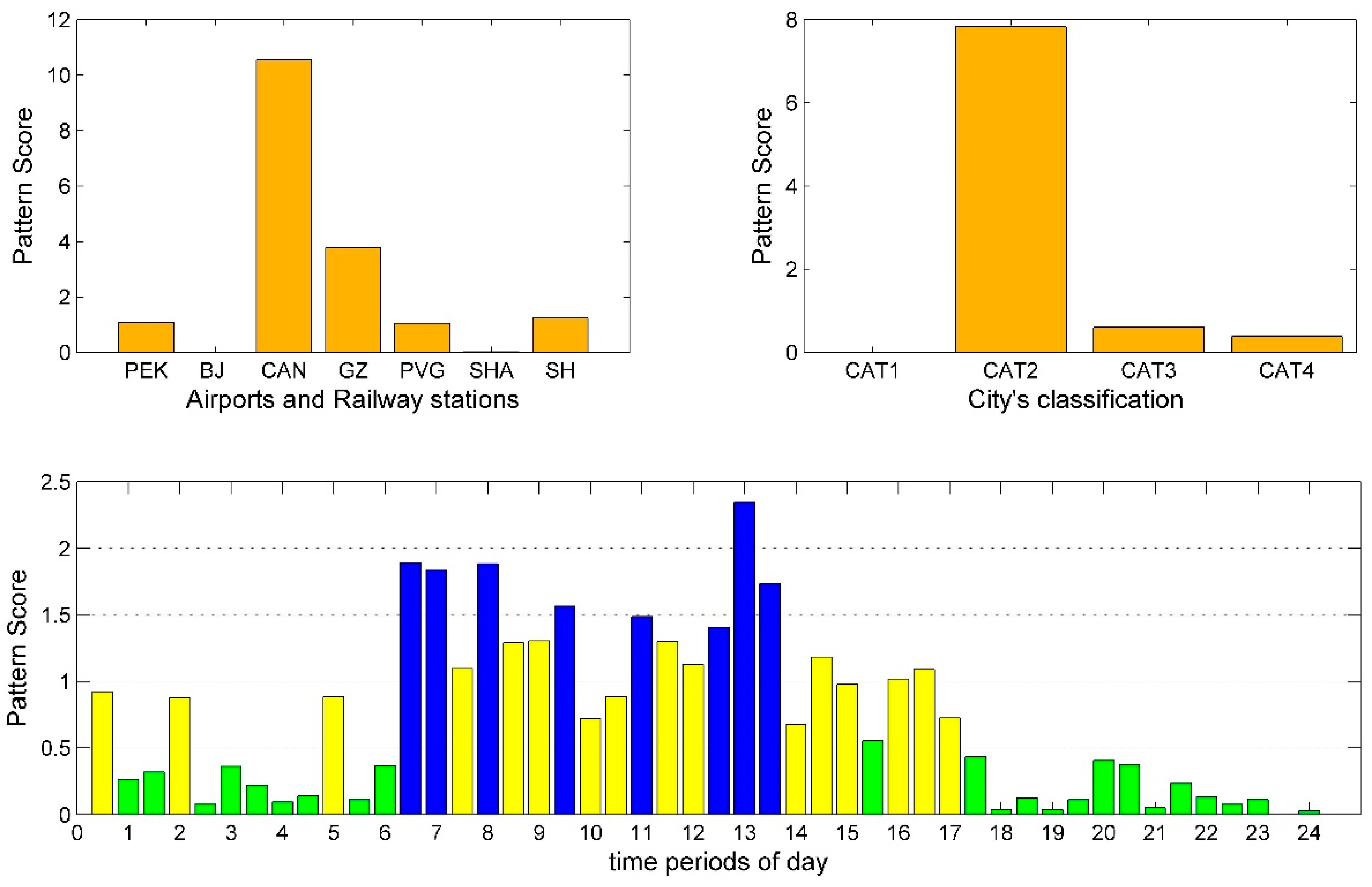

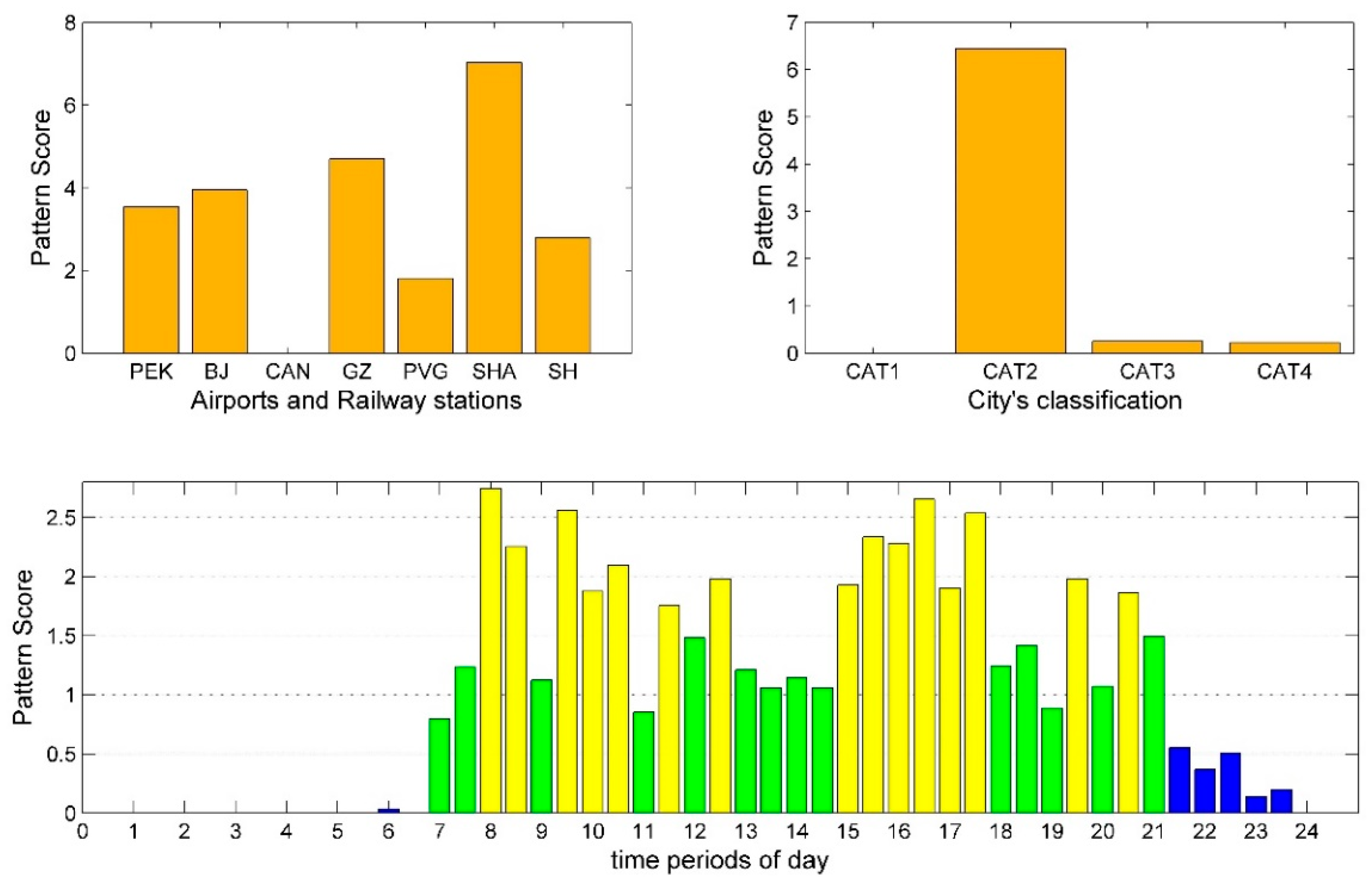

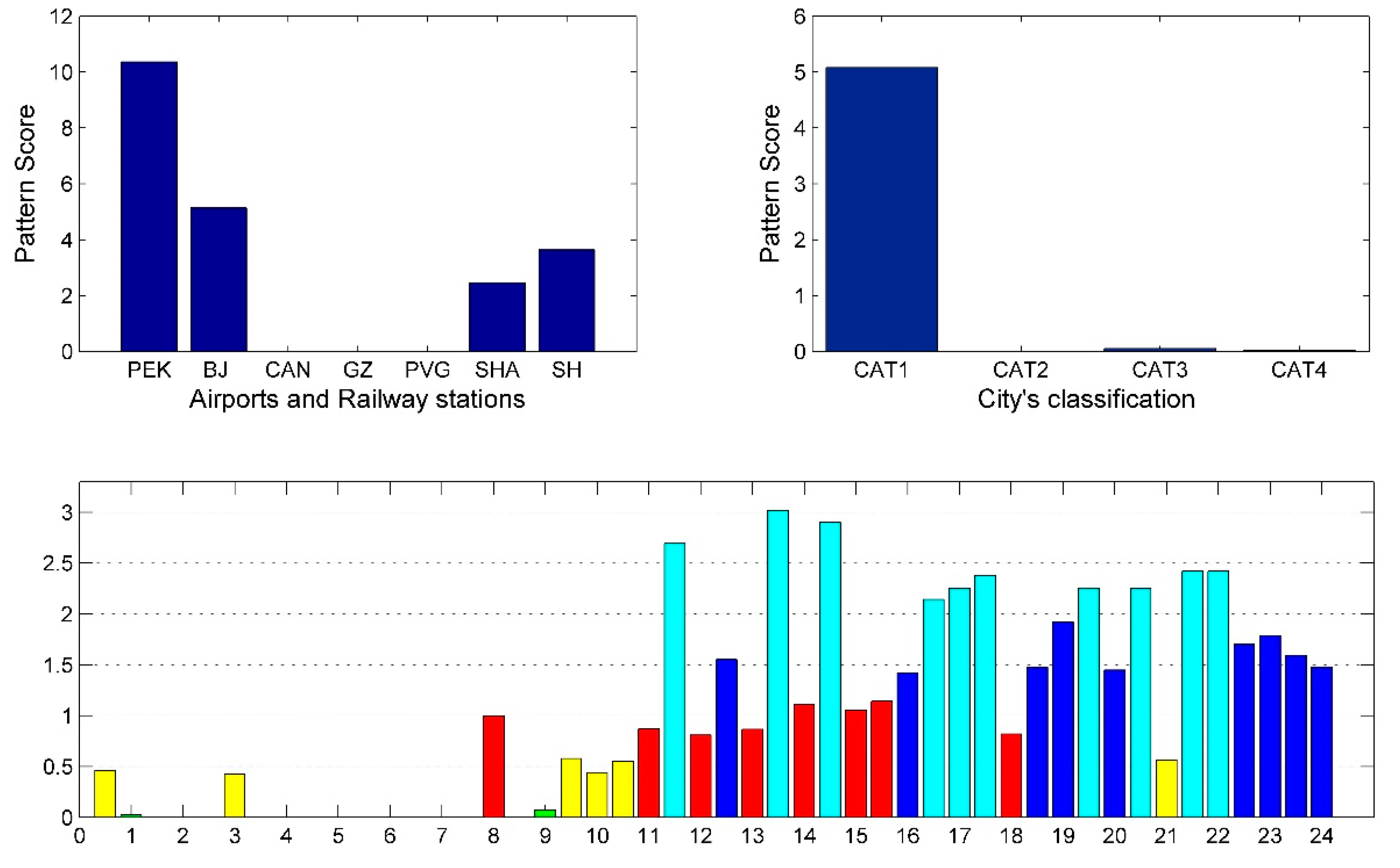

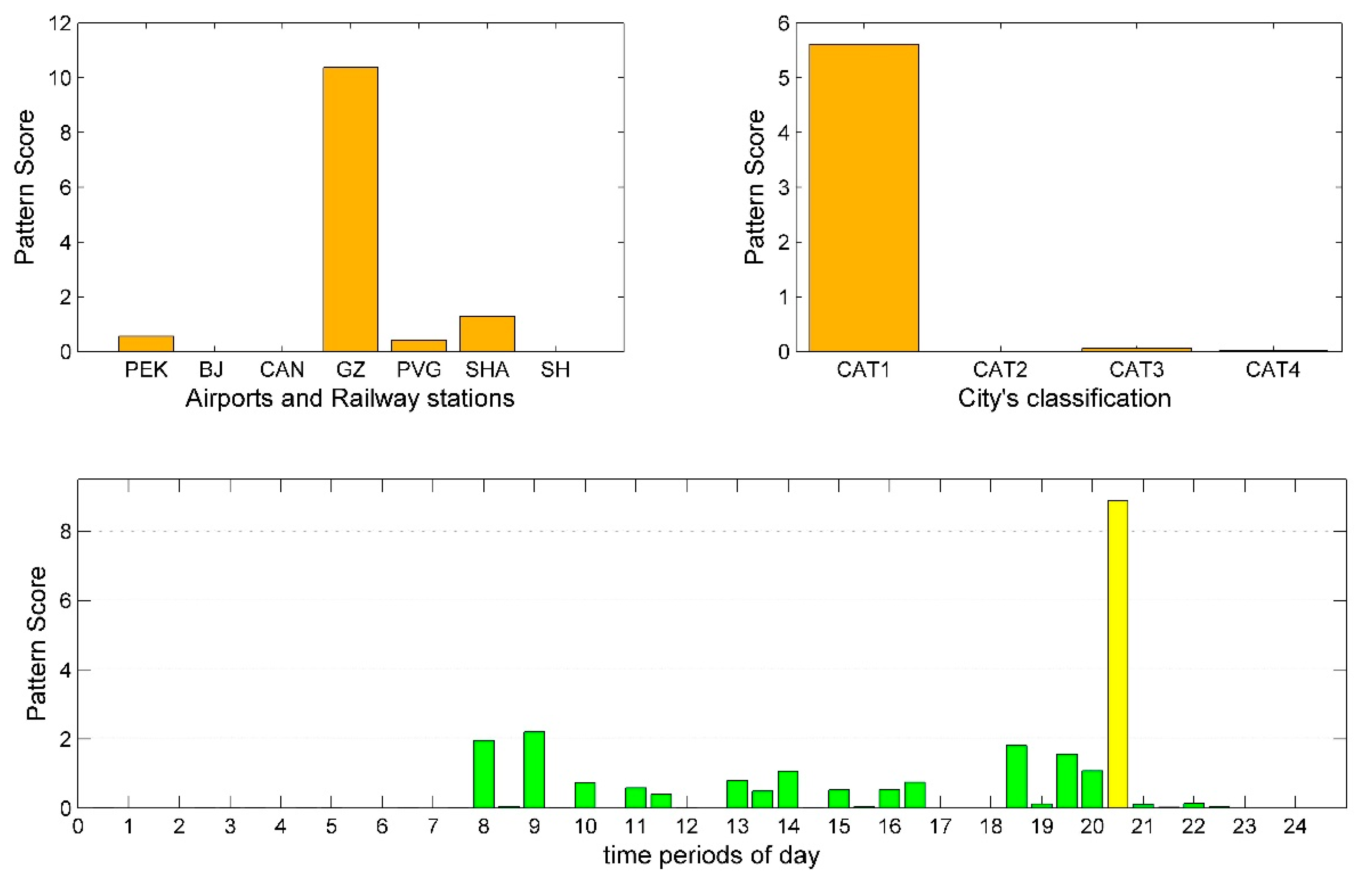

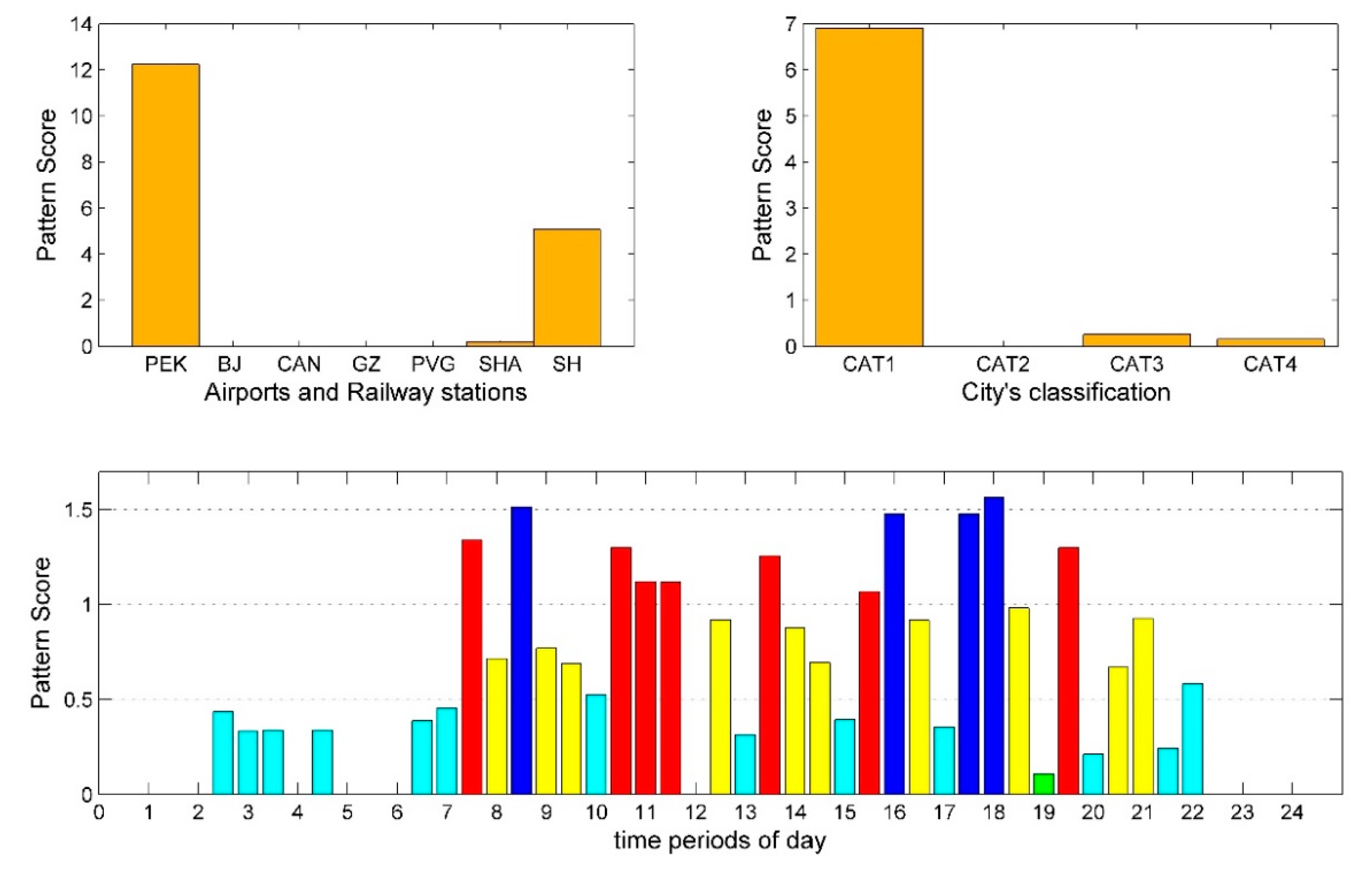

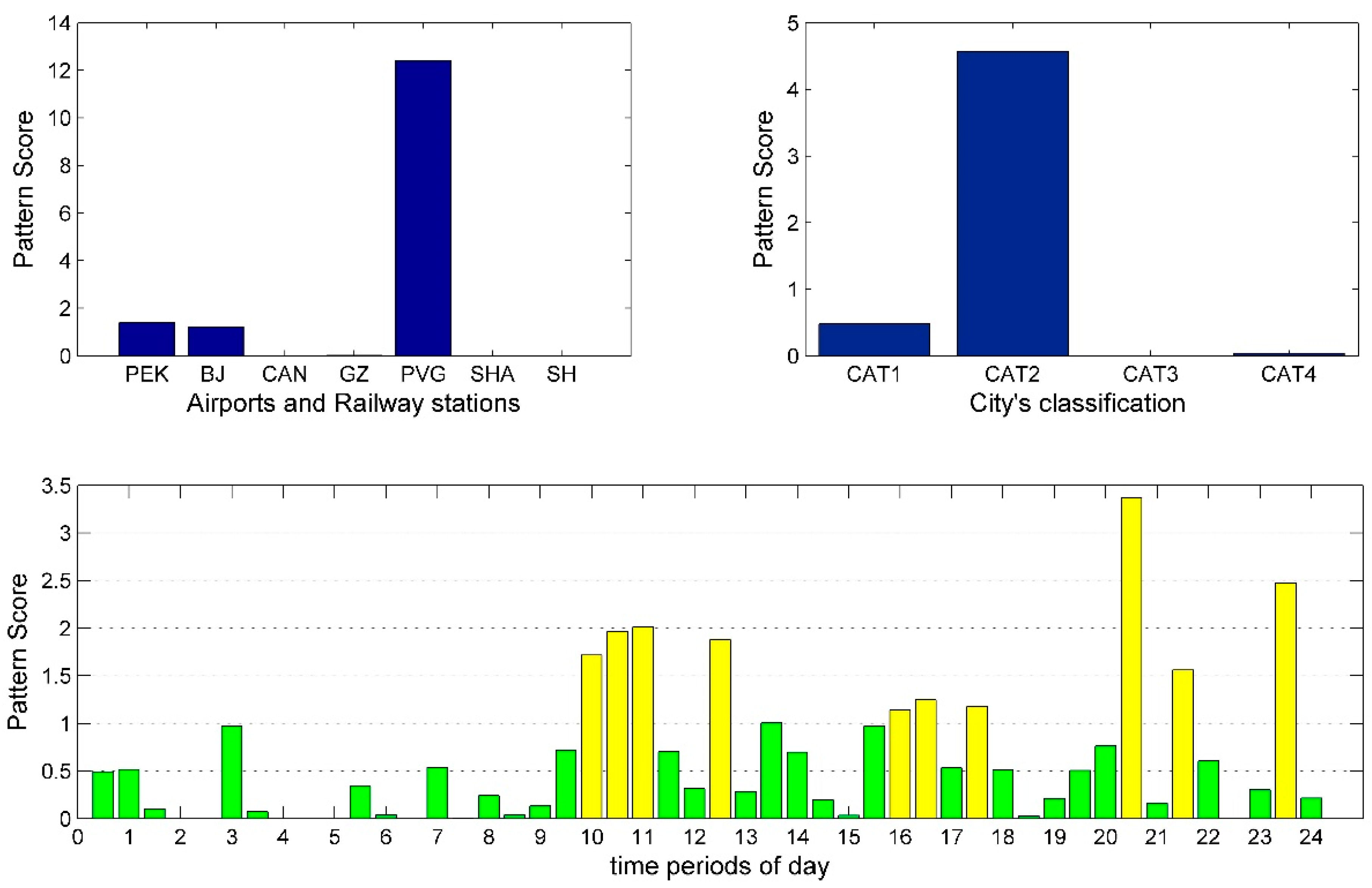

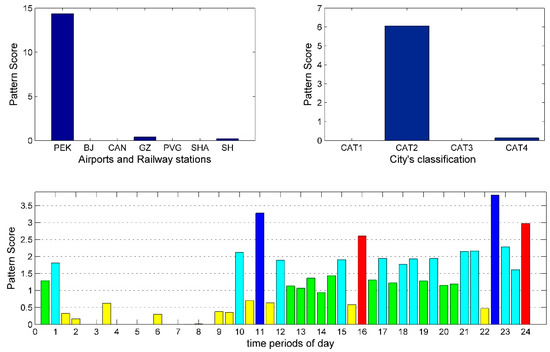

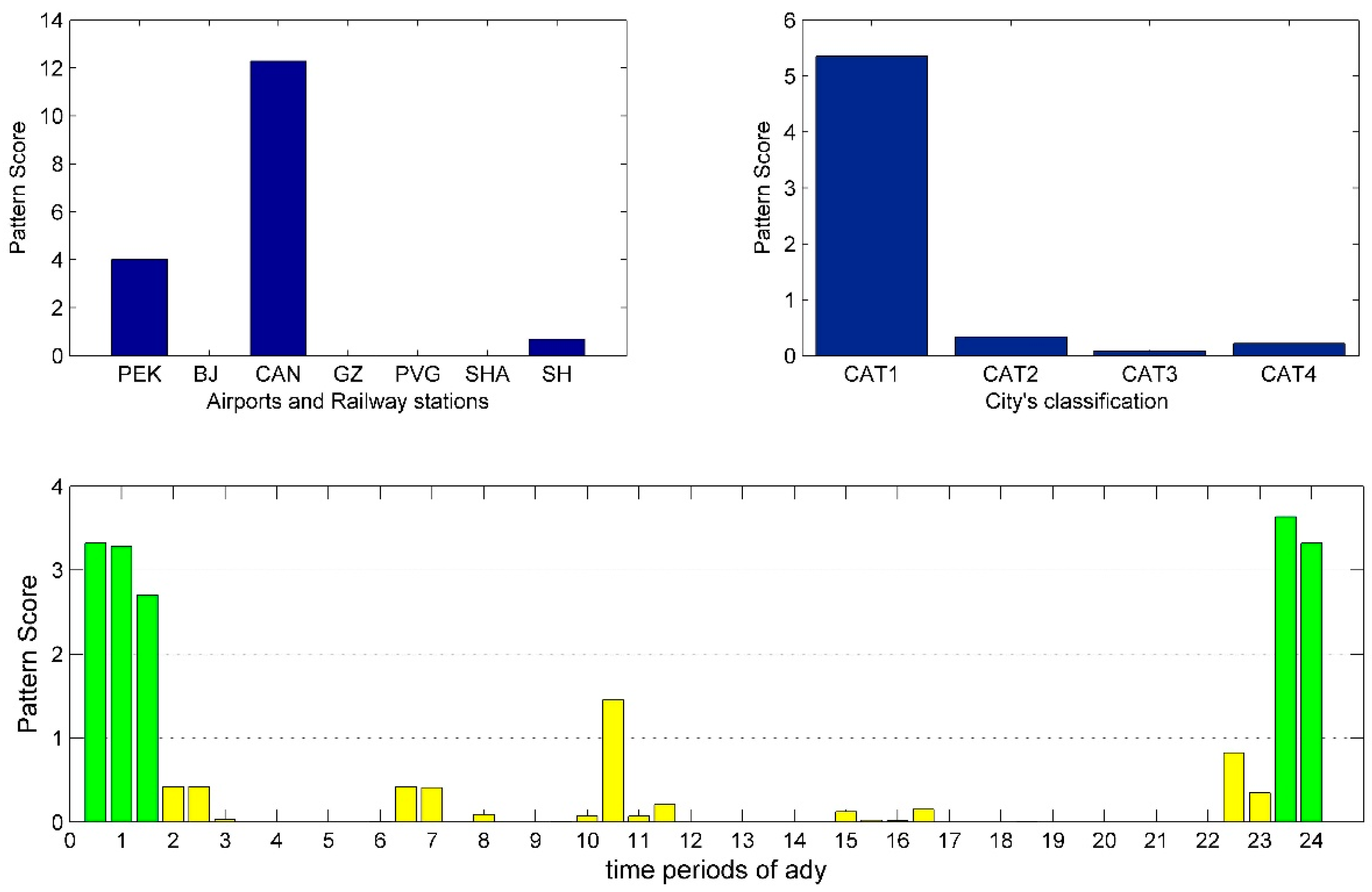

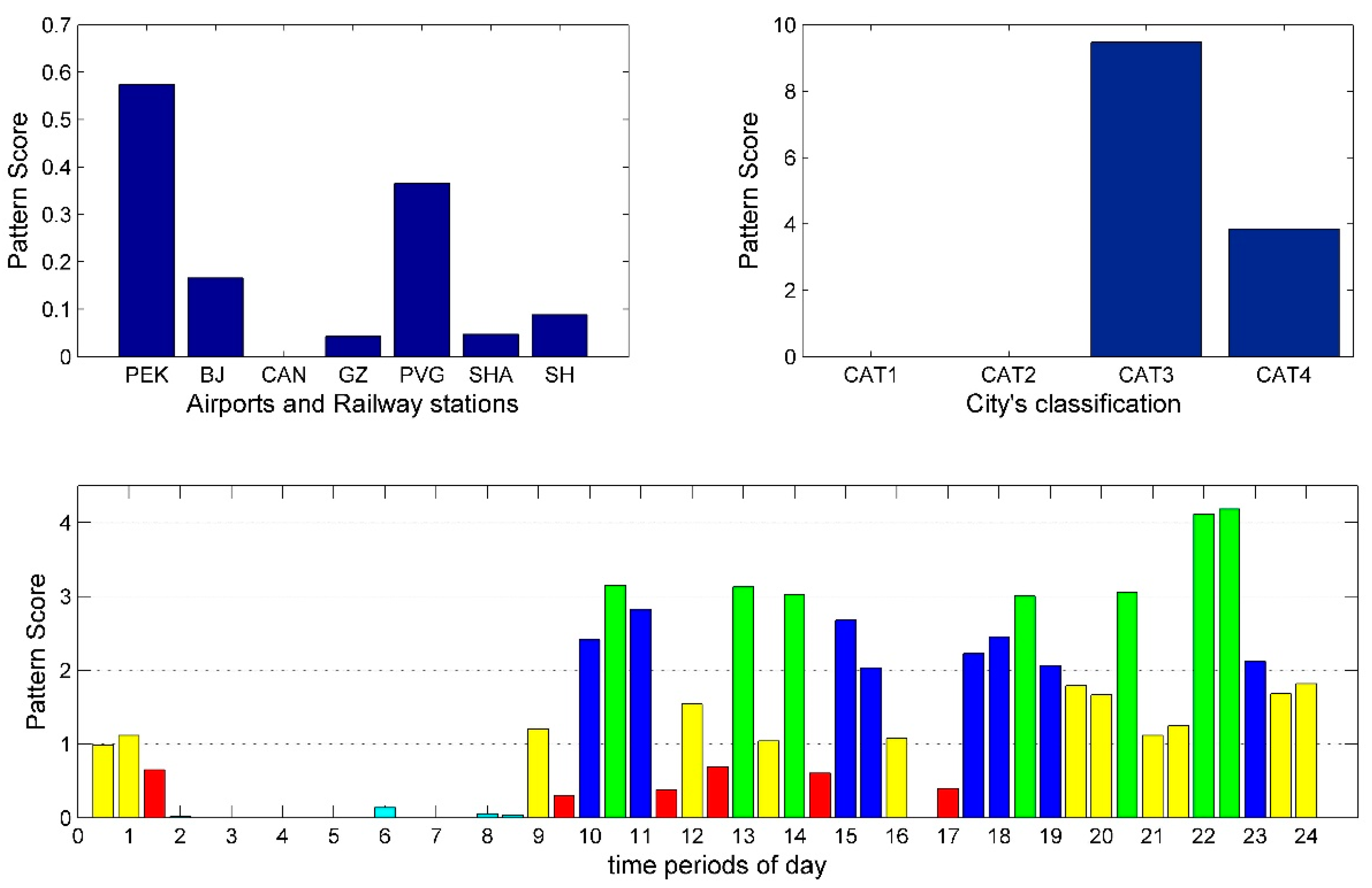

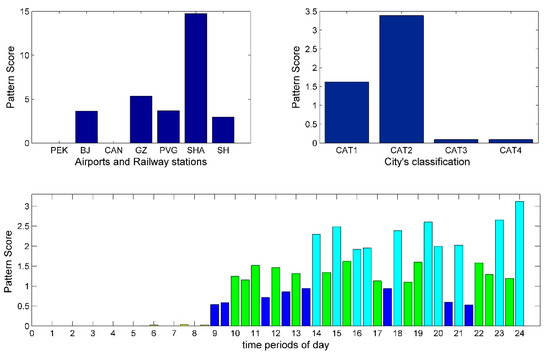

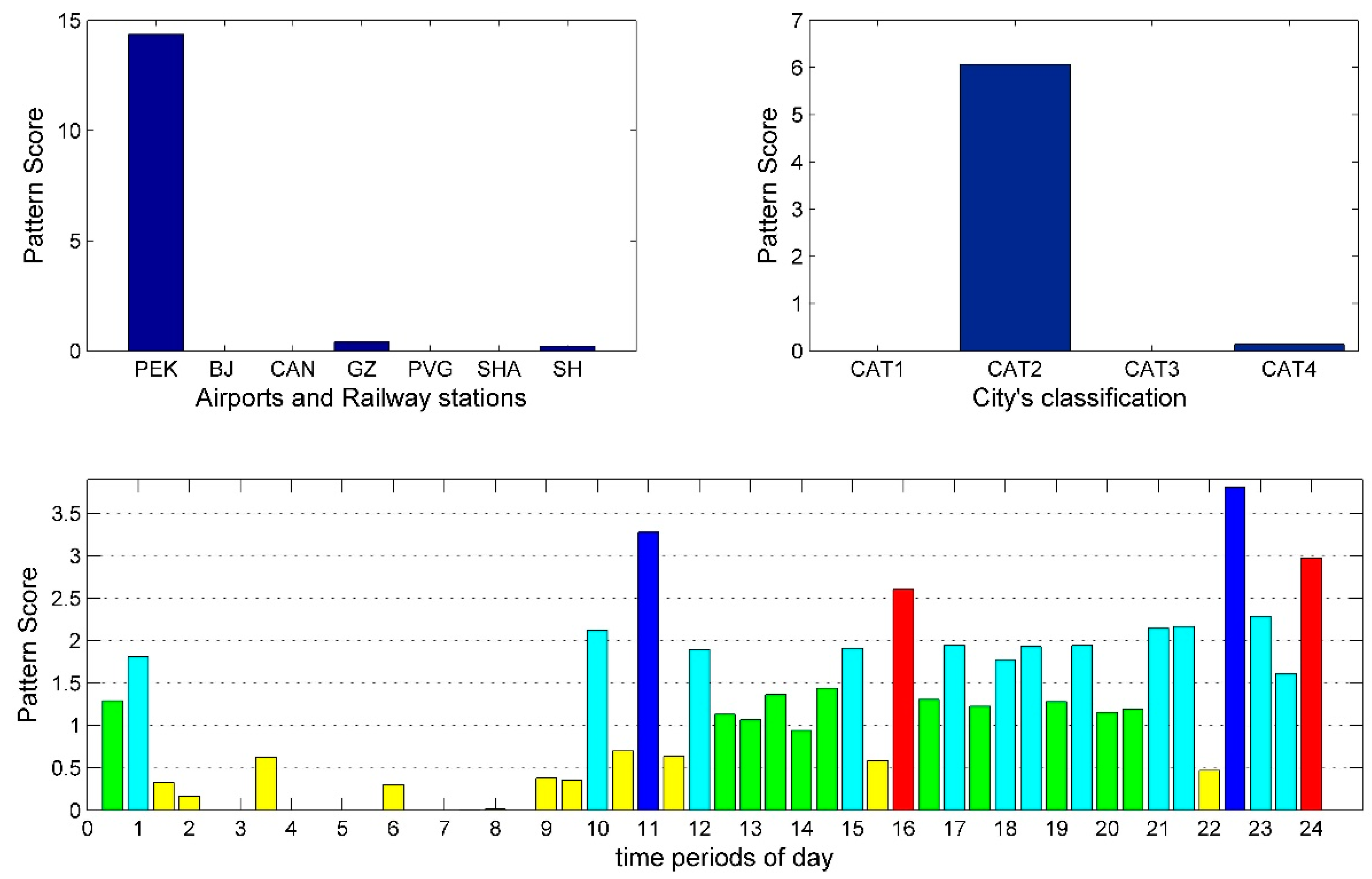

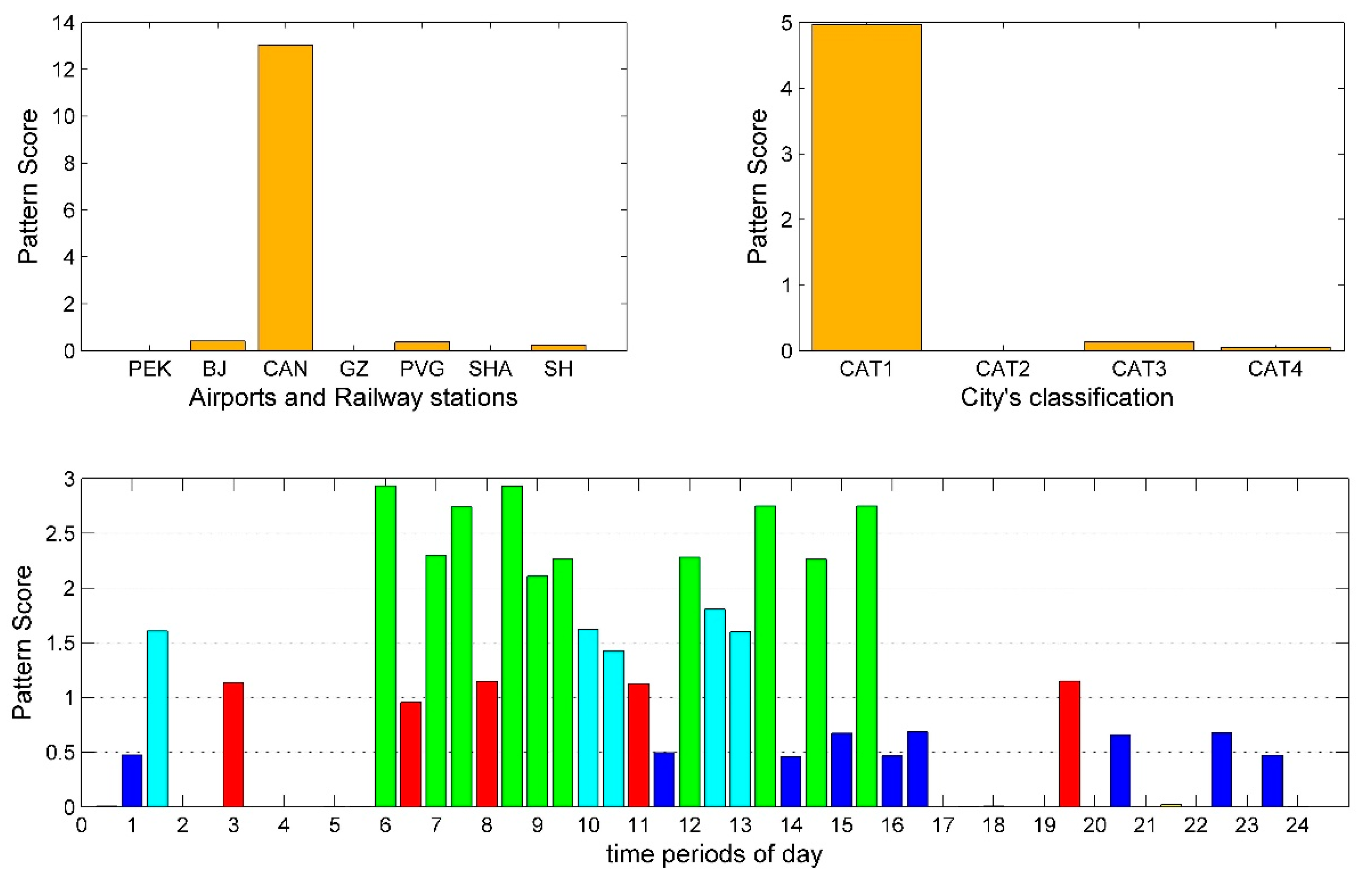

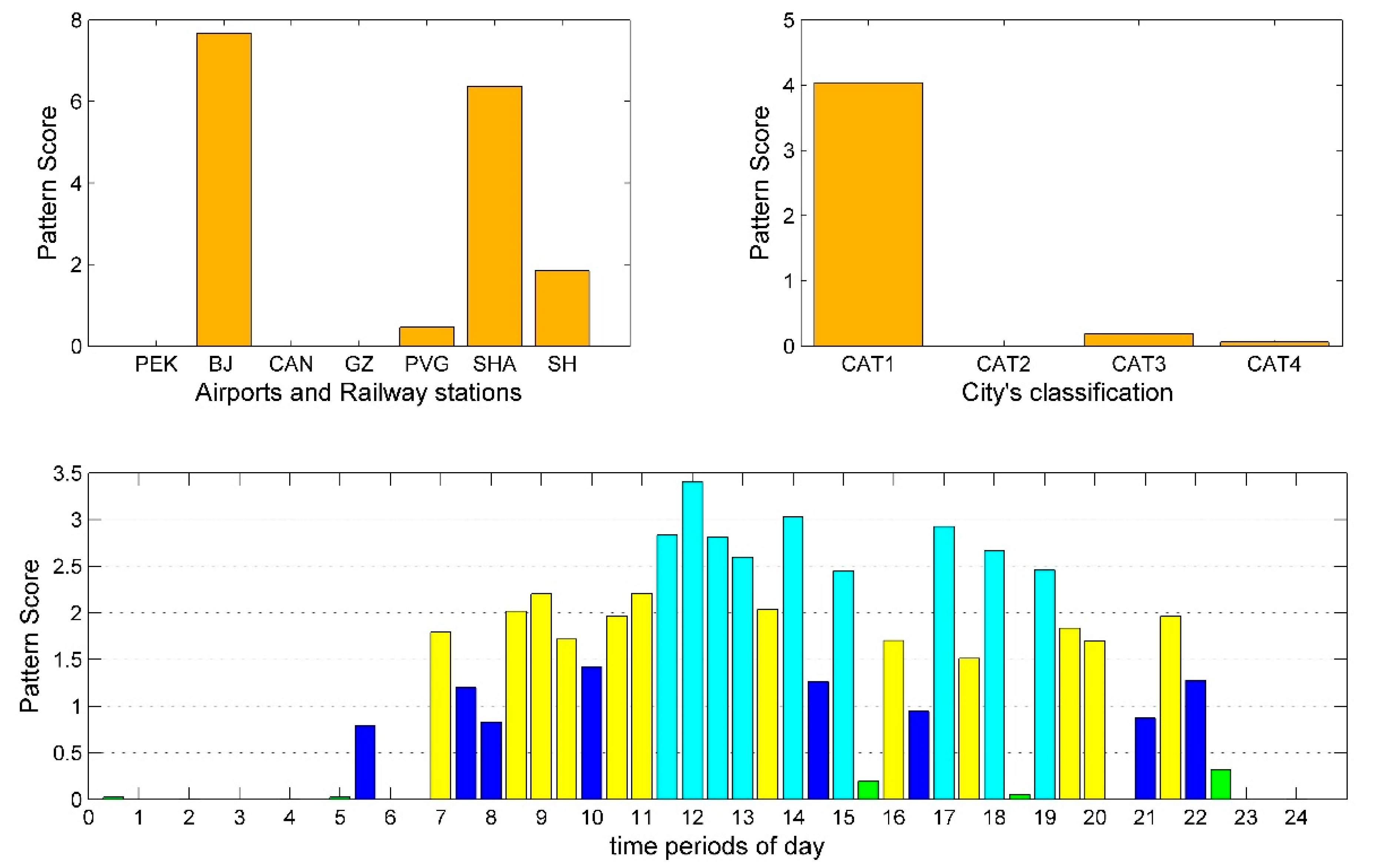

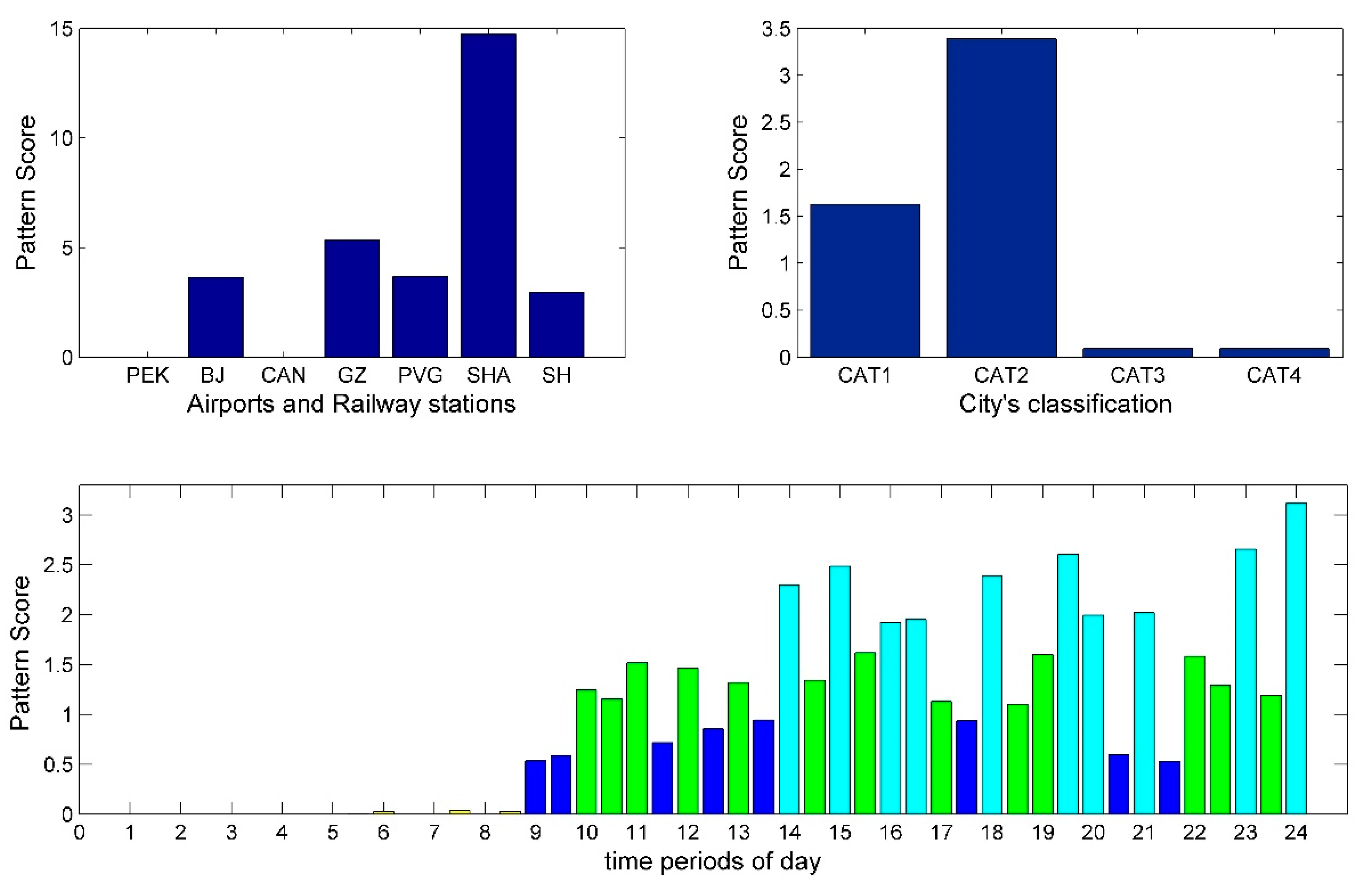

**Figure 2.**Departure pattern 1: Decomposition results of departure tensor. the supply level pattern score bars in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14 and Figure 15 are marked with different colors to distinguish different clusters for each supply configuration pattern.

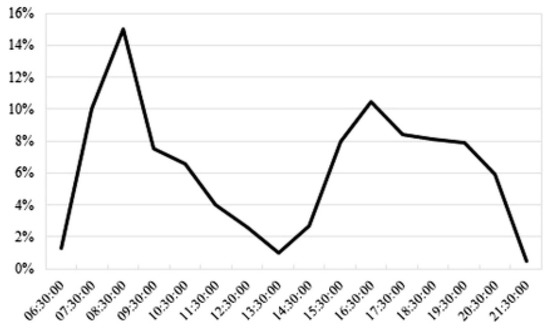

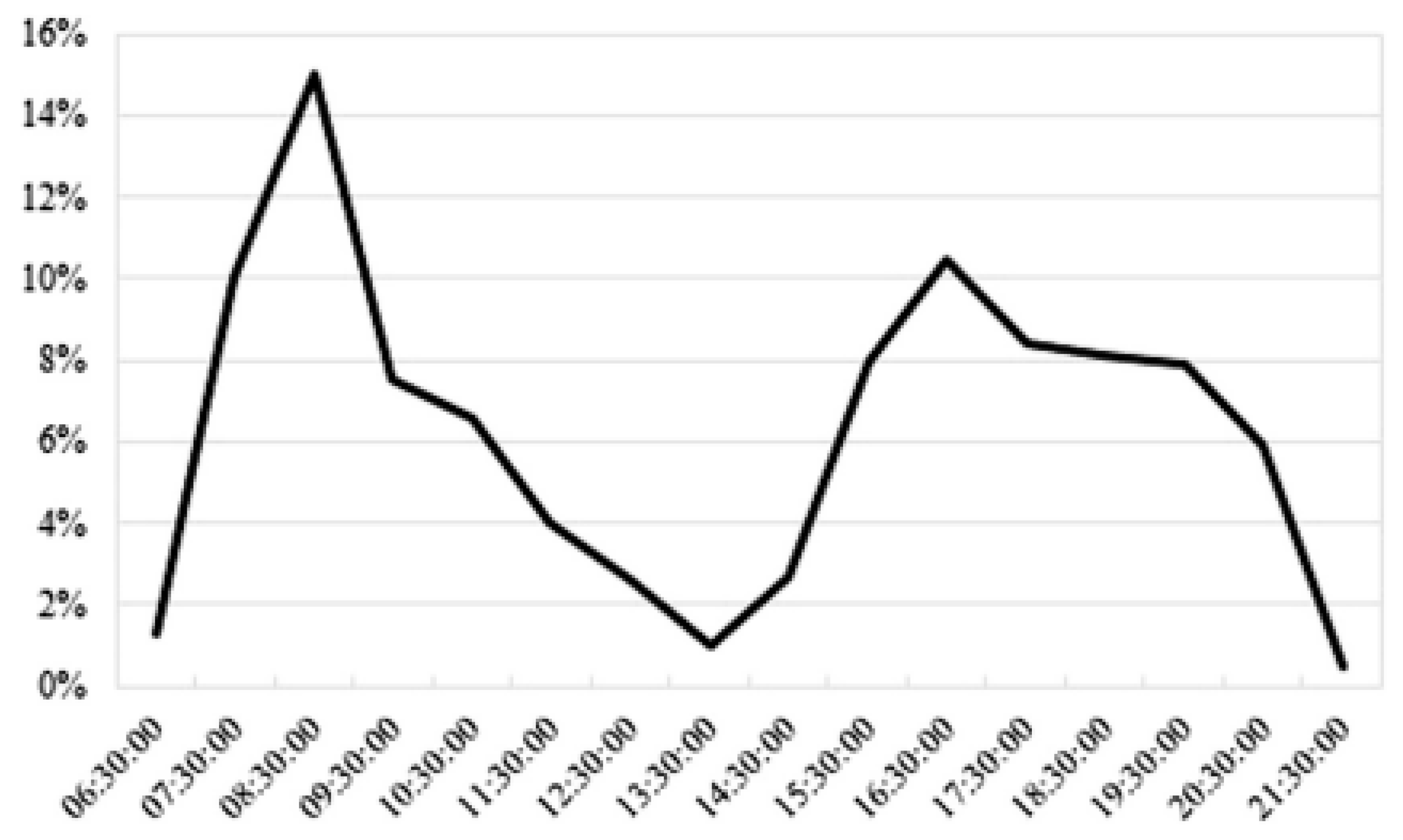

**Figure 18.**The desired departure time (DDT) distribution for business travel over long distances (Cascetta E et al. [21]).
