Changes in Soil Biochemical Properties in a Cedar Plantation Invaded by Moso Bamboo

Abstract

Moso bamboo (Phyllostachys edulis) is one of the widely growing bamboo species in Asia. Because of its fast growth and aggressive rhizomes, it is reported to invade other forests and reduce the biodiversity of forest ecosystems. To determine the changes in soil nutrient conditions due to moso bamboo invasion, this research measured the difference in soil labile carbon (C) and nitrogen (N) contents in a Japanese cedar (Cryptomeria japonica) forest invaded by moso bamboo in central Taiwan. The content of soluble organic C (S_bOC), measured by both KCl and hot-water extraction methods, was lower in bamboo than cedar soils. This observation agreed with the finding that the more easily decomposed S_bOC could be lost with bamboo invasion. In addition, both S_bOC_KCl and S_bOC_HW contents were positively correlated with microbial biomass C content, so the decreased labile organic C content in bamboo soils may reduce microbial biomass production. Principal component analysis revealed soil organic C content (total organic C, S_bOC and acid-hydrolysable C) as the most important soil parameter affected by the bamboo invasion, followed by microbial biomass N and NO₃⁻ contents in soils. The soil quality index model also agreed with the degraded soil quality with bamboo invasion. In conclusion, the invasion of moso bamboo reduced the C and N pools in bamboo soil and degraded the overall soil quality.

1. Introduction

Bamboo forest occupies more than 10 million hectares in the world, and 80% of the forests are located in tropical and subtropical Asia [1]. Bamboo is an important woody grass that provides various ecosystem services such as carbon (C) sequestration [2], biofuel production [3], furniture materials [4] and food for animals [5,6]. Bamboo grows quickly and can increase its height up to a rate of 17 cm·day⁻¹ [7]. Because bamboo provides fast and easily decomposed C sources to soil, it provides good plantation material for ameliorating badland soils that originally contained poor organic matter and poor physicochemical properties [8].

Moso bamboo (Phyllostachys edulis) is one of the commonly growing bamboo species in Asia. However, because of its high growth rate, moso bamboo can expand rapidly and replace surrounding forests via its aggressive rhizomes [9,10]. Moreover, the fast-growing shoots of moso bamboo can reach their full height and occupy the canopy within 2 to 3 months [11]. Additionally, the allelopathic compounds produced by moso bamboo may suppress the growth of understory or eliminate neighboring plants [12]. Previous research has reported the impact of bamboo invasion on ecosystem functioning, such as changing plant diversity [13,14], altering soil water content [9], decreasing soil trace elements [15], and changing microbial diversity [7,16,17]. In addition, composition of soil total organic C (TOC) may degrade with bamboo invasion [18]. Wang et al. [18] also found that frequent human disturbance in bamboo plantations further induces decomposition of soil organic matter and results in bamboo soil with high humification.

Because moso bamboo litter contains more easily decomposable substances than other coniferous forests [18], the soil quality and fertility may degrade after the invasion of moso bamboo. However, the direct evidence of changing soil labile C and N content due to moso bamboo invasion has been seldom addressed. Information on these soil labile C and N stocks can be beneficial to better understand the change of ecosystem functioning before and after bamboo invasion.

Potassium chloride (KCl) and hot-water extraction methods are successful analytical methods to determine soil conditions with vegetation changes [19,20,21]. The KCl extraction method can evaluate labile nitrogen (N) content in soil because much of the N is adsorbed by soil particles (i.e., NH₄⁺ and soluble organic N (S_bON)) and can be extracted by ion exchange of K⁺ [22]. However, soluble organic C (S_bOC) is more soluble in hot than cold water [21] and its content was found highly correlated with microbial biomass C (C_mic) and soil TOC content [20].

To provide a better understanding of how moso bamboo migrates and invades forest ecosystems and how the soil quality is altered with bamboo invasion, we measured soil labile C and N content with different extraction methods from the soil where moso bamboo has invaded Japanese cedar forests. We hypothesized that with bamboo invasion and harvesting disturbance, soil C and N contents would significantly decrease because bamboo provides mostly labile C and N.

2. Materials and Methods

2.1. Site and Soil Sampling

This study was carried out in Shanlinshi, Nantou County, Taiwan (120°46′ E, 23°40′ N), with an average altitude of 1350 m and annual temperature of 17 °C. Japanese cedar (Cryptomeria japonica) was reforested in some of the area in the 1970s, and moso bamboo was planted in an adjacent area at a similar time [17]. A 30- to 50-m wide transition area with both Japanese cedar and moso bamboo plants is formed currently. Details of the study site were described elsewhere [16,17,18]. Briefly, soil at the study site was classified as Dystrudept and the texture was moderately well drained clayey loam [23].

Soil samples were collected from six parallel transects, 50 m apart, that covered three vegetation covers (moso bamboo, transition and Japanese cedar), for a total of 18 plots, in February 2011. A composited soil sample of 12 soil cores (in each sampling plot) was collected in each transect by using a soil auger (8 cm in diameter and 10 cm in depth) and stored in a plastic bag. The samples were stored at 4 °C in their initial moisture conditions before experiments.

2.2. Laboratory Analysis

2.2.1. Soil General Property

Soil TOC and total nitrogen (TN) contents were analyzed by the combustion method with a Fisons NA1500 elemental analyzer (ThermoQuest Italia, Milan, Italy).

2.2.2. Soil Extractable Nutrients

The KCl and hot-water extraction methods were used to extract soil nutrients for NH₄⁺, NO₃⁻, S_bON, and S_bOC measurement. For the KCl extraction, 5 g air-dried soil was weighed from each composited sample, placed in a 250-mL conical flask, and injected with 50 mL of 2 M KCl. The flask was sealed with plastic paraffin film and shaken to form a slurry for 60 min at 150 rpm. Water was then filtered out from the slurry to test the nutrient contents. Analyses were duplicated for each soil sample collected in the field.

For the hot-water extraction, 6 g of air-dried soil samples was weighed from each composited sample, placed in a 50-mL centrifuge bottle and injected with 30 mL distilled deionized water. The bottle was placed in 70 °C water and incubated for 18 h. The bottle was then shaken for 5 min at 150 rpm. All of the shaken bottles were centrifuged at 10,000 m s⁻² for 10 min, and water from the slurry was filtered for analysis.

Soil total dissolved N (TDN) was digested to NO₃⁻ by using a persulfate method [24], then analyzed with a flow injection analyzer (SP-8001, Metertech Inc., Taipei, Taiwan). NH₄⁺ was analyzed by an indophenol method with a spectrophotometer (UV-1201, Shimadzu Corp., Kyoto, Japan). NO₃⁻ content was analyzed with a flow injection analyzer. S_bON content was calculated by subtracting NO₃⁻ and NH₄⁺ from TDN content. S_bOC content was measured with a TOC analyzer (1010, O.I. Analytical, College Station, TX, USA).

2.2.3. Total Mineralizable N

Total mineralizable N was determined by using the waterlogging incubation method [25]. Five grams of fresh soil was placed in a 250-mL centrifuge bottle with 25 mL of distilled deionized water and incubated in an incubator (LM-509RD, Yihder Technology Co., Shinbei City, Taiwan) at 40 °C and 150 rpm for 7 days. After incubation, 25 mL of 4 M KCl was injected into the centrifuge bottle and shaken for 1 h at 150 rpm. Then, the bottle was centrifuged at 2000 rpm for 20 min and 50 mL water was extracted and filtered for determining NH₄⁺ concentration.

Soil water content was measured from the weight loss of soil after it was oven-dried at 105 °C for 24 h. All analyses were performed in duplicate. All results were converted to measures of dry weight.

2.3. Statistical Analysis

The significance of differences in soil nutrient content among the three vegetation types was tested by a one-way analysis of variance (ANOVA). When one-way ANOVA revealed interactions of soil physicochemical properties among vegetation, Tukey’s honestly significant difference (HSD) test was applied to further test the means of all pairs of dependent variables. Relations between two soil properties were analyzed by bivariate regression analysis.

By principal component analysis (PCA), we analyzed the most critical changes of soil properties affected by bamboo invasion in the studied area. In addition, a statistics-based model based on PCA is one of the recommended methods to calculate soil quality index (SQI) with changing land uses and plantations [26,27]. Here, we also reproduced the statistics-based model based on Lu et al. [26] and Mukherjee and Lal [27] to calculate the SQI for the three different plant covers in this study. Only PCs with eigenvalues >1.0 were retained for calculating SQI. Soil parameters, NH₄⁺, NO₃⁻, S_bON, S_bOC, total mineralizable N, TOC, TN, C_mic and N_mic from Chang and Chiu [16], acid-hydrolysable C (pool I: AHPI-C; pool II: AHPII-C), and recalcitrant C (RP-C) from Wang et al. [18] were used for the PCA analysis and SQI calculation.

Statistical analysis involved use of JMP, Version Pro 10 (SAS Institute, Cary, NC, USA). Level of significance was set at 0.05.

3. Results

With both KCl and hot-water extracts, the S_bOC content was significantly higher in the cedar than the transition and bamboo plantation soils (

Table 1. Concentrations of soil soluble N and soluble organic C content in 2 M KCl extracts and S_bON/TN and S_bOC/TOC ratios in the top 10 cm of soil in the cedar plantation, transition, and moso bamboo plantation in Central Taiwan.

Vegetation	SbOCKCl (μg/g soil)	NH4+KCl (μg/g soil)	NO3−KCl (μg/g soil)	SbONKCl (μg/g soil)	TDNKCl (μg/g soil)	TOC (%)	TN (%)	SbOCKCl/TOC (%)	SbONKCl/TN (%)
Cedar	1315.3 a	74.3 a	58.1 a	196.3 a	328.7 a	21.46 a	1.33 a	0.60 a	1.46 b
Transition	455.9 b	42.6 b	48.2 a	105.6 b	196.4 b	7.54 b	0.67 b	0.58 a	1.51 b
Bamboo	552.2 b	37.4 b	39.8 a	130.8 ab	208.1 b	8.00 b	0.67 b	0.69 a	1.96 a

Soil soluble organic carbon (S_bOC); ammonium (NH₄⁺); nitrate (NO₃⁻); soil soluble organic nitrogen (S_bON); total dissolved nitrogen (TDN); total organic carbon (TOC); total nitrogen (TN). Values with the same letters are not significantly different at p = 0.05 by Tukey’s honestly significant difference (HSD) test.

and

Table 2. Soil soluble N and soluble organic C content in hot-water extracts and mineralizable N and S_bON/TN and S_bOC/TOC ratios in the top 10 cm of soil in the cedar plantation, transition, and moso bamboo plantation in Central Taiwan.

Vegetation	SbOCHW (μg/g soil)	NH4+HW (μg/g soil)	NO3−HW (μg/g soil)	SbONHW (μg/g soil)	TDNHW (μg/g soil)	Mineralizable N (μg N/g soil/d)	SbOCHW/TOC (%)	SbONHW/TN (%)
Cedar	7180.2 a	118.3 a	32.1 a	95.7 a	246.2 a	160.0 b	3.28 a	0.70 a
Transition	1838.3 b	60.8 b	37.4 a	52.6 a	150.8 b	187.8 ab	2.45 b	0.69 a
Bamboo	2081.9 b	74.6 b	29.0 a	36.8 a	139.9 b	218.4 a	2.58 b	0.51 a

Soil soluble organic carbon (S_bOC); ammonium (NH₄⁺); nitrate (NO₃⁻); soil soluble organic nitrogen (S_bON); total dissolved nitrogen (TDN); total organic carbon (TOC); total nitrogen (TN). Values with the same letters are not significantly different at p = 0.05 by Tukey’s HSD test.

). The S_bOC_KCl content was nearly 2.5 times higher in the cedar than bamboo soils and the S_bOC_HW content was more than 3.5 times higher in the cedar than bamboo soils. In addition, the S_bOC_HW content was more than four times higher than the S_bOC_KCl content in all locations.

Similarly, both the soil NH₄⁺ and TDN content was higher in cedar than transition and bamboo plantation soils with both KCl and hot-water extracts. In addition, NH₄⁺_HW content was higher than NH₄⁺_KCl content at all locations. Soil S_bON_KCl content was higher than S_bON_HW content in the three vegetation types.

The S_bOC_HW/TOC ratio was higher in the cedar than the transition and bamboo plantation soil, with no spatial variation found between the cedar and bamboo plantation soil in the S_bOC_KCl/TOC ratio. In addition, the S_bON_KCl/TN ratio was higher in the bamboo than cedar plantation soil, with no spatial variation of S_bON_HW/TN ratio found between the three vegetation types. In addition, the total mineralizable N content was similar among the three vegetation types.

Results from PCA showed that three principal components had eigenvalues >1 and explained 91.1% of the variance in the total data. The C-related parameters, TOC, S_bOC_KCl, S_bOC_HW, AHPI-C, AHPII-C, and RP-C, and N-related parameters, TN and NH₄⁺_HW, appeared to be the most important soil parameters affected by the bamboo invasion in PC-1 and explained 64.6% of the variance. The N_mic and NO₃⁻_HW were the most important parameters in PC-2 and explained 16.5% of the variance. The total mineralizable N, NO₃⁻_HW and NO₃⁻_KCl were the most important parameters in PC-3 and explained 10.0% of the variance (

Table 3. Eigenvalues and Eigenvectors of the first three principal components from principal component analysis and the selected parameters (*) for soil quality index calculation from the cedar plantation, transition zone, and bamboo plantation. ^† indicate values mainly contributed to the principal components (PCs).

Principal Components	PC-1	PC-2	PC-3
Eigenvalue	10.33	2.63	1.60
Eigenvactors:
NH4+KCl	0.252	−0.122	−0.194
NO3−KCl	0.126	0.415	−0.477 *,†
SbONKCl	0.269	0.191	0.189
SbOCKCl	0.297 †	0.024	0.161
NH4+HW	0.292 †	0.030	0.030
NO3−HW	0.048	0.476 †	−0.466 †
SbONHW	0.236	0.168	0.221
SbOCHW	0.300 †	−0.062	0.124
Total mineralizable N	−0.084	0.415	0.474 †
Cmic 1	0.241	0.227	−0.125
Nmic 1	−0.115	0.491 *,†	0.343
TOC	0.308 *,†	−0.025	0.027
TN	0.307 †	0.034	0.038
AHPI-C 2	0.291 †	−0.022	0.039
AHPII-C 2	0.286 †	−0.168	0.142
RP-C 2	0.306 †	−0.145	−0.091

¹ C_mic and N_mic data were from Chang and Chiu [16]. ² AHPI-C, AHPII-C and RP-C data were from Wang et al. [18].

).

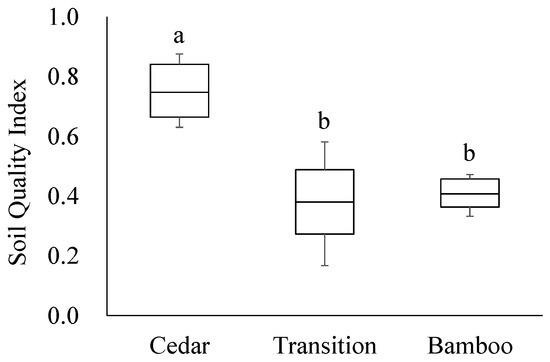

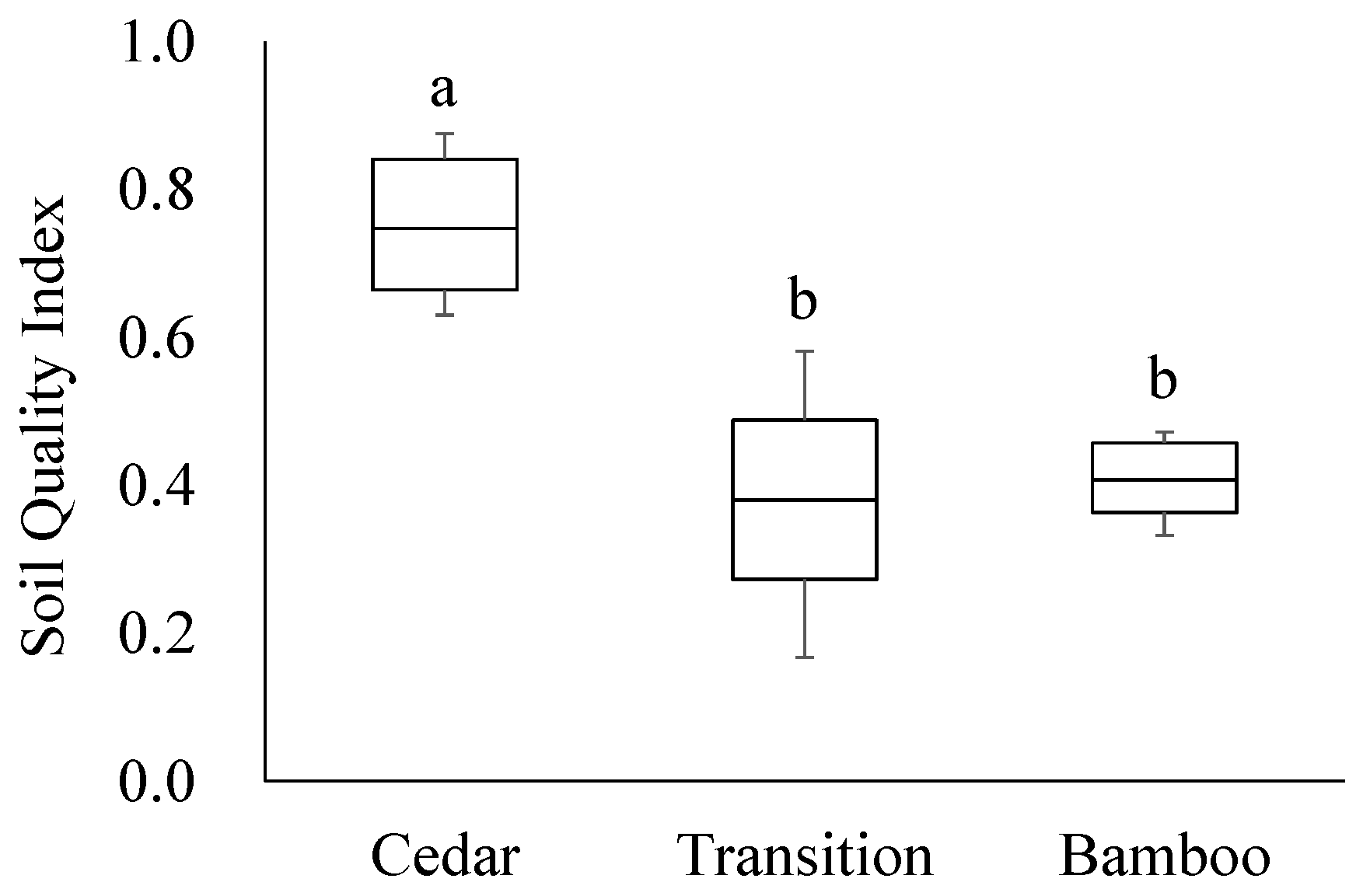

The calculated SQI based on PCA results showed the cedar plantation with higher soil quality than the transition zone and bamboo plantation (0.75 ± 0.03 vs. 0.38 ± 0.04 and 0.41 ± 0.02) (Figure 1).

4. Discussion

Bamboo tissue contains low lignin and has a relatively fast soil C cycle, whereas cedar tissue is strongly resistant to degradation and has a slow soil C cycle [28]. Previous research showed that bamboo decreased soil C and N content when it invaded a broad-leaved forest [29], perhaps because the bamboo litter contained more O-alkyl-C, which can be more easily decomposed than that from coniferous forests [18]. Because the slow decomposing speed of cedar tissue helps accumulate TOC, high TOC further helps provide high S_bOC content in the cedar plantation soil. In addition, frequent human activities, such as bamboo shoot harvests, may speed up the removal of organic C from bamboo plantation soils [18]. These reasons may explain the low contents of TOC and S_bOC in the bamboo plantation soil.

S_bOC has been considered the most important indicator of soil quality [30] because increasing S_bOC content provides energy sources that can be easily utilized by the soil microbial community [31]. With the results of C_mic as well as total phospholipid-derived fatty acids from Chang and Chiu [16] in a parallel study, C_mic content was found the highest in cedar plantation soils. This finding could be evidence that increasing S_bOC content benefits microbial growth [32]. Moreover, C_mic content was positively correlated with S_bOC content and TOC in this study, so S_bOC content may be derived from the decomposition of soil TOC as a result of microbial activity [32].

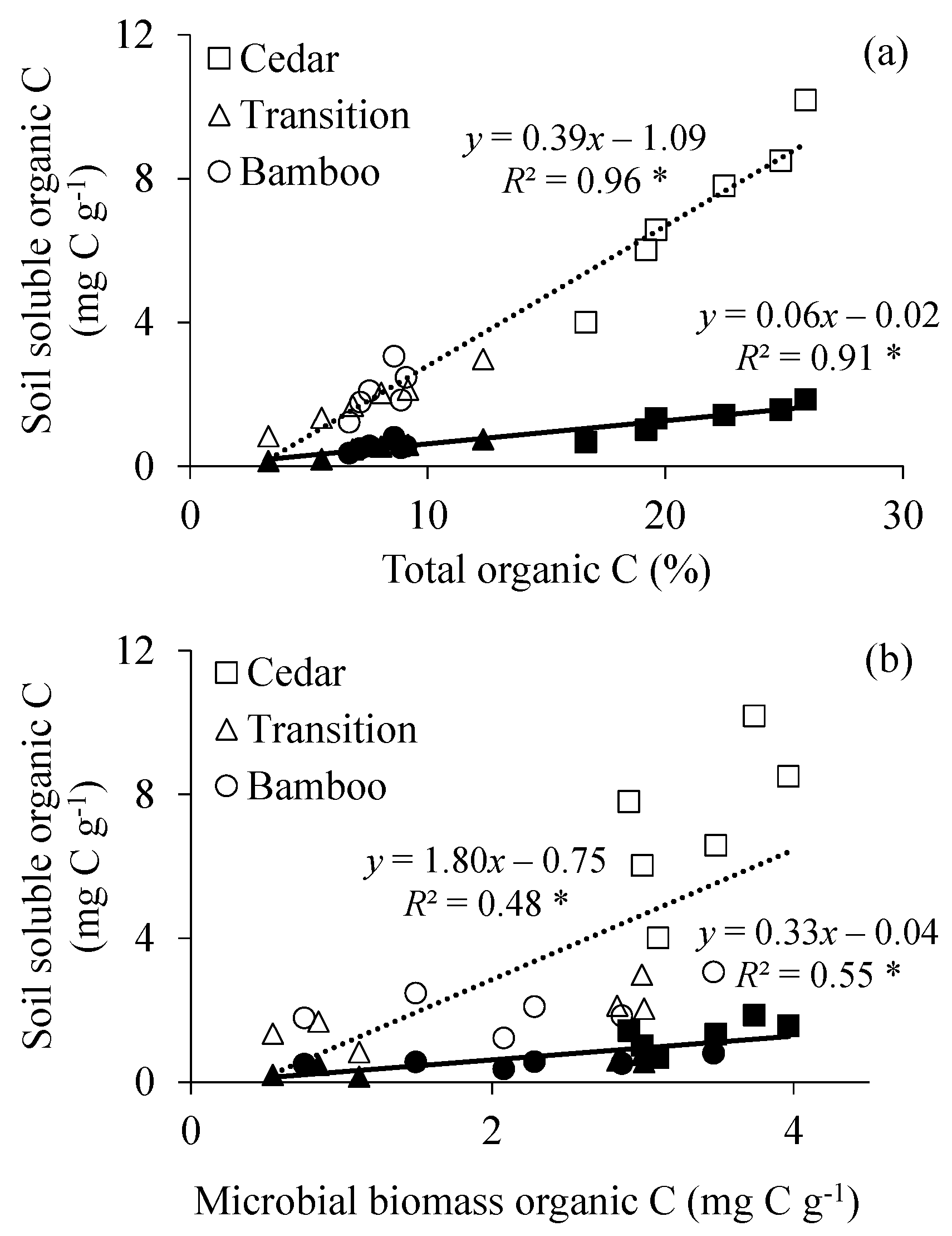

The overall S_bOC_KCl and S_bOC_HW content that we found were positively correlated with TOC and C_mic content (Figure 2). However, S_bOC_HW content had steeper slopes when fitting to both TOC and C_mic content than S_bOC_KCl content, so S_bOC_HW content better reflected the labile portion of soil C that can be readily utilized by soil microbes than did S_bOC_KCl content.

Although Wang et al. [18] found that bamboo litter contained more easily decomposable substances and the ratio of hydrolysable C to TOC was higher in bamboo than cedar soil, a substantial amount of labile C still existed in cedar soil. The higher S_bOC_HW/TOC ratio in the cedar plantation than bamboo plantation confirmed that the S_bOC_HW content was attributed to the increase in TOC pools through the cedar litter.

In addition, hot-water-extracted soil organic C is typically considered readily metabolisable [33], whereas acid-hydrolysable C is considered bioreactive C that is not readily used by microbes [34]. The lower S_bOC_HW but higher acid-hydrolysable C content [18] in bamboo than cedar soil may imply that the labile C pool in our bamboo soils was more likely to be bioreactive C rather than readily metabolisable C.

The S_bOC_HW/TOC ratio was higher in moso bamboo soils than other moso bamboo forest soils in the elevation gradient in Central Taiwan, particularly higher than those in low elevation plantation soils [20]. Because the bamboo plantation in the present study was established later (1970s) than those in low elevation plantation soils (1950s–1960s) [18,35], the higher S_bOC content in the bamboo soils in this study than in other bamboo plantation sites at lower elevation may result from shorter cultivation history that removed less C from the ecosystem.

NH₄⁺and TDN contents were distinctly higher in cedar than bamboo plantation soil with both the hot-water and KCl extracts. However, only S_bON_KCl but not S_bON_HW content was highest in the cedar plantation soil. This finding could be due to KCl helping to extract clay particle-absorbed S_bON [22]. In addition, the higher SbON_KCl/TN ratio in the bamboo plantation soils could be due to the lower TN content at the sites.

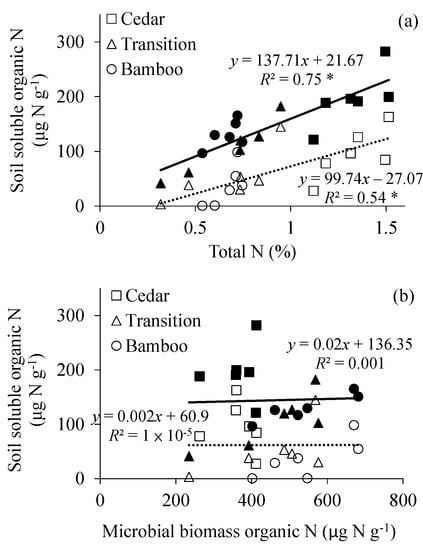

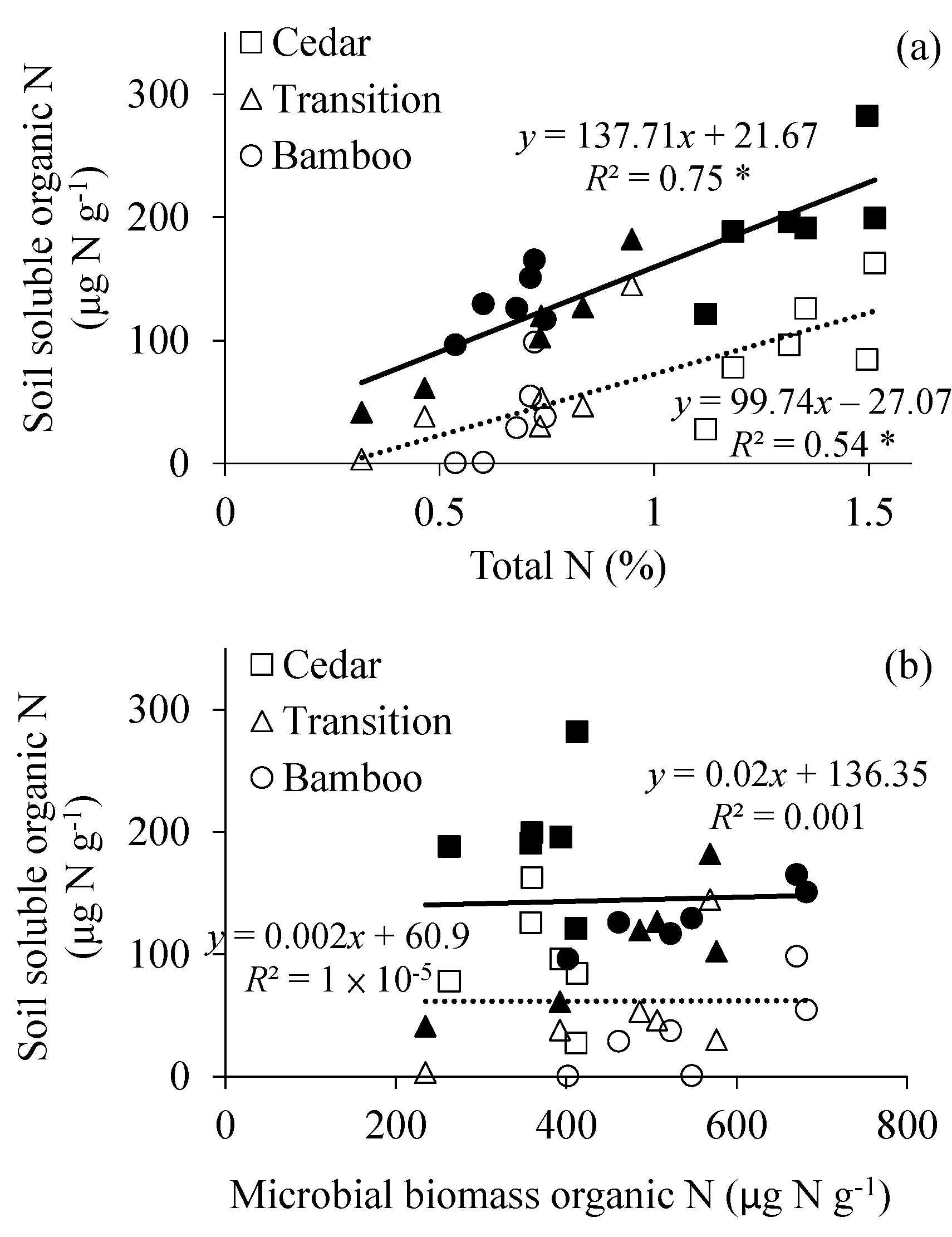

Overall, S_bON_HW and S_bON_KCl contents were significantly correlated with TN but not N_mic content (Figure 3), so the S_bON in soil may not directly affect microbial growth. In addition, the total mineralizable N has been previously considered an active fraction of soil organic N. Thus, the high total mineralizable N content at the bamboo plantation in our study implies that the bamboo plantation contained high levels of active soil organic N.

As compared with our published parallel study in a badland soil (i.e., high clay and calcium carbonate content soil) systems, the changes in soil TOC composition with the bamboo plantation resulted in different outcomes as compared with the present study [8]. A possible reason for the different outcomes is the difference in net C balance between the two ecosystems. Because soil TOC from a bamboo plantation is mostly in labile forms, it can improve badland soil quality with easily decomposable organic C. However, in the present study, the bamboo plantation was not able to reimburse recalcitrant organic C loss from the soil that was previously grown with hardwood forests, which resulted in an overall organic C loss and degradation from the bamboo soils.

The results from PCA and SQI also provided supportive evidence for the soil property changes that bamboo invasion may introduce. PC-1 was composed of C-related parameters, which clearly indicates that soil TOC was the most sensitive soil property altered by the bamboo invasion. The reduction of TOC among the three vegetation types may further affect soil microbial growth, which resulted in N_mic as the most important parameter in PC-2. NO₃⁻ is one important nutrient in soil that supports plant and microbial growth, so NO₃⁻ was the most important parameter in PC-3.

Lu et al. [26] found SQI values of <0.3, 0.3–0.5 and >0.5 for low-, intermediate- and high-quality soil. The calculated SQI among the three vegetation types clearly showed that the soil quality was degraded with the invasion of moso bamboo. The labile C and N provided by the bamboo plantation may still help the soil remain at intermediate quality.

5. Conclusions

The invasion of moso bamboo in a cedar forest sped up the C and N cycles in soil because of more S_bOC content in bamboo plantation soils, which can be easily decomposed by soil microbes. The short C and N cycles reduced the overall soil labile nutrients of bamboo plantation soils and further decreased the soil microbial biomass C content. From both KCl and hot-water extracts, the S_bOC and NH₄⁺ contents were significantly lower in bamboo than cedar plantation soils. Both S_bOC_KCl and S_bOC_HW contents were positively correlated with TOC and C_mic contents. Results from PCA further confirmed soil TOC, N_mic and NO₃⁻ as the three most sensitive factors altered by the bamboo invasion. Overall, the invasion of moso bamboo reduced the C and N pools in the bamboo soils and degraded the overall soil quality.
