# Dubins Traveling Salesman Problem with Neighborhoods: A Graph-Based Approach

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Relevant Literature

#### 1.2. Contributions

#### 1.3. Organization

## 2. Problem Statement

**Problem 2.1**(DTSPN).

**Problem 2.2**(Sampled DTSPN).

## 3. DTSPN Intersecting Regions Algorithm

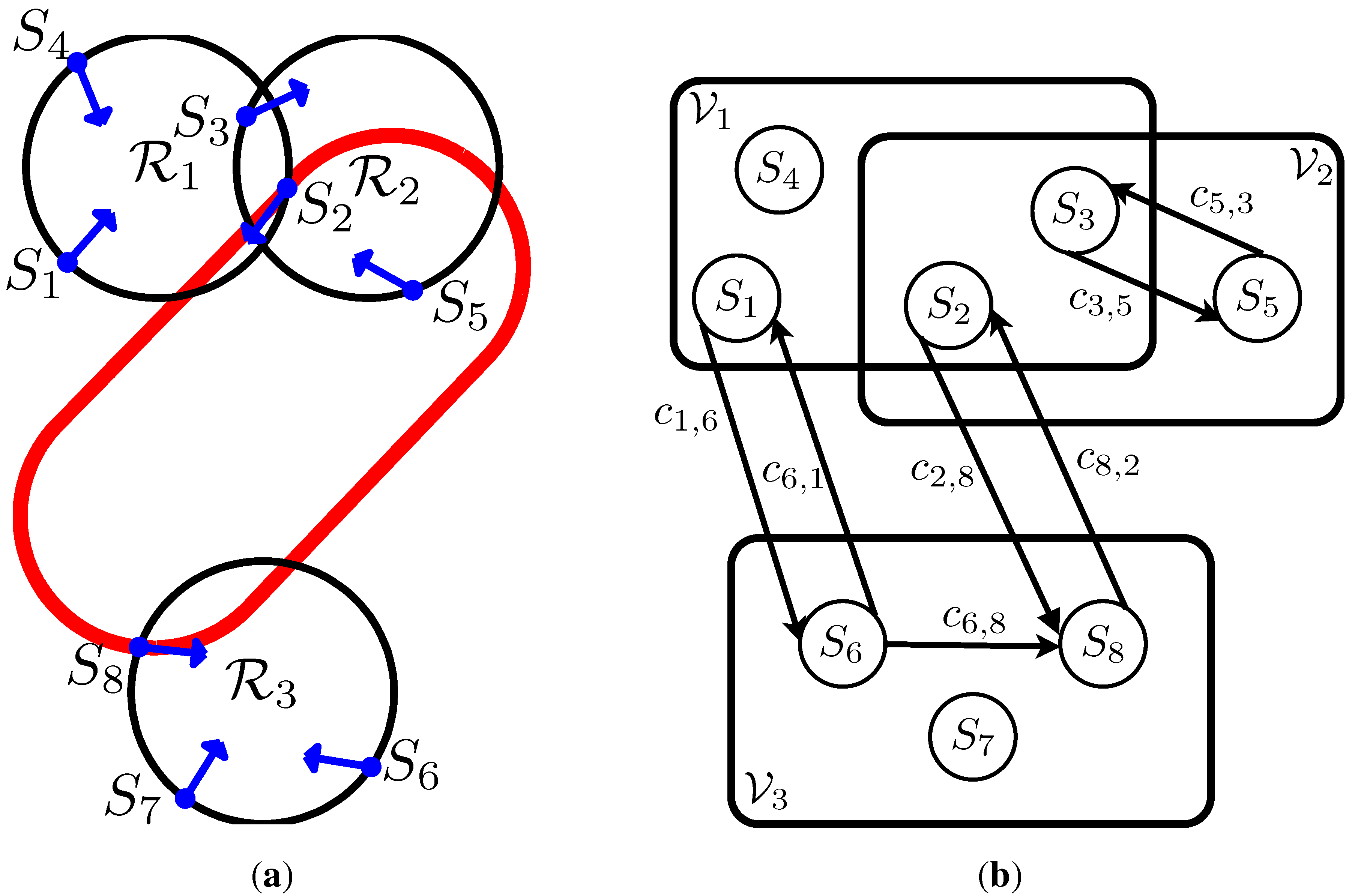

**Figure 1.**Example DTSPN with the corresponding “GTSP with intersecting node sets”. (

**a**) Example instance of DTSPN with three circular regions ${\mathcal{R}}_{1},{\mathcal{R}}_{2},\phantom{\rule{4.pt}{0ex}}\text{and}\phantom{\rule{4.pt}{0ex}}{\mathcal{R}}_{3}$ and samples ${S}_{1},{S}_{2},\dots ,{S}_{8}$. The circuit through samples ${S}_{2},\phantom{\rule{4.pt}{0ex}}\text{and},{S}_{8}$ is the optimal tour; (

**b**) Problem (P0): A GTSP with intersecting node sets representation of the DTSPN example. Note: only an essential subset of arcs is shown for clarity of illustration.

#### 3.1. Stage 1

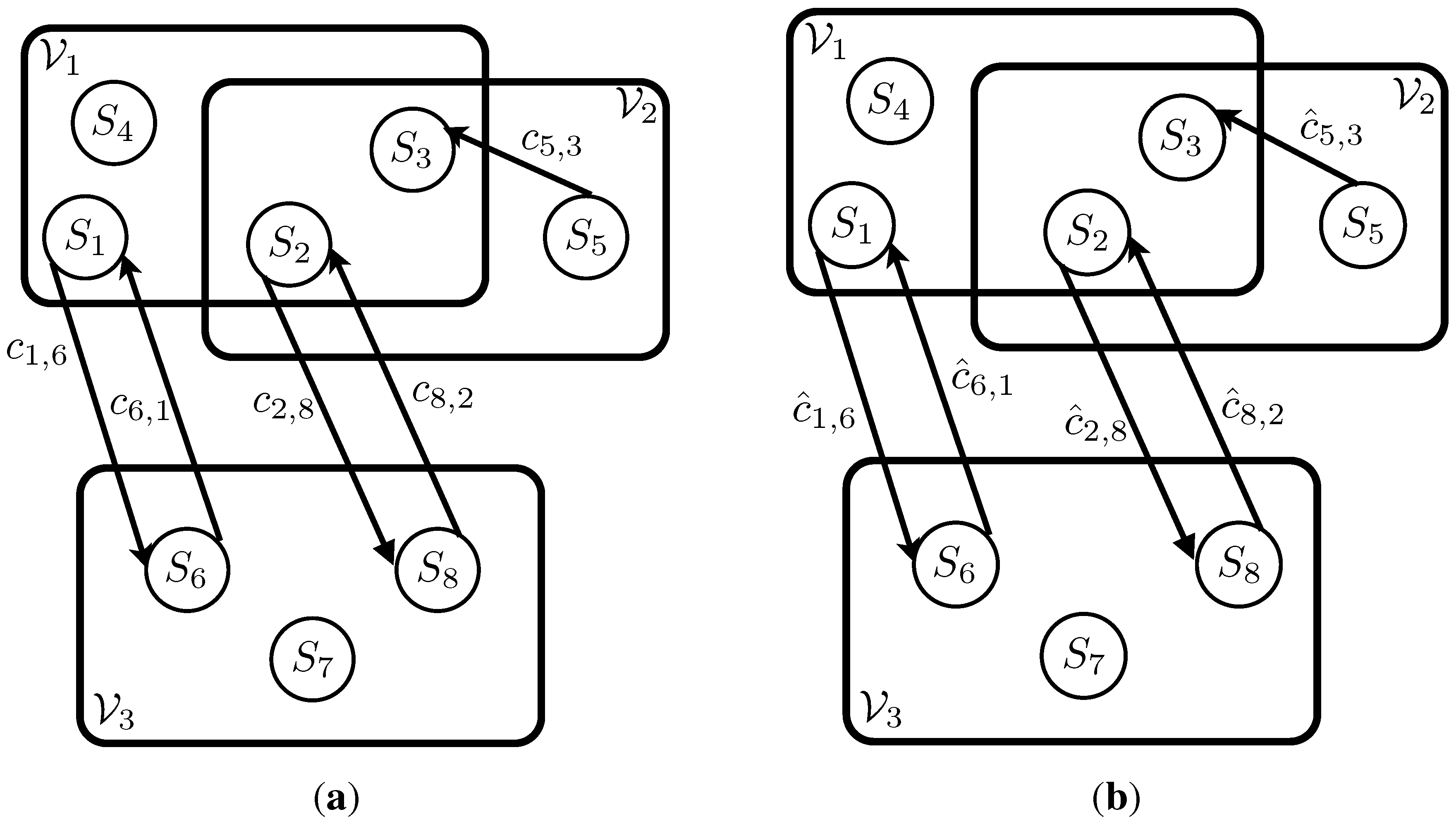

**Figure 2.**Example of Problem (P1) and Problem (P2) from Stage 1 of transformation. (

**a**) Problem (P1): Any arcs that do not enter at least one new node set $\{(3,5)$ and $(6,8)\}$ have been removed from the graph in Problem (P0); (

**b**) Problem (P2): A large finite cost α is added to each edge. Here ${\widehat{c}}_{i,j}={c}_{i,j}^{2}$, where ${c}_{i,j}^{2}$ is defined in Equation (4).

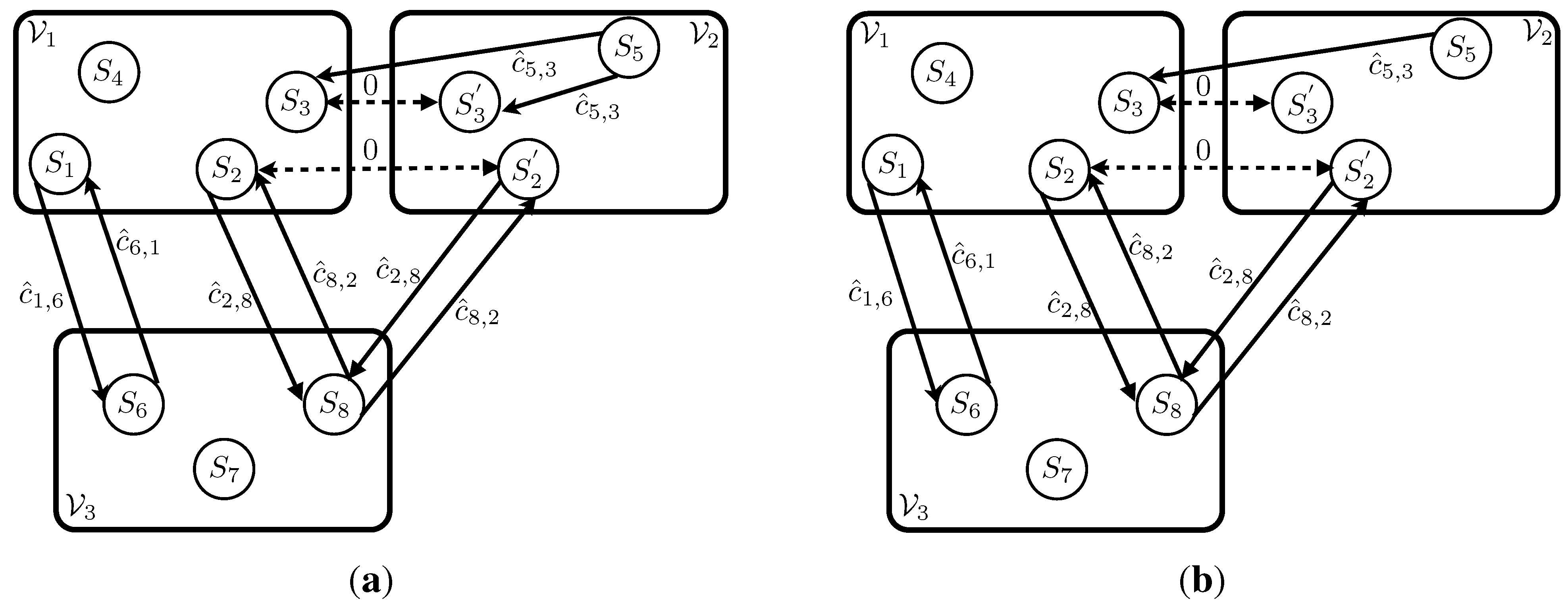

**Figure 3.**Example of Problem (P3) and Problem (P4) from Stage 1 and Stage 2 of transformation. (

**a**) Problem (P3): Nodes ${S}_{2}$ and ${S}_{3}$ from (P2) lie in multiple node sets. These nodes are duplicated and the spawned nodes ${S}_{{2}^{\prime}}$ and ${S}_{{3}^{\prime}}$ are placed in node set ${\mathcal{V}}_{2}$. Zero cost arcs (dashed arrows) are added connecting ${S}_{2}$ to ${S}_{{2}^{\prime}}$ and ${S}_{3}$ to ${S}_{{3}^{\prime}}$; (

**b**) Problem (P4): The intra-set arc $(5,{3}^{{}^{\prime}})$ from Problem (P3) is removed.

**Theorem 3.1**(Noon and Bean [17]). Given a GTSP in the form of $(P0)$, we can transform the problem to a problem of the form of $(P3)$. Given an optimal solution to $(P3)$ with cost less than $(m+1)\alpha $, we can construct an optimal solution to $(P0)$. If an optimal solution to $(P3)$ has a cost greater than or equal to $(m+1)\alpha $, the problem $(P0)$ is infeasible.

#### 3.2. Stage 2

- $\mathcal{M}(k)\subseteq \mathcal{M}(i)\cup \mathcal{M}(j)$,
- $\mathcal{M}(l)\subseteq \mathcal{M}(i)\cup \mathcal{M}(j)$,
- if $\mathcal{M}(l)=\mathcal{M}(i)$ then $\mathcal{M}(k)$ must also equal $\mathcal{M}(i)$,
- if $\mathcal{M}(k)=\mathcal{M}(j)$ then $\mathcal{M}(l)$ must also equal $\mathcal{M}(j)$.

**Theorem 3.2**(Noon and Bean [17]). Given an optimal solution, ${y}^{*}$, to $(P4)$, we can construct the optimal solution, ${x}^{*}$, to $(P3)$.

#### 3.3. Stage 3

**Theorem 3.3**(Noon and Bean [17]). Given a canonical GTSP in the form of $(P4)$ with n node sets, we can transform the problem into a standard TSP in the form of $(P6)$. Given an optimal solution ${y}^{*}$ to $(P6)$ with ${c}^{6}{y}^{*}<(n+1)\beta $, we can construct an optimal solution ${x}^{*}$ to $(P4)$.

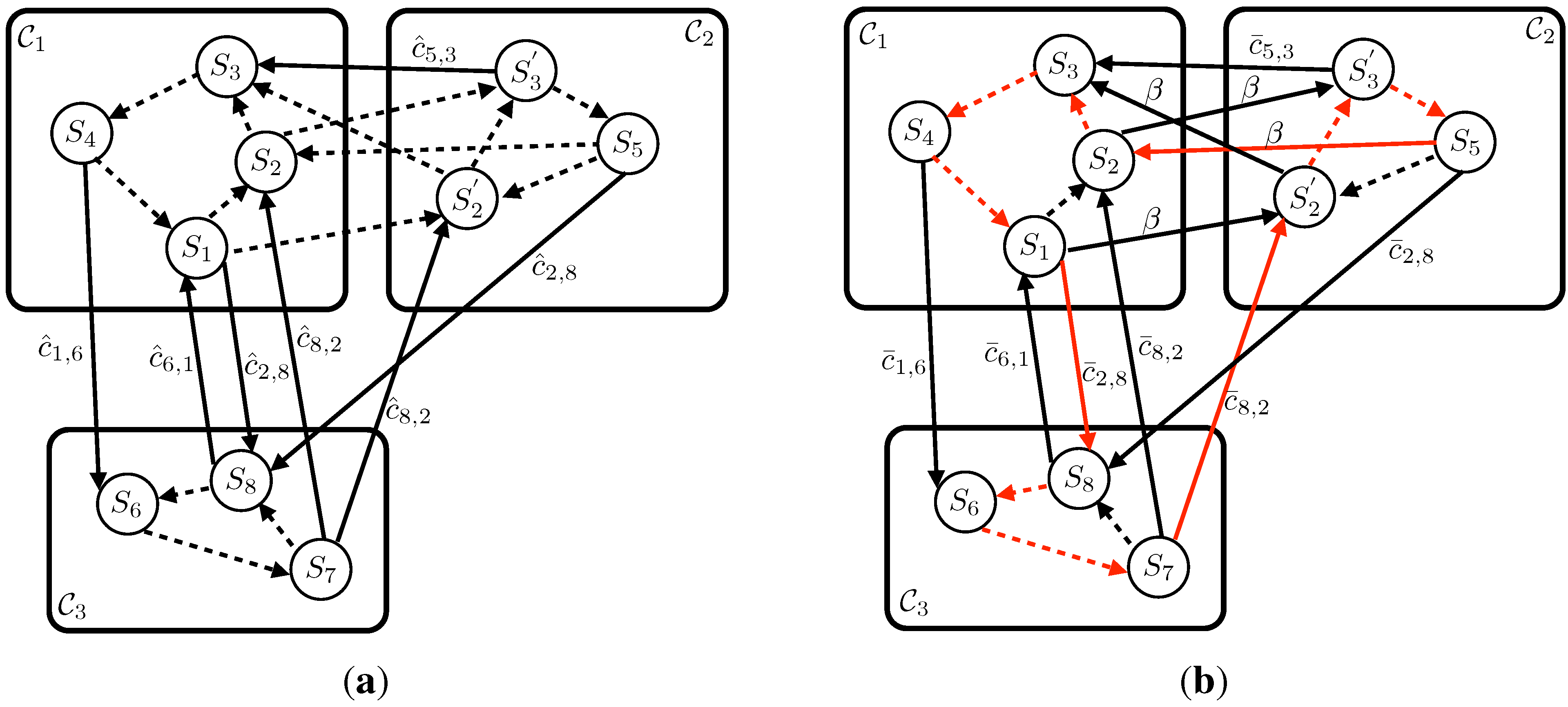

**Figure 4.**Example of Problem (P5) and Problem (P6) from Stage 3 of transformation. (

**a**) Problem (P5): The clustered TSP is created by forming zero cost intra-set cycles and adjusting the originating node in each inter-set arc; (

**b**) Problem (P6): A large finite cost β is added to each inter-set edge. Here ${\overline{c}}_{i,j}={c}_{i,j}^{6}$, where ${c}_{i,j}^{6}$ is defined in Equation (5). The optimal tour is shown in red with a cost of ${\widehat{c}}_{8,2}+\beta +{\widehat{c}}_{2,8}$.

#### 3.4. Performance Comparison

**Theorem 3.4**(IRA Performance). Given $\rho >0$, the set of $n\ge 2$ possibly intersecting regions, R, and the set of m sample configurations, S, let ${T}_{IRA}$ and ${T}_{RCM}$ denote the tours produced by IRA and the RCM [15], respectively. Then the length of ${T}_{IRA}$ is no greater than that of ${T}_{RCM}$,

**Corollary 3.5**(IRA is Resolution Complete). Given $\rho >0$, the set of $n\ge 2$ possibly intersecting regions, R, and the set of m sample configurations, S drawn from a Halton quasi-random sequence [21] as in RCM, then IRA is Resolution Complete.

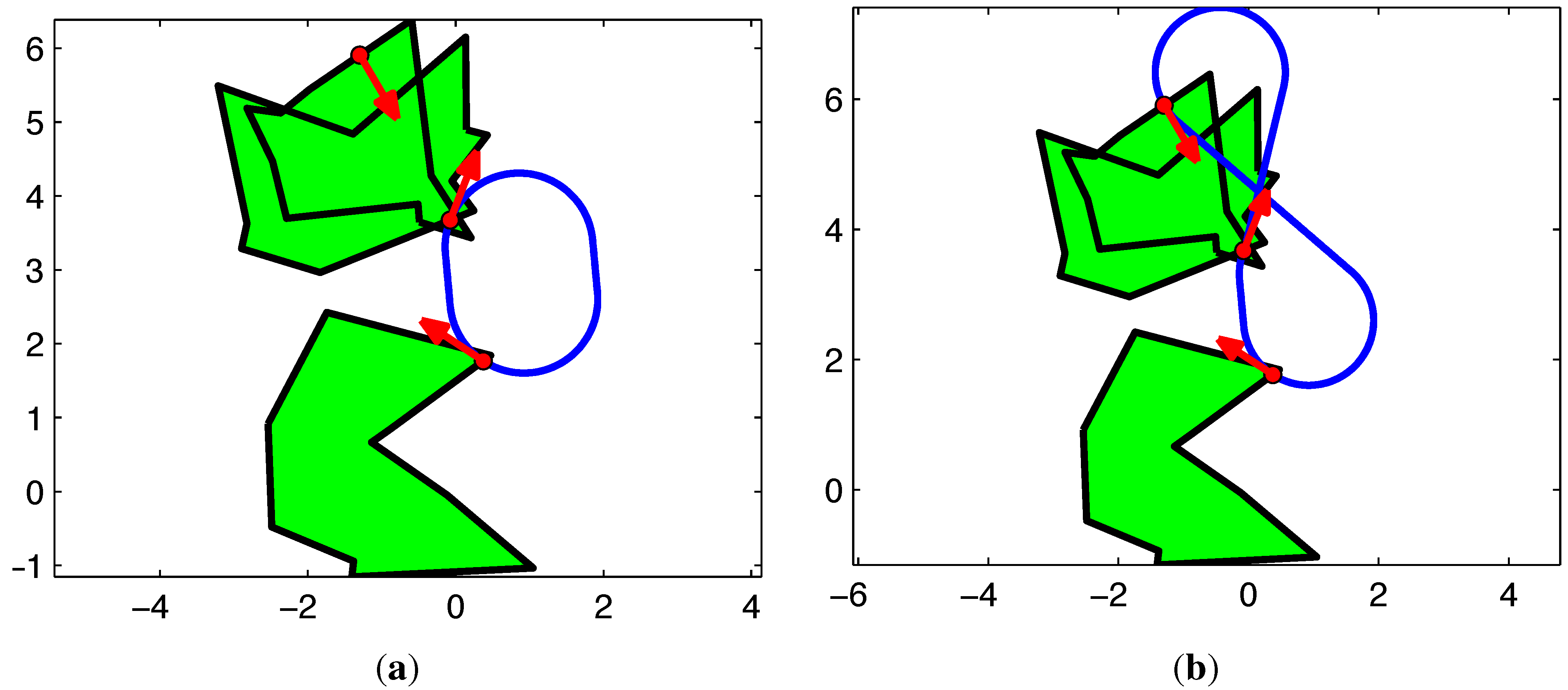

**Figure 5.**A comparison of IRA and RCM on an example DTSPN instance with three regions and three sample poses. (

**a**) Example Tour: IRA, Tour Length $=7.7$; (

**b**) Example Tour: RCM, Tour Length $=15.4$.

#### 3.5. Complexity of Intersecting Regions Algorithm

## 4. Numerical Results

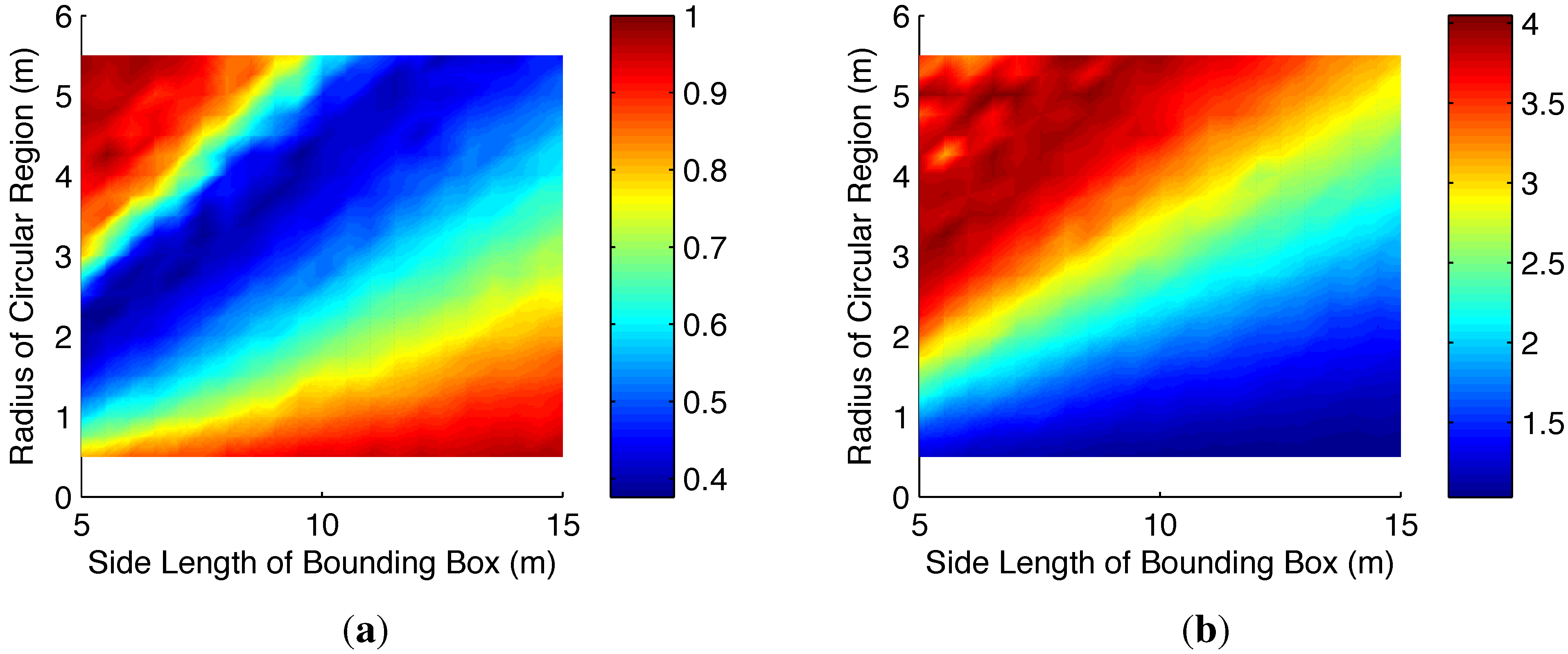

**Figure 6.**Simulation results for 100 Monte Carlo trials where both IRA and RCM optimized over the same 50 sample poses. (

**a**) The color represents the average of the ratio of the tour length under IRA to the tour length under the RCM planning algorithm. Here the red regions indicate near parity in performance while the blue regions indicate that IRA produced tours that are approximately half the length of tours produced by the RCM algorithm; (

**b**) The color represents the average of the ratio of the size of the ATSP solved under IRA to the size of the ATSP solved under the RCM planning algorithm. Here the blue regions indicate near parity in size while the red regions indicate that IRA increased the size of the ATSP by as much as four times.

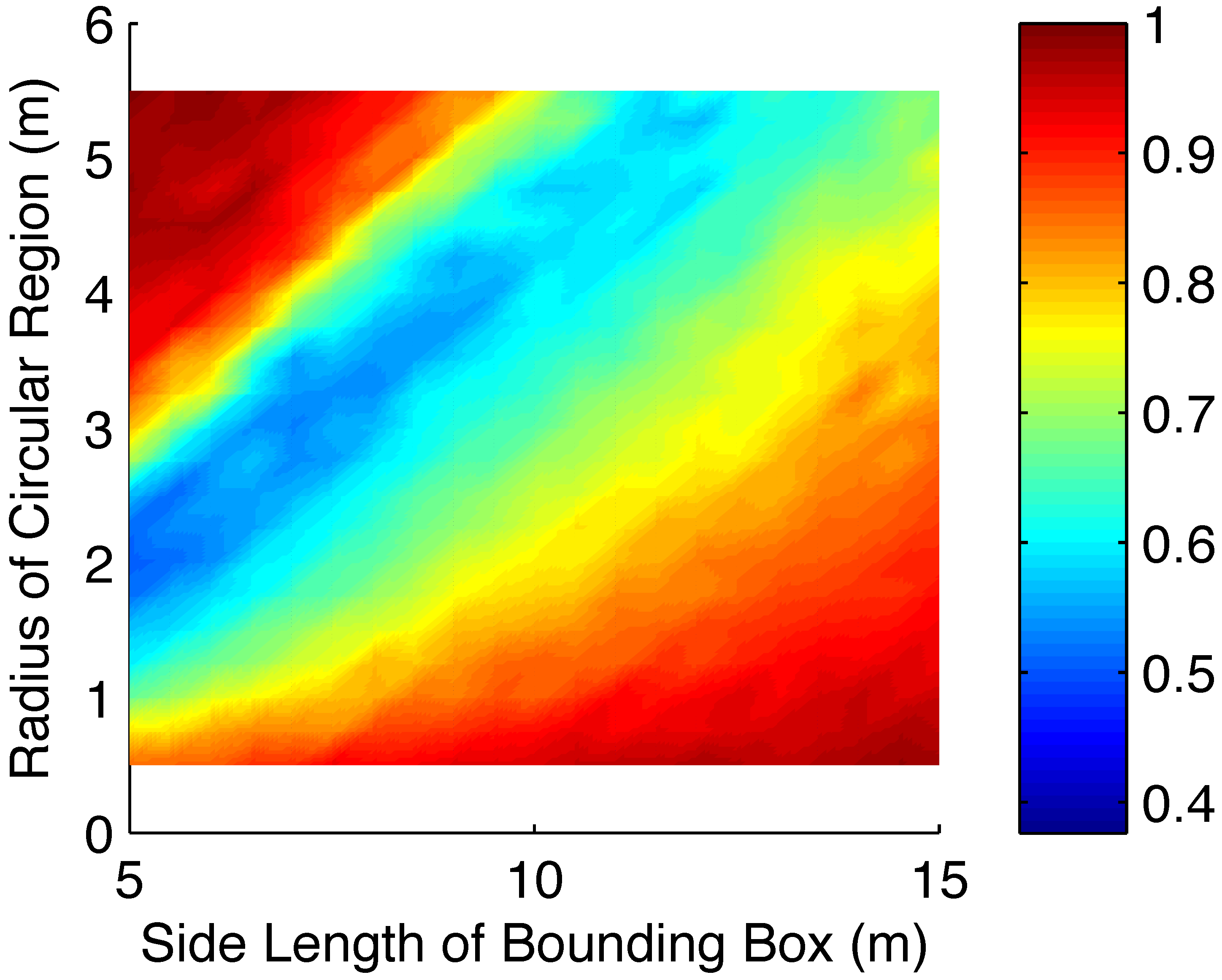

**Figure 7.**Simulation results for the where IRA optimized over 50 sample poses and RCM optimized over the same 50 samples plus an additional sample for each duplicated node in the IRA. These extra samples ensured that both algorithms solved the same size ATSP.

## 5. Demonstration

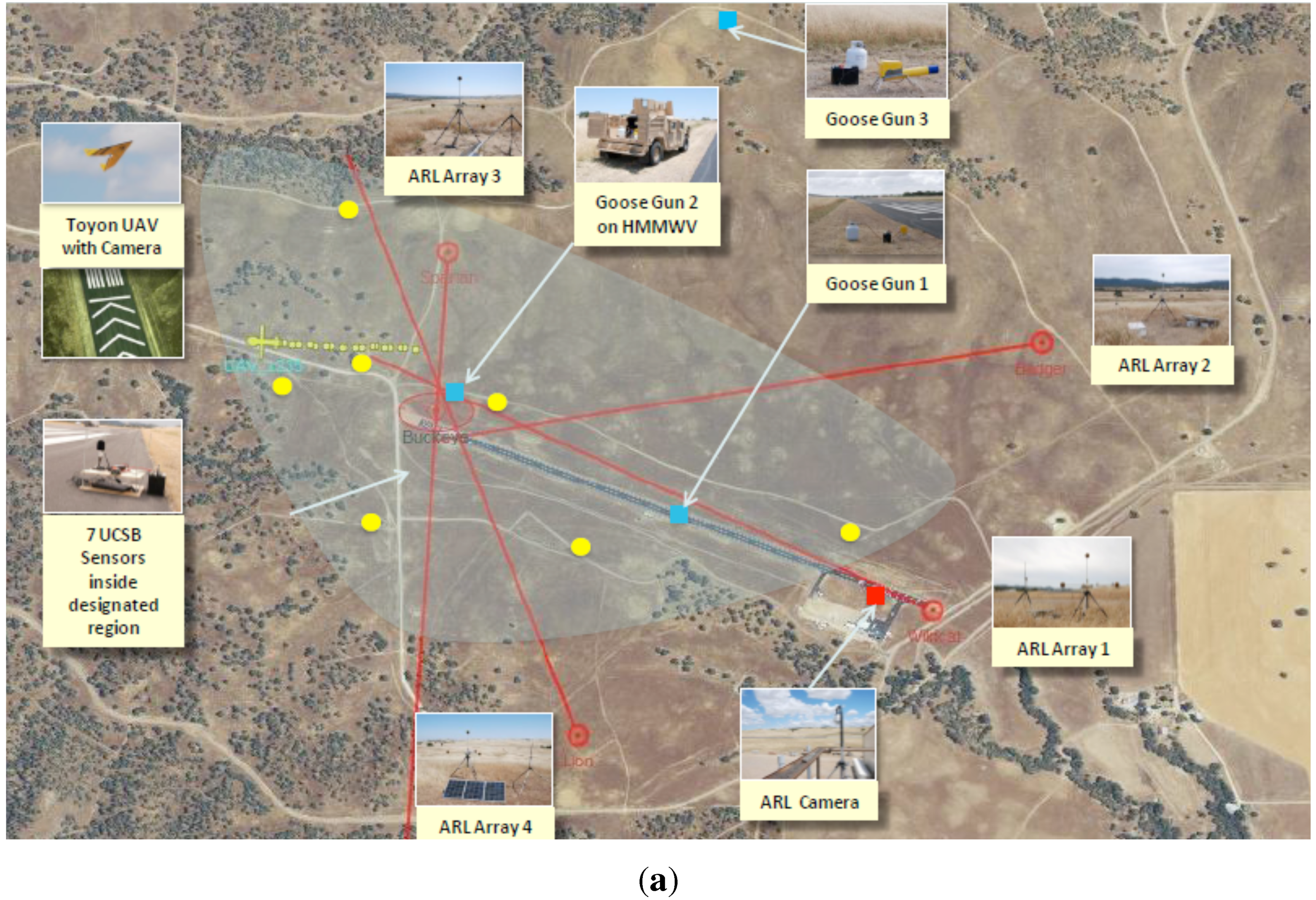

**Figure 8.**The configuration of sensors and UAV trajectory during the field demonstration at Camp Roberts, CA. (

**a**) Field Demonstration Description. The acoustic sensors visited by the data collecting UAV are shown as yellow dots; (

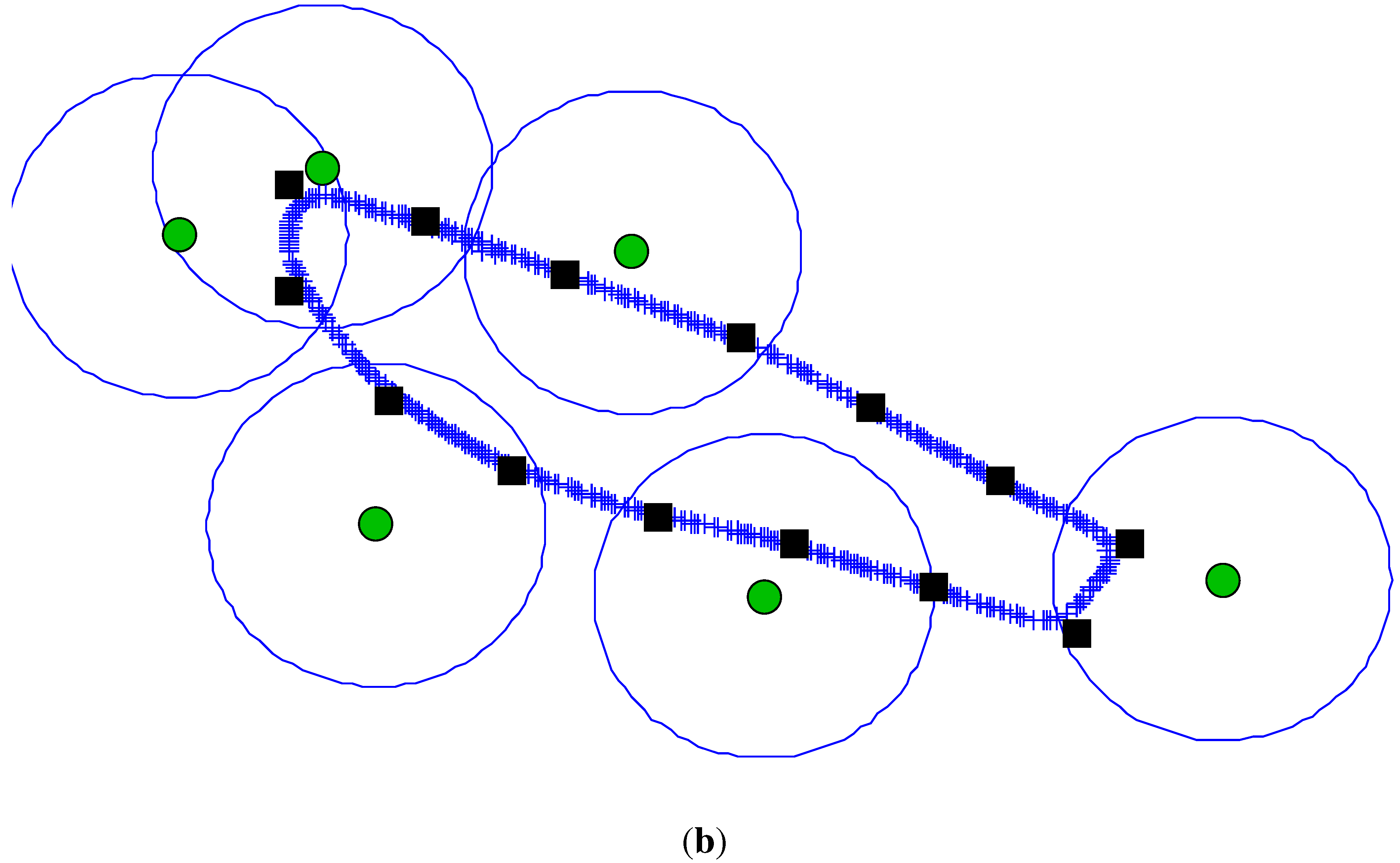

**b**) The blue lines represent the GPS logs of the path taken by data collecting UAV during the test. The desired path was sent to the autopilot via the square waypoints. The sensors and communication regions are represented by green and blue circles respectively.

#### 5.1. Modifications for the Demonstration

## 6. Conclusions

## Acknowledgements

## References

- Klein, D.J.; Schweikl, J.; Isaacs, J.T.; Hespanha, J.P. On UAV Routing Protocols for Sparse Sensor Data Exfiltration. In Proceedings of the American Control Conference, Baltimore, Maryland, USA, 30 June–2 July 2010; pp. 6494–6500.
- Bopardikar, S.D.; Smith, S.L.; Bullo, F.; Hespanha, J.P. Dynamic vehicle routing for translating demands: Stability analysis and receding-horizon policies. IEEE Trans. Autom. Control
**2010**, 55, 2554–2569. [Google Scholar] [CrossRef] - Dubins, L.E. On curves of minimal length with a constraint on average curvature, and with prescribed initial and terminal positions and tangents. Am. J. Math.
**1957**, 79, 497–516. [Google Scholar] [CrossRef] - Boissonnat, J.D.; Cérézo, A.; Leblond, J. Shortest paths of bounded curvature in the plane. J. Intell. Robot. Syst.
**1994**, 11, 5–20. [Google Scholar] [CrossRef] - Shkel, A.M.; Lumelsky, V. Classification of the Dubins set. Robot. Auton. Syst.
**2001**, 34, 179–202. [Google Scholar] [CrossRef] - Le Ny, J.; Frazzoli, E.; Feron, E. The Curvature-constrained Traveling Salesman Problem for High Point Densities. In Proceedings of the IEEE Conference on Decision and Control, New Orleans, Louisiana, USA, 12–14 December 2007; pp. 5985–5990.
- Le Ny, J.; Feron, E.; Frazzoli, E. On the curvature-constrained traveling salesman problem. IEEE Trans. Autom. Control. in press.
- Savla, K.; Frazzoli, E.; Bullo, F. Traveling salesperson problems for the Dubins vehicle. IEEE Trans. Autom. Control
**2008**, 53, 1378–1391. [Google Scholar] [CrossRef] - Ma, X.; Castanon, D. Receding Horizon Planning for Dubins Traveling Salesman Problems. In Proceedings of the IEEE Conference on Decision and Control, San Diego, California, USA, 13–15 December 2006; pp. 5453–5458.
- Rathinam, S.; Sengupta, R.; Darbha, S. A resource allocation algorithm for multiple vehicle systems with non-holnomic constraints. IEEE Trans. Autom. Sci. Eng.
**2007**, 4, 98–104. [Google Scholar] [CrossRef] - Dumitrescu, A.; Mitchell, J.S.B. Approximation algorithms for TSP with neighborhoods in the plane. J. Algorithm.
**2003**, 48, 135–159. [Google Scholar] [CrossRef] - Elbassioni, K.; Fishkin, A.V.; Mustafa, N.H.; Sitters, R. Approximation Algorithms for Euclidean Group TSP. In Proceedings of the International Colloquim on Automata, Languages and Programming, Lisbon, Portugal, 11–15 July 2005; pp. 1115–1126.
- Yuan, B.; Orlowska, M.; Sadiq, S. On the optimal robot routing problem in wireless sensor networks. IEEE Trans. Knowl. Data Eng.
**2007**, 19, 1252–1261. [Google Scholar] [CrossRef] - Obermeyer, K.J. Path Planning for a UAV Performing Reconnaissance of Static Ground Targets in Terrain. In Proceedings of the AIAA Conference on Guidance, Navigation, and Control, Chicago, Illinois, USA, 10–13 August 2009.
- Obermeyer, K.J.; Oberlin, P.; Darbha, S. Sampling-Based Roadmap Methods for a Visual Reconnaissance UAV. In Proceedings of the AIAA Conference on Guidance, Navigation, and Control, Toronto, Ontario, Canada, 2–5 August 2010.
- Noon, C.E.; Bean, J.C. An Efficient Transformation of the Generalized Traveling Salesman Problem; Technical Report 91–26; Department of Industrial and Operations Engineering, University of Michigan: Ann Arbor, MI, USA, 1991. [Google Scholar]
- Noon, C.E.; Bean, J.C. An Efficient Transformation of the Generalized Traveling Salesman Problem; Technical Report 89–36; Department of Industrial and Operations Engineering, University of Michigan: Ann Arbor, MI, USA, 1989. [Google Scholar]
- Gutin, G.; Karapetyan, D. A memetic algorithm for the generalized traveling salesman problem. Nat. Comput.
**2010**, 9, 47–60. [Google Scholar] [CrossRef] - Ben-Arieh, D.; Gutin, G.; Penn, M.; Yeo, A.; Zverovitch, A. Transformations of generalized ATSP into ATSP. Oper. Res. Lett.
**2003**, 31, 357–365. [Google Scholar] [CrossRef] - Yadlapalli, S.; Malik, W.A.; Rathinam, S.; Darbha, S. A Lagrangian-based Algorithm for a Combinatorial Motion Planning Problems. In Proceedings of the IEEE Conference on Decision and Control, New Orleans, Louisiana, USA, 12–14 December 2007; pp. 5979–5984.
- Halton, J.H. On the efficiency of certain quasi-random sequences of points in evaluating multi-dimensional integrals. Numer. Math.
**1960**, 2, 84–90. [Google Scholar] [CrossRef] - Frieze, A.; Galbiati, G.; Maffioli, F. On the worst-case performance of some algorithms for the asymmetric traveling salesman problem. Networks
**1982**, 12, 23–39. [Google Scholar] [CrossRef] - Applegate, D.; Bixby, R.; Chvátal, V.; Cook, W. Concorde TSP Solver. Available online: http//www.tsp.gatech.edu/concorde (accessed on 9 July 2010).
- Applegate, D.; Cook, W.; Rohe, A. Chained lin-kernighan for large traveling salesman problems. INFORMS J. Comput.
**2003**, 15, 82–92. [Google Scholar] [CrossRef] - Bergamaschi, F.; Conway-Jones, D. ITA/CWP and ICB Technology Demonstrator: A Practical Integration of Disparate ISR/ISTAR Assets and Technologies. In Proceedings of SPIE, Baltimore, Maryland, USA, 23–26 April 2012; Volume 8389, p. 83890G.
