# High-Precision Combined Tidal Forecasting Model

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Concepts

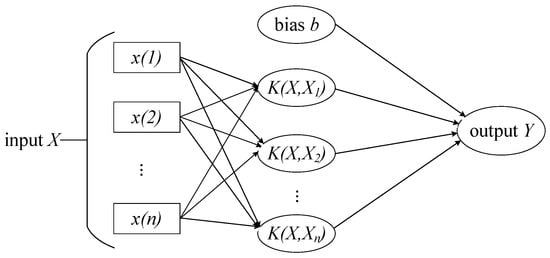

#### 2.1. SVM and SVR

#### 2.2. PSO Algorithm

#### 2.3. The Harmonic Analysis Method

#### 2.4. ARIMA

## 3. Combined Tidal Forecasting Model Based on Harmonic Analysis and ARIMA-SVR

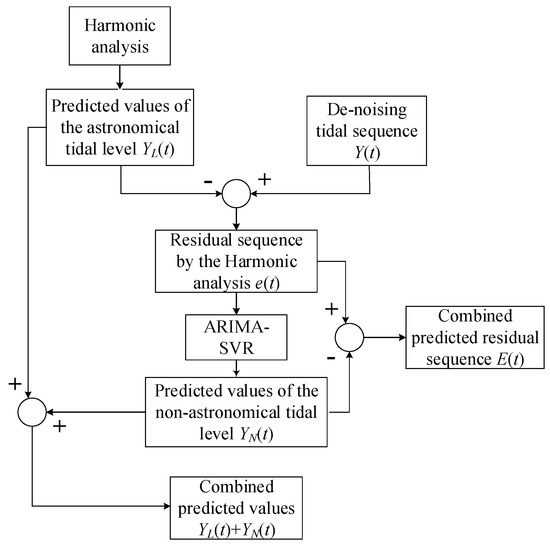

#### 3.1. Prediction Steps

#### 3.2. Model Checking

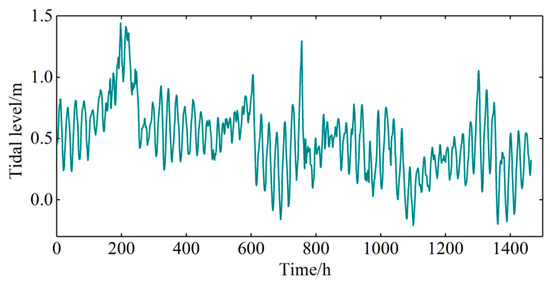

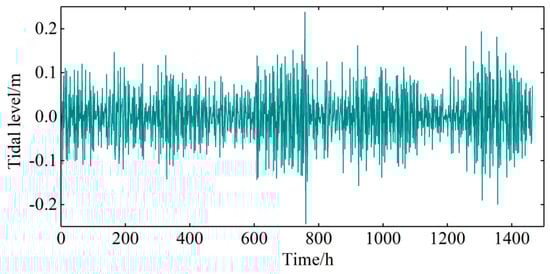

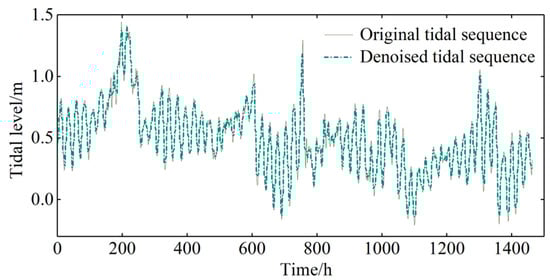

#### 3.2.1. Sample Data Preprocessing

#### 3.2.2. Analysis of Prediction Results of Astronomical Tide Level

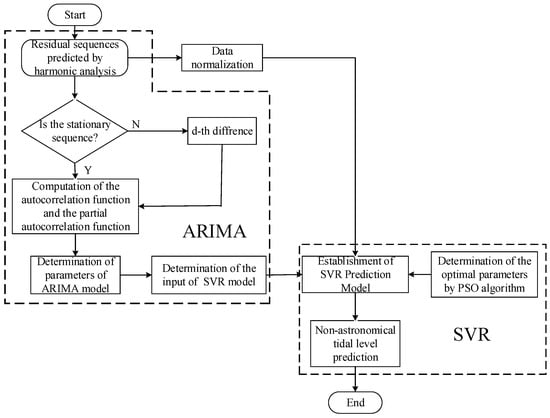

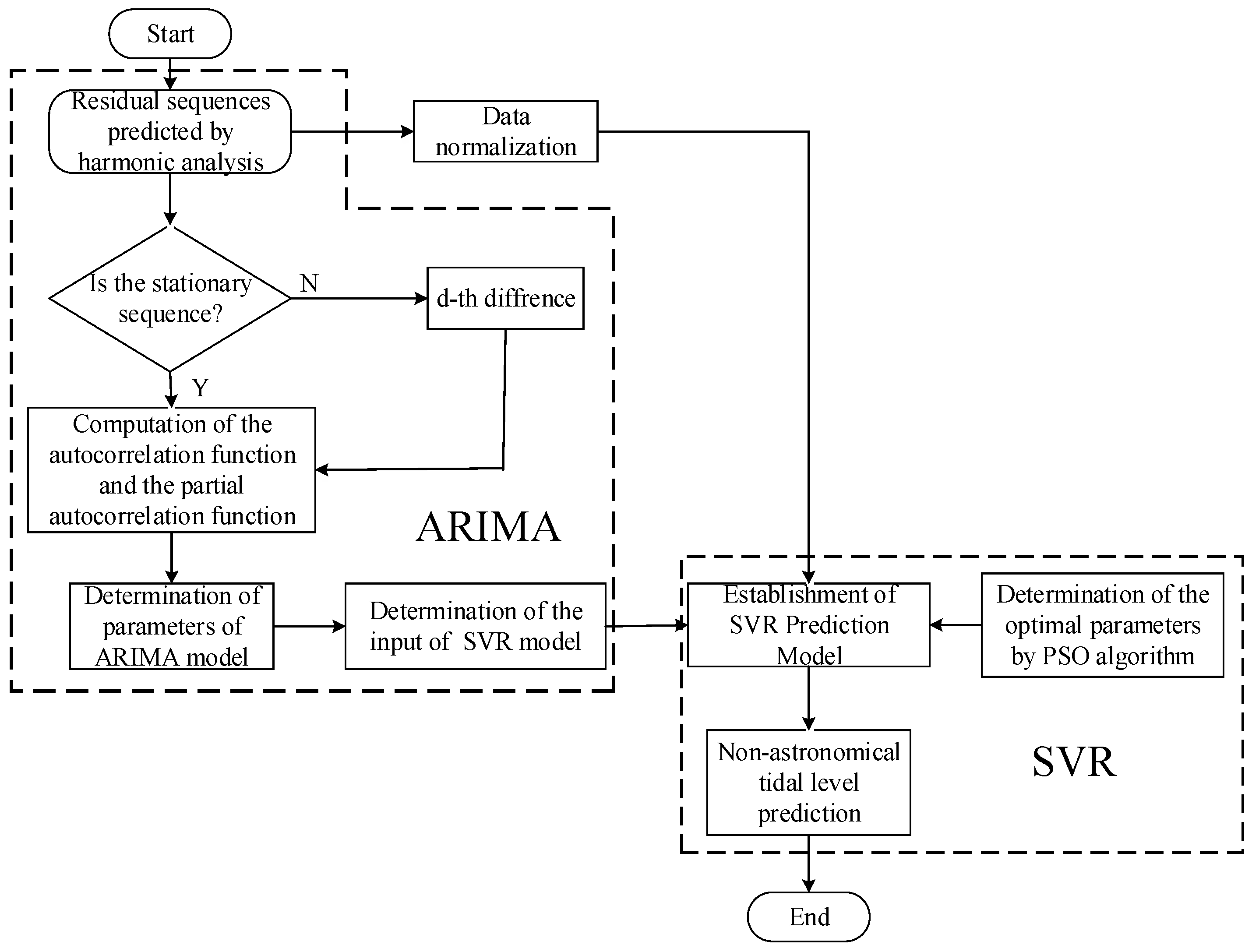

#### 3.2.3. Analysis of Prediction Results of Non-Astronomical Tide Level

#### 3.2.4. Analysis of Prediction Results of the Combined Model

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Pattiaratchi, C.B. Tides, surges and mean sea-level: A handbook for engineers and scientists. Cont. Shelf Res.
**1988**, 8, 1273. [Google Scholar] [CrossRef] - Pawlowicz, R.; Beardsley, B.; Lentz, S. Classical tidal harmonic analysis including error estimates in MATLAB using T_TIDE. Comput. Geosci.
**2002**, 28, 929–937. [Google Scholar] [CrossRef] - Amiri-Simkooei, A.R.; Zaminpardaz, S.; Sharifi, M.A. Extracting tidal frequencies using multivariate harmonic analysis of sea level height time series. J. Geodesy
**2014**, 88, 975–988. [Google Scholar] [CrossRef] - Doodson, A.T. The Analysis of Tidal Observations. Philos. Trans. R. Soc. Lond.
**1928**, 227, 223–279. [Google Scholar] [CrossRef][Green Version] - Yen, P.H.; Jan, C.D.; Lee, Y.P.; Lee, H.F. Application of kalman filter to short-term tide level prediction. J. Waterw. Port Coast. Ocean Eng.
**1996**, 122, 226–231. [Google Scholar] [CrossRef] - Zhang, Z.; Yin, J.; Wang, N.; Hu, J.Q.; Wang, N. A precise tidal prediction mechanism based on the combination of harmonic analysis and adaptive network-based fuzzy inference system model. Acta Oceanol. Sin.
**2017**, 36, 94–105. [Google Scholar] [CrossRef] - Tsai, C.P.; Lin, C.; Shen, J.N. Neural network for wave forecasting among multi-stations. Ocean Eng.
**2002**, 29, 1683–1695. [Google Scholar] [CrossRef] - Lin, L.C.; Chang, H.K. An Adaptive Neuro-Fuzzy Inference System for Sea Level Prediction Considering Tide-Generating Forces and Oceanic Thermal Expansion. Terr. Atmos. Ocean. Sci.
**2008**, 19, 163–172. [Google Scholar] [CrossRef] - Jain, P.; Deo, M.C. Real-time wave forecasts off the western Indian coast. Appl. Ocean Res.
**2007**, 29, 72–79. [Google Scholar] [CrossRef] - Shevade, S.K.; Keerthi, S.S.; Bhattacharyya, C.; Murthy, K.K. Improvements to the SMO algorithm for SVM regression. IEEE Trans. Neural Netw.
**2000**, 11, 1188–1193. [Google Scholar] [CrossRef] [PubMed][Green Version] - Bhasin, M.; Raghava, G.P.S. GPCRpred: An SVM-based method for prediction of families and subfamilies of G-protein coupled receptors. Nucleic Acids Res.
**2004**, 32, W383–W389. [Google Scholar] [CrossRef] - Xiong, X.; Chen, L.; Liang, J. A New Framework of Vehicle Collision Prediction by Combining SVM and HMM. IEEE Trans. Intell. Transp. Syst.
**2018**, 99, 1–12. [Google Scholar] [CrossRef] - Deris, A.M.; Zain, A.M.; Sallehuddin, R. Hybrid GR-SVM for prediction of surface roughness in abrasive water jet machining. Meccanica
**2013**, 48, 1937–1945. [Google Scholar] [CrossRef] - De Oliveira, J.F.L.; Ludermir, T.B. Ludermir A hybrid evolutionary decomposition system for time series forecasting. Neurocomputing
**2016**, 180, 27–34. [Google Scholar] [CrossRef] - Cherkassky, V.; Ma, Y. Practical selection of SVM parameters and noise estimation for SVM regression. Neural Netw.
**2004**, 17, 113–126. [Google Scholar] [CrossRef][Green Version] - Girosi, F. An Equivalence Between Sparse Approximation and Support Vector Machines. Neural Comput.
**1998**, 10, 1455–1480. [Google Scholar] [CrossRef] [PubMed][Green Version] - Oskoei, M.A.; Hu, H. Support vector machine-based classification scheme for myoelectric control applied to upper limb. IEEE Trans. Biomed. Engin.
**2008**, 55, 1956–1965. [Google Scholar] [CrossRef] [PubMed] - Liang, J.J.; Qin, A.K.; Suganthan, P.N.; Baskar, S. Comprehensive Learning Particle Swarm Optimiser for Global Optimisation of Multimodal Functions. IEEE Trans. Evol. Comput.
**2006**, 10, 281–295. [Google Scholar] [CrossRef] - Valle, Y.D.; Venayagamoorthy, G.K.; Mohagheghi, S.; Hernandez, J.C.; Harley, R.G. Particle Swarm Optimization: Basic Concepts, Variants and Applications in Power Systems. IEEE Trans. Evol. Comput.
**2008**, 12, 171–195. [Google Scholar] [CrossRef] - Gyenes, M.; Bulychev, A.A.; Kurella, G.A. Voltage Clamp Studies on the Slow Inward Current during the Excitation of Nitellopsis obtusa. J. Exp. Bot.
**1980**, 31, 589–595. [Google Scholar] [CrossRef] - Yin, J.; Wang, N. A Variable Multidimensional Fuzzy Model and its Application to Online Tidal Level Prediction. J Comput. Theor. Nanosci.
**2015**, 12, 1384–1394. [Google Scholar] [CrossRef] - Li, B.; Zhang, J.; He, Y.; Wang, Y. Short-Term Load-Forecasting Method Based on Wavelet Decomposition with Second-Order Gray Neural Network Model Combined with ADF Test. IEEE Access
**2017**, 99, 16324–16331. [Google Scholar] [CrossRef] - Yoosoon, C.; Park, J. On the Asymptotics of ADF Tests for Unit Roots. Economet. Rev.
**2002**, 21, 17. [Google Scholar] - Bai, Y.; Jin, Z. Prediction of SARS epidemic by BP neural networks with online prediction strategy. Chaos Solitons Fractals
**2005**, 26, 559–569. [Google Scholar] [CrossRef]

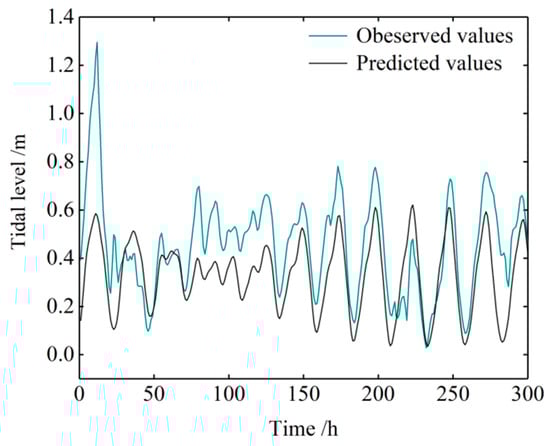

**Figure 6.**Comparison of tidal levels predicted by the harmonic analysis method alone and the observed data.

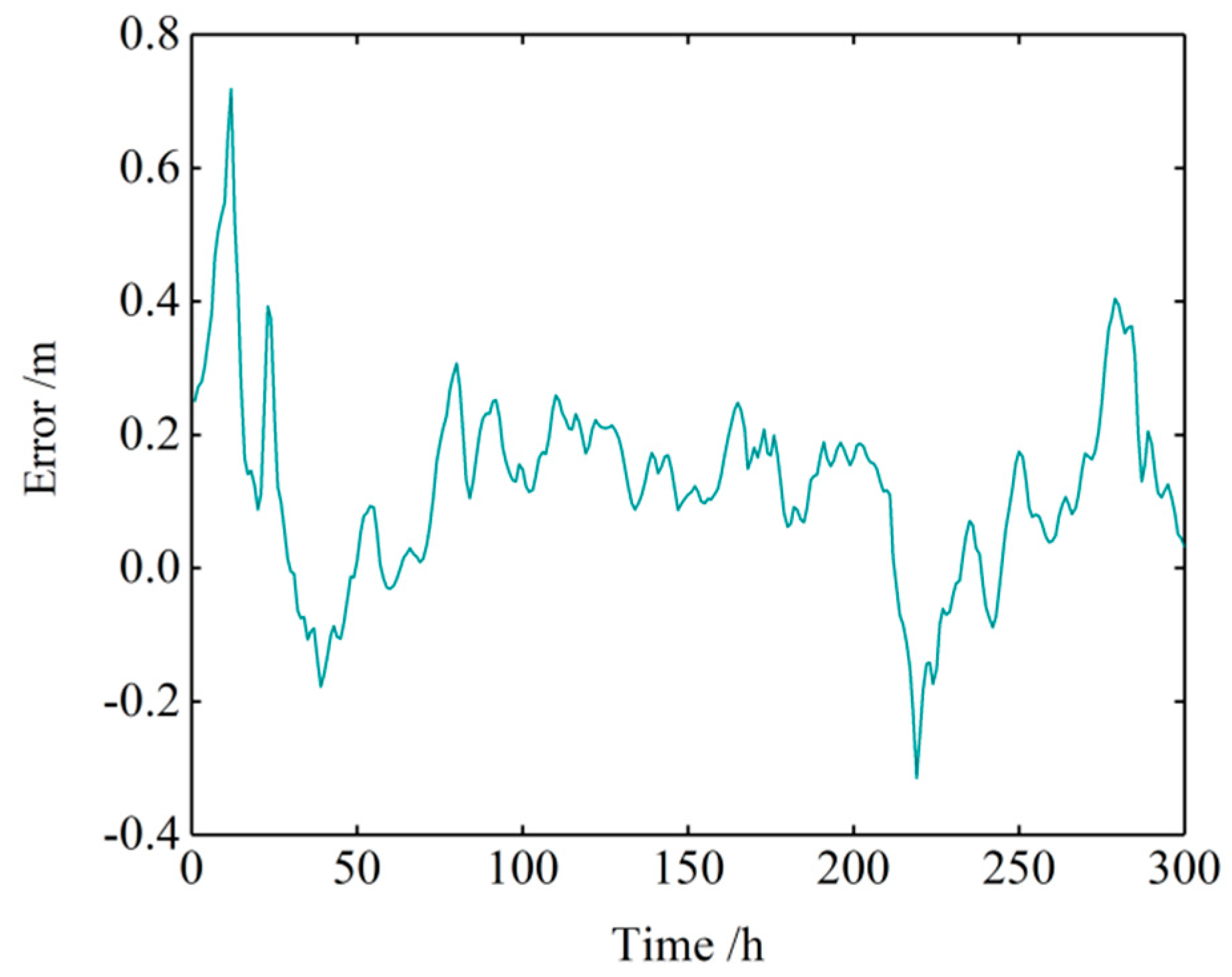

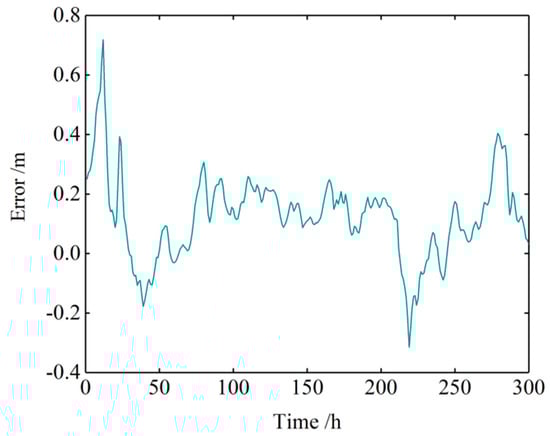

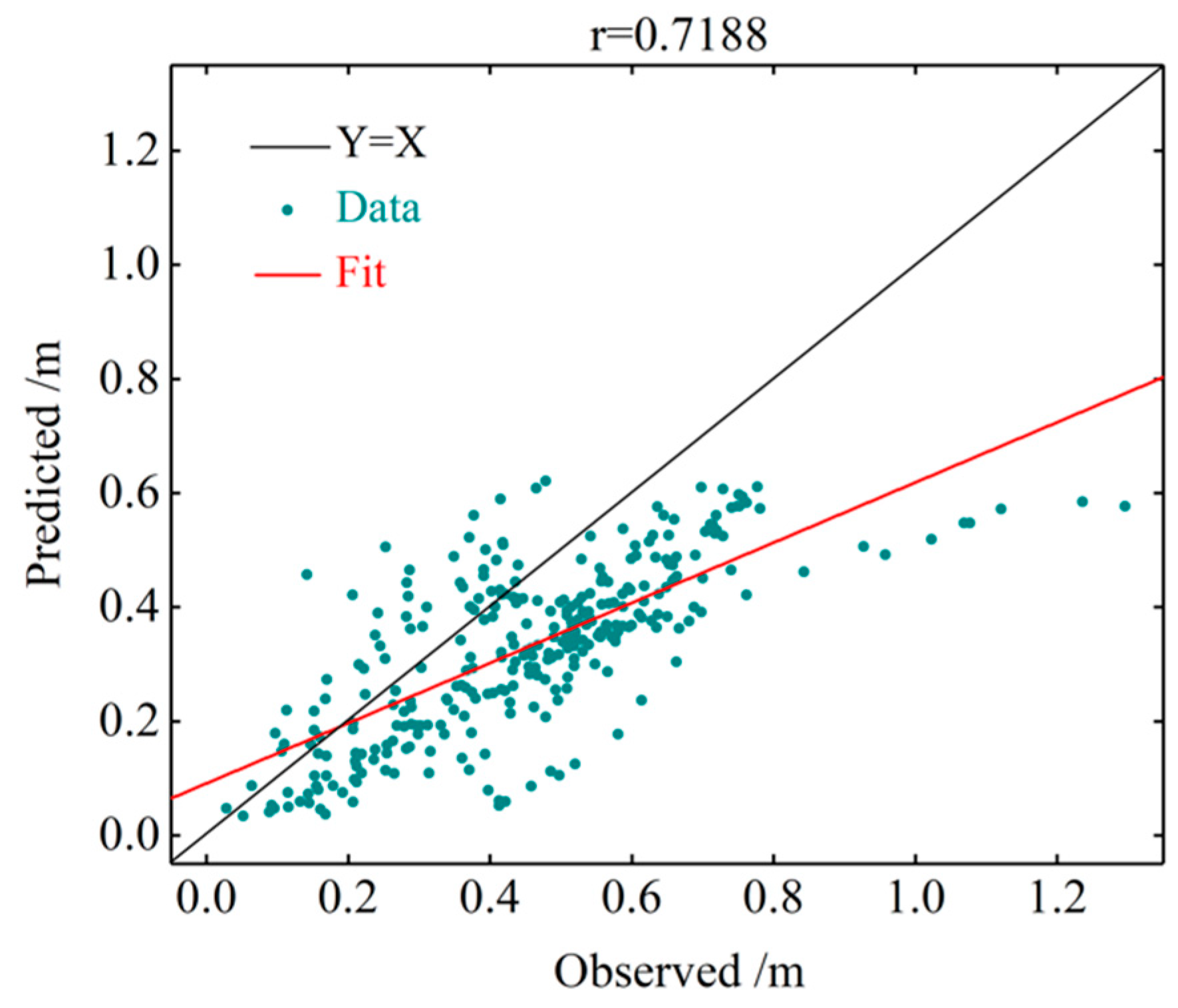

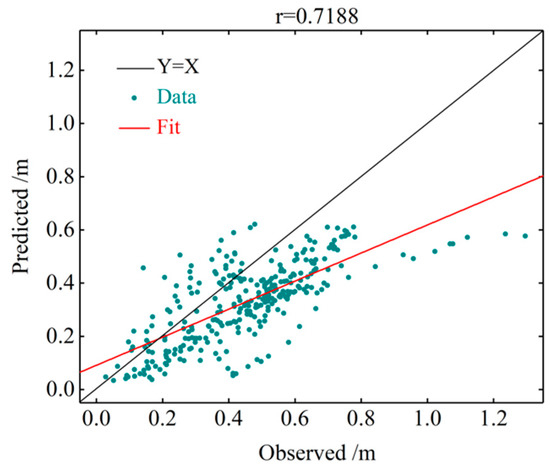

**Figure 8.**Linear regression of the harmonic analysis predictions versus the observed results. The red line is the best-fit line of the data. Along the black line, the predicted and observed values are equal, and the error is zero.

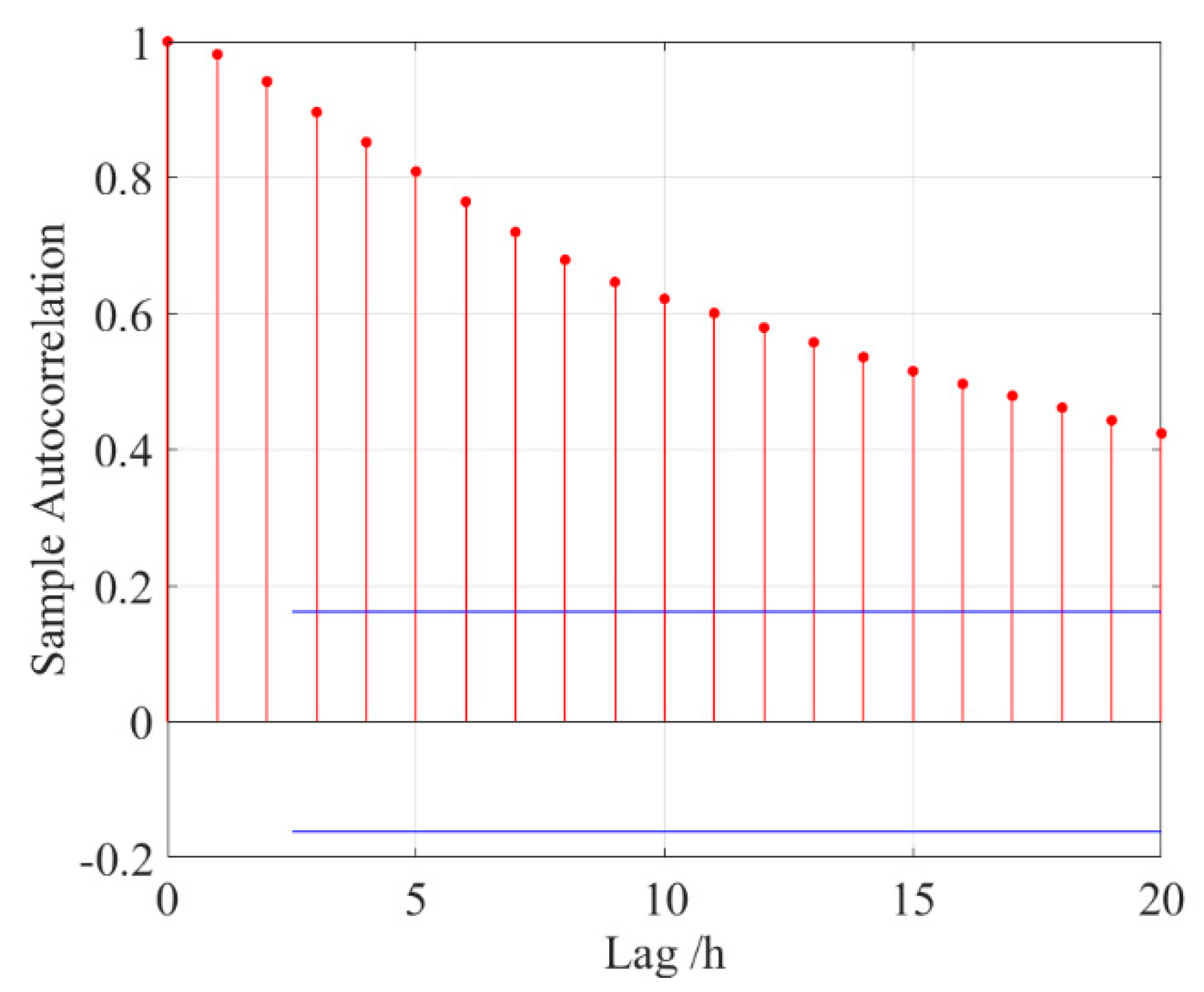

**Figure 9.**Autocorrelation analysis of the residual tidal level data. The area between the two blue lines is the confidence interval.

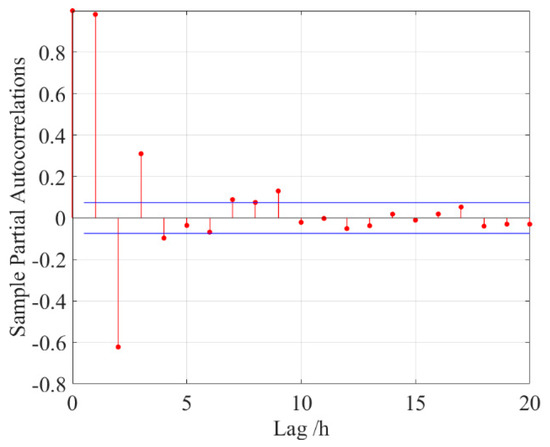

**Figure 10.**Partial autocorrelation analysis of the residual tidal level data. The area between the two blue lines and the coordinate axis is the confidence interval.

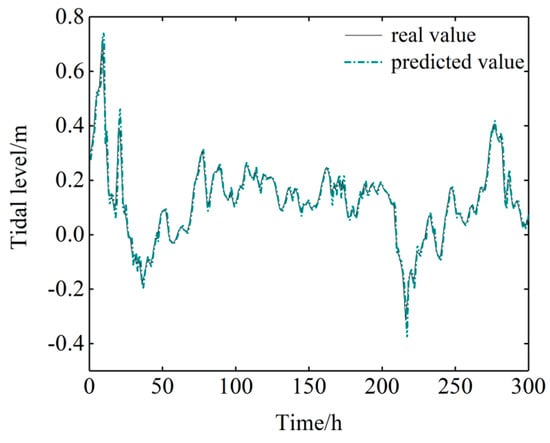

**Figure 12.**Comparison of the observations and predicted non-astronomical tidal level computed by the SVR model.

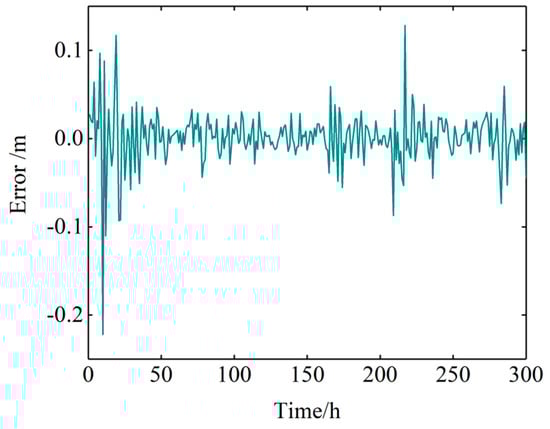

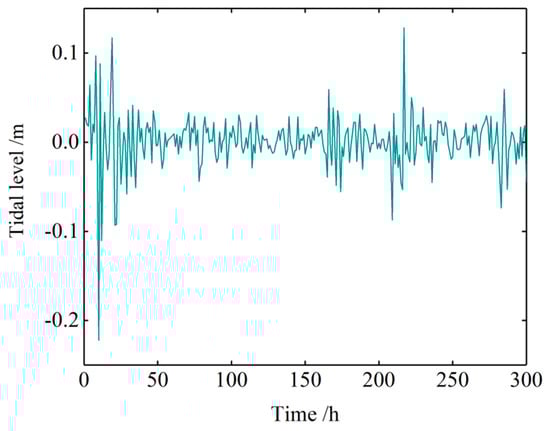

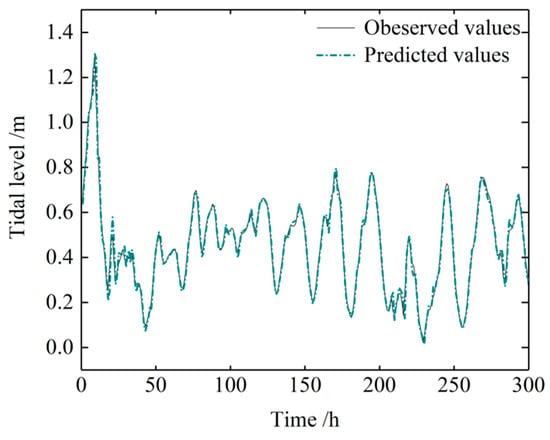

**Figure 14.**Comparison of the (not de-noised) observations and the water levels predicted by the combined model.

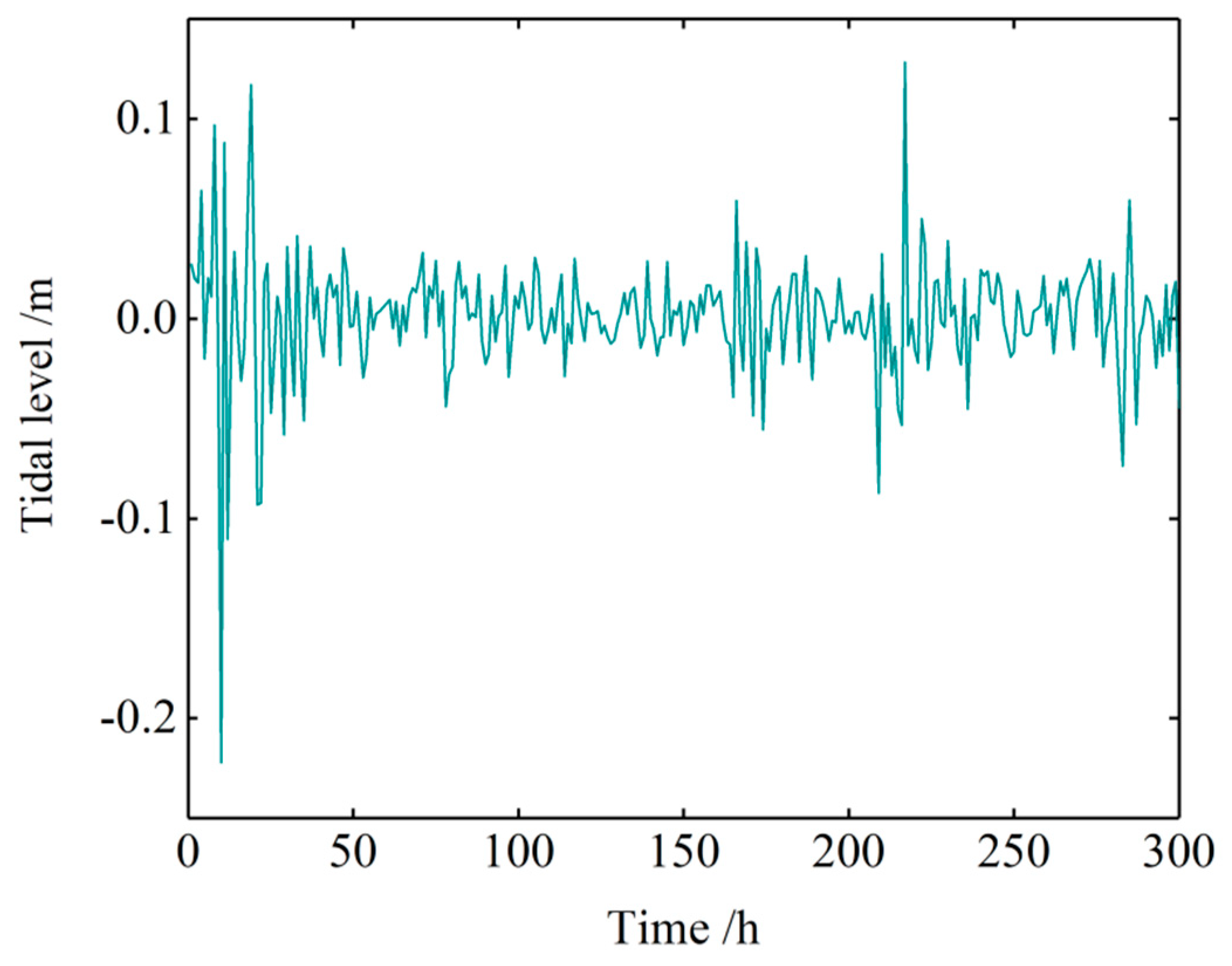

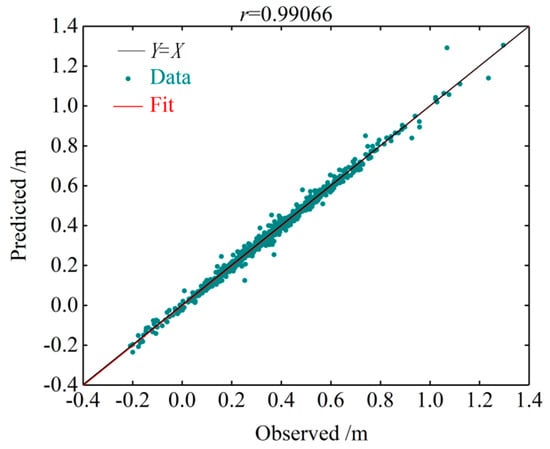

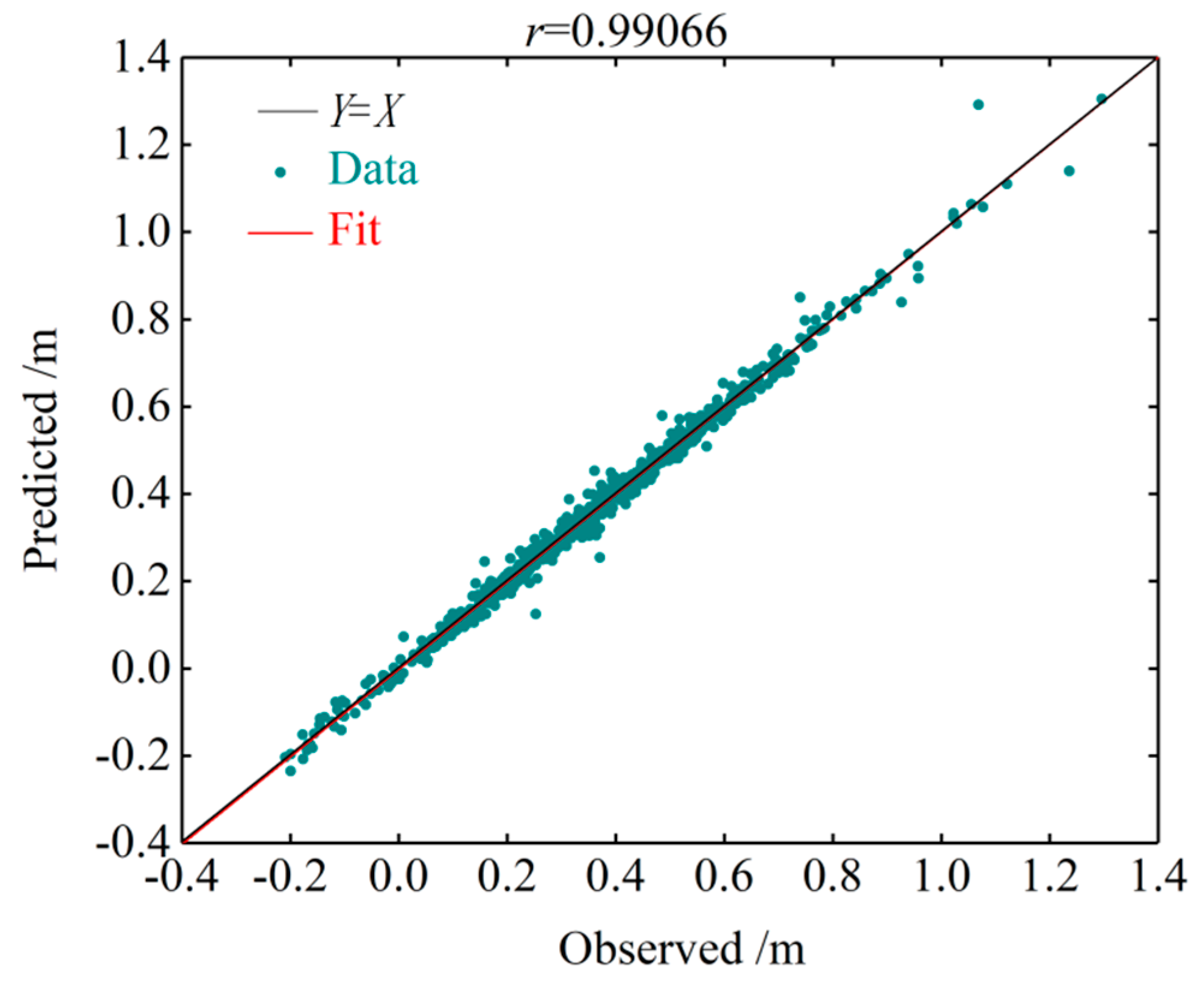

**Figure 16.**Linear regression plot of the predicted versus observed tidal heights. The predicted results were calculated by the combined model.

**Table 1.**The harmonic constants of four tidal constituents of the Bay Waveland Yacht Club tidal station.

Constituent | Amplitude/m | Phase/° |
---|---|---|

M_{2} | 0.03 | 31.7 |

S_{2} | 0.026 | 36 |

K_{1} | 0.169 | 328.2 |

O_{1} | 0.154 | 325.1 |

Parameter Type | t-Statistic | p-Value | 1% Level | 5% Level | 10% Level |
---|---|---|---|---|---|

Parameter values | −3.679002 | 0.0002 | −2.568196 | −1.941266 | −1.616402 |

Parameter | $\mathbf{Penalty}\text{}\mathbf{Factor}\text{}\mathit{C}$ | $\mathbf{Kernel}\text{}\mathbf{Function}\text{}\mathbf{Parameter}\text{}\mathit{g}$ |
---|---|---|

SVR model | 20.4906 | 798.0125 |

Data | ${\mathit{E}}_{\mathbf{M}\mathbf{A}}/{\mathbf{m}}^{2}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{S}}/\mathbf{m}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ |
---|---|---|---|

With de-noising | 0.0152928 | 0.0005121 | 0.0226293 |

Without de-noising | 0.0245718 | 0.0015876 | 0.0398451 |

**Table 5.**Performance comparison of different models simulating the tidal behavior at Bay Waveland Yacht Club. The second column lists “${p}^{\prime}$”, which refers to the fact that when the prediction time step is 1, the residual values from $t-1$ to $t-{p}^{\prime}$ moment are used to predict the value at time t. The last column lists the processing time required for the various methods.

Model | ${\mathit{p}}^{\prime}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{A}}/{\mathbf{m}}^{2}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{S}}/\mathbf{m}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | Time/s |
---|---|---|---|---|---|---|

Harmonic Analysis | - | 0.1439167 | 0.0326057 | 0.1805706 | 0.52892 | 32.547131 |

BP | 3 | 0.1381779 | 0.0194776 | 0.1395623 | 0.61248 | 7.404504 |

PSO-SVR | 3 | 0.0415324 | 0.0023897 | 0.0498613 | 0.97381 | 56.04157 |

Combined model | 3 | 0.0152928 | 0.0005121 | 0.0226293 | 0.99066 | 148.28581 |

**Table 6.**Sample-size comparison tidal prediction errors in the SVR model. The second column lists “${p}^{\prime}$”, which refers to the fact that when the prediction time step is 1, the total tidal level from $t-1$ to $t-{p}^{\prime}$ moment is used to predict the total tidal level at time t.

The Size of Sample Set | ${\mathit{p}}^{\prime}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{A}}/{\mathbf{m}}^{2}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{S}}/\mathbf{m}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | Time /s |
---|---|---|---|---|---|---|

One month | 3 | 0.0415324 | 0.0023897 | 0.0498613 | 0.9738146 | 56.042 |

Three months | 2 | 0.0413146 | 0.0022134 | 0.0495362 | 0.9738124 | 37.312 |

Six months | 4 | 0.0412874 | 0.0021045 | 0.0494135 | 0.9738113 | 64.617 |

Twelve months | 3 | 0.0411763 | 0.0020983 | 0.0493245 | 0.9738137 | 143.982 |

**Table 7.**Sample-size comparison tidal prediction errors in the combined model. The second column lists “${p}^{\prime}$”, which refers to the fact that when the prediction time step is 1, the residual water level from $t-1$ to $t-{p}^{\prime}$ moment is used to predict the non-astronomical tidal level at time t.

The size of Sample Set | ${\mathit{p}}^{\prime}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{A}}/{\mathbf{m}}^{2}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{S}}/\mathbf{m}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | Time /s |
---|---|---|---|---|---|---|

One month | 3 | 0.0152928 | 0.0005121 | 0.0226293 | 0.9906614 | 148.286 |

Three months | 2 | 0.0152994 | 0.0005184 | 0.0227172 | 0.9906592 | 174.217 |

Six months | 4 | 0.0152613 | 0.0005127 | 0.0226981 | 0.9906452 | 209.576 |

Twelve months | 2 | 0.0151472 | 0.0005094 | 0.0226242 | 0.9906601 | 251.880 |

**Table 8.**Tidal-type comparisons of prediction errors in the harmonic analysis, SVR, and combined models. The third column lists “p′”, which refers to the fact that when the prediction time step is 1, the value from $t-1$ to $t-{p}^{\prime}$ moment is used to predict the value at time t.

Tidal Stations | Tidal Type | ${\mathit{p}}^{\prime}$ | Combined Model | SVR Model | Harmonic Analysis | |||
---|---|---|---|---|---|---|---|---|

${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | |||

Nawiliwili | Semidiurnal mixed tide | 3 | 0.0157421 | 0.9967487 | 0.0637458 | 0.9267340 | 0.0517735 | 0.9760012 |

The Battery | Semidiurnal tide | 2 | 0.0345787 | 0.9945872 | 0.2547214 | 0.8998741 | 0.2661074 | 0.9014375 |

Texas Point | Diurnal mixed tide | 2 | 0.0424531 | 0.9857817 | 0.0845512 | 0.9459475 | 0.1908219 | 0.7382920 |

Bay Waveland Yacht Club | Diurnal tide | 3 | 0.0152928 | 0.9906615 | 0.0498613 | 0.9738146 | 0.1805706 | 0.7188010 |

**Table 9.**The relative magnitude of the astronomical tide and the un-astronomical tide parts of four tidal stations.

Tidal Stations | The Astronomical Tide | The Non-Astronomical Tide |
---|---|---|

Nawiliwili | 88.1535% | 11.8465% |

The Battery | 85.9369% | 14.0631% |

Texas Point | 74.2308% | 25.7692% |

Bay Waveland Yacht Club | 60.406% | 39.594% |

**Table 10.**The input of SVR model comparisons of prediction accuracy of the combined method at Bay Waveland Yacht Club Tidal Station. The first column lists “${p}^{\prime}$”, which refers to the fact that when the prediction time step is 1, the residual values from $t-1$ to $t-{p}^{\prime}$ moment is used to predict the value at time t.

${\mathit{p}}^{\prime}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{A}}/{\mathbf{m}}^{2}$ | ${\mathit{E}}_{\mathbf{M}\mathbf{S}}/\mathbf{m}$ | ${\mathit{E}}_{\mathbf{R}\mathbf{M}\mathbf{S}}/\mathbf{m}$ | $\mathit{r}$ | Time /s |
---|---|---|---|---|---|

1 | 0.0218577 | 0.0009071 | 0.0301173 | 0.9916444 | 29.233 |

2 | 0.0163588 | 0.0005606 | 0.0236780 | 0.9948650 | 40.472 |

3 | 0.0152412 | 0.0005076 | 0.0225293 | 0.9953641 | 130.600 |

4 | 0.0153038 | 0.0005076 | 0.0225293 | 0.9953641 | 169.639 |

6 | 0.0154409 | 0.0005186 | 0.0227718 | 0.9952334 | 281.034 |

12 | 0.0793346 | 0.0073769 | 0.0858892 | 0.9904756 | 556.413 |
