Next Article in Journal
Improvement of the Mechanical Properties of 1022 Carbon Steel Coil by Using the Taguchi Method to Optimize Spheroidized Annealing Conditions
Next Article in Special Issue
Earth Abundant Element Type I Clathrate Phases
Previous Article in Journal
Synthesis and Characterization of Reduced Graphene Oxide-Supported Nanoscale Zero-Valent Iron (nZVI/rGO) Composites Used for Pb(II) Removal
Previous Article in Special Issue
Effect of Guest Atom Composition on the Structural and Vibrational Properties of the Type II Clathrate-Based Materials AxSi136, AxGe136 and AxSn136 (A = Na, K, Rb, Cs; 0 ≤ x ≤ 24)
Open AccessArticle

High Pressure Properties of a Ba-Cu-Zn-P Clathrate-I

Department of Chemistry, University of California, Davis, One Shields Avenue, Davis, CA 95616, USA
Author to whom correspondence should be addressed.
Academic Editor: Matt Beekman
Materials 2016, 9(8), 692;
Received: 1 June 2016 / Revised: 27 July 2016 / Accepted: 6 August 2016 / Published: 12 August 2016
(This article belongs to the Special Issue Inorganic Clathrate Materials)

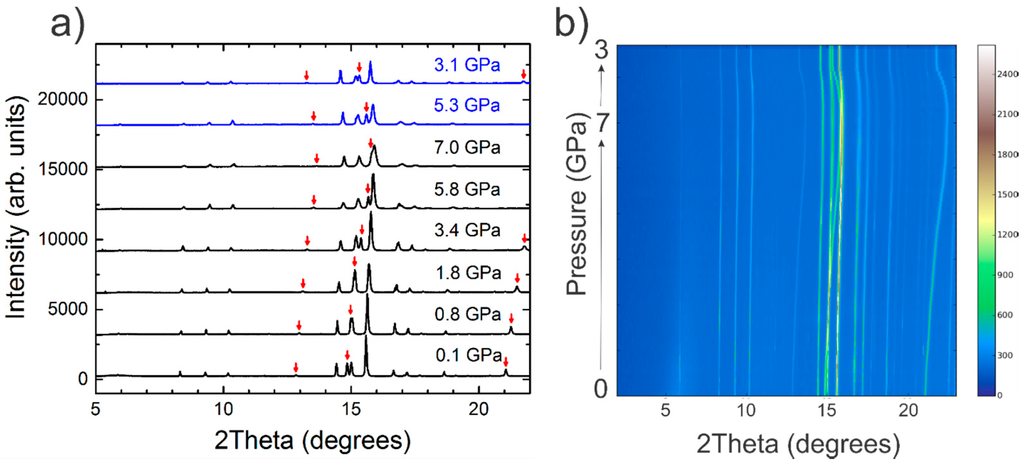

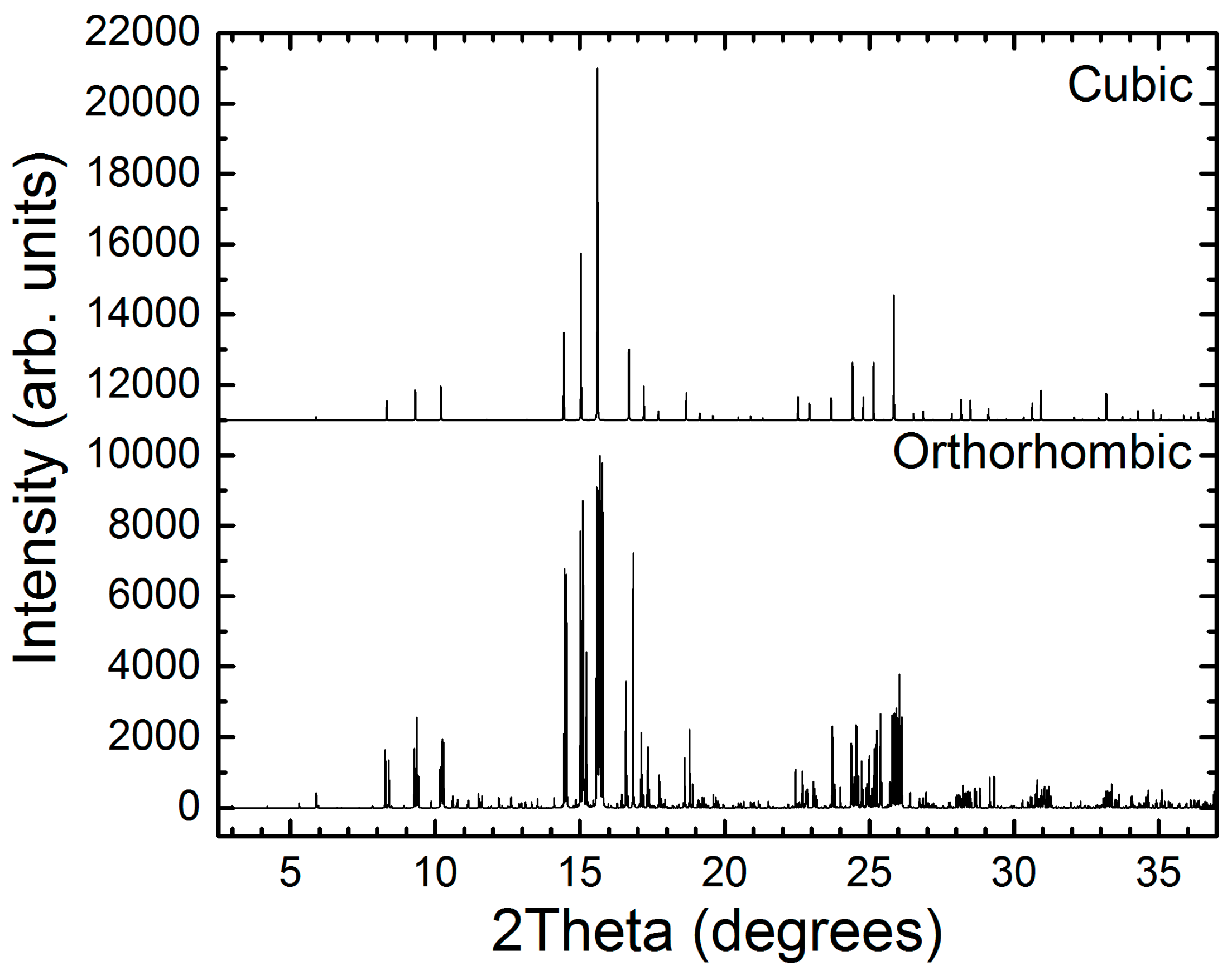

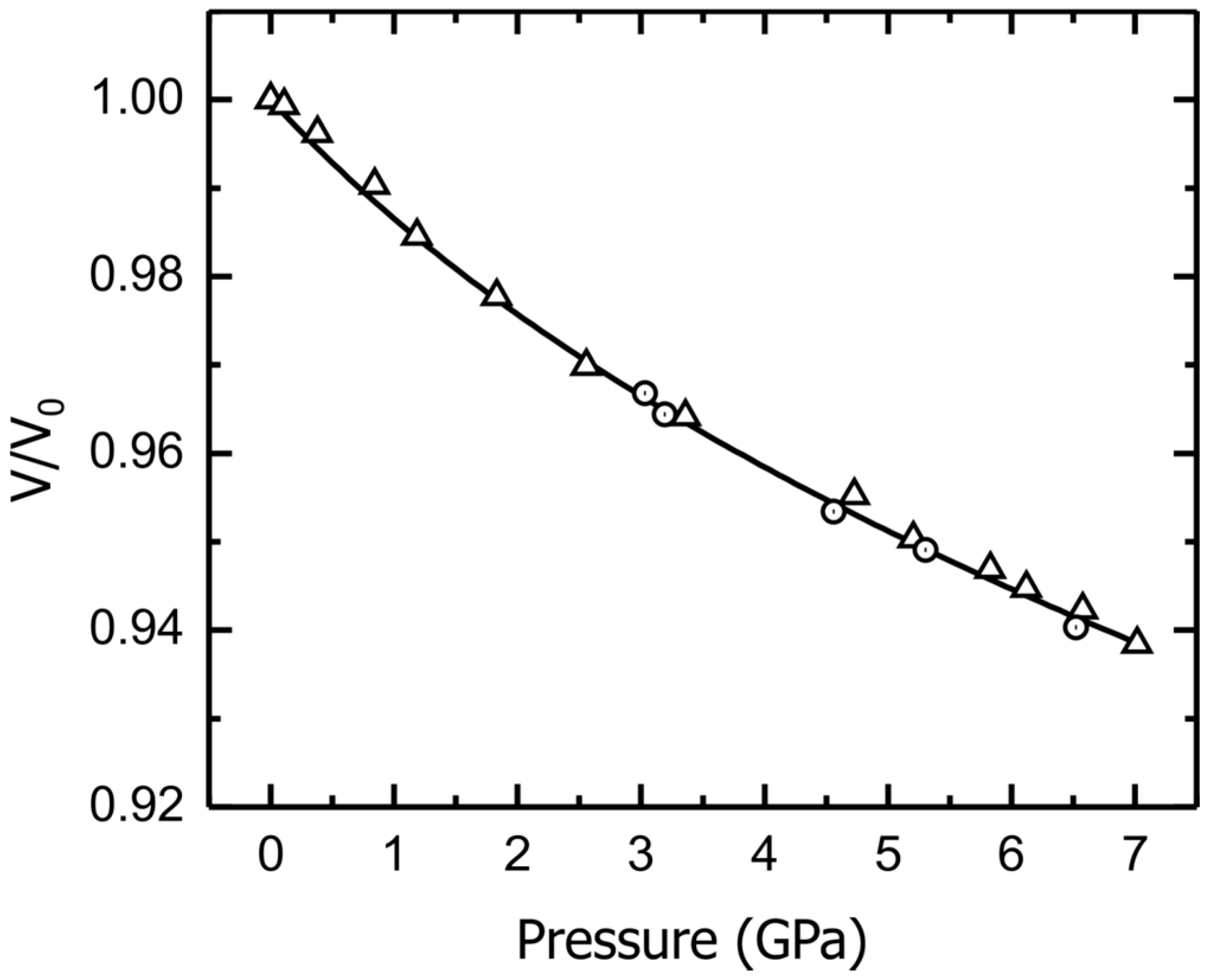

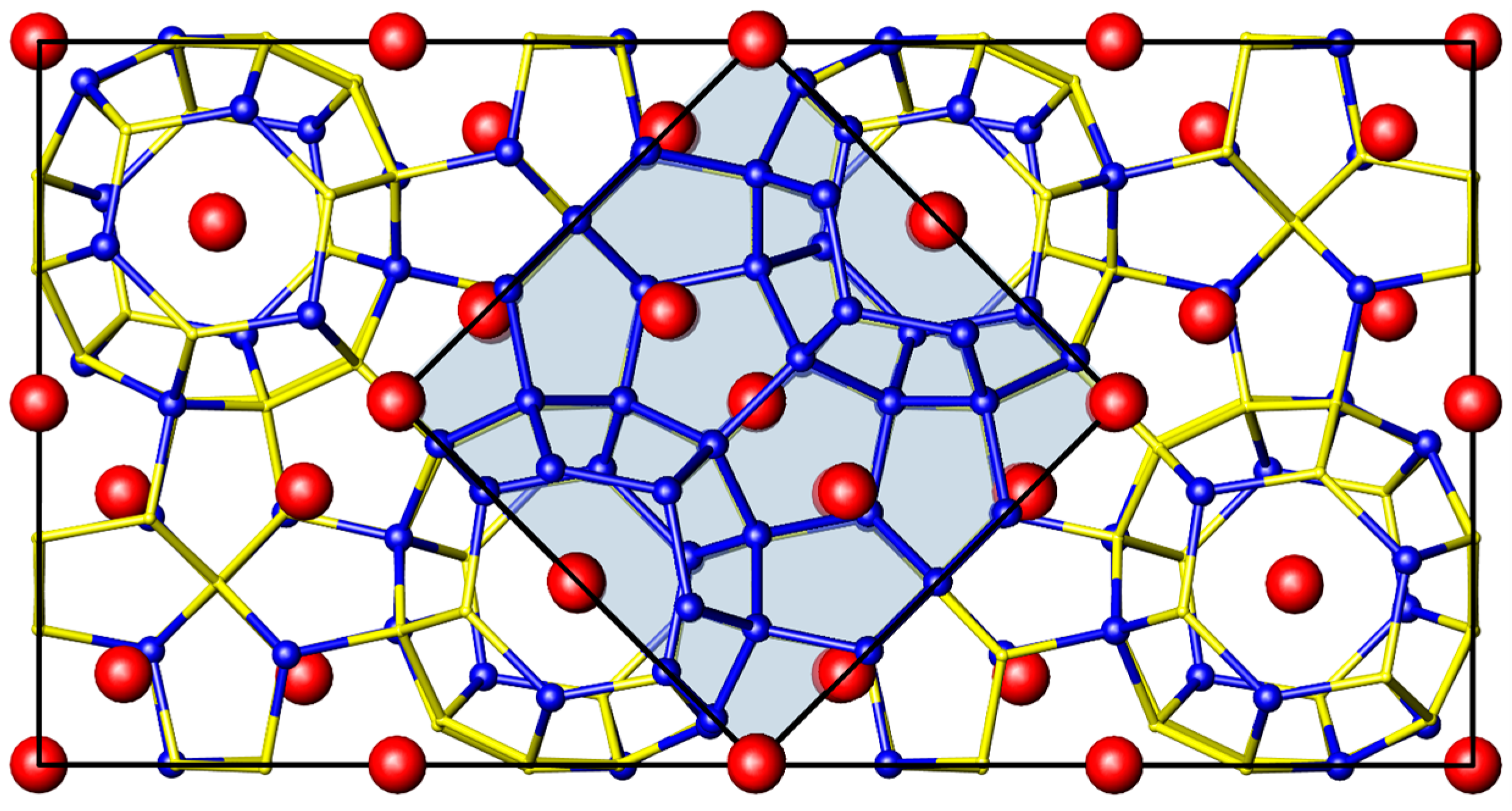

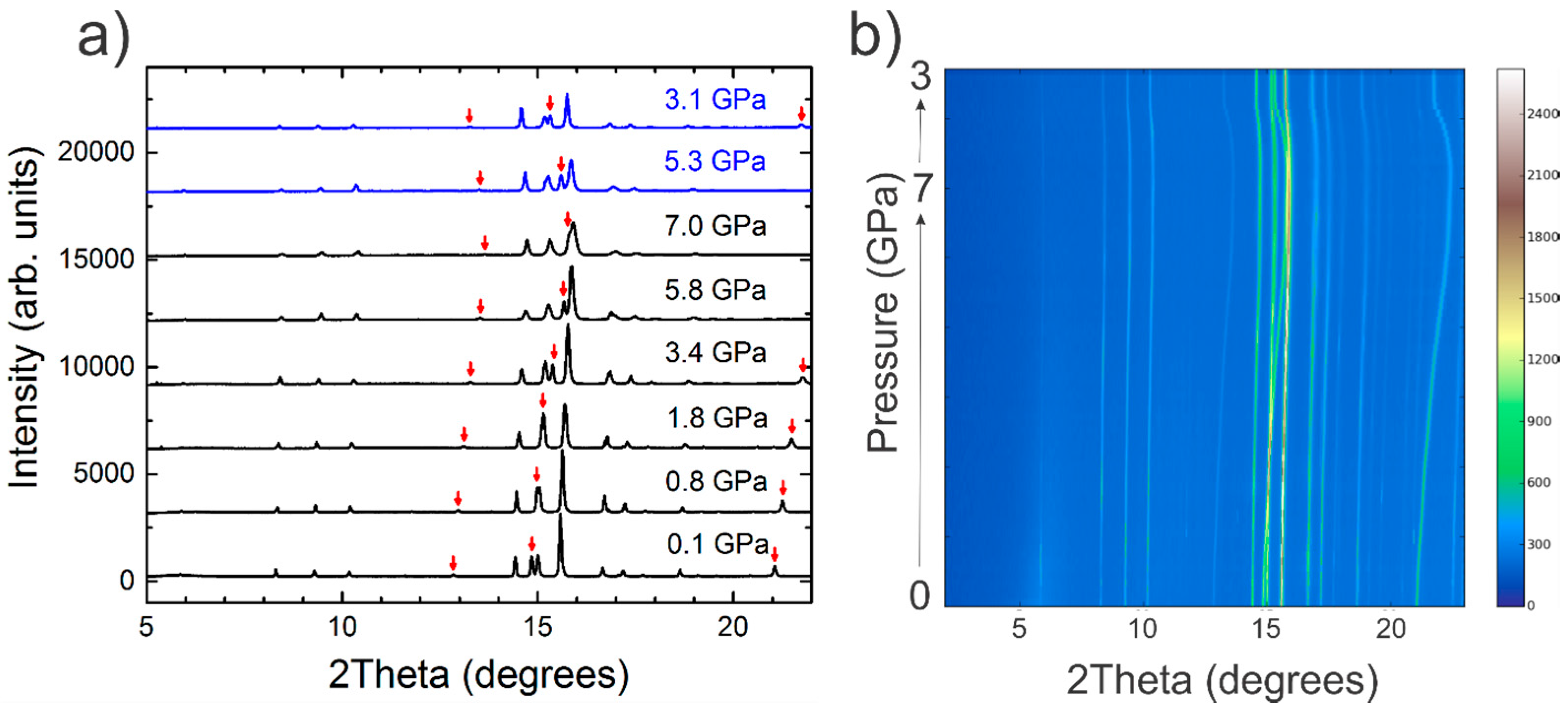

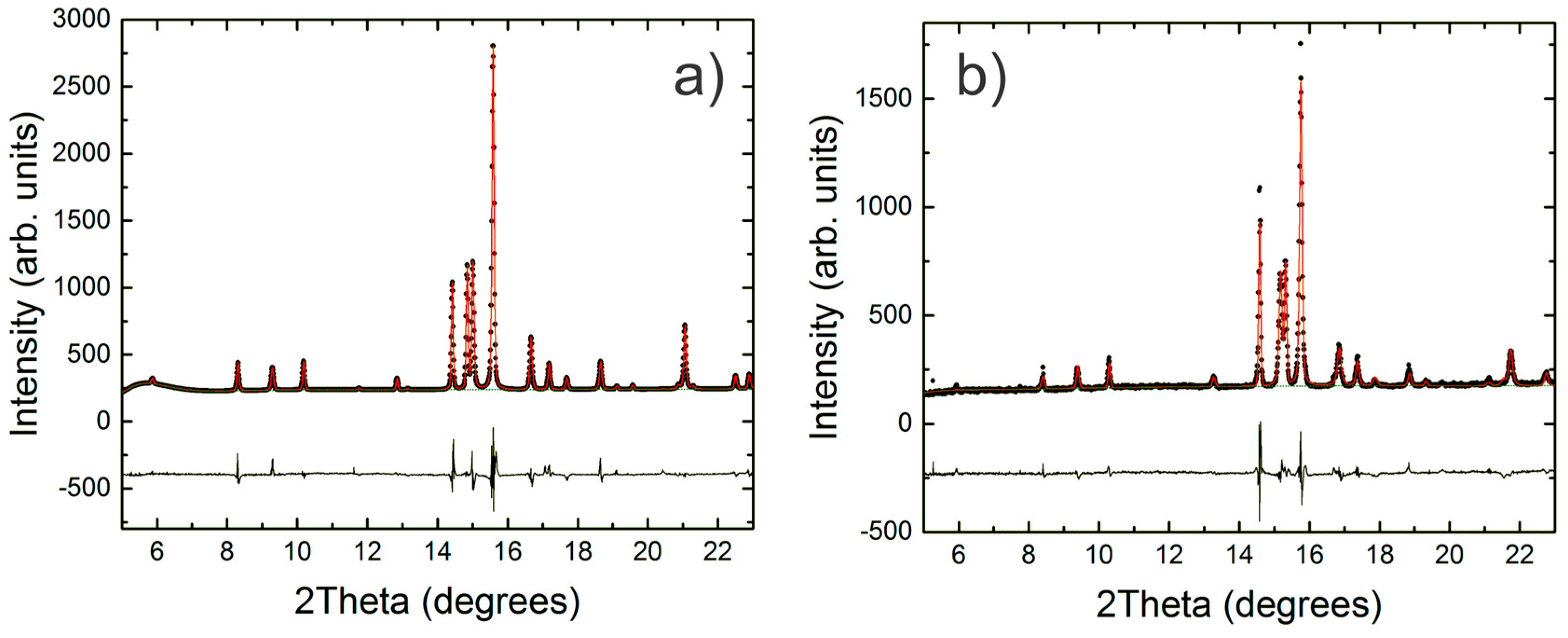

The high pressure properties of the novel tetrel-free clathrate, Ba8Cu13.1Zn3.3P29.6, were investigated using synchrotron powder X-ray diffraction. The pressure was applied using a diamond anvil cell. No structural transitions or decomposition were detected in the studied pressure range of 0.1–7 GPa. The calculated bulk modulus for Ba8Cu13.1Zn3.3P29.6 using a third-order Birch-Murnaghan equation of state is 65(6) GPa at 300 K. This bulk modulus is comparable to the bulk moduli of Ge- and Sn-based clathrates, like A8Ga16Ge30 (A = Sr, Ba) and Sn19.3Cu4.7P22I8, but lower than those for the transition metal-containing silicon-based clathrates, Ba8TxSi46−x, T = Ni, Cu; 3 ≤ x ≤ 5. View Full-Text
Keywords: clathrate; high pressure; powder X-ray diffraction; bulk modulus clathrate; high pressure; powder X-ray diffraction; bulk modulus
Show Figures

Graphical abstract

MDPI and ACS Style

Dolyniuk, J.-A.; Kovnir, K. High Pressure Properties of a Ba-Cu-Zn-P Clathrate-I. Materials 2016, 9, 692.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
