A Fracture Analysis of Ti-10Mo-8V-1Fe-3.5Al Alloy Screws during Assembly

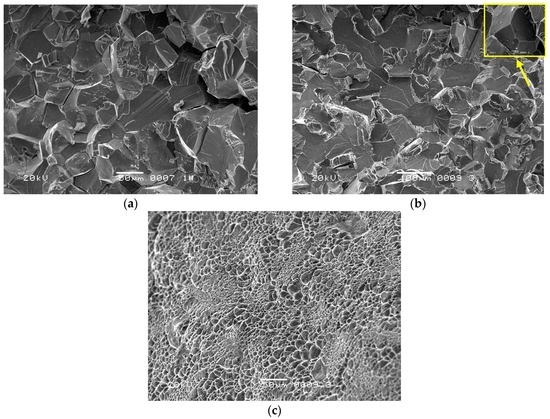

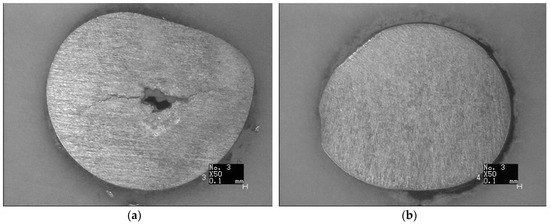

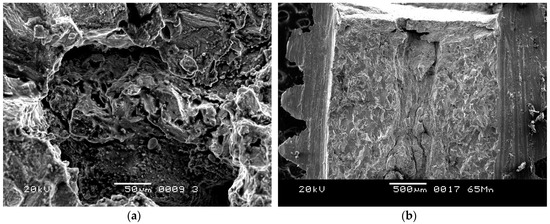

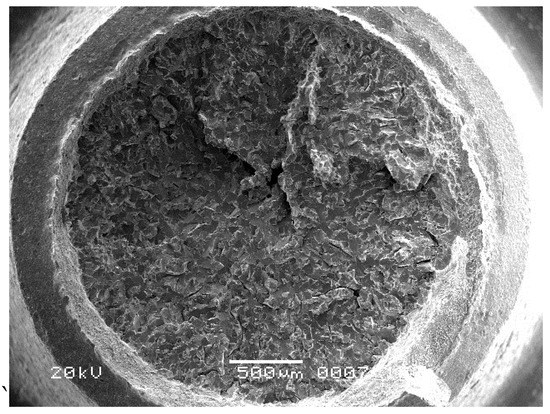

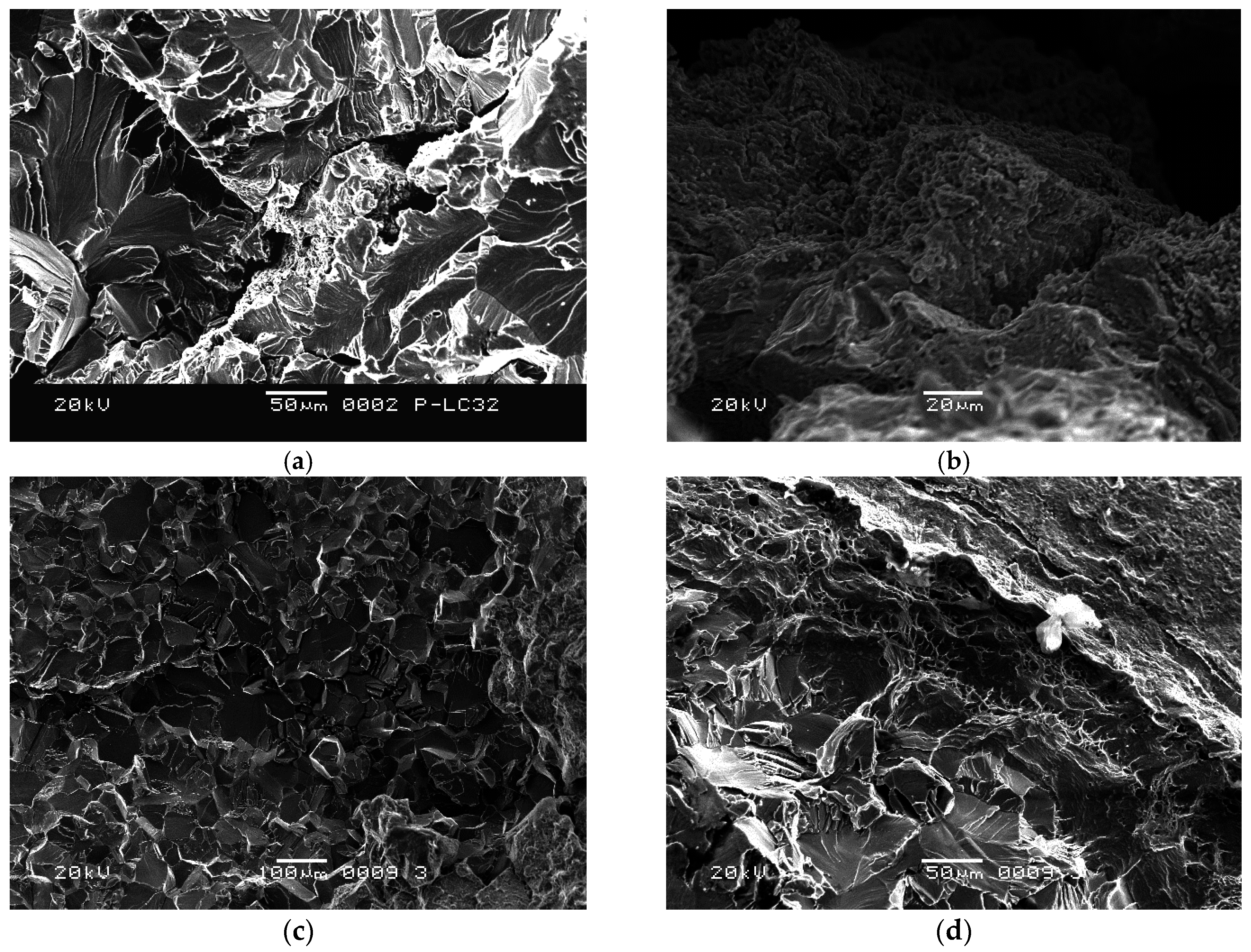

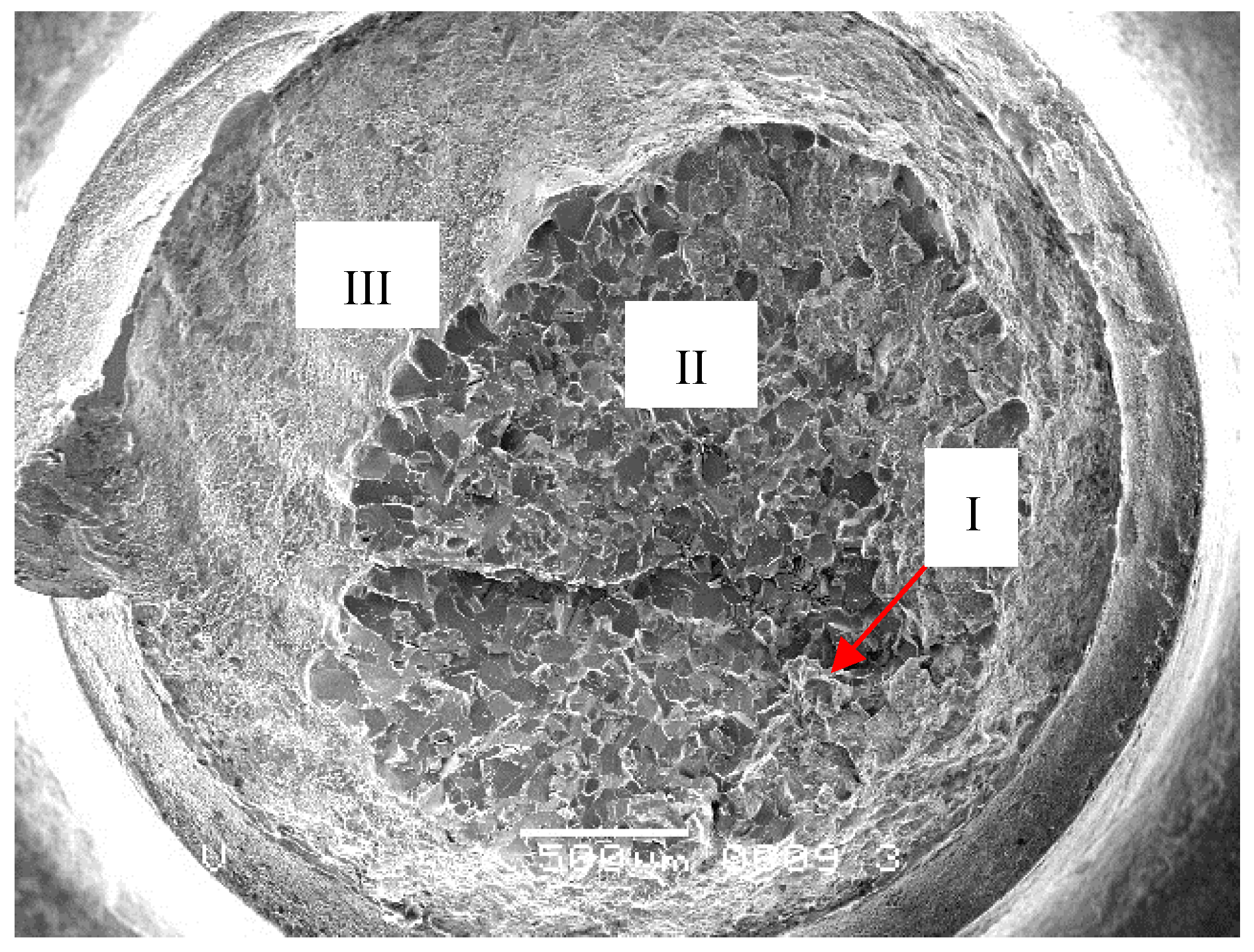

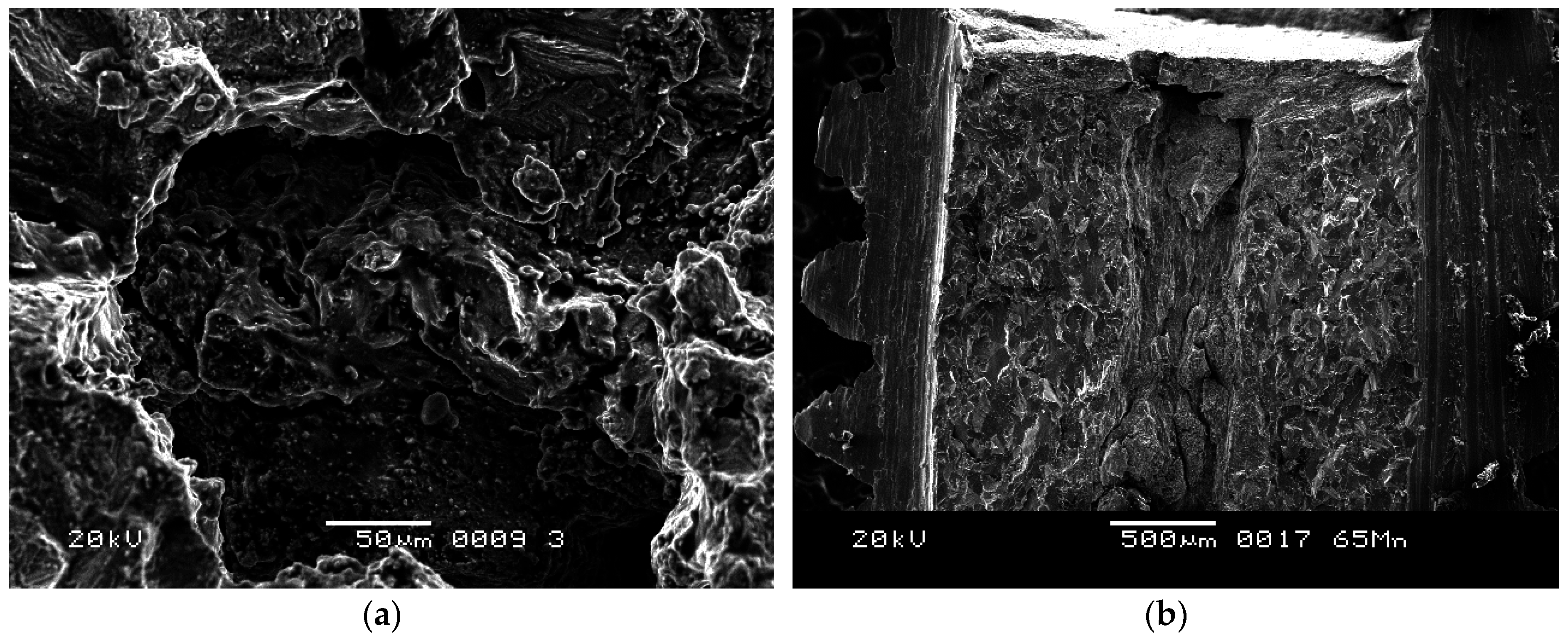

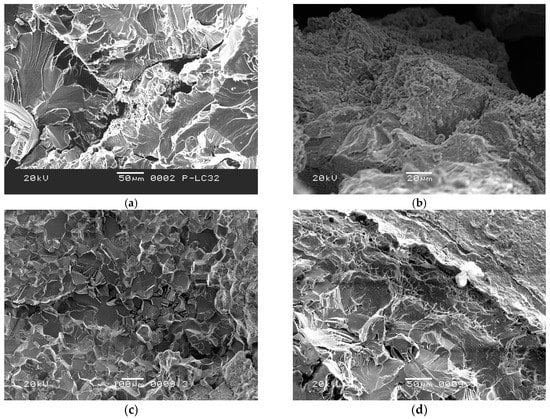

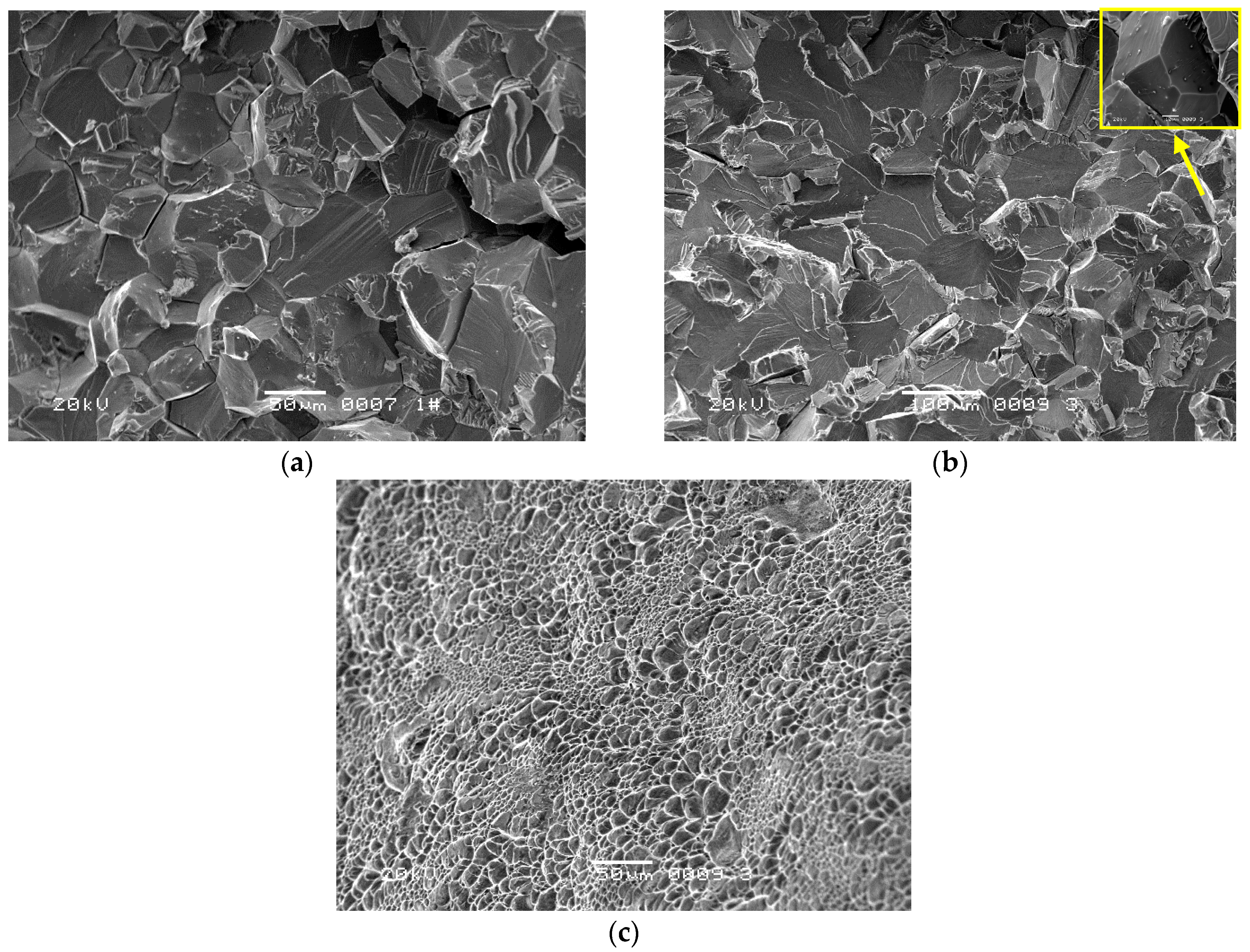

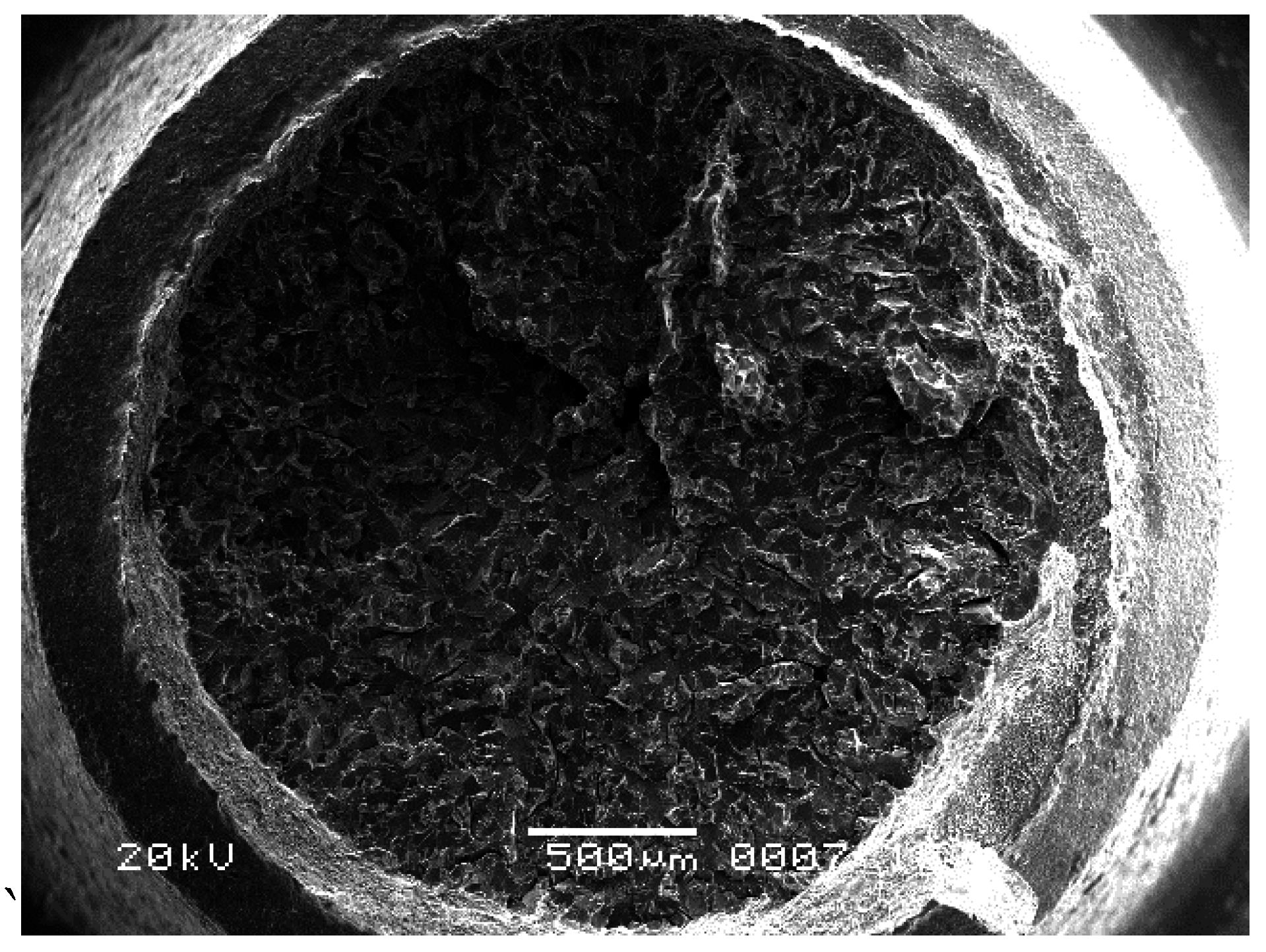

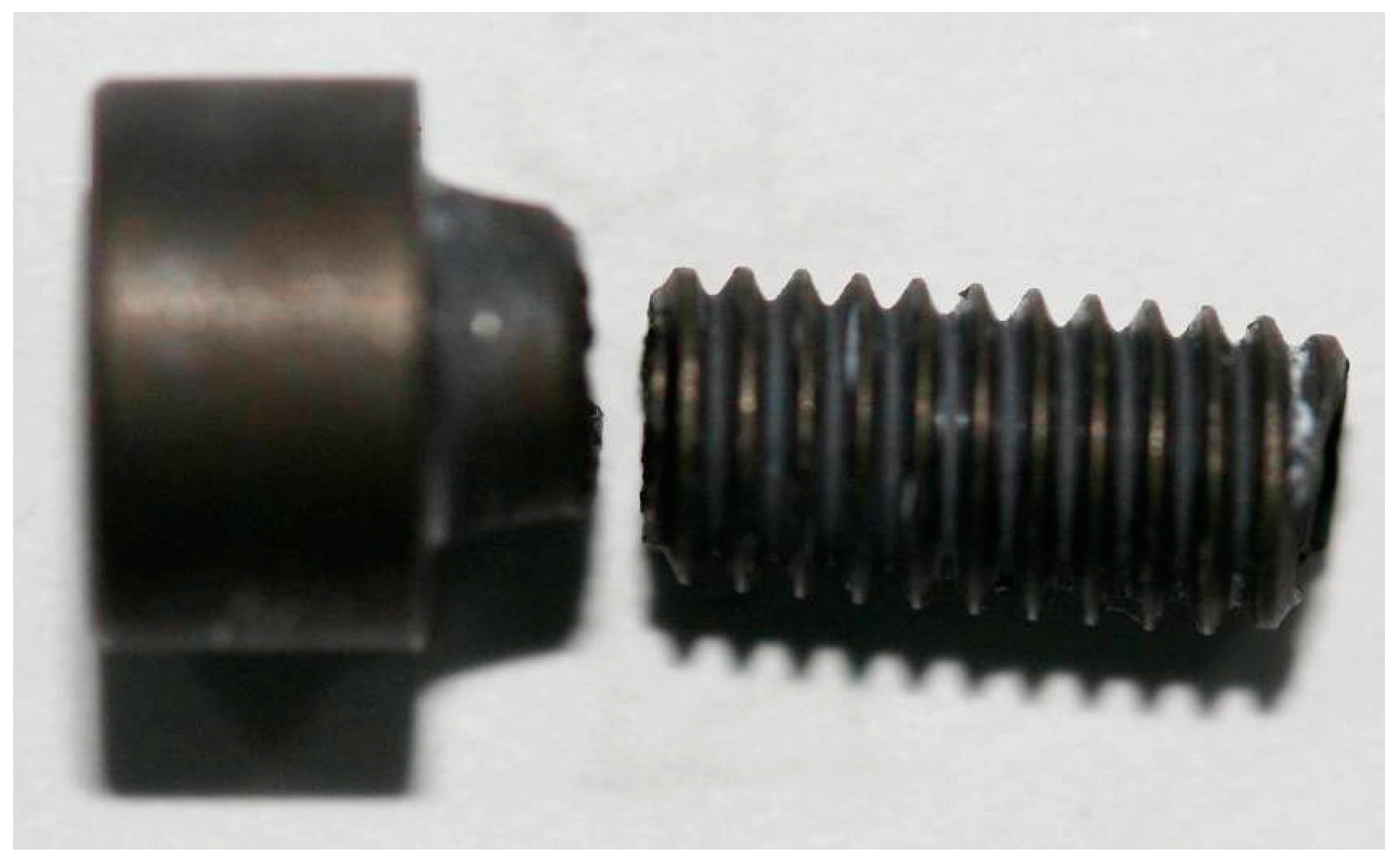

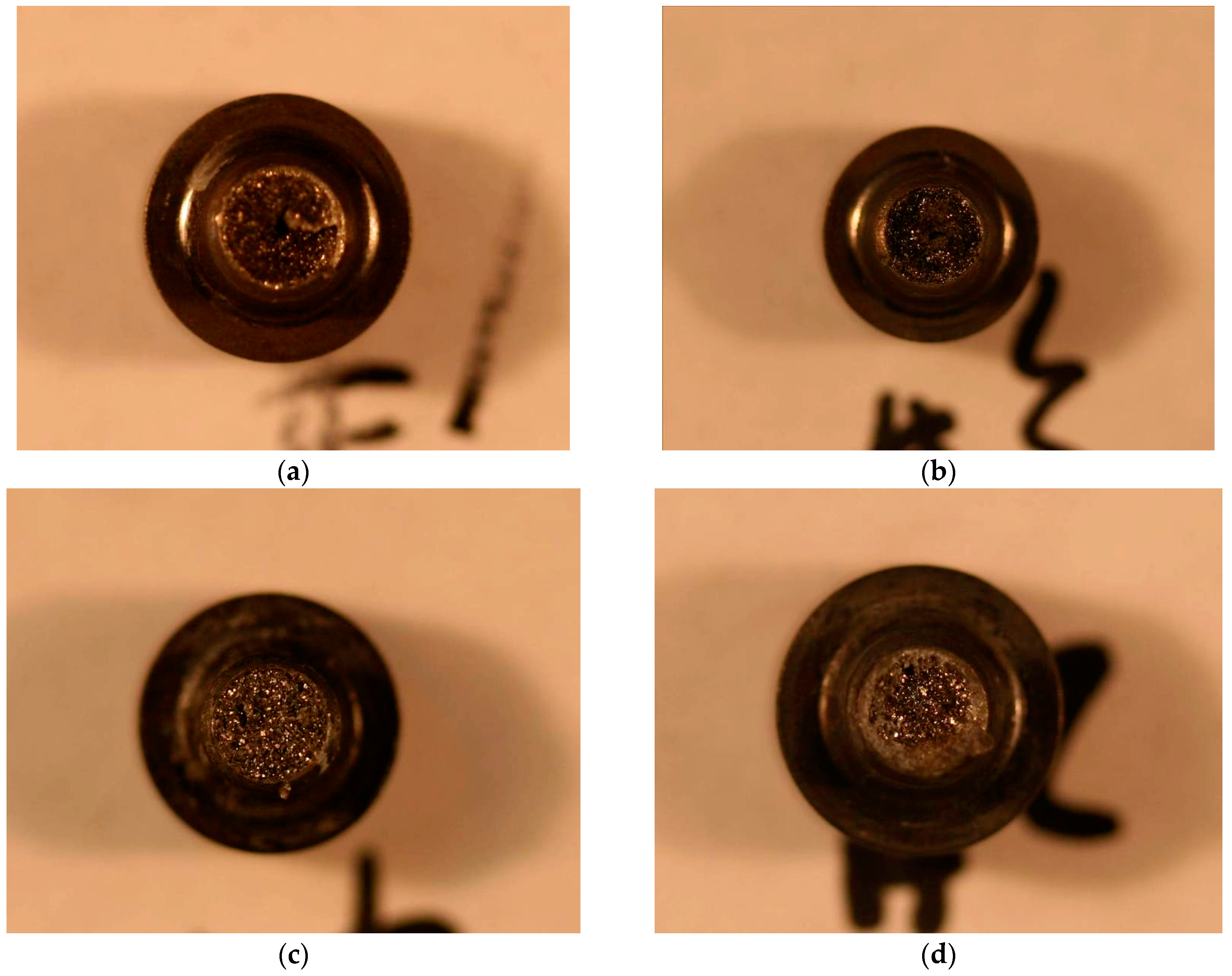

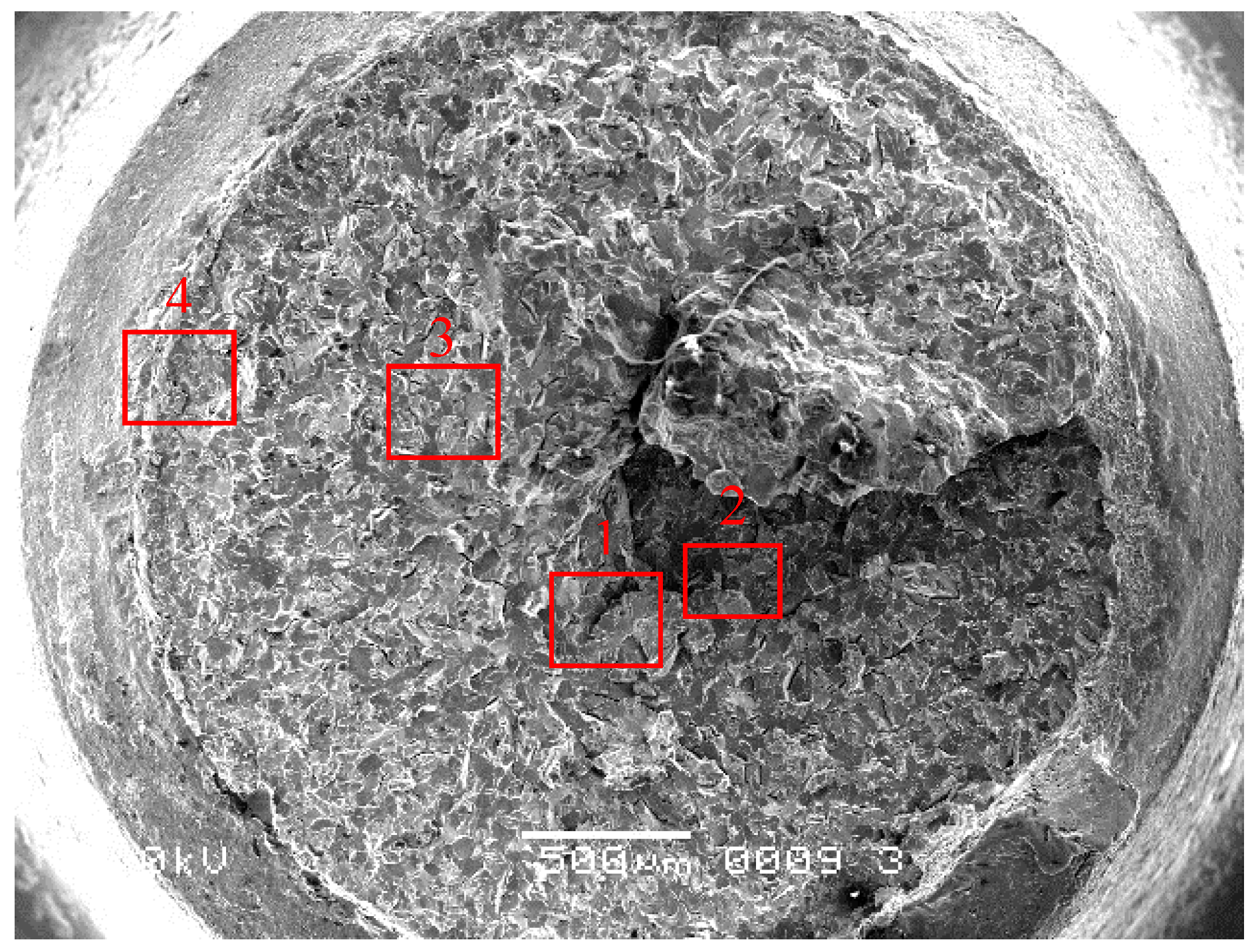

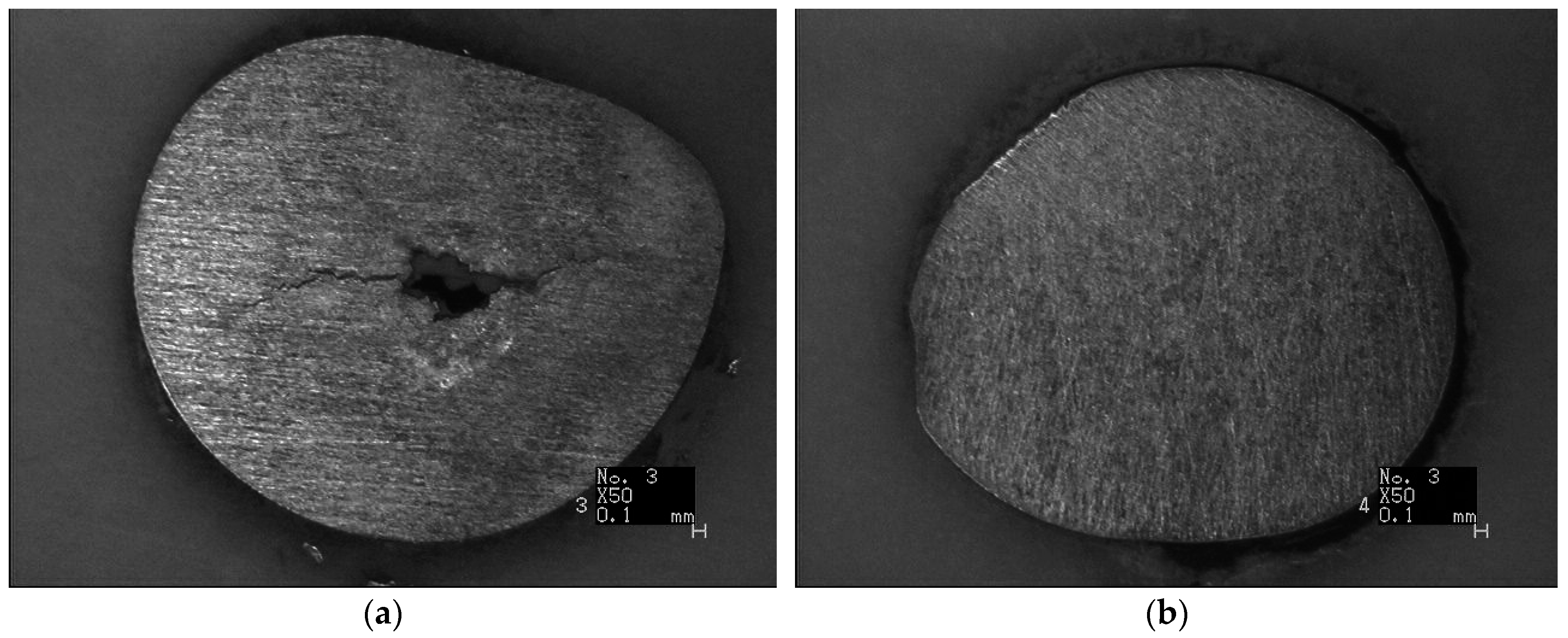

AbstractTitanium screws have properties that make them ideal for applications that require both a high strength-to-weight ratio and corrosion resistance, such as fastener applications for aviation and aerospace. The fracture behavior of Ti-10Mo-8V-1Fe-3.5Al (TB3) alloy screws during assembly was explored. Besides visual examination, other experimental techniques used for the investigation are as follows: (1) fracture characteristics and damage morphology via scanning electron microscopy (SEM); (2) chemical constituents via energy dispersive spectroscopy (EDS) and hydrogen concentration testing; (3) metallographic observation; (4) stress durability embrittlement testing; and (5) torsion simulation testing. Results show that the fracture mode of the screws is brittle. There is no obvious relation to hydrogen-induced brittle. The main reason for the fracture of titanium alloy screws is internal defects, around which oxygen content is high, increasing brittleness. The internal defects of screws result from grain boundary cracking caused by hot forging. View Full-Text
Share & Cite This Article
Zhang, W.; Huang, Y.; Dai, W.; Jin, X.; Yin, C. A Fracture Analysis of Ti-10Mo-8V-1Fe-3.5Al Alloy Screws during Assembly. Materials 2016, 9, 852.
Zhang W, Huang Y, Dai W, Jin X, Yin C. A Fracture Analysis of Ti-10Mo-8V-1Fe-3.5Al Alloy Screws during Assembly. Materials. 2016; 9(10):852.Chicago/Turabian Style
Zhang, Weifang; Huang, Yuanxing; Dai, Wei; Jin, Xiaoshuai; Yin, Chang. 2016. "A Fracture Analysis of Ti-10Mo-8V-1Fe-3.5Al Alloy Screws during Assembly." Materials 9, no. 10: 852.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
