Next Article in Journal
A Novel Fabrication Method for Functionally Graded Materials under Centrifugal Force: The Centrifugal Mixed-Powder Method
Next Article in Special Issue
Recent Developments in Carbon Nanotube Membranes for Water Purification and Gas Separation
Previous Article in Journal
Thermal Conductivity of Diamond Composites
Previous Article in Special Issue
Macroporous Monolithic Polymers: Preparation and Applications
Article Menu

Export Article

Open AccessArticle

Preparation and Hydrogen Absorption/Desorption of Nanoporous Palladium Thin Films

Department of Chemical and Materials Engineering, University of Kentucky, 177 F. Paul Anderson Tower, Lexington, KY 40506-0046, USA
Author to whom correspondence should be addressed.
Materials 2009, 2(4), 2496-2509;
Received: 29 October 2009 / Revised: 18 December 2009 / Accepted: 21 December 2009 / Published: 23 December 2009
(This article belongs to the Special Issue Porous Materials)
PDF [1576 KB, uploaded 23 December 2009]

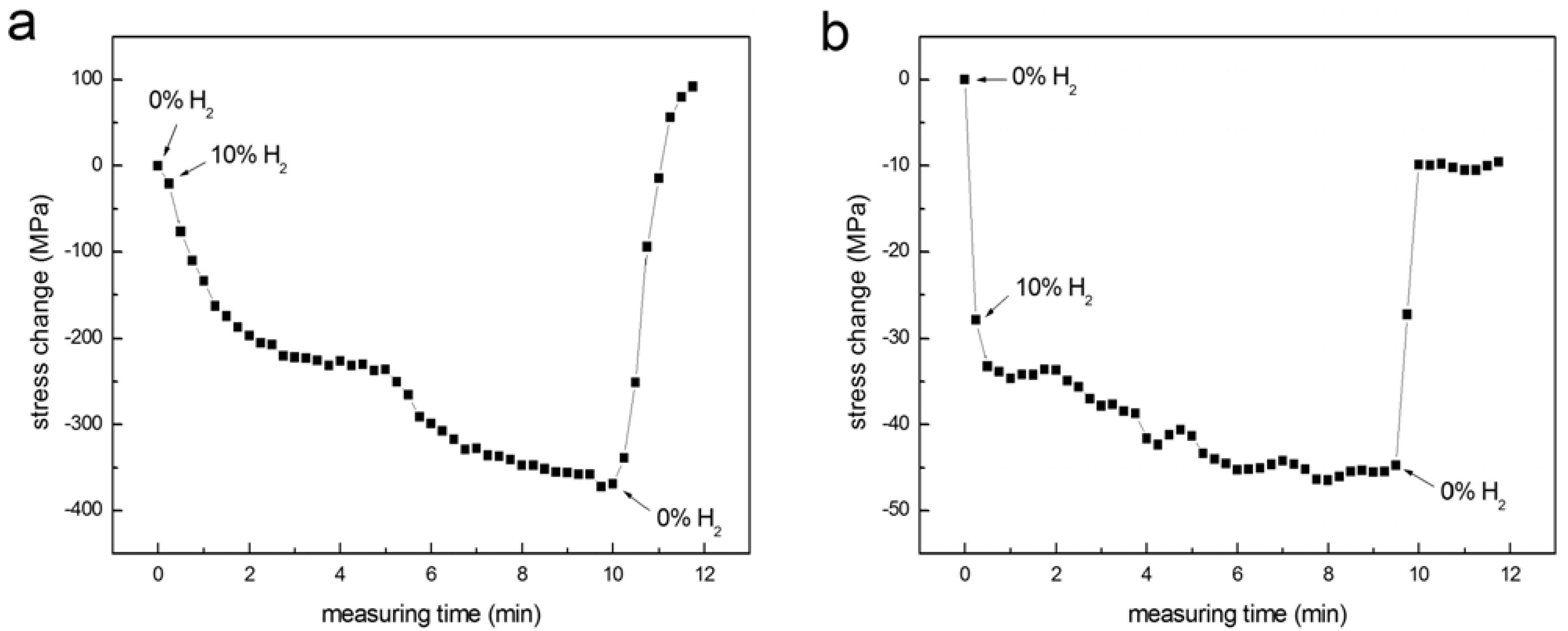

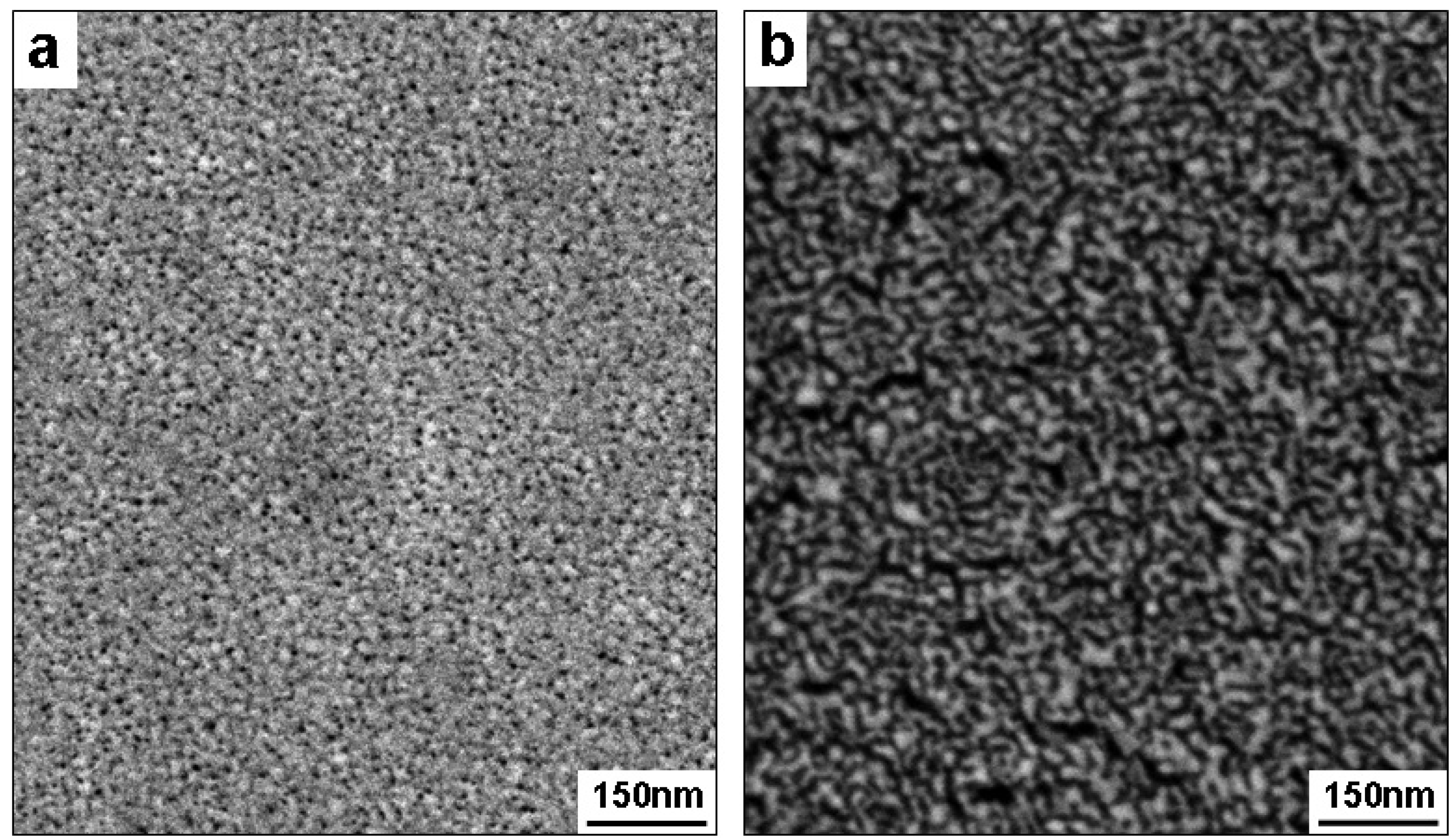

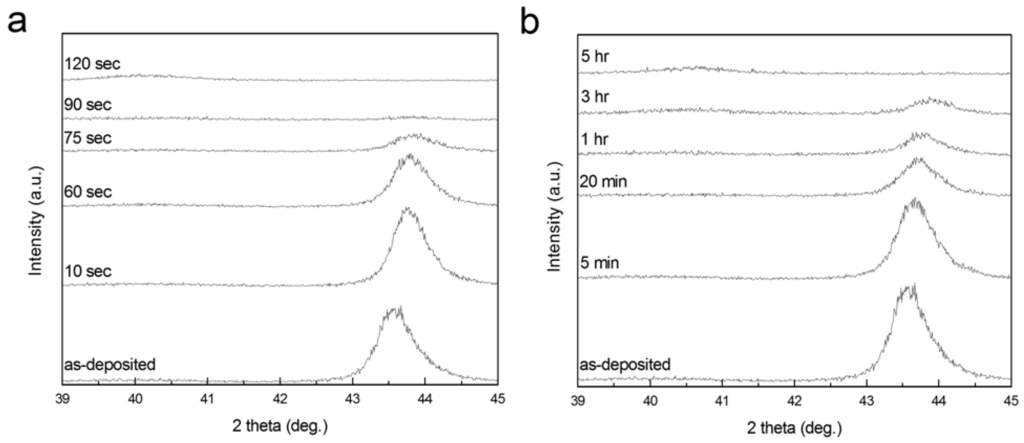

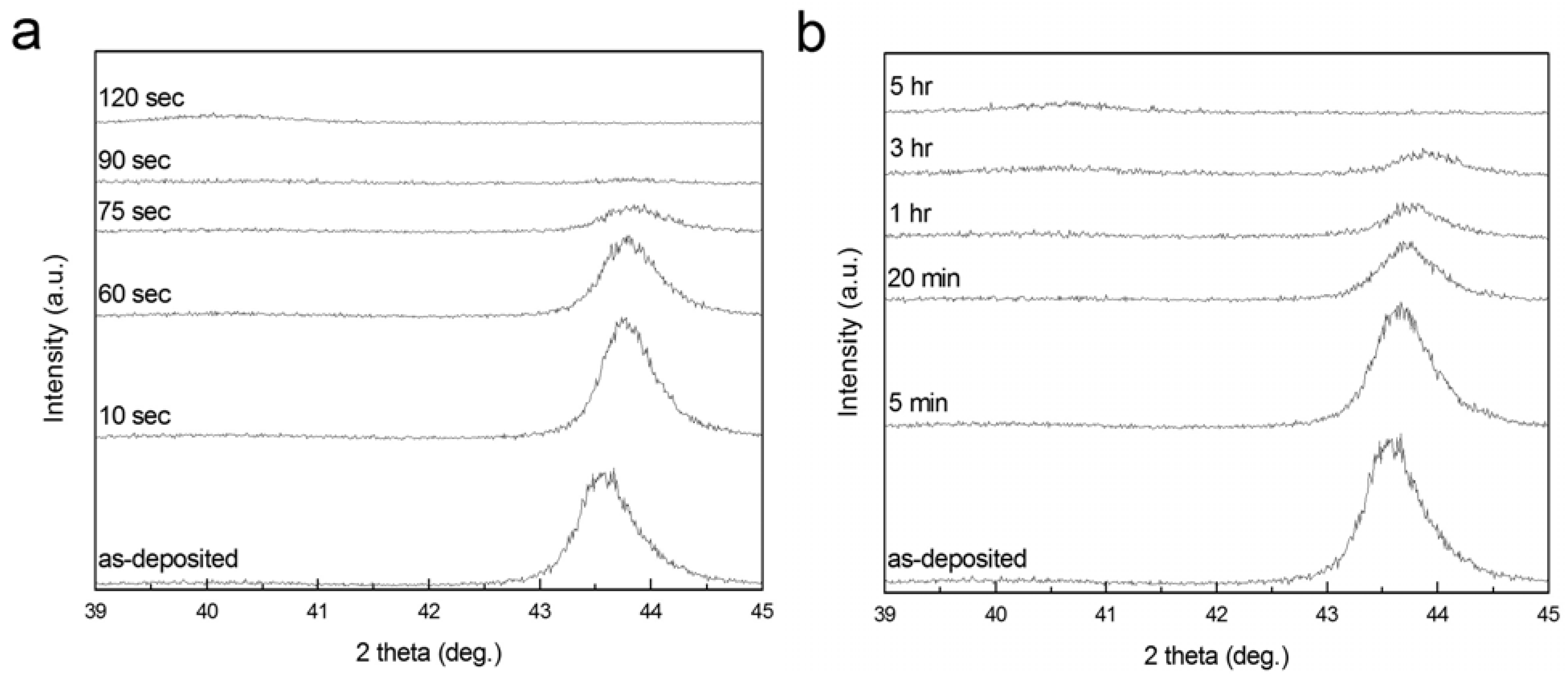

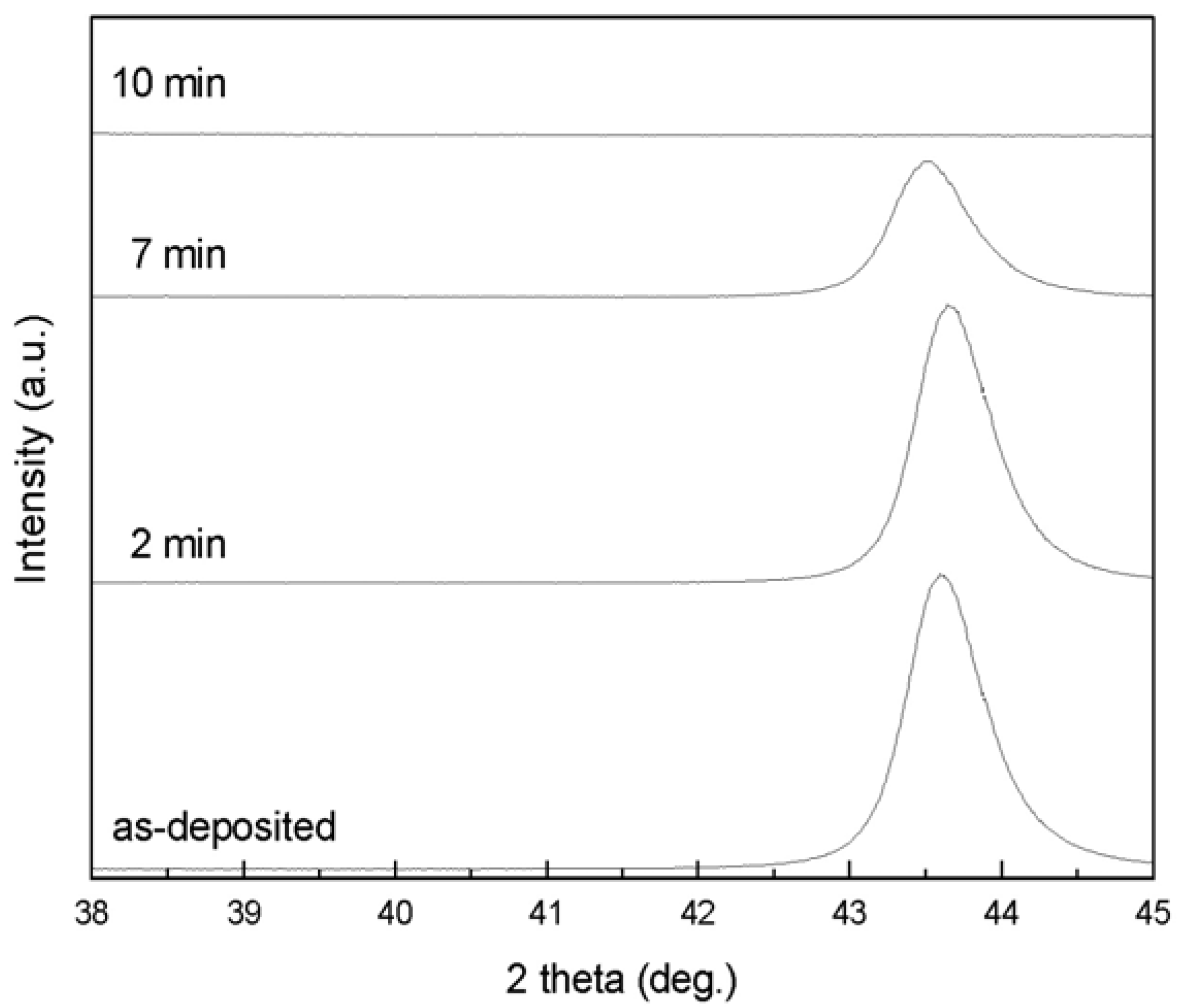

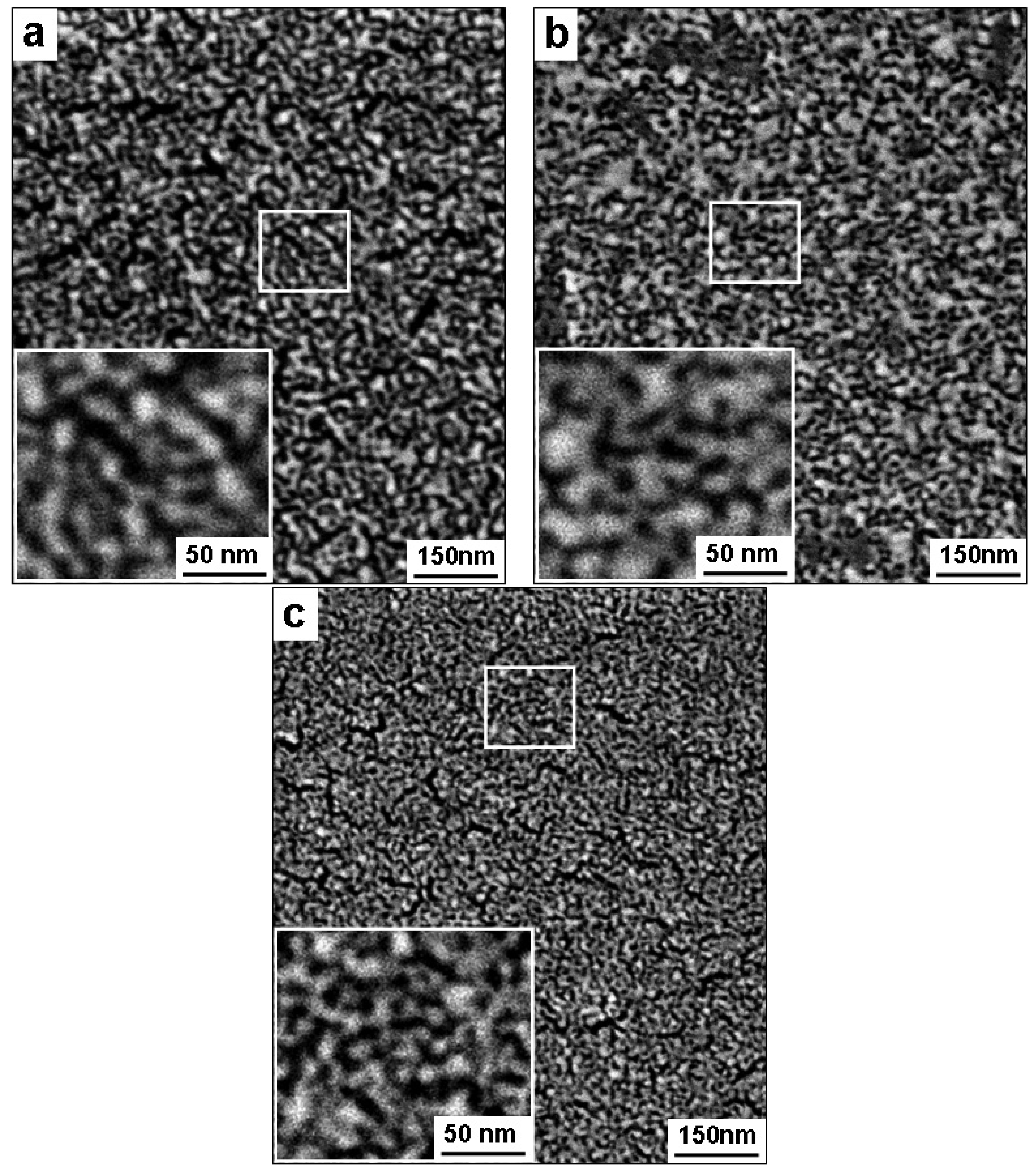

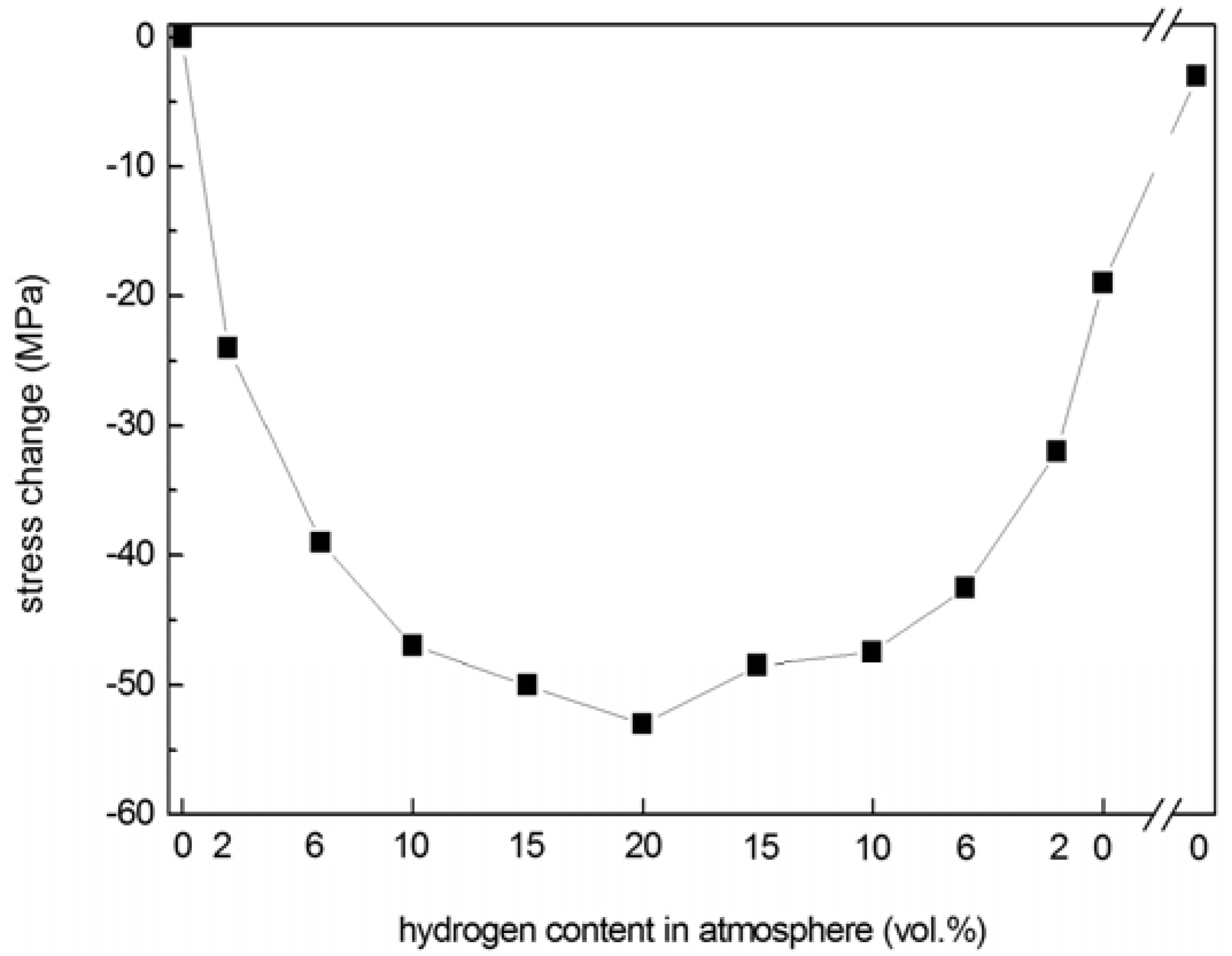

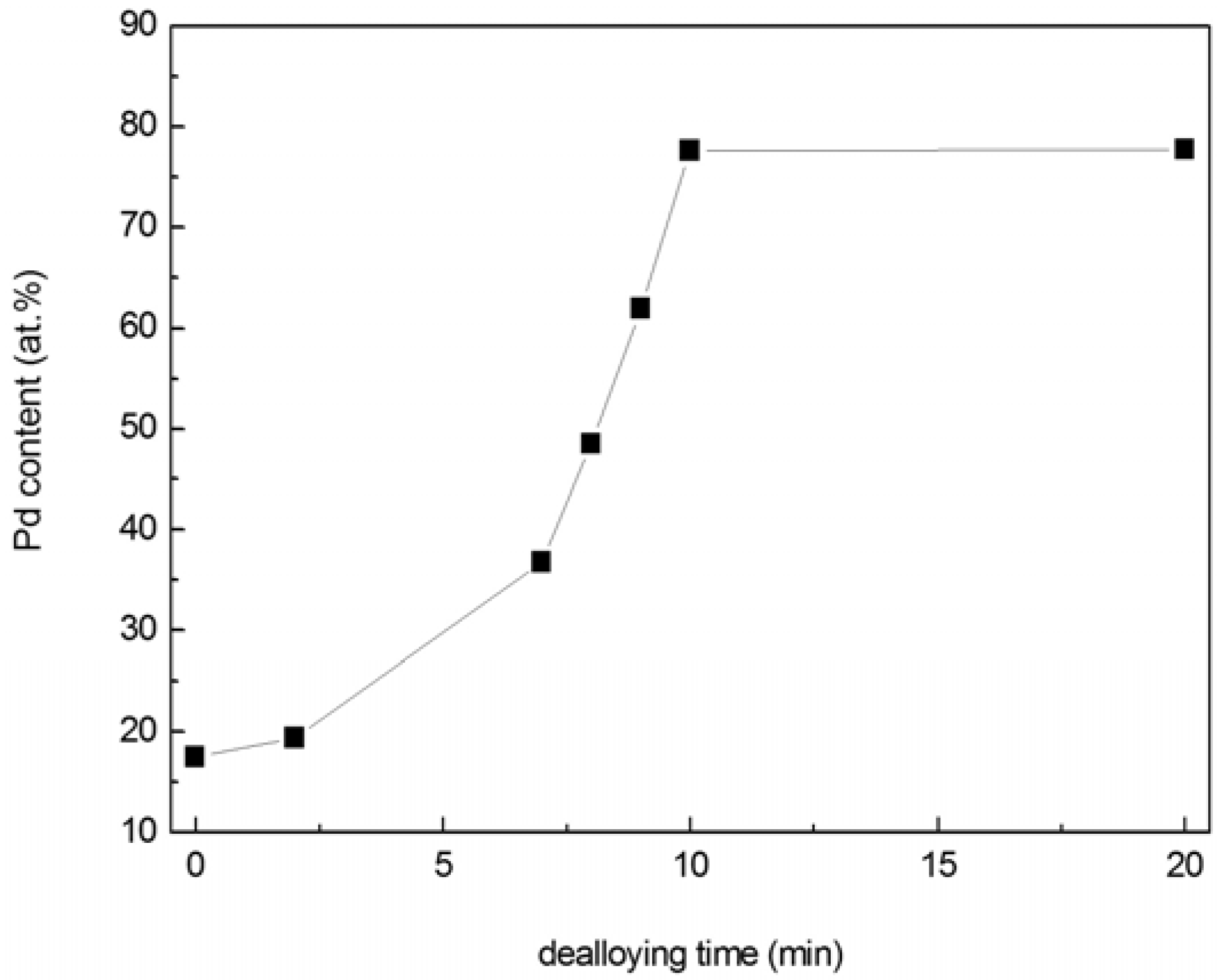

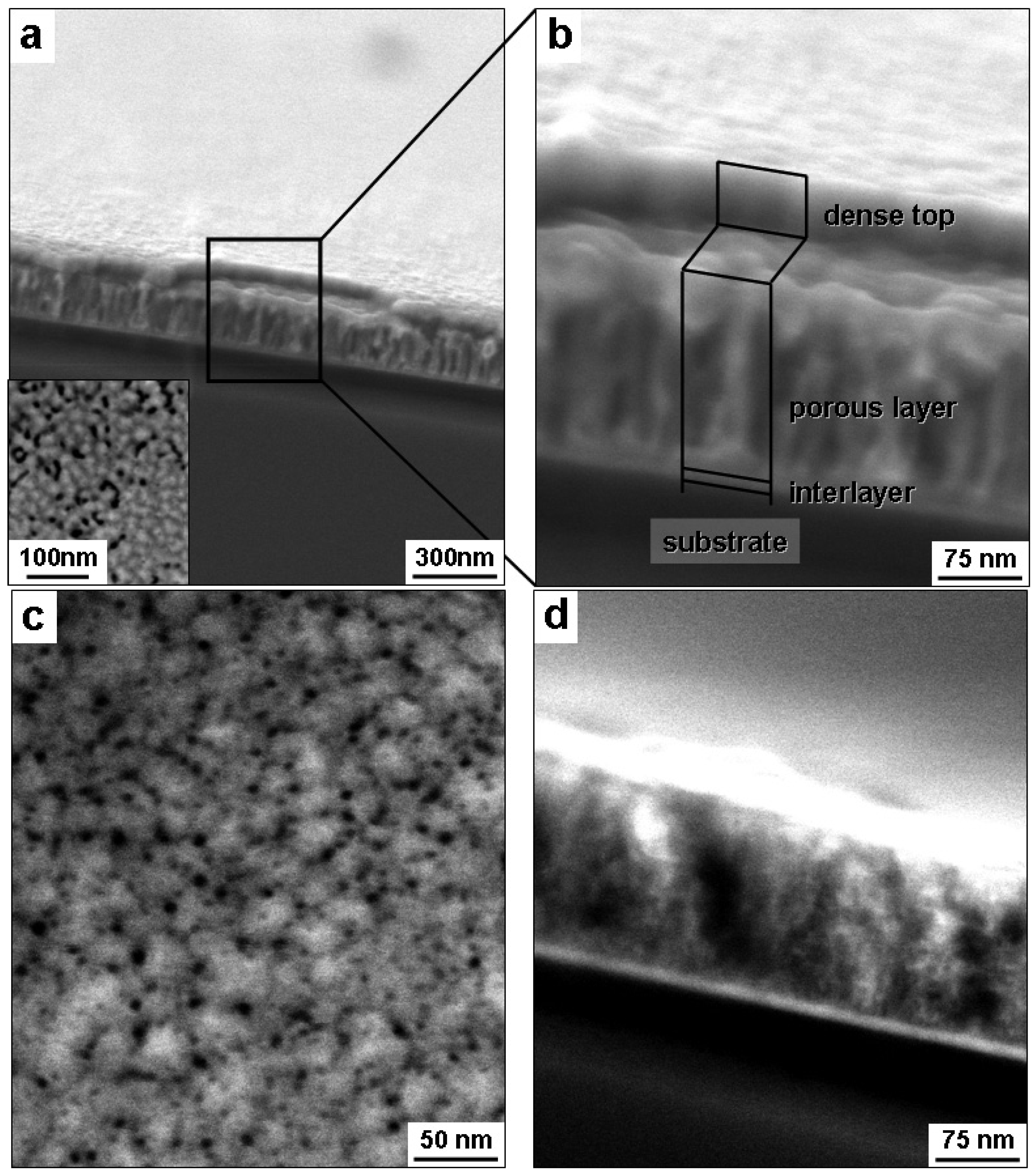

Nanoporous Pd (np-Pd) was prepared by co-sputtering Pd-Ni alloy films onto Si substrates, followed by chemical dealloying with sulfuric acid. X-ray diffractometry and chemical analysis were used to track the extent of dealloying. The np-Pd structure was changed from particle-like to sponge-like by diluting the sulfuric acid etchant. Using suitable precursor alloy composition and dealloying conditions, np-Pd films were prepared with uniform and open sponge-like structures, with interconnected ligaments and no cracks, yielding a large amount of surface area for reactions with hydrogen. Np-Pd films exhibited shorter response time for hydrogen absorption/desorption than dense Pd films, showing promise for hydrogen sensing. View Full-Text
Keywords: dealloying; nanoporous; palladium; hydridation dealloying; nanoporous; palladium; hydridation

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Li, W.-C.; Balk, T.J. Preparation and Hydrogen Absorption/Desorption of Nanoporous Palladium Thin Films. Materials 2009, 2, 2496-2509.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
