Comparative Life Cycle Assessment (LCA) of Porous Asphalt Mixtures with Sustainable and Recycled Materials: A Cradle-to-Gate Approach

by
Beatrice De Pascale
*,
Piergiorgio Tataranni
,
Alessandra Bonoli
* and
Claudio Lantieri
Department of Civil, Chemical, Environmental and Materials Engineering, University of Bologna, 40131 Bologna, Italy
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(19), 6540; https://doi.org/10.3390/ma16196540
Submission received: 11 September 2023 / Revised: 28 September 2023 / Accepted: 3 October 2023 / Published: 3 October 2023
(This article belongs to the Special Issue Advances in Recycled Aggregate Concrete and Binders for Sustainable Building Engineering)
Browse Figures
Versions Notes

Abstract

:
The road and construction sectors consume a large number of natural resources and energy, contributing significantly to waste generation and greenhouse gas emissions (GHG). The use of recycled aggregate from construction and demolition waste as a substitute for virgin aggregate is a current practice in the construction of new road sections. Additionally, in recent years, there has been an increasing focus on finding alternatives to bitumen for binders used in asphalt mixes. This study investigates and compares the impacts associated with two porous asphalt mixtures produced with CDW aggregates, virgin aggregates, and a polyolefin-based synthetic transparent binder through an LCA methodology. A cradle-to-gate approach was employed. Model characterization for calculating the potential environmental impacts of each porous asphalt mixture was performed using the ReCipe 2016 assessment method at the midpoint and endpoint levels. The results are presented with reference to a baseline scenario corresponding to a porous asphalt mixture, confirming the benefits associated with the use of recycled aggregates and in some cases the benefits of not using bitumen-based binders. This work contributes to the understanding of the importance of choosing the least environmentally damaging solution during the production or rehabilitation of road pavement infrastructure.

1. Introduction

The infrastructure field is one of the most relevant sectors of the European economy but at the same time one of the most detrimental to nature and to the surrounding environment due to its activity [1]. Almost 40% of raw materials extracted from the lithosphere are consumed in the road and construction sectors [2]. That corresponds approximately to 50% of global greenhouse emissions [3,4]. It is well known that primary raw materials used in road pavement production are scarce and their exploitation demands an urgent solution [5]. Being aware of the important role that the infrastructure sector represents in modern society, the European Commission set (in the Transport white paper) the target of reducing the emission associated with it by 60% by 2050 [6]. Furthermore, in Agenda 2030, one of the goals is to enhance the reuse and recycling of waste generated and avoid landfilling disposal [7]. A sustainable option to be adopted is to use recycled materials [8]. In order to achieve this target in the road sector, pavement engineers and researchers are studying different technologies to incorporate waste products coming from different sectors in the production of more eco-friendly pavement materials. Different types of recycled materials can be used in the production of road pavements and the use of construction and demolition waste (CDW) is widely spread to produce based and sub-base layers of pavements [9,10]. CDW is a heterogeneous waste material composed of several different constituents, outlined in Chapter 17 of the European Waste Catalogue [11]. One of the main components of construction and demolition waste is recycled concrete aggregate (RCA). With more than 10 billion tons per year produced all over the world, RCAs are solid wastes with higher recycling potential [12,13]. They result from the crushing of concrete from buildings and from the rigid pavement at the end of their life [14]. If previously investigated and properly qualified, RCAs can be used in the surface layer of road pavements and the always-incrementing use of them can lead to fewer tons of materials being taken into landfill every year [15]. Having said that, using RCAs as aggregates inside a surface layer of pavements could create an increment in environmental benefits in urban areas. A precise and specific regulation for the use of recycled aggregates in road construction and sector could lead to an increment in the recycling rate for all type of roads and road layers [16].
It has been widely proved that the majority of the environmental burdens and the most energy-demanding process in asphalt pavement construction is bitumen production [17,18,19]. It is demonstrated that bitumen has the highest impact in terms of global warming potential compared to raw materials due to the crude oil extraction and production process to create it [20]. Furthermore, the production phase of asphalt mixture accounts for more than 50% of the total emission related to the life cycle of road pavements, with bitumen as the leading contributor [21]. The research is advocating for the use of a non-bituminous binder, and in the context of urban pavements and UHI mitigation, light-coloured binders represent the right solution [22]. Usually, coloured and cool pavements are produced with the use of a bitumen-based clear binder, coloured pigments, or transparent resin [23]. An innovative solution is analysed in this paper, where the environmental burdens of a porous asphalt mixture made with a polyolefin-based synthetic transparent binder are investigated. Different studies already highlighted the thermal performances of a resin-based binder used for the surface layer and evaluated its environmental performances [24,25]. Furthermore, the use of RCAs together with these transparent binders contribute to creating “cool pavement”, which is a technology used for reducing the absorption of heat and resulting in a lower surface temperature [26]. These aspects are linked to the UHI phenomenon and are significantly influenced by the pavement developed during the recent few decades.
In this context of mitigation of the UHI phenomenon and reduction of the environmental impact associated with road pavement, porous asphalts are widely preferred [27,28]. Thanks to their properties of sound absorption and the capability of making the water infiltrate and refurbish the groundwater basins, permeable and porous pavements are reasonable solutions for reaching the European target. Moreover, a key process in the life cycle of road pavement is the transport of the materials and products associated with different phases, starting from the transport of raw materials to the transport of the waste to the landfills. As a result, a lot of studies underline that the bulk of emissions is associated with the transport process in different phases of the road life cycle [29,30]. Within this context, the most common way to evaluate the life cycle of a product, process, or activity is the life cycle assessment analysis. The life cycle assessment (LCA) is a well-known methodology used to evaluate the environmental performances associated with all stages of the life cycle of a product or process, based on the following international standards: ISO 14040 and ISO 14044 [31,32]. The LCA is not only crucial for assessing impacts on the environment from one stage of the life cycle to another, but it also helps decision-makers to compare multiple solutions and select the one less detrimental to the environment. Different studies have been carried out to assess the environmental impact of innovative road materials, enhancing the effects of using different wastes for a more sustainable asphalt mixture [33,34]. Here, comes the novelty of this research as it focuses mainly on the evaluation of the environmental impact of a porous asphalt mixture for urban pavements made with 50% of recycled concrete aggregates and a polyolefin-based synthetic transparent binder. The environmental burdens of the aforementioned materials are compared with a porous asphalt mixture composed of virgin aggregates and the polyolefin-based synthetic transparent binder to enhance the advantages connected to the use of recycled materials in new roads construction. For clarity of the data and the result, the environmental impacts of the two porous asphalt mixtures are normalised with respect to conventional porous asphalt, produced with a bituminous binder and virgin aggregates. The results show promising value for most of the indicators investigated in this research.

2. Materials and Methodology

2.1. Materials

Asphalt mixtures are usually composed of 95% of virgin aggregates and 5% of binder (usually, bitumen) that glue together the aggregates creating a cohesive mix [35]. This study aims to investigate and compare the environmental performances of two porous asphalt mixtures composed of virgin aggregates, recycled concrete aggregates, and an innovative polyolefin-based synthetic transparent binder. The two scenarios are defined and compared with a baseline scenario consisting of virgin aggregates and a polymer-modified bitumen, labelled as baseline_PA, which is traditionally used for porous asphalt. The virgin aggregates are pale limestone aggregates mainly composed of calcium carbonate coming from the province of Ancona, Italy. These specific aggregates are chosen since the innovative polyolefin-based synthetic transparent binder has the property of being transparent; hence, the light-coloured aggregates are needed to have a light-coloured pavement surface. Figure 1 represents an application of the innovative binder, taken from the producer archive.
The recycled aggregates used are construction and demolition waste aggregates, hereafter referred to as CDW aggregates, coming from the province of Bologna. The literature has shown a generic indication of CDW aggregates use in road pavement layers, according to which the main constituent of the materials should possibly be a crushed concrete and lytic material [37,38]. The CDW aggregates used in this study were previously analysed through laboratory investigation and they are composed of almost 90% of concrete products. The bitumen used is a polymer-modified bitumen 45/80–70 with SBS, specific for the use in porous asphalt. For completeness of the data, 0.3% of cellulose fibre was used as a stabilizing agent in the baseline_PA mixture to prevent bitumen from leaking. The polyolefin-based synthetic transparent binder is a commercial product, manufactured with polymers, resin, and oils. This binder is produced in Italy and has the characteristic to melt when it makes contact with the preheated aggregates at 170–180 °C. It is important to underline this property because no additional energy and heat are needed in the mixture production process to maintain the viscosity of the binder, which is necessary for the baseline bituminous scenario in order to allow the blending of bitumen and aggregates. The two different mixtures analysed in terms of environmental performance and the baseline scenario are listed and labelled as follows:
  • Mix-I: totally composed of limestone virgin aggregates and the polyolefin-based synthetic transparent binder.
  • Mix-II: composed of 50% of CDW aggregates, 50% of limestone virgin aggregates, and the polyolefin-based synthetic transparent binder.
  • Baseline_PA: composed of limestone virgin aggregates and polymer-modified bitumen.
It is worth underlining that each mixture was previously tested in the laboratory to assess its functional and mechanical properties. The tests validated the experimental mix designs, confirming the suitability of the proposed mixtures to produce porous pavements [36].

2.2. Methodology

A life cycle assessment (LCA) analysis was carried out to evaluate and compare the environmental performances of the two porous mixtures. The LCA allows the estimation of the environmental impact of products, processes, or activities through the identification and quantification of energy flows and materials [39]. The management of the environmental impacts of a life cycle starts from the extraction of raw material to the production phase, construction, service life, and disposal [40,41]. In this study, the LCA was limited to the production phase, without the impact concerning the construction and service life phases of road pavement being investigated. The criteria given by the Standard-ISO 14040 and ISO 14044 describe the LCA procedure and encompass four defined phases of the analysis as follows: goal and scope definition, life cycle inventory, life cycle impact assessment, and life cycle interpretation analysis.

2.2.1. Goal and Scope Definition

The scope of this study is to assess and compare two porous mixtures made with 50% of CDW aggregates, virgin aggregates, and an innovative polyolefin-based synthetic transparent binder. A comparative LCA approach is adopted in order to emphasise the advantages of using CDW aggregates and a bitumen-free binder in asphalt concrete. The environmental impacts of the mixtures are determined and quantified by referring to specific environmental indicators reported in Table 1 and Table 2. These indicators are chosen to enable a complete assessment of the environmental impact connected to porous asphalt production of the two mixtures investigated. A cradle-to-gate approach is developed for the LCA analysis. As shown in Figure 2, the system boundaries include the (1) extraction of primary raw materials and the production of the polyolefin-based synthetic transparent binder; (2) CDW aggregates production, involving the transport of the construction and demolition waste from the production site, the waste processing, and the recycling process; (3) transportation of primary raw materials and CDW aggregates to the asphalt plant; (4) production of the porous asphalt mixtures to the plant.
Table 1. Life cycle inventory data for 1 kg of Mix-II production.
Table 1. Life cycle inventory data for 1 kg of Mix-II production.
Data SetData SourceUnitData Value
CDW production[42]kg0.473
Polyolefin-based synthetic transparent binderChemical Companykg0.054
Gravel, crushed (GLO)|market for|Ecoinvent v.3.7kg0.4257
Limestone, crushed, for mill (GLO)|market for|Ecoinvent v.3.7kg0.0473
Production phase[43]p1
Materials 16 06540 g002

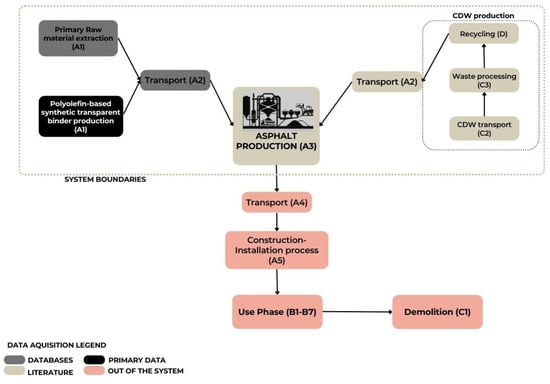

Figure 2. LCA system boundaries of this study with reference to the life cycle stages reported in EN 15804 (EN 15804, 2021 [44]).
Figure 2. LCA system boundaries of this study with reference to the life cycle stages reported in EN 15804 (EN 15804, 2021 [44]).
Materials 16 06540 g002
All the processes involving the construction phase, use phase, demolition phase, and landfill or recycling operation are excluded from this study. The declared unit (DU) is defined in relation to the aim of this study and in accordance with EN 15804, and it is equal to 1 kg of manufactured porous asphalt mixture [44]. As already mentioned, the two porous asphalt mixtures are defined and compared with a baseline scenario consisting of 94.3% of the same virgin aggregates, 0.3% of cellulose fibre, and 5.4% of polymer-modified bitumen. For modelling and evaluating the life cycle impacts the SimaPro 9.2 software is used. In order to ensure a representative production process, the inventory data are both primary data, specifically for the polyolefin-based synthetic transparent binder, and secondary data coming from Econinvent v.3.7 databases and the USLCI database. The impact assessment chosen is the ReCipe 2016 both at midpoint and endpoint levels to ensure a comprehensive assessment of the potential environmental burdens connected to the use of the polyolefin-based synthetic transparent binder and the CDW aggregates in new pavement construction.

2.2.2. Life Cycle Inventory

The LCI for each process of the analysed asphalt mixtures is a combination of primary and secondary data. The data relating to the polyolefin-based synthetic transparent binder were obtained by the chemical company, which is the exclusive producer of the binder. The exact percentage of the constituent materials is not publishable due to patent reasons. Thanks to the information collected from the company in terms of materials, transport, and energy, it was possible to have representative data and values for performing this study. All the other processes were taken from secondary data. The virgin aggregates required to produce the porous mixtures were designed as gravel and the LCI data connected to this were taken from the unit process “gravel, crushed (GLO)|market for gravel, crushed” of the Ecoinvent v.3.7 database. The same database was used for designing the process connected to the filler and to the cellulose fibre that was involved in the baseline_PA process (“limestone, crushed for mill (GLO)|market for limestone, crushed, for mill”; “cellulose fibre, inclusive blowing in (GLO)|market for”. The LCI data corresponding to the process of polymer-modified bitumen binder were obtained using the Eurobitume manual to produce the SBS as well as with the unit process “Bitumen, at refinery” from the database USLCI for the neat bitumen [45]. As a result, the final production of polymer-modified bitumen was developed in accordance with the aforementioned manual. To define the process of the CDW aggregates, data concerning the construction and demolition waste management and production were collected from the literature [42] Having no primary data, which were geolocalised in Italy, the production process connected to the production of the porous asphalt mixture was taken from the life cycle inventories found in the literature [30,45]. As already mentioned, the production process of the two porous mixtures developed with the polyolefin-based synthetic transparent binder was designed without considering the energy needed to keep the binder viscous, since the innovative material melts only when in contact with the hot aggregates. During the assembly of the “Production phase”, the unit process connected to the heat for maintaining the bitumen fluid was not considered. A summary of the LCI to produce 1 kg of porous asphalt mixture containing the CDW aggregates and the polyolefin-based synthetic transparent binder is shown in Table 1.

2.2.3. Life Cycle Impact Assessment

The next step of the LCA methodology is performing the assessment of the life cycle impacts. SimaPro 9.2 is used for LCA modelling and the development of the analysis. The inventories are analysed using the ReCipe 2016 midpoint and endpoint methods. The midpoint method includes 18 midpoint impact categories expressed in a reference substance unit, as well as the endpoint level including 3 different damage assessments as follows: human health, ecosystem, and resource availability. The 18 midpoint or problem-oriented indicator of the proposed method are characterized and explained as follows:
  • Climate change, in terms of global warming potential, based on the IPCC 2013 report and expressed in kg CO2 equivalents.
  • Ozone depletion accounts for the disruption of the stratospheric ozone layer by anthropogenic emissions of an ozone depleting substance. Expressed in kg of CFC-11 equivalents [46].
  • Ionizing radiation accounts for the level of exposure for the global population, in terms of kBq Cobalt-60 equivalents in air.
  • Fine particulate matter formation, expressed as the intake fraction of PM2.5, with kg of PM2.5 equivalents as units of measure.
  • Photochemical ozone formation, in terms of human health and terrestrial ecosystem, characterized by the intake rate of ozone due to change in the emission. The unit for both of them is kg/NOx equivalents.
  • Terrestrial acidification, accounts for the acidification potential (AP) derived using the emission weighted world average fate factor of SO2 [46].
  • Freshwater eutrophication, accounts for the environmental emission of P containing nutrients and expressed in kg of P to freshwater equivalents.
  • Marine eutrophication, accounts for the environmental emission of N containing nutrients and expressed in kg of N to marine equivalents.
  • Human toxicity and ecotoxicity, accounts for the environmental persistence and accumulation in the human food chain, and the toxicity of a chemical. They are expressed in terms of kg 1,4-dichlorobenzeen (1,4 DCB) emitted.
  • Land use and water use, expressed in m2 per year and in m3 of water consumed, respectively.
  • Mineral resource scarcity and fossil resource scarcity, expressed in kg of copper (Cu) equivalents for the first one and in kg oil equivalents for the second one.
A fulfilling list of the environmental categories is reported in Table 1 and Table 2. All the results are reported based on the baseline scenario and the indicators are selected to enable a complete and comprehensive assessment of the potential environmental damages connected to the use of the analysed porous asphalt mixtures.

3. Results and Discussion

The prime objective of the LCA analysis was to investigate the environmental performances of a porous asphalt mixture made with a polyolefin-based synthetic transparent binder and 50% of CDW aggregates and compare it with a mixture produced with virgin aggregates. For this study, the declared unit defined is 1 kg of a porous mixture and is in compliance with the European standard EN-15804. The results of the analysis are reported and compared with a baseline scenario, named baseline_PA, to assess and show the benefit connected with the innovative mixtures. Table 2 and Table 3 show the results for the two mixtures and the baseline scenario. The relative variations of LCA results of the porous mixture to the baseline_PA are reported in Figure 3 and Figure 4 for the midpoint level and endpoint level, respectively.
As other studies have already proved, the most environmentally detrimental process is the one connected to the bitumen [47,48,49]. Looking at the results of this study, it is possible to see that at midpoint level, Mix-I, which is composed of virgin aggregates, has a higher impact with respect to the baseline scenario for at least 50% of the impact categories analysed. This is mainly due to the composition of the polyolefin-based synthetic transparent binder. The innovative binder is not bitumen-based but some of its constituents are polymers and oils that are fossil fuel-based. This leads to high impact, especially looking at the indicators such as global warming, stratospheric ozone depletion, and ionizing radiation. Furthermore, almost 50% of its constituent materials undertake a long journey before arriving at the production plant and this highly affects the impact connected to the production of the binder. All these statements are well represented in Figure 5, where the contributions at the endpoint level of the polyolefin-based synthetic transparent binder and of the bitumen are evident. The Sankey diagrams reported in Figure 5 represent the contribution of each mixture’s constituents for the three damage categories analysed. On the other hand, thanks to the use of CDW aggregates, it is possible to view important changes in the analysis. In all the endpoint values, the mixture containing the CDW aggregates observe lower results if compared with the other mixtures, which is in line with the findings of other studies [35,50]. It is certain that all the midpoint categories show results lower than their virgin counterpart. However, some categories are still higher than the baseline scenario, and this is associated with the production process of the polyolefin-based synthetic transparent binder.
By looking at the baseline_PA scenario, bitumen certainly remains the most impactful material within the production process of asphalt concrete but, as this study shows, replacing bitumen with other binders that are still fossil fuel-based does not bring substantial benefits. Nonetheless, the benefits connected to the use of recycled aggregates rather than virgin aggregates are evident. As can be seen from the results above, despite the presence of the polyolefin-based synthetic transparent binder, it is possible to achieve significant environmental benefits and reduce the impact associated with the production of asphalt concrete with the use of CDW aggregates.

4. Conclusions

This study analysed the environmental potential of a porous mixture made of recycled concrete aggregates and a polyolefin-based synthetic transparent binder and compared it with a mixture made with virgin aggregates and the same innovative binder. The LCA was performed in compliance with the ISO 14040 series. ReCipe 2016 impact assessment method was adopted to investigate the environmental performances of the two different porous asphalt mixture scenarios at the midpoint and endpoint levels. The main conclusion and findings of this research are as follows:
  • The use of the polyolefin-based synthetic transparent binder increases the environmental burden in the impact categories connected to global warming potential.
  • Despite the fact that the polyolefin-based synthetic transparent binder is mainly composed of polymers, resin, and oil, and not bitumen, the high impact is associated with its virgin constituents, most of which are fossil fuel-based.
  • The transport and production of the polyolefin-based synthetic transparent binder components play a key role in the impact assessment. Through the LCA of the innovative binder, it was possible to see that the transport of its constituents affects its environmental performance.
  • CDW aggregates benefits, when compared with the baseline scenario, are not so evident for the categories concerning the global warming potential, since the bulk of the emission associated with it is connected to the production of the innovative binder.
  • Nonetheless, it is possible to state that the use of CDW aggregates is beneficial since all the environmental impacts associated with Mix-II are lower compared to its virgin counterpart.
  • However, as stated by different studies, possible additional environmental impacts of CDW aggregates are associated with their management; hence, the CED indicator should be considered in future studies [51,52].
  • Mix-II is the most environmentally friendly porous asphalt mixture with respect to the impact categories of mineral resource scarcity, land use, and water consumption.
The use of recycled materials in the design and construction of new roads, especially in an urban area, is of great importance [19,53]. From this research, it is possible to state that using a different type of binder, classified as no-bituminous, does not necessarily lead to a decrease in the impact associated with the production of an asphalt mixture. A life cycle assessment considering a cradle-to-cradle approach should be investigated in a future study to examine the environmental potential of the analysed mixtures in their whole life cycle. Future studies should focus on the use phase of the innovative pavement since its beneficial contribution is mostly attributed to its transparent and light colour. During the use phase the innovative binder would contribute positively to the decrease of the UHI connected to the road pavements. Hence, the use of this binder does not affect the useful life of a road pavement since the mechanical performance of it is totally comparable with that of traditional bituminous porous asphalt. Furthermore, a sensitivity analysis to produce the polyolefin-based synthetic transparent binder should be developed to understand the most detrimental process connected with it.

Author Contributions

Conceptualization, B.D.P. and P.T.; Software, A.B.; Validation, A.B. and C.L.; Formal analysis, B.D.P.; Investigation, B.D.P.; Resources, P.T.; Data curation, B.D.P.; Writing—original draft, B.D.P.; Writing—review & editing, P.T., A.B. and C.L.; Supervision, P.T., A.B. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Informed Consent Statement

Not applicable.

Data Availability Statement

Other data are not available due to confidentiality.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Braga, A.M.; Silvestre, J.D.; de Brito, J. Compared Environmental and Economic Impact from Cradle to Gate of Concrete with Natural and Recycled Coarse Aggregates. J. Clean. Prod. 2017, 162, 529–543. [Google Scholar] [CrossRef]
  2. Lvel, J.; Watson, R.; Abbassi, B.; Abu-Hamatteh, Z.S. Life Cycle Analysis of Concrete and Asphalt Used in Road Pavements. Environ. Eng. Res. 2020, 25, 52–61. [Google Scholar] [CrossRef]
  3. Ruuska, A.; Häkkinen, T. Material Efficiency of Building Construction. Buildings 2014, 4, 266–294. [Google Scholar] [CrossRef]
  4. Qiao, Y.; Wang, Z.; Meng, F.; Parry, T.; Cullen, J.; Liu, S. Evaluating the Economic and Environmental Impacts of Road Pavement Using an Integrated Local Sensitivity Model. J. Clean. Prod. 2022, 371, 133615. [Google Scholar] [CrossRef]
  5. Nalbandian, K.M.; Carpio, M.; González, Á. Assessment of the Sustainability of Asphalt Pavement Maintenance Using the Microwave Heating Self-Healing Technique. J. Clean. Prod. 2022, 365, 132859. [Google Scholar] [CrossRef]
  6. Swarna, S.T.; Hossain, K.; Bernier, A. Climate Change Adaptation Strategies for Canadian Asphalt Pavements; Part 2: Life Cycle Assessment and Life Cycle Cost Analysis. J. Clean. Prod. 2022, 370, 133355. [Google Scholar] [CrossRef]
  7. Mattinzioli, T.; Sol-Sanchez, M.; Moreno-Navarro, F.; Rubio-Gamez, M.C.; Martinez, G. Benchmarking the Embodied Environmental Impacts of the Design Parameters for Asphalt Mixtures. Sustain. Mater. Technol. 2022, 32, e00395. [Google Scholar] [CrossRef]
  8. Pourkhorshidi, S.; Sangiorgi, C.; Torreggiani, D.; Tassinari, P. Using Recycled Aggregates from Construction and Demolition Waste in Unbound Layers of Pavements. Sustainability 2020, 12, 9386. [Google Scholar] [CrossRef]
  9. Tefa, L.; Bianco, I.; Blengini, G.A.; Bassani, M. Integrated and Comparative Structural-LCA Analysis of Unbound and Cement-Stabilized Construction and Demolition Waste Aggregate for Subbase Road Pavement Layers Formation. J. Clean. Prod. 2022, 352, 131599. [Google Scholar] [CrossRef]
  10. Sangiorgi, C.; Lantieri, C.; Dondi, G. Construction and Demolition Waste Recycling: An Application for Road Construction. Int. J. Pavement Eng. 2015, 16, 530–537. [Google Scholar] [CrossRef]
  11. Commission of The European Communities Eurostat. Guidance on Classification of Waste According to EWC-Stat Categories Supplement to the Manual for the Implementation of the Regulation (EC) No 2150/2002 on Waste Statistics, Directorate E: Sectoral and Regional Statistics Unit E-3: Environmental and Forestry Statistics; Eurostat: Luxembourg, 2010. [Google Scholar]
  12. Aslam, M.S.; Huang, B.; Cui, L. Review of Construction and Demolition Waste Management in China and USA. J. Environ. Manag. 2020, 264, 110445. [Google Scholar] [CrossRef] [PubMed]
  13. Polo-Mendoza, R.; Peñabaena-Niebles, R.; Giustozzi, F.; Martinez-Arguelles, G. Eco-Friendly Design of Warm Mix Asphalt (WMA) with Recycled Concrete Aggregate (RCA): A Case Study from a Developing Country. Constr. Build. Mater. 2022, 326, 126890. [Google Scholar] [CrossRef]
  14. Farina, I.; Colangelo, F.; Petrillo, A.; Ferraro, A.; Moccia, I.; Cioffi, R. LCA of Concrete with Construction and Demolition Waste. In Advances in Construction and Demolition Waste Recycling; Woodhead Publishing: Sawston, UK, 2020; pp. 501–513. [Google Scholar] [CrossRef]
  15. Ossa, A.; García, J.L.; Botero, E. Use of Recycled Construction and Demolition Waste (CDW) Aggregates: A Sustainable Alternative for the Pavement Construction Industry. J. Clean. Prod. 2016, 135, 379–386. [Google Scholar] [CrossRef]
  16. Roque, A.J.; Da Silva, P.F.; Rodrigues, G.; Almeida, R. Recycling of CDW and Steel Slag in Drainage Layers of Transport Infrastructures. Procedia Eng. 2016, 143, 196–203. [Google Scholar] [CrossRef]
  17. Santos, J.; Bressi, S.; Cerezo, V.; lo Presti, D.; Dauvergne, M. Life Cycle Assessment of Low Temperature Asphalt Mixtures for Road Pavement Surfaces: A Comparative Analysis. Resour. Conserv. Recycl. 2018, 138, 283–297. [Google Scholar] [CrossRef]
  18. Santos, J.; Cerezo, V.; Soudani, K.; Bressi, S. A Comparative Life Cycle Assessment of Hot Mixes Asphalt Containing Bituminous Binder Modified with Waste and Virgin Polymers. Procedia CIRP 2018, 69, 194–199. [Google Scholar] [CrossRef]
  19. Negishi, K.; De Montaignac, R.; Miravalls, N. Materials Role in Pavement Design and Its Impacts in LCA of Road Construction and Use Phase. IOP Conf. Ser. Earth Environ. Sci. 2022, 1122, 012037. [Google Scholar] [CrossRef]
  20. Espinoza, M.; Campos, N.; Yang, R.; Ozer, H.; Aguiar-Moya, J.P.; Baldi, A.; Loría-Salazar, L.G.; Al-Qadi, I.L. Carbon Footprint Estimation in Road Construction: La Abundancia-Florencia Case Study. Sustainability 2019, 11, 2276. [Google Scholar] [CrossRef]
  21. Giunta, M.; Mistretta, M.; Praticò, F.G.; Gulotta, T.M. Environmental Sustainability and Energy Assessment of Bituminous Pavements Made with Unconventional Materials. In Lecture Notes in Civil Engineering; Springer: Berlin/Heidelberg, Germany, 2020; Volume 48, pp. 123–132. [Google Scholar]
  22. Santamouris, M. Using Cool Pavements as a Mitigation Strategy to Fight Urban Heat Island—A Review of the Actual Developments. Renew. Sustain. Energy Rev. 2013, 26, 224–240. [Google Scholar] [CrossRef]
  23. Tang, P.; Mo, L.; Pan, C.; Fang, H.; Javilla, B.; Riara, M. Investigation of Rheological Properties of Light Colored Synthetic Asphalt Binders Containing Different Polymer Modifiers. Constr. Build. Mater. 2018, 161, 175–185. [Google Scholar] [CrossRef]
  24. Kousis, I.; Fabiani, C.; Ercolanoni, L.; Pisello, A.L. Using Bio-Oils for Improving Environmental Performance of an Advanced Resinous Binder for Pavement Applications with Heat and Noise Island Mitigation Potential. Sustain. Energy Technol. Assess. 2020, 39, 100706. [Google Scholar] [CrossRef]
  25. Rosso, F.; Pisello, A.L.; Cotana, F.; Ferrero, M. On the Thermal and Visual Pedestrians’ Perception about Cool Natural Stones for Urban Paving: A Field Survey in Summer Conditions. Build. Environ. 2016, 107, 198–214. [Google Scholar] [CrossRef]
  26. Aletba, S.R.O.; Abdul Hassan, N.; Putra Jaya, R.; Aminudin, E.; Mahmud, M.Z.H.; Mohamed, A.; Hussein, A.A. Thermal Performance of Cooling Strategies for Asphalt Pavement: A State-of-the-Art Review. J. Traffic Transp. Eng. 2021, 8, 356–373. [Google Scholar] [CrossRef]
  27. Antunes, L.N.; Sydney, C.; Ghisi, E.; Phoenix, V.R.; Thives, L.P.; White, C.; Garcia, E.S.H. Reduction of Environmental Impacts Due to Using Permeable Pavements to Harvest Stormwater. Water 2020, 12, 2840. [Google Scholar] [CrossRef]
  28. De Pascale, B.; Tataranni, P.; Lantieri, C.; Bonoli, A.; Vignali, V. Mechanical Performance and Environmental Assessment of Porous Asphalt Mixtures Produced with EAF Steel Slags and RAP Aggregates. Constr. Build. Mater. 2023, 400, 132889. [Google Scholar] [CrossRef]
  29. Gschösser, F.; Wallbaum, H. Life Cycle Assessment of Representative Swiss Road Pavements for National Roads with an Accompanying Life Cycle Cost Analysis. Environ. Sci. Technol. 2013, 47, 8453–8461. [Google Scholar] [CrossRef] [PubMed]
  30. Siverio Lima, M.S.; Hajibabaei, M.; Hesarkazzazi, S.; Sitzenfrei, R.; Buttgereit, A.; Queiroz, C.; Haritonovs, V.; Gschösser, F. Determining the Environmental Potentials of Urban Pavements by Applying the Cradle-to-Cradle Lca Approach for a Road Network of a Midscale German City. Sustainability 2021, 13, 12487. [Google Scholar] [CrossRef]
  31. ISO 14040:2006. Environmental Management-Life Cycle Assessment-Principles and Framework. ISO: Geneva, Switzerland, 2006; ISBN 9780539013481.
  32. In ISO 14044:2006; Environmental Management-Life Cycle Assessment-Requirements and Guidelines. ISO: Geneva, Switzerland, 2021; ISBN 9780539013498.
  33. Xu, X.; Luo, Y.; Sreeram, A.; Wu, Q.; Chen, G.; Cheng, S.; Chen, Z.; Chen, X. Potential Use of Recycled Concrete Aggregate (RCA) for Sustainable Asphalt Pavements of the Future: A State-of-the-Art Review. J. Clean. Prod. 2022, 344, 130893. [Google Scholar] [CrossRef]
  34. Abdalla, A.; Faheem, A.F.; Walters, E. Life Cycle Assessment of Eco-Friendly Asphalt Pavement Involving Multi-Recycled Materials: A Comparative Study. J. Clean. Prod. 2022, 362, 132471. [Google Scholar] [CrossRef]
  35. Nwakaire, C.M.; Yap, S.P.; Onn, C.C.; Yuen, C.W.; Ibrahim, H.A. Utilisation of Recycled Concrete Aggregates for Sustainable Highway Pavement Applications; a Review. Constr. Build. Mater. 2020, 235, 117444. [Google Scholar] [CrossRef]
  36. De Pascale, B.; Tataranni, P.; Lantieri, C.; Bonoli, A.; Sangiorgi, C. Innovative Light-Coloured Porous Asphalt for Low-Impact Pavements: A Laboratory Investigation. Constr. Build. Mater. 2023, 368, 130482. [Google Scholar] [CrossRef]
  37. Jiménez, J.R.; Ayuso, J.; Agrela, F.; López, M.; Galvín, A.P. Utilisation of Unbound Recycled Aggregates from Selected CDW in Unpaved Rural Roads. Resour. Conserv. Recycl. 2012, 58, 88–97. [Google Scholar] [CrossRef]
  38. Garzón, E.; Martínez-Martínez, S.; Pérez-Villarrejo, L.; Sánchez-Soto, P.J. Assessment of Construction and Demolition Wastes (CDWs) as Raw Materials for the Manufacture of Low-Strength Concrete and Bases and Sub-Bases of Roads. Mater. Lett. 2022, 320, 132343. [Google Scholar] [CrossRef]
  39. Manjunatha, M.; Preethi, S.; Malingaraya; Mounika, H.G.; Niveditha, K.N.; Ravi Life Cycle Assessment (LCA) of Concrete Prepared with Sustainable Cement-Based Materials. Mater. Today Proc. 2021, 47, 3637–3644. [Google Scholar] [CrossRef]
  40. Khasreen, M.M.; Banfill, P.F.G.; Menzies, G.F. Life-Cycle Assessment and the Environmental Impact of Buildings: A Review. Sustainability 2009, 1, 674–701. [Google Scholar] [CrossRef]
  41. Haider, H.; Almarshod, S.Y.; Alsaleem, S.S.; Ali, A.A.M.M.; Alinizzi, M.; Alresheedi, M.T.; Shafiquzzaman, M. Life Cycle Assessment of Construction and Demolition Waste Management in Riyadh, Saudi Arabia. Int. J. Environ. Res. Public. Health 2022, 19, 7382. [Google Scholar] [CrossRef] [PubMed]
  42. Borghi, G.; Pantini, S.; Rigamonti, L. Life Cycle Assessment of Non-Hazardous Construction and Demolition Waste (CDW) Management in Lombardy Region (Italy). J. Clean. Prod. 2018, 184, 815–825. [Google Scholar] [CrossRef]
  43. Lima, M.S.S.; Hajibabaei, M.; Hesarkazzazi, S.; Sitzenfrei, R.; Buttgereit, A.; Queiroz, C.; Tautschnig, A.; Gschösser, F. Environmental Potentials of Asphalt Materials Applied to Urban Roads: Case Study of the City of Münster. Sustainability 2020, 12, 6113. [Google Scholar] [CrossRef]
  44. BS EN 15804:2012. BSI Standards Publication Sustainability of Construction Works-Environmental Product Declarations-Core Rules for the Product Category of Construction Products. British Standards Institution: London, UK, 2021; ISBN 9780539190427.
  45. Eurobitume. Oil Extraction Refining Storage Transport. In The Eurobitume Life-Cycle Inventory for Bitumen; European Bitumen Association: Brussels, Belgium, 2020. [Google Scholar]
  46. SimaPro Database Manual Methods Library; December 2021, PRé Sustainability. Available online: https://simapro.com/wp-content/uploads/2021/12/DatabaseManualMethods930.pdf (accessed on 10 September 2023).
  47. Sollazzo, G.; Longo, S.; Cellura, M.; Celauro, C. Impact Analysis Using Life Cycle Assessment of Asphalt Production from Primary Data. Sustainability 2020, 12, 10171. [Google Scholar] [CrossRef]
  48. Morsali, S. Damage Assessment of Bitumen Refineries Using Simapro (LCA) Inventory Data. J. Pet. Environ. Biotechnol. 2017, 8, 317. [Google Scholar] [CrossRef]
  49. Park, W.J.; Kim, R.; Roh, S.; Ban, H. Analysis of Major Environmental Impact Categories of Road Construction Materials. Sustainability 2020, 12, 6951. [Google Scholar] [CrossRef]
  50. Marinković, S.B.; Ignjatović, I.; Radonjanin, V. Life-Cycle Assessment (LCA) of Concrete with Recycled Aggregates (RAs). In Handbook of Recycled Concrete and Demolition Waste; Elsevier Inc.: Amsterdam, The Netherlands, 2013; pp. 569–604. ISBN 9780857096906. [Google Scholar]
  51. Devaki, H.; Shanmugapriya, S. LCA on Construction and Demolition Waste Management Approaches: A Review. Mater. Today Proc. 2022, 65, 764–770. [Google Scholar] [CrossRef]
  52. Mesa, J.A.; Fúquene, C.E.; Maury-Ramírez, A. Life Cycle Assessment on Construction and Demolition Waste: A Systematic Literature Review. Sustainability 2021, 13, 7676. [Google Scholar] [CrossRef]
  53. Chen, M.J.; Wong, Y.D. Porous Asphalt Mixture with 100% Recycled Concrete Aggregate. Road Mater. Pavement Des. 2013, 14, 921–932. [Google Scholar] [CrossRef]
Materials 16 06540 g001

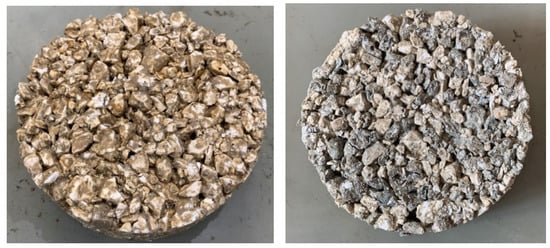

Figure 1. Application of the innovative binder [36].
Figure 1. Application of the innovative binder [36].
Materials 16 06540 g001
Materials 16 06540 g003

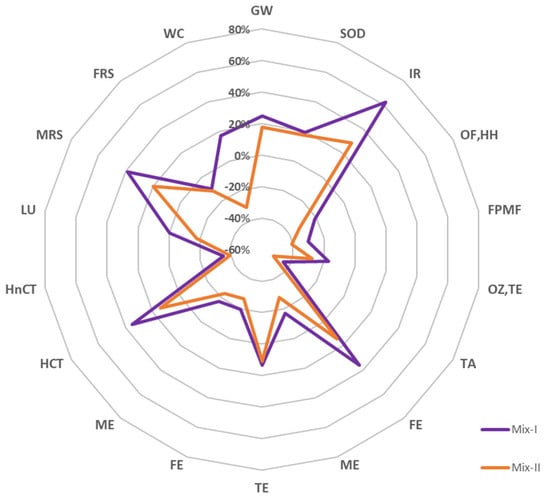

Figure 3. Relative variations of mid−point results with respect to the baseline scenario. Acronyms: GW: global warming; SOD: stratospheric ozone depletion; IR: ionizing radiation; OF, HH: ozone formation, human health; FPMF: fine particulate matter formation; OF, TE: ozone formation, terrestrial ecosystem; TA: terrestrial acidification; FE: freshwater eutrophication; ME: marine eutrophication; TE: terrestrial ecotoxicity; FE: freshwater ecotoxicity; ME: marine ecotoxicity; HCT: human carcinogenic toxicity; HnCT: human non−carcinogenic toxicity; LU: land use; MRS: mineral resource scarcity; FRS: fossil resource scarcity; WC: water consumption.
Figure 3. Relative variations of mid−point results with respect to the baseline scenario. Acronyms: GW: global warming; SOD: stratospheric ozone depletion; IR: ionizing radiation; OF, HH: ozone formation, human health; FPMF: fine particulate matter formation; OF, TE: ozone formation, terrestrial ecosystem; TA: terrestrial acidification; FE: freshwater eutrophication; ME: marine eutrophication; TE: terrestrial ecotoxicity; FE: freshwater ecotoxicity; ME: marine ecotoxicity; HCT: human carcinogenic toxicity; HnCT: human non−carcinogenic toxicity; LU: land use; MRS: mineral resource scarcity; FRS: fossil resource scarcity; WC: water consumption.
Materials 16 06540 g003
Materials 16 06540 g004

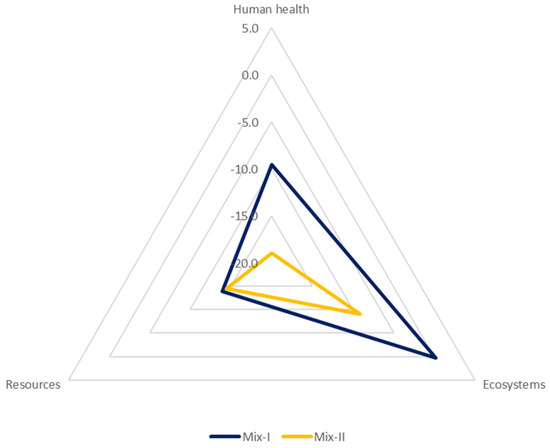

Figure 4. Relative variation of end−point results with respect to the baseline scenario.
Figure 4. Relative variation of end−point results with respect to the baseline scenario.
Materials 16 06540 g004
Materials 16 06540 g005

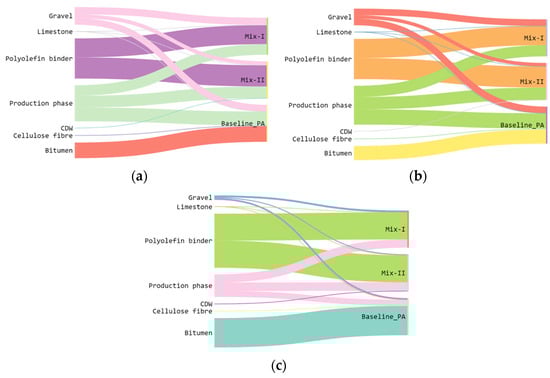

Figure 5. Sankey diagram for the sub-process contribution of Mix-I, Mix-II, and baseline scenario to the damage categories of (a) human health, (b) the ecosystem, and (c) resources.
Figure 5. Sankey diagram for the sub-process contribution of Mix-I, Mix-II, and baseline scenario to the damage categories of (a) human health, (b) the ecosystem, and (c) resources.
Materials 16 06540 g005
Table 2. LCIA results for the two porous asphalt mixtures and the baseline scenario at the midpoint level.
Table 2. LCIA results for the two porous asphalt mixtures and the baseline scenario at the midpoint level.
Impact CategoryUnitType of Mixtures
Baseline_PAMix-IMix-II
Global warmingkg CO2 eq0.092480.115430.10904
Stratospheric ozone depletionkg CFC-11 eq3.25 × 10−83.87 × 10−83.81 × 10−8
Ionizing radiationkBq Co-60 eq0.002050.003330.00264
Ozone formation, human healthkg NOxeq0.000390.000310.00027
Fine particulate matter formationkg PM2.5 eq0.000220.000150.00013
Ozone formation, terrestrial ecosystemkg NOxeq0.000420.000350.00030
Terrestrial acidificationkg SO2 eq0.000640.000400.00031
Freshwater eutrophicationkg P eq1.60 × 10−52.18 × 10−51.83 × 10−5
Marine eutrophicationkg N eq2.06 × 10−61.71 × 10−61.50 × 10−6
Terrestrial ecotoxicitykg 1.4-DCB0.407150.461580.45212
Freshwater ecotoxicitykg 1.4-DCB0.002430.001940.00178
Marine ecotoxicitykg 1.4-DCB0.003500.002910.00268
Human carcinogenic toxicitykg 1.4-DCB0.002580.003490.00296
Human non-carcinogenic toxicitykg 1.4-DCB0.095910.062290.05817
Land usem2a crop eq0.002430.002420.00199
Mineral resource scarcitykg Cu eq0.000170.000240.00020
Fossil resource scarcitykg oil eq0.084270.075880.07449
Water consumptionm30.001110.001290.00076
Table 3. LCIA results for the two porous asphalt mixtures and the baseline scenario at the endpoint level.
Table 3. LCIA results for the two porous asphalt mixtures and the baseline scenario at the endpoint level.
Damage CategoryUnitType of Mixtures
Baseline_PAMix-IMix-II
Human HealthDALY2.56 × 10−72.31 × 10−72.07 × 10−7
Ecosystemspecies.yr5.02 × 10−105.03 × 10−104.56 × 10−10
ResourcesUSD 20130.0352210.0303310.030125
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

De Pascale, B.; Tataranni, P.; Bonoli, A.; Lantieri, C. Comparative Life Cycle Assessment (LCA) of Porous Asphalt Mixtures with Sustainable and Recycled Materials: A Cradle-to-Gate Approach. Materials 2023, 16, 6540. https://doi.org/10.3390/ma16196540

AMA Style

De Pascale B, Tataranni P, Bonoli A, Lantieri C. Comparative Life Cycle Assessment (LCA) of Porous Asphalt Mixtures with Sustainable and Recycled Materials: A Cradle-to-Gate Approach. Materials. 2023; 16(19):6540. https://doi.org/10.3390/ma16196540

Chicago/Turabian Style

De Pascale, Beatrice, Piergiorgio Tataranni, Alessandra Bonoli, and Claudio Lantieri. 2023. "Comparative Life Cycle Assessment (LCA) of Porous Asphalt Mixtures with Sustainable and Recycled Materials: A Cradle-to-Gate Approach" Materials 16, no. 19: 6540. https://doi.org/10.3390/ma16196540

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
