Pilot Demonstration of a Strengthening Method for Steel-Bolted Connections Using Pre-Formable Carbon Fiber Cloth with VaRTM
Abstract
1. Introduction
1.1. Research Background

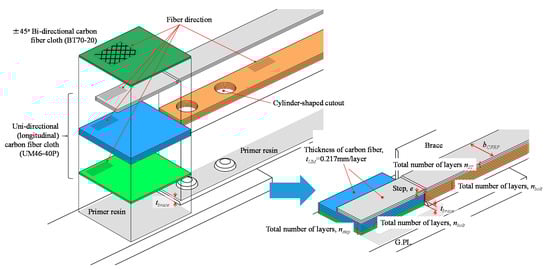

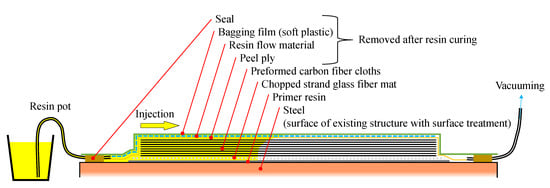

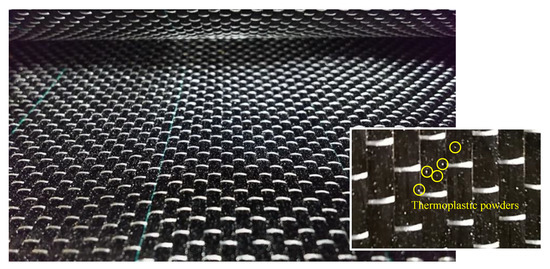

1.2. Strengthening Method Using CFRP by VaRTM
2. Experimental Methods

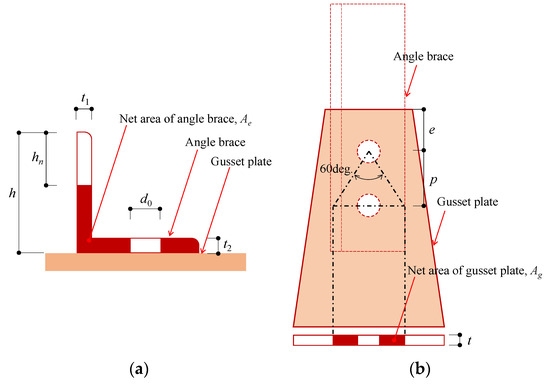

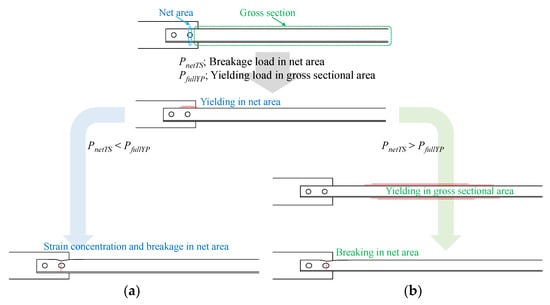

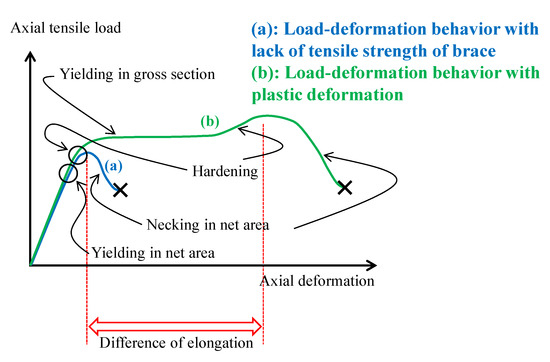

2.1. Seismic Resisting Steel Braces and Its Seismic Performance Evaluation
- (1) Ultimate shear strength of bolts:
- (2) Tensile strength of brace in net area:
- (3) Shear-out strength of brace or gusset plate:
- (4) Ultimate strength of gusset plate in net area:

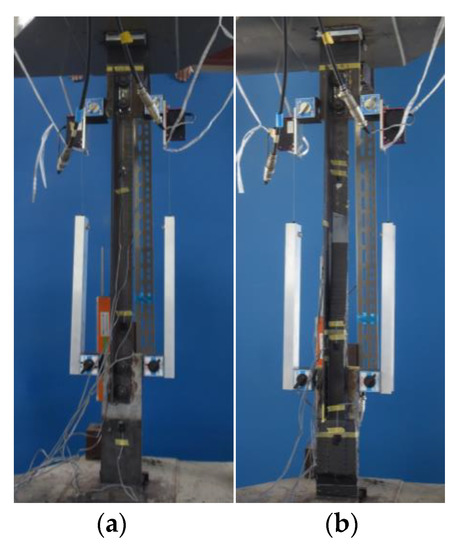

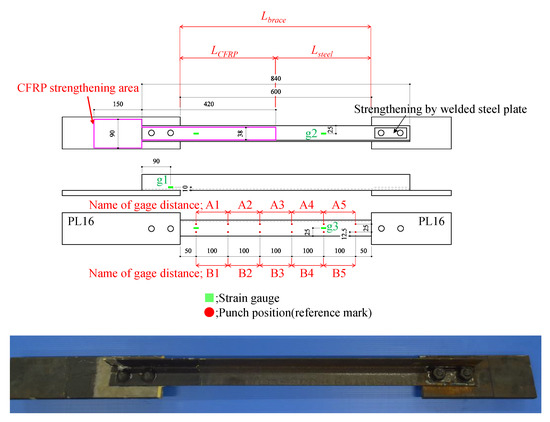

2.2. Specimens

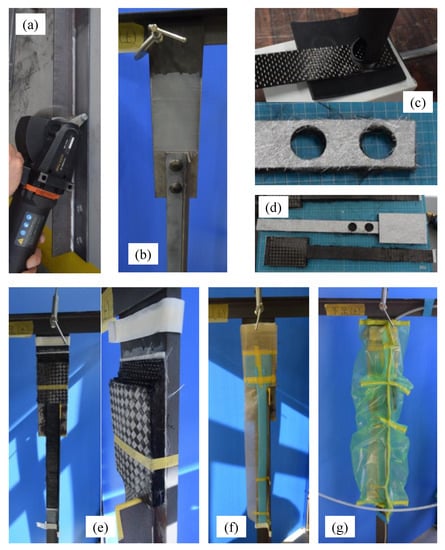

2.3. Specimen Preparation

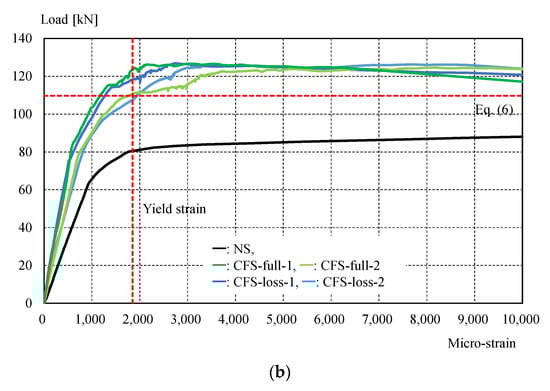

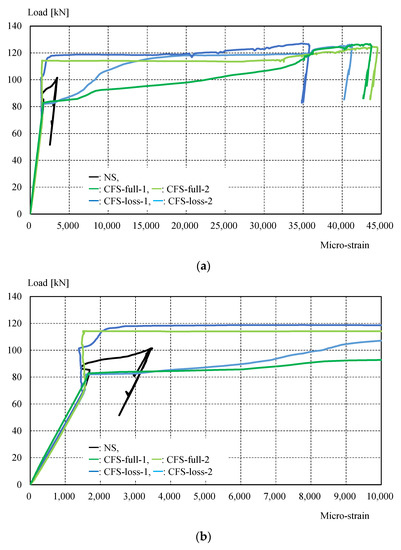

3. Experimental Results
4. Conclusions
- We proposed a strengthening method using carbon fiber cloth for steel brace connections with steps and demonstrated that molding and bonding can be successfully conducted using VaRTM.

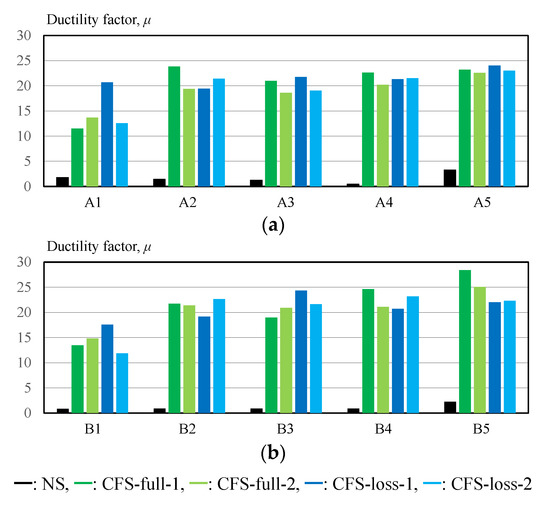

- The load-carrying capacity of the connection and the ductility factor of the steel brace were significantly improved using CFRP strengthening.
- The total elongation of the steel brace can be estimated using 3% plastic deformation of the length of bare steel position.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Nakashima, M.; Inoue, K.; Tada, M. Classification of damage to steel buildings observed in the 1995 Hyogoken-Nanbu earthquake. Eng. Struct. 1998, 20, 271–281. [Google Scholar] [CrossRef]
- Mahin, S.A. Lessons from damage to steel buildings during the Northridge earthquake. Eng. Struct. 1998, 20, 261–270. [Google Scholar] [CrossRef]
- Di Sarno, L.; Elnashai, A.S. Bracing systems for seismic retrofitting of steel frames. J. Constr. Steel Res. 2009, 65, 452–465. [Google Scholar] [CrossRef]
- Usami, T.; Lu, Z.; Ge, H. A seismic upgrading method for steel arch bridges using buckling-restrained braces. Earthq. Eng. Struct. Dyn. 2005, 34, 471–496. [Google Scholar] [CrossRef]
- Cui, Y.; Asada, H.; Kishiki, S.; Yamada, S. Ultimate strength of gusset plate connections with fillet welds. J. Constr. Steel Res. 2012, 75, 104–115. [Google Scholar] [CrossRef]
- Japan Building Disaster Prevention Association. Recommendations of Seismic Diagnosis and Retrofitting on Existing Steel Buildings for Seismic Retrofitting Promotion Law; Japan Building Disaster Prevention Association: Tokyo, Japan, 2011. [Google Scholar]
- Tena-Colunga, A.; Vergara, A. Comparative study on the seismic retrofit of a mid-rise steel building: Steel bracing vs energy dissipation. Earthq. Eng. Struct. Dyn. 1997, 26, 637–655. [Google Scholar] [CrossRef]
- Architectural Institute of Japan. AIJ Design Standard for Steel Structures—Based on Allowable Stress Concept; Architectural Institute of Japan: Tokyo, Japan, 2005; ISBN 978-4-8189-5002-3. [Google Scholar]
- Tremblay, R. Inelastic seismic response of steel bracing members. J. Constr. Steel Res. 2002, 58, 665–701. [Google Scholar] [CrossRef]
- Kasai, K.; Hodgson, I.; Bleiman, D. Rigid-bolted repair method for damaged moment connections. Eng. Struct. 1998, 20, 521–532. [Google Scholar] [CrossRef]
- Zhao, X.L.; Zhang, L. State-of-the-art review on FRP strengthened steel structures. Eng. Struct. 2007, 29, 1808–1823. [Google Scholar] [CrossRef]
- Teng, J.G.; Yu, T.; Fernando, D. Strengthening of steel structures with fiber-reinforced polymer composites. J. Constr. Steel Res. 2012, 78, 131–143. [Google Scholar] [CrossRef]
- Hosseini, A.; Ghafoori, E.; Al-Mahaidi, R.; Zhao, X.L.; Motavalli, M. Strengthening of a 19th-century roadway metallic bridge using nonprestressed bonded and prestressed unbonded CFRP plates. Constr. Build. Mater. 2019, 209, 240–259. [Google Scholar] [CrossRef]
- Linghoff, D.; Haghani, R.; Al-Emrani, M. Carbon-fibre composites for strengthening steel structures. Thin-Walled Struct. 2009, 47, 1048–1058. [Google Scholar] [CrossRef]
- Siwowski, T.W.; Siwowska, P. Experimental study on CFRP-strengthened steel beams. Compos. Part B Eng. 2018, 149, 12–21. [Google Scholar] [CrossRef]
- Gao, X.Y.; Balendra, T.; Koh, C.G. Buckling strength of slender circular tubular steel braces strengthened by CFRP. Eng. Struct. 2013, 46, 547–556. [Google Scholar] [CrossRef]
- Kabir, M.H.; Fawzia, S.; Chan, T.H.T.; Gamage, J.C.P.H.; Bai, J.B. Experimental and numerical investigation of the behaviour of CFRP strengthened CHS beams subjected to bending. Eng. Struct. 2016, 113, 160–173. [Google Scholar] [CrossRef]
- Majidi, H.R.; Razavi, S.M.J.; Berto, F. Failure Assessment of Steel/CFRP Double Strap Joints. Metals 2017, 7, 255. [Google Scholar] [CrossRef]
- Shi, J.; Jia, B.; Ren, Y.; Zhang, X.; Luo, J. Study on the Interface Constitutive Relation between Carbon Fiber Fabric and Steel. Materials 2020, 13, 3263. [Google Scholar] [CrossRef] [PubMed]
- Jiao, H.; Mashiri, F.; Zhao, X.L. A comparative study on fatigue behaviour of steel beams retrofitted with welding, pultruded CFRP plates and wet layup CFRP sheets. Thin-Walled Struct. 2012, 144–152. [Google Scholar] [CrossRef]
- Mieda, G.; Nakamura, H.; Matsui, T.; Ochi, Y.; Matsumoto, Y. Mechanical behavior of CFRP on steel surface molded and bonded by vacuum assisted resin transfer molding technology. SN Appl. Sci. 2019, 1, 601. [Google Scholar] [CrossRef]
- JEC Group. The Challenging World of Composites; JEC Group: Paris, France, 2013. [Google Scholar]
- Joint Editorial Committee for the Report on the Great East Japan Earthquake Disaster. Report on the Great East Japan Earthquake Disaster, Building Series Volume 3; Joint Editorial Committee for the Report on the Great East Japan Earthquake Disaster: Tokyo, Japan, 2014. [Google Scholar]
- Japan Industrial Standards Committee. Japan Industrial Standards JIS G 3101; Japan Industrial Standards Committee: Tokyo, Japan, 2020. [Google Scholar]
- TORAYCA® Cloth Method Specifications/Performance. Available online: https://www.torayca.com/en/lineup/industrial/ind_012.html (accessed on 10 April 2021).
Failure Mode | Load-Carrying Capacity | Equation |
---|---|---|
Ultimate shear strength of bolts | 241 kN | (2) |
Tensile strength of brace in net area | 70.8 kN | (3) |
Shear-out strength of gusset plate | 144 kN | (4) |
Ultimate strength of gusset plate net area | 576 kN | (5) |
JBDPA requirement | 110 kN | (6) |

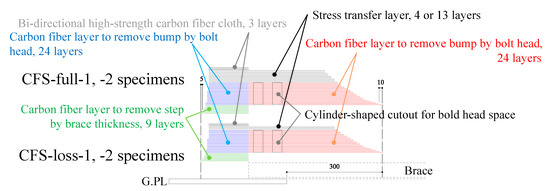

Specimen Name | Strengthening | Number of Specimens |
---|---|---|
NS | N/A | 1 |
CFS-full-1, -2 | Gross sectional strengthening model | 2 |
CFS-loss-1, -2 | Sectional loss strengthening model | 2 |
Material | Elastic Modulus | Yield Point | Tensile Strength |
---|---|---|---|
Steel (angle steel) | 200 GPa *1 | 370 Mpa *2 | 457 Mpa *2 |
UM46-40P [25] | 440 Gpa | - | 2400 Mpa |
BT70-20 [25] | 230 GPa | - | 2900 MPa |

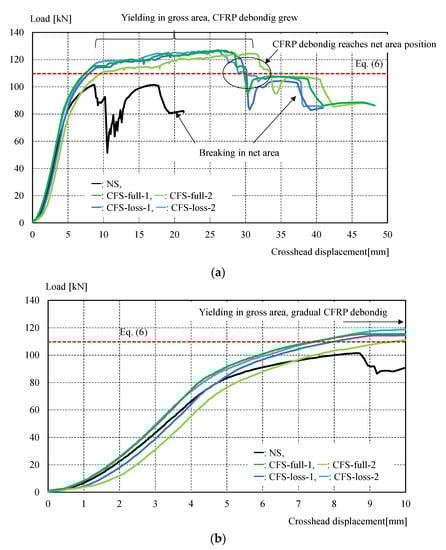

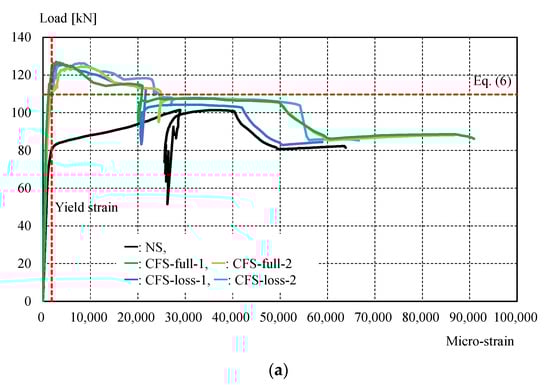

Specimen Name | Maximum Load | Failure Mode |
---|---|---|
NS | 102 kN | Yielding and breaking at net area. |

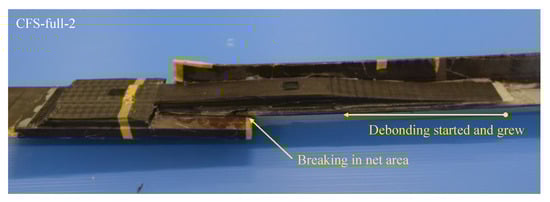

CFS-full-1 | 125 kN | (1) Yielding in gross sectional area; (2) debonding of CFRP; (3) yielding at breakage in net area. |
CFS-full-2 | 127 kN | |
CFS-loss-1 | 126 kN | |
CFS-loss-2 | 127 kN |
