Phonon Sideband Analysis and Near-Infrared Emission in Heavy Metal Oxide Glasses

by
Joanna Pisarska
1,*,
Wojciech A. Pisarski
1,
Radosław Lisiecki
2 and
Witold Ryba-Romanowski
2
1
Institute of Chemistry, University of Silesia, Szkolna 9 Street, 40-007 Katowice, Poland
2
Institute of Low Temperature and Structure Research, Polish Academy of Sciences, Okólna 2 Street, 50-422 Wrocław, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(1), 121; https://doi.org/10.3390/ma14010121
Submission received: 15 November 2020 / Revised: 22 December 2020 / Accepted: 25 December 2020 / Published: 30 December 2020
(This article belongs to the Special Issue Rare Earth Doped Glasses/Ceramics: Synthesis, Structure, Properties, and Optical Applications)
Browse Figures
Versions Notes

Abstract

:
In this work, spectroscopic properties of europium and erbium ions in heavy metal oxide glasses have been studied. The phonon energy of the glass host was determined based on Eu3+ excitation spectra measurements. Near-IR emission spectra at 1550 nm related to 4I13/2 → 4I15/2 transition of erbium in heavy metal glasses were examined with special regards to luminescence bandwidth and measured lifetime. In particular, correlation between phonon energy and the measured lifetime 4I13/2 (Er3+) was proposed. The luminescence lifetime for the 4I13/2 upper laser state of erbium decreases with increasing phonon energy in glass matrices. Completely different results were obtained glass samples with europium ions, where the 5D0 lifetime increases with increasing phonon energy. Our investigations suggest that the values of measured 5D0 lifetime equal to radiative lifetimes for all heavy metal oxide glasses.

1. Introduction

Heavy Metal Oxide Glasses (HMOG) are classified as promising amorphous systems, for which chemical durability and thermal stability are high, light transmission is wide and refractive indices are quite large compared to similar glasses without PbO [1,2,3,4,5,6,7,8]. Heavy metal glass systems can be also quite easy synthesized because glass-forming compositional range is relatively wide. Among HMOG systems, PbO-GeO2 glasses are considered to be one of the most promising amorphous materials for numerous applications. Lead germanate glasses containing Ag nanoparticles are recommended in photonics and catalysis [9]. Low-loss lead germanate-based glasses are useful for mid-infrared fiber optics [10,11]. They are also interesting from the structural point of view. The presence of minima or maxima in physicochemical properties of germanate-based glasses under addition of various network-modifiers usually well correlate with the coordination change GeO4 tetrahedra ⟷ GeO6 octahedra, the formation of Ge-O-Ge bridging bonds and/or the creation of nonbridging oxygen atoms NBO’s [12,13]. The structural mechanism responsible for the germanate anomaly well-known in the literature was proposed for glasses based on PbO-GeO2 [14,15]. Similar to germanate glass systems, this anomalous composition dependence of physicochemical properties was also observed for borate-based glasses [16,17].
On the other hand, HMOG glasses are excellent matrices to accommodate rare earth ions. Very recently, emission properties of rare earth ions in glasses based on PbO-GeO2 [18,19], PbO-SiO2 [20], PbO-B2O3 [21,22] and PbO-P2O5 [23,24] were examined in detail and their results were published last year. The additional glass-former components such as Bi2O3 and TeO2 were also added in order to improve properties of heavy metal oxide glasses responsible for white light emission [25]. Special attention was devoted to rare earths in silicate glasses containing PbO, which emit near-infrared laser emission at about 2 µm [26,27,28,29,30].
In this work, we present spectroscopic properties of europium and erbium ions in heavy metal oxide glasses. Phonon sideband analysis based on the excitation spectra measurements of europium and near-infrared emission properties at 1550 nm corresponding to main 4I13/2 → 4I15/2 laser transition of erbium are reported. Emission spectra of rare earth ions in heavy metal oxide glasses have been also examined previously by us. In particular, spectroscopic properties of Eu3+ ions in lead borate glass [31], lead phosphate glass [32] and glasses based on PbO–Ga2O3–XO2, where X = Te, Ge, Si [33] have been systematically studied. Preliminary results for Er3+ ions in heavy metal oxide and oxyhalide glasses, including their near-infrared emission properties and up-conversion processes, have been presented in a conference paper [34]. Comparison of measured luminescence lifetimes 4I13/2 (Er3+) and 5D0 (Eu3+) gives rather unexpected results. While dependence of the 4I13/2 lifetime of erbium ions is well correlated with the phonon energies of the studied HMOG glass systems, the experimental results for luminescence decays from the 5D0 excited state of europium are completely different. These aspects have not been examined in detail before. They are discussed here.

2. Materials and Methods

HMOG glasses with general formula PbO-Ga2O3-MexOy-Ln2O3 (Me denotes Ge, Si, P or B) were synthesized. In the studied glasses, rare earth oxides Ln2O3 were limited to Eu2O3 and Er2O3. The following samples: (a) 45PbO–9.5Ga2O3–45GeO2–0.5Ln2O3, (b) 45PbO–9.5Ga2O3–45SiO2–0.5Ln2O3, (c) 45PbO–9.5Ga2O3–45P2O5–0.5Ln2O3 as well as (d) 45PbO–9.5Ga2O3–45B2O3–0.5Ln2O3 (in mol%) were prepared. Metal oxides of high purity were mixed in an agate ball mill for 2 h and then melted (1100 °C/0.5 h).
Fully amorphous glass plates (dimension = 10 × 10 mm, thickness = 2 mm) confirmed by X-ray diffraction measurements were obtained. Differential scanning calorimeter DSC measurements (heating rate of 10 °C/min) were performed with SETARAM Labsys thermal analyzer (SETARAM Instrumentation, Caluire, France). Spectra measurements (excitation and emission) were carried out using a Continuum Model Surelite I optical parametric oscillator coupled with Nd:YAG laser (Continuum Surelite OPO and SLI-10 Nd:YAG laser, Santa Clara, CA, USA). Also, the laser system consists of 1-m double grating monochromator, photomultiplier, and Stanford SRS250 boxcar integrator. Resolution for spectra measurements was ±0.2 nm. Decay curves were measured using oscilloscope Tektronix TDS3052 (two channel color digital phosphor oscilloscope, 500 MHz, Tektronix Inc., Beaverton, OR, USA) with an accuracy of ±2 µs.

3. Results and Discussion

HMOG glasses were prepared by traditional melt quenching technique. In all glass samples, the ratio of heavy metal oxide PbO to MexOy seems to be 1:1, whereas molar concentration of Ga2O3 and Ln2O3 is equal to 9.5% and 0.5%, respectively. Previous studies for boro-bismuth [35] and tellurite [36] glasses demonstrate significant role of Ga2O3 as a glass modifier, when its concentration is relatively low (usually less than 10 molar %). For the studied HMOG systems, the glass transition temperature Tg was determined based on DSC measurements. The values of Tg are changed in the following direction PbO-Ga2O3-B2O3 (440 °C) → PbO-Ga2O3-P2O5 (437 °C) → PbO-Ga2O3-SiO2 (429 °C) → PbO-Ga2O3-GeO2 (384 °C). Further investigations for lead borate glass [37] and lead phosphate glass [38] indicate that the glass transition temperatures are reduced with increasing PbF2 content. Ternary HMOG glasses based on PbO-Ga2O3-MexOy (Me = Ge, Si, P, B) were singly doped with Ln3+ (Ln = Eu, Er) in order to study their spectroscopic and emission properties. Figure 1 shows the energy level diagrams for rare earth (Eu3+ and Er3+) ions. All main emission lines corresponding to the 5D0 → 7F1 (orange line) and 5D0 → 7F2 (red line) transitions of europium ions and the 4I13/2 → 4I15/2 (near-IR line) transition of erbium ions are also indicated. It is worth noticing that the separation between the excited state 5D0 and the next lower-lying state 7F6 of europium ions (ΔE = 12,500 cm−1) is significantly larger than the 4I13/2–4I15/2 energy gap of erbium ions (ΔE = 6500 cm−1).

3.1. Phonon Sideband Analysis

Figure 2 presents excitation and emission spectra of the studied HMOG systems containing europium ions. Insets show phonon sidebands PSB (*) and decays from the 5D0 state of Eu3+ (**). Luminescence spectra of glass samples excited at 464 nm (5D2 state) consist of several narrowed bands characteristic for europium ions. Two main emission bands at about 590 nm and 615 nm correspond to 5D0 → 7F1 (orange) and 5D0 → 7F2 (red) electronic transitions [39,40,41,42]. The relative ratio of their integrated emission intensities known as R/O factor is changed in direction PbO-Ga2O3-B2O3 (2.32) → PbO-Ga2O3-P2O5 (2.41) → PbO-Ga2O3-SiO2 (3.00) → PbO-Ga2O3-GeO2 (3.06).
Luminescence decays from the 5D0 (Eu3+) state depend critically on the component MexOy, i.e., GeO2, SiO2, P2O5 or B2O3, present in ternary HMOG glass. In fact, the 5D0 (Eu3+) measured lifetime diminishes in the following order: PbO-Ga2O3-B2O3 (2.05 ms) → PbO-Ga2O3-P2O5 (1.85 ms) → PbO-Ga2O3-SiO2 (1.27 ms) → PbO-Ga2O3-GeO2 (1.11 ms). To determine phonon energy of the host, the excitation spectra measurements of europium ions were successfully used. In 430–470 nm spectral range, two important bands of europium ions are located. They are assigned to pure electronic transition (PET) near 464 nm (7F0 → 5D2 transition) and well-known in the literature transition dependent on the host (observed usually in the ranges 440–460 nm), referred as phonon sideband PSB [43,44,45]. The phonon energy is difference between the positions of these bands (PSB-PET). Their values for the studied HMOG glasses are given in Table 1. At this moment, it should be mentioned that the obtained results are also consistent with the experimental values from the Raman spectra measurements. The values obtained by two independent methods are nearly the same and difference does not exceed ±3 cm−1. For example, the phonon energy for lead phosphate glass from Raman spectrum equal to 1120 cm−1 [46] is in a good agreement with the value obtained from the excitation spectrum measurement PSB-PET = 1117 cm−1 (Table 1). The same situation was observed for lead borate glass [31] and glasses based on PbO–Ga2O3–SiO2 and PbO–Ga2O3–GeO2 [33].
Like the 5D0 luminescence lifetime, the phonon energy of the HMOG glass systems diminishes in the order PbO-Ga2O3-B2O3 (1320 cm−1) → PbO-Ga2O3-P2O5 (1117 cm−1) → PbO-Ga2O3-SiO2 (950 cm−1) → PbO-Ga2O3-GeO2 (775 cm−1). The results are schematized in Figure 3.

3.2. Near-Infrared Emission

Our previous investigations revealed that low-phonon heavy metal oxide and oxyhalide glass systems containing erbium are excellent amorphous hosts for near-IR radiation and up-conversion luminescence applications. In contrast to glasses based on PbO-Ga2O3-GeO2 and PbO-Ga2O3-SiO2, the lack of up-conversion luminescence processes in PbO-Ga2O3-P2O5 and PbO-Ga2O3-B2O3 glass systems was confirmed, because P-O and B-O stretching vibrations are relatively large [34]. Further spectroscopic studies suggested that PbO-Ga2O3-GeO2 and PbO-Ga2O3-SiO2 glasses can be applied to up-conversion luminescence temperature sensors [47].
Figure 4 presents near-IR emission spectra measured for erbium ions in heavy metal oxide glass systems under excitation of 4F7/2 state by 488 nm laser line. Near-IR emission bands at about 1550 nm are assigned to main 4I13/2 → 4I15/2 transition of erbium. The inset shows emission decays from the 4I13/2 state of trivalent erbium.
Near-infrared emission spectra were normalized to compare the bandwidth for the 4I13/2 → 4I15/2 transition of erbium ions in HMOG glasses. The spectral bandwidth Δλ given as full width in half maximum (FWHM) was determined. Furthermore, the luminescence lifetimes of 4I13/2 state of erbium ions were calculated by fitting the luminescence decay curves. The bandwidth for the 4I13/2 → 4I15/2 transition of erbium ions is changed in the following direction PbO-Ga2O3-GeO2 → PbO-Ga2O3-SiO2 → PbO-Ga2O3-P2O5, except for PbO-Ga2O3-B2O3 glass system. The value of FWHM diminishes from lead germanate glass (nearly 88 nm) to lead phosphate glass (50 nm). Quite large spectral bandwidth (above 90 nm) for the 4I13/2 → 4I15/2 transition of erbium ions in PbO-Ga2O3-B2O3 glass system was observed. The relatively large bandwidth is strongly required for near-IR laser systems as well as glass fiber amplifiers. It confirms our previous experimental results obtained for oxide and oxyhalide lead borate-based glass systems containing erbium ions [34,48]. However, near-IR emission of erbium ions comes from multiple peaks and the spectral profiles are not simple Gaussian in shape. For the studied HMOG systems, differences in spectral bandwidth are relatively small when full width at 10% maximum (FW-10% max) will be considered.
Er3+-doped heavy metal oxide glass containing B2O3 exhibits interesting properties (broadband emission), but the emission decay from the 4I13/2 excited level of erbium is short when we compare to glass samples PbO-Ga2O3-MexOy (Me = Ge, Si or P). Both parameters, i.e., emission bandwidths and measured lifetimes are important spectroscopic factors and necessary to characterize glass materials with erbium for near-IR amplifiers [49]. The experimental results are schematized in Figure 5.
It is experimental evidence that the multiphonon relaxation rates of rare earth ions increase with increasing phonon energy in the following direction GeO2 → SiO2 → P2O5 → B2O3 [50,51]. Borate-based glass systems have the highest phonon energy, whereas germanate amorphous materials have the smallest phonon energy among the studied HMOG glass systems. Thus, measured lifetimes of rare earths usually reduce because multiphonon relaxation rates are higher. Our experimental results confirm this hypothesis. The measured 4I13/2 emission lifetimes of erbium ions are reduced from lead germanate glass (3.9 ms) to lead borate glass (0.5 ms) when phonon energy of the host increases.
Correlation between chemical composition, glass structure and properties was shown by various experimental techniques [52,53,54]. In particular, structure-property correlations in heavy metal oxyfluoride glass systems have been explored in a series of lead fluorogermanate and lead fluoroborate glasses, where the increasing PbF2 content results in enhanced luminescence lifetimes of rare earths. These effects are much less apparent in lead fluoroborate than lead fluorogermanate glasses [55]. Interesting structure-property relationships are also observed for our HMOG glass samples. We can conclude from emission measurements that spectroscopic properties of trivalent rare earths are not only critically dependent on the glass host composition. The phonon sideband analysis demonstrates that phonon energy increases from PbO-Ga2O3-GeO2 to PbO-Ga2O3-B2O3 glass system (see Table 1). The activator concentration (Eu3+ and Er3+) for all studied glass samples is close to 0.5 mol%. The same experimental conditions were used for glass preparation, so the spectroscopic changes for rare earths (europium and erbium) are attributed to the change of the component MexOy (where Me = Ge, Si, P, B) in HMOG glasses. Here, our investigations were limited to glass samples, where the molar ratio of the main oxide components is the same, i.e., PbO:GeO2 = PbO:SiO2 = PbO:P2O5 = PbO:B2O3 = 1:1. In fact, the ratios of structural units (the same concentrations of Ge, Si, P and B atoms) are also important and cannot be ignored. Thus, nature of glasses with the same fractions of Me network-former units should be analyzed in the future. However, the main comparison is made between Eu3+ and Er3+ doped samples. Our spectroscopic analysis based on decay curves clearly indicates that the dependence of measured lifetimes for the excited states of rare earth ions on phonon energies of HMOG glass hosts is completely different for the 4I13/2 (Er3+) than the 5D0 (Eu3+). Figure 6 shows schematically measured emission lifetimes for the 5D0 (Eu3+) and 4I13/2 (Er3+) states as a function of the phonon energy of the HMOG system.
The measured lifetime for the 4I13/2 upper laser state of erbium decreases, whereas lifetime for the 5D0 state of europium increases with increasing phonon energy in glass matrices. Moreover, the change of the 4I13/2 measured lifetime by a factor of 8 when the phonon energy changes from 775 cm−1 to 1320 cm−1 is very high as compared to about two-fold increase of the 5D0 lifetime. This marked dissimilarity stems from the competition between radiative and multiphonon relaxation processes that remove the excitation of metastable levels of rare earth ions. The multiphonon relaxation consisting of simultaneous emission of the highest energy phonons in the lowest order process to cover the energy separation between a luminescent level and the next lower-lying energy level is consistent with the “energy gap law”. Considering the 4I13/2 metastable level located at about 6500 cm−1 above the next lower energy level 4I15/2 and phonon energies gathered in Table 1 we obtain the lowest order values for multiphonon relaxation of 8, 7, 6, and 5 for lead germanate, lead silicate, lead phosphate and lead borate glasses, respectively. We attribute observed dissimilarity of the 4I13/2 lifetime values to the contribution of multiphonon relaxation rates, especially in lead borate and lead phosphate glasses where the orders of the process are relatively low. The results are completely different for the same glass host matrices containing europium ions, where the energy gap between excited level 5D0 and the next lower level 7F6 is large (ΔE = 12500 cm−1) in comparison to separation between 4I13/2 and 4I15/2 levels of erbium ions (ΔE = 6500 cm−1) and non-radiative relaxation rates for rare earths are negligibly small. In fact, values of the order of multiphonon relaxation for the 5D0 state of Eu3+ amount to 16, 13, 11 and 10 for lead germanate, lead silicate, lead phosphate and lead borate glasses. Rates of multiphonon relaxation processes with orders of ten and higher are negligibly small. Therefore we can assume safely that measured luminescence lifetime values for europium-doped samples studied equal to radiative lifetimes of the 5D0 state of Eu3+.

4. Conclusions

Near-IR emission spectra of Er3+ ions in four HMOG glass hosts based on PbO–Ga2O3–GeO2, PbO–Ga2O3–SiO2, PbO–Ga2O3–P2O5 and PbO–Ga2O3–B2O3 are presented and discussed. The near-IR emission bands correspond to the 4I13/2 → 4I15/2 transition of erbium. In particular, spectroscopic parameters for erbium ions such as emission bandwidth and lifetime were determined. Correlation between luminescence lifetimes for erbium ions and phonon energies of the HMOG systems has been proposed. The measured lifetime for the 4I13/2 state of erbium ions decreases markedly with increasing phonon energy from PbO–Ga2O3–GeO2 to PbO–Ga2O3–B2O3 glass. Completely different results were obtained for the same glass host matrices containing europium ions, i.e., the measured lifetime for the 5D0 state of Eu3+ increases with increasing phonon energy. Owing to large 5D0–7F6 energy gap, non-radiative multiphonon relaxation rates are negligibly small and experimental values of luminescence lifetimes are equal to radiative lifetimes for all HMOG glasses containing europium ions.

Author Contributions

Methodology, J.P., W.A.P., R.L., and W.R.-R.; formal analysis, W.A.P. and W.R.-R.; investigation, J.P., and R.L.; writing—original draft preparation, J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lezal, D.; Pedlikova, J.; Kostka, P.; Bludska, J.; Poulain, M.; Zavadil, J. Heavy metal oxide glasses: Preparation and physical properties. J. Non-Cryst. Solids 2001, 284, 288–295. [Google Scholar] [CrossRef]
  2. Jayasankar, C.K.; Venkatramu, V.; Surendra Babu, S.; Babu, P. Luminescence properties of Dy3+ ions in a variety of borate and fluoroborate glasses containing lithium, zinc, and lead. J. Alloys Compd. 2004, 374, 22–26. [Google Scholar] [CrossRef]
  3. Culea, E.; Pop, L.; Bosca, M. Structural and physical characteristics of CeO2–GeO2–PbO glasses and glass ceramics. J. Alloys Compd. 2010, 505, 754–757. [Google Scholar] [CrossRef]
  4. Pisarska, J.; Zur, L.; Pisarski, W.A. Optical spectroscopy of Dy3+ ions in heavy metal lead-based glasses and glass-ceramics. J. Mol. Struct. 2011, 993, 160–166. [Google Scholar] [CrossRef]
  5. Pisarski, W.A.; Grobelny, Ł.; Pisarska, J.; Lisiecki, R.; Ryba-Romanowski, W. Spectroscopic properties of Yb3+ and Er3+ ions in heavy metal glasses. J. Alloys Compd. 2011, 509, 8088–8092. [Google Scholar] [CrossRef]
  6. Zur, L.; Sołtys, M.; Pisarska, J.; Pisarski, W.A. Absorption and luminescence properties of terbium ions in heavy metal glasses. J. Alloys Compd. 2013, 578, 512–516. [Google Scholar] [CrossRef]
  7. Ersundu, A.E.; Çelikbilek, M.; Baazouzi, M.; Soltani, M.T.; Troles, J.; Aydin, S. Characterization of new Sb2O3-based multicomponent heavy metal oxide glasses. J. Alloys Compd. 2014, 615, 712–718. [Google Scholar] [CrossRef]
  8. Kostka, P.; Ivanova, Z.G.; Nouadji, M.; Cernošková, E.; Zavadil, J. Er-doped antimonite Sb2O3-PbO-ZnO/ZnS glasses studied by low-temperature photoluminescence spectroscopy. J. Alloys Compd. 2019, 780, 866–872. [Google Scholar] [CrossRef]
  9. Schneider, R.; Schneider, R.; de Campos, E.A.; Mendes, J.B.S.; Felix, J.F.; Santa-Cruz, P.A. Lead–germanate glasses: An easy growth process for silver nanoparticles and their promising applications in photonics and catalysis. RSC Adv. 2017, 7, 41479–41485. [Google Scholar] [CrossRef] [Green Version]
  10. Wang, P.; Bei, J.; Ahmed, N.; Ng, A.K.L.; Ebendorff-Heidepriem, H. Development of low-loss lead-germanate glass for mid-infrared fiber optics: I. glass preparation optimization. J. Amer. Ceram. Soc. 2021, 104, 860–876. [Google Scholar] [CrossRef]
  11. Wang, P.; Ng, A.K.L.; Dowler, A.; Ebendorff-Heidepriem, H. Development of low-loss lead-germanate glass for mid-infrared fiber optics: II. preform extrusion and fiber fabrication. J. Amer. Ceram. Soc. 2021, 104, 833–850. [Google Scholar] [CrossRef]
  12. Kamitsos, E.I.; Yiannopoulos, Y.D.; Karakassides, M.A.; Chryssikos, G.D.; Jain, H. Raman and infrared structural investigation of xRb2O-(1-x)GeO2 glasses. J. Phys. Chem. 1996, 100, 11755–11765. [Google Scholar] [CrossRef]
  13. Barney, E.R.; Hannon, A.C.; Laorodphan, N.; Holland, D. Influence of Lone-Pair Cations on the Germanate Anomaly in Glass. J. Phys. Chem. C 2011, 115, 14997–15007. [Google Scholar] [CrossRef]
  14. Rada, S.; Culea, E.; Rada, M. Towards understanding of the germanate anomaly in europium- lead-germanate glasses. J. Non-Cryst. Solids 2010, 356, 1277–1281. [Google Scholar] [CrossRef]
  15. Rada, M.; Aldea, N.; Wu, Z.H.; Jing, Z.; Rada, S.; Culea, E.; Macavei, S.; Balan, R.; Suciu, R.C.; Erhan, R.V.; et al. Evolution of the germanium–oxygen coordination number in lithium–lead–germanate glasses. J. Non-Cryst. Solids 2016, 437, 10–16. [Google Scholar] [CrossRef]
  16. Kodama, M.; Kojima, S.; Feller, S.; Affatigato, M. Borate anomaly, anharmonicity and fragility in lithium borate glasses. Phys. Chem. Glasses 2005, 46, 190–193. [Google Scholar]
  17. Sørensen, S.S.; Johra, H.; Mauro, J.C.; Bauchy, M.; Smedskjaer, M.M. Boron anomaly in the thermal conductivity of lithium borate glasses. Phys. Rev. Mater. 2019, 3, 075601. [Google Scholar]
  18. Gunji, R.M.; Mattos, G.R.S.; Bordon, C.D.S.; Gomez-Malagon, L.A.; Kassab, L.R.P. Efficiency enhancement of silicon solar cells covered by GeO2-PbO glasses doped with Eu3+ and TiO2 nanoparticles. J. Lumin. 2020, 223, 117244. [Google Scholar] [CrossRef]
  19. Khalid, M.; Lancaster, D.G.; Ebendorff-Heidepriem, H. Spectroscopic analysis and laser simulations of Yb3+/Ho3+ co-doped lead-germanate glass. Opt. Mater. Express 2020, 10, 2819–2833. [Google Scholar] [CrossRef]
  20. Sun, Y.; Xin, W.; Meisong, L.; Hu, L.; Guzik, M.; Boulon, G.; Xia, L.; Kuan, P.-W.; Weiqinge, G.; Wang, T. Compositional dependence of Stark splitting and spectroscopic properties in Yb3+-doped lead silicate glasses. J. Non-Cryst. Solids 2020, 532, 119890. [Google Scholar] [CrossRef]
  21. Venkata Rao, K.; Babu, S.; Balanarayana, C.; Ratnakaram, Y.C. Comparative impact of Nd3+ ion doping concentration on near-infrared laser emission in lead borate glassy materials. Optik 2020, 202, 163562. [Google Scholar] [CrossRef]
  22. Deopa, N.; Sahu, M.K.; Rani, P.R.; Punia, R.; Rao, A.S. Realization of warm white light and energy transfer studies of Dy3+/Eu3+ co-doped Li2O-PbO-Al2O3-B2O3 glasses for lighting applications. J. Lumin. 2020, 222, 117166. [Google Scholar] [CrossRef]
  23. Maity, A.; Jana, S.; Ghosh, S.; Sharma, S. Spectroscopic investigation on europium (Eu3+) doped strontium zinc lead phosphate glasses with varied ZnO and PbO compositions. J. Non-Cryst. Solids 2020, 550, 120322. [Google Scholar] [CrossRef]
  24. Basavapoornima, C.; Kesavulu, C.R.; Maheswari, T.; Pecharapa, W.; Depuru, S.R.; Jayasankar, C.K. Spectral characteristics of Pr3+-doped lead based phosphate glasses for optical display device applications. J. Lumin. 2020, 228, 117585. [Google Scholar] [CrossRef]
  25. Marzouk, M.A.; Fayad, A.M. Heavy metal oxide glass responses for white light emission. J. Mater. Sci. Mater. Electron. 2020, 31, 14502–14511. [Google Scholar] [CrossRef]
  26. Liu, X.; Huang, F.; Gao, S.; Wang, X.; Hu, L.; Chen, D. Compositional investigation of ∼2 μm luminescence of Ho3+-doped lead silicate glass. Mater. Res. Bull. 2015, 71, 11–15. [Google Scholar] [CrossRef]
  27. Liu, X.; Kuan, P.; Li, D.; Gao, S.; Wang, X.; Zhang, L.; Hu, L.; Chen, D. Heavily Ho3+-doped lead silicate glass fiber for ~2 μm fiber lasers. Opt. Mater. Express 2016, 6, 1093–1098. [Google Scholar] [CrossRef]
  28. Tang, G.; Zhu, T.; Liu, W.; Lin, W.; Qiao, T.; Sun, M.; Chen, D.; Qian, Q.; Yang, Z. Tm3+ doped lead silicate glass single mode fibers for 2.0 μm laser applications. Opt. Mater. Express 2016, 6, 2147–2157. [Google Scholar] [CrossRef]
  29. Zhu, T.; Tang, G.; Chen, X.; Sun, M.; Qian, Q.; Chen, D.; Yang, Z. Two micrometer fluorescence emission and energy transfer in Yb3+/Ho3+ co-doped lead silicate glass. Int. J. Appl. Glass Sci. 2017, 8, 196–203. [Google Scholar] [CrossRef]
  30. Wang, N.; Cao, R.; Cai, M.; Shen, L.; Tian, Y.; Huang, F.; Xu, S.; Zhang, J. Ho3+/Tm3+ codoped lead silicate glass for 2 μm laser materials. Opt. Laser. Technol. 2017, 97, 364–369. [Google Scholar] [CrossRef]
  31. Pisarska, J.; Pisarski, W.A. Lanthanide—Doped lead borate glasses for optical applications: A review. In Chapter 4 in Handbook on Borates: Chemistry, Production and Applications; Chung, M.P., Ed.; Nova Science Publishers, Inc.: New York, NY, USA, 2010; pp. 107–158. [Google Scholar]
  32. Pisarski, W.A.; Żur, L.; Pisarska, J. Optical transitions of Eu3+ and Dy3+ ions in lead phosphate glasses. Opt. Lett. 2011, 36, 990–992. [Google Scholar] [CrossRef] [PubMed]
  33. Pisarski, W.A.; Pisarska, J.; Zur, L.; Goryczka, T. Structural and optical aspects for Eu3+ and Dy3+ ions in heavy metal glasses based on PbO–Ga2O3–XO2 (X = Te, Ge, Si). Opt. Mater. 2013, 35, 1051–1056. [Google Scholar] [CrossRef]
  34. Pisarski, W.A.; Pisarska, J.; Grobelny, Ł.; Lisiecki, R.; Ryba-Romanowski, W. Near-infrared luminescence and up-conversion processes of lanthanide ions in heavy metal glasses. Proc. SPIE 2011, 8001, 80012L. [Google Scholar]
  35. Ling, Z.; Ya-Xun, Z.; Shi-Xun, D.; Tie-Feng, X.; Qiu-Hua, N.; Xiang, S. Effect of Ga2O3 on the spectroscopic properties of erbium-doped boro-bismuth glasses. Spectrochim. Acta A 2007, 68, 548–553. [Google Scholar] [CrossRef]
  36. Mao, L.Y.; Liu, J.L.; Li, L.X.; Wang, W.C. TeO2-Ga2O3-ZnO ternary tellurite glass doped with Tm3+ and Ho3+ for 2 μm fiber lasers. J. Non-Cryst. Solids 2020, 531, 119855. [Google Scholar] [CrossRef]
  37. Żur, L.; Pisarska, J.; Pisarski, W.A. Influence of PbF2 concentration on spectroscopic properties of Eu3+ and Dy3+ ions in lead borate glasses. J. Non-Cryst. Solids 2013, 377, 114–118. [Google Scholar] [CrossRef]
  38. Pisarska, J.; Pisarski, W.A.; Goryczka, T.; Lisiecki, R.; Ryba-Romanowski, W. Thermal analysis and near-infrared luminescence of Er3+-doped lead phosphate glasses modified byPbF2. J. Lumin. 2015, 160, 57–63. [Google Scholar] [CrossRef]
  39. Arunkumar, S.; Venkata Krishnaiah, K.; Marimuthu, K. Structural and luminescence behavior of lead fluoroborate glasses containing Eu3+ ions. Physica B 2013, 416, 88–100. [Google Scholar] [CrossRef]
  40. Priyanka, R.; Arunkumar, S.; Basavapoornima, Ch.; Mathelane, R.M.; Marimuthu, K. Structural and spectroscopic investigations on Eu3+ ions doped boro-phosphate glasses for optical display applications. J. Lumin. 2020, 220, 116964. [Google Scholar] [CrossRef]
  41. Roy, S.R.; Messaddeq, Y. Photoluminescence study of Eu3+ doped zinc-tungsten-antimonite glasses for red LED applications. J. Lumin. 2020, 228, 117608. [Google Scholar] [CrossRef]
  42. Marcondes, L.M.; Santagneli, S.H.; Manzani, D.; Cassanjes, F.C.; Batista, G.; Mendoza, V.G.; da Cunha, C.R.; Poirier, G.Y.; Nalin, M. High tantalum oxide content in Eu3+-doped phosphate glass and glass-ceramics for photonic applications. J. Alloys Compd. 2020, 842, 155853. [Google Scholar] [CrossRef]
  43. Rajesh, M.; Reddy, G.R.; Sushma, N.J.; Devarajulu, G.; Deva Prasad Raju, B. Phonon sideband analysis, structural and spectroscopic properties of Eu3+ ions embedded SiO2–B2O3–CaF2–NaF–Na2O glasses. Opt. Mater. 2020, 107, 110038. [Google Scholar] [CrossRef]
  44. Manasa, P.; Jayasankar, C.K. Luminescence and phonon side band analysis of Eu3+-doped lead fluorosilicate glasses. Opt. Mater. 2016, 62, 139–145. [Google Scholar] [CrossRef]
  45. Ramachari, D.; Rama Moorthy, L.; Jayasankar, C.K. Phonon sideband spectrum and vibrational analysis of Eu3+-doped niobium oxyfluorosilicate glass. J. Lumin. 2013, 143, 674–679. [Google Scholar] [CrossRef]
  46. Pisarski, W.A.; Żur, L.; Goryczka, T.; Sołtys, M.; Pisarska, J. Structure and spectroscopy of rare earth—Doped lead phosphate glasses. J. Alloys Compd. 2014, 587, 90–98. [Google Scholar] [CrossRef]
  47. Pisarski, W.A.; Pisarska, J.; Lisiecki, R.; Ryba-Romanowski, W. Sensitive optical temperature sensor based on up-conversion luminescence spectra of Er3+ ions in PbO-Ga2O3-XO2 (X = Ge, Si) glasses. Opt. Mater. 2016, 59, 87–90. [Google Scholar] [CrossRef]
  48. Pisarski, W.A.; Pisarska, J.; Lisiecki, R.; Grobelny, Ł.; Dominiak-Dzik, G.; Ryba-Romanowski, W. Erbium-doped oxide and oxyhalide lead borate glasses for near-infrared broadband optical amplifiers. Chem. Phys. Lett. 2009, 472, 217–219. [Google Scholar] [CrossRef]
  49. Bradley, J.D.B.; Pollnau, M. Erbium-doped integrated waveguide amplifiers and lasers. Laser Photonics Rev. 2011, 5, 368–403. [Google Scholar] [CrossRef]
  50. Layne, C.B.; Lowdermilk, W.H.; Weber, M.J. Multiphonon relaxation of rare-earth ions in oxide glasses. Phys. Rev. B 1977, 16, 10–20. [Google Scholar] [CrossRef]
  51. Jackson, S.D.; Jain, R.K. Fiber-based sources of coherent MIR radiation: Key advances and future prospects. Opt. Express 2020, 28, 30964–31019. [Google Scholar] [CrossRef]
  52. de Oliveira, M., Jr.; Gonçalves, T.S.; Ferrari, C.; Magon, C.J.; Pizani, P.S.; de Camargo, A.S.S.; Eckert, H. Structure−property relations in fluorophosphate glasses: An integrated spectroscopic strategy. J. Phys. Chem. C 2017, 121, 2968–2986. [Google Scholar] [CrossRef]
  53. de Oliveira, M., Jr.; Uesbeck, T.; Gonçalves, T.S.; Magon, C.J.; Pizani, P.S.; de Camargo, A.S.S.; Eckert, H. Network structure and rare-earth ion local environments in fluoride phosphate photonic glasses studied by solid-state NMR and electron paramagnetic resonance spectroscopies. J. Phys. Chem. C 2015, 119, 24574–24587. [Google Scholar] [CrossRef]
  54. Koudelka, L.; Kalenda, P.; Mošner, P.; Montagne, L.; Revel, B. Structure–property relationships in barium borophosphate glasses modified with niobium oxide. J. Non-Cryst. Solids 2016, 437, 64–71. [Google Scholar] [CrossRef]
  55. Doerenkamp, C.; Carvajal, E.; Magon, C.J.; Faria, W.J.G.J.; Pedro Donoso, J.; Galvão Gobato, Y.; de Camargo, A.S.S.; Eckert, H. Composition−structure−property correlations in rare-earth-doped heavy metal oxyfluoride glasses. J. Phys. Chem. C 2019, 123, 22478–22490. [Google Scholar] [CrossRef]
Materials 14 00121 g001 550

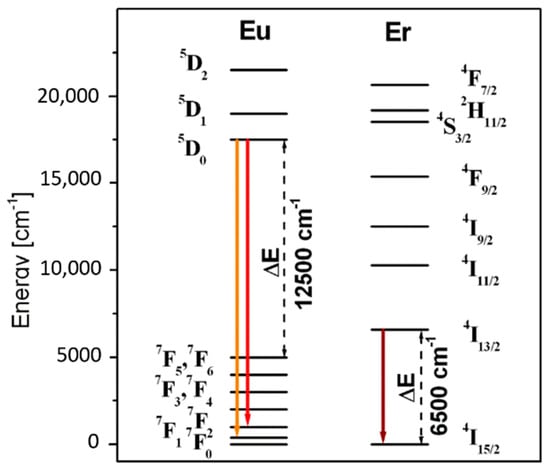

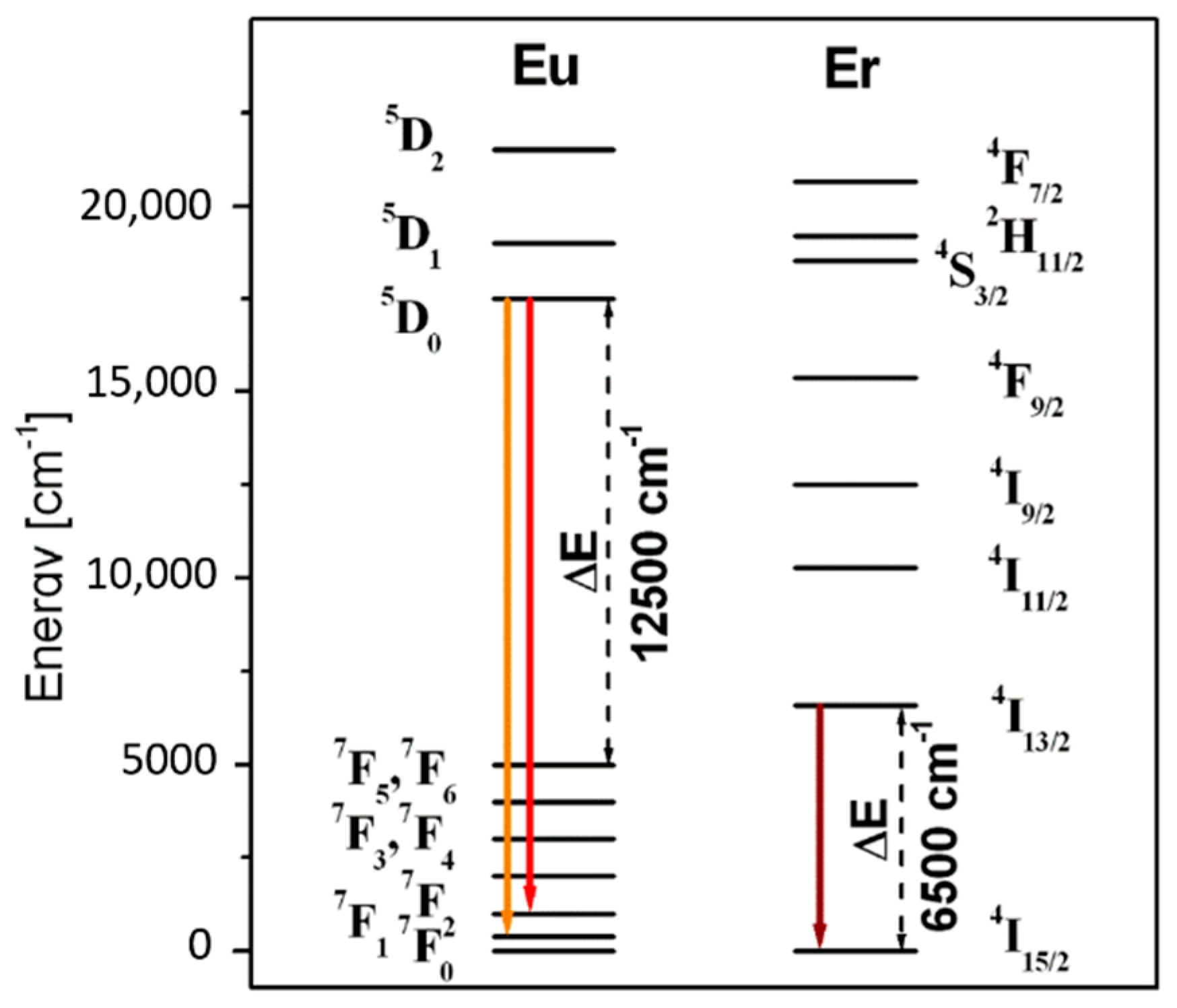

Figure 1. Energy level diagrams for trivalent europium and erbium ions.
Figure 1. Energy level diagrams for trivalent europium and erbium ions.
Materials 14 00121 g001
Materials 14 00121 g002 550

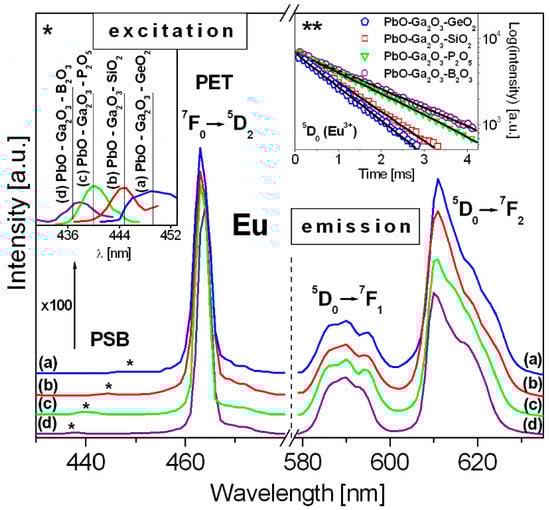

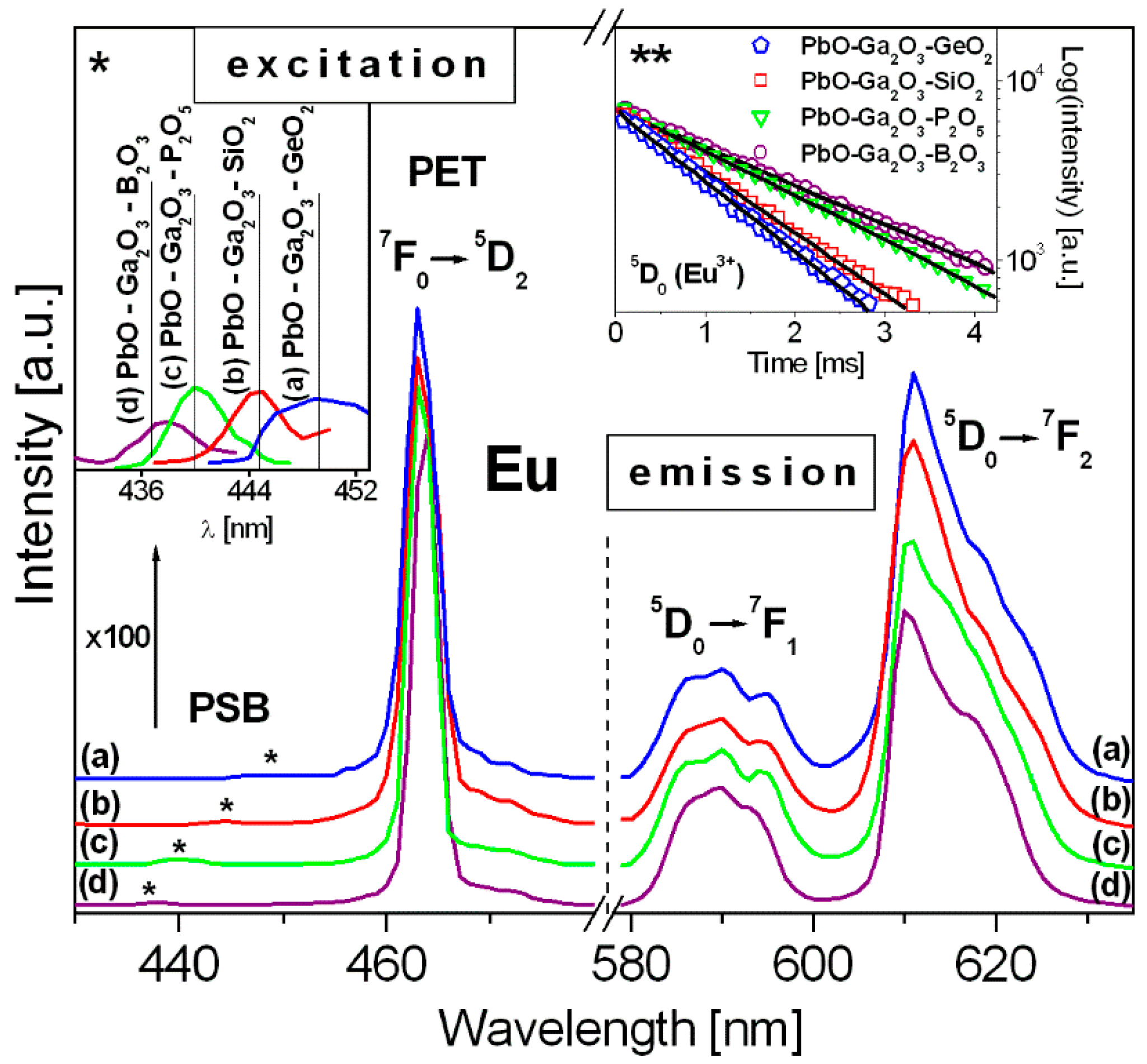

Figure 2. Excitation and luminescence spectra of HMOG glass systems containing europium ions. Phonon sidebands (PSB) and pure electronic transitions (PET) are shown. Insets present phonon sidebands (*) and decay curves for the 5D0 → 7F2 transition of Eu3+ (**).
Figure 2. Excitation and luminescence spectra of HMOG glass systems containing europium ions. Phonon sidebands (PSB) and pure electronic transitions (PET) are shown. Insets present phonon sidebands (*) and decay curves for the 5D0 → 7F2 transition of Eu3+ (**).
Materials 14 00121 g002
Materials 14 00121 g003 550

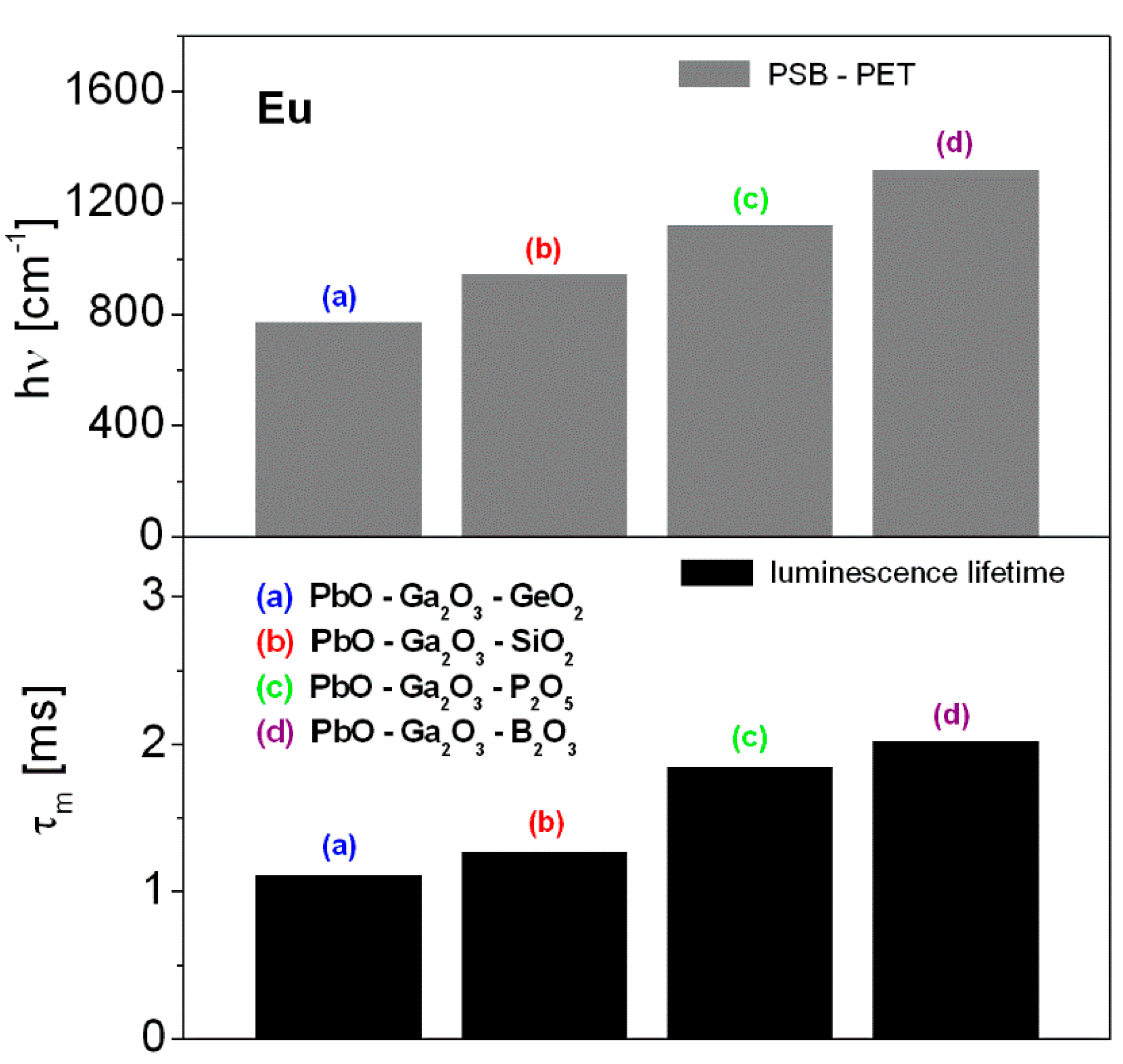

Figure 3. The influence of glass host composition on phonon energy and luminescence lifetime.
Figure 3. The influence of glass host composition on phonon energy and luminescence lifetime.
Materials 14 00121 g003
Materials 14 00121 g004 550

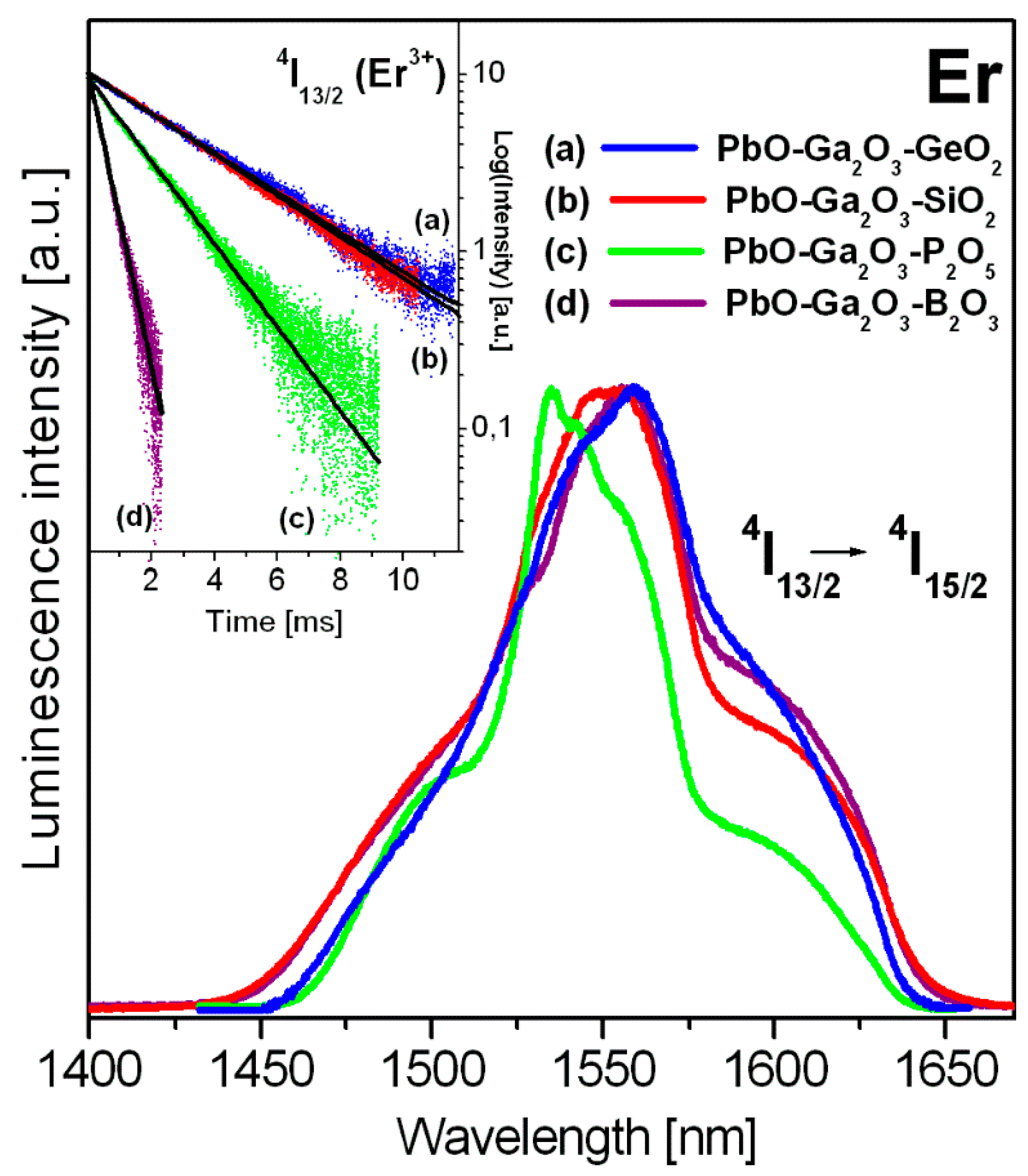

Figure 4. Normalized near-IR emission spectra for erbium ions in HMOG glass systems. Inset shows decays from the 4I13/2 state of erbium.
Figure 4. Normalized near-IR emission spectra for erbium ions in HMOG glass systems. Inset shows decays from the 4I13/2 state of erbium.
Materials 14 00121 g004
Materials 14 00121 g005 550

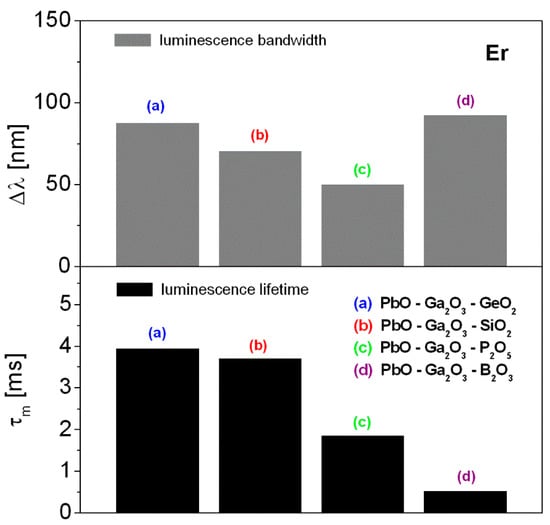

Figure 5. The influence of glass host composition on selected spectroscopic parameters (τm, Δλ) determined for the 4I13/2 → 4I15/2 near-infrared laser transition of erbium.
Figure 5. The influence of glass host composition on selected spectroscopic parameters (τm, Δλ) determined for the 4I13/2 → 4I15/2 near-infrared laser transition of erbium.
Materials 14 00121 g005
Materials 14 00121 g006 550

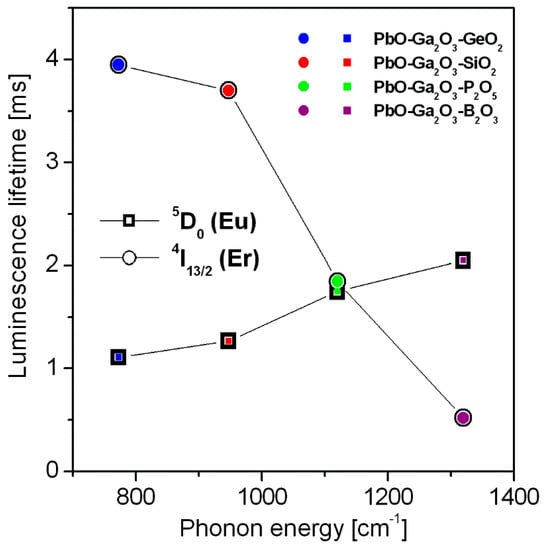

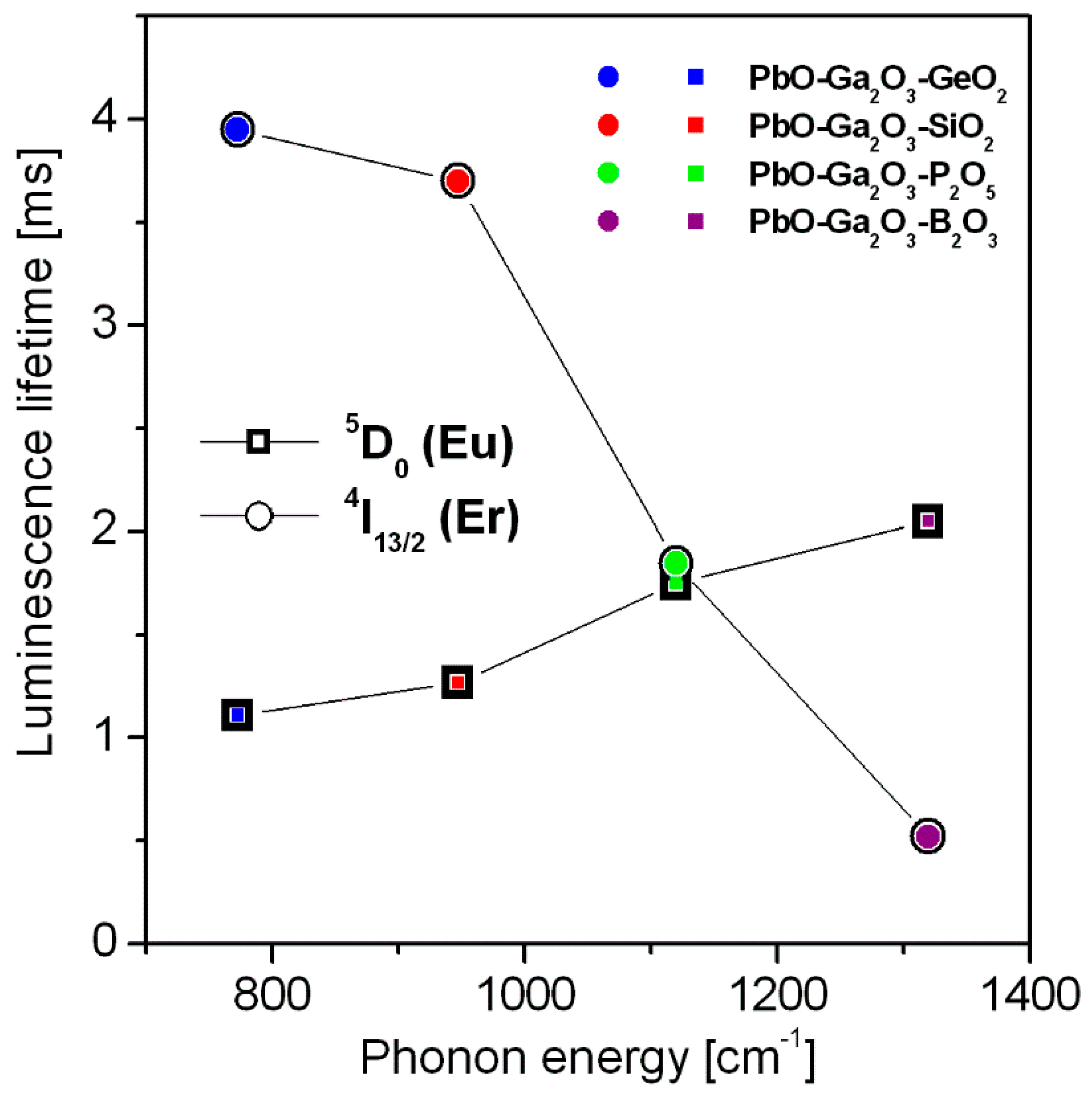

Figure 6. Lifetime for the 5D0 (Eu3+) and 4I13/2 (Er3+) excited states versus the phonon energy of the HMOG glass.
Figure 6. Lifetime for the 5D0 (Eu3+) and 4I13/2 (Er3+) excited states versus the phonon energy of the HMOG glass.
Materials 14 00121 g006
Table
Table 1. Phonon energies (PSB-PET) determined from the excitation spectra measurements.
Table 1. Phonon energies (PSB-PET) determined from the excitation spectra measurements.
Heavy Metal Glass HostPSB—PET [cm−1]
PbO-Ga2O3-GeO2775
PbO-Ga2O3-SiO2950
PbO-Ga2O3-P2O51117
PbO-Ga2O3-B2O31320
