Impact of Antiphase Boundaries on Structural, Magnetic and Vibrational Properties of Fe_{3}Al

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

## 3. Results

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Sauthoff, G. Intermetallics; VCH Verlagsgesellschaft: Weinheim, Germany, 1995. [Google Scholar]
- Liu, C.T.; Stringer, J.; Mundy, J.N.; Horton, L.L.; Angelini, P. Ordered intermetallic alloys: An assessment. Intermetallics
**1997**, 5, 579–596. [Google Scholar] [CrossRef] - Stoloff, N.S. Iron aluminides: Present status and future prospects. Mater. Sci. Eng. A
**1998**, 258, 1–14. [Google Scholar] [CrossRef] - Liu, C.T.; Lee, E.H.; McKamey, C.G. An environmental-effect as the major cause for room-temperature embrittlement in FeAl. Scr. Metall. Mater.
**1989**, 23, 875–880. [Google Scholar] [CrossRef] - Lynch, R.J.; Heldt, L.A.; Milligan, W.W. Effects of alloy composition on environmental embrittlement of B2 ordered iron aluminides. Scr. Metall. Mater.
**1991**, 25, 2147–2151. [Google Scholar] [CrossRef] - Liu, C.T.; McKamey, C.G.; Lee, E.H. Environmental-effects on room-temperature ductility and fracture in Fe
_{3}Al. Scr. Metall. Mater.**1990**, 24, 385–389. [Google Scholar] [CrossRef] - Lynch, R.J.; Gee, K.A.; Heldt, L.A. Environmental embrittlement of single-crystal and thermomechanically processed B2-ordered iron aluminides. Scr. Metall. Mater.
**1994**, 30, 945–950. [Google Scholar] [CrossRef] - Zamanzade, M.; Barnoush, A.; Motz, C. A Review on the Properties of Iron Aluminide Intermetallics. Crystals
**2016**, 6, 10. [Google Scholar] [CrossRef] [Green Version] - Kattner, U.; Burton, B. Al-Fe (Aluminium-Iron). Phase Diagrams of Binary Iron Alloys; Okamoto, H., Ed.; ASM International: Novelty, OH, USA, 1993; pp. 12–28. [Google Scholar]
- Palm, M.; Inden, G.; Thomas, N. The Fe-Al-Ti system. J. Phase Equilibria
**1995**, 16, 209–222. [Google Scholar] [CrossRef] - Palm, M.; Lacaze, J. Assessment of the Al-Fe-Ti system. Intermetallics
**2006**, 14, 1291–1303. [Google Scholar] [CrossRef] [Green Version] - Palm, M.; Sauthoff, G. Deformation behaviour and oxidation resistance of single-phase and two-phase L2
_{1}-ordered Fe-Al-Ti alloys. Intermetallics**2004**, 12, 1345–1359. [Google Scholar] [CrossRef] - Sundman, B.; Ohnuma, I.; Dupin, N.; Kattner, U.R.; Fries, S.G. An assessment of the entire Al-Fe system including D0(3) ordering. Acta Mater.
**2009**, 57, 2896–2908. [Google Scholar] [CrossRef] - Vernieres, J.; Benelmekki, M.; Kim, J.H.; Grammatikopoulos, P.; Bobo, J.F.; Diaz, R.E.; Sowwan, M. Single-step gas phase synthesis of stable iron aluminide nanoparticles with soft magnetic properties. APL Mater.
**2014**, 2, 116105. [Google Scholar] [CrossRef] - Jirásková, Y.; Pizúrová, N.; Titov, A.; Janičkovič, D.; Friák, M. Phase separation in Fe-Ti-Al alloy—Structural, magnetic, and Mössbauer study. J. Magn. Magn. Mater.
**2018**, 468, 91–99. [Google Scholar] [CrossRef] - Dobeš, F.; Dymáček, P.; Friák, M. Force-to-Stress Conversion Methods in Small Punch Testing Exemplified by Creep Results of Fe-Al Alloy with Chromium and Cerium Additions. IOP Conf. Ser. Mater. Sci. Eng.
**2018**, 461, 012017. [Google Scholar] [CrossRef] - Dobeš, F.; Dymáček, P.; Friák, M. Small punch creep of Fe-Al-Cr alloy with Ce addition and its relation to uniaxial creep tests. Kovové Mater. Met. Mater.
**2018**, 56, 205. [Google Scholar] [CrossRef] [Green Version] - Dymáček, P.; Dobeš, F.; Jirásková, Y.; Pizúrová, N.; Friák, M. Tensile, creep and fracture testing of prospective Fe-Al-based alloys using miniature specimens. Theor. Appl. Fract. Mech.
**2019**, 99, 18–26. [Google Scholar] [CrossRef] - Dobeš, F.; Dymáček, P.; Friák, M. The Influence of Niobium Additions on Creep Resistance of Fe-27 at. % Al Alloys. Metals
**2019**, 9, 739. [Google Scholar] [CrossRef] [Green Version] - Watson, R.E.; Weinert, M. Transition-metal aluminide formation: Ti, V, Fe, and Ni aluminides. Phys. Rev. B
**1998**, 58, 5981–5988. [Google Scholar] [CrossRef] - Gonzales-Ormeno, P.G.; Petrilli, H.M.; Schön, C.G. Ab-initio calculations of the formation energies of BCC-based superlattices in the Fe-Al system. Calphad
**2002**, 26, 573. [Google Scholar] [CrossRef] - Friák, M.; Neugebauer, J. Ab initio study of the anomalous volume-composition dependence in Fe-Al alloys. Intermetallics
**2010**, 18, 1316–1321. [Google Scholar] [CrossRef] - Amara, H.; Fu, C.C.; Soisson, F.; Maugis, P. Aluminum and vacancies in α-iron: Dissolution, diffusion, and clustering. Phys. Rev. B
**2010**, 81, 174101. [Google Scholar] [CrossRef] - Liu, S.; Duan, S.; Ma, B. First-principles calculation of vibrational entropy for Fe-Al compounds. Phys. Rev. B
**1998**, 58, 9705–9709. [Google Scholar] - Kulikov, N.I.; Postnikov, A.V.; Borstel, G.; Braun, J. Onset of magnetism in B2 transition-metal aluminides. Phys. Rev. B
**1999**, 59, 6824–6833. [Google Scholar] [CrossRef] [Green Version] - Fähnle, M.; Drautz, R.; Lechermann, F.; Singer, R.; Diaz-Ortiz, A.; Dosch, H. Thermodynamic properties from ab-initio calculations: New theoretical developments, and applications to various materials systems. Phys. Status Solidi B-Basic Solid State Phys.
**2005**, 242, 1159–1173. [Google Scholar] [CrossRef] - Friák, M.; Deges, J.; Krein, R.; Frommeyer, G.; Neugebauer, J. Combined ab initio and experimental study of structural and elastic properties of Fe
_{3}Al-based ternaries. Intermetallics**2010**, 18, 1310. [Google Scholar] [CrossRef] - Kirklin, S.; Saal, J.E.; Hegde, V.I.; Wolverton, C. High-throughput computational search for strengthening precipitates in alloys. Acta Mater.
**2016**, 102, 125–135. [Google Scholar] [CrossRef] [Green Version] - Airiskallio, E.; Nurmi, E.; Heinonen, M.H.; Vayrynen, I.J.; Kokko, K.; Ropo, M.; Punkkinen, M.P.J.; Pitkanen, H.; Alatalo, M.; Kollar, J.; et al. High temperature oxidation of Fe-Al and Fe-Cr-Al alloys: The role of Cr as a chemically active element. Corros. Sci.
**2010**, 52, 3394–3404. [Google Scholar] [CrossRef] - Čížek, J.; Lukáč, F.; Procházka, I.; Kužel, R.; Jirásková, Y.; Janičkovič, D.; Anwand, W.; Brauer, G. Characterization of quenched-in vacancies in Fe-Al alloys. Physica B
**2012**, 407, 2659–2664. [Google Scholar] [CrossRef] - Ipser, H.; Semenova, O.; Krachler, R. Intermetallic phases with D0(3)-structure: A statistical-thermodynamic model. J. Alloys Compd.
**2002**, 338, 20–25. [Google Scholar] [CrossRef] - Lechermann, F.; Welsch, F.; Elsässer, C.; Ederer, C.; Fähnle, M.; Sanchez, J.; Meyer, B. Density-functional study of Fe
_{3}Al: LSDA versus GGA. Phys. Rev. B**2002**, 65, 132104. [Google Scholar] [CrossRef] [Green Version] - Connetable, D.; Maugis, P. First principle calculations of the kappa-Fe
_{3}AlC perovskite and iron-aluminium intermetallics. Intermetallics**2008**, 16, 345–352. [Google Scholar] [CrossRef] [Green Version] - Lechermann, F.; Fähnle, M.; Meyer, B.; Elsässer, C. Electronic correlations, magnetism, and structure of Fe-Al subsystems: An LDA+U study. Phys. Rev. B
**2004**, 69, 165116. [Google Scholar] [CrossRef] - Kellou, A.; Grosdidier, T.; Raulot, J.M.; Aourag, H. Atomistic study of magnetism effect on structural stability in Fe
_{3}Al and Fe_{3}AlX (X = H, B, C, N, O) alloys. Phys. Status Solidi B-Basic Solid State Phys.**2008**, 245, 750–755. [Google Scholar] [CrossRef] - Šesták, P.; Friák, M.; Holec, D.; Všianská, M.; Šob, M. Strength and brittleness of interfaces in Fe-Al superalloy nanocomposites under multiaxial loading: An ab initio and atomistic study. Nanomaterials
**2018**, 8, 873. [Google Scholar] [CrossRef] [Green Version] - Friák, M.; Slávik, A.; Miháliková, I.; Holec, D.; Všianská, M.; Šob, M.; Palm, M.; Neugebauer, J. Origin of the low magnetic moment in Fe
_{2}AlTi: An Ab initio study. Materials**2018**, 11, 1732. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Miháliková, I.; Friák, M.; Jirásková, Y.; Holec, D.; Koutná, N.; Šob, M. Impact of Nano-Scale Distribution of Atoms on Electronic and Magnetic Properties of Phases in Fe-Al Nanocomposites: An Ab Initio Study. Nanomaterials
**2018**, 8, 1059. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Friák, M.; Holec, D.; Šob, M. Quantum-Mechanical Study of Nanocomposites with Low and Ultra-Low Interface Energies. Nanomaterials
**2018**, 8, 1057. [Google Scholar] [CrossRef] [Green Version] - Miháliková, I.; Friák, M.; Koutná, N.; Holec, D.; Šob, M. An Ab Initio Study of Vacancies in Disordered Magnetic Systems: A Case Study of Fe-Rich Fe-Al Phases. Materials
**2019**, 12, 1430. [Google Scholar] [CrossRef] [Green Version] - Marcinkowski, M.; Brown, N. Theory and direct observation of dislocations in the Fe3Al superlattices. Acta Metall.
**1961**, 9, 764–786. [Google Scholar] [CrossRef] - Marcinkowski, M.J.; Brown, N. Direct Observation of Antiphase Boundaries in the Fe
_{3}Al Superlattice. J. Appl. Phys.**1962**, 33, 537–552. [Google Scholar] [CrossRef] - McKamey, C.G.; Horton, J.A.; Liu, C.T. Effect of chromium on properties of Fe
_{3}Al. J. Mater. Res.**1989**, 4, 1156–1163. [Google Scholar] [CrossRef] - Morris, D.; Dadras, M.; Morris, M. The influence of Cr addition on the ordered microstructure and deformation and fracture-behavior of a Fe-28-%-Al intermetallic. Acta Metall. Mater.
**1993**, 41, 97–111. [Google Scholar] [CrossRef] - Kral, F.; Schwander, P.; Kostorz, G. Superdislocations and antiphase boundary energies in deformed Fe
_{3}Al single crystals with chromium. Acta Mater.**1997**, 45, 675–682. [Google Scholar] [CrossRef] - Allen, S.; Cahn, J. Microscopic theory for antiphase boundary motion and its application to antiphase domain coarsening. Acta Metall.
**1979**, 27, 1085–1095. [Google Scholar] [CrossRef] - Wang, K.; Wang, Y.; Cheng, Y. The Formation and Dynamic Evolution of Antiphase Domain Boundary in FeAl Alloy: Computational Simulation in Atomic Scale. Mater. Res.
**2018**, 21. [Google Scholar] [CrossRef] [Green Version] - Balagurov, A.M.; Bobrikov, I.A.; Sumnikov, V.S.; Golovin, I.S. Antiphase domains or dispersed clusters? Neutron diffraction study of coherent atomic ordering in Fe
_{3}Al-type alloys. Acta Mater.**2018**, 153, 45–52. [Google Scholar] [CrossRef] - Murakami, Y.; Niitsu, K.; Tanigaki, T.; Kainuma, R.; Park, H.S.; Shindo, D. Magnetization amplified by structural disorder within nanometre-scale interface region. Nat. Commun.
**2014**, 5, 4133. [Google Scholar] [CrossRef] [Green Version] - Oguma, R.; Matsumura, S.; Eguchi, T. Kinetics of B2-and D0
_{3}type ordering and formation of domain structures in Fe-Al alloys. J. Phys. Condens. Matter**2008**, 20, 275225. [Google Scholar] [CrossRef] [PubMed] - Friák, M.; Všianská, M.; Šob, M. A Quantum–Mechanical Study of Clean and Cr–Segregated Antiphase Boundaries in Fe
_{3}Al. Materials**2019**, 12, 3954. [Google Scholar] [CrossRef] [Green Version] - Friák, M.; Buršíková, V.; Pizúrová, N.; Pavlů, J.; Jirásková, Y.; Homola, V.; Miháliková, I.; Slávik, A.; Holec, D.; Všianská, M.; et al. Elasticity of Phases in Fe-Al-Ti Superalloys: Impact of Atomic Order and Anti-Phase Boundaries. Crystals
**2019**, 9, 299. [Google Scholar] [CrossRef] [Green Version] - Friák, M.; Golian, M.; Holec, D.; Koutná, N.; Šob, M. An Ab Initio Study of Magnetism in Disordered Fe-Al Alloys with Thermal Antiphase Boundaries. Nanomaterials
**2020**, 10, 44. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kresse, G.; Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B
**1993**, 47, 558–561. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B
**1996**, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed] - Hohenberg, P.; Kohn, W. Inhomogeneous electron gas. Phys. Rev. B
**1964**, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version] - Kohn, W.; Sham, L.J. Self-consistent equations including exchange and correlation effects. Phys. Rev. A
**1965**, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version] - Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B
**1994**, 50, 17953–17979. [Google Scholar] [CrossRef] [Green Version] - Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B
**1999**, 59, 1758–1775. [Google Scholar] [CrossRef] - Perdew, J.P.; Wang, Y. Accurate and simple analytic representation of the electron-gas correlation energy. Phys. Rev. B
**1992**, 45, 13244–13249. [Google Scholar] [CrossRef] - Vosko, S.H.; Wilk, L.; Nusair, M. Accurate spin-dependent electron liquid correlation energies for local spin density calculations: A critical analysis. Can. J. Phys.
**1980**, 58, 1200. [Google Scholar] [CrossRef] [Green Version] - Všianská, M.; Friák, M.; Šob, M. An ab initio study of Fe3Al: A critical review of generalized gradient approximation. (to be published).
- Togo, A.; Tanaka, I. First principles phonon calculations in materials science. Scr. Mater.
**2015**, 108, 1–5. [Google Scholar] [CrossRef] [Green Version] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kentzinger, E.; Cadeville, M.C.; Pierron-Bohnes, V.; Petry, W.; Hennion, B. Lattice dynamics and migration enthalpies in iron-rich Fe - Al alloys and ordered and B2 compounds. J. Phys. Condens. Matter
**1996**, 8, 5535–5553. [Google Scholar] [CrossRef] - Robertson, I. Phonon dispersion curves in ordered and disordered Fe
_{3}Al. Solid State Commun.**1985**, 53, 901–904. [Google Scholar] [CrossRef] - Ouyang, Y.; Tong, X.; Li, C.; Chen, H.; Tao, X.; Hickel, T.; Du, Y. Thermodynamic and physical properties of FeAl and Fe
_{3}Al: An atomistic study by EAM simulation. Phys. B Condens. Matter**2012**, 407, 4530–4536. [Google Scholar] [CrossRef] - Fultz, B. Vibrational thermodynamics of materials. Prog. Mater. Sci.
**2010**, 55, 247–352. [Google Scholar] [CrossRef] [Green Version] - Manga, V.R.; Shang, S.L.; Wang, W.Y.; Wang, Y.; Liang, J.; Crespi, V.H.; Liu, Z.K. Anomalous phonon stiffening associated with the (111) antiphase boundary in L1
_{2}Ni_{3}Al. Acta Mater.**2015**, 82, 287–294. [Google Scholar] [CrossRef] - Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr.
**2011**, 44, 1272–1276. [Google Scholar] [CrossRef]

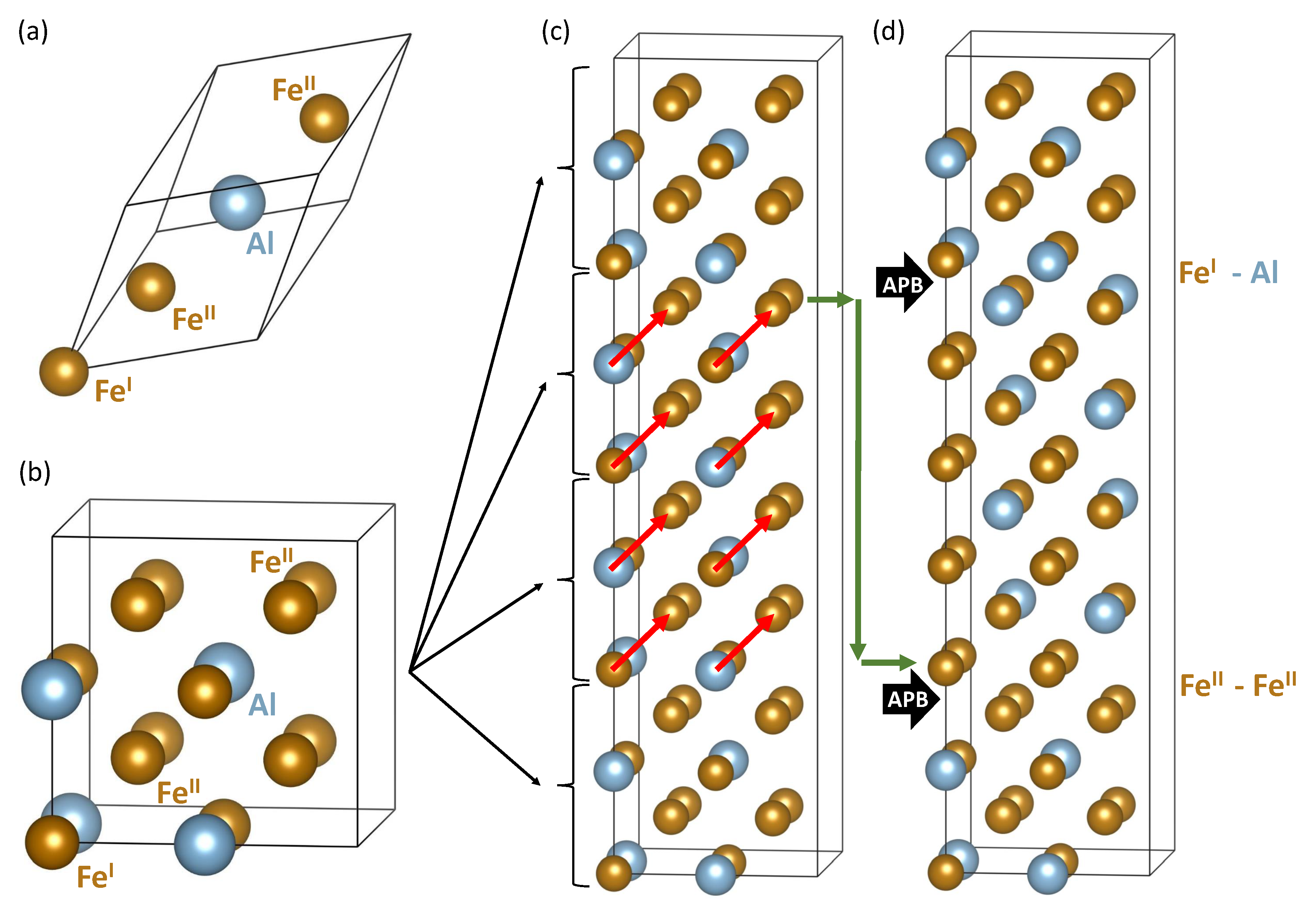

**Figure 1.**Visualizations of (super-)cells that were used in our theoretical study. Part (

**a**) shows a rhombohedral primitive unit cell of Fe${}_{3}$Al with 4 atoms and includes a naming convention of Fe sublattices when Fe${}^{\mathrm{II}}$ sites are twice more abundant than the Fe${}^{\mathrm{I}}$ sites. Part (

**b**) exhibits a 16-atom cube-shaped elementary cell containing 4 formula units. A 64-atom supercell, as an 1 × 1 × 4 multiple of the 16-atom elementary cell, is visualized in part (

**c**) and includes red vectors defining a shift characterizing the studied type of antiphase boundaries (APBs). When applying the APB shift to the central half of the 64-atom supercell in part (c) an APB-containing supercell shown in part (

**d**) is formed. To (i) keep the stoichiometry and (ii) apply the 〈111〉 shift to all atoms in the middle half of (c), one atomic plane is cyclically shifted as schematically marked by a series of green arrows (an APB shift applies also to this plane). There are two APB interfaces per each 64-atom supercell shown in part (c). One is formed by two adjacent layers containing both Fe${}^{\mathrm{I}}$ and Al atoms (the Fe${}^{\mathrm{I}}$-Al APB interface) and the second one consisting of two planes of Fe${}^{\mathrm{II}}$ atoms (the Fe${}^{\mathrm{II}}$-Fe${}^{\mathrm{II}}$ APB interface).

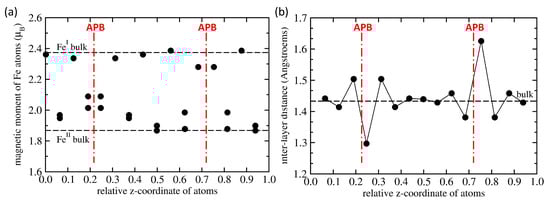

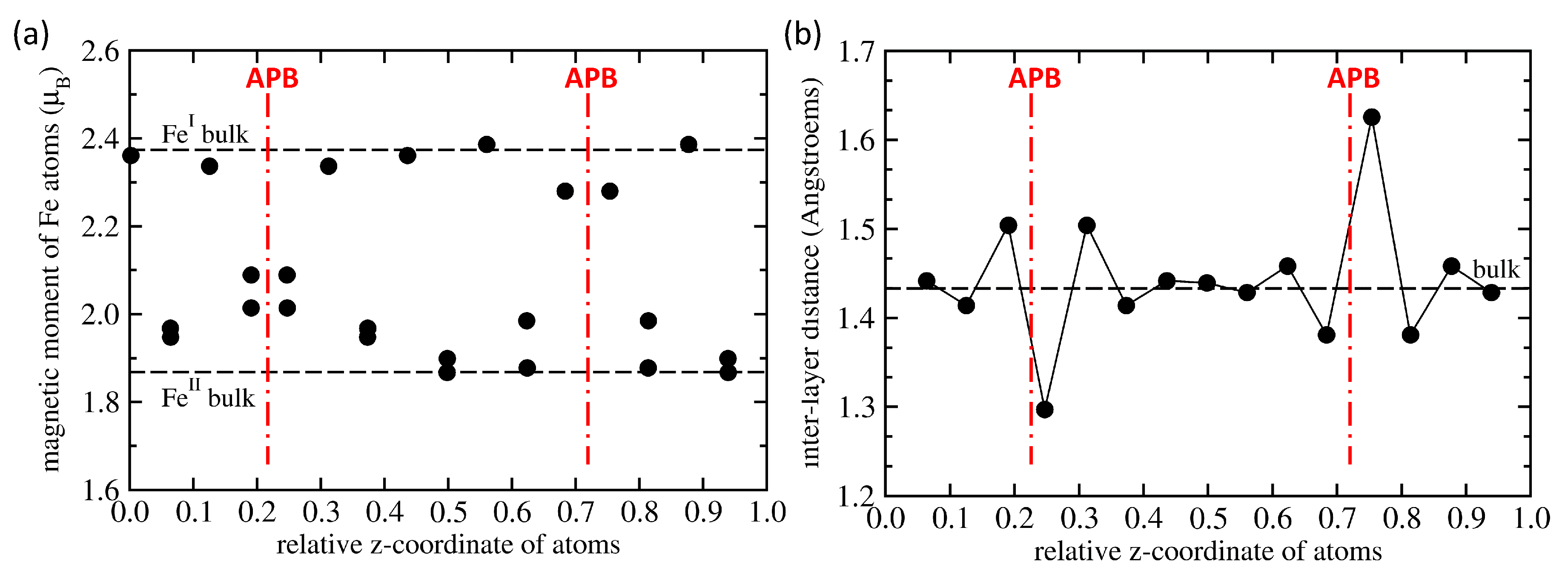

**Figure 2.**Local magnetic moments of Fe atoms (

**a**) and inter-layer distances (

**b**) for the 64-atom supercell with the examined antiphase boundaries. The values are compared with those in the bulk (horizontal dashed lines) and the positions of APBs are schematically indicated by red vertical dashed-dotted lines. The line in part (b) connecting the data points is added only to guide the eye.

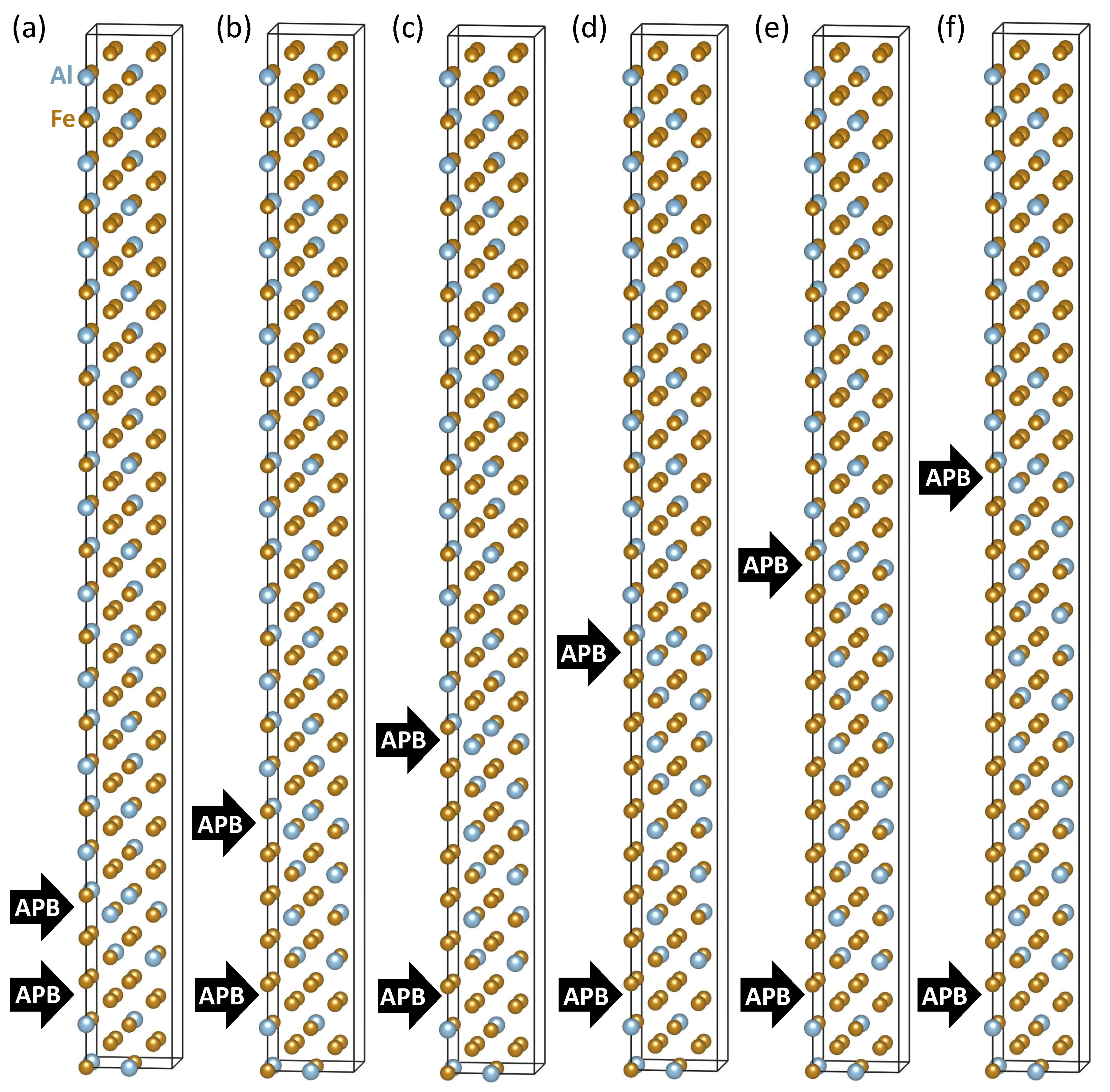

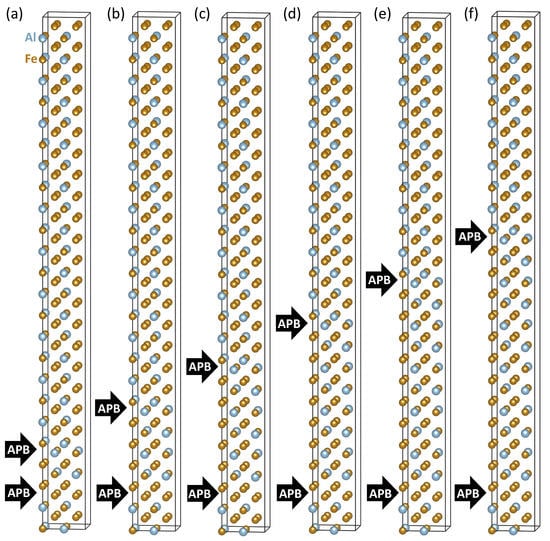

**Figure 3.**Schematic visualizations of 192-atom supercells (1 × 1 × 12 multiples of the 16-atom cell shown in Figure 1b) that we used for examining possible long-range interactions between the two APB interfaces. The studied Fe${}^{\mathrm{II}}$-Fe${}^{\mathrm{II}}$ and Fe${}^{\mathrm{I}}$-Al APB interfaces were separated by one 16-atom Fe${}_{3}$Al unit, i.e., 4 atomic planes (

**a**), two 16-atom Fe${}_{3}$Al units (

**b**), three 16-atom Fe${}_{3}$Al units (

**c**), four 16-atom Fe${}_{3}$Al units (

**d**), five 16-atom Fe${}_{3}$Al units (

**e**) and six 16-atom Fe${}_{3}$Al units, i.e., 24 atomic planes (

**f**).

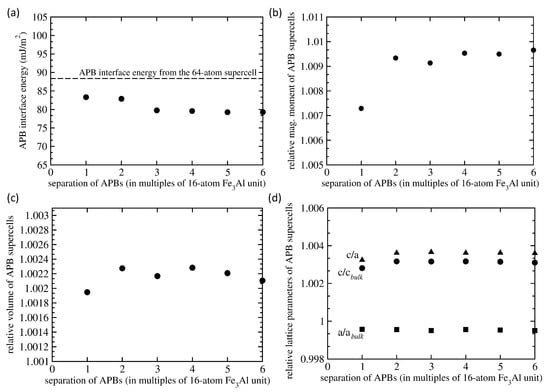

**Figure 4.**Computed properties of 192-atom 1 × 1 × 12 supercells of Fe${}_{3}$Al with different separation between the two APB interfaces (see Figure 3). In particular we present the APB interface energy (averaged over both types of interfaces) in part (

**a**), the total magnetic moment relative to the magnetic moment of the same amount of bulk Fe${}_{3}$Al without any APBs (

**b**), a relative volume with respect to that of APB-free Fe${}_{3}$Al bulk (

**c**) and lattice parameters (and their ratio) again relative to the corresponding values in the APB-free Fe${}_{3}$Al bulk (

**d**). The averaged APB interface energies obtained using the 192-atom supercells are compared with the value computed using the 64-atom supercell (shown in Figure 2d), which has the same separation of APBs interfaces but three times lower separation of periodically repeated images (black horizontal dashed line).

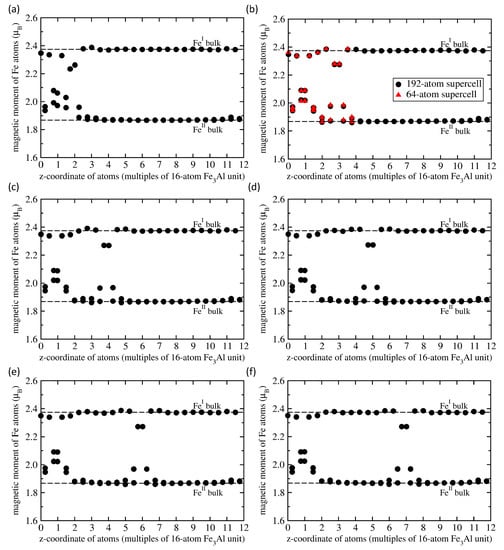

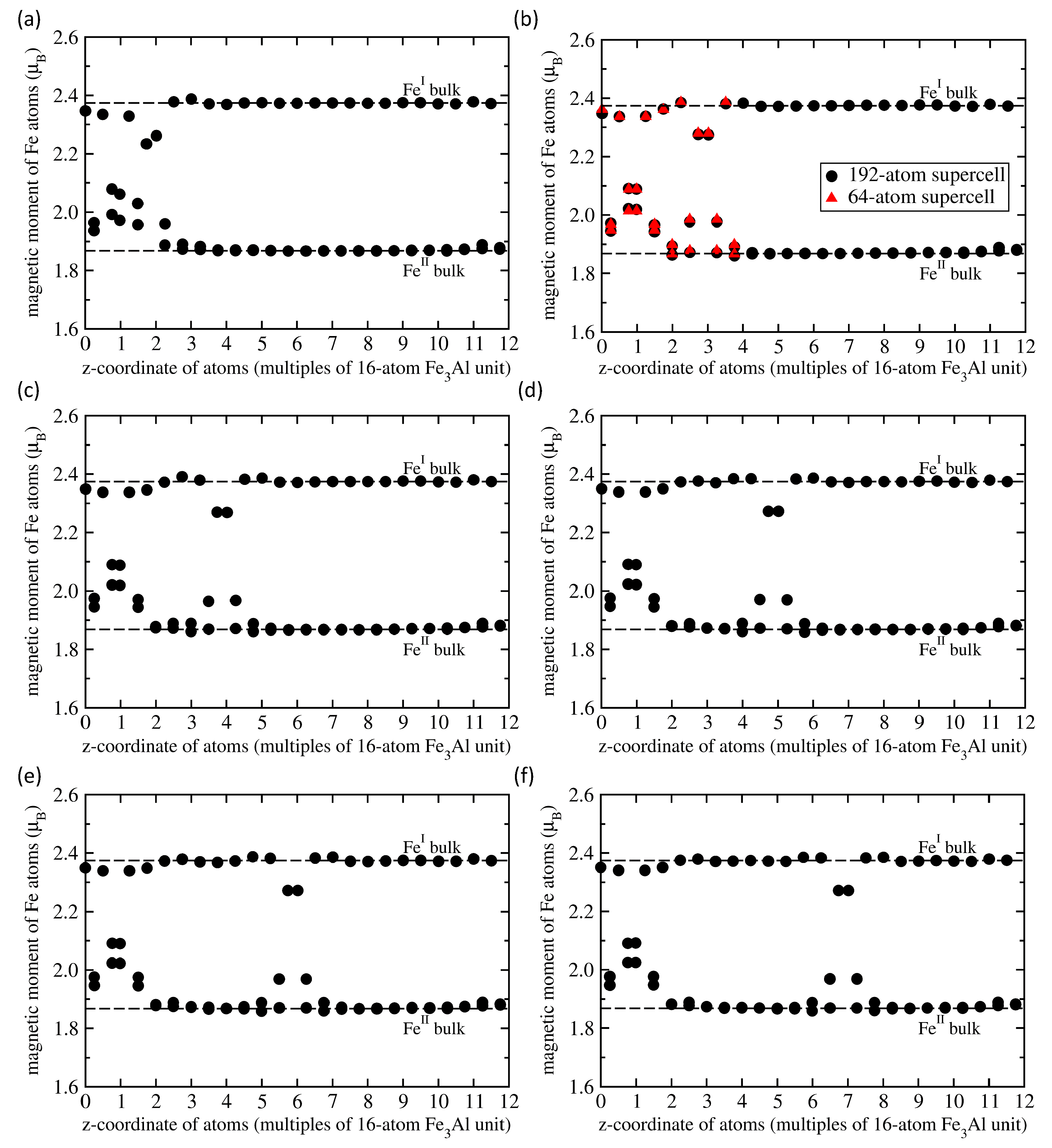

**Figure 5.**Calculated local magnetic moments of Fe atoms in 192-atom 1 × 1 × 12 supercells of Fe${}_{3}$Al with the APB interfaces (shown in Figure 3) separated by one 16-atom Fe${}_{3}$Al unit (

**a**), two units (

**b**), three (

**c**), four (

**d**), five (

**e**) and six 16-atom Fe${}_{3}$Al units (

**f**). For the separation of 2 units in part (b), the computed values (black circles) are compared with those (red triangles) shown in Figure 2a obtained for the 64-atom supercell presented in Figure 1d that has the same distance between the APBs interfaces.

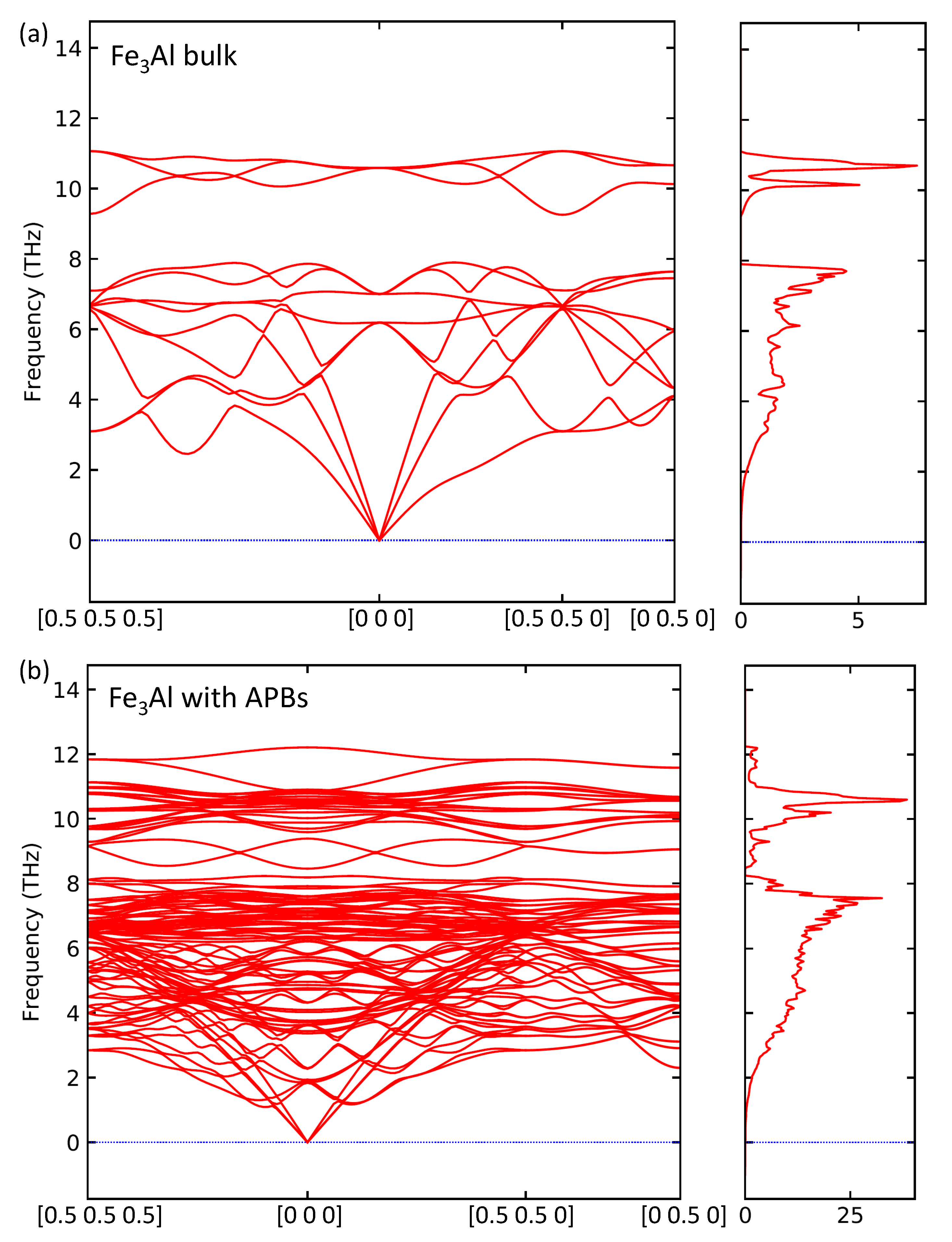

**Figure 6.**Calculated phonon frequencies and the corresponding densities of vibrational states for the defect-free Fe${}_{3}$Al (

**a**) and Fe${}_{3}$Al with the studied two types of APB interfaces (

**b**).

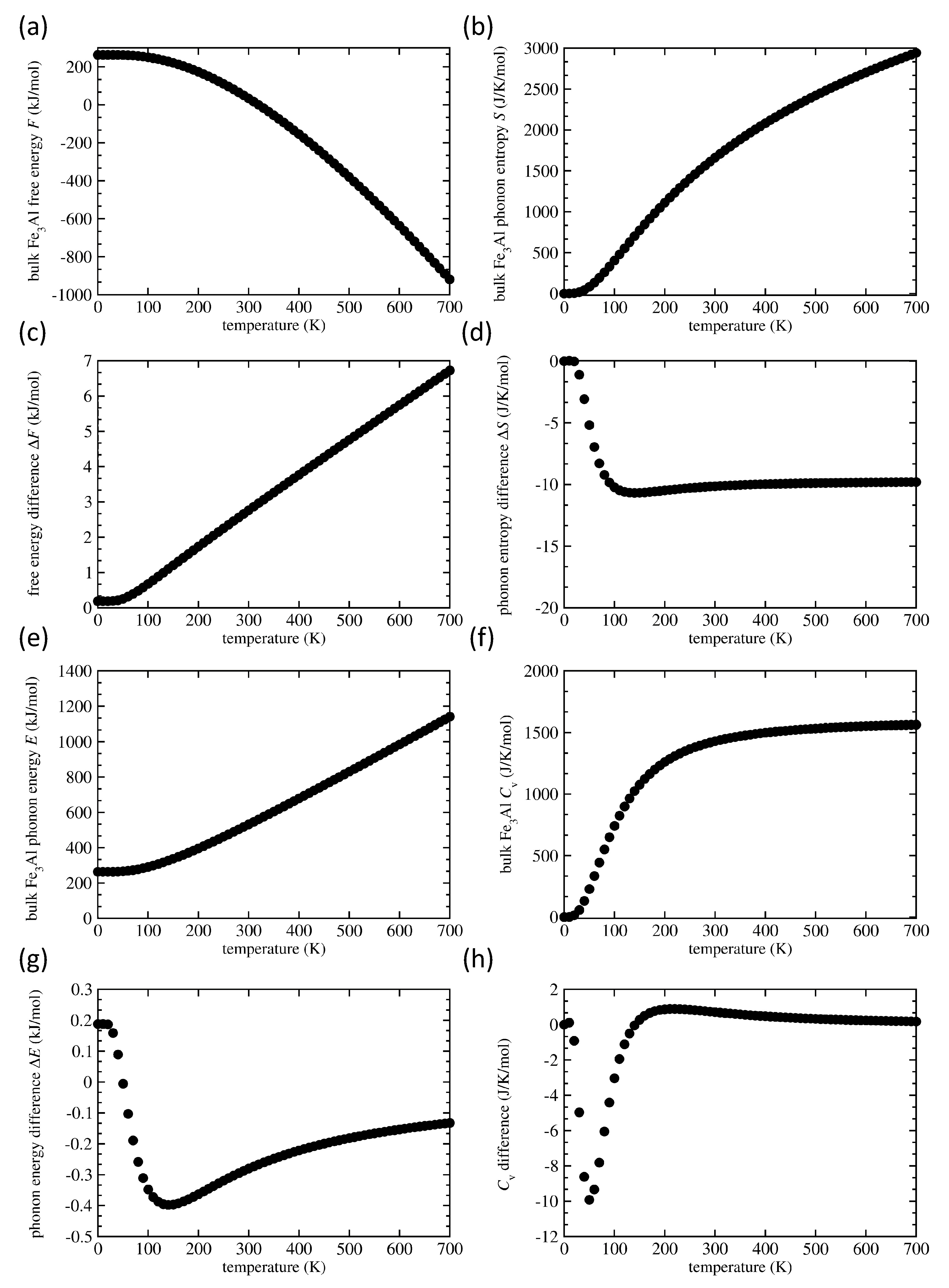

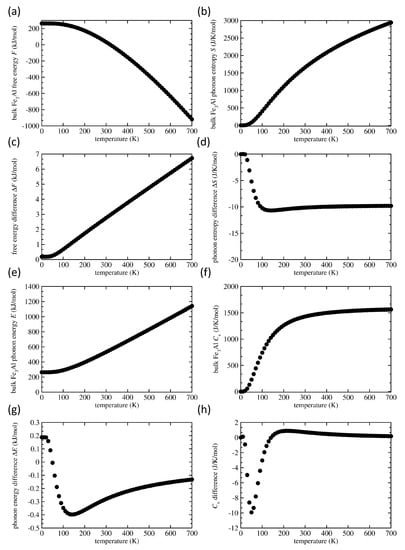

**Figure 7.**The Helmholtz free energy F (

**a**) and vibrational entropy S (

**b**) of the defect-free bulk Fe${}_{3}$Al together with changes induced in them by the studied APBs in (

**c**,

**d**), respectively. Also shown are the harmonic phonon energy E (

**e**) and constant-volume heat capacity ${C}_{\mathrm{v}}$ (

**f**) of the perfect bulk Fe${}_{3}$Al accompanied by the APB-induced changes in parts (

**g**,

**h**), respectively. The elementary entity for defining one mol is the 64-atom supercell.
